Chamberlain 1022, 1042, 1024 User Manual

ALWAYS AT YOUR COMMAND

Models 1022/1024/1042

GARAGE DOOR OPENERS

Installer:

Leave this manual with homeowner.

Homelink® is a registered trademark of Johnson Controls Technology Company.

is a registered trademark of

Car2U Lear Corporation.

PN# 3642036534, 5/18/2011 REV.2

Includes INTELLICODE Safe-T-Beam

System must be installed to close door.

Remote Control

For use only with sectional doors. Your Residential Opener comes with a Rail Assembly which is standard

for up to a 7 foot high door.

Homelink

and Car2U® compatible

For Answers and Assistance:

1.800.354.3643

or visit www.geniecompany.com

SAVE THIS MANUAL FOR FUTURE REFERENCE

SAFETY INFORMATION

OVERVIEW OF POTENTIAL HAZARDS

READ THIS SAFETY INFORMATION

Garage doors are large, heavy objects that move with the help of springs under high tension and electric motors. Since moving objects, springs under tension, and electric motors can cause injuries, your safety and the safety of others depend on the owner or user of this system to read, understand and implement the information in this manual. If you have questions or do NOT understand the information presented, contact The Genie Company or an authorized Genie

The safety alert symbol and following signal words DANGER, WARNING, and CAUTION are used throughout this manual to call attention to and identify different levels of hazard and special instructions.

This is the safety alert symbol. This symbol is placed next to signal words and messages to help you identify

important safety information

The word:

DANGER indicates an imminently hazardous situation which, if NOT avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if NOT avoided, could result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if NOT avoided, may result in injury or property damage.

Dealer.

The word

NOTE is used to indicate important steps to be followed, important considerations, or location of parts.

POTENTIAL

HAZARD

MOVING DOOR

ELECTRICAL

SHOCK

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS

EFFECT PREVENTION

WARNING:

Could result in Death

or Serious Injury

WARNING:

Could result in Death

or Serious Injury

Keep people clear of opening while door is moving.

Do NOT allow children to play with the door operator. Do NOT operate a door that jams or one that has a broken spring.

Turn OFF power before removing operator cover. When replacing cover, make sure wires are not pinched or near

moving parts. Operator must be properly grounded.

HIGH

SPRING

TENSION

WARNING:

Could result in Death

or Serious Injury

PN# 3642036534, 02/26/2010 REV. 1

Do NOT try to remove, install, repair or adjust springs or anything to which door spring parts are fastened, such as, wood blocks, steel brackets, cables or other like items.

Installations, repairs and adjustments must be done by a trained door system technician using proper tools and instructions.

TABLE OF CONTENTS

OPENER FEATURES

SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE

SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

OPENER FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SAFETY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PRE-INSTALLATION CHECK LIST . . . . . . . . . . . . . . . . . . . . . . . 4-5

RECOMMENDED TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PARTS IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

KEY ILLUSTRATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

SAFETY INSTALLATION INFORMATION. . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

1 OPENER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11

2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14

3 WALL BUTTON INSTALLATION . . . . . . . . . . . . . . . . . . . 15-16

4 SAFE-T-BEAM

5 CONNECTING TO POWER . . . . . . . . . . . . . . . . . . . . . . . . . 19

ADJUSTMENTS

6 LIMIT SWITCHES & FORCE ADJUSTMENT . . . . . . . . . 20-22

KEYED EMERGENCY RELEASE . . . . . . . . . . . . . . . . . . . . 21

CONTACT REVERSE TEST. . . . . . . . . . . . . . . . . . . . . . . . . 22

7 PROGRAMMING REMOTE CONTROLS. . . . . . . . . . . . . . . 23

SYSTEM INSTALLATION . . . . . . . . . . . 17-18

INTELLICODE®Rolling Code Security System.

An electronic rolling code system that enhances the security of the door opener by continuously changing the access code each time the remote control is used. The door opener responds to each new code only once. An access code copied from a working system and tried again will not control the door opener.

Lighted Wall Console*

Operates door opener from inside garage.

(Refer to section 3)

Follow the Homelink owner’s manual.

SAFETY FEATURES

Safe-T-Beam®Non-Contact Reversing System**.

Puts an invisible beam across the door opening. The door stops and reverses to the full open position if anything passes through the beam. Red or green LED indicator lights on the power head provide a self diagnostic code if an operational

8 BATTERY/VISOR CLIP INSTALLATION . . . . . . . . . . . . . . . 24

9 LIGHT BULB AND LENS INSTALLATION . . . . . . . . . . . . . . 24

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

MAINTENANCE & TROUBLESHOOTING

10 ROUTINE MONTHLY MAINTENANCE . . . . . . . . . . . . . . . . 25

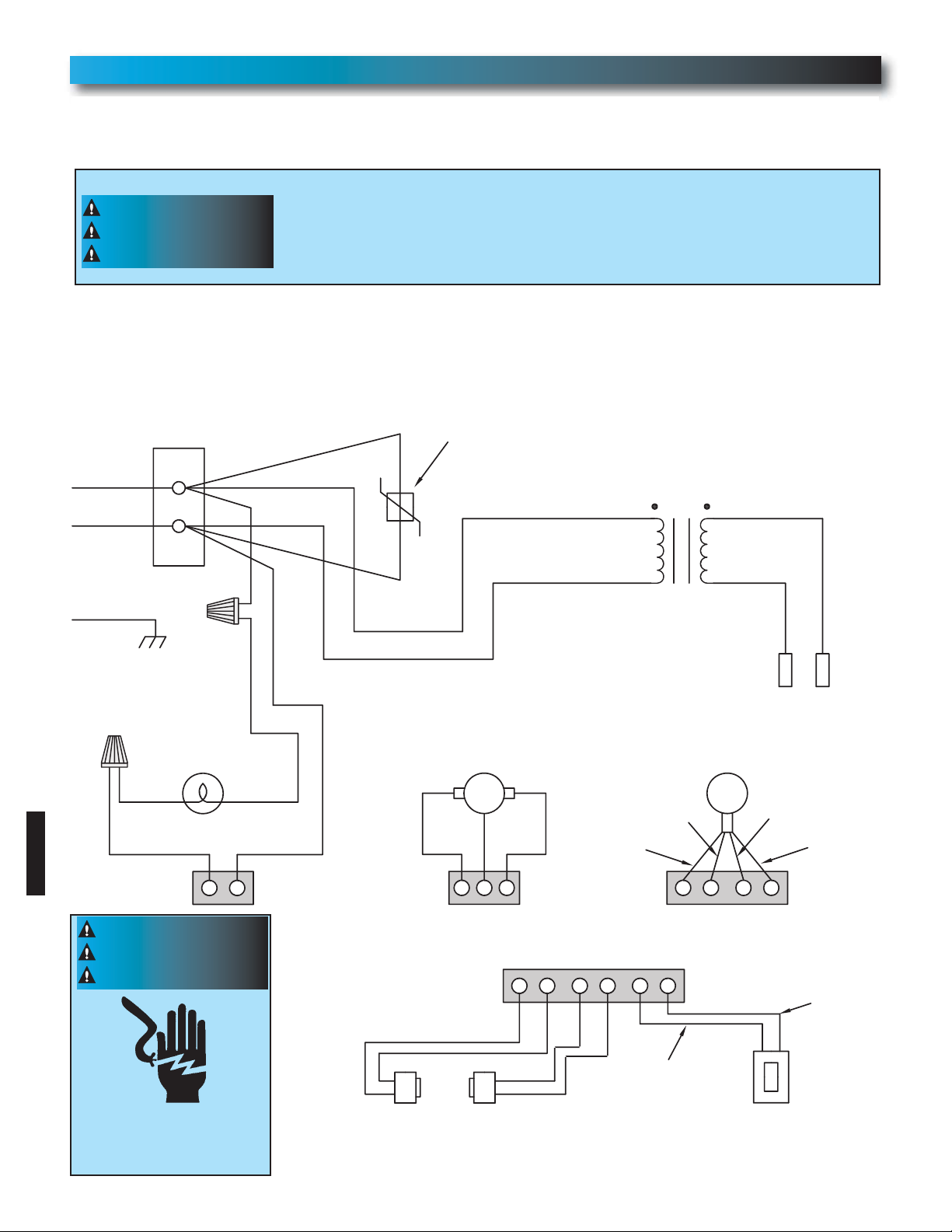

WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

TROUBLESHOOTING GUIDE - OPENER. . . . . . . . . . . . . . 27

TROUBLESHOOTING GUIDE - POWER HEAD LED . . . . . 28

TRANSMITTER COMPLIANCE STATEMENT . . . . . . . . . . . . . . . 29

WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

problem exists. (Refer to Section 10.) Safe-T-Reverse

Automatically stops and reverses a closing door within 2 seconds of contact with an object. (Refer to Section 6.)

Safe-T-Stop

Automatically opens a closing door if it fails to close completely within 30 seconds.

Watch Dog

™

Monitors the Safe-T-Beam® system to ensure proper functionality and will automatically stop and reverse a closing door if a problem is detected.

and Car2U®compatible.

or Car2U®instructions in your car

Contact Reversing System.

Timed Reversed System.

Monitoring System.

*Opener MUST be installed with the

included Wall Console.

**Safe-T-Beam®Safety Reverse System

MUST be installed to close door.

PN# 3642036534, 02/26/2010 REV. 1

Automatic Lighting System.

One bulb lighting supplies up to 75 watts of light for safer evening exits and entries. Turns ON when door is activated and automatically turns OFF 3 minutes later.

Manual Emergency Release.

Manually releases door from door opener. Use during a power failure or other emergency to allow manual opening and closing of door. (Refer to Section 6.)

PRE-INSTALLATION CHECK LIST

Remove

FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM

Things to consider if you are planning to "Do-it-yourself."

This opener is designed for use with SECTIONAL doors only.

In many cases you will be replacing an existing door opener with a new one, however, if this

will be the first opener installed there are some pre-installation issues which need to be

addressed. They are as follows:

The Genie Company recommends that you read and fully understand all information and

instructions contained herein before choosing a "Do-it-yourself" installation. Any

questions should be directed to The Genie Company or an authorized Genie

Dealer.

(

The issue numbers below refer to the circled numbers in the illustrations on page 5.

Check your ceiling where the power head of your new unit will be mounted.

Plan how you will be mounting the power head.

It is possible that ceiling joists may not be in the

position needed with respect to the garage door

opener. It may be necessary to add an

additional bracket and

with your new door opener kit).

(Refer to Section 2.)

Check the wall directly above the garage door

must be securely fastened to this wall. Insure

that the structure will provide a strong mounting

location. (

obstruction and has a wood surface available

for attaching the mounting brackets

brackets may be attached to concrete if necessary

but extra tools and special fasteners (not supplied)

will be required.

. The door opener’s header bracket

Refer to Section 2.)

Check to see if the mounting location for the Safe-T-Beam

(Refer to Section 4 and 5.)

fasteners (not included

System is clear from

. The

You need a properly grounded 110-120 Volt

power supply available

no more than 3 feet from the power head once it is mounted.

DO NOT USE AN EXTENSION CORD! DO NOT USE A PORTABLE GENERATOR! This product is designed to operate on standard house current. DO NOT USE ALTERNATE POWER SUPPLIES.

remove any door locks, ropes, and/or cables (NOT door lift cables) prior to installing your opener

(Refer to Section 5.)

WARNING

To avoid damage to your door and/or

opener, make sure you disable and/or

. (

Refer to Section 1.)

Insure that your door is properly balanced and moving freely. (

. The outlet should be

Refer to Section 2.)

)

NOTE: Mounting brackets must be installed

within code specifications.

Is your sectional garage door made of

or glass panels

must be added to these type doors. If this is the

case, please contact the door manufacturer or

authorized dealer so that they can furnish you

with a "bracing kit."

aluminum, light-weight steel, fiberglass

? Additional support bracing

(Refer to Section 2.)

WARNING

To reduce the risk of injury to persons or damage to property - Use this opener only with sectional doors.

If your door jams, binds, is improperly balanced or has a broken spring, have it repaired or adjusted by a trained door system technician. Door springs, cables, pulleys, brackets and associated hardware are under extreme tension and can cause serious injury or death.

(NOT SHOWN) If your garage does not have a separate entry door, you should consider

an emergency release kit (GER-2)for installation on your garage door. (See emergency release kit installation notes on page 21.)

PN# 3642036534, 02/26/2010 REV. 1

WARNING

TYPICAL SECTIONAL DOOR INSTALLATION

FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM

Pg. 19

TYPICAL SUPPORT

BRACKET

(NOT PROVIDED)

POWER CORD

(APPROX. 45 IN.)

TO 120V GROUNDED

OUTLET

EXTENSION SPRING

TORSION SPRING

NOTE: This opener is designed for

use with SECTIONAL doors only.

Pg. 13

Pg. 17-18

Pg. 12-13

ADDED HEADER BRACKET MOUNTING BOARD

BRACES

Pg. 14

Pg. 17-18

MAX. 6" MIN. 5"

Pg. 11

SAFE-T-BEAM

Pg. 12

SECTIONAL DOOR

To reduce the risk of injury to persons or damage to property - Use this opener only with sectional doors.

PN# 3642036534, 02/26/2010 REV. 1

WARNING

RECOMMENDED TOOLS

FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM

Drill

Step ladder

Safety Glasses

PARTS IDENTIFICATION

Safety Brochures

3/16" Drill Bit

Ratchet

Phillips screwdriver

Not Shown Full Size .

Pencil

Tape measure

ARRANGING BOX CONTENTS FOR ASSEMBLY

ORGANISATION DU CONTENU DE LA BOÎTE POUR LE MONTAGE

DISPOSCIÓN DEL CONTEN DO DE LA BOLSA PARA EL MONTA E

Folow nst uct ons n he nsta la ion Manual for a sembly teps

Proc der se on l s in tru t ons s ipu ées da s le m nuel d nst lat on pour es ét pes de

R move ens Box and motor power h ad

E l ver a bo e des e t l es t a t te moor ée

Q i e la aa de a l nte y l mo or de a c ja e con ol

Caefu y emove th rd r il wi h ha n

tt ched) a d pace on oor

E le er o gne seme t e t o s ème r i ( vec a

ch î e at a hée et e p a er ur e sol

Cudados men e qui e el t rcer el ( on a

cade a copada) y ponga en el p so

Arange hree sma l box s for e sy acc ss

Ara ger es r is ei es b îes de m ni re à ou

vor y a cé er ac ement

D ponga a t es c j s pe ueñ s pa a t ne ac eso

R move ai sec i ns not conne ted

nev r l s s c io s de a l non onn c ées

Q i e as s c io es de i l no one t das a

Arange ra s in ine and pu l p ast c s eeve o cha n

rang r es a ls n l gne t t er ur e man hon en p a t que

our e d gag r de a ch îne

Dspo ga os r e e en l n a y es re a c m s de p ás co f era

de a cdena

montage à suv e

Remove i te nal box s

nl ve l s bot s i t rn s

Qu e l s c ja i te nas

Box Contents Sheet

Carpenter’s level

Adjustable wrench

1/4", 7/16", 3/8" and

Wire strippers

Hammer

1/2" Sockets

at east 5 eet above loo )

door.

Child can be pinned under automatic garage Death or serious injury can result.

Never let ch ld walk or run under moving door.

fá il

o chan

à la ha ne

a c dena



Never let ch ld use door opener controls.



Always keep moving door in sight.



If person is pinned, push control button or use



emergency release.

Test door opener monthly:



Re e to you owne s manual ace - nch obect (o 2x4 aid a ) on oo

I doo a ls to eve se on con act ad ust opene

I opene sill a ls to eve se doo epai o ep ace opene

Do not emove o paint ove h s label

Mount wal cont ol out o ch lds each

ace next o wall cont ol

Entrapment Warning

Label

Safe-T-Beam

with wire

(Red LED)

Source

Safe-T-Beam

with wire

(Green LED)

Safe-T-Beam

Source/Sensor Bracket

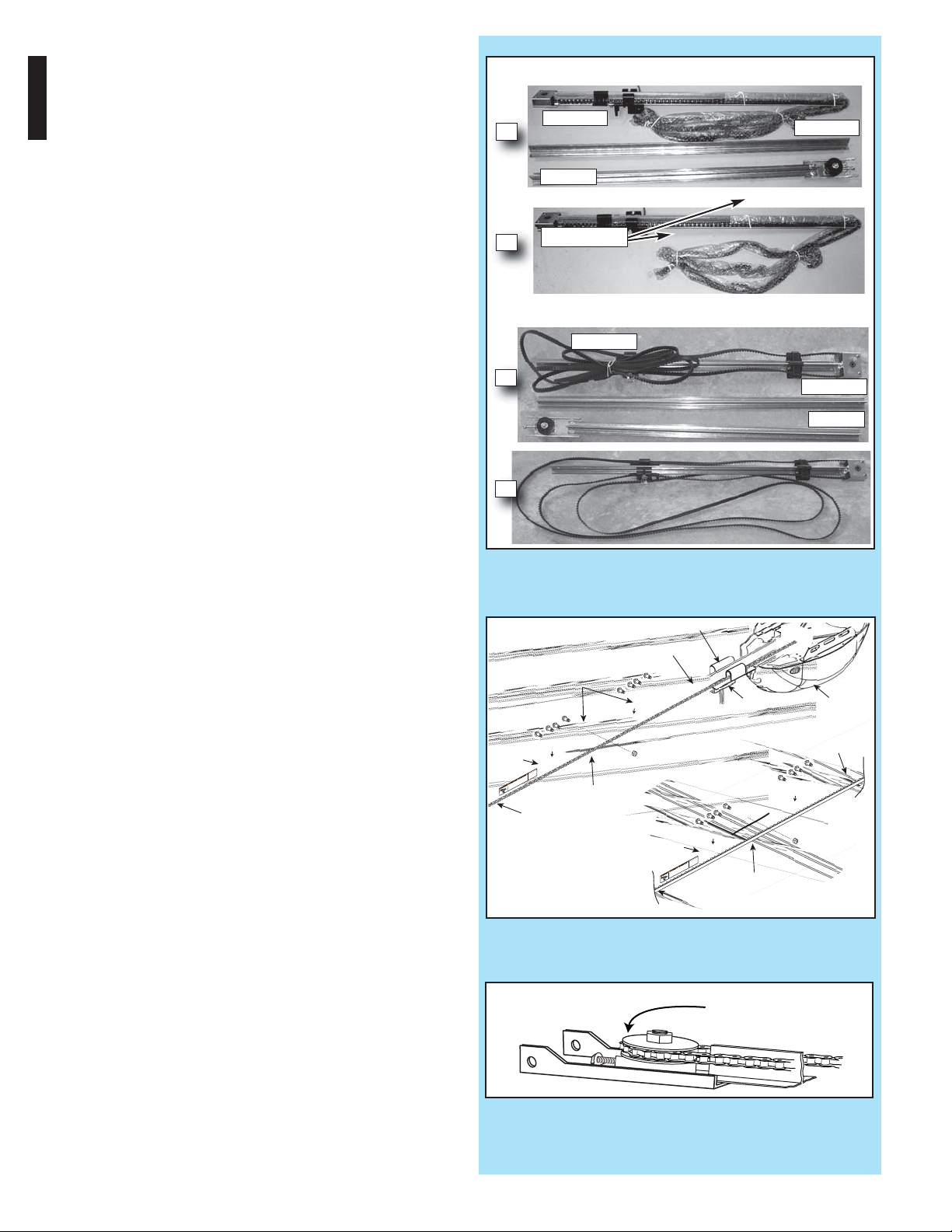

Pro Rail (Chain) Section

Pro Rail (Belt) Section

Sensor

Door Arm

Wire

Wall Console

Header Bracket

Insulated Staple

Door

Bracket

Three-button

Remote Control

Rail Section Clamp

End Rail Section

Center Rail Section

Head Rail (Chain) Section

Head Rail (Belt) Section

PN# 3642036534, 02/26/2010 REV. 1

FASTENERS

BAG NO. DESCRIPTION QUANTITY

0 RAIL SECTION CLAMP 2

RAIL CLAMP BOLT – 5/16''-18 x 5/8'' 8

HEX FLANGE NUT – 5/16''-18 8 1 BOLT – 5/16''-18 x 1/2'' 3 2 CLEVIS PIN, LONG – 5/16" x 3" 1

COTTER PIN 1

HEADER BRACKET 1

LAG SCREW – 5/16'' x 2'' 2 3 HEX BOLT – 5/16''-18 x 3/4'' 5

HEX FLANGE NUT – 5/16''-18 5

LAG SCREW – 5/16'' x 2'' 2 4 SELF DRILLING SCREW – 1/4''-20 x 3/4'' 3

DOOR BRACKET 1 5 HEX BOLT – 5/16''-18 x 3/4'' 3

SELF LOCKING NUT – 5/16''-18 1

HEX FLANGE NUT – 5/16''-18 2

CLEVIS PIN – 5/16" x 3/4" 1

COTTER PIN 1 6 WALL CONSOLE ASSEMBLY 1

PAN HEAD PHILLIPS SCREW – #4-24 x 1'' 2 7 13 MM INSULATED STAPLE 30 8 Safe-T-Beam®SOURCE/SENSOR BRACKET 2

PHILLIPS HEX SCREW – #10-16 x 1- 1/4'' 4

WIRE NUT (GREY) 4

NO NUMBER

NO BAG Safe-T-Beam®SOURCE/SENSOR & WIRE SET 1

NO NUMBER

REMOTE WITH BATTERY 1

LIGHT COVER - WHITE 1

LIGHT COVER - COLOR 1

Shown Full size (

See Parts List below for full description.)

Rail Clamp Bolt - 5/16"-18 x 5/8"

#10-16 x 1-1/4" Phillips Hex Screw

#4-24 x 1" Pan Head

Phillips Screw

Lag screw - 5/16" x 2"

Wire Nut

Self Locking Nut

5/16"-18

Hex Flange Nut

5/16"-18

Hex Flange Nut

1/4"-20

Self-drilling Screw

1/4"-20 x 3/4"

Hex Bolt - 5/16"-18 x 3/4"

MISSING ANY PARTS?

Please call toll free - 1.800.354.3643 DO NOT RETURN TO POINT OF PURCHASE. IMPORTANT! - Information needed when calling

 Model number - (located on packaging)  Store, city, state, and date of purchase

PN# 3642036534, 02/26/2010 REV. 1

Clevis pin, long 5/16" x 3"

Clevis pin

5/16" x 3/4"

Hex Bolt - 5/16"-18 x 1/2"

Cotter pin

Shoulder Bolt

5/16"-18 x 1"

1-PIECE RAIL HARDWARE ASSEMBLED VIEW

Rail with belt

Belt

Trolley Slide

Belt Clamp

Rail with belt

Center Rail

End Rail

Belt

e d

os ee

rcg Co

tat

r s

o o

maufa

trr

for

HIGH S

ING

TEN

aue

rous

nu y or Dea h

or dju

mu be m d

by a rai e

o sg

o a

Rail with chain

FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM

Power Cord

Carriage Assembly

CHAIN

g Con

Sme doo s e d

fr ra n b

d t buo o

tts

mnucue

Deah

TENSION

y o r

ut e

n sc s

se Serio s I ju

n e

HGH SPR NG

o m t

aju

Can C

r o

psn n

Tensioner

Header Bracket

Clevis Pin, Long & Cotter Pin

3-PIECE RAIL HARDWARE ASSEMBLED VIEW

Chain

Release Knob

BELT

Carriage Assembly

Rail with chain

Chain Connector

Power Head

Power Cord

Header Bracket

Tensioner

CHAIN

Clevis Pin, Long & Cotter Pin

Rail Clamp Bolts

End Rail

TEN

y r Death r

us nju

PRNG

H S

e o

tmen mu t e m de y a t

Cuse Se

Can

air o

Chain

e dor n ed

Som

cng Co

r i r

manfac

ed a tns

tact

btr r ur or

Rail Clamps

Rail Clamp Nuts

Center Rail

PN# 3642036534, 02/26/2010 REV. 1

Release Knob

Chain Connector

Power Head

BELT

Rail Connectors

Rail Connector Bolts

Rail Connector Nuts

IMPORTANT INSTALLATION INSTRUCTIONS

W ARNING:

READ AND FOLLOW ALL SAFETY, INSTALL ATION AND OPERATION INSTRUCTIONS.

questions or do not understand an instruction, call The Genie Company or an authorized Genie

To reduce the risk of severe injury or death:

(If you have

Dealer.)

2. Install only on a properly balanced sectional garage door. An improperly balanced door could cause severe injury. Have a trained door system technician make repairs or adjustments to cables, spring assemblies, and other hardware before installing the opener.

3. Remove all ropes and remove or make inoperative all locks connected to the garage door before installing opener.

4. Where possible, install the door opener 7 feet or more above the floor. For products having an emergency release, mount the emergency release within reach, but at least 6 feet above the floor and avoiding contact with vehicles to avoid accidental release.

PENER ASSEMBLY

RAIL ASSEMBLY: Use a clean, flat surface.

NOTE: For 1-piece rail—skip to POWER HEAD & RAIL ASSEMBLY.

5. Do NOT connect the opener to source of power until instructed to do so.

6. Locate the control button:

 Within sight of door,  At minimum height of 5 feet so small children are not

able to reach it, and

 Away from all moving parts of the door.

7. Install the Entrapment WARNING Label next to the Wall Control button in a prominent location. Install the Emergency Release Tag on or next to the emergency release.

8. After installing the opener, the door must reverse within 2 seconds when it contacts a 1-1/2 inch high object (or a 2 x 4 board laid flat) on the floor.

FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM

WARNING

To reduce the risk of injury to persons or damage to property - Use this opener only with sectional doors.

CAUTION

Do NOT run until opener is fully assembled and

instructed to do so.

NOTE: Three (3) piece railassemblies are for a 7 foot high door.

Clear a workspace area to unpack and organize box and contents for assembly.

1. There are 4 boxes inside the carton. Each box is numbered 1 - 4. Note that some openers will

contain the same parts and be packaged with fewer boxes. Carefully remove the three

internal boxes (Labeled #1, 2, and 3) and place them on the floor for easy access (Fig. 1-1).

These boxes contain assembly parts and the contents are organized by assembly tasks. For quick reference inside the lid of each box there is a label illustrating the components inside.

2. Remove the motor power head and place it on the floor for later use. Remove box #4 and place it on the floor for later use.

Bag 0

Rail

Bolts

Power head

Box Label Example

Bag 2

Header Bracket

Bag 3Bag 1

Bolts

5/16" Nuts

& Bolts

Header Bracket

Lag Srews

FIG. 1-1 Internal boxes.

PN# 3642036534, 02/26/2010 REV. 1

+ 21 hidden pages
