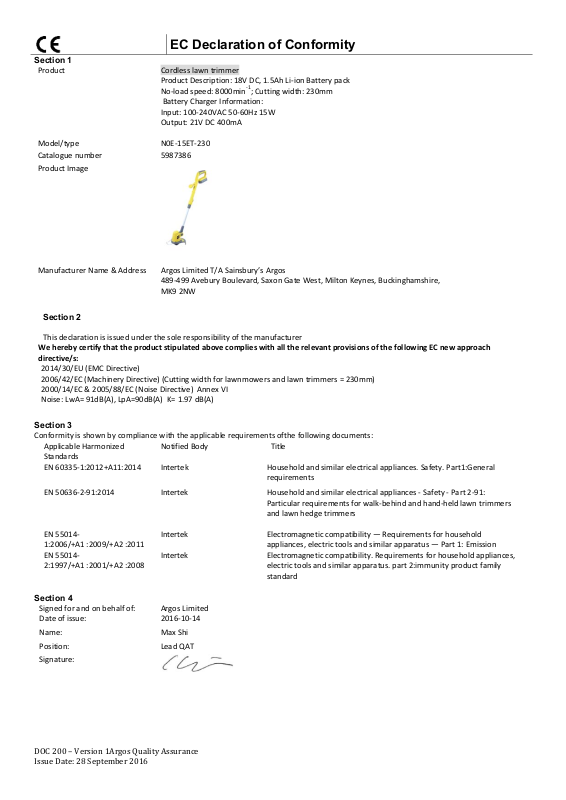

Challenge N0E-15ET-230 Instruction manual

Section 1

Product Cordless lawn trimmer

Model/type N0E-15ET-230

Catalogue number 5987386

Product Image

EC Declaration of Conformity

Product Description: 18V DC, 1.5Ah Li-ion Battery pack
No-load speed: 8000min-1; Cutting width: 230mm
Battery Charger Information:
Input: 100-240VAC 50-60Hz 15W
Output: 21V DC 400mA

Manufacturer Name & Address Argos Limited T/A Sainsbury’s Argos

489-499 Avebury Boulevard, Saxon Gate West, Milton Keynes, Buckinghamshire,
MK9 2NW

Section 2

This declaration is issued under the sole responsibility of the manufacturer

We hereby certify that the product stipulated above complies with all the relevant provisions of the following EC new approach
directive/s:

2014/30/EU (EMC Directive)
2006/42/EC (Machinery Directive) (Cutting width for lawnmowers and lawn trimmers = 230mm)
2000/14/EC & 2005/88/EC (Noise Directive) Annex VI
Noise: LwA= 91dB(A), LpA=90dB(A) K= 1.97 dB(A)

Section 3

Conformity is shown by compliance with the applicable requirements ofthe following documents:

Applicable Harmonized
Standards
EN 60335-1:2012+A11:2014 Intertek Household and similar electrical appliances. Safety. Part1:General

EN 50636-2-91:2014 Intertek Household and similar electrical appliances - Safety - Part 2-91:

EN 55014­1:2006/+A1 :2009/+A2 :2011
EN 55014­2:1997/+A1 :2001/+A2 :2008

Section 4

Signed for and on behalf of: Argos Limited
Date of issue: 2016-10-14

Name: Max Shi

Position: Lead QAT

Signature:

Notified Body

Intertek

Intertek

Title

requirements

Particular requirements for walk-behind and hand-held lawn trimmers
and lawn hedge trimmers

Electromagnetic compatibility — Requirements for household
appliances, electric tools and similar apparatus — Part 1: Emission
Electromagnetic compatibility. Requirements for household appliances,
electric tools and similar apparatus. part 2:immunity product family
standard

DOC 200 – Version 1Argos Quality Assurance
Issue Date: 28 September 2016
