CHALET 26PR, 29RR, 33TR, 30BR, 35NR User Manual

...

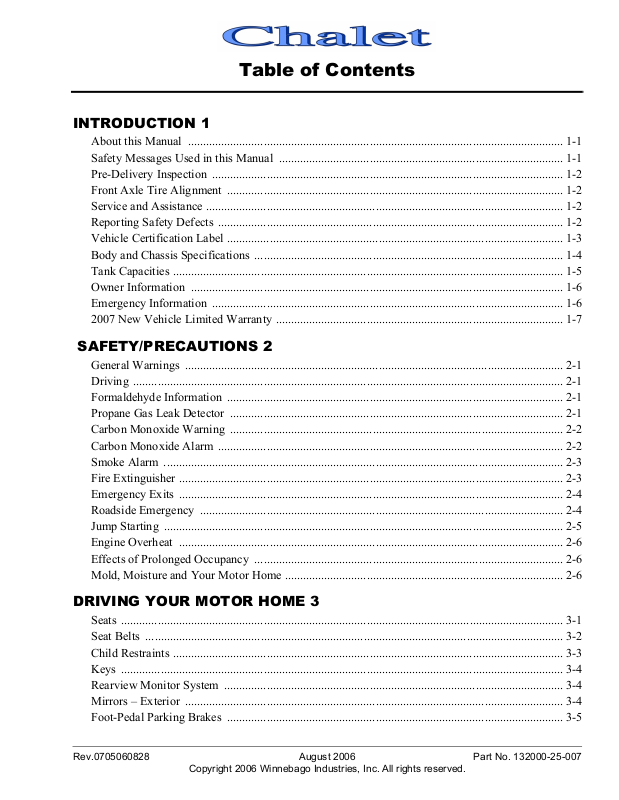

Table of Contents

INTRODUCTION 1

About this Manual ............................................................................................................................ 1-1
Safety Messages Used in this Manual .............................................................................................. 1-1
Pre-Delivery Inspection .................................................................................................................... 1-2
Front Axle Tire Alignment ............................................................................................................... 1-2
Reporting Safety Defects .................................................................................................................. 1-2
Vehicle Certification Label ............................................................................................................... 1-3
Body and Chassis Specifications ...................................................................................................... 1-4
Tank Capacities ................................................................................................................................. 1-5
Emergency Information .................................................................................................................... 1-6

SAFETY/PRECAUTIONS 2

General Warnings ............................................................................................................................. 2-1
Driving .............................................................................................................................................. 2-1
Formaldehyde Information ............................................................................................................... 2-1
Propane Gas Leak Detector .............................................................................................................. 2-1
Carbon Monoxide Warning .............................................................................................................. 2-2
Carbon Monoxide Alarm .................................................................................................................. 2-2
Smoke Alarm .................................................................................................................................... 2-3
Fire Extinguisher ............................................................................................................................... 2-3
Emergency Exits ............................................................................................................................... 2-4
Roadside Emergency ........................................................................................................................ 2-4
Jump Starting .................................................................................................................................... 2-5
Engine Overheat ............................................................................................................................... 2-6
Mold, Moisture and Your Motor Home ............................................................................................ 2-6
5 - DASH / AUTO

DRIVING YOUR MOTOR HOME 3

Seats .................................................................................................................................................. 3-1
Seat Belts .......................................................................................................................................... 3-2
Child Restraints ................................................................................................................................. 3-3
Keys .................................................................................................................................................. 3-4
Rearview Monitor System ................................................................................................................ 3-4
Mirrors – Exterior ............................................................................................................................. 3-4
Foot-Pedal Parking Brakes ............................................................................................................... 3-5
Rev.0705060828 August 2006 Part No. 132000-25-007
Copyright 2006 Winnebago Industries, Inc. All rights reserved.
Table of Contents
Grade Brake ...................................................................................................................................... 3-5
Over-drive Switch ............................................................................................................................. 3-6
Dome Light Switch ........................................................................................................................... 3-6
Hazard Warning Flasher ................................................................................................................... 3-6
Battery Boost Switch ........................................................................................................................ 3-6
Air Conditioner/ Heater – Automotive ............................................................................................. 3-7
In-Dash Radio ................................................................................................................................... 3-7
CB Radio Wiring .............................................................................................................................. 3-8
Engine Access ................................................................................................................................... 3-9
Engine Cooling System .................................................................................................................... 3-9
Tires ................................................................................................................................................ 3-10
Suspension Alignment and Tire Balance ........................................................................................ 3-10
Air Springs – Front ......................................................................................................................... 3-10
Lights .............................................................................................................................................. 3-10
Fuses and Circuit Breakers – Automotive 12V .............................................................................. 3-10
Loading the vehicle ......................................................................................................................... 3-11
Roof Loading .................................................................................................................................. 3-12
Weighing Your Loaded Vehicle ..................................................................................................... 3-12
Car or Trailer Towing ..................................................................................................................... 3-13
Trailer Wiring Connector ................................................................................................................ 3-14
Towing Guidelines .......................................................................................................................... 3-15
Mountain Driving ........................................................................................................................... 3-15
Tools & Ladder Storage .................................................................................................................. 3-16
Roof Ladder Extension ................................................................................................................... 3-16
Storage Compartment Doors .......................................................................................................... 3-17
Class A

APPLIANCES & SYSTEMS 4

Refrigerator ....................................................................................................................................... 4-1
Refrigerator Service Access Compartment ....................................................................................... 4-2
Range and Oven ................................................................................................................................ 4-2
Microwave Oven ............................................................................................................................... 4-3
Range Hood ...................................................................................................................................... 4-3
Systems Monitor Panel ..................................................................................................................... 4-3
Energy Management System (EMS) ................................................................................................ 4-4
Propane Gas Furnace ........................................................................................................................ 4-5
Thermostat Operation ....................................................................................................................... 4-7
Heat Pump ......................................................................................................................................... 4-7
Rear Air Conditioner Power Selector Switch ................................................................................... 4-8
Gas/ Electric Water Heater ............................................................................................................... 4-9
Pressure-Temperature Relief Valve ................................................................................................ 4-10
Class A
Water Heater By-Pass Valve .......................................................................................................... 4-11
Windows ......................................................................................................................................... 4-12
Table of Contents

PROPANE GAS SYSTEM 5

Safe Use of the Propane Gas System ................................................................................................ 5-2
Propane Gas Warnings and Precautions ...........................................................................................5-3
Pressure Regulator ............................................................................................................................ 5-4
Cold Weather Propane Vaporization ................................................................................................ 5-5

ELECTRICAL 6

Electrical Cautions ............................................................................................................................ 6-1
Electrical System – 110V AC ........................................................................................................... 6-1
Power Center ..................................................................................................................................... 6-2
Circuit Breakers – 110V AC ............................................................................................................. 6-3
Receptacles (Outlets) – 110V ........................................................................................................... 6-4
Ground Fault Circuit Interrupter ....................................................................................................... 6-4
Electrical System – 12V DC ............................................................................................................ 6-6
Auxiliary Battery (AUX BATT) Switch .......................................................................................... 6-6
Battery Access .................................................................................................................................. 6-6
Battery Care ...................................................................................................................................... 6-7
Fuses and Circuit Breakers – House 12V DC ................................................................................... 6-8

PLUMBING 7

Water Pump ...................................................................................................................................... 7-2
Disinfecting Fresh Water Systems on RVs ....................................................................................... 7-3
Shower Hose Vacuum Breaker ......................................................................................................... 7-4
Exterior Shower/Wash Station .......................................................................................................... 7-4
Toilet ................................................................................................................................................. 7-4
Waste Water System ......................................................................................................................... 7-5
Winterizing Procedure ...................................................................................................................... 7-9

ENTERTAINMENT 8

Video Selection System .................................................................................................................... 8-1
DVD/ VCR Combination Player ...................................................................................................... 8-2
Home Theater System ....................................................................................................................... 8-2
Electrical Inverter ............................................................................................................................. 8-2
Table of Contents
TV Antenna ....................................................................................................................................... 8-2
TV Signal Amplifier ......................................................................................................................... 8-3
TV Master Power Switch – 12-Volt (Rear Bedroom TV) ................................................................ 8-4
Cable TV Hook Up ........................................................................................................................... 8-4
Digital Satellite Television System ................................................................................................... 8-4
Two-Way Radios .............................................................................................................................. 8-5
Class A

FURNITURE & SOFTGOODS 9

Swivel Glider Lounge Chair ............................................................................................................. 9-1
Sleeping Facilities ............................................................................................................................. 9-1
Couch/Bed Conversion ..................................................................................................................... 9-2
Dinette/Bed Conversion .................................................................................................................... 9-2
Day/ Nighter Pleated Blinds ............................................................................................................. 9-3
Quartz Wall Clock ............................................................................................................................ 9-3
Wood Furniture and Cabinetry ......................................................................................................... 9-4

SLIDEOUT / LEVELING 10

General Slideout / Leveling Warnings ............................................................................................ 10-1
Slideout Room Operation ............................................................................................................... 10-1
Slideout Room – Extreme Weather Precaution .............................................................................. 10-3
Slideout Troubleshooting ................................................................................................................ 10-4
Bedroom Slideout ........................................................................................................................... 10-5
General Slideout Care ..................................................................................................................... 10-6
Leveling System ............................................................................................................................. 10-6

MAINTENANCE/STORAGE 11

Sealants ........................................................................................................................................... 11-1
Roof ................................................................................................................................................ 11-1
Underbody ...................................................................................................................................... 11-1
Exterior Finish ................................................................................................................................ 11-2
Care of Stripes and Decals .............................................................................................................. 11-2
Plastic Parts - Cleaning ................................................................................................................... 11-3
Headlights and Exterior Lights ....................................................................................................... 11-3
Interior Soft Goods ......................................................................................................................... 11-4
Care Of Ceiling Fabric .................................................................................................................... 11-4
Cabinetry ......................................................................................................................................... 11-6
Vinyl Wallboard ............................................................................................................................. 11-6
Tables and Countertops .................................................................................................................. 11-6
Galley Sink ..................................................................................................................................... 11-6
Range and Refrigerator ................................................................................................................... 11-6
Bathroom ........................................................................................................................................ 11-7
Doors and Windows ........................................................................................................................ 11-7
Day/ Nighter Pleated Blinds – Adjustment and Care ..................................................................... 11-7
Class A
Preparing Vehicle For Storage ........................................................................................................ 11-7
Removal From Storage ................................................................................................................... 11-8
Coach Maintenance Chart ............................................................................................................. 11-10
Table of Contents
SECTION 1 INTRODUCTION
Congratulations! We welcome you to the exciting world of motor home travel and camping. You will find it convenient and enjoyable to have all the comforts of home and still enjoy the great outdoors wherever you choose to go. Your motor home has been carefully designed, engineered and manufactured to provide years of enjoyment.
Before sliding into the driver’s seat, please become familiar with operations and features. In addition, spend some time with the dealer when you take delivery to learn all you can about your new motor home.

ABOUT THIS MANUAL

This operator manual was prepared to aid you in the proper care and operation of the vehicle and equipment.
Please read this manual completely to understand how everything in your coach works before taking it on its “maiden voyage.”
NOTE: This manual describes many features of
your motor home and includes instructions for its safe use. This manual, including photographs and illustrations, is of a general nature only.
Some equipment and features described or shown in this manual may be optional or unavailable on your model.
Because of Winnebago Industries’ continuous program of product improvement, it is possible that recent product changes and information may not be included. The instructions included in this manual are intended as a guide, and in no way extend the responsibilities of Winnebago Industries beyond the standard written warranty as presented in this manual. The descriptions, illustrations, and specifications in this manual were correct at the time of printing. We reserve the right to change specifications or
design without notice, and without incurring obligation to install the same on products previously manufactured.
The materials in your InfoCase contain warranty information and operating and maintenance instructions for the various appliances and components in your motor home.
NOTE: Many of the instruction sheets and
manuals for the various appliances and components have been incorporated into the Operator Manual Supplement for your convenience. Please read the FAQ in section 1 of the Operator Manual Supplement for more details.
Throughout this manual, frequent reference is made to the vehicle chassis manual that is provided by the manufacturer of the chassis on which this motor home is built.
Consult the chassis manual for operating, safety and maintenance instructions pertaining to the chassis section of the motor home.

SAFETY MESSAGES USED IN THIS MANUAL

Throughout this manual, certain items are labeled Danger, Warning, Caution or Note. These terms alert you to precautions that may involve damage to your vehicle or a risk to your personal safety. Read and follow them carefully.
DANGER
DANGER indicates a directly hazardous situation which, if not avoided, will result in death or serious personal injury.
5 - DASH / AUTO
1-1
SECTION 1 INTRODUCTION
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious personal injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, could result in damage mainly to equipment or property, but in some cases may also result in minor or moderate personal injury.
Class A

SERVICE AND ASSISTANCE

Your dealer will be glad to provide any additional information you need, as well as answer any questions you might have about operating the equipment in your motor home. When it comes to service, remember that your dealer knows your vehicle best and is interested in your satisfaction. Your dealer will provide quality maintenance and any other assistance that you may require during your ownership of this vehicle.
If you need warranty repairs while traveling you may take your motor home to any authorized Winnebago or Itasca dealership and request their assistance.
See the Motor Home Service Dealer directory in your InfoCase.
NOTE: A ‘Note’ is not necessarily safety related
but indicates a recommendation or special point of information that could assist in understanding the use or care of a feature item.

PRE-DELIVERY INSPECTION

This motor home has been thoroughly inspected before shipment. Your dealer is responsible for performing a complete pre­delivery inspection of the chassis and all motor home components.
As a part of the pre-delivery inspection procedure, the dealer is responsible for road testing the motor home; noting and correcting any problems before delivery.

FRONT AXLE TIRE ALIGNMENT

We recommend that you have the front suspension and steering alignment checked and adjusted after you have fully loaded the vehicle according to your needs. Thereafter, have alignment inspected periodically to maintain vehicle steering performance and prevent uneven tire wear.

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Winnebago Industries, Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Winnebago Industries.
To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153)
or go to their website at http://www.safercar.gov or write to: Administrator, NHTSA 400 Seventh St SW Washington, D.C. 20590
You can also obtain other information about motor vehicle safety from the NHTSA website at
http://www.safercar.gov
1-2
SECTION 1
Class A
INTRODUCTION

VEHICLE CERTIFICATION LABEL

This label contains vehicle identification and other important reference information.The label is affixed
to the armrest panel or wall to the left of the driver seat.
Explanation of Data
1. Chassis manufacturer.
2. Chassis manufacture date.
3. Month and year of manufacture at Winnebago Industries.
4. Gross Vehicle Weight Rating: Total permissible weight of the vehicle, including driver, passengers, total cargo carried (including all liquids) and equipped with all options.
5. Gross Axle Weight Rating: Total permissible weight allowed for the front and rear axles (listed in pounds and kilograms).
6. Suitable Tire Choice: Tires recommended to meet handling and safety requirements. When replacing any of the tires on your vehicle, always replace with a tire that meets these specifications.
7. Suitable Rim Choice: Wheel rims recommended to meet handling and safety requirements. When replacing any of the rims on your vehicle, always replace with a rim that meets these specifications.
8. Cold Inflation Pressure: Inflation pressures at Gross Axle Weight Ratings recommended (while Cold) for the tires originally equipped
on your vehicle. These pressure levels must be maintained to assure proper handling, safety and fuel economy.
9. Rear Axle Wheel Configuration: Single or Dual as it relates to the inflation.
10. Serial Number: This is the serial number assigned to the completed vehicle by Winnebago Industries.
11. Vehicle Identification Number (VIN): This number identifies the chassis on which the motor home is built. The 10th digit of the VIN designates the chassis model year. (5=2005, 6=2006, etc.). This information is useful when ordering chassis repair parts.
12. Type: States the NHTSA designated usage classification for your motor home. MPV signifies a Multi-purpose Passenger Vehicle.
13. Model: Lists the Winnebago product model number of your vehicle.
14. Color: Signifies the color code number of the decor used throughout the vehicle. This number is necessary for ordering replacement cushions, curtains, carpet, etc.
1-3
SECTION 1 INTRODUCTION
Class A

BODY AND CHASSIS SPECIFICATIONS

Model 26PR 29RR 30BR 33TR 34AR 35NR
Length (Bumper to Bumper) 27’ 1” 29’ 9” 30’ 11” 33’ 10” 34’ 6” 35’ 0”
Exterior Height (w/AC) Ford — 12’ 1” 12’ 3” 12’ 1” 12’ 3” 12’ 3”
Workhorse 12’ 3” 12’ 2” 12’ 1” 12’ 0” 12’ 3” 12’ 3”
Exterior Width 8’ 5 1/2” 8’ 5 1/2” 8’ 5 1/2” 8’ 5 1/2” 8’ 5 1/2” 8’ 5 1/2”
Exterior Storage (cu. ft.) 64.1 81.2 105.8 121.1 98.9 120.2
Interior Height 6’ 8” 6’ 8” 6’ 8” 6’ 8” 6’ 8” 6’ 8”
Interior Width 8’ 1/2” 8’ 1/2” 8’ 1/2” 8’ 1/2” 8’ 1/2” 8’ 1/2”
Ford Chassis
GVWR (lbs.) — 18,000 18,000 20,500 20,500 20,500
GAWR - Front (lbs.) — 7,000 7,000 7,000 7,000 7,000
GAWR - Rear (lbs.) — 11,000 11,000 13,500 13,500 13,500
GCWR (lbs.) — 26,000 26,000 26,000 26,000 26,000
Workhorse P32 Chassis
(w/ Independent Front Suspension)
GVWR (lbs.) — 18,000 18,000 — — —
GAWR - Front (lbs.) — 6,000 6,000 — — —
GAWR - Rear (lbs.) — 12,000 12,000 — — —
GCWR (lbs.) — 22,000 22,000 — — —
Workhorse W-Series Chassis
(w/ I-Beam Front Suspension)
GVWR (lbs.) 16,000 18,000 18,000 18,000 20,700 20,700
GAWR - Front (lbs.) 6,500 7,000 7,000 7,000 7,500 7,500
GAWR - Rear (lbs.) 10,500 12,000 12,000 12,000 13,500 13,500
GCWR (lbs.) 22,000 22,000 22,000 22,000 26,000 26,000
Wheelbase 159” 190” 190” 208” 228” 228”
NOTE: The height of each model is based on the curb weight of a typically equipped unit and is measured
to the highest standard feature on the roof. The actual height of a vehicle may vary by several inches depending on equipment variations. Refer to Section 3 for Towing Guidelines.
1-4
SECTION 1
Class A
INTRODUCTION

TANK CAPACITIES

Chassis Fuel Tank
Model 26PR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 gal
Model 29RR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 gal
Model 30BR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 gal
Model 33TR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 gal
Model 34AR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 gal
Model 35NR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 gal

Propane Gas Tank

All Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 gal (*23 gal w.c.)

Fresh Water Tank

Model 26PR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 gal
Model 29RR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 gal
Model 30BR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 gal
Model 33TR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 gal
Model 34AR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 gal
Model 35NR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 gal

Water Heater

All Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 gal

Gray Water Holding Tank

Model 26PR (Galley, Shower & Lavatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 gal
Model 29RR (Galley, Shower & Lavatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 gal
Model 30BR (Galley & Shower) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 gal
Model 33TR (Galley, Shower & Lavatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 gal
Model 34AR (Galley, Shower & Lavatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 gal
Model 35NR (Galley, Shower & Lavatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 gal

Black Water Holding Tank

Model 26PR (Toilet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 gal
Model 29RR (Toilet). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 gal
Model 30BR (Toilet & Lavatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 gal
Model 33TR (Toilet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 gal
Model 34AR (Toilet). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 gal
Model 35NR (Toilet). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 gal
*Propane gas tank capacity shown is the usable “full” propane gas capacity, which is 80% of the tank
manufacturer’s listed water capacity (w.c. shown in parenthesis). A propane tank must have at least 20% of tank volume free to allow for expansion and proper vaporization of the liquid fuel. The tank is also equipped with mandatory safety shut-off equipment that prevents filling above this level.
NOTE: Capacities shown are approximate volumes based on computer design calculations. Usable
capacities may vary according to fabrication and installation of tanks and compartments.
1-5
SECTION 1 INTRODUCTION
Class A

OWNER INFORMATION

Owner’s Name _______________________________________________________________________
Street Address ________________________________________________________________________
City and State (or Province in Canada)_____________________________________________________
Motor Home Serial Number _____________________________________________________________
Vehicle Chassis Identification No (VIN) ___________________________________________________
Vehicle Mileage at Time of Delivery ______________________________________________________
Selling Dealer Name and Address ________________________________________________________
___________________________________________________________________________________

EMERGENCY INFORMATION

YOUR WINNEBAGO INDUSTRIES DEALER

Name_______________________________________________________________________________
Address _____________________________________________________________________________
___________________________________________________________________________________
Contact Person _______________________________________________________________________
Phone ______________________________________________________________________________

CHASSIS DEALER/SERVICE CENTER

Name_______________________________________________________________________________
Address _____________________________________________________________________________
___________________________________________________________________________________
Contact Person _______________________________________________________________________
Phone ______________________________________________________________________________

INSURANCE POLICY

Company____________________________________________________________________________
Policy Number _______________________________________________________________________
Phone ______________________________________________________________________________
1-6
Class A
SECTION 1
INTRODUCTION

2007 NEW VEHICLE LIMITED WARRANTY

WINNEBAGO INDUSTRIES, INC.
WARRANTY COVERAGE TO OWNER
Winnebago Industries, Inc. of Forest City, Iowa, (“Winnebago”) warrants each new Winnebago and Itasca recreational motor home to the owner for use in the U.S.A. and Canada as follows:
BASIC LIMITED WARRANTY
WINNEBAGO’S RESPONSIBILITY
Any part of the vehicle subject to this warranty that is found to be defective in material or workmanship under normal use and maintenance will be repaired or replaced at Winnebago’s option without charge to the customer for parts or labor upon notice of the defect.
WARRANTY PERIOD
The basic Warranty Period is 12 months or 15,000 miles (24,135 kilometers), on the odometer, whichever occurs first. The Warranty Period for all coverages begins on the date the vehicle is delivered to the first retail purchaser or first placed in service as a demonstrator or company vehicle.
ONLY WARRANTY
This limited warranty is the only warranty made or authorized by Winnebago. Winnebago makes no other promises, representations or warranties concerning the vehicle or other matters set forth herein. Winnebago does not authorize any person to create for it any other obligations or liability in connection with this vehicle.
DEALER’S REPRESENTATIONS EXCLUDED
Winnebago shall not be bound by any undertaking, representation, or warranty made by any dealers selling its product to any purchaser of its products.
EXCLUSIVE REMEDY
THE PERFORMANCE OF REPAIRS IS THE EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THIS VEHICLE ARISING BY WAY OF STATE LAW IS LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN WARRANTY AS HEREINBEFORE OR HEREINAFTER PROVIDED.
LIMITATION ON LIABILITY
WINNEBAGO SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF THIS WRITTEN WARRANTY OR ANY IMPLIED WARRANTY. SUCH DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, LOSS OF TIME, INCONVENIENCE, OR OTHER CONSEQUENTIAL DAMAGE INCLUDING EXPENSE FOR GASOLINE, TELEPHONE, TRAVEL, LODGING, LOSS OR DAMAGE TO PERSONAL PROPERTY, OR LOSS OF REVENUE. Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
ITEMS NOT SUBJECT TO WARRANTY COVERAGE
Chassis, drivetrain and related components* Wheels* Tires* Any other part or component covered by a written warranty issued by its manufacturer* Service Items, such as Windshield Wiper Blades, Lubricants, Fluids & Filters Adjustments
*These items are covered under the manufacturer’s individual warranty.
ADDITIONAL EQUIPMENT NOT COVERED
Winnebago cannot and does not accept any responsibility in connection with any of its motor homes for additional equipment or accessories installed at any dealership or other place of business, or by any other party other than Winnebago. Such installation of equipment or accessories by any other party will not be covered by the terms of this warranty.
36 MONTH/36,000 MILE STRUCTURAL WARRANTY
At the expiration of the Basic Coverage and for the remainder of the period of 36 months or 36,000 miles (57,924 kilometers), on the odometer, whichever occurs first, Winnebago Industries warrants the following:
1. Structural defects of the subfloor, floor, and slide-out room assembly. Floor lamination failure and lamination failure of the subfloor panels and risers are covered by the structural warranty.
2. Body Thermo-Panel against delamination. Body Thermo-Panel bonding of the exterior skin and the interior paneling to an insulating core material. Delamination (separation of layers) caused by other factors such as physical damage or failed sealants is not covered by this warranty.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Also, this warranty shall not apply to failures, damage or malfunctions resulting from normal wear, misuse, abuse, negligence, alteration, accident, fire, improper repair of the vehicle or failure to follow recommended maintenance requirements.
OWNER’S RESPONSIBILITY-CARE AND MAINTENANCE
It is the owner’s responsibility to perform the care, maintenance and proper load distribution described in the operator’s manual which accompanies your motor home. Any damage which results to your vehicle as a result of your failure to perform such duties, is not covered.
Damage to appearance items such as fiberglass, metal, paint, fabrics and trim, may occur during manufacturing or transporting. Normally, any factory defect or damage is corrected at the factory. In addition, dealers are obligated to inspect each vehicle upon delivery to them and prior to delivery to you. You should also immediately inspect appearance items and advise your selling dealer of any discrepancies. Damage and normal deterioration due to use and exposure is not covered by this warranty.
Lamination of the sidewalls and backwall
Lamination is the
1-7
SECTION 1 INTRODUCTION
Class A
OBTAINING WARRANTY REPAIRS
While any Winnebago Industries motor home dealer can perform warranty service, we recommend you return to the dealership that sold you your vehicle. If you are touring or have moved, contact any Winnebago Industries motor home dealer in the United States or Canada for warranty service.
If a part of the system covered by this limited warranty fails to function or requires service during the warranty period:
1. Promptly take the vehicle to the selling dealer for repair or inspection.
2. Written notice of defects must be given to the selling dealer and manufacturer.
3. If the dealer is incapable of making the repairs, request that he contact Winnebago Industries, Inc.
4. If, after the above steps are completed and the repair is not made, the customer should contact Winnebago Industries, Inc., 605 West Crystal Lake Road, P.O. Box 152, Forest City, Iowa 50436, Attention: Owner Relations Department (800-537-1885) and furnish the following information:
 The complete serial number of the vehicle  Date of retail purchase  Selling dealer’s name  Nature of the service problem, and a brief explanation of
the steps or service the dealer has performed, and the results obtained. The customer may be directed to another dealer or service center for repairs to be completed, if such a dealer or service center is better able to complete the
repair. Winnebago Industries may, at its option, request the vehicle be returned to Forest City, Iowa for repair. If the customer refuses to allow repairs to be performed at the Forest City, Iowa facility, the warranty on that repair will be voided.
5. If after the above steps are completed and the repairs are not
satisfactory, the customer may contact the Service Administration Manager of Winnebago Industries, and request a customer relations board meeting to resolve the problem. This action, however, is not mandatory.
6. Certain components are covered by warranties provided by
individual component manufacturers. Please refer to the component’s information supplied in the vehicle’s InfoCase.
COMMENCEMENT OF ACTIONS
CALIFORNIA
Winnebago Industries participates in the Consumer Arbitration Program for Recreation Vehicles (CAP-RV). This third-party dispute resolution program is available, at no charge to you, to settle unresolved warranty disputes for recreational vehicles. This dispute resolution program reviews eligible product and service related complaints involving warranty covered components.
To find out more about the program, or to request an application/brochure, please call the Arbitration Administration office toll-free 800-279-5343.
The CAP-RV program operates as a certified mechanism under the review of the California Arbitration Certification Program. You must utilize the arbitration program before claiming rights conferred by 15 USC section 2310 (Uniform Commercial Code) or Civil Code section
1793.22(b) (Tanner Consumer Protection Act). You are not required to use the program if you choose to seek redress by pursuing rights and remedies not created by those laws.
:
Any action for breach of The Basic Limited or Structural Warranty or any implied warranty shall be commenced within one-year after expiration of the warranty.
CHANGES IN DESIGN
Winnebago Industries, Inc. reserves the right to make changes in design and changes or improvements upon its products without imposing any obligation upon itself to install the same upon its products theretofore manufactured.
NEW YORK
If your motor home has been repaired three or more times for the same nonconformity, defect, or condition, or if your motor home has been out of service by reason of repair for twenty-one days, Section 198-a of the General Business Law of the State of New York requires you to provide written notice by certified mail, return receipt requested, to Winnebago Industries or its authorized dealer before making any claim under that section of the law. If you do have problems with your motor home, you should provide written notice to Winnebago Industries at the following address:
:
Winnebago Industries, Inc. 605 West Crystal Lake Road P.O. Box 152 Forest City, Iowa 50436
Attn: Owner Relations
1-8
0306

SECTION 2 SAFETY/PRECAUTIONS

GENERAL WARNINGS

• Only seats equipped with seat belts are to be occupied while the vehicle is moving.
• Make sure all passengers have seat belts fastened in a low and snug position so the force exerted by the belt in a collision will be spread across the strong hip area. Pregnant women should wear a lap-shoulder belt whenever possible, with the lap belt portion worn low and snug throughout the pregnancy.
• All moveable or swiveling seats should be placed and locked in forward facing positions while the vehicle is moving.
• Never let passengers stand or kneel on seats while the vehicle is moving.
• Sleeping facilities are not to be utilized while vehicle is moving.
• Examine the escape window and be familiar with its operation.
• Ιnspect the fire extinguisher monthly for proper charge and operating condition. This should also be done before beginning a vacation or any extended trip.

DRIVING

not been affected. Never operate any vehicle if a difference in braking efficiency is noticeable.
• Adverse weather conditions and extremes in terrain may affect handling and/or performance of your vehicle. Refer to your chassis manual for related information.

FORMALDEHYDE INFORMATION

WARNING
Some components in this vehicle contain formaldehyde based adhesives which may release formaldehyde fumes into the air for an unknown period of time until total dissipation occurs. Individuals who are allergic to formaldehyde gas fumes may experience irritation to eyes, ears, nose and throat. Reaction in infants may be more severe. Although long range effects are not well understood, testing to date has not revealed any serious health effects in humans at the level of emission from these products.
• Do not attempt to adjust the driver’s seat while the vehicle is moving.
• Do not adjust tilt steering in a moving vehicle.
• Do not operate the cruise control on icy or extremely wet roads, winding roads, in heavy traffic, or in any other traffic situation where a constant speed cannot be maintained.
• Use care when accelerating or decelerating on a slippery surface. Abrupt speed changes can cause skidding and loss of control.
• Driving through water deep enough to wet the brakes may affect stopping distance or cause the vehicle to pull to one side. Check brake operation in a safe area to be sure they have
5 - DASH / AUTO

PROPANE GAS LEAK DETECTOR

Your coach is equipped with a propane gas leak detector which sounds an alarm if an unsafe amount of propane gas is present inside the coach. Because propane gas is heavier than air, the leak detector is located on a cabinet face near the floor of the coach.
2-1
SECTION 2 SAFETY/PRECAUTIONS

Propane Gas Leak Detector

WARNING
Never use an open flame to test for gas leaks. When testing for gas line leaks with a soapy water solution, DO NOT use a detergent containing ammonia or chlorine. These substances may generate a chemical reaction causing corrosion to gas lines, resulting in dangerous leak conditions.
Power Connection
The propane gas leak detector is powered by the coach batteries. If the auxiliary battery switch is shut off or the battery cable is disconnected from the batteries, the alarm will not work. The propane gas leak detector fuse is located in the 12-volt house electrical load center.
Because the propane gas leak detector is connected to the auxiliary battery, it is always drawing a small amount of current. Even though this current draw is slight, it could drain the coach battery during storage periods when the house battery will not be charged regularly by the engine or shoreline. Turn the Aux. Batt switch OFF to avoid current drain during storage periods.
Class A
Further Information
See the manufacturer’s information in your InfoCase for further instructions on nuisance alarms and care and testing of the propane gas leak detector.
CARBON MONOXIDE WARNING
WARNING
Avoid inhaling exhaust gases, as they contain carbon monoxide, which is a colorless, odorless and poisonous gas.
The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust and ventilation system. It is recommended that the exhaust system and body be inspected by a qualified motor home service center.
• Each time the vehicle is serviced for an oil
change.
• Whenever a change in the sound of the
exhaust system is noticed.
• Whenever the exhaust system, underbody or
rear of the vehicle is damaged.
To allow proper operation of the vehicle’s ventilation system, keep front ventilation inlet grill clear of snow, leaves or other obstructions at all times. DO NOT OCCUPY A PARKED VEHICLE WITH ENGINE RUNNING FOR AN EXTENDED PERIOD.
Do not run engine in confined areas, such as a garage, except to move vehicle into or out of the area.
CARBON MONOXIDE ALARM
2-2
Your coach is equipped with a carbon monoxide (CO) alarm located on the ceiling in the bedroom area. The CO alarm is powered by a 9-volt battery and has a sensor that is designed to
Class A
detect toxic carbon monoxide gas fumes resulting from incomplete combustion of fuel. It will detect CO gas from any combustion source such as the furnace, gas range/oven, water heater, refrigerator, chassis engine, and electric generator engine.
Press button to test
SECTION 2
SAFETY/PRECAUTIONS
Press button to test
Carbon Monoxide Alarm
Further Information
Please read the information provided by the manufacturer, which is included in your InfoCase. It includes information on precautions, operational testing, and battery replacement.
SMOKE ALARM
Your motor home is equipped with a smoke alarm located on the ceiling in the galley area. The smoke alarm is powered by a 9-volt battery and has a sensor that is designed to detect smoke. This alarm meets U.L. Standard 217 and NFPA Standard 74 for operation of smoke detection devices.
The following label is affixed either to the smoke alarm or on the ceiling near the smoke alarm.

Smoke Alarm

Further Information
See the manufacturer’s information in your InfoCase for further instructions on battery replacement and testing of the smoke alarm.
FIRE EXTINGUISHER
A dry chemical fire extinguisher is located near the main entrance door.
We recommend that you become thoroughly familiar with the operating instructions displayed on the side of the fire extinguisher or in the information supplied in your InfoCase.
2-3
SECTION 2 SAFETY/PRECAUTIONS
We also recommend that you inspect the fire extinguisher for proper charge at least once a month in accordance with National Fire Protection Association (NFPA) recommendations as stated on the label.
If the charge is insufficient, the fire extinguisher must be replaced.
WARNING
Do not test the fire extinguisher by discharging it. Partial discharge can cause leakage of pressure or contents which would render the unit inoperative when needed. When using the fire extinguisher, aim the spray at the base of the fire.
Class A
WARNING
This window should be kept closed while driving to avoid drawing dangerous exhaust gases into the vehicle.
Using Slider Windows As Emergency Exits
Most slider windows along the side of the motor home can also be used as emergency exits, should the need arise.
To use a slider window as an exit, first slide the window open, then slide the screen open or push the screen material out, depending on window type.
Coaches that are required to have a slider window as an alternate exit window will be marked EXIT and have a red handled latch.
EMERGENCY EXITS
WARNING
Use care when exiting emergency window, as broken glass may be present in the exit area.
Escape Window
The bedroom escape window is secured by two red safety latches at the bottom of the window.
To open, lift both latches up and toward the center of the window, then push outward near the bottom of the window.
Pull latch outward to slide window open
ROADSIDE EMERGENCY
Because of the size and weight of this vehicle and its tires, and the possible complications involved in tire changing, we strongly advise obtaining professional road service to change a flat tire whenever possible. However, if an emergency requires you to change the tire yourself, please exercise extreme caution and read all tire changing information in the chassis operating guide.
Escape Window - Lift latch handles upward to open.
2-4
Class A
SECTION 2
SAFETY/PRECAUTIONS
Never get beneath a vehicle that is held up by
a jack only.
If You Get A Flat Tire
• DO NOT panic.
• Grip the steering wheel firmly and steer the vehicle as straight as possible. Avoid quick maneuvers. You may need to counter-steer to compensate for “pull” created by the failed tire.
• DO NOT stomp on the brake. This abruptly shifts the vehicle’s weight forward, making it nose-dive and pull toward the blown-out side.
• DO NOT jerk your foot off the accelerator. Just ease back on the accelerator slowly and gently to continue momentum. The deflated tire will slow the vehicle.
• If you must change lanes to get to a safe stopping place, use your signals to warn other motorists and change lanes smoothly and carefully after you are certain the lane is clear.
• Let the vehicle coast to a stop, gently steering to a safe stopping place off the traffic lanes of the road. Don’t worry about damaging the tire or wheel rim by driving on it. A tire or wheel replacement is cheaper than damaging the vehicle or injuring yourself.
• When you have come to a stop, activate your hazard flashers to warn other motorists, then exit the vehicle carefully.
• Set out flares or other warning devices.
Check your tires for proper inflation before each trip and at least once a month with an accurate tire gauge.
Recovery Towing
When calling a professional towing service, we recommend that you advise them of your coach length and approximate front axle weight listed on your Vehicle Certification Label. This will allow the towing operator to determine the proper towing equipment to use.
We recommend that you ask for an underlift (wheel lift or frame lift) type towing assembly for safe towing.
Winnebago Industries does not assume responsibility for damage incurred while towing this vehicle.
NOTE: Consult the chassis operating guide for
any additional towing instructions or precautions provided by the chassis manufacturer.
CAUTION
Do not lift on bumper. Damage will result to front end body parts.
WARNING
Stay out from beneath the motor home while it is suspended by the towing assembly unless the vehicle is adequately supported by safety stands. Do not allow passengers to occupy a towed vehicle.
JUMP STARTING
If your coach will not start from the automotive batteries, try using the Battery Boost Switch to divert power from the coach batteries to the starter. (See Battery Boost Switch) If you wish to try jump starting the engine using another vehicle or booster system, see your chassis owner’s manual for connecting jumper cables to the automotive electrical system.
WARNING
Do not attempt to push-start this vehicle. Damage to the transmission or other parts of the vehicle will occur.
2-5
SECTION 2 SAFETY/PRECAUTIONS
ENGINE OVERHEAT
If you see or hear steam escaping from the engine compartment or have any other reason to suspect an extreme engine overheating condition, pull the vehicle over to the roadside as soon as it is safe to do so, stop the engine and get all passengers out of the vehicle.
WARNING
Operating a vehicle under a severe overheating condition can result in damage to the vehicle and may result in personal injury.
Class A
Ventilate with outside air:
Partially open one or more windows and a roof vent to circulate outside air through the coach. In cold weather, this ventilation may increase use of the furnace, but it will greatly reduce the condensation inside the coach.
Minimize moisture released inside the coach:
Run the range hood fan while cooking, and open a bath vent while bathing or showering to carry water vapor out of the coach. Avoid making steam from boiling water excessively or letting hot water run. Avoid bringing extra moisture into the coach by way of soaked clothing or snow on shoes. Do not hang-dry wet overcoats or clothing inside the coach.
For information on what to do in case of overheating, consult your chassis operating guide.
EFFECTS OF PROLONGED OCCUPANCY
Your motor home was designed primarily for recreational use and short term occupancy. If you expect to occupy your coach for an extended period, be prepared to deal with condensation and humid conditions that may be encountered.
Humidity And Condensation
Moisture condensing on the inside of windows is a visible indication that there is too much humidity inside the coach. Excessive moisture can cause water stains or mildew which can damage interior items such as upholstery and cabinets.
When you recognize the signs of excessive moisture and condensation in your coach, you should take immediate action to minimize their effects.
You can help reduce excessive moisture inside the motor home by taking the following steps:
MOLD, MOISTURE AND YOUR MOTOR HOME
What is Mold?
Molds are part of the natural environment. They are as old as the Earth itself. And mold spores are almost everywhere at some level waiting to grow. Mold plays a part of nature by breaking down dead organic matter such a fallen leaves and dead trees. Indoors, however, mold growth should be avoided. Molds reproduce by means of tiny spores. Those spores are invisible to the naked eye and float throughout the outdoor and indoor air. Because of the nature of the use of a motor home, it is natural for a motor home to be introduced into an environment with mold spores.
Mold is a plant and requires its own special environment to grow. That environment includes organic materials, nutrients, moisture, and proper temperature.
How Can I Avoid Mold?
To reduce the ability for mold to grow, you must reduce what constitutes its growth environment. Mold can grow with the smallest of a nutrient base. Just small amounts of dirt or dust on the carpet can be enough to allow the mold
2-6
Class A
SECTION 2
SAFETY/PRECAUTIONS
process to begin. Keep the environment as clean as possible. Vacuum the carpet. Clean food spills thoroughly and quickly. Avoid grease buildup near the stove or sink. Clean the exhaust fan above the stove often.
Minimize moisture in your motor home and keep humidity low. Clean spills quickly. Do not allow condensation to build up. You can open windows and vents to minimize condensation. Use of the air conditioner can assist in removing moisture from the air. Avoid leaks and if leaks do occur, make repairs promptly.
Avoid bringing mold into your motor home. Plants, cloths, books, and other household items may already have mold present. It is easy to transfer mold into your motor home environment.
Monitor your motor home. Periodically check those hidden areas in corners, closets, and cabinets to assure mold is not present.
motor home users lack of timely and appropriate action to mitigate circumstances should a problem occur.
If Winnebago Industries determines that mold is present due to conditions it determines is not a result of a manufacturing defect found within the warranty period, Winnebago Industries will not provide any financial assistance to the repair of the condition.
© Copyright Winnebago Industries, Inc. All rights reserved.
What if I Have Mold?
If mold develops, clean the area with a concentrate of soap and bleach. Items that contain mold that cannot be cleaned should be removed from the vehicle.
Can Mold Harm Me?
The effects of mold and airborne mold spores may cause irritation to some people. Experts disagree on the level of exposure that may cause health concerns.
If Mold Is Present, What Will Winnebago Industries Do?
If Winnebago Industries determines that mold is present in the Winnebago/Itasca motor home as a result of a manufacturing defect reported to Winnebago Industries within the limited warranty period, Winnebago will clean the affected areas and/or replace affected items as it deems necessary. This is the extent of coverage provided by Winnebago Industries. Winnebago Industries, however, will not assume responsibility for mold deemed to be a result of a
2-7
SECTION 3 DRIVING YOUR MOTOR HOME
The information in this section refers only to features installed or adapted to the dash and driver compartment area by Winnebago Industries.
See your chassis owner’s manual for all original chassis related controls, instrumentation, switches and other features. This includes items such as cruise control, gauges, wipers, lights, etc.
SEATS
The driver and co-pilot seats may be independently adjusted to suit individual preference. To move the seat forward or backward, lift the slide release paddle, located on the side of the seat, and exert slight body pressure in the direction desired.
The seats may be swiveled to provide easy entrance and exit. The swivel feature also allows the seats on some models to be turned toward the living area for additional seating while the unit is parked.
To Swivel the Seats
Lift the release lever, located on the side of the seat, and rotate seat. The seats are designed to lock only when returned to the forward facing position.
Lift to Recline
Lift to Swivel

Driver Seat - Aisle Side

Lift to Slide
WARNING
Do not adjust driver’s seat while vehicle is in motion. After adjusting seat, always use body pressure to make sure slide and swivel locking mechanism have engaged.
Lift to Slide
Lift to Swivel
To Recline the Seats
Lift the reclining lever, lean back to desired incline and release the lever. To return to the upright position, lift the lever and lean body forward. Allow the seat to return to the desired position and release the lever.
5 - DASH / AUTO
Passenger Seat - Aisle Side
(Recline lever on opposite side)
3-1
SECTION 3 DRIVING YOUR MOTOR HOME
Arm Rest Adjustment
The driver and co-pilot seat armrests may be adjusted to rest at two different positions as shown.
Position 1
Raise armrest, push in toward seat, and lower into position. This position would generally be used when the seat is in the upright position.
Position 2
Raise armrest, pull outward from seat, and lower into position. You may wish to use this position when you recline the seat.
Class A
Adjustment:
To lengthen belt, turn tongue at a right angle to belt and pull to desired length. To shorten, pull loose end of belt.
1
2
SEAT BELTS
Seats intended for occupancy while the vehicle is in motion are equipped with seat belts for the protection of the driver and passengers.
Lap Belts
The lap belts must be worn as low as possible and fit snugly across the hip area. Always sit erect and well back into the seat. To gain full protection of the safety belt, never let more than one person use the same safety belt at any one time, and do not let the safety belts become damaged by pinching them in the doors or in the seat mechanism. After any serious accident, any seat belts which were in use at the time should be replaced.
To Fasten:
Be sure belt is not twisted. Grasp each part of the belt assembly and push tongue into buckle. Adjust to a snug fit by pulling the loose end away from the tongue.
To Release:
Press button in center of buckle and slide tongue out of buckle.
WARNING
Snug and low belt positions are essential. This will ensure that the force exerted by the lap belt in a collision is spread over the strong hip area and not across the abdomen, which could result in serious injury. Only seats equipped with seat belts are to be occupied while vehicle is in motion.
Lap-Shoulder Belts
Fastening:
Hold the belt just behind the tongue using the hand nearest to the door. Next, bring the belt across the body and insert the tongue into the buckle until the latch engages.
3-2
Class A
SECTION 3
DRIVING YOUR MOTOR HOME
Unfastening:
Press the release button in the buckle. Hold onto the tongue when you release it from the buckle to keep it from retracting too rapidly.
When the lap-shoulder belt is in use, the lap belt must ride low across the hip area and the shoulder belt must ride diagonally over the shoulder toward the buckle.
The shoulder belt is designed to lock only during a sudden stop, sudden body movement or a collision. At all other times it will move freely with the occupant.
WARNING
Never wear the shoulder belt in any position other than as stated above. Failure to do so could increase the chance or extent of injury in a collision.
Seat Belt Care and Cleaning
• Be careful not to damage the belt webbing and
hardware. Take care not to pinch them in the seat or doors.
• Inspect the belts and hardware periodically.
Check for cuts, frays, and loose parts. Damaged parts should be replaced. Do not remove or modify the belt system.
• Keep belts clean and dry. If the belts need
cleaning, use only a mild soap and water solution. Do not use hot water. Do not use abrasive cleaners, bleach or dyes. These products may weaken the belts.
• Replace any belt assembly that was used
during a severe impact. Replace the complete assembly even if damage is not apparent.
accident or during a sudden maneuver. Children may be injured in an accident if they are seated in a child restraint which is not properly secured.
A child restraint system is designed to be secured in a vehicle seat by a lap belt or the lap belt portion of a lap-shoulder belt. According to accident statistics, children are also safer when properly restrained in rear seating positions than in front seating positions.
When purchasing a child restraint system:
1. Look for the label certifying that it meets all
applicable safety standards.
2. Make sure that it will attach to your vehicle
and restrain your child securely and conveniently so that you are able to install it correctly each time it is used.
3. Be certain that it is appropriate for the child's
height, weight and development. The instructions and/or the regulation label attached to the restraint typically provides this information.
4. Review the instructions for installation and
use of the restraint. Be sure that you understand them fully and can install the restraint properly and safely in your vehicle.
Tether Anchor Loop
If your coach has a dinette, a child seat tether anchor loop is located in the floor of the coach directly behind the forward facing dinette seat. The dinette table must be in the lowered position when a child seat is in use.
Tether Anchor Loop
CHILD RESTRAINTS
A properly installed and secured child restraint system can help reduce the chance or severity of personal injury to a child in an
3-3
SECTION 3 DRIVING YOUR MOTOR HOME
KEYS
Your motor home is supplied with several sets of keys. In addition to the chassis manufacturer’s ignition key, you receive keys for the entrance door and exterior compartment doors.
Keys have an identification number, either a small metal tag or stamped into the key head. These numbers are recorded on the vehicle’s component model/serial sheet which is included in your InfoCase. In case keys are lost or stolen, your dealer or a locksmith can provide you with duplicate keys or modify the locks.
REARVIEW MONITOR SYSTEM
Class A
Select the mirror to be adjusted by pushing the switch in the middle of the control to the right or left. Then press the arrow buttons as necessary to obtain the best view.
When mirrors are adjusted to preference, place the selector switch back in the middle position to lock-out power to the buttons. This prevents accidental misadjustment of mirror settings.
The mirrors also contain heating elements to defog or de-ice the mirror glass during cold weather operation. An ON-OFF switch for the mirror heaters is located near the remote mirror controls.
–Optional
If your motor home is equipped with this optional system, refer to the InfoCase for specific instructions provided by manufacturer.
MIRRORS – EXTERIOR
Always adjust mirrors for maximum rear visibility before driving off. Make sure the seat is adjusted for proper vehicle control and that you are sitting back squarely into the seat.
Mirror Heat Switch Mirror Adjustment Switch
The power mirror control switch is intended for fine adjustment of the mirrors. If you cannot adjust the mirror properly using the control switch, the mirror may need a coarse adjustment by repositioning the mirror head. See the mirror manufacturer’s instructions in your InfoCase.
Further Information:
To read more about power mirrors, see the mirror manufacturer’s information in your InfoCase.
Power Electric Mirrors
- Optional
The electric mirrors are adjusted using a multi-directional switch located on the armrest panel to the left of the steering column.
3-4
Class A
SECTION 3
DRIVING YOUR MOTOR HOME
FOOT-PEDAL PARKING BRAKES
16,000 & 20,700 lbs GVWR Workhorse Chassis-All Ford Chassis
The parking brake foot pedal and release lever
are located beneath the left side of the dash.
Step the pedal down fully to apply and pull the
brake release knob to disengage.
AUTOMATIC PULL-BUTTON PARKING BRAKES
18,000 Lbs GVWR Workhorse Chassis
These chassis are equipped with parking brakes that apply automatically when the transmission is shifted into Park.
The pull-button parking brake switch is located on the dash to the right of the steering column.
GRADE BRAKE
Workhorse 20,700 GVWR chassis and greater only
This feature will enable the transmission to control the speed of the vehicle on long downhill grades to help avoid brake overheating and unnecessary brake wear.
To Activate the Grade Brake
• Press the Grade Brake switch on the left side
of the dash to activate the feature.
• A green icon will appear on the instrument
cluster when the grade brake system is active.
The pull-button knob can be used to apply the park brake when the coach is in any other gear than park. Pull to apply. Push to Release
Note: Never drive your vehicle with the parking
brake set. It will reduce parking brake effectiveness and cause excessive wear.

Grade Break Symbol

• Press and release the brake pedal once- the grade brake will downshift the transmission a gear to help control the vehicle speed.
• Press the accelerator to reset the transmission to shift normally until the next time you press the brake pedal.
• Turn the Grade Brake system off when not on steep or long downhill grades.
The grade brake has a built-in, self-protection feature that will not allow the transmission to downshift at high speeds with could damage the transmission or engine if downshifted.
3-5
SECTION 3 DRIVING YOUR MOTOR HOME
OVER-DRIVE SWITCH
Workhorse 20,700 GVWR chassis and greater only
The Overdrive Switch allows you to deactivate the automatic overdrive feature of the transmission when necessary.
When this switch is ON, the transmission will automatically shift to the overdrive gear whenever possible for greatest fuel economy.
Some driving situations, however, may require the transmission to be temporarily disabled from shifting into overdrive gear, such as when towing a car or trailer, driving in rolling hill country or driving into a strong headwind where the transmission will repeatedly shift up and down causing annoyance and reduced fuel economy.
DOME LIGHT SWITCH
Turn the ‘dome light’ map light on using the Panel Dim thumbwheel. Roll it up to maximum position until you feel it click into the maplight ‘on’ position.
Class A
WARNING
Operating the hazard warning flasher system while moving on the highway is illegal.
The front directional signals and the taillights will flash intermittently when the flashers are in operation. The hazard warning flashers will not operate when the service brake pedal is depressed. The turn signal will not operate when the flashers are on. When it is necessary to leave the vehicle, the flasher system will continue to operate with the ignition key removed.
BATTERY BOOST SWITCH
This switch can be used to provide emergency starting power from the motor home auxiliary battery if the automotive battery is discharged.
HAZARD WARNING FLASHER
The hazard warning flasher provides additional safety when the vehicle must be stopped on the side of the roadway and presents a possible hazard to other motorists. When the flasher is on, it serves as a warning to other drivers.
3-6

Aux. Start Switch

If engine battery is discharged, press and hold
while turning ignition key for emergency starting power.
NOTE: The AUX BATT switch must be ON and
house batteries sufficiently charged for this feature to work.
Class A
SECTION 3
DRIVING YOUR MOTOR HOME
Aux Fan Switch
AIR CONDITIONER/ HEATER – AUTOMOTIVE
Controls for the air conditioner, heater, defroster and vent are all combined into one control panel.
Fan Switch
Please read the information provided by the manufacturer, which is included in your InfoCase.
Temp Control
Mode Control
Rear Auto Heater
- Optional
To provide auxiliary heat to the rear of the vehicle, turn the rear heater fan switch to the desired speed. The switch has three positions: Hi, Low and the middle position is Off.
- Optional
The two-speed auxiliary fans are intended to assist the automotive windshield defroster system in clearing fog and frost in cold weather or humid conditions. The middle position on the switch is OFF.
IN-DASH RADIO
The radio in your coach can receive AM/FM stereo and Weather band stations. It also has a compact disc (CD) player for your listening enjoyment through quality high-output speakers located in several areas of the coach.
Please refer to the manufacturer’s operating guide in your InfoCase for detailed instructions on programming preset station buttons and using this full-featured radio/audio system.
3-7
SECTION 3 DRIVING YOUR MOTOR HOME
Radio Power Switch
The radio power switch lets you connect the dash radio to the coach batteries with the ignition switch turned off for listening while parked. This prevents accidental draining of the chassis (starting) battery with prolonged use of the radio.
Class A

Radio Remote Control

(typical)

An additional hand-held remote allows these same conveniences for the passenger. The hand­held radio remote is in your InfoCase.
Satellite Radio
- Optional
Your coach may be equipped with a Sirius satellite radio receiver that plays through your radio.
See the receiver manufacturer’s information in your InfoCase for programming and operating instructions.
Radio Remote Controls
A steering wheel mounted remote control for the radio lets you change radio stations or CD selections without taking your eyes off the road or hands off the wheel. See the radio owner’s guide in your InfoCase for remote control instructions.
CB RADIO WIRING
Your coach is pre-wired for a power connection for your CB radio. The wires are located beneath the dash to the left of the steering wheel.
Look for a pair of wires, yellow (+) and white (-), with connectors and flag labels, suspended from the wiring harness.
3-8

CB Power Wires

(in plastic sheath)

Loading...
+ 86 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
