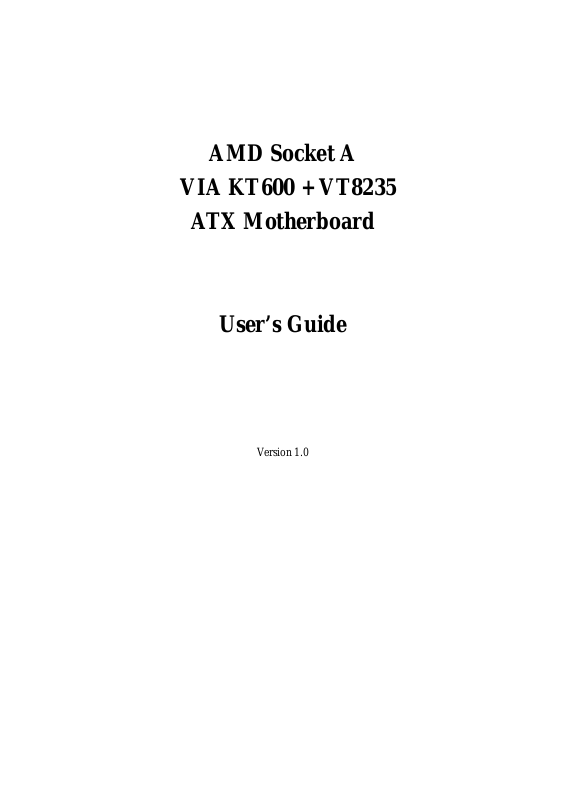

Chaintech 7VJL6 User Manual

AMD Socket A

VIA KT600 + VT8235

ATX Motherboard

User’s Guide

Version 1.0

Declaration of Conformity

According to 47 CFR, Parts 2 and 15 of the FCC Rules

The following designated product:

EQUIPMENT: MAINBOARD

is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may
cause undesired operation.

This declaration is given to the manufacturer:

CHAINTECH-EXCEL COMPUTER INC.

No. 7-1, Chung Shin Rd., Tu Cheng,

Taipei Hsien, Taiwan, ROC

http://www.chaintech.com.tw

Chaintech President: Simon Ho

Signature:

Federal Communications Commission Statement

100%

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
* This device may not cause harmful interference.
* This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. If this equipment is not
installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance
with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from digital apparatuses set
out in the Radio Interference Regulations of the Canadian Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a commitment on the
part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality,
accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to
the content of this document and/or the products associated with it at any time without obligation to notify any person or
organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising out of the use or inability to use this product or documentation, even if advised of the
possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of
this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written
consent of its authors. Product names appearing in this document are mentioned for identification purposes only. All
trademarks, product names or brand names appearing in this document are registered property of their respective owners.

Printed in Taiwan.

Nov 2003

OST-CONSUMER

RECYCLED PAPER

TABLE OF CONTENTS

Chapter 1

1-1 Product Specifications ............................................................................................1

1-2 Package Contents....................................................................................................1

1-3 Motherboard Layout...............................................................................................2

Chapter 2

2-1 Installing a CPU Processor for Socket A................................................................3

2-2 Setting Your CPU’s Performance ...........................................................................3

2-3 Main Memory Configuration..................................................................................5

2-4 Connector and Jumper Settings..............................................................................6

Chapter 3

3-1 Standard CMOS Setup.......................................................................................... 11

3-2 Advanced BIOS Features .....................................................................................12

3-3 Advanced Chipset Features ..................................................................................14

3-4 Integrated Peripherals...........................................................................................16

Introduction.................................................................... 1

Hardware Setup............................................................. 3

BIOS Setup Program....................................................11

3-5 Power Management Setup....................................................................................18

3-6 PNP/PCI Configurations.......................................................................................21

3-7 Frequency/Voltage Control...................................................................................21

3-8 Load Fail-Safe Defaults........................................................................................22

3-9 Load Optimized Defaults......................................................................................22

3-10 Supervisor Password & User Password Setting.................................................22

3-11 Save and Exit Setup............................................................................................22

3-12 Exit Without Saving............................................................................................22

Chapter 4

4-1 VIA Service Pack Setup .......................................................................................23

4-2 Audio Driver Setup...............................................................................................23

4-3 LAN Driver Setup.................................................................................................23

4-4 USB 2.0 Driver.....................................................................................................23

DRIVER Setup............................................................. 23

Chapter 1

Chapter 1

Introduction

1-1 Product Specifications

Processor

- Supports AMD Socket A Athlon XP/Duron CPU

- Supports system clock at 200/266/333/400 MHz

Chipset

- VIA KT600 + VT8235

Main Memory

- Supports three 184 pin DDR DIMMs up to 3GB

- Supports PC 2100/2700/3200 DDR SDRAM modules

Expansion Slots

- One Universal AGP slot for both 4X/8X AGP

- Five 32-Bit PCI slots (v2.2 compatible)

5.1-Channel Audio

- With external high quality 5.1-channel AC’97 Codec

- Complete software driver supports for Windows® OS

- Optional S/PDIF out function

IDE

- Build-in VT8235 supports 2 UltraDMA-33/66/100/133 IDE ports

FDD

- One floppy disk drive connector supports up to 1.44MB

USB 2.0

- Build-in VT8235 supports total six USB 2.0/1.1 ports

- Supports USB 2.0 high-speed device @480 Mb/s transfer rates

Fast Ethernet

- Supports 10/100Mb Fast Ethernet with external VIA VT6103 PHY

Boot-Block Flash ROM

- Award system BIOS supports PnP, APM, DMI, ACPI, & Multi-device booting features.

1-2 Package Contents

This product comes with the following components:

1. Motherboard x 1

2. 40-Pin UDMA-100 IDE Cable x 1

Blue to motherboard, Gray to Master and Black to Slave

3. 34-Pin floppy Disk Drive Cable x 1

4. User’s Guide x 1

5. Driver CD x 1

1

Chapter 1

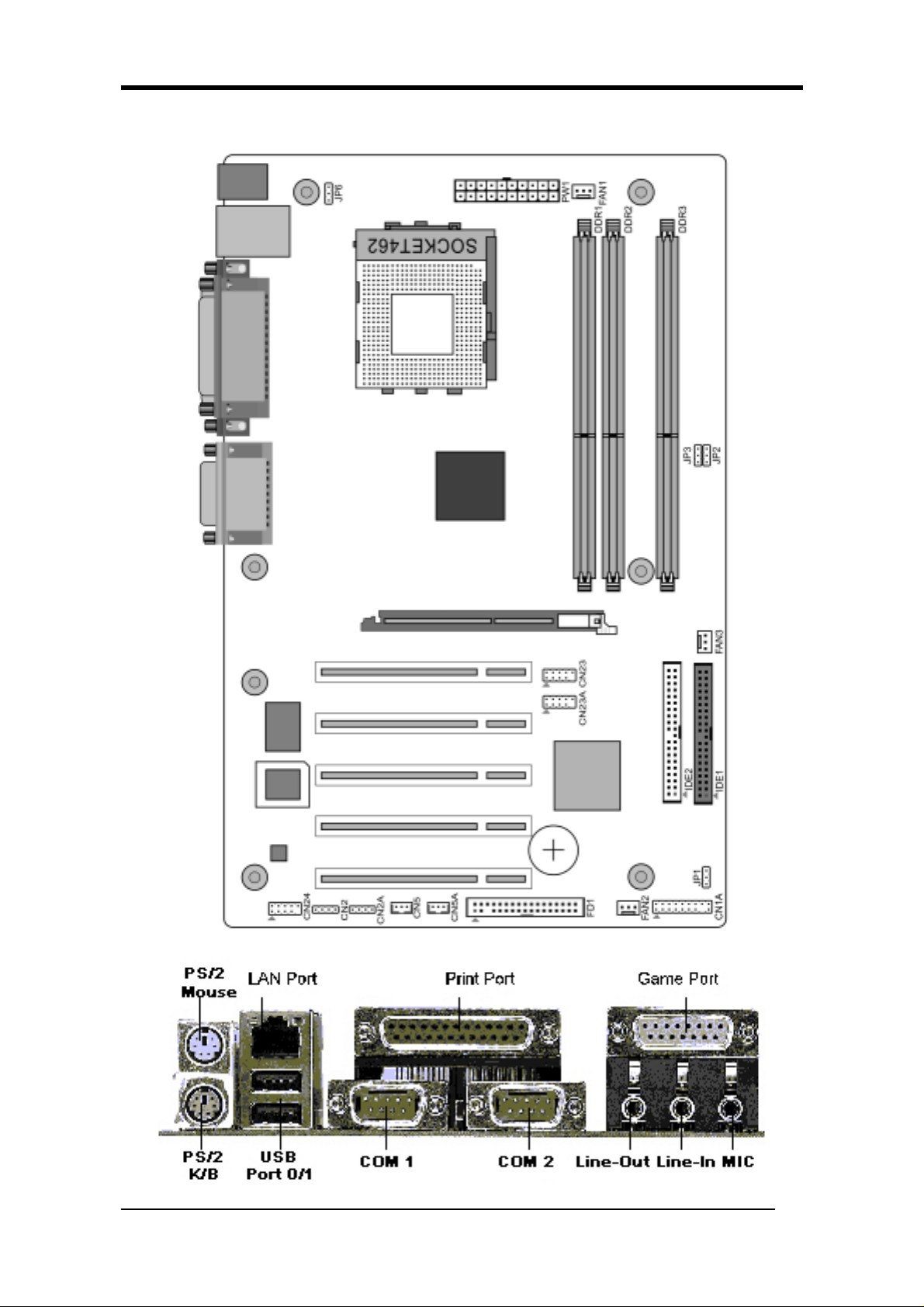

1-3 Motherboard Layout

2

Chapter 2

board is electrostatic sensitive. Do not touch without
wearing proper safety gadget and make sure to disconnect the power
cable from the power source before performing any work on your

Chapter 2

Hardware Setup

If your motherboard has already been installed in your computer you may still need to
refer to this chapter if you plan to upgrade your system's hardware.

This mother

motherboard. Not doing so may result in electrical shock!

2-1 Installing a CPU Processor for Socket A

The Socket A, designed for AMD® Athlon XP/Athlon/Duron processors, has been
incorporated as a standard motherboard specification. To insert your CPU into Socket A
please do the following:

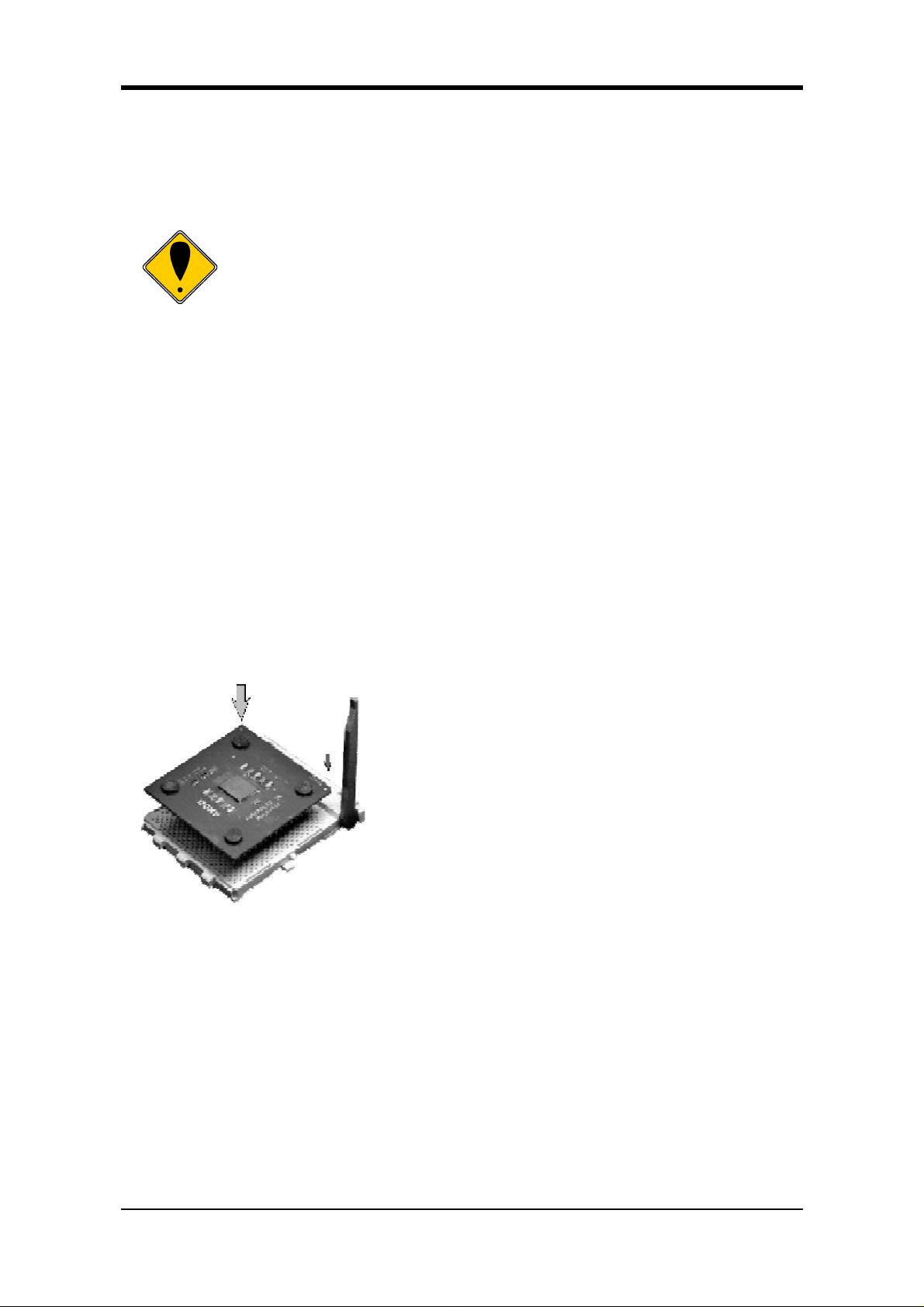

1. Locate a cut edge on the top surface of the CPU close to one if it’s corners. The same
corner will also be cut off, leaving a noticeable notch in the CPU’s corner. These
markings indicate Pin 1 of the CPU.

2. Pull up the lever of Socket 462 so that it is perpendicular with the surface of the
motherboard. Gently insert the CPU with Pin 1 at the same corner of Socket 462 that
contains the end of the lever. Allow the weight of the CPU to push itself into place.
Do not apply extra pressure as doing so may result in damaging your CPU. Snap the
lever back into place.

Installing an AMD® approved heat sink with cooling fan is
necessary for proper heat dissipation from your CPU.
Failing to install these items may result in overheating and
possible burnout of your CPU.

: In order to boot up with a newly installed CPU,

Note

AC Power must be switched off before installation.

2-2 Setting Your CPU’s Performance

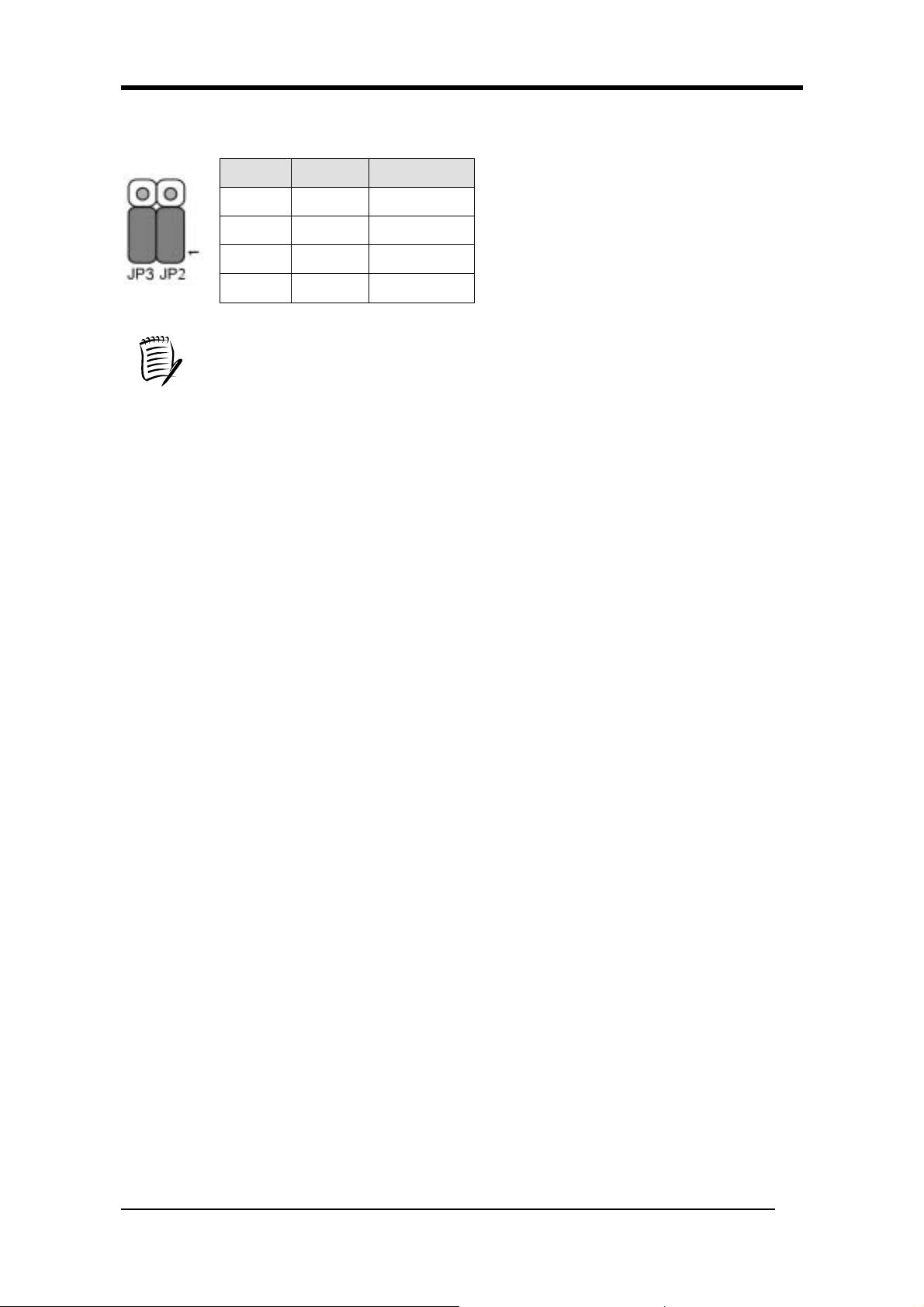

Frequency Configuration:

If you install a CPU on this motherboard, you must set the [Front Side Bus Frequency]
JP3 according to your processor.

* CPU Speed = Multiplier x FSB Frequency

3

Chapter 2

Micron

AMD (K7) Duron CPU

Model

600 600 MHz
650 650 MHz
700 700 MHz
750 750 MHz
800 800 MHz
850 850 MHz
900 900 MHz
950 950 MHz

CPU Speed

Frequency

100 6.0 1.6V 64KB 0.18
100 6.5 1.6V 64KB 0.18
100 7.0 1.6V 64KB 0.18
100 7.5 1.6V 64KB 0.18
100 8.0 1.6V 64KB 0.18
100 8.5 1.6V 64KB 0.18
100 9.0 1.6V 64KB 0.18
100 9.5 1.6V 64KB 0.18

Multiplier Vcore

FSB

L2

Cache

process

1.0G 1.0 GHz 100 10.0 1.6V 64KB 0.18

1.1G 1.1 GHz 100 11.0 1.6V 64KB 0.18

1.2G 1.2 GHz 100 12.0 1.6V 64KB 0.18

1.3G 1.3 GHz 100 13.0 1.6V 64KB 0.18

AMD Athlon CPU (K7/Thunderbird)

FSB

Model CPU Speed

Frequency

Multiplier Vcore

L2

Cache

Micron
process

700 700MHz 100 7.0 1.70V 256KB 0.18
750 750MHz 100 7.5 1.70V 256KB 0.18
800 800MHz 100 8.0 1.70V 256KB 0.18
850 850MHz 100 8.5 1.70V 256KB 0.18
900 900MHz 100 9.0 1.75V 256KB 0.18

950 950MHz 100 9.5 1.75V 256KB 0.18
1000 1000MHz 100 10.0 1.75V 256KB 0.18
1100 1100MHz 100 11.0 1.75V 256KB 0.18
1200 1200MHz 100 12.0 1.75V 256KB 0.18
1300 1300MHz 100 13.0 1.75V 256KB 0.18
1400 1400MHz 100 14.0 1.75V 256KB 0.18

1000 1000MHz 133 7.5 1.75V 256KB 0.18
1113 1113MHz 133 8.5 1.75V 256KB 0.18
1200 1200MHz 133 9.0 1.75V 256KB 0.18
1333 1333MHz 133 10.0 1.75V 256KB 0.18
1400 1400MHz 133 10.5 1.75V 256KB 0.18

4

AMD Athlon XP CPU (Palomino/Thoroughbred)

Chapter 2

FSB

Model CPU Speed

Frequency

Multiplier Vcore

L2

Cache

Micron
process

1500+ 1333MHz 133 10.0 1.7V 256KB 0.18
1600+ 1400MHz 133 10.5 1.7V 256KB 0.18
1700+ 1466MHz 133 11.0 1.7/1.6V 256KB 0.18/0.13
1800+ 1533MHz 133 11.5 1.7/1.6V 256KB 0.18/0.13
1900+ 1600MHz 133 12.0 1.7/1.6V 256KB 0.18/0.13
2000+ 1666MHz 133 12.5 1.7/1.6V 256KB 0.18/0.13
2100+ 1733MHz 133 13.0 1.7/1.6V 256KB 0.18/0.13
2200+ 1800MHz 133 13.5 1.65V 256KB 0.13
2400+ 2000MHz 133 15.0 1.65V 256KB 0.13
2600+ 2133MHz 133 16.0 1.65V 256KB 0.13

2600+ 2075MHz 166 12.5 1.65V 256KB 0.13
2700+ 2166MHz 166 13.0 1.65V 256KB 0.13

AMD Athlon XP CPU (Barton)

2500+ 1833MHz 166 11.0 1.65V

512KB 0.13
2600+ 1917MHz 166 11.5 1.65V 512KB 0.13
2800+ 2075MHz 166 12.5 1.65V 512KB 0.13
3000+ 2167MHz 166 13.0 1.65V 512KB 0.13
3000+ 2100MHz 200 10.5 1.65V 512KB 0.13
3200+ 2200MHz 200 11.0 1.65V 512KB 0.13

2-3 Main Memory Configuration

The DDR SDRAM memory system consists three banks, each bank supports up to 1GB
of memory.

5

Chapter 2

DDR SDRAM Specifications

Memory

Frequency

Internal System BUS

Frequency

133 MHz 266 MHz
166 MHz 333 MHz
200 MHz 400 MHz

DIMM type: 2.5V, unbuffered 184 pin 64/128/265/512-bit DDR SDRAM.
Module size: Single/double-sided 64/128/256/512Mbytes or 1GBbtes.
Parity: Ether parity or non-parity.

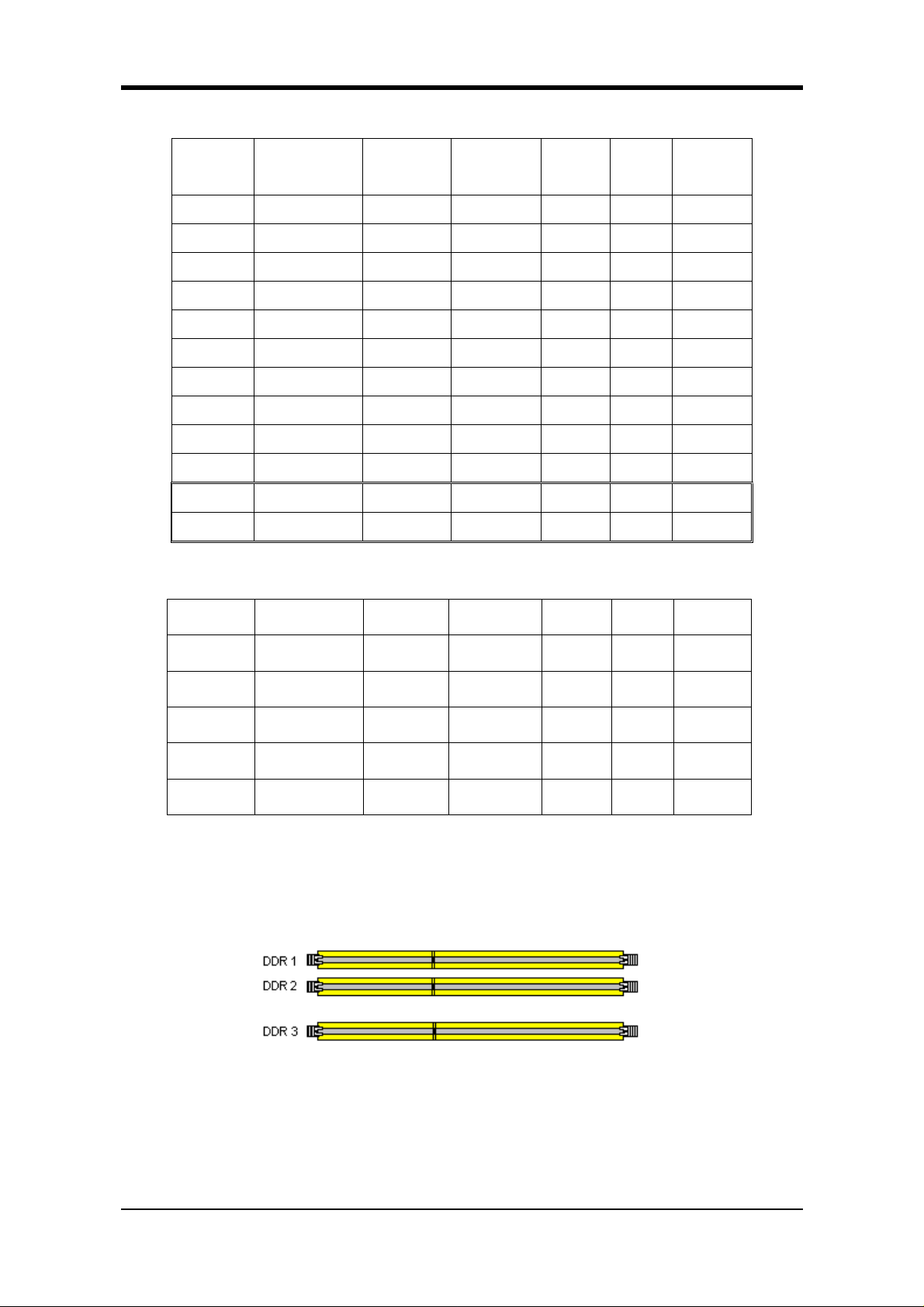

Location

64 MB 128 MB 256 MB 512 MB 1.0 GB
DDR 1 V V V V V
DDR 2 V V V V V
DDR 3

V

V V V V

In order to take effect of PC3200 DDR SDRAM modules please install memory modules
on DIMM1 + DIMM3 slots or DIMM2 + DIMM3 slots .For PC 2700 DDR SDRAM
modules you can install memory modules in all three DIMM slots.

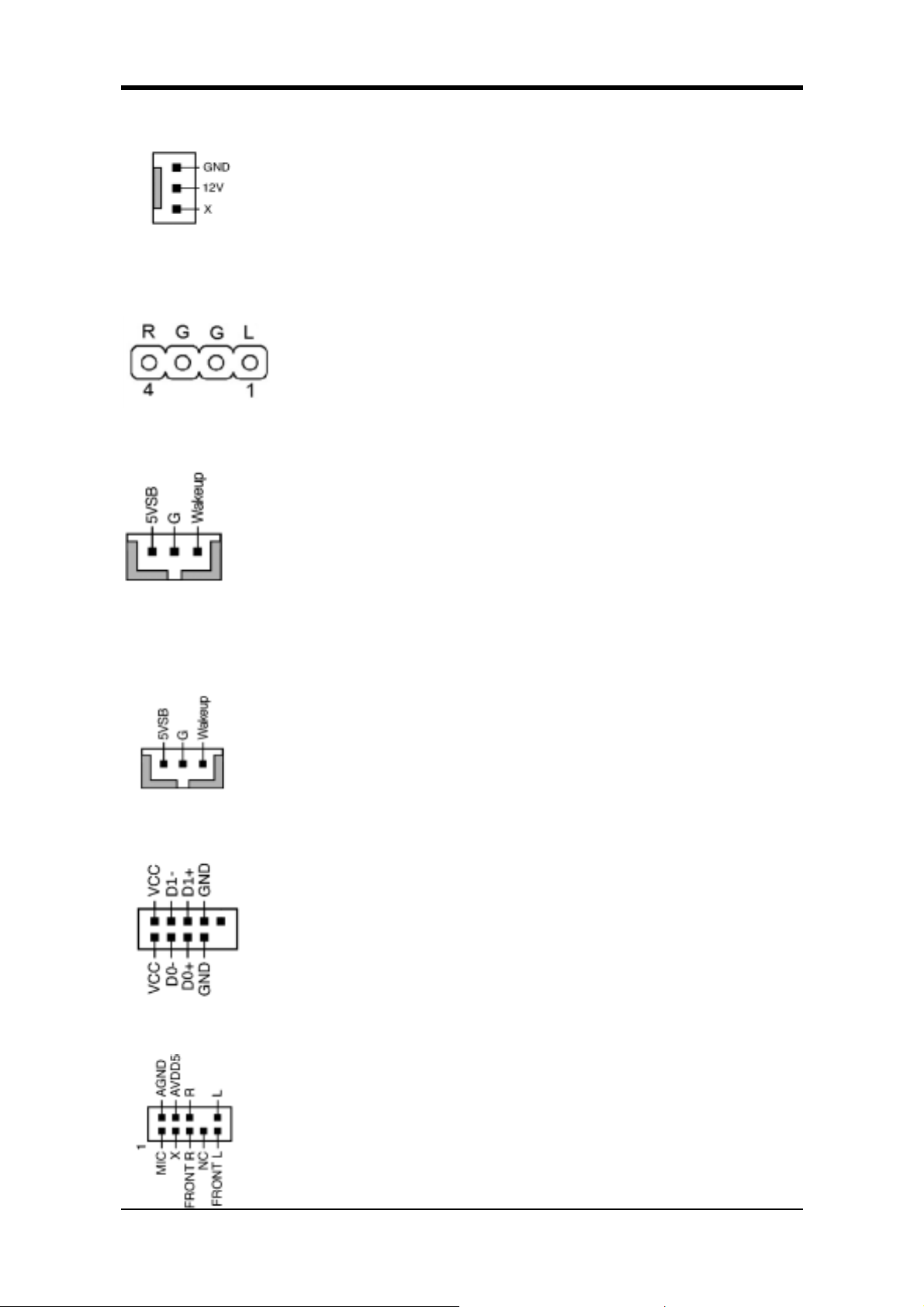

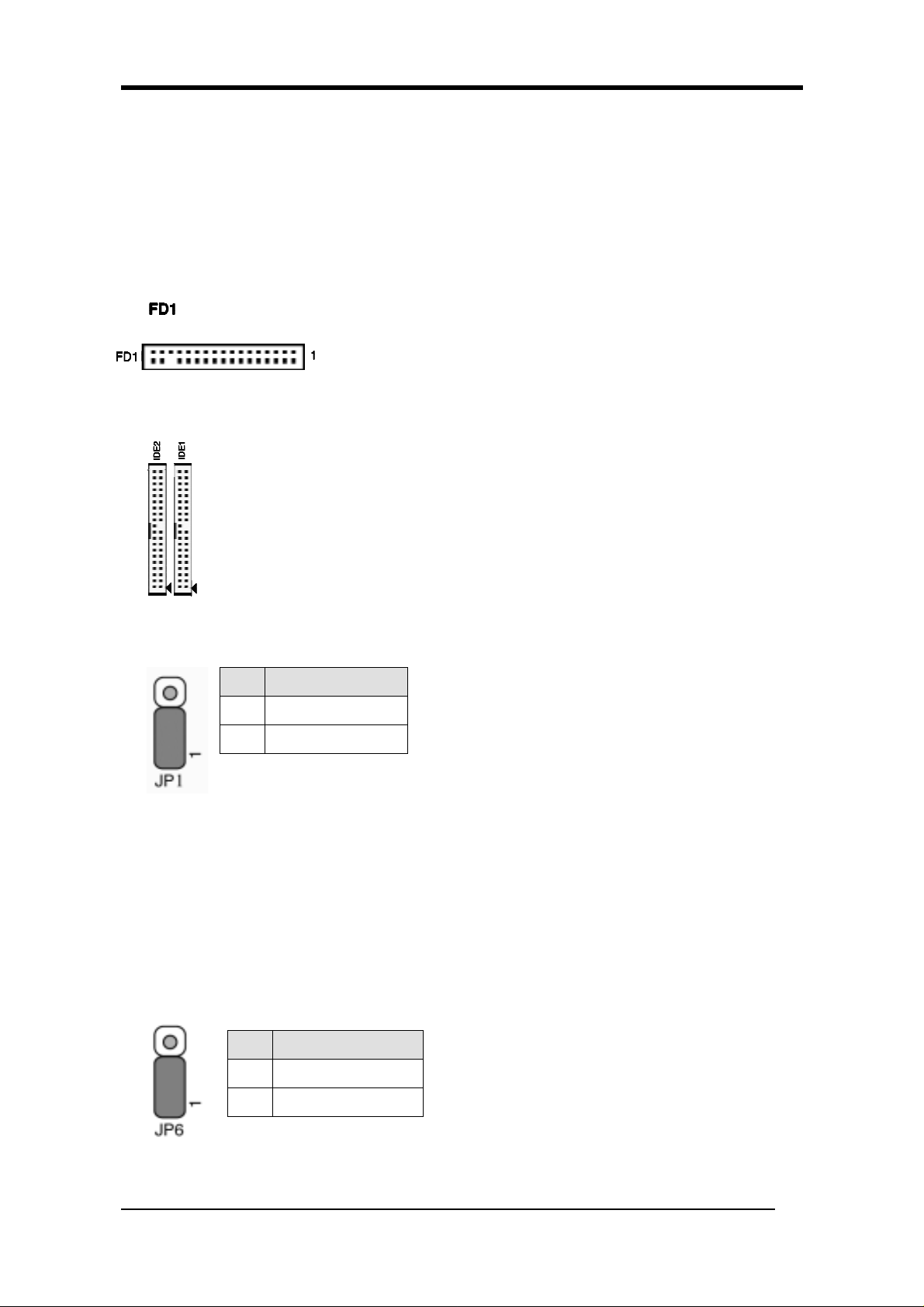

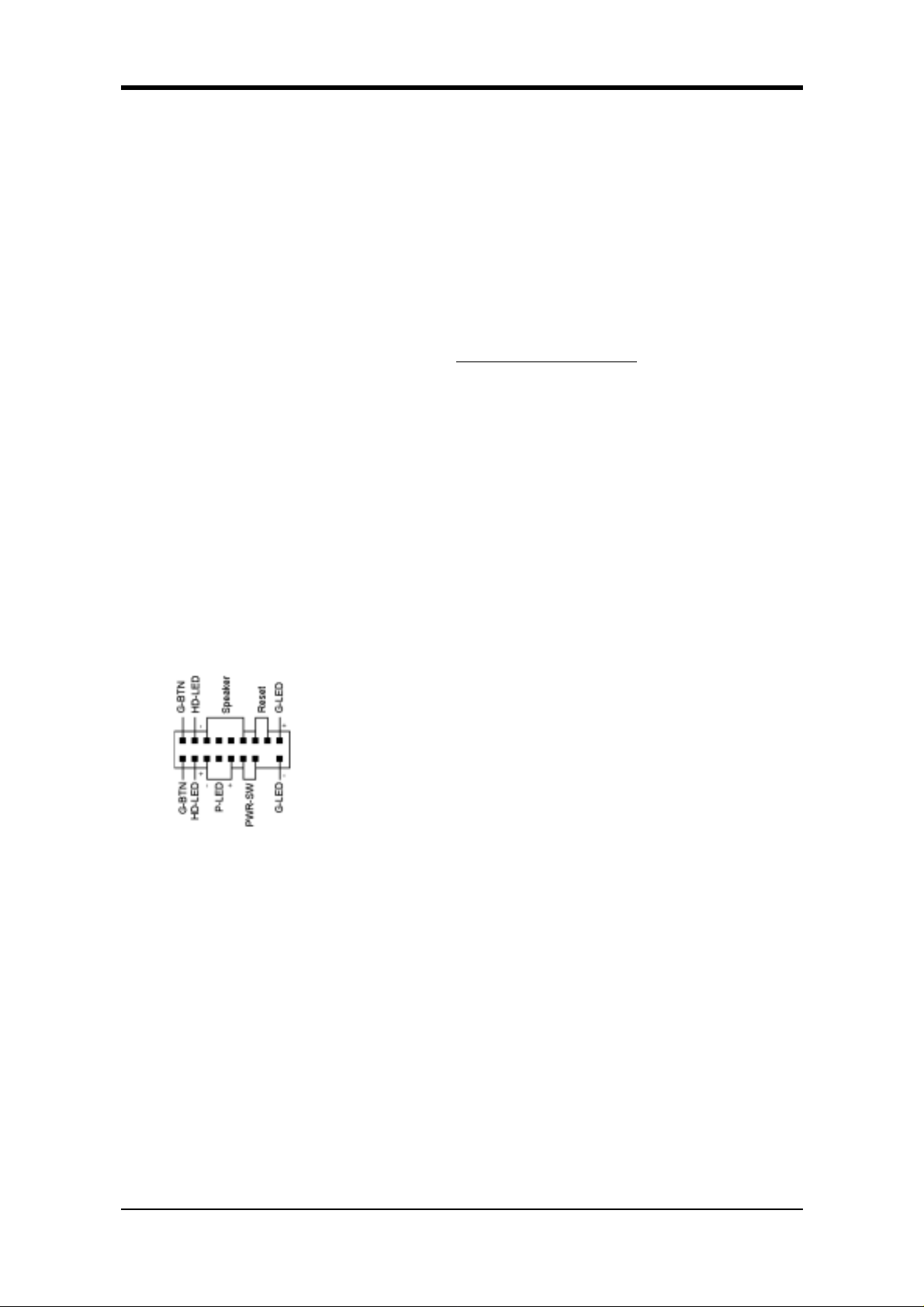

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including the
power supply, the keyboard, and the various controllers on the front panel of the system
case.
The power supply connector is the last connection to be made while installing a
motherboard. Before connecting the power supply, please make sure it is not connected to
the power source.

Note:

All cables are security-proof.

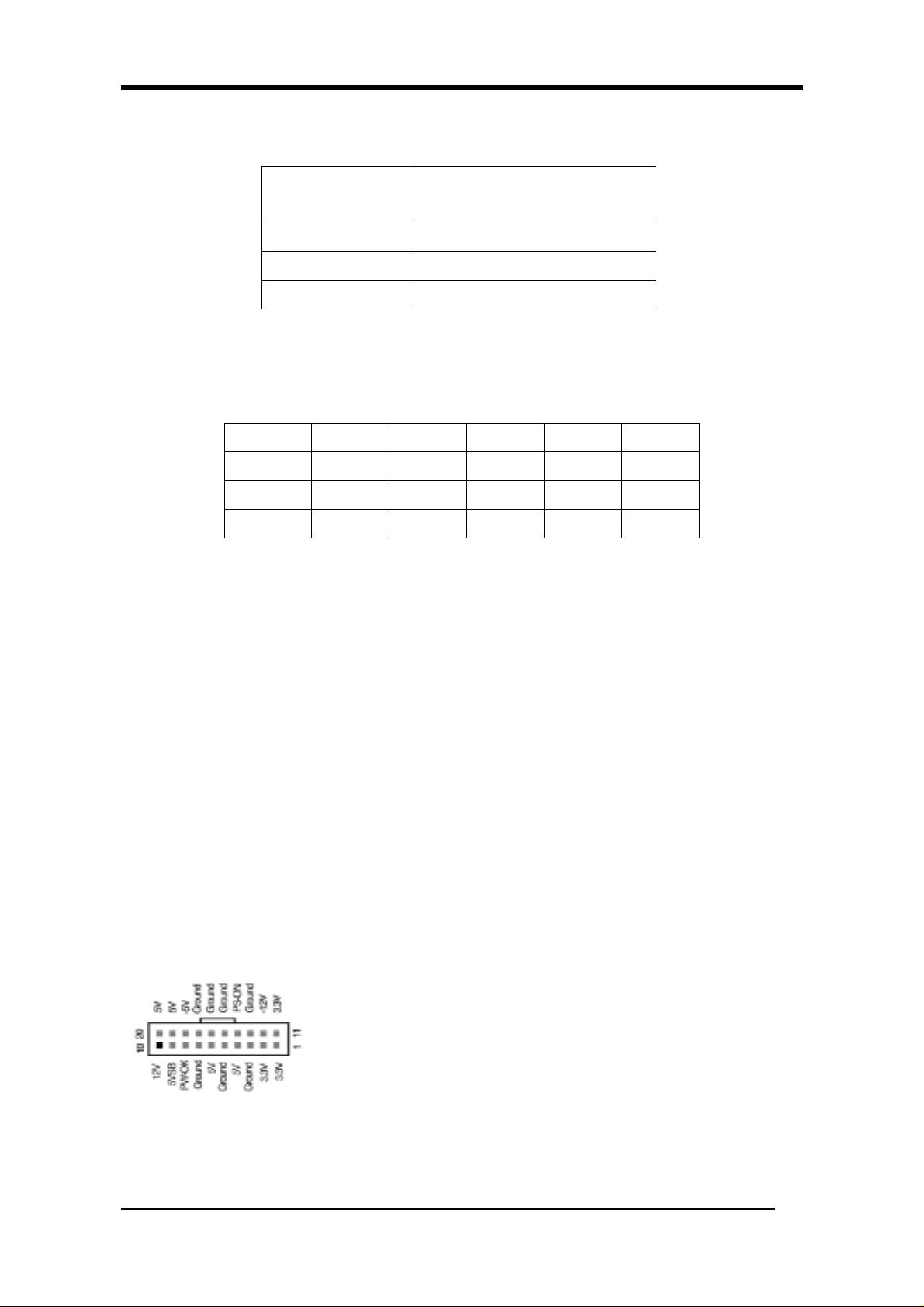

PW1 (ATX Power Supply Connector)

The power cord leading from the system's power supply to the

external power source must be the very last part connected

when assembling a system. The ATX power supply provides a

single 20-pin connector interface, which incorporates standard

+/-5V, +/-12V, optional 3.3V and Soft-power signals. The Soft

power signal, a 5V trickle supply is continuously supplied

when AC power is available. When the system is in the Soft-Off mode, this trickle supply
maintains the system in its minimum power state.

6

Chapter 2

The ATX 12V power supply has a new +12V (4-pin) and +5V/3.3V (6-pin) auxiliary
power connector in order to enable the delivery of more +12 VDC and +5/3.3V VDC
current to the motherboard.

Power-On By Modem

While in Soft-Off state, if an external modem ring-up signal is detected, the system will
be activated and can be remotely accessed. You may enable this function in BIOS's
Power Management Setup menu. (See section 3. 5)

Blinking LED in Suspend Mode

While in Suspend mode, the LED light on the front panel of your computer will flash.
Suspend mode is entered by pressing the Override Power Button

, pushing the Green

button on your ATX case, or by enabling the Power Management and Suspend Mode
options in BIOS's Power Management menu. (See section 3.5)

Poly-fuse Over Current Protection

The poly-fuse protects the system from dangerous voltages that the system might be
exposed to via the keyboards or USB connectors. In case of such an exposure, the
poly-fuse will immediately be disconnected from the circuit, just like a normal fuse. After
being disconnected for a certain period of time, the poly-fuse will return to its normal
state and the keyboard or USB connector can function properly again. Unlike
conventional fuses, the poly-fuse will not need to be replaced, relieving the user from
such inconveniences.

CN1A (Front Panel Connector)

1. PWR-SW (Over-ride Power Button Connector)

The power button on the ATX chassis can be used as a normal
power switch as well as a device to activate Advanced Power
Management Suspend mode. This is power- saving mode used for
saving electricity when the computer is not in use for a long period
of time. The Soft-OFF by PWR-BTTN function in BIOS's Power
Management Setup menu must be set to [Delay 4 Sec.] to activate
this function.

When the Soft-OFF by PWR-BTTN function is enabled, pushing
the power button rapidly will switch the system to Suspend mode. Any occurrence of
external activities such as pressing a key on the keyboard or moving the mouse will
bring the system back to Full-On. Pushing the button while in Full-On mode for more
than [4 seconds] will switch the system completely off. See Over-ride Power Button
Operation diagram.

2. P-LED (Power LED Connector)

The power indicator LED shows the system's power status. It is important to pay
attention to the correct cables and pin orientation (i.e. Be careful not to reverse the order
of these two connectors.)

3. G-BTN/G-LED (Green Button Switch/LED Connector)

Some ATX cases provide a Green button switch, which is used to put the system in
Suspend mode. While in Suspend mode, the power supply to the system is reduced to a
trickle, the CPU clock is stopped, and the CPU core is in its minimum power state. The
system is activated whenever the keyboard or mouse is touched. The system resumes in
different ways as defined by Power Management Setup screen in BIOS.

7

Chapter 2

4. RESET (System Reset Switch Connector)

This connector should be connected to the reset switch on the front panel of the system
case. The reset switch allows you to restart the system without turning the power off.

5. SPEAKER (Speaker Connector)

This 4-pin connector connects to the case-mounted speaker.

6. HD-LED (IDE Activity LED Connector)

The IDE activity LED lights up whenever the system reads/writes to the IDE devices.

FD1 (Floppy Connector)

The motherboard provides a standard floppy disk drive

connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M

floppy disk types. Use this connector to connect to a Floppy

disk drive of 34 pins .

IDE1 / 2 (IDE Hard-Disk Connector)

The motherboard has a 32-bit Enhanced PCI IDE and Ultra ATA66/100/133
controller that provides PIO mode 0~4, Bus Master, and Ultra
ATA66/100/133 function. This connector is used for connecting 40 pins of
ATAPI devices.
IDE 1 only connects two IDE devices. (Primary Master/Slave)
IDE 2 only connects two IDE devices. (Secondary Master/Slave)

JP1 (CMOS Clear Jumper)

Pin

Definition
1-2 Normal (default)
2-3 Clear CMOS Data

There is a CMOS RAM on board that has a
power supply from external battery to keep the
data and system configuration. To clear the
contents of the CMOS, please follow the steps
below.

1. Disconnect the system power supply from the power source.

2. Set the jumper cap at location [2-3] for <5 seconds>, and then set it back to the

default position.

3. Connect the system's power and then start the system.

4. Enter BIOS's CMOS Setup Utility and choose Load Setup Defaults. Type [Y]
and then press [Enter] to continue.

5. Set the system configuration in the Standard CMOS Setup menu.

JP6 (Enable/Disable USB 0/1 Device Wake-Up Jumper)

Pin

Definition
1-2 Disable (default)
2-3

Enable

An USB keyboard hot key or an USB mouse
click can activate this board. To use this
function, select a hot key of your choice at the
USB Resume from S3 option under Wake Up

Events in the BIOS's Power On Management screen. You must also set this

jumper’s cap to pins 2-3 to use this function.

8

FAN1 / FAN2 /FAN3 (CPU/System/Case Cooling Fan Connectors)

The board's hardware management is able to detect the CPU and
system fan speed in rpm (revolutions per minute). The wiring and
plugging may vary depending on the manufacturer. On standard fans,
the red is positive (+12V) and the black is ground.

CN2/CN2A (CD-ROM Audio-in Connector)

Use the audio cable enclosed with your CD-ROM disk drive to
connect the CD-ROM to your motherboard. This will enable your
CD-ROM's audio function.

CN5 [WOL (Wake-on-LAN) Connector]

Enable the Wake Up On LAN selection in BIOS's Power Management
Menu to use this function. The capability to remotely manage PCs on a

Chapter 2

network is a significant factor in reducing administrative and ownership
costs. Magic Packet technology is designed to give WOL capability to
LAN controller. This header is used to connect an add-in NIC (Network

Interface Card) that gives WOL function to the motherboard.

CN5A [WOM (Wake-on-Modem) Connector]

Enable the Wake Up On Modem selection in BIOS's Power Management
Menu to activate this function. This header is used to connect an add-in
modem card, which gives WOM capability to the motherboard.

CN23/CN23A (Front USB Connector for USB 2/3 and 4/5)

USB Port 2/3 Æ CN23, USB Port 4/5 Æ CN23A

If you want to use a USB Keyboard, you must enable the USB keyboard
support function in BIOS's Integrated Peripherals menu (See Section

3.4). This board contains a USB Host controller and a root hub with two
connectors is included for an optional USB Adaptor (USB 2/3 and 4/5).

CN24 (Front Audio Connector)

This connector gives you the option of a front-panel audio jack cable
ext. to be plugged into a special custom-designed system case.

Simply remove the two jumper caps at pin [5-6] and [9-10] then plug
it into the (optional) cable ext. connector. Pin [5-6] and [9-10] are
shorted (default) to enable the back-panel audio function.

9

Chapter 2

It is recommended that you leave the default settings to prevent any burnout on

JP2/3 (CPU Front Side Bus setting)

JP2 JP3 Definition

2-3 1-2 100 MHz
1-2 1-2 133 MHz
1-2 2-3 166 MHz
2-3 2-3 200 MHz

This cap setups up the CPU Ext. Clock
Frequency. This function allows you to
set the CPU’s FSB. The default setting
is at pin [1-2], and your CPU’s FSB
will be automatically detected.

your CPU.

10

Chapter 3

Chapter 3

BIOS Setup Program

Phoenix-Award BIOS ROM has a built-in setup program that allows users to modify the
basic system configuration. This information is stored in CMOS RAM so that it can
retain the setup information, even when the power is turned off.
To enter the Phoenix-Award BIOS setup program press [Delete] when you Power on or
reboot the computer system. The primary screen as shown in Figure 3-1 is a list of the
menus and functions available in the setup program. Select the desired item by your
arrow keys and press enter to make the changes. Operating commands are located at the
bottom of this and all other BIOS screens. When a field is highlighted, on-line help
information is displayed on the right side of the screen.

3-1 Standard CMOS Setup

The Standard CMOS Setup allows users to configure system components such as hard
disk drive, floppy disk drive and video display as well as date, time and boot-up error
signaling. This configuration menu should be changed when installing a motherboard for
the first time, changing hardware in your system such as the HDD, FDD, video display,
or when the CMOS data was lost or corrupted. Choose the Standard CMOS Setup option
from the CMOS Setup Utility menu (Figure 3-1) to display the following screen.

Date/Time

Set the date and time of the system. Do not skip this function as all of your timed events
such as power management, saving files, etc are based on this timer.

IDE (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed in the
computer. This section does not show information on other IDE devices such as
CD-ROM drives or other hard drive type such as SCSI drives.

Drive A

Select different Floppy device Model. Available options are [None], [360K, 5-1/4 in],
[1.2M, 5-1/4 in], [720k, 3-1/2 in], [1.44M, 3-1/2 in], and [2.88M, 3-1/2 in].

Video

Select the type of video adapter present in your system. You can ignore this setting if you
are using a VGA monitor; VGA BIOS will automatically configure this setting.

Halt On

When the system is powered on, BIOS performs a series of diagnostic tests called POST
(Power On Self Test). This function stops the computer if BIOS detects a hardware error.
You can tell BIOS to halt on all errors, no errors, or not to halt on specific errors.

11

Chapter 3

Many disk diagnostic programs that access the boot sector table can trigger the

warning message. If you plan to run such a program, we recommend that

3-2 Advanced BIOS Features

By choosing the Advanced BIOS Features option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.

Virus Warning

When you set it as enabled, you receive a warning message if a program (specifically, a
virus) attempts to write to the boot sector or the partition table of the hard disk drive.

virus­you first disable the virus warning.

CPU Internal Cache / External Cache

Cache memory is much faster than conventional DRAM system memory. These fields
allow you to enable or disable the CPUs Level 1 built-in cache and Level 2 external
cache. Both settings are left as Enabled to significantly increase the performance of your
computer.

CPU L2 Cache ECC Checking

Enable this function for the CPU L2 Cache Error Checking and Correcting (ECC)
operation.

Quick Power On Self Te st

Enable this function to reduce the amount of time required to run the POST (Power On
Self Test). BIOS will save time by skipping some items during POST. It is recommended
that you disable this setting. Discovering a problem during boot up is better than loosing
data during your work.

First/Second/Third/Boot Other Device

This option sets the sequence of drives BIOS attempts to boot from after POST completes.
BIOS will search these drives for an operating system.

Boot up Floppy Seek

This is a set up check for floppy power-on after starting the computer system.

Boot Up NumLock Status

This function defines the keyboard's number pad as number keys or arrow keys. If it is set
at [On] the number keys will be activated. If it is set at [Off] the arrow keys will be
activated.

Gate A20 Option

This allows you to set the Gate A20 status. When set to [Fast], Gate A20 is controlled by
chipset. When set to [Normal], Gate A20 is cont rolled by a specific pin from the

12

Chapter 3

keyboard controller. Available options are [Fast] and [Normal].

Typematic Rate Setting

When enabled, you can set the following two-typematic control items. When disabled,
the keyboard controller determines keystrokes arbitrarily in your system.

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when a key is
pressed and held down.

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins repeating.

Security Option

The Supervisor and/or User Password functions shown in Figure 3-1 must be set to take
advantage of this function. See Section 3.11 for password setting information. When the
Security Option is set to System, a password must be entered to boot the system or enter
the BIOS setup program. When the Security Option is set to Setup, a password is
required to enter the BIOS setup program.

APIC Mode

In order to comply with PC2001 standard, the system is designed to run in APIC
(Advanced Programmable Interrupt Controller) mode. Enabling APIC mode will expand
available IRQs resources for the system. Available options are [Enabled] and [Disabled].

MPS Version Control For OS

This item allows you to select which MPS (Multi-Processor Specification) version is
used for the operating system. You need to select the MPS version which is supported by
your operating system. To find out which version to use, consult the vendor of your
operating system. Available options are [1.4] and [1.1].

OS Select For DRAM >64MB

If your system's DRAM is larger than 64MB and you are running OS/2, select OS/2 as
the item value. Otherwise, set the item value to Non-OS/2 for all other operating systems.

HDD S.M.A.R.T. Capability

This field allows you to Enable or Disable the S.M.A.R.T. (Self-Monitoring, Analysis
and Reporting Technology) system that utilizes the internal hard disk drive monitoring
technology. This parameter is normally set as Disabled because the resources used in the
SMART monitoring feature may decrease the system performance.

13

Chapter 3

board
manufacturer and should not be changed unless you are absolutely sure of
what you are doing. Explanation of the DRAM timing and chipset features

hly technical and beyond the scope of this manual. Below

Video BIOS Shadow

Enabling this function will allow the BIOS setting of the VGA card to be saved in RAM
for better performances.

Small Logo (EPA) Show

This setup allows photo that is EPA. Logo.

Show POST CODE

Enabling this function can show POST error code on the screen before proceeding to
operating system.

3-3 Advanced Chipset Features

By choosing the [Advanced Chipset Features] option from the CMOS Setup Utility
menu (Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.

All of the above settings have been determined by the mother

setup is lengthy, hig
are some brief descriptions of the functions in this setup menu.

DRAM Clock/Drive Control

1. DRAM Clock

This selecting option allows you to control the DRAM speed.

2. DRAM Timing

The function allows you to enable or disable the DRAM timing by SPD. It is
recommended to keep the default setting for a stable system operation.

3. DRAM Burst Length / DRAM Command Rate / Write Recovery Time / tWTR

It is recommended to keep the default setting for a stable system operation.

AGP & P2P Bridge Control

1. AGP Aperture Size

This feature allows users to select the size of the AGP aperture. It also determines the
maximum amount of system RAM that can be allocated to the graphics card for texture
storage. The required AGP aperture size will become smaller as the graphics card’s
memory increases in size. But increase in size of the aperture does not correspond to
increase in performance. It is recommend that the AGP aperture size is left around
64MB to 128 MB in size unless instructed otherwise by your video card manufacturer.

2. AGP Mode

Available options: [8X], [4X]

14

3. AGP Driving Control
The [Manual] setting allows you to manually select the AGP driving value. However, it
is recommended that you keep the default setting [Auto] to allow the system to
automatically determine the appropriate AGP driving value.

4. AGP Fast Write
Selecting [Enabled] to allow Fast Write Protocol for 4X/2X AGP to function.

5. AGP Master 1 WS Write/Read
It is recommended to keep the default setting for a stable system operation.

6. AGP 3.0 Calibration Cycle
Available options: [Enabled], [Disabled].

7. DBI Output for AGP Trans
Please leave the default setting [Disabled] for a stable system operation.

CPU & PCI Bus Control

1. PCI 1/2 Master 0 WS Write

Chapter 3

When Enabled, writes to PCI bus are executed with zero wait states.

2. PCI 1/2 Post Write
Enabling this function will enhance the system efficiency.

3. Vlink 8x support
Enable this setting to utilize the 8X mode (twice as fast as 4X) offered by advanced AGP
cards. Your VGA card must support 8X mode in order to take advantage of the faster
speed.

4. PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions
cycles. Select Enabled to support compliance with PCI specification version 2.1.

Memory Hole

Enabling this function will reserve the memory address space between 15MB and 16MB
for ISA expansion cards. However, enabling this function will result in not allowing the
system to have access to memory above 16MB. Please note that some expansion cards
require this setting to be Enabled. The default setting is Disabled. If Auto Configuration
is enabled, you must set the DRAM timing function to 60ns or 70ns, depending on the
type of DRAM you install.

System BIOS Cacheable

Enabling this function allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this memory
area, a system error may result. It is advised to leave this setting. Caching the system
BIOS results in better performance than shadowing the system BIOS.

15

Chapter 3

].

Video RAM Cacheable

Enabling this function will allows caching of the video RAM, resulting in better system
performance. However, if any programs write to this memory area, a system error may
occur.

Flash BIOS Protection

The motherboard manufacturer developed BIOS protection technology that protects the
System BIOS from accidental corruption by unauthorized users or computer viruses.
When enabled, the BIOS data cannot be changed when attempting to update BIOS with
the FLASH utility. When disabled, the BIOS data can be updated by using the FLASH
utility.

Note:

If you are using DDR 400 and the brand of the module is Winbond, please adjust

your BIOS setting according to the following instructions to avoid compatibility problem.

1. Press [Delete] to enter BIOS setup program when you turn on or reboot your system.

2. Select [Advanced Chipset Features].

3. Select [DRAM Clock

4. Adjust the setting of DRAM Timing to [Turbo].

If there is no incompatibility problem occurred while you use the module, then it’s
not necessary to change the memory setting.

3-4 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the screen
below is displayed. This sample screen contains the manufacturer's default values for the
motherboard.

VIA OnChip IDE Device:

Press [Enter] to enter the sub-menu, which contains the following items for advanced
control:

1. OnChip IDE Channel 0/1
You can set this to disable the OnChip IDE controller if you are going to add a higher
performance IDE board.

2. IDE Prefetch Mode
Enabling this function will enhance the system efficiency.

3. Primary/Secondary Master/Slave PIO
The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-4) for

each IDE device that the internal PCI IDE interface supports. Modes 0 through 4 provide
successively increased performance. In Auto mode, the system automatically determines
the best mode for each device.

16

Chapter 3

4. Primary/Secondary Master/Slave UDMA
Ultra DMA implementation is possible only if your IDE device supports it and your

operating environment contains a DMA driver. If both your hard drive and software
support Ultra DMA, select [Auto] to enable BIOS support.

5. IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard drive supports block mode, select Enabled to auto-detect the
optimal number of block read/writes per sector.

VIA OnChip PCI Device

This section provides information for setting the on-board devices. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the
following options are shown:

1. VIA AC97 Audio
This feature allows you to enable/disable the onboard AC97 audio function.

2. VIA OnChip LAN
This feature allows you to enable/disable the onboard LAN function.

3. Onboard Lan Boot ROM
Decide whether to invoke the boot ROM of the onboard LAN chip or not.

4. OnChip USB Controller
Enable the on-board Universal Serial Bus (USB 1.1) controller if you want to connect a
USB device to your system. Note that if this setting is disabled, you can still temporarily
use a USB keyboard during boot up so that you can enter BIOS and enable this setting.
If you pass the boot up stage without enabling this function, your PS/2 keyboard will no
longer work.

5. OnChip EHCI Controller
Enable the on-board Universal Serial Bus (USB 2.0) controller if you want to connect a
USB device to your system. Note that if this setting is disabled, you can still temporarily
use a USB keyboard during boot up so that you can enter BIOS and enable this setting.
If you pass the boot up stage without enabling this function, your PS/2 keyboard will no
longer work.

6. USB Device Function

Select Enabled if your system has USB devices installed on the system board. If
your system has no USB devices, select Disabled in this field.

7. USB Keyboard Support
Select Enabled if your system has a USB keyboard installed on the system board. If your
system has no USB keyboard, select Disabled in this field.

17

Chapter 3

Super IO Device

This section provides information on setting Super I/O device. Press [Enter] to enter the
sub-menu, which contains the following items for advanced control:

1. Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the system
board and you wish to use it. If you install an add-in FDC or the system has no floppy
drive, select Disabled in this field.

2. Onboard Serial Port 1/2
Select an address and corresponding interrupt for the first and second serial ports.

Available options are [3F8/IRQ4], [2E8/IRQ3], [3E8/IRQ4], [2F8/IRQ3], [Disabled],
and [Auto].

3. Onboard Parallel Port
Select a logical LPT port address and corresponding interrupt for the physical parallel

port.

4. Parallel Port Mode
Select an operating mode for the onboard parallel (printer) port. Select SPP unless you

are certain your hardware and software support one of the other available modes.

5. ECP Mode use DMA
This item automatically specifies a DMA channel 1 or 3 for the parallel port when it is
set to [EPP] or [ECP+EPP] mode.

6. Game Port Address
This item disables or assigns the address of the Game port. Available options are

[Disable], [201] and [209].

7. Midi Port Address
This item disables or assigns the address of the Midi port. Available options are

[Disable], [300] and [330].

8. Midi Port IRQ
This item specifies an IRQ for the Midi port. Available options are [5] and [10].

Init Display First

This function allows users to choose AGP or PCI slot to initialize display.

3-5 Power Management Setup

This section provides information on the Green PC power management functions. By
choosing the Power Management Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.

ACPI Suspend Type

This feature allows user to select a suspend type for the operating system to turn off
peripherals devices, such as CD-ROM players, when they are not in use.

18

Chapter 3

Power Management Option

Power management allows the computer to save electricity when it is not in use by
entering increasingly deep power saving modes.

HDD Power Down:

Shuts down any IDE hard disk drives in the system after a period of inactivity as set in
this user configurable field. This feature does not affect SCSI hard drives.

Suspend Mode

The Power Management function must not be set to disabled to enable this function. If
the system runs in Standby mode and the Suspend timer expires, all devices regulated by
power management will shut off and the CPU speed will be 0 MHz.

Video Off Option

This setting allows you to select the power-saving modes during which the monitor goes
blank.

Video Off Method

This function serves as both a screen saver and power saver for monitors. See the next
function, Video Off After, for setting the video timer.

1. Blank - BIOS will only blank the monitor's screen. The electricity saved in this mode is

negligible and this function is only used as a screen saver to prevent screen damage
while the screen is on but not in use.

2. V/H SYNC+Blank - The system turns off the vertical and horizontal synchronization

ports, writes blanks to the VGA buffer and the monitor's electron gun turns off. This
function requires a monitor with Green features in order to take advantage of the
power saving function. If you enable this function and do not have a Green monitor,
the result will be the same as if you had selected Blank. This function serves as both a
screen saver and a power saver.

3. DPMS Support - Select this option if your video card supports the Display Power

Management Signaling (DPMS) standard (i.e., you have a monitor that supports
Green features). Use software supplied by your video subsystem to set video power
management options.

Modem Use IRQ

If your computer has a modem use this function to tell BIOS which IRQ is being
occupied by the modem card. When the system is in Green mode, the modem requires an
IRQ assignment to wake up the system and perform tasks. This assignment is compliant
with APM 1.2 operating systems.

Soft-Off by PWRBTN

When set to Delay 4 Sec., this function allows the power button to put the system in
Suspend, a power saving mode. When set to Instant-Off the Soft-Off by PWR-BTN
function is disabled and the computer turns completely off when the power button is
pressed.

Run VGABIOS if S3 Resume

Available options: [Auto], [Yes], [No].

19

Chapter 3

Ac Loss Auto Restart

Available options: [Auto], [On], [Off]. Please leave the default setting [Off] for a stable
system operation.

IRQ/Event Activity Detect

1. PS2KB Wakeup Select
When enabled, a PS/2 keyboard hot key can turn on the system.

2. PS2KB Wakeup from S3/S4/S5
This function allows the keyboard to activate the system from S3/S4/S5 power saving

modes. Available options: [Ctrl+F1] through [Ctrl+F12], [Power], [Wake], [Any Key].

3. PS2MS Wakeup from S3/S4/S5
This function allows the PS/2 mouse to activate the system from S3/S4/S5 power saving
modes. Available Options: [Disabled] and [Enabled].

4. USB Resume from S3
When enabled, the system is able to resume from S3 mode by a USB keyboard hot key

or mouse click.

5. VGA
VGA function is activated when option [On] is selected. Available options: [On], [Off].

6. LPT & COM
Both LPT and COM ports are activated when [LPT/COM] is selected. Available
options: [None], [LPT], [COM], [LPT/COM].

7. HDD & FDD
Both HDD and FDD are activated when it is set to [On]. Available options: [On], [Off].

8. PCI Master
This options control the activation of PCI slots. Available options: [On], [Off].

9. PowerOn by PME/ Onboard LAN

When enabled, a PCI interface that receives a signal will activate the system from
soft off and green mode.

10. PowerOn by Ring/WOL

When enabled, a Modem that receives a signal will activate the system from soft
off and green mode. You should connect the modem to the COM port and turn on
the resume event in green mode.

11. RTC Alarm Resume
When enabled, this setting allows the system to turn back on at a designated time of the
month. User must designate date of month and time of day.

20

Chapter 3

12. IRQs Activity Monitoring
This feature allows you to monitor a list of IRQ, Interrupt ReQuests. When an I/O
device wants to gain the attention of the operating system, it signals this by causing an
IRQ to occur. When the operating system is ready to respond to the request, it interrupts
itself and performs the service.

3-6 PNP/PCI Configurations

This section provides IRQ and DMA setting information. By choosing the PNP/PCI
Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen below
is displayed. This screen contains the manufacturer's default values for the motherboard.

PNP OS Installed

If you want to install a PNP compatible OS (such as Windows 95) , then set it to Yes.

Reset Configuration Data:

If you want to reset CMOS IRQ divide hardware device, please selected to [Enabled].

Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning IRQ &
DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy
information. ESCD (Extended System Configuration Data) provides a detailed format
of the configuration data structures stored in flash memory. Each data structure defines
the resources used by a device or a card in the system. This includes legacy and PCI/ISA
PnP devices.

PCI/VGA Palette Snoop

When set to [Enabled], multiple VGA devices operating on different buses can handle
data from the CPU on each set of palette registers on every video device. Bit 5 of the
command register in the PCI device configuration space is the VGA Palette Snoop bit (0
is disabled). Available options are [Enabled] and [Disabled].

Assign IRQ For VGA/USB

Available options: [Enabled] and [Disabled].

FDD IRQ Can Be Free

This function allows user to choose if the FDD IRQ can be freed up. The default setting
is [Yes] and this does not allow the IRQ to be free.

3-7 Frequency/Voltage Control

By choosing the Frequency/Voltage Control option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.

Auto Detect PCI/DIMM Clk

Enabling this function will auto-detect PCI/DIMM clock.

Spread Spectrum

Available options: [Disabled], [Enabled].

21

Chapter 3

or password set, the user password controls access to

Linear Spread Range

Please leave the default setting [1] for a stable system operation.

CPU Clock

It is recommended to keep the default setting for a stable system operation.

Overclocking:

This motherboard is designed to support overclocking. However, please
make sure your components are able to tolerate such abnormal setting,
while CPU clock speed is overclocked. Any attempt to operate beyond
product specifications is not recommended. We do not guarantee the
damages or risks caused by inadequate operation or beyond product
specifications.

3-8 Load Fail-Safe Defaults

Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS Setup
Utility menu (Figure 3-1). If the stored record created by the setup program becomes
corrupted and therefore unusable, these defaults will be loaded automatically when you
turn on the computer.

3-9 Load Optimized Defaults

Load Optimized Defaults loads the default system values directly from the CMOS Setup
Utility menu (Figure 3-1). If the stored record created by the setup program becomes
corrupted and therefore unusable, these defaults will be loaded automatically when you
turn on the computer.

3-10 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are
located under the Security Option function in BIOS Features Setup Menu (Figure 3-1).
When the Security Option function is set to
and change BIOS settings. When the Security Option function is set to

, a password is required to enter BIOS

Setup

System

, a
password is required to enter both BIOS and the computer's operating system (for
example Windows 98) found on the boot drive.
The third and fourth variables are user password and supervisor password selected in
BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow only
the supervisor to have control over the settings in BIOS. The user, on the other hand, is
only allowed to access the computer's operating system and change the user password in
BIOS.

When there is no supervis
all BIOS settings.

3-11 Save and Exit Setup

If you select this and type [Y] (for Yes) followed by [

] , the values entered in the

Enter

setup utilities will be recorded in the CMOS memory of the BIOS chip.

3-12 Exit Without Saving

Selecting this option and pressing Y followed by [

] lets you exit the Setup program

Enter

without recording any new values or changing old ones.

22

Chapter 4

Chapter 4

DRIVER Setup

Insert the support CD that come with your motherboard into your CD-ROM driver or
double-click the CD drive icon in [

4-1 VIA Service Pack Setup

1. Click [

2. Click [

3. Please select [

4. Please select [

5. Please select [

6. Please select [

7. Please select [

8. Please select [OK] to restart your computer.

4-2 Audio Driver Setup

1. Click [Audio Driver].

2. Click [

3. Click [

4. Select a folder where the program will be installed and click [

VIA Service Pack
Next >

Next >
Next >

] to begin software installation.

] to accept the license agreement.

Yes
Next >
Next >
Next >
Next >

] to start software installation
] to continue.

] to continue.
] to continue.
] to continue installing VIA PCI IDE Bus Driver.
] to continue installing AGP Driver.

My computer

].

] to open the setup screen.

Next >

] to proceed.

5. Please select one folder name from existing folders list and click [

6. Please click [

7. Please select [OK] to complete setup.

4-3 LAN Driver Setup

1. Click [

2. Please select [

3. Please click [

4-4 USB 2.0 Driver

1. Click [USB 2.0 Driver].

2. Please select [

3. Please select [

4. Please select [

5. Please select [OK] to continue.

6. Please select [

7. Please click [OK] to complete the setup process.

8. Please select [
[

Finish

Please
since it is not supported by this mainboard.

Next >

LAN Driver

Finish

] to complete the installation.

do not enable

] to begin the file copying process.

].

Next >

Next >
Next >
Yes

Print to File

] to continue.

] to complete the setup process.

] to continue.
] to continue.

] to accept the license agreement.

] to continue.

] for restarting computer now or [No] for restart later, then click

Yes

the s-bracket option of the 5.1- Channel audio

Next >

] to proceed.

23

NOTE

NOTE

All rights are reserved for the products and corporate names/logos that
appear in this manual to their original owners.

We reserve all the rights to change this manual. All information is subject to
change without notice.

24

How To Contact CHAINTECH

How To Contact CHAINTECH

Please do not hesitate to contact us if you have any problem about our products. Any
opinion will be appreciated.

For Asia, Africa, Australia and Pacific Island:
CHAINTECH COMPUTER CO., LTD

No. 7-1, Chung Shin Rd., Tu Cheng,
Taipei Hsien, Taiwan, ROC.

[phone]

Tel:

[phone]

Fax:

http://www.chaintech.com.tw

URL:
E-mail:

For France:
AELT COMPUTER

5 rue de Rome 93561 Rosny Sous Bois
Cedex France

Tel:
Fax:

E-mail: [email protected]

For Korea:
CHAINTECH KOREA CO., LTD.

14F, Mi-Won B/D, Yeouido-Dong 43,
Youngdeunpo-Gu, Seoul, Korea

Tel:
Fax:

E-Mail:

[email protected]

33-1-4855-5940

33-1-4855-5942

[phone]

[phone]

[email protected]

For The Netherlands:
CHAINTECH EUROPE B.V.

Coenecoop 620 2741 PV WADDINXVEEN,
THE NETHERLANDS

[phone]

Tel:

[phone]

Fax:

http://www.chaintech.dk

URL:
Technical support
E-Mail:

For America:
CHAINTECH AMERICA CORP.

4427 Enterprise St. Fremont CA 94538, U.S.A.

Tel:
Fax:
URL:

E-mail (Sales):
For China

CHAINTECH, SHENZHEN

Room 301, Nanguang Building, No.1004,
Huafu Rd, Futian District,Shenzhen, China
518041

Tel

Fax

CHAINTECH, BEIJING

403, Building A, No.118, Zhichun Rd,
Haidian District, Beijing, China 100086

Tel:
Fax:
URL:

E-MAIL:

[email protected]

[phone]

[phone]

http://www.chaintechusa.com

[email protected]

: [phone]

[phone]

:

[phone]

[phone]

http://www.chaintech.com.cn

[email protected]

25
