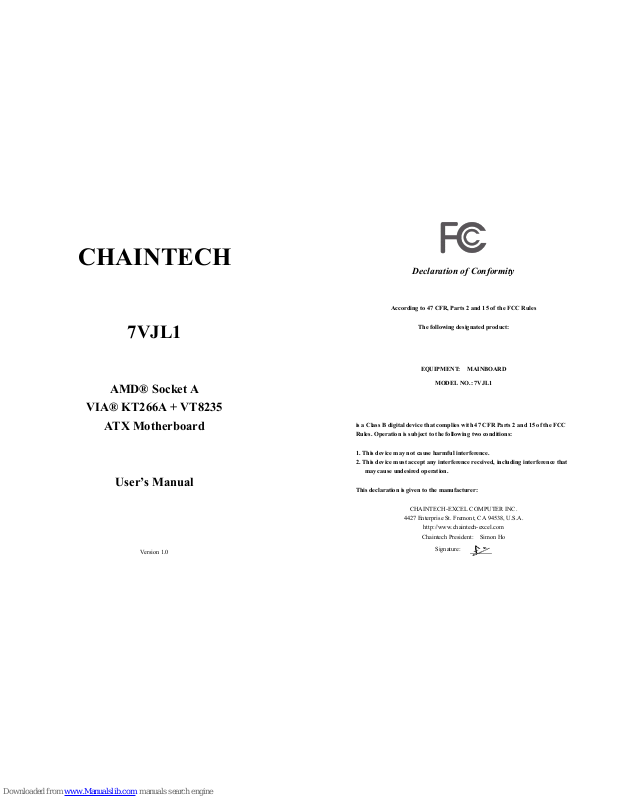

CHAINTECH
7VJL1
AMD® Socket A
VIA® KT266A + VT8235
ATX Motherboard
User’s Manual
Ver si on 1. 0
Declaration of Conformity
According to 47 CFR, Parts 2 and 15 of the FCC Rules
The following designated product:
EQUIPMENT: MAINBOARD
MODEL NO.: 7VJL1
is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC
Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
This declaration is given to the manu facturer:
CHAINTECH-EXCEL COMPUTER INC.
4427 Enterprise St. Fremont, CA 94538, U.S.A.
http://www.chaintech-excel.com
Chaintech President: Simon Ho
Signature:
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
* This device may not cause harmful interference.
* This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If this
equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to assure
compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
Canadian Department of Communicatio ns Statement
This digital apparatus does not exceed the Class B limits for audio noise emissions from digital apparatuses
set out in the Radio Interference Regulations of the Canadian Department of Communications.
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not represent a commitment
on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the
quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to
make changes to the content of this document and/or the products associated with it at any time without obligation
to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect,
special, incidental or consequential damages arising out of the use or inability to use this product or documentation,
even if advised of the possibility of such damages. This document contains materials protected by copyright. All
rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any
purpose without expressed written consent of it's authors. Product names appearing in this document are mentioned
for identification purposes only. All trademarks, product names or brand names appearing in this document are
registered property of their respective owners.
Printed in Taiwan.
Oct 2002
OST-CONSUMER
RECYCLED PAPER
100%
TABLE OF CONTENTS
Chapter 1 Introduction .............................................................1
1-1 Product Specifications ..................................................................................... 1
1-2 Package Contents.............................................................................................2
1-3 7VJL1 Motherboard Diagram .......................... ............................................... 3
1-4 7VJL1 Motherboard Layout ............................................................................4
Chapter 2 Hardware Setup....................................................... 5
2-1 Installing a CPU Processor for Socket A.........................................................5
2-2 Setting Your CPU’s Performance:................. .................................................. 6
2-3 Main Memory Configuration...........................................................................8
2-4 Connector and Jumper Reference Chart ........................................................10
2-5 Connector and Jumper Settings .....................................................................11
Chapter 3 BIOS Setup Program ............................................23
3-1 Standard CMOS Setup...................................................................................24
3-2 Advanced BIOS Features ..............................................................................25
3-3 Advanced Chipset Features ........................................................................... 28
3-4 Integrated Peripherals .................................................................................... 30
3-5 Power Management Setup ............................................................................. 34
3-6 PNP/PCI Configurations........................................................................ ........37
3-7 PC Health Status ............................................................................................ 38
3-8 Frequency/Voltage Control........................................ .................................... 39
3-9 Load Fail-Safe Defaults .................................................... ............................. 42
3-10 Load Optimized Defaults............................................................................. 42
3-11 Supervisor Password & User Password Setting
...................................................42
3-12 Save and Exit Setup ..................................................................................... 43
3-13 Exit Without Saving .................................................... ................................ 43
Chapter 4 DRIVER Setup....................................................... 44
4-1 VIA Service Pack .................................................... ...................................... 44
4-2 Audio driver.................................................................. ................................. 48
4-3 USB 2.0 Driver ................................................................................. .............50
How To Contact CHAINTECH..............................................54
Chapter 1
1
Chapter 1 Introduction
1-1 Product Specifications
Processor
- Supports AMD Socket A Duron / Athlon / XP processors.
- System Clock supports 200 / 266 MHz Front Side Bus
Chipset
- VIA® KT266A + VT8235 Chipset.
Main Memory
- Supports three 184-pin DDR DIMM sockets up to 3GB.
- Supports PC1600/DDR200 PC2100/DDR266 DDR SDRAM modules.
Expansion Slots
- One Universal - AGP slot for both 2X / 4X AGP (V2.0 compliant).
- Six 32 - bit PCI slots (v 2.2 compliant).
Audio subsystem via AC-Link
- With external high quality AC'97 Codec
- Complete software driver supports for Windows® OS
Embedded Ultra DMA - 133 PCI IDE controller
- Supports two IDE ports up to 4 ATAPI devices
- Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps, Multi
Word Mode 5 up to 100MBps and Multi Word Mode 6 up to 133MBps with bus
mastering
- Bus Mastering software drivers for common multi-task operating systems
Embedded USB 2.0/1.0 Host Controller
- UHCI compliant USB host controller with Root hub
- Six USB ports (EHCI/UHCI v1.1 compliant) with over current protection.
- Optional USB adapter for additional USB2.0/1.1 ports
On board ITE 8705 Super I/O Controller
- Two UARTs support serial port s and IR function (up to 115.2Kbps) for HPSIR
and ASKIR
- One SPP/ECP/EPP parallel port
- One floppy disk drive connector supports up to 2.88MB
-
Integrates smart card reader function and interface, to be qualified for meeting
PC/SC standard
Chapter 1
2
Embedded System Monitor Hardware
- 8 external voltage inputs
- 2 temperature sensor with thermistor for CPU and System
- 2 Fan speed monitoring with ON/OFF control in suspend
Ethernet 10/100 Controller
- On board PHY LAN VIA® VT6103 support 10/100Mbs operation
Boot-Block Flash ROM
- Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting
features.
1-2 Package Contents
This product comes with the following components:
1. Motherboard x 1
2. 40-Pin UDMA-100 IDE Cable x 1
Blue
to motherboard,
Gray
to Master and
Black
to Slave.
3. 34-Pin floppy Disk Drive Cable x 1
4. Manual x 1
5. Driver CD x 1
Includes:
- Award DMI Utility for DOS
- Audio drives and utility
- LAN Drivers
- USB 2.0 Drivers
- VIA® Chipset Software installation utility.
6. Value-pack 2002 x 1
Includes:
- Norton AntiVirus
- Adobe ActiveShare
- AcobarReader
- Acobate eBook Reader
- Imagemore
- AutoSave.
Chapter 1
3
1-3 7VJL1 Motherboard Diagram
Chapter 1
4
1-4 7VJL1 Motherboard Layout
Chapter 2
5
Chapter 2 Hardware Setup
If your motherboard has already been installed in your computer you may still need
to refer to this chapter if you plan to upgrade your system's hardware.
This motherboard is electrostatic sensitive. Do not touch without
wearing proper safety gadget and make sure to disconnect the power
cable from the power source before performing any work on y our
motherboard. Not doing so may result in electrical shock!
2-1 Installing a CPU Processor for Socket A
The Socket A, designed for AMD® Athlon/Duron/XP processors, has been
incorporated as a standard motherboard specification. To insert your CPU into
Socket A please do the following:
1. Locate a cut edge on the top sur face of the CPU close to one if it's corners. The
same corner will also be cut off, leaving a noticeable notch in the CPU's corner.
These markings indicate Pin 1 of the CPU.
2. Pull up the lever of Socket 462 so that it is perpendicular with the surface of the
motherboard. Gently insert the CPU with Pin 1 at the same corner of Socket 462
that contains the end of the lever. Allow the weight of the CPU to push itself into
place. Do not apply extra pressure as doing so may result in damaging your CPU.
Snap the lever back into place.
Installing an AMD® approved heat sink with cooling fan is necessary for
proper heat dissipation from your CPU. Failing to install these items may
result in overheating and possible burn-out of your CPU.
In order to boot up with a newly installed CPU, AC Power must be
switched off before installation.
Chapter 2
6
2-2 Setting Your CPU’s Performance:
Frequency Configuration:
If you install a CPU on this motherboard, you must set the [Front Side Bus
Frequency] JP3 according to your processor (See Section 2.4).
* CPU Speed = Multiplier x FSB Frequency
AMD (K7) Duron CPU
Model CPU Speed
FSB
Frequency
Multiplier Vcore
L2
Cache
Micron
process
600 600 MHz 100 6.0 1.6V 64KB 0.18
650 650 MHz 100 6.5 1.6V 64KB 0.18
700 700 MHz 100 7.0 1.6V 64KB 0.18
750 750 MHz 100 7.5 1.6V 64KB 0.18
800 800 MHz 100 8.0 1.6V 64KB 0.18
850 850 MHz 100 8.5 1.6V 64KB 0.18
900 900 MHz 100 9.0 1.6V 64KB 0.18
950 950 MHz 100 9.5 1.6V 64KB 0.18
1.0G 1.0 GHz 100 10.0 1.6V 64KB 0.18
1.1G 1.1 GHz 100 11.0 1.6V 64KB 0.18
1.2G 1.2 GHz 100 12.0 1.6V 64KB 0.18
1.3G 1.3 GHz 100 13.0 1.6V 64KB 0.18
You do not need to make voltage settings because this board will automatically
set your CPU voltage.
Chapter 2
7
AMD Athlon CPU (K7/Thunderbird)
Model CPU Speed
FSB
Frequency
Multiplier
core
L2
Cache
Micron
process
700
700MHz
100 7.0 1.70V 256KB 0.18
750
750MHz
100 7.5 1.70V 256KB 0.18
800
800MHz
100 8.0 1.70V 256KB 0.18
850
850MHz
100 8.5 1.70V 256KB 0.18
900
900MHz
100 9.0 1.75V 256KB 0.18
950
950MHz
100 9.5 1.75V 256KB 0.18
1000
1000MHz
100 10.0 1.75V 256KB 0.18
1100
1100MHz
100 11.0 1.75V 256KB 0.18
1200
1200MHz
100 12.0 1.75V 256KB 0.18
1300
1300MHz
100 13.0 1.75V 256KB 0.18
1400
1400MHz
100 14.0 1.75V 256KB 0.18
1000
1000MHz
133 7.5 1.75V 256KB 0.18
1113
1113MHz
133 8.5 1.75V 256KB 0.18
1200
1200MHz
133 9.0 1.75V 256KB 0.18
1333
1333MHz
133 10.0 1.75V 256KB 0.18
1400
1400MHz
133 10.5 1.75V 256KB 0.18
AMD Athlon XP CPU (Palomino/Thunderbird)
Model
CPU
Speed
FSB
Frequency
Multiplier Vcore
L2
Cache
Micron
process
1500+ 1333MHz 133 10.0 1.7V 256KB 0.18
1600+
1400MHz
133 10.5 1.7V 256KB 0.18
1700+
1467MHz
133 11.0 1.7/1.6V 256KB 0.18/0.13
1800+
1500MHz
133 11.5 1.7/1.6V 256KB 0.18/0.13
1900+
1600MHz
133 12.0 1.7/1.6V 256KB 0.18/0.13
2000+
1666MHz
133 12.5 1.7/1.6V 256KB 0.18/0.13
2100+
1733MHz
133 13.0 1.7/1.6V 256KB 0.18/0.13
2200+
1800MHz
133 13.5 1.65V 256KB 0.13
2400+
1995MHz
133 15.0 1.65V 256KB 0.13
2600+
2128MHz
133 16.0 1.65V 256KB 0.13
Chapter 2
8
2-3 Main Memory Configuration
This motherboards provides 3 184pin Double Data Rate (DDR) Dual Inline Memory
Modules (DIMM) slots. Which supports PC 1600/DDR200 or PC2100/DDR266
DDR SDRAM modules up to 3GB. Install at least one DIMM module on the slots.
Memory modules can be installed on the slots in any order. You can install either
single- or double-sided modules to meet your own needs. The DDR SDRAM
memory system consists three banks and each bank can support up to 1GB memory
size. If you only use one bank it does not matter which one you use and if you use
two or more banks, it does not matter which bank you install first.
DRAM Specifications
DIMM type: 2.5V unbuffered 64/128/256/512-bit DDR SDRAM.
Module size: Single/double-sided 64/128/256/512MB/1GB.
Parity: Ether parity or non-parity.
Chapter 2
9
DIMM Module Combination
Install at least one DIMM module on the slots. You can install either single- or
double-sided modules in any order to meet your own needs. Memory modules can
be installed in any combination as follows:
Location 64 MB 128 MB 256 MB 512 MB 1.0 GB
DDR 1 X X X X X
DDR 2 X X X X X
DDR 3 X X X X X
To install your DDR Modules please follow the following steps:
1. Unlock a DIMM socket by pressing the retaining clips outward. The DDR
Modules has only one notch at the center of module. The DDR module will only
fit in the right position.
2. Insert the DDR Module vertically into the DIMM slot, with the correct alignment.
Then push it in until the golden finger on the memory module is deeply inserted
into the socket.
3. The plastic clip on each side of the DIMM slot will automatically close to hold the
DDR Modules in place.
Chapter 2
10
2-4 Connector and Jumper Reference Chart
Jump Connector Function Page
PW 1/2 ATX Power Supply Connector 11
FD1 Floppy Connector 12
IDE 1/2 IDE Hard-Disk Connector 13
FAN 1/2/3 CPU/ System / Case FAN Connector (12V) 13
JP1 CMOS Clear Jumper 14
JP3 CPU Front Side Bus setting 14
JP5 Keyboard Power on Function Jumper 15
JP6 Disable/Enable USB 0/1 Device Power ON Jumper 15
JP6A /B Disable/Enable USB 2/3,4/5 Device Power ON Jumper 16
JP23 Green LED Mode Jumper 16
JP30 ROM SIP 17
CN1A Front Panel (Power / Rest / SPK…etc.) Connector 17
CN2 /2A CD-ROM Audio-in Connector 18
CN3 Auxiliary Audio-in Connector 19
CN5 Wake on LAN Connector 19
CN5A Wake on Modem Connector 20
CN7 Smart Card Reader Connector 20
CN17 Blue LED Connector (5V) 21
CN23 /23A USB Connector for USB 2/3 and 4/5 21
CN24 Front Audio Connector 22
IR1 IR Connector 22
Chapter 2
11
2-5 Connector and Jumper Settings
Connectors are used to link the system board with other parts of the system,
including the power supply, the keyboard, and the various controllers on the front
panel of the system case.
The power supply connector is the last connection to be made while
installing a motherboard. Before connecting the power supply, please make
sure it is not connected to the power source.
All cables are security-proof
PW 1 / 2 (ATX Power Supply Connector):
The power cord leading from the system's power supply to the external power
source must be the very last part connected when assembling a system. The ATX
power supply provides a single 20-pin connector interface, which incorporates
standard +/-5V, +/-12V, optional 3.3V and Soft-power signals. The Soft-power
signal, a 5V trickle supply is continuously supplied when AC power is available.
When the system is in the Soft-Off mode, this trickle supply maintains the system in
it's minimum power state.
Software Power-Off Control
This motherboard can be powered down using Windows® 9x Software Power-Off
function. To power down your computer, click the START button on the Windows®
9x task bar. Select “Shut down the computer” and the system turns off. The message
“It is now safe to turn off your computer” will not be shown when using this
function.
Chapter 2
12
Power-On By Modem:
While in Soft-Off state, if an external modem ring-up signal occurs, the system
wakes up and can be remotely accessed. You may enable this function in BIOS's
Power Management Setup menu. (See section 3).
Blinking LED in Suspend Mode:
While in Suspend mode, the LED light on the front panel of your computer will
flash. Suspend mode is entered by pressing the Override Power Button
, pushing the
Green button on your ATX case, or enabling the Power Management and Suspend
Mode options in BIOS's Power Management menu. (See section 3).
Poly-fuse Over Current Protection:
The poly-fuse protects the system from dangerous voltages that the system might be
exposed to via the keyboard or USB connector. In case of such exposure, the
poly-fuse will immediately be disconnected from the circuit, just like a normal fuse.
After being disconnected for a certain period of time, the poly-fuse will return to its
normal state. Then the keyboard or USB connector can function properly again.
Unlike conventional fuses, the poly-fuse does not have to be replaced, relieving the
user wasted time and inconvenience.
FD1 (Floppy Connector)
This motherboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector is used to
connect 34 pins of Floppy drive cable.
Chapter 2
13
IDE 1/2 (IDE Hard-Disk Connector)
This connector is used for connecting 40 pins of ATAPI devices.
IDE 1 only connects two IDE devices. (Primary Master/Slave)
IDE 2 only connects two IDE devices. (Secondary Master/Slave)
FAN1/FAN2/FAN3 (CPU/System/Case Cooling Fan Connectors [12V]):
The board's management extension hardware is able to detect the CPU and system
fan speed in rpm (revolutions per minute). The wiring and plug may vary depending
on the manufacturer. On standard fans, the red is positive (+12V), the black is
ground, and the yellow wire is the rotation signal.
Chapter 2
14
JP1 (CMOS Clear Jumper):
There is a CMOS RAM on board that has a power supply from external battery to
keep the data and system configuration. To clear the contents of the CMOS, please
follow the steps below.
1. Disconnect the system power supply from the power source.
2. Set the jumper cap at location [
2-3
] for <
5 seconds
>, and then set it back to the
default position.
3. Connect the system's power and then start the system.
4. Enter BIOS's CMOS Setup Utility and choose Load Setup Defaults. Type [Y] and
then press [
Enter
] to continue.
5. Set the system configuration in the Standard CMOS Setup menu.
JP3 (CPU Front Side Bus setting)
This function allows you to set the CPU’s Front Side Bus, the default setting is at
pin [1-2], which is FSB 100MHz. Set the cap at [2-3] to force the FSB at 133 MHz.
Pin Definition
1-2 Normal (default)
2-3 Clear CMOS Data
Pin Definition
1-2 FSB 100 MHz
2-3 FSB 133 MHz
Chapter 2
15
JP5 (Keyboard Power On Function Jumper):
This board can be turned on by the PS / 2 keyboard (hot key). To use this function,
select a hot key of your choice at the PS2KB Wakeup option under Wake Up Events
in the BIOS's Power On Management screen. You must also set this jumper's cap to
pins 2-3 to use this function.
JP6 (Enable/Disable USB 0/1 Device Power ON Jumper)
This motherboard is can be turned on by a USB keyboard hot key or a USB mouse
click. To use this function, select a hot key of your choice at the USB KB Power
Wake-up From S3 option under Wake Up Events in the BIOS's Power On
Management screen. You must also set this jumper's cap to pins
2-3
to use this
function.
Pin Definition
1-2 Disable (default)
2-3 Enable
Pin Definition
1-2 Disable (default)
2-3 Enable
Chapter 2
16
JP6A/B (Enable/Disable USB 0/1, 2/3 Device Power ON Jumper)
This motherboard is can be turned on by a USB keyboard hot key or a USB mouse
click. To use this function, select a hot key of your choice at the USB KB Power
Wake-up From S3 option under Wake Up Events in the BIOS's Power On
Management screen. You must also set this jumper's cap to pins
2-3
to use this
function.
JP23 (Green LED Mode Jumper):
This motherboard provides a Green LED flash Jumper. This cap is to setup Green
LED flash mode.
Pin Definition
1-2 Disable (default)
2-3 Enable
Pin Definition
1-2 Normal (default)
2-3 Reserve
Chapter 2
17
JP30 (ROM SIP)
The ROM Serial Initialization Packet (SIP) function is for advanced user to use the
Boot ROM to boot up the system. For normal booting operation you must set the
jumper cap to pins 1-2 Hardware (default).
CN1A (Front Panel Connector):
1.
PWR-SW
(Over-ride Power Button Connector):
The power button on the ATX chassis can be used as a normal power switch as
well as a device to activate Advanced Power Management Suspend mode. This
mode is used for saving electricity when the computer is not in use for long periods
of time. The Soft-OFF by PWR-BTTN function in BIOS's Power Management
Setup menu must be set to [
Delay 4 Sec.
] to activate this function.
When the Soft-OFF by PWR-BTTN function is enabled, pushing the power button
rapidly will switch the system to Suspend mode. Any occurrence of external
Pin Definition
1-2 Hardware (default)
2-3 Boot ROM
Chapter 2
18
activities such as pressing a key on the keyboard or moving the mouse will bring
the system back to Full-On. Pushing the button while in Full-On mode for more
than [
4 seconds
] will switch the system completely off. See Over-ride Power
Button Operation diagram.
2.
P-LED
(Power LED Connector):
The power indicator LED shows the system's power status. It is important to pay
attention to the correct cables and pin orientation. (i.e., not to reverse the order of
these two connectors.)
3.
G-BTN/G-LED
(Green Button Switch/LED Connector):
Some ATX cases provide a Green button switch, which is used to put the system in
Suspend mode. In Suspend mode, the power supply to the system is reduced to a
trickle, the CPU clock is stopped, and the CPU core is in its minimum power state.
The system is woken up whenever the keyboard or mouse is touched. The system
resumes in different ways as defined by Power Management Setup screen in BIOS.
4.
RESET
(System Reset Switch Connector):
This connector should be connected to the reset switch on the front panel of the
system case. The reset switch allows you to restart the system without turning the
power off.
5.
SPEAKER
(Speaker Connector):
This 4-pin connector connects to the case-mounted speaker.
6.
HD-LED
(IDE Activity LED Connector):
The IDE activity LED lights up whenever the system reads/writes to the IDE
devices.
CN2/2A (CD-ROM Audio-in Connector):
Use the audio cable enclosed with your CD-ROM disk drive to connect the
CD-ROM drive onto your motherboard. This will enable your CD-ROM's audio
Chapter 2
19
function.
CN3 (Auxiliary Audio-in Connector):
These connectors are for CD-Rom devices audio. It is for Auxiliary Audio-in Device,
which will input the sounds sources into the motherboard.
CN5 [WOL (Wake-on-LAN) Connector]:
Enable the Wake Up On LAN selection in BIOS's Power Management Menu to use
this function. The capability to remotely manage PCs on a network is a significant
factor in reducing administrative and ownership costs. Magic Packet technology is
designed to give WOL capability to LAN controller. This header is used to connect
an add-in NIC (Network Interface Card) which gives WOL capability to the
motherboard.
Chapter 2
20
CN5A [WOM (Wake-on-Modem) Connector]:
The Wake Up On Modem selection in BIOS's Power Management Menu must be
enabled to use this function. This header is used to connect an add-in modem card,
which gives WOM capability to the motherboard.
CN7 (Smart Card Reader Connector):
This connector must be connected to a Smart card reader, which allows you to
transfer data through Smart Cards and Smart Card user interface software.
Chapter 2
21
CN17 (Blue LED Connector):
These features work entirely the same as the power indicator LED, both shows the
system’s power status. The only difference is that this one is blue while the other is
red LED.
CN23/23A (USB Connector for USB 2/3 and 4/5)
If you want to use a USB Keyboard, you must enable the USB keyboard support
function in BIOS's Integrated Peripherals menu (See Section 3). This board contains
a USB Host controller and includes a root hub connector for optional USB Adaptor
(USB 2/3 and 4/5).
Chapter 2
22
CN24 (Front Audio Connector):
This connector give you the option of a front panel audio jack cable ext. to be plug
into a special custom designed system case. Simply remove the two jumper caps at
pin [5-6] and [9-10] then plug it into the (optional) cable ext. connector. Pin [5-6]
and [9-10] are shorted (default) to enable the back panel audio function.
IR 1 (IR Connector):
Select a UART Mode in BIOS's Integrated Peripherals menu the UART port to
support IR function. (See section 3)
Chapter 3
23
Chapter 3 BIOS Setup Program
Phoenix-Award BIOS ROM has a built-in setup program that allows users to modify
the basic system configuration. This information is stored in CMOS RAM so that it
can retain the setup information, even when the power is turned off.
To e nt er the Phoenix-Award BIOS setup program press the [Delete key] when you
Power on or reboot the computer system. The primary screen as shown in Figure
3-1 is a list of the menus and functions available in the setup program. Select the
desired item by your arrow keys and press enter to make the changes. Operating
commands are located at the bottom of this and all other BIOS screens. When a field
is highlighted, on-line help information is displayed on the right side of the screen.
Figure 3-1 Setup Program Initial Screen
Chapter 3
24
3-1 Standard CMOS Setup
The Standard CMOS Setup allows users to configure system components such as hard
disk drive, floppy disk drive and video display as well as date, time and boot-up error
signaling. This configuration menu should be changed when installing a motherboard
for the first time, changing hardware in your system such as the HDD, FDD, video
display, or when the CMOS data has been lost or contaminated. Choose the Standard
CMOS Setup option from the CMOS Setup Utility menu (Figure 3-1) to display the
following screen.
Figure 3-2 Standard CMOS Feature Screen
Date/Time:
Set the date and time of the system. Do not skip this function as all of your timed
events such as power management, saving files, etc are based on this timer.
IDE (Primary/Secondary; Master/Slave):
This category identifies up to four IDE hard disk drives that have been installed in the
computer. This section does not show information on other IDE devices such as
CD-ROM drives or other hard drive type such as SCSI drives.
Drive A/B:
Select different Floppy device Model. Available options are [None], [360K, 5-1/4 in],
[1.2M, 5-1/4 in], [720k, 3-1/2 in], [1.44M, 3-1/2 in], and [2.88M, 3-1/2 in].
Video :
Select the type of video adapter present in your system. You can ignore this setting if
you are using a VGA monitor; VGA BIOS will automatically configure this setting.
Halt On:
When the system is powered on, BIOS performs a series of diagnostic tests called
POST (Power On Self Test). This function stops the computer if BIOS detects a
hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt on
specific errors.
Chapter 3
25
3-2 Advanced BIOS Features
By choosing the Advanced BIOS Features option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.
Figure 3-3 Advanced BIOS Feature Screen
Virus Warni ng:
When you set as enabled, you receive a warning message if a program (specifically, a
virus) attempts to write to the boot sector or the partition table of the hard disk drive.
Many disk diagnostic programs that access the boot sector table can trigger the
virus-warning message. If you plan to run such a program, we recommend that
you first disable the virus warning.
CPU Internal/External Cache:
Cache memory is much faster than conventional DRAM system memory. These fields
allow you to enable or disable the CPUs Level 1 built-in cache and Level 2 external
cache. Both settings are left enabled to significantly increase the performance of your
computer.
CPU L2 Cache ECC Checking:
Enable this function for the CPU L2 Cache Error Checking and Correcting (ECC)
operation.
Quick Power On Self Test (POST):
Enable this function to reduce the amount of time required to run the POST (Power
On Self Test). BIOS will save time by skipping some items during POST. It is
recommended that you disable this setting. Discovering a problem during boot up is
better than loosing data during your work.
Chapter 3
26
First/Second/Third/Boot Other Device:
This option sets the sequence of drives BIOS attempts to boot from after POST
completes. BIOS will search these drives for an operating system.
Boot up Floppy Seek:
This is a set up check for floppy power-on after starting the computer system.
Boot Up NumLock Status:
This function defines the keyboard's number pad as number keys or arrow keys. If it is
set at [on] the number keys will be activated, if it is set at [off] the arrow keys will be
activated.
Keyboard Interface：
1. Typematic Rate Setting
When enabled, you can set the following two-typematic control items. When
disabled, the keyboard controller determines keystrokes arbitrarily in your system.
2. Typematic Rate (Chars/Sec)
The typematic rate sets the rate at which characters on the screen repeat when a key
is pressed and held down.
3. Typematic Delay (Msec)
The typematic delay sets how long after you press a key that a character begins
repeating.
Security Option:
The Supervisor and/or User Password functions shown in Figure 3-1 must be set to
take advantage of this function. See Section 3.11 for password setting information.
When the Security Option is set to System, a password must be entered to boot the
system or enter the BIOS setup program. When the Security Option is set to Setup, a
password is required to enter the BIOS setup program.
APIC Mode
This item can enable or disable the APIC (Advanced Programmable Interrupt
Controller). Due to compliance to PC2001 design guide, the system is able to run in
APIC mode. Enabling APIC mode will expand available IRQs resources for the
system. Available options are [Enabled] and [Disabled].
MPS Version Control For OS:
This item allows you to select which MPS (Multi-Processor Specification) version
to be used for the operating system. You need to select the MPS version which is
supported by your operating system. To find out which version to use, consult the
vendor of your operating system. Available options are [1.4] and [1.1].
Chapter 3
27
OS Select (For DRAM >64MB):
If your system's DRAM is larger than 64MB and you are running OS/2 , select OS/2
as the item value. Otherwise, set the item value to Non-OS/2 for all other operating
systems.
HDD S.M.A.R.T. Capability
S.M.A.R.T. or Self-Monitoring, Analysis, and Reporting Technology enables a drive's
internal status to be monitored through diagnostic commands. Both your hard drive
must support this capability and this function must be enabled in order to take
advantage of this function. See your hard drive literature for more information.
Video BIOS Shadow
Enabling this function will allow the Graphic card’s BIOS setting to be imaged onto
the RAM for a better performance. Leave the default setting at Enable for better
system performance.
Small Logo (EPA) Slow:
This setup allows photo that is EPA. Logo.
Chapter 3
28
3-3 Advanced Chipset Features
By choosing the [Advanced Chipset Features] option from the CMOS Setup Utility
menu (Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.
Figure 3-4 Advance Chipset Features Screen
All of the above settings have been determined by the motherboard
manufacturer and should not be changed unless you are absolutely sure of
what you are doing. Explanation of the DRAM timing and chipset features
setup is lengthy, highly technical and beyond the scope of this manual. Below
are some abbreviated descriptions of the functions in this setup menu.
DRAM Clock/Drive Control:
The function allows you to enable or disable the DRAM timing by SPD. When set to
Manual, you can select the DRAM CAS Latency, SDRAM Cycle Length and Bank
Interleave configuration.
AGP & P2P Bridge Control:
1. AGP Aperture Size
This function determines the amount of system memory that is given to the AGP
card. Options range from 4MB to 256MB. This is a dynamic memory allotment in
that the AGP card will only use the amount of memory that it needs. The remaining
memory not in use will be available for the system to use. For example, if 16MB is
allotted to the AGP card and the card only needs 8MB, the remaining 8MB will be
available for system use.
2. AGP Mode
Enable this setting to utilize the 4X mode (twice as fast as 2X) offered by advanced
Chapter 3
29
AGP cards. Your VGA card must support 4X mode in order to take advantage of the
faster speed.
CPU & PCI Bus Control:
1. PCI1/PCI2 Master 0 WS Write
When Enabled, writes to PCI bus are executed with zero w ait states.
2. PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions
cycles. Select Enabled to support compliance with PCI specification version 2.1.
Memory Hole
Enabling this function will allow a 1MB memory space for ISA card usage. It is
advice to leave the default setting at disabled for better performance. Available
options include [Disabled] and [15M – 16M].
System BIOS Cacheable:
Enabling this function allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. It is advised to leave this setting. Caching the
system BIOS results in better performance than shadowing the system BIOS.
Video RAM Cacheable:
Enabling this function will allows caching of the video RAM, resulting in better
system performance. However, if any programs write to this memory area, a system
error may occur.
Flash BIOS Protection:
The motherboard manufacturer developed BIOS protection technology that protects
the System BIOS from accidental corruption by unauthorized users or computer
viruses. When enabled, the BIOS data cannot be changed when attempting to update
BIOS with the FLASH utility. When disabled, the BIOS data can be updated by using
the FLASH utility.
Chapter 3
30
3-4 Integrated Peripherals
This section provides information on setting peripheral devices. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the motherboard.
Figure 3-5 Integrated Peripherals Screen
VIA OnChip IDE Device:
Press [Enter] to enter the sub-menu, which contains the following items for advanced
control:
1.
On-Chip Primary IDE Channel 0/1:
You can set this to disable the On Chip IDE controller if you are going to add an
extra higher performance IDE board.
2.
IDE Prefetch Mode:
The onboard IDE drive interfaces support s prefetching, for faster drive accesses. Set
to [
Disabled
] if this primary or secondary.
Chapter 3
31
3.
IDE Primary/Secondary Master/Slave PIO:
The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-4)
for each IDE device that the internal PCI IDE interface supports. Modes 0 through 4
provide successively increased performance. In Auto mode, the system automatically
determines the best mode for each device.
4.
IDE Primary/Secondary Master/Slave UDMA:
Ultra DMA implementation is possible only if your IDE device supports it and your
operating environment contains a DMA driver. If both your hard drive and software
support Ultra DMA, select [
Auto
] to enable BIOS support.
VIA OnChip PCI Device:
This section provides information for setting onboard device. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-5), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the motherboard
Press [Enter] to enter the sub-menu, which contains the following items for advanced
control:
1.
VIA AC97 Audio:
This feature allows you to disable the on-board AC97 audio function.
2.
VIA MC97 Modem:
This item allows you to disable the chipset’s feature to support MC97 Modem.
3.
VIA OnChip LAN
This feature allows you to enable the OnChip LAN function.
4.
Onboard Lan Boot ROM
This feature allows you to boot up the system through a LAN function.
Super IO Device:
This section provides information on setting Super I/O device. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-5), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the motherboard.
Press [Enter] to enter the sub-menu, which contains the following items for advanced
control:
Chapter 3
32
1.
Onboard FDC Controller:
Select Enabled if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If you install an add-in FDC or the system has
no floppy drive, select Disabled in this field.
2.
Onboard Serial Port 1/2:
Select an address and corresponding interrupt for the first and second serial ports.
Available options are [
3F8/IRQ4
], [
2E8/IRQ3
], [
3E8/IRQ4
], [
2F8/IRQ3
],
[
Disabled
], and [
Auto
].
3.
UART Mode Select:
This function allows you to select an operating mode for the second serial port.
Available options are [
Normal
], [
IRDA
], [
ASKIR
] and [
SCR
].
4.
Onboard Para llel Port:
Select a logical LPT port address and corresponding interrupt for the physical
parallel port.
5.
Parallel Port Mode:
Select an operating mode for the onboard parallel (printer) port. Select SPP unless
you are certain your hardware and software support one of the other available
modes.
6.
ECP Mode Use DMA:
This item automatically specifies a DMA channel 1 or 3 for the parallel port when it
is set to [
EPP
] or [
ECP+EPP
] mode.
7.
Game Port Address:
This item disables or assigns the address of the Game port. Available options are
[
Disable
], [
201
] and [
209
].
8.
Mini Port Address:
This item disables or assigns the address of the Midi port. Available options are
[
Disable
], [
300
] and [
330
].
Chapter 3
33
9.
Mini Port IRQ:
This item specifies an IRQ for the Midi port. Available options are [5] and [10].
10.
CIR Port Address
This is to set the CIR port Address. Available options are [
Disable
], [
310
] and [
320
].
Init Display First:
This function allows users to choose between [AGP] or [PCI slot] to initialize
display.
OnChipUSB Controller:
Enable the on-board Universal Serial Bus (USB V1.1 or V2.0) controller if you want
to connect a USB device to your system. Note that if this setting is disabled, you can
still temporarily use a USB keyboard during boot up so that you can enter BIOS and
enable this setting. If you pass the boot up stage without enabling this function, your
PS/2 keyboard will no longer work.
USB Keyboard Support:
Select Enabled if your system has a USB keyboard installed on the system board. If
your system has no USB keyboard, select Disabled in this field.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard drive supports block mode, select Enabled to auto-detect
the optimal number of block read/writes per sector the drive can support.
Chapter 3
34
3-5 Power Management Setup
This section provides information on the Green PC power management functions. By
choosing the Power Management Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.
Figure 3-6 Power Management Setup
ACPI Suspend Type:
This feature allows user to select a suspend type for the operating system to turn off
peripherals devices, such as CD-ROM players, when they are not in use.
Power Management Option:
Power management allows the computer to save electricity when it is not in use by
entering increasingly deep power saving modes.
HDD Power Down:
Shuts down any IDE hard disk drives in the system after a period of inactivity as set in
this user configurable field. This feature does not affect SCSI hard drives.
Suspend Mode:
The Power Management finction must not be set to disabled to enable this function. If
the system runs in Standby mode and the Suspend timer expires, all devices regulated
by power management will shut off and the CPU speed will be 0 MHz.
Video Off Option
This setting will allow you to select the power-saving modes during which the
monitor goes blank.
Chapter 3
35
Video Off Method:
This function serves as both a screen saver and power saver for monitors. See the next
function, Video Off After, for setting the video timer.
1.
Blank Screen
- BIOS will only blank the monitor's screen. The electricity saved in
this mode is negligible and this function is only used as a screen saver to prevent
screen damage while the screen is on but not in use.
2.
V/H SYNC+Blank
- The system turns off the vertical and horizontal
synchronization ports, writes blanks to the VGA buffer and the monitor's electron
gun turns off. This function requires a monitor with Green features in order to take
advantage of the power saving function. If you enable this function and do not have
a Green monitor, the result will be the same as if you had selected Blank. This
function serves as both a screen saver and a power saver.
3.
DPMS
- Select this option if your video card supports the Display Power
Management Signaling (DPMS) standard (i.e., you have a monitor that supports
Green features). Use software supplied by your video subsystem to set video power
management options.
Modem Use IRQ:
If your computer has an modem use this function to tell BIOS which IRQ is being
occupied by the modem card. When the system is in Green mode, the modem requires
an IRQ assignment to wake up the system and perform tasks. This assignment is
complaint with the APM 1.2 complaint operating systems.
Soft-Off by PBTN:
When set to Delay 4 Sec., this function allows the power button to put the system in
Suspend, a power saving mode. When set to Instant-Off the Soft-Off by PWR-BTN
function is disabled and the computer turns completely off when the power button is
pressed.
State After Power Failure:
This allows you to set whether you want your system to reboot after the power has
been interrupted. [Off] leaves your system off and [On] reboots your system. [Auto]
sets your system back to the state it is before the power interruption.
Configuration option: [Auto], [On], [Off]
Chapter 3
36
IRQ/Event Activity Detect
1.
PS2KB Wakeup Select
When enabled, the system is able to be turned on by a PS2 keyboard hot key.
2.
USB Resume from S3
When enabled, the system is able to resume form S3 mode by a USB keyboard hot
key or mouse click.
3.
Power On PCI Card
When enabled, a PCI interface that receives a signal will wake up the system from
soft off and green mode.
4.
Power On by Modem/LAN
When enabled, a modem /LAN that receives a signal will wake up the system from
soft off and green mode. You should connect the modem to the COM port and turn
on the resume event in green mode.
5.
Power On by Alarm
When enabled, this setting allows the system to turn back on at a designated time of
the month. User must designate date of month and time of day.
This function is only available when using an ATX power supply and the Software
Power-Off function to turn off the computer. See the Software Power-Off feature in
Section 2-3 of this manual for instructions.
Chapter 3
37
3-6 PNP/PCI Configurations
This section provides IRQ and DMA setting information. By choosing the PNP/PCI
Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen
below is displayed. This screen contains the manufacturer's default values for the
motherboard.
Figure 3-7 PNP/PCI Configurations
PNP OS Installed:
If you want to install a PNP compatible OS ( such as Windows 95 ) set to Yes.
Reset Configuration Data:
If you want to reset CMOS IRQ divide hardware device, please selected to [Enabled].
Resources Controlled By:
When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning IRQ &
DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy
information. ESCD (Extended System Configuration Data) provides a detailed
format of the configuration data structures stored in flash memory. Each data structure
defines the resources used by a device or a card in the system. This includes legacy
and PCI/ISA PnP devices.
PCI/VGA Palette Snoop:
When set to [Enabled], multiple VGA devices operating on different buses can handle
data from the CPU on each set of palette registers on every video device. Bit 5 of the
command register in the PCI device configuration space is the VGA Palette Snoop bit
(0 is disabled). Available options are [Enabled] and [Disabled].
Chapter 3
38
FDD IRQ Can Be Free:
This function allows user to choose if the FDD IRQ can be freed up. The default
setting is [Yes] and this does not allow the IRQ to be free.
3-7 PC Health Status
By choosing the PC Health Status option from the CMOS Setup Utility menu (Figure
3-1), the screen below is displayed. This field shows you the current system
temperature/external voltages input and the current CPU FAN and System FAN
operating speed.
Figure 3-8 PC Health Status
Shutdown Temperature:
This item allows you to set the shutdown temperature level for the processor. When
the processor reach the temperature you set, this will shutdown the system. This
function only works in ACPI-aware OS (such as Windows® 98 / ME / 2000).
Available options are [70°C/158°F], [65°C/149°F] and [60°C/140°F]
Chapter 3
39
3-8 Frequency/Voltage Control
By choosing the Frequency/Voltage Control option from the CMOS Setup Utility
menu (Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.
Figure 3-9 Frequency/Voltage Control
CPU Clock:
This feature allows the system memory to run at a particular CPU clock speed. The
default setting is at 100Mhz.
This motherboard can support memory overclocking up to 250 MHz, provided
that, the CPU clock must be set to run at 133Mhz FSB.
Chapter 3
40
DIMM Voltage Regulator
This feature allows the system memory to run at Power ON of Voltage.
AGP Voltage Regulator
This feature allows the AGP bus to work at a particular Voltage.
CHIPSET Voltage Regulator
This feature allows the motherboard CHIPSET to work at a particular Voltage.
Chapter 3
41
CPU Voltage Regulator
This feature allows you to set the CPU working Voltage. Available options are from
[1.100V] to [2.000V], increasing by 0.025V by each step.
CPU Clock Ratio:
This feature allows user to manually configure your CPU clock ratio according to
your processor’s specifications. Available options are from [X5] to [X18].
OVERCLOCKING
This motherboard is designed to support overclocking. However, please make
sure your components are able to tolerate such abnormal setting, while doing
overclocking. Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks caused by
inadequate operation or beyond product specifications.
Chapter 3
42
3-9 Load Fail-Safe Defaults
Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS
Setup Utility menu (Figure3-1). If the stored record created by the setup program
becomes corrupted and therefore unusable, these defaults will be loaded automatically
when you turn on the computer.
3-10 Load Optimized Defaults
Load Optimized Defaults loads the default system values directly from the CMOS
Setup Utility menu (Figure3-1). If the stored record created by the setup program
becomes corrupted and therefore unusable, these defaults will be loaded automatically
when you turn on the computer.
3-11
Supervisor Password & User Password Setting
There are four different variables that control password settings. The first two are
located under the Security Option function in BIOS Features Setup Menu (Figure 3-1).
When the Security Option function is set to Setup, a password is required to enter
BIOS and change BIOS settings. When the Security Option function is set to
System, a password is required to enter both BIOS and the computer's operating
system ( for example Windows® 98 ) found on the boot drive.
The third and fourth variables are user password and supervisor password selected in
BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow
only the supervisor to have control over the settings in BIOS. The user, on the other
hand, is only allowed to access the computer's operating system and change the user
password in BIOS.
When there is no supervisor password set, the user pa ssword controls access to
all BIOS settings.
Chapter 3
43
3-12 Save and Exit Setup
If you select this and type [Y] (for Yes) followed by the [Enter] key, the values
entered in the setup utilities will be recorded in the CMOS memory of the BIOS chip.
3-13 Exit Without Saving
Selecting this option and pressing Y followed by the [Enter] key lets you exit the
Setup program without recording any new values or changing old ones.
Chapter 4
44
Chapter 4 DRIVER Setup
Please insert the driver CD into the CD-ROM.
4-1 VIA Service Pack
1. Please, select [
VIA Service Pack
] to begin installation.
2. Please, click [
NEXT>
] to start installation.
Chapter 4
45
3. Please, click [
YES
] to continue.
4. Select between [
Normal Installation
] or [
Quick Installa tion
], for maximu m
performance please select [
Normal Installation
] and click [
NEXT>
] to continue.
Chapter 4
46
5. Un-tick the check box for any unwanted Drivers, then click [
NEXT>
] to continue.
6. Please, click [
Next>
] to continue install VIA PCI Bus Driver.
Chapter 4
47
7. Please, click [
Next>
] to continue install AGP Driver.
8. To restart you computer now, select [
Yes, I want to restart my computer now.
]
then Please Click [OK] to restart you computer. If you do not want to restart your
computer select [
No, I will restart my computer later.
] then click [OK] to
continue.
Chapter 4
48
4-2 Audio driver
1. Please, select [
Audio Drive
] to begin installation.
2. Please, click [
NEXT>
] to start installation.
Chapter 4
49
3. Please, click [
Next>
] to continue install the VIA Audio driver.
4. Please, click [
Finish
] to complete VIA Audio Drive installation.
Chapter 4
50
4-3 USB 2.0 Driver
1. Please, select [
USB 2.0 Drive
] to begin installation.
2. Please, click [
NEXT>
] to start installation.
Chapter 4
51
3. Please, click [
Next>
] to continue install the USB2.0 driver.
4. Please click [OK] to continue.
Chapter 4
52
5. Please click the [
Print to File
] to print your End User Legal Agreement (EULA).
Then the installation program will continue to install.
6. You EULA TXT fill will be at C:\Programe Files\VIA Technologies, INC.\USB 2.0
Setup. Please click [OK] to continue.
Chapter 4
53
7. To restart you computer now, select [Yes, I want to restart my computer now.]
then Please Click [Finish] to complete installation and restart you computer. If you
do not want to restart your computer select [No, I will restart my computer later.]
then click [Finish] to complete installation.
How To Contact CHAINTECH
54
How To Contact CHAINTECH
Please do not hesitate to contact us if you have any problem about our products. Any
opinion will be appreciated.
For Asia, Africa, Australia and Pacif ic Island:
CHAINTECH COMPUTER CO., LTD
No. 7-1, Chung Shin Rd., Tu Cheng,
Taipei Hsien, Taiwan, ROC.
Tel :
+886-2-2268-9998
Fax:
+886-2-2269-7510
URL:
http://www.chaintech.com.tw
E-mail:
mail@chaintech.com.tw
For America:
CHAINTECH-EXCEL COMPUTER INC.
4427 Enterprise St. Fremont CA 94538,
U.S.A.
Tel :
+1-510-656-3648
Fax:
+1-510-656-2297
URL:
http://www.chaintechusa.com
E-mail (Sales):
sales@chaintech-excel.com
E-mail (Tech Support):
tech@chaintech-excel.com
For UK:
EELT COMPUTER Ltd.
Moulton Park Business Centre,
Redhouse Road, Moulton Park,
Northampton, Northants. NN3 6AQ
Tel
: 44-(0) 1604-497645
Fax
: 44-(0) 1604-491898
E-Mail:
phil.follett@eelt-chaintechuk.com
For China
CHAINTECH, SHENZHEN
Room 301, No.1004, Huafu road, Shenzhen
Tel
: +86-755-8368-9072
Fax
: +86-755-8368-9072
CHAINTECH, BEIJING
A606, Zhichun Building, No.118, Zhichun
Road, Haidian District, Beijing, China 100080
Tel :
+86-10-6265-1626
Fax:
+86-10-6262-0267
URL:
http://www.chaintech.com.cn
E-MAIL:
chaintech@21cn.com
For The Netherlands:
CHAINTECH EUROPE B.V.
Coenecoop 620 2741 PV WADDINXVEEN,
THE NETHERLANDS
Tel :
+31-(0) 182-62 39 60
Fax:
+31-(0) 182-62 39 69
URL:
http://www.chaintech.dk
E-Mail:
ELT@chaintech.nl
Technical support for Germany
E-Mail:
support@chaintech.de
For France:
AELT COMPUTER SARL
Espace 22 - ZAC de Nanteuil 5, rue de Rome
93561 Rosny Sous Bois Cedex FRANCE
Tel :
33-1-48 555 940
Fax:
33-1-48 555 942
E-mail: aelt_chaintech_france@wanadoo.fr
How To Contact CHAINTECH
55
For Italy and Southern Europe:
CELT COMPUTER s.r.l.
Via Privata Mulino 3 I-20090 Buccinasco,
Milano, Italy
Tel :
+39-(0) 2-45109108
Fax:
+39-(0) 2-45101354
E-Mail:
celt@libero.it
For Korea:
CHAINTECH KOREA CO., Ltd.
14F, Mi-Won B/D, Yeouido-Dong 43,
Youngdeunpo-Gu, Seoul, Korea
Tel :
+82-2-63323377
Fax:
+82-2-63323379
E-Mail:
erin@chaintechkorea.com
NOTE
All rights are reserved for the products and corporate names/logos that
appear in this manual to their original owners.
CHAINTECH reserves all the rights to change this manual .All
information is subject to change without notice.
Loading...
