Page 1

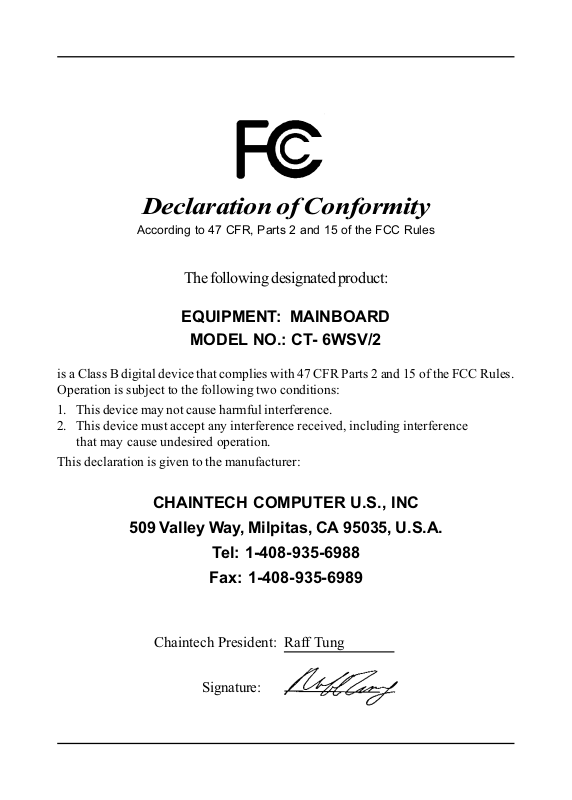

Declaration of Conformity

According to 47 CFR, Parts 2 and 15 of the FCC Rules

The following designated product:

EQUIPMENT: MAINBOARD

MODEL NO.: CT- 6WSV/2

is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference

that may cause undesired operation.

This declaration is given to the manufacturer:

CHAINTECH COMPUTER U.S., INC

509 Valley Way, Milpitas, CA 95035, U.S.A.

Tel: 1-408-935-6988

Fax: 1-408-935-6989

Chaintech President: Raff Tung

Signature:

Page 2

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two

conditions:

w This device may not cause harmful interference w This device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy. If this equipment is not installed

and used in accordance with the manufacturer's instructions, it may cause harmful

interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

following measures:

w Reorient or relocate the receiving antenna. w Increase the separation between the equipment and receiver. w Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

w Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modifications to this unit not

expressly approved by the party responsible for compliance could void the user's authority

to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from

digital apparatusses set out in the Radio Interference Regulations of the Canadian

Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a

commitment on the part of the vendor. No warranty or representation, either expressed or implied,

is made with respect to the quality, accuracy or fitness for any particular purpose of this document.

The manufacturer reserves the right to make changes to the content of this document and/or the

products associated with it at any time without obligation to notify any person or organization of

such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental

or consequential damages arising out of the use or inability to use this product or documentation,

even if advised of the possibility of such damages. This document contains materials protected

by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted

in any form, by any means or for any purpose without expressed written consent of it's authors.

Product names appearing in this document are mentioned for identification purposes only. All

trademarks, product names or brand names appearing in this document are registered property

of their respective owners.

Printed in Taiwan

October 1999October 1999

October 1999

October 1999October 1999

POST-CONSUMER RECYCLED PAPER

Page 3

abab

Chapter 1 Introduction........................................................................ 1

1-1 Product Specifications ..........................................................1

1-2 Package Contents .................................................................4

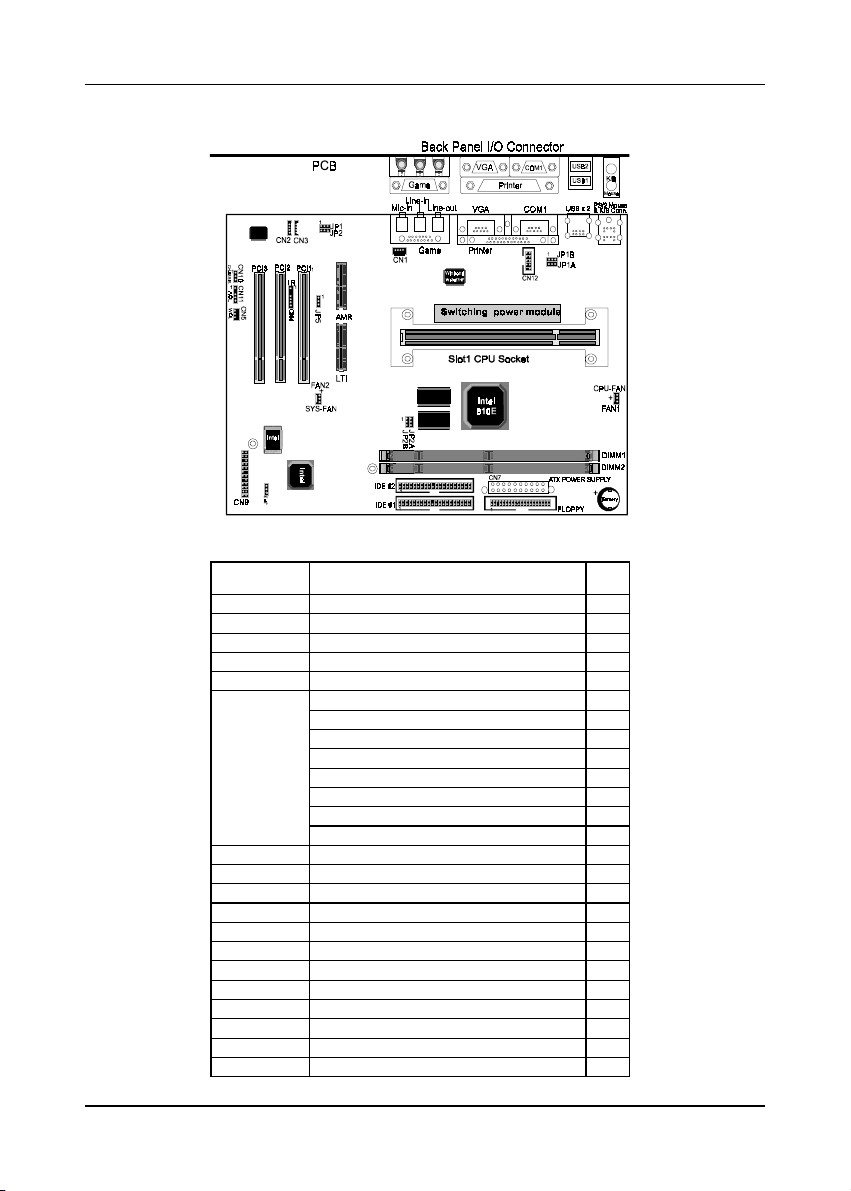

1-3 Mainboard Layout .................................................................. 5

1-4 Connector and Jumper Reference Chart .............................. 5

Chapter 2 Hardware Setup................................................................... 7

2-1 Introduction to Jumpers ........................................................ 7

2-2 Installing a CPU in a Slot 1 ..................................................8

2-3 SettingYour CPU's Parameters...........................................8

2-4 Connector and Jumper Settings.....................................11

2-5 Main Memory Configuration ................................................20

Chapter 3 Award BIOS Setup Program ........................................... 21

3-1 Standard CMOS Setup ........................................................ 22

3-2 Advanced BIOS Features Setup ........................................25

3-3 Advanced Chipset Setup .................................................... 28

3-4 Integrated Peripherals .........................................................30

3-5 Power Management Setup .................................................. 32

3-6 PnP/PCI Configuration ........................................................35

3-7 PC Health Status ................................................................. 36

SeePU

3-8

3-9 Load Fail-Safe Defaults ....................................................... 38

3-10 Load Optimized Defaults ..................................................... 39

3-11 Supervisor Password & User Password Setting .................40

3-12 Save and Exit Setup ...........................................................41

3-13 Exit Without Saving .............................................................41

le of Contentsle of Contents

le of Contents

abab

le of Contentsle of Contents

Setup ....................................................................... 37

Chapter 4 Brief Software Driver Guide .............................................43

Chapter 5 Creative PCI Audio Sub-system(Optional) .................... 45

5-1 Features ............................................................................... 45

5-2 Sound Driver and Utility ......................................................45

5-3 CD-ROM Audio-in Connection ........................................... 45

Feature ExplanationsFeature Explanations

Feature Explanations

Feature ExplanationsFeature Explanations

Alert On LAN .................................................................................19

Blinking LED in Suspend Mode .................................................... 12

Chassis Intrusion Monitoring ........................................................18

Over-ride Power Button ................................................................. 12

Page 4

Poly-fuse Over Current Protection ............................................... 14

Power On By Modem.............................................................. 11/34

Power On By Alarm ...................................................................... 34

PS/2 Keyboard/Mouse Power On Function .................................15

Suspend To RAM .......................................................................... 13

Software Power-off Control ........................................................... 11

USB Device Power On Function .................................................. 15

Wake On LAN ...............................................................................34

AppendicesAppendices

Appendices

AppendicesAppendices

Appendix I On Board I/O Addresses & IRQ Maps ..........................47

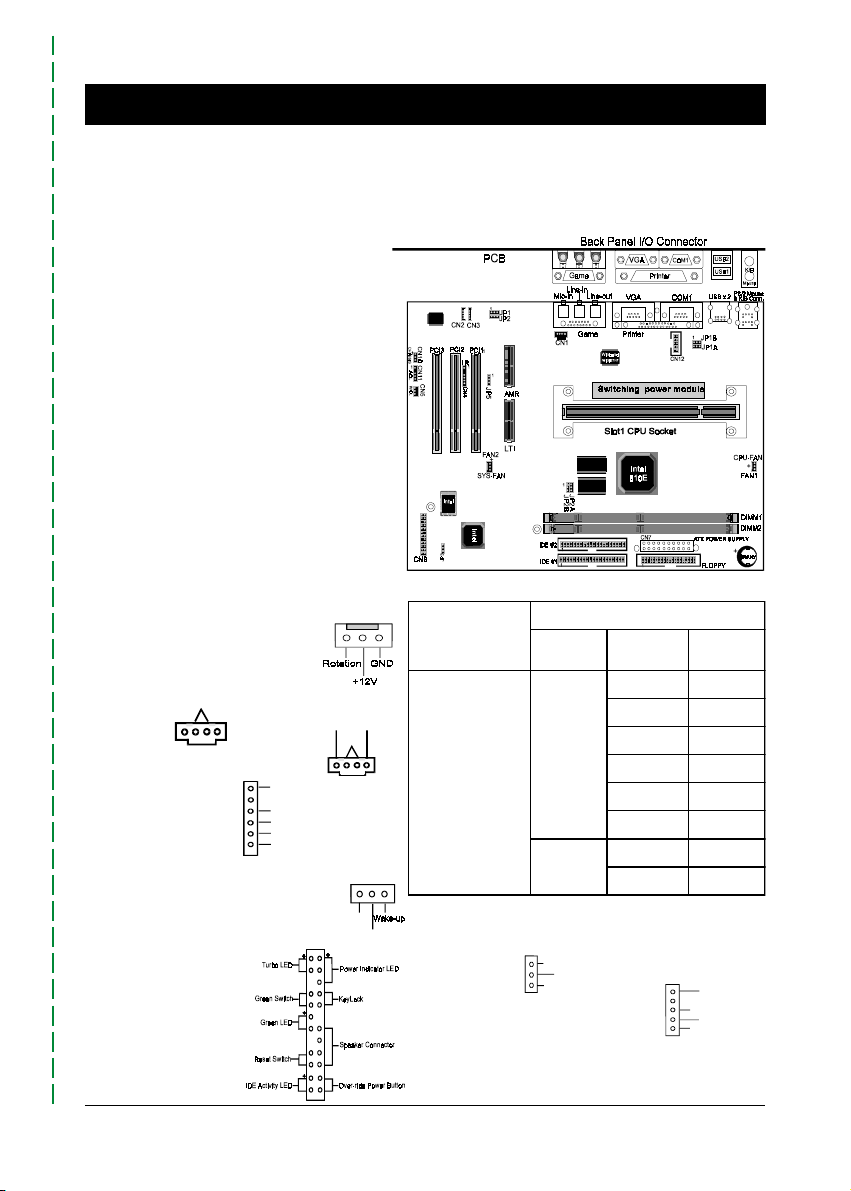

Appendix II Quick Connector and Jumper Reference ................... 49

Page 5

- Memo

Page 6

Introduction

Chapter 1

Introduction

1-1 Product Specifications

r Processor

- Supports Intel Slot 1 processors up to 733MHz

- Supports 66/100/133MHz system clocks

- High efficiency switching power modules with dual power delivery(VRM 8.4

compliant)

r Chipset

- Intel 810-E three chip AGPset with 2D/3D graphics controller

r DRAM Memory

- Two 168-pin DIMM sockets support up to 512MB SDRAM

- Supports 16/32/64/128/256MB, 64/72-bit unbuffered Synchronous DIMM

modules

Embedded 3D AGP VGA

- 3D Hyper Pipelined Architect w/ PDP, PPI

- Full 2D graphics up to 1600x1200x256c at 75Hz refresh

- Hardware Motion compensation assistance for S/W MPEG2 decode

- Integrated 24-bit 230MHz RAMDAC

- 85MHz Flat Panel Monitor Interface or Digital Video output for use with an external

TV encoder.

- (Optional) 4MB SDRAM display cache

Embedded Audio Subsystem

- AC`97 v2.1 compliant CODEC with SRC

r Embedded Ultra DMA-66 (ICH only) PCI IDE controller

- Two IDE ports support up to 4 ATAPI devices

- Supports up to PIO Mode 4 up to 16.6MBps

- Bus Mastering software drivers for all common multitasking operating

systems

*Blue colored IDE connectors for IDE#1

r Embedded USB Controller with two USB ports (UHCI v.1.0 compliant)

r Expansion Slots

- One AMR slot (v 1.0 compliant)

- One LTI slot line up with AMR for Panel Link LCD monitor and TV out

- Three 32-bit PCI slots with master mode (Rev 2.2 compliant)

Page 7

Chapter 1

Boot-Block Flash ROM

- Intel 4Mb FWH (Firmware Hub)

- Award System BIOS, supports PnP, APM, DMI, ACPI & Multi-device

booting features(Floppy, LS120, CD-ROM, IDE, SCSI, ZIP-ATAPI etc.)

- Includes Trend ChipAway Virus protection for virus-free boot and virus free

operating system

Trend ChipAway Virus is a rule-based anti-virus technology and does

not require periodical updates of virus code

r Onboard Super I/O Controller

- W83627HF LPC I/O chip with System Monitor Hardware (SMH)

- One Parallel (SPP/ECP/EPP) and two Serial (16550A compliant) ports

- One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode,

and 1Mbps transfer rates

- Supports HPSIR, and ASKIR function shared with 2nd serial port

- Supports Game/MIDI port

r Embedded System Monitoring Hardware (Optional)

- 8 voltage inputs for CPU Vcore, +3.3v, +/-12v, +5v, Vtt(1.5v), 5vsb,Vbat

- 2 temperature inputs for CPU thermal and System temperature

- 5 VID inputs pin for Slot1 CPU Vcore identification

- 2 Fan speed monitoring with On/Off control in Suspend

r Double Stack Back-Panel I/O Connectors with PC99 Colored Codes

- PC99 compliant color connectors

- PS/2 Mini-DIN keyboard and mouse ports

- Two USB ports

- One D-SUB 9-pin male serial port

- One D-SUB 15-pin female VGA port

- One D-SUB 25-pin female Printer port

- One D-SUB 15-pin female Game/MIDI port

- Audio Line-out, Line-in and Mic-in jacks

- Support 9-pin connect for serial port

r Board Dimensions

- Micro-ATX form factor, 244mm x 210mm, 4 Layers

- Six mounting holes

Page 8

Introduction

r Advanced Management Features

- Innovative SeePU technology for jumperless CPU installation

- LDCM compliant System Monitor Hardware

- Supports StDram (S3) ready!

- Poly-fuse over-current protection for USB and keyboard circuitry

- Power-on events: Mouse clicks, Keyboard password, WOL(Wake-On-LAN)

network card, Modem ring, RTC-Alarm

- AOL(Alert-on-LAN) network card

- Software power-off control for Win95/98

- Over-ride power button, Blinking Power-LED in suspend and Power failure

recovery

- System lockup recovery

- Chassis intrusion detection with mnemonics during power loss

- On-line BIOS help

- Complete Data Security

Flash BIOS write protection against unauthorized access with Trend

ChipAway Virus and PC-cillin98 to ensure virus-free booting procedure

r Switching Power Supply Requirement

Output Voltage

+12V +/- 5% 6

+5V +/- 5% 20

+3.3V +/- 5% 15

-5V +/- 10% 0.5

-12V +/- 10% 0.5

+5VSB +/- 5% 0.8

Max. Regulation

Requirement

Table 1-1

Min.Current

Requirement(Amps)

3.3V at 10Amps is necessary too guarantee full loading operation

because some AGP cards and memory modules have high current

consumption.

Page 9

Chapter 1

1-2 Package Contents1-2 Package Contents

1-2 Package Contents

1-2 Package Contents1-2 Package Contents

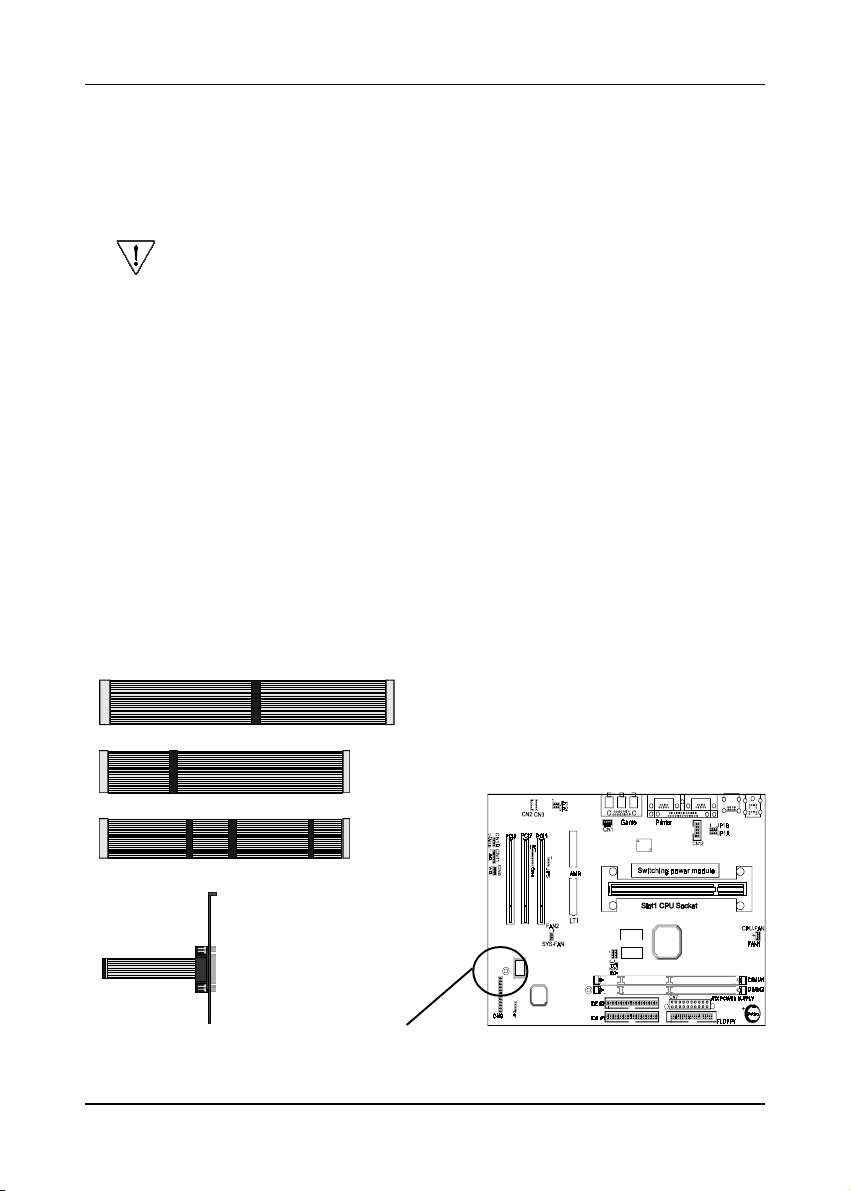

This product comes with the following components:

r One mainboard r One 40-pin Ultra DMA-66 IDE connector ribbon cable (Figure 1-1)

Color coded connection for UDMA/66 cable

Blue to mainboard, Gray to Master and Black to slave

r One 34-pin floppy disk drive ribbon cable (Figure 1-2a) or (Figure 1-2b) r One plastic stub for standard ATX installation (Figure 1-3) r Optional 9-pin serial port ribbon cable with bracket (Figure 1-4) r One User's Manual r One CD-ROM that includes

- Acrobat Reader

- Award Flash Utility and Award DMI Utility for DOS

- Intel Bus Master IDE drivers for Win95/98 and WinNT

- Intel secucity driver

- Exclamation Mark Remover Utility

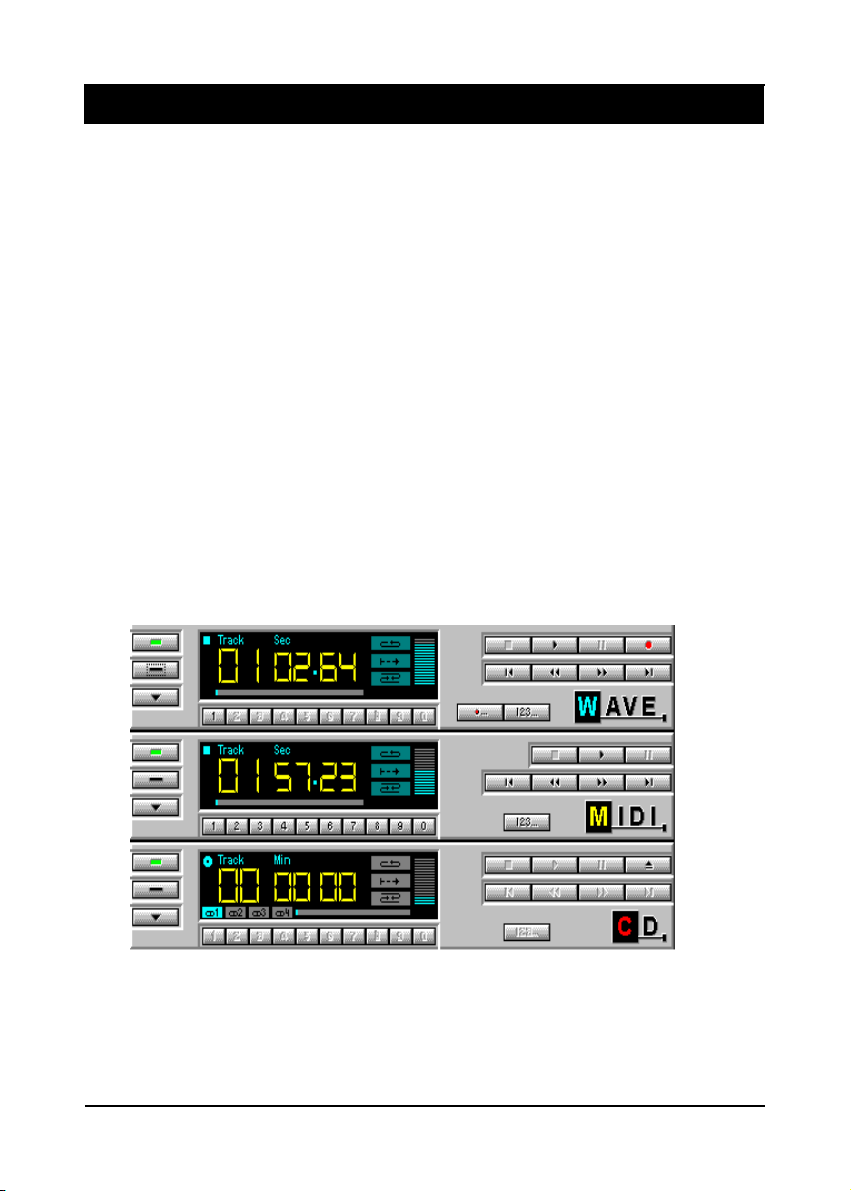

- Audio Driver and Utility for Win95/98/NT

- AGP VGA Driver for Win95/98/NT

- System Health Monitoring Software

- Trend PC-cillin 98 with multilingual support

- Optional AIRBAG software group including Norton AntiVirus

Figure 1-1Figure 1-1

Figure 1-1

Figure 1-1Figure 1-1

Figure 1-2aFigure 1-2a

Figure 1-2a

Figure 1-2aFigure 1-2a

Figure 1-2bFigure 1-2b

Figure 1-2b

Figure 1-2bFigure 1-2b

Figure 1-4 Figure 1-4

Figure 1-4 COM2 (Optional

Figure 1-4 Figure 1-4

UDMA66 IDE cable

Standard Floppy cable

Optional 5.25 in. floppy cable

))

)

))

Insert the stub if the mounting

screw is not supported by the ATX

case

Figure 1-3

Page 10

1-3 Mainboard Layout1-3 Mainboard Layout

1-3 Mainboard Layout

1-3 Mainboard Layout1-3 Mainboard Layout

1-4 Connector and Jumper Reference Chart

Jumper &

Connector No.

CN1 CD-ROM Audio-in connector 17

CN2 Auxiliary CD-ROM Audio-in connector 17

CN3 Audio Mono -in/out connector 17

CN4 Infrared connector 18

CN5 WOL (Wake-on-LAN) connector 18

CN9

CN10 Chassis intrusion monitoring connector 18

CN11 Alert On LAN Connector 19

JP1/JP2 Audio Line out and Speaker out jumper 15

JP1A PS/2 Keyboard/Mouse Power-on Function jumper 15

JP1B USB Device Power On Function jumper 15

JP2A/JP2B External clock frequency jumper 16

JP3 Clear CMOS data jumper 16

JP5 AMR/MR/AC'97 CODEC Jumper 16

CN7 ATX power supply connector 11

FAN1/2 CPU/System cooling fan connector 14

Ports PS/2 mouse and keyboard ports 14

Ports USB (Universal Serial Bus) ports 19

Green switch connector 13

Green LED connector 13

System reset switch connector 13

Message LED connector 13

Keyboard lock & power indicator LED connector 12

Speaker connector 13

IDE activity LED connector 13

Over-ride power button connector 12

Function

Ref.

page

Introduction

Page 11

Chapter 1

- Memo

Page 12

Award BIOS Setup Program

Chapter 3Chapter 3

Chapter 3

Chapter 3Chapter 3

Award BIOS Setup Program

Award's BIOS ROM has a built-in setup program that allows users to modify the basic

system configuration. This information is stored in CMOS RAM so that it can retain

the setup information, even when the power is turned off.

When you turn on or reboot the system, press the Delete key to enter the Award

BIOS setup program. The primary screen as shown in Figure 3-1 is a list of the

menus and functions available in the setup program. Select the desired item and

press enter to make changes. Operating commands are located at the bottom of this

and all other BIOS screens. When a field is highlighted, on-line help information

is displayed on the right side of the screen.

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integreted Peripherals

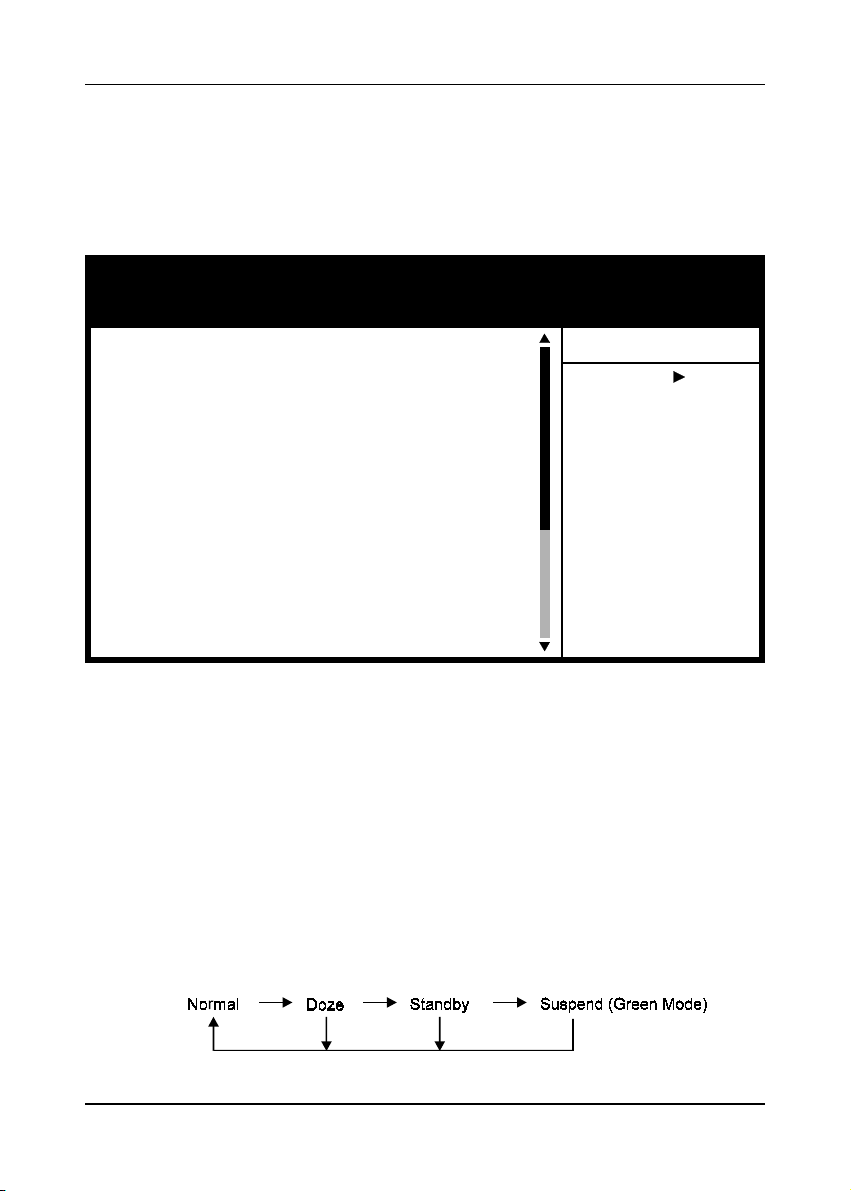

Power Management Setup

PnP/PCI Configurations

PC Health Status

Esc : Quit

F10 : Save & Exit Setup

SeePU Setup

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

¡¡¡õ¡ô : Select Item

Time, Date, Hard Disk Type...

Figure 3-1 Setup Program Initial Screen

Page 13

User's Manual

3-1 Standard CMOS Setup

The Standard CMOS Setup allows users to configure system components such as

hard disk drive, floppy disk drive and video display as well as date, time and boot-

up error signaling. This configuration menu should be changed when installing a

mainboard for the first time, changing hardware in your system such as the HDD,

FDD, video display, or when the CMOS data has been lost or contaminated. Choose

the Standard CMOS Setup option from the CMOS Setup Utility menu (Figure 3-1)

to display the following screen. When a field is highlighted, on-line help information

is displayed on the right side of the screen.

Standard CMOS Features

Date (mm : dd : yy) Tue, Sep 28 1999

Time (hh : mm : ss) 17 : 14 : 44

IDE Primary Master Press Enter None

IDE Primary Slave Press Enter None

IDE Secondary Master Press Enter None

IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.5 in.

Drive B None

Floppy 3 Mode Support Disabled

Video EGA/VGA

Halt On All Errors

Base Memory 640K

Extended Memory 30720K

Total Memory 31744K

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3-2 Standard CMOS Features Screen

Items Help

Menu Level

Date/Time

Set the date and time. Do not skip this function as all of your timed events such

as power management, saving files, etc. are based on this timer.

Hard Disk Setup (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed

in the computer. This section does not show information on other IDE devices such

as CD-ROM drives or other hard drive types such as SCSI drives.

Page 14

Award BIOS Setup Program

Type (Auto/User/None): Use the fields under the Type column to determine the method

you will use to configure the IDE devices. If you choose Auto, BIOS will automatically

detect and make optimal settings for most IDE hard drives.

The mainboard manufacturer recommends that you choose Auto for all

drives.

Choose User to define your own drive type manually. You must enter values indicated

in the table below into each drive parameter field. This information should be included

in the documentation from your hard disk vendor or system manufacturer:

TYPE Setting method

CYLS Number of cylinders

HEAD Number of heads

PRECOMP Write precompensation cylinder

LANDZ Landing zone

SECTOR Number of sectors

MODE Mode type

Table 3-1 Hard Disk Drive Parameters

Cyls/Head/Sector: The number of Cylinders, Heads, and Sectors can usually be found

written on the top of the hard disk. If you have a relatively new hard drive, entering

this information alone is usually sufficient for normal hard disk operation. The hard

disk will not work properly if you enter improper information for these categories.

Precomp: Older hard drives (i.e., MFM or RLL drives) have the same number of

sectors per track at the innermost tracks as at the outermost tracks. Thus, the data

density at the innermost tracks is higher and the bits are lying closer together. Even

though the physical size of a sector gets progressively smaller as the track diameter

diminishes, each sector must still hold 512 bytes. Write precompensation circuitry

compensates for the difference in sector size by boosting the write current for inner

track sectors.

Landz: This defines the address of the landing zone and is only used for older hard

drives which do not have an auto-parking feature.

Mode: If the Type value is not None for any device, you must set the Mode value

for that device. There are four different Mode values: Auto, Normal, Large, and

LBA.

Auto - BIOS detects and enters the IDE drive type during bootup.

Normal - for IDE drives that meet the old IDE specification which support

a maximum capacity of 528MB (1024 cylinders, 16 heads, and 63 sectors).

Page 15

User's Manual

Large - for IDE drives that do not support LBA and have more than 1024

cylinders. Try this setting if your hard disk does not operate properly with

the LBA setting. Large mode is not supported by all operating systems, i.e.,

only certain versions of DOS support large mode.

LBA - (Large/Logical Block Addressing) With LBA, the IDE controller

transforms the data address described by sector, head, and cylinder number

into a physical block address, significantly improving data transfer rates. This

mode is for drives with greater than 1024 cylinders and between 528MB and

8.4GB in size. This protocol is the current common standard.

Choose None for Type if there are no IDE HDD devices in your system.

You can use the IDE HDD Auto Detection function to auto detect your hard

drive parameters. Using this function will automatically insert the parameters

discussed under Hard Disk Setup and will indicate User for the Field value.

Please see Section 3-9 for more information.

Floppy Disk Drives

Choose the memory capacity and disk size that corresponds with that of your floppy

disk drive(s).

Video

Select the type of video adapter present in your system. You can ignore this setting

if you are using a VGA monitor since VGA BIOS automatically configures this setting.

Halt

When the system is powered on, BIOS performs a series of diagnotic tests called

POST (Power On Self Test). This function stops the computer if BIOS detects a

hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt

on specific errors.

Page 16

Award BIOS Setup Program

3-2 Advanced BIOS Features

By choosing the Advanced BIOS Features option from the Standard CMOS Features

menu (Figure 3-1), the screen below is displayed. This sample screen contains the

manufacturer's default values for the mainboard.

Advanced BIOS Features

Anti-Virus Protection Disabled

CPU Internal Cache Enabled

External Cache Enabled

CPU L2 Cache ECC Checking Enabled

Processor Number Feature Enabled

Quiet Post Disabled

Quick Power On Self Test Enabled

Frist Boot Device Floppy

Second Boot Device HDD-0

Third Boot Device LS/ZIP

Boot Other Device Enabled

Swap Floppy Drive Disabled

Boot Up Floppy Seek Disabled

Boot Up NumLock Status 0ff

Gate A20 Option Fast

Typematic Rate Setting Disabled

Typematic Rate (Chars/Sec) 6

Typematic Delay (Msec) 250

Security Option Setup

OS Select (For DRAM>64MB) Non-OS2

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Items Help

Menu Level

Figure 3-3 Advanced BIOS Features Screen

A. Anti Virus Protection

Trend ChipAway Virus

Trend ChipAway Virus is a code incorporated in the mainboard's BIOS firmware.

During the boot-up sequence, BIOS loads before loading of the partition table

or boot sector. ChipAway Virus loads with BIOS and is able to detect boot-up

viruses before they have a chance to infect the hard drive. ChipAway Virus employs

rule-based logic that doesn't look for specific viruses but rather detects patterns

found in every virus, eliminating the need to perform periodical version updates

after new viruses have been found.

Page 17

User's Manual

B. Cache Control

CPU Internal Cache/External Cache

Cache memory is much faster than conventional DRAM system memory. These

fields allow you to enable or disable the CPUs Level 1 built-in cache and Level

2 external cache. Both settings are left enabled to significantly increase the

performance of your computer.

C. Boot Up Features

After turning on the system, BIOS will perform a series of device initializations

and diagnostic tests discussed below.

Quick Power On Self Test (POST)

Enable this function to reduce the amount of time required to run the POST (Power

On Self Test). BIOS saves time by skipping some items during POST. It is

recommended that you disable this setting. Discovering a problem during bootup

is better than loosing data during your work.

First/Second/Third/Boot Other Device

This option sets the sequence of drives BIOS attempts to boot from after POST

completes. BIOS will search these drives for an operating system.

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A

will function as drive B, and drive B will function as drive A. Note that the

boot sequence assignment mentioned directly above does not inlcude booting from

floppy drive B. This function is useful if floppy drives B and A are of a different

format and you want to boot from floppy drive B.

Boot up Floppy Seek

During POST, BIOS will determine if the installed floppy disk drive has 40 or

80 tracks. A 360K drive has 40 tracks and 720K, 1.2M and 1.44M drives have

80 tracks. All modern floppy disk drives have 80 tracks.

Boot Up NumLock Status

This function defines the keyboard's numberpad as number keys or arrow keys.

D. Gate A 20 Option

Gate A20 refers to the way the system addresses memory above 1 MB (extended

memory). When set to Fast, the system chipset controls Gate A20. When set to

Normal, a pin in the keyboard controller controls Gate A20. Setting Gate A20

to Fast improves system speed, particularly with OS/2 and Windows.

Page 18

Award BIOS Setup Program

E. Keyboard Interface

Typematic Rate Setting

When enabled, you can set the following two typematic control items. When

disabled, keystrokes are determined arbitrarily by the keyboard controller in your

system.

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when

a key is pressed and held down.

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins

repeating.

F. Security Option

The Supervisor and/or User Password functions shown in Figure 3-1 must be

set to take advantage of this function. See Section 3-11 for password setting

information. When the Security Option is set to System, a password must be

entered to boot the system or enter the BIOS setup program. When the Security

Option is set to Setup, a password is required to enter the BIOS setup program.

G. OS Select (For DRAM > 64MB)

If your system's DRAM is larger than 64MB and you are running OS/2, select

OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other

operating systems.

Page 19

User's Manual

3-3 Advance Chipset Features

By choosing the Advanced Chipset Features option from the Standard CMOS Features

menu(Figure 3-1), the screen below is displayed. This sample screen contains the

manufacturer's default values for the mainboard.

Advanced Chipset Features

SDRAM CAS Latency Time by SPD

SDRAM Cycle Time Tras/Trc 6/8

SDRAM RAS-to-CAS Delay 3

SDRAM RAS Precharge Time 3

System BIOS Cacheable Disabled

Video BIOS Cacheable Enabled

Memory Hole At 15M-16M Disabled

Delayed Transaction Enabled

On-Chip Video Window Size 64 MB

Flash BIOS Protection Disabled

Hardware Reset Protect Disabled

Local Memory Frequency 100 MHz

* Onboard Display Cache Setting *

CAS# Latency 3

Paging Mode Control Close

RAS-to-CAS Override by CAS# LT

Ras# Timing Slow

Ras# Precharge Timing Slow

Items Help

Menu Level

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3-4 Chipset Features Setup Screen

All of the above settings have been determined by the mainboard manufacturer

and should not be changed unless you are absolutely sure of what you are doing.

Explanation of the DRAM timing and chipset features setup is lengthy, highly

technical and beyond the scope of this manual. Below are abbreviated descriptions

of the functions in this setup menu. You can look on the world wide web

for helpful chipset and RAM configuration information including AWARD's

web site athttp://www.award.com.

A. Memory Hole at 15M-16M

Enabling this function will reserve the memory address space between 15MB

and 16MB for ISA expansion cards. However, enabling this function will result

in not allowing the system to have access to memory above 16MB. Please note

that some expansion cards require this setting to be enabled. The default setting

is Disabled.is enabled. If Auto Configuration is enabled, you must set the DRAM

timing function to 60ns or 70ns, depeding on the type of DRAM you install.

Page 20

Award BIOS Setup Program

B. Flash BIOS Protection

The mainboard manufacturer developed BIOS protection technology that protects

the System BIOS from accidental corruption by unauthorized users or computer

viruses. When enabled, the BIOS data cannot be changed when attempting to

update BIOS with the the FLASH utility. When disabled, the BIOS data can be

updated by using the FLASH utility.

C. Hardware Reset Protect

When this function is enabled, your PC's hardware reset button will not function.

This function is especially useful to prevent accidental resets for file servers and

routers, etc., which should be available 24 hrs/day. When disabled, your PC's

hardware reset button will function normally.

Page 21

User's Manual

3-4 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the

Integrated Peripherals option from the Standard CMOS Features menu (Figure 3-

1), the screen below is displayed. This sample screen contains the manufacturer's

default values for the mainboard.

Integrated Peripherals

On-Chip Primary PCI IDE Enabled

On-Chip Secondary PCI IDE Enabled

IDE Primary Master PIO Auto

IDE Primary Slave PIO Auto

IDE Secondary Master PIO Auto

IDE Secondary Slave PIO Auto

IDE Primary Master UDMA Auto

IDE Primary Slave UDMA Auto

IDE Secondary Master UDMA Auto

IDE Secondary Slave UDMA Auto

USB Controller Enabled

USB Keyboard Support Disabled

Init Display First PCI Slot

AC97 Audio Auto

AC97 Modem Auto

IDE HDD Block Mode Enabled

Power ON Function Button Only

KB Power ON Password Enter

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Items Help

Menu Level

Figure 3-5 Integrated Peripherals Screen

A. On Board IDE Control

On-chip Primary/Secondary PCI IDE

You can set this to disable the On-chip IDE controller if you are going to add

a higher performance IDE board.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-

4) for each IDE device that the internal PCI IDE interface supports. Modes 0

through 4 provide successively increased performance. In Auto mode, the system

automatically determines the best mode for each device.

B. USB Keyboard Support

If your current operating system doesn't support USB drivers (i.e., DOS) this

function must be enabled for USB keyboard operation in these operating systems.

Page 22

Award BIOS Setup Program

C. Init Display First

This function allows user to choose between AGP slot or VGA slot to initialise

Display first .

D. AC97 Audio

Select Enabled if you install the audio riser card.

E. AC97 Modem

Select Enabled if you install the soft modem riser card.

IDE HDD BlocIDE HDD Bloc

IDE HDD Bloc

IDE HDD BlocIDE HDD Bloc

Block mode is also called block transfer, multiple commands, or multiple sector

read/write. If your IDE hard drive supports block mode (most new drives do),

select Enabled for automatic detection of the optimal number of block read/writes

per sector the drive can support.

k Modek Mode

k Mode

k Modek Mode

G. Power On Function

Set to Button Only to control the system power via the button on your system

case. Set to Mouse Left/Right Click to turn on the power via a PS/2 mouse,

and set to Keyboard 98, Hot Key or Password to turn on the power via keyboard.

With Hot Key and Password you must decide on which keys will turn on the

power.

H. Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on

the system board and you wish to use it. If you install an add-in FDC or the

system has no floppy drive, select Disabled in this field.

I. UART Mode Select

This function allows you to select an operating mode for the second serial port.

(Standard RS-232C serial port/IrDA SIR 1.0 specification/Sharp IR 0.57-MB/

sec infrared port)

J. Onboard Parallel Port

Select a logical LPT port address and corresponding interrupt for the physical

parallel port.

Page 23

User's Manual

3-5 Power Management Setup

This section provides information on the Green PC power management funtcions.

By choosing the Power Management Setup option from the Standard CMOS Features

menu (Figure 3-1), the screen below is displayed. This sample screen contains the

manufacturer's default values for the mainboard

Power Management Setup

ACPI Function Enabled

ACPI Suspend Type S1(POS)

Power Management User Define

Video Off Method DPMS

Video Off In Suspend Yes

Suspend Type Stop Grant

MODEM Use IRQ 3

Suspend Mode Disabled

HDD Power Down Disabled

Soft-Off by PWR-BTTN Instant-off

Wake-Up by PCI card Disabled

Power On By Modem Disabled

WakeUp On LAN Disabled

USB KB Wake-Up From S3 Disabled

CPU Thermal-Throttling 50%

Power On By Alarm Disabled

X Date (of Month) Alarm 0

X Date (of Month) Alarm 0 0 0

Items Help

Menu Level

¡ô¡õ¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3-6 Power Management Setup Screen

A. Advanced Configuration Power Interface (ACPI)

ACPI management enables the operating system to control the amount of power

given to each device attached to the computer. With ACPI, the operating system

can turn off peripherals devices, such as CD-ROM players, when they are not

in use.

B. Power Management

Power management allows the computer to save electricity when it is not in use

by entering increasingly deep power saving modes as shown by the diagram below.

Figure 3-7 Power Saving Mode Flow Chart

Page 24

Award BIOS Setup Program

V/H SYNC+Blank - The system turns off the vertical and horizontal synchro-

nization ports, writes blanks to the VGA buffer and the monitor's electron gun

turns off. This function requires a monitor with Green features in order to

take advantage of the power saving function. If you enable this function and

do not have a Green monitor, the result will be the same as if you had selected

Blank. This function serves as both a screen saver and an electricity saver.

DPMS Supported - Select this option if your video card supports the Display

Power Management Signaling (DPMS) standard (i.e., you have a monitor that

supports Green features). Use software supplied by your your video subsystem

to set video power management options.

C. Video Off Method

This function serves as both a screen saver and power saver for monitors.

See the next function, Video Off After, for setting the video timer.

Blank - BIOS will only blank the monitor's screen. The electricity saved

in this mode is negligible and this function is only used as a screen saver

to prevent screen damage while the screen is on but not in use.

V/H SYNC+Blank - The system turns off the vertical and horizontal syn-

chronization ports, writes blanks to the VGA buffer and the monitor's electron

gun turns off. This function requires a monitor with Green features in order

to take advantage of the power saving function. If you enable this function

and do not have a Green monitor, the result will be the same as if you had

selected Blank. This function serves as both a screen saver and an electricity

saver.

DPMS Supported - Select this option if your video card supports the Display

Power Management Signaling (DPMS) standard (i.e., you have a monitor that

supports Green features). Use software supplied by your your video subsystem

to set video power management options.

D. Video Off In Suspend

This setting determines when the monitor enters power saving mode. If set to

Yes, the monitor enters the power saving mode after the chosen event expires.

The Power Management function must be enabled to use this function.

E. Modem Use IRQ

If your computer has an modem, use this function to tell BIOS which IRQ is being

occupied by the modem card. When the system is in Green mode, the modem

requires an IRQ assignment to wake up the system and perform tasks. This

assignment is compliant with the APM 1.2 specification and is to be used in

coordination with APM 1.2 compliant operating systems.

Page 25

User's Manual

F. Suspend Mode

The Power Management function must not be set to disabled to enable this

function. If the system runs in Standby mode and the Suspend timer expires,

all devices regulated by power management will shut off and the CPU speed

will be 0 MHz.

G. HDD Power Down

The Power Management function must not be set to disabled to enable this

function. When the HDD idle time has elapsed, BIOS sends a command to

the hard disk to turn off the motor. Set a time between 1 and 15 to indicate

time required to wait before the hard drive enters a power saving mode. Some

old hard drives may not support this function.

H. Soft-Off by PWR-BTTN

When set to Delay 4 Sec., this function allows the power button to put the system

in Suspend, a power saving mode. See Section 2-4 for operation instructions

of the over-ride power button operation wich puts the system in Suspend mode.

When set to Instant-Off the Soft-Off by PWR-BTTN function is disabled and

the computer turns completely off when the power button is pressed.

I. Wake-Up by PCI card

Some PCI (Modem) cards use PME signal to wake up your system. Enable this

function if your PCI card support this feature.

J. Power On By Modem

When enabled, a modem that receives a call will wake up the system from

soft off and green mode. You should connect the modem to the COM port

and turn on the resume event in green mode.

K. Wake Up On LAN

Enable this selection to use the Wake Up On LAN function discussed in Section

2-4 of this manual.

L. USB KB Wake-Up From S3

When enabled, this setting allows the USB keyboard to wake up the system

from S3 mode (Suspend to RAM).

Page 26

Award BIOS Setup Program

M. CPU Thermal-Throttling

When the system enters Doze mode, the CPU clock runs only part of the time.

You may select the percent of time that the clock runs.

N. Power On By Alarm

When enabled, this setting allows the system to turn back on at a designated

time of the month. User must designate date of month and time of day. This

function is only available when using an ATX power supply and the Software

Power-Off function to turn off the computer. See the Software Power-Off feature

in Section 2-4 of this manual for instructions.

O. Reload Global Timer Events

When Enabled, an event occurring on each listed device restarts the global timer

for Standby mode.

Page 27

User's Manual

3-6 PNP/PCI Configuration

This section provides IRQ and DMA setting information. By choosing the PNP/PCI

Configuration option from the Standard CMOS Features menu (Figure 3-1), the screen

below is displayed. This sample screen contains the manufacturer's default values

for the mainboard.

PnP/PCI Configurations

PNP OS Installed No

Reset Configuration Data Disabled

Resources Controlled By Auto(ESCD)

X IRQ Resources Press Enter

X DMA- Resources Press Enter

PCI/VGA Palette Snoop Disabled

Slot 1 Use IRQ No. Auto

Slot 2 Use IRQ No. Auto

Slot 3 Use IRQ No. Auto

FDD IRQ Can Be Free Yes

Items Help

Menu Level

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3-7 PnP/PCI Configurations Screen

A. PNP OS Installed

If you want to install a PNP compatible OS(such as Windows 95) set to Yes.

B. Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA

information. Instead, it will refer to the items in the setup menu for assigning IRQ

& DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy

information.

ESCD(Extended System Configuration Data) provides a detailed format of

the configuration data structures stored in flash memory. Each data structure

defines the resources used by a device or a card in the system. This includes

legacy and PCI/ISA PnP devices.

C. FDD IRQ Can Be Free

This function allows user to choose if the FDD IRQ is able to be freed up. The

default setting is Yes and this does not allow the IRQ to be free.

Page 28

Award BIOS Setup Program

3-7 PC Health Status

By choosing the PC Health Status option from the Standard CMOS Features

menu(Figure 3-1), the screen below is displayed. This sample screen contains the

manufacturer's default values for the mainboard.

PC Health Status

CPU Warning Temperature Disabled

Current System Temp. 31 oC/87oF

Current CPU Temp. 54 oC/129 oF

Current CPUFAN Speed 4500 RPM

Current SYSFAN Speed 3500 RPM

CPU Vcore 2.05V

+1.5 V 1.50V

+3.3 V 3.32V

+ 5 V 5.05V

+12 V 12.16V

-12 V -12.03V

VBAT(V) 3.44V

5VSB(V) 5.53V

Shutdown Temperature Disabled

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Items Help

Menu Level

Figure 3-8 PC Health Status Screen

A. CPU Warning Temperature

Set a limit for the CPU temperature. If the CPU temperature extends beyond the limit,

any warning mechanism programmed into your system will be activated.

B. Shutdown Temperature

The system will shutdown when the temperature setting is reached , to prevent

the system from overheating. (Support Windows 98 ACPI function only)

Page 29

User's Manual

3-8 SeePU Setup

By choosing the SeePU Setup option from the Standard CMOS Features menu (Figure

3-1), the screen below is displayed. This sample screen contains the manufacturer's

default values for the mainboard.

SeePU Setup

Auto Detect DIMM/PCI CLK Enabled

Spectrum Spread Disabled

CPU Host/PCI Clock Default

CPU Clock Ratio X 3

¡¡¡õ¡ôMove Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Genaral Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3-9 SeePU Setup Screen

Items Help

Menu Level

A. CPU Setup

The mainboard manufacturer developed SeePU technology that allows you to

easily change your CPU's Host/PCI Clock and CPU Clock Ratio in BIOS. Refer

to Section 2-3 for details.

Page 30

Award BIOS Setup Program

3-9 Load Fail-Safe Defaults

Load Fail-Safe Defaults loads the default BIOS values directly from the Standard

CMOS Features menu (Figure3-1). If the stored record created by the setup program

becomes corrupted and therefore unusable, these defaults will be loaded automatically

when you turn on the computer.

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integreted Peripherals

Power Management Setup

PnP/PCI Configurati

PC Health Status

Esc : Quit

F10 : Save & Exit Setup

Load Fail-Save Defaults (Y/N) ? N

Figure 3-10 Load Fail-Safe Defaults Screen

SeePU Setup

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Setup

Saving

¡¡¡õ¡ô : Select Item

Load Fail-Save Defaults

Page 31

User's Manual

3-10 Load Optimized Defaults

Load Optimized Defaults loads the default system values directly from the Standard

CMOS Features menu (Figure3-1). If the stored record created by the setup program

becomes corrupted and therefore unusable, these defaults will be loaded automatically

when you turn on the computer.

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integreted Peripherals

Power Management Setup

PnP/PCI Configurati

PC Health Status

Esc : Quit

F10 : Save & Exit Setup

Figure 3-11 Load Optimized Defaults Screen

SeePU Setup

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Load Optimized Defaults (Y/N) ? N

Load Optimized Defaults

Setup

Saving

¡¡¡õ¡ô : Select Item

Page 32

Award BIOS Setup Program

3-11 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are

located under the Security Option function in BIOS Features Setup Menu (Figure

3-1). When the Security Option function is set to Setup, a password is required to

enter BIOS and change BIOS settings. When the Securitiy Option function is set

to System, a password is required to to enter both BIOS and the the computer's operating

system (for example Windows 95) found on the boot drive. This is shown in Figures

3-12 and 3-13.

The third and fourth variables are user password and supervisor password selected

in BIOS (Figure 3-1). The main purpose of separating user and supervisor is to

allow only the supervisor to have control over the settings in BIOS. The user, on

the other hand, is only allowed to access the computer's operating system and change

the user passorword in BIOS (See Figure 3-13). Note that when there is no supervisor

password set, the user password controls access to all BIOS settings (See Figure

3-12 below).

A. Set Either Supervisor Password or User Password

Figure 3-12 Set Either Supervisor or User Password

Page 33

User's Manual

B. Set Both Supervisor Password and User Password

Figure 3-13 Set Both Supervisor and User Password

3-12 Save and Exit Setup

If you select this and type Y (for yes) followed by the [Enter] key, the values entered

in the setup utilities will be recorded in the CMOS memory of the BIOS chip.

3-13 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the

Setup program without recording any new values or changing old ones.

Page 34

Brief Software Driver Guide

Chapter 4Chapter 4

Chapter 4

Chapter 4Chapter 4

Brief Software Driver Guide

The Mainboard Software Guide is found on the CD-ROM that is enclosed with your

mainboard and is a PDF file which must be viewed with Adobe's freeware called

Acrobat® Reader. The Acrobat Reader software is also included on the same CD-

ROM. See the Readme.txt file in the CD-ROM's root directory for installation

instructions of the Acrobat Reader. The Mainboard software guide discusses the

following items:

The following items are discussed in the TXT and PDF files:

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From the Windows 95 Device

Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface (DMI) Utility for DOS

- Sound Driver and Utility Installation

- Graphics Accelerator Driver and Utility Installation

The DMI utility is a DOS utility, operating under Windows or other operating

system might cause damage to the BIOS.

Page 35

Chapter 4

- Memo

Page 36

Chapter 5

Optional Audio Subsystem

5-1 Features

- Creative 1373 or CT5880 audio chip option

- Advanced 64-Voice WaveTable synthesizer

- Programmable independent sample rate from 4KHz to 48KHz for recording and

playback

- Full-duplex operation for simultaneous recording and playback

- 4-Channel speaker audio support for Home Theater environment (CT5880 only)

- Supports S/PDIF-out for digital audio (for example compressed AC3 data)

- Supports Microsoft`s DLS (Downloadable sample) level-1 technology

with limitless variety of instrument samples using PC RAM

- Up to 8MB wavedata provides 128 GM, GS and WT-32 compatible instruments

and 10 drum kits

- Supports HRTF 3D positional audio with Microsoft`s DirectSound,

DirectSound3D, DirectMusic, Aureal A3D and Creative EAX(Environment

Audio Extensions) APIs

- PCI v2.1 compliant and full Legacy DOS software compatible

5-2 Onboard Audio jumper (See Section 2-4)

5-3 Sound Driver and Utility (See Chapter 4)

5-4 CD-ROM Audio-in Connection (See Section 2-4)

Page 37

- Memo

Page 38

Introduction

Appendix IAppendix I

Appendix I

Appendix IAppendix I

On Board I/O Addresses & IRQ Maps

System Resource IRQ I/O Address

1. Timer IRQ0 040, 043

2. Keyboard IRQ1 060, 064

3. Programmable INT IRQ2 0020, 0021,

00A0, 00A1

4. COM2(B) IRQ3 2F8, 2FF

5. COM1(A) IRQ4 3F8, 3FF

6. Floppy IRQ6 3F0, 3F7

7. LPT1 IRQ7 378, 37F

8. Real Time Clock IRQ8 070, 071

9. PS/2 Mouse IRQ12 060, 064

10.Math coprocessor IRQ13 0F0, 0FF

11.IDE 1 IRQ14 1F0, 1F7

12.IDE 2 IRQ15 170, 177

IRQ 5, 9, 10 and 11 are available for interface cards.IRQ 5, 9, 10 and 11 are available for interface cards.

IRQ 5, 9, 10 and 11 are available for interface cards.

IRQ 5, 9, 10 and 11 are available for interface cards.IRQ 5, 9, 10 and 11 are available for interface cards.

Page 39

User's Manual

- Memo

Page 40

Appendix IIAppendix II

Appendix II

Appendix IIAppendix II

Quick Connector and Jumper ReferenceQuick Connector and Jumper Reference

Quick Connector and Jumper Reference

Quick Connector and Jumper ReferenceQuick Connector and Jumper Reference

JP1/JP2: Audio Line out and Speaker out

Setting Jumpers

1-2 Line out

2-3 Speaker out

JP3: CMOS Setting

1-2 Normal (default)

2-3 Clear CMOS data

JP5: Primary CODEC Setting Jumper

1-2 On board (default)

2-3 AMR

JP1A/1B:Keyboard/mouse power-on Jumpers

1-2:Disabled

2-3:Enabled

JP2A/2B:HOST bus frequency

JP2A JP2B

Auto 1-2 1-2

100MHz 2-3 1-2

133MHz 2-3 2-3

FAN1/2: CPU/System cooling fan

connectors

CN1/CN2: CD_IN/AUX_IN

GND

L1R

Mono-in

CN3: Audio Mono in/out Conn.

5VSB

CN4: Infrared Conn.

Ir-Rx

GND

Ir-Tx

5VSB

CN5: WOL (Wake-on-LAN) Conn.

CN7:ATX power supply

CN9:Front Panel header

SeePU (Jumper free CPU installation) setting table

CPU Speed

GND

Mono-out

5Vsb

CPU Type

Intel Slot1

Pentium III/ III

Celeron

processor

GND

CN10:Chassis intrusion detection

External

133(810E)

Clock

100

5Vsb

Case Open

GND

Frequency

CN11:AOL(Alert On LAN) header

CN12:COM2

LTI: LCD/TV-OUT extension slot

6WSV2-M101 6WSV2-M101

6WSV2-M101

6WSV2-M101 6WSV2-M101

v. 1

Ratio

Internal

Clock

4.5 450

5 500

5.5 550

6 600

6.5 650

7 700

5 667

5.5 733

CLK

GND

Data

+5V

Page 41

User's Manual

- Memo
