Chaintech 6LTM2 6LTM2 User Manual

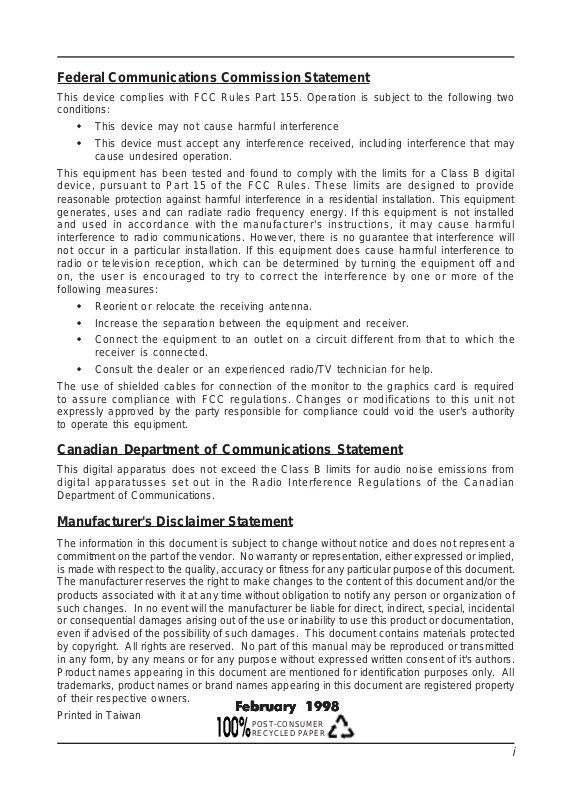

Federal Communications Commission Statement

This device complies with FCC Rules Part 155. Operation is subject to the following two
conditions:

w This device may not cause harmful interference
w This device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If this equipment is not installed
and used in accordance with the manufacturer's instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:

w Reorient or relocate the receiving antenna.
w Increase the separation between the equipment and receiver.
w Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

w Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from
digital apparatusses set out in the Radio Interference Regulations of the Canadian
Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. No warranty or representation, either expressed or implied,
is made with respect to the quality, accuracy or fitness for any particular purpose of this document.
The manufacturer reserves the right to make changes to the content of this document and/or the
products associated with it at any time without obligation to notify any person or organization of
such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental
or consequential damages arising out of the use or inability to use this product or documentation,
even if advised of the possibility of such damages. This document contains materials protected
by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted
in any form, by any means or for any purpose without expressed written consent of it's authors.
Product names appearing in this document are mentioned for identification purposes only. All
trademarks, product names or brand names appearing in this document are registered property
of their respective owners.

Printed in Taiwan

February 1998February 1998

February 1998

February 1998February 1998

POST-CONSUMER
RECYCLED PAPER

i

Table of Contents

Chapter 1 Introduction......................................................................... 1

1-1 Product Specifications........................................................... 1

1-2 Package Contents .................................................................4

1-3 Mainboard Layout..................................................................5

1-4 Connector and Jumper Reference Chart...............................5

Chapter 2 Hardware Setup .................................................................7

2-1 Introduction to Jumpers.........................................................7

2-2 Installing an S.E.C. Processor in Slot 1...............................8

2-3 Setting Your CPU's Parameters(

2-4 Connector and Jumper Settings..........................................12

2-5 Main Memory Configuration ................................................ 18

Chapter 3 Award BIOS Setup Program .......................................... 19

3-1 Standard CMOS Setup........................................................20

3-2 BIOS Features Setup ..........................................................23

SeePU

3-3

3-4 Power Management Setup.................................................. 30

3-5 PnP/PCI Configuration.........................................................35

3-6 Load Setup Defaults............................................................37

3-7 Integrated Peripherals..........................................................38

3-8 Supervisor Password & User Password Setting ................40

3-9 IDE HDD Auto Detection.....................................................42

3-10 Save and Exit Setup............................................................ 42

3-11 Exit Without Saving.............................................................42

Chapter 4 Brief Software Driver Guide ..........................................43

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From
the Windows 95 Device Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface

& Chipset Setup......................................................27

(DMI) Utility

SeePU

Technology) ........10

Feature ExplanationsFeature Explanations

Feature Explanations

Feature ExplanationsFeature Explanations

SeePU

Software Power-off Control............................................................12

Power-On By Modem ............................................................... 12/33

ii

Technology........................................................................10

Over-ride Power Button.........................................................................13

Blinking LED in Suspend Mode ...........................................................13

Wake Up On LAN........................................................................... 15/34

Creative's SB-LINK Sound....................................................................16

Power-On by Keyboard/Mouse ...................................................... 16/39

Poly-fuse Over Current Protection........................................................17

ECC DRAM Capability ......................................................................... 18

Power Failure Recovery........................................................................28

Flash BIOS Protection ......................................................................... 28

Hardware Reset Protection ..................................................................29

Power-On by Alarm ..............................................................................33

AppendicesAppendices

Appendices

AppendicesAppendices

Appendix I On Board I/O Addresses & IRQ Maps .........................45

Appendix II Quick Connector and Jumper Reference.................47

Appendix III FAN-II

Reader's Feedback ............................................................................51

SMART

Technology Upgrade Kit .................49

iii

- Memo

iv

Introduction

Chapter 1

Introduction

1-1 Product Specifications

rr

r Processor

rr

- Supports up to 333 MHz Intel Pentium® II processors

- Slot 1 CPU socket with retention mechanism

- High efficiency Switching Power Module (1.8v ~ 3.5v, 0.1v increments)

- Supports 60/66 MHz system clock speeds

- Innovative SeePU technology (software CPU installation with no jumper

settings)

Supports 68 (Turbo mode), 75/83MHz system clock for over-clocking
possibility.

rr

r Chipset

rr

- Intel 82440LX two chip PCIset

rr

r DRAM Memory

rr

- Three 3.3V 168-pin DIMM sockets support up to 384MB

- Supports 8/16/32/64/128MB, 64/72-bit EDO and Synchronous DIMM
modules

- Provides single-bit ECC capability

Because 128MB DIMM modules are not yet mainstream, the
compatibility of 128MB DIMM can not be 100% guaranteed. (See
Section 2-5 for details.)

rr

r Expansion Slots

rr

- One 32-bit AGP slot (Rev 1.0 compliant)

- Four 32-bit PCI slots (Rev 2.1 compliant)

- Two 16-bit ISA slots (one PCI/ISA shared slot)

rr

r BIOS

rr

- Award System BIOS, supports PnP, APM, DMI & Multi-device booting

features i.e. floppy, LS120, CD-ROM, HDD(IDE, SCSI), ZIP-ATAPI etc.

- Includes SYMBIOS SCSI BIOS

- Includes Trend ChipAway Virus protection for virus-free boot and virus free
operating system

The Trend ChipAway Virus is a rule-based anti-virus technology and

@

does not require periodical updates of virus code

1

Chapter 1

rr

r Two Ultra DMA-33 PCI IDE Ports

rr

- Supports up to PIO Mode 4, Multi-word Mode 2 and Ultra DMA-33 timings

- Bus Mastering software drivers for all well known multi-task operating
systems

rr

r On-board Ultra I/O

rr

- ITE8671 I/O chip (built-in AMI KBC software and RTC)

- One Parallel (SPP/ECP/EPP) and two Serial (16550A compliant) ports

- One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode,
and 1Mbps transfer rate

- IrDA IR function supports up to 115.2Kbps

rr

r Two Channel USB Ports

rr

Now under compatibility testing with different peripherals

rr

r Board Dimensions

rr

- Mini-ATX form factor, 285mm x 190mm, 4 Layers

- Six mounting holes

rr

r Advanced Management Features

rr

- Software power off control, Power-on by modem, Power-on by alarm,
Power-on by keyboard, Power-on by mouse, Over-ride power button, Chassis
intrusion detection, Power failure recovery, Blinking LED in Suspend, etc.

- Poly-fuse over-current protection for USB and keyboard

- Flash BIOS protect via BIOS

- Supports SB-link header for Creative PCI audio cards

- Optional FAN-II (EISCA v1.0 compliant cooling fan) support (Appendix III)

- Meets EPA Green PC standard: power consumption under 30W in Doze,
Standby, and Suspend modes

- ACPI features ready when ACPI-enabled O/S is available

2

rr

r Switching Power Supply Requirement (at least 200 Watts)

rr

Introduction

Output Voltage

+12V +/- 5% 0

+5V +/- 5% 1

+3.3V +/- 5% 0.3

-5V +/- 10% 0

-12V +/- 10% 0

+5VSB +/- 5% 0.05

Max. Regulation

Requirement

Min. Current

Requirement (Amps)

Table 1-1

The power cord leading from the system's power supply to the external
power source must be the very last part connected when assembling a
system.

The on-board 3.3v regulator provides maximum 6Amp current drive
capability for AGP cards and memory modules.

3

Chapter 1

1-2 Package Contents

This product comes with the following components:

r One mainboard
r CPU Slot 1 retention mechanism and four retention mechanism pins

(Figure 2-4)

r One 40-pin IDE connector ribbon cable (Figure 1-1)
r One 34-pin floppy disk drive ribbon cable (Figure 1-2a) or (Figure 1-2b)
r One Mini-ATX I/O shield (Figure 1-3) (ATX v2.0 and above compliant)
r One User's Manual
r One CD-ROM that includes

- Award Flash EPROM Utility, Award DMI Utility

- Intel Bus Master IDE drivers for Win95, WinNT, and OS/2

- Exclamation Mark Remover Utility

- Optional Shepherd Utility, System Health Monitoring Software

- Trend PC-cillin Anti-virus v3.0(OEM version) Utility in eight different
languages

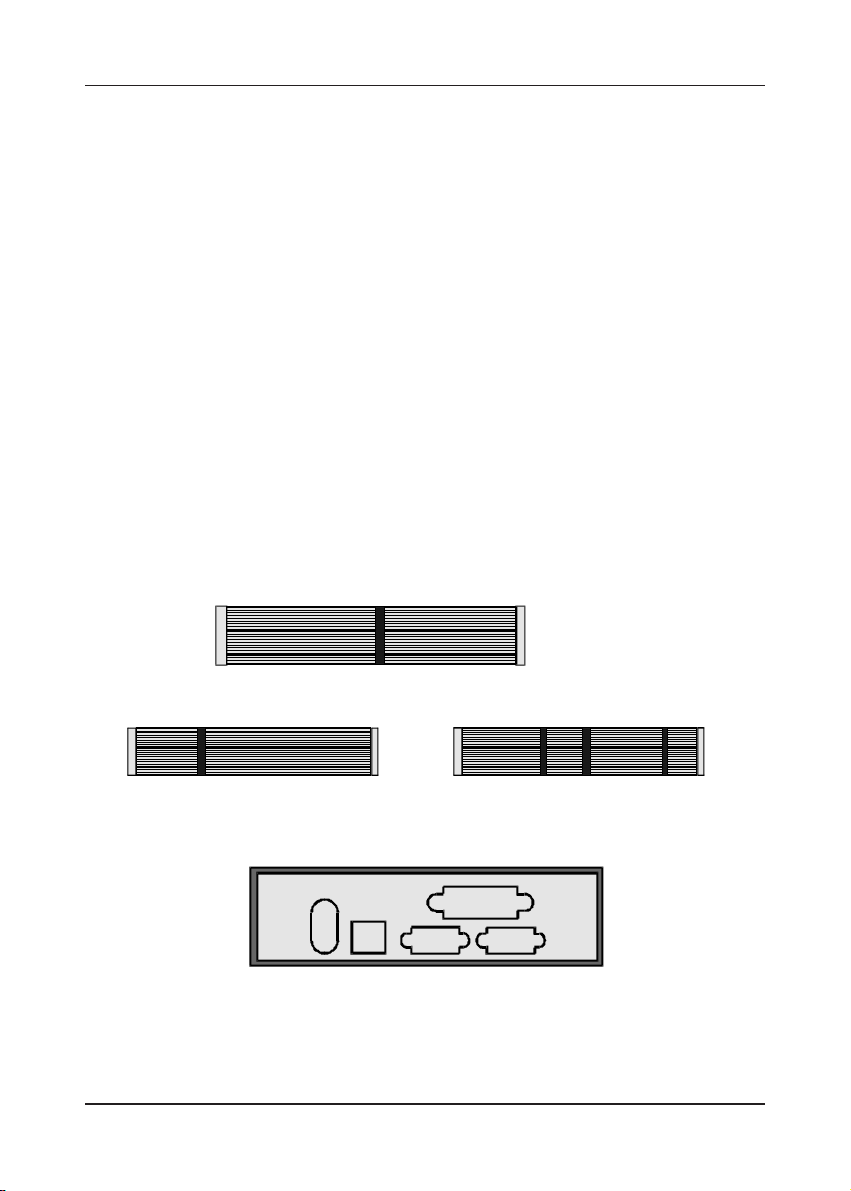

IDE cable

4

Figure 1-2a

Figure 1-1

Standard Floppy cable Optional 5.25 in. floppy cableFigure 1-2b

Figure 1-3 Mini-ATX I/O shield

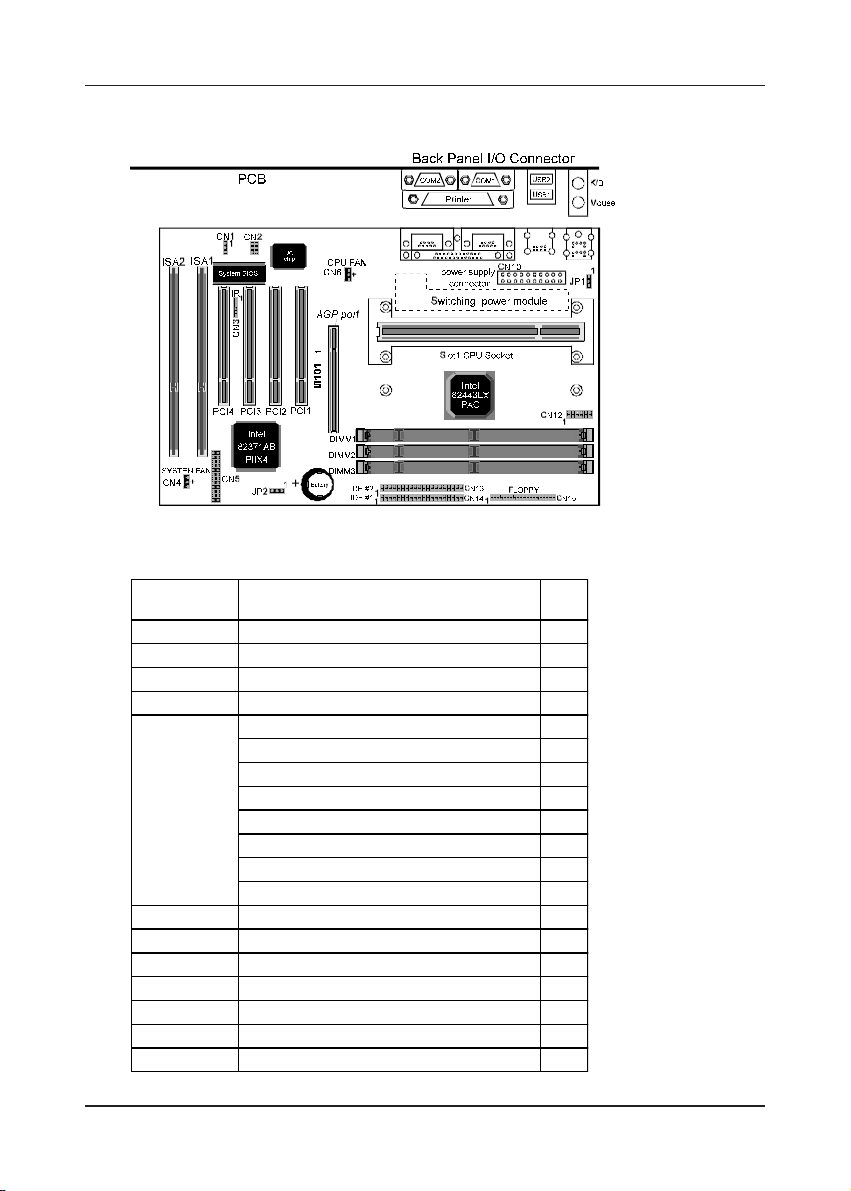

1-3 Mainboard Layout

1-4 Connector and Jumper Reference Chart

Introduction

Jumper &

Connector No.

CN1 WOL (Wake-on-LAN) Connector 15
CN2 Creative's SB-LINK connector 16
CN3 Infrared connector 15
CN4 System cooling fan connector 15

Green switch connector 14
Green LED connector 14
System reset switch connector 14

CN5

CN6 CPU cooling fan connector 15
CN10 ATX power supply connector 12
CN12 FAN-II connector 49

JP1 Power on by keyboard/mouse jumper 16

JP2 Clear CMOS data jumper 16
Ports PS/2 mouse and keyboard ports 17
Ports USB (Universal Serial Bus) ports 17

Turbo LED connector 14
Keyboard lock & power indicator LED connector 13
Speaker connector 14
IDE activity LED connector 14
Over-ride power button connector 13

Function

Ref.

page

5

Chapter 1

- Memo

6

Hardware Setup

Chapter 2

Hardware Setup

If your mainboard has already been installed in your computer you may still need
to refer to this chapter if you plan to upgrade your system's hardware.

Be sure to disconnect the power cable from the power source before performing
any work on your mainboard, i. e. installing a CPU, memory module, changing
a jumper setting, etc. Not doing so may result in electrical shock!

2-1 Introduction to Jumpers

Jumpers are used to select between various operating modes. A jumper consists of
a row of gold colored pins that protrude from the surface of the mainboard. It is
important not to confuse jumpers with connectors or headers.

Putting jumper caps on anything that is not a jumper may result in damaging
your mainboard. Please refer to Section 1-3, Mainboard Layout, for the location
of jumpers on your mainboard.

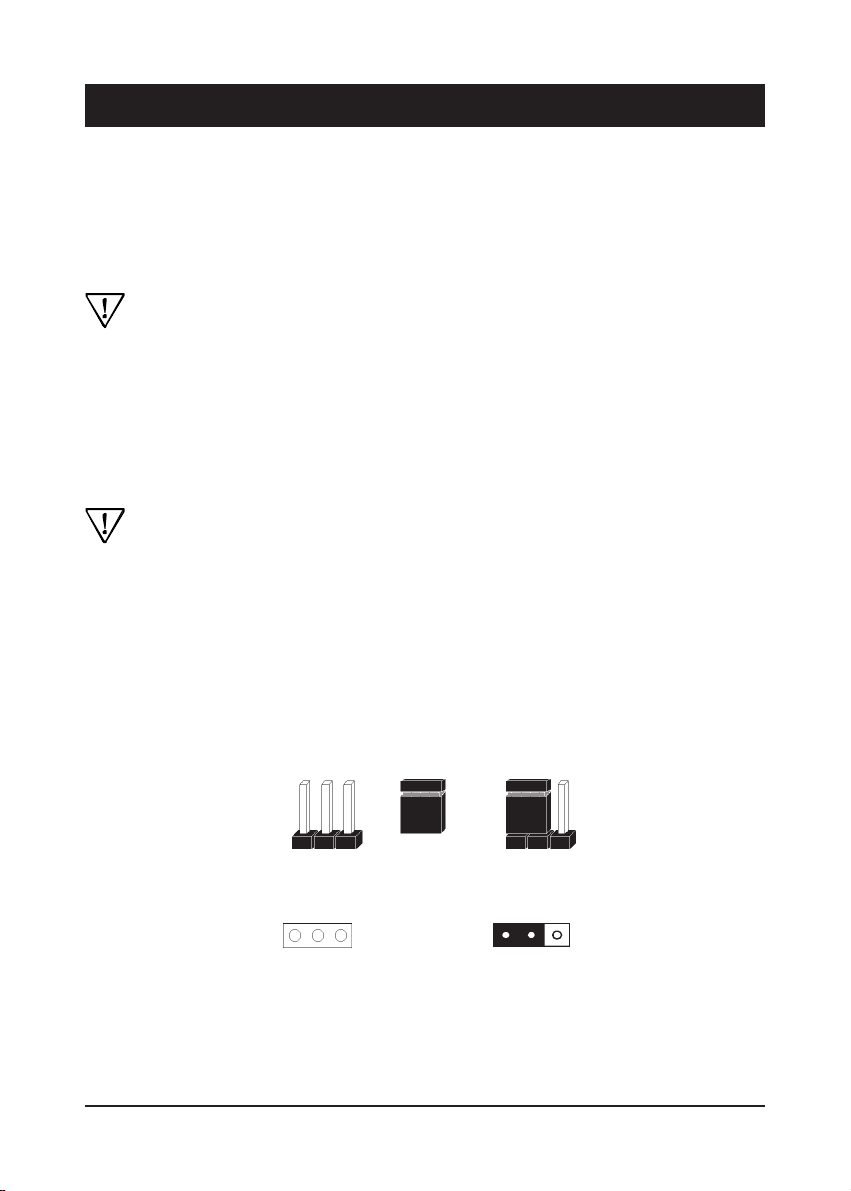

As indicated in Figure 2-1 below, a cap is used to cover the pins of a jumper, resulting
in shorting those pins that it covers. If the cap is removed from the top of the pins,
the jumper is left "open." The number 1 shown both in the diagram below and in
all multiple pin jumper and header diagrams in this manual indicates the pin designated
with the number 1. The numbering of the remaining pins follows in sequence.

Pins SettingCap

1

A 3-pin jumper

1

A cap over pin 1 and
pin 2 shorts these pins

Figure 2-1

7

Chapter 2

2-2 Installing an S.E.C. Processor in Slot 1

To Install the retention mechanism on Slot 1 refer to the figures and instructions
below:

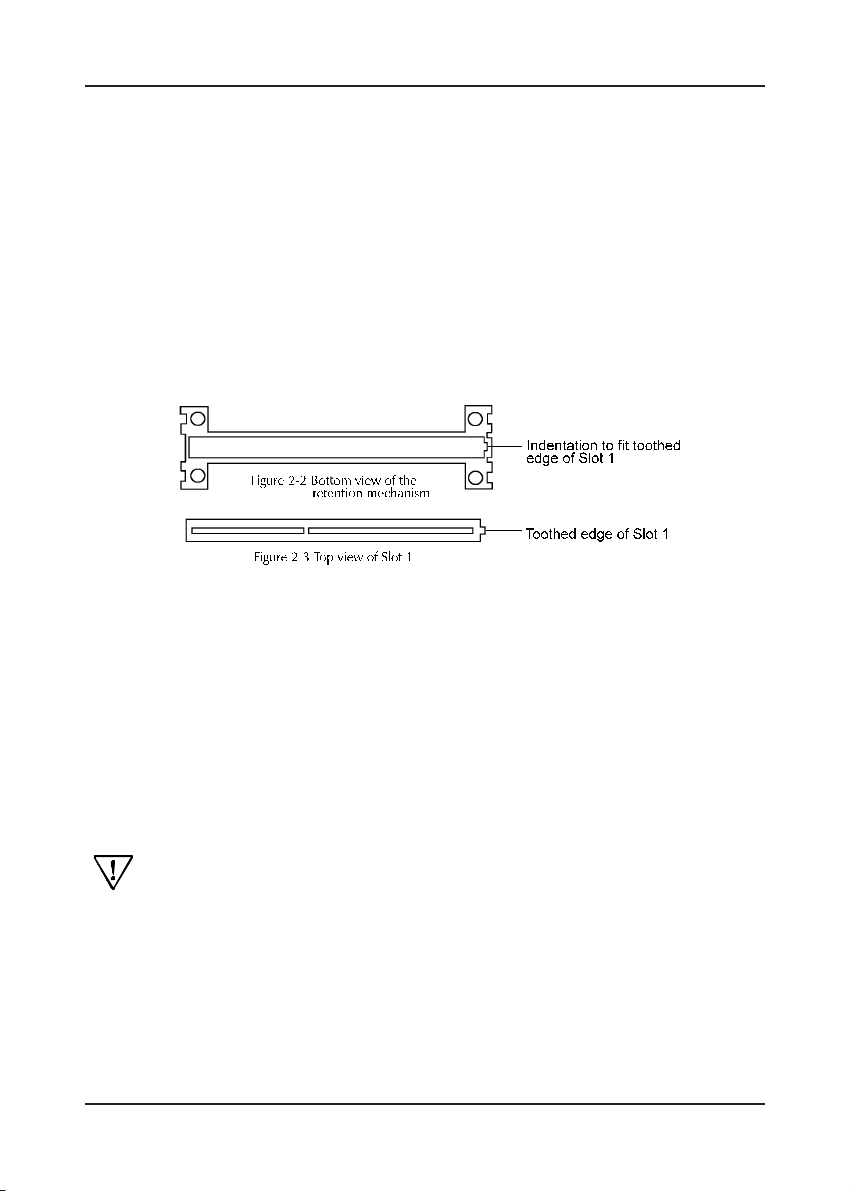

1. Locate the protruding, toothed edge at the end of Slot 1 (Figure 2-3). Find the
complementary indentation at the bottom of the retention mechanism (Figure 2-

2) and insert the retention mechanism onto Slot 1 until the plastic clips at the
bottom of the retention mechanism completely protrude through the bottom of
the mainboard.

2. Insert the retention mechanism pins into the four holes at the base of the retention
mechanism (Figure 2-4), pushing down until they click into place.

3. Insert the Pentium II processor into the retention mechanism. Press evenly and
gently until the snaps on the upper side of the processor have been inserted into
the holes at the top of the retention mechanism. Note that when removing the
processor, these snaps can be clicked into a completely vertical position, leaving
your hands free to stabilize the board. Pull the processor evenly and gently out
of the retention mechanism. Also note that like PCI and ISA slots, Slot 1 has
a divider that prevents backwards insertion of the CPU.

Installing a heat sink and cooling fan is necessary for proper heat dissipation
from your CPU. Failing to install these items may result in overheating and
possible burn-out of your CPU.

8

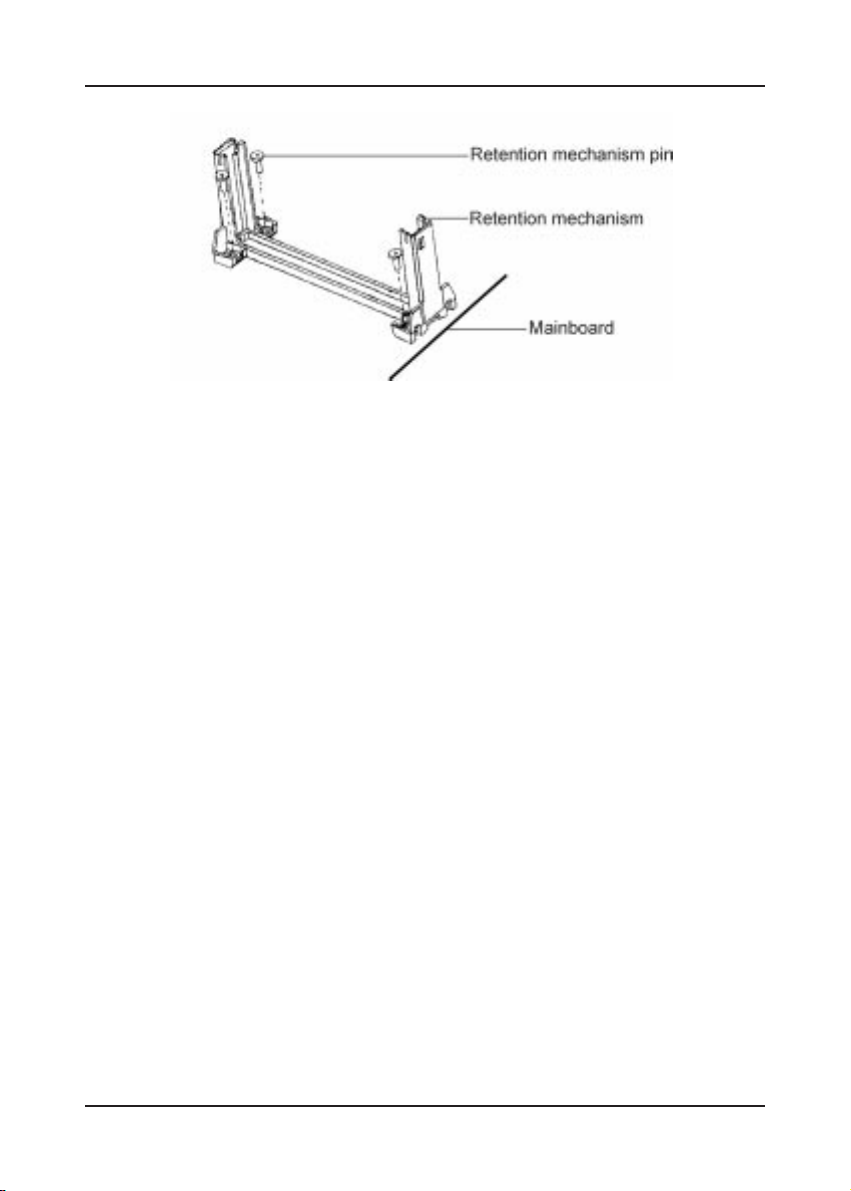

Figure 2-4 The retention mechanism for Slot1

Hardware Setup

9

Chapter 2

2-3 Setting Your CPU's Parameters(

SeePU

Technology)

SeePU is a new user friendly technology that enables the user to setup a mainboard's
CPU parameters through an easy to use BIOS setup procedure. It is no longer
necessary to make many jumper settings as on conventional mainboards.

1. After installing all your hardware into your PC system, turn on your system's
power. Enter the CMOS Setup Utility by pressing the Delete key when your
BIOS identification screen appears.

2. Move the cursor to SeePU & Chipset Setup menu and press Enter. Find the CPU
Setup commands at the right hand part of the BIOS screen (Figure 2-5) Commands
for operating the cursor in BIOS are found at the lower right of the BIOS screen.

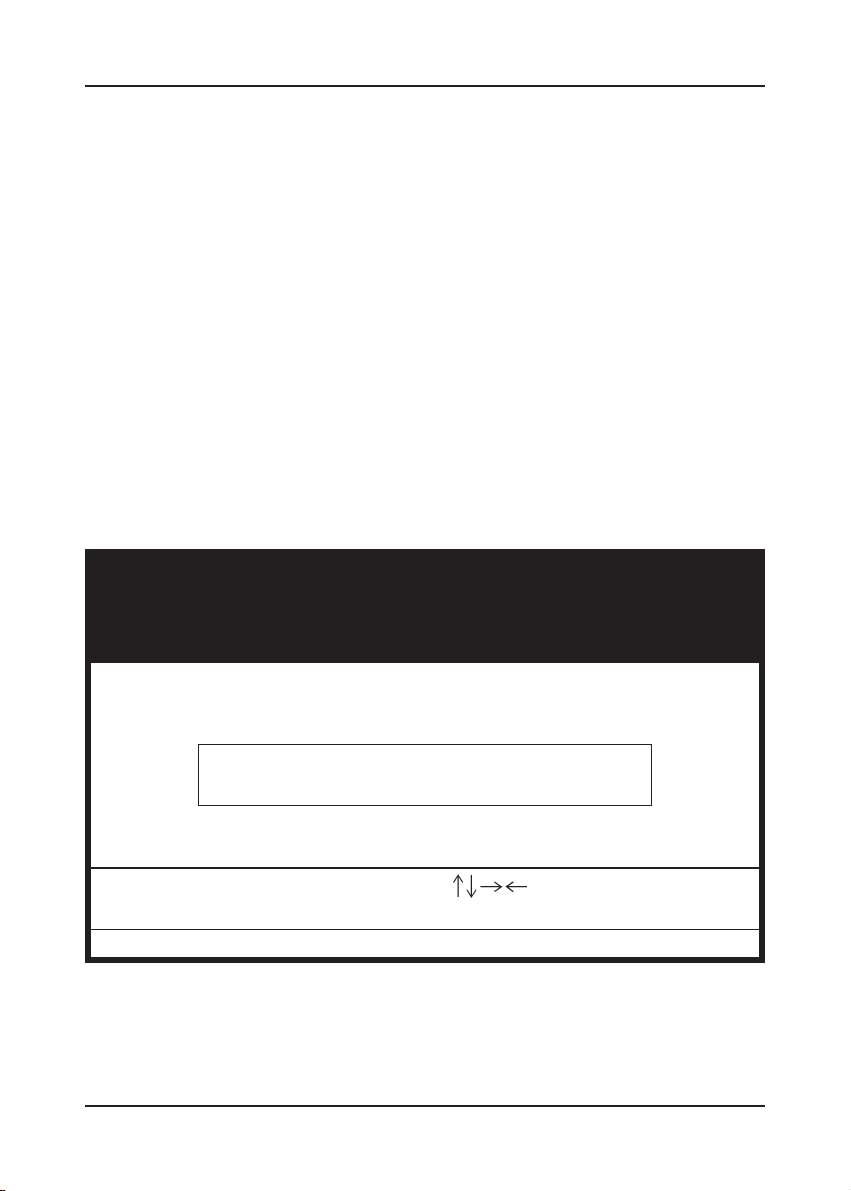

ROM PCI / ISA BIOS (2A69JC39)

SeePU & CHIPSET SETUP
AWARD SOFTWARE, INC.

Auto Configuration : Enabled
DRAM Speed Selection : 60ns
MA Wait State : Slow
EDO RAS# To CAS# Delay : 3
EDO RAS# Precharge Time : 3
EDO DRAM Read Burst : x333
EDO DRAM Write Burst : x222
DRAM Data Integrity Mode : Non-ECC
CPU-To-PCI IDE Posting : Enabled
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled
Delayed Transaction : Disabled
AGP Aperture Size (MB) : 64
SDRAM RAS-to-CAS Delay : Slow
SDRAM RAS Precharge Time : Slow

SDRAM CAS latency Time : 3
Power Failure Recovery : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled
Hardware Reset Protect : Disabled

***** CPU Setup *****

CPU Type : Pentium-II-233

ESC: Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

Figure 2-5

:Select Item

PU/PD/+/- : Modify
(Shift) F2 : Color

3. Change the CPU Type according to the speed of your Pentium II processor. See
Figure 2-6 for frequency specifications.

CPU Speed

10

CPU Type

Pentium II
processor

External Clock

66

Frequency

Figure 2-6

Ratio

Internal Clock

3.5 233

4 266

4.5 300

5 333

Hardware Setup

4. Use the User Define option to custom set your CPU's parameters. Set the
frequency ratio (also known as external clock multiplier factor) and CPU bus
frequency according to your processor's specifications. See Figure 2-7.

You do not need to make voltage settings because SeePU automatically
sets your CPU voltage.

ROM PCI / ISA BIOS (2A69JC39)

SeePU & CHIPSET SETUP
AWARD SOFTWARE, INC.

Auto Configuration : Enabled
DRAM Speed Selection : 60ns
MA Wait State : Slow
EDO RAS# To CAS# Delay : 3
EDO RAS# Precharge Time : 3
EDO DRAM Read Burst : x333
EDO DRAM Write Burst : x222
DRAM Data Integrity Mode : Non-ECC
CPU-To-PCI IDE Posting : Enabled
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled
Delayed Transaction : Disabled
AGP Aperture Size (MB) : 64
SDRAM RAS-to-CAS Delay : Slow
SDRAM RAS Precharge Time : Slow

SDRAM CAS latency Time : 3
Power Failure Recovery : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled
Hardware Reset Protect : Disabled

***** CPU Setup *****

CPU Type : User's Define
Frequency Ratio : 3.5X
CPU Bus Frequency :60MHz

ESC: Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

:Select Item

PU/PD/+/- : Modify
(Shift) F2 : Color

Figure 2-7

5. Press Esc to return to the CMOS Setup Utility, press F10 to Save and Exit Setup
and choose 'Y' to confirm. The system will automatically reboot and during startup
you will see the correct CPU type indicated on the start-up screen screen.

Overclocking

Operating a CPU at a higher frequency than it's specification allows is called overclocking.
If the CPU frequency is set at a higher frequency than it's specification allows, it may
or may not run at that freqency, depending on the quality of your CPU and the extent
to which the frequency has been overset. The mainboard manufacturer highly
discourages overclocking as it may result in data loss, CPU burn-out, system failure,
etc.

11

Chapter 2

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including
the power supply, the keyboard, and the various controllers on the front panel of
the system case.

The power supply connector is the last connection to be made while installing a
mainboard. Before connecting the power supply, please make sure it is not
connected to the power source.

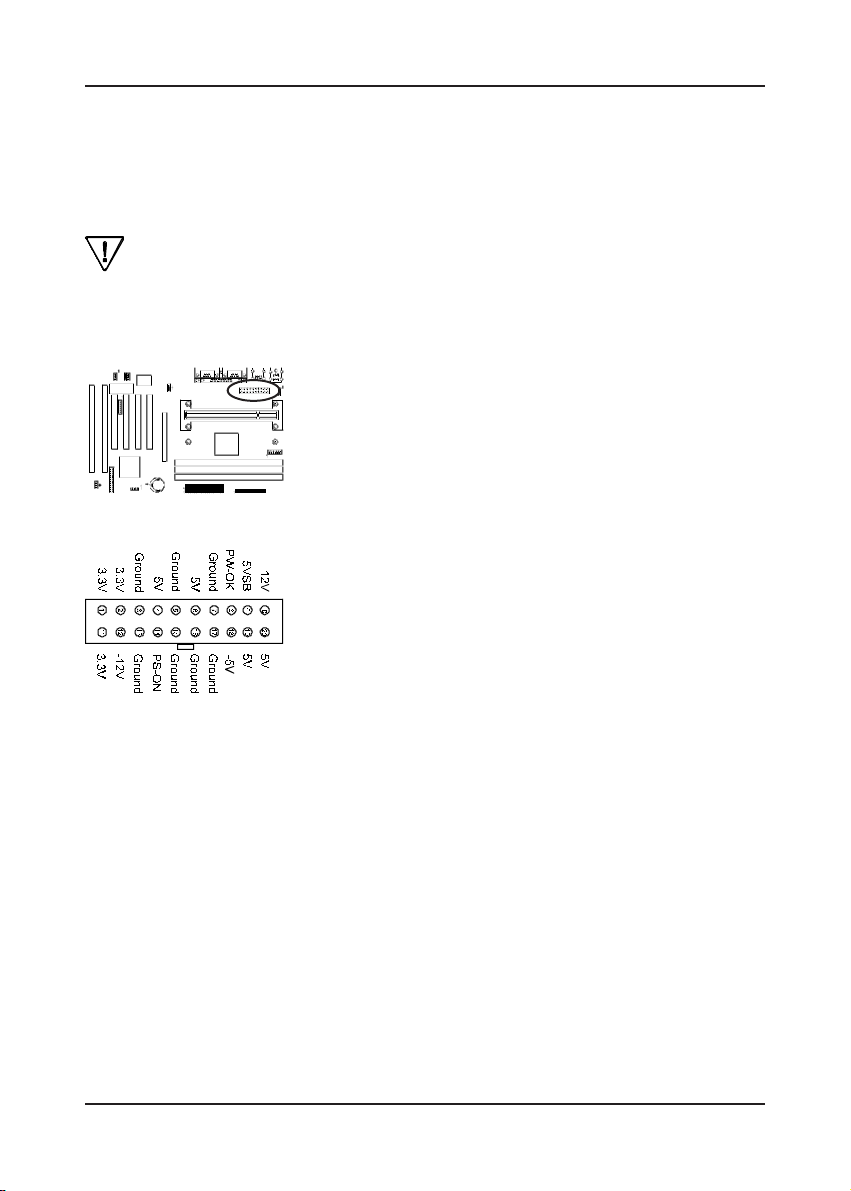

ATX Power Supply Connector (CN10)

This mainboard requires a power supply of at least 200
watts. The power cord leading from the system's

power supply to the external power source must be
the very last part connected when assembling a system.

The ATX power supply provides a single 20-pin connector
interface which incorporates standard +/-5V, +/-12V,
optional 3.3V and Soft-power signals. The Soft-power
signal, a 5V trickle supply of at least 10mA, is continuously
supplied when AC power is available. When the system is
in the Soft-Off mode, this trickle supply maintains the
system in it's minimum power state.

Software Power-Off Control

This mainboard can be powered down using theWindows 95 Software Power-Off
function. To power down your computer, click the START button on the Windows 95
task bar. Select "Shut Down The Computer" and the system turns off. The message "It
is now safe to turn off your computer" will not be shown when using this function.

Power-On By Modem

While in Soft-off state, if an external modem ring-up signal occurs, the system wakes
up and can be remotely accessed. Enable this function in BIOS's Power Management
Setup menu. (See section 3-4)

12

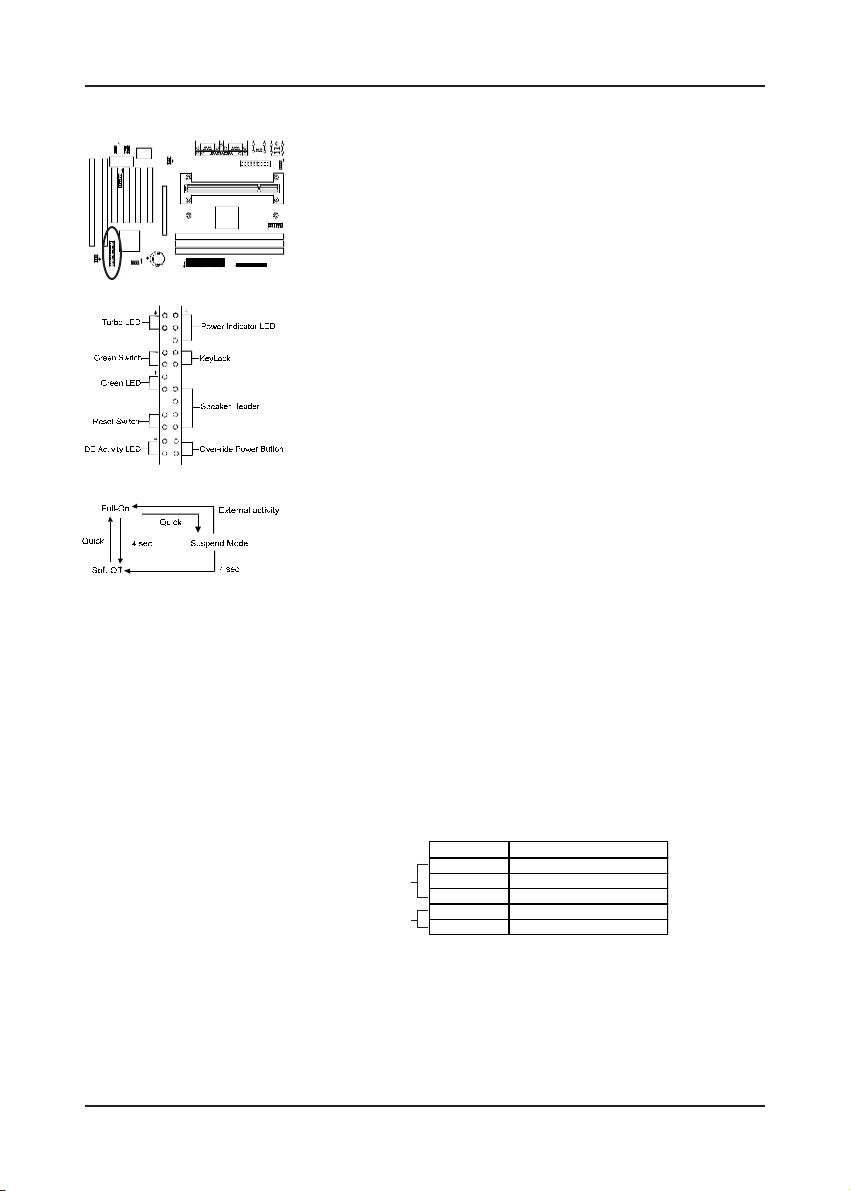

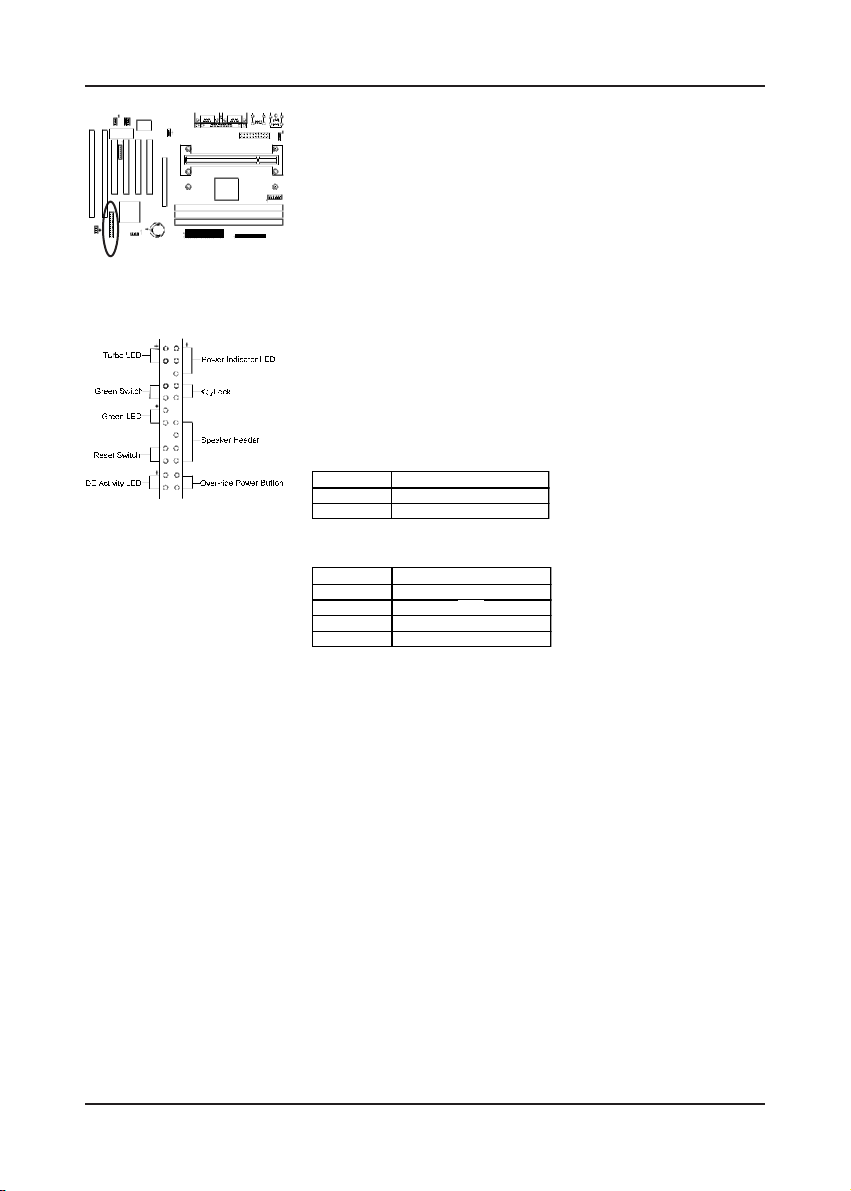

Front Panel Connector Set (CN5) A through G

A. Over-ride Power Button Connector

The power button on the ATX chassis can be used as a
normal power switch as well as a button to activate Advanced
Power Management Suspend mode. This mode is used for
saving electricity when the computer is not in use for long
periods of time. The Soft-OFF by PWR-BTTN function
in BIOS's Power Management Setup menu must be set to
"Delay 4 Sec." to activate this function. (See section 3-4)

When the Soft-OFF by PWR-BTTN function is enabled,
pushing the power button rapidly will switch the system to
Suspend mode. Any occurence of external activity such as
pressing a key on the keyboard or moving the mouse will
bring the system back to Full-On. Pushing the button while
in Full-On mode for more than 4 seconds will switch the
system completely off. See Over-ride Power Button
Operation diagram.

Hardware Setup

Over-ride Power Button
Operation

B. Keyboard Lock & Power Indicator LED
Connector

Plugging this connector into the lock on the front panel
of the system case allows the lock to enable or disable
the keyboard. This function provides limited security
against casual intruders. The power indicator LED shows
the system's power status. It is important to pay attention
to the correct cable and pin orientation (i.e., not to reverse
the order of these two connectors.)

Pin Definition

1 +5V DC

Power Good LED

Keyboard Lock

2 No Connect
3 Ground
4 Keylock
5 Ground

Blinking LED in Suspend Mode

While in Suspend mode, the LED light on the front panel of your computer will flash.
Suspend mode is entered by pressing the Override Power Button, pushing the Green
button on your ATX case, or enabling the Power Management and Suspend Mode
options in BIOS's Power Management menu. (See section 3-4)

13

Chapter 2

C. Green Switch/Green LED Connector

Some ATX cases provide a Green switch which is used
to put the system in Suspend mode. In Suspend mode,
the power supply to the system is reduced to a trickle,
the CPU clock is stopped, and the CPU core is in it's
minimum power state. The system is woken up whenever
the keyboard or mouse is touched. The system resumes
in different ways as defined by Power Management Setup
screen in BIOS.

D. System Reset Switch Connector

This connector should be connected to the reset switch
on the front panel of the system case. The reset switch
allows you to restart the system without turning the
power off.

Pin Definition

1 System
2 GND

E. Speaker Connector

Pin Definition

1 Speaker Signal
2 GND
3 GND
4 +5V DC

NC
NC

F. IDE Activity LED Connector

The IDE activity LED lights up whenever the system
reads/writes to the IDE devices.

G. Turbo LED Connector

This mainboard does not have a Turbo/De-turbo speed
modes. Even though this function does not exist, the turbo
LED will light when the LED is connected and turbo button
pressed.

Change CPU Speed with the Keyboard

Use the following commands to change the CPU speed between turbo/de-turbo.
Set to low speed [CTRL] [ALT] [-]
Set to high speed (turbo) [CTRL] [ALT] [+]

14

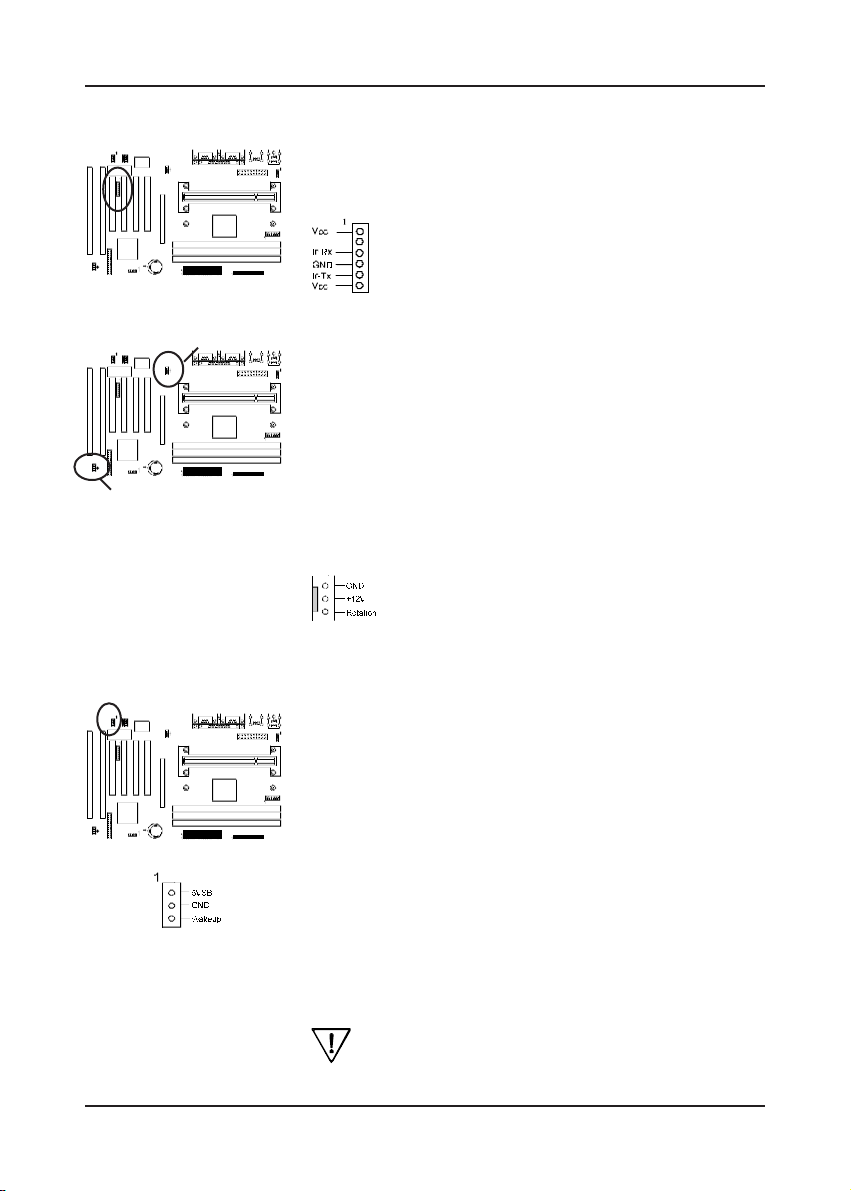

Infrared Connector (CN3)

If you enable the COM2 Mode in BIOS's Integrated
Peripherals menu the COM2 port will support IR functions.
(See section 3-7)

Hardware Setup

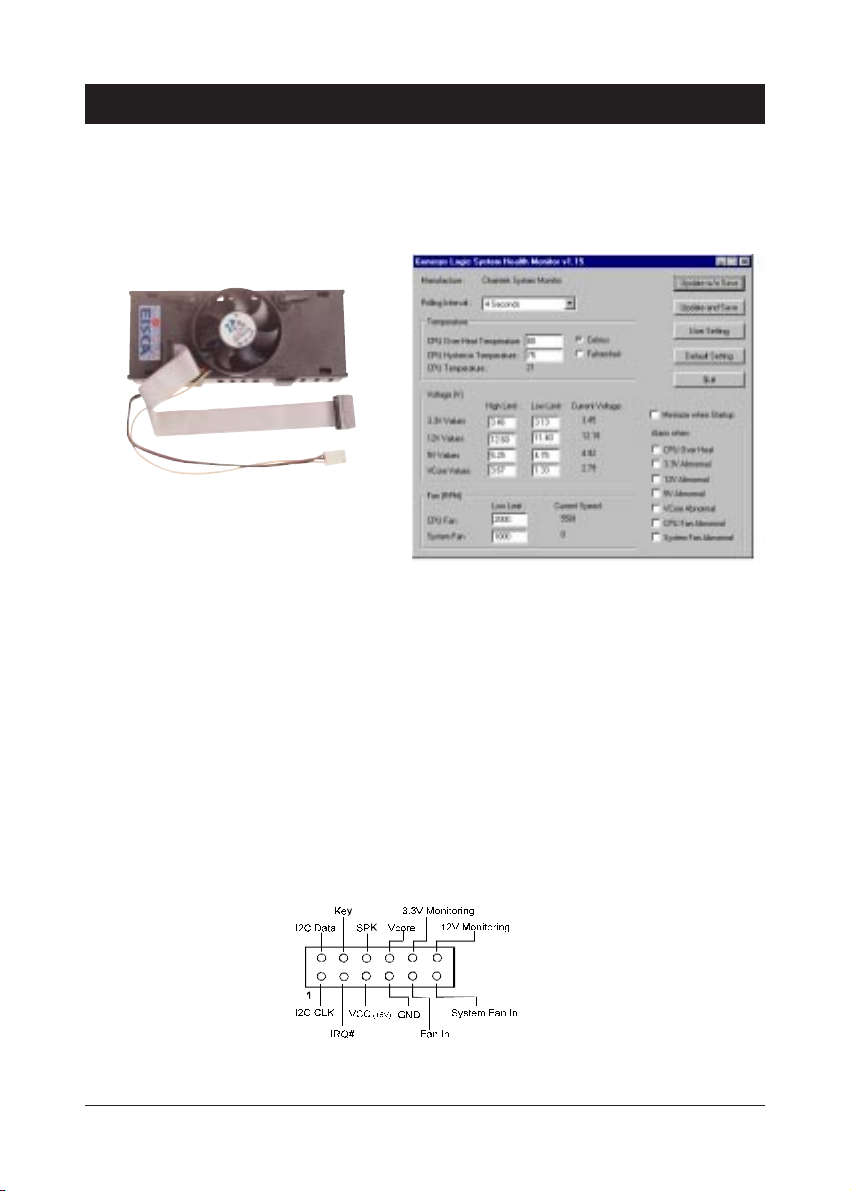

CPU/System Cooling Fan Connectors (CN6/CN4)

CN6

These added connectors allow the fan to draw their power
from the mainboard instead of the disk drive connector.
The board's management extension hardware is able to
detect the CPU and system fan speed in rpm (revolutions
per minute). These connectors supports 3-pin cooling

CN4

fans with minimum of 3500 RPM. The wiring and plug may
vary depending on the manufacturer. On standard fans,
the red is positive (+12V), the black is ground, and the
yellow wire is the rotation signal.

(if FAN-II chip is present)

WOL (Wake-on-LAN) Connector (CN1)

Enable the Wake Up On LAN selection in BIOS's Power
Management Menu to use this function. The capability
to remotely manage PCs on a network is a significant
factor in reducing administrative and ownership costs.
Magic Packet technology is designed to give WOL (Wake­on-LAN) capability to the LAN controller. When a PC
capable of receiving wake up command goes to sleep,
the Magic Packet mode in the LAN controller is enabled.
When the LAN controller receives a Magic Packet frame,
the LAN controller will wake up the PC. This header
is used to connect an add-in NIC (Network Interface Card)
which gives WOL capability to the mainboard.

To support this function, a switching power supply
with a minimum of 750mA 5VSB is required.

15

Chapter 2

Creative's SB-LINK Sound Connector (CN2)

The SB-LINK serves as a bridge between the mainboard
and Creative's PCI sound card. This connector delivers
Sound Blaster 16 compatility for real-mode DOS games.

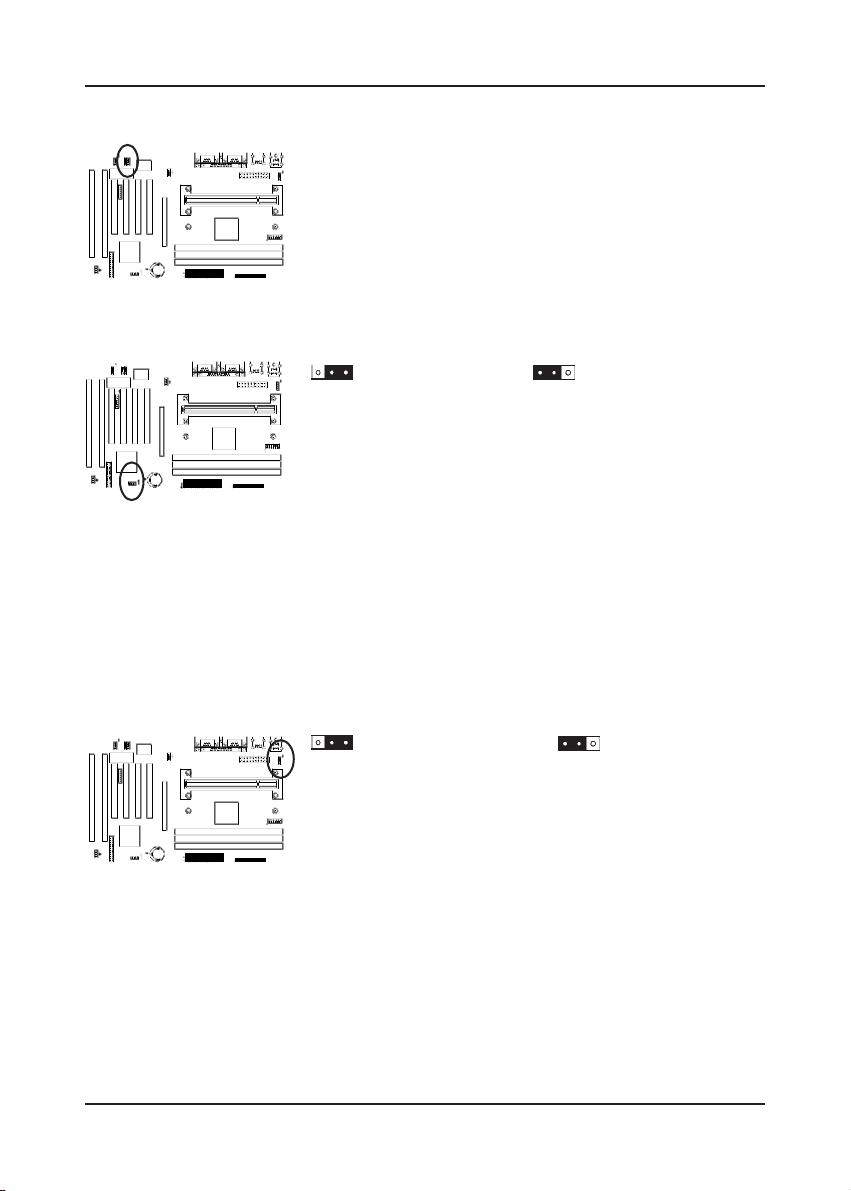

Clear CMOS Data Jumper (JP2)

1

Normal (default)

To clear the contents of the CMOS, please follow the
steps below.

1.Disconnect the system power supply from the power
source.

2.Set the jumper cap at location 2~3 for 5 seconds, then
set it back to the default position.

3.Connect the system's power and then start the system.

4.Enter BIOS's CMOS Setup Utility and choose Load
Setup Defaults. Type Y and press enter.

5.Set the system configuration in the Standard CMOS
Setup menu.

1

Clear CMOS data

Power-on by Keyboard/Mouse Jumper (JP1)

1

Disabled

This board is able to be turned on by either the keyboard
or a PS/2 mouse. To use this function, enable the Power
On By Keybrd/Mouse option in BIOS's Integrated
Peripherals screen (See section 3-4). You must also set
this jumper's cap to pins 2-3 to use this function. Some
out-of-date keyboards may require larger current than
supplied by the Suspend 5V of modern power supplies.
When using older keyboards disable this function.

16

1

Enabled

Hardware Setup

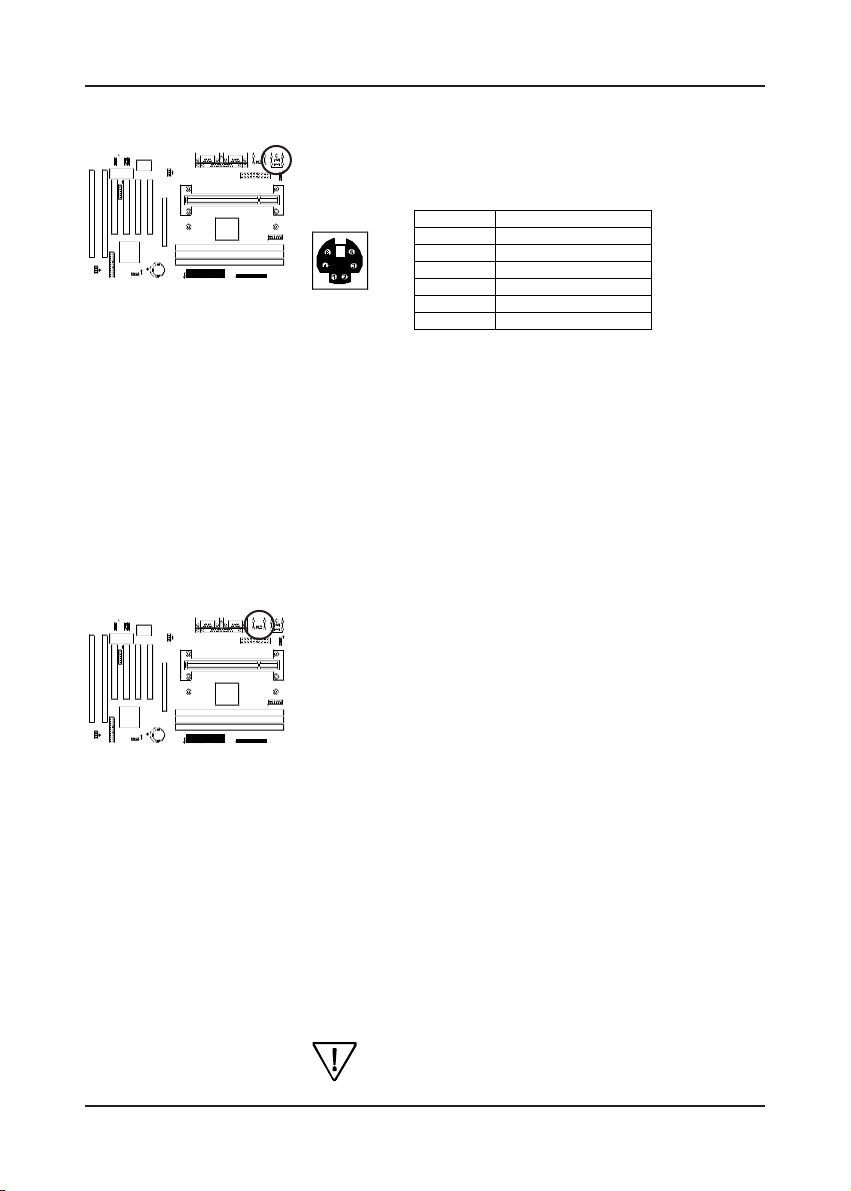

PS/2 Mouse and Keyboard Ports

If a PS/2 mouse is used, BIOS will automatically detect
and assign IRQ12 to the PS/2 mouse.

Pin Definition

1 Data

2 No Connect

3 Ground

4 +5V (fused)

5 Clock

6 No Connect

Poly-fuse Over Current Protection

The poly-fuse protects the system from dangerous voltages the system might be
exposed to via the keyboard or USB connectors. In case of such exposure, the poly­fuse will immediately be disconnected from the circuit, just like a normal fuse. After
being disconnected for a certain period of time, the poly-fuse will return to its
normal state, after which the keyboard or USB can function properly. Unlike
conventional fuses, the poly-fuse does not have to be replaced, relieving the user
wasted time and inconvenience.

USB(Universal Serial Bus) Ports

If you want to use a USB keyboard, you must enable the
USB keyboard support function in BIOS's Integrated
Peripherals menu (See Section 3-7). USB is an open
industry standard, providing a simple and inexpensive way
to connect up to 125 devices to a single computer port.
Keyboards, mice, tablets, digitizers, scanners, bar-code
readers, modems, printers and many more can all be used
at the same time.

USB is a dynamically reconfigurable serial bus with an
elementary data rate of 12Mbps. Based on off the shelf,
low cost micro-controller technology, its modular layered
software protocol supports sophisticated devices and
application programs.

This board contains a USB Host controller and includes
a root hub with two USB ports (meets USB Rev 1.0 spec.).
Two USB peripherals or hub devices are able to be
connected.

Compatibility with different USB peripherals is
still being tested.

17

Chapter 2

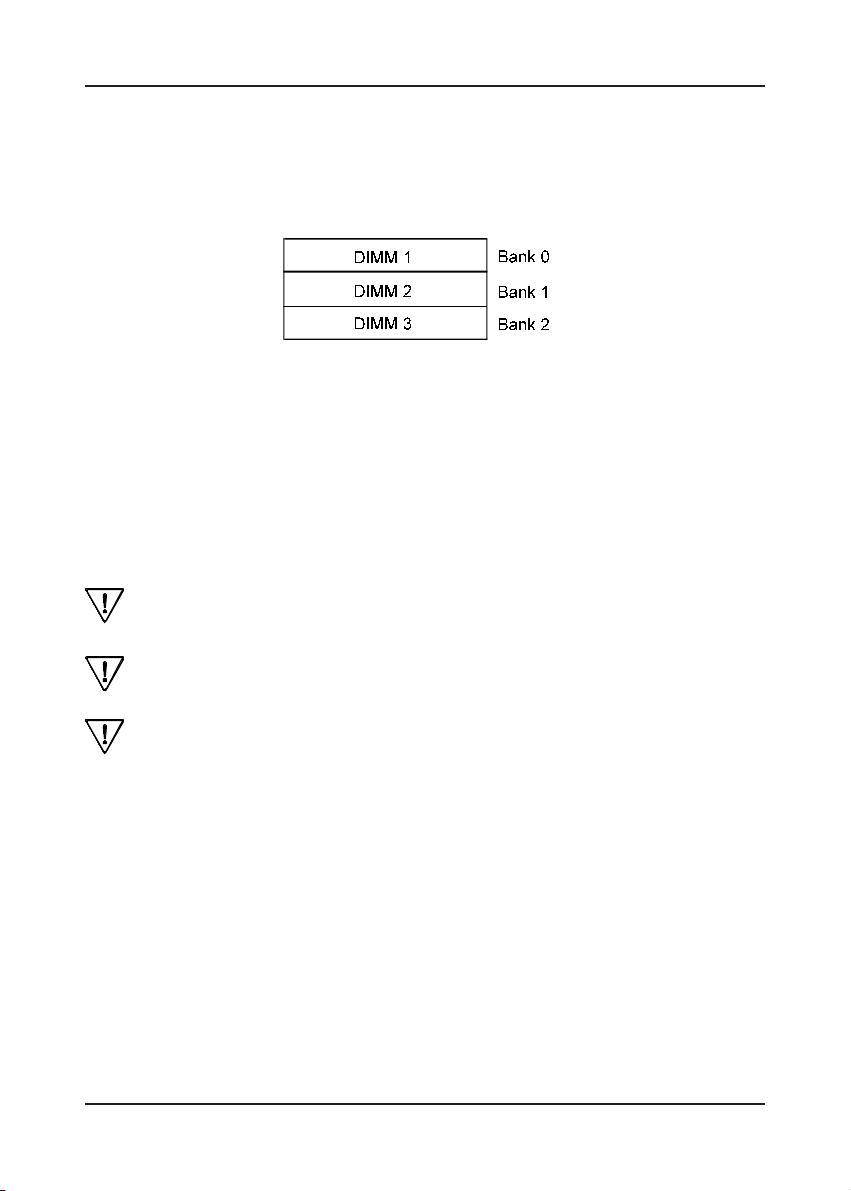

2-5 Main Memory Configuration

The DRAM memory system consists three banks (bank0, bank1, bank2) and the
memory size ranges from 8~384 MBytes. If you only use one bank it does not matter
which one you use and if you use two or more banks, it does not matter which bank
you install first.

DRAM Specifications

DRAM type: 3.3V, 64/72-bit EDO(Extended Data Output) Synchronous

DRAM
Module size: Single/double-side 8/16/32/64/128 MBytes
DRAM speed: 60-ns or faster for EDO DRAM

10/12ns for Synchronous DRAM
Parity: Either parity or non-parity

The compatibility of 128MB DIMM is still under testing and cannot be 100%
guaranteed.

This mainboard supports 3.3v, unbuffered, 4-clock, SDRAM DIMM only.
Buffered, 5V, or 2-clock SDRAM DIMMs should not be used.

Due to loading anomalies, using DIMM with an 'n x 4' DRAM base on this
mainboard is not recommended. For example, a DIMM that uses sixteen
16Mb x 4 devices should not be used.

ECC DRAM Capability

This mainboard can be configured to support ECC (Error Check and Correct)
function when utilizing parity DIMM modules. To utilize the chipset's ECC

features, you must use a 72-bit DIMM module.These modules are automatically
detected during bootup. However, the user must configure the DRAM Data Integrity
Mode to "ECC" in BIOS's Chipset Features Setup menu to enable the ECC function.
ECC detects double bit errors and detects and corrects single bit memory errors
on the fly without user intervention. Errors may be generated by a defective memory
module, conflicting memory speeds between different banks, DMA, etc.

18

Award BIOS Setup Program

Chapter 3

3

Award BIOS Setup Program

Award's BIOS ROM has a built-in setup program that allows users to modify the basic
system configuration. This information is stored in CMOS RAM so that it can retain
the setup information, even when the power is turned off.

When you turn on or reboot the system, press the Delete key to enter the Award
BIOS setup program. The primary screen as shown in Figure 3-1 is a list of the menus
and functions available in the setup program. Select the desired item and press enter
to make changes. Operating commands are located at the bottom of this and all other
BIOS screens. When a field is highlighted, on-line help information is displayed on
the left bottom edge of the screen.

This mainboard's system BIOS includes SCSI BIOS for PCI SYMBIOS 810 based

@

SCSI cards. In the case that such a SCSI card is installed, the system BIOS
will auto-scan the ROM address and install BIOS in the first available address.

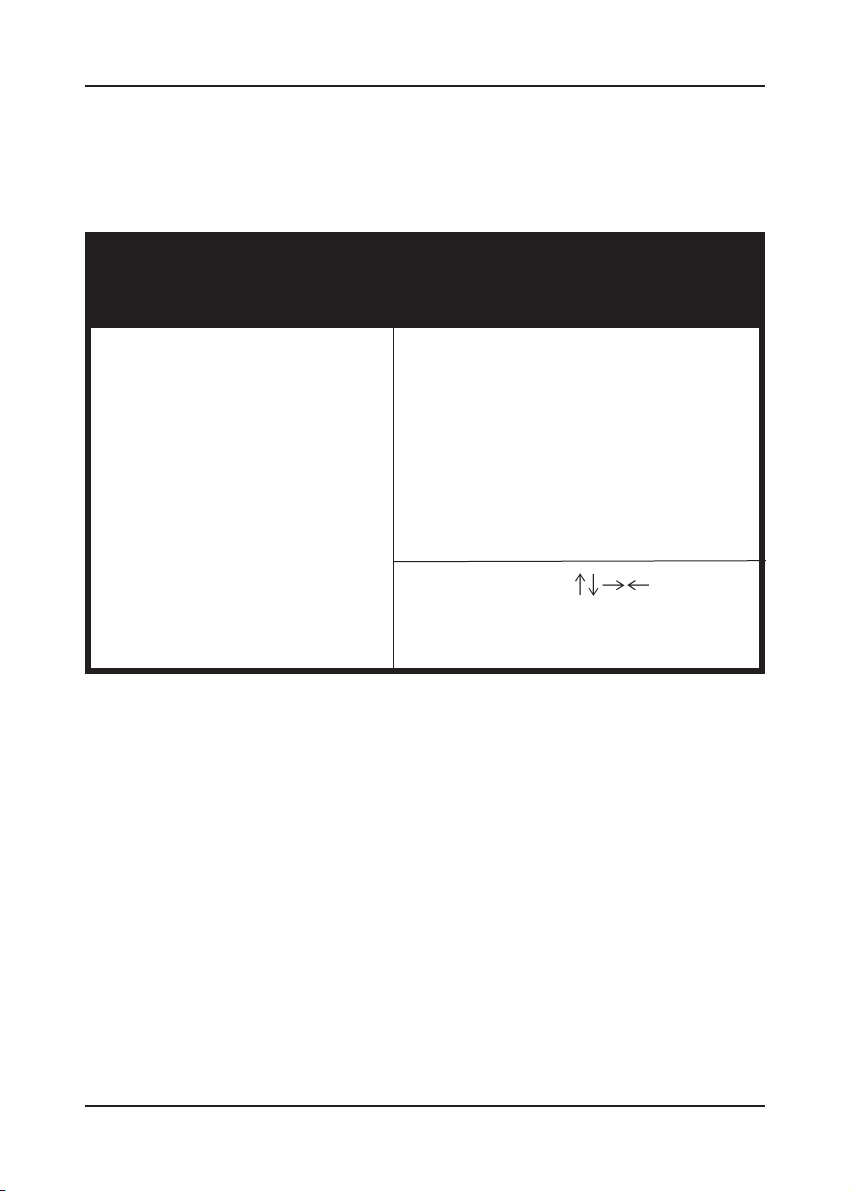

ROM PCI / ISA BIOS (2A69JC39)

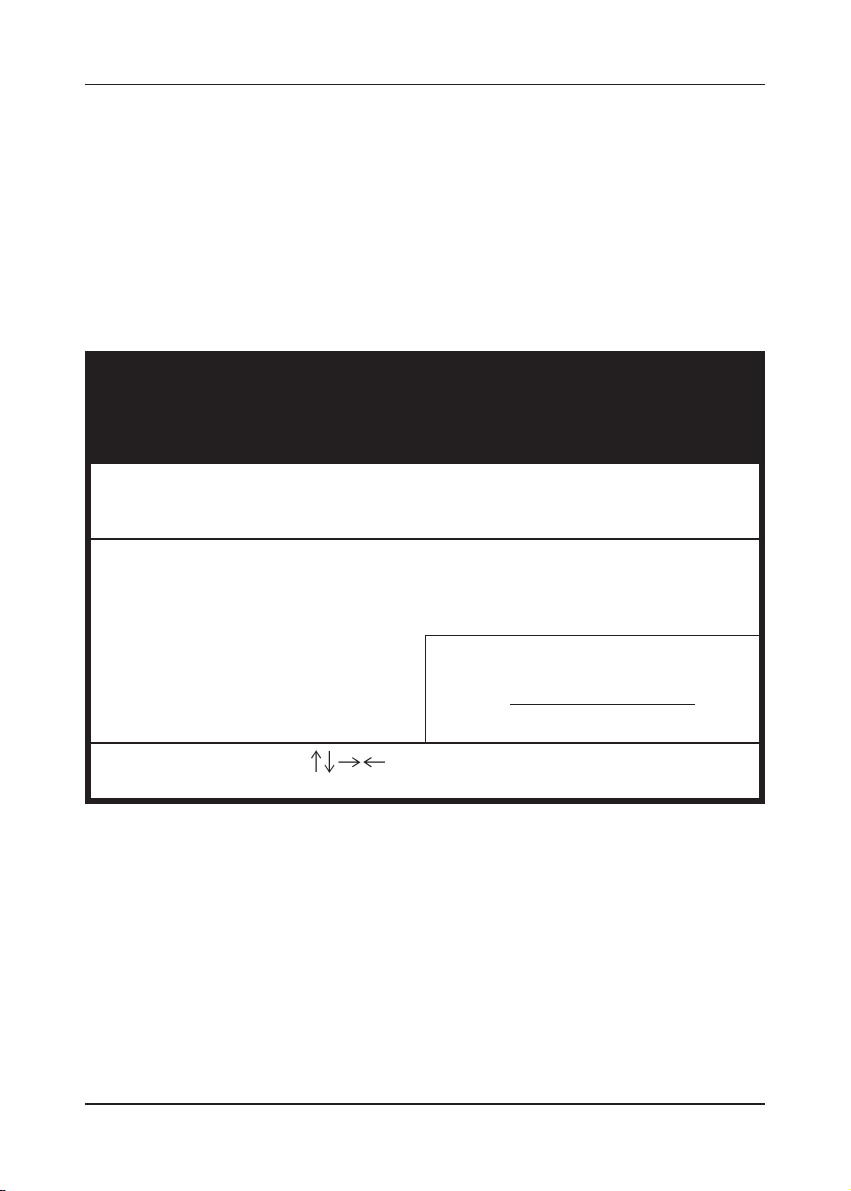

CMOS SETUP UTILITY

AWARD SOFTW ARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
SeePU & CHIPSET SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

E SC : Quit
F10 : Save & Exit Setup

Figure 3-1 Setup Program Initial Screen

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

: Select Item

(Shift) F2 : Change Color

Time, Date, Hard Disk Type...

19

User's Manual

3-1 Standard CMOS Setup

The Standard CMOS Setup allows users to configure system components such as
hard disk drive, floppy disk drive and video display as well as date, time and boot­up error signaling. This configuration menu should be changed when installing a
mainboard for the first time, changing hardware in your system such as the HDD,
FDD, video display, or when the CMOS data has been lost or contaminated. Choose
the Standard CMOS Setup option from the CMOS Setup Utility menu (Figure 3-1)
to display the following screen. When a field is highlighted, on-line help information
is displayed on the left bottom edge of the screen.

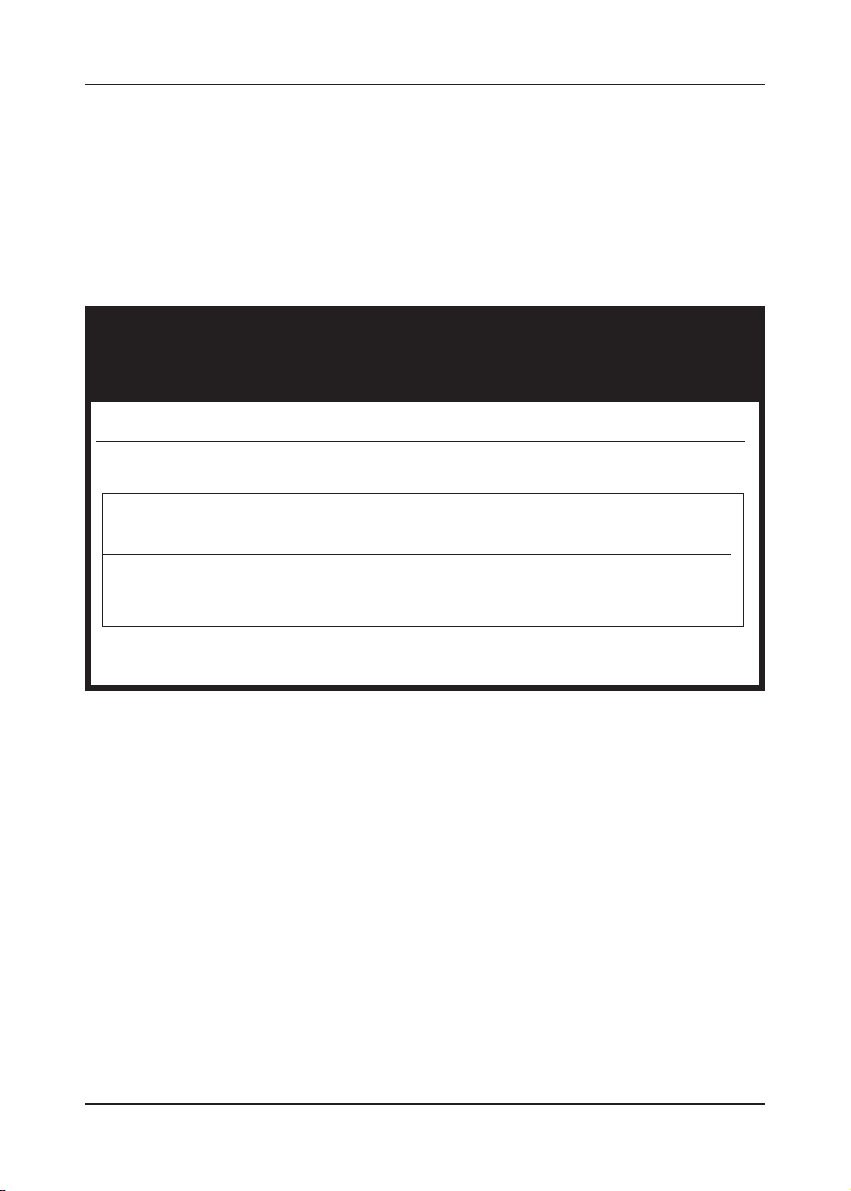

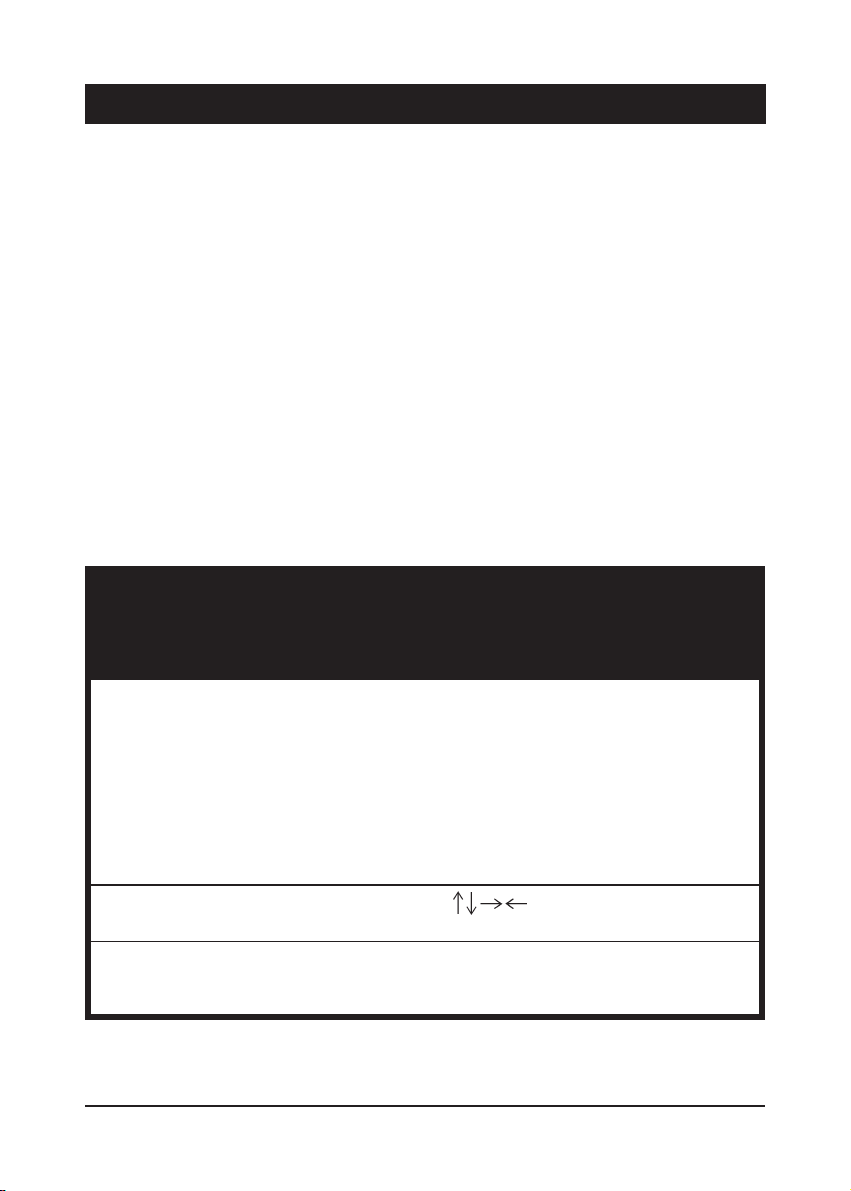

ROM PCI / ISA BIOS (2A69JC39)

ST ANDARD CMOS SETUP
AW ARD SOFTW ARE, INC.

Date (mm : dd : yy) : Fri, Sep 19 1997
Time (hh : mm : ss) : 9 : 14: 43

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 Auto
Primary Slave : Auto 0 0 0 0 0 0 Auto
Secondary Master : Auto 0 0 0 0 0 0 Auto
Secondary Slave : Auto 0 0 0 0 0 0 Auto

Drive A : 1.44M, 3.5 in.
Drive B : None

Video : EGA/VGA
Halt On : All Errors

Base Memory :

Extended Memory :

Other Memory :

Total Memory :

640K

15360K

384K

16384K

E SC : Quit
F1 : Help

(Shift) F2 : Change Color

: Select Item

PU/PD/+/- : Modify

Figure 3-2 Standard CMOS Setup Screen

Date/Time

Set the date and time. Do not skip this function as all of your timed events such
as power management, saving files, etc. are based on this timer.

Hard Disk Setup (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed in
the computer. This section does not show information on other IDE devices such
as CD-ROM drives or other hard drive types such as SCSI drives.

20

Award BIOS Setup Program

Type (Auto/User/None): Use the fields under the Type column to determine the method
you will use to configure the IDE devices. If you choose Auto, BIOS will automatically
detect and make optimal settings for most IDE hard drives.

The mainboard manufacturer recommends that you choose Auto for all
drives.

Choose User to define your own drive type manually. You must enter values indicated
in the table below into each drive parameter field. This information should be included
in the documentation from your hard disk vendor or system manufacturer:

TYPE Setting method
CYLS Number of cylinders

HEAD Number of heads

PRECOMP Write precompensation cylinder

LANDZ Landing zone

SECTOR Number of sectors

MODE Mode type

Table 3-1 Hard Disk Drive Parameters

Cyls/Head/Sector: The number of Cylinders, Heads, and Sectors can usually be found

written on the top of the hard disk. If you have a relatively new hard drive, entering
this information alone is usually sufficient for normal hard disk operation. The hard
disk will not work properly if you enter improper information for these categories.

Precomp: Older hard drives (i.e., MFM or RLL drives) have the same number of sectors
per track at the innermost tracks as at the outermost tracks. Thus, the data density
at the innermost tracks is higher and the bits are lying closer together. Even though
the physical size of a sector gets progressively smaller as the track diameter diminishes,
each sector must still hold 512 bytes. Write precompensation circuitry compensates
for the difference in sector size by boosting the write current for inner track sectors.

Landz: This defines the address of the landing zone and is only used for older hard
drives which do not have an auto-parking feature.

Mode: If the Type value is not None for any device, you must set the Mode value
for that device. There are four different Mode values: Auto, Normal, Large, and
LBA.

Auto - BIOS detects and enters the IDE drive type during bootup.

Normal - for IDE drives that meet the old IDE specification which support a

maximum capacity of 528MB (1024 cylinders, 16 heads, and 63 sectors).

21

User's Manual

Large - for IDE drives that do not support LBA and have more than 1024
cylinders. Try this setting if your hard disk does not operate properly with
the LBA setting. Large mode is not supported by all operating systems, i.e.,
only certain versions of DOS support large mode.

LBA - (Large/Logical Block Addressing) With LBA, the IDE controller
transforms the data address described by sector, head, and cylinder number
into a physical block address, significantly improving data transfer rates. This
mode is for drives with greater than 1024 cylinders and between 528MB and

8.4GB in size. This protocol is the current common standard.

Choose None for Type if there are no IDE HDD devices in your system.

@You can use the IDE HDD Auto Detection function to auto detect your hard

drive parameters. Using this function will automatically insert the parameters
discussed under Hard Disk Setup and will indicate User for the Field value.
Please see Section 3-9 for more information.

Floppy Disk Drives

Choose the memory capacity and disk size that corresponds with that of your floppy
disk drive(s).

Video

Select the type of video adapter present in your system. You can ignore this setting
if you are using a VGA monitor since VGA BIOS automatically configures this setting.

Halt

When the system is powered on, BIOS performs a series of diagnotic tests called
POST (Power On Self Test). This function stops the computer if BIOS detects a
hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt on
specific errors.

22

Award BIOS Setup Program

3-2 BIOS Features Setup

By choosing the BIOS Features Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's
default values for the mainboard.

ROM PCI / ISA BIOS (2A69JC39)

BIOS FEA TURES SETUP

AWARD SOFTW ARE, INC.

Virus Warning : Disabled
CPU Internal Cache : Enabled
External Cache : Enabled
CPU L2 Cache ECC Checking : Enabled
Quick Power On Self Test : Enabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Boot Up System Speed : High
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select (For DRAM>64MB) : Non-OS2
HDD S.M.A.R.T. Capability : Disabled

Video BIOS Shadow : Enabled
C8000 - CBFFFShadow : Disabled
CC000- CFFFF Shadow : Disabled
D0000 - D3FFF Shadow : Disabled
D4000 - D7FFF Shadow : Disabled
D8000 - DBFFFShadow : Disabled
DC000- DFFFF Shadow : Disabled

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-3 BIOS Feature Setup Screen

A. VIRUS PROTECTION

Virus Warning

When Enabled, BIOS activates a warning message to the user when any program
(i.e., a virus) attempts to access the boot sector or hard disk partition table. The
user is able to intervene by running an anti-virus program. This function only
protects the boot sector and not the entire hard drive.

B. CACHE CONTROL

CPU Internal Cache/External Cache

Cache memory is much faster than conventional DRAM system memory. These
fields allow you to enable or disable the CPUs Level 1 built-in cache and Level
2 external cache. Both settings are left enabled to significantly increase the
performance of your computer.

23

User's Manual

CPU L2 Cache ECC Checking

Enable this function to perform ECC (Error Check and Correct) on the CPU's
L2 SRAM. ECC detects and corrects single-bit errors while it only detects double
bit errors. Certain SDRAM modules also have ECC capability. For more
information on SDRAM, see section 2-5. If you are using a 333MHz or higher

CPU, this function must be enabled.

C. BOOT UP FEATURES

After turning on the system, BIOS will perform a series of device initializations
and diagnostic tests discussed below.

Quick Power On Self Test (POST)

Enable this function to reduce the amount of time required to run the POST (Power
On Self Test). BIOS saves time by skipping some items during POST. It is
recommended that you disable this setting. Discovering a problem during bootup
is better than loosing data during your work.

Boot Sequence

This option sets the sequence of drives BIOS attempts to boot from after POST
completes. BIOS will search these drives for an operating system.

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A will
function as drive B, and drive B will function as drive A. Note that the boot
sequence assignment mentioned directly above does not inlcude booting from
floppy drive B. This function is useful if floppy drives B and A are of a different
format and you want to boot from floppy drive B.

Boot up Floppy Seek

During POST, BIOS will determine if the installed floppy disk drive has 40 or 80
tracks. A 360K drive has 40 tracks and 720K, 1.2M and 1.44M drives have 80 tracks.
All modern floppy disk drives have 80 tracks.

Boot Up NumLock Status

This function defines the keyboard's numberpad as number keys or arrow keys.

Boot Up System Speed

This function determines the CPU speed while in non-protected mode under DOS.
Set to High for regular CPU speed and low for decreased CPU speed. This function
is used for applications such as games that require decreased CPU speed.

D. KEYBOARD INTERFACE

Typematic Rate Setting

When enabled, you can set the following two typematic control items. When

24

Award BIOS Setup Program

disabled, keystrokes are determined arbitrarily by the keyboard controller in your
system.

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when
a key is pressed and held down.

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins
repeating.

E. Security Option

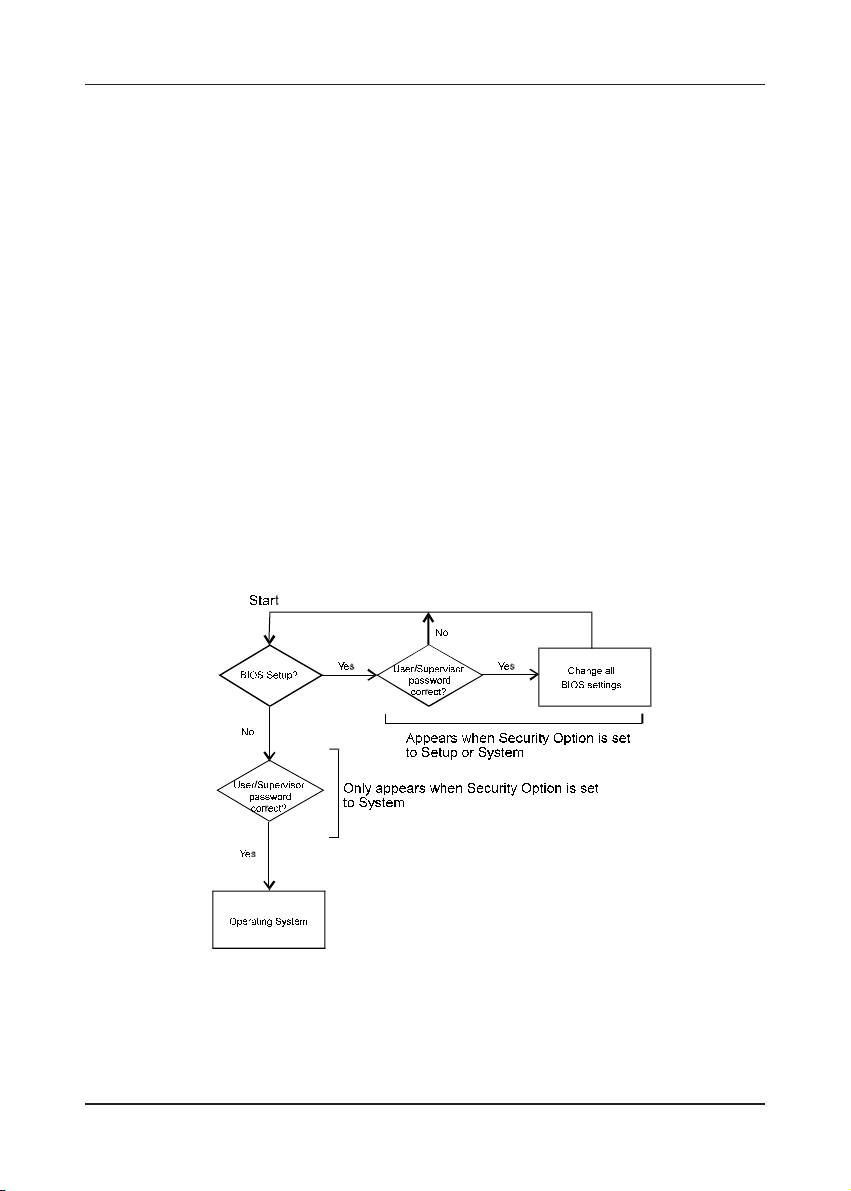

The Supervisor and/or User Password functions shown in Figure 3-1 must be set
to take advantage of this function. See Section 3-8 for password setting information.
When the Security Option is set to System, a password must be entered to boot
the system or enter the BIOS setup program. When the Security Option is set
to Setup, a password is required to enter the BIOS setup program.

F. PCI/VGA Palette Snoop

Some non-standard VGA cards or MPEG video cards may not show colors
properly. Setting this function to Enabled can correct this problem.

G. OS Select (For DRAM > 64MB)

If your system's DRAM is larger than 64MB and you are running OS/2, select
OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other
operating systems.

H. HDD S.M.A.R.T. Capability

S.M.A.R.T. or Self-Monitoring, Analysis, and Reporting Technology enables a
drive's internal status to be monitored through diagnostic commands. Both your
hard drive must support this capability and this function must be enabled in order
to take advantage of this function. See your hard drive literature for more

information.

I. Shadow Memory

Software such as system BIOS, video BIOS, SCSI BIOS, etc that resides in ROM
(Read Only Memory) chips is called firmware. Shadowing of firmware occurs
when BIOS is copied to RAM address C0000h through DFFFFh. Video BIOS
loads into the C0000-C7FFF memory area when video shadowing is enabled. If
an expansion peripheral in your system contains ROM-based firmware, you need
to know the address range the ROM occupies to shadow it into the correct area
of RAM.

25

User's Manual

Shadowing improves the firmware's performance because the firmware can be
read by the CPU through the 16- or 32-bit DRAM bus as opposed to the 8-bit
XT bus. However, shadowing also results in reducing the amount of high memory
(640 KB to 1 MB) for loading device drivers. Shadowing is used mostly for
ROM chips on ISA cards and not for PCI cards. Shadowing and playing games
at the same time may result in system instability as some games access the RAM
memory area being shadowed.

26

Award BIOS Setup Program

3-3

SeePU

& Chipset Setup

By choosing the SeePU & Chipset Setup option from the CMOS SETUP UTILITY
menu(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A69JC39)

SeePU & CHIPSET SETUP

AWARD SOFTW ARE, INC.

AUTO Configuration : Enabled
DRAM Speed Selection : 60ns
MA Wait State : Slow
EDO RAS# To CAS# Delay : 3
EDO RAS# Precharge Time : 3
EDO DRAM Read Burst : x333
EDO DRAM Write Burst : x222
DRAM Data Integrity Mode : Non-ECC
CPU-To-PCI IDE Posting : Enabled
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Passi ve Rele ase : Enabled
Delayed Transaction : Disabled
AGP Aperture Size (MB) : 64
SDRAM RAS-to-CAS Delay : Slow
SDRAM RAS Precharge Time : Slow

SDRAM CAS Latency Time : 3
Power Failure Recovery : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled
Hardware Reset Protect : Disabled

***** CPU Setup ******
CPU Type : Pentium-II-233

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-4 Chipset Features Setup Screen

With the exception of the CPU Setup all of the above settings are
standard for your mainboard and should not be changed.

@If professional engineers or customers would like to make some adjustments

to gain even better system stability and performance, please visit
http://www.award.com to search for helpful information.

A. Auto Configuration

When Auto Configuration is enabled, BIOS autodetects the DRAM module type
(i.e. EDO, FP) and determines the relevant DRAM settings. Note that these DRAM
settings become background print (unchangeable) once the Auto Configuration
is enabled. If Auto Configuration is enabled, you must set the DRAM timing
function to 60ns or 70ns, depeding on the type of DRAM you install.

27

User's Manual

B.

DRAM Data Integrity Mode

BIOS automatically detects the presence of ECC DIMMs (72-bit modules). However,
to take advantage of ECC you must set this function at "ECC." If any non-parity
DIMMs are installed, the memory operates in non-parity mode only and this
function must be set at "Non-ECC."

C. 8-bit I/O Recovery Time & 16-bit I/O Recovery Time

Back-to-back CPU or PCI master originated 8-bit and 16-bit cycles have an arbitrary
delay of at least 3.5 system clock cycles. This category is used to add additional
recovery delay between 8-bit and between 16-bit cycles. This delay takes place
because the PCI bus is much faster than the ISA bus. The options are 1 to 8
and N/A.

D. Memory Hole at 15M-16M

Enabling this function will reserve the memory address space between
15MB and 16MB for ISA expansion cards. However, enabling this function
will result in not allowing the system to have access to memory above
16MB. Please note that some expansion cards require this setting to be
enabled. The default setting is Disabled.

E. Power Failure Recovery

Computers using an ATX power supply do not turn back on after the power source
to the computer unexpectedly fails (i.e. electricity outage). Enabling this setting
will allow the system to always turn back on after a power failure. This is especially
important for computers that must be on 24 hours per day.

F. Spectrum Spread

When Enabled this function will cause lower EMI by spreading the system
frequency spectrum. For normal operation, Disable this function.

G. Flash BIOS Protection

The mainboard manufacturer developed BIOS protection technology that protects
the System BIOS from accidental corruption by unauthorized users or computer
viruses. When enabled, the BIOS data cannot be changed when attempting to
update BIOS with the the FLASH utility. When disabled, the BIOS data can be
updated by using the FLASH utility.

To Pass the Windows 95 SCT testing, this item should be disabled.

28

Award BIOS Setup Program

Please note that when disabling this setting, the system BIOS is vulnerable
by intrusion of computer viruses. It is recommended to disable this setting
only temporarily while updating your system's BIOS.

H. Hardware Reset Protect

When this function is enabled, your PC's hardware reset button will not
function. This function is especially useful to prevent accidental resets for
file servers and routers, etc. which should be available 24 hrs/day. When

disabled, your PC's hardware reset button will function normally.

I. CPU Setup

The mainboard manufacturer developed SeePU technology that allows you to
easily change your CPU's clock mulfiplier factor and CPU Bus frequency in
BIOS. Refer to Section 2-3 for details.

29

User's Manual

3-4 Power Management Setup

This section provides information on the Green PC power management funtcions.
By choosing the Power Management Setup option from the CMOS Setup U tility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A69JC39)

POWER MANAGEMENT SETUP

AWARD SOFTW ARE, INC.

Power Management : Disabled
PM Control by APM :Yes
Video Off Method : DPMS
Video Off After : Standby
MODEM Use IRQ :3

Doze Mode :Disabled
Standby Mode :Disabled
Suspend Mode :Disabled
HDD Power Down : Disabled
Throttle Duty Cycle :62.5%
VGA Active Monitor : Disabled
Soft-Off by PWR-BTTN : Delay 4 Sec.
Power On By Modem : Disabled
Power On By Alarm : Disabled

Wake Up On LAN :Disabled
IRQ 8 Break Suspend :Disabled

**** System Monitoring & Alerting ****
CPU Warning Temperature : 60
Current CPU Temperature : 25
Current CPUFAN1 Speed : 3600 RPM
Current CPUFAN2 Speed : 3600 RPM
Current Vin (V) : 2.49V

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

o

C/140 oF

o

C/77 oF

:Select Item

Figure 3-5 Power Management Setup Screen

A. Power Management

Power management allows the computer to save electricity when it is not in use
by entering increasingly deep power saving modes as shown by the diagram below.

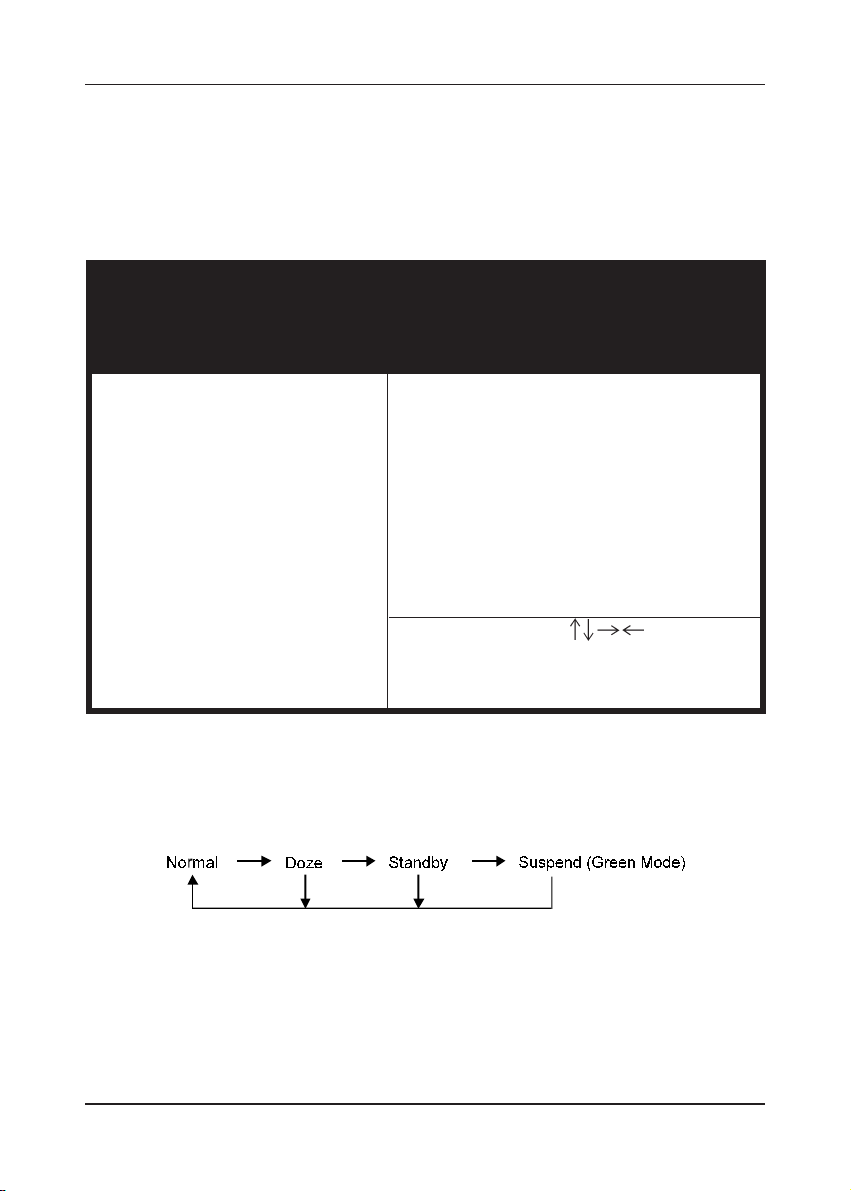

Figure 3-6 Power Saving Mode Flow Chart

The computer runs in Normal operation mode until the Doze timer expires, at which
point the computer enters Doze mode. If no external activity occurs, the computer
will go into Standby and Suspend modes when their respective timers expire. If
external activity occurs, the computer will wake up from Power Management and
return to Normal mode. To activate the function, set Power Management to

30

Award BIOS Setup Program

Maximum Saving, User Define, or Minimum Saving described below. For a
description of the power saving modes (Doze, Standby, and Suspend) see their
descriptions below.

Disabled - Turns off the Power Management functions.
Max. Saving - All timers are set at the minimum value of one minute to

maximize power saving.
Min. Saving - All timers are set at the maximum value of one hour for

minimal power saving.
User Define - User can configure the timer to a desired time according to the

values available.
Note that enabling the Power Management function will result in enabling the

@

HDD Power Down function (Max Saving = 15 min, Min Saving = 1 min). The
HDD Power Down function is not part of the Power Management scheme as
indicated in Figure 3-6 Refer to the Standby Mode, Suspend Mode, and HDD
Power Down descriptions below for more informaiton on hard drive power
management.

B. PM Control by APM

This function allows software other than BIOS to control Power Management
features Enable this function in BIOS and make sure APM (Advanced Power
Management) is present. For example, run the Power utility program located in
the DOS directory, C:\DOS\POWER.EXE to use Power Management features under
DOS. For Windows 3.1x and Windows 95, you need to install Windows with
the APM feature.

C. Video Off Method

This function serves as both a screen saver and power saver for monitors.
See the next function, Video Off After, for setting the video timer.

Blank - BIOS will only blank the monitor's screen. The electricity saved in
this mode is negligible and this function is only used as a screen saver to
prevent screen damage while the screen is on but not in use.
V/H SYNC+Blank - The system turns off the vertical and horizontal syn­chronization ports, writes blanks to the VGA buffer and the monitor's electron
gun turns off. This function requires a monitor with Green features in order
to take advantage of the power saving function. If you enable this function
and do not have a Green monitor, the result will be the same as if you had
selected Blank. This function serves as both a screen saver and an electricity
saver.

31

User's Manual

DPMS Supported - Select this option if your video card supports the Display
Power Management Signaling (DPMS) standard (i.e., you have a monitor
that supports Green features). Use software supplied by your your video
subsystem to set video power management options.

D. Video Off After

This setting determines when the monitor enters power saving mode. As the
function name indicates, the monitor enters the power saving mode after the
chosen event expires. The Power Management function must be enabled to
use this function.

E. Modem Use IRQ

If your computer has an modem, use this function to tell BIOS which IRQ is
being occupied by the modem card. When the system is in Green mode, the
modem requires an IRQ assignment to wake up the system and perform tasks.
This assignment is compliant with the APM 1.2 specification and is to be used
in coordination with APM 1.2 compliant operating systems.

F. Doze Mode

The Power Management function must not be set to disabled to enable this
function. If no interrupts have occured and the Doze timer expires, system will
enter Doze mode. In Doze mode, the CPU clock runs at a lower speed while
all other devices operate normaly.

@

Power saving modes achieved in lower power saving states will either be
maintained or enter higher power saving modes when switching to higher
power saving states. For example, the CPU clock will not switch back
to normal in Standby mode. It will maintain a decreased rate in Standby
Mode and turn off in Suspend Mode.

G. Standby Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Doze mode and the Standby timer expires, the
system will enter Standby mode. In Standby mode, the hard disk drive and the
monitor shut off while all other devices still operate at full speed. Note that
the Video Off and HDD Power Down functions in Figure 3-5 provide the same
power saving options found in Standby mode. The priority for determining which
function controls power saving for the monitor and hard drive is determined
by which timer expires first.

32

Award BIOS Setup Program

H. Suspend Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Standby mode and the Suspend timer expires, all
devices regulated by power management will shut off and the CPU speed will be
0 MHz.

I. HDD Power Down

The Power Management function must not be set to disabled to enable this
function. When the HDD idle time has elapsed, BIOS sends a command to the
hard disk to turn off the motor. Set a time between 1 and 15 to indicate time
required to wait before the hard drive enters a power saving mode. Some old
hard drives may not support this function.

J. Throttle Duty Cycle

When the system enters Doze mode, the CPU clock runs only part of the
time. You may select the percent of time that the clock runs.

K. VGA Active Monitor

When Enabled, any video activity restarts the global timer for Standby mode.

L. Soft-Off by PWR-BTTN

When set to Delay 4 Sec., this function allows the power button to put the system
in Suspend, a power saving mode. See Section 2-4 for operation instructions
of the over-ride power button operation wich puts the system in Suspend mode.
When set to Instant-Off the Soft-Off by PWR-BTTN function is disabled and the
computer turns completely off when the power button is pressed.

M. Power On By Modem

When enabled, a modem that receives a call will wake up the system from
soft off and green mode. You should connect the modem to the COM port
and turn on the resume event in green mode.

N. Power On By Alarm

When enabled, this setting allows the system to turn back on at a designated time
of the month. User must designate date of month and time of day. This
function is only available when using an ATX power supply and the Software
Power-Off function to turn off the computer. See the Software Power-Off feature
in Section 2-4 of this manual for instructions.

33

User's Manual

O. Wake Up On LAN

Enable this selection to use the Wake Up On LAN function discussed in Section
2-4 of this manual.

P. IRQ8 Break Suspend

Enabling this setting turns the monitoring of IRQ8 (the Real Time Clock) On so
it does not awaken the system from Suspend mode.

Q. SMART (System Monitoring and Alerting) Technology (Optional)

The FAN-II (EISCA v1.0 compliant cooling fan) is a self-upgrade PC diagnostic
kit. See appendix III for details.

34

Award BIOS Setup Program

3-5 PNP/PCI Configuration

This section provides IRQ and DMA setting information. By choosing the PNP/PCI
Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen below
is displayed. This sample screen contains the manufacturer's default values for the

mainboard.

ROM PCI / ISA BIOS (2A69JC39)

PNP/PCI CONFIGURA TION

AWARD SOFTW ARE, INC.

PNP OS Installed : No
Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : PCI/ISA PnP
IRQ-4 assigned to : PCI/ISA PnP
IRQ-5 assigned to : PCI/ISA PnP
IRQ-7 assigned to : PCI/ISA PnP
IRQ-9 assigned to : PCI/ISA PnP
IRQ-10 assigned to : PCI/ISA PnP
IRQ-11 assigned to : PCI/ISA PnP
IRQ-12 assigned to : PCI/ISA PnP
IRQ-14 assigned to : Legacy ISA
IRQ-15 assigned to : Legacy ISA
DMA-0 assigned to : PCI/ISA PnP
DMA-1 assigned to : PCI/ISA PnP
DMA-3 assigned to : PCI/ISA PnP
DMA-5 assigned to : PCI/ISA PnP
DMA-6 assigned to : PCI/ISA PnP
DMA-7 assigned to : PCI/ISA PnP

PCI IDE IRQ Map To : ISA
FDD IRQ Can Be Free : No

Assign IRQ For VGA : Enabled
Assign IRQ For USB : Enabled

PCI 1 Use IRQ No. : Auto
PCI 2 Use IRQ No. : Auto
PCI 3 Use IRQ No. : Auto
PCI 4 Use IRQ No. : Auto

Used MEM base addr : N/A

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-7 PCI & ONBOARD I/O Setup Screen

A. PNP OS Installed

If you want to install a PNP compatible OS (such as Windows 95) set to
Yes.

B. Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning
IRQ & DMA. When set to Auto the system BIOS will refer to the ESCD for
all legacy information.

ESCD(Extended System Configuration Data) provides a detailed format
of the configuration data structures stored in flash memory. Each data
structure defines the resources used by a device or a card in the system.
This includes legacy and PCI/ISA PnP devices.

35

User's Manual

C. Reset Configuration Data

When enabled the system BIOS will clear/reset the ESCD during POST. After
clearing the ESCD, the BIOS will then change this item's value to Disabled.
Otherwise, the ESCD data will become useless.

D. IRQ#/DMA# assign to

When resources are controlled manually, you can assign each system interrupt
& DMA channel for "Legacy ISA" or "PCI/ISA PnP" card used.

While using Legacy ISA Card(non-PnP ISA card), please set it's necessary
corresponding resources (INT#, DMA#) from "PCI/ISA PnP" to "Legacy
ISA."

@ All ISA non-PnP devices are legacy devices that select resources (I/O Addr.,

INT# or DMA#) by using hardware jumpers.

@ IRQ-3/4/7/12/14/15 have been set as default for on board devices (COM2,

COM1, Printer port, PS/2 mouse, IDE1 and IDE2).

E. PCI IDE IRQ Map to

This function allows user to select PC AT (ISA) interrupts or PCI IDE IRQ
mapping.
ISA: BIOS does not designate any IRQ signal to the PCI slot. This is the
default setting.
PCI-SLOT 1-4: User can designate which PCI slot (1-4) the IDE card is inserted
into. This setting is suitable for use with older PCI IDE cards that BIOS is not
able to recognize.
PCI-AUTO: BIOS automatically detects which PCI slot the PCI IDE card is
inserted into.

F. Assign IRQ For VGA

This function allows BIOS to make an IRQ available to VGA cards. Most
current VGA card models do not require this function to be enabled.

G. FDD IRQ Can Be Free

This function allows user to choose if the FDD IRQ is able to be freed up. The
default setting is NO and this does not allow the IRQ to be free.

H. Assign IRQ For USB

If USB is employed this function must be Enabled. Otherwise, disable this
function to optimize Windows 95 IRQ resources for other IRQ usage.

36

Award BIOS Setup Program

I. Used MEM base addr

This function devotes a space of memory (8K, 16K, 32K, 64K) for any periph­eral that has a high memory requirement. This is also used to designate
memory space for legacy ISA cards. The settings C800~DC00 are used to to
designate point at which the memory will start being used. The default setting is
N/A (disabled.)

J. Used MEM Length

8K~64K: Determines the amount of memory to be used by ISA cards mentioned
in the Used MEM base addr function above.

3-6 Load Setup Defaults

Load Setup Defaults loads the default system values directly from the CMOS Setup
Utility menu (Figure3-1). If the stored record created by the setup program becomes
corrupted and therefore unusable, these defaults will be loaded automatically when
you turn on the computer.

ROM PCI / ISA BIOS (2A69JC39)

CMOS SETUP UTILITY

AWARD SOFTW ARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

E SC : Quit
F10: Save & Exit Setup

Load SETUP Defaults except Standard CMOS SETUP

Figure 3-8 Load Setup Defaults Screen

INTERGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD

Load SETUP Defaults <Y/N>? N

IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

(Shift) F2 : Color

: Select Item

37

User's Manual

3-7 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the
Integrated Peripherals option from the CMOS Setup U tility menu (Figure 3-1), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the mainboard.

ROM PCI / ISA BIOS (2A69JC39)

INTEGRA TED PERIPHERALS

AW ARD SOFTW ARE, INC.

IDE HDD Block Mode : Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
IDE Secondary Master UDMA : Auto
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled
On-Chip Secondary PCI IDE : Enabled

Power On By Keybrd/Mouse : Pwr Button
Onboard FDC Controller : Enabled

FDC Write Protect : Disabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
COM2 Mode : Standard

Onboard Parallel Port : 378/IRQ7
Parallel Port Mode : SPP

USB Keyboard Support : Disabled

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-9 Integrated Peripherals Setup Screen

A. On Board IDE Control

IDE HDD Block Mode

Specify the maximum number of sectors that can be transferred at a time.

PCI Slot IDE 2nd Channel

This item allows you to turn on the 2nd channel of this external board when
designating a high performance IDE board into a PCI slot. You must disable On­chip IDE controller when enabling this function.

On-chip Primary/Secondary PCI IDE

You can set this to disable the On-chip IDE controller if you are going to add
a higher performance IDE board.

38

Award BIOS Setup Program

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (programmed Input/Output) filed let you set a PIO mode (0-

4) for each IDE device that the internal PCI IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device.

B. Power On By Keybrd/Mouse

Set to Pwr Button to control the system power via the button on your system
case. Set to Mouse Click to turn on the power via a PS/2 mouse, and set to Hot
Key or Password to turn on the power via keyboard. With Hot Key and Password

you must decide on which keys will turn on the power.

C. COM2 Mode

When this function is Enabled, then the COM port will be redirected to support
IR function.

D. USB Keyboard Support

If your current operating system doesn't support USB drivers (i.e., DOS) this
function must be enabled for USB keyboard operation in these operating systems.

@ When using a USB keyboard this function is automatically Enabled during

bootup regardless of its setting in BIOS.

39

User's Manual

3-8 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are
located under the Security Option function in BIOS Features Setup Menu (Figure
3-3). When the Security Option function is set to Setup, a password is required to
enter BIOS and change BIOS settings. When the Securitiy Option function is set
to System, a password is required to to enter both BIOS and the the computer's
operating system (for example Windows 95) found on the boot drive. This is shown
in Figures 3-9 and 3-10.

The third and fourth variables are user password and supervisor password selected
in BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow
only the supervisor to have control over the settings in BIOS. The user, on the other
hand, is only allowed to access the computer's operating system and change the user
passorword in BIOS (See Figure 3-10 below). Note that when there is no supervisor
password set, the user password controls access to all BIOS settings (See Figure
3-9 below).

A. Set Either Supervisor Password or User Password

40

Figure 3-9 Set Either Supervisor or User Password

Award BIOS Setup Program

B. Set Both Supervisor Password and User Password

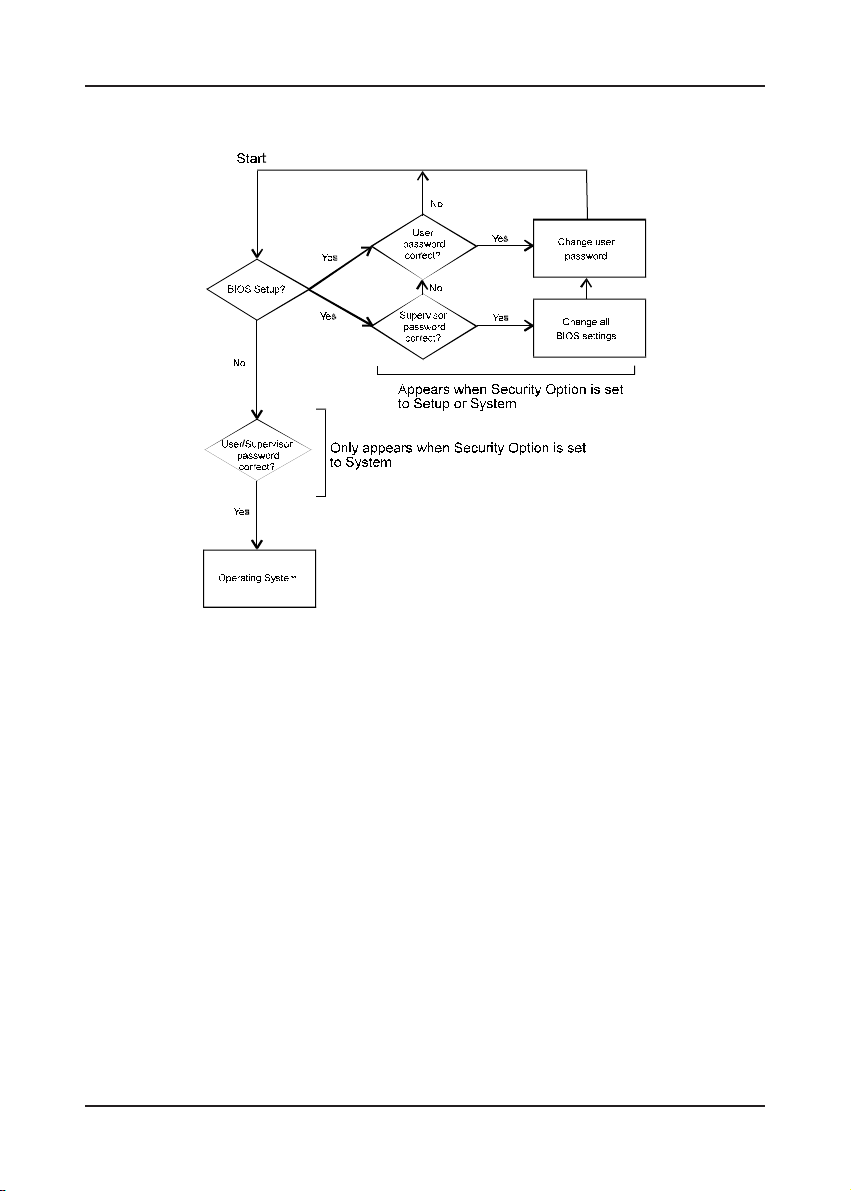

Figure 3-10 Set Both Supervisor and User Password

41

User's Manual

3-9 IDE HDD Auto Detection

This utility can automatically detect IDE hard disk type and parameters. The detection
process take about 5 seconds for each physical drive. After the utility detects the
disk drive, type Y and press [Enter] to automatically load the parameters in the Hard
Disk section of the Standard CMOS Setup menu. Otherwise, leave the option set
at N and press [Enter] or the [Esc] key to skip the detected drive. After detecting
your hard drive(s), return to the Standard CMOS menu to check your settings.

ROM PCI / ISA BIOS (2A69JC39)

CMOS SETUP UTILITY

A WARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master :

Select Primary Master Option (N=Skip) : N

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
2 (Y) 547 530 32 0 1059 63 LBA

1 547 1060 16 65535 1059 63 NORMAL
3 547 530 32 65535 1059 63 LARGE

Note: Some OSes (like SCO-UNIX) must use "NORMAL" for installation

ESC: Skip

Figure 3-11 IDE HDD Auto Detection Screen

3-10 Save and Exit Setup

If you select this and type Y (for yes) followed by the [Enter] key, the values
entered in the setup utilities will be recorded in the CMOS memory of the BIOS
chip.

3-11 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the
Setup program without recording any new values or changing old ones.

42

Brief Software Driver Guide

Chapter 4

Brief Software Driver Guide

The Software Driver guide is found on disk 1 that is enclosed with the mainboard.
The English version of the guide is the readme.pdf file located in the diskettes root
directory. The German version of the guide is the readmegm.pdf file located in the
root directory of disk 2. If a CD-ROM disk came with your mainboard, these files
are found in the root directory of the CD-ROM disk. These are PDF files which
must be viewed with Adobe's freeware called Acrobat Reader. The Acrobat
Reader can be downloaded from many sites on the world wide web. Adober offers
this free reader at http://www.adobe.com.

The following items are discussed in the PDF files:

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From the Windows 95 Device

Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface (DMI) Utility

43

Chapter 4

- Memo

44

Introduction

Appendix I

On Board I/O Addresses & IRQ Maps

System Resource IRQ I/O Address

1. Timer IRQ0 040, 043

2. Keyboard IRQ1 060, 064

3. Programmable INT IRQ2 0020, 0021,
00A0, 00A1

4. COM2(B) IRQ3 2F8, 2FF

5. COM1(A) IRQ4 3F8, 3FF

6. Floppy IRQ6 3F0, 3F7

7. LPT1 IRQ7 378, 37F

8. Real Time Clock IRQ8 070, 071

9. PS/2 Mouse IRQ12 060, 064

10.Math coprocessor I R Q1 3 0F0, 0FF

11.IDE 1 IR Q1 4 1F0, 1F7

12.IDE 2 IRQ 15 170, 177

@@

@

IRQ 5, 9, 10 and 11 are available for interface cards.

@@

45

User's Manual

- Memo

46

Appendix II

Quick Connector and Jumper ReferenceQuick Connector and Jumper Reference

Quick Connector and Jumper Reference

Quick Connector and Jumper ReferenceQuick Connector and Jumper Reference

CN1: WOL (Wake-on-LAN) Conn.

CN2: Creative's SB-Link connector

Link AWE64D with PCI Bus
Mastering

CN3: Infrared connector

CN5: Front panel connector set

SeePU (Jumper free CPU installation) setting table

CN6/CN4: CPU/System cooling

fan connector

CPU Type

Pentium II
processor

External Clock Frequency Ratio Internal Clock

66

CPU Speed

3.5 233
4 266

4.5 300
5 333

CN12: FAN-II connector
JP1: Power-on by keyboard jumper

1~2 short: Disable
2~3 short: Enable

V.1

##

##

#

JP2: Clear CMOS data jumper

1~2 short : Normal (default)
2~3 short : Clear CMOS data

6LTM2.1M

47

- Memo

48

Appendix III

FAN-II:

The FAN-II upgrade kit provides a PC self-dialogistic capability called the SMART
(System Monitoring and Alerting) technology.

Features

- Detects four on-board voltages (CPU Core Voltage, 3.3V, 5V, 12V)

- Two fan speed sensing

- One precise CPU temperature sensor and one chassis temperature sensor

- Four types of speaker-driver signal output

- Supports Shepherd system monitor software (Optional)

- EISCA v1.0 compliant

SMART

FAN-II

Technology Upgrade Kit

System Monitor Software for Win95

FAN-II Connector

49

- Memo

50
