Chaintech 6BTM 6BTM0 User Manual

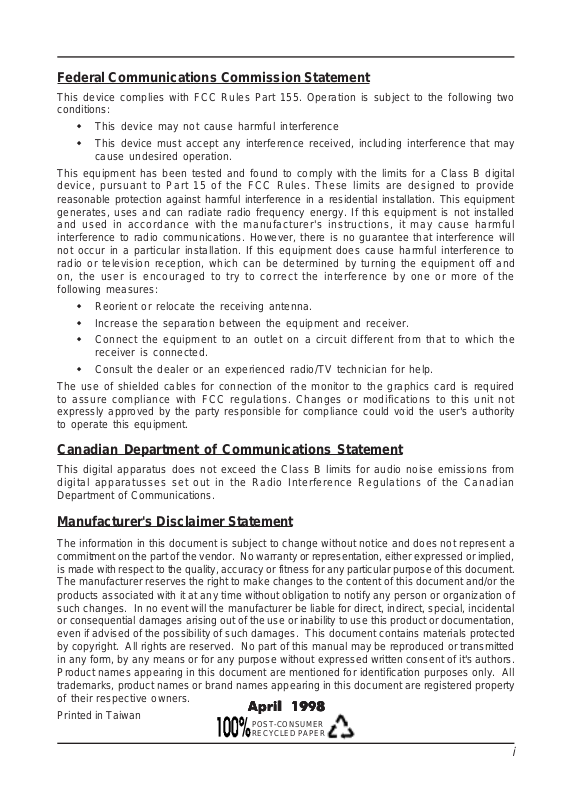

Federal Communications Commission Statement

This device complies with FCC Rules Part 155. Operation is subject to the following two
conditions:

w This device may not cause harmful interference
w This device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If this equipment is not installed
and used in accordance with the manufacturer's instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:

w Reorient or relocate the receiving antenna.
w Increase the separation between the equipment and receiver.
w Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

w Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from
digital apparatusses set out in the Radio Interference Regulations of the Canadian
Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. No warranty or representation, either expressed or implied,
is made with respect to the quality, accuracy or fitness for any particular purpose of this document.
The manufacturer reserves the right to make changes to the content of this document and/or the
products associated with it at any time without obligation to notify any person or organization of
such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental
or consequential damages arising out of the use or inability to use this product or documentation,
even if advised of the possibility of such damages. This document contains materials protected
by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted
in any form, by any means or for any purpose without expressed written consent of it's authors.
Product names appearing in this document are mentioned for identification purposes only. All
trademarks, product names or brand names appearing in this document are registered property
of their respective owners.

Printed in Taiwan

April 1998April 1998

April 1998

April 1998April 1998

POST-CONSUMER
RECYCLED PAPER

i

Table of Contents

Chapter 1 Introduction......................................................................... 1

1-1 Product Specifications........................................................... 1

1-2 Package Contents .................................................................4

1-3 Mainboard Layout..................................................................5

1-4 Connector and Jumper Reference Chart...............................5

Chapter 2 Hardware Setup .................................................................7

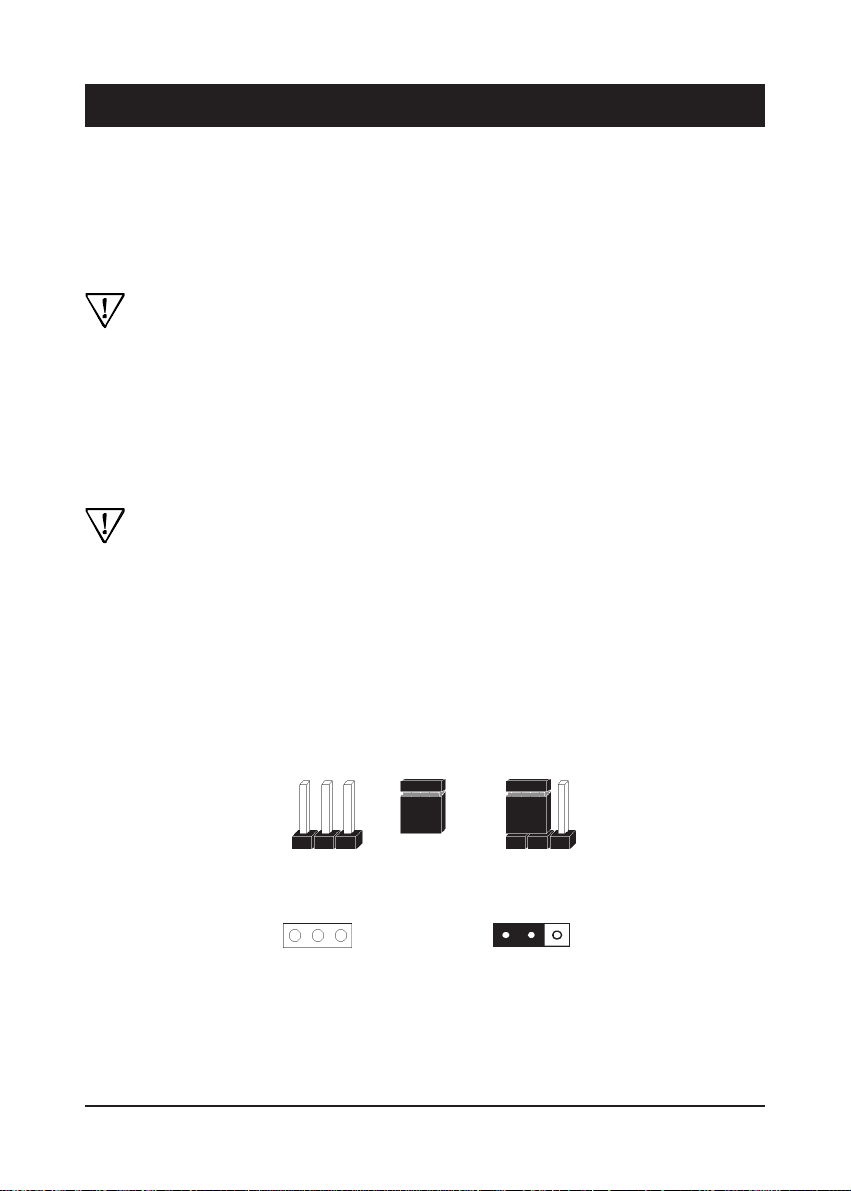

2-1 Introduction to Jumpers.........................................................7

2-2 Installing an S.E.C. Processor in Slot 1...............................8

2-3 Setting Your CPU's Parameters(

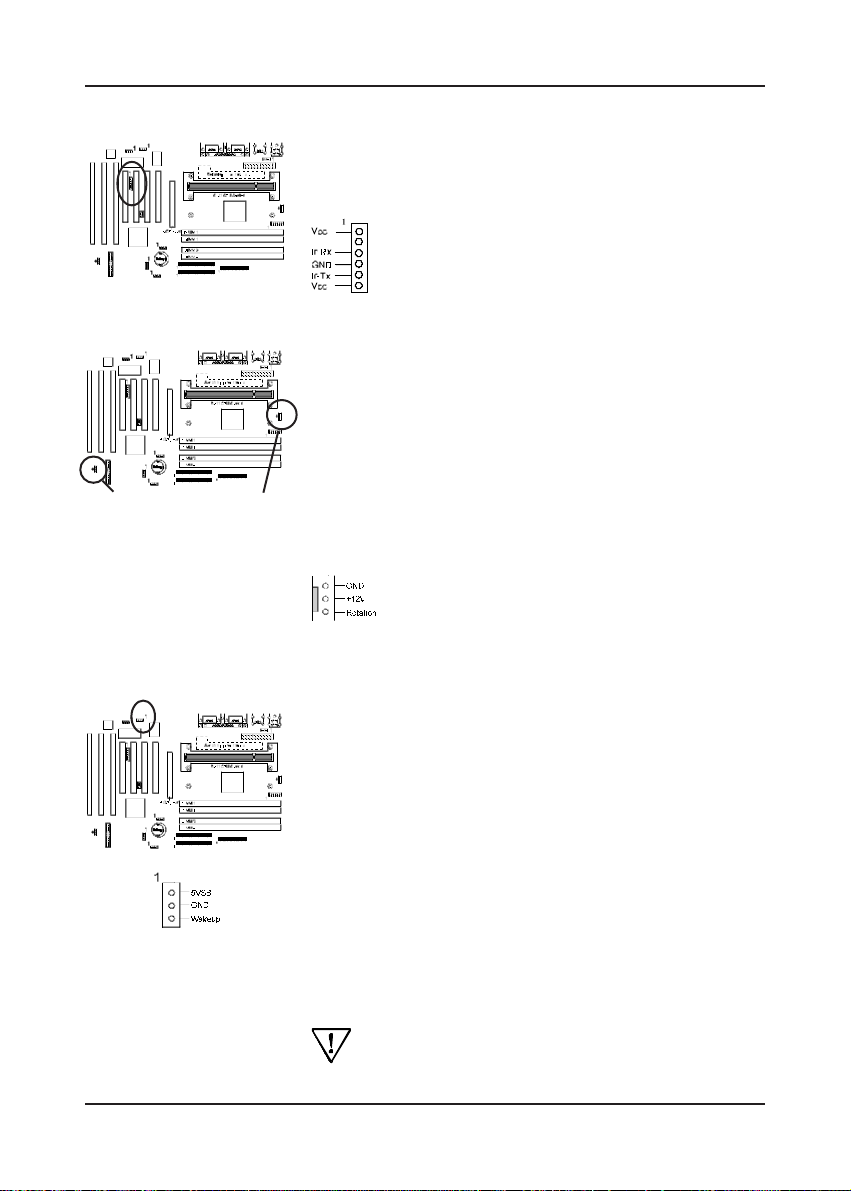

2-4 Connector and Jumper Settings........................................... 11

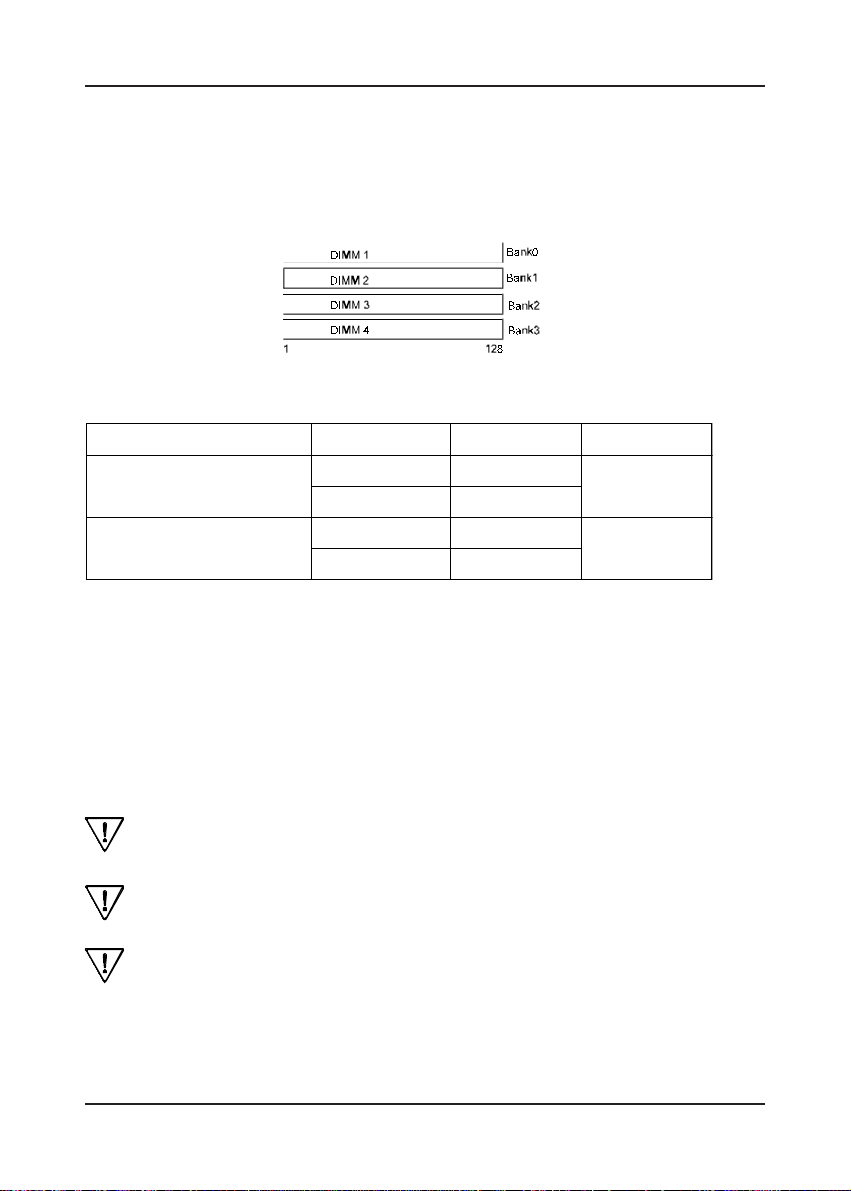

2-5 Main Memory Configuration ................................................. 18

Chapter 3 Award BIOS Setup Program ............................................ 21

3-1 Standard CMOS Setup........................................................ 22

3-2 BIOS Features Setup........................................................... 25

SeePU

3-3

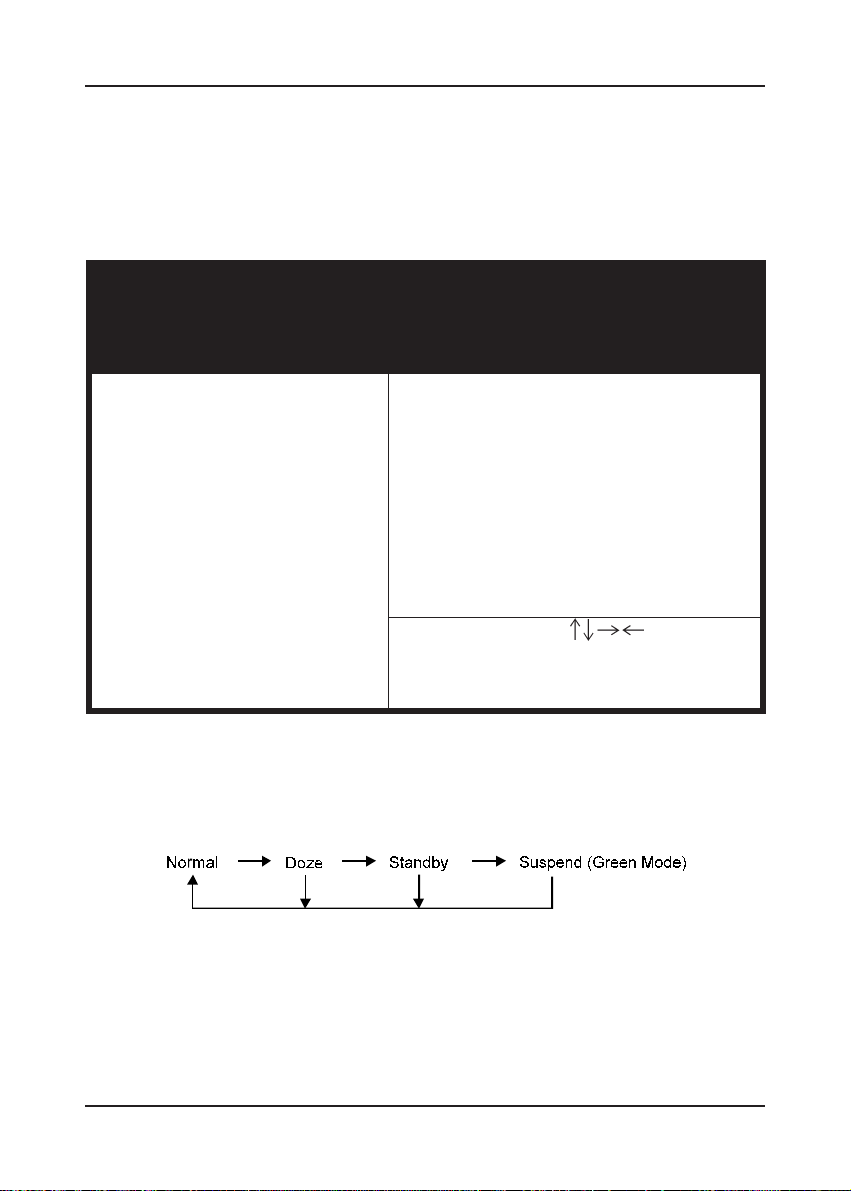

3-4 Power Management Setup .................................................. 31

3-5 PnP/PCI Configuration......................................................... 36

3-6 Load Setup Defaults ............................................................ 38

3-7 Integrated Peripherals.......................................................... 39

3-8 Supervisor Password & User Password Setting .................. 41

3-9 IDE HDD Auto Detection ..................................................... 43

3-10 Save and Exit Setup ............................................................ 43

3-11 Exit Without Saving.............................................................. 43

Chapter 4 Brief Software Driver Guide ............................................. 45

& Chipset Setup...................................................... 28

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From
the Windows 95 Device Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface
(DMI) Utility

SeePU

Technology)............ 9

Feature ExplanationsFeature Explanations

Feature Explanations

Feature ExplanationsFeature Explanations

SeePU

Software Power-off Control ........................................................... 11

Power-On By Modem ............................................................... 11/34

ii

Technology ......................................................................... 9

Over-ride Power Button......................................................................... 12

Blinking LED in Suspend Mode ............................................................ 12

Wake Up On LAN ............................................................................ 14/34

Creative's SB-LINK Sound.................................................................... 15

Power-On by Keyboard.................................................................... 15/40

Poly-fuse Over Current Protection ......................................................... 16

Chassis Intrusion Monitoring ................................................................. 16

Power Failure Recovery................................................................... 16/29

ECC DRAM Capability ......................................................................... 19

Flash BIOS Protection .......................................................................... 30

Power-On by Alarm............................................................................... 34

AppendicesAppendices

Appendices

AppendicesAppendices

Appendix I On Board I/O Addresses & IRQ Maps .........................47

Appendix II Quick Connector and Jumper Reference.................49

Appendix III FAN-II

Reader's Feedback ............................................................................53

SMART

Technology Upgrade Kit .................51

iii

- Memo

iv

Introduction

Chapter 1

Introduction

1-1 Product Specifications

rr

r Processor

rr

- Supports up to 450 MHz Intel Pentium® II processors

- Slot 1 CPU socket with retention mechanism

- High efficiency Switching Power Module (1.8v ~ 3.5v, 0.1v increments)

- Supports 66/100 MHz system clock speeds

- Innovative SeePU technology (software CPU installation with no jumper

settings)

Supports 68 (Turbo mode), 75/83/103/112 MHz system clock for over­clocking possibility.

rr

r Chipset

rr

- Intel 82440BX two chip PCIset

rr

r DRAM Memory

rr

- Four 3.3V 168-pin DIMM sockets support up to 512 MB

- Supports 16/32/64/128MB, 64/72-bit unbuffered Synchronous DIMM
modules

- Provides single-bit ECC capability

10ns or faster SDRAM DIMM modules with SPD are required for
100MHz frequency clock speed

Because 128MB unbuffered DIMM and Registered DIMM modules are
not yet mainstream, their compatibility can not be 100% guaranteed.
(See Section 2-5 for details.)

rr

r Expansion Slots

rr

- One 32-bit AGP slot (Rev 1.0 compliant)

- Four 32-bit PCI slots (Rev 2.1 compliant)

- Three 16-bit ISA slots (one PCI/ISA shared slot)

rr

r BIOS

rr

- Award System BIOS, supports PnP, APM, DMI & Multi-device booting

features i.e. floppy, LS120, CD-ROM, HDD(IDE, SCSI), ZIP-ATAPI etc.

- Includes SYMBIOS SCSI BIOS

- Includes Trend ChipAway Virus protection for virus-free boot and virus
free operating system

1

Chapter 1

The Trend ChipAway Virus is a rule-based anti-virus technology and

@

does not require periodical updates of virus code

rr

r Two Ultra DMA-33 PCI IDE Ports

rr

- Supports up to PIO Mode 4, Multi-word Mode 2 and Ultra DMA-33 timings

- Bus Mastering software drivers for all well known multi-task operating
systems

rr

r On-board Ultra I/O

rr

- WB977TF I/O chip (built-in AMI KBC software and RTC)

- One Parallel (SPP/ECP/EPP) and two Serial (16550A compliant) ports

- One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode,
and 1Mbps transfer rates

- IrDA IR function supports up to 115.2Kbps

rr

r Two Channel USB Ports

rr

Now under compatibility testing with different peripherals

rr

r Board Dimensions

rr

- ATX form factor, 305mm x 220mm, 4 Layers

- Six mounting holes

rr

r Advanced Management Features

rr

- Software power off control, Power-on by modem, Power on by alarm,
Power-on by keyboard, Over-ride power button, Chassis intrusion detection,
Power failure recovery, Blinking LED in Suspend(optional), Wake Up On
LAN, etc.

- Poly-fuse over-current protection for USB and keyboard

- Flash BIOS protect via BIOS

- Supports SB-link header for Creative PCI audio cards

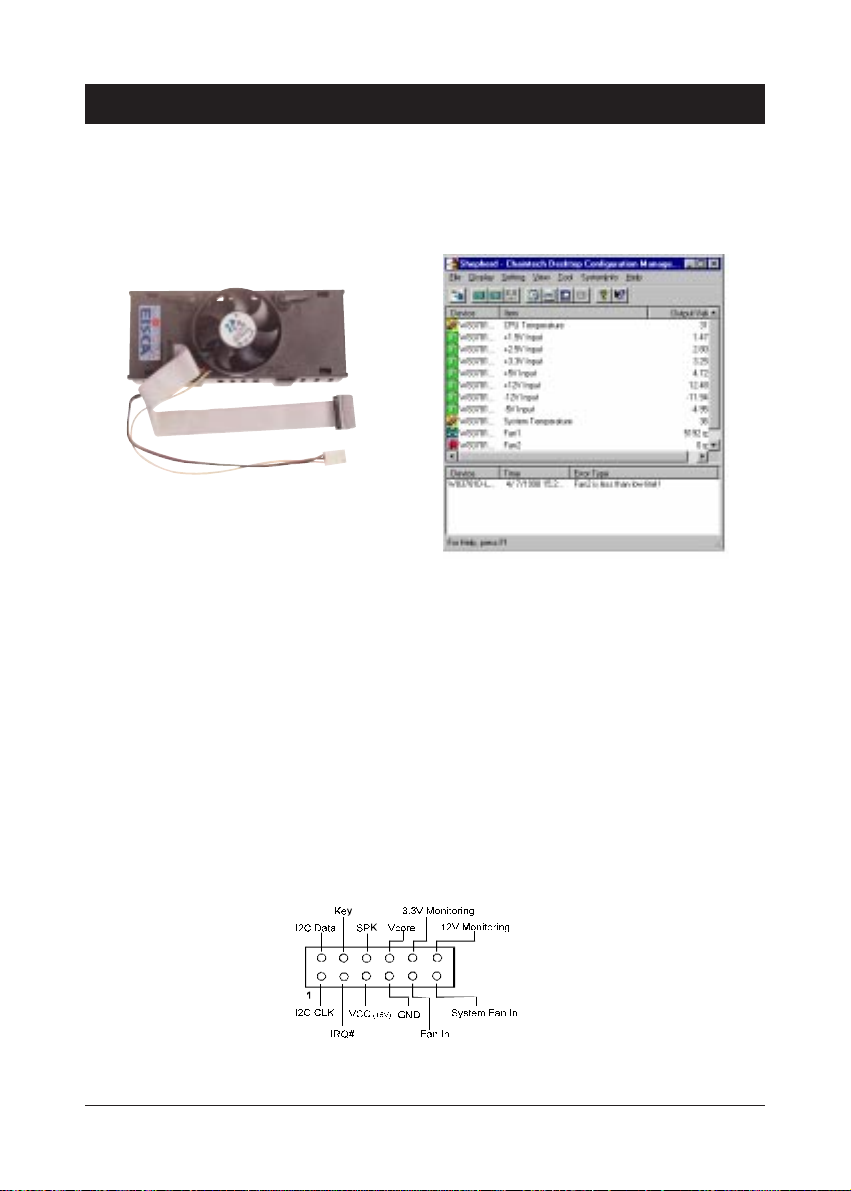

- Supports FAN-II (EISCA v1.0 compliant cooling fan, see Appedinx III) or
on-board Management Extension Hardware and includes Shepherd system
monitoring software to streamline PC management

- Meets EPA Green PC standard: power consumption under 30W in Doze,
Standby, and Suspend modes

- ACPI features ready when ACPI-enabled O/S is available

2

rr

r Switching Power Supply Requirement (at least 200 Watts)

rr

Introduction

Output Voltage

+12V +/- 5% 0

+5V +/- 5% 1

+3.3V +/- 5% 10*

-5V +/- 10% 0

-12V +/- 10% 0

+5VSB +/- 5% 0.05

Max. Regulation

Requirement

Min. Current

Requirement (Amps)

Table 1-1

* 3.3V at 10Amps is necessary too guarantee full loading operation

because some AGP cards and memory modules have high current
consumption.

The on-board 3.3v regulator provides maximum 6Amp current drive
capability for AGP cards and memory modules.

3

Chapter 1

1-2 Package Contents

This product comes with the following components:

r One mainboard
r On-board Slot 1 foldable retention mechanism and four screws

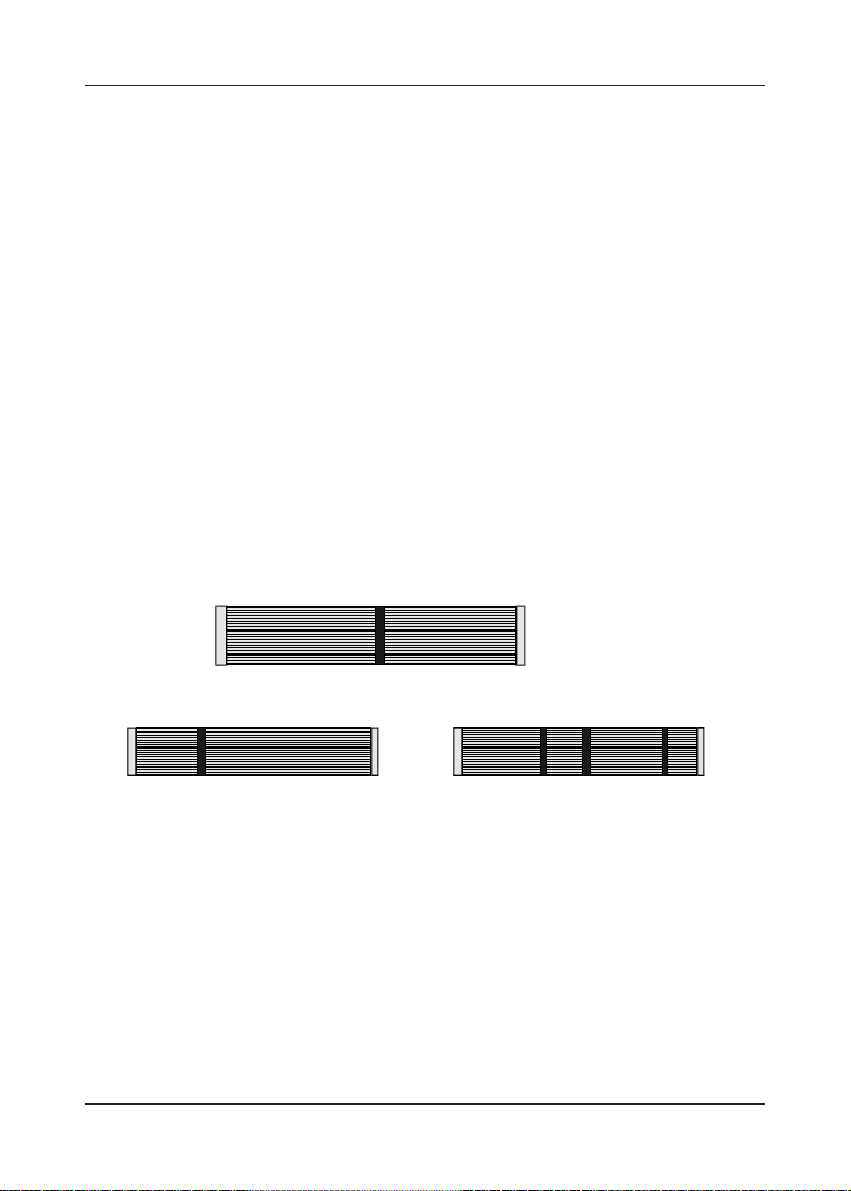

r One 40-pin IDE connector ribbon cable (Figure 1-1)
r One 34-pin floppy disk drive ribbon cable (Figure 1-2a) or (Figure 1-2b)
r One User's Manual
r One CD-ROM that includes

- Award Flash EPROM Utility, Award DMI Utility

- Intel Bus Master IDE drivers for Win95, WinNT, and OS/2

- Exclamation Mark Remover Utility

- Shepherd Utility--System Health Monitoring Software

- Trend PC-cillin Anti-virus v3.0(OEM version) Utility in eight different

languages

IDE cable

4

Figure 1-2a

Figure 1-1

Standard Floppy cable Optional 5.25 in. floppy cableFigure 1-2b

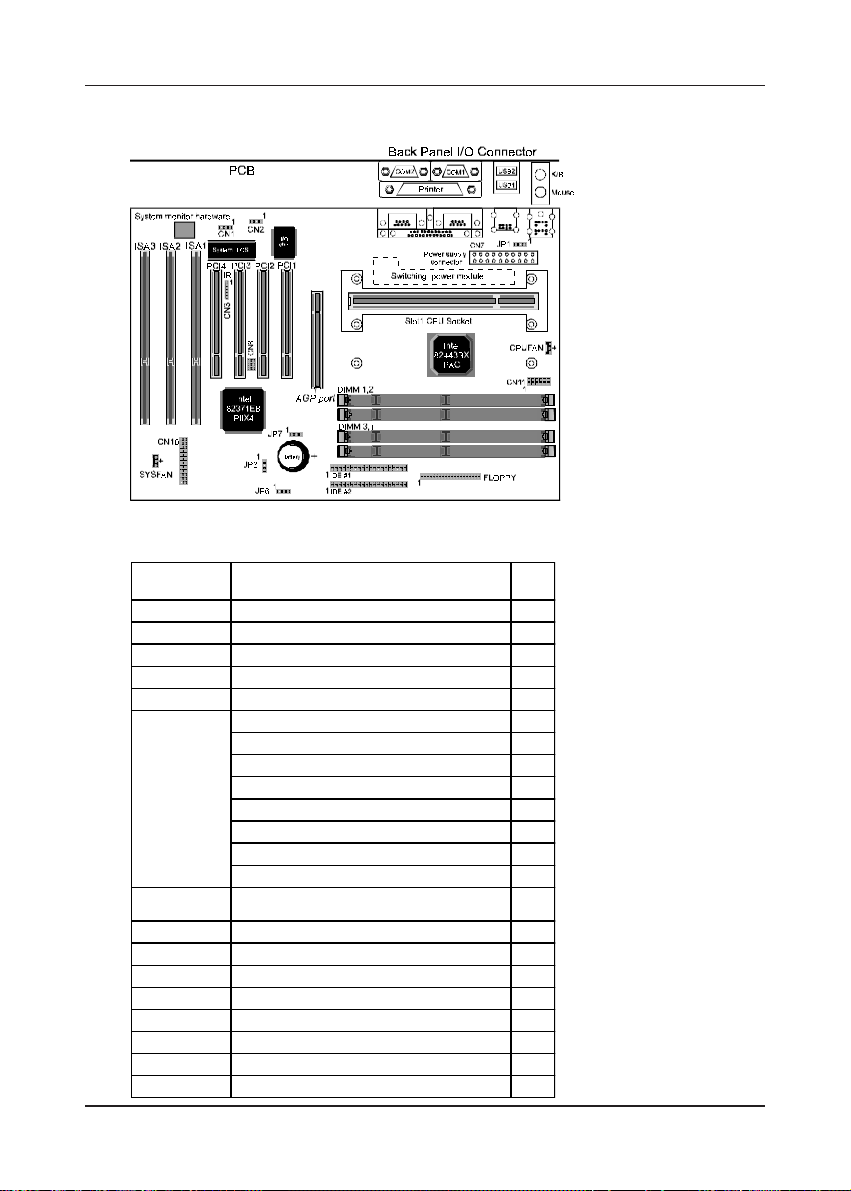

1-3 Mainboard Layout

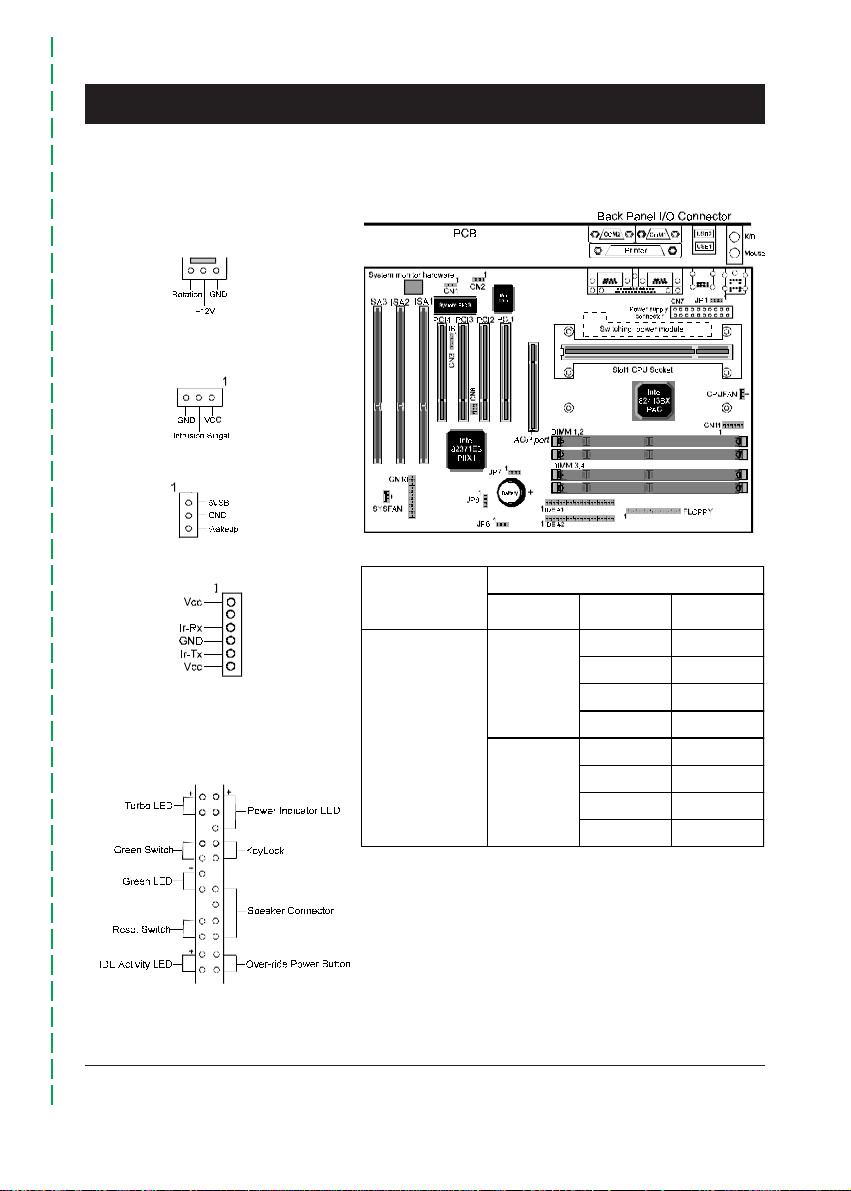

1-4 Connector and Jumper Reference Chart

Introduction

Jumper &

Connector No.

CN1 Chassis intrusion monitoring connector 16
CN2 WOL (Wake-on-LAN) Connector 14
CN3 Infrared connector 14
CN7 ATX power supply connector 11
CN8 Creative's SB-LINK connector 15

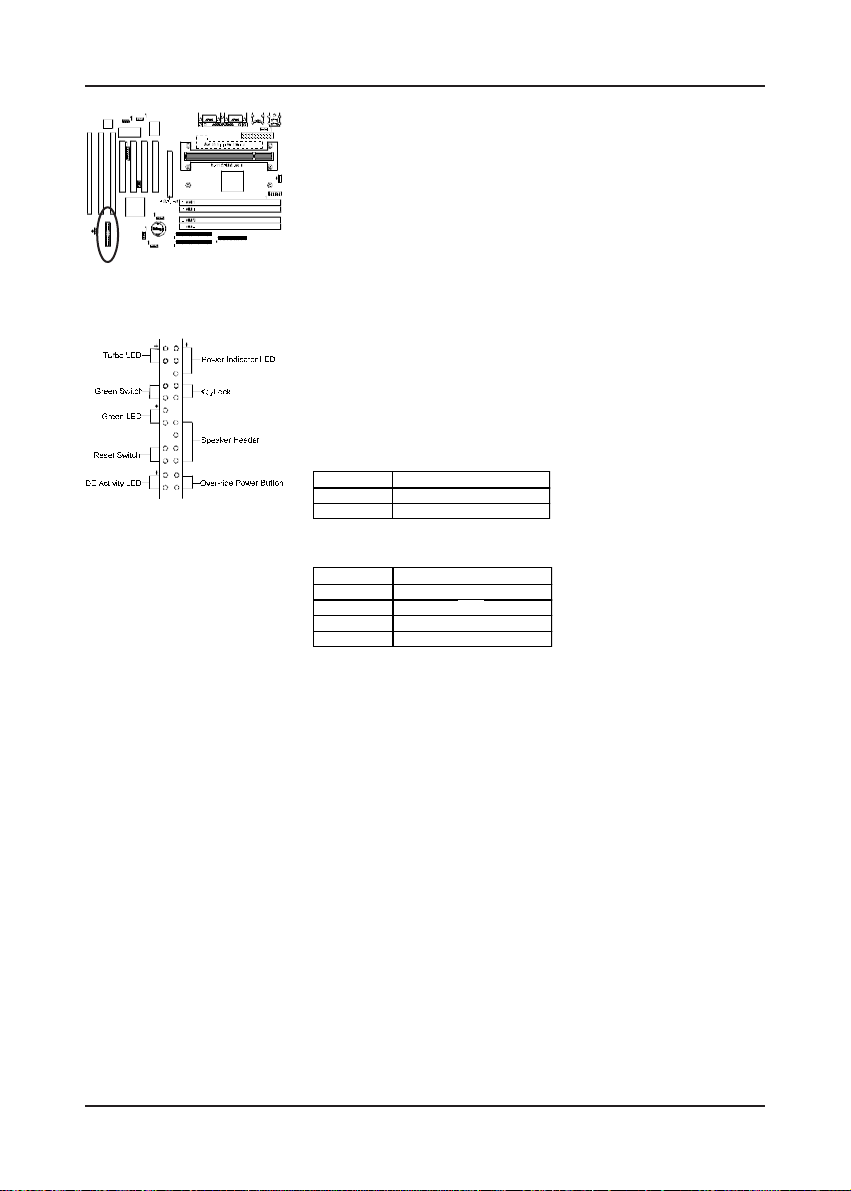

Green switch connector 13
Green LED connector 13
System reset switch connector 13

CN10

CN11

JP1 Power on by keyboard jumper 15
JP6 Clear CMOS data jumper 15
JP7 Reserved for factory -­JP8 Power failure recovery jumper 16

CPUFAN CPU cooling fan connector 14

SYSFAN System cooling fan connector 14

Ports PS/2 mouse and keyboard ports 16
Ports USB (Universal Serial Bus) ports 17

Turbo LED connector 13
Keyboard lock & power indicator LED connector 12
Speaker connector 13
IDE activity LED connector 13
Over-ride power button connector 12
Optional FAN-II connector (if system monitoring

hardware is not present)

Function

Ref.

page

51

5

Chapter 1

- Memo

6

Hardware Setup

Chapter 2

Hardware Setup

If your mainboard has already been installed in your computer you may still need
to refer to this chapter if you plan to upgrade your system's hardware.

Be sure to disconnect the power cable from the power source before performing
any work on your mainboard, i. e. installing a CPU, memory module, changing
a jumper setting, etc. Not doing so may result in electrical shock!

2-1 Introduction to Jumpers

Jumpers are used to select between various operating modes. A jumper consists of
a row of gold colored pins that protrude from the surface of the mainboard. It is
important not to confuse jumpers with connectors or headers.

Putting jumper caps on anything that is not a jumper may result in damaging
your mainboard. Please refer to Section 1-3, Mainboard Layout, for the location
of jumpers on your mainboard.

As indicated in Figure 2-1 below, a cap is used to cover the pins of a jumper, resulting
in shorting those pins that it covers. If the cap is removed from the top of the pins,
the jumper is left "open." The number 1 shown both in the diagram below and in
all multiple pin jumper and header diagrams in this manual indicates the pin designated
with the number 1. The numbering of the remaining pins follows in sequence.

Pins SettingCap

1

A 3-pin jumper

1

A cap over pin 1 and
pin 2 shorts these pins

Figure 2-1

7

Chapter 2

2-2 Installing an S.E.C. Processor in Slot 1

1. Insert the Pentium II processor into the retention mechanism. Press evenly and
gently until the snaps on the upper side of the processor have been inserted into
the holes at the top of the retention mechanism.

2. Note that when removing the processor, these snaps can be clicked into a

completely vertical position, leaving your hands free to stabilize the board. Pull
the processor evenly and gently out of the retention mechanism.

3. Also note that like PCI and ISA slots, Slot 1 has a divider that prevents backwards

insertion of the CPU.

Installing a heat sink and cooling fan is necessary for proper heat dissipation
from your CPU. Failing to install these items may result in overheating and
possible burn-out of your CPU.

8

Hardware Setup

2-3 Setting Your CPU's Parameters(

SeePU

Technology)

SeePU is a new user friendly technology that enables the user to setup a mainboard's
CPU parameters through an easy to use BIOS setup procedure. It is no longer
necessary to make many jumper settings as on conventional mainboards.

1. After installing all your hardware into your PC system, turn on your system's

power. Enter the CMOS Setup Utility by pressing the Delete key when your
BIOS identification screen appears.

2. Move the cursor to SeePU & Chipset Setup menu and press Enter. Find the CPU

Setup commands at the right hand part of the BIOS screen (Figure 2-5) Commands
for operating the cursor in BIOS are found at the lower right of the BIOS screen.

ROM PCI / ISA BIOS (2A69KC39)

SeePU & CHIPSET SETUP

A WARD SOFTW ARE, INC.

SDRAM CAS latency Time : 3
DRAM Data Integrity Mode : Non-ECC
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled
Delayed Transaction : Enabled
AGP Aperture Size (MB) : 64

Power Failure Recovery : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled

***** CPU Setup *****

CPU Type :350MHz (100*3.5)

ESC: Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

:Select Item

PU/PD/+/- : Modify
(Shift) F2 : Color

Figure 2-5

3. Change the CPU Type according to the speed of your Pentium II processor. See

Figure 2-6 for frequency specifications.

CPU Type

Pentium II

processor

External Clock

66

100

Figure 2-6

CPU Speed

Frequency

Ratio

3.5 233
4 266

4.5 300
5 333

3.5 350
4 400

4.5 450
5 500

Internal Clock

4. Use the User Define option to custom set your CPU's parameters. Set the
frequency ratio (also known as external clock multiplier factor) and CPU bus
frequency according to your processor's specifications. See Figure 2-7.

9

Chapter 2

You do not need to make voltage settings because SeePU automatically
sets your CPU voltage.

ROM PCI / ISA BIOS (2A69KC39)

SeePU & CHIPSET SETUP

AW ARD SOFTW ARE, INC.

SDRAM CAS latency Time : 3
DRAM Data Integrity Mode : Non-ECC
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled
Delayed Transaction : Enabled
AGP Aperture Size (MB) : 64

Power Failure Recovery : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled

***** CPU Setup *****

CPU Type : User's Define
Frequency Ratio : 3.5X
CPU Bus Frequency :100MHz

ESC: Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

:Select Item

PU/PD/+/- : Modify
(Shift) F2 : Color

Figure 2-7

5. Press Esc to return to the CMOS Setup Utility, press F10 to Save and Exit Setup
and choose 'Y' to confirm. The system will automatically reboot and during startup
you will see the correct CPU type indicated on the start-up screen screen.

Overclocking

Operating a CPU at a higher frequency than it's specification allows is called overclocking.
If the CPU frequency is set at a higher frequency than it's specification allows, it may
or may not run at that freqency, depending on the quality of your CPU and the extent
to which the frequency has been overset. The mainboard manufacturer highly
discourages overclocking as it may result in data loss, CPU burn-out, system failure,
etc.

Many Pentium II processors are frequency locked processors and are not able to
perform overclocking. Regardless of whether the processor is a frequency locked,
overclocking may cause some processors to hang when turning on the system. When
the processor hangs, the screen remains blank and the system does not boot. To
solve this problem, do the following.

1. Turn off the computer and then press the Home key on your keyboard

2. Turn on your computer, wait for five seconds and then release the Home key.

(Pressing the Home key allows the computer to boot at a low system speed.
For example, for 66MHz external clock CPUs, the CPU boot-up speed is
233MHz. For 100MHz external clock CPUs, the CPU boot-up speed is
350MHz.)

3. Enter BIOS and reconfigure your CPU parameters as described in this section.

10

Hardware Setup

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including
the power supply, the keyboard, and the various controllers on the front panel of
the system case.

The power supply connector is the last connection to be made while installing a
mainboard. Before connecting the power supply, please make sure it is not
connected to the power source.

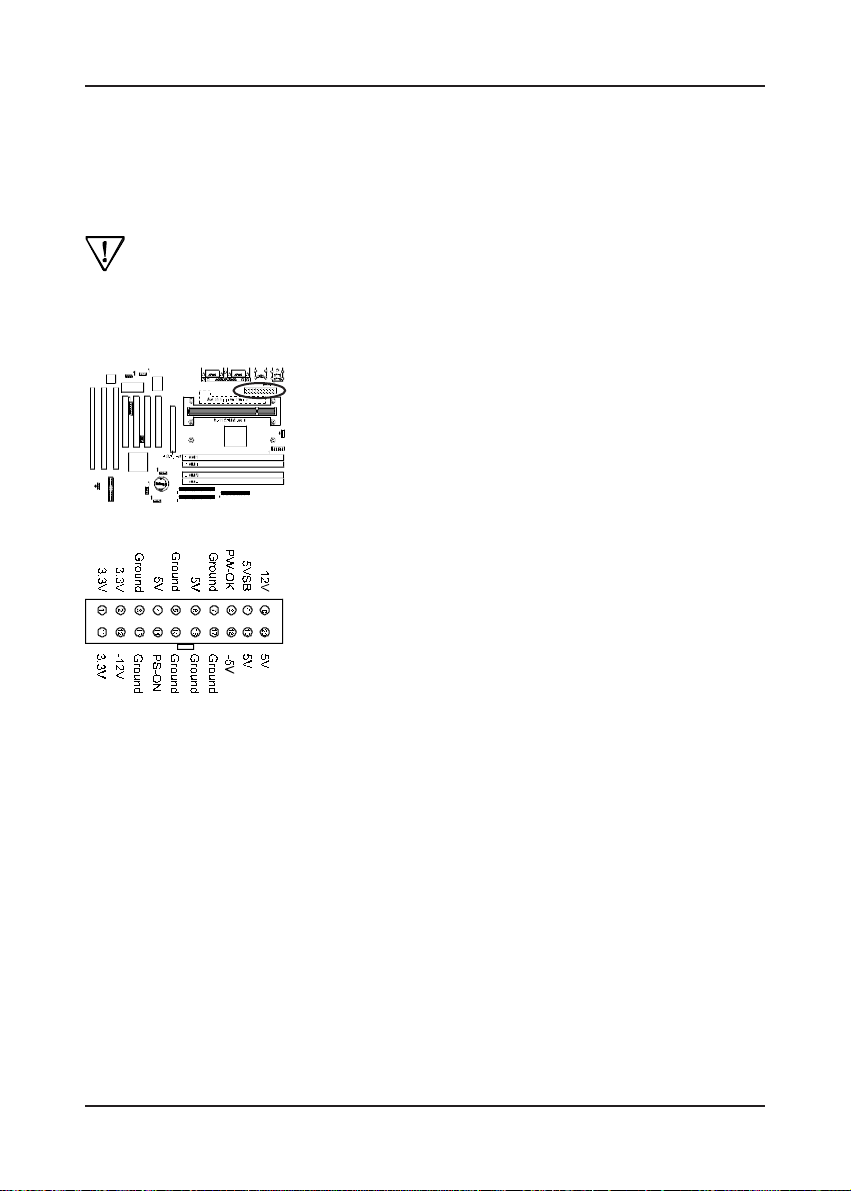

ATX Power Supply Connector (CN7)

This mainboard requires a power supply of at least 200
watts. The power cord leading from the system's

power supply to the external power source must be
the very last part connected when assembling a system.

The ATX power supply provides a single 20-pin connector
interface which incorporates standard +/-5V, +/-12V,
optional 3.3V and Soft-power signals. The Soft-power
signal, a 5V trickle supply is continuously supplied when
AC power is available. When the system is in the Soft­Off mode, this trickle supply maintains the system in it's
minimum power state.

Software Power-Off Control

This mainboard can be powered down using theWindows 95 Software Power-Off
function. To power down your computer, click the START button on the Windows 95
task bar. Select "Shut Down The Computer" and the system turns off. The message "It
is now safe to turn off your computer" will not be shown when using this function.

Power-On By Modem

While in Soft-off state, if an external modem ring-up signal occurs, the system wakes
up and can be remotely accessed. Enable this function in BIOS's Power Management
Setup menu. (See section 3-4)

11

Chapter 2

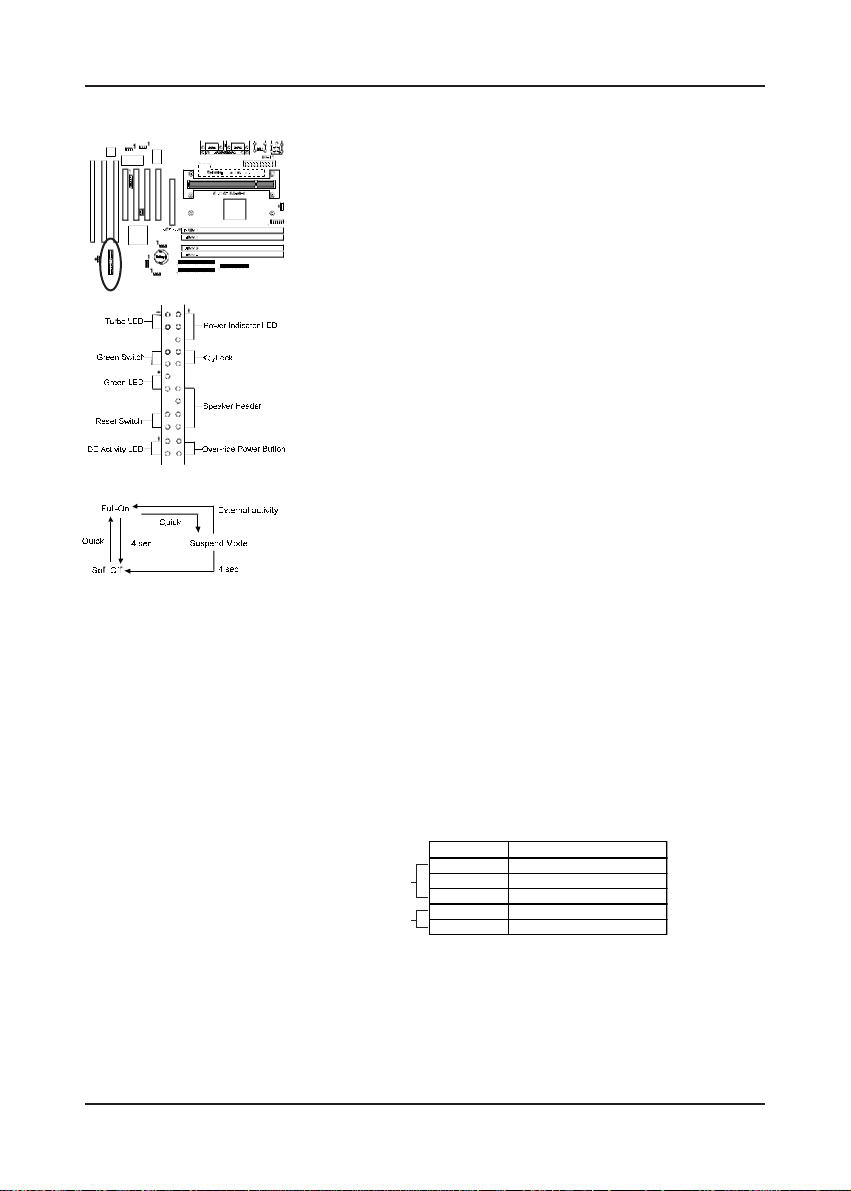

Front Panel Connector Set (CN10) A through G

A. Over-ride Power Button Connector

The power button on the ATX chassis can be used as a
normal power switch as well as a button to activate Advanced
Power Management Suspend mode. This mode is used for
saving electricity when the computer is not in use for long
periods of time. The Soft-OFF by PWR-BTTN function
in BIOS's Power Management Setup menu must be set to
"Delay 4 Sec." to activate this function. (See section 3-4)

When the Soft-OFF by PWR-BTTN function is enabled,
pushing the power button rapidly will switch the system to
Suspend mode. Any occurence of external activity such as
pressing a key on the keyboard or moving the mouse will
bring the system back to Full-On. Pushing the button while
in Full-On mode for more than 4 seconds will switch the
system completely off. See Over-ride Power Button
Operation diagram.

Over-ride Power Button
Operation

B. Keyboard Lock & Power Indicator LED
Connector

Plugging this connector into the lock on the front panel
of the system case allows the lock to enable or disable
the keyboard. This function provides limited security
against casual intruders. The power indicator LED shows
the system's power status. It is important to pay attention
to the correct cable and pin orientation (i.e., not to reverse
the order of these two connectors.)

Pin Definition

1 +5V DC

Power Good LED

Keyboard Lock

2 No Connect
3 Ground
4 Keylock
5 Ground

Blinking LED in Suspend Mode(optional)

While in Suspend mode, the LED light on the front panel of your computer will flash.
Suspend mode is entered by pressing the Override Power Button, pushing the Green
button on your ATX case, or enabling the Power Management and Suspend Mode
options in BIOS's Power Management menu. (See section 3-4)

12

Hardware Setup

C. Green Switch/Green LED Connector

Some ATX cases provide a Green switch which is used
to put the system in Suspend mode. In Suspend mode,
the power supply to the system is reduced to a trickle,
the CPU clock is stopped, and the CPU core is in it's
minimum power state. The system is woken up whenever
the keyboard or mouse is touched. The system resumes
in different ways as defined by Power Management Setup
screen in BIOS.

D. System Reset Switch Connector

This connector should be connected to the reset switch
on the front panel of the system case. The reset switch
allows you to restart the system without turning the
power off.

Pin Definition

1 System
2 GND

E. Speaker Connector

Pin Definition

1 Speaker Signal
2 GND
3 GND
4 +5V DC

NC
NC

F. IDE Activity LED Connector

The IDE activity LED lights up whenever the system
reads/writes to the IDE devices.

G. Turbo LED Connector

This mainboard does not have a Turbo/De-turbo speed
modes. Even though this function does not exist, the turbo
LED will light when the LED is connected and turbo button
pressed.

Change CPU Speed with the Keyboard

Use the following commands to change the CPU speed between turbo/de-turbo.
Set to low speed [CTRL] [ALT] [-]
Set to high speed (turbo) [CTRL] [ALT] [+]

13

Chapter 2

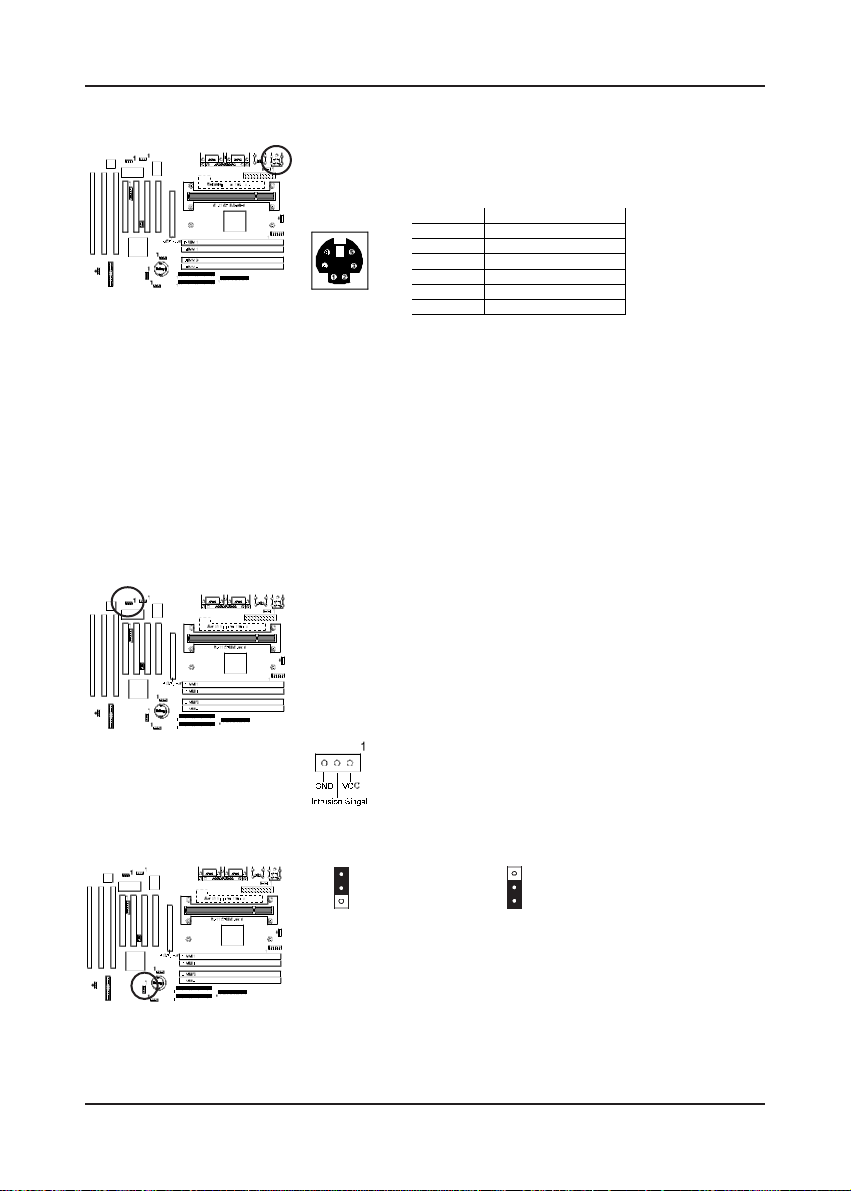

Infrared Connector (CN3)

If you enable the COM2 Mode in BIOS's Integrated
Peripherals menu the COM2 port will support IR functions.
(See section 3-7)

CPU/System Cooling Fan Connectors (CPUFAN/SYSFAN)

These added connectors allow the fan to draw their power
from the mainboard instead of the disk drive connector.
The board's management extension hardware is able to
detect the CPU and system fan speed in rpm (revolutions
per minute). These connectors supports 3-pin cooling

SYSFAN CPUFAN

fans with minimum of 3500 RPM. The wiring and plug may
vary depending on the manufacturer. On standard fans,
the red is positive (+12V), the black is ground, and the
yellow wire is the rotation signal.

WOL (Wake-on-LAN) Connector (CN2)

Enable the Wake Up On LAN selection in BIOS's Power
Management Menu to use this function. The capability
to remotely manage PCs on a network is a significant
factor in reducing administrative and ownership costs.
Magic Packet technology is designed to give WOL (Wake­on-LAN) capability to the LAN controller. When a PC
capable of receiving wake up command goes to sleep,
the Magic Packet mode in the LAN controller is enabled.
When the LAN controller receives a Magic Packet frame,
the LAN controller will wake up the PC. This header
is used to connect an add-in NIC (Network Interface Card)
which gives WOL capability to the mainboard.

To support this function, a switching power supply
with a minimum of 750mA 5VSB is required.

14

Creative's SB-LINK Sound Connector (CN8)

The SB-LINK serves as a bridge between the mainboard
and Creative's PCI sound card. This connector delivers
Sound Blaster 16 compatility for real-mode DOS games.

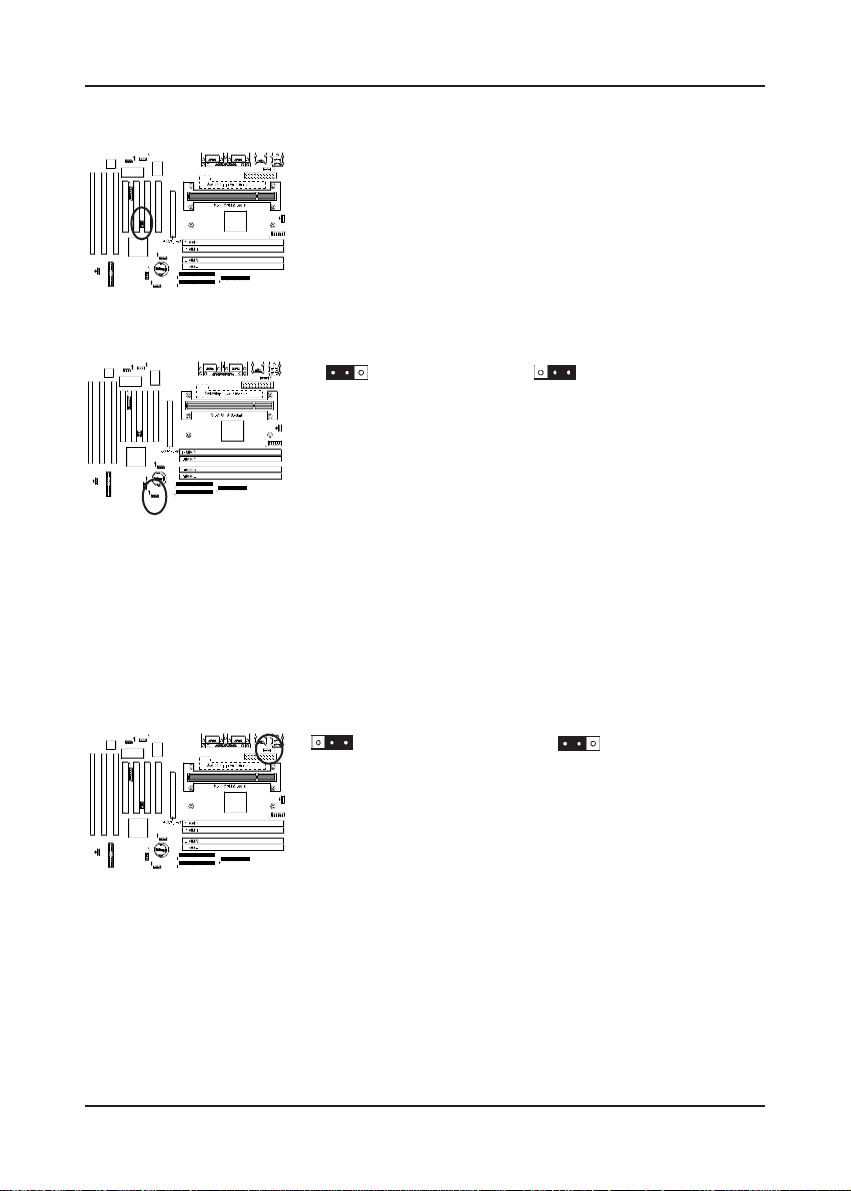

Clear CMOS Data Jumper (JP6)

1 1

To clear the contents of the CMOS, please follow the
steps below.

1.Disconnect the system power supply from the power

2.Set the jumper cap at location 2~3 for 5 seconds, then

3.Connect the system's power and then start the system.

4.Enter BIOS's CMOS Setup Utility and choose Load

5.Set the system configuration in the Standard CMOS

Normal (default) Clear CMOS data

source.

set it back to the default position.

Setup Defaults. Type Y and press enter.

Setup menu.

Hardware Setup

Power-on by Keyboard Jumper (JP1)

1

Disabled

This board is able to be turned on by the keyboard. To
use this function, enable the Power On By Keyboard
option in BIOS's Integrated Peripherals screen (See
section 3-7). You must also set this jumper's cap to pins
2-3 to use this function. Some out-of-date keyboards
may require larger current than supplied by the Suspend
5V of modern power supplies. When using older keyboards
disable this function.

1

Enabled

15

Chapter 2

)

PS/2 Mouse and Keyboard Ports

If a PS/2 mouse is used, BIOS will automatically detect
and assign IRQ12 to the PS/2 mouse.

Pin Definition

1 Data

2 No Connect

3 Ground

4 +5V (fused

5 Clock

6 No Connect

Poly-fuse Over Current Protection

The poly-fuse protects the system from dangerous voltages the system might be
exposed to via the keyboard or USB connectors. In case of such exposure, the poly­fuse will immediately be disconnected from the circuit, just like a normal fuse. After
being disconnected for a certain period of time, the poly-fuse will return to its
normal state, after which the keyboard or USB can function properly. Unlike
conventional fuses, the poly-fuse does not have to be replaced, relieving the user
wasted time and inconvenience.

Chassis Intrusion Monitoring Connector (CN1)

This board supports the chassis instruction monitoring
feature of the management extension hardware by means
of a mechanical or photo sensor switch attached to the
motherboard through this 1x3-pin chassis security header.
The mechanical switch is set to open for normal computer

operation.

Power Failure Recovery Jumper (JP8)

11

Disable

Computers using an ATX power supply usually do not
turn back on after the power source to the computer
unexpectedly fails (i.e. electricity outage). Setting the
cap at location 2~3 will allow the computer to always
turn back on after a power failure. This is especially
important for computers that must be on 24 hours per
day.

16

Enable

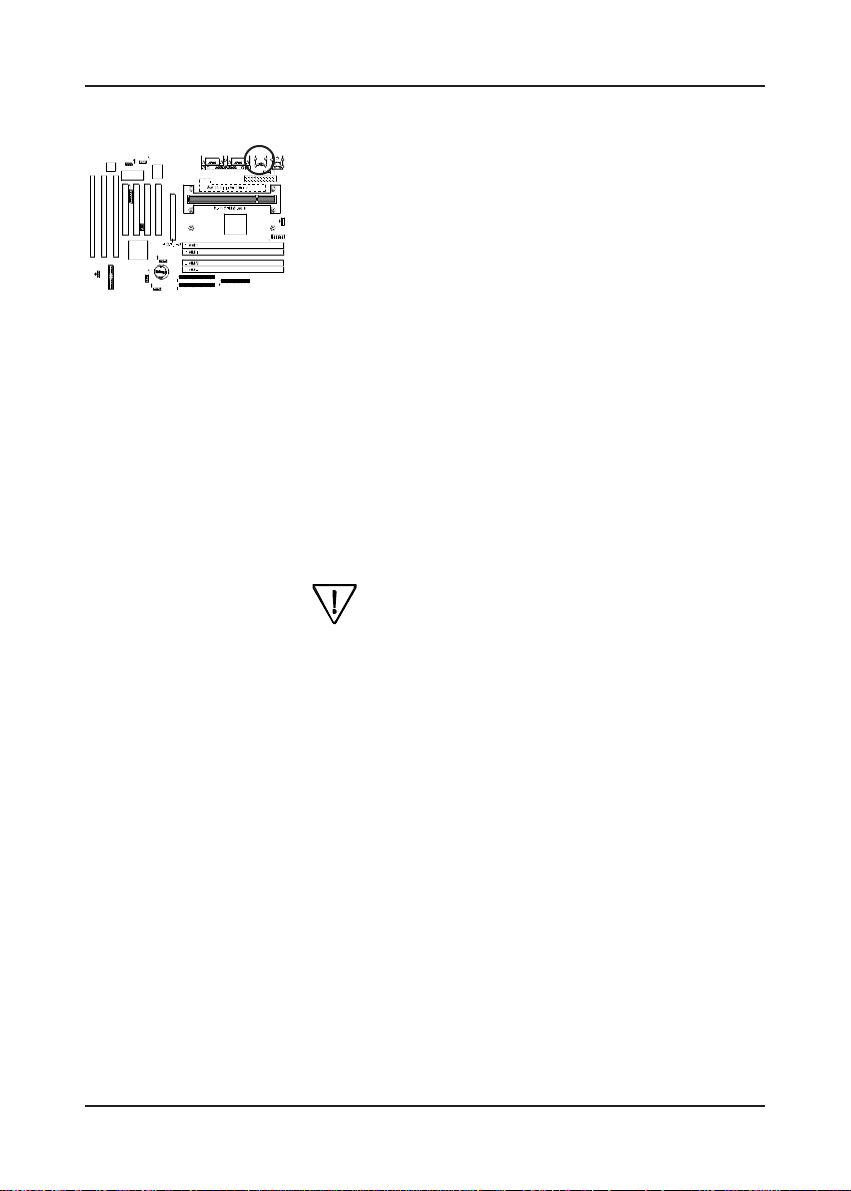

USB(Universal Serial Bus) Ports

If you want to use a USB keyboard, you must enable the
USB keyboard support function in BIOS's Integrated
Peripherals menu (See Section 3-7). USB is an open
industry standard, providing a simple and inexpensive way
to connect up to 125 devices to a single computer port.
Keyboards, mice, tablets, digitizers, scanners, bar-code
readers, modems, printers and many more can all be used
at the same time.

USB is a dynamically reconfigurable serial bus with an
elementary data rate of 12Mbps. Based on off the shelf,
low cost micro-controller technology, its modular layered
software protocol supports sophisticated devices and
application programs.

This board contains a USB Host controller and includes
a root hub with two USB ports (meets USB Rev 1.0 spec.).
Two USB peripherals or hub devices are able to be
connected.

Compatibility with different USB peripherals is
still being tested.

Hardware Setup

17

Chapter 2

2-5 Main Memory Configuration

The DRAM memory system consists four banks and the memory size ranges from
16~512 MBytes. If you only use one bank it does not matter which one you use and
if you use two or more banks, it does not matter which bank you install first.

DRAM Specifications

System Frequency SDRAM Type Max Memory

4 unbuffered DIMM Modules66MHz 12ns or faster512MB

100MHz 10ns or faster

4 Registered DIMM Modules66MHz 12ns or faster1GB

100MHz 10ns or faster

DIMM type: 3.3V, unbuffered, registered, 64/72-bit EDO(Extended

Data Output) Synchronous DRAM with SPD*

Module size: Single/double-side 16/32/64/128 MBytes

Parity: Either parity or non-parity

The compatibility of 128MB and Registered DIMM is still under testing and
cannot be 100% guaranteed.

This mainboard supports 3.3v, unbuffered, 4-clock, SDRAM DIMM only.
Buffered, 5V, or 2-clock SDRAM DIMMs should not be used.

Due to loading anomalies, using DIMM with an 'n x 4' DRAM base on this
mainboard is not recommended. For example, a DIMM that uses sixteen
16Mb x 4 devices should not be used.

18

Hardware Setup

SPD (Serial Presence Detect)

This is an EPROM that contains speed and design information about the memory
module. The mainboard queries the module and makes adjustments to system
operation based on what it finds.

ECC DRAM Capability

This mainboard can be configured to support ECC (Error Check and Correct)
function when utilizing parity DIMM modules. To utilize the chipset's ECC

features, you must use a 72-bit DIMM module.These modules are automatically
detected during bootup. However, the user must configure the DRAM Data Integrity
Mode to "ECC" in BIOS's Chipset Features Setup menu to enable the ECC function.
ECC detects double bit errors and detects and corrects single bit memory errors
on the fly without user intervention. Errors may be generated by a defective memory
module, conflicting memory speeds between different banks, DMA, etc.

19

Chapter 2

- Memo

20

Award BIOS Setup Program

Chapter 3

3

Award BIOS Setup Program

Award's BIOS ROM has a built-in setup program that allows users to modify the basic
system configuration. This information is stored in CMOS RAM so that it can retain
the setup information, even when the power is turned off.

When you turn on or reboot the system, press the Delete key to enter the Award
BIOS setup program. The primary screen as shown in Figure 3-1 is a list of the menus
and functions available in the setup program. Select the desired item and press enter
to make changes. Operating commands are located at the bottom of this and all other
BIOS screens. When a field is highlighted, on-line help information is displayed on
the left bottom edge of the screen.

ROM PCI / ISA BIOS (2A69KC39)

CMOS SETUP UTILITY

A WARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
SeePU & CHIPSET SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

E SC : Quit
F10 : Save & Exit Setup

Figure 3-1 Setup Program Initial Screen

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

: Select Item

(Shift) F2 : Change Color

Time, Date, Hard Disk Type...

21

User's Manual

3-1 Standard CMOS Setup

The Standard CMOS Setup allows users to configure system components such as
hard disk drive, floppy disk drive and video display as well as date, time and boot­up error signaling. This configuration menu should be changed when installing a
mainboard for the first time, changing hardware in your system such as the HDD,
FDD, video display, or when the CMOS data has been lost or contaminated. Choose
the Standard CMOS Setup option from the CMOS Setup Utility menu (Figure 3-1)
to display the following screen. When a field is highlighted, on-line help information
is displayed on the left bottom edge of the screen.

ROM PCI / ISA BIOS (2A69KC39)

STANDARD CMOS SETUP

A WARD SOFTWARE, INC.

Date (mm : dd : yy) : Fri, Sep 19 1997
Time (hh : mm : ss) : 9 : 14: 43

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 Auto
Primary Slave : Auto 0 0 0 0 0 0 Auto
Secondary Master : Auto 0 0 0 0 0 0 Auto
Secondary Slave : Auto 0 0 0 0 0 0 Auto

Drive A : 1.44M, 3.5 in.
Drive B : None

Video : EGA/VGA
Halt On : All Errors

Base Memory :

Extended Memory :

Other Memory :

Total Memory :

640K

15360K

384K

16384K

E SC : Quit
F1 : Help

(Shift) F2 : Change Color

: Select Item

PU/PD/+/- : Modify

Figure 3-2 Standard CMOS Setup Screen

Date/Time

Set the date and time. Do not skip this function as all of your timed events such
as power management, saving files, etc. are based on this timer.

Hard Disk Setup (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed in
the computer. This section does not show information on other IDE devices such
as CD-ROM drives or other hard drive types such as SCSI drives.

22

Award BIOS Setup Program

Type (Auto/User/None): Use the fields under the Type column to determine the method
you will use to configure the IDE devices. If you choose Auto, BIOS will automatically
detect and make optimal settings for most IDE hard drives.

The mainboard manufacturer recommends that you choose Auto for all
drives.

Choose User to define your own drive type manually. You must enter values indicated
in the table below into each drive parameter field. This information should be included
in the documentation from your hard disk vendor or system manufacturer:

TYPE Setting method
CYLS Number of cylinders

HEAD Number of heads

PRECOMP Write precompensation cylinder

LANDZ Landing zone

SECTOR Number of sectors

MODE Mode type

Table 3-1 Hard Disk Drive Parameters

Cyls/Head/Sector: The number of Cylinders, Heads, and Sectors can usually be found

written on the top of the hard disk. If you have a relatively new hard drive, entering
this information alone is usually sufficient for normal hard disk operation. The hard
disk will not work properly if you enter improper information for these categories.

Precomp: Older hard drives (i.e., MFM or RLL drives) have the same number of sectors
per track at the innermost tracks as at the outermost tracks. Thus, the data density
at the innermost tracks is higher and the bits are lying closer together. Even though
the physical size of a sector gets progressively smaller as the track diameter diminishes,
each sector must still hold 512 bytes. Write precompensation circuitry compensates
for the difference in sector size by boosting the write current for inner track sectors.

Landz: This defines the address of the landing zone and is only used for older hard
drives which do not have an auto-parking feature.

Mode: If the Type value is not None for any device, you must set the Mode value
for that device. There are four different Mode values: Auto, Normal, Large, and
LBA.

Auto - BIOS detects and enters the IDE drive type during bootup.

Normal - for IDE drives that meet the old IDE specification which support a

maximum capacity of 528MB (1024 cylinders, 16 heads, and 63 sectors).

23

User's Manual

Large - for IDE drives that do not support LBA and have more than 1024
cylinders. Try this setting if your hard disk does not operate properly with
the LBA setting. Large mode is not supported by all operating systems, i.e.,
only certain versions of DOS support large mode.

LBA - (Large/Logical Block Addressing) With LBA, the IDE controller
transforms the data address described by sector, head, and cylinder number
into a physical block address, significantly improving data transfer rates. This
mode is for drives with greater than 1024 cylinders and between 528MB and

8.4GB in size. This protocol is the current common standard.

Choose None for Type if there are no IDE HDD devices in your system.

@

You can use the IDE HDD Auto Detection function to auto detect your hard
drive parameters. Using this function will automatically insert the parameters
discussed under Hard Disk Setup and will indicate User for the Field value.
Please see Section 3-9 for more information.

Floppy Disk Drives

Choose the memory capacity and disk size that corresponds with that of your floppy
disk drive(s).

Video

Select the type of video adapter present in your system. You can ignore this setting
if you are using a VGA monitor since VGA BIOS automatically configures this setting.

Halt

When the system is powered on, BIOS performs a series of diagnotic tests called
POST (Power On Self Test). This function stops the computer if BIOS detects a
hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt on
specific errors.

24

Award BIOS Setup Program

3-2 BIOS Features Setup

By choosing the BIOS Features Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's
default values for the mainboard.

ROM PCI / ISA BIOS (2A69KC39)

BIOS FEATURES SETUP

A WARD SOFTWARE, INC.

Anti-Virus Protection : Enabled
CPU Internal Cache : Enabled
External Cache : Enabled
CPU L2 Cache ECC Checking : Enabled
Quick Power On Self Test : Enabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select (For DRAM>64MB) : Non-OS2

Video BIOS Shadow : Enabled
C8000 - CBFFFShadow : Disabled
CC000- CFFFF Shadow : Disabled
D0000 - D3FFF Shadow : Disabled
D4000 - D7FFF Shadow : Disabled
D8000 - DBFFFShadow : Disabled
DC000- DFFFF Shadow : Disabled

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-3 BIOS Feature Setup Screen

A. VIRUS PROTECTION

Anti-Virus Protection

This is an anti-virus code incorporated in the mainboard's BIOS firmware. During
the boot-up sequence, BIOS loads before loading of the partition table or boot
sector. The anti-virus code loads with BIOS and is able to detect boot-up viruses
before they have a chance to infect the hard drive. This function employs rule­based logic that doesn't look for specific viruses but rather detects patterns found
in every virus, eliminating the need to perform periodical version updates after
new viruses have been found.

B. CACHE CONTROL

CPU Internal Cache/External Cache

Cache memory is much faster than conventional DRAM system memory. These
fields allow you to enable or disable the CPUs Level 1 built-in cache and Level

25

User's Manual

2 external cache. Both settings are left enabled to significantly increase the
performance of your computer.

CPU L2 Cache ECC Checking

Enable this function to perform ECC (Error Check and Correct) on the CPU's
L2 SRAM. ECC detects and corrects single-bit errors while it only detects double
bit errors. Certain SDRAM modules also have ECC capability. For more
information on SDRAM, see section 2-5. If you are using a 333MHz or higher

CPU, this function must be enabled.

C. BOOT UP FEATURES

After turning on the system, BIOS will perform a series of device initializations
and diagnostic tests discussed below.

Quick Power On Self Test (POST)

Enable this function to reduce the amount of time required to run the POST (Power
On Self Test). BIOS saves time by skipping some items during POST. It is
recommended that you disable this setting. Discovering a problem during bootup
is better than loosing data during your work.

Boot Sequence

This option sets the sequence of drives BIOS attempts to boot from after POST
completes. BIOS will search these drives for an operating system.

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A will
function as drive B, and drive B will function as drive A. Note that the boot
sequence assignment mentioned directly above does not inlcude booting from
floppy drive B. This function is useful if floppy drives B and A are of a different
format and you want to boot from floppy drive B.

Boot up Floppy Seek

During POST, BIOS will determine if the installed floppy disk drive has 40 or 80
tracks. A 360K drive has 40 tracks and 720K, 1.2M and 1.44M drives have 80 tracks.
All modern floppy disk drives have 80 tracks.

Boot Up NumLock Status

This function defines the keyboard's numberpad as number keys or arrow keys.

D. KEYBOARD INTERFACE

Typematic Rate Setting

When enabled, you can set the following two typematic control items. When
disabled, keystrokes are determined arbitrarily by the keyboard controller in your
system.

26

Award BIOS Setup Program

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when
a key is pressed and held down.

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins
repeating.

E. Security Option

The Supervisor and/or User Password functions shown in Figure 3-1 must be set
to take advantage of this function. See Section 3-8 for password setting information.
When the Security Option is set to System, a password must be entered to boot
the system or enter the BIOS setup program. When the Security Option is set
to Setup, a password is required to enter the BIOS setup program.

F. PCI/VGA Palette Snoop

Some non-standard VGA cards or MPEG video cards may not show colors
properly. Setting this function to Enabled can correct this problem.

G. OS Select (For DRAM > 64MB)

If your system's DRAM is larger than 64MB and you are running OS/2, select
OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other
operating systems.

I. Shadow Memory

Software such as system BIOS, video BIOS, SCSI BIOS, etc that resides in ROM
(Read Only Memory) chips is called firmware. Shadowing of firmware occurs
when BIOS is copied to RAM address C0000h through DFFFFh. Video BIOS
loads into the C0000-C7FFF memory area when video shadowing is enabled. If
an expansion peripheral in your system contains ROM-based firmware, you need
to know the address range the ROM occupies to shadow it into the correct area
of RAM.

Shadowing improves the firmware's performance because the firmware can be
read by the CPU through the 16- or 32-bit DRAM bus as opposed to the 8-bit
XT bus. However, shadowing also results in reducing the amount of high memory
(640 KB to 1 MB) for loading device drivers. Shadowing is used mostly for
ROM chips on ISA cards and not for PCI cards. Shadowing and playing games
at the same time may result in system instability as some games access the RAM
memory area being shadowed.

27

User's Manual

3-3

SeePU

& Chipset Setup

By choosing the SeePU & Chipset Setup option from the CMOS SETUP UTILITY
menu(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A69KC39)

SeePU & CHIPSET SETUP

A WARD SOFTWARE, INC.

SDRAM CAS Latency Time : 3
DRAM Data Integrity Mode : Non-ECC
System BIOS Cacheable :Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Passi ve Rele ase : Enabled
Delayed Transaction : Enabled
AGP Aperture Size (MB) : 64

Power Failure Recovery : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled

***** CPU Setup ******
CPU Type : 350MHz (100*3.5)

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-4 Chipset Features Setup Screen

With the esception of the CPU Setup, all of the above settings have been
determined by the mainboard manufacturer and should not be changed unless
you are absolutely sure of what you are doing. Explanation of the DRAM
timing and chipset features setup is lengthy, highly technical and beyond the
scope of this manual. Below are abbreviated descriptions of the functions
in this setup menu. You can look on the world wide web for helpful chipset
and RAM configuration information including AWARD's web site at
http://www.award.com.

A.

DRAM Data Integrity Mode

BIOS automatically detects the presence of ECC DIMMs (72-bit modules). However,
to take advantage of ECC you must set this function at "ECC." If any non-parity
DIMMs are installed, the memory operates in non-parity mode only and this
function must be set at "Non-ECC."

28

Award BIOS Setup Program

B. System BIOS Cacheable

Enabling this function allows caching of the system BIOS ROM at F0000h­FFFFFh, resulting in better system performance. However, if any program writes
to this memory area, a system error may result. Caching the system BIOS results
in better performance than shadowing the system BIOS as discussed in Section

3-2.

C. Video BIOS Cacheable

Enabling this function allows caching of the video BIOS ROM at C0000h-C7FFFh,
resulting in better video performance. However, if any program writes to this
memory area, a system error may result. Caching the video BIOS results in better
performance than shadowing the video BIOS as discussed in Section 3-2.

D. 8-bit I/O Recovery Time & 16-bit I/O Recovery Time

Back-to-back CPU or PCI master originated 8-bit and 16-bit cycles have an
arbitrary delay of at least 3.5 system clock cycles. This category is used to add
additional recovery delay between 8-bit and between 16-bit cycles. This delay
takes place because the PCI bus is much faster than the ISA bus. The options
are 1 to 8 and N/A.

E. Memory Hole at 15M-16M

Enabling this function will reserve the memory address space between
15MB and 16MB for ISA expansion cards. However, enabling this function
will result in not allowing the system to have access to memory above
16MB. Please note that some expansion cards require this setting to be
enabled. The default setting is Disabled.

F. AGP Aperture Size (MB)

This function determines the amount of system memory that is given to the AGP
card. Options range from 4MB to 256MB. This is a dynamic memory allotment
in that the AGP card will only use the amount of memory that it needs. The
remaining memory not in use will be available for the system to use. For example,
if 16MB are alloted to the AGP card and the card only needs 8MB, the remaining
8MB will be available for system use.

G. Power Failure Recovery

Computers using an ATX power supply do not turn back on after the power source
to the computer unexpectedly fails (i.e. electricity outage). Enabling this setting
will allow the system to always turn back on after a power failure. This is especially
important for computers that must be on 24 hours per day.

29

User's Manual

H. Spectrum Spread

When Enabled this function will cause lower EMI by spreading the system
frequency spectrum. While this function decreases EMI, system stability may
be slightly compromised. Choosing Smart Clock will turn off the AGP, PCI,
and SDRAM clocks when not in use. Smart Clock does not perform a spectum

spreading function.

I. Flash BIOS Protection

The mainboard manufacturer developed BIOS protection technology that protects
the System BIOS from accidental corruption by unauthorized users or computer
viruses. When enabled, the BIOS data cannot be changed when attempting to
update BIOS with the the FLASH utility. When disabled, the BIOS data can be
updated by using the FLASH utility.

To Pass the Windows 95 SCT testing, this item should be disabled.

Please note that when disabling this setting, the system BIOS is vulnerable
by intrusion of computer viruses. It is recommended to disable this setting
only temporarily while updating your system's BIOS.

J. CPU Setup

The mainboard manufacturer developed SeePU technology that allows you to
easily change your CPU's clock mulfiplier factor and CPU Bus frequency
in BIOS. Refer to Section 2-3 for details.

30

Award BIOS Setup Program

3-4 Power Management Setup

This section provides information on the Green PC power management funtcions.
By choosing the Power Management Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A69KC39)

POWER MANAGEMENT SETUP

A WARD SOFTWARE, INC.

Power Management : Disabled
PM Control by APM :Yes
Video Off Method :DPMS
Video Off After :Standby
MODEM Use IRQ :3

Doze Mode :Disabled
Standby Mode :Disabled
Suspend Mode : Disabled
HDD Power Down :Disabled
Throttle Duty Cycle :62.5%
VGA Active Monitor :Disabled
Soft-Off by PWR-BTTN :Delay 4 Sec.
Wake Up On LAN :Disabled
Power On By Modem :Disabled
Power On By Alarm : Disabled

IRQ 8 Break Suspend :Disabled

**** System Monitoring & Alerting ****
CPU Warning Temperature: 60
Current System Temp. : 30
Current CPU1 Temperature: 40
Current CPU2 Temperature: 40
Current CPUFAN Speed : 3600 RPM
Current SYSFAN Speed : 3600 RPM
+1.5V : 1.48V CPU(V): 2.49V
+3.3V : 3.32V +5V : 4.83V
+12V : 11.85V -12V : - 11.14V

-5V : - 4.75V

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

o

C/140 oF

o

C/77 oF

o

C/77 oF

o

C/77 oF

:Select Item

Figure 3-5 Power Management Setup Screen

A. Power Management

Power management allows the computer to save electricity when it is not in use
by entering increasingly deep power saving modes as shown by the diagram below.

Figure 3-6 Power Saving Mode Flow Chart

The computer runs in Normal operation mode until the Doze timer expires, at
which point the computer enters Doze mode. If no external activity occurs, the
computer will go into Standby and Suspend modes when their respective timers
expire. If external activity occurs, the computer will wake up from Power
Management and return to Normal mode. To activate the function, set Power
Management to

31

User's Manual

Maximum Saving, User Define, or Minimum Saving described below. For a
description of the power saving modes (Doze, Standby, and Suspend) see their
descriptions below.

Disabled - Turns off the Power Management functions.
Max. Saving - All timers are set at the minimum value of one minute to

maximize power saving.
Min. Saving - All timers are set at the maximum value of one hour for

minimal power saving.
User Define - User can configure the timer to a desired time according to the

values available.
Note that enabling the Power Management function will result in enabling the

@

HDD Power Down function (Max Saving = 15 min, Min Saving = 1 min). The
HDD Power Down function is not part of the Power Management scheme as
indicated in Figure 3-6 Refer to the Standby Mode, Suspend Mode, and HDD
Power Down descriptions below for more informaiton on hard drive power
management.

B. PM Control by APM

This function allows software other than BIOS to control Power Management
features Enable this function in BIOS and make sure APM (Advanced Power
Management) is present. For example, run the Power utility program located in
the DOS directory, C:\DOS\POWER.EXE to use Power Management features under
DOS. For Windows 3.1x and Windows 95, you need to install Windows with
the APM feature.

C. Video Off Method

This function serves as both a screen saver and power saver for monitors.
See the next function, Video Off After, for setting the video timer.

Blank - BIOS will only blank the monitor's screen. The electricity saved in
this mode is negligible and this function is only used as a screen saver to
prevent screen damage while the screen is on but not in use.
V/H SYNC+Blank - The system turns off the vertical and horizontal syn­chronization ports, writes blanks to the VGA buffer and the monitor's electron
gun turns off. This function requires a monitor with Green features in order
to take advantage of the power saving function. If you enable this function
and do not have a Green monitor, the result will be the same as if you had
selected Blank. This function serves as both a screen saver and an electricity
saver.

32

Award BIOS Setup Program

DPMS Supported - Select this option if your video card supports the Display
Power Management Signaling (DPMS) standard (i.e., you have a monitor
that supports Green features). Use software supplied by your your video
subsystem to set video power management options.

D. Video Off After

This setting determines when the monitor enters power saving mode. As the
function name indicates, the monitor enters the power saving mode after the
chosen event expires. The Power Management function must be enabled to
use this function.

E. Modem Use IRQ

If your computer has an modem, use this function to tell BIOS which IRQ is
being occupied by the modem card. When the system is in Green mode, the
modem requires an IRQ assignment to wake up the system and perform tasks.
This assignment is compliant with the APM 1.2 specification and is to be used
in coordination with APM 1.2 compliant operating systems.

F. Doze Mode

The Power Management function must not be set to disabled to enable this
function. If no interrupts have occured and the Doze timer expires, system will
enter Doze mode. In Doze mode, the CPU clock runs at a lower speed while
all other devices operate normaly.

@

Power saving modes achieved in lower power saving states will either be
maintained or enter higher power saving modes when switching to higher
power saving states. For example, the CPU clock will not switch back
to normal in Standby mode. It will maintain a decreased rate in Standby
Mode and turn off in Suspend Mode.

G. Standby Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Doze mode and the Standby timer expires, the
system will enter Standby mode. In Standby mode, the hard disk drive and the
monitor shut off while all other devices still operate at full speed. Note that
the Video Off and HDD Power Down functions in Figure 3-5 provide the same
power saving options found in Standby mode. The priority for determining which
function controls power saving for the monitor and hard drive is determined
by which timer expires first.

33

User's Manual

H. Suspend Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Standby mode and the Suspend timer expires, all
devices regulated by power management will shut off and the CPU speed will be
0 MHz.

I. HDD Power Down

The Power Management function must not be set to disabled to enable this
function. When the HDD idle time has elapsed, BIOS sends a command to the
hard disk to turn off the motor. Set a time between 1 and 15 to indicate time
required to wait before the hard drive enters a power saving mode. Some old
hard drives may not support this function.

J. Throttle Duty Cycle

When the system enters Doze mode, the CPU clock runs only part of the
time. You may select the percent of time that the clock runs.

K. VGA Active Monitor

When Enabled, any video activity restarts the global timer for Standby mode.

L. Soft-Off by PWR-BTTN

When set to Delay 4 Sec., this function allows the power button to put the system
in Suspend, a power saving mode. See Section 2-4 for operation instructions
of the over-ride power button operation wich puts the system in Suspend mode.
When set to Instant-Off the Soft-Off by PWR-BTTN function is disabled and the
computer turns completely off when the power button is pressed.

M.Wake Up On LAN

Enable this selection to use the Wake Up On LAN function discussed in Section
2-4 of this manual.

N. Power On By Modem

When enabled, a modem that receives a call will wake up the system from
soft off and green mode. You should connect the modem to the COM port
and turn on the resume event in green mode.

O. Power On By Alarm

When enabled, this setting allows the system to turn back on at a designated time
of the month. User must designate date of month and time of day. This

34

Award BIOS Setup Program

function is only available when using an ATX power supply and the Software Power­Off function to turn off the computer. See the Software Power-Off feature in
Section 2-4 of this manual for instructions.

P. IRQ8 Break Suspend

Enabling this setting turns the monitoring of IRQ8 (the Real Time Clock) On
so it does not awaken the system from Suspend mode.

Q. SMART (System Monitoring and Alerting) Technology (Optional)

The FAN-II (EISCA v1.0 compliant cooling fan) is a self-upgrade PC diagnostic
kit. See appendix III for details.

35

User's Manual

3-5 PNP/PCI Configuration

This section provides IRQ and DMA setting information. By choosing the PNP/
PCI Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen
below is displayed. This sample screen contains the manufacturer's default values

for the mainboard.

ROM PCI / ISA BIOS (2A69KC39)

PNP/PCI CONFIGURA TION

A WARD SOFTWARE, INC.

PNP OS Installed : No
Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : PCI/ISA PnP
IRQ-4 assigned to : PCI/ISA PnP
IRQ-5 assigned to : PCI/ISA PnP
IRQ-7 assigned to : PCI/ISA PnP
IRQ-9 assigned to : PCI/ISA PnP
IRQ-10 assigned to : PCI/ISA PnP
IRQ-11 assigned to : PCI/ISA PnP
IRQ-12 assigned to : PCI/ISA PnP
IRQ-14 assigned to : PCI/ISA PnP
IRQ-15 assigned to : PCI/ISA PnP
DMA-0 assigned to : PCI/ISA PnP
DMA-1 assigned to : PCI/ISA PnP
DMA-3 assigned to : PCI/ISA PnP
DMA-5 assigned to : PCI/ISA PnP
DMA-6 assigned to : PCI/ISA PnP
DMA-7 assigned to : PCI/ISA PnP

Figure 3-7 PCI & ONBOARD I/O Setup Screen

Assign IRQ For VGA : Enabled
Assign IRQ For USB : Enabled
FDD IRQ Can Be Free : No

Used MEM base addr : N/A

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

A. PNP OS Installed

If you want to install a PNP compatible OS (such as Windows 95) set to
Yes.

B. Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning
IRQ & DMA. When set to Auto the system BIOS will refer to the ESCD for
all legacy information.

ESCD(Extended System Configuration Data) provides a detailed format
of the configuration data structures stored in flash memory. Each data
structure defines the resources used by a device or a card in the system.
This includes legacy and PCI/ISA PnP devices.

36

Award BIOS Setup Program

C. Reset Configuration Data

When enabled the system BIOS will clear/reset the ESCD during POST.
After clearing the ESCD, the BIOS will then change this item's value to
Disabled. Otherwise, the ESCD data will become useless.

D. IRQ#/DMA# assign to

When resources are controlled manually, you can assign each system interrupt
& DMA channel for "Legacy ISA" or "PCI/ISA PnP" card used.

While using Legacy ISA Card(non-PnP ISA card), please set it's necessary
corresponding resources (INT#, DMA#) from "PCI/ISA PnP" to "Legacy
ISA."

@ All ISA non-PnP devices are legacy devices that select resources (I/O Addr.,

INT# or DMA#) by using hardware jumpers.

@ IRQ-3/4/7/12/14/15 have been set as default for on board devices (COM2,

COM1, Printer port, PS/2 mouse, IDE1 and IDE2).

E. Assign IRQ For VGA

This function allows BIOS to make an IRQ available to VGA cards. Most
current VGA card models do not require this function to be enabled.

F. Assign IRQ For USB

If USB is employed this function must be Enabled. Otherwise, disable this
function to optimize Windows 95 IRQ resources for other IRQ usage.

G. FDD IRQ Can Be Free

This function allows user to choose if the FDD IRQ is able to be freed up. The
setting NO does not allow the FDD IRQ to be free.

H. Used MEM base addr

This function devotes a space of memory (8K, 16K, 32K, 64K) for any periph­eral that has a high memory requirement. This is also used to designate
memory space for legacy ISA cards. The settings C800~DC00 are used to to
designate point at which the memory will start being used. The default setting is
N/A (disabled.)

I. Used MEM Length

8K~64K: Determines the amount of memory to be used by ISA cards men­tioned in the Used MEM base addr function above.

37

User's Manual

3-6 Load Setup Defaults

Load Setup Defaults loads the default system values directly from the CMOS Setup
Utility menu (Figure3-1). If the stored record created by the setup program becomes
corrupted and therefore unusable, these defaults will be loaded automatically when
you turn on the computer.

ROM PCI / ISA BIOS (2A69KC39)

CMOS SETUP UTILITY

A WARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

E SC : Quit
F10: Save & Exit Setup

Load SETUP Defaults except Standard CMOS SETUP

Figure 3-8 Load Setup Defaults Screen

INTERGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD

Load SETUP Defaults <Y/N>? N

IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

(Shift) F2 : Color

: Select Item

38

Award BIOS Setup Program

3-7 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the mainboard.

ROM PCI / ISA BIOS (2A69KC39)

INTEGRA TED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
IDE Secondary Master UDMA : Auto
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled
On-Chip Secondary PCI IDE : Enabled

Power On By Keyboard : Disabled
Onboard FDC Controller : Enabled

Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
COM2 Mode : Standard

Onboard Parallel Port : 378/IRQ7
Parallel Port Mode : SPP
USB Keyboard Support : Disabled

ESC : Quit
F 1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-9 Integrated Peripherals Setup Screen

A. On Board IDE Control

IDE HDD Block Mode

Specify the maximum number of sectors that can be transferred at a time.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-

4) for each IDE device that the internal PCI IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device.

On-chip Primary/Secondary PCI IDE

You can set this to disable the On-chip IDE controller if you are going to add
a higher performance IDE board.

39

User's Manual

B. Power On By Keyboard

Set to Disabled to control your computer's power by the button on your system
case. Set this function to Any Key to turn on the computer by touching any key
on the keyboard. If you set this function to Hot Key or Password you must
designate the keystrokes that will turn on the computer. Note that the power
button is always able to turn on the computer regardless of how this function
is set. Be sure to set Jumper 1 as discussed in Section 2-4 of this manual to
enable this function.

If you have forgotten your passord, you must remove the power cable from

@

the ATX power supply connector and clear the CMOS data as discussed in
Section 2-4 to clear the password.

C. COM2 Mode

When this function is Enabled, then the COM port will be redirected to support

IR function.

D. USB Keyboard Support

If your current operating system doesn't support USB drivers (i.e., DOS) this
function must be enabled for USB keyboard operation in these operating systems.

@ When using a USB keyboard this function is automatically Enabled during

bootup regardless of its setting in BIOS.

40

Award BIOS Setup Program

3-8 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are
located under the Security Option function in BIOS Features Setup Menu (Figure
3-3). When the Security Option function is set to Setup, a password is required to
enter BIOS and change BIOS settings. When the Securitiy Option function is set
to System, a password is required to to enter both BIOS and the the computer's
operating system (for example Windows 95) found on the boot drive. This is shown
in Figures 3-10 and 3-11.

The third and fourth variables are user password and supervisor password selected
in BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow
only the supervisor to have control over the settings in BIOS. The user, on the other
hand, is only allowed to access the computer's operating system and change the user
passorword in BIOS (See Figure 3-11 below). Note that when there is no supervisor
password set, the user password controls access to all BIOS settings (See Figure
3-10 below).

A. Set Either Supervisor Password or User Password

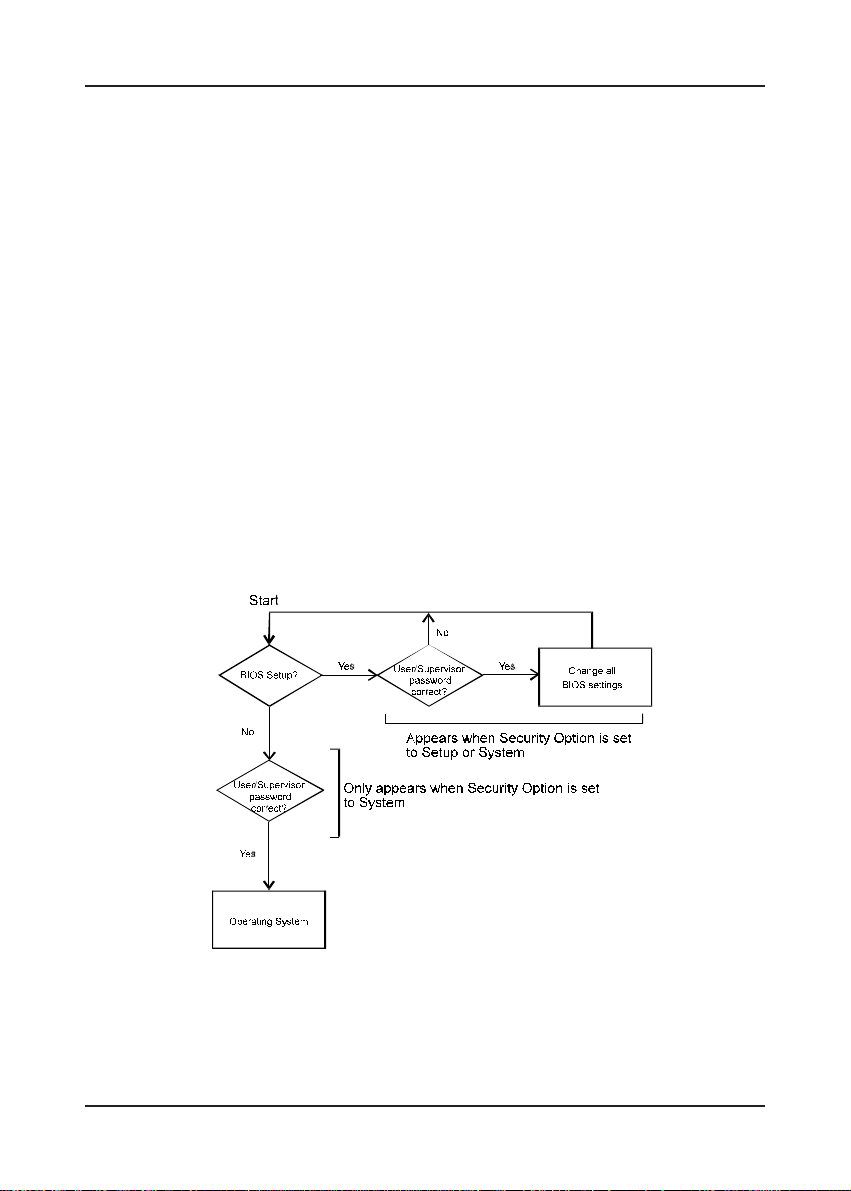

Figure 3-10 Set Either Supervisor or User Password

41

User's Manual

B. Set Both Supervisor Password and User Password

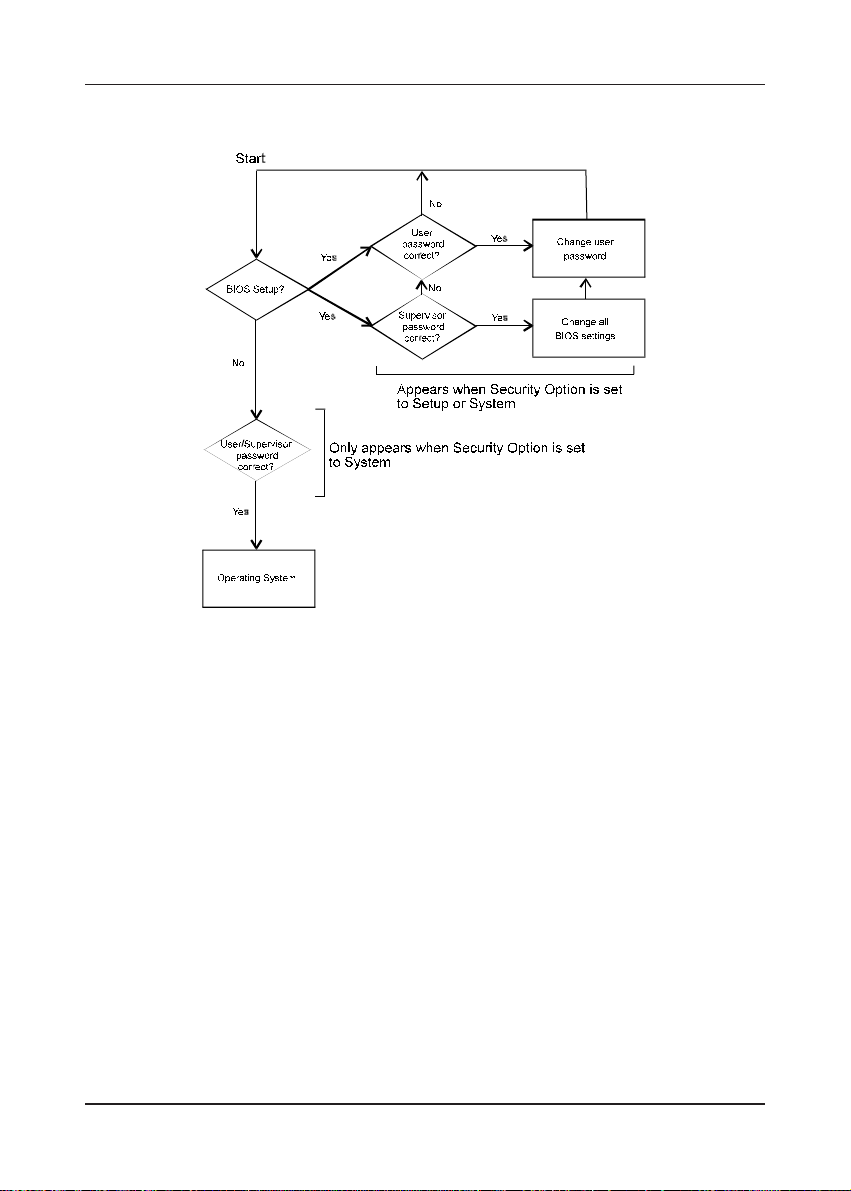

Figure 3-11 Set Both Supervisor and User Password

42

Award BIOS Setup Program

3-9 IDE HDD Auto Detection

This utility can automatically detect IDE hard disk type and parameters. The detection
process take about 5 seconds for each physical drive. After the utility detects the
disk drive, type Y and press [Enter] to automatically load the parameters in the Hard
Disk section of the Standard CMOS Setup menu. Otherwise, leave the option set
at N and press [Enter] or the [Esc] key to skip the detected drive. After detecting
your hard drive(s), return to the Standard CMOS menu to check your settings.

ROM PCI / ISA BIOS (2A69KC39)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master :

Select Primary Master Option (N=Skip) : N

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
2 (Y) 547 530 32 0 1059 63 LBA

1 547 1060 16 65535 1059 63 NORMAL
3 547 530 32 65535 1059 63 LARGE

Note: Some OSes (like SCO-UNIX) must use "NORMAL" for installation

ESC: Skip

Figure 3-12 IDE HDD Auto Detection Screen

3-10 Save and Exit Setup

If you select this and type Y (for yes) followed by the [Enter] key, the values
entered in the setup utilities will be recorded in the CMOS memory of the BIOS
chip.

3-11 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the
Setup program without recording any new values or changing old values.

43

User's Manual

- Memo

44

Brief Software Driver Guide

Chapter 4

Brief Software Driver Guide

The Mainboard Software Guide is found on the CD-ROM that is enclosed with your
mainboard and is a PDF file which must be viewed with Adobe's freeware called
Acrobat® Reader. The Acrobat Reader software is also included on the same CD­ROM. See the Readme.txt file in the CD-ROM's root directory for installation
instructions of the Acrobat Reader. The Mainboard software guide discusses the
following items:

The following items are discussed in the PDF files:

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From the Windows 95 Device

Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface (DMI) Utility

45

Chapter 4

- Memo

46

Introduction

Appendix I

On Board I/O Addresses & IRQ Maps

System Resource IRQ I/O Address

1. Timer IRQ0 040, 043

2. Keyboard IRQ1 060, 064

3. Programmable INT IRQ2 0020, 0021,
00A0, 00A1

4. COM2(B) IRQ3 2F8, 2FF

5. COM1(A) IRQ4 3F8, 3FF

6. Floppy IRQ6 3F0, 3F7

7. LPT1 IRQ7 378, 37F

8. Real Time Clock IRQ8 070, 071

9. PS/2 Mouse IRQ12 060, 064

10.Math coprocessor IR Q1 3 0F0, 0FF

11.IDE 1 I RQ 14 1F0, 1F7

12.IDE 2 I RQ 15 170, 177

@@

@

IRQ 5, 9, 10 and 11 are available for interface cards.

@@

47

User's Manual

- Memo

48

Appendix II

Quick Connector and Jumper ReferenceQuick Connector and Jumper Reference

Quick Connector and Jumper Reference

Quick Connector and Jumper ReferenceQuick Connector and Jumper Reference

CPUFAN/SYSFAN: CPU/System
cooling fan connector

CN1: Chassis intrusion monitoring

connector

CN2: WOL (Wake-on-LAN) Conn.

CN3: Infrared connector

CN8: Creative's SB-Link connector

Link AWE64D with PCI Bus
Mastering

CN10: Front panel connector set

CN11: FAN-II connector (optional)

V.1

##

##

#

SeePU (Jumper free CPU installation) setting table

CPU Type

Pentium II
processor

JP1: Power on by keyboard

1~2 short : Disabled
2~3 short : Enabled

JP6: Clear CMOS data jumper

1~2 short : Normal (default)
2~3 short : Clear CMOS data

JP7: 1~2 short (default)
JP8: Power failure recovery jumper

1~2 short: Disable, 2~3 short: Enable

External Clock Frequency Ratio Internal Clock

66

100

CPU Speed

3.5 233
4 266

4.5 300
5 333

3.5 350
4 400

4.5 450
5 500

6BTM0.1

49

- Memo

50

Appendix III

FAN-II:

The FAN-II upgrade kit provides a PC self-dialogistic capability called the SMART
(System Monitoring and Alerting) technology.

Features

- Detects four on-board voltages (CPU Core Voltage, 3.3V, 5V, 12V)

- Two fan speed sensing

- One precise CPU temperature sensor and one chassis temperature sensor

- Four types of speaker-driver signal output

- Supports Shepherd system monitor software (Optional)

- EISCA v1.0 compliant

SMART

FAN-II

Technology Upgrade Kit

System Monitor Software for Win95

FAN-II Connector

51

- Memo

52
