Chaintech 6AFV 6AFV User Manual

Page 1

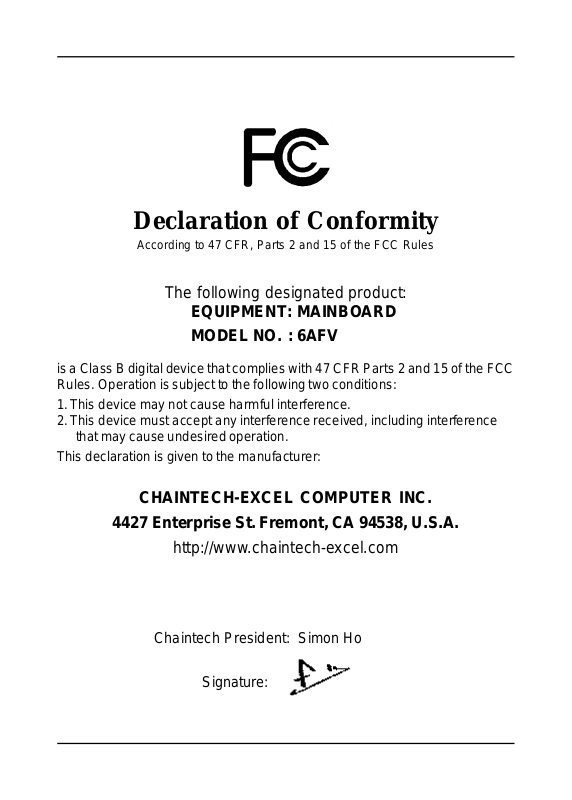

Declaration of Conformity

According to 47 CFR, Parts 2 and 15 of the FCC Rules

The following designated product:

EQUIPMENT : MAINBOARD MODEL NO. : 6AFV

is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This de vice may not cause harmful interf erence.

2. This device must accept any interf erence received, including interf erence that may cause undesired operation.

This declaration is given to the manufacturer:

CHAINTECH-EXCEL COMPUTER INC.

4427 Enterprise St. Fremont, CA 94538, U.S.A.

http://www.chaintech-excel.com

Chaintech President: Simon Ho

Signature:

Page 2

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

M This device may not cause harmful interference

M This device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

M Reorient or relocate the receiving antenna.

M Increase the separation between the equipment and receiver.

M Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

M Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from digital apparatusses set out in the Radio Interference Regulations of the Canadian Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of it's authors. Product names appearing in this document are mentioned for identification purposes only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners.

Printed in Taiwan

April 2001

POST-CONSUMER RECYCLED PAPER

Page 3

Table of Contents

Chapter 1 Introduction........................................................................1

1-1 Product Specifications ..........................................................1

1-2 Package Contents .................................................................3

1-3 Mainboard Layout .................................................................. 4

1-4 Connector and Jumper Reference Chart .............................. 5

Chapter 2 Hardware Setup...................................................................7

2-1 Introduction to Jumpers ........................................................ 7

2-2 Installing a CPU in a Socket 370 ..........................................8

2-3 CPU Jumper Configuration..............................................8

2-4 Connector and Jumper Settings.........................................10

2-5 Main Memory Configuration ................................................19

Chapter 3 Award BIOS Setup Program ........................................... 21

3-1 Standard CMOS Setup........................................................22

3-2 Advanced BIOS Features Setup ........................................25

3-3 Advanced Chipset Setup .................................................... 28

3-4 Integrated Peripherals .........................................................31

3-5 Power Management Setup .................................................. 34

3-6 PnP/PCI Configuration ........................................................37

3-7 PC Health Status ................................................................. 38

3-8 Frequency/Voltage Control..................................................39

3-9 Load Fail-Safe Defaults ....................................................... 40

3-10 Load Optimized Defaults ..................................................... 41

3-11 Supervisor Password & User Password Setting ................42

3-12 Save and Exit Setup ........................................................... 43

3-13 Exit Without Saving .............................................................43

Chapter 4 Brief Software Driver Guide .............................................45

Feature Explanations

Software Power-off Control ........................................................... 10

Over-ride Power Button ................................................................. 11

Blinking LED in Suspend Mode.................................................... 11

Power On By Modem .......................................................10/36

Power On By Alarm .......................................................36

Poly-fuse Over Current Protection ............................................... 12

Wake Up On LAN..........................................................................16

Appendices

Appendix I On Board I/O Addresses & IRQ Maps ...................... 47

Appendix II Embedded Flash Utility ............................................. 49

Appendix III HDD Instant Recovery utility ................................... 51

Page 4

Introduction

Chapter 1

Introduction

1-1 Product Specifications

H Processor

- Supports Intel Socket 370 processors

- System clock 66/100/133MHz

H Chipset

- VIA PLE133 + VT8231 dual chip AGPset

H DRAM Memory

- Two 168-pin DIMM sockets support up to 1GB for SDRAM

- Supports PC100/PC-133 SDRAM

H Expansion Slots

- Two 32-bit PCI slots (Rev 2.2 compliant)

- One ACR slot for ACR card with modem and LAN function

H Boot-Block Flash ROM

- Award System BIOS, supports PnP, APM, DMI, ACPI & Multi-device

booting features i.e. floppy, LS120, CD-ROM, HDD(IDE, SCSI), ZIP-250 etc.

- Includes Trend ChipAway Virus protection for virus-free boot and virus free

operating system

H Embedded Ultra DMA-100 PCI IDE controller

- Supports two IDE ports up to 4 ATAPI devices

- Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps and Multi Word Mode 5 up to 100MBps with bus mastering

- Bus Mastering software drivers for common multi-task operating systems

H Onboard Ultra I/O

- Two UARTs support serial port and IR function

- One parallel supports SPP/ECP/EPP

- One floppy disk drive connector supports up to 2.88MB

H Double Stack Back-Panel I/O Connectors

- PS/2 Mini-DIN keyboard and mouse port

- Two USB ports

- One 9-pin D-SUB male Serial port

- One-15-pin D-SUB female VGA port

- One 25-pin D-SUB female Printer port

- Audio Line-in/out and Mic-in jacks

- One 15-pin D-SUB female Game/MIDI port

Page 5

Chapter 1



Embedded Audio Subsystem AC-link

- Full-duplex operation for simultaneous recording and plackback

- Built-in FM-emulation music synthesizer

- External high quality AC97 CODEC provides 90dB+SNR CD quality audio

- Use wavetable data on the system memory

- Hardware SoundBlaster Pro for Windows DOS box and real-mode DOS legacy compatibility

- Complete software driver support for Win95/98/2000

H Integrated Trident Blade3D AGP Graphics Engine

- 64-bit Single Cycle 2D/3D Graphics Engine

- Supports 2 to 8 Mbytes of Frame Buffer

- Real Time DVD MPEG-2 and AC-3 Playback

- Integrated 24-bit 230MHz True Color DAC

H Embedded System Monitor Hardware

- 5 external voltage inputs (internal detecting)

- 1 temperature sensor with thermistor for CPU

- 2 Fan speed (CPU and System) monitoring with CPU Fan ON/OFF control in

suspend

H Embedded USB Controller

- UHCI compliant USB host controller with Root Hub

- Four USB ports (UHCI v1.0 compliant)

- Optional USB riser with additional 2 USB ports

H Board Dimensions

- Flex-ATX form factor, 230mm x 190mm, 4 Layers

H Advanced Management Features

- Poly-fuse protection for USB and keyboard circuitry

- Complete Data Security:

* Flash BIOS write protection against unauthorized access * Trend ChipAway Virus for a 100% virus free system boot-up * Embbeded Flash Utility to ease BIOS upgrade and eliminate in compatibility with the flash utility version.

- Advanced Management Features:

* Power-on events:

WOL(Wake-on-LAN) network card, Modem ring, RTC Alarm * Software power-off control for Win9x * Over-ride power button * Three states advanced Power-failure recovery * Over-ride power button * Blinking Power-LED in suspend

Page 6

Introduction

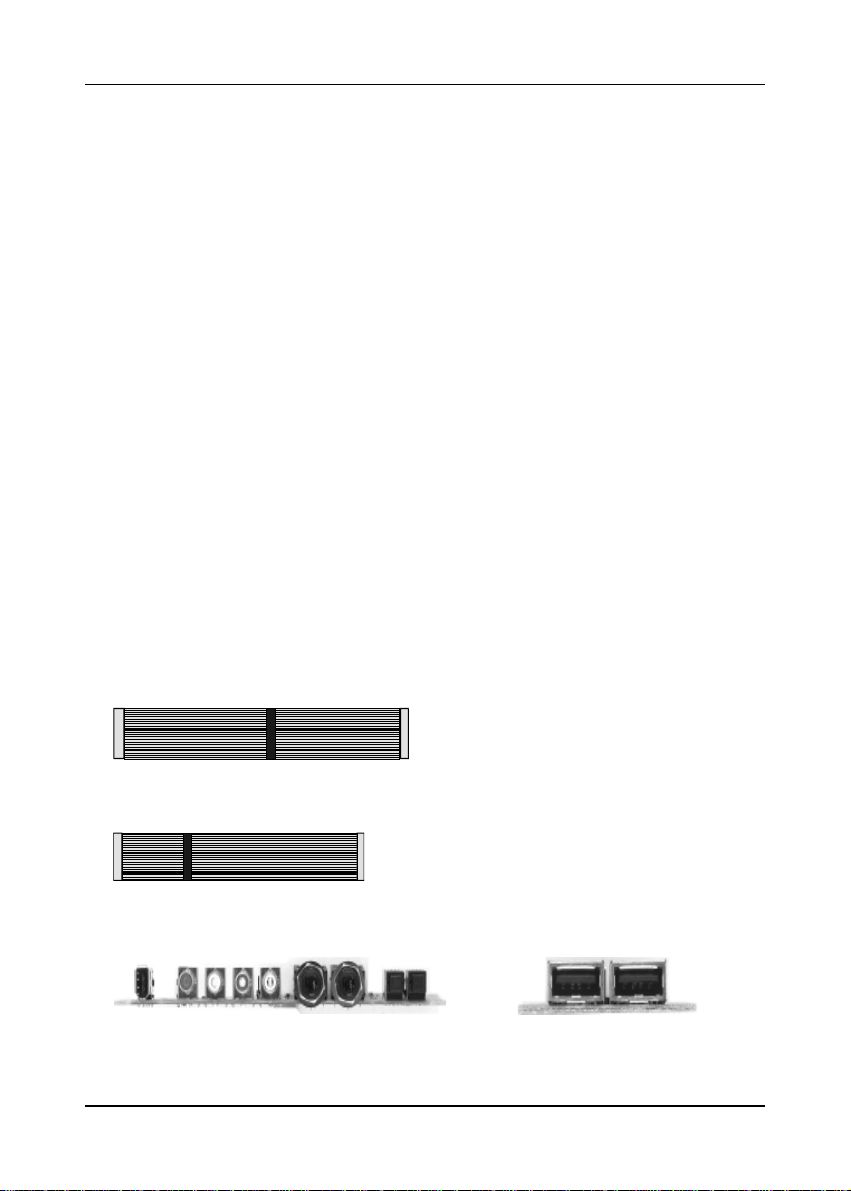

1-2 Package Contents

This product comes with the following components:

H One mainboard H One 40-pin (80-wire) UDMA-66/100 IDE connector ribbon cable (Figure 1-1)

* Color coded connection for UDMA-66/100 cable

Blue to mainboard, Gray to Master and Black to slave

H One 34-pin floppy disk drive ribbon cable (Figure 1-2) H One User's Manual H One CD-ROM that includes

- Award Flash Utility

- Award DMI Utility for DOS

- Trident Blade3D VGA AGP drivers for Win9x/ME, NT4.0, Win2000

- Audio driver and utility for Win9x/ME, NT and Win2000

- VIA Service Pack for Win9x/WinNT including Bus Master IDE drivers, AGP VxD and etc.

- Optional Value Pack 2001 software group including Norton AntiVirus, AutoSave, ADOBE ActiveShare, Acrobat Reader, Imagemore, X-stop, Appio and Ewalla.

Optional Items

H LTI-2 Panel link adapter for LCD/TV-out H Front Panel Audio jack (Figure 1-3)

H USB Port Adaptor (Figure 1-4)

Figure 1-1

Figure 1-2 Standard Floppy cable

Figure 1-3 Front Panel Audio jack

IDE UDMA-66/100 cable

Figure 1-4 USB Port Adaptor

Page 7

Chapter 1

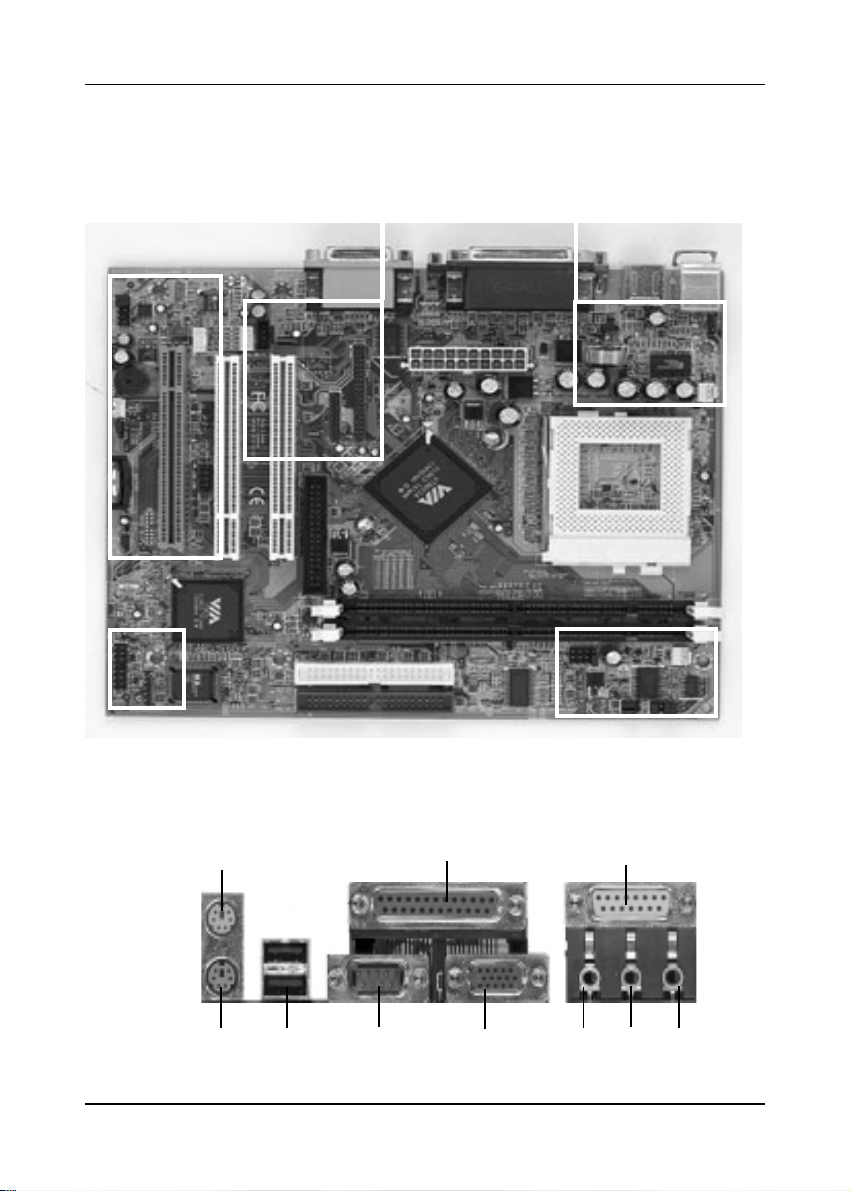

1-3 Mainboard Layout

CN4,CN6,CN14, CN29,JP1,JP9B

CN1,IR4

CN2,CN3, CN19A,CN19B

JP8,JP9A,FAN1

JP4,JP5, JP2A/JP2B,FAN2

PS/2 Keyboard

PS/2 Mouse

USB 0/1

Printer Port Game Port

COM1

VGA Line-out Line-in MIC

Page 8

1-4 Connector and Jumper Reference Chart

Introduction

Jumper &

Connector No.

JP1 Clear CMOS Data 13

JP2A/JP2B External Clock Frequency 8/13

JP4 Frequency Ratio Setting (optional) 8/13

JP5 LCD Type Selector 14

JP8 Power On By Keyboard 14

JP9A Power On By USB 0 &1 14

JP9B Power On By USB 2 & 3 15

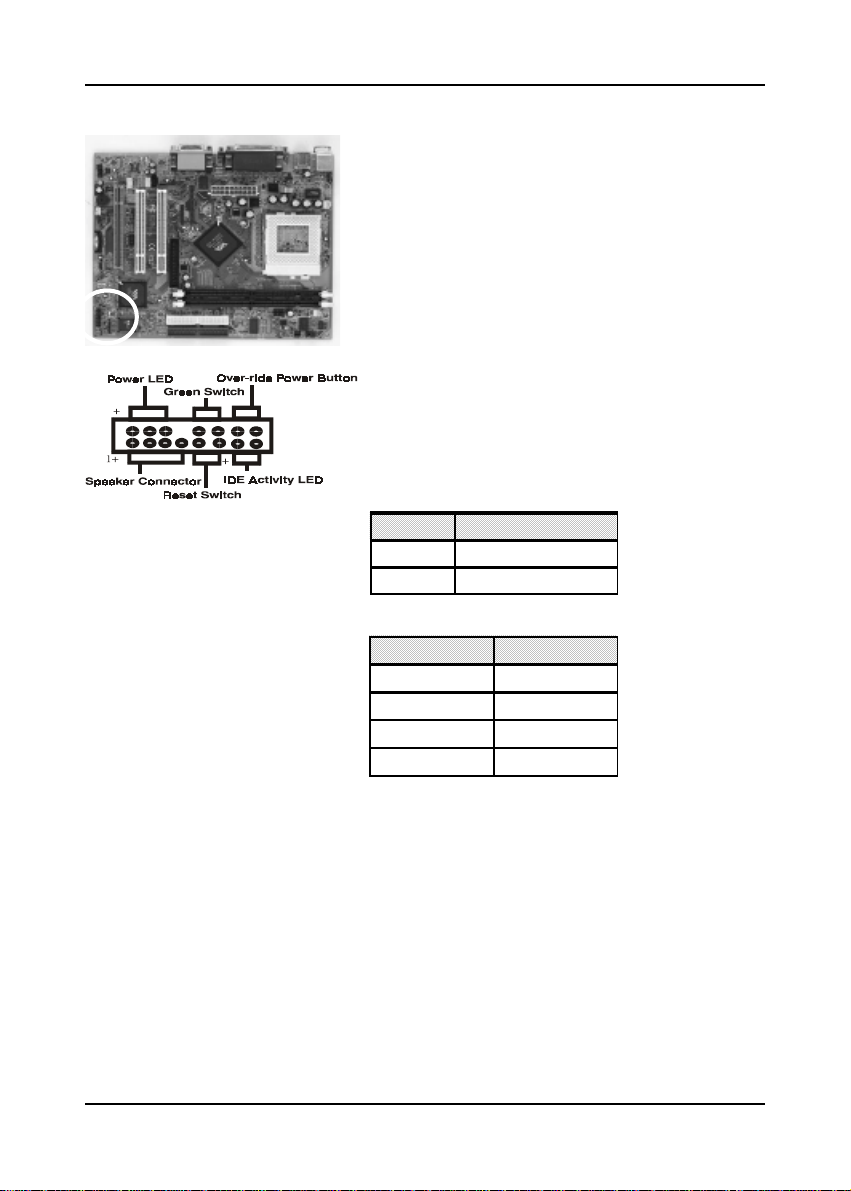

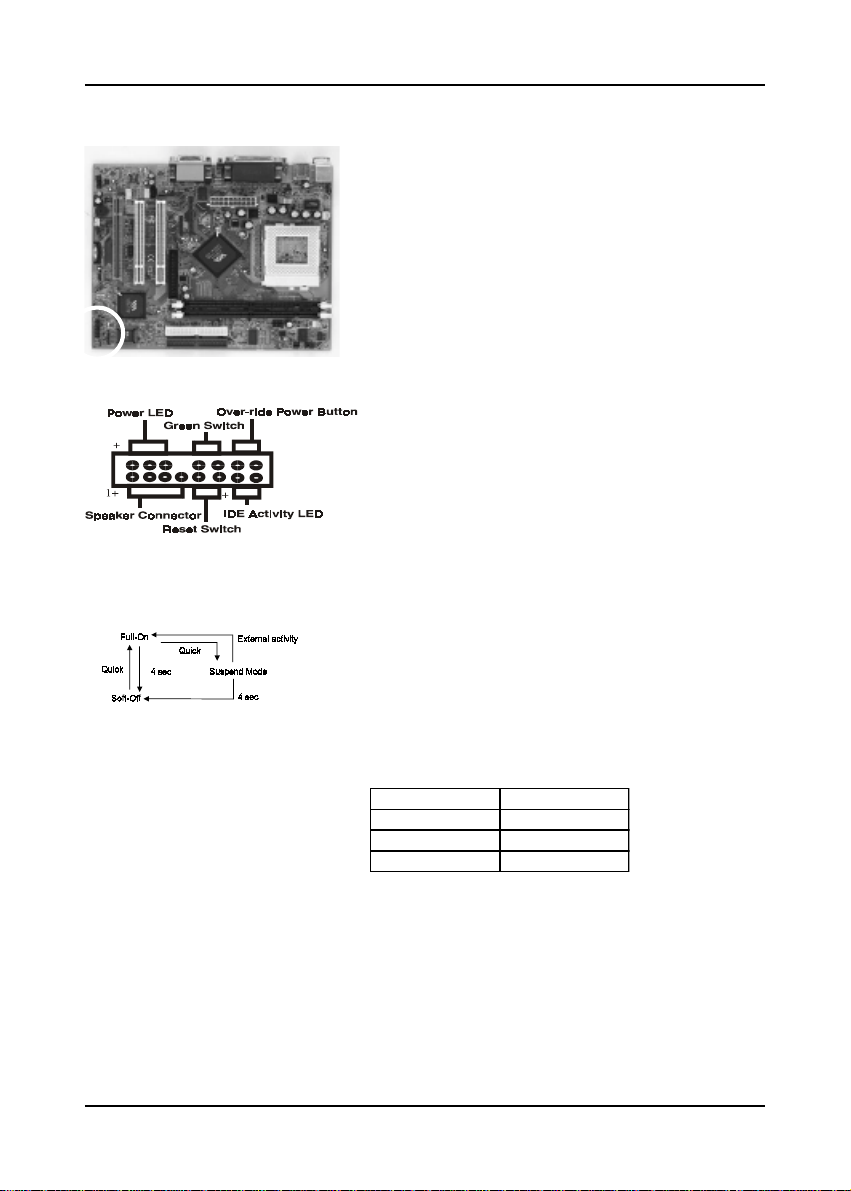

Over Ride Power Button connector 11

Power Indicator LED connector 11

System Reset Switch connector 12

CN1

Speaker connector 12

Green Switch connector 12

IDE Activity LED connector 12

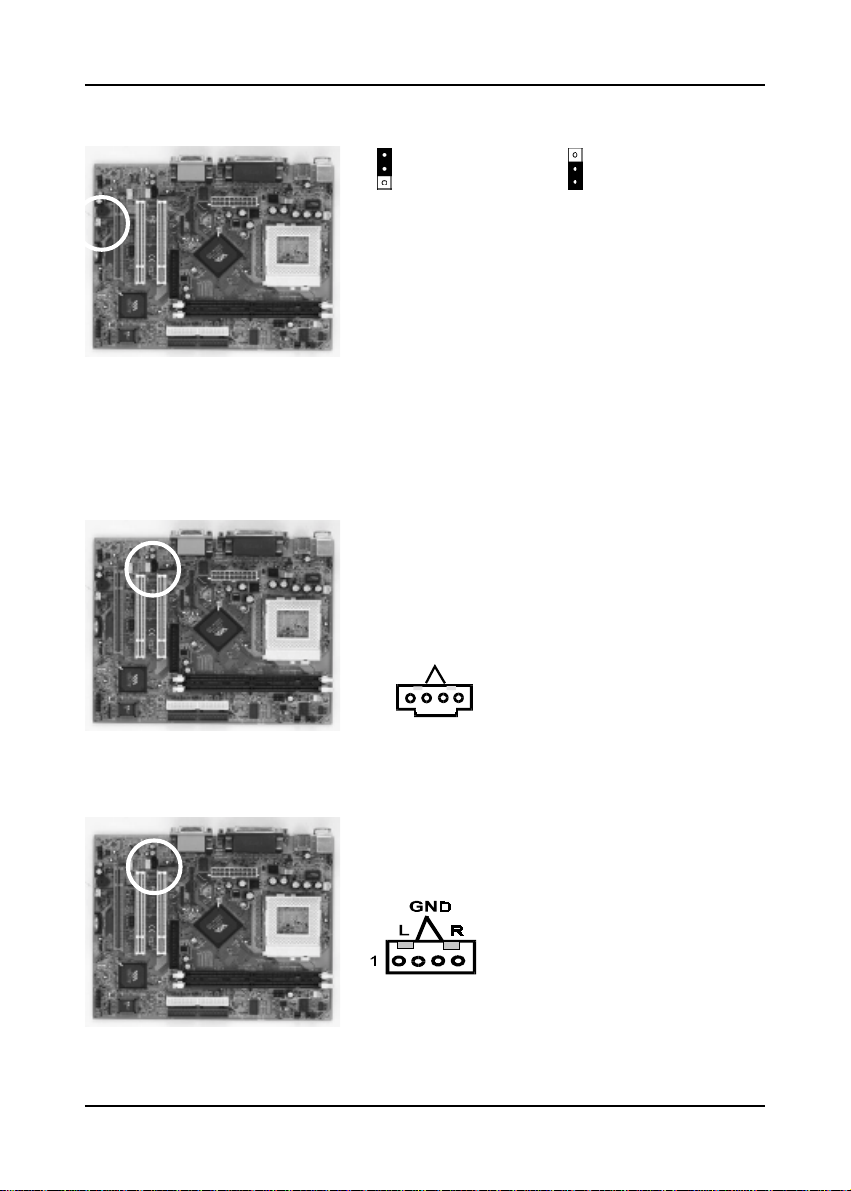

CN2 CD-ROM Audio in connector 15

CN3 Auxilliary Audio-in connector 15

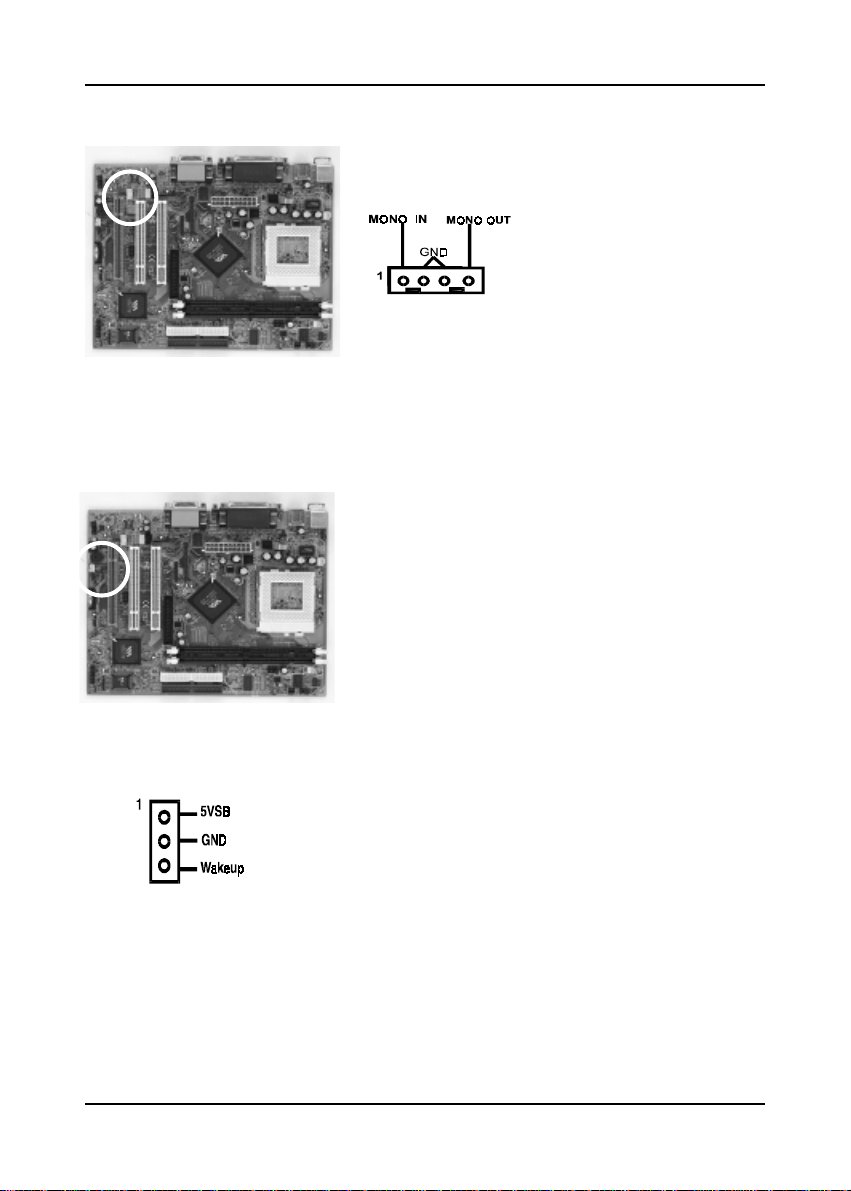

CN4 Audio Mono -in/out Connector 16

CN6 WOL (Wake-on-LAN) connector 16

USB1/CN14 USB 0/1Ports and USB 2/3 Connector 17

CN19A/CN19B Optional TV-Out/DFP Connectors 17

CN29 Front Panel Audio Connector 17

FAN1/FAN2 CPU/System Cooling Fan Connectors 18

IR4 IR & FIR Connector 18

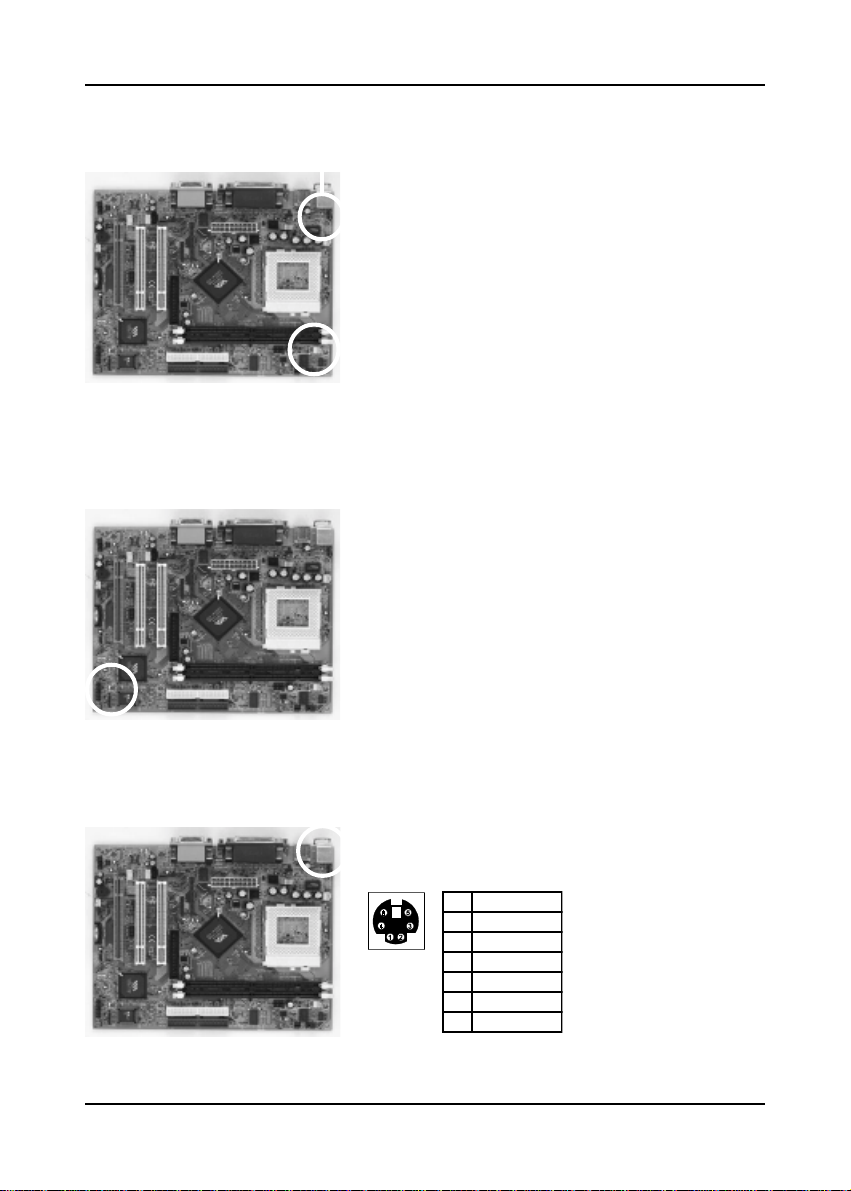

PT1 PS/2 Mouse and Keyboard Ports 18

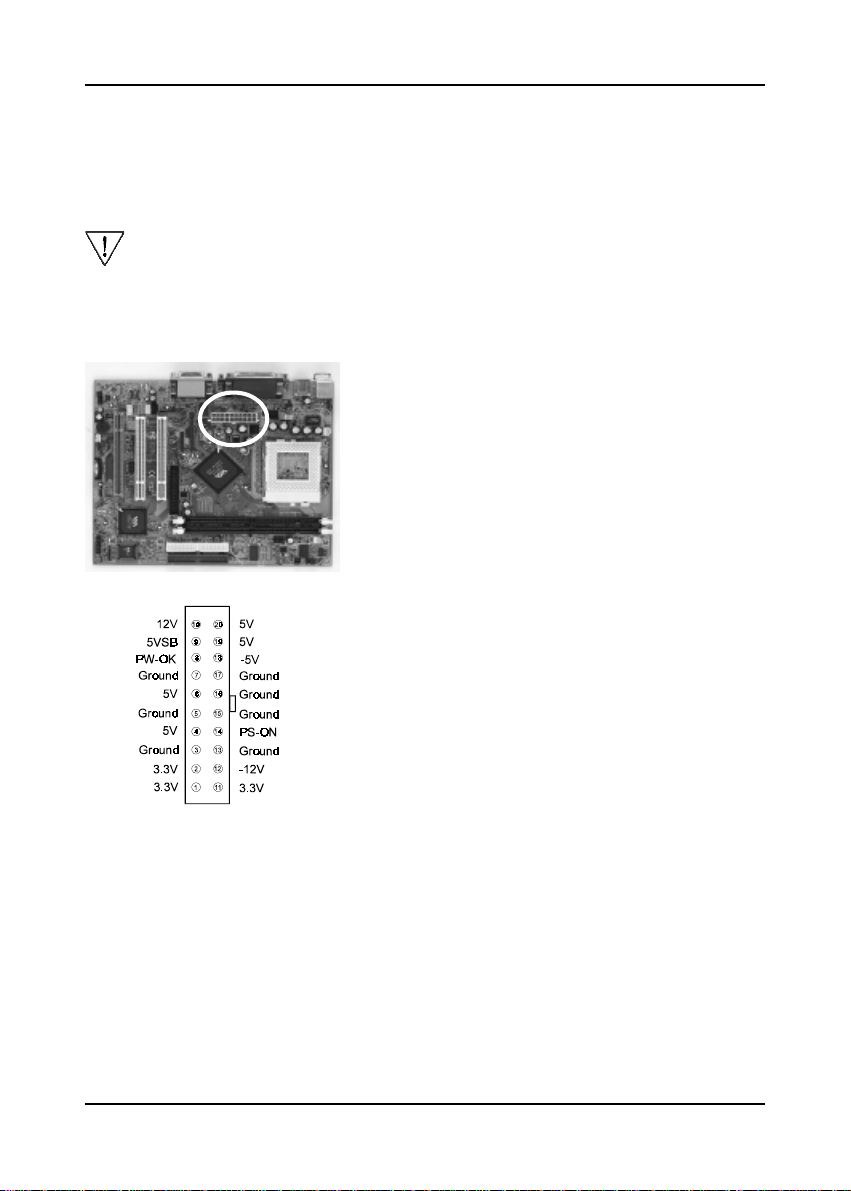

PW1 ATX Power supply connector 10

Function Page

Page 9

Chapter 1

Memo

Page 10

Hardware Setup

Chapter 2

Hardware Setup

If your mainboard has already been installed in your computer you may still need to refer to this chapter if you plan to upgrade your system's hardware.

Be sure to disconnect the power cable from the power source before performing any work on your mainboard, i. e. installing a CPU, memory module, changing a jumper setting, etc. Not doing so may result in electrical shock!

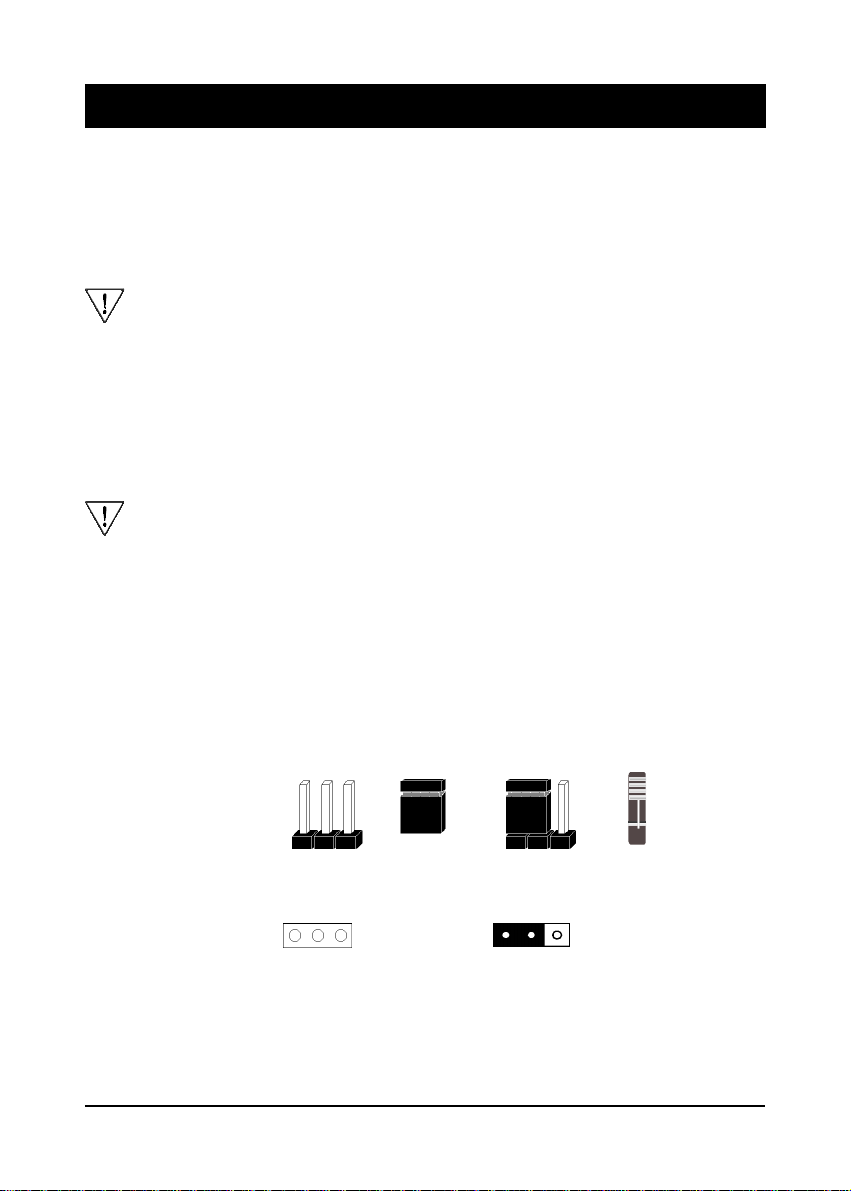

2-1 Introduction to Jumpers

Jumpers are used to select between various operating modes. A jumper consists of a row of gold colored pins that protrude from the surface of the mainboard. It is important not to confuse jumpers with connectors or headers.

Putting jumper caps on anything that is not a jumper may result in damaging your mainboard. Please refer to Section 1-3, Mainboard Layout, for the location of jumpers on your mainboard.

As indicated in Figure 2-1 below, a cap is used to cover the pins of a jumper, resulting in shorting those pins that it covers. If the cap is removed from the top of the pins, the jumper is left "open." The number 1 shown both in the diagram below and in all multiple pin jumper and header diagrams in this manual indicates the pin designated with the number 1. The numbering of the remaining pins follows in sequence.

Pins SettingCap Style 1

A 3-pin jumper

A cap over pin 1 and pin 2 shorts these pins

Figure 2-1Figure 2-1

Figure 2-1

Figure 2-1Figure 2-1

Cap Style 2

Page 11

Chapter 2

2-2 Installing a CPU in a Socket 370

The Intel Socket 370, designed for the Celeron/Coppermine processor, has been incorporated as a standard mainboard specification To insert your CPU into Socket 370 please do the following:

1. Locate a small dot marked on the top surface of the CPU close to one if it's corners. The same corner will also be cut off, leaving a noticeable notch in the CPU's corner. These markings indicate Pin 1 of the CPU.

2. Pull up the lever of Socket 370 so that it is perpendicular with the surface of the mainboard. Gently insert the CPU with Pin 1 at the same corner of Socket 370 that contains the end of the lever. Allow the weight of the CPU to push itself into place. Do not apply extra pressure as doing so may result in damaging your CPU. Snap the lever back into place.

Installing a heat sink with cooling fan is necessary for proper heat dissipation from your CPU. Failing to install these items may result in overheating and possible burn-out of your CPU.

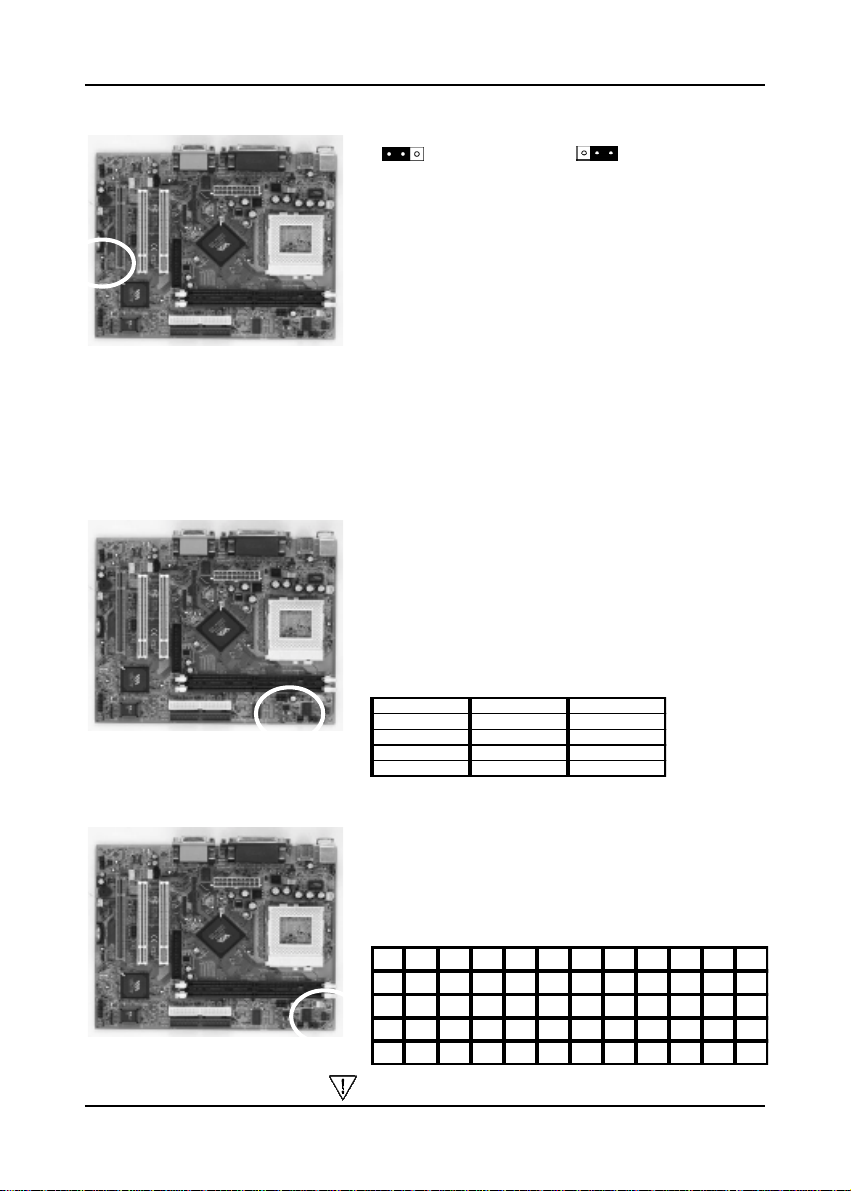

2-3 CPU Jumper Configuration

Frequency Configuration

If you install a CPU on this mainboard, you must set JP2A/JP2B for External Clock Frequency. You can also manually select the Frequency Ratio JP4 (optional) if your

CPU is not frequency locked processors. (See Figure 2-3)

* CPU Speed = Frequency ratio x System Frequency

External Clock Frequency: (Optional) Frequency Ratio Configuration:

FSB JP2A JP2B

Auto 1~2 1~2

66 2~3 2~3 100MHz Open 2~3 133MHz - Open

Figure 2-2

RATIO 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8

SHORT OPEN SHORT OPEN SHORT OPEN SHORT OPEN SHORT OPEN SHORT

OPEN OPEN SHORT SHORT OPEN OPEN SHORT SHORT OPEN OPEN SHORT

SHORT SHORT OPEN OPEN OPEN OPEN SHORT SHORT SHORT SHORT OPEN

SHORT SHORT SHORT SHORT SHORT SHORT OPEN OPEN OPEN OPEN OPEN

Figure 2-3

You do not need to make voltage settings because SeePU automatically sets your CPU voltage.

Page 12

Hardware Setup

Overclocking

Operating a CPU at a higher frequency than it's specification allows is called overclocking. If the CPU frequency is set at a higher frequency than it's specification allows, it may or may not run at that freqency, depending on the quality of your CPU and the extent to which the frequency has been overset. The mainboard manufacturer highly discourages overclocking as it may result in data loss, CPU burn-out, system failure, etc.

Many processors are frequency locked processors and are not able to perform overclocking. Regardless of whether the processor is a frequency locked, overclocking may cause some processors to hang when turning on the system. When the processor hangs, the screen remains blank and the system does not boot. To solve this problem, do the following.

1. Turn off the computer and then press the Home key on your keyboard

2. Turn on your computer, wait for five seconds and then release the Home key. (Pressing the Home key allows the computer to boot at a low system speed.)

3. Enter BIOS and reconfigure your CPU parameters.

Page 13

Chapter 2

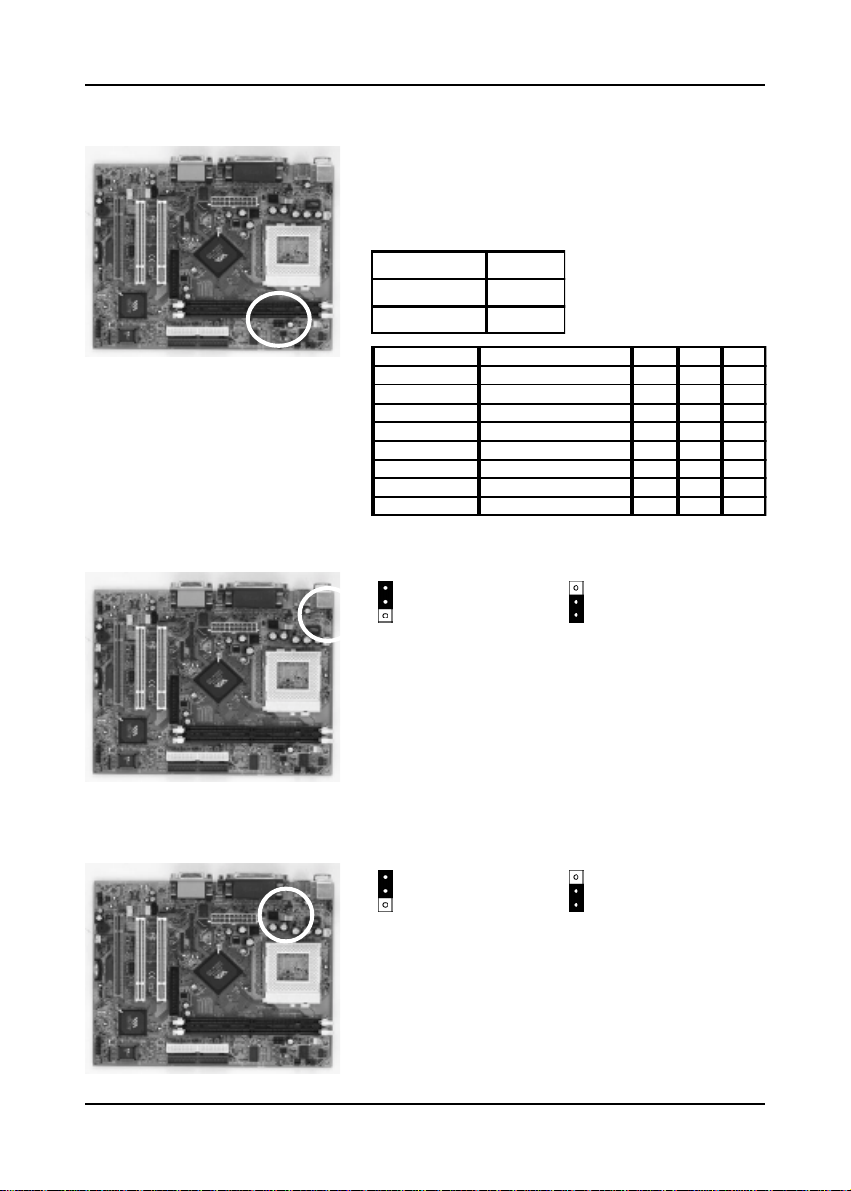

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including the power supply, the keyboard, and the various controllers on the front panel of the system case.

The power supply connector is the last connection to be made while installing a mainboard. Before connecting the power supply, please make sure it is not connected to the power source.

ATX Power Supply Connector (PW1)

The power cord leading from the system's power supply to the external power source must be the very last part connected when assembling a system.

The ATX power supply provides a single 20-pin connector interface which incorporates standard +/

-5V, +/-12V, optional 3.3V and Soft-power signals. The Soft-power signal, a 5V trickle supply is continuously supplied when AC power is available. When the system is in the Soft-Off mode, this trickle supply maintains the system in it's minimum power state.

Software Power-Off Control

This mainboard can be powered down using theWindows 95 Software Power-Off function. To power down your computer, click the START button on the Windows 95 task bar. Select "Shut Down The Computer" and the system turns off. The message "It is now safe to turn off your computer" will not be shown when using this function.

Power-On By Modem

While in Soft-off state, if an external modem ring-up signal occurs, the system wakes up and can be remotely accessed. You may enable this function in BIOS's Power Management Setup menu. (See section 3-5)

Page 14

Front Panel Connector Set (CN1) A through F

A. Over-ride Power Button Connector

The power button on the ATX chassis can be used as a normal power switch as well as a device to activate Advanced Power Management Suspend mode. This mode is used for saving electricity when the computer is not in use for long periods of time. The Soft-OFF by PWR-BTTN function in BIOS's Power Management Setup menu must be set to "Delay 4 Sec." to activate this function. (See section 3-5)

When the Soft-OFF by PWR-BTTN function is enabled, pushing the power button rapidly will switch the system to Suspend mode. Any occurence of external activities such as pressing a key on the keyboard or moving the mouse will bring the system back to Full-On. Pushing the button while in FullOn mode for more than 4 seconds will switch the system completely off. See Over-ride Power Button Operation diagram.

Hardware Setup

B. Power Indicator LED Connector

The power indicator LED shows the system's power status. It is important to pay attention to

Over-ride Power Button Operation

the correct cables and pin orientation (i.e., not to reverse the order of these two connectors.)

Pin Definition

1 +5V DC

2 Not Connected

3 Ground

Blinking LED in Suspend Mode

While in Suspend mode, the LED light on the front panel of your computer will flash. Suspend mode is entered by pressing the Override Power Button, pushing the Green button on your ATX case, or enabling the Power Management and Suspend Mode options in BIOS's Power Management menu. (See section 3-5)

Page 15

Chapter 2

C. Green Switch Connector

Some ATX cases provide a Green switch which is used to put the system in Suspend mode. In Suspend mode, the power supply to the system is reduced to a trickle, the CPU clock is stopped, and the CPU core is in it's minimum power state. The system is woken up whenever the keyboard or mouse is touched. The system resumes in different ways as defined by Power Management Setup screen in BIOS.

D. System Reset Switch Connector

This connector should be connected to the reset switch on the front panel of the system case. The reset switch allows you to restart the system without turning the power off.

Pin Definition

1 System Reset

2 GROUND

E. Speaker Connector

Pin Definition

1 +5V DC

2 No Connection

3 No Connection

4 Speaker Signal

F. IDE Activity LED Connector

The IDE activity LED lights up whenever the system reads/writes to the IDE devices.

Poly-fuse Over Current Protection

The poly-fuse protects the system from dangerous voltages the system might be exposed to via the keyboard or USB connectors. In case of such exposure, the polyfuse will immediately be disconnected from the circuit, just like a normal fuse. After being disconnected for a certain period of time, the poly-fuse will return to its normal state, after which the keyboard or USB can function properly again. Unlike conventional fuses, the poly-fuse does not have to be replaced, relieving the user wasted time and inconvenience.

Page 16

Hardware Setup

Clear CMOS Data (JP1)

1 Normal (default)

To clear the contents of the CMOS, please follow the steps below.

1. Disconnect the system power supply from the power source.

2. Set the jumper cap at location 2~3 for 5 seconds, then set it back to the default position.

3. Connect the system's power and then start the system.

4. Enter BIOS's CMOS Setup Utility and choose Load Setup Defaults. Type Y and press enter.

5. Set the system configuration in the Standard CMOS Setup menu.

External Clock Frequency (JP2A/JP2B)

This jumper allows the system bus frequency to be determined either by CPU or the user. If set both JP2A/JP2B pins to 1-2, the CPU determines the system bus frequency speed. Set both JP2A/JP2B pins to 2-3 for 66MHz FSB, set only JP2B pins to 2-3 for 100MHz FSB and leave both JP2A/JP2B pins open for 133MHz FSB.

FSB JP2A JP2B Auto 1~2 1~2

66 2~3 2~3 100MHz Open 2~3 133MHz - Open

Clear CMOS data

Optional Frequency Ratio Setting (JP4)

This feature allows you to set a CPU at a higher frequency clock ratio than it's specification allows. it may or may not run at that ratio, depending on the quality of your CPU and the extent to which the ratio has been overset.

RATIO 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8

SHORT OPEN SHORT OPEN SHORT OPEN SHORT OPEN SHORT OPEN SHORT

OPEN OPEN SHORT SHORT OPEN OPEN SHORT SHORT OPEN OPEN SHORT

SHORT SHORT OPEN OPEN OPEN OPEN SHORT SHORT SHORT SHORT OPEN

SHORT SHORT SHORT SHORT SHORT SHORT OPEN OPEN OPEN OPEN OPEN

This option will not work with frequency lock CPU.

Page 17

Chapter 2

Optional LCD Type Selector (JP5)

This feature allows you to turn On/Off the LCD function and also let you select the LCD type and resolution setting. See the table below for your LCD type and resolution setting.

LCD On/Off MODE A

LCD OFF 2~3

LCD ON 1~2

LCD TYPE LCD Resolution D C B

TFT 1024x768x18-bit 2~3 2~3 2~3

TFT 1280x1024x18-bit 2~3 2~3 1~2

TFT 800x600x18-bit 2~3 1~2 2~3

TFT 1024x600x18-bit 2~3 1~2 1~2

DSTN 1024x768x16-bit 1~2 2~3 2~3

DSTN 1024x600x24-bit 1~2 2~3 1~2

DSTN 800x600x16-bit 1~2 1~2 2~3

DSTN 1024x768x24-bit 1~2 1~2 1~2

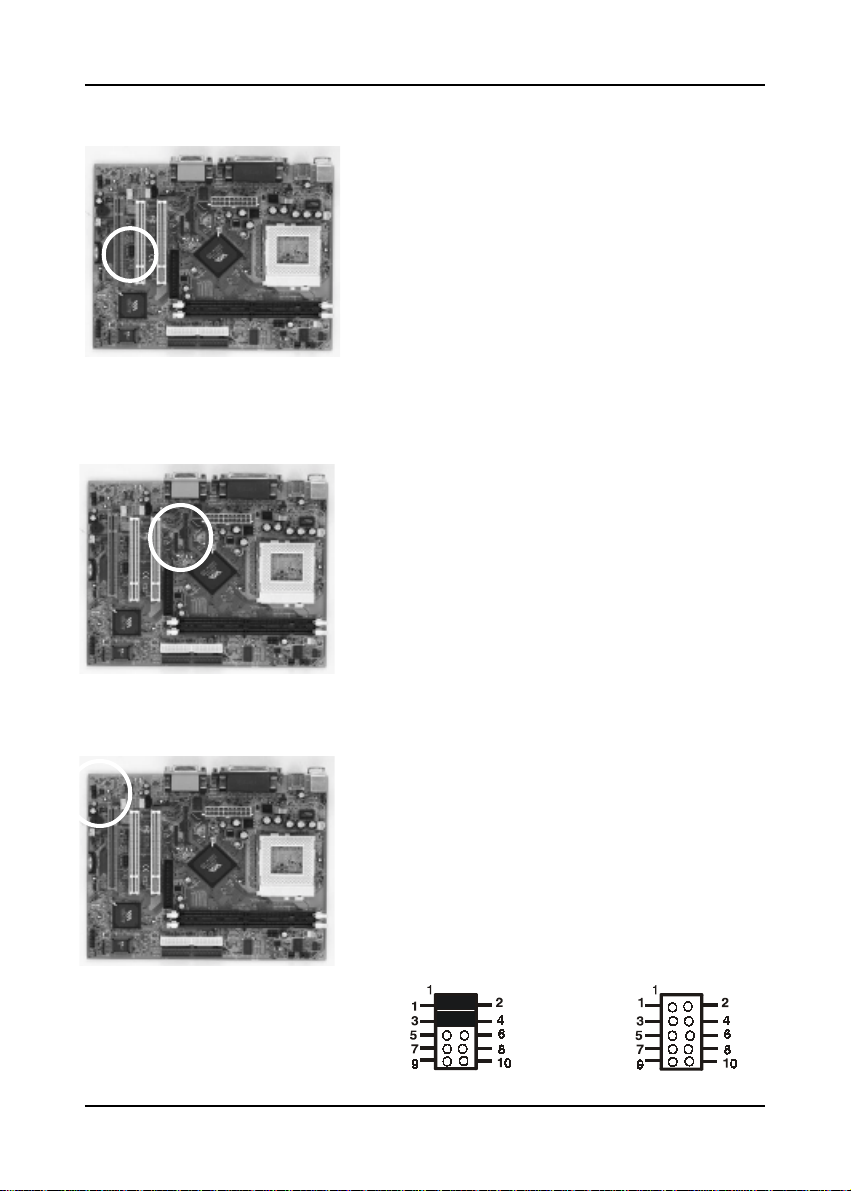

Power On By Keyboard (JP8)

This board is able to be turned on by the PS/2 keyboard (hot key). To use this function, select a hot key of your choice at the PS2KB Wakeup option under Wake Up Events in the BIOS's Power On Management screen. You must also set this jumper's cap to pins 2-3 to use this function.

Power On By USB 0 &1 (JP9A)

1 1

This board is able to be turned on by a USB keyboard hot key or a USB mouse click. To use

this function, select a hot key of your choice at the USB Resume From S3/S4/S5 option under Wake Up Events in the BIOS's Power On Management screen. You must also set this jumper's cap to pins 2-3 to use this function.

Disable

(default)

Disable(default)

Enable

Page 18

Power On By USB 2 & 3 (JP9B)

This board is able to be turned on by a USB keyboard hot key or a USB mouse click. To use

CD-ROM Audio-in (CN2)

Use the audio cable enclosed with your CD-ROM disk drive to connect the CD-ROM to your mainboard. This will enable your CD-ROM's audio function.

Disable(default)

Hardware Setup

Enable

Auxiliary Audio-in (CN3)

GND

This connector is for use with a secondary CDROM, DVD-ROM or CDR/CDRW disk drive.

Page 19

Chapter 2

Audio Mono -in/out Connector (CN4)

This connector is used for Add on Card e.g. modem with Mono In/Out connector

WOL (Wake-on-LAN) Connector (CN6)

Enable the Wake Up On LAN selection in BIOS's Power Management Menu to use this function. The capability to remotely manage PCs on a network is a significant factor in reducing administrative and ownership costs. Magic Packet technology is designed to give WOL (Wake-on-LAN) capability to the LAN controller. When a PC capable of receiving wake up command goes to sleep, the Magic Packet mode in the LAN controller is enabled. When the LAN controller receives a Magic Packet frame, the LAN controller will wake up the PC. This header is used to connect an addin NIC (Network Interface Card) which gives WOL capability to the mainboard. To support this function, a switching power supply with a minimum of 750mA 5VSB standby signal is required.

Page 20

USB 0/1Ports and USB 2/3 Connector (USB1/CN14)

If you want to use a USB keyboard, you must enable the USB keyboard support function in BIOS's Integrated Peripherals menu (See Section 3-4).

This board contains a USB Host controller and includes a root hub with two USB ports (meets USB Rev 1.0 spec.) and a connector for optional USB Adaptor (USB2/3). Four USB peripherals or hub devices are able to be connected.

Optional TV-Out/DFP Connectors (CN19A/CN19B)

The connectors are to be connected to an optional TV-Out/DFP adapter card.

Hardware Setup

Front Panel Audio Connector (CN29)

This connector give you the option to choose between standard audio jack(rear panel) or use a an optional front panel audio jack cable ext. to be plug into a special custom designed system case. To use the standard audio jack short jumper caps to pin1-2 and pin 3-4 (Default). To use the front panel audio jack cable ext., simply removed both jumper caps and plug into the audio jack cable.

Standard Rear Panel Front Panel

Page 21

Chapter 2

CPU/System Cooling Fan Connectors (FAN1/FAN2)

FAN1

FAN2

These added connectors allow the fan to draw their power from the mainboard instead of the disk drive connector.

The board's management extension hardware is able to detect the CPU and system fan speed in rpm (revolutions per minute). These connectors supports 3-pin cooling fans with minimum of 3500 RPM. The wiring and plug may vary depending on the manufacturer. On standard fans, the red is positive (+12V), the black is ground, and the yellow wire is the rotation signal.

IR & FIR Connector (IR4)

If you enable the UART Mode in BIOS's Integrated Peripherals menu the UART port will support IR & FIR functions. (See section 3-4)

PS/2 Mouse and Keyboard Ports (PT1)

If a PS/2 mouse is used, BIOS will automatically detect and assign IRQ12 to the PS/2 mouse.

Pin Definition

1 Data 2 No Connect 3 Ground 4 +5V (fused) 5 Clock 6 No Connect

Page 22

Hardware Setup

2-5 Main Memory Configuration

The DRAM memory system consists two banks and the memory size ranges from 32~512MBytes. If you only use one bank it does not matter which one you use and if you use two or more banks, it does not matter which bank you install first.

DIMM1 Bank0 DIMM2 Bank1

1 256

DRAM Specifications

FSB SDRAM Type SDRAM Type Max Memory

66 FSB+33 10ns or faster

100

133

FSB 10ns or faster

FSB+33 7.5ns or faster

FSB-33 10ns or faster

FSB 7.5ns or faster

/*

DIMM type: 3.3V, 64/72-bit Synchronous DRAM Module size: Single/double-sided 32/64/128/256/512MBytes DRAM speed: 7.5/10ns for Synchronous DRAM Parity: Either parity or non-parity

This mainboard supports 3.3v, unbuffered, 4-clock, SDRAM DIMM only. Buffered, 5V, or 2-clock SDRAM DIMMs should not be used.

Due to loading anomalies, using DIMM with an 'n x 4' DRAM base on this mainboard is not recommended. For example, a DIMM that uses sixteen 16Mb x 4 devices should not be used.

Page 23

Chapter 2

Memo

Page 24

Award BIOS Setup Program

Chapter 3

Awar d BIOS Setup Program

Award's BIOS ROM has a built-in setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM so that it can retain the setup information, even when the power is turned off.

When you turn on or restart the system, press the Delete key to enter the Award BIOS setup program. The primary screen as shown in Figure 3-1 is a list of the menus and functions available in the setup program. Select the desired item and press enter to make changes. Operating commands are located at the bottom of this and all other BIOS screens. When a field is highlighted, on-line help information is displayed on the right side of the screen.

Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configurations PC Health Status

Esc : Qu it F10 : Save & Exit Setup

Figure 3-1 Setup Program Initial Screen

Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup

Exit Without Saving

Time, Date, Hard Disk Type...

: Select Item

Page 25

User's Manual

3-1 Standard CMOS Features

The Standard CMOS Features allows users to configure system components such as hard disk drive, floppy disk drive and video display as well as date, time and boot up error signaling. This configuration menu should be changed when installing a mainboard for the first time, changing hardware in your system such as the HDD, FDD, video display, or when the CMOS data has been lost or contaminated. Choose the Standard CMOS Setup option from the CMOS Setup Utility menu (Figure 3-

1) to display the following screen. When a field is highlighted, on-line help information is displayed on the left bottom edge of the screen.

Standard CMOS Features

Date (mm : dd : yy)

Time (hh : mm : ss)

IDE Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave

Drive A Drive B

Video Halt On

Base Memory Extended Memory Total Memory

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Thu, April 26 2001 17 : 14 : 44

None None None None

1.44M, 3.5 in. None

EGA/VGA All Errors

640K 64512K 65536K

Item Help

Menu Level

Figure 3-2 Standard CMOS Features Screen

Date/Time

Set the date and time. Do not skip this function as all of your timed events such as power management, saving files, etc. are based on this timer.

Hard Disk Setup (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed in the computer. This section does not show information on other IDE devices such as CD-ROM drives or other hard drive types such as SCSI drives.

Page 26

Award BIOS Setup Program

Type (Auto/User/None): Use the fields under the Type column to determine the method you will use to configure the IDE devices. If you choose Auto, BIOS will automatically detect and make optimal settings for most IDE hard drives.

The mainboard manufacturer recommends that you choose Auto for all drives.

Choose User to define your own drive type manually. You must enter values indicated in the table below into each drive parameter field. This information should be included in the documentation from your hard disk vendor or system manufacturer:

TYPE Setting method

CYLS Number of cylinders

HEAD Number of heads

PRECOMP Write precompensation cylinder

LANDZ Landing zone

SECTOR Number of sectors

MODE Mode type

Table 3-1 Hard Disk Drive Parameters

Cyls/Head/Sector: The number of Cylinders, Heads, and Sectors can usually be found

written on the top of the hard disk. If you have a relatively new hard drive, entering this information alone is usually sufficient for normal hard disk operation. The hard disk will not work properly if you enter improper information for these categories.

Precomp: Older hard drives (i.e., MFM or RLL drives) have the same number of sectors per track at the innermost tracks as at the outermost tracks. Thus, the data density at the innermost tracks is higher and the bits are lying closer together. Even though the physical size of a sector gets progressively smaller as the track diameter diminishes, each sector must still hold 512 bytes. Write precompensation circuitry compensates for the difference in sector size by boosting the write current for inner track sectors.

Landz: This defines the address of the landing zone and is only used for older hard drives which do not have an auto-parking feature.

Mode: If the Type value is not None for any device, you must set the Mode value for that device. There are four different Mode values: Auto, Normal, Large, and LBA.

* Auto - BIOS detects and enters the IDE drive type during boot up.

* Normal - for IDE drives that meet the old IDE specification which support

a maximum capacity of 528MB (1024 cylinders, 16 heads, and 63 sectors).

Page 27

User's Manual

* Large - for IDE drives that do not support LBA and have more than 1024 cylinders. Try this setting if your hard disk does not operate properly with the LBA setting. Large mode is not supported by all operating systems, i.e., only certain versions of DOS support large mode.

* LBA - (Large/Logical Block Addressing) With LBA, the IDE controller transforms the data address described by sector, head, and cylinder number into a physical block address, significantly improving data transfer rates. This mode is for drives with greater than 1024 cylinders and between 528MB and

8.4GB in size. This protocol is the current common standard.

Choose None for Type if there are no IDE HDD devices in your system.

You can use the IDE HDD Auto Detection function to auto detect your hard

(

drive parameters. Using this function will automatically insert the parameters discussed under Hard Disk Setup and will indicate User for the Field value. Please see Section 3-9 for more information.

Floppy Disk Drives

Choose the memory capacity and disk size that corresponds with that of your floppy disk drive(s).

Video

Select the type of video adapter present in your system. You can ignore this setting if you are using a VGA monitor since VGA BIOS automatically configures this setting.

Halt

When the system is powered on, BIOS performs a series of diagnosis tests called POST (Power On Self Test). This function stops the computer if BIOS detects a hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt on specific errors.

Page 28

Award BIOS Setup Program

3-2 Advanced BIOS Features

By choosing the Advanced BIOS Features option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

Advanced BIOS Features

Anti-Virus Protection CPU Internal Cache External Cache CPU L2 Cache ECC Checking Processor Number Feature Quick Power On Self Test First Boot Device Second Boot Device Third Boot Device Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status

T ypematic Rate Setting X Typematic Rate (Chars/Sec) X T ypematic Delay (Msec)

Security Option

OS Select (For DRAM > 64MB)

HDD S.M.A.R.T . Capability

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Disabled Enabled Enabled Enabled Enabled Enabled Floppy HDD-0 LS120 Enabled Disabled Enabled On Disabled 6 250 Setup Non-OS2 Disabled

Menu Level

Figure 3-3 Advanced BIOS Features Screen

A. Anti-Virus Protection

Trend ChipAway Virus

Trend ChipAway Virus is a code incorporated in the mainboard's BIOS firmware. During the boot-up sequence, BIOS loads before loading of the partition table or boot sector. ChipAway Virus loads with BIOS and is able to detect bootup viruses before they have a chance to infect the hard drive. ChipAway Virus employs rule-based logic that doesn't look for specific viruses but rather detects patterns found in every virus, eliminating the need to perform periodical version updates after new viruses have been found.

Item Help

Page 29

User's Manual

B. Cache Control

CPU Internal Cache/External Cache

Cache memory is much faster than conventional DRAM system memory. These fields allow you to enable or disable the CPUs Level 1 built-in cache and Level 2 external cache. Both settings are left enabled to significantly increase the performance of your computer.

C. Boot Up Features

After turning on the system, BIOS will perform a series of device initialization and diagnostic tests discussed below.

Quick Power On Self Test (POST)

Enable this function to reduce the amount of time required to run the POST (Power On Self Test). BIOS saves time by skipping some items during POST. It is recommended that you disable this setting. Discovering a problem during boot up is better than loosing data during your work.

First/Second/Third/Boot Other Device

This option sets the sequence of drives BIOS attempts to boot from after POST completes. BIOS will search these drives for an operating system.

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A will function as drive B, and drive B will function as drive A. Note that the boot sequence assignment mentioned directly above does not include booting from floppy drive B. This function is useful if floppy drives B and A are of a different format and you want to boot from floppy drive B.

Boot up Floppy Seek

During POST, BIOS will determine if the installed floppy disk drive has 40 or 80 tracks. A 360K drive has 40 tracks and 720K, 1.2M and 1.44M drives have 80 tracks. All modern floppy disk drives have 80 tracks.

Boot Up NumLock Status

This function defines the keyboard's number pad as number keys or arrow keys.

D. Keyboard Interface

Typematic Rate Setting

When enabled, you can set the following two typematic control items. When disabled, keystrokes are determined arbitrarily by the keyboard controller in your system.

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when a key is pressed and held down.

Page 30

Award BIOS Setup Program

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins repeating.

E. Security Option

The Supervisor and/or User Password functions shown in Figure 3-1 must be set to take advantage of this function. See Section 3-11 for password setting information. When the Security Option is set to System, a password must be entered to boot the system or enter the BIOS setup program. When the Security Option is set to Setup, a password is required to enter the BIOS setup program.

F. OS Select (For DRAM >64MB)

If your system's DRAM is larger than 64MB and you are running OS/2 , select OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other operating systems.

G. HDD S.M.A.R.T. Capability

S.M.A.R.T. or Self-Monitoring, Analysis, and Reporting Technology enables a drive's internal status to be monitored through diagnostic commands. Both your hard drive must support this capability and this function must be enabled in order to take advantage of this function. See your hard drive literature for more information.

H. Shadow Memory

Software such as system BIOS, video BIOS, SCSI BIOS, etc that resides in ROM (Read Only Memory) chips is called firmware. Shadowing of firmware occurs when BIOS is copied to RAM address C0000h through DFFFFh. Video BIOS loads into the C0000-C7FFF memory area when video shadowing is enabled. If an expansion peripheral in your system contains ROM-based firmware, you need to know the address range the ROM occupies to shadow it into the correct area of RAM. Shadowing improves the firmware's performance because the firmware can be read by the CPU through the 16- or 32-bit DRAM bus as opposed to the 8-bit XT bus. However, shadowing also results in reducing the amount of high memory (640 KB to 1 MB) for loading device drivers. Shadowing is used mostly for ROM chips on ISA cards and not for PCI cards. Shadowing and playing games at the same time may result in system instability as some games access the RAM memory area being shadowed.

I. HDD Instant Recovery

This board supports HDD Instant Recovery, select enabled to use this function. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Selet Install or Do Not Install to continue booting. (See Appendix III)

Page 31

User's Manual

3-3 Advanced Chipset Features

By choosing the Advanced Chipset Features option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

Advanced Chipset Features

DRAM Clock/Drive Control AGP & P2P Bridge Control CPU & PCI Bus Control Memory Hole System BIOS Cacheable Video RAM Cacheable Flash BIOS Protection Memory Parity/ECC Check

Press Enter Press Enter Press Enter Disabled Disabled Disabled Disabled Disabled

Item Help

Menu Level

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

Figure 3-4 Chipset Features Setup Screen

All of the above settings have been determined by the mainboard manufacturer

and should not be changed unless you are absolutely sure of what you are

doing. Explanation of the DRAM timing and chipset features setup is lengthy,

highly technical and beyond the scope of this manual. Below are abbreviated

descriptions of the functions in this setup menu. You can look on the world

wide web for helpful chipset and RAM configuration information including

AWARD's web site at http://www.award.com.

A. DRAM Clock/Drive Control

DRAM Timing By SPD

The function allows you to enable or disable the DRAM timing by SPD. When Disabled, you can select the DRAM Clock, SDRAM Cycle Length and Bank Interleave configuration.

SDRAM Cycle Length

When synchronous DRAM is installed, the number of the clock cycles of CAS latency depends on the DRAM timing. Do not reset this setting from the default value specified by the system designer.

Page 32

Award BIOS Setup Program

B. AGP & P2P Bridge Control

AGP Aperture Size

This function determines the amount of system memory that is given to the AGP card. Options range from 4MB to 128MB. This is a dynamic memory allotment in that the AGP card will only use the amount of memory that it needs. The remaining memory not in use will be available for the system to use. For example, if 16MB is alloted to the AGP card and the card only needs 8MB, the remaining 8MB will be available for system use.

C. CPU & PCI Bus Control

CPU to PCI Write Buffer

When Enabled, CPU to the PCI bus are buffered, to compensate for the speed differences between the CPU and the PCI bus.

PCI Dynamic Bursting

When Enabled, every write transaction goes to the write buffer. Burstable transactions then burst on the PCI bus and nonburstable transactions do not.

PCI Master 0 WS Write

When Enabled, writes to the PCI bus are executed with zero wait states.

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

D. Memory Hole at 15M-16M

Enabling this function will reserve the memory address space between 15MB and 16MB for ISA expansion cards. However, enabling this function will result in not allowing the system to have access to memory above 16MB. Please note that some expansion cards require this setting to be enabled. The default setting is Disabled. If Auto Configuration is enabled, you must set the DRAM timing function to 60ns or 70ns, depending on the type of DRAM you install.

E. System BIOS Cacheable

Enabling this function allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. Caching the system BIOS results in better performance than shadowing the system BIOS as discussed in Section 3-2.

Page 33

User's Manual

F. Video RAM Cacheable

Enabling this function will allows caching of the video RAM, resulting in better system performance. However, if any programs write to this memory area, a system error may occur.

G. Flash BIOS Protection

The mainboard manufacturer developed BIOS protection technology that protects the System BIOS from accidental corruption by unauthorized users or computer viruses. When enabled, the BIOS data cannot be changed when attempting to update BIOS with the FLASH utility. When disabled, the BIOS data can be updated by using the FLASH utility.

H. Memory Parity/ ECC Check

This mainboard support the Parity / ECC checking function. If you select"Enabled" in this field, it will detect the memory parity and Error Checking & Correcting.

Page 34

Award BIOS Setup Program

3-4 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

Integrated Peripherals

VIA OnChip IDE Device VIA OnChip PCI Device VIA SuperIO Device Init Display First Frame Buffer Size OnChip USB USB Keyboard Support IDE HDD Block Mode

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Press Enter Press Enter Press Enter PCI Slot 8M Enabled Disabled Enabled

Item Help

Menu Level

Figure 3-5 Integrated Peripherals Screen

A. VIA OnChip IDE Device

OnChip IDE channel 0/1

You can set this to disable the OnChip IDE controller if you are going to add a higher performance IDE board.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-

4) for each IDE device that the internal PCI IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.

Page 35

User's Manual

B. VIA OnChip PCI Device

VIA-3058 AC97 Audio

This feature allows you to enable the on-board audio function.

VIA-3068 MC97 Modem

This feature allows you to enable the on-board modem function.

VIA OnChip LAN

This feature allows you to enable the on-board LAN function

Onboard Legacy Audio

This feature allows you to enable the on-board audio function.

C. VIA Super IO Device

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field.

Onboard Serial Port

This function allows you to select a logical serial port address and corresponding interrupt for the physical serial port.

Onboard Parallel Port

Select a logical LPT port address and corresponding interrupt for the physical parallel port.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select SPP unless you are certain your hardware and software support one of the other available modes.

On Board FIR Select

This function allows you to select an IRQ for the FIR(Fast Infrared) port.

D. Init Display First

This function allows user to choose between PCI slot or Onboard to initialize Display first .

E. OnChip USB

Enable the on-board Universal Serial Bus (USB) controller if you want to connect a USB keyboard to your system. Note that if this setting is disabled, you can still temporarily use a USB keyboard during bootup so that you can enter BIOS and enable this setting. If you pass the bootup stage without enabling this function, your PS/2 keyboard will no longer work.

Page 36

Award BIOS Setup Program

F. USB Keyboard Support

Select Enabled if your system has a USB keyboard installed on the system board. If your system has no USB keyboard, select Disabled in this field.

G. IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode, select Enabled to autodetect the optimal number of block read/writes per sector the drive can support.

Page 37

User's Manual

3-5 Power Management Setup

This section provides information on the Green PC power management functions. By choosing the Power Management Setup option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard

Power Management Setup

ACPI function

Power Management ACPI Suspend Type Video Off Option Video Off Method MODEM Use IRQ Soft-Off by PWRBTN State After Power Failure

Wake Up Events

Enabled Press Enter S1(POS) Suspend -> Off DPMS Support 3 Delay 4 Sec Off Press Enter

Item Help

Menu Level

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

Figure 3-6 Power Management Setup Screen

A. Advanced Configuration Power Interface (ACPI)

ACPI management enables the operating system to control the amount of power given to each device attached to the computer. With ACPI, the operating system can turn off peripherals devices, such as CD-ROM players, when they are not in use.

B. Power Management

Power management allows the computer to save electricity when it is not in use by entering increasingly deep power saving modes as shown by the diagram below.

HDD Power Down

When the HDD idle time has elapsed, BIOS sends a command to the hard disk to turn off the motor. Set a time between 1 and 15 to indicate time required to wait before the hard drive enters a power saving mode. Some old hard drives may not support this function.

Page 38

Award BIOS Setup Program

Suspend Mode

The Power Management function must not be set to disabled to enable this function. If the system runs in Standby mode and the Suspend timer expires, all devices regulated by power management will shut off and the CPU speed will be 0 MHz.

C. Video Off Option

This setting allow you to selects the power-saving modes during which the monitor goes blank.

D. Video Off Method

This function serves as both a screen saver and power saver for monitors. See the next function, Video Off After, for setting the video timer.

Blank - BIOS will only blank the monitor's screen. The electricity saved in this mode is negligible and this function is only used as a screen saver to prevent screen damage while the screen is on but not in use. V/H SYNC+Blank - The system turns off the vertical and horizontal synchronization ports, writes blanks to the VGA buffer and the monitor's electron gun turns off. This function requires a monitor with Green features in order to take advantage of the power saving function. If you enable this function and

do not have a Green monitor, the result will be the same as if you had

selected Blank. This function serves as both a screen saver and an electricity saver.

DPMS Supported - Select this option if your video card supports the Display Power Management Signaling (DPMS) standard (i.e., you have a monitor that supports Green features). Use software supplied by your video subsystem to set video power management options.

E. Modem Use IRQ

If your computer has an modem, use this function to tell BIOS which IRQ is being occupied by the modem card. When the system is in Green mode, the modem requires an IRQ assignment to wake up the system and perform tasks. This assignment is compliant with the APM 1.2 specification and is to be used in coordination with APM 1.2 compliant operating systems.

F. Soft-Off by PWR-BTTN

When set to Delay 4 Sec., this function allows the power button to put the system in Suspend, a power saving mode. See Section 2-4 for operation instructions of the override power button operation which puts the system in Suspend mode. When set to Instant-Off the Soft-Off by PWR-BTTN function is disabled and the computer turns completely off when the power button is pressed.

Page 39

User's Manual

G. Wake Up Events

Power On By PCI Card

When enabled, a PCI card that receives a signal will wake up the system from soft off and green mode.

Power On By Modem

When enabled, a modem that receives a signal will wake up the system from soft off and green mode. You should connect the modem to the COM port and turn on the resume event in green mode.

Power On By Alarm

When enabled, this setting allows the system to turn back on at a designated time of the month. User must designate date of month and time of day. This function is only available when using an ATX power supply and the Software Power-Off function to turn off the computer. See the Software Power-Off feature in Section 2-4 of this manual for instructions.

Page 40

Award BIOS Setup Program

3-6 PNP/PCI Configuration

This section provides IRQ and DMA setting information. By choosing the PNP/ PCI Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

PnP/PCI Configurations

PNP OS Installed Reset Configuration Data

Resources Controlled By X IRQ Resources X DMA- Resources

No Disabled

Auto(ESCD) Press Enter Press Enter

Item Help

Menu Level

PCI/VGA Palette Snoop

Assign IRQ For VGA

Assign IRQ For USB

Slot 1 Use IRQ No.

Slot 2 Use IRQ No.

FDD IRQ Can Be Free

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Disabled Enabled Enabled Auto Auto Yes

Figure 3-7 PnP/PCI Configurations Screen

A. PNP OS Installed

If you want to install a PNP compatible OS(such as Windows 95) set to Yes.

B. Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA information. Instead, it will refer to the items in the setup menu for assigning IRQ & DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy information.

ESCD (Extended System Configuration Data) provides a detailed format of the configuration data structures stored in flash memory. Each data structure defines the resources used by a device or a card in the system. This includes legacy and PCI/ISA PnP devices.

C. FDD IRQ Can Be Free

This function allows user to choose if the FDD IRQ is able to be freed up. The default setting is Yes and this does not allow the IRQ to be free.

Page 41

User's Manual

3-7 PC Health Status

By choosing the PC Health Status option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

PC Health Status

CPU Fan Speed SYS Fan Speed 12V 5V

2.5V Vcore Internal Vcc

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

4500 RPM 4500 RPM

12.16V

5.05V

2.48V

1.75V

2.45v

Item Help

Menu Level

Figure 3-8 PC Health Status Screen

This field shows you the current system temperature/external voltages input and the current CPU FAN and System FAN operating speed.

Page 42

Award BIOS Setup Program

3-8 Frequency/Voltage Control

By choosing the Frequency/Voltage Control Setup option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

Frequency/V oltage Control

Spread Spectrum Clock By Slight Adjust

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3-9 Frequency/Voltage Control Screen

+/-0.35% 100

Item Help

Menu Level

A. Spread Spectrum

This function allows you to select a pulse value of the clock generator to lower EMI by spreading the system frequency spectrum. When the system clock generator pulses, the extreme values of the pulse generate excess EMI. Enabling pulse spectrum spread modulation changes the extreme values from spikes to flat curves, thus reducing EMI. This benefit may in some cases be outweighed by problems with timing-critical devices, such as a clock-sensitive SCSI device. BX

C. Clock By Slight Adjust

This field allows you to select a subtle speed of the CPU Front Side Bus for overclocking posibility.

Page 43

User's Manual

3-9 Load Fail-Safe Defaults

Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS Setup Utility menu (Figure3-1). If the stored record created by the setup program becomes corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer.

Standard CMOS Features

Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configur PC Health Status

Esc : Qu it F10 : Save & Exit Setup

Load Fail-Safe Defaults (Y/N) ? N

Figure 3-10 Load Fail-Safe Defaults Screen

Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Setup

Saving

Load Fail-Safe Defaults

: Select Item

Page 44

Award BIOS Setup Program

3-10 Load Optimized Defaults

Load Optimized Defaults loads the default system values directly from the CMOS Setup Utility menu (Figure3-1). If the stored record created by the setup program becomes corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer.

Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configur PC Health Status

Esc : Quit F10 : Save & Exit Setup

Load Optimized Defaults (Y/N) ? N

Figure 3-11 Load Optimized Defaults Screen

Frequency/Voltage Control Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Setup

Saving

: Select Item

Load Optimized Defaults

Page 45

User's Manual

3-11 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are located under the Security Option function in BIOS Features Setup Menu (Figure 3-1). When the Security Option function is set to Setup, a password is required to enter BIOS and change BIOS settings. When the Security Option function is set to System, a password is required to enter both BIOS and the computer's operating system (for example Windows 98) found on the boot drive. This is shown in Figures 3-12 and 3-13.

The third and fourth variables are user password and supervisor password selected in BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow only the supervisor to have control over the settings in BIOS. The user, on the other hand, is only allowed to access the computer's operating system and change the user password in BIOS (See Figure 3-13 ). Note that when there is no supervisor password set, the user password controls access to all BIOS settings (See Figure 3-12 below).

A. Set Either Supervisor Password or User Password

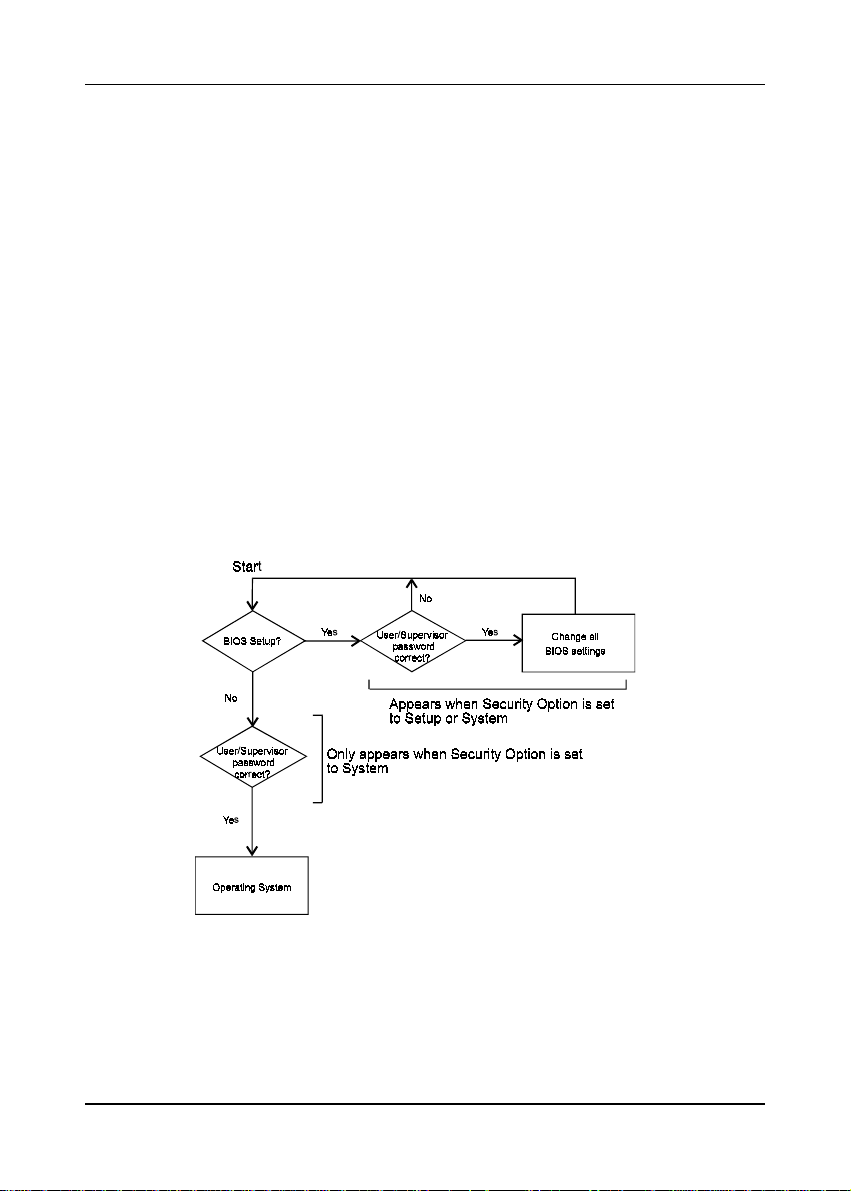

Figure 3-12 Set Either Supervisor or User Password

Page 46

Award BIOS Setup Program

B. Set Both Supervisor Password and User Password

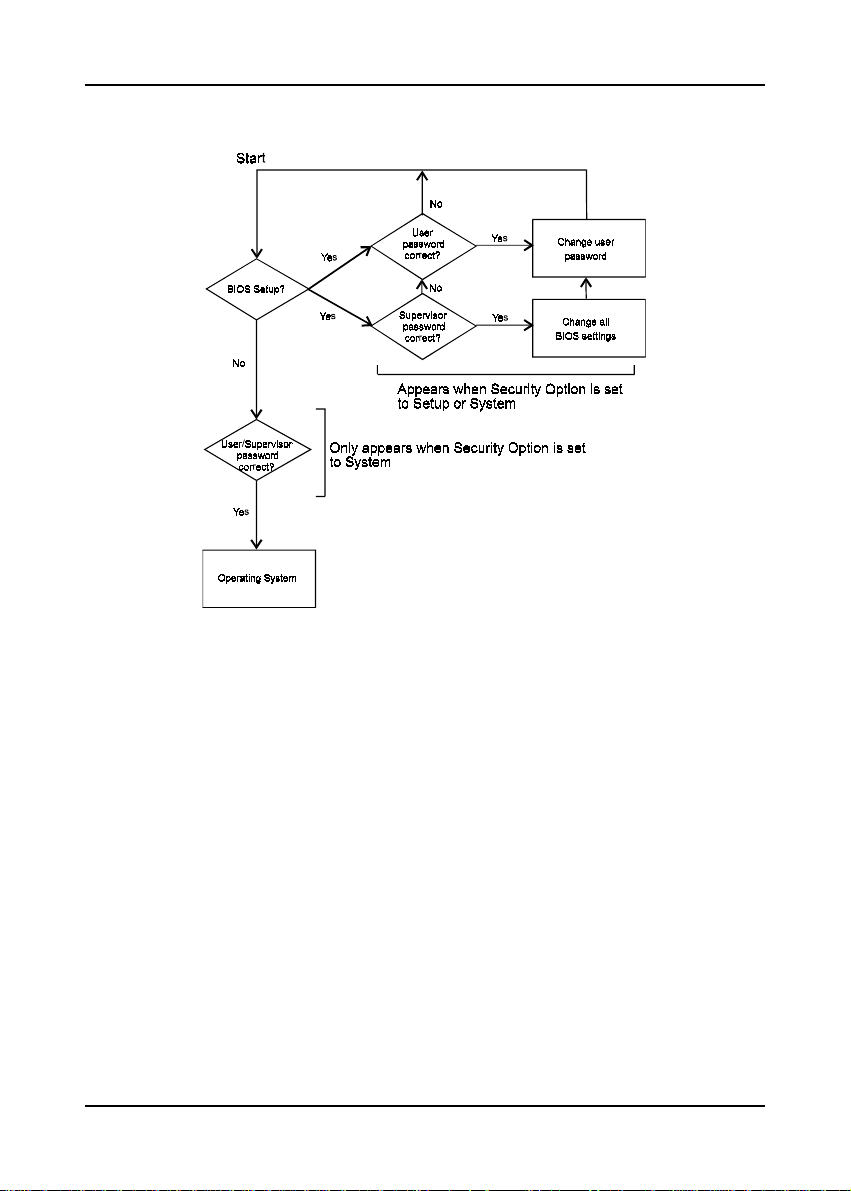

Figure 3-13 Set Both Supervisor and User Password

3-12 Save and Exit Setup

If you select this and type Y (for yes) followed by the [Enter] key, the values entered in the setup utilities will be recorded in the CMOS memory of the BIOS chip.

3-13 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the Setup program without recording any new values or changing old ones.

Page 47

User's Manual

Memo

Page 48

Brief Software Driver Guide

Chapter 4

Brief Software Driver Guide

The Mainboard Software Guide is found on the CD-ROM that is enclosed with your mainboard and is a PDF file which must be viewed with Adobe's freeware called Acrobat® Reader. The Acrobat Reader software is also included on the same CDROM. See the Readme.txt file in the CD-ROM's root directory for installation instructions of the Acrobat Reader. The Mainboard software guide discusses the following items:

The following items are discussed in the TXT or PDF files:

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From the Windows 95 Device Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface (DMI) Utility for DOS

- Sound Driver and Utility Installation

- VGA drivers for Win9x, NT4.0, Win2000

The DMI utility is a DOS utility, operating under Windows or other operating system might cause damage to the BIOS.

Page 49

Chapter 4

- Memo

Page 50

Appendix I

On Board I/O Addresses & IRQ Maps

System Resource IRQ I/O Address

1. Timer IRQ0 040, 043

2. Keyboard IRQ1 060, 064

3. Programmable INT IRQ2 0020, 0021, 00A0, 00A1

4. COM2(B) IRQ3 2F8, 2FF

5. COM1(A) IRQ4 3F8, 3FF

6. Floppy IRQ6 3F0, 3F7

7. LPT1 IRQ7 378, 37F

8. Real Time Clock IRQ8 070, 071

9. PS/2 Mouse IRQ12 060, 064

10.Math coprocessor IRQ13 0F0, 0FF

11.IDE 1 IRQ14 1F0, 1F7

12.IDE 2 IRQ15 170, 177

(IRQ 5, 9, 10 and 11 are available for interface cards.

Page 51

User's Manual

-

MemoMemo

Memo

MemoMemo

Page 52

Appendix II

123

Embedded Flash Utility

This mainboard is equipped with an Erasable Flash ROM and an Embedded Flash Utility which allows the user to update the BIOS to a newer version. Embedded Flash Utility eases BIOS upgrade and eliminate the compatibility issue between different Flash ROM type and version of Flash utility.

Update Your System BIOS

1. Start computer, upon post, press ALT+F2 Keys to enter AWDFLASH setup.

2. Insert the floppy disk with the latest BIOS file into the floppy drive A(or B) and then press Enter to start programming.

For XXX-XXXXXXX-6A69MC3DC-0 DATE: 01/20/2001 Flash Type- XXXXX E82802AB / 3.xV(1Mb) File Name to Program : Programming Flash Memory

23456789012345678901234

2345678901234567890123456789012123

23456789012345678901234567890121234567890123456

Write OK No Update Write Fail

 6AFV0213.BIN

Warning : Don't Turn Off Power Or Reset System !

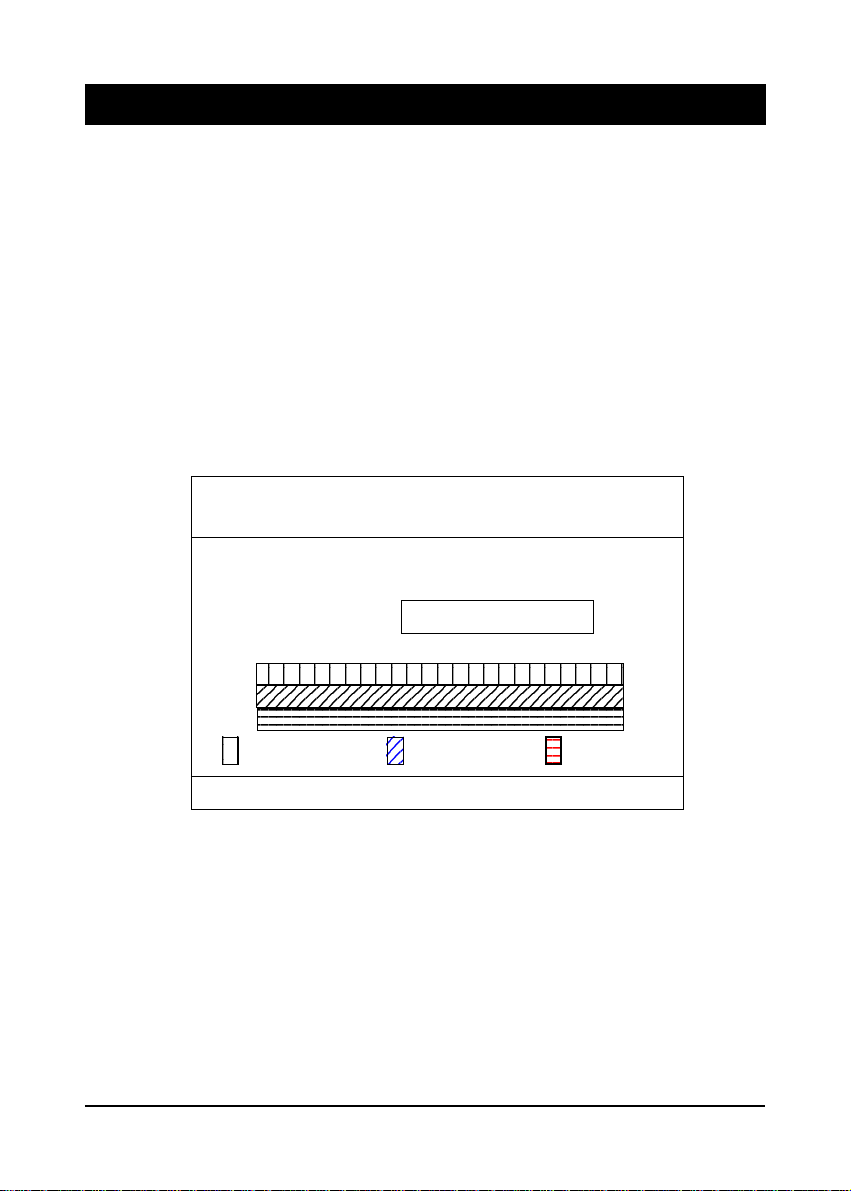

Sample of Programing Flash Memory Screen

3. When finished, the system will automatically restart.

Note:

(

Flash BIOS Protection must be set to Disabled in the Advance Chipset

Feature from the CMOS Setup Utility menu. See Chapter 3.

(

Don't turn off or restart your system during programming process. Make sure that your floppy diskette have only one BIN file to aviod

(

confussion.

Page 53

User's Manual

MemoMemo

Memo

MemoMemo

Page 54

Appendix III

HDD Instant Recovery Utility

This mainboard is equipped with HDD Instant Recovery utility embedded in the BIOS ROM. The feature is an option which allows the user to install or not. HDD Instant Recovery utility is a Pre-O.S. backup technology that provides backup before any OS is being activated. Just one press on the Hotkey, HDD Instant Recovery can revive your system even if your O.S. crashed or not working properly.

❒❒

❒ HDD Instant Recovery Concept

❒❒

HDD IR will save your vital O.S. and application software in a hidden space inside the same hard drive. Since the backup file occupies some space in the hidden

directory, the displayed disk space will be reduced. HDD IR will backup your system either with the Smart or Equivalent Backup depends on your O.S. type.

Smart Backup (FAT16/32 format i.e.Win 95/98 O.S.)

- Backup space is the actual system space used. Equivalent Backup (NTFS format i.e.Windows 2000/NT.)

- Backup space equivalent to the drive space where the O.S. located.

❒❒

❒ Utility Installation

❒❒

1.Enable the HDD Instant Recovery in the BIOS Features setup from the CMOS

Setup Utility menu. Save and exit to reboot.

2.Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Selet Install and press Enter key to read the instruction.

3. Press F8 key to continue, you will be prompt to confirmed to keep original data.

4. Type Y and press Enter and wait for the installation process to finish and the system will automatically reboot.

HDD Instant Recovery Utility

<Alt-F1>: Backup System <Alt-F2>: Disk Information <Alt-F3>: Restore System <Alt-F4>: Defragmenter

<Alt-F5>: Hard Disk Copy <Alt-F6>: Uninstall

HDD Instant Recovery Utility Setup screen

Page 55

Chapter 4

H Backup System

Smart Backup

1. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Selet Backup System by pressing Alt+F1 key.

2. Select your hard drive to backup.

3. Wait for the backup process to finish and the system will automatically reboot.

Equivalent Backup

Still under evaluation testing for future Windows 2000/NT supports.

(

H Disk Information

1. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Select Disk Information by pressing Alt+F2 key to view Disk Info.

H Restore System

1. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Selet Restore System by pressing Alt+F3 key.

2. You will be prompt to confirmed restore drive. Type Y and press Enter key.

3. Wait for the backup process to finish and the system will automatically reboot.

H Defragmenter

1. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Selet Defragmenter by pressing Alt+F4 key.

2. You will be prompt to confirmed defragment your drive. Type Y and press Enter key.

3. Wait for the defrgmentation process to finish and the system will automatically reboot.

H Hard Disk Copy

1. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Selet Hard Disk Copy by pressing Alt+F5 key.

2. Select which hard drive to backup.(Copy 1 to 2 or 2 to 1 or 1 to 2 3 4)

3. Wait for the hard disk copy process to finish and the system will auto reboot.

H Uninstall

1. Upon system boot up, the HDD Instant Recovery Utility will be shown on the screen. Seletc uninstall by pressing Alt+F6 key.

2. You will be prompt to confirmed uninstall. Type Y and press Enter key.

3. Wait for the uninstalling process to finish and press any key to reboot

This function does not support Multi-Booting management utility like System Commander, etc.

Alway uninstall this function before you format or partition the hard disk for other usage.
