Chaintech 5SSV 5SSV User Manual

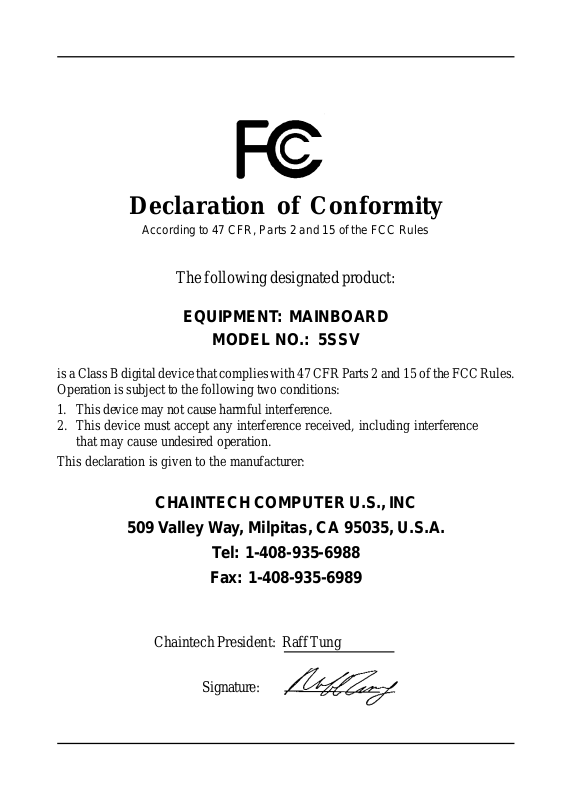

Declaration of Conformity

According to 47 CFR, Parts 2 and 15 of the FCC Rules

The following designated product:

EQUIPMENT : MAINBOARD

MODEL NO.: 5SSV

is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules.
Operation is subject to the following two conditions:

1 . This device may not cause harmful interference.

2. This device must accept any interference received, including interference
that may cause undesired operation.

This declaration is given to the manufacturer:

CHAINTECH COMPUTER U.S., INC

509 V alley W a y, Milpitas, CA 95035, U.S.A.

Tel: [phone]

Fax: [phone]

Chaintech President: Raff T ung

Signature:

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:

w This device may not cause harmful interference
w This device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If this equipment is not installed
and used in accordance with the manufacturer's instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:

w Reorient or relocate the receiving antenna.
w Increase the separation between the equipment and receiver.
w Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

w Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from
digital apparatusses set out in the Radio Interference Regulations of the Canadian
Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. No warranty or representation, either expressed or implied,
is made with respect to the quality, accuracy or fitness for any particular purpose of this document.
The manufacturer reserves the right to make changes to the content of this document and/or the
products associated with it at any time without obligation to notify any person or organization of
such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental
or consequential damages arising out of the use or inability to use this product or documentation,
even if advised of the possibility of such damages. This document contains materials protected
by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted
in any form, by any means or for any purpose without expressed written consent of it's authors.
Product names appearing in this document are mentioned for identification purposes only. All
trademarks, product names or brand names appearing in this document are registered property
of their respective owners.

Printed in Taiwan

March 1999

POST-CONSUMER
RECYCLED PAPER

TT

abab

T

TT

Chapter 1 Introduction ..........................................................................1

1-1 Product Specifications ..........................................................1

1-2 Package Contents .................................................................4

1-3 Mainboard Layout .................................................................. 5

1-4 Connector and Jumper Reference Chart ...............................5

Chapter 2 Hardware Setup....................................................................7

2-1 Introduction to Jumpers ......................................................... 7

2-2 Installing a PGA type CPU in a ZIF Socket ......................... 8

2-3 CPU Jumper Configuration .................................................... 9

2-4 Connector and Jumper Settings.....................................12

2-5 Main Memory Configuration.................................................20

Chapter 3 Award BIOS Setup Program ............................................. 21

3-1 Standard CMOS Setup ........................................................ 22

3-2 BIOS Features Setup .......................................................... 25

3-3 Chipset Features Setup ...................................................... 28

3-4 Power Management Setup .................................................. 31

3-5 PnP/PCI Configuration ........................................................36

3-6 Load Setup Defaults............................................................38

3-7 Hardware Monitoring............................................................39

3-8 Integrated Peripherals ......................................................... 40

3-9 Password Setting ................................................................43

3-10 IDE HDD Auto Detection ..................................................... 44

3-11 Save and Exit Setup ........................................................... 44

3-12 Exit Without Saving .............................................................44

Chapter 4 Brief Software Driver Guide .............................................45

Chapter 5 ESS Solo-1 Audio Subsystem.......................................... 47

5-1 Features ............................................................................... 47

5-2 Sound Driver and Utility ...................................................... 47

5-3 CD-ROM Audio-in connection ............................................47

Chapter 6

6-4 Driver and Utility Installation ...............................................49

6-5 Jumper Setting ....................................................................50

6-6 Reference ............................................................................50

Integreted Super AGP 2D/3D Video/graphics controller ......49

6-1 Features...............................................................................49

6-2 Memory................................................................................49

6-3 Operating Requirements ...................................................... 49

le of Contentsle of Contents

ab

le of Contents

abab

le of Contentsle of Contents

Feature Explanations

Software Power-off Control .................................................................. 12

Over-ride Power Button ........................................................................ 13

Blinking LED in Suspend Mode ........................................................... 13

Power On By Modem ..................................................................... 12/35

Power On By Alarm ..............................................................................35

Power On By Keyboard........................................................................ 35

Poly-fuse Over Current Protection ....................................................... 18

Appendices

Appendix I On Board I/O Addresses & IRQ Maps ..........................51

Quick Connector and Jumper Reference ..................................... 28A

Chapter 1

Introduction

1-1 Product Specifications

rr

r Processor

rr

- Supports up to 200 MHz Intel Pentium® processors and up to 233MHz
Pentium® processors with MMX technology

- Supports Cyrix/IBM 6x86MX PR166+~PR233+ and up to 380 MHz MII
processors

- Supports AMD K6 166 MHz~266 MHz processors, K6-2 ,K6-2 CXT and
K6-III up to 450 MHz processors

- Supports IDT180 MHz to 225 MHz Winchip C6, 240 MHz to 300MHz
Winchip 3D processors

- 321-Pin ZIF Socket 7

- High efficiency Switching Power Module

- Supports 66/75/83/90/95/100 MHz system clock speeds

rr

r Chipset

rr

- SiS 530/5595 two chip AGPset with integreted 2D/3D graphics controller

rr

r L2 Cache

rr

- On board 512KB Pipelined Burst SRAM and up to 1MB (optional)

rr

r DRAM Memory

rr

- Three 3.3V 168-pin DIMM sockets support up to 384MB

Introduction

Because 256MB unbuffered DIMM modules are not yet mainstream,
their compatibility can not be guaranteed. (See Section 2-5 for details.)

rr

r Expansion Slots

rr

- Four 32-bit PCI slots

- One 16-bit ISA slot (one PCI/ISA shared slot)

rr

r BIOS

rr

- Award System BIOS, supports PnP, APM, DMI, ACPI & Multi-device
booting features i.e. floppy, LS120, HDD(IDE/SCSI), ZIP-ATAPI etc.

- Includes Trend ChipAway Virus protection for virus-free boot and virus free
operating system

The Trend ChipAway Virus is a rule-based anti-virus technology and

@

does not require periodical updates of virus code

1

Chapter 1

rr

r Two Ultra DMA-66 PCI IDE Ports

rr

- Supports up to PIO Mode 4, Multi-word Mode 4 and Ultra DMA-33/66
timings

- Complete Bus Mastering software drivers for all well known multi-task
operating systems

rr

r Embedded Ultra I/O

rr

- ITE 8661 I/O chip

- One Parallel (SPP/ECP/EPP) and one Serial (16550A compliant) ports

- One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode,
and 1Mbps transfer rates

r r

Back-Panel I/O Connectors

r

r r

- PS/2 Mini-DIN keyboard and mouse ports

- Two Channel USB ports

- One D-Sub 9-pin male serial port

- One D-Sub 15-pin female VGA port

- One D-Sub 25-pin female Printer port

- One D-Sub 15-pin female Game/MIDI port

- Audio Line-out, Line-in, Mic-in jacks

rr

r Integreted Super AGP 2D/3D Video/graphics controller

rr

- Built-in high performance 3D engine has a peak polygon rate of 800K
polygons/second at 50 pixels/polygon and has a peak fill rate at 40M pixels/
second.

- Built-in programmable 24-bit true color RAMDAC upto 230MHz pixel clock

- Integrated Direct Draw Accelerator, with a 64-bit BITBLT engine

- Supports 42 double-word hardware command queue

- Supports programmable 8MB memory configuration

r On Board Audio Subsystem

- ESS Solo-1 (1938S)16-bit stereo audio controller

- Programmable independent sample rate from 4KHz to 48KHz for recording and
play-back with Full-duplex DSVD capability

- Built-in high quality ESFM music synthesizer

- Supports DLS(Downloadable Wavetable Sounds) wavetable synthesizer with
limitless variety of samples using PC RAM.

rr

r Two Channel USB Ports

rr

Now under compatibility testing with different peripherals

2

Introduction

rr

r Board Dimensions

rr

- Micro-ATX form factor, 244mm x220mm, 4 Layers

- Six mounting holes

rr

r Advanced Management Features

rr

- Software power off control, Over-ride power button, Power-on by modem,

Power-on by keyboard, Power-on by alarm,Power failure recovery, Blinking

LED in Suspend etc.

- Integrated LDCM compliant System Monitor Hardware for electrical security

- Poly-fuse over-current protection for USB and keyboard

- Supports PC/PCI to Creative S-link

- ACPI features ready when ACPI-enabled O/S is available

- Special PCI Asynchronous mode for maximum performance betweenCPU and

memory configuration

- First industrial mainboard to combine Trend ChipAway Virus and PC-cillin

for a 100% virus free system boot-up in one

rr

r Switching Power Supply Requirement

rr

Output Voltage

+12V +/- 5% 0

+5V +/- 5% 1

+3.3V +/- 5% 10*

-5V +/- 10% 0

-12V +/- 10% 0

+5VSB +/- 5% 0.75

Max. Regulation

Requirement

Table 1-1Table 1-1

Table 1-1

Table 1-1Table 1-1

Min. Current

Requirement (Amps)

3.3V at 10Amps is necessary to guarantee full loading operation
because some AGP cards and memory modules have high current
consumption.

3

Chapter 1

1-2 Package Contents1-2 Package Contents

1-2 Package Contents

1-2 Package Contents1-2 Package Contents

This product comes with the following components:

r One mainboard

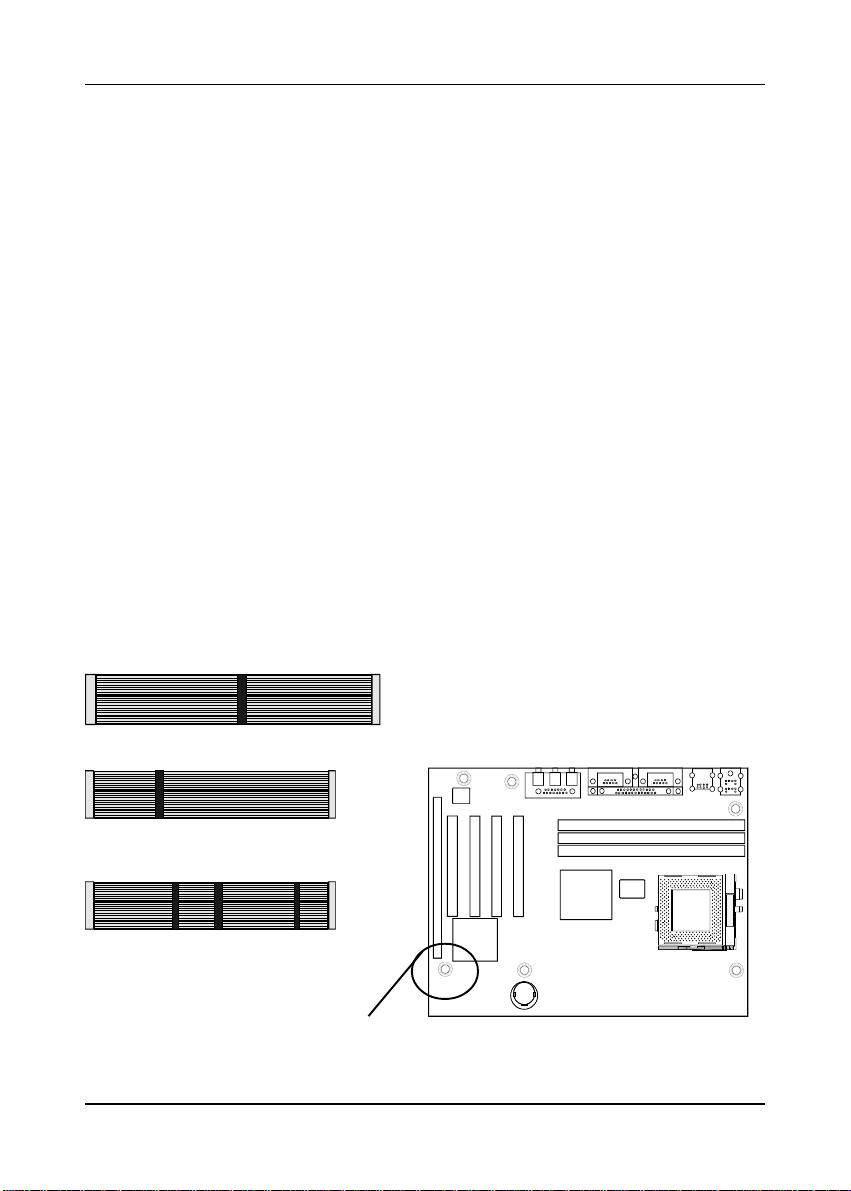

r One 40-pin Ultra DMA-66 IDE connector ribbon cable (Figure 1-1)

* Color coded connection for UDMA/66 cable

Blue to mainboard, Ground in blue, Gray to Master and Black to slave

r One 34-pin floppy disk drive ribbon cable (Figure 1-2a) or (Figure 1-2b)
r One plastic stub for standard ATX installation (Figure 1-3)
r One User's Manual
r One CD-ROM that includes

- Acrobat Reader

- Award System BIOS Flash Utility and Award DMI Utility for DOS

- SiS Bus Master IDE drivers for Win95, WinNT3.5/4.0

- SiS AGP VXD Driver

- SiS USB Supplement

- ESS Audio Driver for DOS/Win95/NT

- ESS AudioRack Utility for Win95/NT

- ESS 1MB WaveData for Win95

- System Health Monitoring Software with DMI Browser

- Trend PC-cillin Anti-virus v3.1Utility (eight different languages)

Figure 1-1Figure 1-1

Figure 1-1

Figure 1-1Figure 1-1

Figure 1-2aFigure 1-2a

Figure 1-2a

Figure 1-2aFigure 1-2a

Figure 1-2bFigure 1-2b

Figure 1-2b

Figure 1-2bFigure 1-2b

Insert the stub if the mounting
screw is not supported by the ATX
case

4

UDMA/66 IDE cable

Standard Floppy
cable

Optional 5.25 in. floppy cable

Figure 1-3Figure 1-3

Figure 1-3

Figure 1-3Figure 1-3

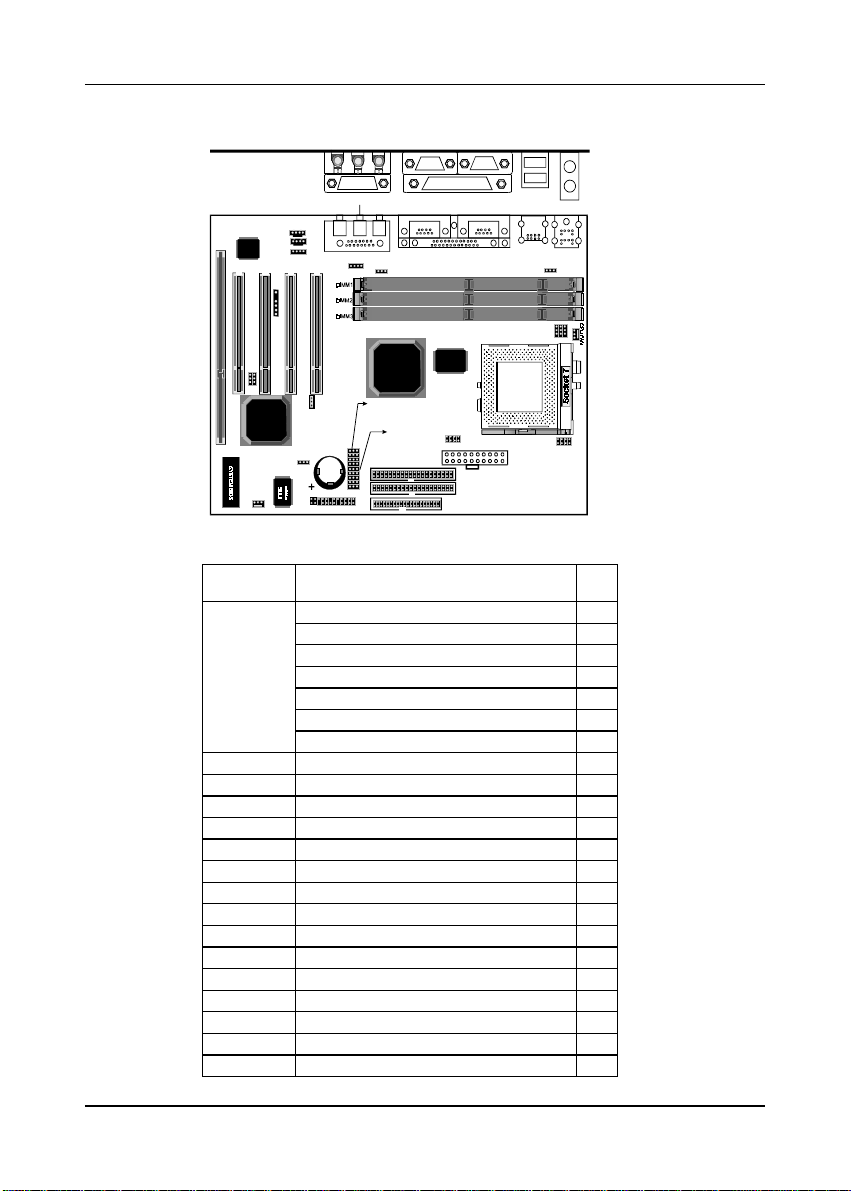

1-3 Mainboard Layout1-3 Mainboard Layout

1-3 Mainboard Layout

1-3 Mainboard Layout1-3 Mainboard Layout

PCB

J3

PCI1

JP7

SystemFAN

PCI2

SiS

5595

J2
J1

PCI4

PCI3

IR1

1

J4

JP12

1

ISA1

Battery

Mic-in

Game

Line-in

1

Back Panel I/O Connector

VGA1

VGA1

Line-out

JP1

Game

JP2

SiS

530

JP11
JP13
JP14
JP15

JP16
JP17

JP9

JP18
JP19
JP20

1

1

J5

1

COM1

Printer

COM1

Printer

Power supply conn.

IDE #1
IDE #2

FLOPPY1

J8

USB2
USB1

USB x 2

PS/2 Mouse
& K/B Conn.

JP4
JP5
JP6

JP8

K/B

Mouse

JP3

1-4 Connector and Jumper Reference Chart

Introduction

Jumper &

Connector No.

Function Page

Keyboard lock & Power indicator LED connector 13
System reset switch connector 14
Speaker connector 14

J5

Green switch / Green LED connector 14
Turbo LED connector 14
IDE activity LED connector 14

Over-ride power button connector 13
J1 Modem Telephony connector 16
J2 AUX-IN connector 16
J3 CD-ROM Audio-in 15
J4 WOL (wake-on-lan) connector 17
J8 ATX Power supply connector 12

JP1 Volume Control connector 16
JP2 On-board VGA jumper 15
JP3 Power-on by keyboard jumper 18
JP7 Creative SB-LINK Sound connector 16

JP12 Clear CMOS Data jumper 17
CPUFAN CPU cooling fan connector 15
SYSFAN System cooling fan connector 15

IR1 Infrared connector 15
Ports PS/2 mouse and keyboard ports 18
Ports USB (Universal Serial Bus) ports 19

5

Chapter 1

-

MemoMemo

Memo

MemoMemo

6

Hardware Setup

Chapter 2Chapter 2

Chapter 2

Chapter 2Chapter 2

Hardware SetupHardware Setup

Hardware Setup

Hardware SetupHardware Setup

If your mainboard has already been installed in your computer you may still need
to refer to this chapter if you plan to upgrade your system's hardware.

Be sure to disconnect the power cable from the power source before performing
any work on your mainboard, i. e. installing a CPU, memory module, changing
a jumper setting, etc. Not doing so may result in electrical shock!

2-1 Introduction to Jumpers

Jumpers are used to select between various operating modes. A jumper consists of
a row of gold colored pins that protrude from the surface of the mainboard. It is
important not to confuse jumpers with connectors or headers.

Putting jumper caps on anything that is not a jumper may result in damaging
your mainboard. Please refer to Section 1-3, Mainboard Layout, for the location
of jumpers on your mainboard.

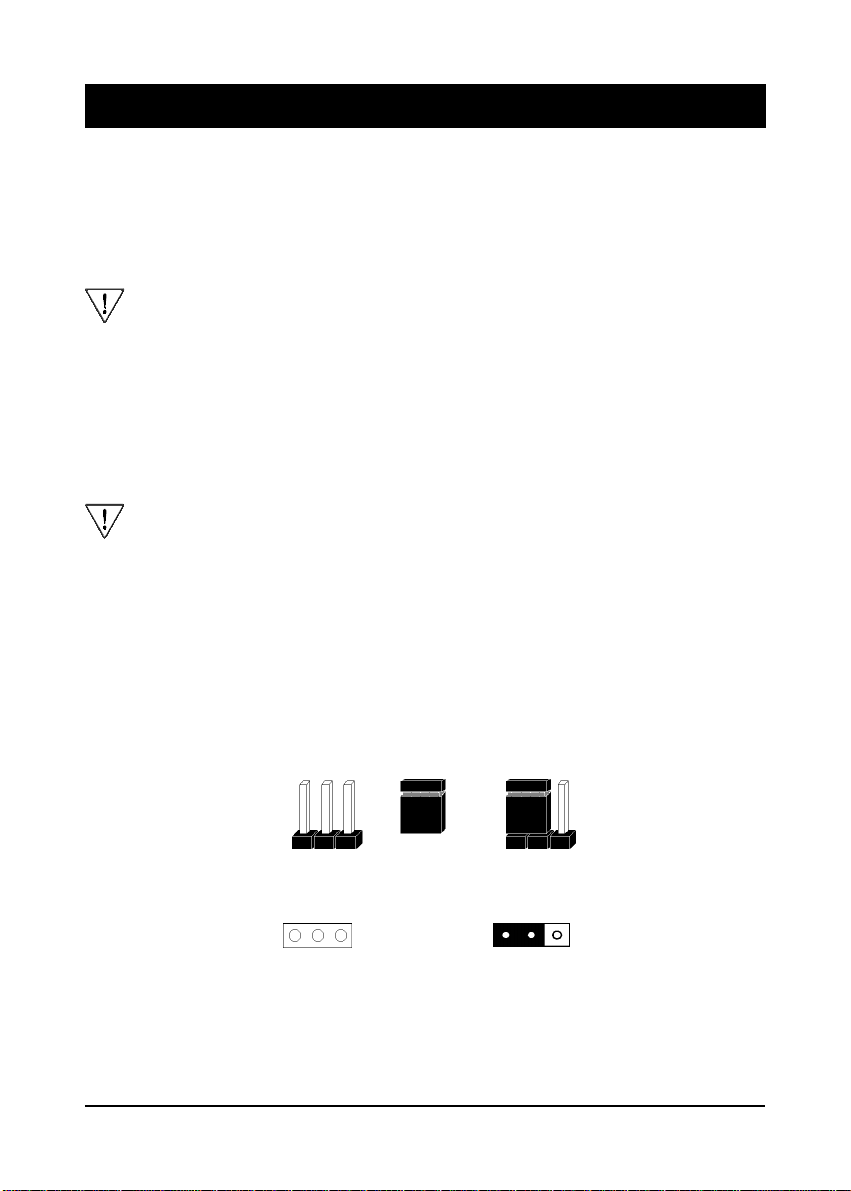

As indicated in Figure 2-1 below, a cap is used to cover the pins of a jumper, resulting
in shorting those pins that it covers. If the cap is removed from the top of the pins,
the jumper is left "open." The number 1 shown both in the diagram below and in
all multiple pin jumper and header diagrams in this manual indicates the pin designated
with the number 1. The numbering of the remaining pins follows in sequence.

Pins SettingCap

1

A 3-pin jumper

1

A cap over pin 1 and
pin 2 shorts these pins

Figure 2-1Figure 2-1

Figure 2-1

Figure 2-1Figure 2-1

7

Chapter 2

2-2 Installing a PGA type CPU in a ZIF Socket

The Intel Socket 7, designed for the Pentium processor, has been incorporated as
a standard mainboard specification and is compatible with AMD and Cyrix CPUs. To
insert your CPU into Socket 7 please do the following:

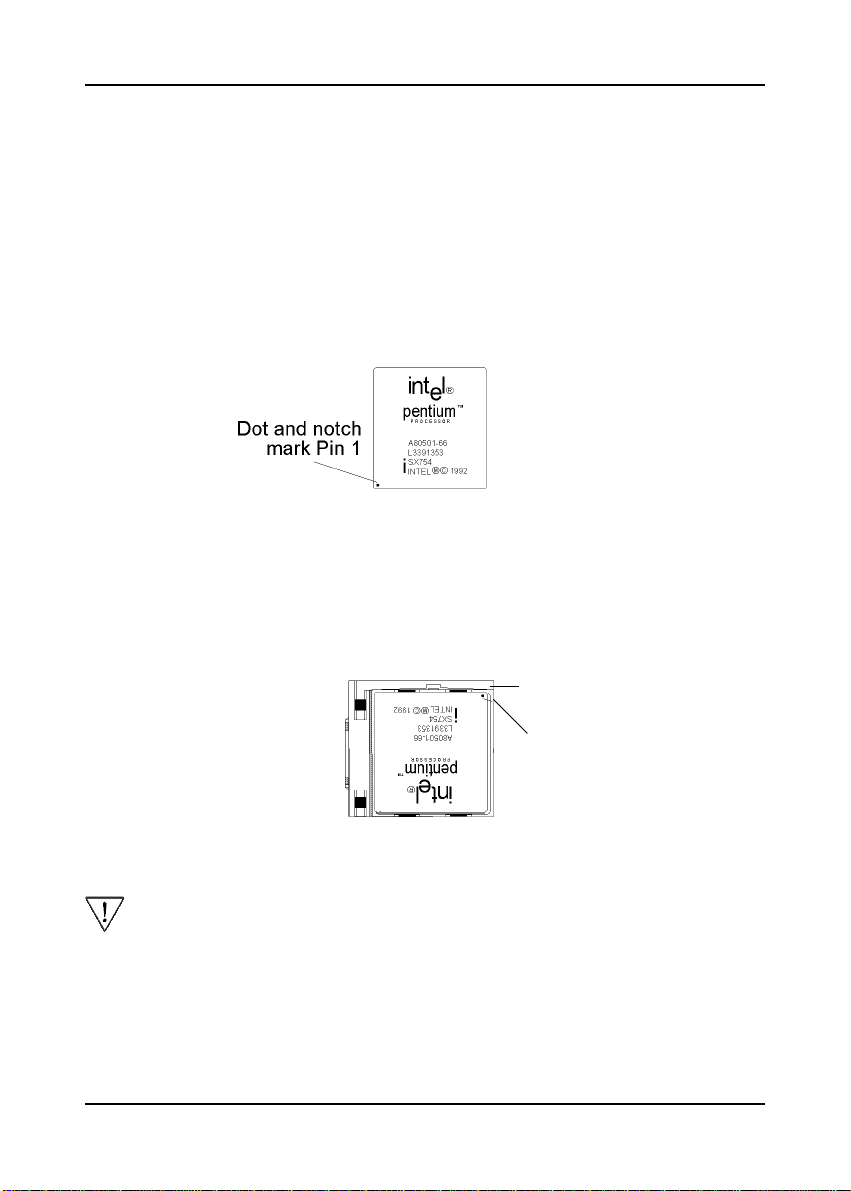

1. Locate a small dot marked on the top surface of the CPU close to one if it's
corners. The same corner will also be cut off, leaving a noticeable notch in the
CPU's corner. These markings indicate Pin 1 of the CPU. See Figure 2-2.

Figure 2-2 The markings on top of a CPU

2. Pull up the lever of Socket 7 so that it is perpendicular with the surface of the
mainboard. Gently insert the CPU with Pin 1 at the same corner of Socket 7 that
contains the end of the lever. Allow the the weight of the CPU to push itself into
place. Do not apply extra pressure as doing so may result in damaging your CPU.
Snap the lever back into place. See Figure 2-3.

Lever

Socket 7

Pin 1

Figure 2-3 Inserting a CPU into Socket 7

Installing a heat sink and cooling fan on top of your CPU is necessary for
proper heat dissipation. Failing to install these items may result in overheating
and possible burn-out of your CPU.

8

Hardware Setup

2-3 CPU Jumper Configuration

Frequency ConfigurationFrequency Configuration

Frequency Configuration

Frequency ConfigurationFrequency Configuration

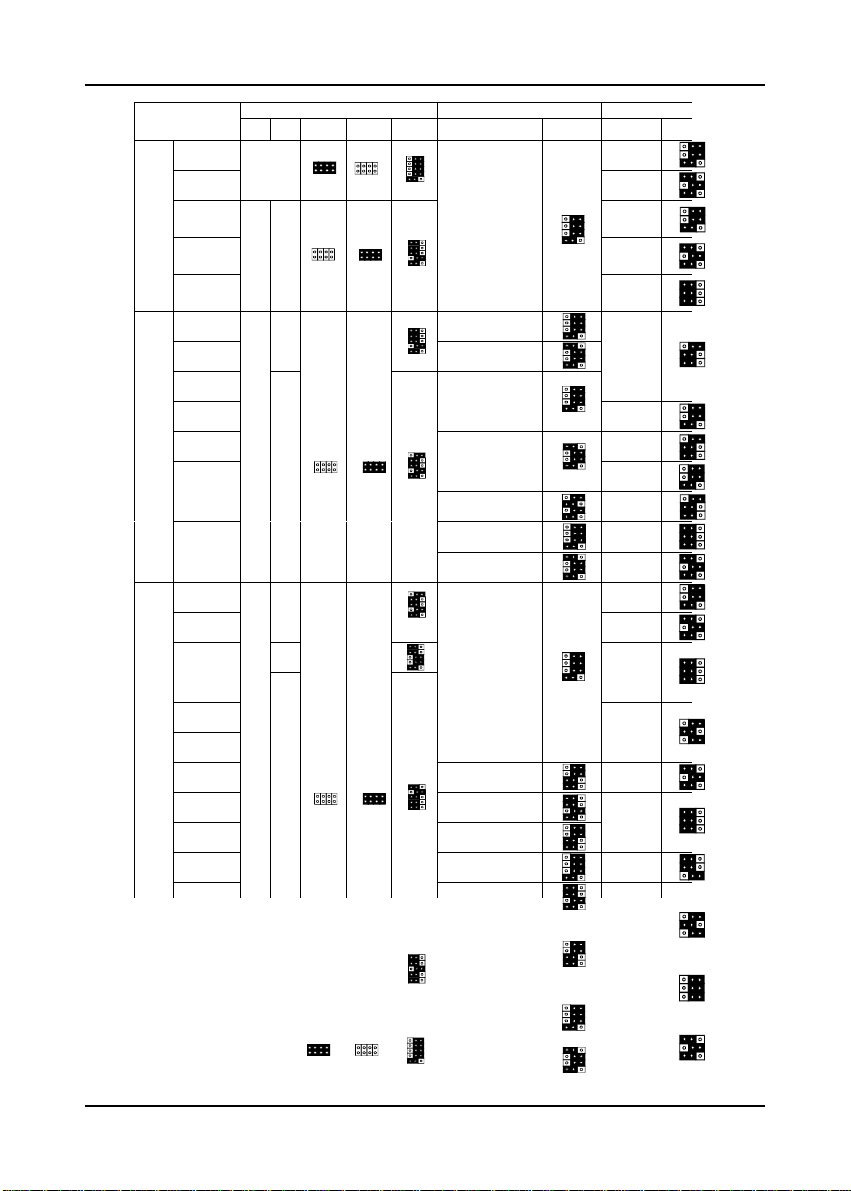

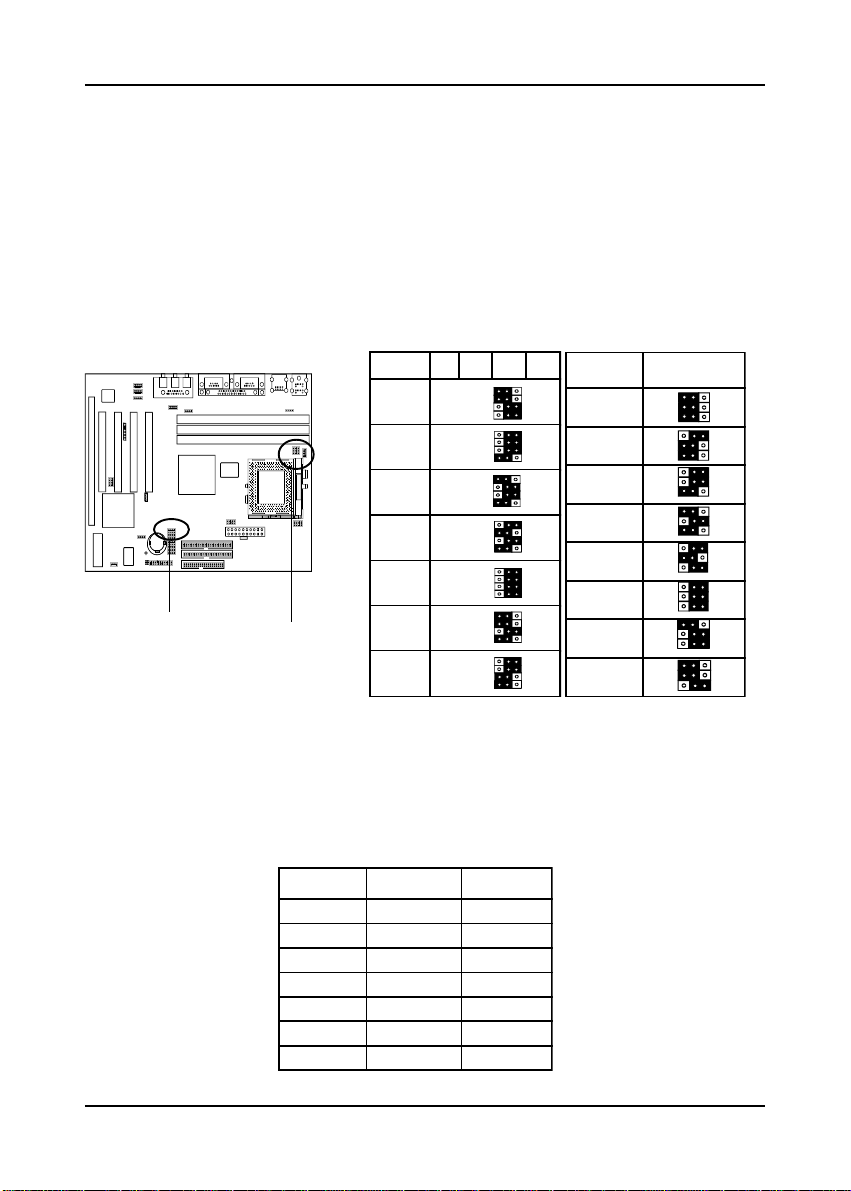

If you install a CPU on this mainboard, you must set JP11, 13~15 for System Frequency
and JP4~6 for CPU Bus Frequency Ratio. See Figure 2-4 CPU/System Frequency
Jumper Settings.

CPU Bus Frequency & Frequency Ratio Configuration

* CPU Speed = Frequency ratio x System Frequency

SYS. Freq

1

1

JP11, 13~15

JP1 JP13 JP14 JP15

66/Async

66/Sync

75

1

1
1

1

JP4~6

83

90

95

100

1

1

1

1

1

1

1

Freq. Ratio

x1.5/x3.5

x2.0

x2.5

x3.0

x4.0

x4.5

x5.0

x5.5

JP4~JP6

1

1
1
1

1
1
1
1

Figure 2-4 System Frequency Jumper Settings

PCI Frequency & SDRAM Frequency

CPU Freq. (MHz)

66 100 33
66 66 33
75 75 30
83 83 33
90 90 30
95 95 32

100 100 33

SDRAM Freq.

(MHz)

PCI Freq. (MHz)

9

Chapter 2

Overclocking

Operating a CPU at a higher frequency than its specification allows is called overclocking.
If the CPU frequency is set at a higher frequency than its specification allows, it may
or may not run at that freqency, depending on the quality of your CPU and the extent
to which the frequency has been overset. The mainboard manufacturer highly
discourages overclocking as it may result in data loss, CPU burn-out, system failure,
etc.

Many processors are frequency locked processors and are not able to perform
overclocking. Regardless of whether the processor is a frequency locked, overclocking
may cause some processors to hang when turning on the system. When the processor
hangs, the screen remains blank and the system does not boot. To solve this problem,
do the following:

1. Turn off the computer and then press the Home key on your keyboard

2. Turn on your computer, wait for five seconds and then release the Home key.

(Pressing the Home key allows the computer to boot at a low system speed.
For example, 66MHz external clock CPUs boot-up at 133MHz.)

3. Enter BIOS and reconfigure your CPU parameters as described in this section.

Voltage ConfigurationVoltage Configuration

Voltage Configuration

Voltage ConfigurationVoltage Configuration

There are two major processor types in general
use--single and dual voltage processors. Most
single voltage processors such as Pentium,
AMD-K5, and Cyrix 6x86 processors use a
single voltage value of 3.5v for both core and
I/O voltage settings. Most dual voltage
processors such as Pentium processors with
MMX technology and Cyrix 6x86L
processors use a dual voltage value of 2.8v
for core and 3.3v for I/O voltage settings. To
make the voltage setting for single and dual
voltage processors, simply set JP16~20
according to the table on the next page. The
voltage range supported by this mainboard
is detailed in Figure 2-5 below.

Vcore JP16~20 Vcore JP16~20

1.8V 2.9V

2V 3.1V

2.2V 3.2V

2.4V 3.3V

2.5V

2.8V

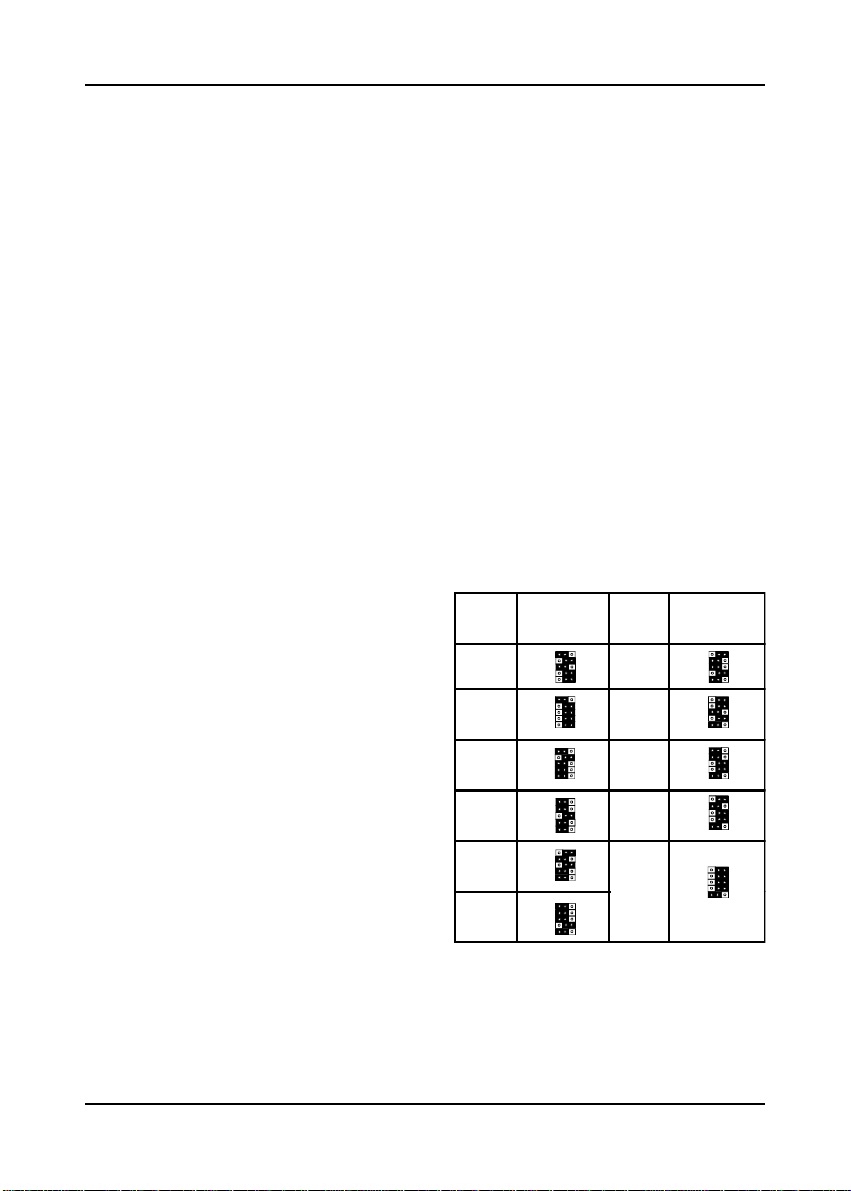

Figure 2-5 Voltage Jumper Settings

1

1

1

1

1

1

3.5V

1

1

1

1

1

10

Hardware Setup

~

Intel

Cyrix

/IBM

CPU-type

P54C-166

P54C-200

Pentium

w/MMX

@166MHz

Pentium

w/MMX

@200MHz

Pentium

w/MMX

@233MHz

6x86L-PR166

@133MHz

6x86L-PR200

@150MHz

6x86MX-PR166

6x86MX-PR200

6x86MX-PR200

6x86MX-PR233

MII-300

K6/166

K6/200

K6/233

CPU Power Voltage System freq. Freq. ratio

Core

I/O Vcc

3.3 2.8

3.3

JP8 JP9 JP16~20 MHz JP11, 13~15 Speed rate JP4

Vcc

3.5

2.8

2.9

2.9

3.2

1

1

1

1

66

66

75

66

75

83 x2

66 x3.5

75 x3

1

1

66

1

x2.5

1

x3

1

1

x2.5

1

x3

1

x3.5

1

1

1

x2

1

1

1

1

1

1

1

x2.5

1

x2

1

x2.5

1

1

1

1

x2.5

1

x3

1

x3.5

K6/266

K6-2/266

K6-2/300

K6-2/333

K6-2/350

K6-2/366

3.3

2.2

AMD

1

100 x3

95

100

66 x5.5

1

1

1

1

1

x4

1

1

x3.5

1

1

1

1

1

1

1

1

1

1

11

Chapter 2

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including
the power supply, the keyboard, and the various controllers on the front panel of
the system case.

The power supply connector is the last connection to be made while installing a
mainboard. Before connecting the power supply, please make sure it is not
connected to the power source.

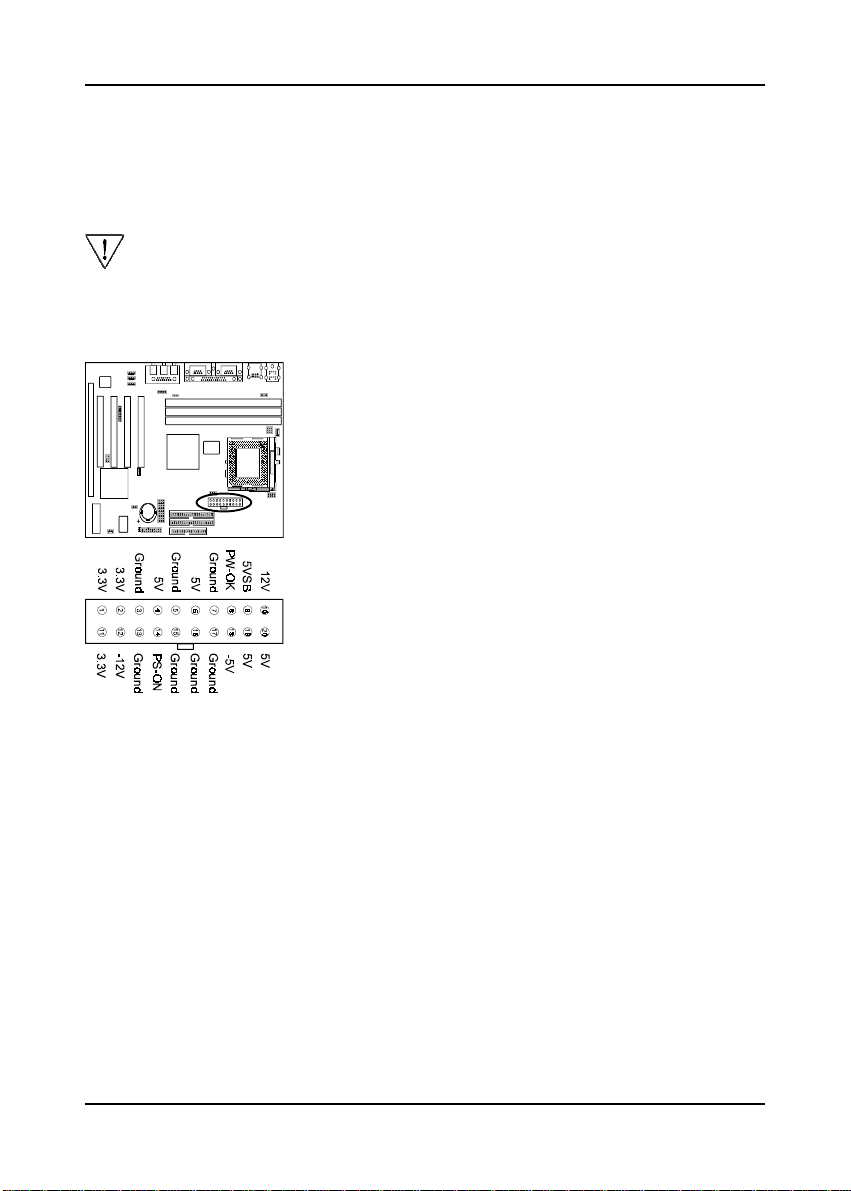

ATX Power Supply Connector (J8)

This mainboard requires a power supply of at least 200

1

1

1

1
1

1

watts. The power cord leading from the system's
power supply to the external power source must be
the very last part connected when assembling a system.

The ATX power supply provides a single 20-pin connector
interface which incorporates standard +/-5V, +/-12V,
optional 3.3V and Soft-power signals. The Soft-power
signal, a 5V trickle supply is continuously supplied when
AC power is available. When the system is in the Soft­Off mode, this trickle supply maintains the system in it's
minimum power state.

Software Power-Off Control

This mainboard can be powered down using theWindows 95 Software Power-Off
function. To power down your computer, click the START button on the Windows 95
Task Bar. Select "Shut Down The Computer" and the system turns off. The message
"It is now safe to turn off your computer" will not be shown when using this function.

Power-On By ModemPower-On By Modem

Power-On By Modem

Power-On By ModemPower-On By Modem

While in Soft-off state, if an external modem ring-up signal occurs, the system wakes
up and can be remotely accessed. Enable this function in BIOS's Power Management
Setup menu. (See section 3-4)

12

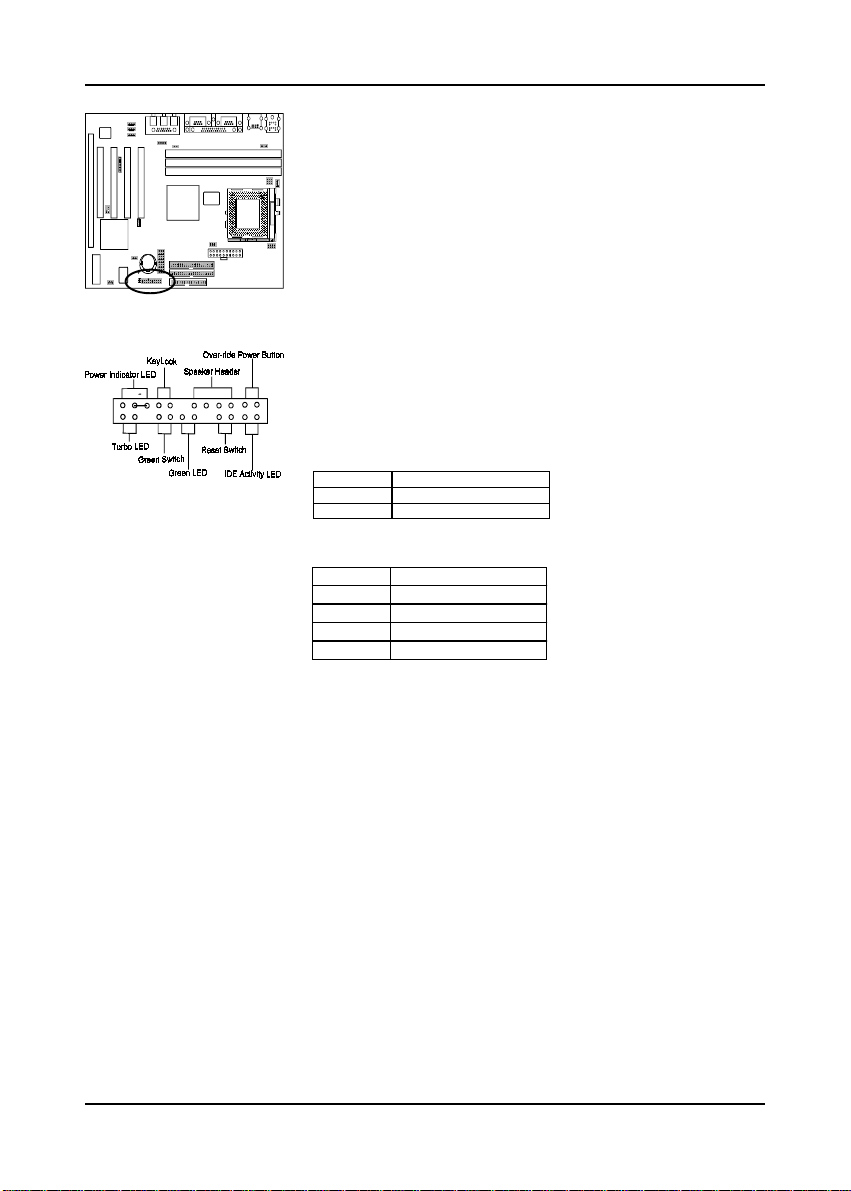

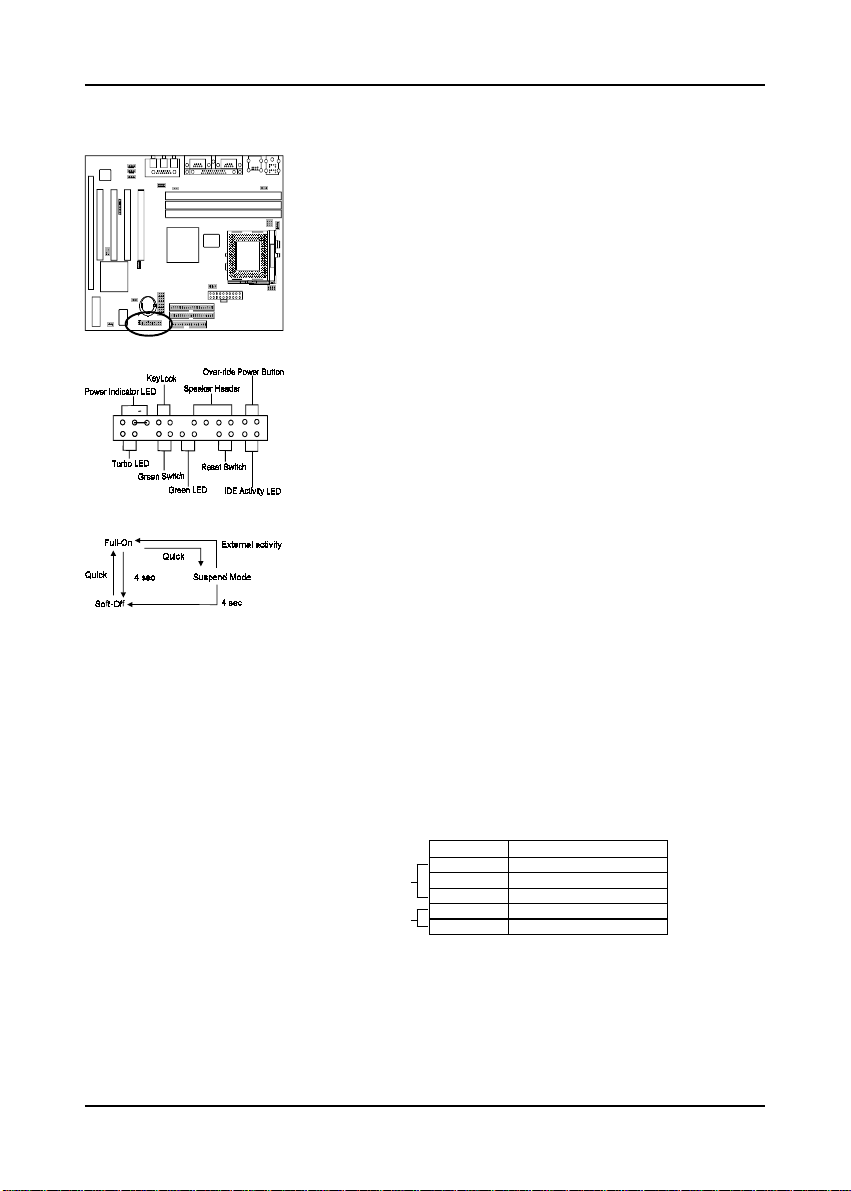

Front Panel Connector Set (J5) A through G

A. Over-ride Power Button Connector

1

1

1

1
1

1

The power button on the ATX chassis can be used as a
normal power switch as well as a button to activate Advanced
Power Management Suspend mode. This mode is used for
saving electricity when the computer is not in use for long
periods of time. The Power Button Over Ride function in
BIOS's Power Management Setup menu must be set to
"Delay 4 Sec." to activate this function. (See section 3-4)

Hardware Setup

+

+

+

1

+

When the Power Button Over Ride function is enabled,
pushing the power button rapidly will switch the system to
Suspend mode. Any occurence of external activity such as
pressing a key on the keyboard or moving the mouse will
bring the system back to Full-On. Pushing the button while
in Full-On mode for more than 4 seconds will switch the
system completely off. See Over-ride Power Button
Operation diagram.

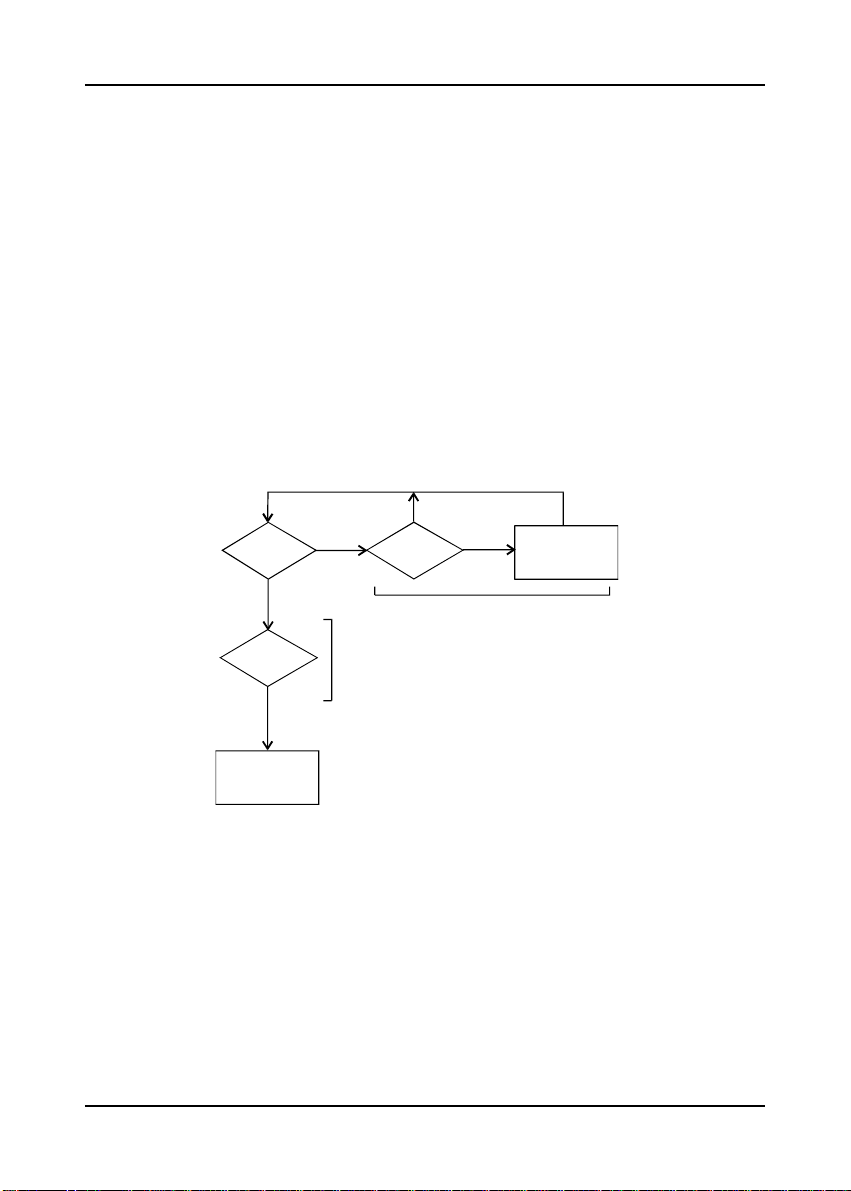

Over-ride Power ButtonOver-ride Power Button

Over-ride Power Button

Over-ride Power ButtonOver-ride Power Button
Operation Operation

Operation

Operation Operation

B. Keyboard Lock & Power Indicator LED
Connector

Plugging this connector into the lock on the front panel
of the system case allows the lock to enable or disable
the keyboard. This function provides limited security
against casual intruders. The power indicator LED shows
the system's power status. It is important to pay attention
to the correct cable and pin orientation (i.e., not to reverse
the order of these two connectors.)

Pin Definition

1 +5V DC

Power Good LED

Keyboard Lock

2 No Connect
3 Ground
4 Keylock
5 Ground

Blinking LED in Suspend Mode(optional)

While in Suspend mode, the LED light on the front panel of your computer will flash.
Suspend mode is entered by pressing the Override Power Button, pushing the Green
button on your ATX case, or enabling the Power Management and Suspend Mode
options in BIOS's Power Management menu. (See section 3-4)

13

Chapter 2

1

1

1

+

+

1

C. Green Switch/Green LED Connector

Some ATX cases provide a Green switch which is used
to put the system in Suspend mode. In Suspend mode,
the power supply to the system is reduced to a trickle,
the CPU clock is stopped, and the CPU core is in its
minimum power state. The system is woken up whenever

1
1

1

the keyboard or mouse is touched. The system resumes
in different ways as defined by Power Management Setup
screen in BIOS.

D. System Reset Switch Connector

This connector should be connected to the reset switch
on the front panel of the system case. The reset switch

+

+

allows you to restart the system without turning the
power off.

Pin Definition

1 System
2 GND

E. Speaker Connector

PIN Definition

1 Speaker Signal
2 NC
3 NC
4 +5V DC

F. IDE Activity LED Connector

The IDE activity LED lights up whenever the system
reads/writes to the IDE devices.

14

G. Turbo LED Connector

This mainboard does not have a Turbo/De-turbo speed
modes. Even though this function does not exist, the turbo

LED will light when the LED is connected and turbo button
pressed.

Infrared Connector

If you enable the IR Address Select in BIOS's Integrated

1

Peripherals menu the IR port will let you select the IRQ
and IR Mode to support IR functions. (See section 3-8)

1

1

1
1

1

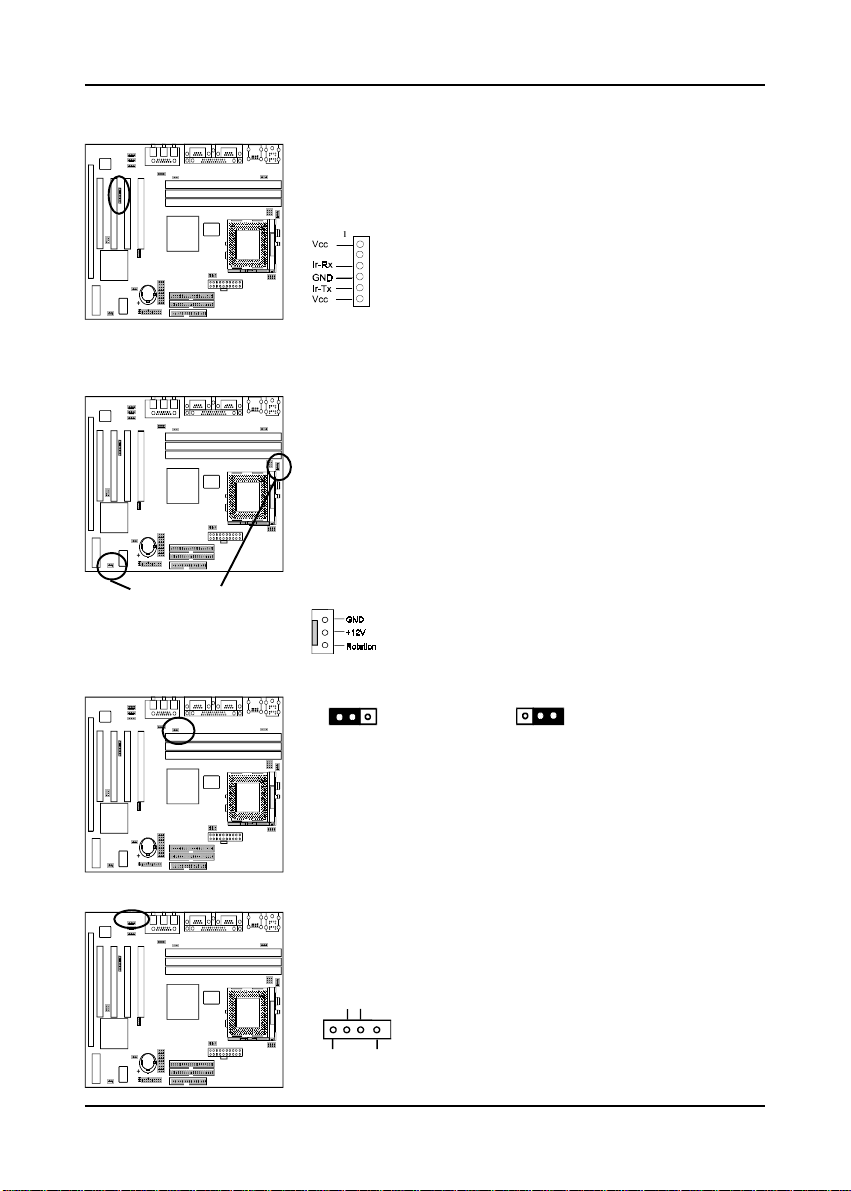

CPU/System Cooling Fan Connectors

These added connectors allow the fan to draw their power

1

1

1

1
1

1

SYS FAN CPU FAN

from the mainboard instead of the disk drive connector.
The mainboard's management extension hardware is able
to detect the CPU and system fan speed in rpm (revolutions
per minute). These connectors supports 3-pin cooling
fans with minimum of 3500 RPM. The wiring and plug
may vary depending on the manufacturer. On standard
fans, the red is positive (+12V), the black is ground, and
the yellow wire is the rotation signal.

Hardware Setup

On-board VGA Jumper (JP2)

1 1

1

Short pin 1-2 to enabled the on-board VGA and short pin
2-3 to disabled.

1

1

1
1

1

CD-ROM Audio-in (J3)

Use the cable enclosed with your CD-ROM disk drive to

1

1

1

1
1

1

connect the CD-ROM to your mainboard. This will enable
your CD-ROM's audio function.

GND

GND

1

LR

Enabled

Disabled

15

Chapter 2

ONOOU

G

Modem Telephony Connector (J1)Modem Telephony Connector (J1)

Modem Telephony Connector (J1)

Modem Telephony Connector (J1)Modem Telephony Connector (J1)

This connector must be connected to the cable from

1

the voice modem card to support modem audio
signals.

ND

GND

1

1

1

1
1

1

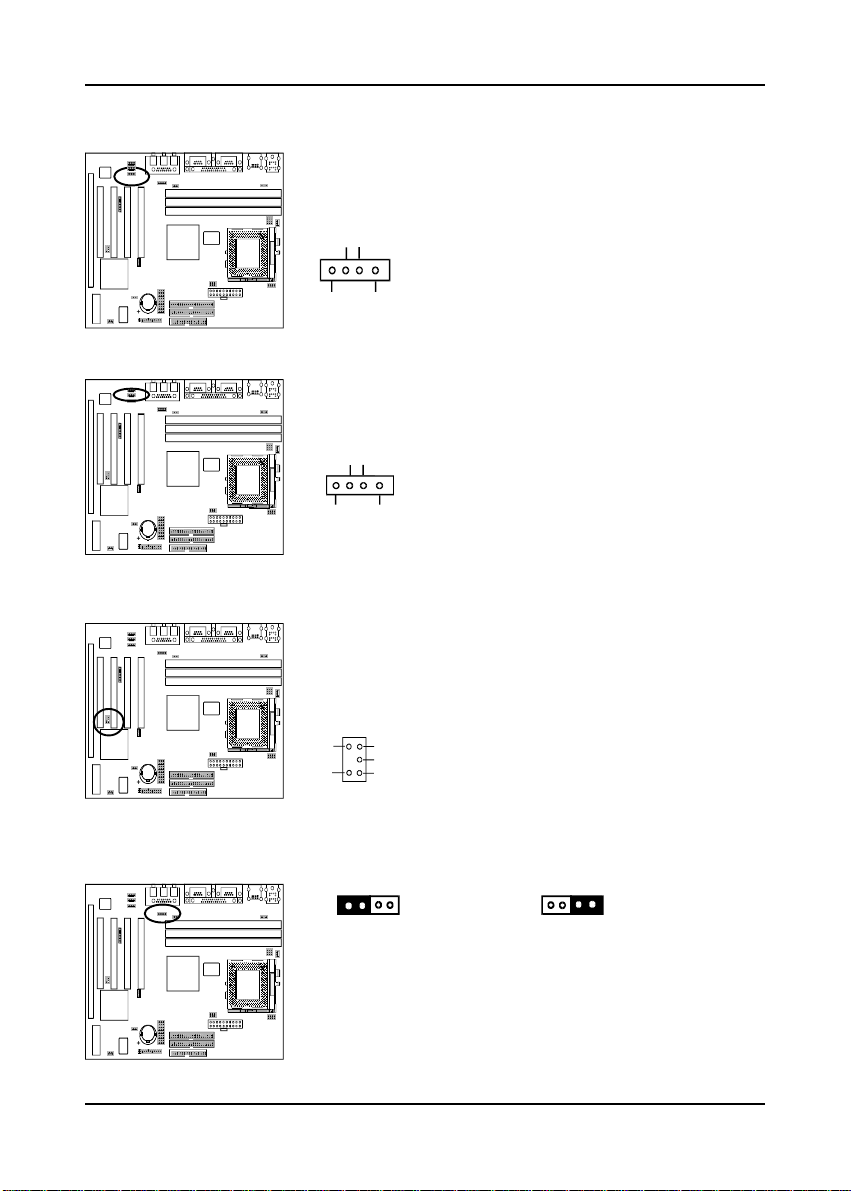

AUX- IN Connector (J2)AUX- IN Connector (J2)

AUX- IN Connector (J2)

AUX- IN Connector (J2)AUX- IN Connector (J2)

MONO IN

M

T

1

This connector supports Aux-input for connecting
DVD or other audio devices.

GND

GND

1

1

1

1
1

1

LR

Creative SB-LINK Sound Connector (JP7)

The SB-LINK serves as a bridge between the

1

1

1

1
1

1

Volume Control Connector (JP1)Volume Control Connector (JP1)

Volume Control Connector (JP1)

Volume Control Connector (JP1)Volume Control Connector (JP1)

1

1

1

1
1

1

mainboard and Creative’s PCI sound card. This
connector delivers Sound Blaster 16 compatility for
real-mode DOS games.

1

(PC/PCI)

GNT#

GND

(PC/PCI)

REQ#

SERIAL

GND

IRQ

1

Volume up

This function, enable you to select volume up or down
option. You must set this jumper's cap to pins 1-2 to turn
the volume up and to 3-4 to turn the volume down.

1

Volume down

16

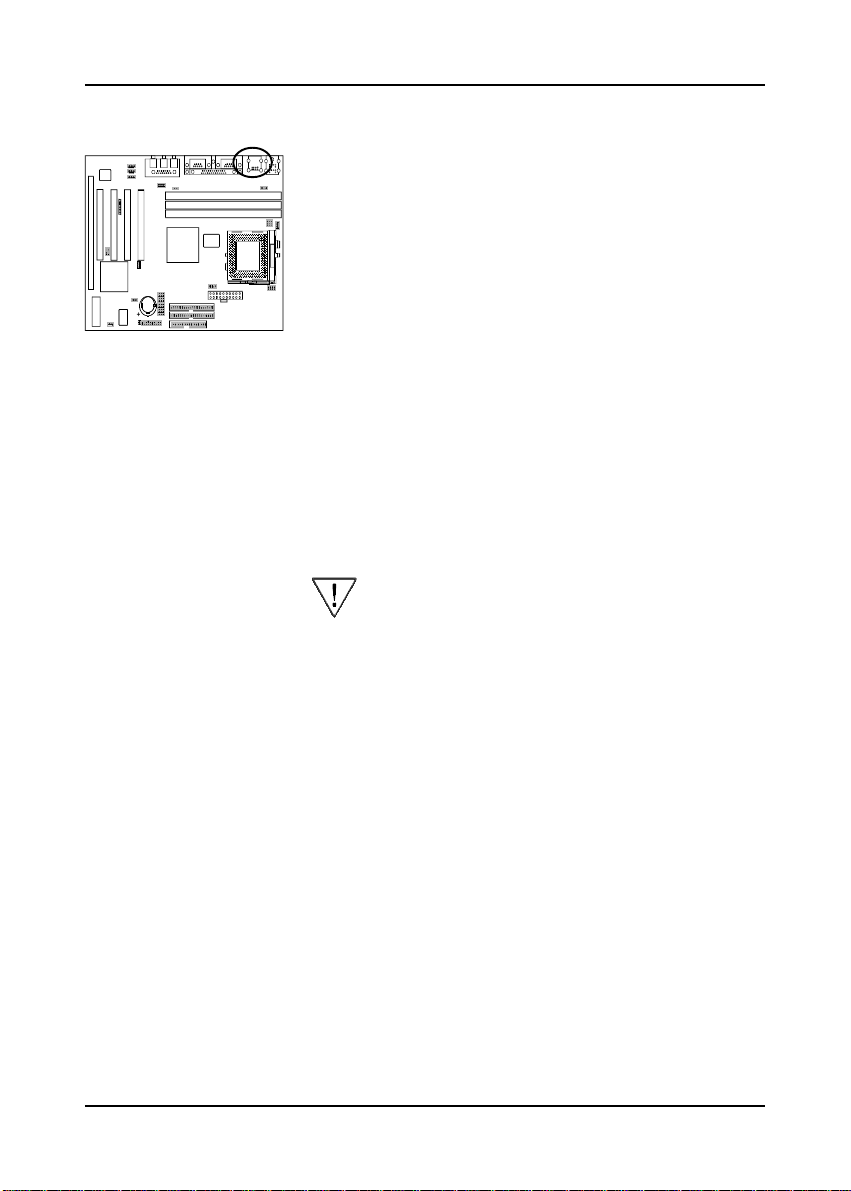

WOL (Wake-on-LAN) Connector (J4)

Enable the Wake Up On LAN selection in BIOS’s

1

Power Management Menu to use this function. The
capability to remotely manage PCs on a network is a
significant factor in reducing administrative and
ownership costs. Magic Packet technology is

1

1

1
1

1

designed to give WOL (Wake-on-LAN) capability to
the LAN controller. When a PC capable of receiving
wake up command goes to sleep, the Magic Packet
mode in the LAN controller is enabled. When the
LAN controller receives a Magic Packet frame, the
LAN controller will wake up the PC. This header is
used to connect an add-in NIC (Network Interface
Card) which gives WOL capability to the mainboard.

To support this function, a switching power
supply with a minimum of 750mA 5VSB is
required.

Clear CMOS Data Jumper (JP12)

Hardware Setup

1

1

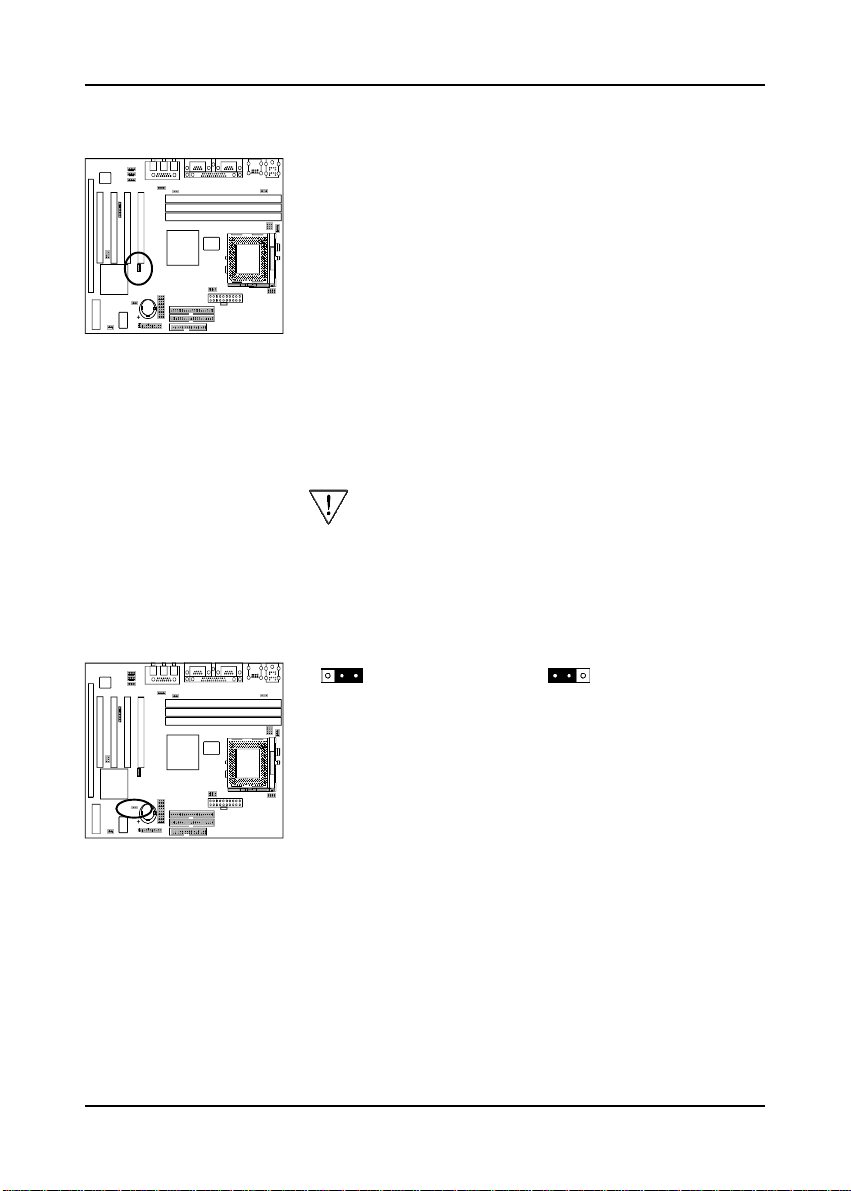

To clear the contents of the CMOS, please follow the

Normal (default)

1

Clear CMOS data

steps below.

1.Disconnect the system power supply from the power

1

1

1
1

1

source.

2.Set the jumper cap at location 2~3 for 5 seconds, then
set it back to the default position.

3. Connect the system's power and then start the system.

4 .Enter BIOS's CMOS Setup Utility and choose Load

Setup Defaults. Type Y and press enter.

5.Set the system configuration in the Standard CMOS
Setup menu.

17

Chapter 2

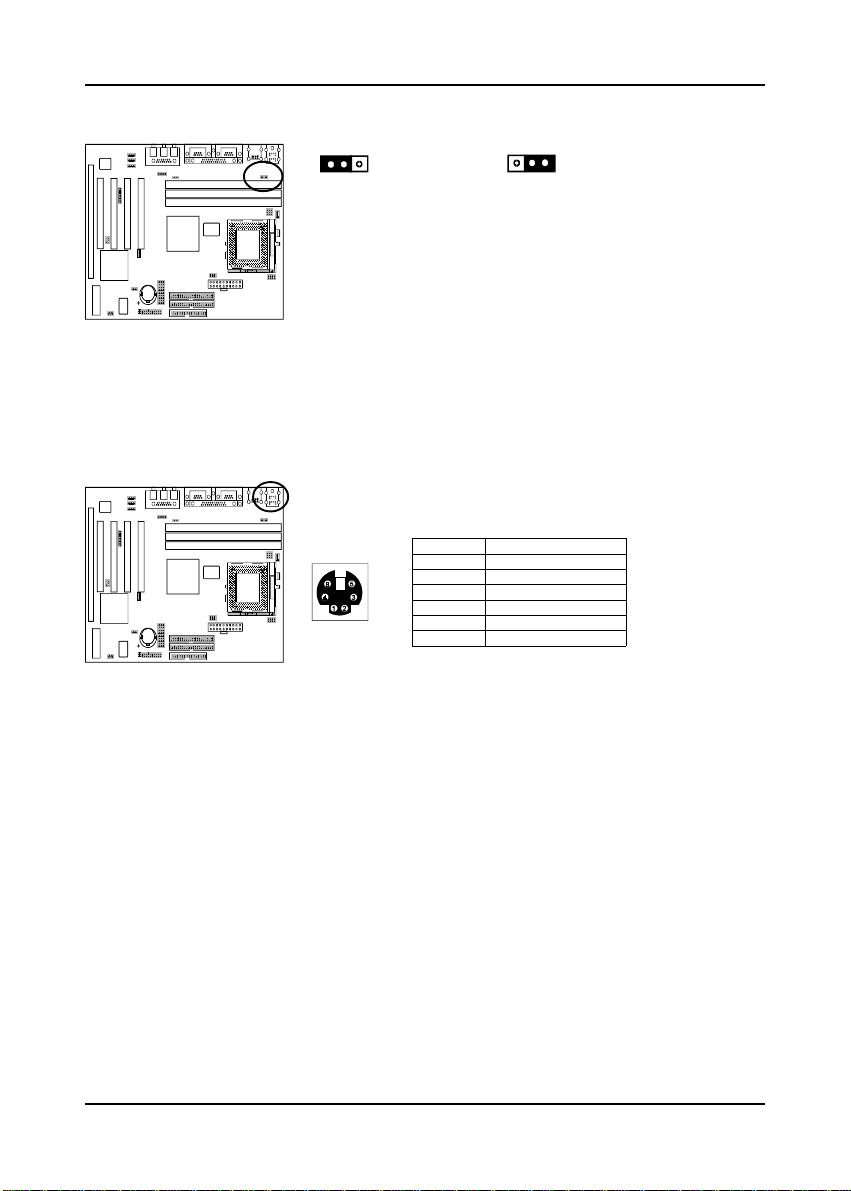

Power-on by Keyboard Jumper (JP3)

1 1

1

This board is able to be turned on by the keyboard. To
use this function, enable the Power On By Keyboard
option in BIOS Power Management Setup screen . You

1

1

1
1

1

must also set this jumper cap to pins 2-3 to use this
function. Some out-of-date keyboards may require larger
current than supplied by the Suspend 5V of modern power
supplies. When using older keyboards disable this
function.

Default

PS/2 Mouse and Keyboard Ports

If a PS/2 mouse is used, BIOS will automatically detect

1

1

1

1
1

1

and assign IRQ12 to the PS/2 mouse.

Pin Defin ition

1 Data
2 No Connect
3 Ground
4 +5V (fused)
5 Clock
6 No Connect

Enable

Poly-fuse Over Current Protection

The poly-fuse protects the system from dangerous voltages the system might be
exposed to via the keyboard or USB connectors. In case of such exposure, the poly­fuse will immediately be disconnected from the circuit, just like a normal fuse. After
being disconnected for a short period of time, the poly-fuse will return to its normal
state, after which the keyboard or USB can function properly. Unlike conventional
fuses, the poly-fuse does not have to be replaced, relieving the user of wasted time and
inconvenience.

18

USB(Universal Serial Bus) Ports

If you want to use a USB keyboard, you must enable the

1

1

1

1
1

1

USB keyboard support function in BIOS's Integrated
Peripherals menu (See Section 3-8). USB is an open
industry standard, providing a simple and inexpensive
way to connect up to 125 devices to a single computer
port. Keyboards, mice, tablets, digitizers, scanners, bar­code readers, modems, printers and many more can all be
used at the same time.

USB is a dynamically reconfigurable serial bus with an
elementary data rate of 12Mbps. Based on off the shelf,
low cost micro-controller technology, its modular layered
software protocol supports sophisticated devices and
application programs.

This board contains a USB Host controller and includes
a root hub with two USB ports (meets USB Rev 1.0 spec.).
Two USB peripherals or hub devices are able to be
connected.

Compatibility with different USB peripherals is still
being tested.

Hardware Setup

19

Chapter 2

2-5 Main Memory Configuration

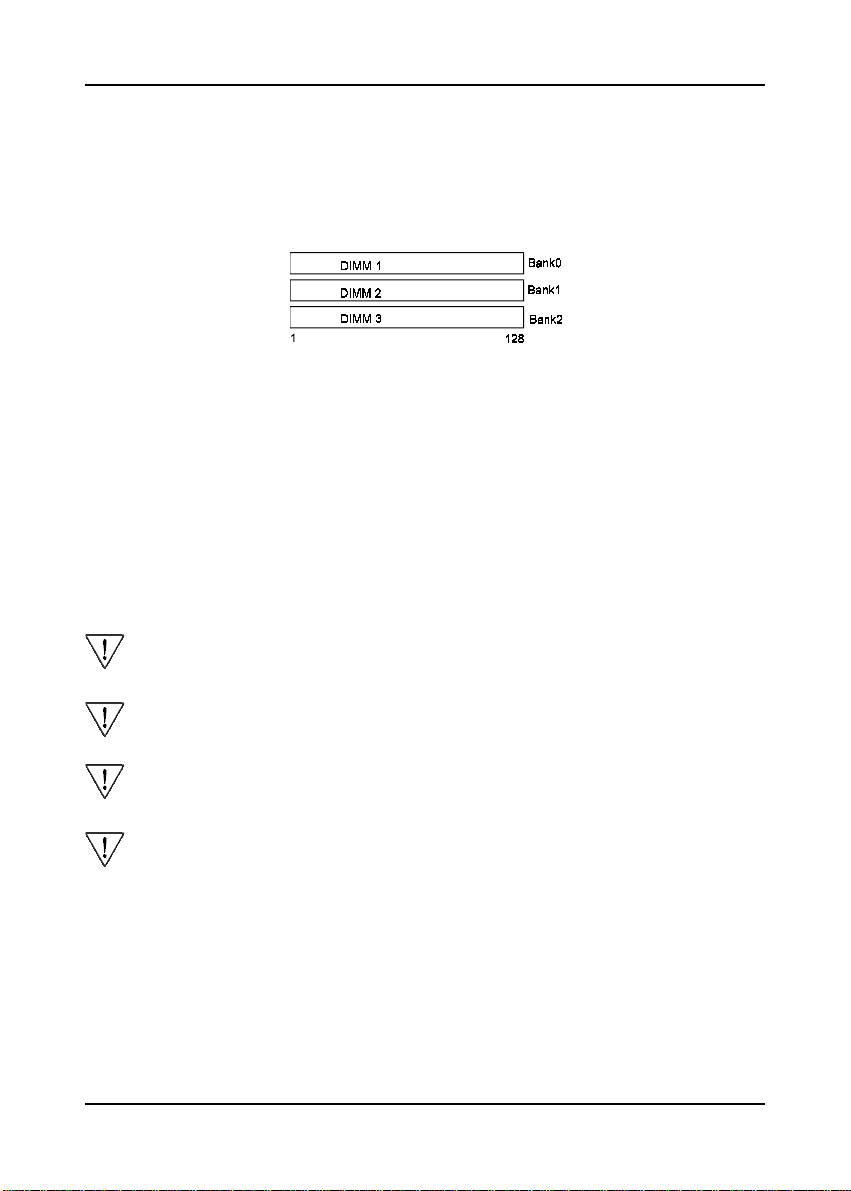

The DRAM memory system consists three banks and the memory size ranges from
16~384 MBytes. If you only use one bank it does not matter which one you use and
if you use two or more banks, it does not matter which bank you install first.

DRAM Specifications

DIMM type: 3.3V, 64/72-bit Synchronous DRAM
Module size: Single/double-sided 16/32/64/128 MBytes
DRAM speed: 10/12ns for Synchronous DRAM
Parity: Either parity or non-parity

Note : The ECC parity check function is not supported yet in SiS 530/5595
Chipset

The compatibility of 256MB DIMM is still under testing and cannot be 100%
guaranteed.

This mainboard supports 3.3v, unbuffered, 4-clock, SDRAM DIMM only.
Buffered, 5V, or 2-clock SDRAM DIMMs should not be used.

Install the first DIMM in DIMM3 socket due to shared memory
architecture limitation

"VGA Memory clock (MHz)" in BIOS's Integrated peripherals page needs
to be set to the same frequency as " SDRAM frequency"

20

Award BIOS Setup Program

Chapter 3Chapter 3

Chapter 3

Chapter 3Chapter 3

33

3

33

Award BIOS Setup Program

Award's BIOS ROM has a built-in setup program that allows users to modify the basic
system configuration. This information is stored in CMOS RAM so that it can retain
the setup information, even when the power is turned off. When you turn on or
reboot the system, press the F10 key to enter the Award BIOS setup program. The
primary screen as shown in Figure 3-1 is a list of the menus and functions available
in the setup program. Select the desired item and press enter to make changes.
Operating commands are located at the bottom of this and all other BIOS screens.
When a field is highlighted, on-line help information is displayed on the left bottom
edge of the screen.

ROM PCI / ISA BIOS (2A5IMC39)

CMOS SETUP UTILITY

AW ARD SOFTW ARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAUL TS

ESC : Quit
F10 : Save & Exit Setup

Figure 3-1 Setup Program Initial Screen

HARDWARE MONITOR SETUP
INTEGRATED PERIPHERALS
PASSWORD SETTING
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

: Select Item

(Shift) F2 : Change Color

Time, Date, Hard Disk T ype...

21

User's Manual

3-1 Standard CMOS Setup

The Standard CMOS Setup allows users to configure system components such as
hard disk drive, floppy disk drive and video display as well as date, time and boot­up error signaling. This configuration menu should be changed when installing a
mainboard for the first time, changing hardware in your system such as the HDD,
FDD, video display, or when the CMOS data has been lost or contaminated. Choose
the Standard CMOS Setup option from the CMOS Setup Utility menu (Figure 3-1)
to display the following screen. When a field is highlighted, on-line help information
is displayed on the left bottom edge of the screen.

ROM PCI / ISA BIOS (2A5IMC39)

ST ANDARD CMOS SETUP

AW ARD SOFTW ARE, INC.

Date (mm : dd : yy : Fri, Sep 19 1998
Time (hh : mm : ss): 9: 14: 43

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 Auto
Primary Slave : Auto 0 0 0 0 0 0 Auto
Secondary Master : Auto 0 0 0 0 0 0 Auto
Secondary Slave : Auto 0 0 0 0 0 0 Auto

Drive A : 1.44M, 3.5 in.
Drive B : None
Floppy 3 Mode Support : Disabled

Video : EGA/VGA
Halt On : All Errors

Base Memory :

Extended Memory :

Other Memory :
Total Memory :

640K

64512K

384K

65536K

ESC : Quit
F1 : Help

(Shift) F2 : Change Color

: Select Item

PU/PD/+/- : Modify

Figure 3-2 Standard CMOS Setup Screen

Date/Time

Set the date and time. Do not skip this function as all of your timed events such
as power management, saving files, etc. are based on this timer.

Hard Disk Setup (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed in
the computer. This section does not show information on other IDE devices such
as CD-ROM drives or other hard drive types such as SCSI drives.

22

Award BIOS Setup Program

Type (Auto/User/None): Use the fields under the Type column to determine the method
you will use to configure the IDE devices. If you choose Auto, BIOS will automatically
detect and make optimal settings for most IDE hard drives.

The mainboard manufacturer recommends that you choose Auto for all
drives.

Choose User to define your own drive type manually. You must enter values indicated
in the table below into each drive parameter field. This information should be included
in the documentation from your hard disk vendor or system manufacturer:

TYPE Setting method
CYLS Number of cylinders

HEAD Number of heads

PRECOM P Write precompensation cylinder

LANDZ Landing zone

SECTOR Number of sectors

MODE Mo de type

Table 3-1 Hard Disk Drive Parameters

Cyls/Head/Sector: The number of Cylinders, Heads, and Sectors can usually be found

written on the top of the hard disk. If you have a relatively new hard drive, entering
this information alone is usually sufficient for normal hard disk operation. The hard
disk will not work properly if you enter improper information for these categories.

Precomp: Older hard drives (i.e., MFM or RLL drives) have the same number of sectors
per track at the innermost tracks as at the outermost tracks. Thus, the data density
at the innermost tracks is higher and the bits are lying closer together. Even though
the physical size of a sector gets progressively smaller as the track diameter diminishes,
each sector must still hold 512 bytes. Write precompensation circuitry compensates
for the difference in sector size by boosting the write current for inner track sectors.

Landz: This defines the address of the landing zone and is only used for older hard
drives which do not have an auto-parking feature.

Mode: If the Type value is not None for any device, you must set the Mode value
for that device. There are four different Mode values: Auto, Normal, Large, and
LBA.

Auto - BIOS detects and enters the IDE drive type during bootup.

Normal - for IDE drives that meet the old IDE specification which support a

maximum capacity of 528MB (1024 cylinders, 16 heads, and 63 sectors).

23

User's Manual

Large - for IDE drives that do not support LBA and have more than 1024
cylinders. Try this setting if your hard disk does not operate properly with
the LBA setting. Large mode is not supported by all operating systems, i.e.,
only certain versions of DOS support large mode.

LBA - (Large/Logical Block Addressing) With LBA, the IDE controller
transforms the data address described by sector, head, and cylinder number
into a physical block address, significantly improving data transfer rates. This
mode is for drives with greater than 1024 cylinders and between 528MB and

8.4GB in size. This protocol is the current common standard.

Choose None for Type if there are no IDE HDD devices in your system.

@

You can use the IDE HDD Auto Detection function to auto detect your hard
drive parameters. Using this function will automatically insert the parameters
discussed under Hard Disk Setup and will indicate User for the Field value.
Please see Section 3-9 for more information.

Floppy Disk Drives

Choose the memory capacity and disk size that corresponds with that of your floppy
disk drive(s).

Video

Select the type of video adapter present in your system. You can ignore this setting
if you are using a VGA monitor since VGA BIOS automatically configures this setting.

Halt

When the system is powered on, BIOS performs a series of diagnotic tests called
POST (Power On Self Test). This function stops the computer if BIOS detects a
hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt on
specific errors.

24

Award BIOS Setup Program

3-2 BIOS Features Setup

By choosing the BIOS Features Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's
default values for the mainboard.

ROM PCI / ISA BIOS (2A5IMC39)

BIOS FEA TURES SETUP

AW ARD SOFTW ARE, INC.

Anti-Virus Protection : Disabled
CPU Internal Cache : Enabled
External Cache : Enabled
Quick Power On Self Test : Enabled
Boot From LAN First : Enabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select (For DRAM>64MB) : Non-OS2

Video BIOS Shadow : Enabled
C8000 - CBFFF Shadow : Disabled
CC000- CFFFF Shadow : Disabled
D0000 - D3FFF Shadow : Disabled
D4000 - D7FFF Shadow : Disabled
D8000 - DBFFF Shadow : Disabled
DC000- DFFFF Shadow : Disabled

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-3 BIOS Feature Setup Screen

A. Anti-Virus Protection

Trend ChipAway Virus

Trend ChipAway Virus is a code incorporated in the mainboard's BIOS firmware.
During the boot-up sequence, BIOS loads before loading of the partition table
or boot sector. ChipAway Virus loads with BIOS and is able to detect boot-up
viruses before they have a chance to infect the hard drive. ChipAway Virus
employs rule-based logic that doesn't look for specific viruses but rather detects
patterns found in every virus, eliminating the need to perform periodical version
updates after new viruses have been found.

B. Cache Control

CPU Internal Cache/External Cache

Cache memory is much faster than conventional DRAM system memory. These
fields allow you to enable or disable the CPUs Level 1 built-in cache and Level
2 external cache. Both settings are left enabled to significantly increase the
performance of your computer.

25

User's Manual

CPU L2 Cache ECC Checking

Enable this function to perform ECC (Error Check and Correct) on the CPU's L2
SRAM. ECC detects and corrects single-bit errors while it only detects double
bit errors. Certain SDRAM modules also have ECC capability. For more
information on SDRAM, see section 2-5. If you are using a 333MHz or higher
CPU, this function must be enabled.

C. Boot Up Features

After turning on the system, BIOS will perform a series of device initializations
and diagnostic tests discussed below.

Boot From LAN First

Enabling this function the BIOS will attempts to boot from a LAN boot image before
it attempts to boot from a local storage device.

Quick Power On Self Test (POST)

Enable this function to reduce the amount of time required to run the POST (Power
On Self Test). BIOS saves time by skipping some items during POST. It is
recommended that you disable this setting. Discovering a problem during bootup
is better than loosing data during your work.

Boot Sequence

This option sets the sequence of drives BIOS attempts to boot from after POST
completes. BIOS will search these drives for an operating system.

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A will
function as drive B, and drive B will function as drive A. Note that the boot
sequence assignment mentioned directly above does not inlcude booting from
floppy drive B. This function is useful if floppy drives B and A are of a different
format and you want to boot from floppy drive B.

Boot up Floppy Seek

During POST, BIOS will determine if the installed floppy disk drive has 40 or 80
tracks. A 360K drive has 40 tracks and 720K, 1.2M and 1.44M drives have 80 tracks.
All modern floppy disk drives have 80 tracks.

Boot Up NumLock Status

This function defines the keyboard's numberpad as number keys or arrow keys.

26

Award BIOS Setup Program

D. Keyboard Interface

Typematic Rate Setting

When enabled, you can set the following two typematic control items. When
disabled, keystrokes are determined arbitrarily by the keyboard controller in your
system.

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when
a key is pressed and held down.

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins
repeating.

E. Security Option

The Supervisor and/or User Password functions shown in Figure 3-1 must be set
to take advantage of this function. See Section 3-8 for password setting information.
When the Security Option is set to System, a password must be entered to boot
the system or enter the BIOS setup program. When the Security Option is set
to Setup, a password is required to enter the BIOS setup program.

F. PCI/VGA Palette Snoop

Some non-standard VGA cards or MPEG video cards may not show colors properly.
Setting this function to Enabled can correct this problem.

G. OS Select (For DRAM > 64MB)

If your system's DRAM is larger than 64MB and you are running OS/2, select
OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other
operating systems.

H. Shadow Memory

Software such as system BIOS, video BIOS, SCSI BIOS, etc that resides in ROM
(Read Only Memory) chips is called firmware. Shadowing of firmware occurs when
BIOS is copied to RAM address C0000h through DFFFFh. Video BIOS loads into
the C0000-C7FFF memory area when video shadowing is enabled. If an expansion
peripheral in your system contains ROM-based firmware, you need to know the
address range the ROM occupies to shadow it into the correct area of RAM.

Shadowing improves the firmware's performance because the firmware can be read
by the CPU through the 16- or 32-bit DRAM bus as opposed to the 8-bit XT bus.
However, shadowing also results in reducing the amount of high memory (640
KB to 1 MB) for loading device drivers. Shadowing is used mostly for ROM chips
on ISA cards and not for PCI cards. Shadowing and playing games at the same
time may result in system instability as some games access the RAM memory area
being shadowed.

27

User's Manual

3-3 Chipset Features Setup

By choosing the Chipset Features Setup option from the CMOS SETUP UTILITY
menu(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A5IMC39)

CHIPSET FEA TURES SETUP

AW ARD SOFTW ARE, INC.

Refresh Rate Control : 15.6us

º Ref/Act Command Delay : 6T
º Refresh Queue Depth : 12
º RAS Precharge Time : 3T
º RAS to CAS Delay : 3T
º ISA Bus Clock Frequency : PCICLK/4
º Starting Point of Paging : 1T
º NA# Enable : Enabled
º L2 Cache Burst RD Cycle : Delay 1 T
º IO Cycle NA# : Enabled
º Asyn/Sync ModeCPU/DRAM : Asynchronous
º SDRAM CAS Latency : 3T
º SDRAM WR Retire Rate : X-1-1-1
º PCI Peer Concurrency : Enabled
º Read Prefetch Memory RD : Enabled
º Assert TRDY After Prefet : 2 QWs
º CPU to PCI Burst Mem. WR : Enabled
º CPU to PCI Post Write : Enabled
º
AGP Aperture Size : 64MB

System BIOS Cacheable : Enabled
Video BIOS Cacheable : Disabled
Memory Hole at 15M-16M : Disabled
DRAM Controller 1 T WR : Disabled
DRAM Controller 1 T RD : Enabled
PCI Post Write Buffer : Disabled
PCI Delayed Transaction : Disabled
Auto Detect DIMM/PCI Clk : Disabled
Spectrum Spread : Disabled
Flash BIOS Protection : Disabled
Hardware Reset Protect : Disabled

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

Figure 3-4 Chipset Features Setup Screen

All of the above settings have been determined by the mainboard manufacturer
and should not be changed unless you are absolutely sure of what you are
doing. Explanation of the DRAM timing and chipset features setup is lengthy,
highly technical and beyond the scope of this manual. Below are abbreviated
descriptions of the functions in this setup menu. You can look on the world
wide web for helpful chipset and RAM configuration information including
AWARD's web site at http://www.award.com.

:Select Item

28

Award BIOS Setup Program

A. SDRAM CAS Latency

When set to Auto this feature will use "default" option to read CAS Latency from
the SPD of the DIMMs, with this mechanism the user's need only to reboot the
system to get a set of proper value of CAS Latency.

B. AGP Aperture Size (MB)

This function determines the amount of system memory that is given to the AGP
card. Options range from 4MB to 256MB. This is a dynamic memory allotment
in that the AGP card will only use the amount of memory that it needs. The
remaining memory not in use will be available for the system to use. For example,
if 16MB are alloted to the AGP card and the card only needs 8MB, the remaining
8MB will be available for system use.

C. System BIOS Cacheable

Enabling this function allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. Caching the system BIOS results in better
performance than shadowing the system BIOS as discussed in Section 3-2.

D. Video BIOS Cacheable

Enabling this function allows caching of the video BIOS ROM at C0000h-C7FFFh,
resulting in better video performance. However, if any program writes to this
memory area, a system error may result. Caching the video BIOS results in better
performance than shadowing the video BIOS as discussed in Section 3-2.

E. Memory Hole at 15M-16M

Enabling this function will reserve the memory address space between 15MB
and 16MB for ISA expansion cards. However, enabling this function will
result in not allowing the system to have access to memory above 16MB.
Please note that some expansion cards require this setting to be enabled.

F. PCI Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions
cycles. Select Enabled to support compliance with PCI specification version 2.1.

G. Spectrum Spread

When Enabled this function will cause lower EMI by spreading the system
frequency spectrum. While this function decreases EMI, system stability may
be slightly compromised. Choosing Smart Clock will turn off the AGP, PCI, and
SDRAM clocks when not in use. Smart Clock does not perform a spectum
spreading function.

29

User's Manual

H. Flash BIOS Protection

The mainboard manufacturer developed BIOS protection technology that protects
the System BIOS from accidental corruption by unauthorized users or computer
viruses. When enabled, the BIOS data cannot be changed when attempting to
update BIOS with the the FLASH utility. When disabled, the BIOS data can be
updated by using the FLASH utility.

To Pass the Windows 95 SCT testing, this item should be disabled.

Please note that when disabling this setting, the system BIOS is vulnerable
by intrusion of computer viruses. It is recommended to disable this setting
only temporarily while updating your system's BIOS.

The Flash utility that come with this CD is specially designed to this MB
BIOS. Using others Flash utility might resulted to BIOS update failure and
cause damage to the BIOS.

30

Award BIOS Setup Program

3-4 Power Management Setup

This section provides information on the Green PC power management funtcions. By
choosing the Power Management Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's defaultbvalues for the mainboard.

ROM PCI / ISA BIOS (2A5IMC39)

POWER MANAGEMENT SETUP

AW ARD SOFTW ARE, INC.

ACPI Function : Enabled
Power Management : User Define
Video Off Option : Susp,Stby->Off
Video Off Method : DPMS
Switch Function : Break/Wake
Doze Speed (div by) : 2/8
Stby Speed (div by) : 1/8
MODEM Use IRQ : 4

** PM Timers **
HDDOff After : Disabled
Doze Mode : Disabled
Standby Mode : Disabled
Suspend Mode : Disabled
** PM Events **
HDD Port A ctivity : Enabled
COM Port A ctivity : Enabled
LPT Port A ctivity : Enabled

VGA Activity : Disabled
IRQ 8 [3-7,9-15],NMI : Enabled
IRQ 8 Break Suspend : Disabled
Power Button Over Ride : Delay 4 Sec
Wake Up On LAN : Disabled
Power On ByKeyboard : Disabled
Power On By Modem : Disabled
Power On By Alarm : Disabled

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-5 Power Management Setup Screen

A. Advanced Configuration Power Interface (ACPI)

ACPI management enables the operating system to control the amount of power
given to each device attached to the computer. With ACPI, the operating system
can turn off peripherals devices, such as CD-ROM players, when they are not
in use.

31

User's Manual

B. Power Management

Power management allows the computer to save electricity when it is not in use
by entering increasingly deep power saving modes as shown by the diagram below.

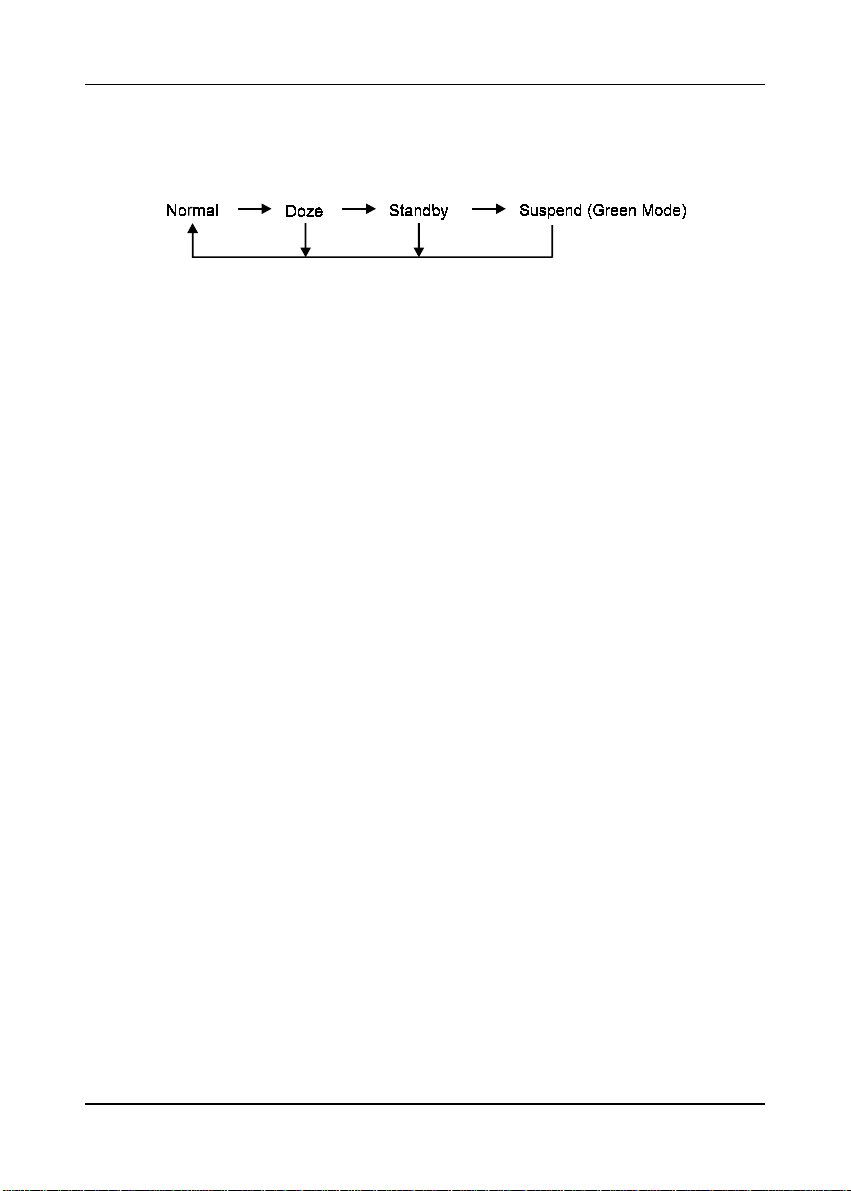

Figure 3-6 Power Saving Mode Flow Chart

The computer runs in Normal operation mode until the Doze timer expires, at which
point the computer enters Doze mode. If no external activity occurs, the computer
will go into Standby and Suspend modes when their respective timers expire. If
external activity occurs, the computer will wake up from Power Management and
return to Normal mode. To activate the function, set Power Management to

Maximum Saving, User Define, or Minimum Saving described below. For a
description of the power saving modes (Doze, Standby, and Suspend) see their
descriptions below.

Disabled - Turns off the Power Management functions.
Max. Saving - All timers are set at the minimum value of one minute to

maximize power saving.
Min. Saving - All timers are set at the maximum value of one hour for

minimal power saving.
User Define - User can configure the timer to a desired time according to the

values available.

@

Note that enabling the Power Management function will result in enabling the
HDD Power Down function (Max Saving = 15 min, Min Saving = 1 min). The
HDD Power Down function is not part of the Power Management scheme as
indicated in Figure 3-6 Refer to the Standby Mode, Suspend Mode, and HDD
Power Down descriptions below for more informaiton on hard drive power
management.

C. Video Off Option

This setting determines when the monitor enters power saving mode. As the
function name indicates, the monitor enters the power saving mode after the chosen
event expires. The Power Management function must be enabled to use this
function.

D. Video Off Method

This function serves as both a screen saver and power saver for monitors.
See the next function, Video Off After, for setting the video timer.

32

Award BIOS Setup Program

Blank - BIOS will only blank the monitor's screen. The electricity saved
in this mode is negligible and this function is only used as a screen saver
to prevent screen damage while the screen is on but not in use.
V/H SYNC+Blank - The system turns off the vertical and horizontal syn­chronization ports, writes blanks to the VGA buffer and the monitor's
electron gun turns off. This function requires a monitor with Green features
in order to take advantage of the power saving function. If you enable this
function and do not have a Green monitor, the result will be the same as
if you had selected Blank. This function serves as both a screen saver and
an electricity saver.

DPMS Supported - Select this option if your video card supports the Display
Power Management Signaling (DPMS) standard (i.e., you have a monitor that
supports Green features). Use software supplied by your your video
subsystem to set video power management options.

E. Switch Function

When this option is set to Break/Wake, the system enters the suspend mode;
press the power button again to return to full power.

F. Modem Use IRQ

If your computer has an modem, use this function to tell BIOS which IRQ is
being occupied by the modem card. When the system is in Green mode, the
modem requires an IRQ assignment to wake up the system and perform tasks.
This assignment is compliant with the APM 1.2 specification and is to be used
in coordination with APM 1.2 compliant operating systems.

G. HDD Off After

After the selected period of drive inactivity, the hard disk drive powers down
while all other devices remain active. Selecting Suspend tells the drive to power
down immediately.

H. Doze Mode

The Power Management function must not be set to disabled to enable this
function. If no interrupts have occured and the Doze timer expires, system will
enter Doze mode. In Doze mode, the CPU clock runs at a lower speed while
all other devices operate normaly.

Power saving modes achieved in lower power saving states will either be

@

maintained or enter higher power saving modes when switching to higher
power saving states. For example, the CPU clock will not switch back to
normal in Standby mode. It will maintain a decreased rate in Standby Mode
and turn off in Suspend Mode.

33

User's Manual

I. Standby Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Doze mode and the Standby timer expires, the
system will enter Standby mode. In Standby mode, the hard disk drive and the
monitor shut off while all other devices still operate at full speed. Note that the
Video Off and HDD Power Down functions in Figure 3-5 provide the same power
saving options found in Standby mode. The priority for determining which
function controls power saving for the monitor and hard drive is determined by
which timer expires first.

J. Suspend Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Standby mode and the Suspend timer expires, all
devices regulated by power management will shut off and the CPU speed will be
0 MHz.

K. PM Events

The HDD/COM/LPT/VGA Acitvity and IRQ[3-7,9-15], NMI. When Enabled any
activity from one of the listed system peripheral or devices, IRQs wakes up the
system.

@

A power-management (PM) event awakens the system from, or resets activity
timers for, Suspend mode. You can disable monitoring of common interrupt
requests so they do not generate PM events.

L. IRQ8 Break Suspend

Enabling this setting turns the monitoring of IRQ8 (the Real Time Clock) On so
it does not awaken the system from Suspend mode.

M. Power Button Over Ride

When set to Delay 4 Sec., this function allows the power button to put the system
in Suspend, a power saving mode. See Section 2-4 for operation instructions of
the over-ride power button operation wich puts the system in Suspend mode.
When set to Instant-Off the Power Button Over Ride function is disabled and
the computer turns completely off when the power button is pressed.

N. Wake Up On LAN

Enable this selection to use the Wake Up On LAN function discussed in Section
2-4 of this manual.

34

Award BIOS Setup Program

O. Power On By Keyboard

Set to Disabled to control your computer's power by the button on your system
case. Set this function to Any Key to turn on the computer by touching any
key on the keyboard. If you set this function to Hot Key or Password you must
designate the keystrokes that will turn on the computer. Note that the power button
is always able to turn on the computer regardless of how this function is set.

If you have forgotten your passord, you must remove the power cable from

@

the ATX power supply connector and clear the CMOS data as discussed
in Section 2-4 to clear the password.

P. Power On By Modem

When enabled, a modem that receives a call will wake up the system from
soft off and green mode. You should connect the modem to the COM port
and turn on the resume event in green mode.

Q. Power On By Alarm

When enabled, this setting allows the system to turn back on at a designated
time of the month. User must designate date of month and time of day.
This function is only available when using an ATX power supply and the Software
Power-Off function to turn off the computer. See the Software Power-Off feature
in Section 2-4 of this manual for instructions.

35

User's Manual

3-5 PnP/PCI Configuration

This section provides IRQ and DMA setting information. By choosing the PnP/PCI
Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen
below is displayed. This sample screen contains the manufacturer's default values

for the mainboard.

ROM PCI / ISA BIOS (2A5IMC39)

PNP/PCI CONFIGURA TION

AW ARD SOFTW ARE, INC.

PnP OS Installed : No
Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : PCI/ISA PnP
IRQ-4 assigned to : PCI/ISA PnP
IRQ-5 assigned to : PCI/ISA PnP
IRQ-7 assigned to : PCI/ISA PnP
IRQ-9 assigned to : PCI/ISA PnP
IRQ-10 assigned to : PCI/ISA PnP
IRQ-11 assigned to : PCI/ISA PnP
IRQ-12 assigned to : PCI/ISA PnP
IRQ-14 assigned to : PCI/ISA PnP
IRQ-15 assigned to : PCI/ISA PnP
DMA-0 assigned to : PCI/ISA PnP
DMA-1 assigned to : PCI/ISA PnP
DMA-3 assigned to : PCI/ISA PnP
DMA-5 assigned to : PCI/ISA PnP
DMA-6 assigned to : PCI/ISA PnP
DMA-7 assigned to : PCI/ISA PnP

PCI IRQ Actived By : Level
Slot 1 Use IRQ No. : Auto
Slot 2 Use IRQ No. : Auto
Slot 3 Use IRQ No. : Auto
Slot 4 Use IRQ No. : Auto
Audio IRQ No. : 5
Assign IRQ For VGA : Disabled
FDD IRQ Can Be Free : Yes

Used MEM base addr : N/A

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-6 PCI & ONBOARD I/O Setup Screen

A. PnP OS Installed

If you want to install a PnP compatible OS (such as Windows 95) set to Yes.

B. Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning IRQ
& DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy
information.

36

ESCD(Extended System Configuration Data) provides a detailed format of
the configuration data structures stored in flash memory. Each data structure
defines the resources used by a device or a card in the system. This includes
legacy and PCI/ISA PnP devices.

Award BIOS Setup Program

C. Reset Configuration Data

When enabled the system BIOS will clear/reset the ESCD during POST. After
clearing the ESCD, the BIOS will then change this item's value to Disabled.
Otherwise, the ESCD data will become useless.

D. IRQ#/DMA# assign to

When resources are controlled manually, you can assign each system interrupt
& DMA channel for "Legacy ISA" or "PCI/ISA PnP" card used.

While using Legacy ISA Card(non-PnP ISA card), please set it's necessary
corresponding resources (INT#, DMA#) from "PCI/ISA PnP" to "Legacy
ISA."

@ All ISA non-PnP devices are legacy devices that select resources (I/O Addr.,

INT# or DMA#) by using hardware jumpers.

@ IRQ-3/4/7/12/14/15 have been set as default for on board devices (COM2,

COM1, Printer port, PS/2 mouse, IDE1 and IDE2).

E. PCI IRQ Actived By

Leave the IRQ trigger set at Level unless the PCI device assigned to the interrupt
specifies Edge-triggered interrupts.

F. Assign IRQ For VGA

This function allows BIOS to make an IRQ available to VGA cards. Most current
VGA card models do not require this function to be enabled.

G. FDD IRQ Can Be Free

This function allows user to choose if the FDD IRQ is able to be freed up. The
default setting is Yes and this does not allow the IRQ to be free.

H. Used MEM base addr

This function devotes a space of memory (8K, 16K, 32K, 64K) for any peripheral
that has a high memory requirement. This is also used to designate memory
space for legacy ISA cards. The settings C800~DC00 are used to to designate
point at which the memory will start being used. The default setting is N/A
(disabled.)

37

User's Manual

3-6 Load Setup Defaults

Load Setup Defaults loads the default system values directly from the CMOS Setup
Utility menu (Figure3-1). If the stored record created by the setup program becomes
corrupted and therefore unusable, these defaults will be loaded automatically when
you turn on the computer.

ROM PCI / ISA BIOS (2A5IMC39)

CMOS SETUP UTILITY

AW ARD SOFTW ARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FE
POWER MA
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

ESC : Quit
F10: Save & Exit Setup

Load SETUP Defaults except Standard CMOS SETUP

Figure 3-7 Load Setup Defaults Screen

HARDWARE MONITOR SETUP
INTERGRATED PERIPHERALS

Load SETUP Defaults <Y/N>? N

SAVE & EXIT SETUP
EXIT WITHOUT SAVING

: Select Item

(Shift) F2 : Color

38

Award BIOS Setup Program

3-7 Hardware Monitor Setup

By choosing the Hardware Monitor Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A5IMC39)

HARDWARE MONIT OR SETUP

AW ARD SOFTW ARE, INC.

Current CPU T emperature : 25
Current CPUFAN Speed : 3600 RPM
Current SYSFAN Speed : 3600 RPM
12V : 12.09V 5V : 5.19V

3.3V : 3.34V Vcore : 2.08V

o

C/77 oF

Figure 3-8 Hardware Monitor Setup Screen

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

:Select Item

PU/PD/+/- : Modify
(Shift) F2 : Color

39

User's Manual

3-8 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the mainboard.

ROM PCI / ISA BIOS (2A5IMC39)

INTEGRA TED PERIPHERALS

AW ARD SOFTW ARE, INC.

Internal PCI/IDE : Both
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
Primary Master UDMA : Auto
Primary Slave UDMA : Auto
Secondary Master UDMA : Auto
Secondary Slave UDMA : Auto
IDE Burst Mode : Enabled
IDE data Port Post Write : Disabled
IDE HDD Block Mode : Enabled

Onboard FDC Controller : Enabled
Onboard Serial Port : 3F8/IRQ4
IR Adress Select : Disabled

Onboard Parallel Port : 378/IRQ7
Parallel Port Mode : SPP
PS/2 mouse function : Enabled
USB Controller : Enabled
USB Keyboard Support : Disabled
Init Display First : PCI Slot
VGA Shared Memory Size : 4MB
VGA Memory Clock (MHz) : 66
Onboard Sound Chip : Enabled
Power Failure Recovery : Disabled

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-9 Integrated Peripherals Setup Screen

A. Internal PCI/IDE

The chipset contains a PCI IDE interface that supports two IDE channels: Primary
(IRQ 14) and Secondary (IRQ 15). Each channel supports two IDE devices, so
the system is capable of supporting a total of four IDE devices. Select Primary,
Secondary, or Both to activate chipset IDE interface(s) installed on your system
board.

B. IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-

4) for each IDE device that the internal PCI IDE interface supports. Modes 0 through
4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device.

40

Award BIOS Setup Program

C. Primary/Secondary/Master/Slave UltraDMA

UDMA (Ultra DMA) is a DMA data transfer protocol that utilizes ATA commands
and the ATA bus to allow DMA commands to transfer data at a maximum burst
rate of 66 MB/s. When you select Auto in the four IDE UDMA fields (for each
of up to four IDE devices that the internal PCI IDE interface supports), the system
automatically determines the optimal data transfer rate for each IDE device.

D. IDE Burst Mode

Selecting Enabled reduces latency between each drive read/write cycle, but may
cause instability in IDE subsystems that cannot support such fast performance. If
you are getting disk drive errors, try setting this value to Disabled. This field does
not appear when the Internal PCI/IDE field is Disabled.

E. IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard drive supports block mode (most new drivesdo),
select Enabled for automatic detection of the optimal number of block read/writes
per sector the drive can support.

F. Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If you install an add-in FDC or the system has
no floppy drive, select Disabled in this field.

G. Onboard Serial Port 1 and 2

Select a logical COM port name and matching address for the first and second
serial ports. Select an address and corresponding interrupt for the first and second
serial ports.

H. IR Address Select

This function allows user to select the IR address/IR mode and IR IRQ.

I. Onboard Parallel Port

Select a logical LPT port address and corresponding interrupt for the physical
parallel port.

J. Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select Normal,
Compatible, or SPP unless you are certain your hardware and software support one
of the other available modes.

41

User's Manual

K. PS/2 mouse function

If your system has a PS/2 mouse port and you install a serial pointing device,
select Disabled.

L. USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB) controller
and you have USB peripherals.

M. Init Display First

This function allows user to choose between AGP slot or VGA slot to initialize
Display first .

O. Power Failure Recovery

Computers using an ATX power supply do not turn back on after the power source
to the computer unexpectedly fails (i.e. electricity outage). Enabling this setting
will allow the system to always turn back on after a power failure. This is especially
important for computers that must be on 24 hours per day.

42

Award BIOS Setup Program

S

3-9 Password Setting

There are three different variables that control password settings. The first two are
located under the Security Option function in BIOS Features Setup Menu (Figure 3-

3). When the Security Option function is set to Setup, a password is required to
enter BIOS and change BIOS settings. When the Securitiy Option function is set
to System, a password is required to to enter both BIOS and the the computer's
operating system (for example Windows 95) found on the boot drive. This is shown
in Figures 3-10.

The third variable is password setting selected in BIOS (Figure 3-1). The user is allowed
to access the computer's operating system,change the user passorword and to have
control over the settings in BIOS. (See Figure 3-10 below).

A. Setting Password

tart

No

BIOS Setup?

Yes Yes

Password Setting

Change all

BIOS settings

No

Password Setting

Yes

Operating System

Appears when Security Option is set
to Setup or System

Only appears when Security Option is set
to System

Figure 3-10 Set Either Supervisor or User Password

43

User's Manual

3-10 IDE HDD Auto Detection

This utility can automatically detect IDE hard disk type and parameters. The detection
process take about 5 seconds for each physical drive. After the utility detects the
disk drive, type Y and press [Enter] to automatically load the parameters in the Hard
Disk section of the Standard CMOS Setup menu. Otherwise, leave the option set
at N and press [Enter] or the [Esc] key to skip the detected drive. After detecting
your hard drive(s), return to the Standard CMOS menu to check your settings.

ROM PCI / ISA BIOS (2A69KC39)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master :

Select Primary Master Option (N=Skip) : N

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
2 (Y) 547 530 32 0 1059 63 LB A

1 547 1060 1 6 65535 1059 63 NORMAL
3 547 530 32 65535 1059 63 LARGE

Note: Some OSes (like SCO-UNIX) must use "NORMAL" for installation

ESC: Skip

Figure 3-11 IDE HDD Auto Detection Screen

3-1 1 Save and Exit Setup

If you select this and type Y (for yes) followed by the [Enter] key, the values
entered in the setup utilities will be recorded in the CMOS memory of the BIOS
chip.

3-12 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the
Setup program without recording any new values or changing old values.

44

Brief Software Driver Guide

Chapter 4Chapter 4

Chapter 4

Chapter 4Chapter 4

Brief Software Driver Guide

The Mainboard Software Guide is found on the CD-ROM that is enclosed with your
mainboard and is a PDF file which must be viewed with Adobe's freeware called
Acrobat® Reader. The Acrobat Reader software is also included on the same CD­ROM. See the Readme.txt file in the CD-ROM's root directory for installation
instructions of the Acrobat Reader. The Mainboard software guide discusses the
following items:

The following items are discussed in the PDF and TXT files:

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From the Windows 95 Device
Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface (DMI) Utility for DOS

- Sound Driver and Utility Installation

The DMI utility is a DOS utility, operating under Windows or other operating
system might cause damage to the BIOS.

The Flash utility that come with this CD is specially designed to this MB
BIOS. Using others Flash utility might resulted to BIOS update failure and
cause damage to the BIOS.

45

Chapter 4

-

MemoMemo

Memo

MemoMemo

46

Audio Subsystem

Chapter 5

Audio Subsystem

5-1 Feature

- ESS PCI audio Solo-1 (ES1938S-G) subsystem on a single chip.

- Advance wavetable synthesizer using wavedata on the system memory.

- Up to 48KHz programable sample rate for record and playback.

- Intergrated Spatializer 3D effects Processor.

- Advance power management meets ACPI standards.

- Full duplex operation for simultaneous record and plaback.

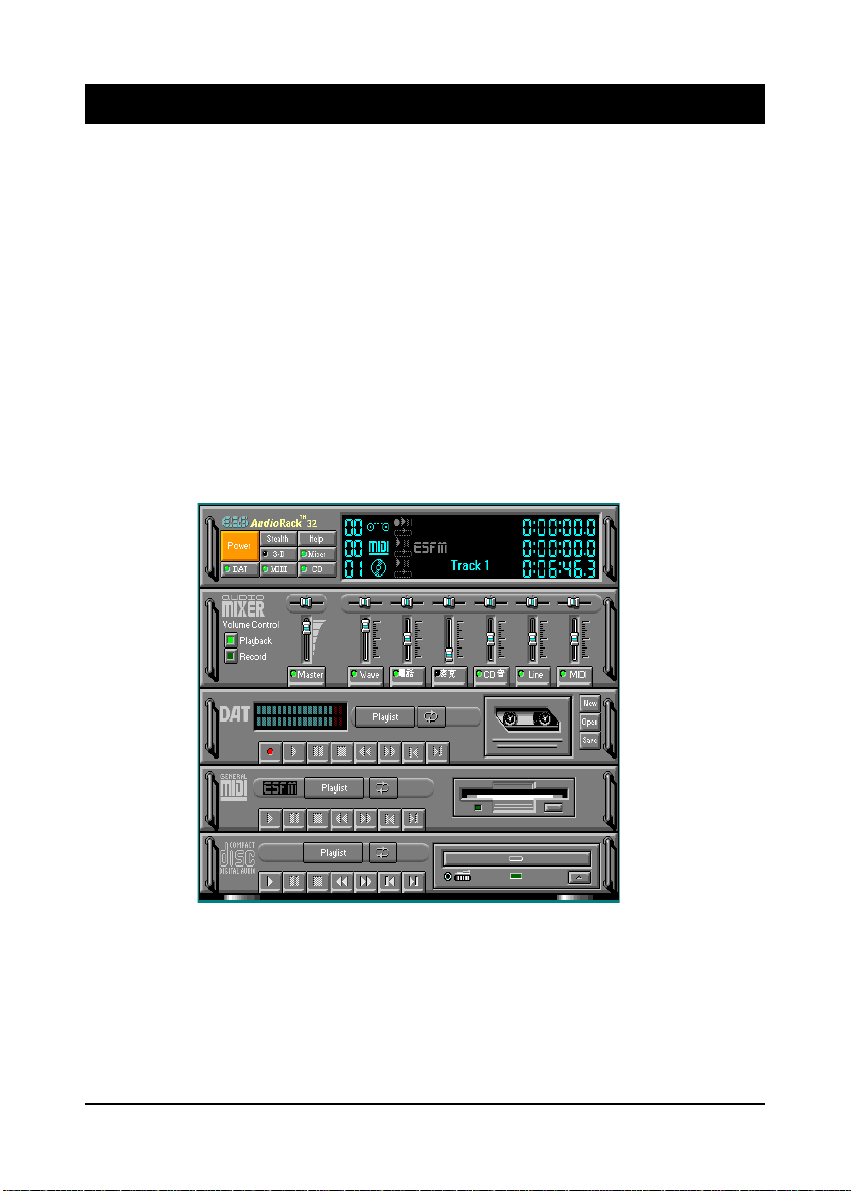

5-2 Sound Driver and Utility (See Chapter 4)
5-3 CD-ROM Audio-in Connection (See Section 2-4)

47

-

MemoMemo

Memo

MemoMemo

48

ATI RAGE PRO

Chapter 6

Integreted Super AGP 2D/3D Video/graphics controller

The SiS530 supports 100MHz CPU host bus, and incorporates the full
function of SiS own popular 3D solution, SiS6326AGP, to allow 3D
acceleration at 100MHz speed on a 64bit internal host bus. With this
architecture, the video data transfer rate achieves 800MB/sec, farsuperior
to the conventional 32bit bus at 66MHz.

6-1 Features

- Built-in high performance 3D engine has a peak polygon rate of 800K
polygons/second at 50 pixels/polygon and has a peak fill rate at 40M
pixels/second.

- Built-in programmable 24-bit true color RAMDAC upto 230MHz pixel clock

- Integrated Direct Draw Accelerator, with a 64-bit BITBLT engine

- Supports 42 double-word hardware command queue

- DDC1 and DDC2B(VESA DDC3.0)for display configuration and detection

- Power management for full VESA Display Power Management Signaling (DPMS),

and EPA Energy Star compliance.

- Supports up to 1024x768@75MHz(VESA standard CRT timings)

6-2 Memory

- Supports programmable 8MB memory configuration

6-3 Operating Requirements

- To take advantage of the AGP 2x mode(133MHz), you must use
Windows 95 version OSR2.1 or later. Make sure to install USBSUPP.EXE
file from Microsoft

6-4 Driver and Utility Installation

- Graphics acceleretor driver and Utility Installation (See Chapter 4)

49

Chapter 6

6-5 Jumper Setting

- Onboard VGA (Enabled/Disabled) Jumper (See Section2-4)

6-6 Reference

Direct3D

- Direct3D is the next generation of real-time, interactive 3D technology
for mainstream computer user on internet. Direct 3D is a complete
set of real-time 3D graphics services that delivers fast software­based rendering of the full 3D pipiline (transformations, lighting and
rasterization) and transparent access to hardware acceleration. Direct
3D is fully scalable, enabling all or part of the 3D rendering pipeline
to be accelerated by hardware.

50

Introduction

Appendix IAppendix I

Appendix I

Appendix IAppendix I

On Board I/O Addresses & IRQ Maps

System Resource IRQ I/O Address

1. Timer IRQ0 040, 043

2. Keyboard IRQ1 060, 064

3. Programmable INT IRQ2 0020, 0021,
00A0, 00A1

4. COM2(B) IRQ3 2F8, 2FF

5. COM1(A) IRQ4 3F8, 3FF

6. Floppy IRQ6 3F0, 3F7

7. LPT1 IRQ7 378, 37F

8. Real Time Clock IRQ8 070, 071

9. PS/2 Mouse IRQ12 060, 064

10.Math coprocessor IR Q13 0F0, 0FF

11.IDE 1 IR Q14 1F0, 1F7

12.IDE 2 IR Q15 170, 177

@@

IRQ 5, 9, 10 and 11 are available for interface cards.IRQ 5, 9, 10 and 11 are available for interface cards.

@

IRQ 5, 9, 10 and 11 are available for interface cards.

IRQ 5, 9, 10 and 11 are available for interface cards.IRQ 5, 9, 10 and 11 are available for interface cards.

@@

51

User's Manual

-

MemoMemo

Memo

MemoMemo

52

~

1999.03

u

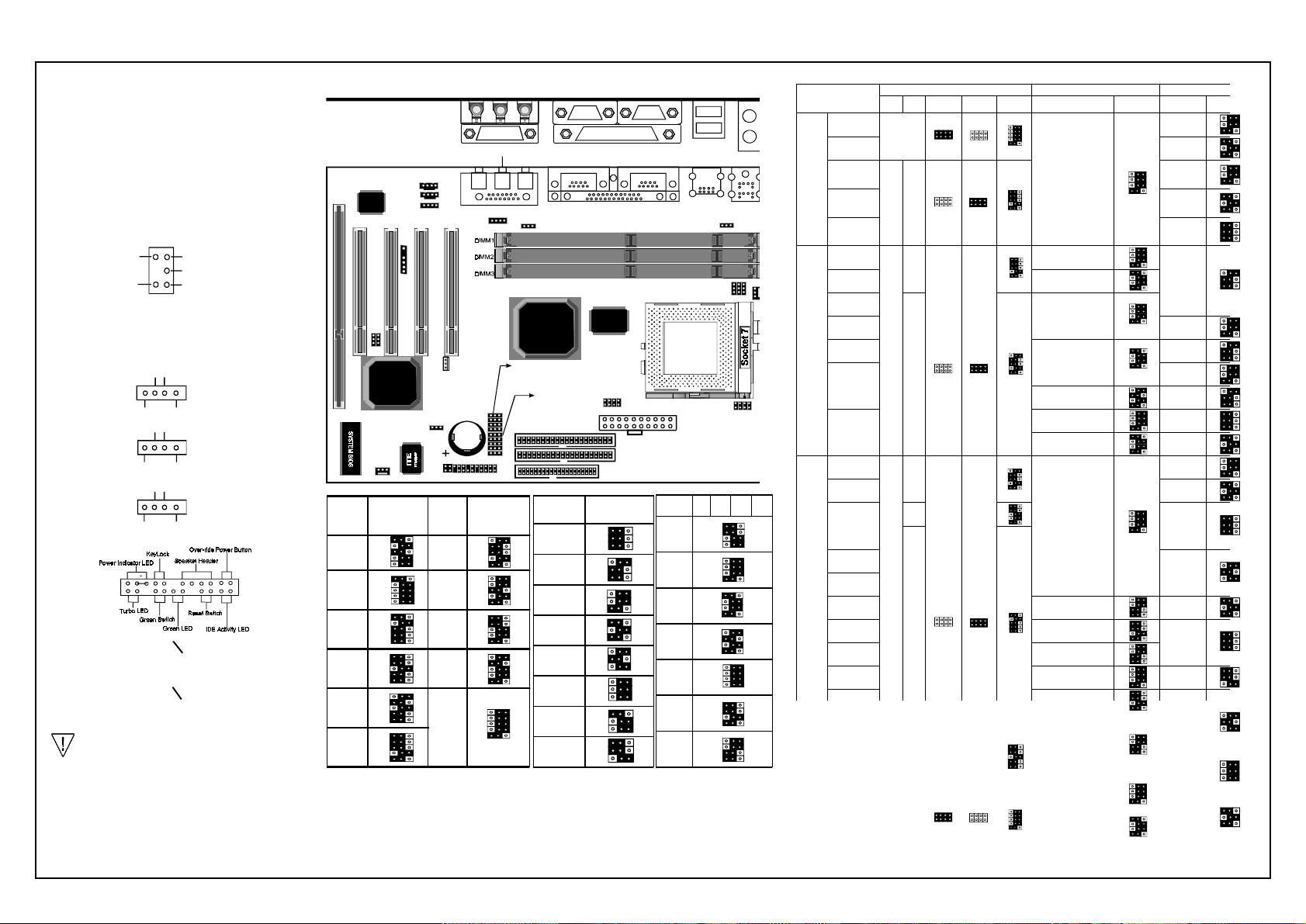

Quick Connector and Jumper Reference

JP1:1-2 :Volumn up
3-4 :Volumn down

JP2:1-2 :On board VGA Enable
2-3 :On board VGA Disable

JP3:Power on keyboard
1-2 :Default
2-3 :Enable

JP7:SB-Link

(PC /P C I)

GNT#

GND

1

GND

(PC/PCI)

REQ#

SERIAL

IRQ

JP12: 1-2 :Clear CMOS
2-3 :Default

J1:Modem Telephony

J2:AUX-in

J3:CD-ROM Audio-in

GND GND

1

MONO IN

MONO OUT

GND GND

1

LR

GND GND

1

LR

J6:Front Panel Header

+

+

+

1

JP8: Open Vcore=V

I/O (Default)

Short Vcore=V I/O
JP9: Open V I/O=ATX Power Source

Short V

I/O=ATX Power Source

1.Install the first DIMM in DIMM3
socket due to shared memory architec­ture limitation

2."VGA Memory clock (MHz)" in
BIOS's Integrated peripherals page
needs to be set to the same frequency as
" SDRAM frequency"

V.1

28-A

Back Panel I/O Connector

J8

SYS. Freq

66/Asyn c

66/Sync

75

83

90

95

100

USB2

K/B

USB1

Mouse

PS/2 Mo
&K/BCo

USB x 2

JP3

JP4
JP5
JP6

JP8

JP1 JP13 JP14 JP15

1

1

1

1

1

1

1

(Default)

ISA 1

PCB

PCI1

JP7

PCI2

SiS

5595

IR1

J3
J2
J1

PCI3

1

1

JP12

PCI4

J4

Mic-in

Battery

Game

Line-in

1

JP1

Line-out

Game

JP11
JP13
JP14
JP15

1

JP2

SiS

530

JP16
JP17
JP18
JP19
JP20

VGA1

VGA1

JP9

1

J5

System FAN

Vcore JP16~20 Vcore JP16~20

1

1

Freq. Ratio

1

x1.5/x3.5

1.8V 2.9V

1

+

2V 3.1V

1

1

1

2.2V 3.2V

1

1

2.4V 3.3V

2.5V

2.8V

1

1

1

3.5V

x2.0

x2.5

x3.0

x4.0

x4.5

x5.0

x5.5

COM1

Prin ter

COM1

Printer

Power supply conn .

IDE # 1
I

DE #2

FLOPPY1

JP4~JP6

1

1

1

1

1

1

1

1

Intel

Cyrix
/IBM

AMD

CPU-type

P54C-166

P54C-200

Pentium

w/MMX

@166MHz

Pentium

w/MMX

@200MHz

Pentium

w/MMX

@233MHz

6x86L-PR166

@133MHz

6x86L-PR200

@150MHz

6x86MX-PR166

6x86MX-PR200

6x86MX-PR200

6x86MX-PR233

MII-300

K6/166

K6/200

K6/233

K6/266

K6-2/266

K6-2/300

K6-2/333

K6-2/350

K6-2/366

I/O Vcc

CPU Power Voltage System freq. Freq. ra tio

Core

JP8 JP9 JP16~20 MHz JP11, 13~15 Speed rate JP4

Vcc

3.5

3.3 2.8

3.3

3.3

2.8

2.9

2.9

3.2

2.2

1

1

1

1

66

66

75

66

75

83 x2

66 x3.5

75 x3

1

1

66

1

100 x3

95

100

66 x5.5

1

1

x2.5

1

x3

1

1

x2.5

1

x3

1

x3.5

1

1

1

x2

1

1

x2.5

1

1

1

1

1

1

1

1

1

1

x2

1

x2.5

1

1

1

1

x2.5

1

x3

1

x3.5

1

x4

1

1

x3.5

1

1

1

1

1

1

1

1

1

SiS530-mATX-VGA-0.1
