Chaintech 5RSA2 5RSA2 User Manual

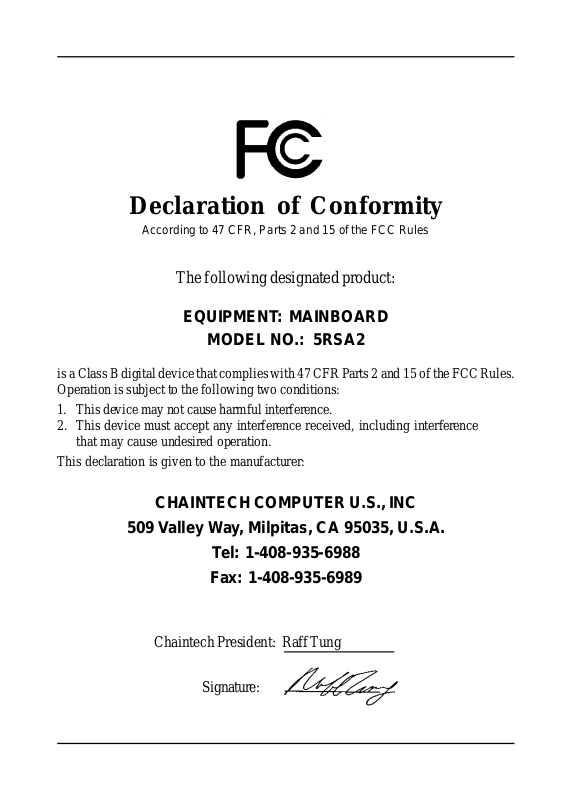

Declaration of Conformity

According to 47 CFR, Parts 2 and 15 of the FCC Rules

The following designated product:

EQUIPMENT : MAINBOARD

MODEL NO.: 5RSA2

is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules.
Operation is subject to the following two conditions:

1 . This device may not cause harmful interference.

2. This device must accept any interference received, including interference
that may cause undesired operation.

This declaration is given to the manufacturer:

CHAINTECH COMPUTER U.S., INC

509 V alley W a y, Milpitas, CA 95035, U.S.A.

Tel: [phone]

Fax: [phone]

Chaintech President: Raff T ung

Signature:

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:

w This device may not cause harmful interference
w This device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If this equipment is not installed
and used in accordance with the manufacturer's instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:

w Reorient or relocate the receiving antenna.
w Increase the separation between the equipment and receiver.
w Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

w Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from
digital apparatusses set out in the Radio Interference Regulations of the Canadian
Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. No warranty or representation, either expressed or implied,
is made with respect to the quality, accuracy or fitness for any particular purpose of this document.
The manufacturer reserves the right to make changes to the content of this document and/or the
products associated with it at any time without obligation to notify any person or organization of
such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental
or consequential damages arising out of the use or inability to use this product or documentation,
even if advised of the possibility of such damages. This document contains materials protected
by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted
in any form, by any means or for any purpose without expressed written consent of it's authors.
Product names appearing in this document are mentioned for identification purposes only. All
trademarks, product names or brand names appearing in this document are registered property
of their respective owners.

Printed in Taiwan

December 1998

POST-CONSUMER
RECYCLED PAPER

Main Board

User's Manual

TT

abab

T

TT

Chapter 1 Introduction........................................................................ 1

1-1 Product Specifications ..........................................................1

1-2 Package Contents .................................................................4

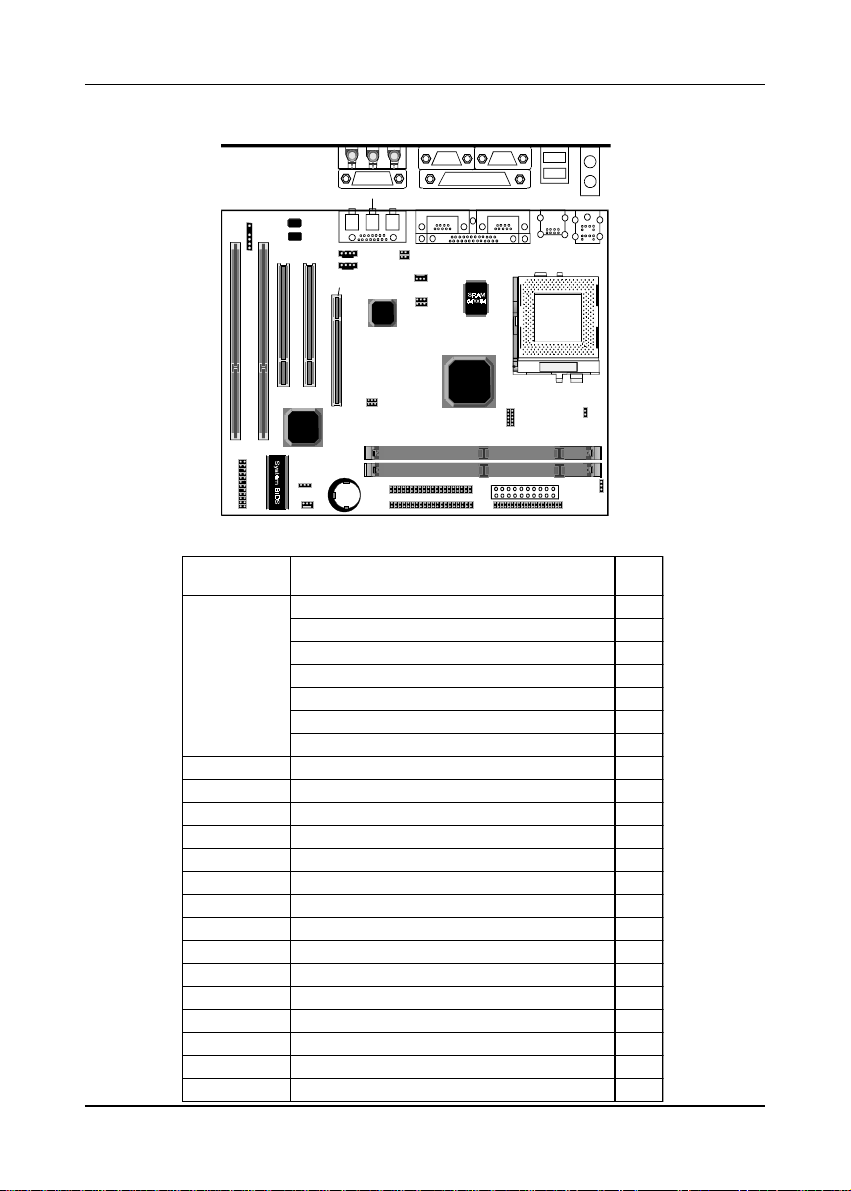

1-3 Mainboard Layout .................................................................. 5

1-4 Connector and Jumper Reference Chart ...............................5

Chapter 2 Hardware Setup.................................................................7

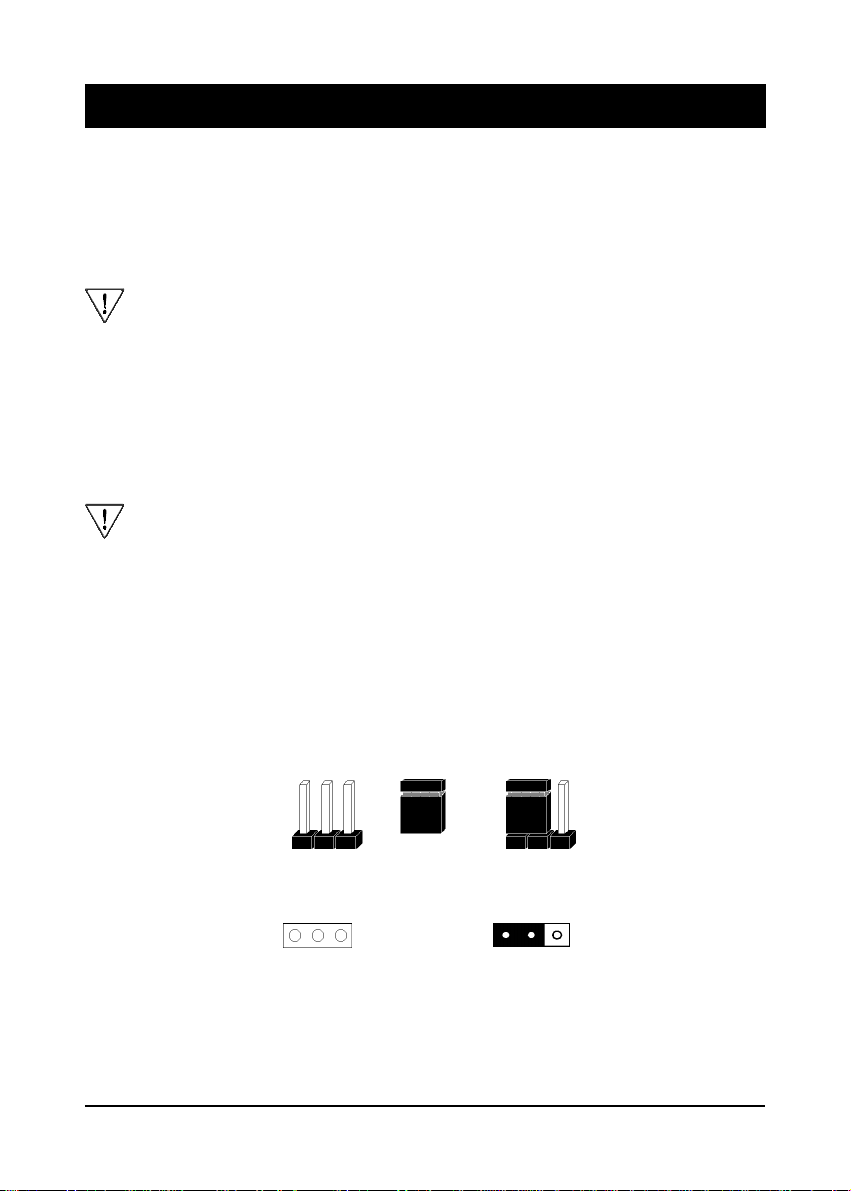

2- 1 Introduction to Jumpers ........................................................7

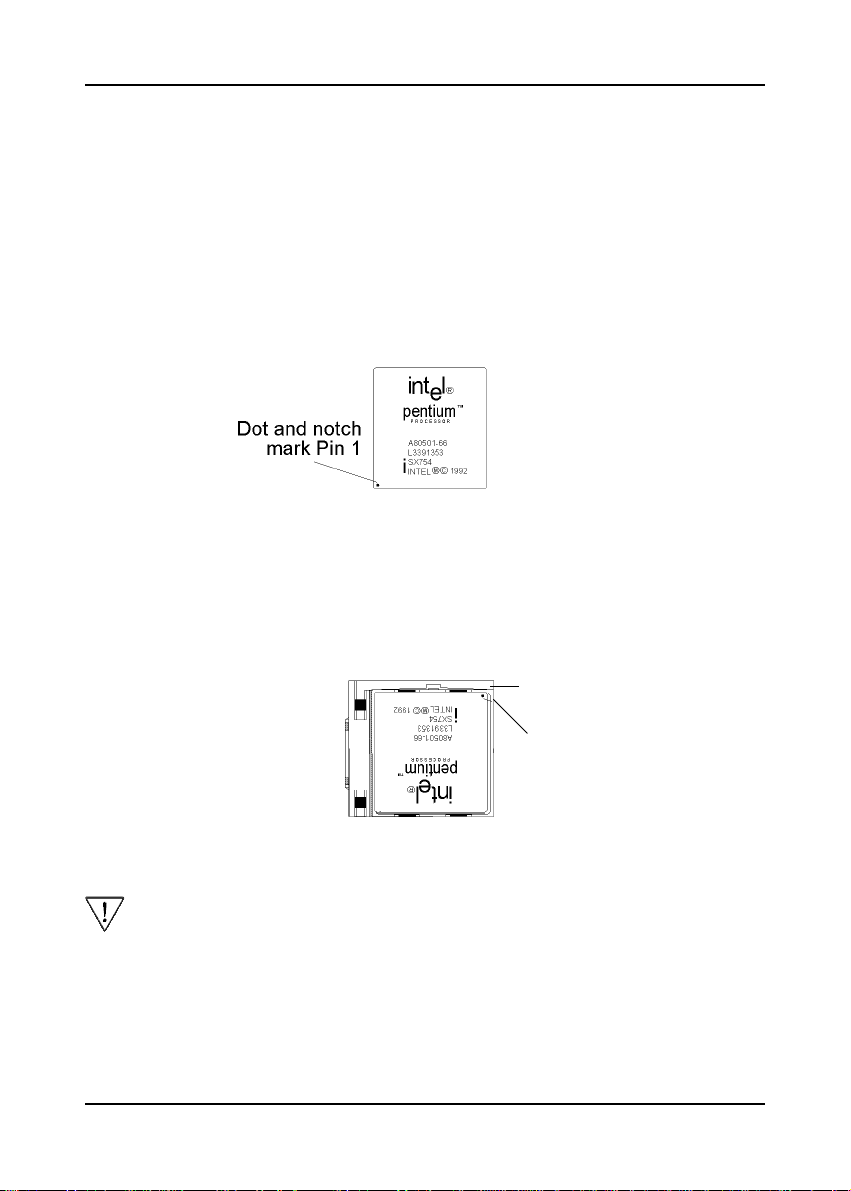

2- 2 Installing a PGA type CPU in a ZIF Socket ....................... 8

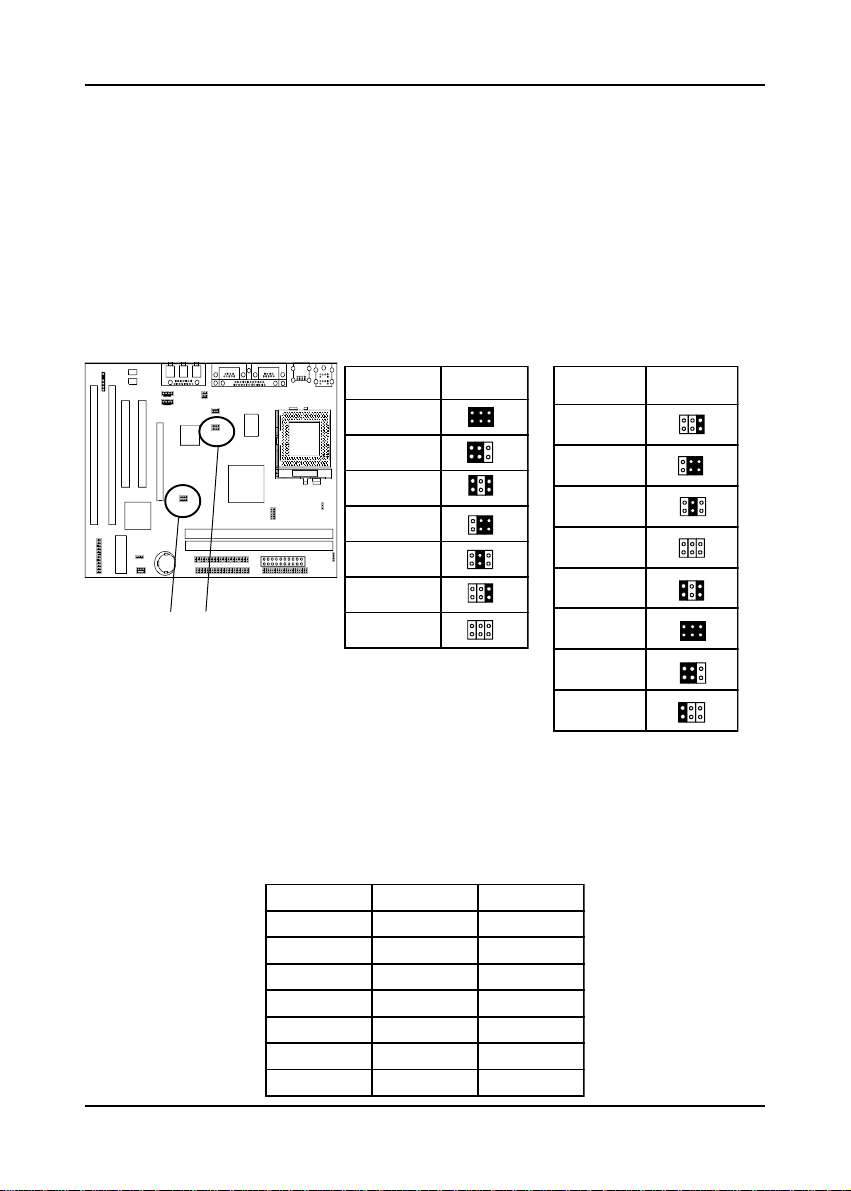

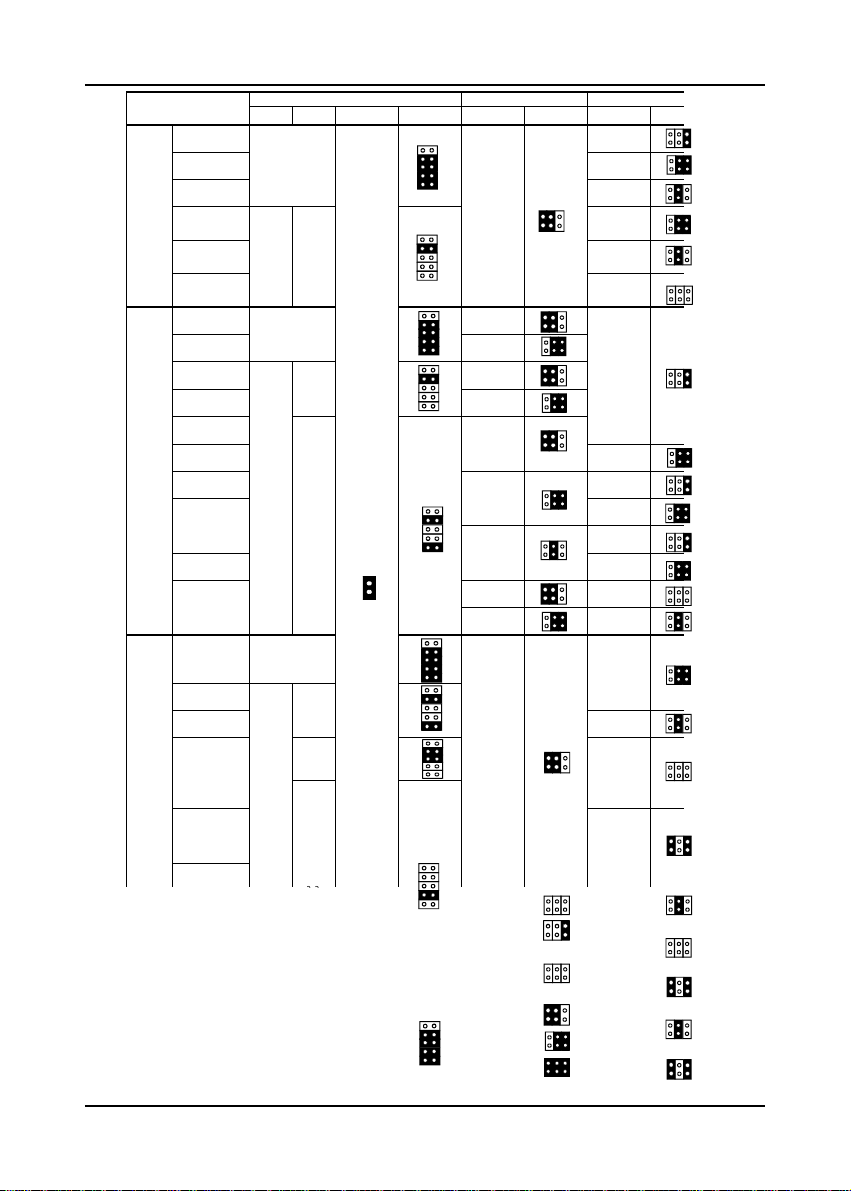

2-3 CPU Jumper Configuration...........................................................9

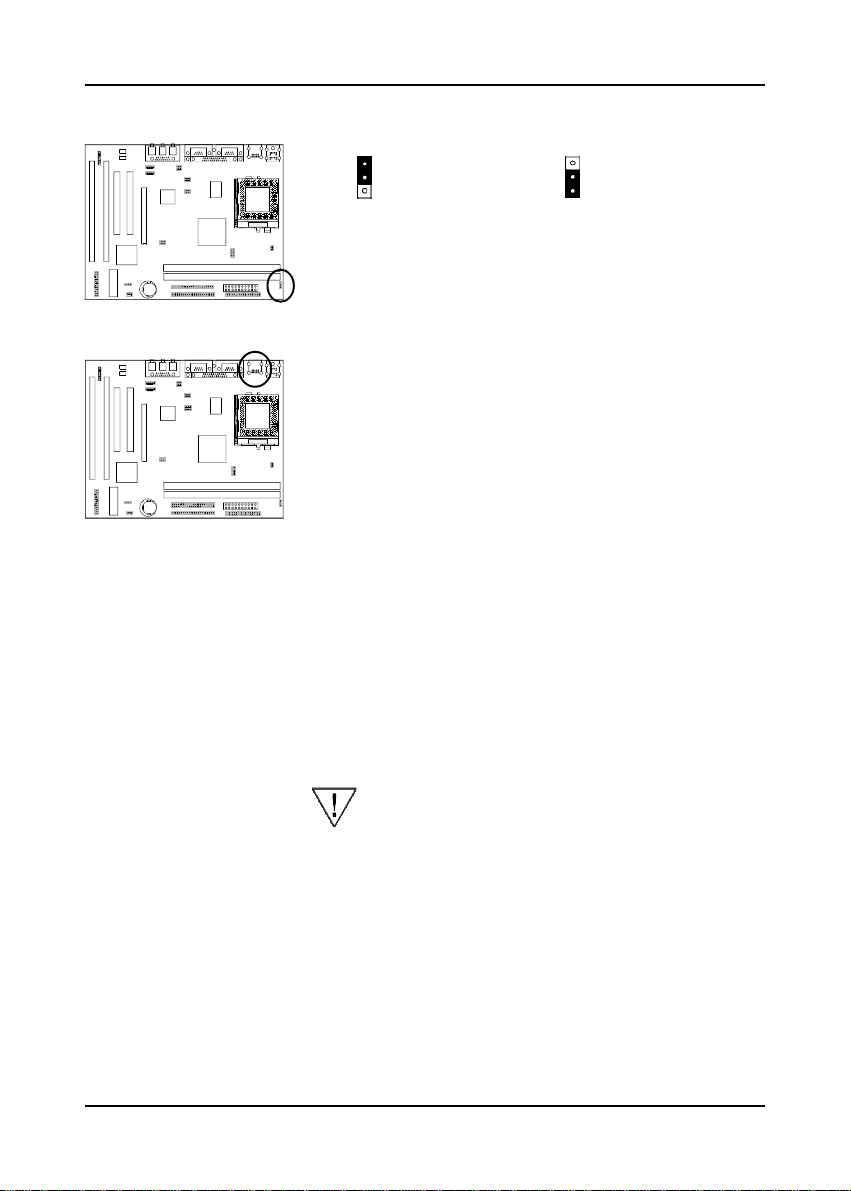

2-4 Connector and Jumper Settings.....................................12

2-5 Main Memory Configuration ................................................. 18

Chapter 3 Award BIOS Setup Program ........................................... 19

3-1 Standard CMOS Setup........................................................ 20

3-2 BIOS Features Setup........................................................... 23

3-3 Chipset Features Setup....................................................... 26

3-4 Power Management Setup .................................................. 29

3-5 PnP/PCI Configuration......................................................... 33

3-6 Load Setup Defaults ............................................................ 35

3-7 Integrated Peripherals.......................................................... 36

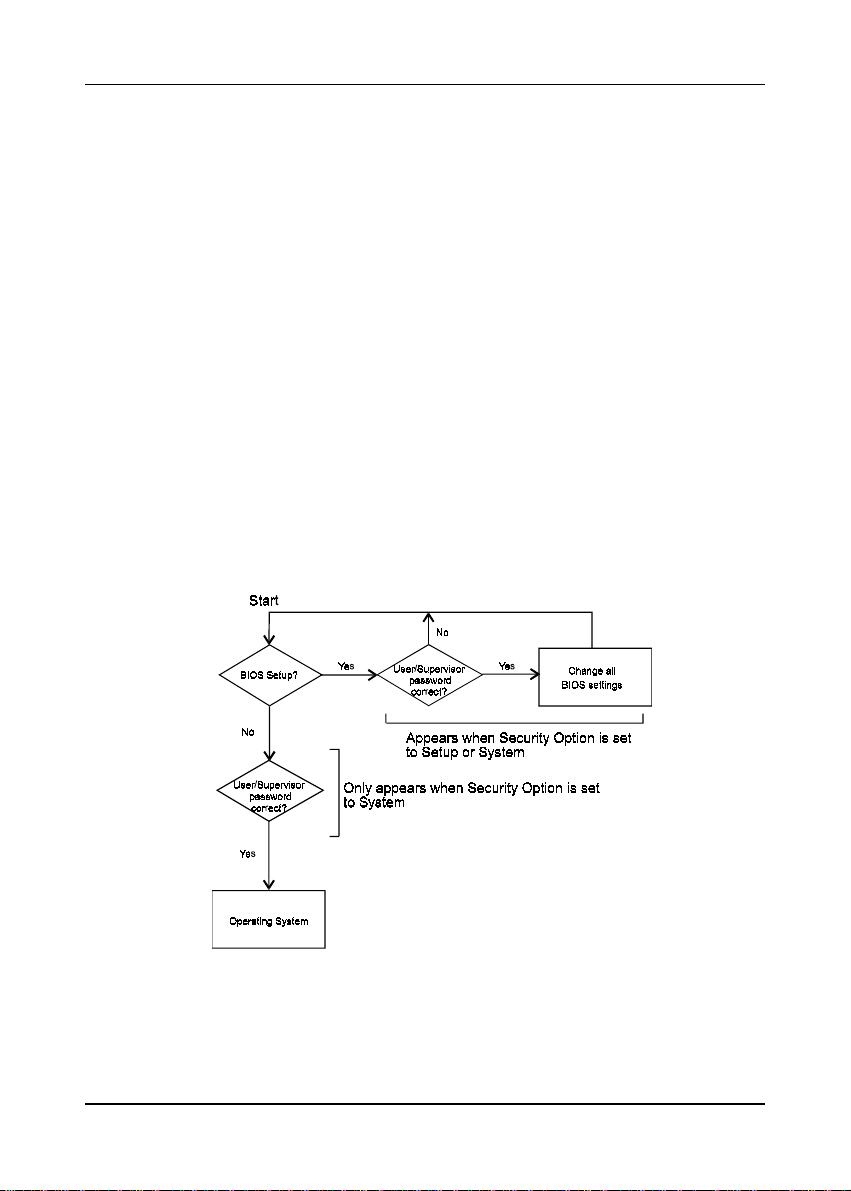

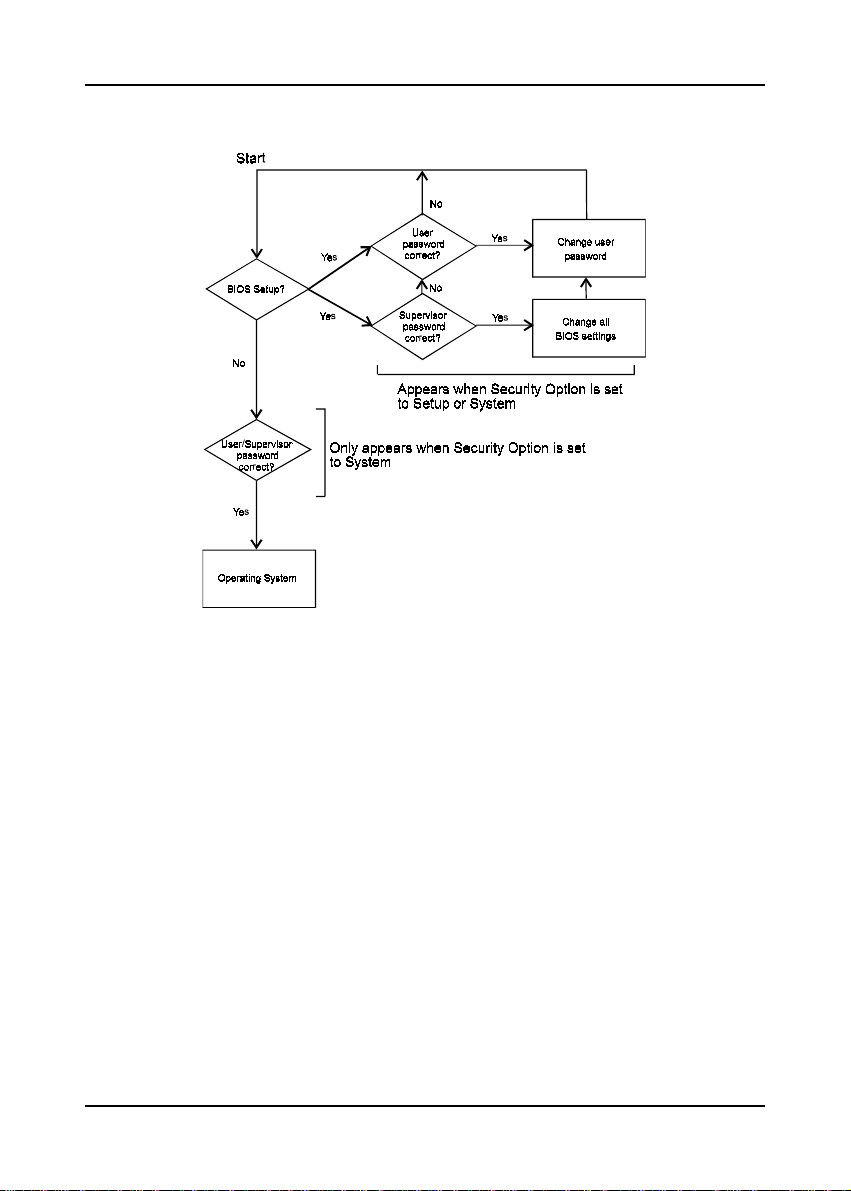

3-8 Supervisor Password & User Password Setting .................. 38

3-9 IDE HDD Auto Detection ..................................................... 40

3-10 Save and Exit Setup ............................................................ 40

3-11 Exit Without Saving.............................................................. 40

le of Contentsle of Contents

ab

le of Contents

abab

le of Contentsle of Contents

Chapter 4 Brief Software Driver Guide............................................. 41

Chapter 5 ESS Solo-1 Audio Subsystem ........................................ 43

5-1 Features ............................................................................... 43

5-2 Sound Driver and Utility ...................................................... 43

5-3 CD-ROM Audio-in connection ............................................ 43

Feature Explanations

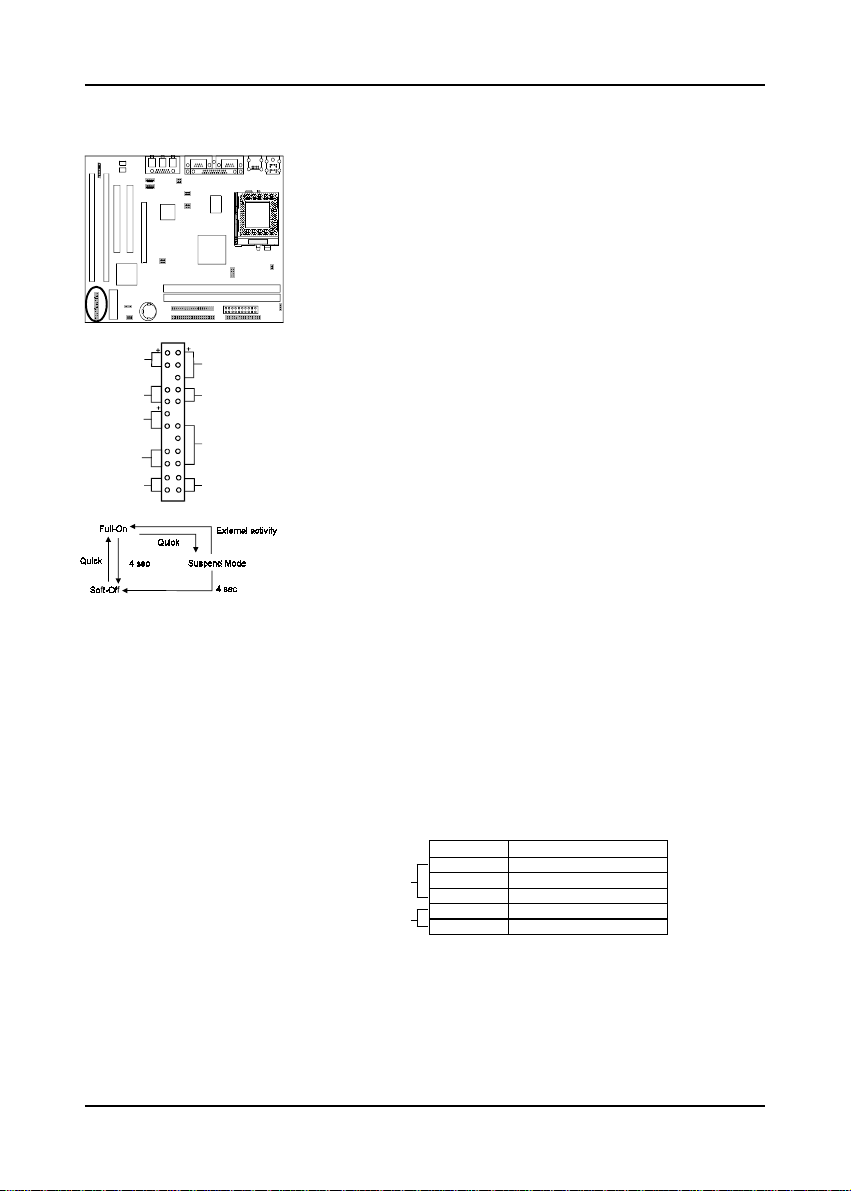

Software Power-off Control ........................................................... 12

Over-ride Power Button ................................................................. 13

Blinking LED in Suspend Mode.................................................... 13

Power On By Modem.............................................................. 12/37

Power On By Alarm ...................................................................... 37

Poly-fuse Over Current Protection ............................................... 17

Appendices

Appendix I On Board I/O Addresses & IRQ Maps ..........................45

Quick Connector and Jumper Reference ....................................24-A

-

MemoMemo

Memo

MemoMemo

Introduction

Chapter 1

Introduction

1-1 Product Specifications

rr

r Processor

rr

- Supports up to 200 MHz Intel Pentium® processors and up to 233 MHz
Pentium® processors with MMX technology

- Supports Cyrix/IBM 6x86MX PR166+~PR233+and up to 333MHz MII
processors

- Supports AMD K6 166 MHz~266 MHz processors,K6-2 up to 400MHz
processors

- Supports IDT 180 MHz to 225 MHz Winchip C6 and up to 240MHz
Winchip 3D processors

- 321-Pin ZIF Socket 7

- High efficiency Switching Power Module

* Supports 2.0~3.5v CPU core voltage in 0.1v increment

- Supports 60/66/68/75/83/95/100MHz system clock speeds

rr

r Chipset

rr

- ALI Aladdin-5 (M1541/1543) two chip PCIset

rr

r L2 Cache

rr

- On board 512KB Pipelined Burst SRAM and up to 1MB (Optional)

- On board 32Kx8 Tag for 64MB Cacheable range with write-back policy

rr

r DRAM Memory

rr

- Two 3.3V 168-pin DIMM sockets support up to 256 MB

- Provides Parity/single-bit ECC capability

Because 256MB unbuffered DIMM modules are not yet mainstream,
their compatibility can not be guaranteed. (See Section 2-5 for details.)

rr

r Expansion Slots

rr

- Two 32-bit PCI slots (Rev 2.1 compliant)

- Two 16-bit ISA slots (one PCI/ISA shared slot)

- One 32-bit AGP slot (Rev 1.0 compliant)

* Supports 3.3v, 3.3vsb and #PME capability on each PCI slots
* Supports Pseudo Asynchronous PCI bus access:
Host/PCI/AGP: 60/30/60, 66/33/66, 75/30/60, 75/37.5/65, 83/33/66, 100/33/66

1

Chapter 1

rr

r BIOS

rr

- Award System BIOS, supports PnP, APM, DMI, ACPI & Multi-device
booting features i.e. floppy, LS120, CD-ROM, HDD(IDE, SCSI), ZIP-ATAPI
etc.

- Includes Trend ChipAway Virus protection for virus-free boot and virus free
operating system

The Trend ChipAway Virus is a rule-based anti-virus technology and

@

does not require periodical updates of virus code

rr

r Two Ultra DMA-33 PCI IDE Ports

rr

- Supports up to PIO Mode 4, Multi-word Mode 2 and Ultra DMA-33 timings

- Complete Bus Mastering software drivers for all well known multi-task
operating systems

rr

r Embedded Ultra I/O

rr

- One Parallel (SPP/ECP/EPP) and two Serial (16550A compliant) ports

- One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode,

and 1Mbps transfer rates

- IrDA IR function supports up to 115.2Kbps

rr

Back-Panel I/O Connectors

r

rr

- PS/2 Mini-DIN keyboard and mouse ports

- Two Channel USB ports

- Two D-Sub 9-pin male serial ports

- One D-Sub 25-pin female Printer port

- Audio Line-out, Line-in/ Mic-in jacks

rr

r On Board PCI Audio Subsystem

rr

- ESS Solo-1 1938S 16-bit stereo audio controller

- Programmable independent sample rate from 4KHz to 48KHz for recording and

play-back

- Built-in high quality ESFM music synthesizer

- Full-duplex for simultineous recording and playback

rr

r Two Channel USB Ports

rr

Now under compatibility testing with different peripherals

rr

r Board Dimensions

rr

- Micro-ATX form factor, 244mm x220mm, 4 Layers

- Six mounting holes

2

Introduction

rr

r Advanced Management Features

rr

- Software power off control, Over-ride power button, Power-on by modem,

Power failure recovery, Blinking Power LED in Suspend etc.

- Poly-fuse over-current protection for USB and keyboard

- ACPI features ready when ACPI-enabled O/S is available

- Special PCI Asynchronous mode to guaranty the operation on 75/83-MHz
system frequency

- Complete Data Security

First industrial mainboard to combine Trend ChipAway Virus and PC-cillin for

a 100% virus free system boot-up in one

rr

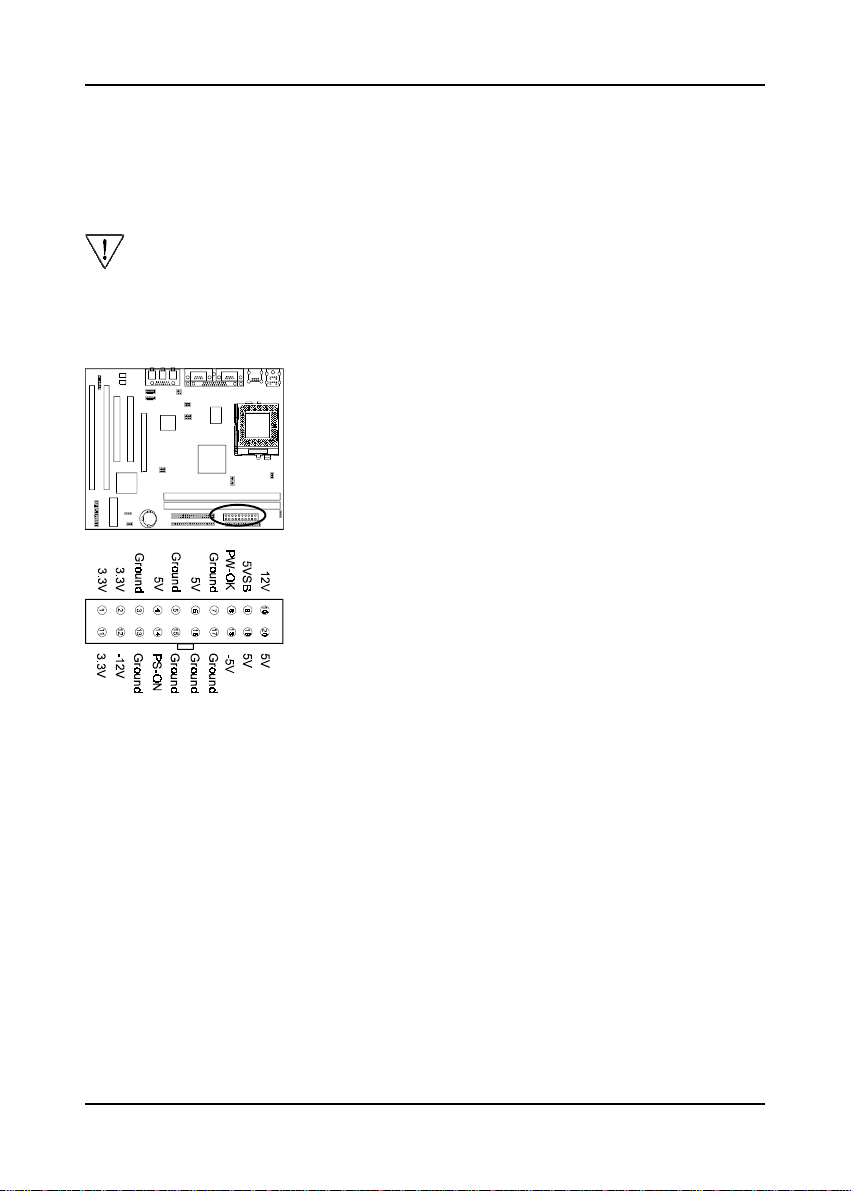

r Switching Power Supply Requirement (at least 200 Watts)

rr

Output Voltage

+12V +/- 5% 0

+5V +/- 5% 1

+3.3V +/- 5% 10*

-5V +/- 10% 0

-12V +/- 10% 0

+5VSB +/- 5% 0.75

Max. Regulation

Requirement

Table 1-1Table 1-1

Table 1-1

Table 1-1Table 1-1

Min. Current

Requirement (Amps)

3.3V at 10Amps is necessary to guarantee full loading operation
because some AGP cards and memory modules have high current
consumption.

3

Chapter 1

1-2 Package Contents1-2 Package Contents

1-2 Package Contents

1-2 Package Contents1-2 Package Contents

This product comes with the following components:

r One mainboard
r One 40-pin IDE connector ribbon cable (Figure 1-1)
r One 34-pin floppy disk drive ribbon cable (Figure 1-2a) or (Figure 1-2b)
r One plastic stub for standard ATX installation (Figure 1-3)
r One User's Manual
r One CD-ROM that includes

- Acrobat Reader

- Award System BIOS Flash Utility and Award DMI Utility for DOS

- ALI Bus Master IDE drivers for Win95, WinNT3.5/4.0

- ALI AGP VXD Driver

- ALI USB Supplement

- ESS Audio Driver for DOS/Win95/NT

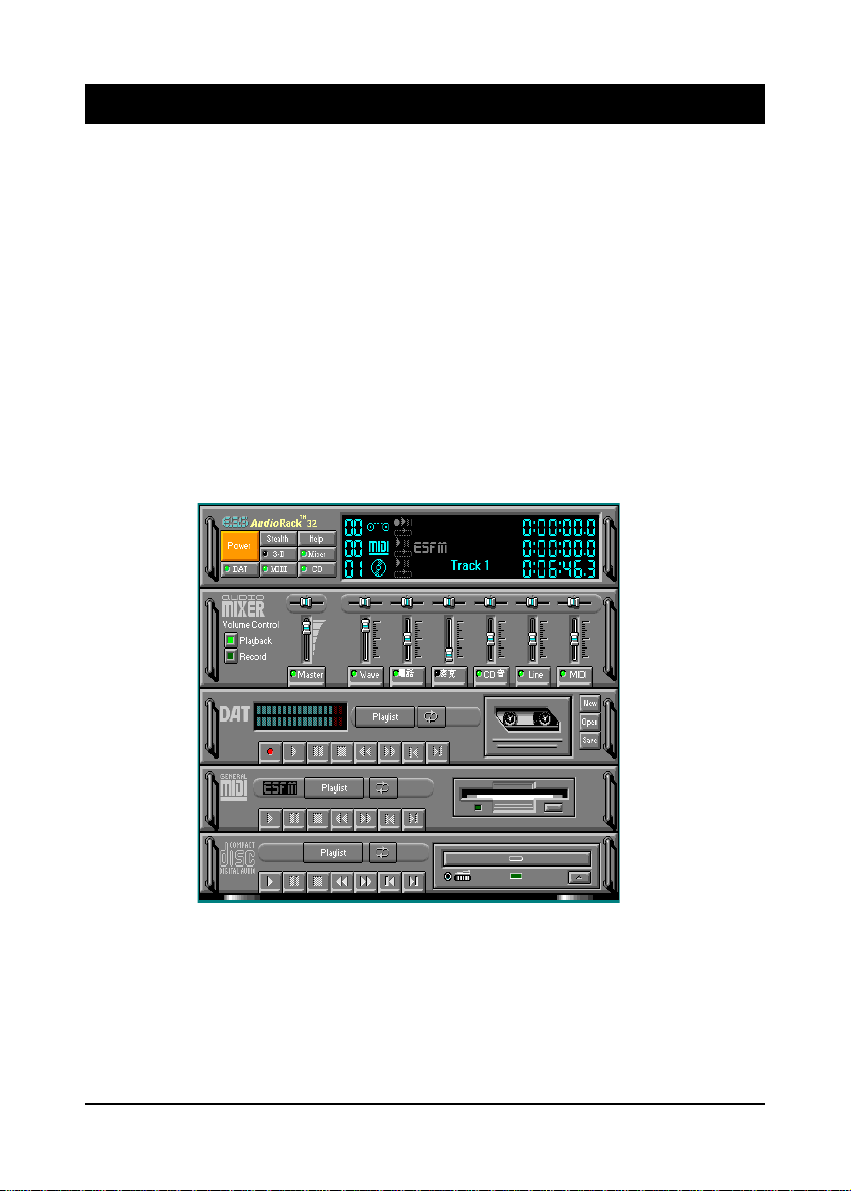

- ESS AudioRack Utility for Win95/NT

- ESS 1MB WaveData for Win95

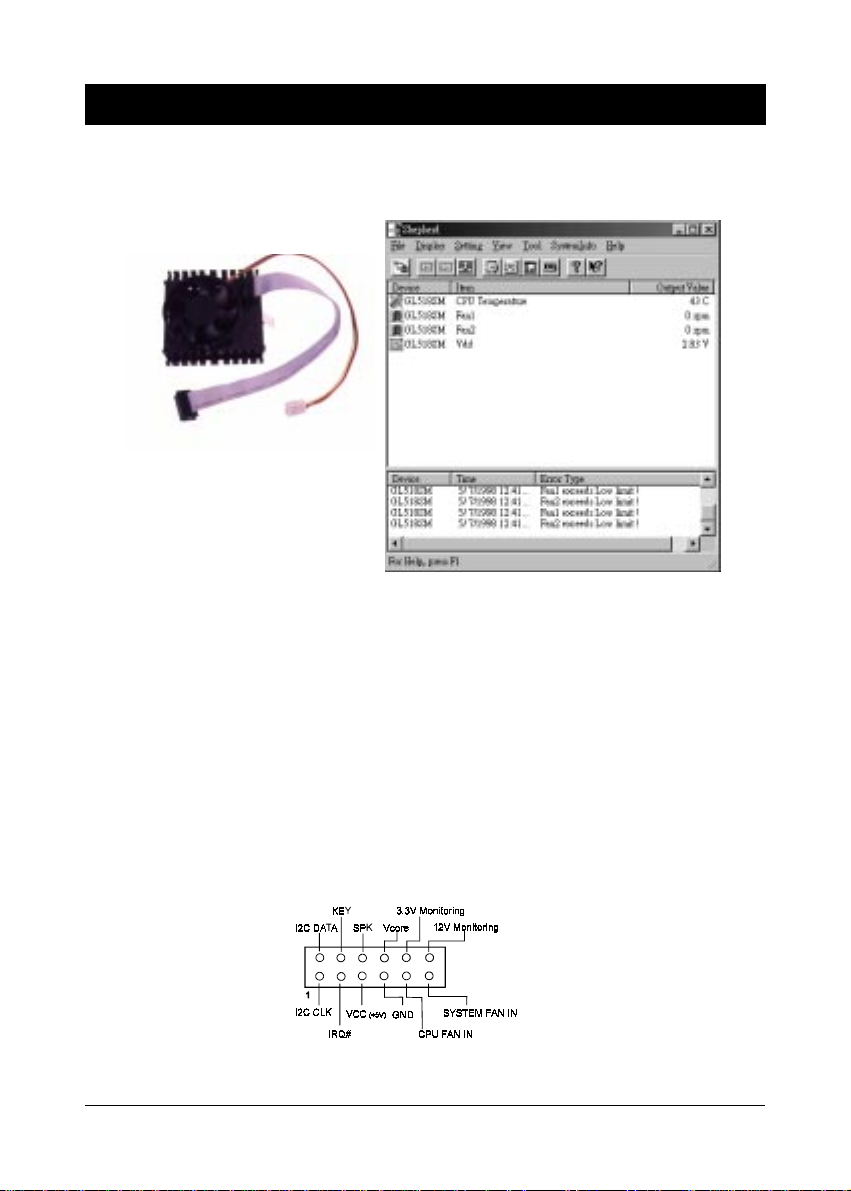

- System Health Monitoring Software with DMI Browser

- Trend PC-cillin Anti-virus v3.1Utility (eight different languages)

- Optional AIRBAG software group including Norton Ghost, Norton AntiVirus
and High Point Xstore Pro

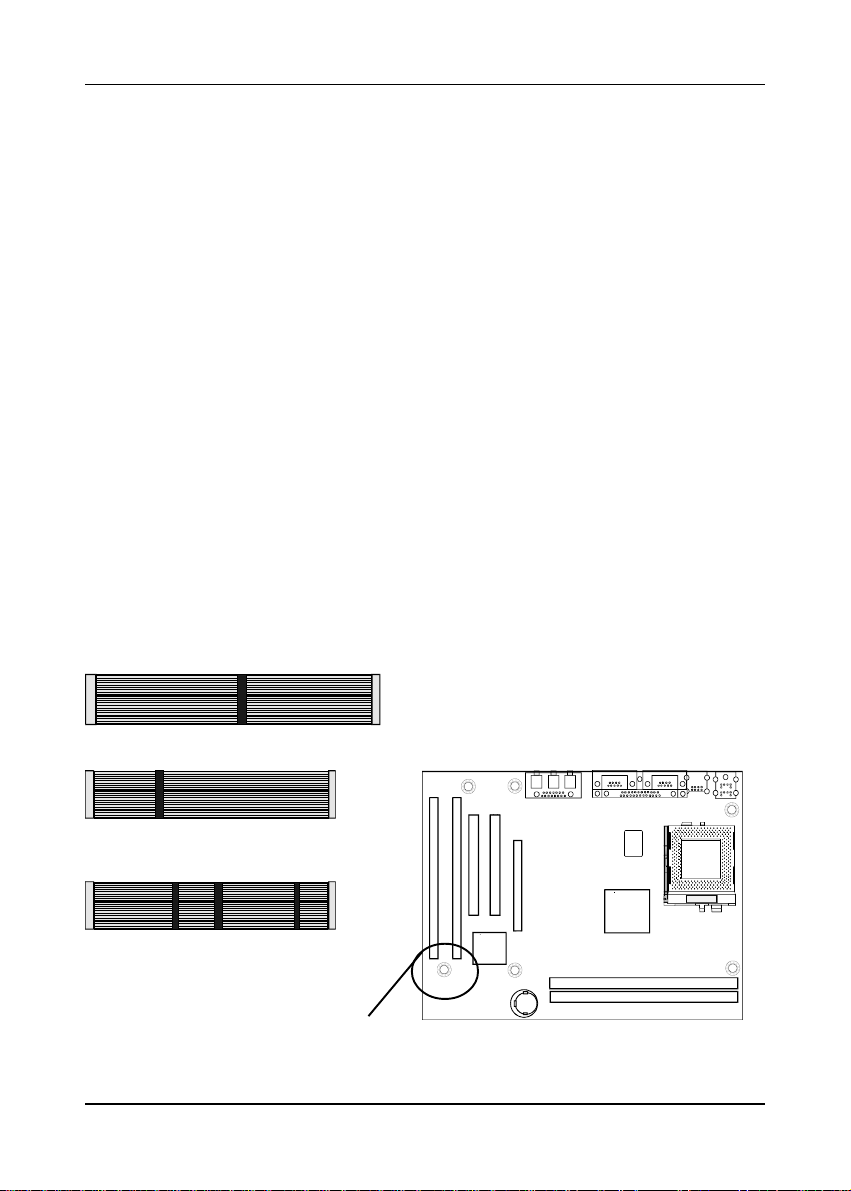

Figure 1-1Figure 1-1

Figure 1-1 IDE cable

Figure 1-1Figure 1-1

Figure 1-2aFigure 1-2a

Figure 1-2a

Figure 1-2aFigure 1-2a

Figure 1-2bFigure 1-2b

Figure 1-2b

Figure 1-2bFigure 1-2b

Insert the stub if the mounting screw
is not supported by the ATX case

4

Standard Floppy cable

Optional 5.25 in. floppy cable

Figure 1-3Figure 1-3

Figure 1-3

Figure 1-3Figure 1-3

Socket 7

1-3 Mainboard Layout1-3 Mainboard Layout

/OC

1-3 Mainboard Layout

1-3 Mainboard Layout1-3 Mainboard Layout

PCB

JP2

LGSR18

GD75232D

1

LGSR18

ISA 1

PCI2

GD75232D

PCI1

AGP port

ISA2

Mic-in

J9

Game

Line-in

Game

J11

Line-out

ESS

TM

Solo-1

Back Panel I

JP10

2

1
3

4

+

FAN1

0

JP4

COM2

COM2

Printer

Printer

COM1

COM1

onnector

USB2
USB1

PS/2 Mouse

USB x 2

&K/BConn.

Introduction

K/B

Mouse

ALi

0

JP6

ALi

M1543B1

J7

1

JP9

1

+

IDE #2

Battery

FAN2

+

IDE #1

1

1

M1541A1

J8

Socket 7

JP7

0

Power supply conn.

1

FLOPPY

1-4 Connector and Jumper Reference Chart

Jumper &

Connector No.

Keyboard lock & Power indicator LED connector 13
System reset switch connector 14
Speaker connector 14

J7

Green switch / Green LED connector 14
Turbo LED connector 14
IDE activity LED connector 14

Over-ride power button connector 13
J8 ATX Power supply connector 12
J9 AUX IN connector 15

J11 CD-ROM audio in 15
FAN1 CPU cooling fan connector 15
FAN2 System cooling fan connector 15

JP2 Infrared connector 15

JP3 CPU V I/O Voltage setting jumper 11

JP4 CPU frequency ratio setting jumper 9

JP6 Host bus frequency setting jumper 9

JP7 CPU Vcore voltage setting jumper 10

JP8 Power failure recovery jumper 17

JP9 Clear CMOS data jumper 16
JP10 Volume connector 16
Ports PS/2 mouse and keyboard ports 16
Ports USB (Universal Serial Bus) ports 17

Function Page

JP3

1

JP8

5

Chapter 1

-

MemoMemo

Memo

MemoMemo

6

Hardware Setup

Chapter 2Chapter 2

Chapter 2

Chapter 2Chapter 2

Hardware SetupHardware Setup

Hardware Setup

Hardware SetupHardware Setup

If your mainboard has already been installed in your computer you may still need
to refer to this chapter if you plan to upgrade your system's hardware.

Be sure to disconnect the power cable from the power source before performing
any work on your mainboard, i. e. installing a CPU, memory module, changing
a jumper setting, etc. Not doing so may result in electrical shock!

2-1 Introduction to Jumpers

Jumpers are used to select between various operating modes. A jumper consists of
a row of gold colored pins that protrude from the surface of the mainboard. It is
important not to confuse jumpers with connectors or headers.

Putting jumper caps on anything that is not a jumper may result in damaging
your mainboard. Please refer to Section 1-3, Mainboard Layout, for the location
of jumpers on your mainboard.

As indicated in Figure 2-1 below, a cap is used to cover the pins of a jumper, resulting
in shorting those pins that it covers. If the cap is removed from the top of the pins,
the jumper is left "open." The number 1 shown both in the diagram below and in
all multiple pin jumper and header diagrams in this manual indicates the pin designated
with the number 1. The numbering of the remaining pins follows in sequence.

Pins SettingCap

1

A 3-pin jumper

1

A cap over pin 1 and
pin 2 shorts these pins

Figure 2-1Figure 2-1

Figure 2-1

Figure 2-1Figure 2-1

7

Chapter 2

2-2 Installing a PGA type CPU in a ZIF Socket

The Intel Socket 7, designed for the Pentium processor, has been incorporated as
a standard mainboard specification and is compatible with AMD and Cyrix CPUs. To
insert your CPU into Socket 7 please do the following:

1. Locate a small dot marked on the top surface of the CPU close to one if it's
corners. The same corner will also be cut off, leaving a noticeable notch in the
CPU's corner. These markings indicate Pin 1 of the CPU. See Figure 2-2.

Figure 2-2 The markings on top of a CPU

2. Pull up the lever of Socket 7 so that it is perpendicular with the surface of the
mainboard. Gently insert the CPU with Pin 1 at the same corner of Socket 7 that
contains the end of the lever. Allow the the weight of the CPU to push itself into
place. Do not apply extra pressure as doing so may result in damaging your CPU.
Snap the lever back into place. See Figure 2-3.

Lever

Socket 7

Pin 1

Figure 2-3 Inserting a CPU into Socket 7

Installing a heat sink and cooling fan on top of your CPU is necessary for
proper heat dissipation. Failing to install these items may result in overheating
and possible burn-out of your CPU.

8

Hardware Setup

2-3 CPU Jumper Configuration

Frequency ConfigurationFrequency Configuration

Frequency Configuration

Frequency ConfigurationFrequency Configuration

If you install a CPU on this mainboard, you must set JP6 for System Frequency
and JP4 for CPU Bus Frequency Ratio. See Figure 2-4 CPU/System Frequency
Jumper Settings.

CPU Bus Frequency & Frequency Ratio Configuration

* CPU Speed = Frequency ratio x System Frequency

1

1

1

+

+

JP6 JP4

2

1
3

4

+

0

1

0

1

1

1

System Freq. JP6

Socket 7

1

PCI Frequency & AGP Frequency

System Freq. (MHz) PCI Freq. (MHz) AGP Freq. (MHz)

60 30 60
66 33 66

68.5 34 68.5
75 37.5 75
83 33 66
95 31.75 63.5

100 33 66

Freq. Ratio JP4

60MHz

66MHz

68.5MHz

75MHz

83MHz

95MHz

100MHz

0

x 2

0

0

0

0

0

0

x 2.5

x 3

x 3.5

x 4

x 4.5

x 5

x 5.5

Figure 2-4 System Frequency Jumper Settings

0

0

0

0

0

0

0

0

9

Chapter 2

Overclocking

Operating a CPU at a higher frequency than its specification allows is called overclocking.
If the CPU frequency is set at a higher frequency than its specification allows, it may
or may not run at that freqency, depending on the quality of your CPU and the extent
to which the frequency has been overset. The mainboard manufacturer highly
discourages overclocking as it may result in data loss, CPU burn-out, system failure,
etc.

Many processors are frequency locked processors and are not able to perform
overclocking. Regardless of whether the processor is a frequency locked, overclocking
may cause some processors to hang when turning on the system. When the processor
hangs, the screen remains blank and the system does not boot. To solve this problem,
do the following:

1. Turn off the computer and then press the Home key on your keyboard

2. Turn on your computer, wait for five seconds and then release the Home key.
(Pressing the Home key allows the computer to boot at a low system speed.
For example, 66MHz external clock CPUs boot-up at 133MHz.)

3. Enter BIOS and reconfigure your CPU parameters as described in this section.

Voltage ConfigurationVoltage Configuration

Voltage Configuration

Voltage ConfigurationVoltage Configuration

There are two major processor types in general use-

-single and dual voltage processors. Most single
voltage processors such as Pentium, AMD-K5, Cyrix
6x86 and IDT C6 processors use a single voltage
value of 3.5v for both core and I/O voltage settings.
Most dual voltage processors such as Pentium
processors with MMX technology and Cyrix 6x86L
processors use a dual voltage value of 2.8v for core
and 3.3v for I/O voltage settings. To make the
voltage setting for single and dual voltage processors,
simply set JP7 according to the table on the next
page. The voltage range supported by this mainboard
is detailed in Figure 2-5 below.

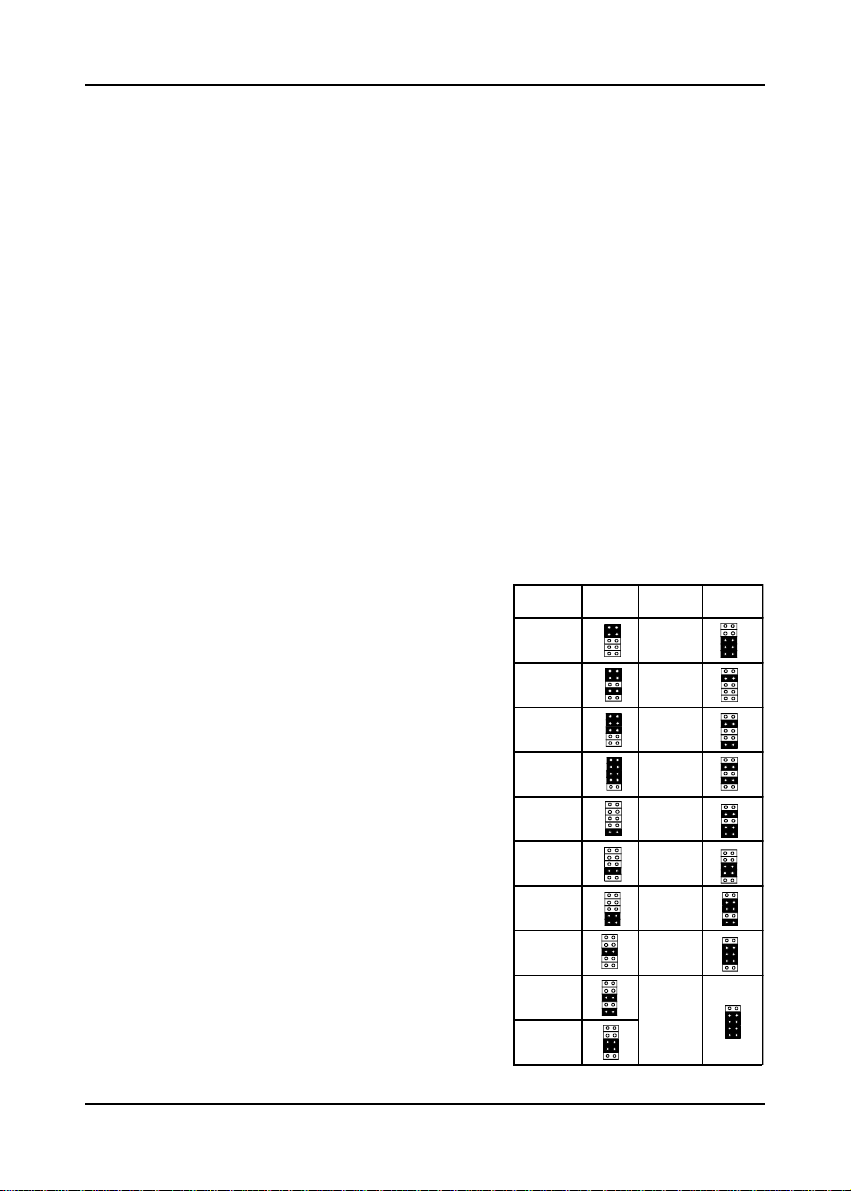

Vcore JP7 Vcore JP7

1.7V 2.7V

1.8V 2.8V

1.9V 2.9V

2.0V 3.0V

2.1V 3.1V

2.2V 3.2V

2.3V 3.3V

2.4V 3.4V

2.5V

2.6V

Figure 2-5 Voltage Jumper Settings

0

0

0

0

0

0

0

0

0

3.5V

0

0

0

0

0

0

0

0

0

0

10

CPU-type

P54C-133

P54C-166

P54C-200

Intel

Pentium w/MMX

@166MHz

Pentium w/MMX

@200MHz

Pentium w/MMX

@233MHz

6x86-PR166

@133MHz

6x86-PR200

@150MHz

6x86L-PR166

@133MHz

6x86L-PR200

@150MHz

6x86MX-PR166

6x86MX-PR200 x2.5

Cyrix

/IBM

6x86MX-PR200

6x86MX-PR233

6x86MX-PR266

MII-300

K5-PR166

@116.7MHz

K6/166

K6/200

K6/233

CPU Power Voltage System freq. Freq. ratio

I/O Vcc Core Vcc

3.5

JP3 JP7 MHz JP6 Speed rate JP

0

66

3.3 2.8

0

3.5

2.8

3.3

2.9

3.5

66

75

0

66

75

0

66

75

0

83

66 x3.5

75 x3

0

2.9

0

3.2

66

0

Hardware Setup

x2

x2.5

x3

0

x2.5

x3

x3.5

0
0

0

x2

0

0

x2

0

x2.5

x2

0

x2.5

0
0

x2.5

x3

0

x3.5

0
0

0
0

0

0

0

0
0
0

0

0
0
0

0

0

0

AMD

K6/266

K6-2/266

3.3

0

x4

0
0

0

0
0

0

0

0

0

0

0

0

0

11

Chapter 2

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including
the power supply, the keyboard, and the various controllers on the front panel of
the system case.

The power supply connector is the last connection to be made while installing a
mainboard. Before connecting the power supply, please make sure it is not
connected to the power source.

ATX Power Supply Connector (J8)

1

1

2

1
3

4

+

0

1

1

+

1

+

1

Socket 7

0

1

This mainboard requires a power supply of at least 200
watts. The power cord leading from the system's

power supply to the external power source must be
the very last part connected when assembling a system.

1

The ATX power supply provides a single 20-pin connector
interface which incorporates standard +/-5V, +/-12V,
optional 3.3V and Soft-power signals. The Soft-power
signal, a 5V trickle supply is continuously supplied when
AC power is available. When the system is in the Soft­Off mode, this trickle supply maintains the system in it's
minimum power state.

Software Power-Off Control

This mainboard can be powered down using theWindows 95 Software Power-Off
function. To power down your computer, click the START button on the Windows 95
Task Bar. Select "Shut Down The Computer" and the system turns off. The message
"It is now safe to turn off your computer" will not be shown when using this function.

Power-On By ModemPower-On By Modem

Power-On By Modem

Power-On By ModemPower-On By Modem

While in Soft-off state, if an external modem ring-up signal occurs, the system wakes
up and can be remotely accessed. Enable this function in BIOS's Power Management
Setup menu. (See section 3-4)

12

Front Panel Connector Set (J7) A through G

Hardware Setup

1

1

T

u

r

o

b

r

G

e

e

n

S

r

G

e

e

n

e

S

t

s

e

R

ity

v

ID

E

A

ti

c

Over-ride Power ButtonOver-ride Power Button

Over-ride Power Button

Over-ride Power ButtonOver-ride Power Button
Operation Operation

Operation

Operation Operation

2

1
3

4

+

0

1

1

+

+

1

L

E

D

itc

w

h

L

E

D

itc

w

h

+

E

L

D

0

1

1

r

I

n

w

e

o

P

k

o

L

c

K

y

e

e

r

k

p

a

e

S

e

r

v

-

O

r

e

id

A. Over-ride Power Button Connector

The power button on the ATX chassis can be used as a
normal power switch as well as a button to activate Advanced

Socket 7

Power Management Suspend mode. This mode is used for
saving electricity when the computer is not in use for long
periods of time. The Power Button function in BIOS's

1

Power Management Setup menu must be set to "Delay 4
Sec." to activate this function. (See section 3-4)

a

d

t

i

c

o

r

D

L

E

When the Power Button function is enabled, pushing the

e

d

a

H

w

P

o

power button rapidly will switch the system to Suspend

e

r

mode. Any occurence of external activity such as pressing
a key on the keyboard or moving the mouse will bring the

r

e

B

u

tto

n

system back to Full-On. Pushing the button while in Full­On mode for more than 4 seconds will switch the system
completely off. See Over-ride Power Button Operation
diagram.

B. Keyboard Lock & Power Indicator LED
Connector

Plugging this connector into the lock on the front panel
of the system case allows the lock to enable or disable
the keyboard. This function provides limited security
against casual intruders. The power indicator LED shows
the system's power status. It is important to pay attention
to the correct cable and pin orientation (i.e., not to reverse
the order of these two connectors.)

Pin Definition

1 +5V DC

Power Good LED

Keyboard Lock

2 No Connect
3 Ground
4 Keylock
5 Ground

Blinking LED in Suspend Mode

While in Suspend mode, the LED light on the front panel of your computer will flash.
Suspend mode is entered by pressing the Override Power Button, pushing the Green
button on your ATX case, or enabling the Power Management and Suspend Mode
options in BIOS's Power Management menu. (See section 3-4)

13

Chapter 2

1

1

2

1
3

4

+

0

1

1

+

1

+

1

Socket 7

0

1

C. Green Switch/Green LED Connector

Some ATX cases provide a Green switch which is used
to put the system in Suspend mode. In Suspend mode,
the power supply to the system is reduced to a trickle,
the CPU clock is stopped, and the CPU core is in its
minimum power state. The system is woken up whenever

1

the keyboard or mouse is touched. The system resumes
in different ways as defined by Power Management Setup
screen in BIOS.

T

u

r

o

L

b

E

D

r

G

e

e

n

itc

S

w

h

r

G

e

L

e

E

n

D

e

S

t

itc

w

h

s

e

R

ID

E

+

E

L

ity

D

v

A

ti

c

r

I

n

a

d

t

i

c

o

w

e

o

P

k

o

L

c

K

y

e

e

r

e

d

k

p

a

a

H

e

S

w

e

r

v

-

O

r

e

P

id

o

D. System Reset Switch Connector

r

D

L

E

This connector should be connected to the reset switch
on the front panel of the system case. The reset switch
allows you to restart the system without turning the

e

r

power off.

r

e

B

u

tto

n

Pin Definition

1 System
2 GND

E. Speaker Connector

PIN Definition

1 Speaker Signal
2 NC
3 NC
4 +5V DC

F. IDE Activity LED Connector

The IDE activity LED lights up whenever the system
reads/writes to the IDE devices.

14

G. Turbo LED Connector

This mainboard does not have a Turbo/De-turbo speed
modes. Even though this function does not exist, the turbo

LED will light when the LED is connected and turbo button
pressed.

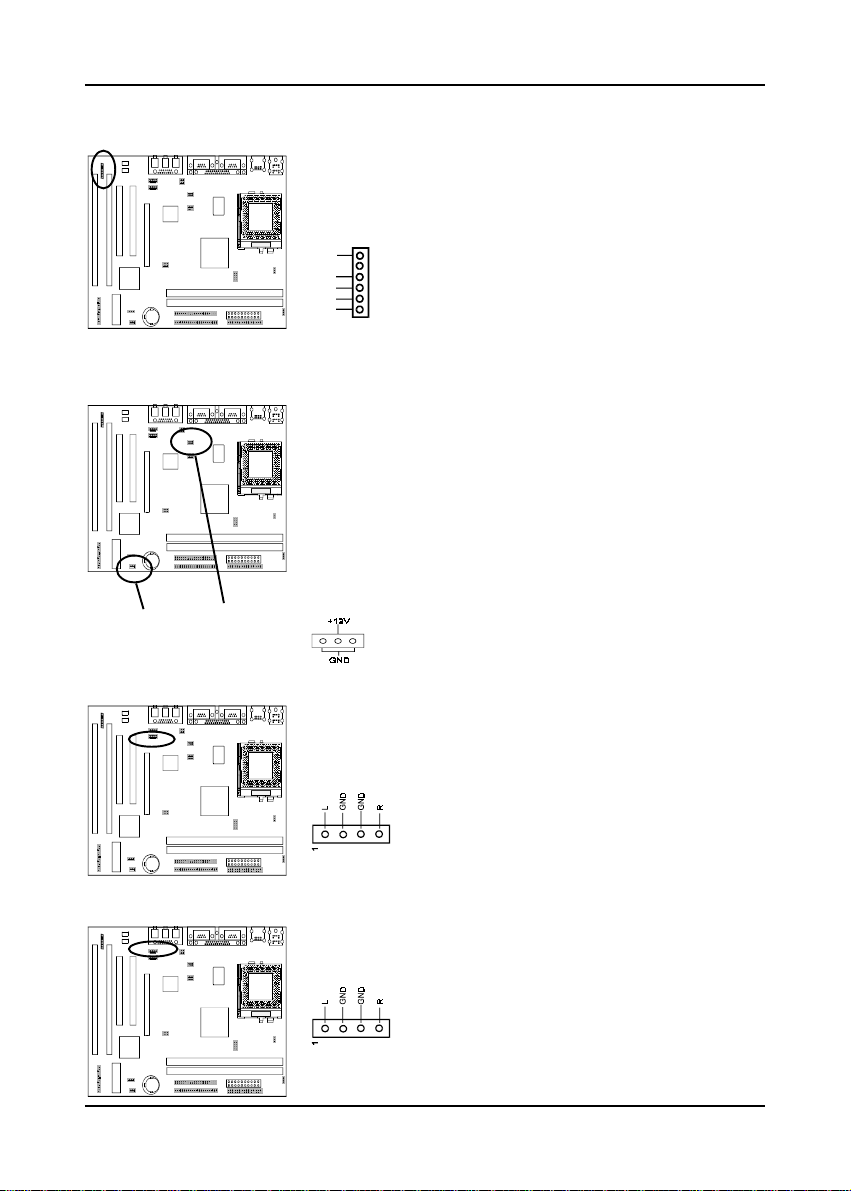

Infrared Connector (JP2)

Hardware Setup

1

1

2

1
3

4

+

0

1

1

+

+

0

1

1

1

If you enable the COM2 Mode in BIOS's Integrated
Peripherals menu the COM2 port will support IR functions.
(See section 3-7)

Socket 7

1

Vcc
Ir-Rx

GND
Ir-Tx
Vcc

1

CPU/System Cooling Fan Connectors (FAN1/FAN2)

1

1

2

1
3

4

+

0

1

1

+

1

+

1

SYS FAN CPU FAN

0

1

These added connectors allow the fan to draw their power
from the mainboard instead of the disk drive connector.
The mainboard's management extension hardware is able
to detect the CPU and system fan speed in rpm (revolutions

Socket 7

per minute). These connectors supports 3-pin cooling
fans with minimum of 3500 RPM. The wiring and plug

1

may vary depending on the manufacturer. On standard
fans, the red is positive (+12V), the black is ground, and
the yellow wire is the rotation signal.

CD-ROM Audio-in (J11)

1

1

AUX- IN Connector (J9)AUX- IN Connector (J9)

AUX- IN Connector (J9)

AUX- IN Connector (J9)AUX- IN Connector (J9)

1

1

+

12
3

4

+

0

1

+

0

1

1

1

12
3

4

+

0

Use the cable enclosed with your CD-ROM disk drive to
connect the CD-ROM to your mainboard. This will enable
your CD-ROM's audio function.

Socket 7

1

This connector supports Aux-input for connecting DVD
or other audio devices.

1

1

1

+

1

+

1

Socket 7

0

1

1

15

Chapter 2

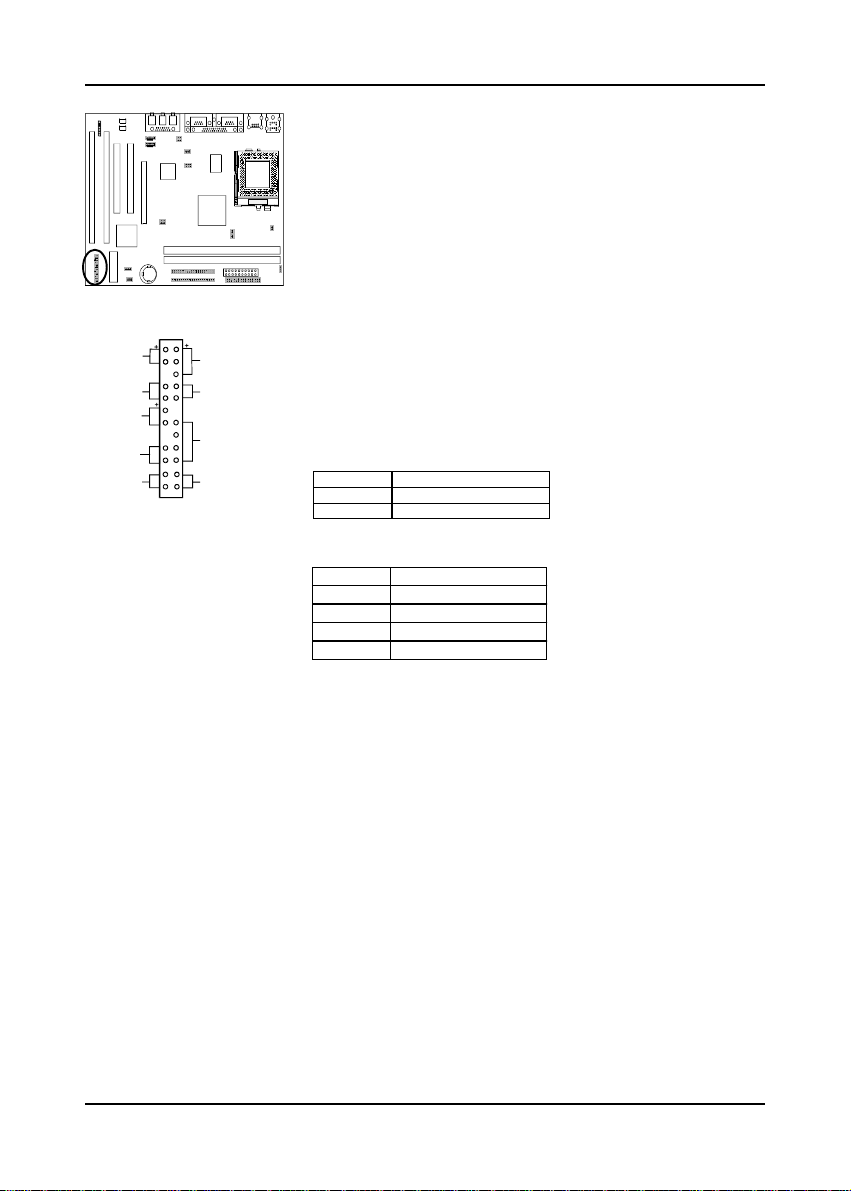

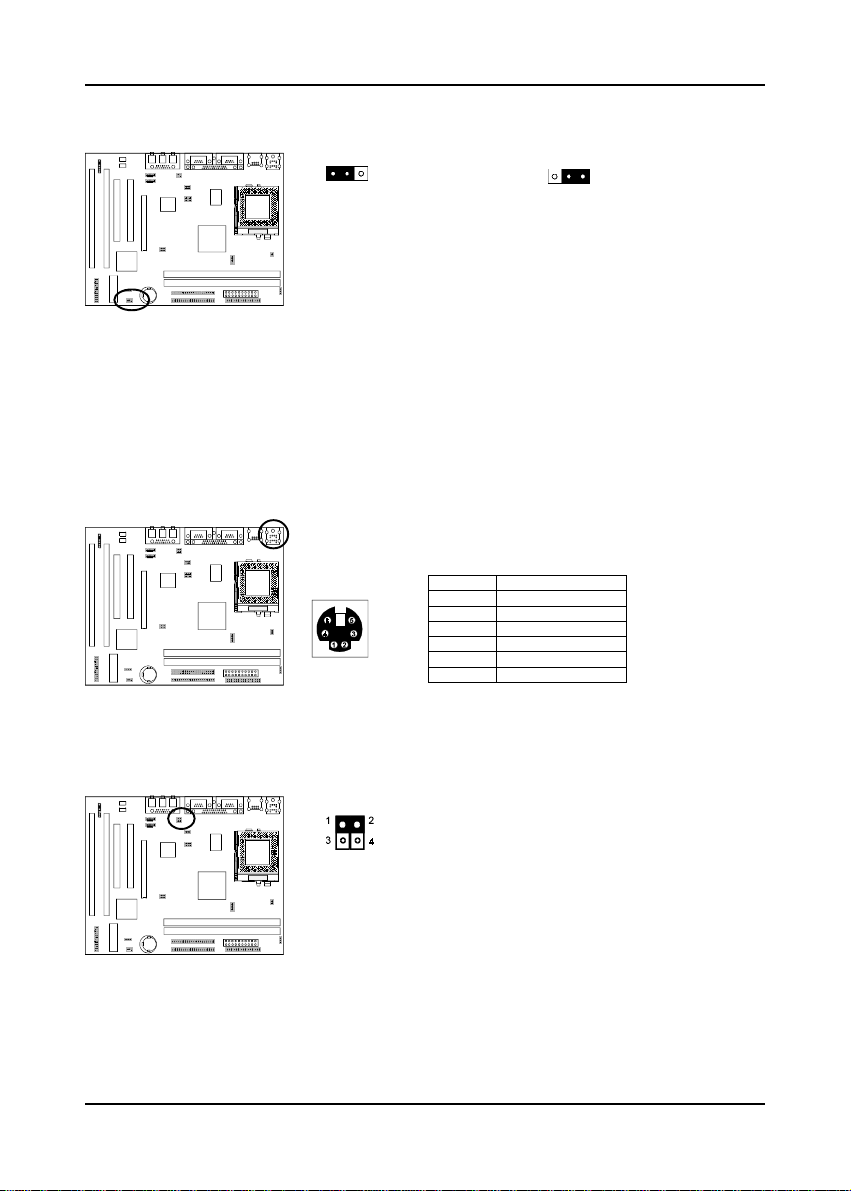

Clear CMOS Data Jumper (JP9)

1

1

2

1
3

4

+

0

1

1

+

1

+

1

Socket 7

0

1

1

Normal (default)

To clear the contents of the CMOS, please follow the
steps below.

1.Disconnect the system power supply from the power
source.

1

2.Set the jumper cap at location 2~3 for 5 seconds, then
set it back to the default position.

3.Connect the system's power and then start the system.

4.Enter BIOS's CMOS Setup Utility and choose Load
Setup Defaults. Type Y and press enter.

5. Set the system configuration in the Standard CMOS
Setup menu.

PS/2 Mouse and Keyboard Ports

1

Clear CMOS data

1

1

Volume Connector (JP10)Volume Connector (JP10)

Volume Connector (JP10)

Volume Connector (JP10)Volume Connector (JP10)

1

1

1

+

1

+

2

1
3

4

+

0

1

+

1

1

12
3

4

+

1

+

1

1

Socket 7

0

1

0

Socket 7

0

1

If a PS/2 mouse is used, BIOS will automatically detect
and assign IRQ12 to the PS/2 mouse.

1

This function, enable you to select volume up or down
option. You must set this jumper's cap to pins 1-2 to turn

1

the volume up and to 3-4 to turn the volume down.

Pin Definition

1 Data
2 No Connect
3 Ground
4 +5V (fused)
5 Clock
6 No Connect

Volume up (default)

16

Power Failure Recovery Jumper (JP8)

1

12
3

4

+

0

1 1

On

Hardware Setup

Off (default)

1

1

1

+

1

+

1

Socket 7

0

1

Set the jumper's cap to pins 1-2 to allow the system
to always turn back on after a power failure. Set the
jumper's cap to pins 2-3 to disabled this function.

1

USB(Universal Serial Bus) Ports

1

1

2

1
3

4

+

0

1

1

+

1

+

1

Socket 7

0

1

If you want to use a USB keyboard, you must enable the
USB keyboard support function in BIOS's Integrated
Peripherals menu (See Section 3-7). USB is an open
industry standard, providing a simple and inexpensive
way to connect up to 125 devices to a single computer
port. Keyboards, mice, tablets, digitizers, scanners, bar-

1

code readers, modems, printers and many more can all be
used at the same time.

USB is a dynamically reconfigurable serial bus with an
elementary data rate of 12Mbps. Based on off the shelf,
low cost micro-controller technology, its modular layered
software protocol supports sophisticated devices and
application programs.

This board contains a USB Host controller and includes
a root hub with two USB ports (meets USB Rev 1.0 spec.).
Two USB peripherals or hub devices are able to be
connected.

Compatibility with different USB peripherals is still
being tested.

Poly-fuse Over Current Protection

The poly-fuse protects the system from dangerous voltages the system might be
exposed to via the keyboard or USB connectors. In case of such exposure, the poly­fuse will immediately be disconnected from the circuit, just like a normal fuse. After
being disconnected for a short period of time, the poly-fuse will return to its normal
state, after which the keyboard or USB can function properly. Unlike conventional
fuses, the poly-fuse does not have to be replaced, relieving the user of wasted time and
inconvenience.

17

Chapter 2

2-5 Main Memory Configuration

The DRAM memory system consists four banks and the memory size ranges from
16~256 MBytes. If you only use one bank it does not matter which one you use and
if you use two or more banks, it does not matter which bank you install first.

DIMM 1
DIMM 2

1

Bank1
Bank2

128

DRAM Specifications

DIMM type: 3.3V, 64/72-bit EDO(Extended Data Output)

Synchronous DRAM
Module size: Single/double-sided 16/32/64/128 MBytes
DRAM speed: 60-ns or faster for EDO DRAM

10/12ns for Synchronous DRAM
Parity: Either parity or non-parity

The compatibility of 256MB DIMM is still under testing and cannot be
guaranteed.

This mainboard supports 3.3v, unbuffered, 4-clock, SDRAM DIMM only.
Buffered, 5V, or 2-clock SDRAM DIMMs should not be used.

Due to loading anomalies, using DIMM with an 'n x 4' DRAM base on this
mainboard is not recommended. For example, a DIMM that uses sixteen
16Mb x 4 devices should not be used.

18

Award BIOS Setup Program

Chapter 3Chapter 3

Chapter 3

Chapter 3Chapter 3

33

3

33

Award BIOS Setup Program

Award's BIOS ROM has a built-in setup program that allows users to modify the basic
system configuration. This information is stored in CMOS RAM so that it can retain
the setup information, even when the power is turned off.

When you turn on or reboot the system, press the Delete key to enter the Award
BIOS setup program. The primary screen as shown in Figure 3-1 is a list of the menus
and functions available in the setup program. Select the desired item and press enter
to make changes. Operating commands are located at the bottom of this and all other
BIOS screens. When a field is highlighted, on-line help information is displayed
on the left bottom edge of the screen.

ROM PCI / ISA BIOS (2A5KKC3A)

CMOS SETUP UTILITY

AW ARD SOFTW ARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
SeePU & CHIPSET SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

ESC : Quit
F10 : Save & Exit Setup

Figure 3-1 Setup Program Initial Screen

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

: Select Item

(Shift) F2 : Change Color

Time, Date, Hard Disk T ype...

19

User's Manual

3-1 Standard CMOS Setup

The Standard CMOS Setup allows users to configure system components such as
hard disk drive, floppy disk drive and video display as well as date, time and boot­up error signaling. This configuration menu should be changed when installing a
mainboard for the first time, changing hardware in your system such as the HDD,
FDD, video display, or when the CMOS data has been lost or contaminated. Choose
the Standard CMOS Setup option from the CMOS Setup Utility menu (Figure 3-1)
to display the following screen. When a field is highlighted, on-line help information
is displayed on the left bottom edge of the screen.

ROM PCI / ISA BIOS (2A5KKC3A)

ST ANDARD CMOS SETUP

AW ARD SOFTW ARE, INC.

Date (mm : dd : yy): Mon,Aug 24 1998
Time (hh : mm : ss): 9: 14: 43

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 Auto
Primary Slave : Auto 0 0 0 0 0 0 Auto
Secondary Master : Auto 0 0 0 0 0 0 Auto
Secondary Slave : Auto 0 0 0 0 0 0 Auto

Drive A : 1.44M, 3.5 in.
Drive B : None

Video : EGA/VGA
Halt On : All Errors

Base Memory :

Extended Memory :

Other Memory :
Total Memory :

640K

15360K

384K

16384K

ESC : Quit
F1 : Help

(Shift) F2 : Change Color

: Select Item

PU/PD/+/- : Modify

Figure 3-2 Standard CMOS Setup Screen

Date/Time

Set the date and time. Do not skip this function as all of your timed events such
as power management, saving files, etc. are based on this timer.

Hard Disk Setup (Primary/Secondary; Master/Slave)

This category identifies up to four IDE hard disk drives that have been installed in
the computer. This section does not show information on other IDE devices such
as CD-ROM drives or other hard drive types such as SCSI drives.

20

Award BIOS Setup Program

Type (Auto/User/None): Use the fields under the Type column to determine the
method you will use to configure the IDE devices. If you choose Auto, BIOS will
automatically detect and make optimal settings for most IDE hard drives.

The mainboard manufacturer recommends that you choose Auto for all
drives.

Choose User to define your own drive type manually. You must enter values indicated
in the table below into each drive parameter field. This information should be included
in the documentation from your hard disk vendor or system manufacturer:

TYPE Setting method
CYLS Number of cylinders

HEAD Number of heads

PRECOM P Write precompensation cylinder

LANDZ Landing zone

SECTOR Number of sectors

MODE Mode type

Table 3-1 Hard Disk Drive Parameters

Cyls/Head/Sector: The number of Cylinders, Heads, and Sectors can usually be found

written on the top of the hard disk. If you have a relatively new hard drive, entering
this information alone is usually sufficient for normal hard disk operation. The hard
disk will not work properly if you enter improper information for these categories.

Precomp: Older hard drives (i.e., MFM or RLL drives) have the same number of
sectors per track at the innermost tracks as at the outermost tracks. Thus, the data
density at the innermost tracks is higher and the bits are lying closer together. Even
though the physical size of a sector gets progressively smaller as the track diameter
diminishes, each sector must still hold 512 bytes. Write precompensation circuitry
compensates for the difference in sector size by boosting the write current for inner
track sectors.

Landz: This defines the address of the landing zone and is only used for older hard
drives which do not have an auto-parking feature.

Mode: If the Type value is not None for any device, you must set the Mode value
for that device. There are four different Mode values: Auto, Normal, Large, and
LBA.

Auto - BIOS detects and enters the IDE drive type during bootup.

Normal - for IDE drives that meet the old IDE specification which support

a maximum capacity of 528MB (1024 cylinders, 16 heads, and 63 sectors).

21

User's Manual

Large - for IDE drives that do not support LBA and have more than 1024
cylinders. Try this setting if your hard disk does not operate properly with
the LBA setting. Large mode is not supported by all operating systems, i.e.,
only certain versions of DOS support large mode.

LBA - (Large/Logical Block Addressing) With LBA, the IDE controller
transforms the data address described by sector, head, and cylinder number
into a physical block address, significantly improving data transfer rates. This
mode is for drives with greater than 1024 cylinders and between 528MB and

8.4GB in size. This protocol is the current common standard.

Choose None for Type if there are no IDE HDD devices in your system.

@

You can use the IDE HDD Auto Detection function to auto detect your hard
drive parameters. Using this function will automatically insert the parameters
discussed under Hard Disk Setup and will indicate User for the Field value.
Please see Section 3-9 for more information.

Floppy Disk Drives

Choose the memory capacity and disk size that corresponds with that of your floppy
disk drive(s).

Video

Select the type of video adapter present in your system. You can ignore this setting
if you are using a VGA monitor since VGA BIOS automatically configures this setting.

Halt

When the system is powered on, BIOS performs a series of diagnotic tests called
POST (Power On Self Test). This function stops the computer if BIOS detects a
hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt
on specific errors.

22

Award BIOS Setup Program

3-2 BIOS Features Setup

By choosing the BIOS Features Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's
default values for the mainboard.

ROM PCI / ISA BIOS (2A5KKC3A)

BIOS FEA TURES SETUP

AW ARD SOFTW ARE, INC.

Anti-Virus Protection : Disabled
CPU Internal Cache : Enabled
External Cache : Enabled
Quick Power On Self Test : Enabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Boot Up System Speed : High
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select (For DRAM>64MB) : Non-OS2

Video BIOS Shadow : Enabled
C8000 - CBFFFShadow : Disabled
CC000- CFFFF Shadow : Disabled
D0000 - D3FFF Shadow : Disabled
D4000 - D7FFF Shadow : Disabled
D8000 - DBFFFShadow : Disabled
DC000- DFFFF Shadow : Disabled

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-3 BIOS Feature Setup Screen

A. VIRUS PROTECTION

Trend ChipAway Virus

Trend ChipAway Virus is a code incorporated in the mainboard's BIOS firmware.
During the boot-up sequence, BIOS loads before loading of the partition table
or boot sector. ChipAway Virus loads with BIOS and is able to detect boot-up
viruses before they have a chance to infect the hard drive. ChipAway Virus employs
rule-based logic that doesn't look for specific viruses but rather detects patterns
found in every virus, eliminating the need to perform periodical version updates
after new viruses have been found.

Boot Sector Intrusion Alert

When Enabled, BIOS activates a warning message to the user when any program
(i.e., a virus) attempts to write to the boot sector or hard disk partition table.
The user is able to intervene by running an anti-virus program. This function only
protects the boot sector and not the entire hard drive.

23

User's Manual

B. CACHE CONTROL

CPU Internal Cache/External Cache

Cache memory is much faster than conventional DRAM system memory. These
fields allow you to enable or disable the CPUs Level 1 built-in cache and Level
2 external cache. Both settings are left enabled to significantly increase the
performance of your computer.

C. BOOT UP FEATURES

After turning on the system, BIOS will perform a series of device initializations
and diagnostic tests discussed below.

Quick Power On Self Test (POST)

Enable this function to reduce the amount of time required to run the POST (Power
On Self Test). BIOS saves time by skipping some items during POST. It is
recommended that you disable this setting. Discovering a problem during bootup
is better than loosing data during your work.

Boot Sequence

This option sets the sequence of drives BIOS attempts to boot from after POST
completes. BIOS will search these drives for an operating system.

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A will
function as drive B, and drive B will function as drive A. Note that the boot sequence
assignment mentioned directly above does not inlcude booting from floppy drive
B. This function is useful if floppy drives B and A are of a different format and
you want to boot from floppy drive B.

Boot up Floppy Seek

During POST, BIOS will determine if the installed floppy disk drive has 40 or 80
tracks. A 360K drive has 40 tracks and 720K, 1.2M and 1.44M drives have 80 tracks.
All modern floppy disk drives have 80 tracks.

Boot Up NumLock Status

This function defines the keyboard's numberpad as number keys or arrow keys.

Boot Up System Speed

This function determines the CPU speed while in non-protected mode under DOS.
Set to High for regular CPU speed and low for decreased CPU speed. This function
is used for applications such as games that require decreased CPU speed.

D. KEYBOARD INTERFACE

Typematic Rate Setting

When enabled, you can set the following two typematic control items. When

24

Award BIOS Setup Program

disabled, keystrokes are determined arbitrarily by the keyboard controller in your
system.

Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when
a key is pressed and held down.

Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins
repeating.

E. Security Option

The Supervisor and/or User Password functions shown in Figure 3-1 must be set
to take advantage of this function. See Section 3-8 for password setting information.
When the Security Option is set to System, a password must be entered to boot
the system or enter the BIOS setup program. When the Security Option is set
to Setup, a password is required to enter the BIOS setup program.

F. PCI/VGA Palette Snoop

Some non-standard VGA cards or MPEG video cards may not show colors
properly. Setting this function to Enabled can correct this problem.

G. OS Select (For DRAM > 64MB)

If your system's DRAM is larger than 64MB and you are running OS/2, select
OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other
operating systems.

H. Shadow Memory

Software such as system BIOS, video BIOS, SCSI BIOS, etc that resides in ROM
(Read Only Memory) chips is called firmware. Shadowing of firmware occurs when
BIOS is copied to RAM address C0000h through DFFFFh. Video BIOS loads into
the C0000-C7FFF memory area when video shadowing is enabled. If an expansion
peripheral in your system contains ROM-based firmware, you need to know the
address range the ROM occupies to shadow it into the correct area of RAM.

Shadowing improves the firmware's performance because the firmware can be read
by the CPU through the 16- or 32-bit DRAM bus as opposed to the 8-bit XT bus.
However, shadowing also results in reducing the amount of high memory (640
KB to 1 MB) for loading device drivers. Shadowing is used mostly for ROM chips
on ISA cards and not for PCI cards. Shadowing and playing games at the same
time may result in system instability as some games access the RAM memory area
being shadowed.

25

User's Manual

3-3 Chipset Features Setup

By choosing the Chipset Features Setup option from the CMOS SETUP UTILITY
menu(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A5KKC3A)

CHIPSET FEA TURES SETUP

AW ARD SOFTW ARE, INC.

AUTO Configuration
L2 TAG RAM Size
AT Bus Clock
DRAM Timing
SDRAM CAS Latency
Pipelined Function
Graphics Aperture Size : 64 MB
DRAM Data Intergrity Mode : Disabled
Memory Hole At 15M-16M : Disabled

Host Read DRAM Command ModeHost Read DRAM Command Mode

Host Read DRAM Command Mode

Host Read DRAM Command ModeHost Read DRAM Command Mode

AGP Read Burst : Enabled
ISA Line Buffe
Passive Release
Delayed Transaction
Primary Frame Buffer
VGA Frame Buffer
Data Merge
IO Recovery Period : 1 us

: Enabled

r :

:

:

:

: 8

: CLK2/3

: Normal

3

Enabled

: Bypass

Enabled

: Enabled

:

Disabled

: All

Enabled

: Disabled

Auto Detect DIMM/PCI Clk : Enabled
Spread Spectrum : Disabled

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-4 Chipset Features Setup Screen

All of the above settings have been determined by the mainboard manufacturer
and should not be changed unless you are absolutely sure of what you are
doing. Explanation of the DRAM timing and chipset features setup is lengthy,
highly technical and beyond the scope of this manual. Below are abbreviated
descriptions of the functions in this setup menu. You can look on the world
wide web for helpful chipset and RAM configuration information including
AWARD's web site at http://www.award.com.

A. Auto Configuration

When Auto Configuration is enabled, BIOS autodetects the DRAM module type
(i.e. EDO, FP) and determines the relevant DRAM settings. Note that these DRAM
settings become background print (unchangeable) once the Auto Configuration
is enabled. If Auto Configuration is enabled, you must set the DRAM timing
function to 60ns or 70ns, depeding on the type of DRAM you install.

26

Award BIOS Setup Program

B. L2 TAG RAM Size

The system uses tag bits to determine the status of data in the L2 cache. Set this
field to match the specifications (8 or 10 bits) of the installed tag RAM chip.

C. AT Bus Clock

This function allows you to set the speed of the AT bus in terms of a fraction
of the CPU clock speed,(PCKL2) or at the fixed speed of 7.16KHz.

D. DRAM Timing

The value in this field depends on performance parameters of the installed memory
chips. (DRAM) Do not change the value from the factory setting unless you install
a new memory that has a different performance rating than the original DRAM.

E. SDRAM CAS Latency

When syschronous DRAM is installed, the number of the clock cycles of CAS
latency depends on the DRAM timing.

F. Pipeline Function

When Enabled, the controller signals the CPU for a new memory address before
all data transfers fot hte current cycles are complete, resulting in faster performance.

G. Graphics Aperture Size

This function determines the amount of system memory that is given to the
Graphics card. Options range from 16MB to 256MB. This is a dynamic memory
allotment in that the Graphics card will only use the amount of memory that it
needs. The remaining memory not in use will be available for the system to use.
For example, if 16MB is alloted to the AGP card and the card only needs 8MB,
the remaining 8MB will be available for system use.

H. DRAM Data Integrity Mode

This function enable you to select Parity or ECC, (Error Correcting Code) according
to the type the installed DRAM.

I. Memory Hole at 15M-16M

Enabling this function will reserve the memory address space between 15MB and
16MB for ISA expansion cards. However, enabling this function will result in
not allowing the system to have access to memory above 16MB. Please note
that some expansion cards require this setting to be enabled. The default setting
is Disabled.

27

User's Manual

J. ISA Line Buffer

The PCI to ISA Bridge has 8-byte bi-directional line buffer for ISA or DMA bus
master memory reads from or writes to the PCI bus. When Enabled, an ISA or
DMA bus master can prefetch two double words to theline buffer for a read cycle.

K. Passive Release

When Enabled, CPU to PCI bus access is allowed during passive release.
Otherwise, the arbiter only accepts another PCI master access to local DRAM.

L. Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support PCI specification compliance
version 2.1.

M. Primary Frame Buffer

This function allows you to select a size for the frame buffer. The size of the buffer
should not impinge on local memory.

N. VGA Frame Buffer

When Enabled, a fixed VGA frame buffer from A000h to BFFFh and a CPU to PCI
write buffer are implemented

O. Data Merge

This function controls the word-merge feature for frame buffer cycles. When
Enabled, the controller checks the eight CPU Byte Enable signal to determine
if the words read from the PCI bus by the CPU can be merge.

P. Spectrum Spread

When Enabled, this function will cause lower EMI by spreading the system
frequency spectrum. For normal operation, Disable this function.

28

Award BIOS Setup Program

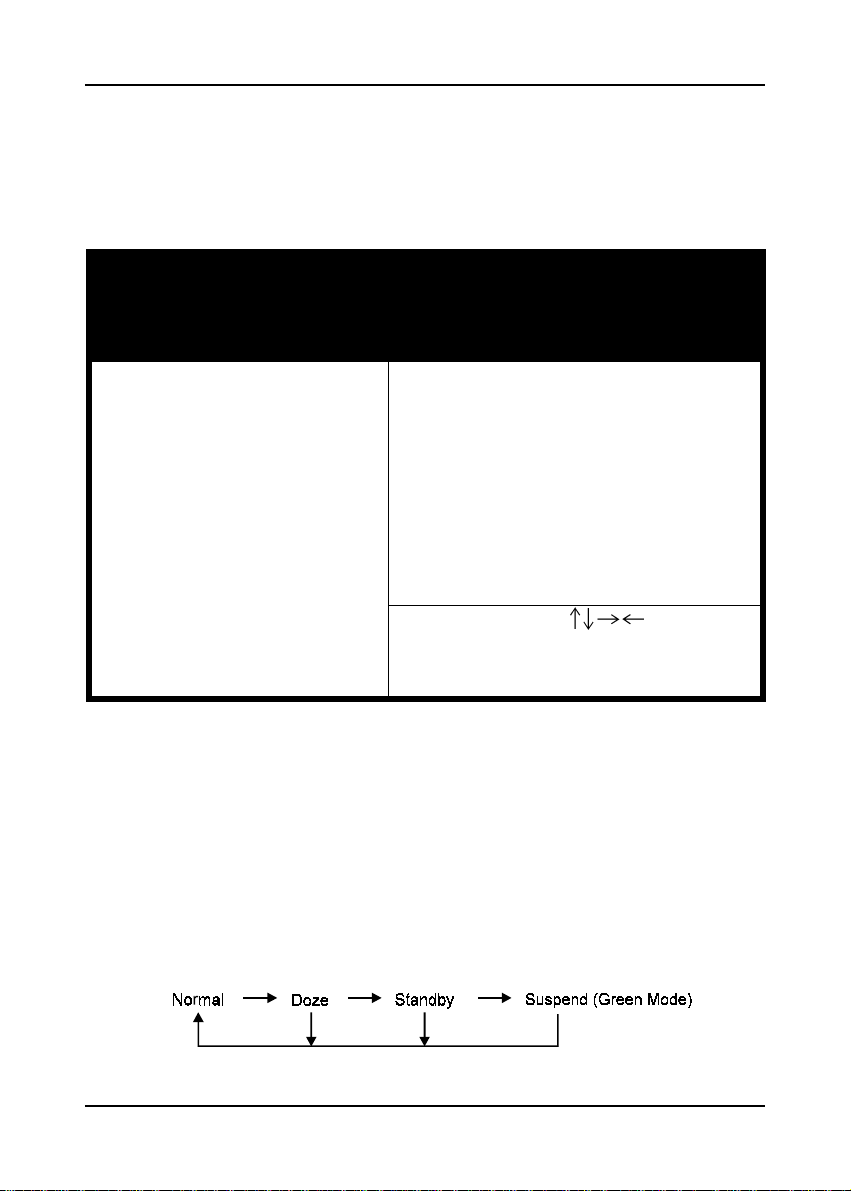

3-4 Power Management Setup

This section provides information on the Green PC power management funtcions. By
choosing the Power Management Setup option from the CMOS Setup Utility menu
(Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the mainboard.

ROM PCI / ISA BIOS (2A5KKC3A)

POWER MANAGEMENT SETUP

AW ARD SOFTW ARE, INC.

ACPI Function : Enabled
Power Management :User Define
PM Control by APM :Yes
MODEM Use IRQ :3
Video Off Method : Susp.Stby->Off
Video Off Option : DPMS

** PM Monitor **
HDD Power Down :Disabled
Doze Mode :Disabled
Standby Mode : Disabled
Suspend Mode :Disabled
** PM Events **
Primary HDD : Disabled
Floppy :Disabled
COM Ports :Enabled
Keyboard :Enabled
LPT Ports :Disabled

** External Switch **
Power Button : 4 Sec-Off

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-5 Power Management Setup Screen

A. Advanced Configuration Power Interface (ACPI)

ACPI management enables the operating system to control the amount of power
given to each device attached to the computer. With ACPI, the operating system
can turn off peripherals devices, such as CD-ROM players, when they are not
in use.

B. Power Management

Power management allows the computer to save electricity when it is not in use
by entering increasingly deep power saving modes as shown by the diagram below.

Figure 3-6 Power Saving Mode Flow Chart

29

User's Manual

The computer runs in Normal operation mode until the Doze timer expires, at which
point the computer enters Doze mode. If no external activity occurs, the computer
will go into Standby and Suspend modes when their respective timers expire. If
external activity occurs, the computer will wake up from Power Management and
return to Normal mode. To activate the function, set Power Management to
Maximum Saving, User Define, or Minimum Saving describe below. For a descrip­tion of the power saving modes (Doze, Standby, and Suspend) see their descrip­tions below.

Disabled - Turns off the Power Management functions.
Max. Saving - All timers are set at the minimum value of one minute to

maximize power saving.
Min. Saving - All timers are set at the maximum value of one hour for

minimal power saving.
User Define - User can configure the timer to a desired time according to

the values available.
Note that enabling the Power Management function will result in enabling

@

the HDD Power Down function (Max Saving = 15 min, Min Saving = 1 min).
The HDD Power Down function is not part of the Power Management scheme
as indicated in Figure 3-6 Refer to the Standby Mode, Suspend Mode, and
HDD Power Down descriptions below for more informaiton on hard drive
power management.

C. PM Control by APM

This function allows software other than BIOS to control Power Management
features Enable this function in BIOS and make sure APM (Advanced Power
Management) is present. For example, run the Power utility program located in
the DOS directory, C:\DOS\POWER.EXE to use Power Management features under
DOS. For Windows 3.1x and Windows 95, you need to install Windows with
the APM feature.

D. Modem Use IRQ

This function determines the IRQ in which the modem can use.

E. Video Off Option

This setting determines when the monitor enters power saving mode. As the
function name indicates, the monitor enters the power saving mode after the chosen
event expires. The Power Management function must be enabled to use this
function.

30

Award BIOS Setup Program

F. Video Off Method

This function serves as both a screen saver and power saver for monitors.
See the next function, Video Off After, for setting the video timer.

Blank - BIOS will only blank the monitor's screen. The electricity saved
in this mode is negligible and this function is only used as a screen saver
to prevent screen damage while the screen is on but not in use.
V/H SYNC+Blank - The system turns off the vertical and horizontal syn­chronization ports, writes blanks to the VGA buffer and the monitor's electron
gun turns off. This function requires a monitor with Green features in order
to take advantage of the power saving function. If you enable this function
and do not have a Green monitor, the result will be the same as if you had
selected Blank. This function serves as both a screen saver and an electricity
saver.

DPMS Supported - Select this option if your video card supports the Display
Power Management Signaling (DPMS) standard (i.e., you have a monitor that
supports Green features). Use software supplied by your your video
subsystem to set video power management options.

G. HDD Power Down

The Power Management function must not be set to disabled to enable this
function. When the HDD idle time has elapsed, BIOS sends a command to the
hard disk to turn off the motor. Set a time between 1 and 15 to indicate time
required to wait before the hard drive enters a power saving mode. Some old
hard drives may not support this function.

H. Doze Mode

The Power Management function must not be set to disabled to enable this
function. If no interrupts have occured and the Doze timer expires, system will
enter Doze mode. In Doze mode, the CPU clock runs at a lower speed while
all other devices operate normaly.

Power saving modes achieved in lower power saving states will either be

@

maintained or enter higher power saving modes when switching to higher
power saving states. For example, the CPU clock will not switch back to
normal in Standby mode. It will maintain a decreased rate in Standby Mode
and turn off in Suspend Mode.

31

User's Manual

H. Standby Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Doze mode and the Standby timer expires, the
system will enter Standby mode. In Standby mode, the hard disk drive and the
monitor shut off while all other devices still operate at full speed. Note that the
Video Off and HDD Power Down functions in Figure 3-5 provide the same power
saving options found in Standby mode. The priority for determining which
function controls power saving for the monitor and hard drive is determined by
which timer expires first.

I. Suspend Mode

The Power Management function must not be set to disabled to enable this
function. If the system runs in Standby mode and the Suspend timer expires, all
devices regulated by power management will shut off and the CPU speed will be
0 MHz.

J. Power Button

This item allows you to select the function of the power button.

32

Award BIOS Setup Program

3-5 PnP/PCI Configuration

This section provides IRQ and DMA setting information. By choosing the PNP/PCI
Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen below
is displayed. This sample screen contains the manufacturer's default values for the

mainboard.

ROM PCI / ISA BIOS (2A5KKC3A)

PnP/PCI CONFIGURA TION

AW ARD SOFTW ARE, INC.

PnP OS Installed : No
Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : PCI/ISA PnP
IRQ-4 assigned to : PCI/ISA PnP
IRQ-5 assigned to : PCI/ISA PnP
IRQ-7 assigned to : LegacyISA
IRQ-9 assigned to : PCI/ISA PnP
IRQ-10 assigned to : PCI/ISA PnP
IRQ-11 assigned to : PCI/ISA PnP
IRQ-12 assigned to : PCI/ISA PnP
IRQ-14 assigned to : LegacyISA
IRQ-15 assigned to : LegacyISA
DMA-0 assigned to : PCI/ISA PnP
DMA-1 assigned to : PCI/ISA PnP
DMA-3 assigned to : PCI/ISA PnP
DMA-5 assigned to : PCI/ISA PnP
DMA-6 assigned to : PCI/ISA PnP
DMA-7 assigned to : PCI/ISA PnP

PCI IRQ Actived By : Level
PCI IDE IRQ Map To : ISA

Assign IRQ For VGA : Enabled
FDD IRQ Can Be Free : Yes
Slot 1 Use IRQ No.
Slot 2 Use IRQ No. : Auto
Onboard audio IRQ No. : 5

Used MEM base addr : N/A

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

: Auto

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-6 PCI & ONBOARD I/O Setup Screen

A. PnP OS Installed

If you want to install a PnP compatible OS (such as Windows 95) set to Yes.

B. Resources Controlled By

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA
information. Instead, it will refer to the items in the setup menu for assigning
IRQ & DMA. When set to Auto the system BIOS will refer to the ESCD for all
legacy information.

ESCD(Extended System Configuration Data) provides a detailed format of
the configuration data structures stored in flash memory. Each data structure
defines the resources used by a device or a card in the system. This includes
legacy and PCI/ISA PnP devices.

33

User's Manual

C. Reset Configuration Data

When enabled the system BIOS will clear/reset the ESCD during POST. After
clearing the ESCD, the BIOS will then change this item's value to Disabled.
Otherwise, the ESCD data will become useless.

D. IRQ#/DMA# assign to

When resources are controlled manually, you can assign each system interrupt
& DMA channel for "Legacy ISA" or "PCI/ISA PnP" card used.

While using Legacy ISA Card(non-PnP ISA card), please set it's necessary
corresponding resources (INT#, DMA#) from "PCI/ISA PnP" to "Legacy
ISA."

@ All ISA non-PnP devices are legacy devices that select resources (I/O Addr.,

INT# or DMA#) by using hardware jumpers.

@ IRQ-3/4/7/12/14/15 have been set as default for on board devices (COM2,

COM1, Printer port, PS/2 mouse, IDE1 and IDE2).

E. PCI IDE IRQ Map to

This function allows user to select PC A T (ISA) interrupts or PCI IDE IRQ
mapping.
ISA: BIOS does not designate any IRQ signal to the PCI slot. This is the default
setting.
PCI-SLOT 1-4: User can designate which PCI slot (1-4) the IDE card is
inserted into. This setting is suitable for use with older PCI IDE cards that
BIOS is not able to recognize.
PCI-AUTO: BIOS automatically detects which PCI slot the PCI IDE card is
inserted into.

F. Assign IRQ For VGA

This function allows BIOS to make an IRQ available to VGA cards. Current VGA
card models do not require this function to be enabled.

G. FDD IRQ Can Be Free

This function allows users to choose if the FDD IRQ is able to be freed for use
with other processes that require IRQ.

H. Used MEM base addr

This function devotes a space of memory (8K, 16K, 32K, 64K) for any peripheral that
has a high memory requirement. This is also used to designate memory space for
legacy ISA cards. The settings C800~DC00 are used to to designate point at which
the memory will start being used. The default setting is N/A (disabled.)

34

Award BIOS Setup Program

3-6 Load Setup Defaults

Load Setup Defaults loads the default system values directly from the CMOS Setup
Utility menu (Figure3-1). If the stored record created by the setup program becomes
corrupted and therefore unusable, these defaults will be loaded automatically when
you turn on the computer.

ROM PCI / ISA BIOS (2A5KKC3A)

CMOS SETUP UTILITY

AW ARD SOFTW ARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEA
POWER MAN
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

ESC : Quit
F10: Save & Exit Setup

Load SETUP Defaults except Standard CMOS SETUP

Figure 3-7 Load Setup Defaults Screen

INTERGRATED PERIPHERALS
SUPERVISOR PASSWORD

Load SETUP Defaults <Y/N>? N

SAVE & EXIT SETUP
EXIT WITHOUT SAVING

: Select Item

(Shift) F2 : Color

35

User's Manual

3-7 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the
Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the
screen below is displayed. This sample screen contains the manufacturer's default
values for the mainboard.

ROM PCI / ISA BIOS (2A5KKC3A)

INTEGRA TED PERIPHERALS

AW ARD SOFTW ARE, INC.

On-Chip Primary IDE : Enabled
Master PIO : Auto
Slave PIO : Auto
Master Ultra DMA
Slave Ultra DMA : Auto
On-Chip Secondary IDE
Master PIO : Auto
Slave PIO : Auto
Master Ultra DMA
Slave Ultra DMA
IDE HDD Block Mode : Enabled
On-Chip USB Controller

Init Display First
Power on by Modem
Power on by Alarm

Onboard Sound Chip : Enabled

: Auto
: Enabled

: Auto
: Auto

: Enabled

: PCI Slot
: Disabled

: Disabled

Onboard FDC Controller : Enabled
Onboard Serial Port 1 : Auto
Onboard Serial Port 2 : Auto
COM2 Mode : Normal

Onboard Parallel Port : 378/IRQ7
Parallel Port Mode : SPP

ESC : Quit
F1 : Help
F5 : Old Values
F7 : Load Setup Defaults

PU/PD/+/- : Modify
(Shift) F2 : Color

:Select Item

Figure 3-8 Integrated Peripherals Setup Screen

A. On-chip Primary/Secondary PCI IDE

You can set this to disable the On-chip IDE controller if you are going to add
a higher performance IDE board.

B. On-Chip Primary/Secondary Master/slave PIO

The four IDE PIO (programmed Input/Output) filed let you set a PIO mode (0-

4) for each IDE device that the internal PCI IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device.

C. On-Chip Primary/Secondary Master/slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports
it and the operating environment includes a DMA driver. (Windows OSR2 or a
third party IDE bus master driver) Select Auto to enable BIOS support .

36

Award BIOS Setup Program

D. IDE HDD Block Mode

Specify the maximum number of sectors that can be transferred at a time.

E. On-Chip USB Controller

If your current operating system support USB controller, this function must

be enable.

F. Init Display First

This function allows user to choose between AGP slot or VGA slot to initialize
Display first .

G. Power On By Modem

When enabled, a modem that receives a call will wake up the system from
soft off and green mode. You should connect the modem to the COM port
and turn on the resume event in green mode.

H. Power On By Alarm

When enabled, this setting allows the system to turn back on at a designated time
of the month. User must designate date of month and time of day.

I. Onboard Sound Chip

This function must be enabled in order to use the onboard audio function. To
terminate this function set it to disable.

J. Onboard FDC Controller

Select Enabled if your system has a floppy disk controller installed .

K. Onboard Serial Port 1/Port2 Controller

This function allows user to determine access onboard serial port 1/port2

controller with which I/O address.

L. COM2 Mode

When this function is Enabled, then the COM port will be redirected to support
IR function.

M. Onboard Parallel Port

This function allows user to determine access onboard serial parallel port

controller with which I/O address.

37

User's Manual

3-8 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are
located under the Security Option function in BIOS Features Setup Menu (Figure
3-3). When the Security Option function is set to Setup, a password is required to
enter BIOS and change BIOS settings. When the Securitiy Option function is set
to System, a password is required to to enter both BIOS and the the computer's
operating system (for example Windows 95) found on the boot drive. This is shown
in Figures 3-9 and 3-10.

The third and fourth variables are user password and supervisor password selected
in BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow
only the supervisor to have control over the settings in BIOS. The user, on the other
hand, is only allowed to access the computer's operating system and change the user
passorword in BIOS (See Figure 3-10 below). Note that when there is no supervisor
password set, the user password controls access to all BIOS settings (See Figure
3-9 below).

A. Set Either Supervisor Password or User Password

38

Figure 3-9 Set Either Supervisor or User Password

Award BIOS Setup Program

B. Set Both Supervisor Password and User Password

Figure 3-10 Set Both Supervisor and User Password

39

User's Manual

3-9 IDE HDD Auto Detection

This utility can automatically detect IDE hard disk type and parameters. The detection
process take about 5 seconds for each physical drive. After the utility detects the
disk drive, type Y and press [Enter] to automatically load the parameters in the Hard
Disk section of the Standard CMOS Setup menu. Otherwise, leave the option set
at N and press [Enter] or the [Esc] key to skip the detected drive. After detecting
your hard drive(s), return to the Standard CMOS menu to check your settings.

ROM PCI / ISA BIOS (2A5KKC3A)

CMOS SETUP UTILITY

AW ARD SOFTW ARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master :

Select Primary Master Option (N=Skip) : N

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
2 (Y) 547 530 32 0 1059 63 LB A

1 547 1060 16 65535 1059 63 NORMAL
3 547 530 32 65535 1059 63 LARGE

Note: Some OSes (like SCO-UNIX) must use "NORMAL" for installation

ESC: Skip

Figure 3-11 IDE HDD Auto Detection Screen

3-10 Save and Exit Setup

If you select this and type Y (for yes) followed by the [Enter] key, the values
entered in the setup utilities will be recorded in the CMOS memory of the BIOS
chip.

3-11 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the
Setup program without recording any new values or changing old ones.

40

Brief Software Driver Guide

Chapter 4Chapter 4

Chapter 4

Chapter 4Chapter 4

Brief Software Driver Guide

The Mainboard Software Guide is found on the CD-ROM that is enclosed with your
mainboard and is a PDF file which must be viewed with Adobe's freeware called
Acrobat® Reader. The Acrobat Reader software is also included on the same CD­ROM. See the Readme.txt file in the CD-ROM's root directory for installation
instructions of the Acrobat Reader. The Mainboard software guide discusses the
following items:

The following items are discussed in the PDF files:

- Bus Master/PIO IDE Driver Installation

- USB Driver Installation

- Removing the Exclamation and/or Question Marks From the Windows 95 Device

Manager Menu

- Updating Your System BIOS

- Installing and Using a Desktop Management Interface (DMI) Utility for DOS

- Sound Driver and Utility Installation

The DMI utility is a DOS utility, operating under Windows or other operating
system might cause damage to the BIOS.

41

Chapter 4

-

MemoMemo

Memo

MemoMemo

42

Audio Subsystem

Chapter 5

Audio Subsystem

5-1 Feature

- ESS PCI audio Solo-1 (ES1938S-G) subsystem on a single chip.

- Advance wavetable synthesizer using wavedata on the system memory.

- Up to 48KHz programable sample rate for record and playback.

- Intergrated Spatializer 3D effects Processor.

- Advance power management meets ACPI standards.

- Full duplex operation for simultaneous record and plaback.

5-2 Sound Driver and Utility (See Chapter 4)
5-3 CD-ROM Audio-in Connection (See Section 2-4)

43

-

MemoMemo

Memo

MemoMemo

44

Introduction

Appendix IAppendix I

Appendix I

Appendix IAppendix I

On Board I/O Addresses & IRQ Maps

System Resource IRQ I/O Address

1. Timer IRQ0 040, 043

2. Keyboard IRQ1 060, 064

3. Programmable INT IRQ2 0020, 0021,
00A0, 00A1

4. COM2(B) IRQ3 2F8, 2FF

5. COM1(A) IRQ4 3F8, 3FF

6. Floppy IRQ6 3F0, 3F7

7. LPT1 IRQ7 378, 37F

8. Real Time Clock IRQ8 070, 071

9. PS/2 Mouse IRQ12 060, 064

10.Math coprocessor IR Q13 0F0, 0FF

11.IDE 1 IR Q14 1F0, 1F7

12.IDE 2 IR Q15 170, 177

@@

IRQ 5, 9, 10 and 11 are available for interface cards.IRQ 5, 9, 10 and 11 are available for interface cards.

@

IRQ 5, 9, 10 and 11 are available for interface cards.

IRQ 5, 9, 10 and 11 are available for interface cards.IRQ 5, 9, 10 and 11 are available for interface cards.

@@

45

User's Manual

-

MemoMemo

Memo

MemoMemo

46

Appendix IIAppendix II

Appendix II

Appendix IIAppendix II

FAN78-

The FAN78 upgrade kit provides a PC self-dialogistic capability called the SMART
(System Monitoring and Alerting) technology.

Features

- Detects four on-board voltages (CPU Core Voltage, 3.3V, 5V, 12V)

- Two fan speed sensing

- One precise CPU temperature sensor and one chassis temperature sensor

- Four types of speaker-driver signal output

- Supports system monitor software and drivers for LDCMTM utility V3.1

- EISCA v1.0 compliant

SMART

FAN78FAN78

FAN78

FAN78FAN78

Technology Upgrade Kit

System Monitor Software for Win95System Monitor Software for Win95

System Monitor Software for Win95

System Monitor Software for Win95System Monitor Software for Win95

FAN78 Connector

47

-

Memo

48
