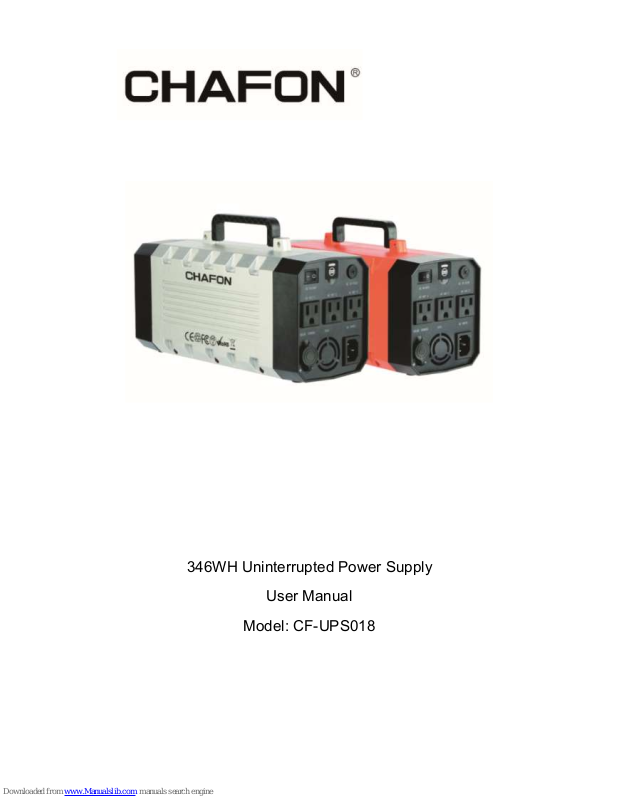

Chafon CF-UPS018 User Manual
346WH Uninterrupted Power Supply
User Manual
Model: CF-UPS018
Preface
--------------------------------------------------------------------------------------------------------------------
Thank you for applying our multi-functional UPS, in case of power failure or you need
to charge on a travel, you can temporarily charge your electrical or digital devices with this
unit. This unit can provide USB, DC and AC output. You can keep laptops, appliances,
lights and more going for hours longer. Before using this unit, please read the user manual
carefully and keep it for reference
Directory
----------------------------------------------------------------------------------------------------------------------
1. PRODUCT INTRODUCTION
1.1 Introduction
1.2 Product parameters
1.3 Product description

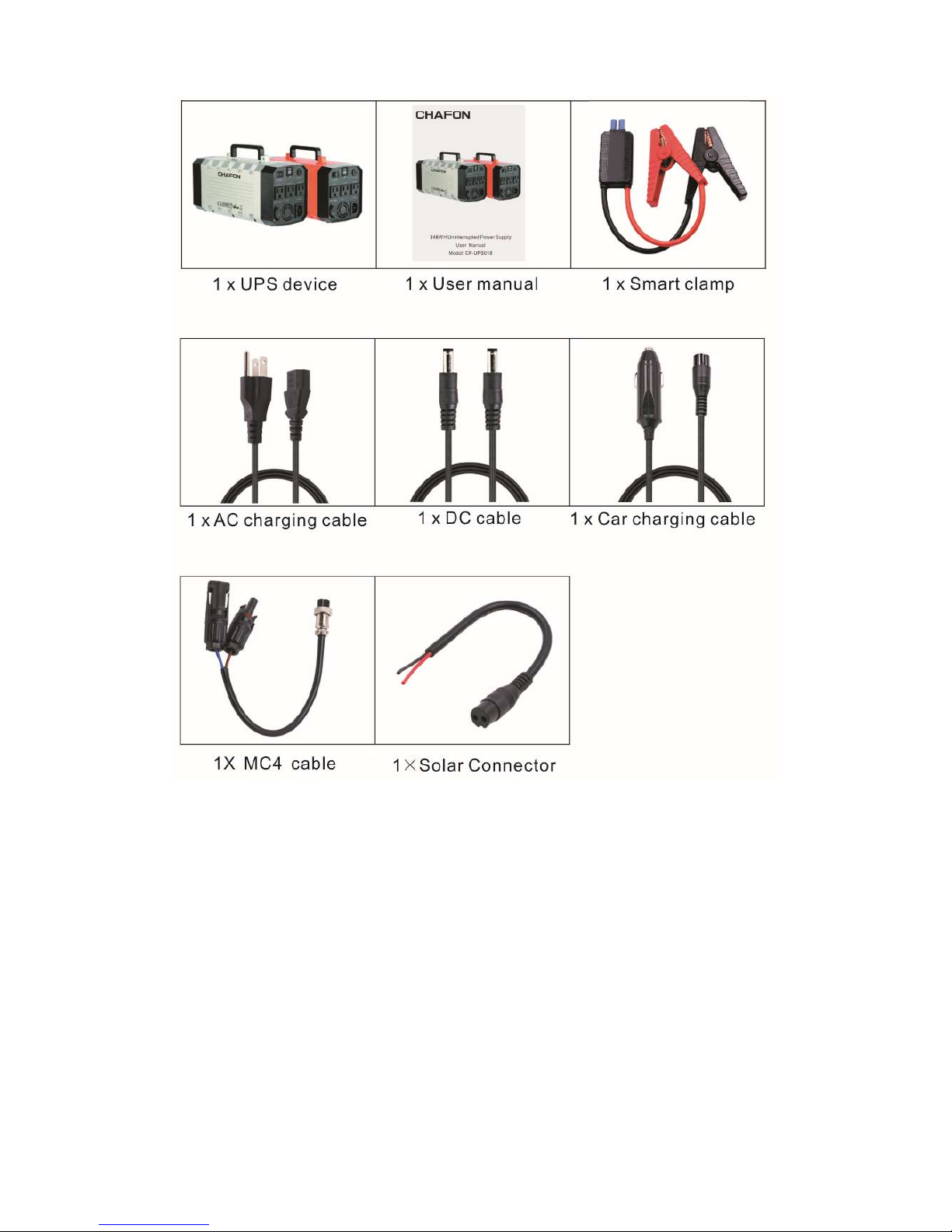

1.4 Product accessories
2. USER GUIDE

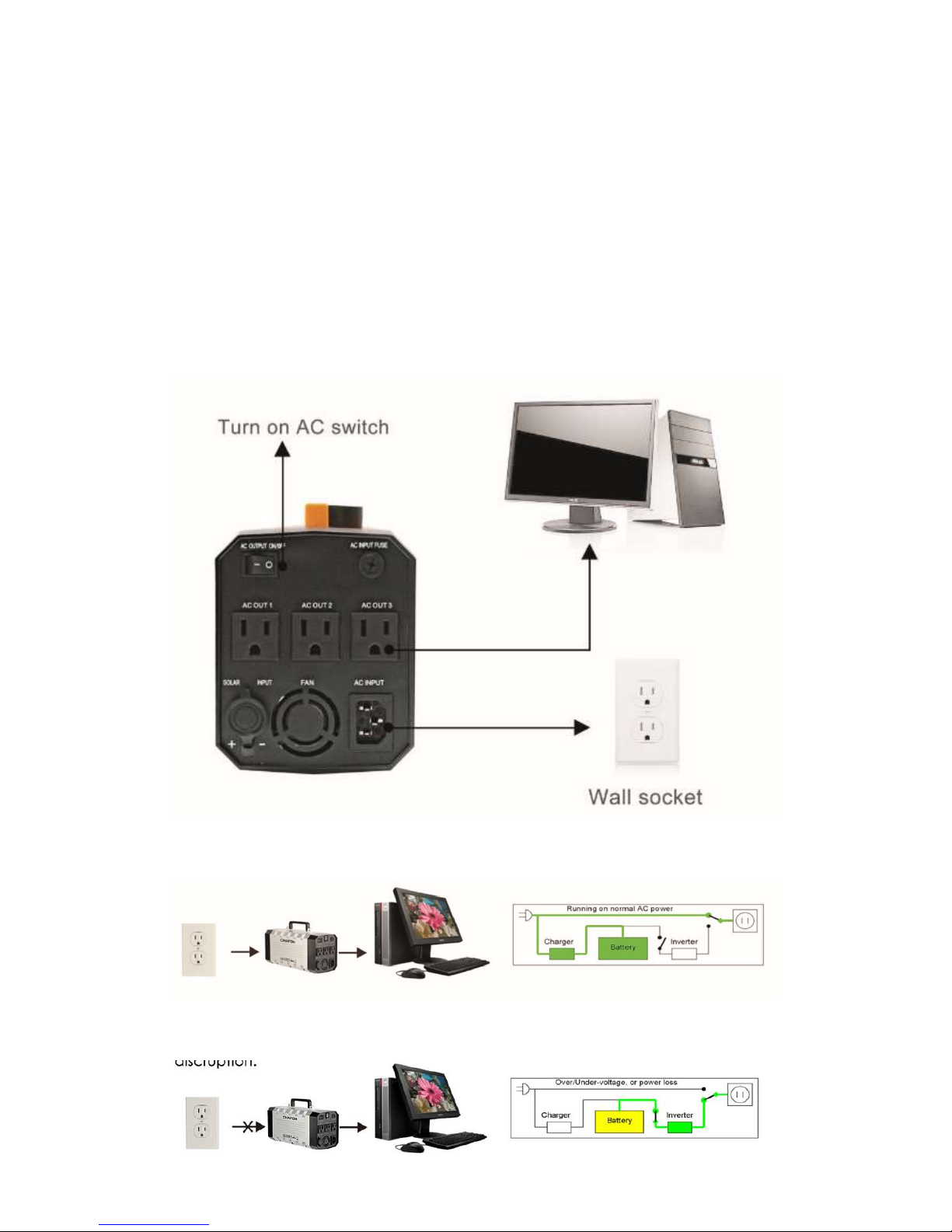

2.1 For indoor use as an on line UPS

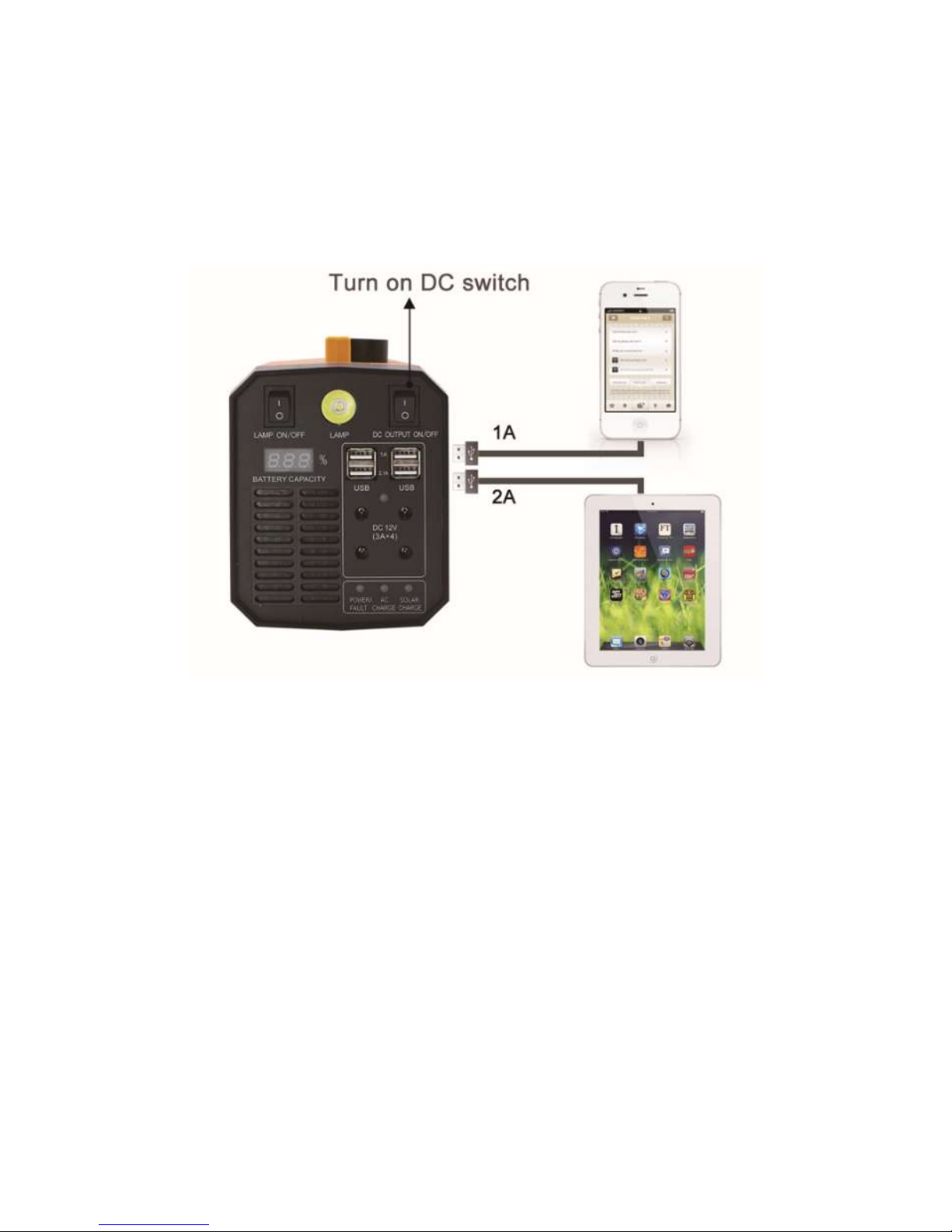

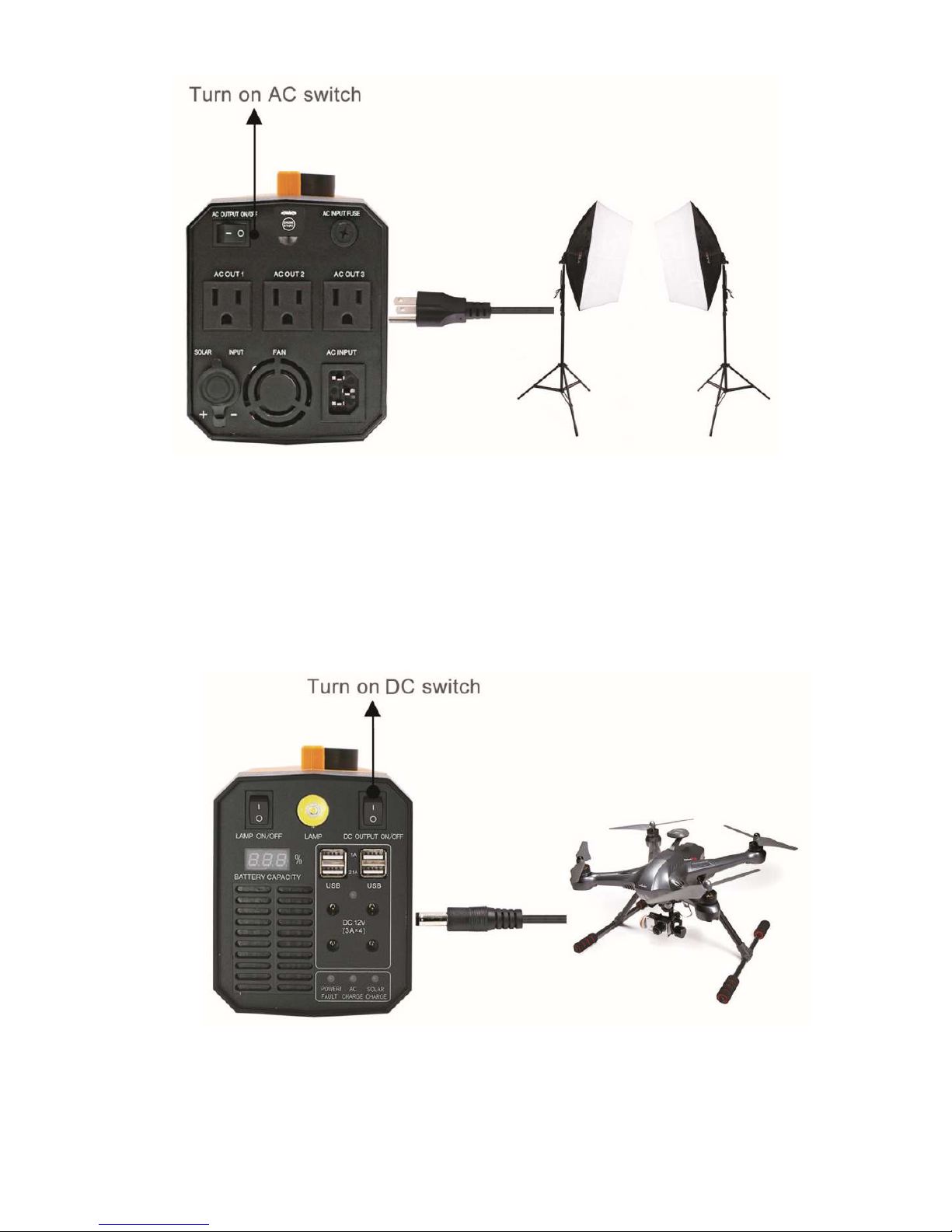

2.2 Used as a portable power source

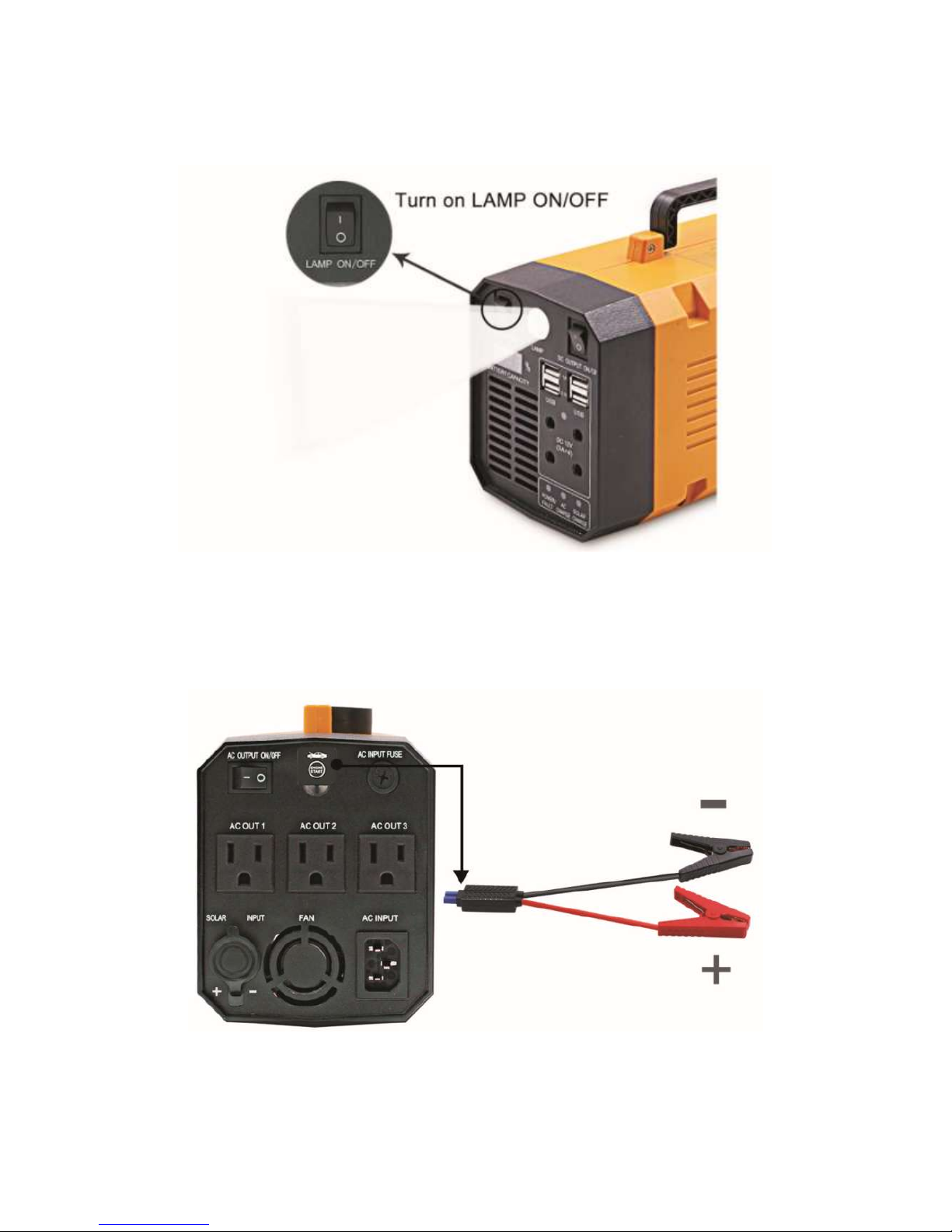

2.3 The LED light can be used as a torch
2.4 Used as an emergency jump starter
3. How to charge the UPS

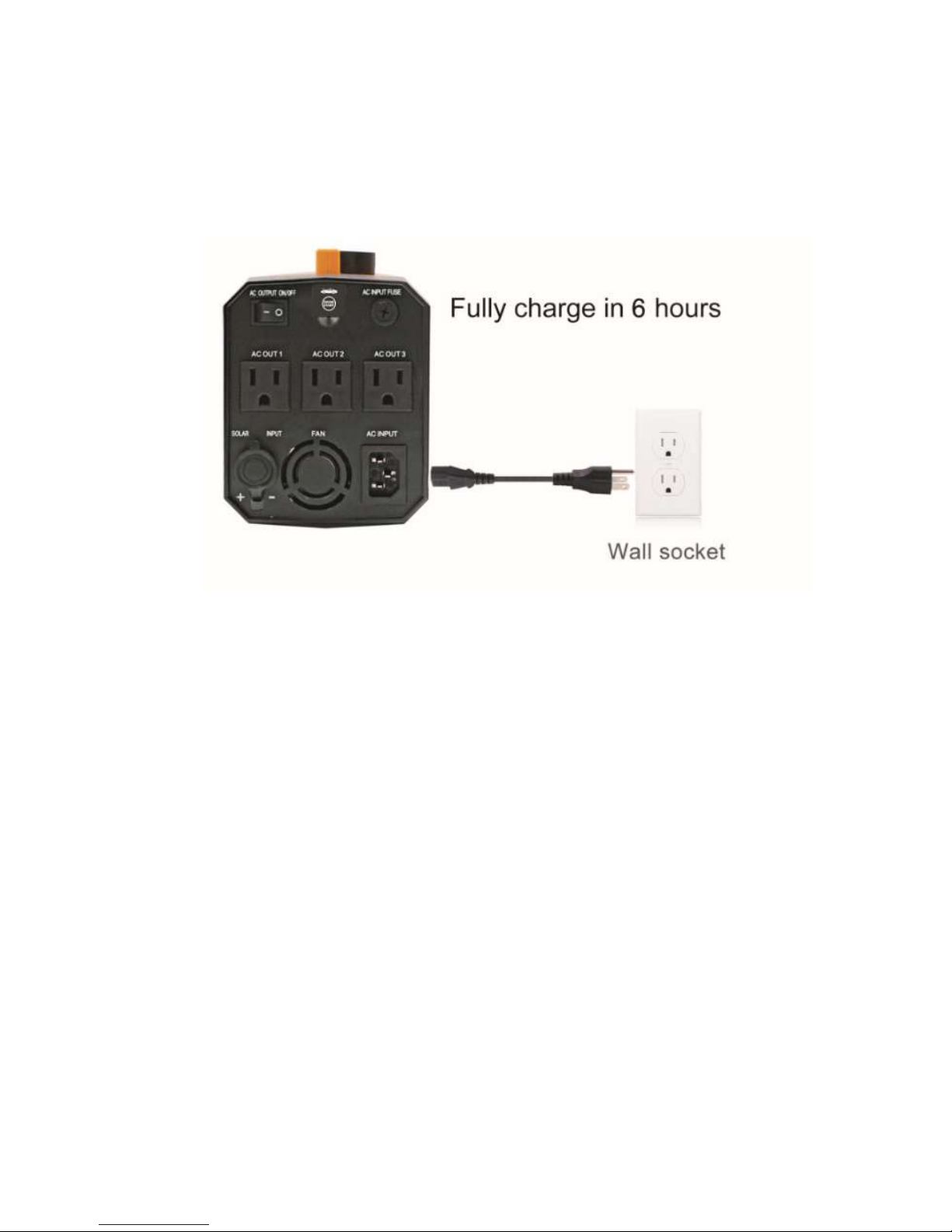

3.1 Charging through AC Wall charger

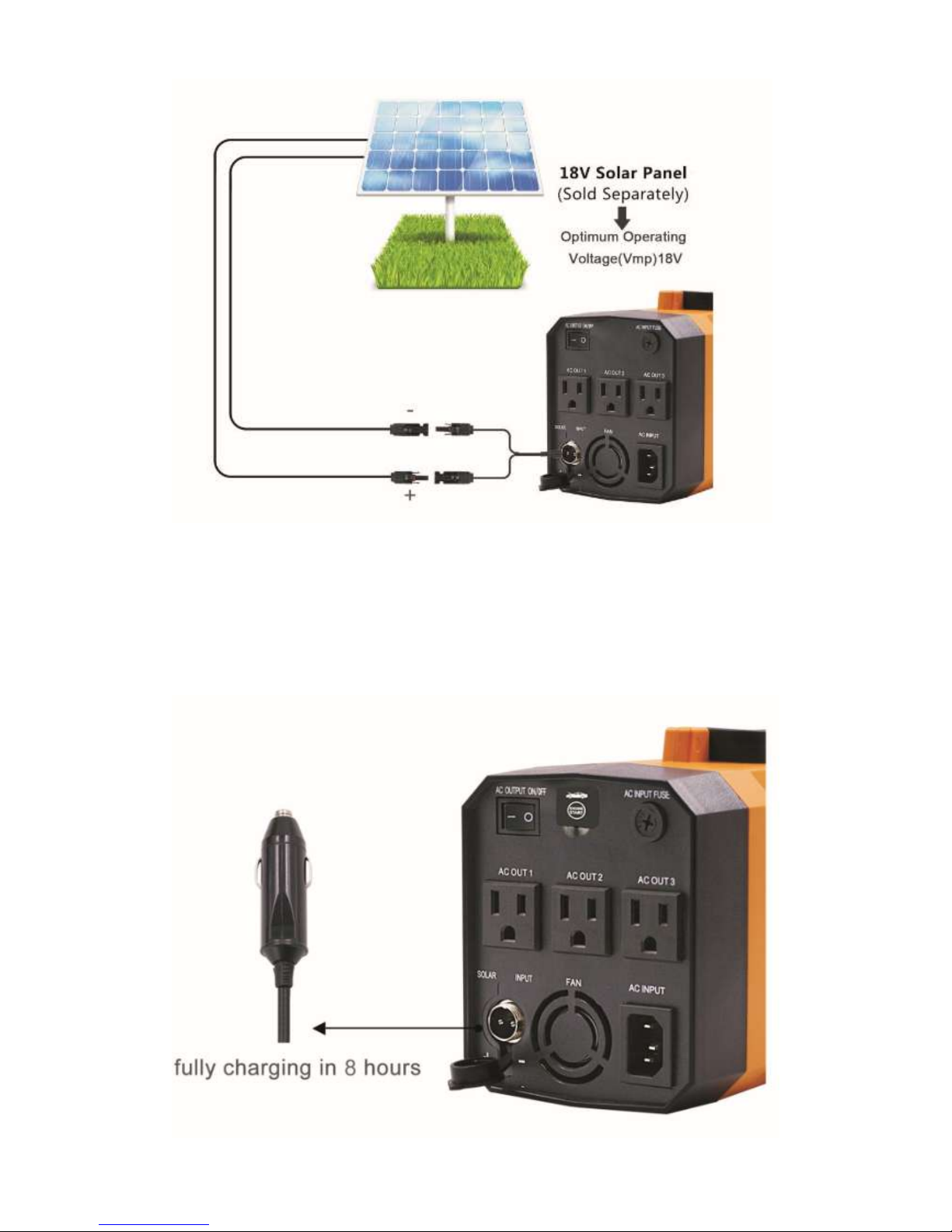

3.2 Charging from solar panel
3.3 Charging through 12V car charger
4. FAQ
5. SAFETY
1 PRODUCT INTRODUCTION
----------------------------------------------------------------------------------------------------------------------
1.1 Introduction
When power goes out for even a second it can result in data loss and hardware
damage, which can shorten equipment life expectancy. When you are outdoor or
traveling,you may worry about your devices are out of power and there is no AC power.
Now, you will never worry about this any more with the CF-UPS018 which is the most
ideal contingent companion both indoor and outdoor.
The CF-UPS018 is a compact portable multipurpose power source. As an on line
UPS with a built-in lithium battery (12V 31AH / 288WH), it can combine the outdoor
rechargeable power supply with the indoor computer. Although its size is only 1/10 ~ 1/5
of similar products its lifespan and capacity are 5 times and 10 times longer.
1.2 Product parameters
Item Model CF-UPS018
Capacity Lithium battery 12V 31Ah 346Wh
AC rated power 500W
Output Waveform Pure Sine Wave
AC Input Voltage 100V-240V 50/60Hz ;
AC Output Voltage 110V 60Hz
DC Output (4 ports) Total 12V/10A
USB Output (4 ports)
Total 5V/6.2A
2 x Each set 5V/3.1A
LED Light 1W
Solar Panel Voltage 12.75V±0.075V
Overload, Short circuit protection, Fuse 8A
Size: 29*11*15cm
Weight 3.37 kg(7.4 lb)
1.3 Product description
Indicator
DC Output Indicate: DC port and USB port work status ( normal: Green, unusual:
Red )
Power / Fault : Indicate AC power supply status ( normal: Green, unusual: Red )
Battery indicator display low : Red light flash and buzzer ring
Overload: Red light flash ,buzzer ring, No power output
AC Charge: Indicate AC input charging status ( charging: Red,charging completed:
Green)
Solar Charge: Indicate solar input charging and car input charging status ( charging:
Red, charging completed:Green)
battery indicator:The display panel will show the battery capacity. When the
percentage shown is low, please charge the unit accordingly.
