DF801B USER MANUAL

Google Play

IMPORTANT

○

Before using the product, please carefully read this manual and strictly comply with the operating

instructions.

○

Do not attempt to disassemble, modify or repair the aircraft. If necessary, please contact your local

retailer.

○

For the electronic version of this manual, please navigate to the APP’s main interface and click the “Help”

on the upper right corner to download.

○

All the contents of this manual are subject to change without prior notice.

APP Store

Content

I.Important Notes -------------------------------1

1.Flight safety --------------------------------------1

2.Flight environment -------------------------------1

3.GPS mode and ight mode ----------------------2

4.RTH (Return to home) ---------------------------2

5.Low battery RTH ---------------------------------2

6.Control loss RTH ---------------------------------2

7.Compass calibration -----------------------------2

II.Instructions for lithium battery usage ---------5

1.Usage --------------------------------------------5

2.Charging ----------------------------------------5

3.Storage and transportation-----------------------6

4.Disposal -----------------------------------------6

5.Maintenance -------------------------------------6

6.Attention for boarding ----------------------------6

III.Disclaimers and warnings --------------------6

IV.Technical support ----------------------------7

V.Newbie mode --------------------------------7

VI.Know DF801B ------------------------------7

1.Aircraft -------------------------------------------7

2.About the Remote Controller --------------------8

3.About optical ow positioning system------------9

4.Download the APP ----------------------------- 10

1.Battery Charging for the Aircraft --------------- 11

2.Remote Controller Preparation ----------------- 12

3.Insert the TF Card ------------------------------ 12

4.Battery Installation ----------------------------- 13

VIII.Control via the Remote Controller -------- 13

1.Power on the Aircraft --------------------------13

2.Connect with the APP --------------------------14

3.Operating the Aircraft -------------------------- 15

4.Photo and video ------------------------------- 16

5.Adjustment of the Camera's Pitch Angle ------- 17

6.Flight Mode ------------------------------------ 18

7.Return To home--------------------------------18

8.Battery Storage -------------------------------- 19

9.Pair the Aircraft with the Remote Controller ---- 19

IX.Control via the APP ------------------------ 20

1.Power on the Aircraft -------------------------- 20

2.Connect with the APP --------------------------20

3.Fly the Aircraft --------------------------------- 20

4.Photo and video ------------------------------- 22

5.Adjustment of the camera's pitch angle ------- 23

6.Flight Mode ----------------------------------- 23

7.Return to home -------------------------------- 25

8.Waypoint ying -------------------------------- 26

X.MV lming --------------------------------- 27

VII.Pre-ight Preparation --------------------- 11

DF801B USER MANUAL

I. Important Notes

1. Flight safety

(1) This aircraft is not a toy. It is applicable for users of 14 years of age and above.

(2) Please familiarize with the local laws, regulations and ying environment before ying. Stay away from sensitive places, and only

y where it's legal to y a drone.

(3) Please make sure that the aircraft ies within your sight. DO NOT y the aircraft around the obstacles, otherwise it might lead to

accidents.

(4) Please make sure you have the remote controller and the mobile device in your hand so that the aircraft can be controlled at any

time in case of accidents!

(5) Please keep away from the drone when it is in motion.

(6) Please turn off the aircraft and remote controller immediately when it completes ying.

(7) Please strictly comply with the safety rules when using the lithium battery. Never leave the battery unattended while charging to

avoid any accidents.

(8) DO NOT y the drone or use any type of remote controller within a radius of 500 meters of an airport. DO NOT use the remote

controller when and where the radio restrictions might apply.

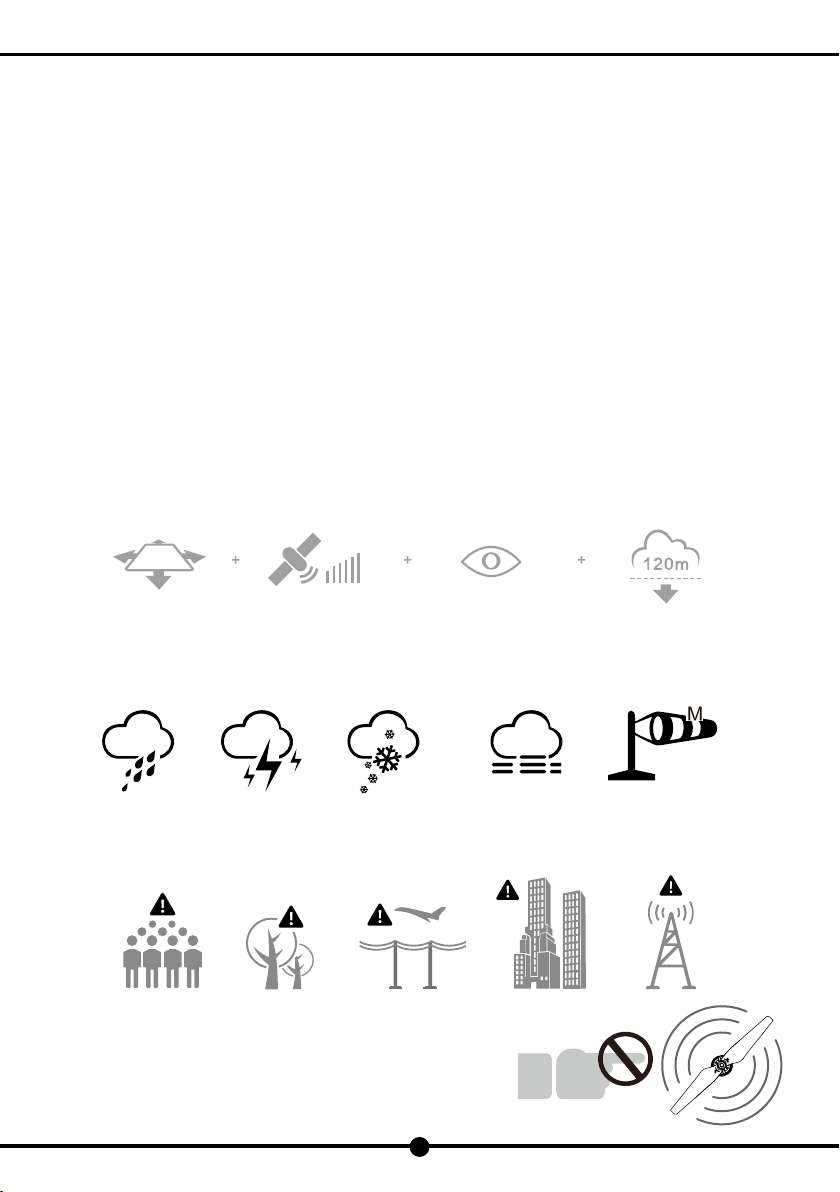

2. Flight environment

(1) Choose an open area,far away from people,animals,buildings, trees, high-voltage cables and other obstacles etc.

Fly in Open Area

(2) Do not y in bad weather, such as windy, rainy, snowy and foggy weather etc.

Strong GPS Signal Strength

Within Line of Sight

Fly Below 400 feet(120m)

≥4

(3) Stay away from tall buildings, high-voltage cables, communication base stations and WiFi hotspots, which will severely affect the

signal receiving of the aircraft , resulting in ight accidents caused by abnormal ight data.

(4) Do not contact the propeller in motion, otherwise it may cause

serious injury.Safety is the priority for both you and your surrounding environment and people. Therefore please familiarize with the no-fly zone and the safety instructions before ight. Please enter the APP to download and read the disclaimer.

DF801B USER MANUAL

3. GPS mode and ight mode

The aircraft has built-in GPS positioning module, which will be used to position locations in autonomous ight. Follow the steps herein and the aircraft will enter GPS Positioning Mode:

(1) The remote controller is in P (Position Hold) Mode.

(2) The GPS DOP is at a proper rate for accurate positioning.

At this time, the aircraft can hover and y autonomously. If any of two conditions is missing, the aircraft would automatically enter the altitude hold mode. However, due to the interference

effect of the wind force, the aircraft might drift while hovering and the functions are not able to use at all.

Notice:Autonomous ight refers to ights that are controlled by internal programming that tells where it

is positioned and where to y, rather than a person sending radio signals, including,RTH, one key return,way point ight and point of interest, etc.

4. RTH (Return to home)

When the aircraft enters the GPS positioning mode, the built-in GPS can automatically record its takeoff point as home point. In the following circumstances, the aircraft will automatically initiate RTH:

Notice:When the aircraft initiates auto return to home, users can only control the function when it

has returned and starts to land.

(1) When the battery level is low, the aircraft would automatically initiate RTH.

(2) When the aircraft is disconnected with the remote controller, the aircraft would automatically initiate RTH.

In the RTH mode,if the aircraft ies under 30 meters, it will automatically ascend to the altitude of 30 meters before returning to the home point and landing. If it ies over 30 meters, it will directly return to the home point and then land on the ground.

During the ight, ensure that the aircraft ies within the line of sight, and do not y around the obstacles (such as buildings, trees, etc.). Obstacles might block signals, which will lead to the disconnection between the aircraft and the remote controller, thus triggering the aircraft to enter the RTH mode. This may cause the aircraft to hit an obstacle in the course of RTH and cause accidents.

5. Low battery RTH

(1) Low battery RTH

During the ight, when the battery level is low, the status indicator light of the aircraft would turn slowly blinking red with a prompt message from the APP as well. At this point, the aircraft automatically initiates the RTH mode.

Once the low battery RTH mode is enabled, you can only change the landing site but not turn it off.

(2) Critical low battery warning

When the battery level is at a critical low condition, the status indicator light of aircraft would turn quickly blinking red and the aircraft would immediately land on the ground.

6. Control loss RTH

(1) Control loss RTH with GPS positioning

In the GPS positioning mode,if the signal of the remote controller has been interrupted, the aircraft will hover at the current altitude for 5 seconds. If the signal has not been reconnected, the aircraft would automatically enter RTH mode.

(2) Control loss RTH without GPS positioning

When the aircraft fails to locate the position and the signal of the remote controller has been interrupted for 2 seconds, the aircraft would automatically land.

7. Compass calibration

Notice:When changing the ight site, it is necessary to calibrate the compass before the rst ight.

During usage , if the aircraft indicates with "alternating ashing blue and green lights", which means that

DF801B USER MANUAL

the compass is abnormal , please re-calibrate the compass. Please keep away from the environment with magnetic interference when calibrating, otherwise it may cause calibration failure.

The built-in compass helps keep the aircraft oriented.Please ensure it works well every time before ight.

○ Please calibrate the aircraft compass, if one of the following scenarios happen:

(1) Fly at the new ight site; (2) The aircraft status indicator light indicates the abnormal situation of the compass; (3) APP and aircraft prompt you to calibrate the compass; (4) Hovering or drifting in mid-ight.

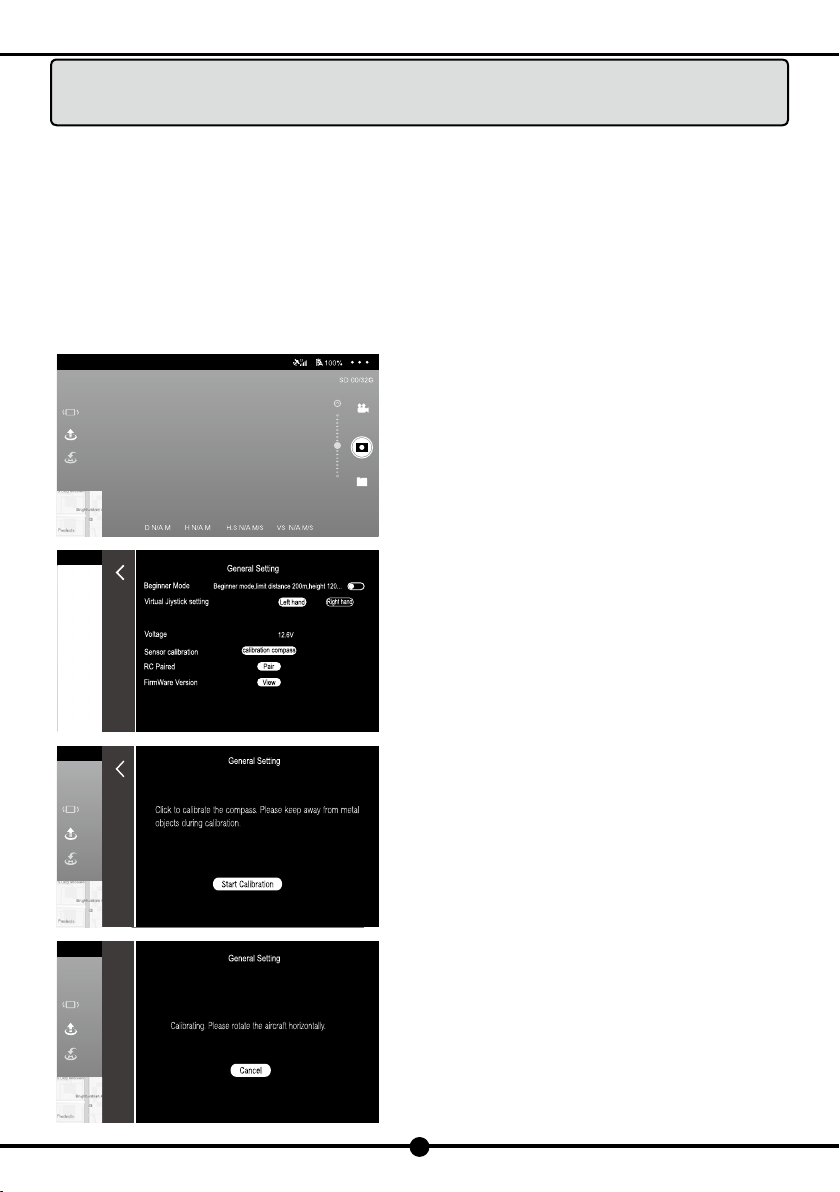

○ Calibrate the compass via the APP:

Preparing to y Position

(1) Enter the calibration mode When the aircraft and APP are connected, click the"..."icon in the upper

right corner of the APP control interface to enter the "General Setting" menu.

Then click the "compass calibration" icon. When APP pops up the prompt, check the current environment and stay

away from metal objects. then click the "calibration" icon.

Meanwhile,the status indicator light on the aircraft's rear arm will turn blue and red lights ashing alternately, indicating that it has been ready for calibration.

DF801B USER MANUAL

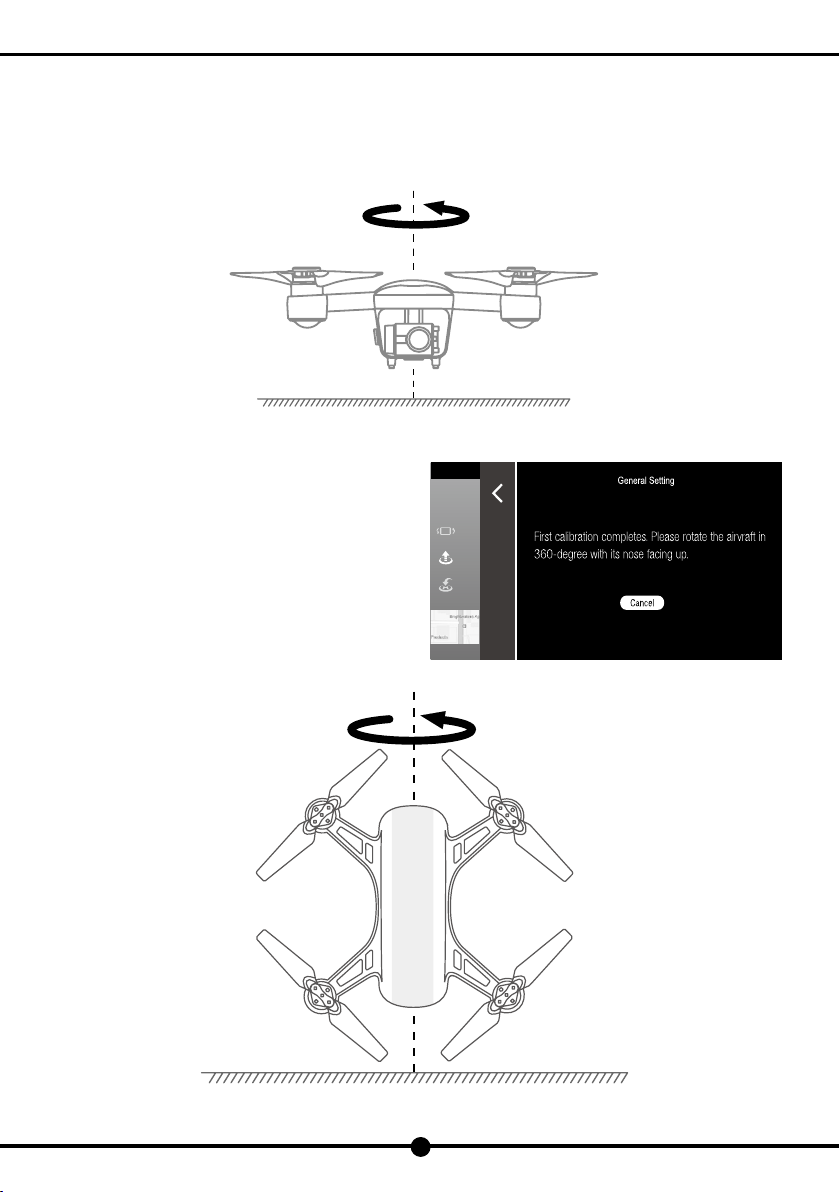

(2) Compass calibration

Step 1:Horizontal calibration When the APP prompts you to rotate the aircraft horizontally,put the aircraft in your hand horizontally and then rotate it horizontally

until the status indicator light on the arm of the aircraft turns red and green light ashing alternately (i.e., the horizontal calibration is successful).

Step 2:Vertical calibration When APP prompts you to rotate the aircraft with its nose

facing up, hold the aircraft in your hand with its nose facing up. Place the aircraft on the ground and then rotate it horizontally.

The compass has been calibrated successfully when the status indicator light on the aircraft's rear arm turns green (solid or ashing).

When the APP prompts you with "calibration is successful", click "Complete" to complete calibration.

If the status indicator light turns red (about 6 seconds),which means compass calibration fails, please change the position and re-calibrate.

DF801B USER MANUAL

II. Instructions for lithium battery usage

Warning:Read the entire user manual and familiarize with the functions of the product before proceeding.

If the product is not properly operated, it may cause serious injury, or lead to product damage and property loss.

This product requires sophisticated pilots with experienced operation. Without a strong sense of safety, improper operation may lead to damage and property loss, or even serious injury.

This product is not suitable for children. Do not use components that are not provided or recommended by us. Please strictly comply with the instructions for product installation and usage. This user manual includes safety, operation and maintenance instructions.

Please read through the instructions and warning tips carefully before assembling, setting up and using the product. Improper usage, charging or battery storage may cause re, property loss or personal injury. It is important to refer to the following instructions for battery usage.

1. Usage

(1) No battery is allowed to be exposed to any liquid. Do not immerse the battery in water or get it wet. Never use batteries in rain or

damp environment. Soaked with water may lead to decomposition, self-ignition, or even explosion.

(2) Do not use non-specified batteries. For replacement, please contact the local retailer for additional information.Using non-

specied batteries may lead to product damage or ight failures, or even cause accidents.

(3) It is strictly prohibited to use batteries that are swollen, leaky, or worn. If any of the above occurs, please contact the sales agent

or local retailer for further processing.

(4) Do not hit the battery. Do not place objects over batteries or chargers.

(5) The battery should be used between ambient temperature of 0 to 40 degrees Celsius. When the temperature is too high (above

50 degrees Celsius), the battery will catch re or even explode. Low temperature (below 0 degrees Celsius) might lead to a decrease of the battery lifespan.

(6) It is forbidden to use batteries in strong static or magnetic elds. Otherwise, the battery protection board might not work, resulting

in malfunction of the aircraft.

(7) It is forbidden to disassemble the battery or pierce it with sharp objects. Otherwise, it might cause battery ignition or explosion.

(8) The liquid inside the battery is highly corrosive. If there is any leakage, keep away from the battery. If the liquid inside the battery

splashes onto human skin or eyes, please rinse it out immediately with clean water for at least 15 minutes and seek medical treatment immediately.

(9) If the battery drops or is hit by external force, it must not be used anymore.

(10) If the battery accidentally falls into the water during the ight or under other circumstances, pull out the battery immediately and

place it in a safe open area. At this time, keep away from the battery until the battery is completely dry. Do not use the battery, and dispose it properly. If the battery catches on re, use solid materials to put out the re, such as sand, blanket, dry powder and carbon dioxide re extinguishers.

(11) Do not place batteries in a microwave oven or pressure cooker.

(12) Do not place battery cell over the conductor.

(13) No wires or other metal objects are allowed in case of short circuits.

(14) If there is dirt on the battery interface, clean it up with a piece of dry cloth. Otherwise, it might cause contact failure, resulting in

energy loss or charging failure.

2. Charging

(1) The battery must be charged with the specic charger. Charging with a non-specic charger might cause product damage and

DF801B USER MANUAL

even accidents. We will not bear the responsibility for consequences resulting from improper charging.

(2) When charging, please place the battery and charger on the non-ammable and combustible ground (such as cement ground).

Please pay attention to the charging process to avoid accidents.

(3) It is forbidden to charge the battery immediately when the ight completes, with that the battery is not cooled down yet and

charging might lead to a decrease of the battery lifespan. Charge the battery when its temperature approaches to the room temperature. The ideal charging temperature (5℃ -40℃) can greatly extend the battery lifespan.

(4) After charging, please disconnect the charger from the battery immediately. Regularly check and maintain the charger. Do not

use damaged charger.

3. Storage and transportation

(1) Please store batteries in places where children can't reach. If children accidentally swallow some parts of the product, please

immediately seek for medical help.

(2) It is forbidden to place batteries in direct sunlight or near heat sources, such as cars, fires or heaters. The ideal storage

temperature is 22℃ ~28℃Store the battery in dry environment. Do not place batteries in water or where there is water leakage.

(3) Do not impact, crush or puncture batteries.Do not drop or short circuit the battery.

(4) Do not store or transport batteries with spectacles, watches, metal necklaces, hairpins or other metal objects.

(5) Do not transport worn batteries.If necessary,discharge the battery until 30% battery level remains before transport.

(6) If not in use for more than 10 days, please store the battery with 40%~65% battery level remaining, which can extend its

lifespan.

(7) Do not completely discharge the battery if not intended to use it for a long time, as to avoid over-discharging, which will ultimately

disable the battery.

4. Disposal

(1) The battery must be completely discharged before being placed in the recycling bin. Batteries are dangerous chemicals. It is

strictly prohibited to dispose the battery in regular garbage bins. Please follow the local laws and regulations for battery disposal.

(2) Over-charging batteries are unable to use. Please dispose them.

5. Maintenance

(1) Do not use charger when the temperature is too high or too low.

(2) Do not store batteries when the room temperature reaches above 60 degrees Celsius.

(3) Do not overload the battery, otherwise it might cause damage to the cell.

(4) If the battery is idle for a long time, its performance will be affected.

(5) Recharge and discharge once every 3 months to maintain battery activity.

6. Attention for boarding

(1) Before bringing the battery to the airplane, please discharge the battery until 5% battery level remains.

(2) Please store the battery in a ventilated and dry place.

III. Disclaimers and warnings

This product is not a toy! In the process of using, please adhere to the safety rules. This product is not suitable for children under 14 years of age. Do not expose children to this product. Be careful when using this product in places within children's reach.

For novice pilots, please have an experienced pilot to be supervised for the ight. Be sure to read this manual carefully before using the product and familiarize with individual rights and responsibilities and related

DF801B USER MANUAL

safety instructions. Otherwise, it may bring about property loss, safety accident and personal injury. Once this product is used, it is deemed that you have understood, approved and accepted all the terms and conditions of this statement. Users promise to be responsible for all their consequences and their actions. The user shall undertake the responsibility of using the product for legitimate purposes and agree with this clause and any relevant policies or guidelines that we may formulate.

IV. Technical support

We guarantee that all products are strictly inspected and tested before coming into the market. Any new information or technology,

we will update on the ocial website.

Users can contact the local distributor to seek for technical support or purchase additional spare parts.

V. Newbie mode

For novice pilot, please turn on the newbie mode. Once the newbie mode is activated, the aircraft will locate its own position before ready to take off. If the aircraft can not be controlled after take-off, the RTH can be used to allow the aircraft to return automatically.

VI. Know DF801B

DF801B is a ying camera with HD camera and smart ight mode. It features with multiple functions such as one key takeoff/ landing, auto return to home, ight planning, follow me, point of interest, etc. Equipped with the two-axis gimbal stabilizer, it allows you to have a unique perspective and compose great photos, offering a wonderful photographing experience.

DF801B has up to 15 minutes of ight time.

1. Aircraft

1) About the aircraft

Propeller

Optical Positioning Status Indicator Light

TF Slot

Gimbal Camera

Motor

Micro USB Interface

Flight Status Indicator Light

Power Switch

Aircraft Battery

DF801B USER MANUAL

2) Flight status indicator light

With the indicator light, the ight status of the aircraft can be checked, listed as below:

○ Flight Status Indicator Light (Rear Light)

Indicator Light Status Indication

▂▂▂▂▂▂▂▂▂▂

▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂

▂ ▂ ▂ ▂ ▂ ▂ ▂

▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂

▂▂▂▂▂▂▂▂▂▂▂▂

▂ ▂ ▂ ▂ ▂ ▂

▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂

Solid blue light on start-up Self-inspection

Solid green light RC and aircraft is paired,GPS is located

Flashing green light RC and aircraft is paired,GPS is not located

Blue and red light ashing alternately Horizontal calibration process

Red and green light ashing lternately Vertical calibration process

Flashing blue light No RC signal

Solid blue light RC and aircraft is not paired,GPS is located

Solid red light Serious error

Double-ashing red light

Flashing red light Low battery level

Blue and green light ashing lternately Compass data error

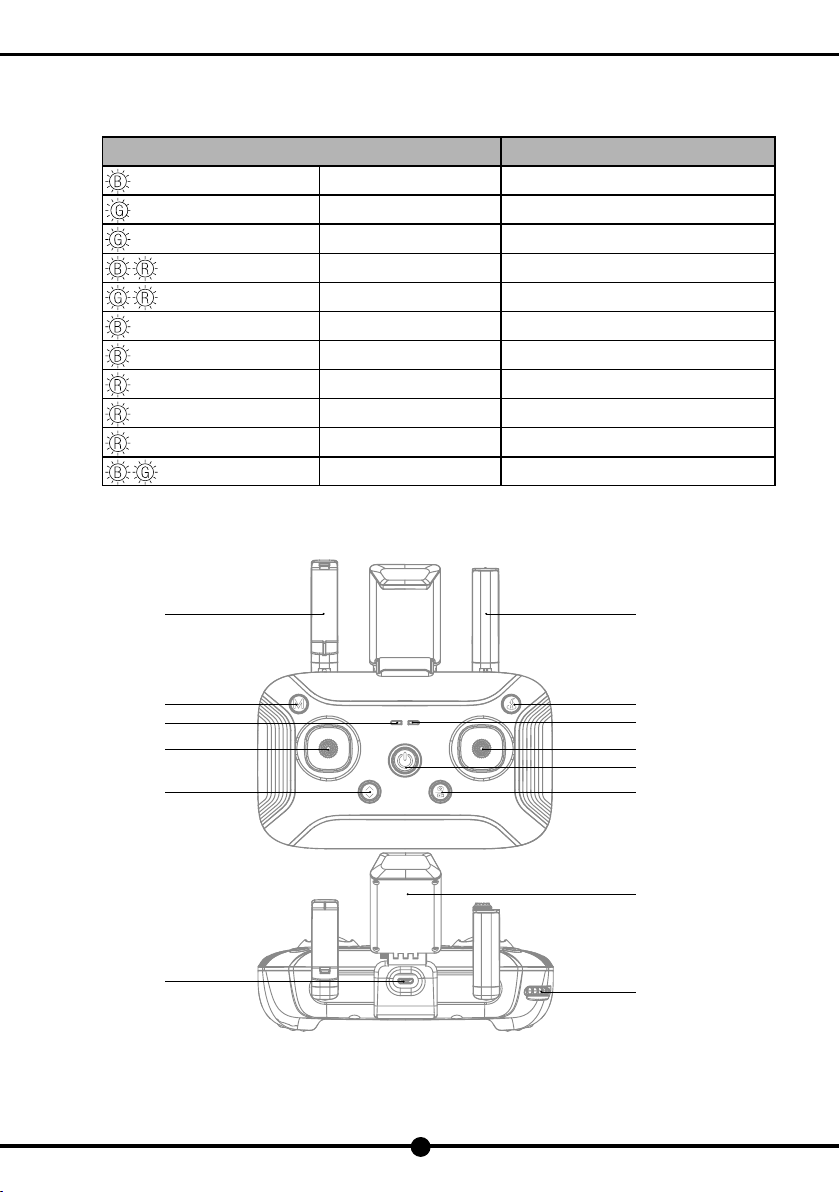

2. About the Remote Controller

1) Console

Serious low battery level

b d

Antenna

Power Indicator Light

One Key Takeoff/Landing

Pitch Angle Adjustment

Flight Mode Switch

Left Joystick

Photo/Video

Return

Right Joystick

Phone Holder

c e

g h

Mode Indicator Light

Power Switch

USB Charging Interface

2) Power indicator light

○ Charging

Indicator Light Status Indication

▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂

▂▂▂▂▂▂▂▂▂▂▂▂

○ In operation

Indicator Light Sound Status Indication

▂▂▂▂▂▂▂▂▂▂▂▂

▂ ▂ ▂ ▂ ▂ ▂

▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂

▂▂▂▂▂▂▂▂▂▂▂▂

▂ ▂ ▂ ▂ ▂ ▂ ▂ ▂

Solid green light Null RC is working normally

Slowly ashing red light B-B- B-······ Low battery warning,please charge RC immediately

Quickly ashing red light B-B-B-······

Solid red light Null Serious error

Double-ashing green light BB-BB-BB-······

3) Mode indicator description

Indicator Light Sound Status Indication

Solid green light

▂▂▂▂▂▂▂▂▂▂▂▂

Slowly ashing green light B-B- B-······ Altitude hold mode

Blinking green Charging

Solid green Charging completed

Serious low battery warning,RC will automatically turn off when the sound stops

If motionless for 5 minutes, operate the RC and the beep sounds will stop.

GPS mode

DF801B USER MANUAL

3. About optical ow positioning system

Placed on the bottom of the aircraft, the optical ow positioning system senses the movements of the aircraft with the assistance of the camera, and calculates the current altitude, helping to precisely locate the aircraft’s position.

When the aircraft is ready to take off, the optical ow positioning function cannot be activated due to the low altitude with the aircraft’s front indicator light blinking slowly. After the aircraft has taken off and the conditions are satised, the optical ow positioning function will automatically turn on and locate the aircraft’s position as to enable hovering with the aircraft’s indicator light turning solid red.

Attention: In mid-ight, the optical ow positioning function cannot be activated if the aircraft’s front indicator light turns slow blinking red. Please pay proper attention for a safe ight.

The optical ow positioning system is signicantly affected by the intensity of the light and the surface texture of the physical object. If the optical ow positioning system fails to work, its function of horizontal centered absolute positioning will be ineffective. In this situation, please manually control the aircraft and pay proper attention whist ying the aircraft in the following scenarios.

Usage Scenarios

•The optical ow positioning system is applicable for altitude between 0.5 and 4 meters and suitable for either indoor or outdoor windless environment.

•The aircraft’s indicator light turns slow blinking red when the system fails to locate position and turns solid red when the system functions properly.

•Do not y the aircraft if the app reminds you that the system is not able to function properly in the current environment (such as badly-lit environment).

•Do not cover up the camera. Keep the camera clean and in good condition at all times.

•The optical ow gives information about object movement within the environment based on moving object detection on the ground surface. Ensure the surrounding environment is brightly lit and rich in texture.

•The optical ow positioning system may fail to work in such conditions as water bodies, badly-lit environment or poorly-textured

DF801B USER MANUAL

surfaces.

1) The system may fail to locate position when the aircraft ies fast at a low altitude (0.5 meter below).

2) The surfaces in pure colors (such as pure black, pure white, pure red, pure green).

3) Highly reective surfaces.

4) Water bodies or the transparent surfaces.

5) The surfaces of moving objects (such as the crowds, and bushes or brushwood with strong wind blowing).

6) The environment where the light changes rapidly.

7) Badly-lit (light intensity less than 300 lux) or brightly-lit (light intensity more than 10,000 lux) surfaces of the objects.

8) Poorly-textured surfaces.

9) The surfaces that have been featured with highly-repeated textures (such as same-colored checker bricks).

10) Tiny barriers.

11) Control the aircraft to y at an appropriate speed of about 5m/s at the altitude of 1 meter.

4. Download the APP

Please connect the aircraft with the APP before using it. The aircraft can be controlled via the APP, allowing for a full control of different directions and other functions, such as taking photos or videos and parameter settings.

Google Play

APP Store

Scan the following QR code to download the APP.

Notes:For more details on how to control the aircraft via the APP, please refer to "Control via the APP" in

this manual. When using the APP, make sure your mobile phone supports 5G Wi-Fi, otherwise the APP is unable to connect with the aircraft.

VII. Pre-ight Preparation

1. Battery Charging for the Aircraft (Comply with the following steps)

(1) Connect the USB charging cable with the USB adapter and the ight battery charger.

(2) Connect one end of the power cord to the charger and plug the other end into the socket.

(3) Insert the aircraft battery into the charger with the battery line well connected.

DF801B USER MANUAL

Household power socket

Insert the battery into the charger

○ Charger Status Indication

USB adapte

Blinking green light (Charging)

Solid green light (Charging completed)

USB charging cable

Charger

Warning:Please use the specic ight battery and charger to avoid injuries and property loss.

Please charge the battery in a well-ventilated environment and keep away from heat sources.

Do not charge the battery next to ammable or on the surface of electro-conductive objects (Places like cement ground is suggestive). When charging, please observe the battery at all times.

DF801B USER MANUAL

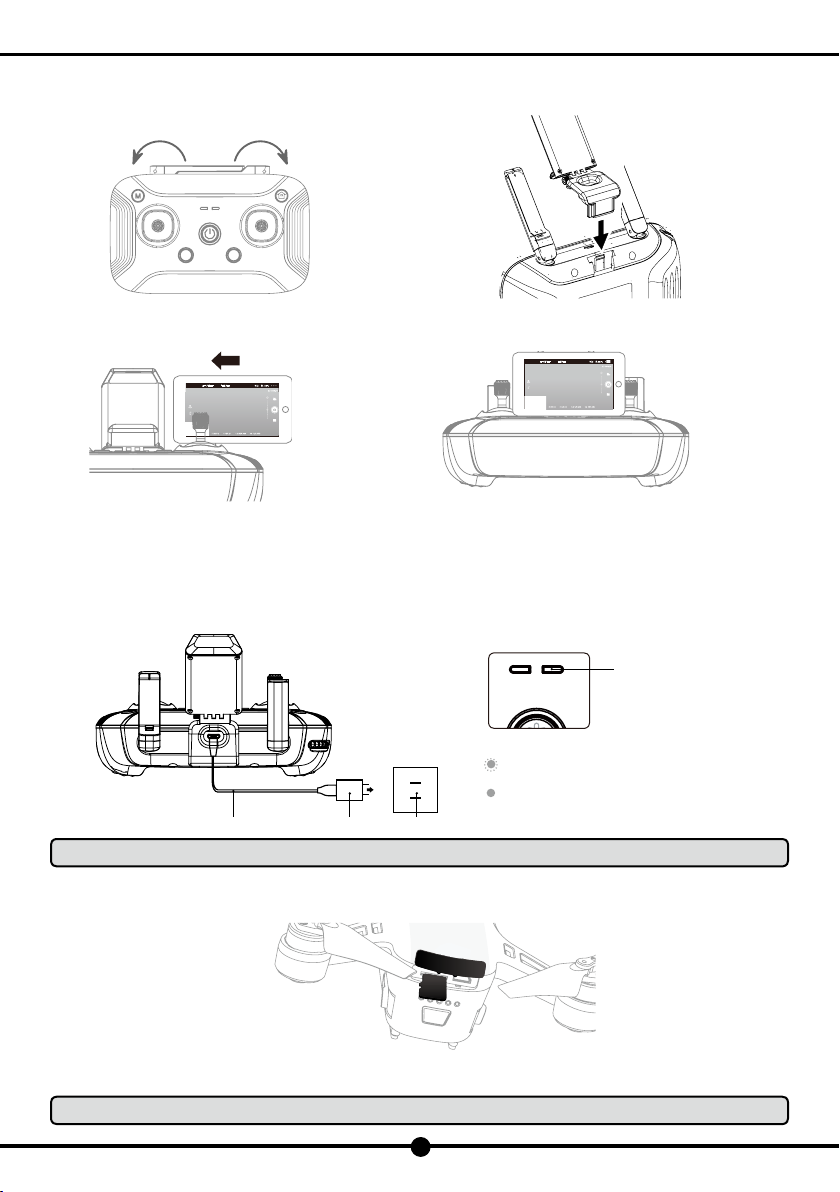

2. Remote Controller Preparation (Skip this step if you are using the APP)

Get the remote controller ready before ight

a.Stretch out the antenna.

c.Mount the phone to the phone holder.

b.Insert the phone holder into the slot on the back of the remote controller.

d.Adjust the phone and the antenna.

1) Battery charging for remote controller

Long press the power switch for 2 seconds to power on the remote controller. The indicator light turns solid green when the battery level is sufcient and turns blinking green when the battery level is low. To charge the battery, please comply with the following steps:

Indicator Light

Blinking green light (Charging)

Solid green light (Charging completed)

USB charging cable

Warning:Disconnect the charging cable before using the remote controller.

Household power socketUSB adapter

3. Insert the TF Card

Insert the TF card into the slot

Attention: Do not insert or remove the TF card when the aircraft on to avoid data loss.

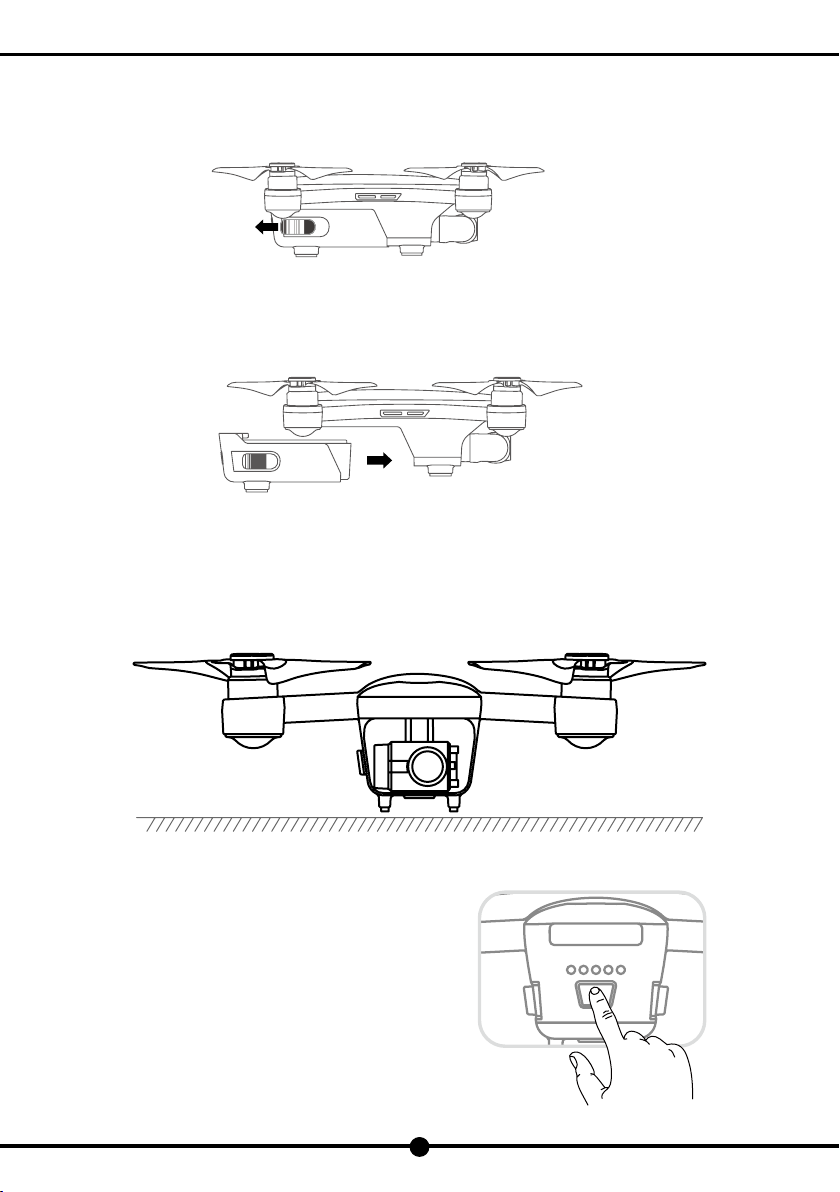

4. Battery Installation

1) Install

Push the battery into the battery compartment as shown in the below picture.

2) Remove

Unlock the battery buckle to take the battery out of the compartment.

VIII. Control via the Remote Controller

1. Power on the Aircraft

1) Put the aircraft on a at level surface.

DF801B USER MANUAL

2) Power on the aircraft.

Long press the power switch for 2 seconds to switch on the aircraft.

DF801B USER MANUAL

3) Self-check and pairing

Power on the aircraft and put it on a at level surface for 30 seconds for self-checking. When the aircraft's indicator light turns from blinking or solid blue to blinking or solid green, the aircraft has successfully paired with the remote controller.

The light turns from blinking blue to blinking or solid green.

2. Connect with the APP

1) GPS signal status with the aircraft connected with the APP

Connect the aircraft with the APP. When the indicator light of the aircraft turns solid green, indicating strong GPS signal and the position located, switch the ight mode to GPS mode to get ready for takeoff.

When the indicator light of the aircraft turns blinking green, indicating weak GPS signal or even no signal, manually choose Mode A (Manual Mode) to control the aircraft (It requires experienced skills for operation and may not be suitable for novice pilots).

Notes: Set the drone up and get ready to take off after the aircraft’s indicator light turns solid green (indicating

good GPS signal). Please choose a wide open space for your ight. Do not y over tall steel structures or metal materials, which may interrupt the GPS signal.

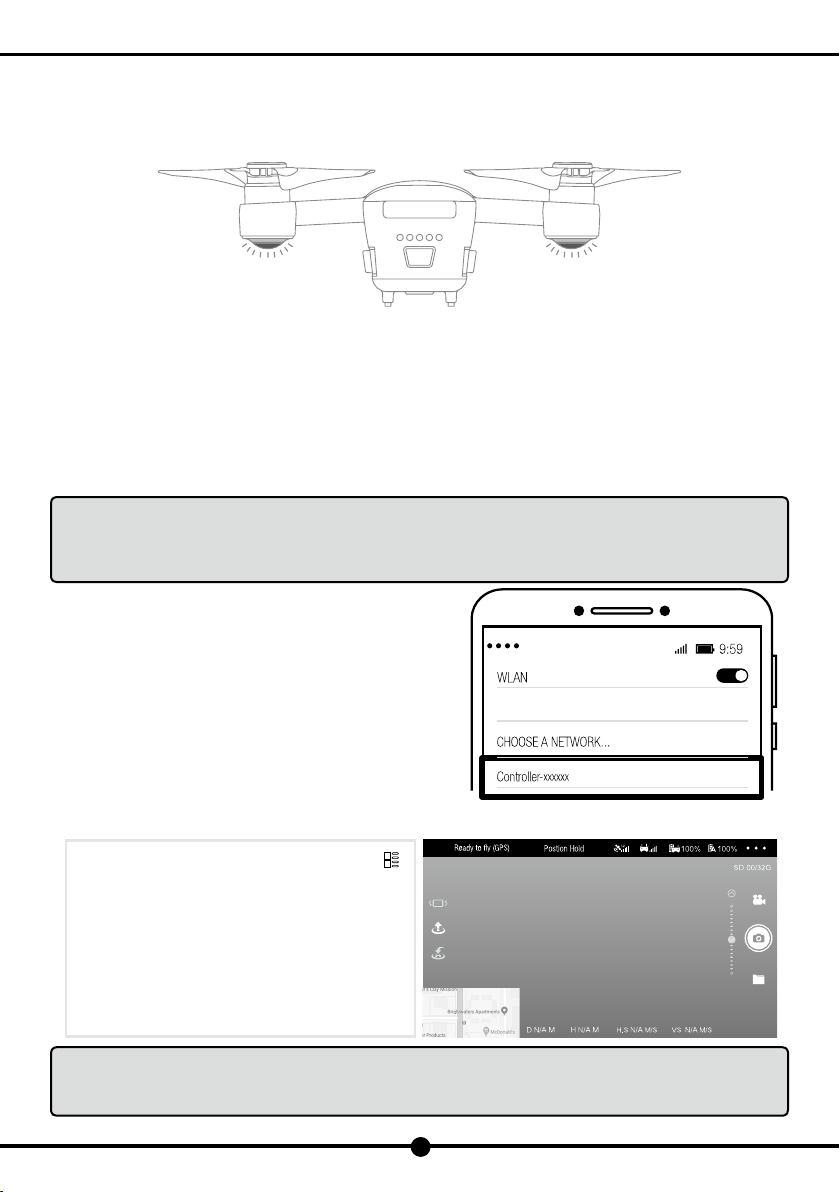

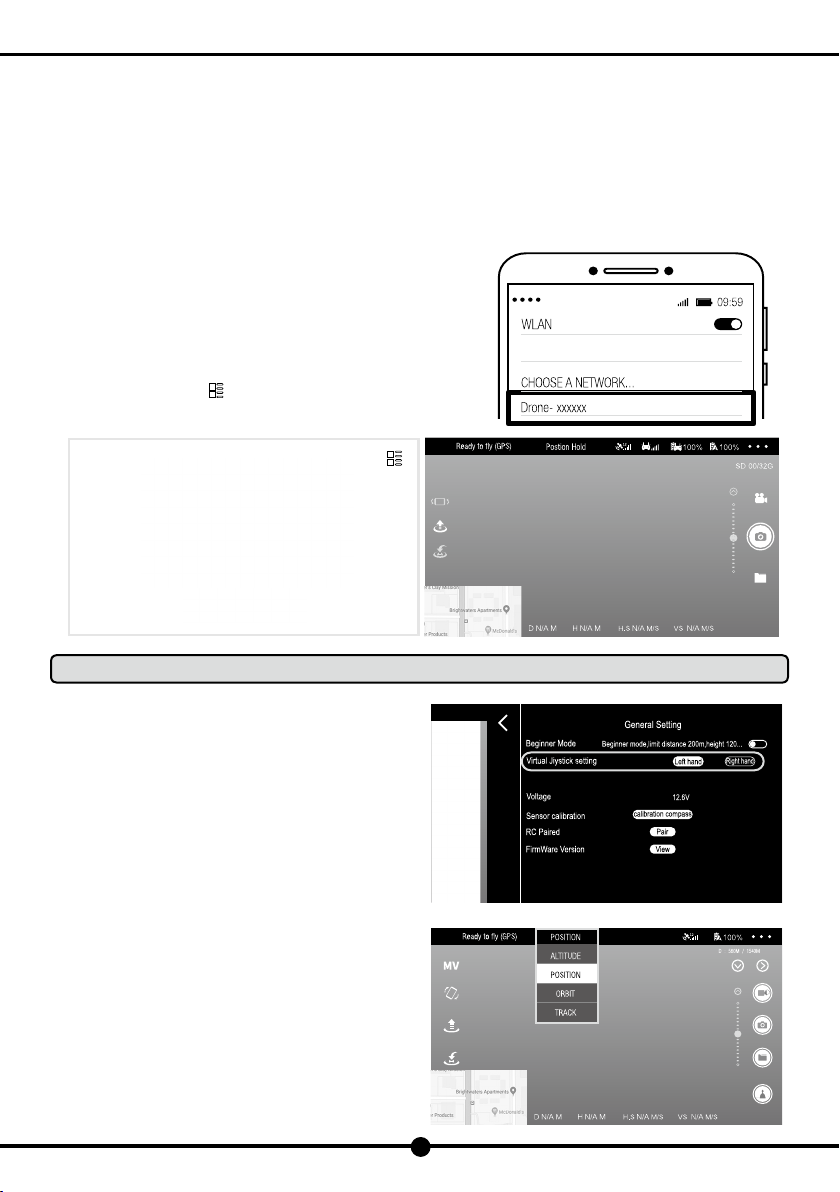

2) Connect with the APP

Open the APP, enter the WLAN settings, click "Controller-XXXXXX" to connect.

Open the APP and enter the main interface as shown in the below left picture. Click "Start Flying" to enter the ight control interface as shown in the below right picture.

Notes:The aircraft can only connect to 5G Wi-Fi enabled mobile phone.

Use the APP to monitor the real-time image and video footages and the ight status of the aircraft. It

is able to use both of the remote controller and the APP to control the aircraft. However, some functions

DF801B USER MANUAL

are not supported on the APP when the controller is being used, such as taking photos or videos,

follow me mode, point of interest mode or waypoint ying mode. The APP can only be used when the

remote controller turns off.

For more details on how to control the aircraft via the APP, please refer to “Control via the APP” in

this manual.

3. Operating the Aircraft

1) Take off

○ Method 1: Manually control it to take off

When the aircraft's light turns from blue to green (as shown in the right picture), toggle the left and right joysticks outward for at least 3 seconds (as shown in the picture) as to get the propellers started to rotate. Slowly toggle the throttle joystick upward to control the aircraft to

take off quickly, and then toggle again to make it ascend slowly.

Left Joystick

○ Method 2: Press "One Key Takeoff/ Landing" to control it to take off

Long press the "One Key Takeoff/ Landing" button for 2 to 3 seconds. When the remote controller beeps continuously, the aircraft will automatically take off and ascend to the altitude of 1.2 meters and hover.

2) Land

Do not land near crowds of people or obstacles. Choose a wide open space as the landing site and control the drone to hover over the landing site before proceeding to make it land.

○ Method 1: Manually control it to land

Slowly toggle the throttle joystick to control the aircraft to land. When the aircraft lands on the ground, continue to toggle the joystick towards the lowest position until the propellers stop rotating.

○ Method 2:Press "One Key Takeoff/ Landing" to control it to land

Long press the "One Key Takeoff/ Landing" button for 2 to 3 seconds. When the remote controller beeps continuously, the aircraft will land vertically.

Right Joystick

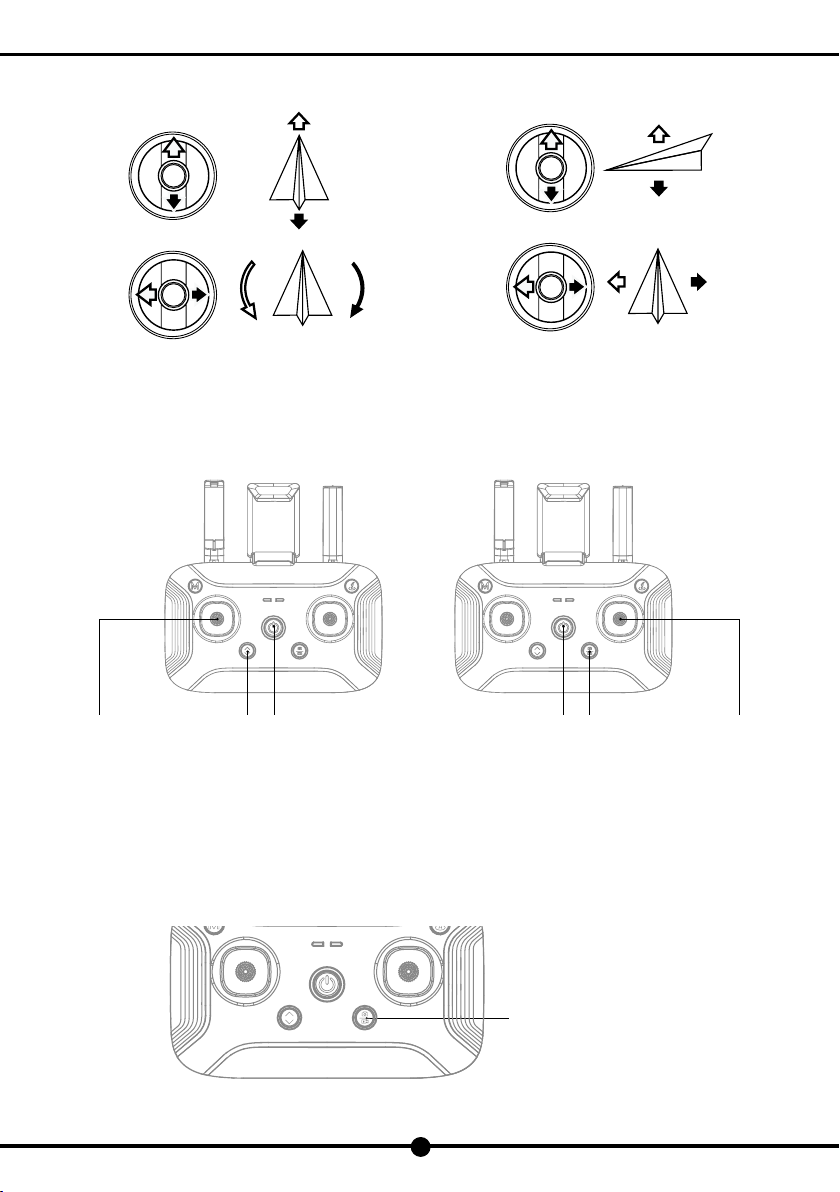

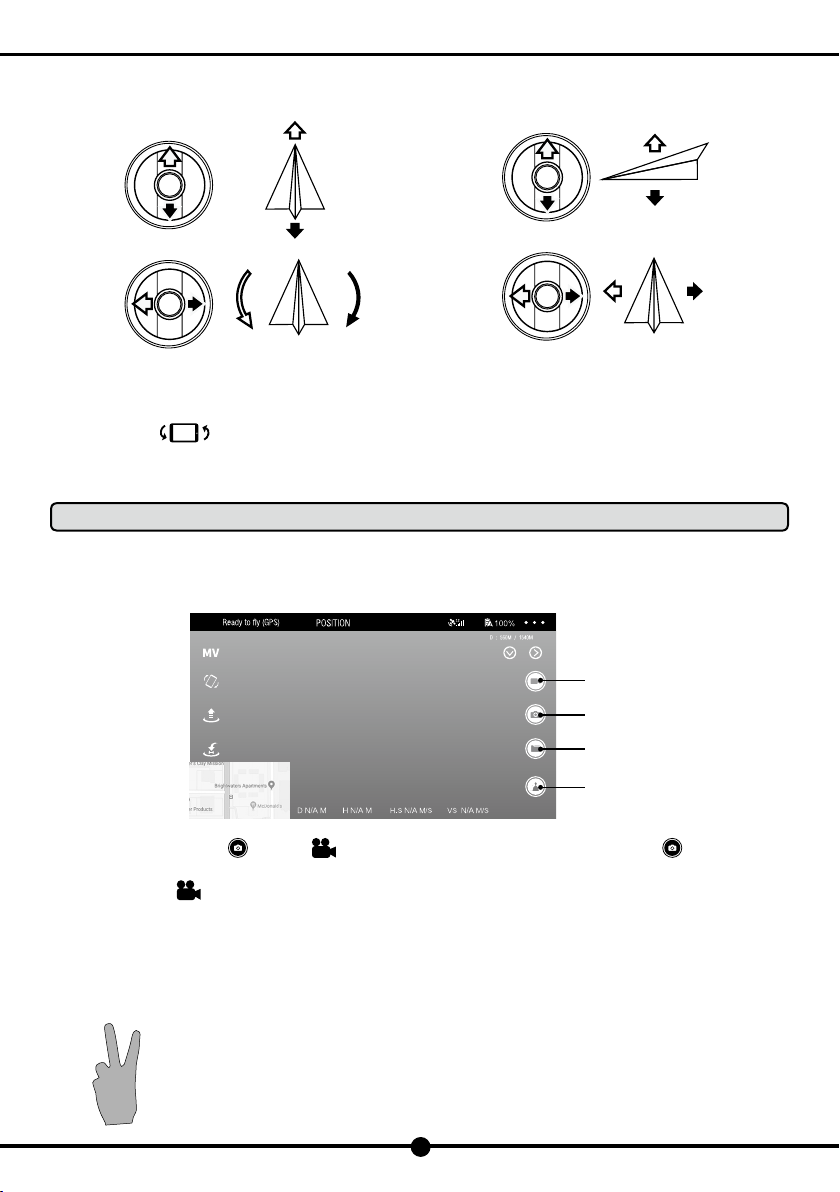

3) Joystick control

(1) Mode 2 (Left joystick is the throttle joystick)

Left Joystick

Turn Left Turn Right

Ascend

Descend

Right Joystick

Forward

Backward

RightLeft

DF801B USER MANUAL

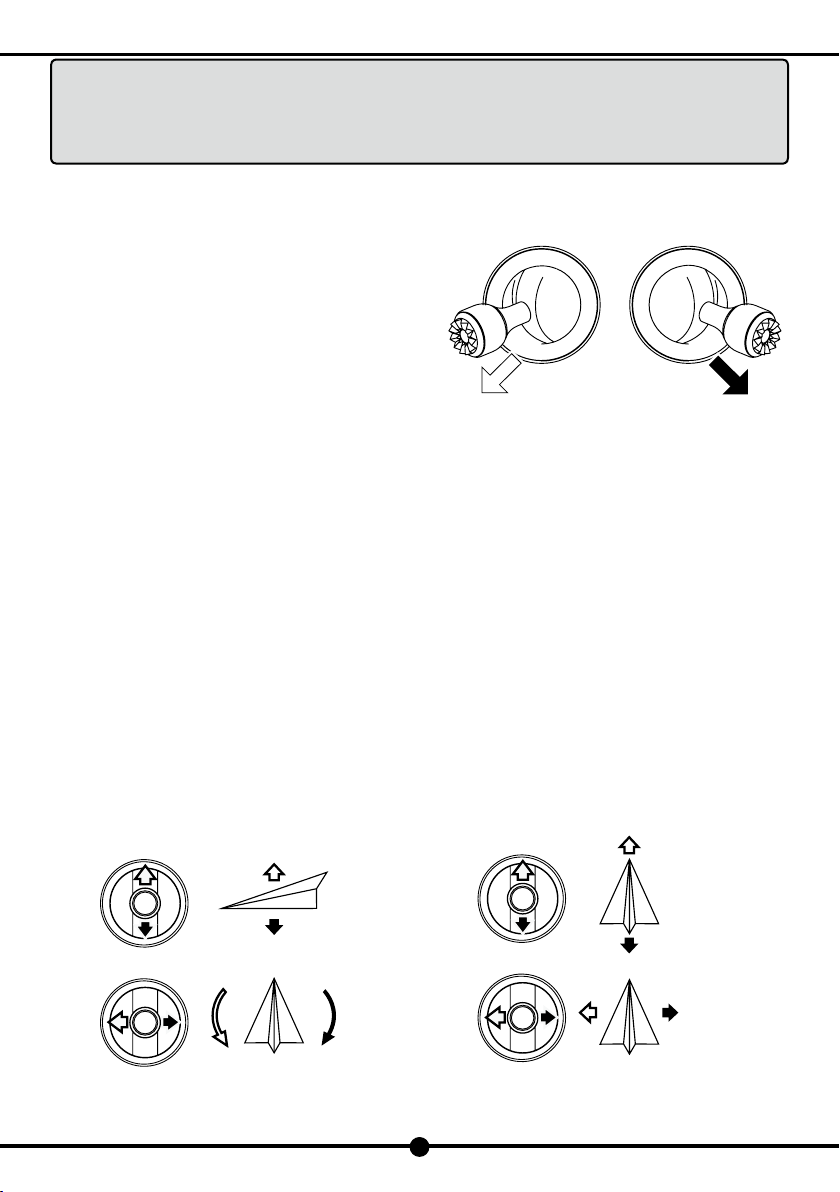

(2) Mode 1 (Right joystick is the throttle joystick)

Left Joystick

Forward

Right Joystick

Ascend

Backward

Turn Left Turn Right

Descend

RightLeft

4) Switch Between Mode 1 and Mode 2

(1) Switch to Mode 2

Toggle the left joystick ① to the lowest position and press the "One Key Takeoff/ Landing" button ② at the same time. Then turn on the remote controller ③ . Release the joystick ① and the button ② to enter Mode 2.

a b c

(2) Switch to Mode 1

Toggle the right joystick ① to the lowest position and press the "Photo/ Video" button ② at the same time. Then turn on the remote controller ③ . Release the joystick ① and the button ② to enter Mode 1.

4. Photo and video

1) Take photos and videos with the remote control

Short press to take a photo Long press to start/stop shooting

During the ight, you can take photos and videos of the current scene through the "Photo/Camera button" on the remote control.

DF801B USER MANUAL

Short press " / " Photo/Camera button, the remote control will give "B" sound, indicating that the camera is successful.

Press and hold the " / " Photo/Camera button, the remote control will give "B" and "B" sound, and the camera icon on the APP will change from white to red, indicating that it has entered the camera mode. Press and hold the " / " Photo/ Camera button again, the remote control will give "B" and "B" sound , and the camera icon on the APP will change from red to

white, indicating that the camera has stopped.

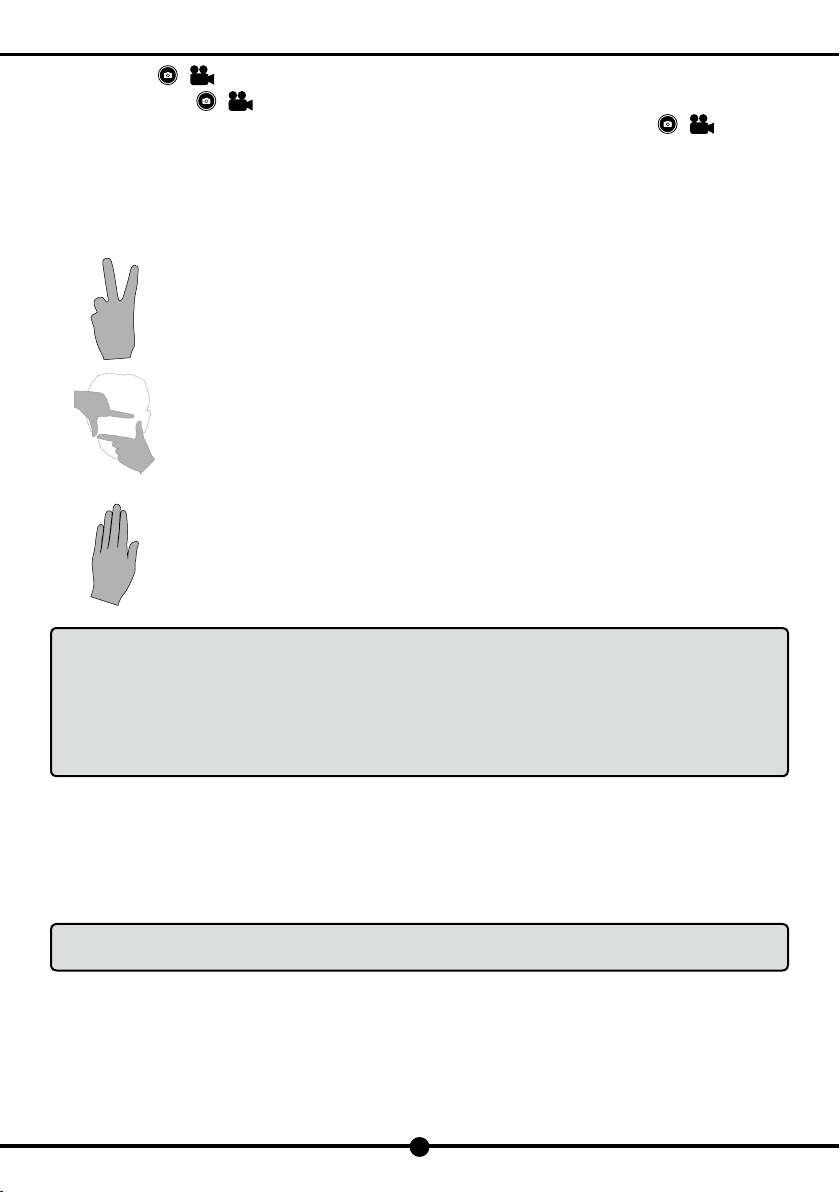

2) Use gestures to take photos and videos

The drone is featured with gesture recognition. To activate it, open App and turn on "Gesture Recognition". In mid-ight, you can use the following gestures in front of the drone camera to take photos or videos.

(1) Victory Gesture

Keep 2 meters from the drone and face the drone camera, raise one of your hands in front of you and make a V shape. When your gesture has been successfully recognized, it will automatically set a three second countdown before taking pictures.

(2) Square Gesture

Keep 2 meters from the drone and face the drone camera, make square gestures for shooting around your chin. When your gesture has been successfully recognized, it will automatically start lming. When it recognizes your gesture for the second time, it will automatically nish lming (The interval between the rst and second time for recognition should be at least 3 seconds).

(3) Palm Gesture

Keep 2 meters from the drone and face the drone camera, close your hand rmly and raise it in front of you. When your gesture has been successfully recognized, it will automatically start lming. When it recognizes your gesture for the second time, it will automatically nish lming (The interval between the rst and second time for recognition should be at least 3 seconds).

Note: To ensure a high recognition, please note that:

1. Face the drone camera;

2. Fly the drone in well-lit environment;

3. Use gestures when you stay around 2 meters away from the drone camera.

It has a lower recognition rate when:

1. In badly-lit or backlighting environment;

2. Weak Wi-Fi signal or signal has been interfered.

○ Aerial photography tips

(1) Check the condition of all parts before ight.

(2) Take photos or vides when the drone is in position hold mode.

(3) Shoot on sunny and breezy days.

(4) Slightly toggle the joystick in mid-ight as to ensure a smooth ight.

Note: In order to avoid possible damage or loss,please ensure that the camera is free to rotate. High

temperature may cause damage to the camera and even cause injury.

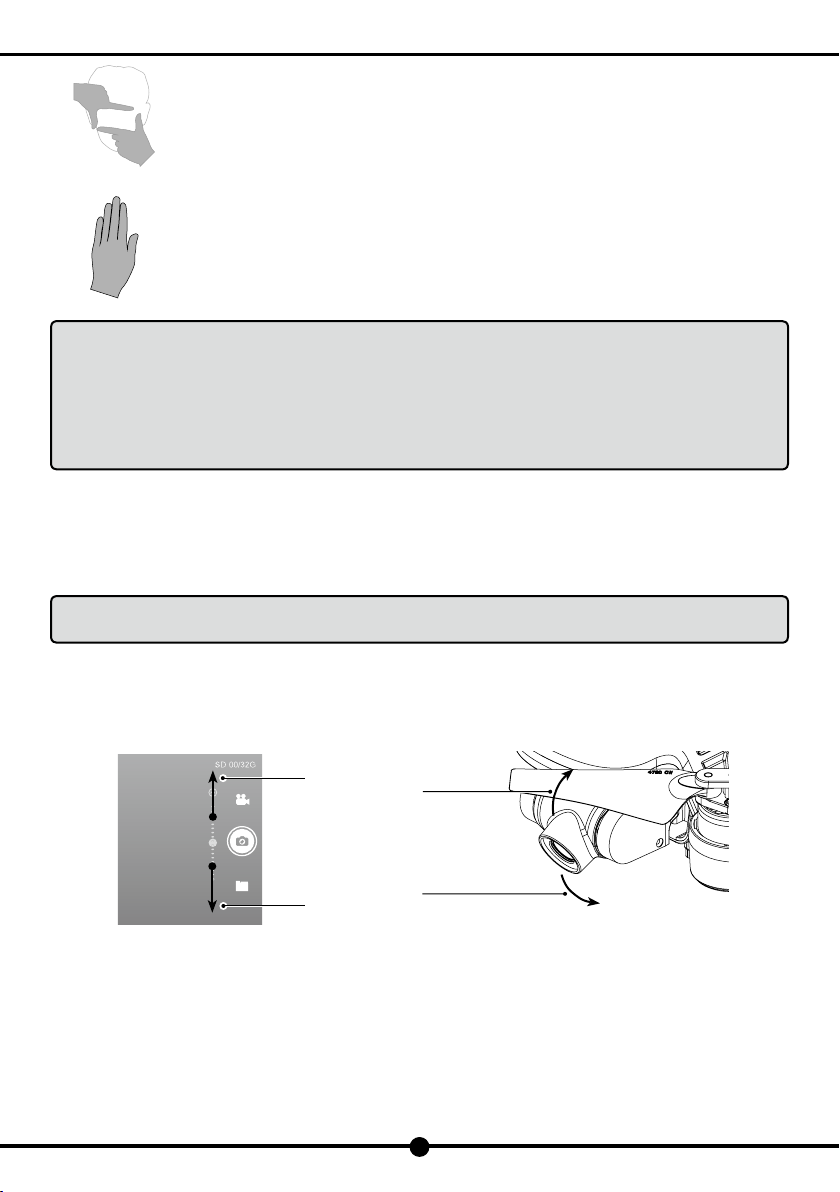

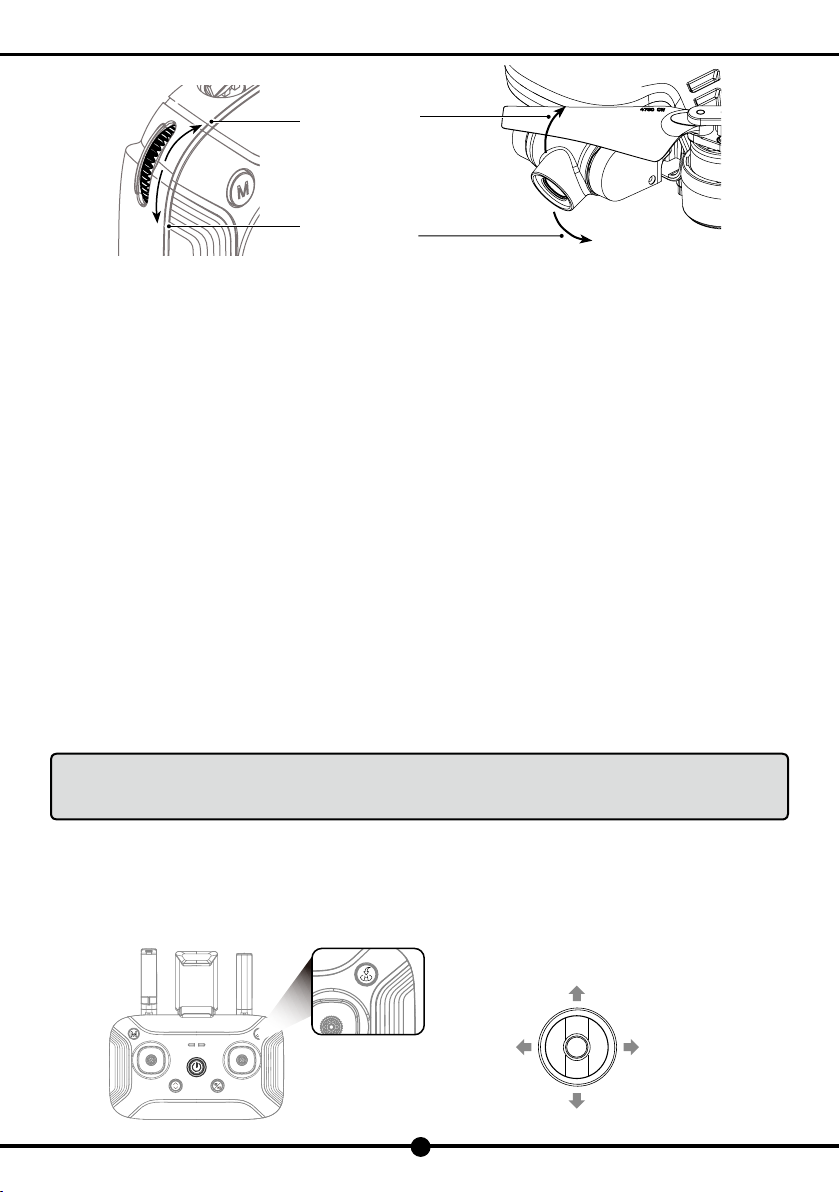

5. Adjustment of the Camera's Pitch Angle

Tilt the camera upward or downward as to achieve the best shooting angle and capture the perfect images or footages when taking photos or videos.

Scroll the scroll button on the top left corner of the remote controller as to control the pitch angle, as shown below.

DF801B USER MANUAL

Scroll the button upward as to tilt the camera upward.

Scroll the button downward as to tilt the camera downward.

6. Flight Mode

1) Position Hold Mode

○ How to enter position hold mode

a. The drone will automatically enter position hold mode after start-up. b. If the drone is in altitude hold mode and the GPS positioning system is working well, long press the "Flight Mode Switch" button

to switch to position hold mode.

○ Status of the aircraft and the remote controller

The left indicator light on the controller turns solid green.

○ Notice

In position hold mode, the aircraft will automatically locate its own position and hover steadily. Please choose a wide open space in the outdoor eld, and wait until the GPS has been turned on before ying it.

2) Altitude Hold Mode

○ How to enter altitude hold mode

If the aircraft is in position hold mode, long press the "Flight Mode Switch" button to switch to altitude hold mode.

○ Status of the aircraft and the remote controller

In this mode, the left indicator light on the controller turns solid red.

○ Notice

The aircraft is more responsive and agile in altitude hold mode, which requires pilots with experienced operation skills. However, certain environmental factors, such as airow, might affect the ight, resulting in drifting or hovering failure.

Please familiarize yourself with the position hold mode rst and learn how to handle altitude hold mode before using it.

Notes: As for the return to home point as precise as possible, please y the aircraft in open at terrain (no

tall buildings in 50 meters of radius, at terrain in 10 meters of radius) with the GPS working well. Thus

the return to home function will be able to activate.

7. Return To home

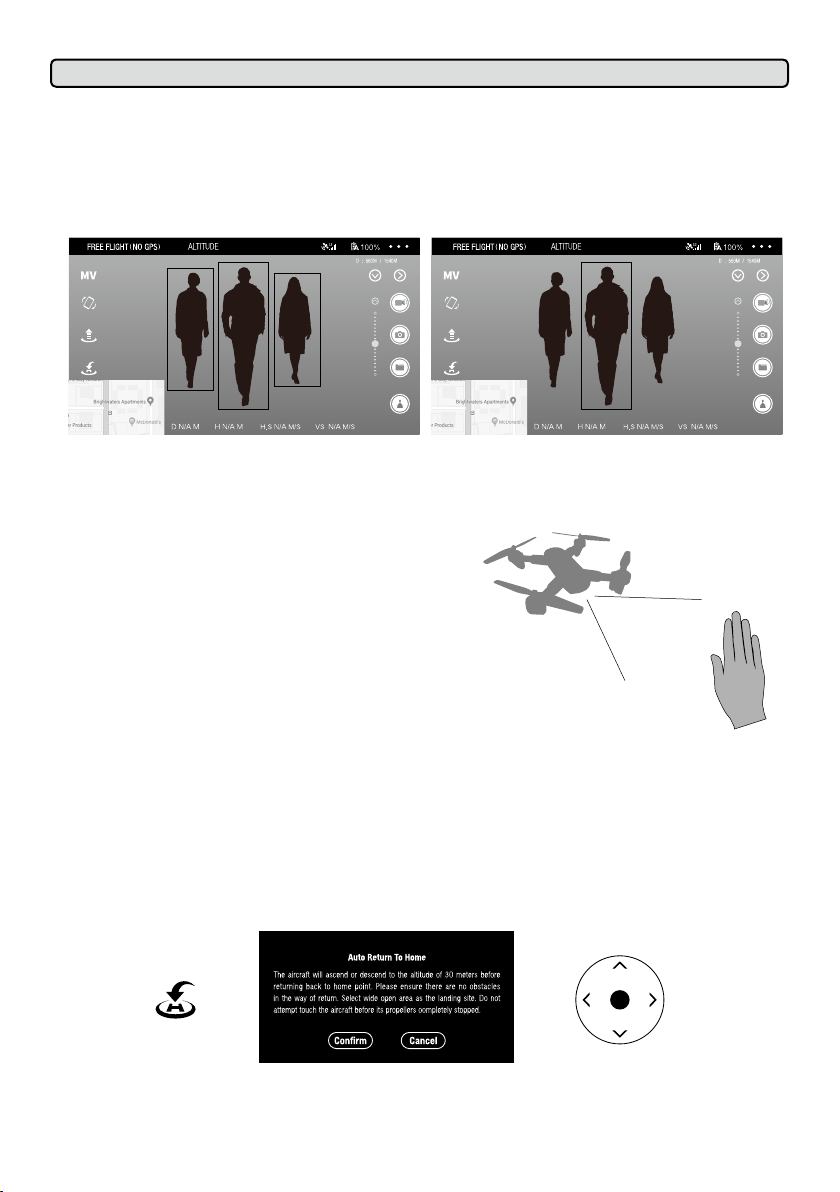

In GPS positioning mode, you can press the "One Key Return" button to return the aircraft. Do not control any functions during the process of return or ascent. When the aircraft is landing, you can toggle the joystick to control it to land on your desired location. When the aircraft is returning to home point, long press the "One Key Return" button to exit auto return mode.

Left Sideward Right Sideward

Forward/Backward

Forward

Backward

DF801B USER MANUAL

Notes:s for the return to home point as precise as possible, please ensure the GPS positioning function has

been turned on to record the aircraft's position before its takeoff and choose an area with no obstacles.

With the GPS positioning mode turned on, it will automatically enter auto return to home mode if the

remote controller loses control.

Once the auto return to home mode is enabled, if the aircraft ies below 30 meters of altitude, the

aircraft will automatically ascend to 30 meters before returning to home point. However, if the aircraft

ies over 30 meters of altitude, the aircraft will return to home point at the current altitude. Please do

not control other functions during the process of return. Please ensure there are no obstacles in way of

return in case of any potential accidents..

After the aircraft lands and the propellers stop rotating, long press the power switch for at least 2 seconds to turn off the aircraft and the remote controller.

Warning: Please stay away from aircraft until propellers stop rotating completely.

8. Battery Storage

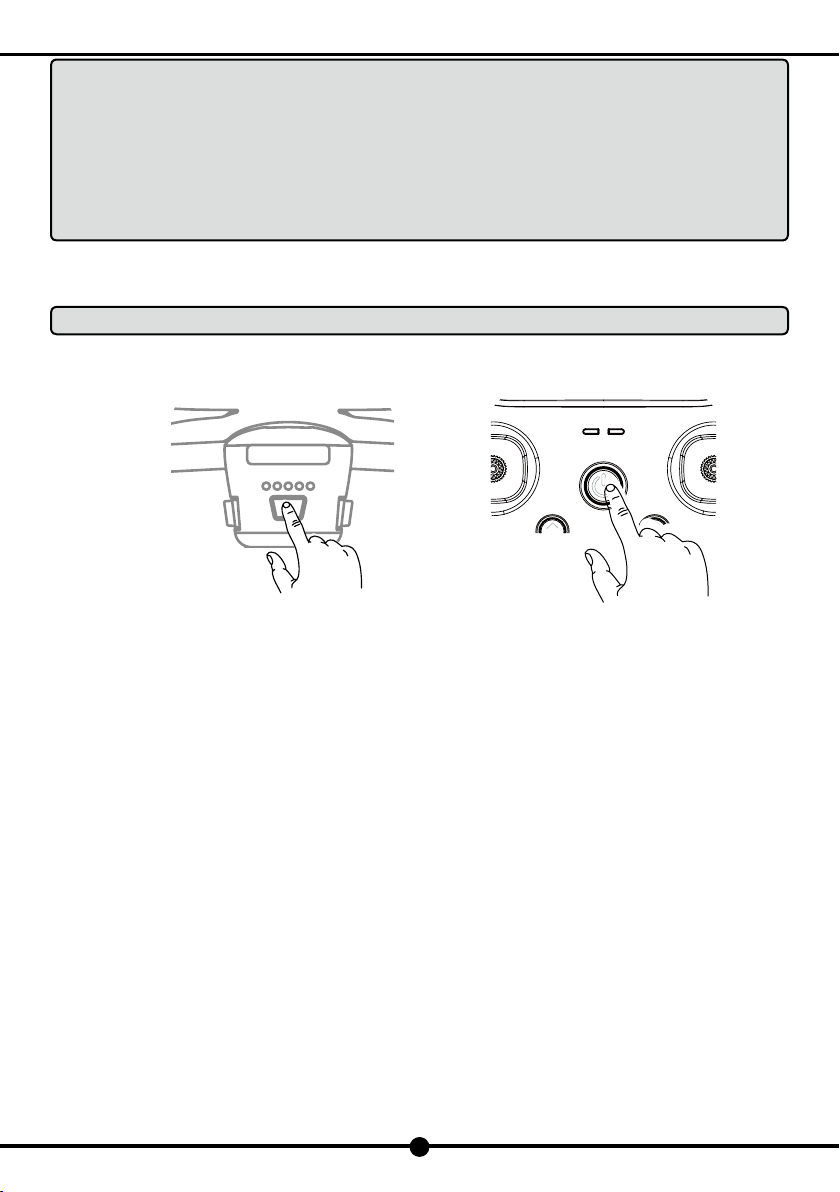

Power off the aircraft Long press the power switch for at least 3 seconds

(1) After the ight completes, remove the batteries from the aircraft and the remote controller and store them separately.

(2) Keep batteries out of the reach of children. Storing batteries in a dry environment. DO NOT leave the battery near heat sources.

The optimal storage temperature should be between 22℃ to 28℃.

(3) If a battery is found damaged, please discharge the battery and dispose it properly according to the local regulations and laws.

Power off the remote controller

9. Pair the Aircraft with the Remote Controller

The aircraft has already paired with the remote controller by default. If the remote controller has been replaced, please pair again complying with the following steps:

1) Switch on the drone and the remote controller.

2) Unlock your mobile phone, enter the menu “Settings-WLAN” to view the Wi-Fi network list, among which you can see “Dronexxxxxx” (xxxxxx consists of characters and numbers) of the drone and “Controller-xxxxxx” of the remote controller (xxxxxx consists of characters and numbers). Please take down the serial number of the remote controller for further reference.

3) Click the Wi-Fi network of the drone to connect.

4) Enter the APP interface and click “…” in the top right corner to enter the menu.

5) Find “RC Paired” and click “Pair”.

6) A dialogue box will pop up. Type in the serial number of the remoter controller in the box and click “Pair” to conrm.

7) Navigate your mobile phone to “Settings-WLAN” again to check the serial numbers of the drone and the remote controller. If the two serial numbers are correct, the pairing will be successful, with the drone’s rear lights turning ashing green or solid green.

DF801B USER MANUAL
