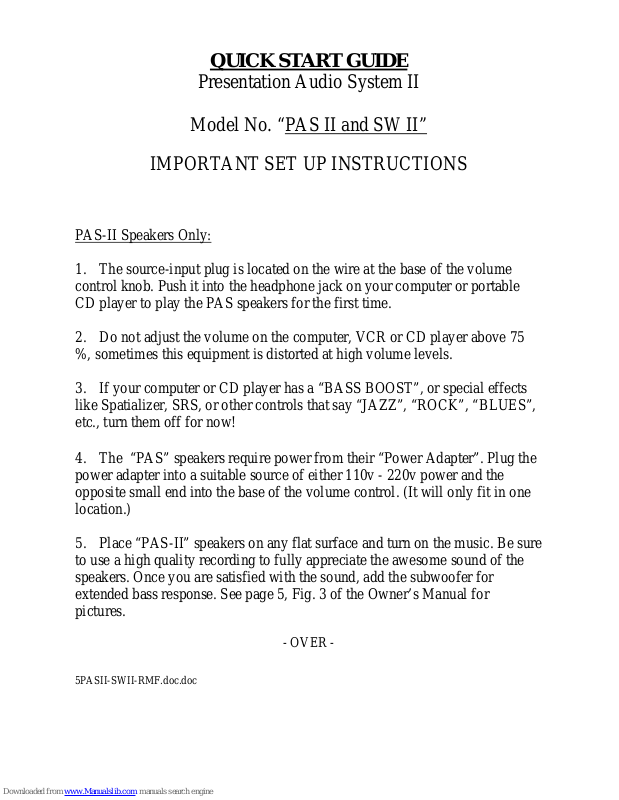

Page 1
QUICK START GUIDE
Presentation Audio System II
Model No. “
PAS II and SW II”
IMPORTANT SET UP INSTRUCTIONS
PAS-II Speakers Only:
1. The source-input plug is located on the wire at the base of the volume
control knob. Push it into the headphone jack on your computer or portable
CD player to play the PAS speakers for the first time.
2. Do not adjust the volume on the computer, VCR or CD player above 75
%, sometimes this equipment is distorted at high volume levels.
3. If your computer or CD player has a “BASS BOOST”, or special effects
like Spatializer, SRS, or other controls that say “JAZZ”, “ROCK”, “BLUES”,
etc., turn them off for now!
4. The “PAS” speakers require power from their “Power Adapter”. Plug the
power adapter into a suitable source of either 110v - 220v power and the
opposite small end into the base of the volume control. (It will only fit in one
location.)
5. Place “PAS-II” speakers on any flat surface and turn on the music. Be sure
to use a high quality recording to fully appreciate the awesome sound of the
speakers. Once you are satisfied with the sound, add the subwoofer for
extended bass response. See page 5, Fig. 3 of the Owner’s Manual for
pictures.
- OVER -
5PASII-SWII-RMF.doc.doc
Page 2
QUICK START GUIDE
Presentation Audio System II
Model No. “
PAS II and SW II”
IMPORTANT SET UP INSTRUCTIONS
Speakers with Subwoofer:
1. Now that the speakers are working properly, (see other side), turn off the
music and disconnect the power adapter from the base of the volume control
knob.
2. Now plug the power adapter into EITHER AC jacks in the front of the
subwoofer and the power cord into a 110v or 220V power source.
3. Take the subwoofer interconnect cord out of its package and attach both
wires to both the front of the subwoofer and the base of the volume control
knob. (The wires only fit one way.)
4. The interconnect cord cannot be connected incorrectly to either the
speaker volume control knob or the front of the subwoofer. Just plug the two
connector wires in securely.
5. Adjust volume control on front of subwoofer to 12 o’clock.
6. Turn on the music again and adjust subwoofer volume to a pleasant
listening level.
7. Satisfy yourself that the system is working properly.
8. Print your very own copy of the complete PAS Owner Manual with
pictures from our web site. In order to obtain maximum use and enjoyment
from this exciting new audio system print off our application guides to learn
how to make a lasting impression with your audience.
If you have difficulties, re-read your owner manual thoroughly and
check our web site for additional information. You can also
Call Technical Support at 800-556-1922
Have your purchase receipt handy.
www.ceataceasound.com
