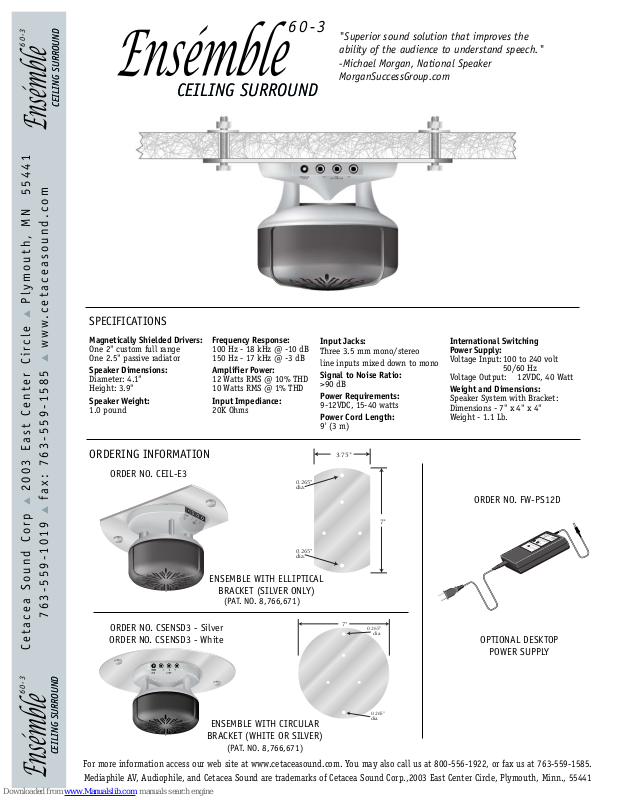

Page 1
6 0 - 3
6 0- 3
"Superior sound solution that improves the
ability of the audience to understand speech."
-Michael Morgan, National Speaker
MorganSuccessGroup.com
CEILING SURROUNDCEILING SURROUND
CEILING SURROUNDCEILING SURROUND
P l y m o u t h , M N 5 5 4 4 1
▲
SPECIFICATIONS
w w w. c e t a c e a s o u n d . c o m
▲
Magnetically Shielded Drivers:
One 2" custom full range
One 2.5" passive radiator
Speaker Dimensions:
Diameter: 4.1"
Height: 3.9"
Speaker Weight:
1.0 pound
Frequency Response:
100 Hz - 18 kHz @ -10 dB
150 Hz - 17 kHz @ -3 dB
Amplifier Power:
12 Watts RMS @ 10% THD
10 Watts RMS @ 1% THD
Input Impediance:
20K Ohms
Input Jacks:
Three 3.5 mm mono/stereo
line inputs mixed down to mono
Signal to Noise Ratio:
>90 dB
Power Requirements:
9-12VDC, 15-40 watts
Power Cord Length:
International Switching
Power Supply:
Voltage Input: 100 to 240 volt
50/60 Hz
Voltage Output: 12VDC, 40 Watt
Weight and Dimensions:
Speaker System with Bracket:
Dimensions - 7" x 4" x 4"
Weight - 1.1 Lb.
9' (3 m)
ORDERING INFORMATION
ORDER NO. CEIL-E3
2 0 0 3 E a s t C e n t e r C i r c l e
f a x : 7 6 3 - 5 5 9 - 1 5 8 5
▲
▲
PWR
DC
A B C
INPUT
0.265"
dia.
0.265"
dia.
3.75"
ORDER NO. FW-PS12D
7"
ENSEMBLE WITH ELLIPTICAL
BRACKET (SILVER ONLY)
(PAT. NO. 8,766,671)
7 6 3 - 5 5 9 - 1 0 1 9
ORDER NO. CSENSD3 - Silver
C e t a c e a S o u n d C o r p
ORDER NO. CSENSD3 - White
A B C
PWR
INPUT
DC
7"
0.265"
dia.
OPTIONAL DESKTOP
POWER SUPPLY
6 0- 3
BRACKET (WHITE OR SILVER)
CEILING SURROUNDCEILING SURROUND
For more information access our web site at www.cetaceasound.com. You may also call us at 800-556-1922, or fax us at 763-559-1585.
Mediaphile AV, Audiophile, and Cetacea Sound are trademarks of Cetacea Sound Corp.,2003 East Center Circle, Plymouth, Minn., 55441
ENSEMBLE WITH CIRCULAR
(PAT. NO. 8,766,671)
0.265"
dia.
