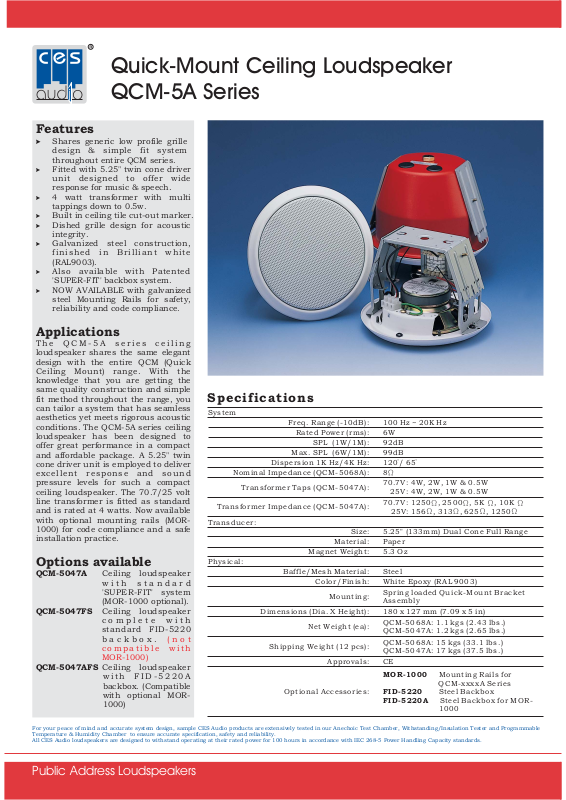

CES Audio QCM-5-A Brochure

Quick-Mount Ceiling Loudspeaker
QCM-5A Series

Features

> Shares generic low profile grille

design & simple fit system
throughout entire QCM series.

>

Fitted with 5.25" twin cone driver
unit designed to offer wide
response for music & speech.

>

4 watt transformer with multi
tappings down to 0.5w.

>

Built in ceiling tile cut-out marker.

>

Dished grille design for acoustic
integrity.

>

Galvanized steel construction,
finished in Brilliant white
(RAL9003).

>

Also available with Patented
'SUPER-FIT' backbox system.

>

NOW AVAILABLE with galvanized
steel Mounting Rails for safety,
reliability and code compliance.

Applications

The QCM-5A series ceiling
loudspeaker shares the same elegant
design with the entire QCM (Quick
Ceiling Mount) range. With the
knowledge that you are getting the
same quality construction and simple
fit method throughout the range, you
can tailor a system that has seamless
aesthetics yet meets rigorous acoustic
conditions. The QCM-5A series ceiling
loudspeaker has been designed to
offer great performance in a compact
and affordable package. A 5.25" twin
cone driver unit is employed to deliver
excellent response and sound
pressure levels for such a compact
ceiling loudspeaker. The 70.7/25 volt
line transformer is fitted as standard
and is rated at 4 watts. Now available
with optional mounting rails (MOR-

1000) for code compliance and a safe
installation practice.

Options available

QCM-5047A

QCM-5047FS

QCM-5047AFS

Ceiling loudspeaker
with standard
'SUPER-FIT' system
(MOR-1000 optional).
Ceiling loudspeaker
complete with
standard FID-5220
backbox.

(not
compatible with
MOR-1000)

Ceiling loudspeaker

with FID-5220A
backbox. (Compatible
with optional MOR-

1000)

Specifications

System

Freq. Range (-10dB):

Rated Power (rms):

SPL (1W/1M):

Max. SPL (6W/1M):

Dispersion 1K Hz/4K Hz:

Nominal Impedance (QCM-5068A):

Transformer Taps (QCM-5047A):

Transformer Impedance (QCM-5047A):

Transducer:

Material:

Magnet Weight:

Physical:

Baffle/Mesh Material:

Color/Finish:

Mounting:

Dimensions (Dia. X Height):

NetWeight(ea):

Shipping Weight (12 pcs):

Approvals:

Optional Accessories:

Size:

100 Hz ~ 20K Hz
6W
92dB
99dB
120 / 65
8

70.7V: 4W, 2W, 1W & 0.5W
25V: 4W, 2W, 1W & 0.5W

70.7V: 1250 , 2500 , 5K , 10K
25V: 156 , 313 , 625 , 1250

5.25" (133mm) Dual Cone Full Range

Paper

5.3 Oz

Steel
White Epoxy (RAL 9003)

Spring loaded Quick-Mount Bracket
Assembly

180x127mm(7.09x5in)

QCM-5068A: 1.1 kgs (2.43 lbs.)
QCM-5047A: 1.2 kgs (2.65 lbs.)

QCM-5068A: 15 kgs (33.1 lbs.)
QCM-5047A: 17 kgs (37.5 lbs.)

CE

MOR-1000

FID-5220
FID-5220A

Mounting Rails for
QCM-xxxxA Series
Steel Backbox

Steel Backbox for MOR-

1000

For your peace of mind and accurate system design, sample CES Audio products are extensively tested in our Anechoic Test Chamber, Withstanding/Insulation Tester and Programmable
Temperature & Humidity Chamber to ensure accurate specification, safety and reliability.
All CES Audio loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity standards.

Public Address Loudspeakers

Frequency Response Polar Plot

Architects' and Engineers' Specifications

The loudspeaker shall be of 'in-ceiling design consisting of a

5.25"(133mm) dual cone full range transducer. The cone shall be of
paper construction. Performance specification of a typical
production unit shall be as follows. Measured sensitivity (SPL) shall
be at least 92dB @1w/1m and usable frequency response shall
extend from 100Hz to 20kHz with no external equalization. The
speaker shall have a nominal conical polar coverage pattern of 120
degrees at 1kHz and 65 degrees at 4kHz.
The baffle shall be constructed of formed steel and have an overall
front face diameter of 7.09" or 180mm.

Options
QCM-5047A

rails (MOR-1000) for use on either 2ft or 600mm suspended ceiling
tiles. Overall depth shall be 4.35" or 110.5mm.

QCM-5047FS

overall depth of 4.86" or 123.5mm.

QCM-5047AFS

of accepting optional mounting rails (MOR-1000) with an overall
depth of 4.86" or 123.5mm.

The Loudspeaker shall be equipped with a transformer for use in

70.7 & 25 volt distributed line speaker systems with power tappings
of 4 watts, 2 watts, 1 watt & 0.5 watt at both voltages.
The speaker shall be QCM-5A series.

Optional Accessories

MOR-1000 Mounting Rails

shall be capable of accepting formed steel mounting

shall be complete with formed steel backbox with an

shall be complete with formed steel backbox capable

CES Audio

FID-5220A Steel Backbox for MOR-1000

160 (cutting)

( 159)

148

180

117

Unit: mm

123.5

FID-5220 Steel Backbox

QCM-5A SERIES
