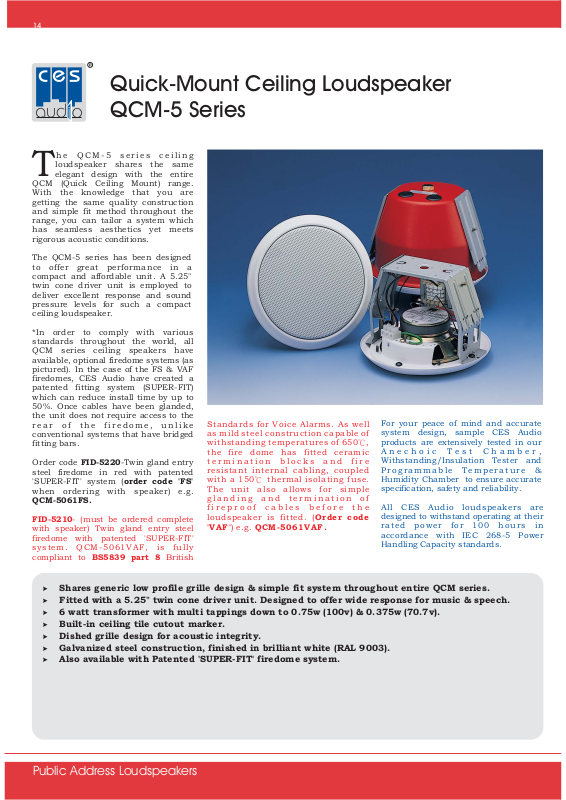

Quick-Mount Ceiling Loudspeaker
QCM-5 Series
he QCM-5 series ceiling
loudspeaker shares the same
T
elegant design with the entire
QCM (Quick Ceiling Mount) range.
With the knowledge that you are
getting the same quality construction
and simple fit method throughout the
range, you can tailor a system which
has seamless aesthetics yet meets
rigorous acoustic conditions.
The QCM-5 series has been designed
to offer great performance in a
compact and affordable unit. A 5.25"
twin cone driver unit is employed to
deliver excellent response and sound
pressure levels for such a compact
ceiling loudspeaker.
*In order to comply with various
standards throughout the world, all
QCM series ceiling speakers have
available, optional firedome systems (as
pictured). In the case of the FS & VAF
firedomes, CES Audio have created a
patented fitting system (SUPER-FIT)
which can reduce install time by up to
50%. Once cables have been glanded,
the unit does not require access to the
rear of the firedome, unlike
conventional systems that have bridged
fitting bars.
Order code -Twin gland entry
steel firedome in red with patented
'SUPER-FIT' system (
when ordering with speaker) e.g.
QCM-5061FS.
FID-5210
with speaker) Twin gland entry steel
firedome with patented 'SUPER-FIT'
system. QCM-5061VAF, is fully
compliant to British
FID-5220
order code 'FS'
- (must be ordered complete
BS5839 part 8
Standards for Voice Alarms. As well
as mild steel construction capable of
withstanding temperatures of 650 ,
the fire dome has fitted ceramic
termination blocks and fire
resistant internal cabling, coupled
with a 150 thermal isolating fuse.
The unit also allows for simple
glanding and termination of
fireproof cables before the
loudspeaker is fitted. (
)e.g.
'VAF' QCM-5061VAF.
Order code
For your peace of mind and accurate
system design, sample CES Audio
products are extensively tested in our
Anechoic Test Chamber,
Withstanding/Insulation Tester and
Programmable Temperature &
Humidity Chamber to ensure accurate
specification, safety and reliability.
All CES Audio loudspeakers are
designed to withstand operating at their
rated power for 100 hours in
accordance with IEC 268-5 Power
Handling Capacity standards.
> Shares generic low profile grille design & simple fit system throughout entire QCM series.
>
Fitted with a 5.25" twin cone driver unit. Designed to offer wide response for music & speech.
>
6 watt transformer with multi tappings down to 0.75w (100v) & 0.375w (70.7v).
>
Built-in ceiling tile cutout marker.
>
Dished grille design for acoustic integrity.
>
Galvanized steel construction, finished in brilliant white (RAL 9003).
>
Also available with Patented 'SUPER-FIT' firedome system.
Public Address Loudspeakers
15
Model No.
Rated Power (rms)
Impedance
Power Taps @ 100V
Power Taps @ 70.7V
SPL (1W/1m)
Max. SPL (6W/1m)
Frequency Range (-10dB)
Dispersion 1K Hz/4K Hz
Ambient Temperature
Power Selection Way
Material
Colour/Finish
Dimensions
Cutout Size
Net Weight (ea)
Shipping Weight (12 pcs)
Shipping Meas't (12 pcs)
Mounting
QCM-5068
8
n.a.
n.a.
1.1 Kgs (2.43 lbs.)
15 Kgs (33 lbs.)
QCM-5061
6W
1667 , 3333 , 6667 , 13333
6W, 3W, 1.5W & 0.75W
3W, 1.5W, 0.75W & 0.375W
92dB
99dB
100 Hz ~ 20K Hz
140 / 70
-30 ~ 60
Plug
Baffle: Steel, Grille: Steel
White (RAL 9003)
180 (7.09) Dia. X 127 (5) Height mm. (in.)
160 (6.30) Dia. mm. (in.)
1.3 Kgs (2.87 lbs.)
18.5 Kgs (41 lbs.)
2.7 cuft
Spring loaded Quick-Mount Bracket Assembly
Frequency Response
160 (cutting)
( 159)
148
180
117
Unit: mm
Optional
FID-5220 Steel Fire Dome
FID-5210 Steel Fire Dome with ceramic terminal
block & 150 thermal fuse
123.5
Polar Plot
QCM-5 SERIES
Public Address Loudspeakers
