Large Graphic Type VFD Display (256x64 pixels) Tripple Pluggable Tuner System for DVB-S2 or DVB-C/T Advanced Blind Scan 1GB NAND Flash Memory QWERTY Keyboard RCU High Speed Wi-Fi USB Dongle (300Mbps) Temperature Sensor based Automatic FAN Speed Control

Vu+® is a registered trademark of Ceru Co. Ltd.

User Manual

English

Page 2

(A) PRECAUTION!!! (B) Packaging Contents (C) Product Descriptions (D) Conditional Access (E) Remote Control (F) Main Features (G) Technical Data

I. Installation of Vu+

1. Connecting Signal Cable

2. Connecting TV

3. Connecting Power

4. Power ON/OFF

II. First Time Installation (using Wizard)

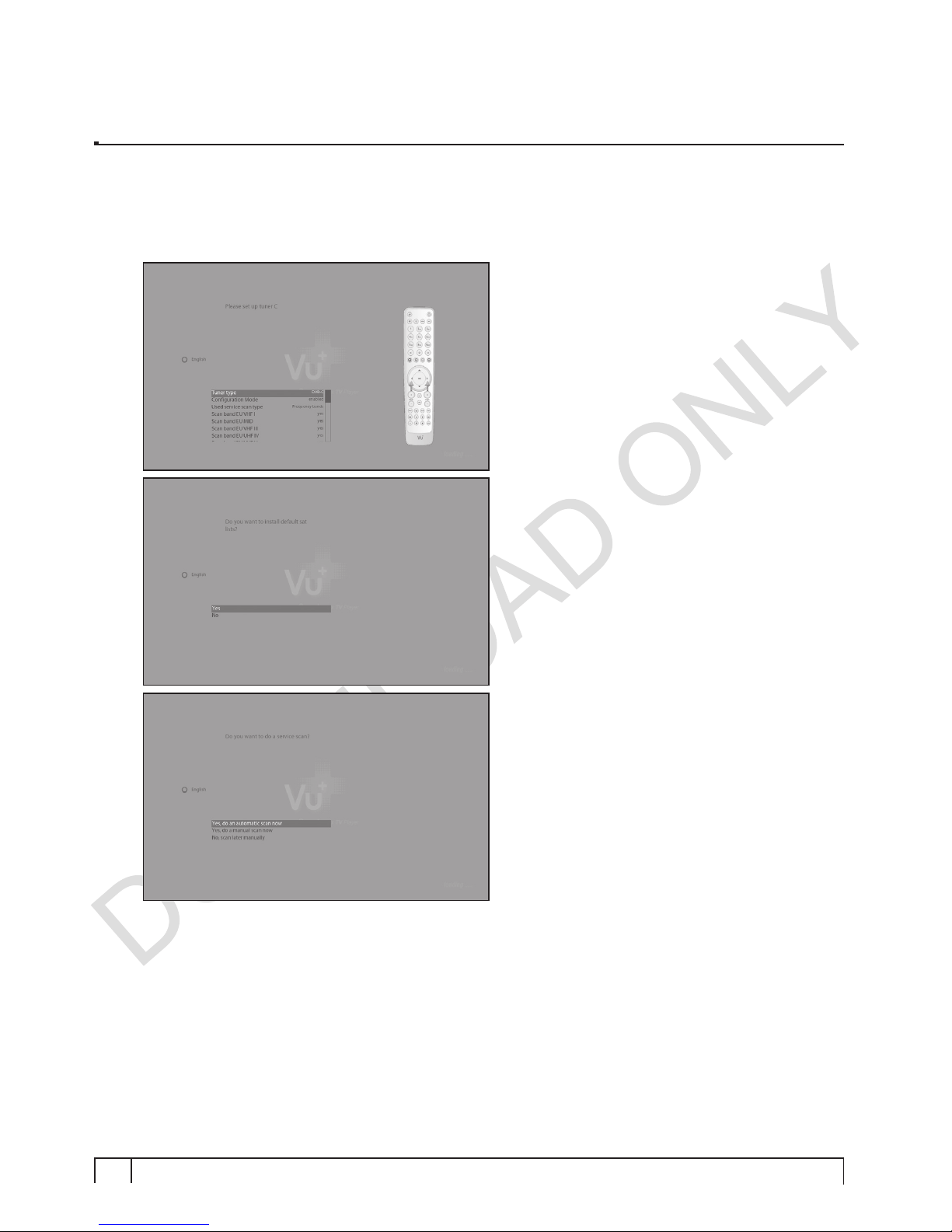

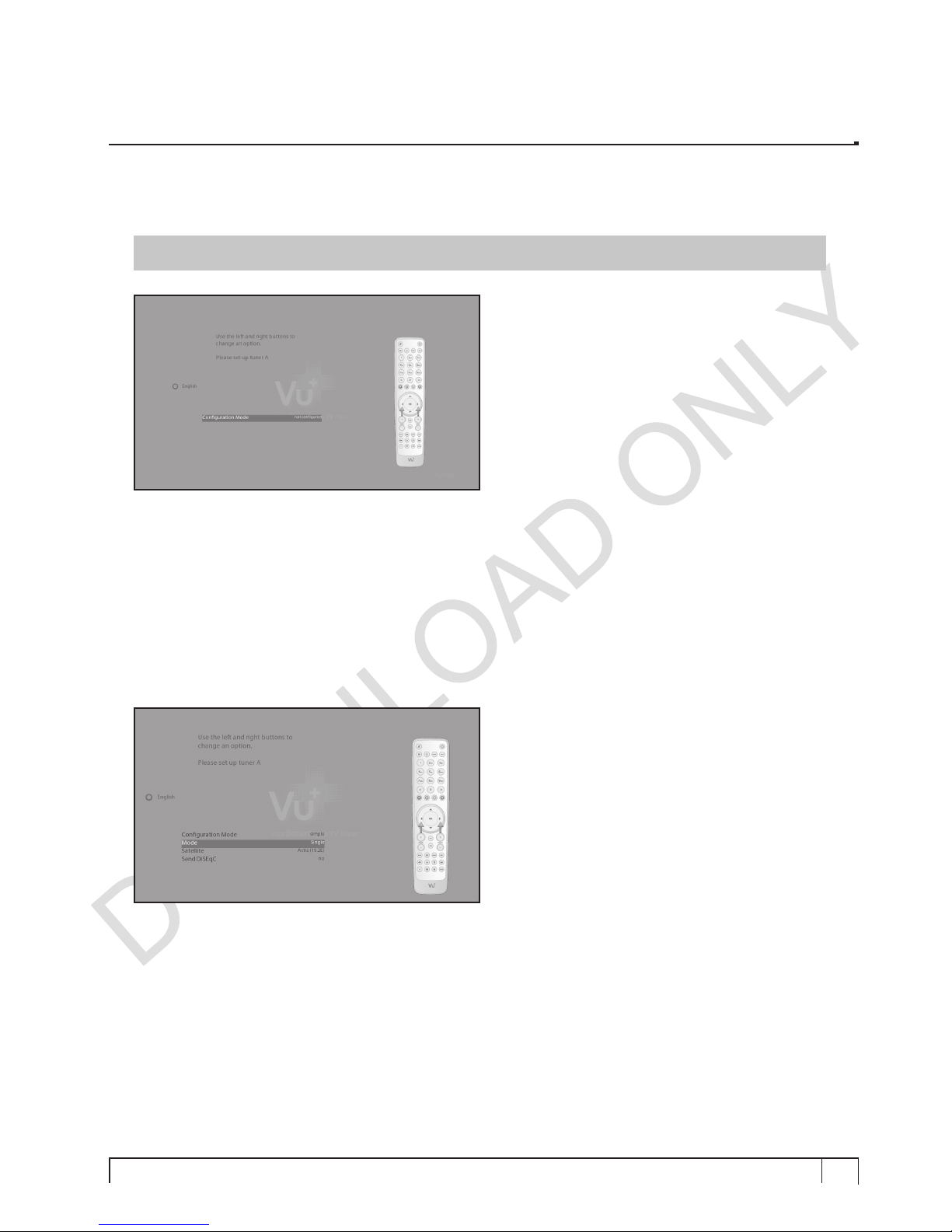

Step 1. Language Selection Step 2. Configuring Satellite Connection Step 3. Installing Default Satellite List Step 4. Parental Control Option

III. Basic Operations

1. Switching Channel

2. Volume Control

3. Selecting Audio Track

4. Subtitle

5. Teletext

6. Program Information (Infobar)

7. Channel List

8. Electronic Program Guide (Event View)

9. Timeshift

10. Recording

11. Recording Play

12. Managing Recording Files

13. Media Player

14. Plug-ins

15. Sleep Timer

Contents

4 6 7 9 11 14 15

16 17 19 19

20 20 26 26

27 27 28 28 29 30 31 33 36 37 41 42 43 44 45

Page 3

IV. System Configuration

1.Main Menu

2.System Setup 2-1. Service Searching A. Tuner Configuration

B. Loading Default Service Lists C. Automatic Scan of Services D. Manual Scan of Services

E. Selecting Tuner Type (for DVB-C/T Tuner) 2-2. System Configuration A. A/V Settings B. Language Selection C. Customization D. Selecting Time Zone E. Hard Disk Set Up F. Front Display Setup G. Network Setup H. Skin Change 2-3. Checking CAM 2-4. Parental Control 2-5. Factory Reset 2-6. Checking H/W and S/W Information A. Service Information B. System Information 2-7. Wi-Fi dongle installation 2-8. Inserting Tuner 2-9. HDD Mounting 2-10. Remote Control Unit (RCU) Set-up A. User Guide of Vu+ Universal RCU B. Function Key Table C. TV Code List

V. Copyright - GNU GPL VI. Menu Structure VII. Troubleshooting VIII. Glossary

46 47 47 47 48 48 49 51 53 53 55 55 57 58 58 59 61 61 62 64 65 65 66 67 70 71 72 72 74 75

Page 4

Vu :

Your Smart Linux TV Player

Vu User Manual

This Product has been designed and manufactured in compliance with EU consumer safety requirements (CE). Please read the following safety precautions carefully.

1. Connecting Power

•

This product operates only in the range of AC100-240V and 50Hz/60Hz. Please check first your power

supply to see if it fits this range.

•

Please be noted that you need to disconnect from the mains before you start any maintenance or

installation procedures.

•

Make sure that the power cord is placed in a position where it is easy to unplug it from the mains in an

emergency.

2. Overloading

•

Do not overload a wall outlet, extension cord or adapter as this may cause electrical fire or shock.

3. Liquid

•

This product is not water-proof and should not be exposed to dripping, splashing, or any type of liquid.

•

No objects filled with liquid such as base shall be placed on the product.

•

Please do not clean the product with wet cloth, which may cause a short circuit.

•

No wet objects should be placed near the product.

4. Ventilation

•

Allow a sufficient space between the product and other objects to make sure air ventilation of the product.

•

Do not block the top or rear of the product with an object, which will close the ventilation holes and lead to

a high temperature of the system. This may cause a failure of the product.

•

Do not stack other electronic devices on top of the product.

•

Do not insert any kind of pointed objects like screw, gimlet, etc. into the ventilation holes of the product.

This will damage the product.

5. Connecting the Satellite Cable.

•

Disconnect the power of the product before you connect the satellite cable to the product.

Otherwise, it may cause damage to the LNB.

6. Grounding

•

The LNB must be earthed to the system earth for the satellite dish.

7. Location

•

Place the product indoor.

•

Do not expose the product to rain, sun or lightening.

•

Do not place the product near any heat appliances as a radiator.

•

Ensure that there is more than 10 cm distance from any electrical devices and wall.

(A) PRECAUTION!!!

Page 5

Vu User Manual

8. Lightening, Storm or Not In Use.

•

Unplug the product and disconnect the antenna cable during a thunderstorm or lightening, especially when left unattended and unused for a long period of time. This will prevent possible damages from power surges or lightening.

9. Replacement of Parts

•

Unauthorized part replacements, especially by one who is not a qualified technician may result in damage to the product.

•

Ensure that when part replacements are necessary qualified technicians perform the task using the components specified by the manufacturer.

10. Hard Disk Drive

•

Do not move the product or turn the power off suddenly while the Hard Disk Drive (HDD) is still running. This may result in damage to the HDD and thus the system.

•

The company shall not be liable for any corruption of data on the HDD caused by careless use or misuse of users.

11. Battery

•

There is danger of explosion if batteries are incorrectly replaced.

•

Replace batteries only with the same or equivalent type.

Dolby Digital Plus :

Manufactured under license from Dolby Laboratories. Dolby and the double - D symbol are trade marks of Dolby laboratories.

DTS 2.0+Digital Out

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

"WEEE" Symbol instructions.

This product should not be disposed with other house hold wastes at the end of its working life.

Please separate this from other types of wastes and recycle it responsibly to promote the sustainable

reuse of material resources. This will help prevent harm to the environment or human health from un-

controlled waste disposal.

Page 6

Vu :

Your Smart Linux TV Player

Vu User Manual

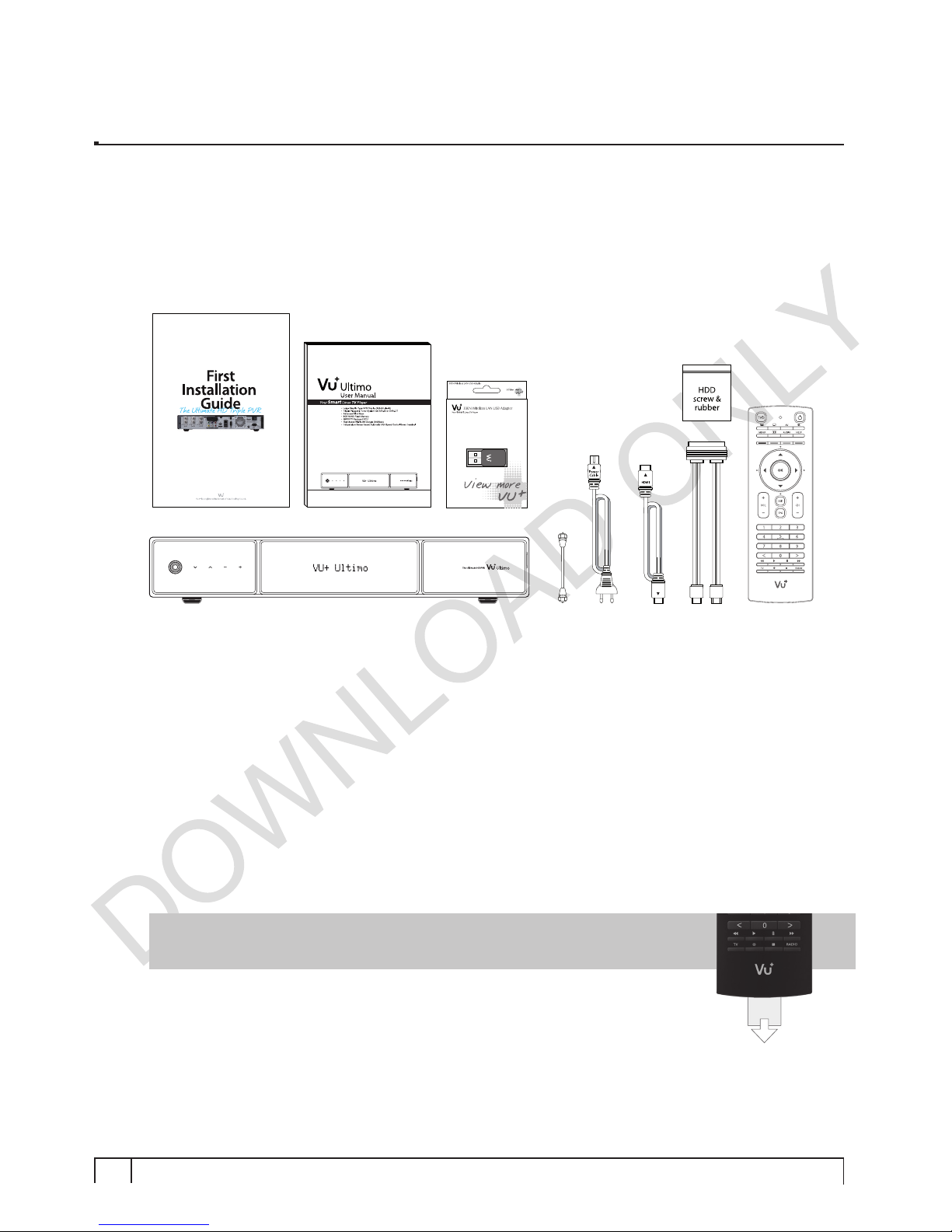

(B) Packaging Contents

Please check all package contents before using your product.

• Ultimo RCU (with two coin batteries inserted)

• User Manual

• First Installation Guide

• HDMI cable

• Power cable

• Loop-through cable (for Satellite only)

• SATA cable

• HDD mount screws and rubber washers

NOTE :

Two coin batteries(2xCR2032) are used for the remote control.

Please pull out the plastic battery cover to use the remote control.

Page 7

Vu User Manual

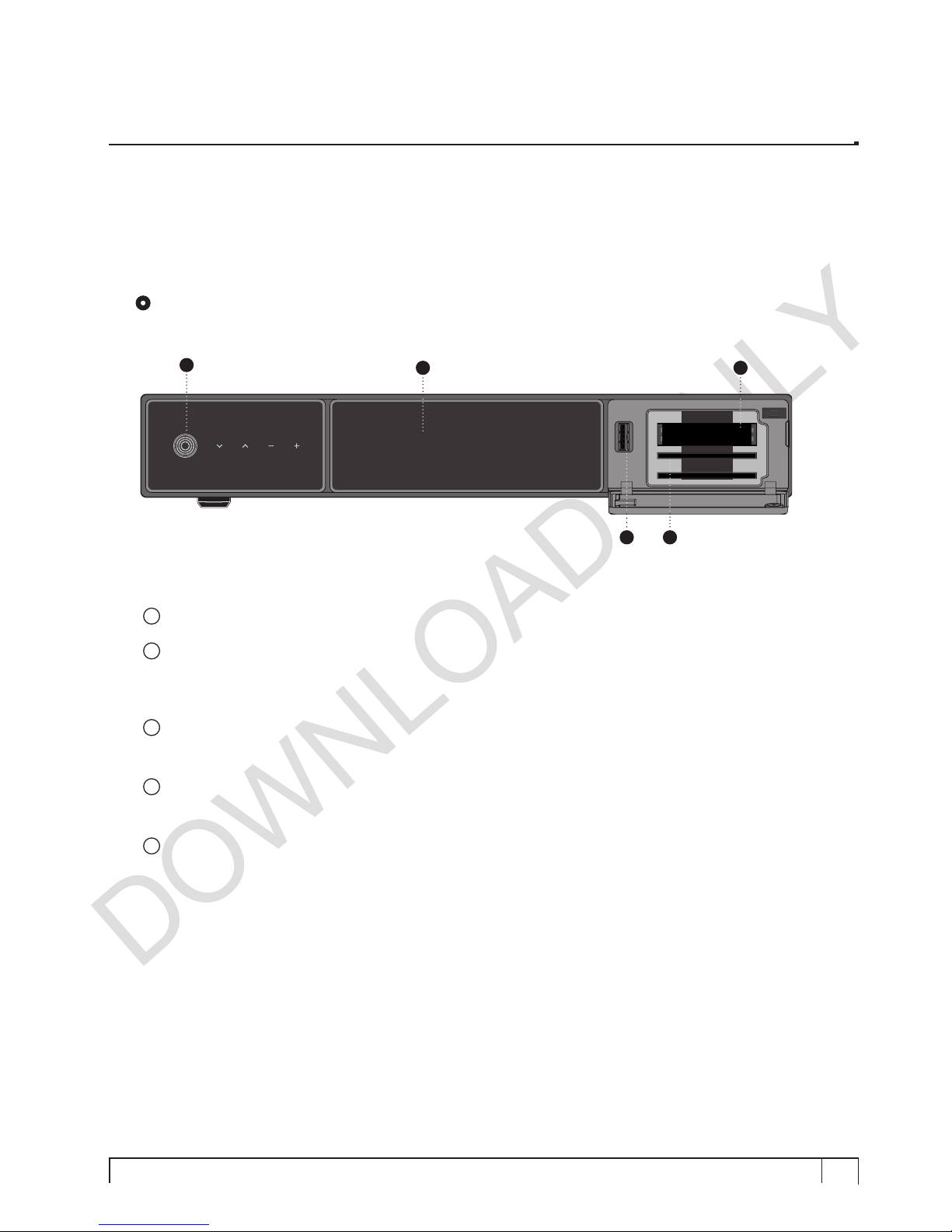

Front Panel

Buttons (STANDBY, Ch–/+, Vol–/+)

Display

Displays the current menu and program information. Large Graphic VFD(256x64 pixels)

USB Host

Connects to the USB memory stick or external HDD.

Smartcard reader slot

Two Smartcard slots are provided.

CI Module slot

Two CI module slots are provided.

VU+ Ultimo

2 5

Page 8

Vu :

Your Smart Linux TV Player

Vu User Manual

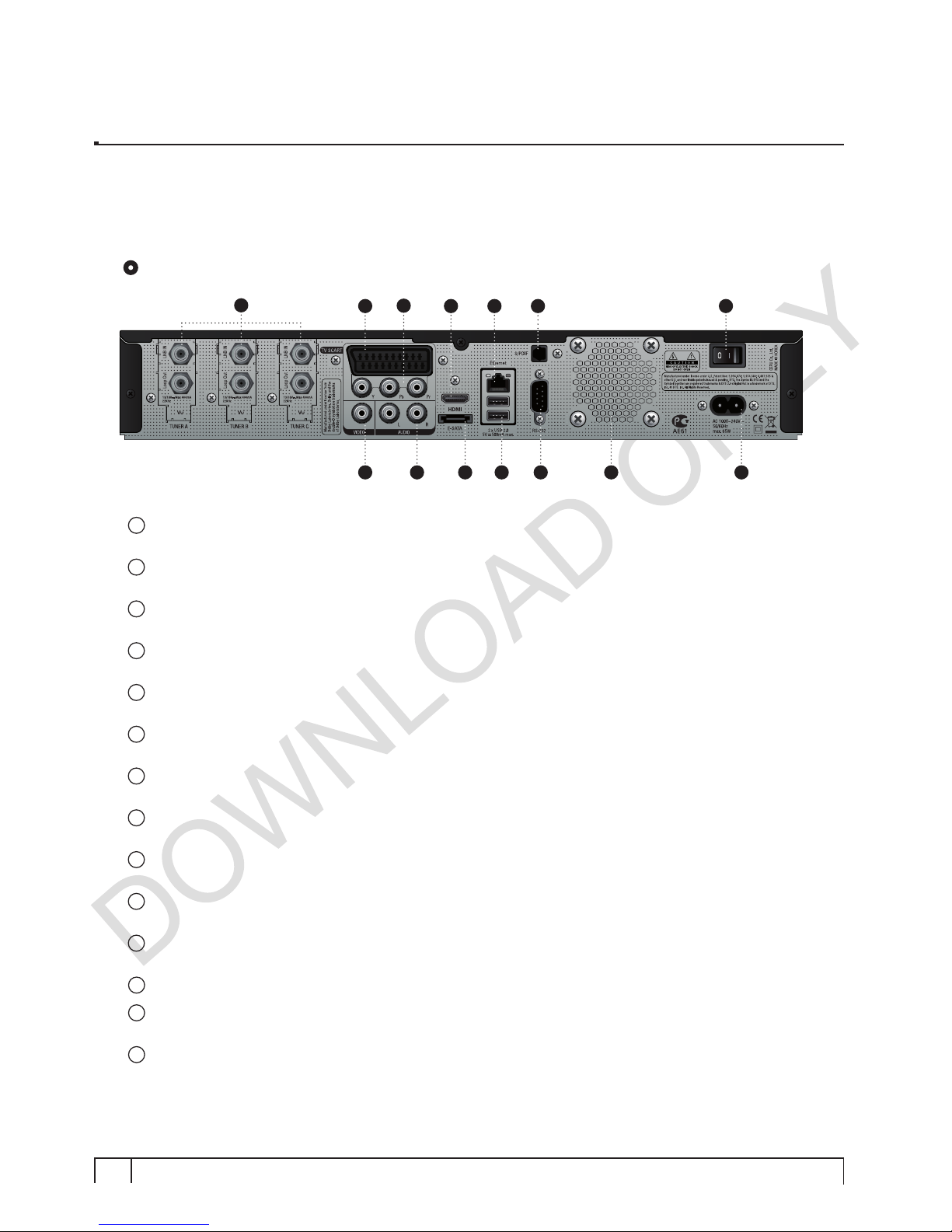

Rear Panel

Three Pluggable Tuner Slots

Pluggable Type DVB-S2 and DVB C/T Hybrid Tuner available.

SCART

One SCART connector is provided for TV using SCART cable.

Video output

Connects to TV using RCA cable(composite YPbPr)

Component (YPbPr)

Connects to TV using a component cable

Audio output

Connects to TV using RCA cable.

HDMI

Connects to TV using a HDMI cable for both audio and video signals.

e-SATA

Connects the external HDD using e-SATA cable.

Ethernet

Connects the PC or another set top box of Vu

USB

Connects the USB memory stick or external HDD.

S/PDIF

Connects to a digital audio system using S/PDIF cable.

RS232

RS232 data port is provided.

FAN

Power Inlet

Connects the detachable power cord.

On/Off Switch

Powers on/off.

53 7

106 8

9 11

Page 9

Vu User Manual

Amongst the channels that are scanned via Vu+, some channels can be properly tuned in only with the corresponding Smartcard and/or CAM (Conditional Access Module). Vu+ provides two Smartcard Reader slots and two Conditional Interface slots and users need to purchase those Smartcards and CAMs that are required for viewing such subscription based services.

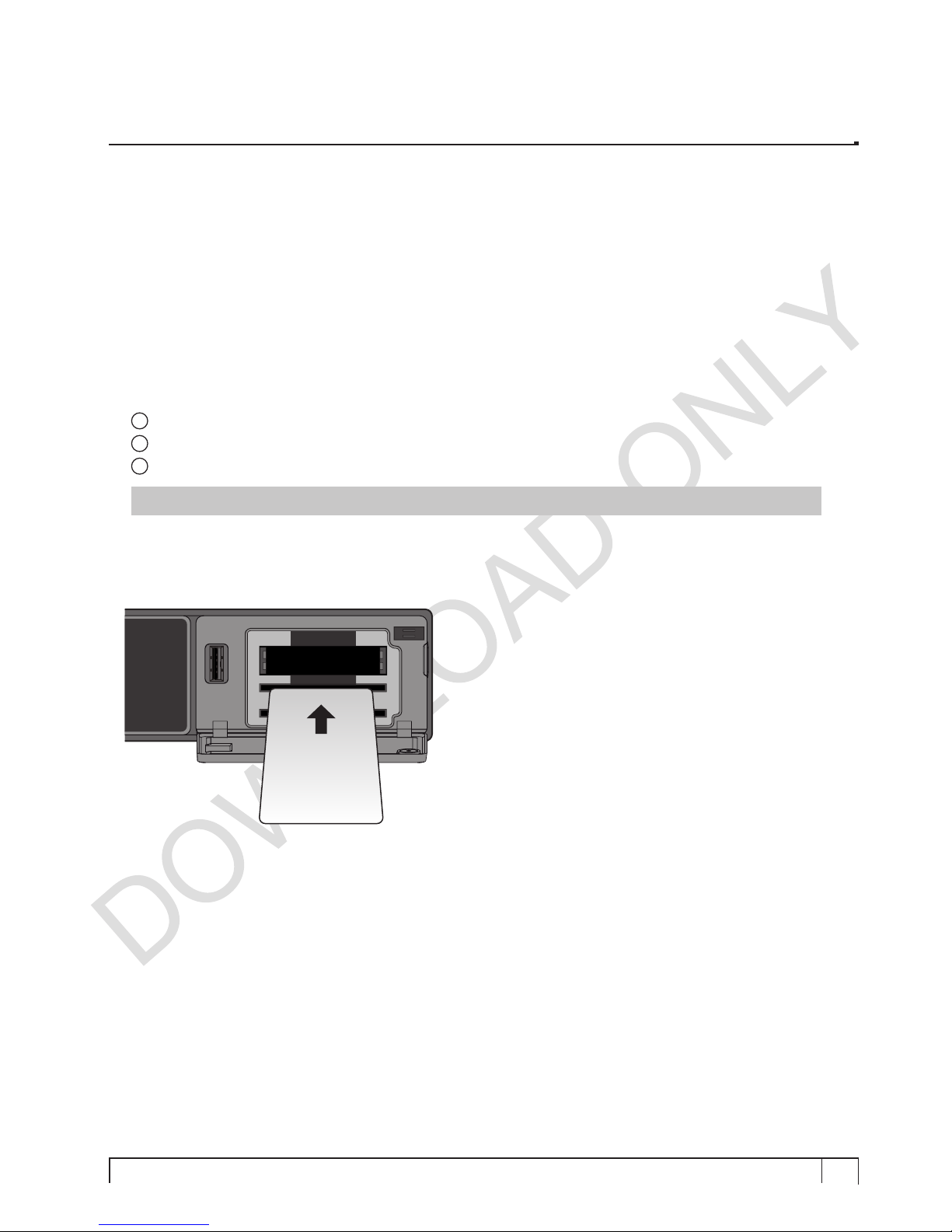

Insertion of Smartcard

Vu+ supports Xcript. Users need to buy only these Smartcards without having to buy additional CAMs to watch those channels that are encrypted in Xcrypt.

Open the door on the left side.

Insert Xcrypt Smartcard as in the following instruction.

Make sure that the Smartcard remains inserted while viewing.

NOTE :

Insert the card while the smart card IC is downward.

Insertion

(D) Conditional Access

Smartcard

Page 10

Vu :

Your Smart Linux TV Player

Vu User Manual

Insertion of CAM (Conditional Access Module)

There are several Conditional Access Systems (CAS), other than Xcrypt that Vu+ supports. To be able to watch channels that are encrypted in such CAS as Nagravision, NDS, Irdeto, Viaccess, etc, users need to purchase a CAM that is corresponding to each CAS, as well as Smartcard to decrypt those encrypted channels.

Insert a Smartcard into the CAM as in the below picture.

Once the Smartcard inserted into the CAM, insert the CAM into the CI slot.

Make sure that the CAM remains inserted while viewing.

Insertion

Smartcard

CI-Module

Page 11

Vu User Manual

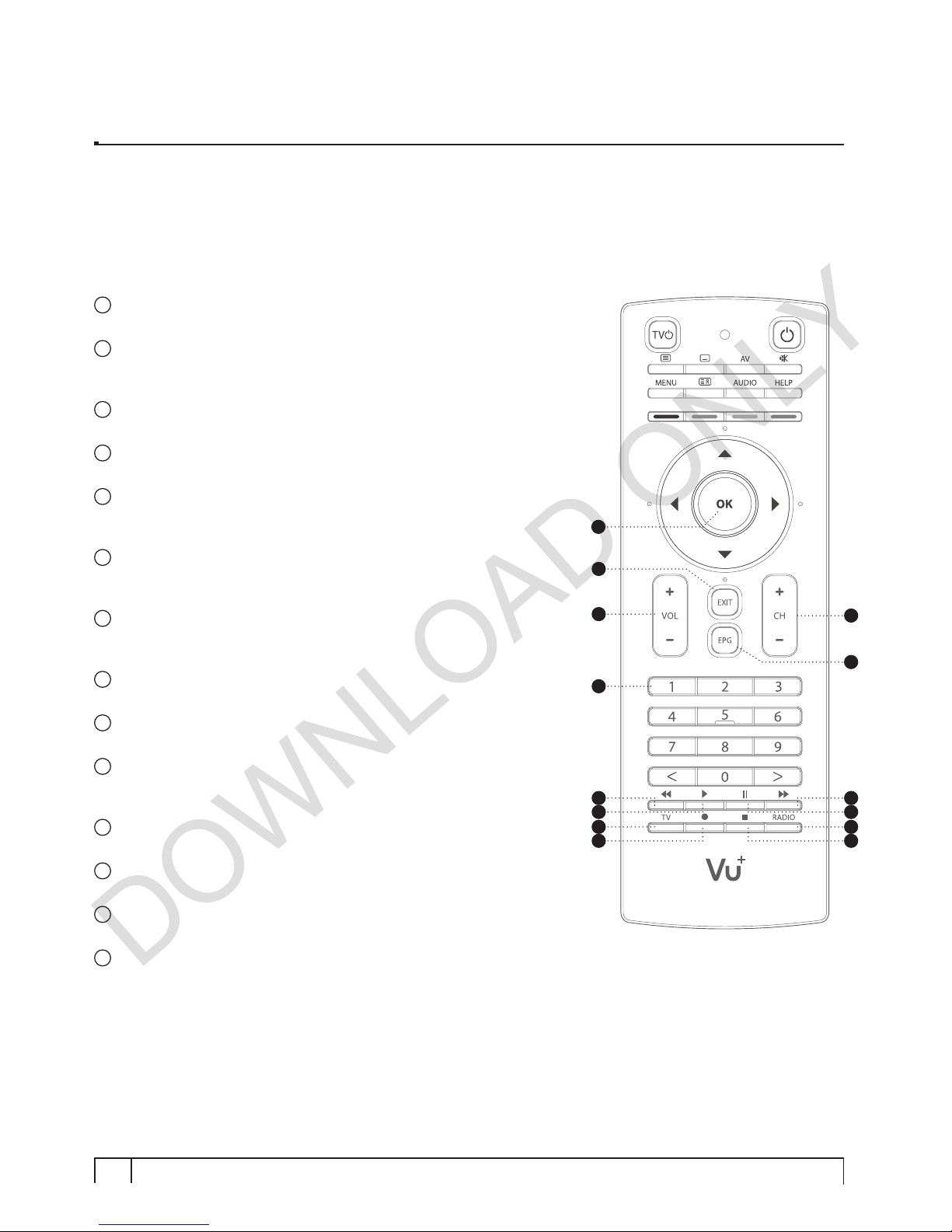

(E) Remote Control

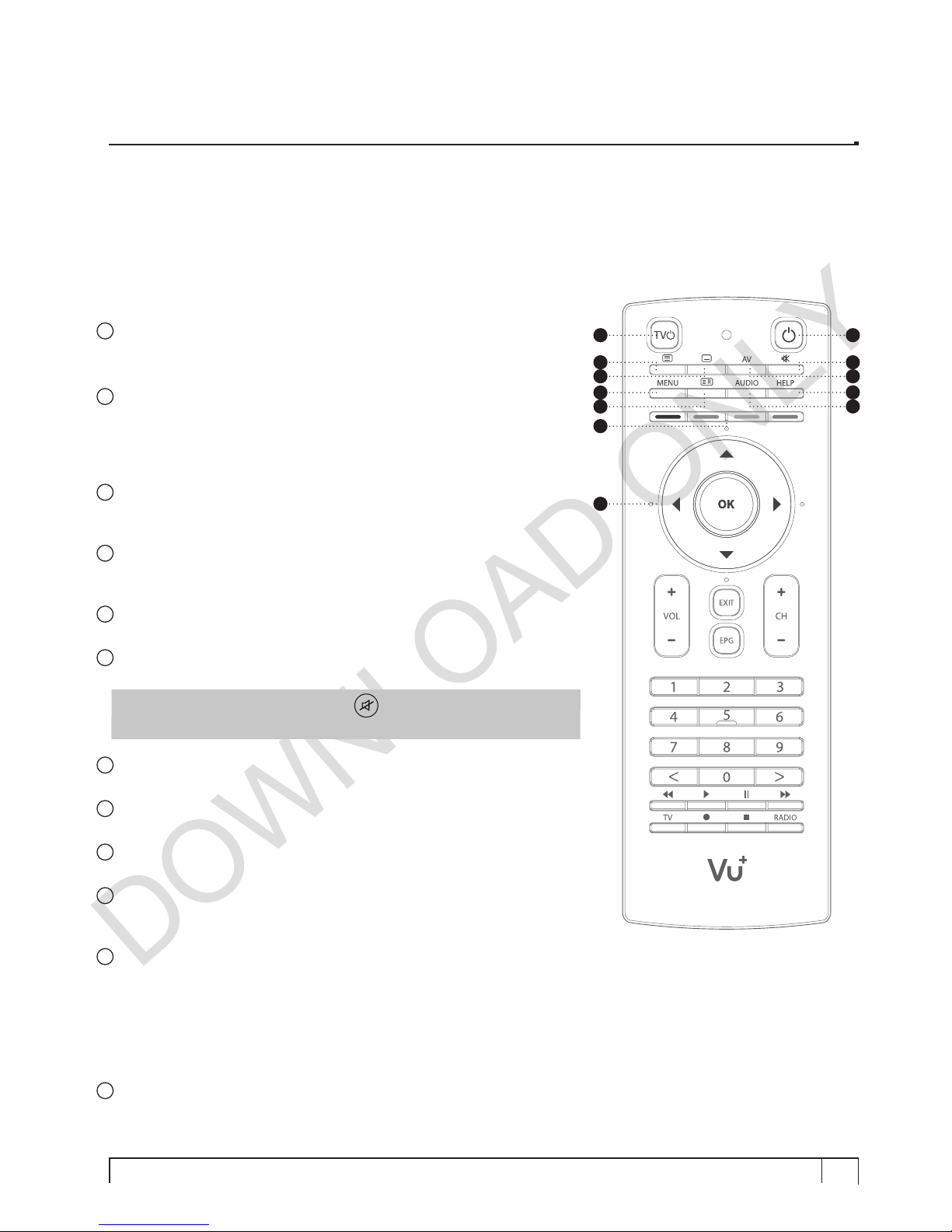

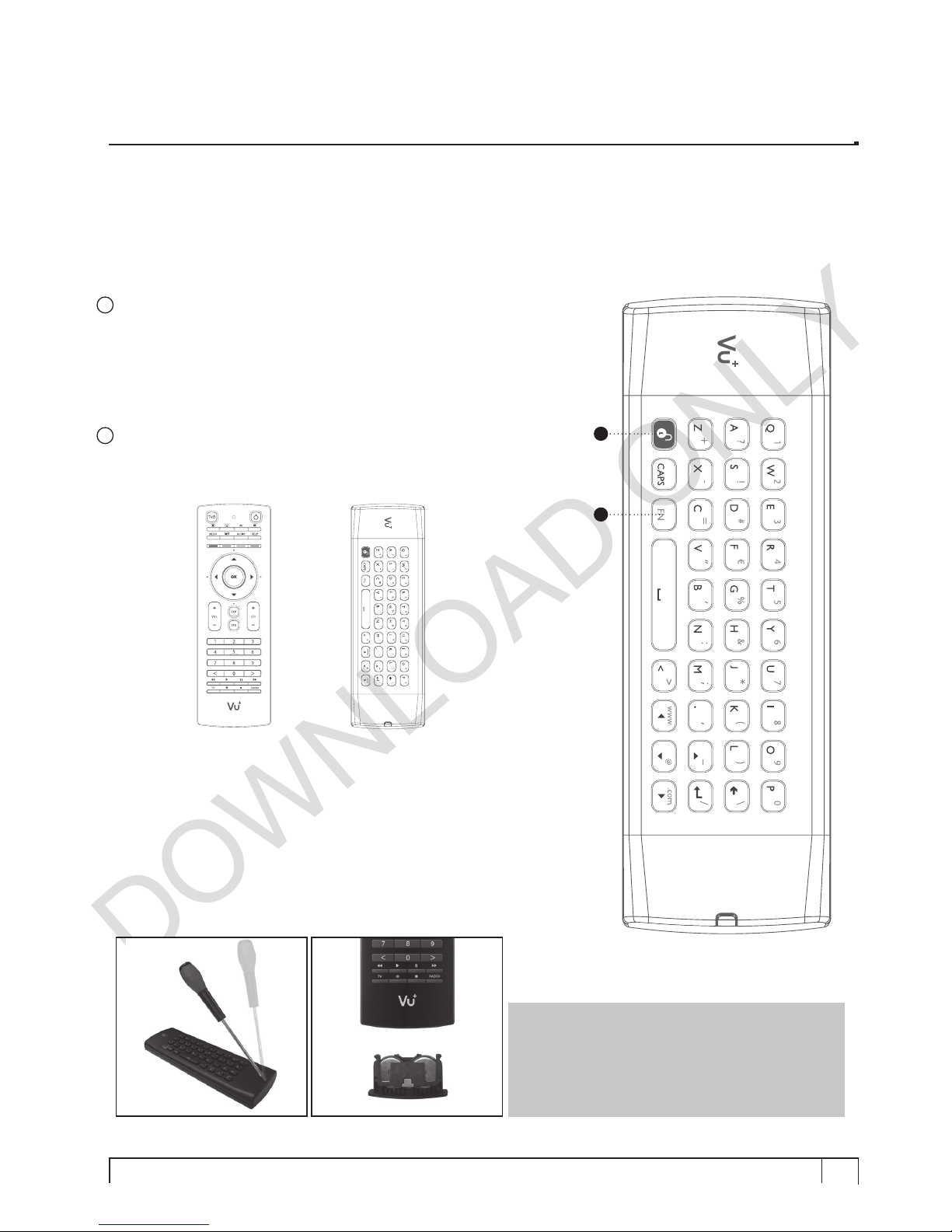

Ultimo Remote Control(RCU) is a universal and QWERTY keyboard RCU and users can control Ultimo and TV. The double sided design of Ultimo RCU makes typing on TV easier than ever. Please refer to

IV. System Conguration 2.9 Remote Control Unit Set-

section for more explanation.

TV Power

Once configured for TV remote control, this button is for TV power on/ off.

STB Power

When the STB is turned on, normal press of this button puts the STB into standby mode instantly. When the STB is turned off, normal press of this button turns the STB on instantly. Long press activates Standby /Restart menu.

Teletext

Displays the teletext information of the current channel if the channel provides subtitles.

Subtitle

Displays the subtitle of the current channel if the channel provides subtitle.

This button is used when selecting video source of TV.

Mute

Silences the audio temporarily.

NOTE :

when Teletext is activated,

key is also used when

toggling between the Teletext page and the live mode.

Displays the main menu.

Recording List

Displays the list of recordings stored on the internal HDD if any.

Audio

Displays the audio track option to choose (e.g. ACS, Stereo).

Help

Displays major important operation methods of Vu+. This provides users with a quick guide of using Vu+.

Color Keys

Each key is assigned a specific function that may be different in each menu.

• Red – mainly used for REC, Cancel, etc.

• Green – mainly used for OK

• Yellow

• Blue

Navigation Keys

Navigates up/down and left/right on the menu options. Up/down keys are used to call up the channel list.

Page 12

Vu :

Your Smart Linux TV Player

Vu User Manual

Confirms the selected menu option.

EXIT

Exits the current menu option into the live mode, or switches one step back of the menu.

Volume + / -

Adjusts the audio volume.

Channel + / -

Navigates through the scanned channel list.

EPG

Displays the Electronic Program Guide (EPG) information if provided.

Numeric Keys

Enters a channel number or numbers required to be input according to menu options.

Fast Rewind

Fast rewinds at up to 128 times faster than the normal speed (x2 / 4 / 8 / 16 / 32 / 64 / 128).

Play

Plays the selected file (e.g. recording) at the normal speed.

Pause

Pauses the live program or recording play.

Fast Forward

Fast forwards at up to 128 times faster than the normal speed (x2 / 4 / 8 / 16 / 32 / 64 / 128).

Displays the TV Channel list.

Recording

Displays instantly the recording menu.

Stop

Stops playing of a recording and goes to the live mode.

Radio

Displays the Radio channel list.

Page 13

Vu User Manual

Unlock

This button is used to unlock the operation of keyboard. Any touch on any of the buttons on the remote control side is to lock the operation of keyboard.

• To unlock the keyboard - Press the unlock.

• To lock the keyboard - Press any button on the remote control side.

Function button to activate function buttons in blue.

(Remote control side) (Keyboard side)

NOTE :

Two coin batteries (CR2032) are used in the remote control. The estimated battery lifetime is around 1year. To replace batteries use a screwdriver to pry open the lid.

Page 14

Vu :

Your Smart Linux TV Player

Vu User Manual

•

405 MHz MIPS Processor

•

Linux Operating System

•

Media Player

•

Downloadable Plug-ins supported

•

2 x Smartcard Readers (Xcrypt)

•

2 x Common Interface

•

MPEG2 / H.264 Hardware Decoding

•

Three pluggable tuner system for DVB-S2 and/or DVB C/T hybrid tuner.

•

Large graphic type VFD - 256x64 pixels

•

1GB NAND Flash / 512 MB RAM

•

External SATA supported

•

10/100MB Ethernet Interface

•

3 x USB 2.0

•

RS232

•

HDMI

•

Composite Video / Component Video

•

1 x SCART

•

SPDIF for digital bit stream out (optical)

•

EPG supported

•

Automatic & Manual Service Scan supported

•

Multiple LNB control (DiSEqC) supported

•

Skin change supported

•

Stable SMPS integrated

•

Automatic temperature sensor based FAN speed control system.

(F) Main Features

Page 15

Vu User Manual

(G) Technical Data

Vu+ Technical Specifications

Front

Panel

Display

256x64pixel large graphic VFD with status icons displaying

channel names and program information

Smart card slot 2

Common Interface 2

USB 2.0 1

Key Ch+/-, Vol+/-, Standby

Rear

Panel

Power switch 1

Sat-IF input/output 3 x F-type (or DIN) Socket

Connection TV 1 x Scart socket

Video output (analogue) 3 x Cinch socket(Y/Pb/Pr) / 1 x Cinch-socket

Video/audio output (digital) 1 x HDMI

Audio output (analogue) 2 x Cinch socket

Audio output (digital) Standard optical (SPDIF)

USB 2.0 2

eSATA 1

Ethernet 1

RS 232 1

Power

Mains voltage AC100-250V / 50-60Hz Power consumption

(Max./typ. operation/stand-by)

65/25/1W

RF range 950-2,150 MHz

Modulation, FEC, de-multiplexer DVB-S/DVB-S2 standard

Video

Video resolution CCIR 601 (720 x 576 lines), 576p, 720p, 1080i

Video decoding MPEG-2, MPEG-4 compatible

Input data rate 2-45 MSymb/s

S/N > 53 dB

Decoding

Decoding Dolby Digital, MPEG-4 (AAC-HE), MPEG-1, Layer 1, 2 and 3

Sampling rate 32/4.1/48 kHz

S/N > 65 dB

LNB

LNB supply (horiz./vert.) 14/18V / Max.400mA

Control signal 22kHz ; ToneBurst ; DiSEqCTM1.0/1.1/1.2

General

Dimensions (W x H x D) 380 x 290 x 60 mm

Weight (without HDD) 3kg (Without HDD)

Page 16

Vu :

Your Smart Linux TV Player

Vu User Manual

This chapter will guide you through the whole installation process of Vu+. Please read each section carefully to make sure that the system runs properly.

1. Connecting Signal Cable

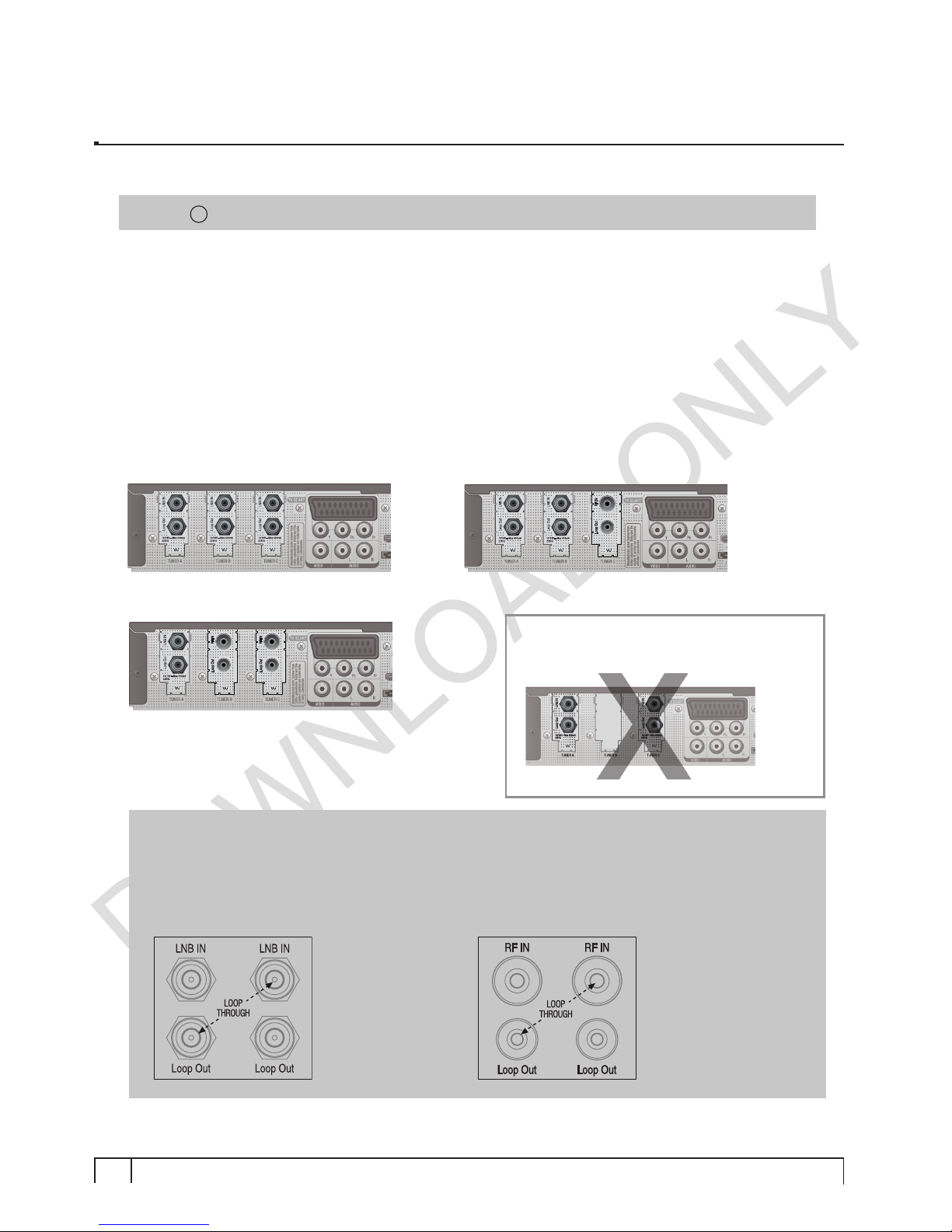

Vu+ Ultimo is designed to integrate three pluggable tuners. For the best use of Vu+ Ultimo the following tuner combinations are recommended.

A. DVB-S2 + DVB-S2 + DVB-S2

C. DVB-S2 + DVB-C/T + DVB-C/T

NOTE :

Loop-through connection

Instead of using two or three separate signal cables, it is also possible to connect cables in loop-through mode.

example A.

If two DVB-S2 tuners are mounted.

example B. If two DVB-C/T tuners are mounted.

I. Installation of Vu+

NOTE :

means Remote control operation order.

B. DVB-S2 + DVB-S2 + DVB-C/T

NOTE

: Using tuner A & C without tuner B

is not supported.

A loop-through cable for satellite is included in the accessory box.

You need to purchase a loop-through cable for DVB-C/T tuner.

Page 17

Vu User Manual

2. Connecting the TV

Vu+ provides a variety of audio/video connection methods.

A. Connecting TV via HDMI cable

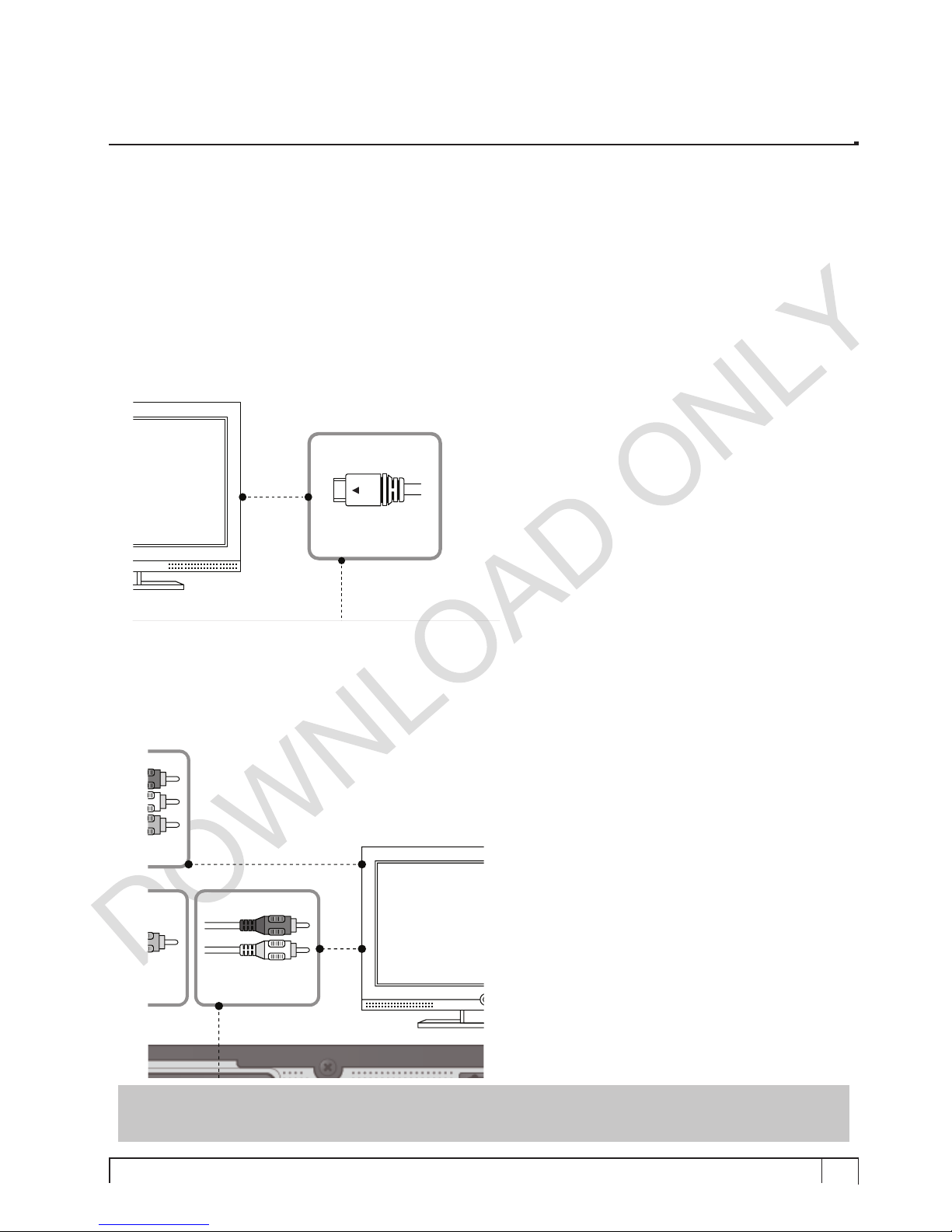

For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended. Most HDTVs have HDMI connectors to ensure the highest picture quality. In the rear panel of Vu+ one HDMI connector is available for this purpose. Connect your TV to Vu+ using a HDMI cable as follows.

HDMI

B. Connecting TV via Composite or Component connection

Vu+ provides Composite and Component connectors for both audio and video. Connect your TV to Vu+ as follows:

NOTE : When you have an A/V receiver with S/PDIF digital audio input, this connection is recommended to enjoy the best audio quality, especially for the Dolby Digital sound.

Audio

Page 18

Vu :

Your Smart Linux TV Player

Vu User Manual

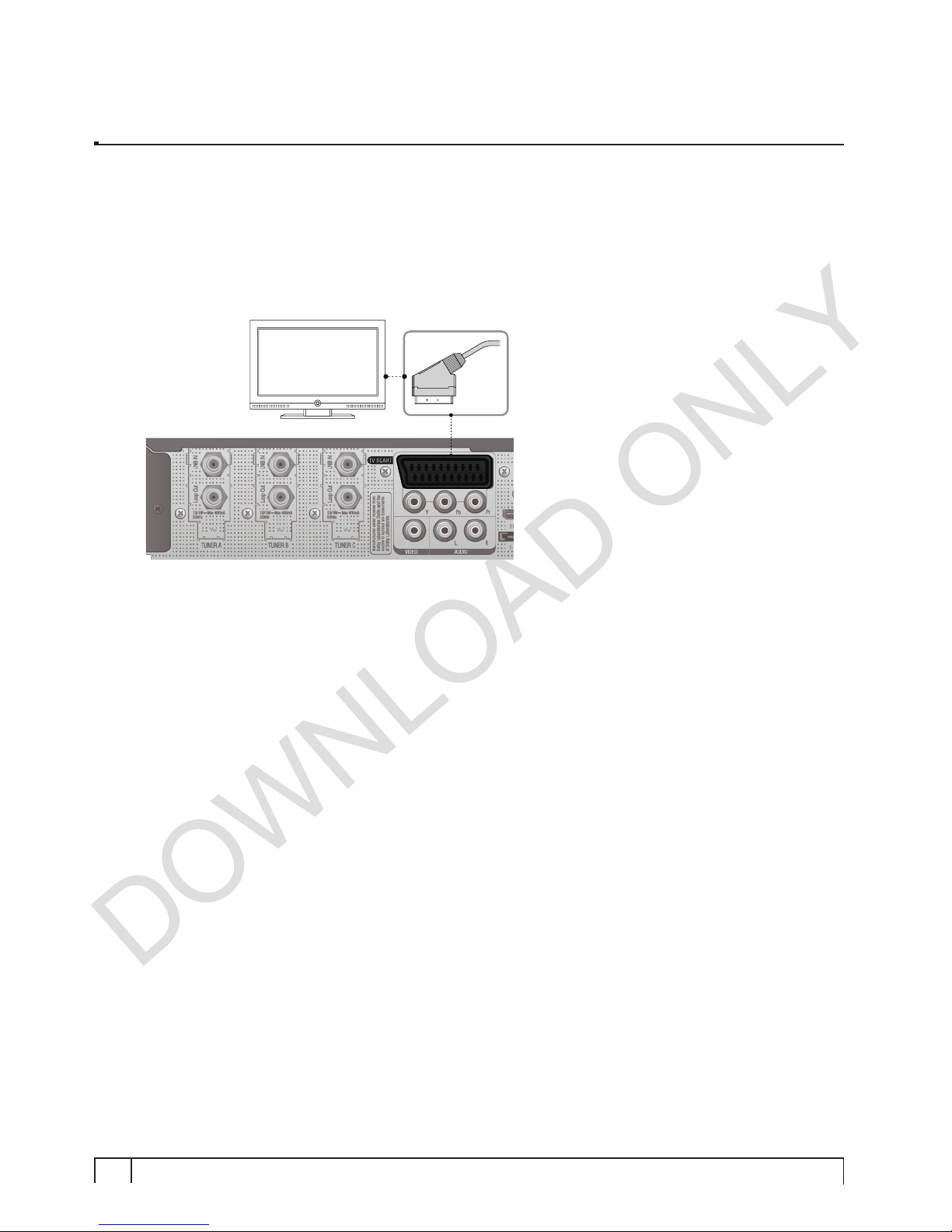

C. Connecting TV via SCART cable.

In case your TV is analogue TV, SCART cable is the most common method. Connect your TV to Vu+ using SCART cable as follows.

TV SCART

Page 19

Vu User Manual

3. Connecting Power

A power cord is provided as one of the basic accessories of Vu+.

Connect the power cord to the connector at the rear panel of Vu+.

Connect the power cord to a power outlet.

Turn on the power switch at the rear panel.

NOTE : AC input condition

• Nominal Voltage Range: 100 – 250 VAC

• Maximum Voltage Range: 90 – 264 VAC

• Nominal Frequency: 50 / 60 Hz

• Maximum Frequency Range: 47 – 63 Hz

NOTE :

means Remote control operation order.

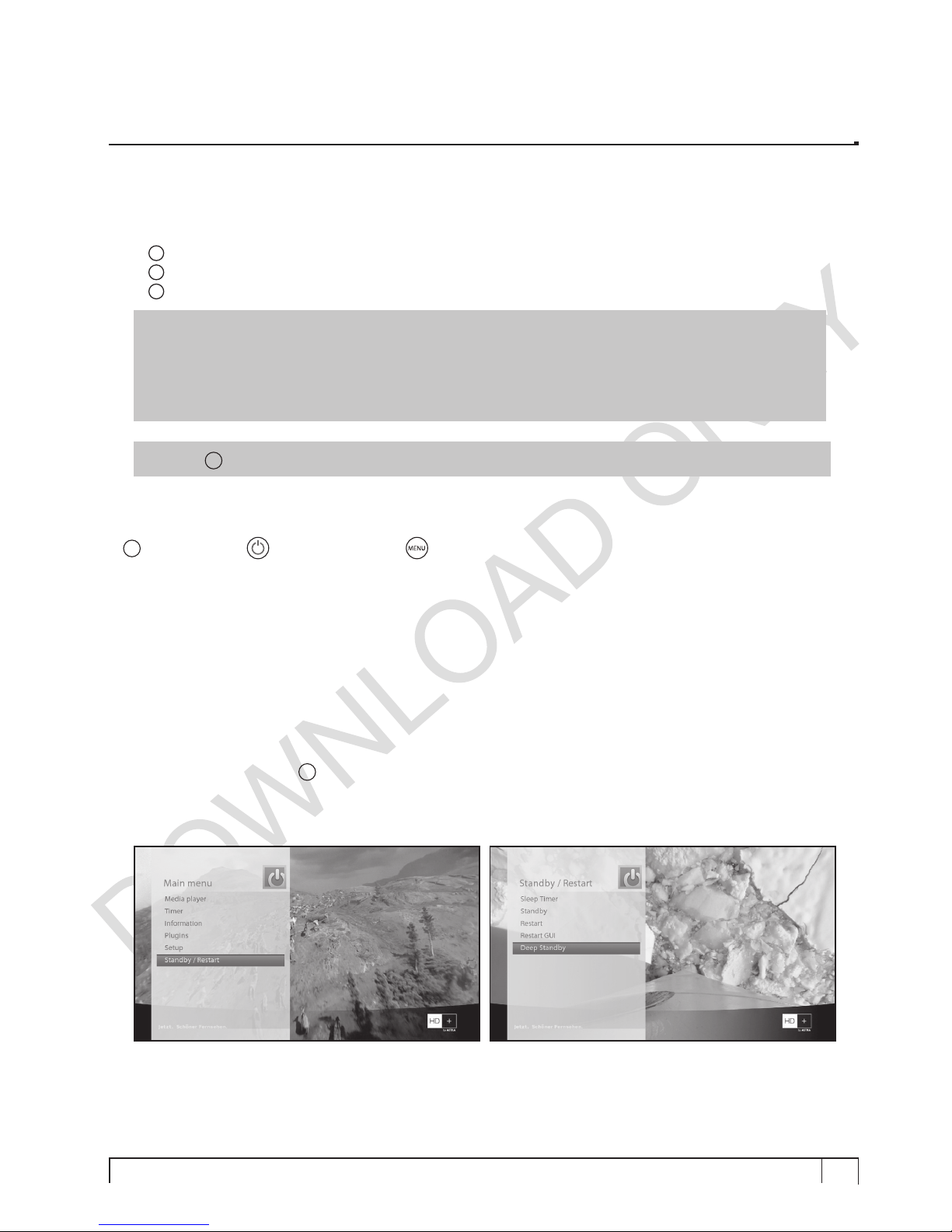

4. Power ON/OFF

[i : Press Power key / Press MENU > Select Standby/Reset]

There are several ways to turn your Vu+ ON or OFF

� Complete Power Shutdown

There is a Power Switch in the rear panel and once it is ON, you do not need to turn it on or off each time. It takes a longer time to boot the system if you turn it off by this switch.

� Standby Mode

POWER key is normally used to turn the power of Vu+ on or off. If you press

POWER

, it instantly switches your Vu+ off or on. In this mode, the system is not completely shutdown and thus it takes a shorter time to turn it on and off.

� Deep Standby Mode

[

: Menu > Standby/Restart > Deep Standby]

Deep Standby is used to reduce the standby power consumption. Vu+ is designed to be energy efficient and to guarantee the power consumption to be under 1W in the deep standby mode.

Page 20

Vu :

Your Smart Linux TV Player

Vu User Manual

When you turn on Vu+ for the first time after purchase, an installation wizard will begin step by step.

NOTE : OK key is used for confirmation and turns to the next step. Press

EXIT

key to return to the

previous page.

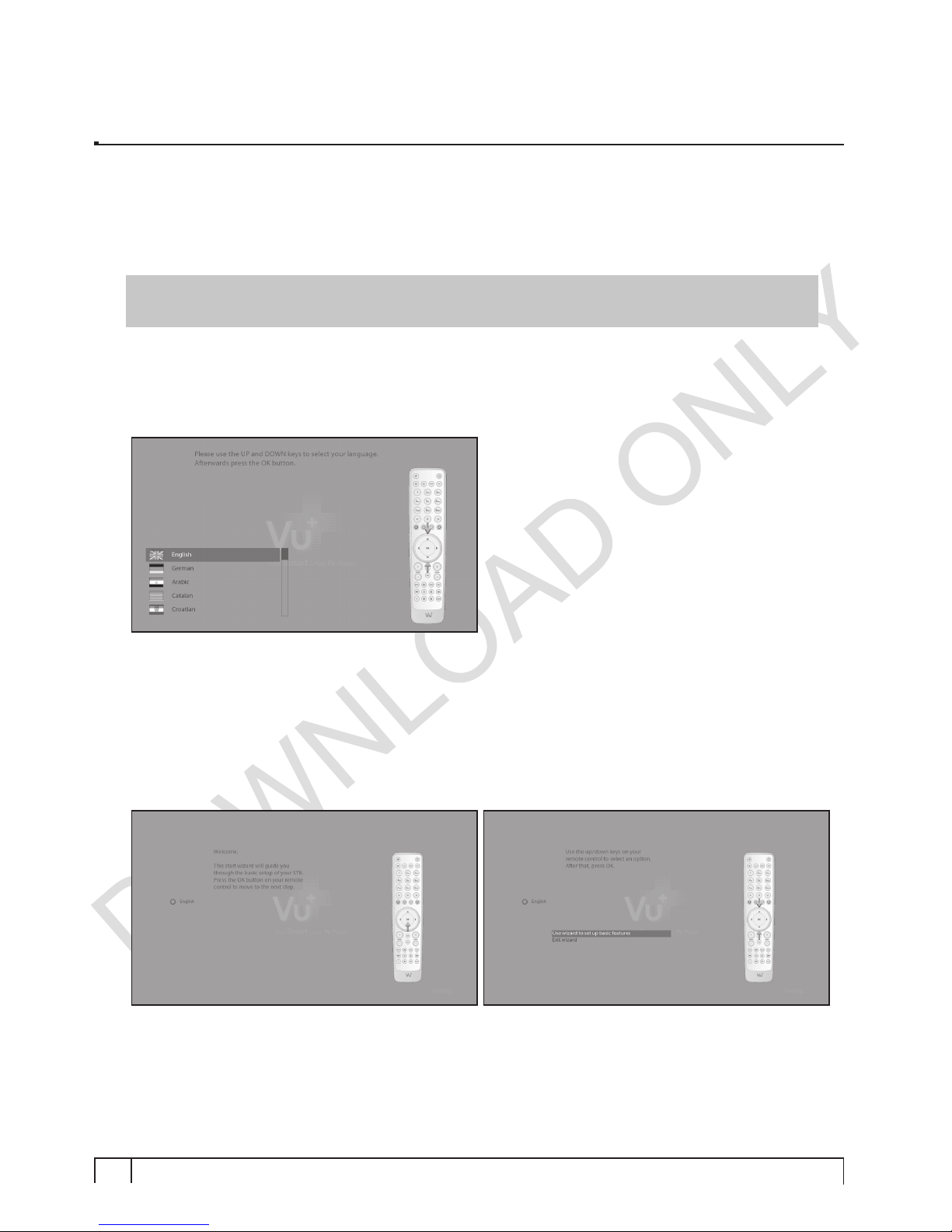

Step 1. Language Selection

Vu+ provides various languages and here you can choose the main language for your Vu+. Use

UP/DOWN

key to scroll up and down to find the language you want.

Step 2. Conﬁguring Satellite Connection

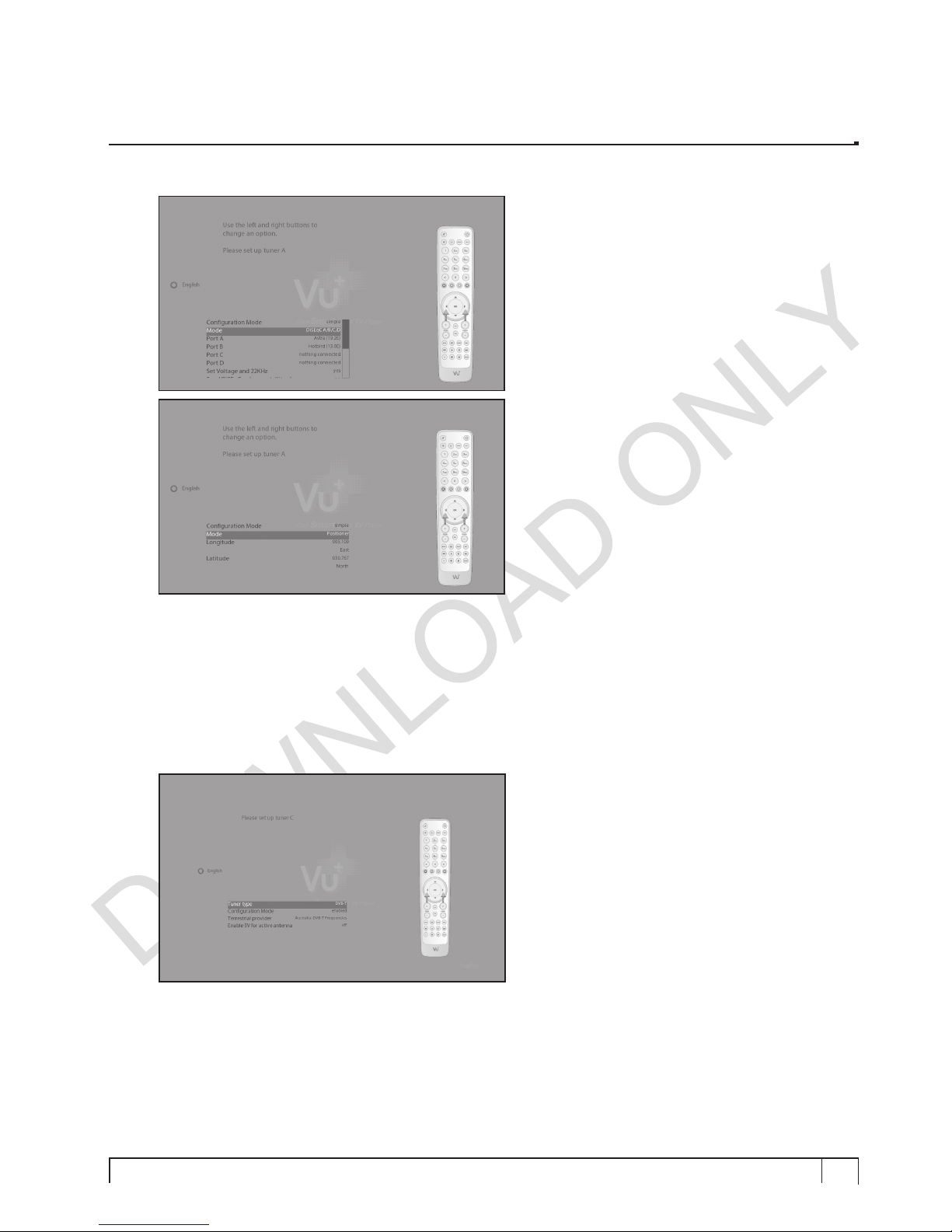

From now on you need to configure the satellite connection. You have two options:

• Use wizard to set up basic features

• Exit wizard

You are strongly recommended to use wizard as it is designed to guide you through the configuration process.

II. First Time Installation (using Wizard)

Page 21

Vu User Manual

A. Conﬁguring Tuner A - DVB-S2

NOTE : If DVB-S2 tuner is mounted, read the following instructions.

Using

LEFT/RIGHT

key, you can choose one of the following Configuration Modes:

• Nothing connected

• Simple

• Loop through to: mode to make the LNB1 be internally connected to the LNB2 in.

• Equal to: mode to use the same configuration as that of Tuner B.

• Advanced: for an advanced user configuration.

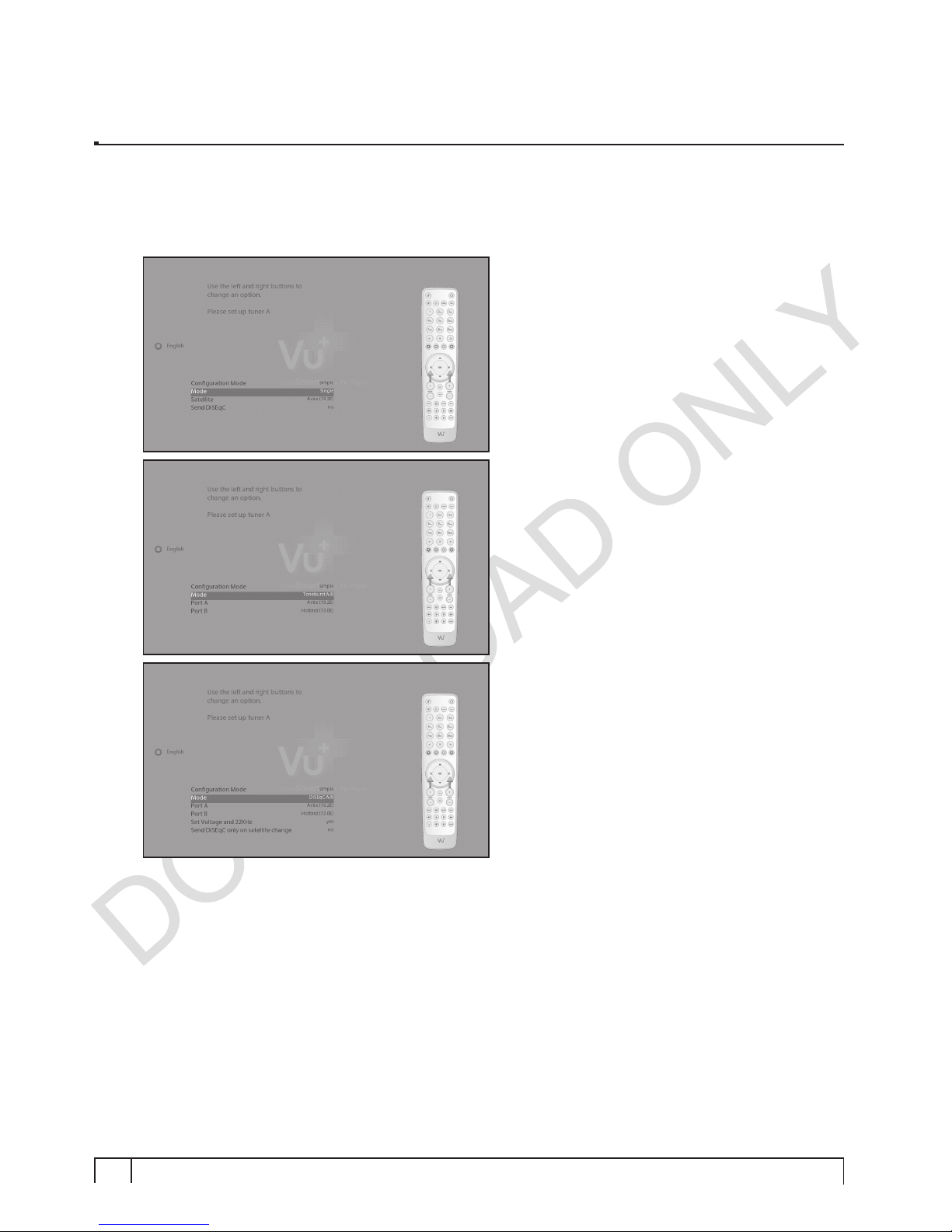

If you choose Simple configuration mode, the following picture will appear.

Page 22

Vu :

Your Smart Linux TV Player

Vu User Manual

The ve modes are available for the satellite cable connection between LNB and your Vu+ as below :

� Single

This option is used to receive a single satellite with a single LNB. The cable from LNB is directly connected to Vu+.

� Toneburst A/B

This option is used if you want to receive two satellites using a Toneburst switch.

� DiSEqC A/B

This option allows you to configure two satellites in Port A and Port B.

Page 23

Vu User Manual

� DiSEqC A/B/C/D

This option allows you to configure four satellites in Port A, Port B, Port C and Port D.

� Positioner

This option is used when you have a motorized satellite antenna.

B. Conﬁguring Tuner A - DVB-C/T

� Selecting Tuner Type

Suppose that you have installed DVB-C/T tuner of Vu+, you can select between DVB-C or DVB-T by using LEFT/RIGHT button.

* DVB-C/T Tuner of Vu+ is a hybrid tuner

that can be used for DVB-T or DVB-C selectively. However, you can tune into only one mode at a time.

Page 24

Vu :

Your Smart Linux TV Player

Vu User Manual

� Conguring DVB-T / C Tuner

If configured for DVB-T, this step allows you to choose one of the four “Terrestrial provider” depending on your location.

Australia: DVB-T Frequencies Europe, Middle East, Africa: DVB-C Frequencies Europe, Middle East, Africa: DVB-T Frequencies Iceland: DVB-T Frequencies

If configured for DVB-C, this step allows you to decide whether to scan each of the various scan band in the list.

� Installing default channel list

Here you can decide whether to install the default channel lists or not.

Page 25

Vu User Manual

� Selecting Scan Mode - Automatic Scan /

Manual Scan

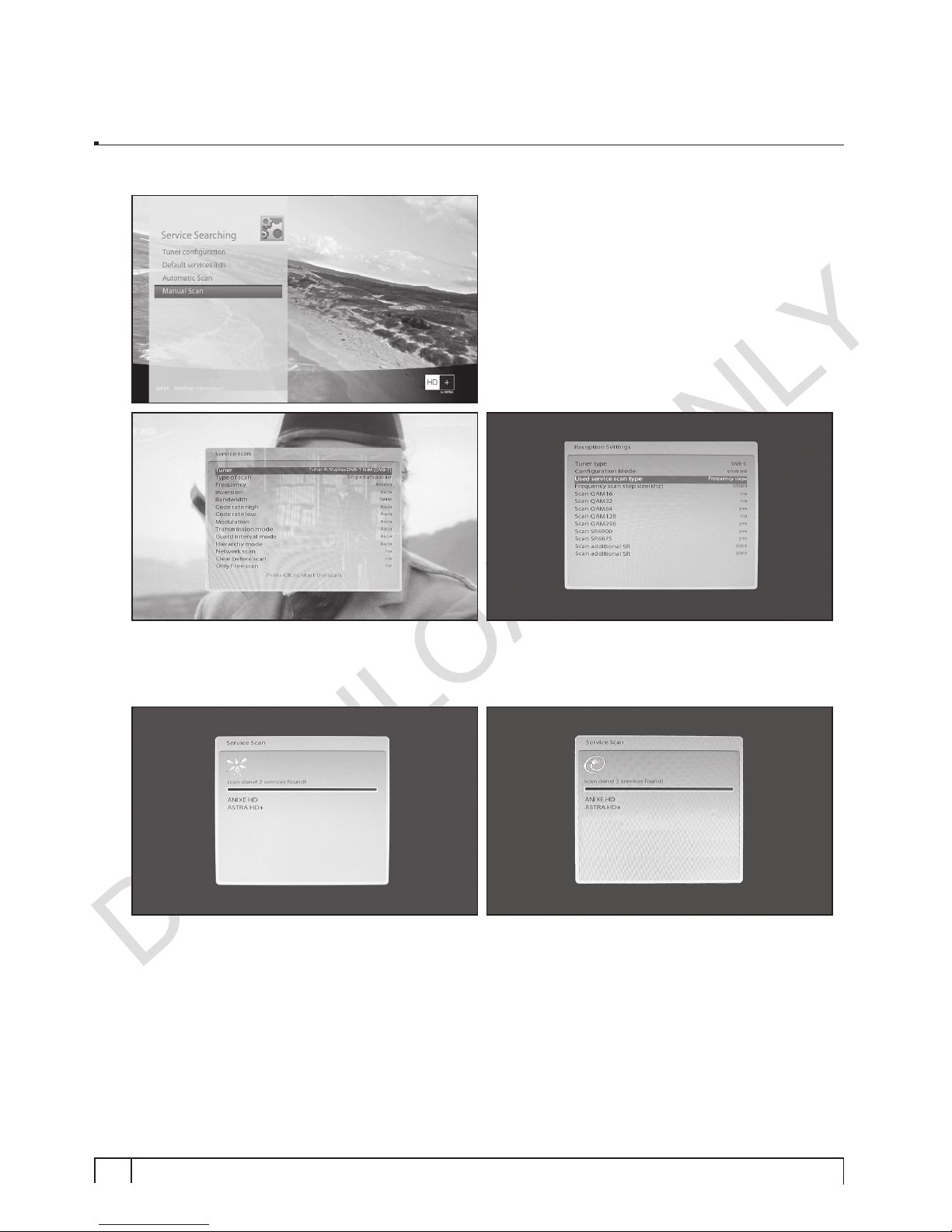

Channel scanning is possible either in Automatic Scan mode or Manual Scan mode.

� Automatic Scan

If you choose Automatic Scan, you will be asked whether to erase all the existing channels before scaninig.

� Manual Scan

If you choose Manual Scan for DVB-T or C, you can also select the type of scan between Complete and Single Transponder.

Press

to initiate the channel scan.

Page 26

Vu :

Your Smart Linux TV Player

Vu User Manual

� Channel Scanning

The scanned channels will be displayed if the previous configurations have been done correctly.

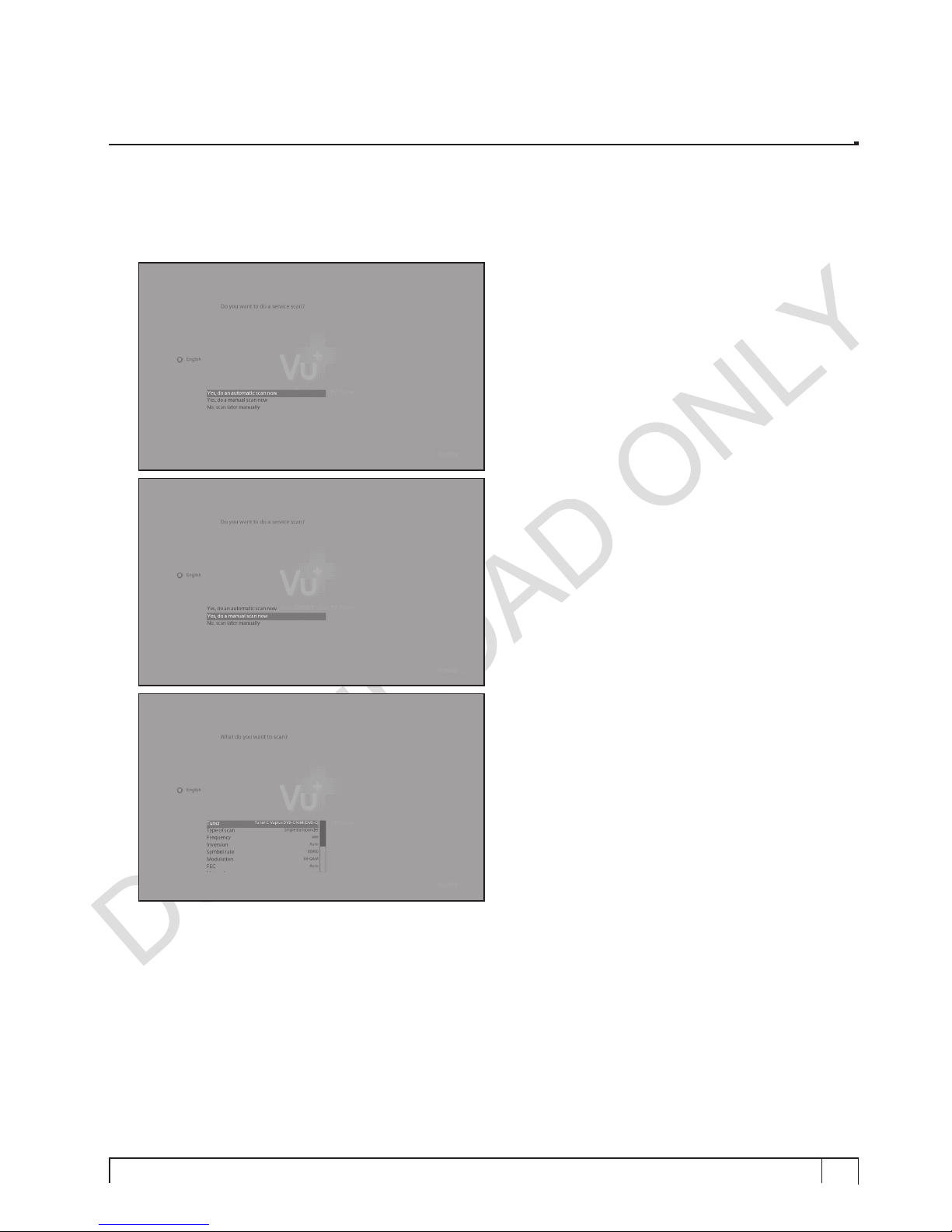

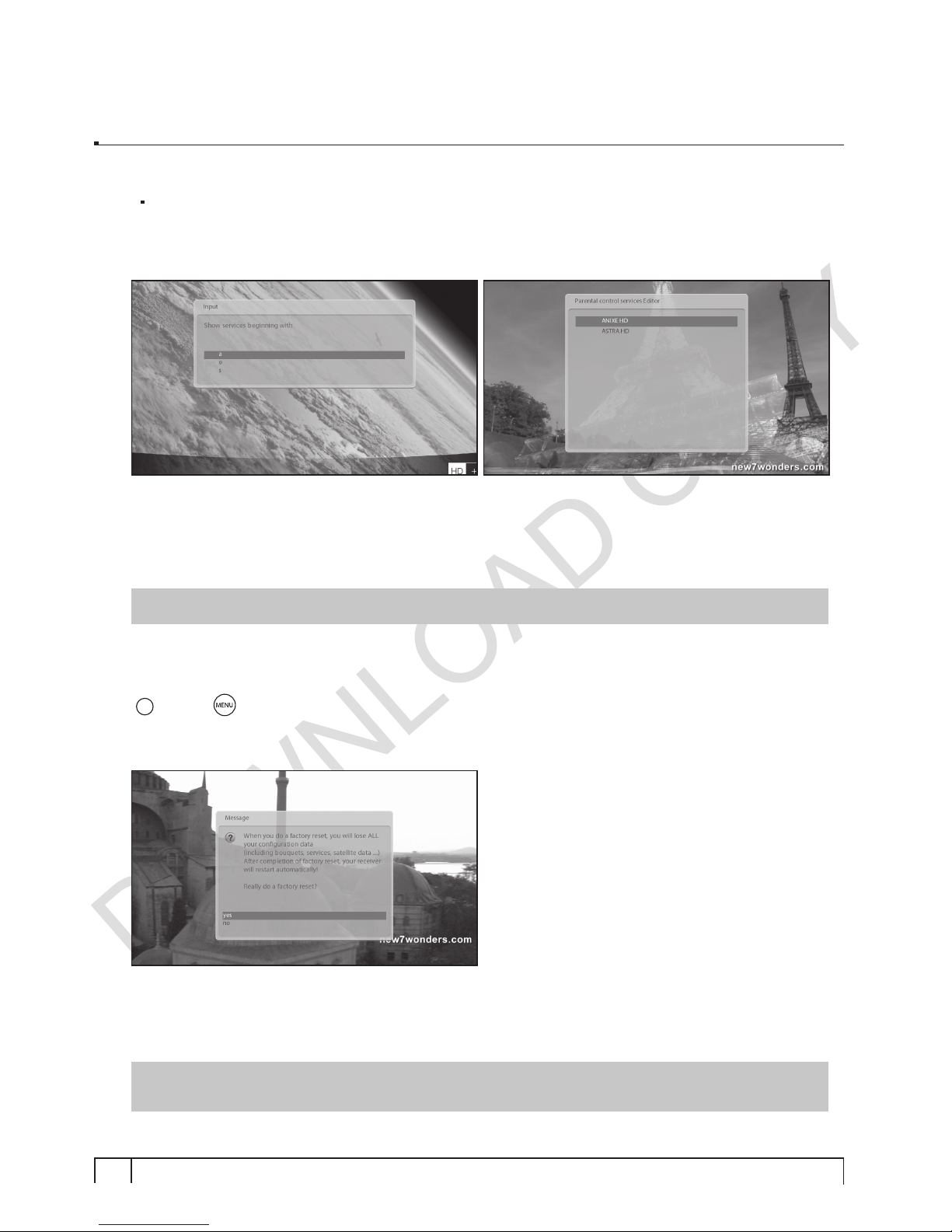

Step 3. Installing Default Satellite List

Here you will be asked whether you want to install the default satellite lists. Press

and the following

image appears:

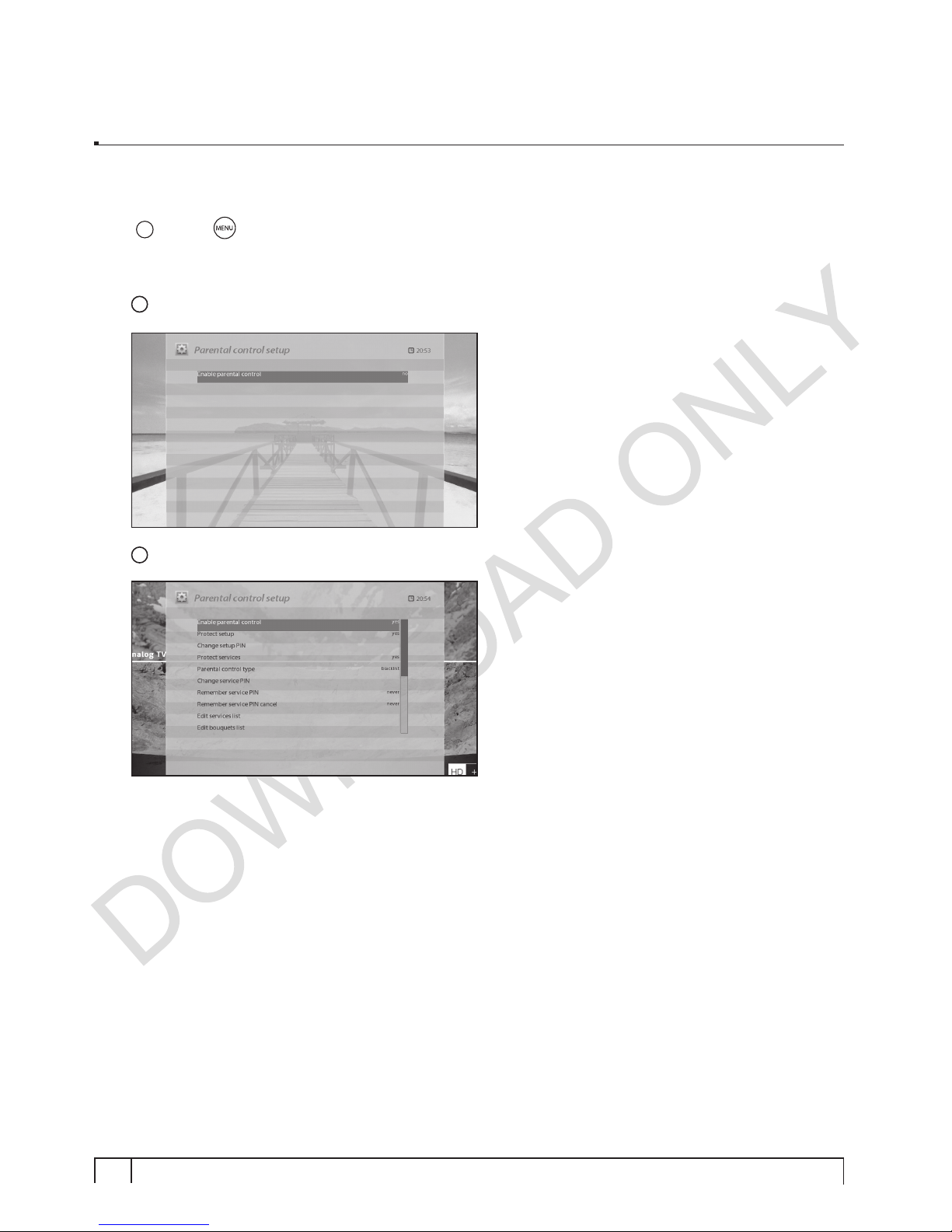

Step 4. Parental Control Option

Here you can choose whether to enable the parental control option. If you press OK, you will be asked to enter PIN number

Page 27

Vu User Manual

1. Switching Channel

[

: Press

/ , CHANNEL / key / Press / to move to the next channels]

Vu+ offers various channel zapping methods. You can switch the current channel by pressing

•

UP/DOWN

key

If you press UP or

DOWN

key,

Channel Selection

menu appears. You can move up and down to select the channel that

you want to tune into.

•

LEFT/RIGHT

key

If you press

LEFT

RIGHT

key, the previous or

subsequent channel of the current channel is tuned in.

•

CHANNEL +/-

key

If you press CHANNEL + or – key, this will call up the

Channel Selection

menu.

•

Channel Number

Enter a channel number, and it will instantly tune into the channel.

NOTE : If channel change is not done, it is probably because the selected channel is encrypted and you do not have a proper smartcard.

2. Volume Control

[

: Press VOLUME

/ key]

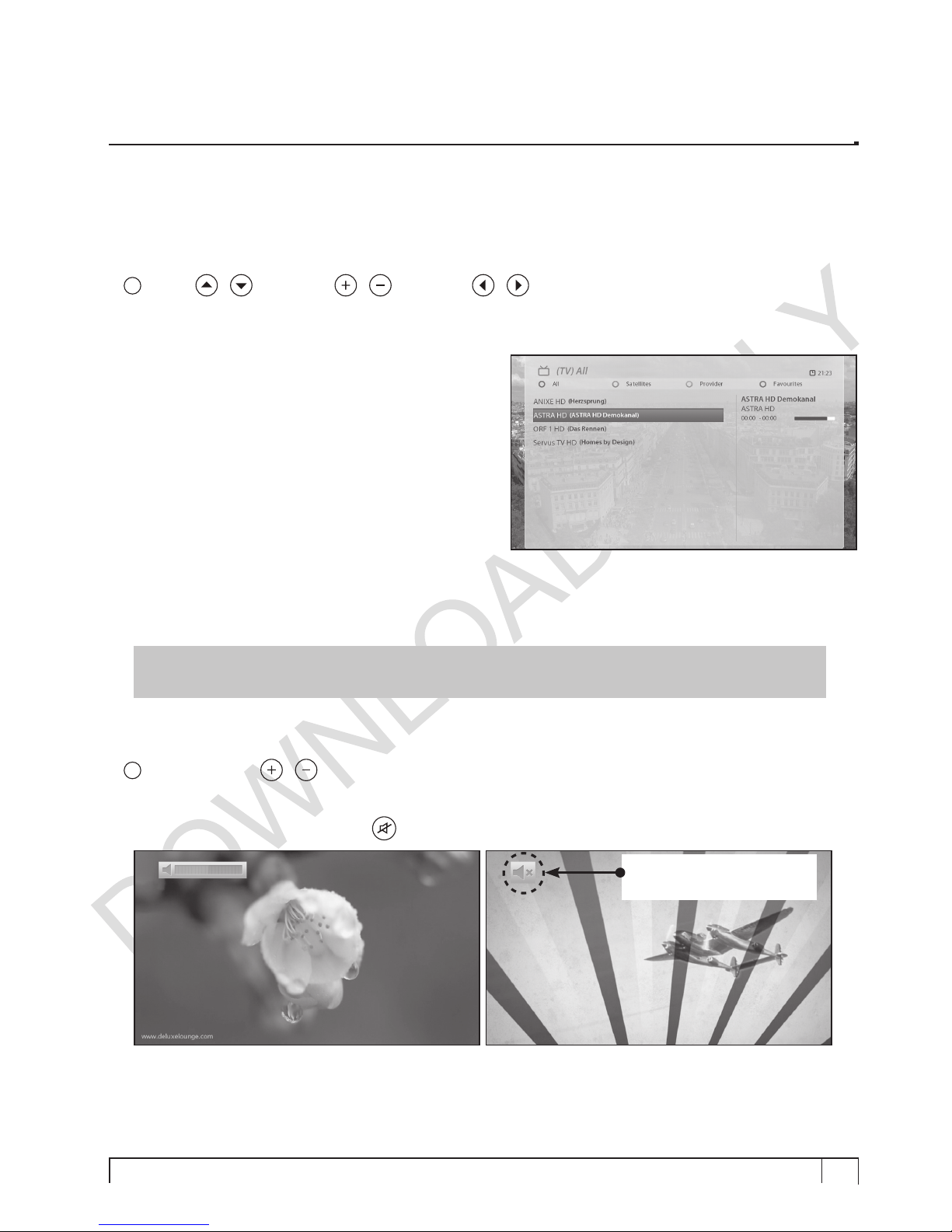

You can adjust the audio volume by pressing

VOLUME +/-

key. You can also mute or unmute the audio

temporarily by pressing

MUTE

key (

)

Mute icon is on when the audio is muted.

III. Basic Operations

Page 28

Vu :

Your Smart Linux TV Player

Vu User Manual

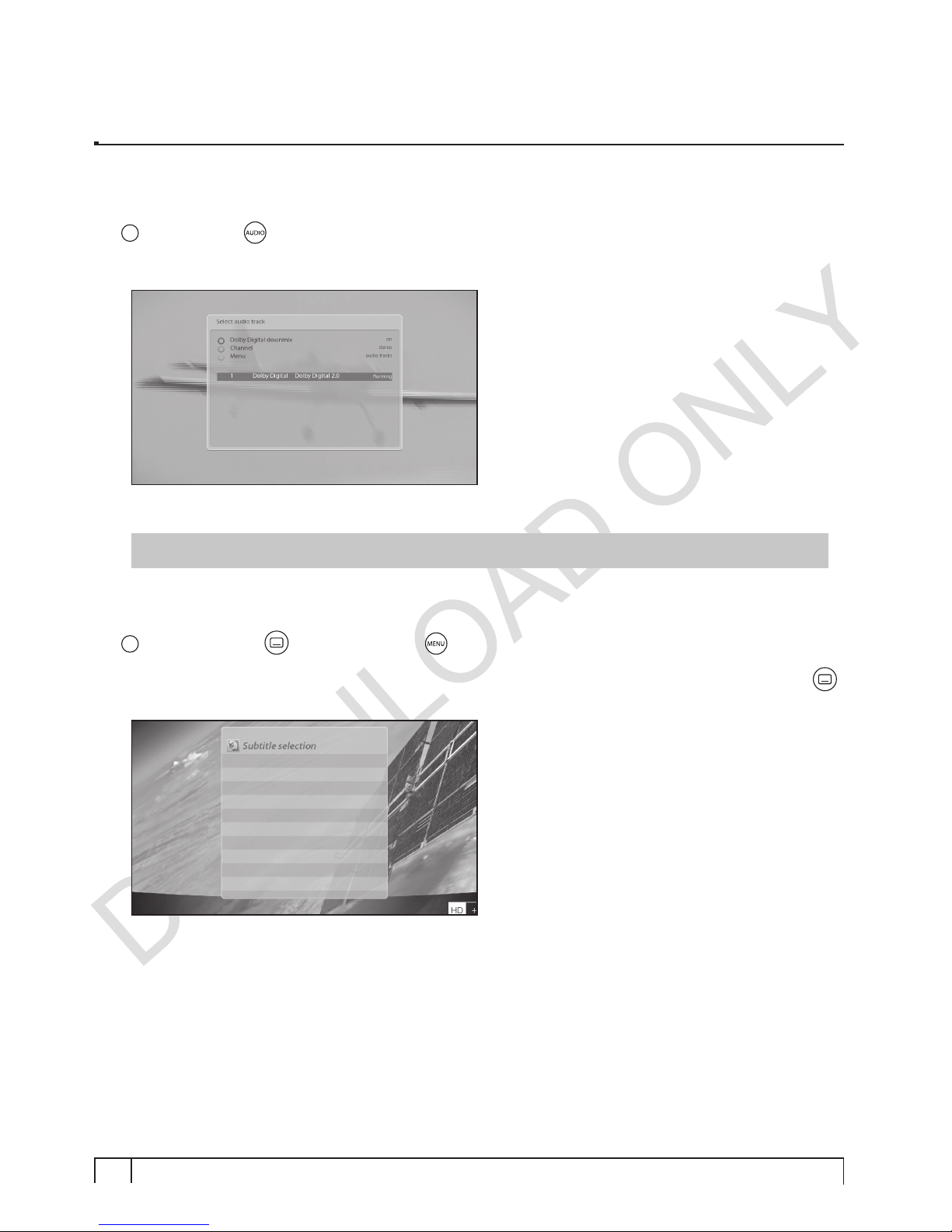

3. Selecting Audio Track

[

: Press AUDIO

key]

You can check what audio tracks are available to choose by pressing

AUDIO

key.

By using

UP/DOWN

key and Color key, you can select a different audio language or Stereo sound.

NOTE : Available options on this menu will differ depending on the service.

4. Subtitle

[

: Press SUBTITLE

key or Press MENU > Subtitle]

You can view the subtitle of the current program if the program provides the subtitle. Press

SUBTITLE

(

)

key and

Subtitle selection

menu appears as below.

Available subtitles, if any, will display. By using

UP/DOWN

navigate the list to select a subtitle that you want

to play and press OK to activate it.

Page 29

Vu User Manual

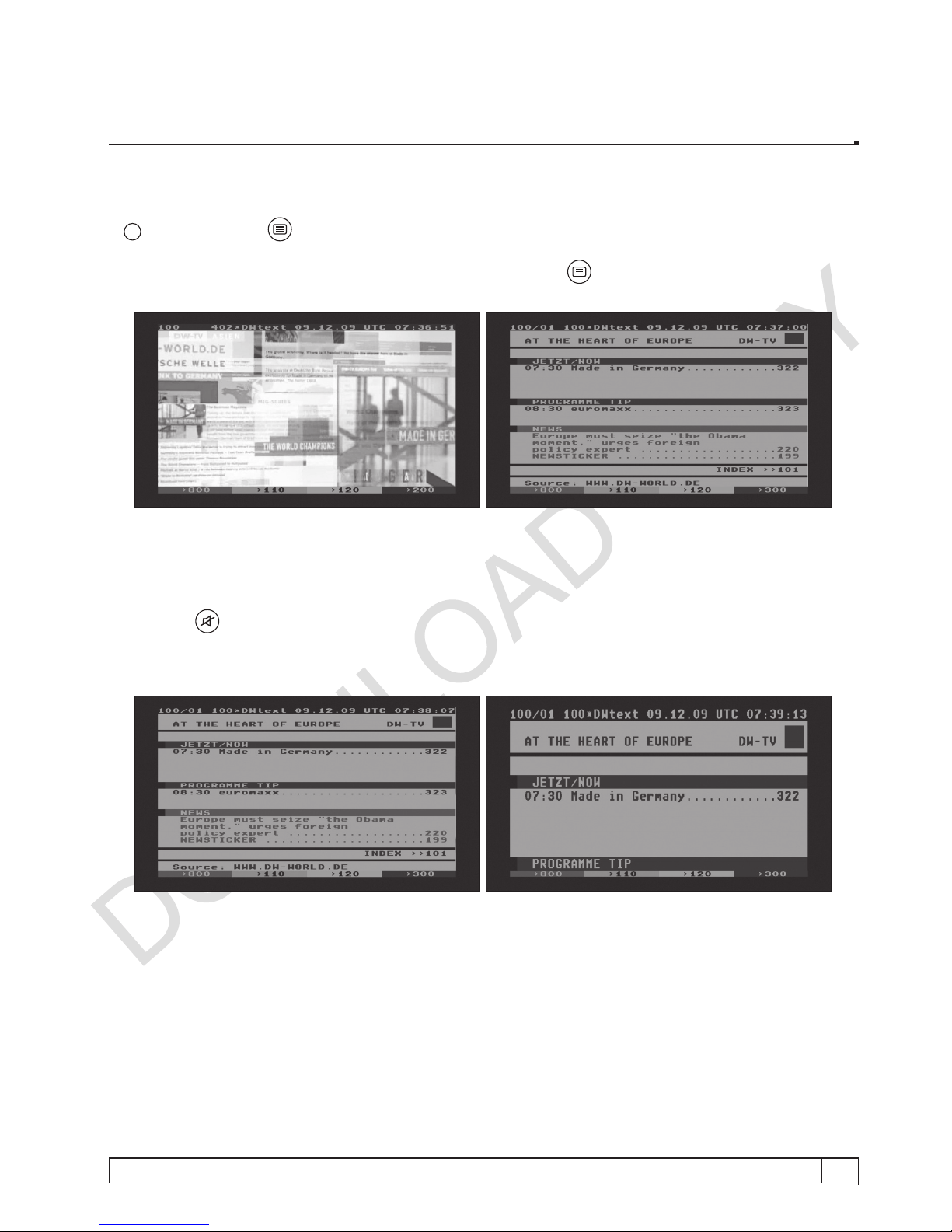

5. Teletext

[i : Press TELETEXT key]

You can call up Teletext information by pressing

TELETEXT

key (

). It will take some time to load all the

information.

You can navigate through the Teletext page by using

UP/DOWN

key to select a text page. Also, just simply

enter the page number that you want to read.

•

MUTE

key Once you activated Teletext, you can toggle between the live mode and the Teletext page by pressing MUTE (

) key instantly. In this case, loading of the Teletext page takes place instantly.

•

VOLUME +

If you want to enlarge the page, press

VOLUME +

key.

Page 30

Vu :

Your Smart Linux TV Player

Vu User Manual

• VOLUME -

If you want to reduce the page size, press

VOLUME –

key.

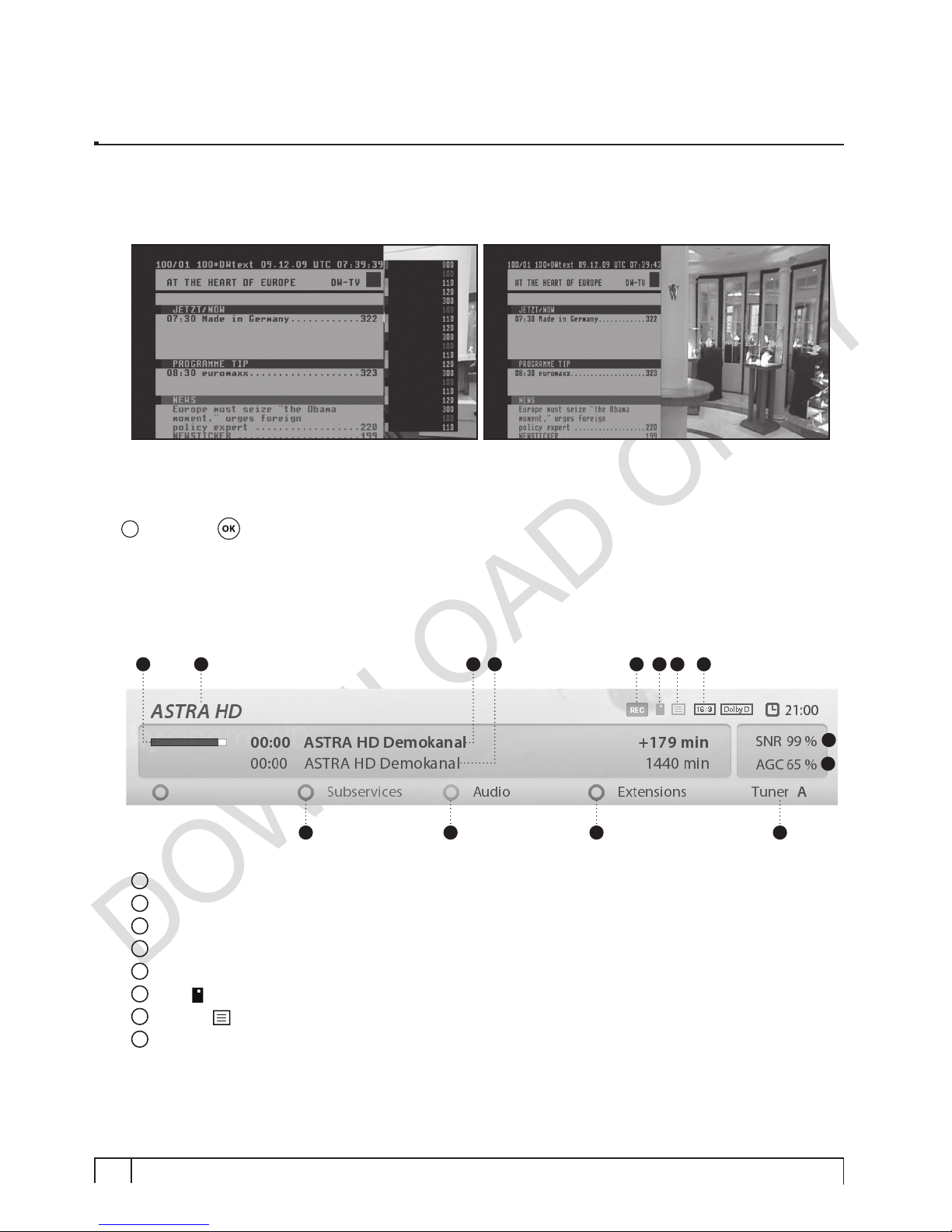

6. Program Information (Infobar)

[i : Press OK key]

Whenever you change the channel, infobar is always displayed for 5 seconds (default setting). Infobar is designed to provide you comprehensive information of the channel that you are currently watching.

• Press OK to call up infobar.

Remaining time of the current program

The name of the current channel

The current program

The next program

REC

: Highlighted in red when recording is in progress.

CAS

(

) : Encrypted program

Teletext

(

) : Highlighted when the program provides Teletext.

16:9

: Screen ratio

3 42 5 6 7 8

11 12 13 14

Page 31

Vu User Manual

SNR

(Signal to Noise Ratio) : Signal Level

AGC

(Automatic Gain Control) : Signal Strength

GREEN

: to call up Subservices, if available

Audio

: to display available audio tracks.

Extensions

: to call up a Picture in Picutre.

: The tuner being used for the current channel.

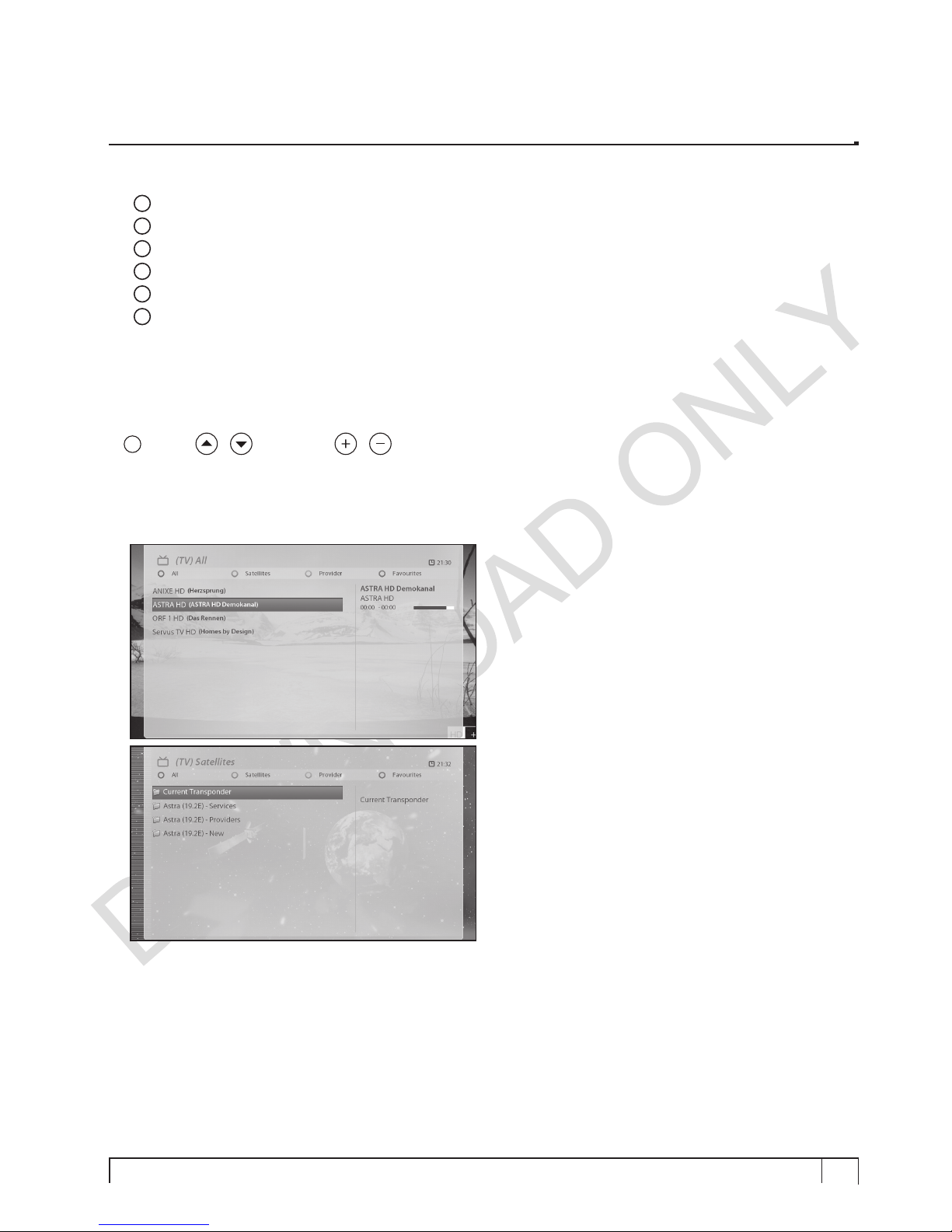

7. Channel List (Channel Selection Menu)

[

: Press

/ , CHANNEL / key]

If press

UP/DOWN

key, this will activate

Channel Selection

Menu as below.

Four types of the channel lists are available to help you manage your channel selection.

•

RED

displays the list of all scanned channels.

•

GREEN

displays the list of all scanned satellites. Per each satellite, channels are arranged according to

Services, Provider

, and

New

Page 32

Vu :

Your Smart Linux TV Player

Vu User Manual

•

YELLOW

displays the list of providers.

•

BLUE

displays the list of your favorite channels.

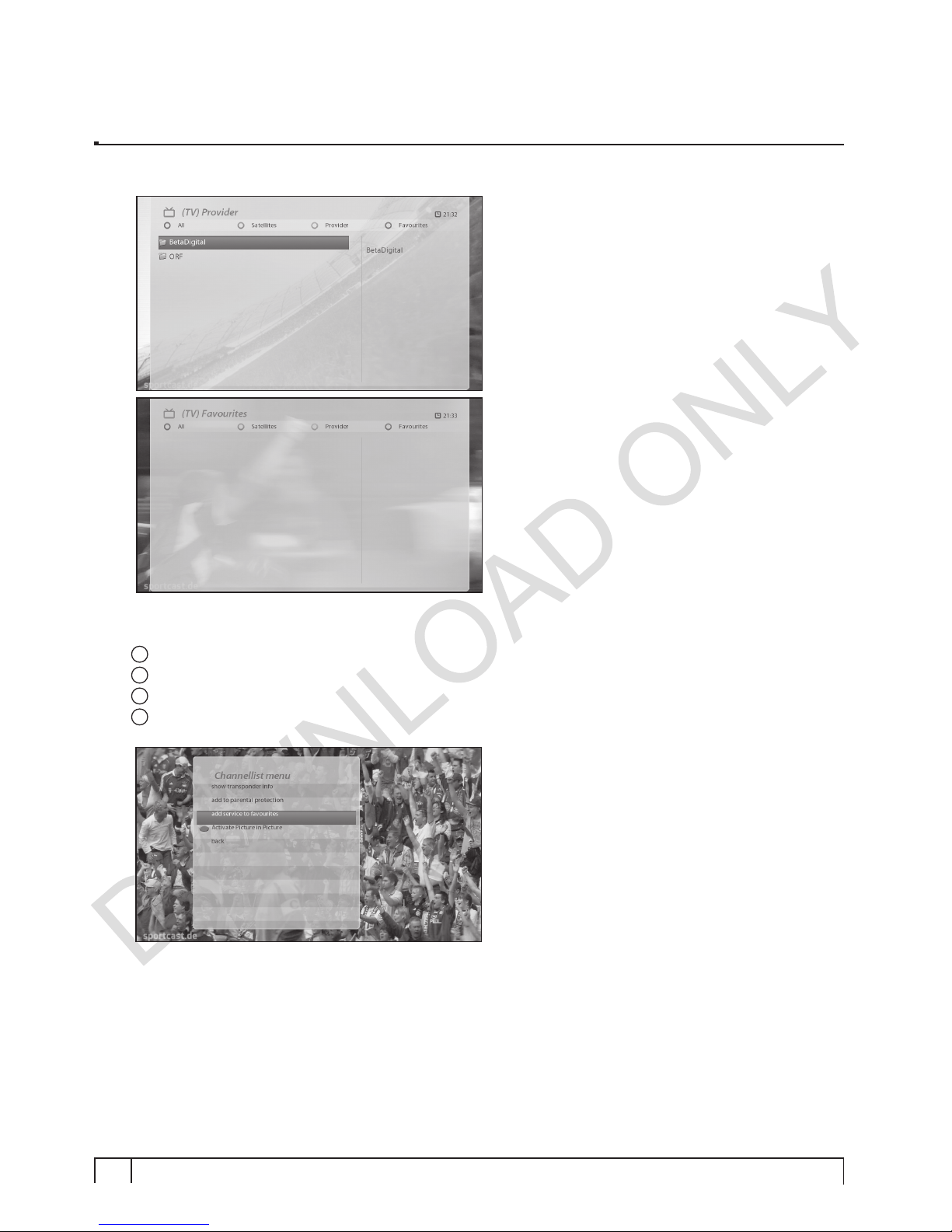

In order for you to add certain channels to this

Favourites

list,

Call up the

Channel Selection

list by pressing UP or

DOWN

key.

Go to the

All

list by pressing

RED

Select the channel that you want to add to the

Favourites

list.

Press

key on the selected channel and the following menu appears.

Page 33

Vu User Manual

Choose “

add service to favourites

” and press OK.

Go to the

Favourites

list by pressing

BLUE

to confirm that the selected channel is correctly included

in the list.

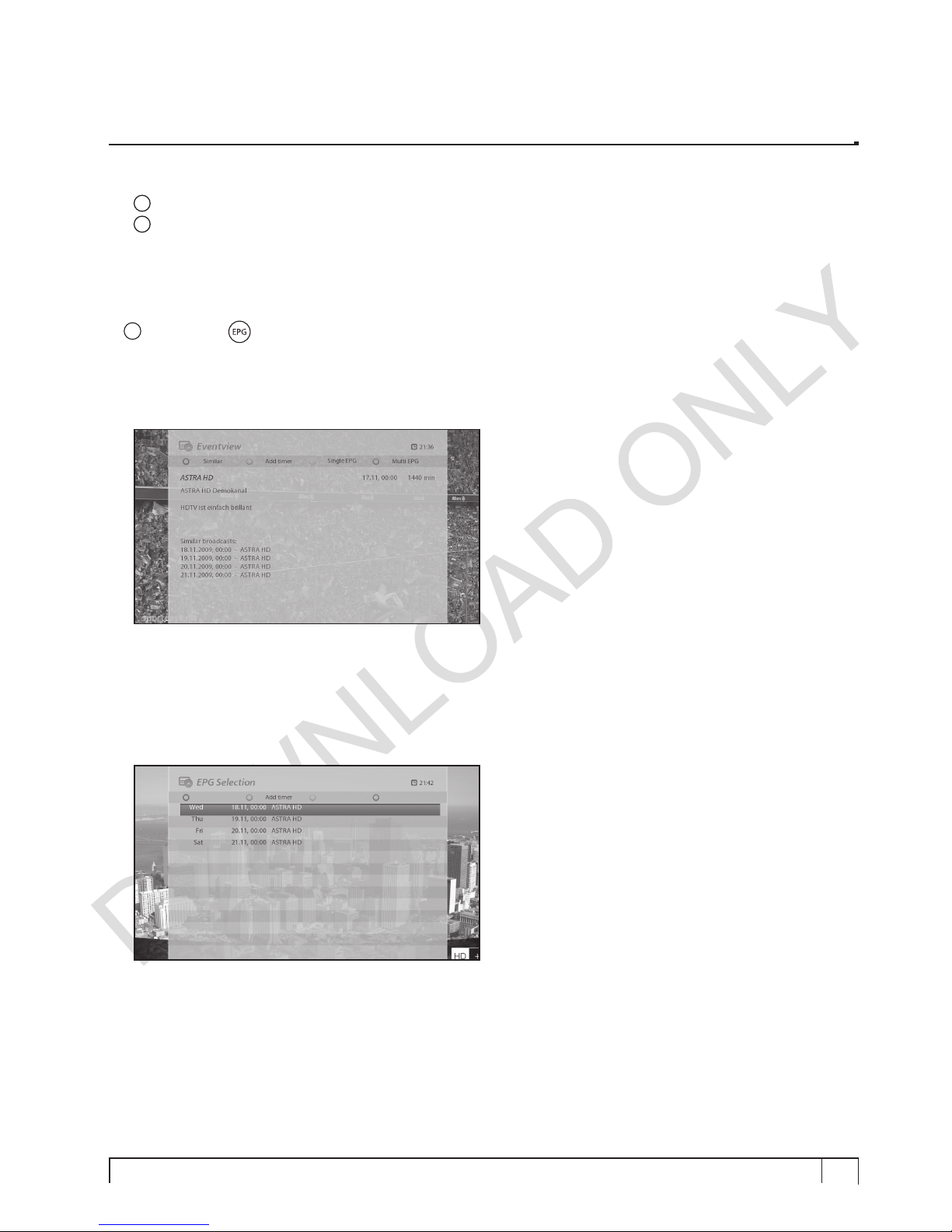

8. Electronic Program Guide (Event View)

[i : Press EPG key]

The Electronic Program Guide (EPG) displays the program information of each channel, if provided, in time and date order. You can view the detailed program information by pressing

EPG

key and the following

menu,

Eventview

appears.

Detailed information of the current channel will be displayed on EPG. On this menu, three options are provided.

� RED (Similar)

This option helps you find similar programs. If there are one or more programs that are similar to the current program,

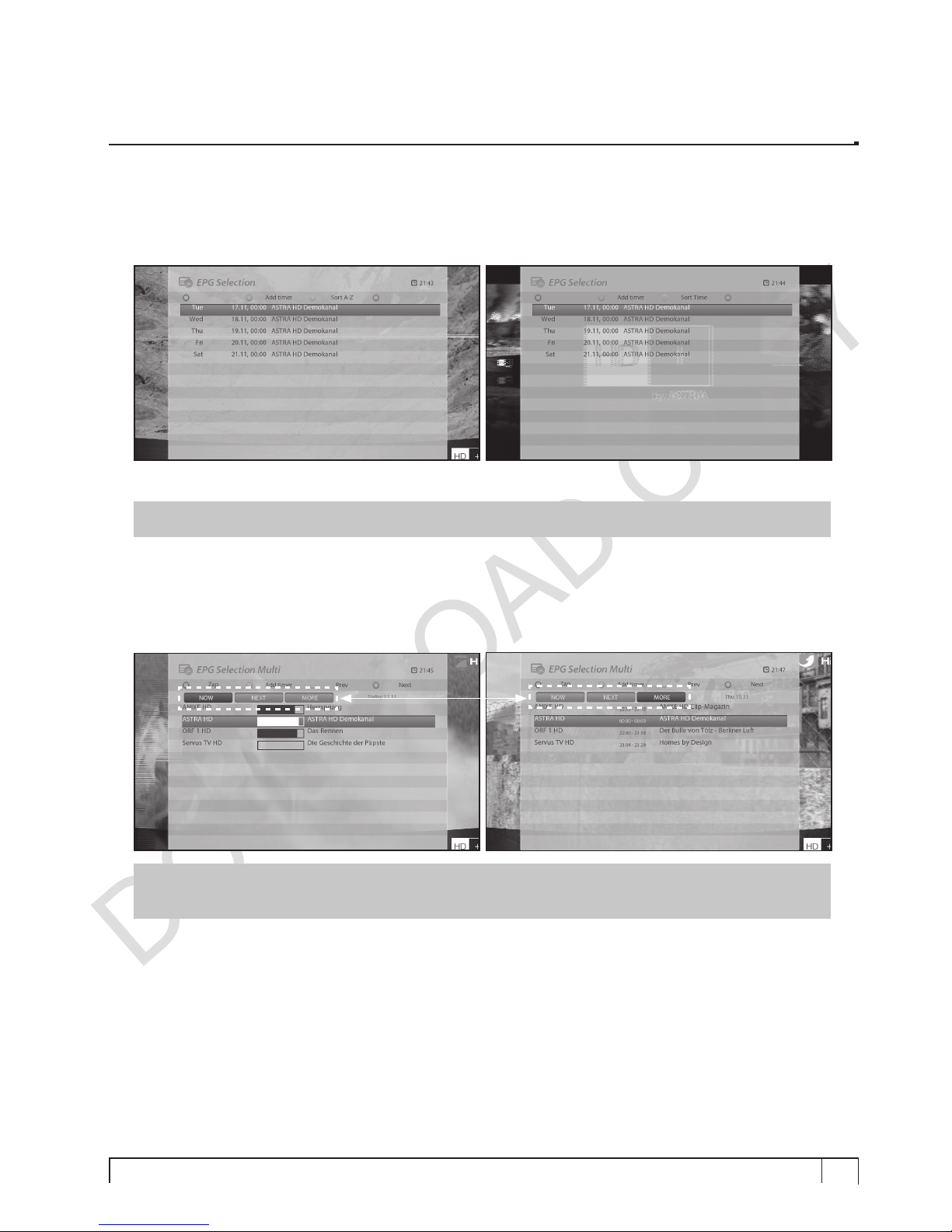

EPG Selection

window displays them as below.

Page 34

Vu :

Your Smart Linux TV Player

Vu User Manual

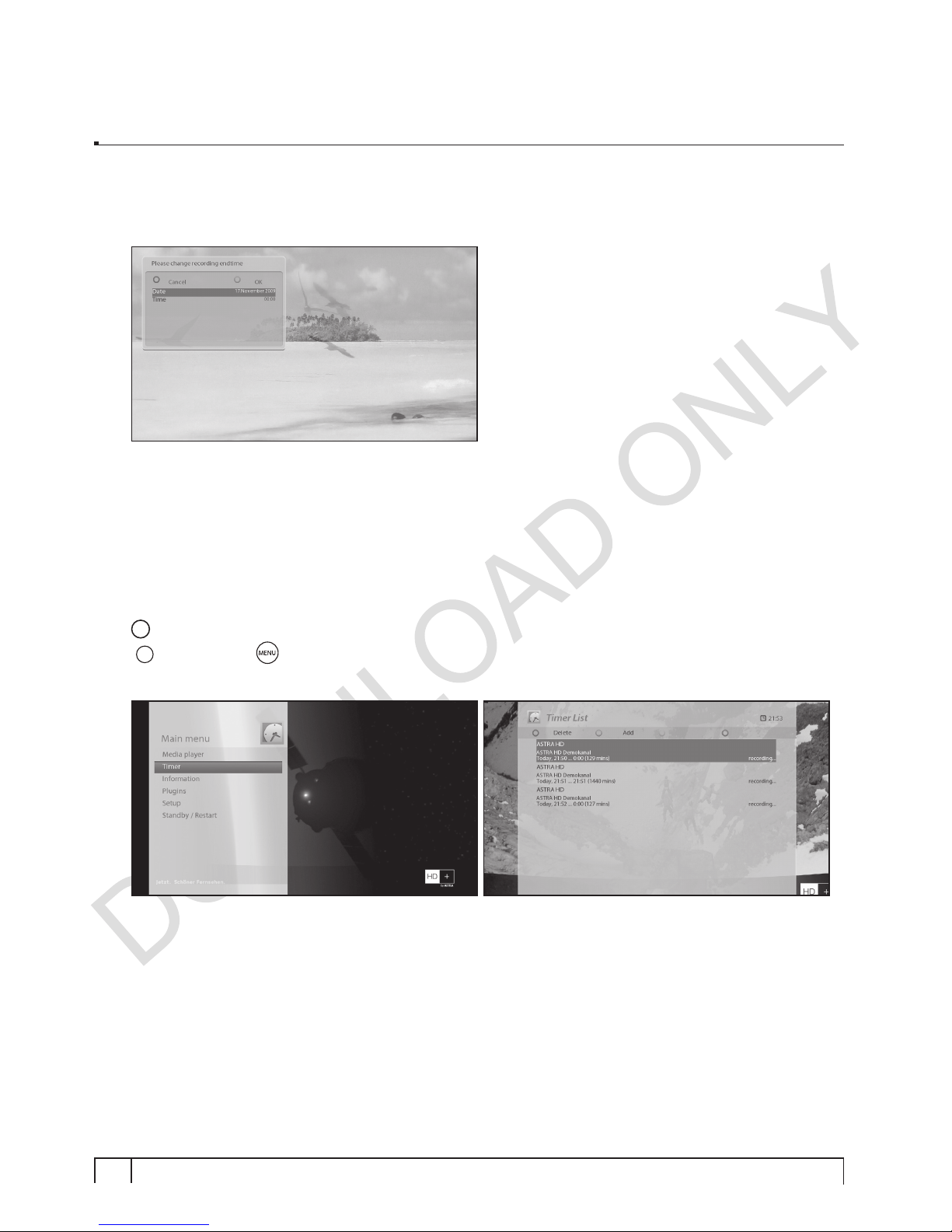

� GREEN (Add Timer)

If you press

GREEN

key,

Timer entry

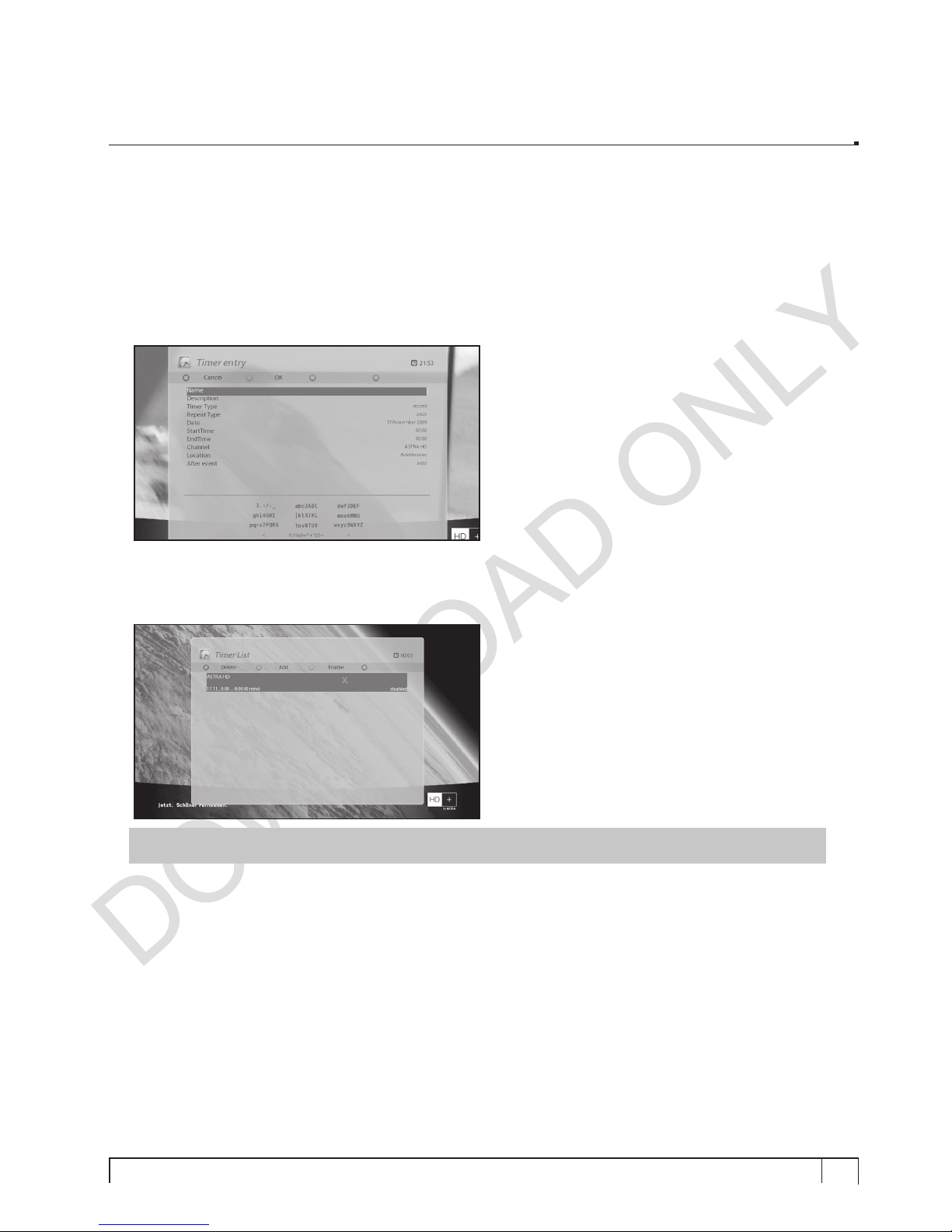

menu appears as below. This option is used to set up a new timer

for recording or zapping.

- Name

Displays the name of the selected program.

- Description

Displays a short description of the selected program.

- Timer Type

• Select

Zap

for channel tuning reservation.

•

Select

Record

for recording reservation.

- Repeat Type

• Select

Once

for one time of zapping or recording reservation.

•

Select

Repeated

for repeated zapping or recording reservation.

•

Repeats - This option is given only when you selected

"Repeated"

in the Repeat Type.

You can reserve zapping or recording per Daily / Weekly / Mon-Fri / User-defined.

- Date

Displays the current date. This entry is on when you selected

Once

, in the Repeat Type.

- Start Time

You can set the time to begin recording or zapping.

- End Time

You can set the time to end recording or zapping

- Channel

This entry allows you to change the channel. Press

LEFT/RIGHT

key to call up

Channel Selection

menu.

You can select a different channel from this list using this option. To return to

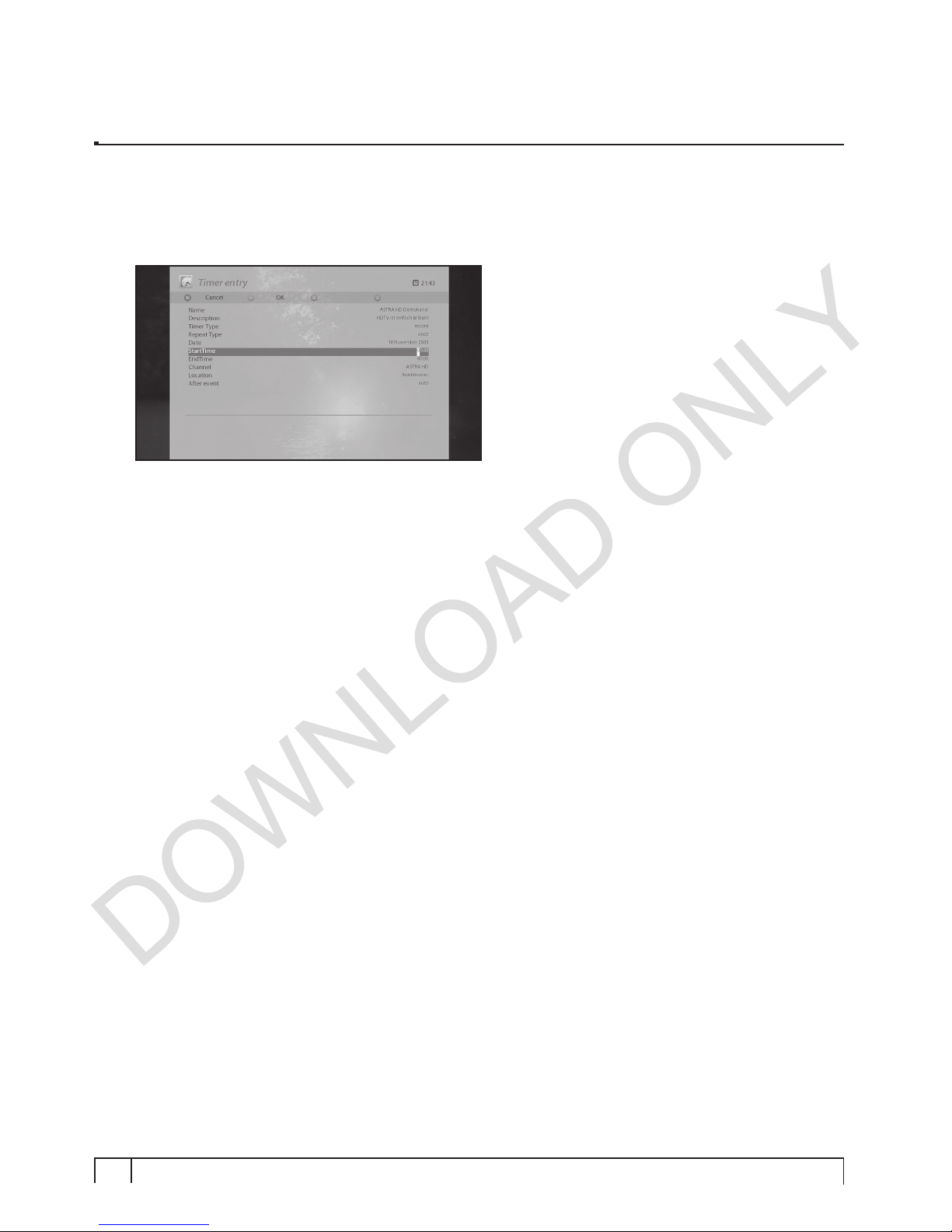

Timer entry

menu,

press

EXIT

- After event

This option allows you to choose from auto, do nothing, go to standby, and go to deep standby after the timer event is done.

Page 35

Vu User Manual

� YELLOW (Single EPG)

Press

YELLOW

while

Eventview

menu is on, to call up the program event schedules of the selected

channel.

In this state, you can sort the list according to A-Z order or Time by pressing

YELLOW

NOTE :

To add a timer for recording or zapping, press

GREEN.

� BLUE (Multi EPG)

Press

BLUE

to activate

EPG Selection Multi

window.

- You can move the previous or next program within the same channel by using

YELLOW

(Previous)/

BLUE

(Next).

NOTE :

Not all channels provide EPG information and thus in case of no EPG data, nothing will be

displayed except for the channel name.

- You can switch to another channel by using

UP/DOWN

key.

RED

key is used to instantly tune into the selected channel.

GREEN

key is used to reserve recording or zapping of the selected program.

Page 36

Vu :

Your Smart Linux TV Player

Vu User Manual

9. Timeshift

[i : Press or key]

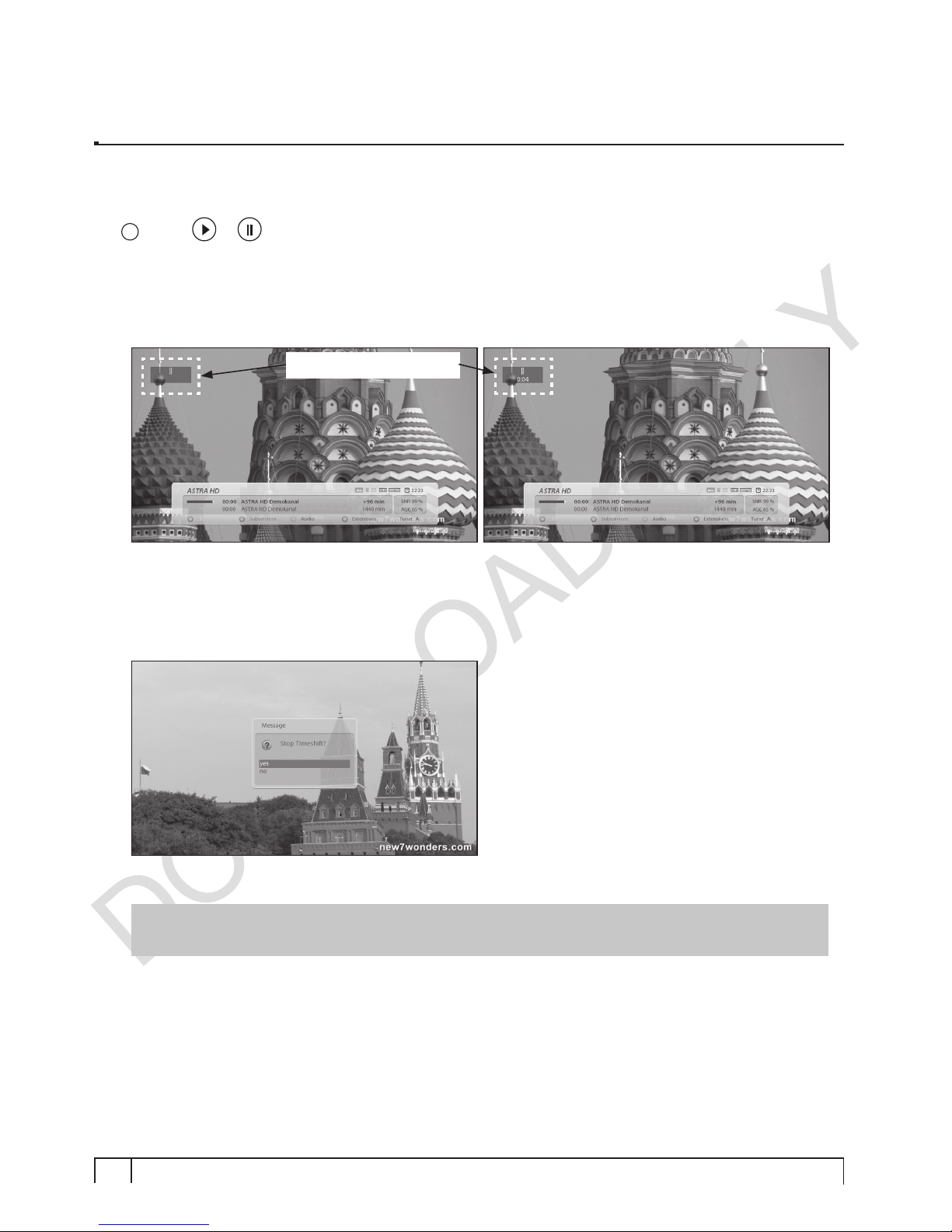

For your information, Timeshift is an instant recording of the current program that you are watching. Press

PLAY

PAUSE

key, it will instantly pause the audio and video of the program, and a small window

displaying elapsing time information will appear on the left upper side of the screen as below.

elapsing time information

In this state, Timeshifted recording is running until you press either

PLAY

PAUSE

again. You can restart

viewing of the program.

If you want to stop Timeshifted recording and to return to the live mode, press

STOP

key.

You will be asked of

Yes

or No to stop Timeshift.

NOTE :

What is different from normal recording is that Timeshifted recording is not meant to be

stored on HDD. If you stop Timeshift, you cannot replay the Timeshifted recording.

Page 37

Vu User Manual

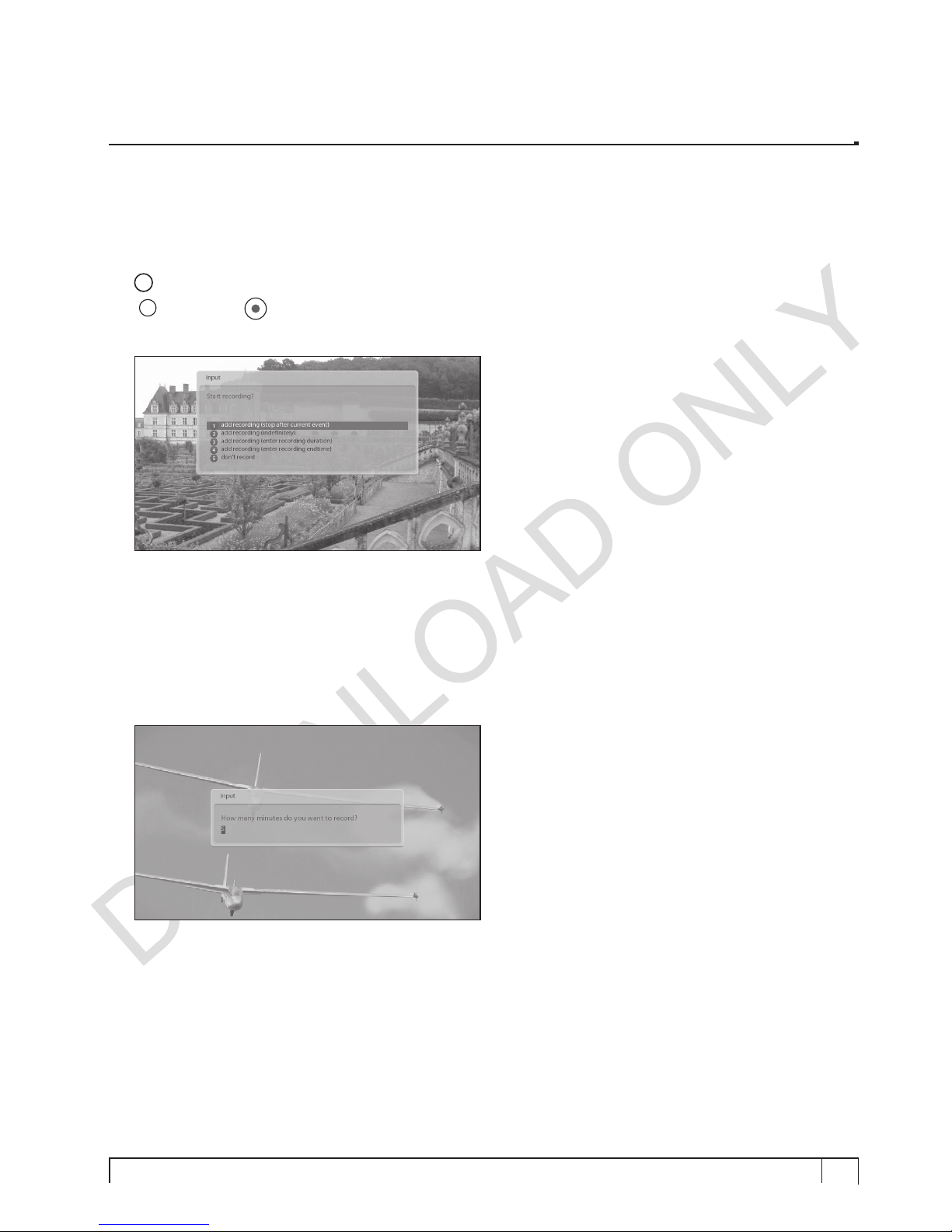

10. Recording

Vu+ Ultimo supports multiple recordings up to 8 recording at the same time.

Instant Recording

[

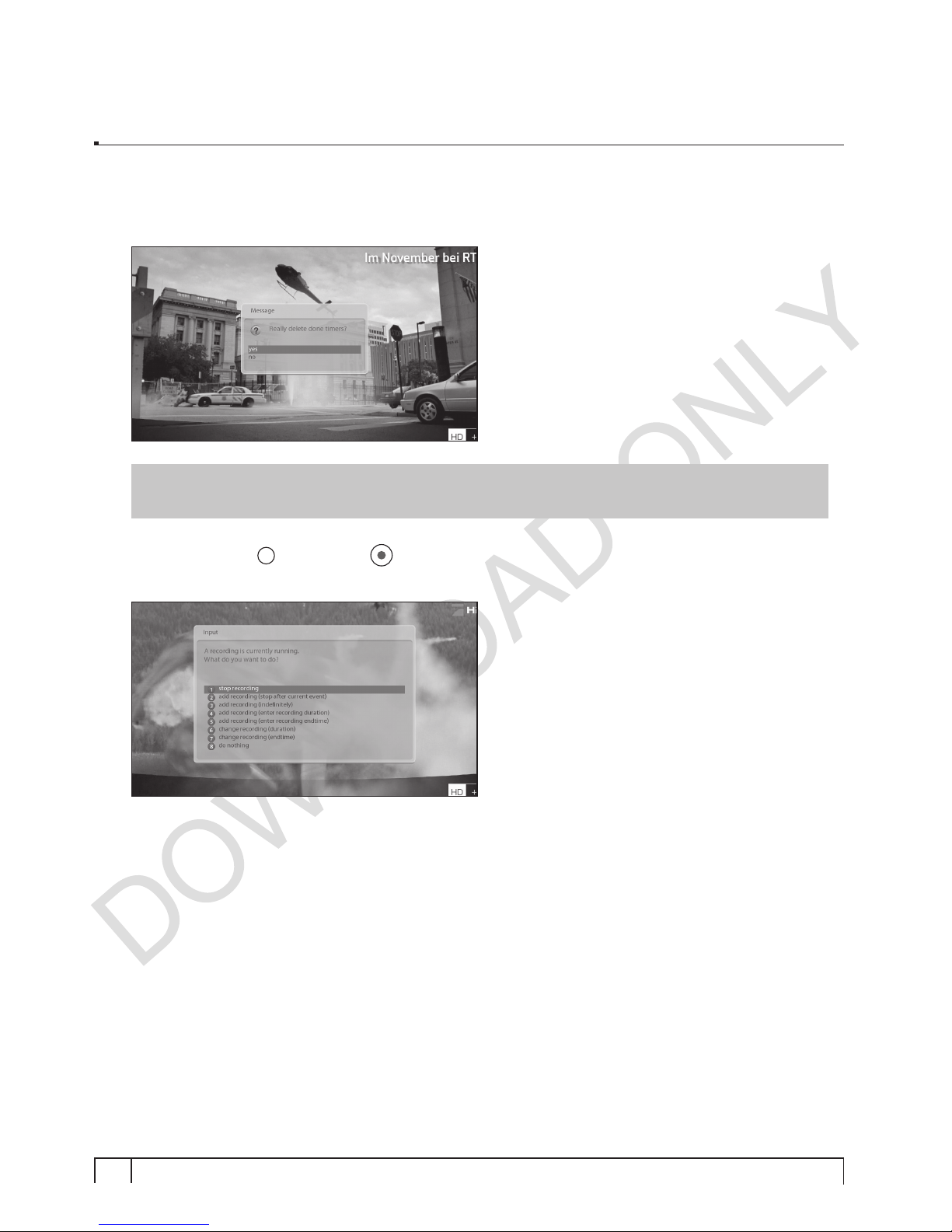

: Press REC

key]

Press

REC

key to start the recording of the current program.

Five recording options are given.

- Add recording (stop after current event)

This option is used when you want to end recording when the current program ends.

- Add recording (enter recording duration)

This option is used when you want to manually set the length of recording by entering a certain number as below:

Page 38

Vu :

Your Smart Linux TV Player

Vu User Manual

- Add recording (enter recording end time)

This option is used when you want to define a certain date and time when the recording is stopped.

- Add recording (indenitely)

This option is used when you want to keep recording running without a specific end time. Recording will continue unless you stop it.

- Don’t record

This option is used to exit from this menu without recording.

Recording by Timer

[

Press MENU

key > Select Timer]

You can manage recording process using

Timer List

menu. Press

and select

Timer

on the menu.

Page 39

Vu User Manual

In this menu, color keys are assigned for each different function.

- RED (Delete)

This option is used to delete a timer.

- GREEN (Add)

This option is used to add a timer.

- YELLOW (Disable)

This option is used to disable the timer and X mark will appear.

NOTE :

if you want to enable the disabled timer, press

YELLOW

again.

Page 40

Vu :

Your Smart Linux TV Player

Vu User Manual

- BLUE (Cleanup)

This option is used to remove those finished timers from the

Timer List

NOTE :

Make sure that the HDD on your Vu+ has enough free space available for recording. If the

free space on the HDD is not sufficient, recording might stop before the defined end time.

- Stop Recording [

: Press REC key > Select “Stop Recording”]

If you want to stop recording, press

REC

again while recording is running. Select

Stop Recording

Page 41

Vu User Manual

11. Recording Play

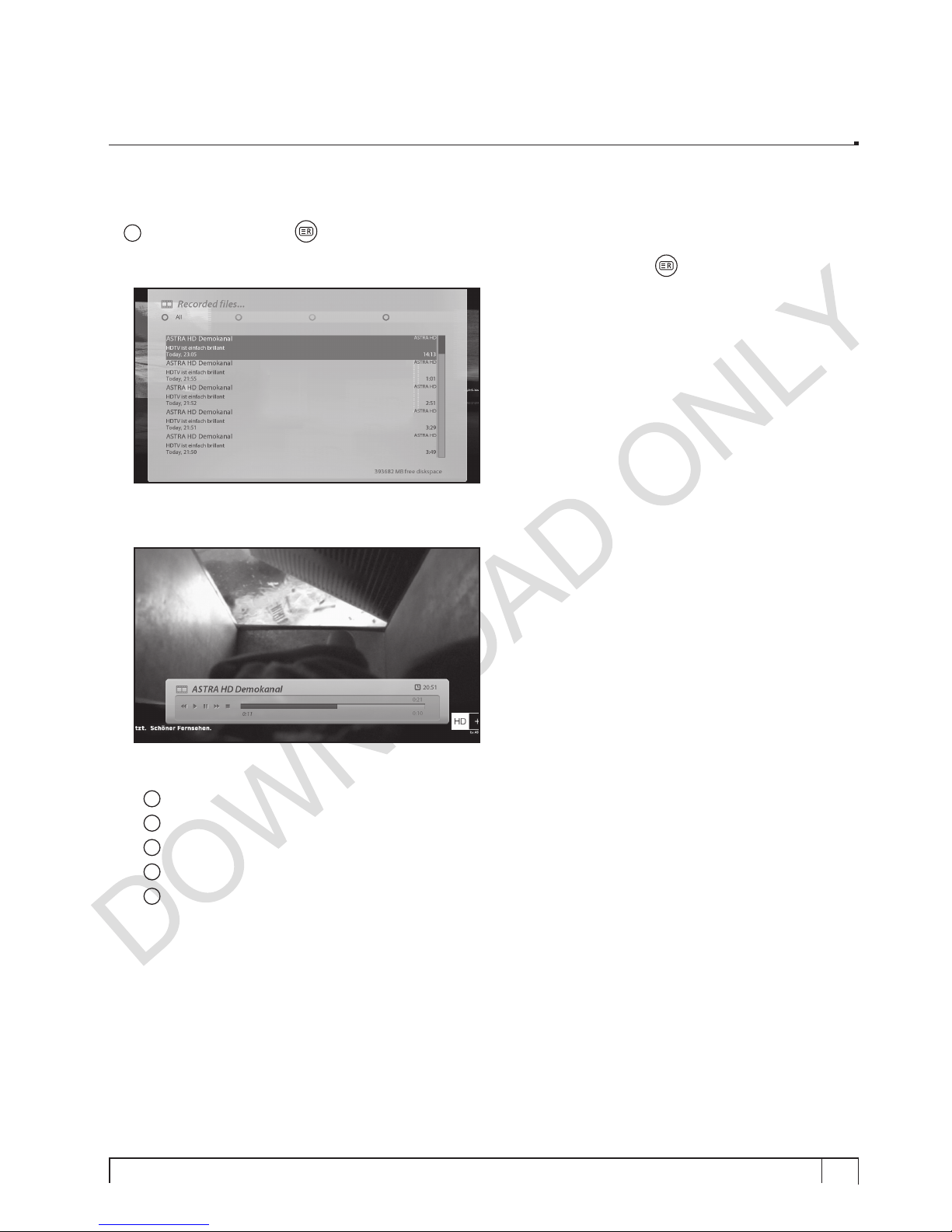

[i : Press Recording List key]

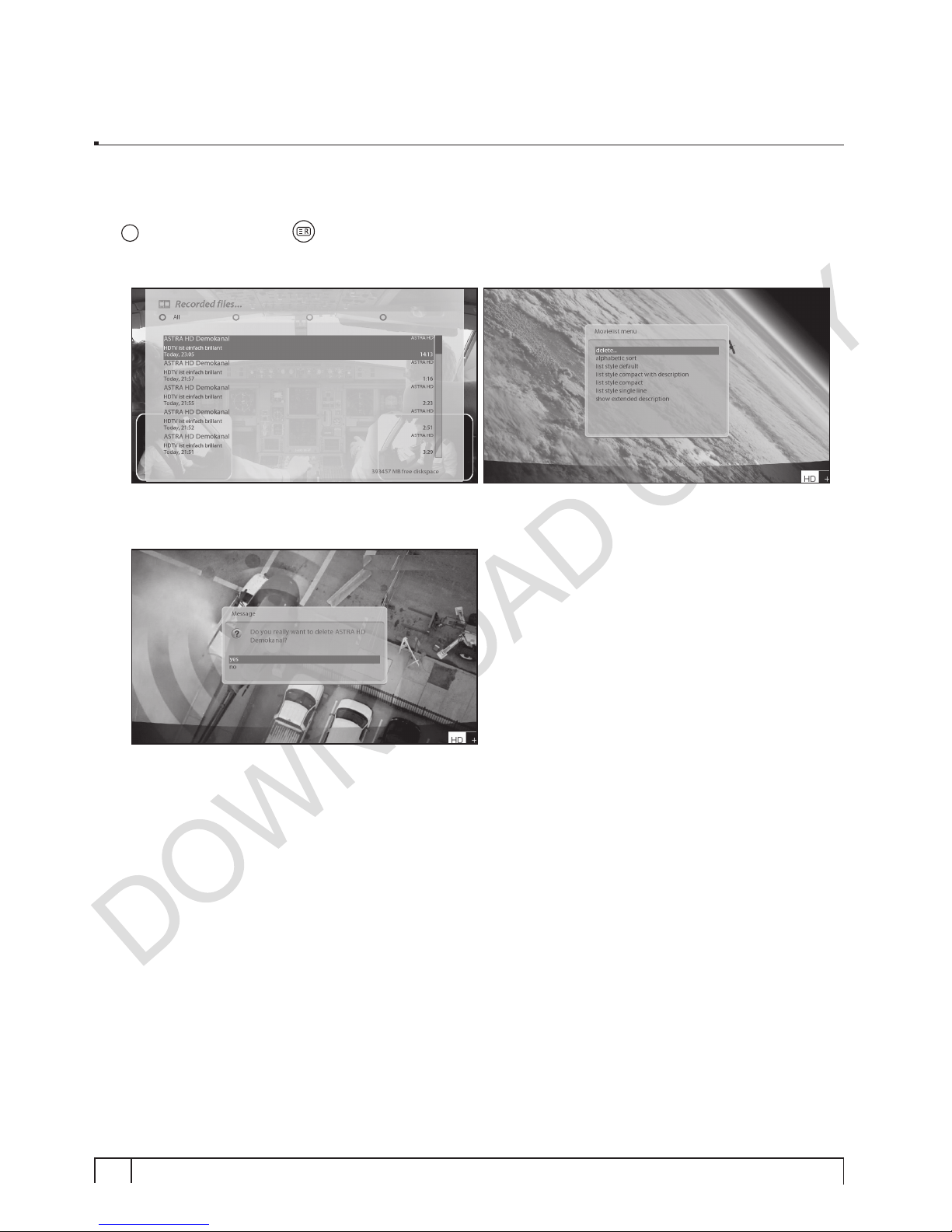

You can view recorded files on the

Recorded files

menu. Press

Recording List

(

) to activate this menu

Select the file that you want to play. It will instantly replay the file and display the recording infobar.

This infobar gives you the following information of the recording.

Title of the recording

Total duration of recording

Remaining time

Progressive bar

Elapsed time

Page 42

Vu :

Your Smart Linux TV Player

Vu User Manual

12. Managing Recording Files

[i : Press Recording List key > Press MENU key]

If you want to delete a recording file, press

key while

Recorded files

menu is on.

Select “

delete

” and confirm OK to delete.

Other than “

delete

”, in this menu, you have options in sorting and listing of the recording files.

- Sort by date

- List style default

- List style compact with description

- List style compact

- List style single line

- Hide extended description.

Page 43

Vu User Manual

13. Media Player

[i : MENU > Media Player]

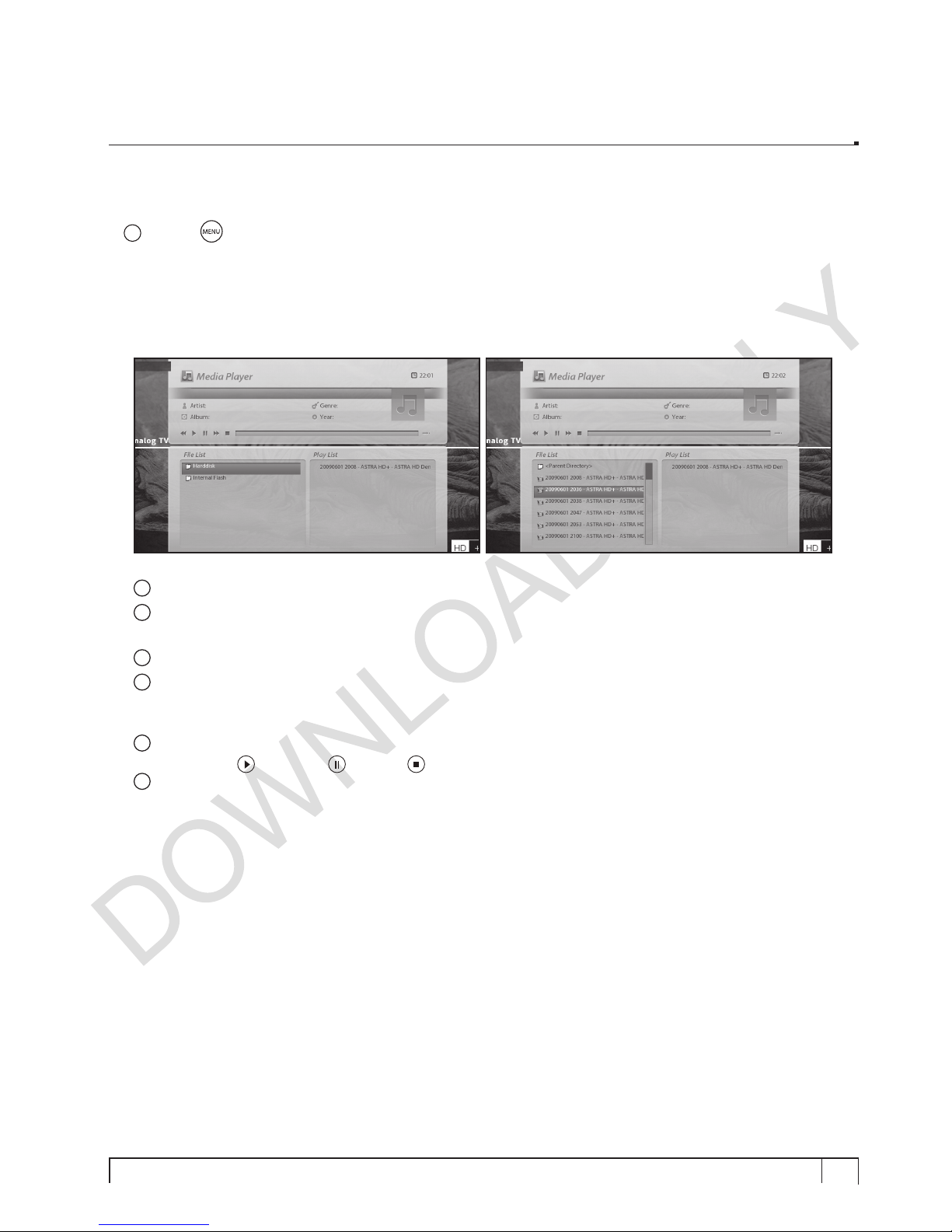

Vu+ is truly a multimedia receiver capable of playing media contents. Using Media Player, you can enjoy Music, Photo and Video contents stored on the internal HDD and/or an USB memory stick plugged into Vu+.

If you play

Media Player

, the following player will appear.

Go into any directory of the HDD or plugged USB.

Select a file in the

File List

to play and press

OK.

The selected file will be displayed in the

PlayList

* Supported formats are mainly JPG, MP3, AVI, etc.

In the same way, you can play the recording files stored on the HDD.

To move between

File List

and

Paly List

- Press

CH-

to go into

Play List

- Press

CH+

to go into

File List

To call up

Media Player

window

- Press

Play

(

),or

Pause

( ) or

Stop

( )

To play

- Select a file in the

Play List

and press OK.

Page 44

Vu :

Your Smart Linux TV Player

Vu User Manual

14. Plug-ins

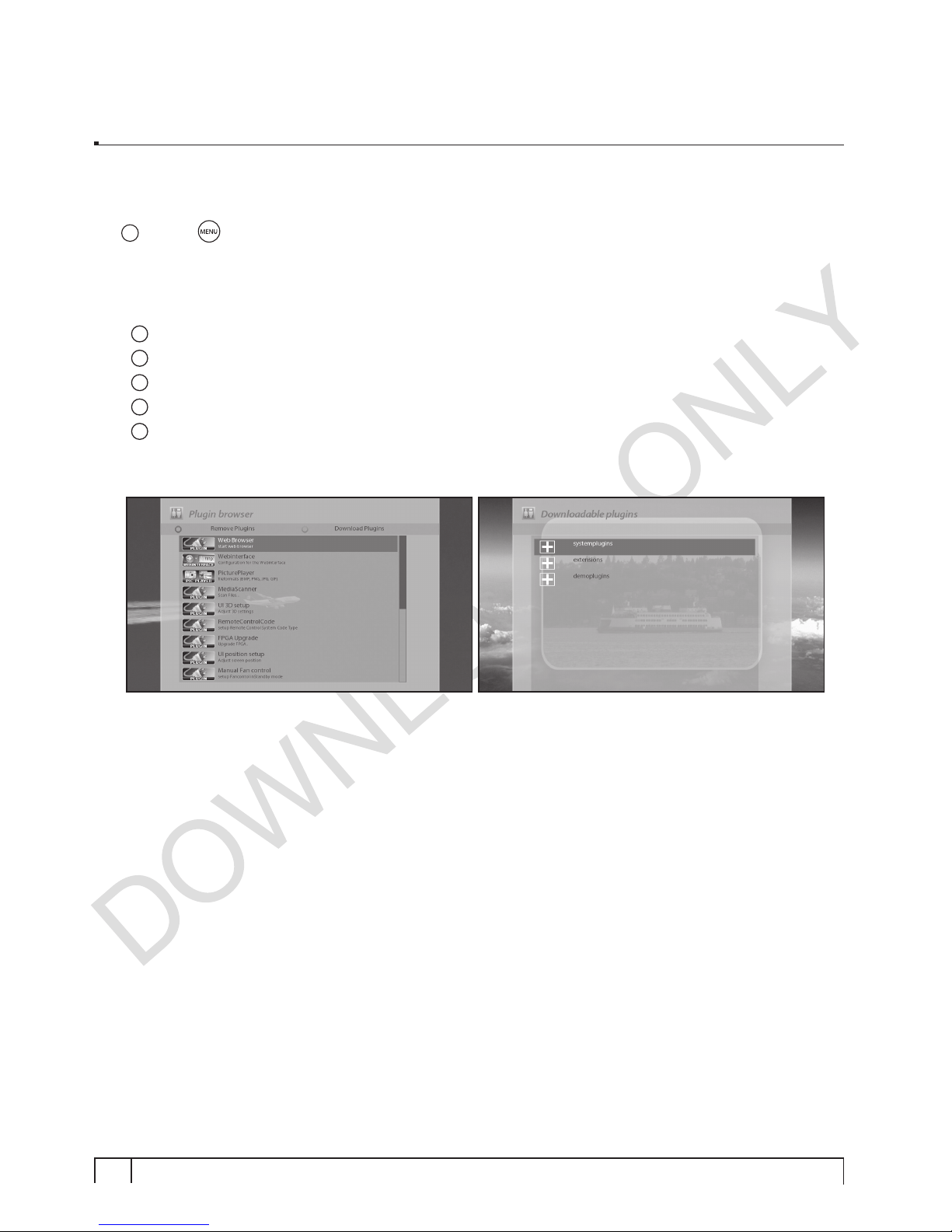

[i : MENU > Plugins]

Vu+ is integrated with standard 10/100Mbps Ethernet with RJ 45 connector. You are recommended to use this network capability of Vu+ to fully enjoy the system. If your Vu+’s network connection is established, you can directly download plug-ins from a designated website of Vu+.

Press

and select

Plugins

menu to active

Plugin browser

Press

GREEN

key to download a list of plug-ins available.

Once the download is done, a list of plug-ins will be displayed.

Select a plug-in to download.

You can check if the download is done properly on the Plugin browser

From this site, you can check available plug-ins to download as below.

Page 45

Vu User Manual

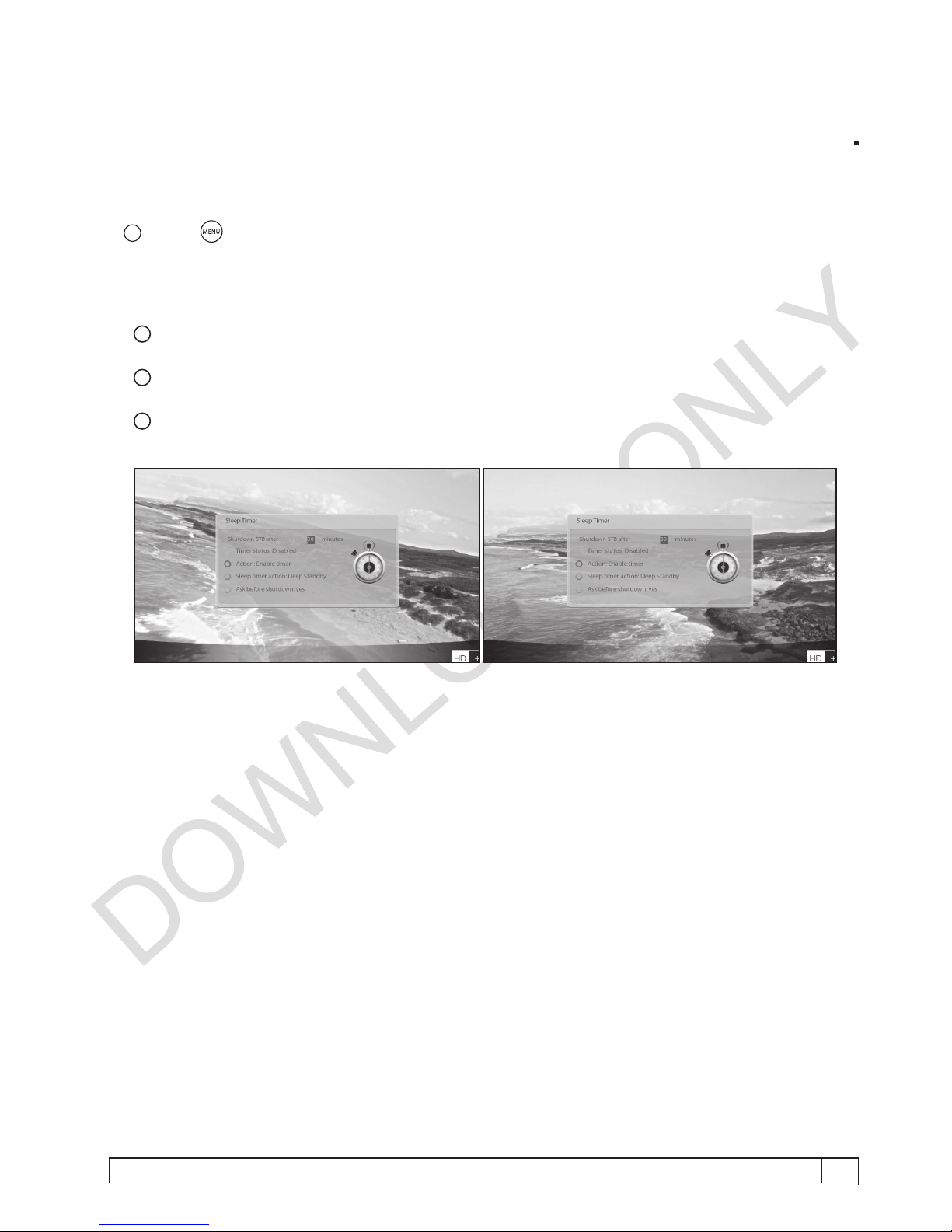

15. Sleep Timer

[i : MENU > Standby/ Restart > Sleep Timer]

You can set a specific time when your Vu+ goes into Standby mode or Deep Standby mode, using this menu. Three color keys are used to set up this sleep timer.

RED

This option is used to enable or disable

Sleep Timer

GREEN

This option is used to choose between

Standby mode

and

Deep Standby mode

YELLOW

This option is used to choose whether to be asked of confirmation before system shutdown.

Page 46

Vu :

Your Smart Linux TV Player

Vu User Manual

Vu+ is a very sophisticated device designed to allow users a variety of system setting options. You can finetune your Vu+ to be your OWN system to fit your taste. This chapter will guide you through the entire menu of system configuration.

Prior to System Configuration, please take a notice on the menu structure of Vu+ first.

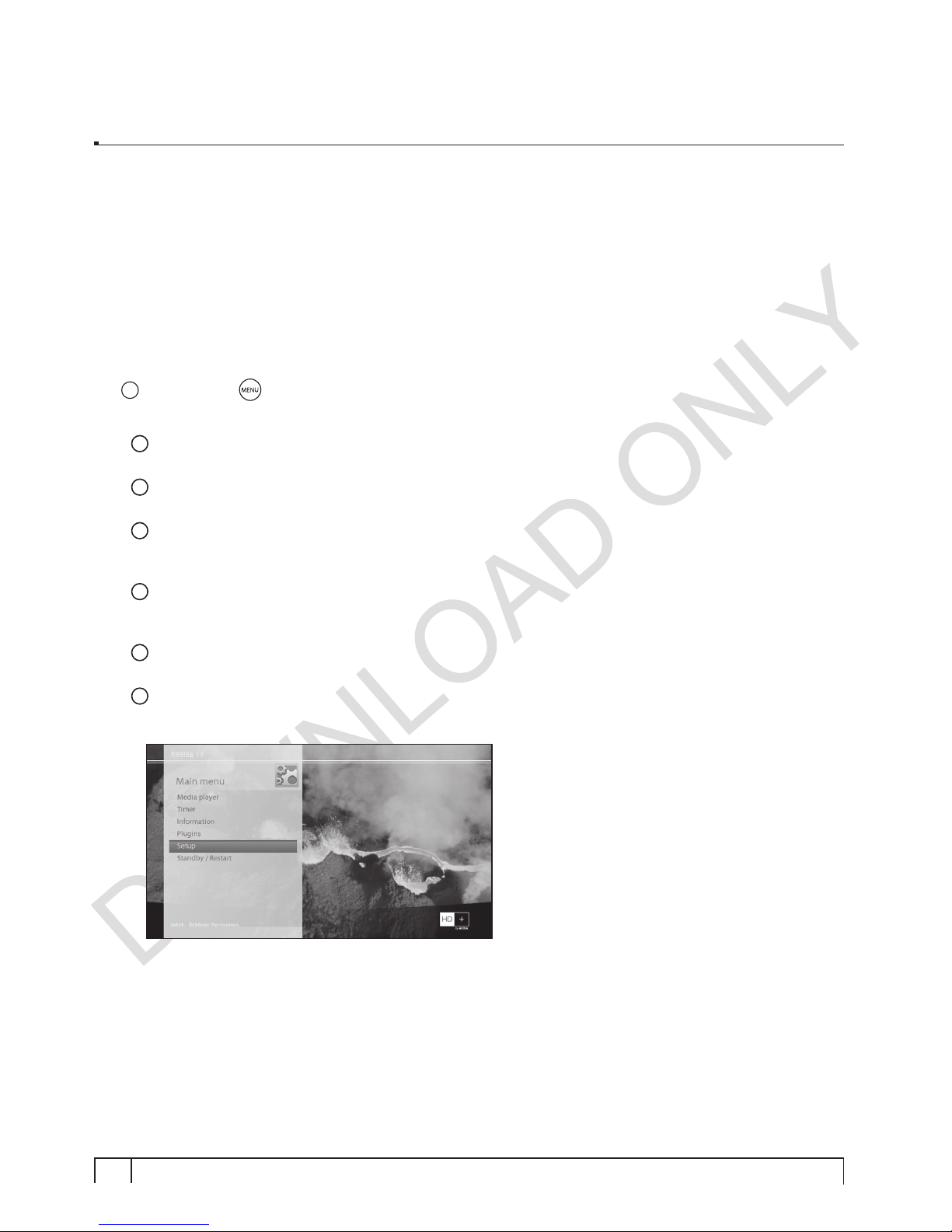

1. Main Menu

[

: Press MENU ]

The main menu of Vu+ consists of the following sub menus.

Media player

Activate Media player of Vu+. For more information, please refer to Media Player section

Timer

Activate Media player of Vu+. For more information, please refer to Media Player section

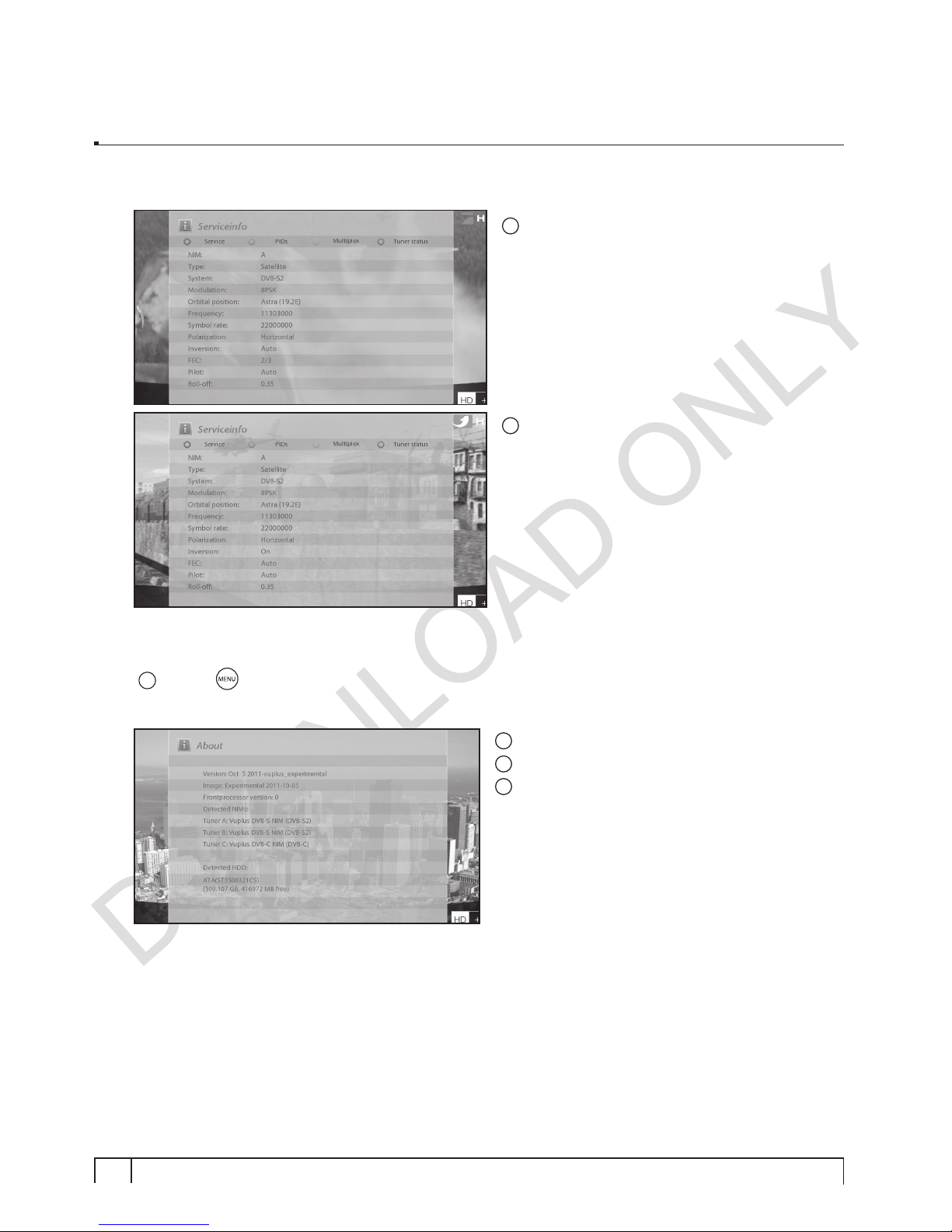

Information

Has two sub menus for

Service / About. Service

menu provides the detailed information of the current

channel.

About

menu provides the detailed information of the H/W and S/W system of your Vu+.

Plugins

Activates Plugin browser of Vu+. Using this browser, you can log onto the designated website and you can download a variety of new plug-ins.

Setup

Provides all of the system settings.

Standby / Restart

Provides options for power on/off and sleep timer.

IV. System Conﬁguration

Page 47

Vu User Manual

2. System Setup

[

: Press MENU > Select Setup]

The Setup menu consists of the following sub-menus.

Service Searching

System

Common Interface

Parental Control

Factory reset

2-1. Service Searching

[

: Press MENU

> Setup > Service Searching]

Here you set up the tuners of your Vu+ and run channel scanning automatically or manually.

A. Tuner Conguration

[

: MENU

> Setup > Service Searching > Tuner Configuration]

If you run the First Time Installation process, the Tuner A is already configured. You can check the information of Tuner A and which satellites are scanned, as follows.

Page 48

Vu :

Your Smart Linux TV Player

Vu User Manual

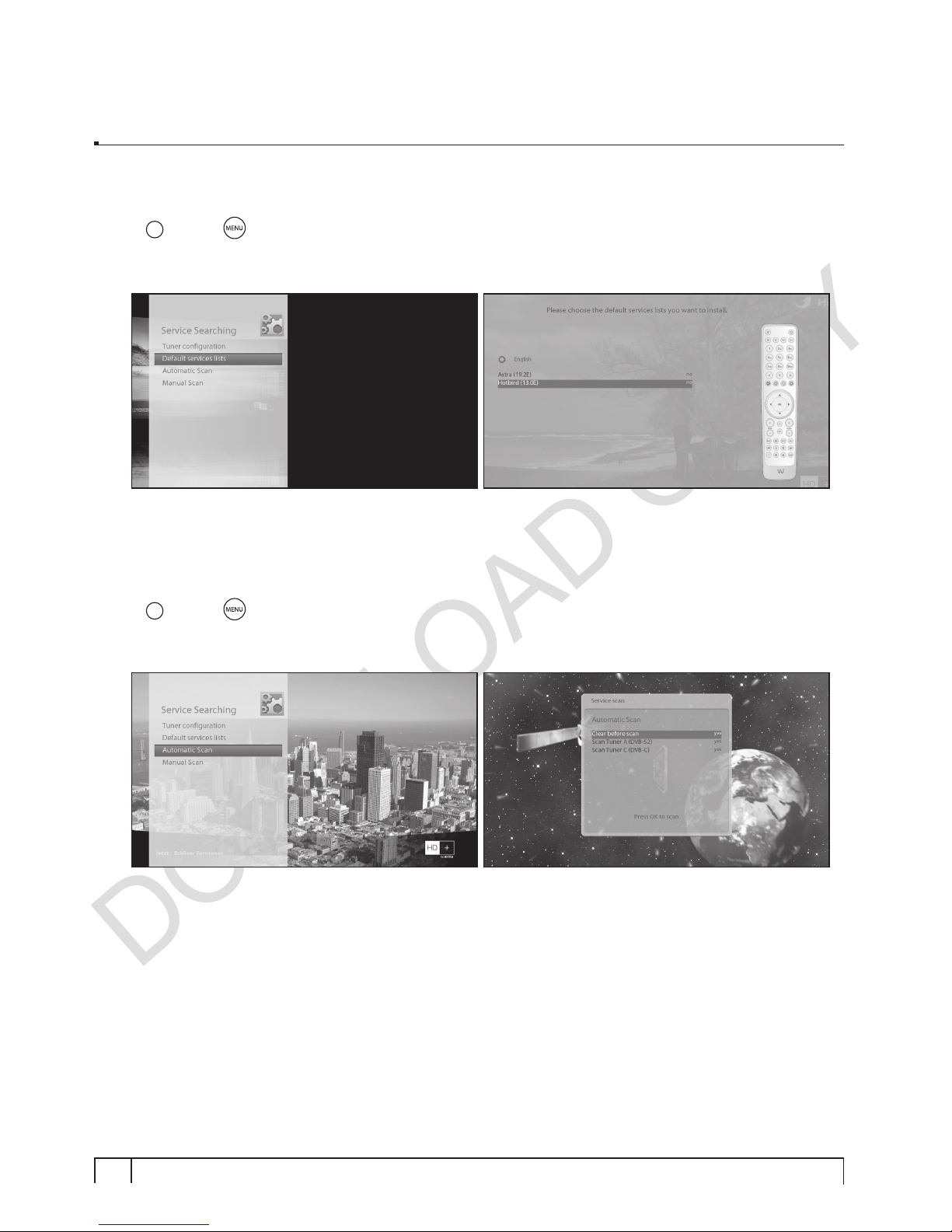

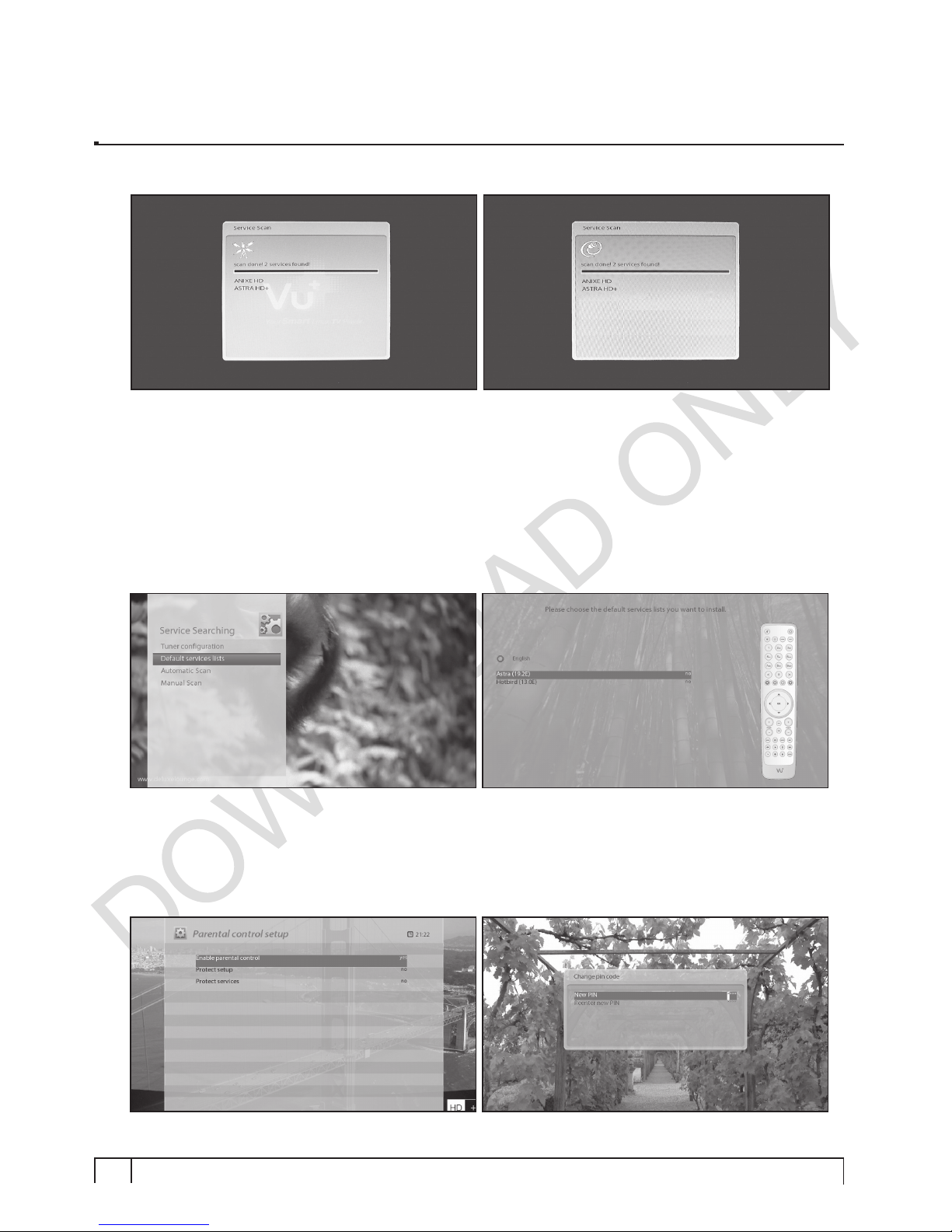

B. Loading Default Service Lists

[

: MENU

> Setup > Service Searching > Default Service List]

In case there are service lists available for certain satellites, for example, Astra or Hotbird, you can install the lists in the channel list of your Vu+.

If default service lists are not available, you can run the service scan automatically or manually to add TV and radio channels into the channel list of your Vu+.

C. Automatic Scan of Services

[

: MENU

> Setup > Service Searching > Automatic Scan]

The easiest way to scan services is to use

Automatic Scan

. In the

Automatic Scan

menu, there are two

options to choose from as below.

•

Clear Before Scan

YES

is used when you want to delete the existing channel list before you start the automatic scan.

If you want to keep the existing list, select NO.

Page 49

Vu User Manual

Press OK to activate the automatic scan. This will take some minutes. As the scan proceeds, you will see the progressive bar and the newly found services underneath.

D. Manual Scan of Services

[

: MENU

> Setup > Service Searching > Manual Scan]

If you know well enough to configure each exact setting required for manual search of services, you can do manual scan as well. There are many parameter values that you need to decide as below.

Amongst other things, the below parameters are what you need to decide prior to manual scan.

Tuner

You need to decide which tuner you want to use for manual scan.

System

Here you have two options between DVB-S (SD) and DVB-S2 (HD), if DVB-S2 tuner is mounted.

For DVB-S2 (High Definition)

For DVB-S (Standard Definition)

Page 50

Vu :

Your Smart Linux TV Player

Vu User Manual

Frequency

You need to enter the exact frequency of the transponder that you want to scan.

Symbol Rate

You need to enter the exact symbol rate of the transponder that you want to scan

Polarity

Here, you have options for Horizontal, Vertical, Circular Left and Circular Right. You need to know the polarity of the transponder that you want to scan.

FEC (Forward Error Correction)

You need to enter the exact FEC value of the transponder that you want to scan

Modulation

Here you have two options for QPSK (SD) and 8PSK (HD).

Network Scan

Here you have two options for

YES

and NO. NO is used to scan the transponder (TP) based on the

data that your Vu+ currently has.

YES

is used to scan the TP not just based on the existing TP data

but also using new TP data, if there is TP data newly transported from the TP. Naturally,

YES

option

takes longer while it may results in a better scan result.

Clear Before Scan

YES

is used when you want to delete the existing channel list before you start the automatic scan. If

you want to keep the existing list, select NO.

Only Free Scan

Here you have two options for

YES

and

. If you want to scan only Free To Air channels without any

encryption, select

YES

. Otherwise, select NO to scan all FTA and CAS channels.

Press OK to activate the manual scan. This will take some minutes. As the scan proceeds, you will see the progressive bar and the newly found services underneath.

Page 51

Vu User Manual

E. Selecting Tuner Type (for DVB-C/T Tuner)

If you have installed DVB-C/T Tuner of Vu+, you need to configure it as follows:

1. Go to Setup => Service Searching => Tuner Configuration

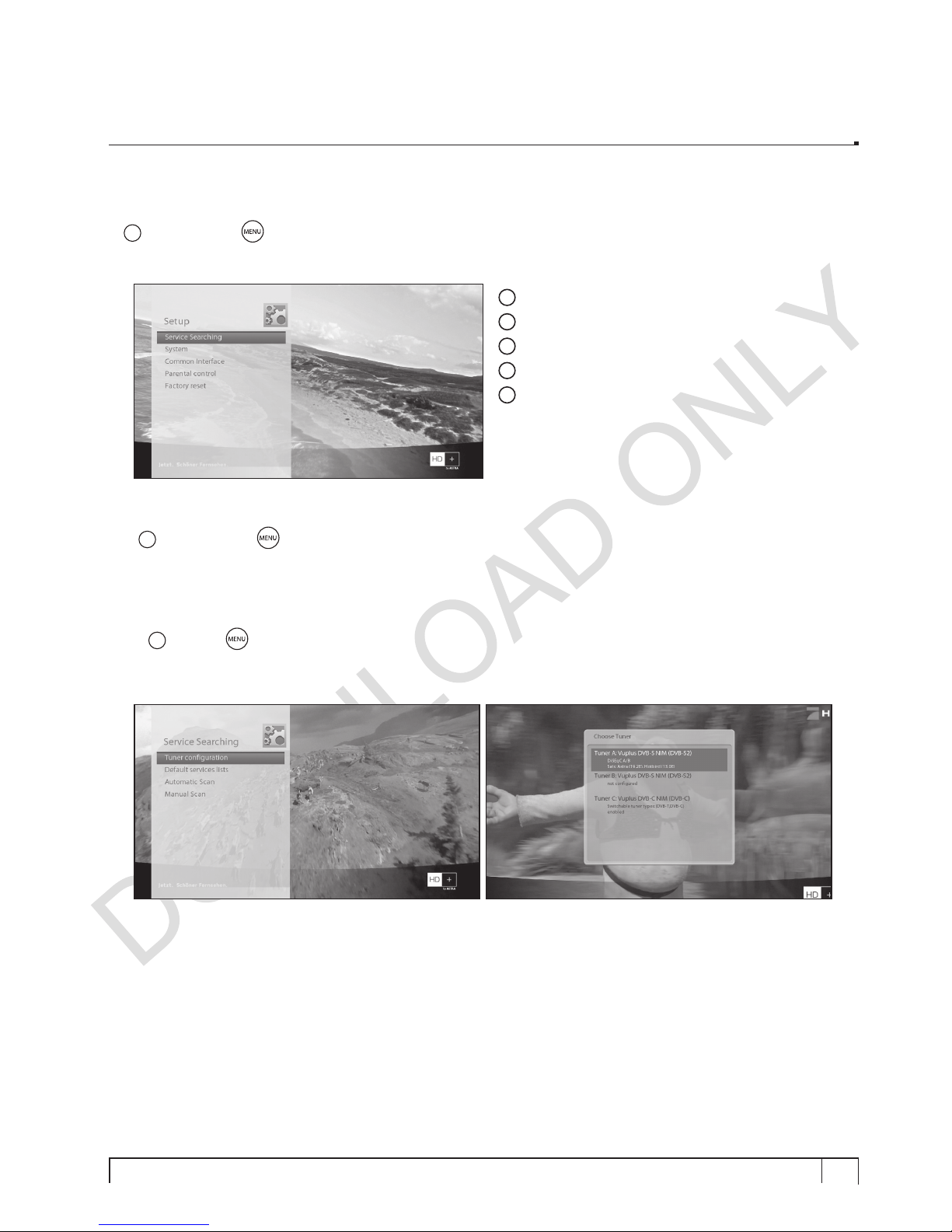

2. Press OK to activate Tuner A window 3. Press OK again Reception Setting window

4. You can select DVB-C or DVB-T tuner by using

LEFT/RIGHT

button. Now the tuner configuration is

done.

Page 52

Vu :

Your Smart Linux TV Player

Vu User Manual

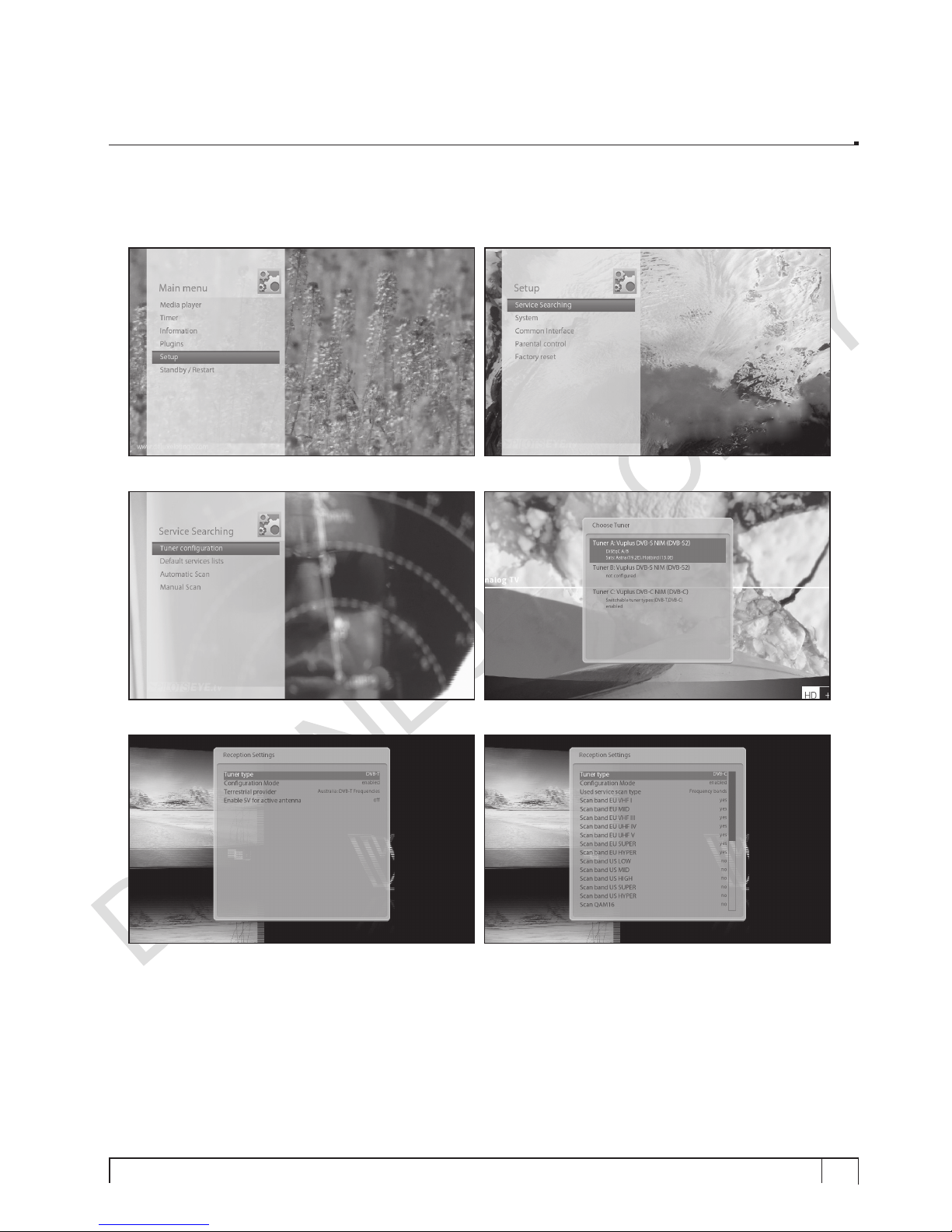

5. Go to Setup => Service Searching For the channel scan, you can select between Automatic Scan and Manual Scan.

6. Press OK to call up Service Scan window. If the tuner is configured for DVB-T, channel scanning will be done in DVB-T mode. If the tuner is configured for DVB-C, channel scanning will be done in DVB-C mode.

7. Press OK to begin the channel scan. Once the scan is done, the scan results will be displayed.

Page 53

Vu User Manual

2-2. System Conﬁguration

[

: Press MENU

> Setup > System]

Here you can find most of the necessary settings that you might need to optimize your Vu+ in the way you like it. Please read the followings carefully.

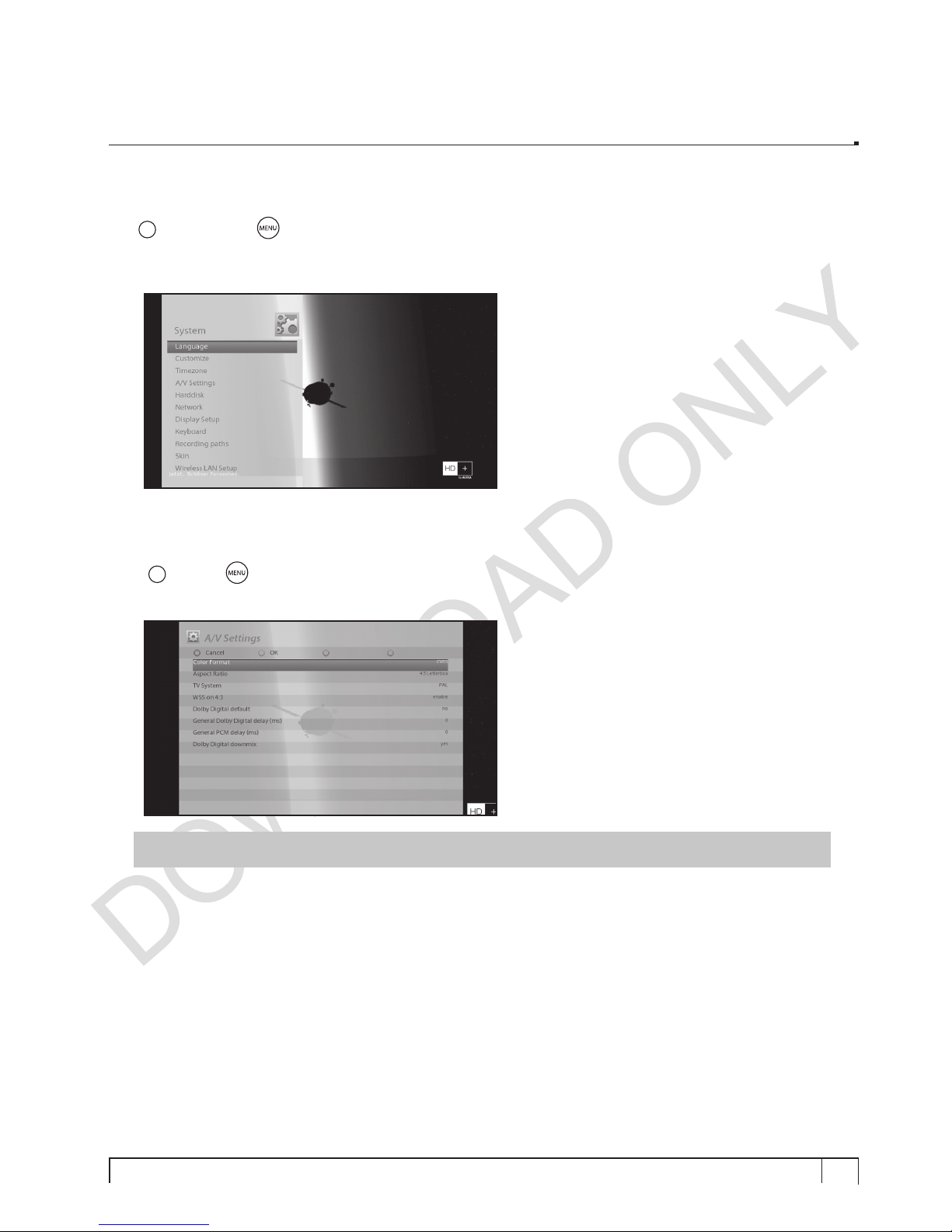

A. A/V Settings

[

: MENU

> Setup > System > A/V Settings]

Here you will find options necessary to set up the audio and video configuration of your Vu+.

NOTE :

RED is for cancel and GREEN is OK. OK key of RCU is not working in this mode.

Page 54

Vu :

Your Smart Linux TV Player

Vu User Manual

Amongst the parameters given in this menu, the following ones are generally what you need to decide for the audio and video.

Video output

Here you need to decide which video output you want to use between your TV and Vu+. The available options are as below.

•

CVBS

•

S-Video

•

RGB

Mode

You need to decide which resolution to use according to the video output above and your TV amongst the following options.

Scart

Resolution

PAL

NTSC

Multi

Dolby Digital Default

YES

is used when you want to set Dolby Digital audio as the default audio. If the program you are

watching has Dolby Digital and Stereo, Dolby Digital is used.

On the other hand, NO is used when you do not want to set Dolby Digital audio as the default audio. If the program you are watching has Dolby Digital and Stereo audio, Stereo audio is used.

Dolby Digital Downmix

YES

is used when you want to set the audio output to be down-mixed from Dolby Digital to Stereo. NO

is used when you do not want to set the audio output to be down-mixed from Dolby Digital to Stereo. If

is on and you are using only HDMI or SCART connection, there can be no audio sometimes, if the program that you are watching provides Dolby Digital only. This option is recommended when you are using S/PDIF connection.

Page 55

Vu User Manual

B. Language Selection

[

: MENU

> Setup > System > Language]

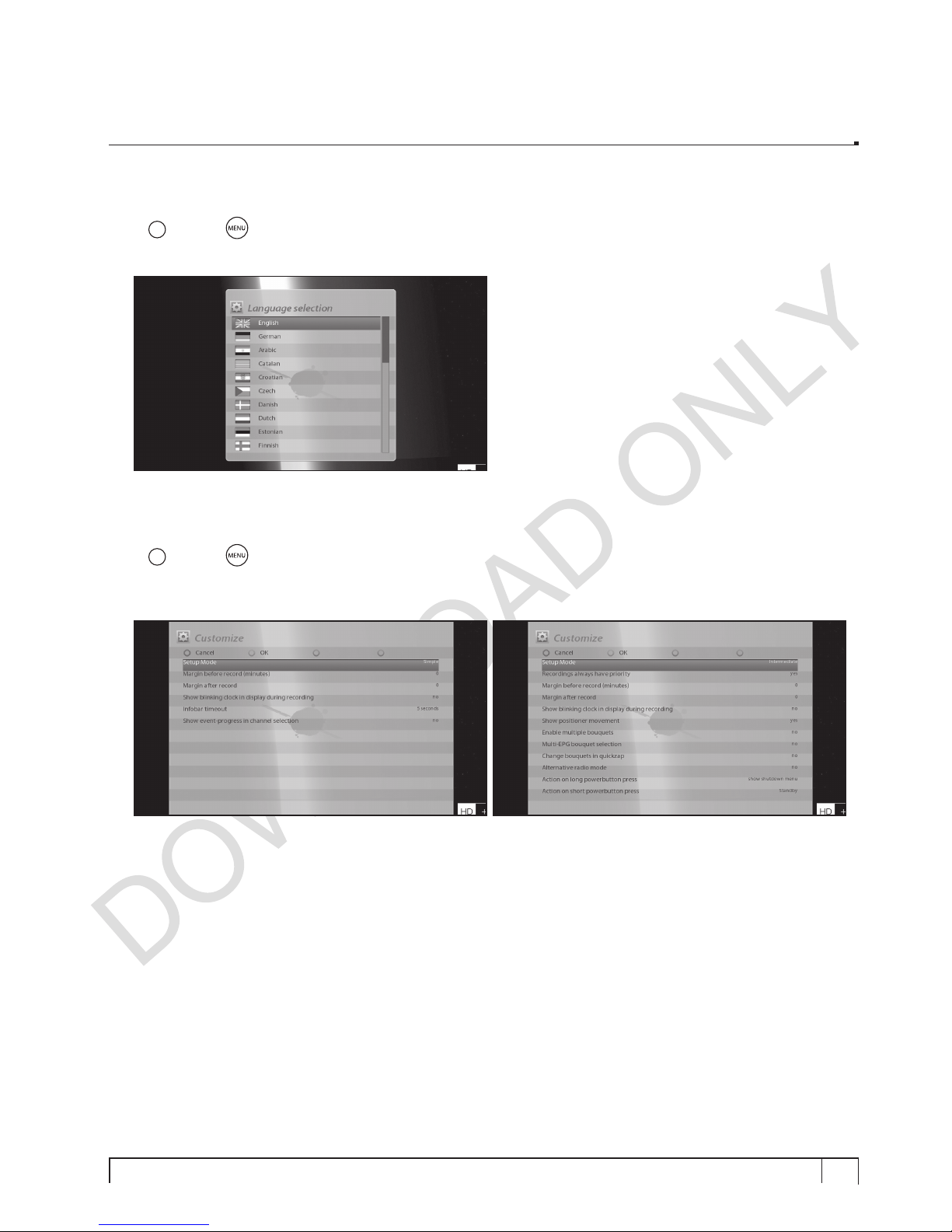

A variety of languages are available for the OSD(On-Screen Display) of Vu+.

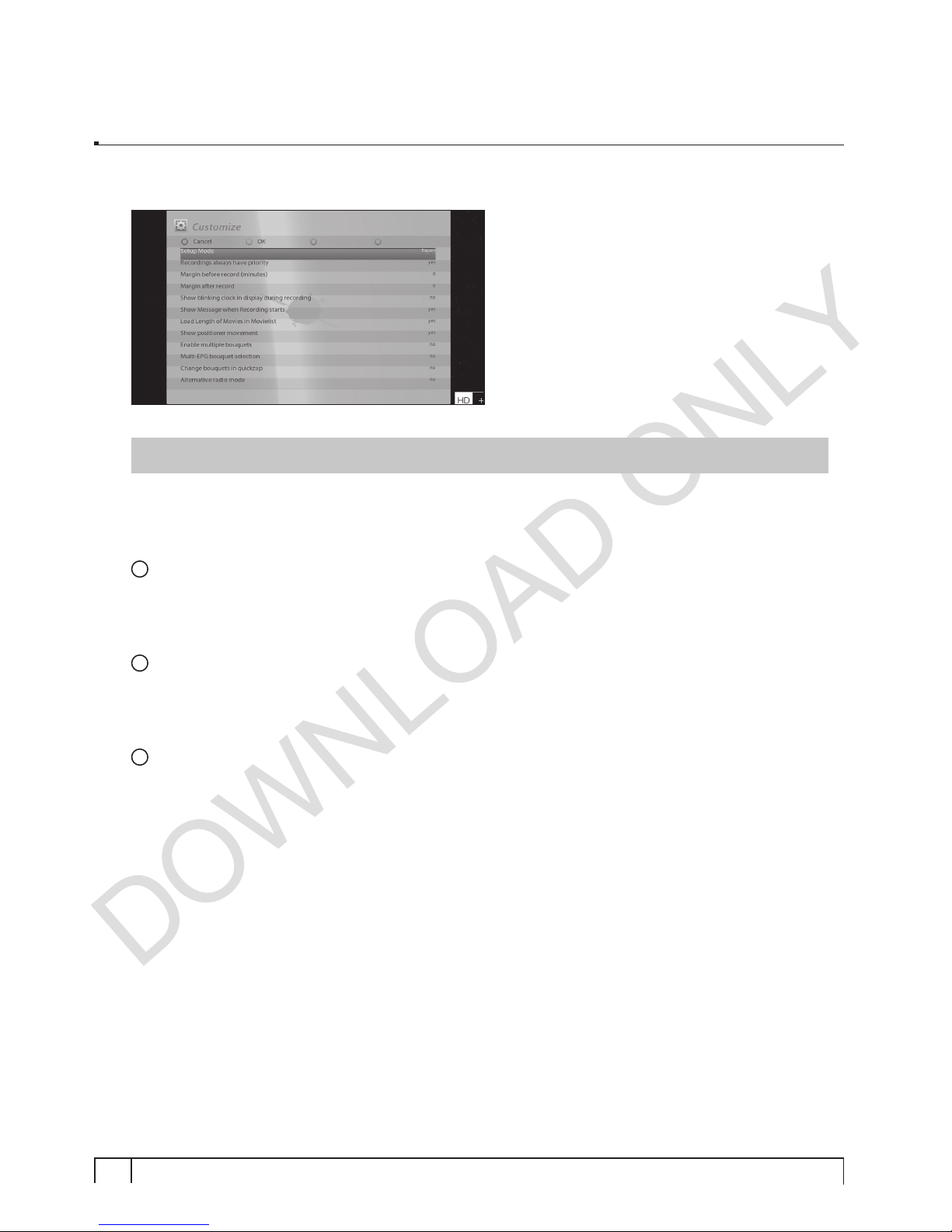

C. Customization

[

: MENU

> Setup > System > Customize]

In this menu you will find various customization options and this menu can be displayed in three different formats:

Simple, Intermediate

, and

Expert

Page 56

Vu :

Your Smart Linux TV Player

Vu User Manual

NOTE :

RED is for cancel and GREEN is OK. OK key of RCU is not working in this mode.

Amongst the options given in this menu, the following ones are generally what you may need to know.

Recording always have priority

YES

option is used to set the recording to have a priority over any existing timer. If there occurs a conflict between a timer and a recording in progress, the recording has a priority over the timer. If you set this option at NO, you will be asked whether to switch to the service to record or not.

Margin before record (minutes)

If you enter a number here, for example, 5, the recording will begin 5 minutes before the defined time. If it is “0”, it means that the recording starts exactly at the defined time. This option comes in handy, just in case that a program starts earlier than the original schedule.

Margin after record

If you enter a number here, for example, 5, the recording will stop 5 minutes after the defined time. If it is “0”, it means that the recording stops exactly at the defined time. This option comes in handy, just in case that a program ends later than the original schedule.

Page 57

Vu User Manual

Show Message when Recording starts

If you set this option at

YES

, a message saying that a recording has started appears as below.

Enable multiple bouquets

If you set this option at

YES

, it will enable multiple bouquets.

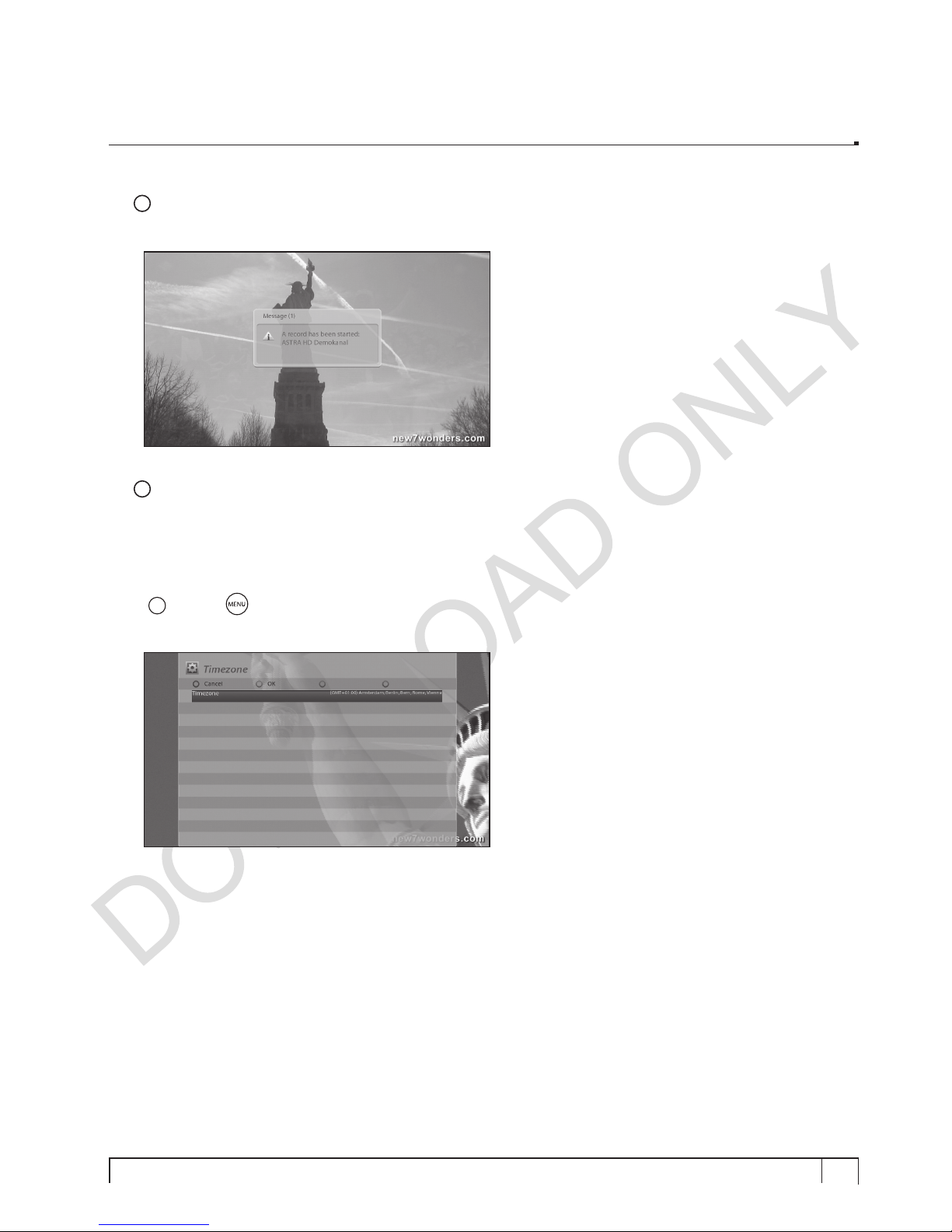

D. Selecting Time Zone

[

: MENU

> Setup > System > Timezone]

You can set your time zone in this menu.

Using

LEFT/RIGHT

key, you can find a time zone that you want to use for your Vu+. After selecting a

time zone, press

GREEN

to confirm and save the changed setting.

Page 58

Vu :

Your Smart Linux TV Player

Vu User Manual

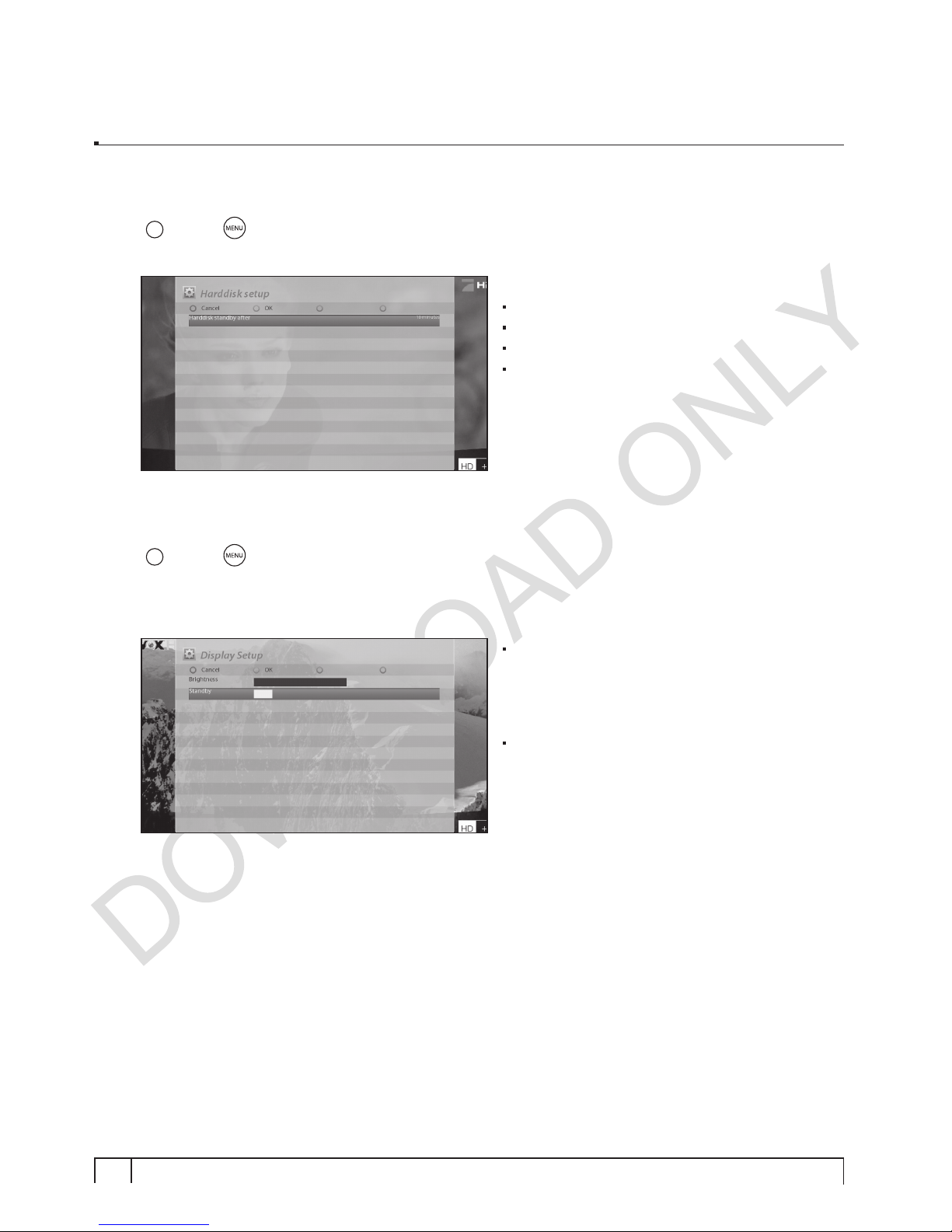

E. Hard Disk Set Up

[

: MENU

> Setup > System > Harddisk > Harddisk setup]

You can set the duration of time after which HDD is to be put into standby mode.

Here, you can choose from

No standby 10 or 30 seconds 1, 2, 5,10, 20, 30 minutes 1, 2, 4 hours.

Once you set this option, press

GREEN

key to

confirm the change.

F. Front Display Setup

[

: MENU

> Setup > System > Display Setup]

There is a Large graphicVFD display on the front panel of Vu+. This display shows various information like the current menu, channel, HD icon, and so on. You can adjust the brightness of this display using this menu.

Brightness

You can change the brightness of the front VFD display using

LEFT/RIGHT

key when Vu+ is in

use.

Standby

You can change the brightness of the front VFD display using

LEFT/RIGHT

key when Vu+ is in

standby mode.

Once you completed this option, press

GREEN

key to confirm the change.

Page 59

Vu User Manual

G. Network Setup

[

: MENU

> Setup > System > Network]

Vu+ is integrated with standard 10/100Mbps Ethernet with RJ 45 connector. You are recommended to use this network capability of Vu+ to fully enjoy the system. You can set up the network settings through this

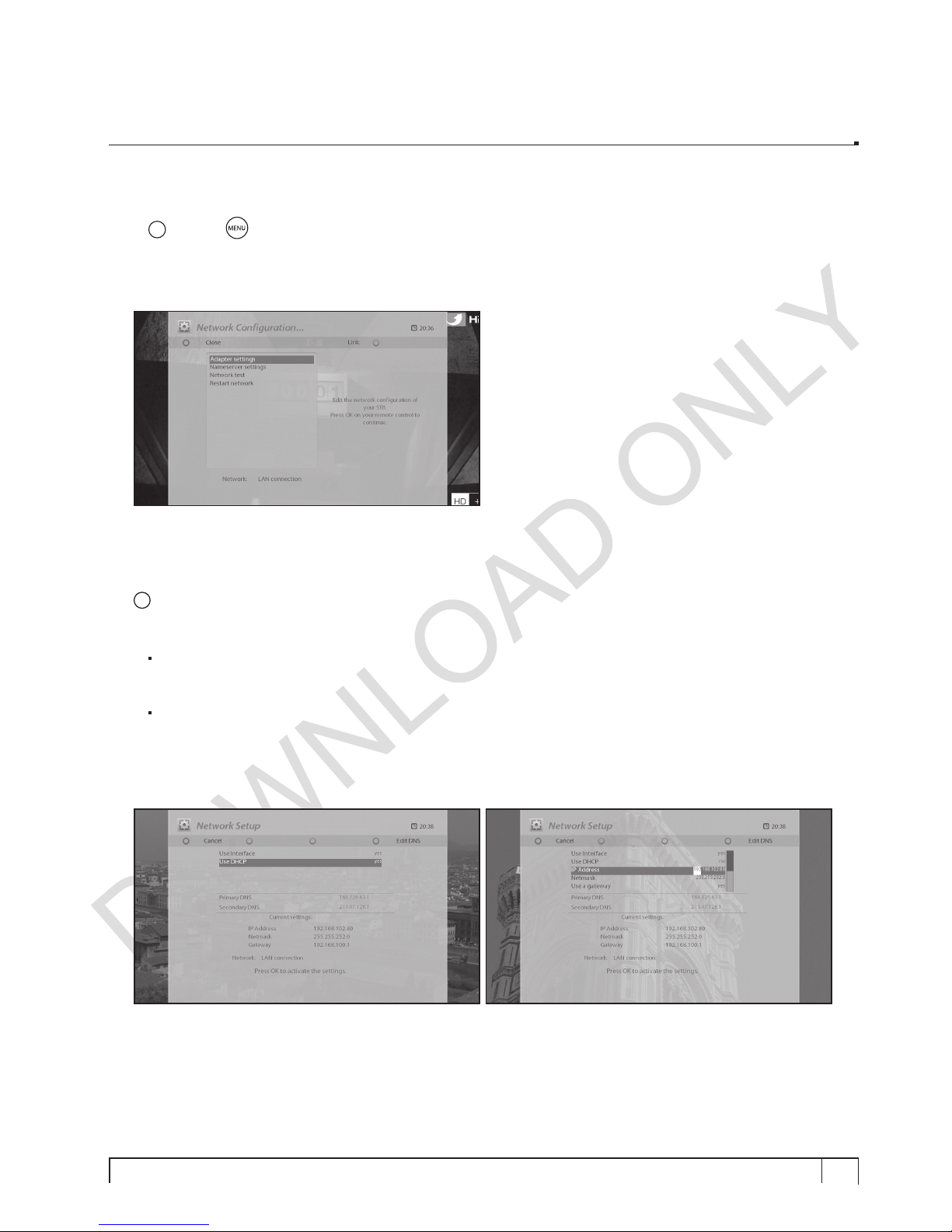

Network Configuration

menu.

In the

Network Configuration

menu, you will see five sub menus as follows:

Adapter settings

Through this menu, you can set the basic Ethernet configuration.

User Interface

YES

is used to activate the Ethernet. If you set this option at NO, the Ethernet will not work.

Use DHCP

YES

is used to use

DHCP (Dynamic Host Configuration Protocol)

. If you set this option at

YES

, it will automatically detect the correct IP address. NO is used when you want to use a certain fixed IP address. In this case, you need to enter correct addresses in each field.

Page 60

Vu :

Your Smart Linux TV Player

Vu User Manual

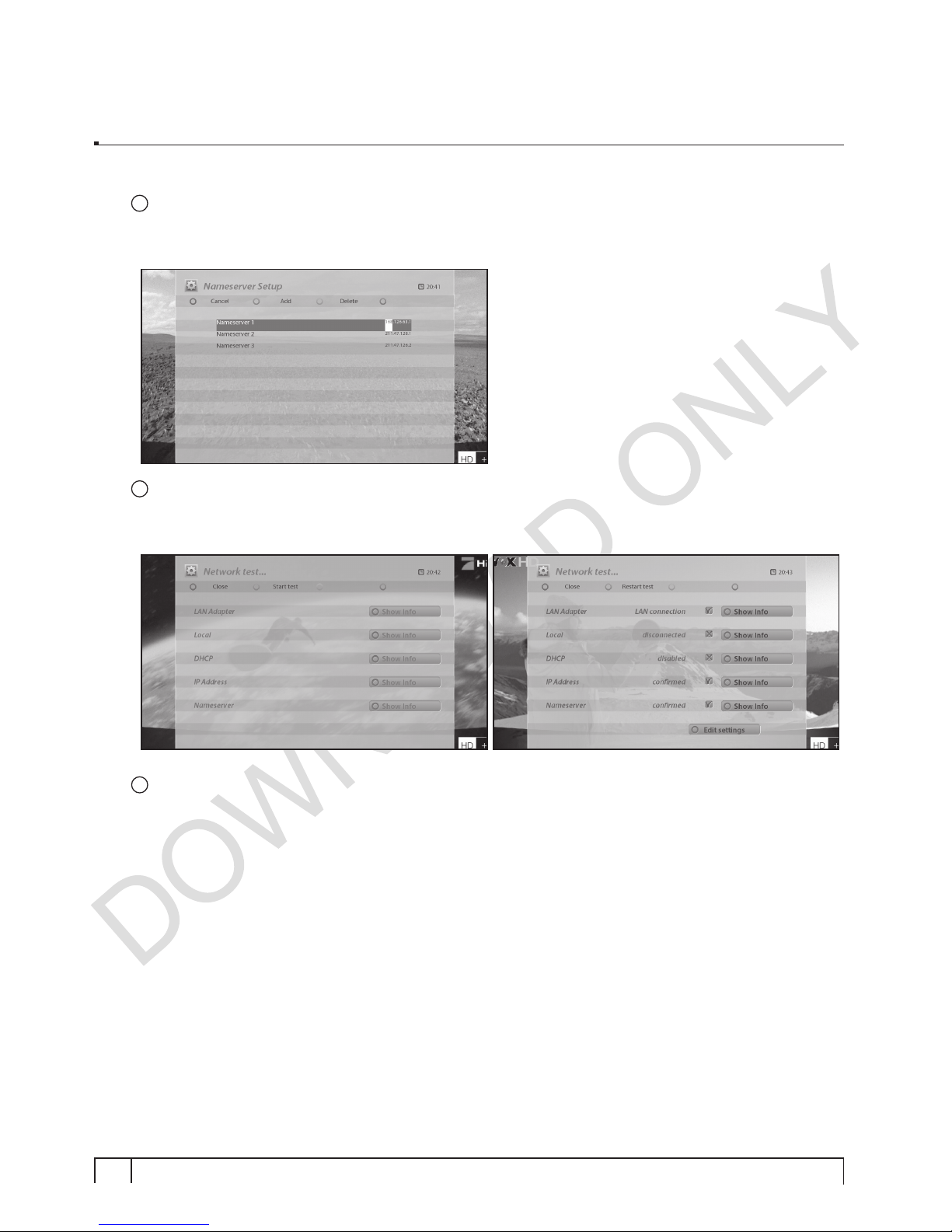

Nameserver settings

This option is required when you selected not to use DHCP. You need to enter the address of the Nameserver.

Network test

When you are not sure whether the network configuration has been done correctly or not, you can run this test.

Restart Network

This option is used when you want to reboot the Ethernet of your Vu+.

Page 61

Vu User Manual

H. Skin Change

[

: MENU

> Setup > System > Skin]

Vu+ is a Linux based set top box and there are a lot of Skins available for Linux set top box. Using this menu, you can use a different Skin other than the default one.

NOTE :

It takes some minutes since the change of Skin requires a complete system shutdown.

Please wait patiently until the system reboots with a newly selected Skin.

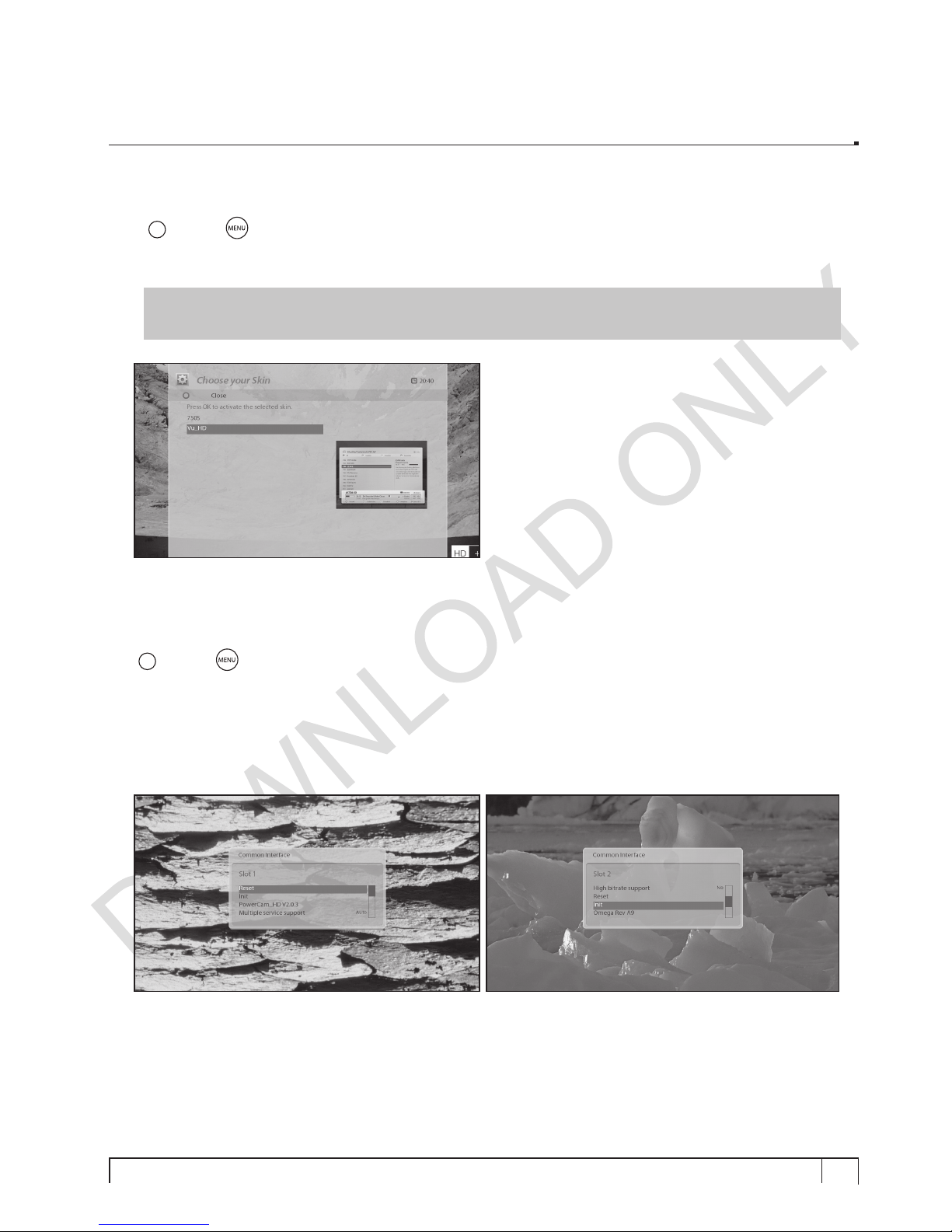

2-3. Checking CAM

[

: MENU

> Setup > Common Interface]

To be able to watch CAS channels, you need to have a proper CAM and a Smartcard. Vu+ is integrated with two Common Interface slots. If you have two CAM modules and keep them inserted in your Vu+, it will reduce the trouble of changing CAM.

If you have inserted one or two CAMs, you can check the information of the inserted CAMs, through this menu as below:

Page 62

Vu :

Your Smart Linux TV Player

Vu User Manual

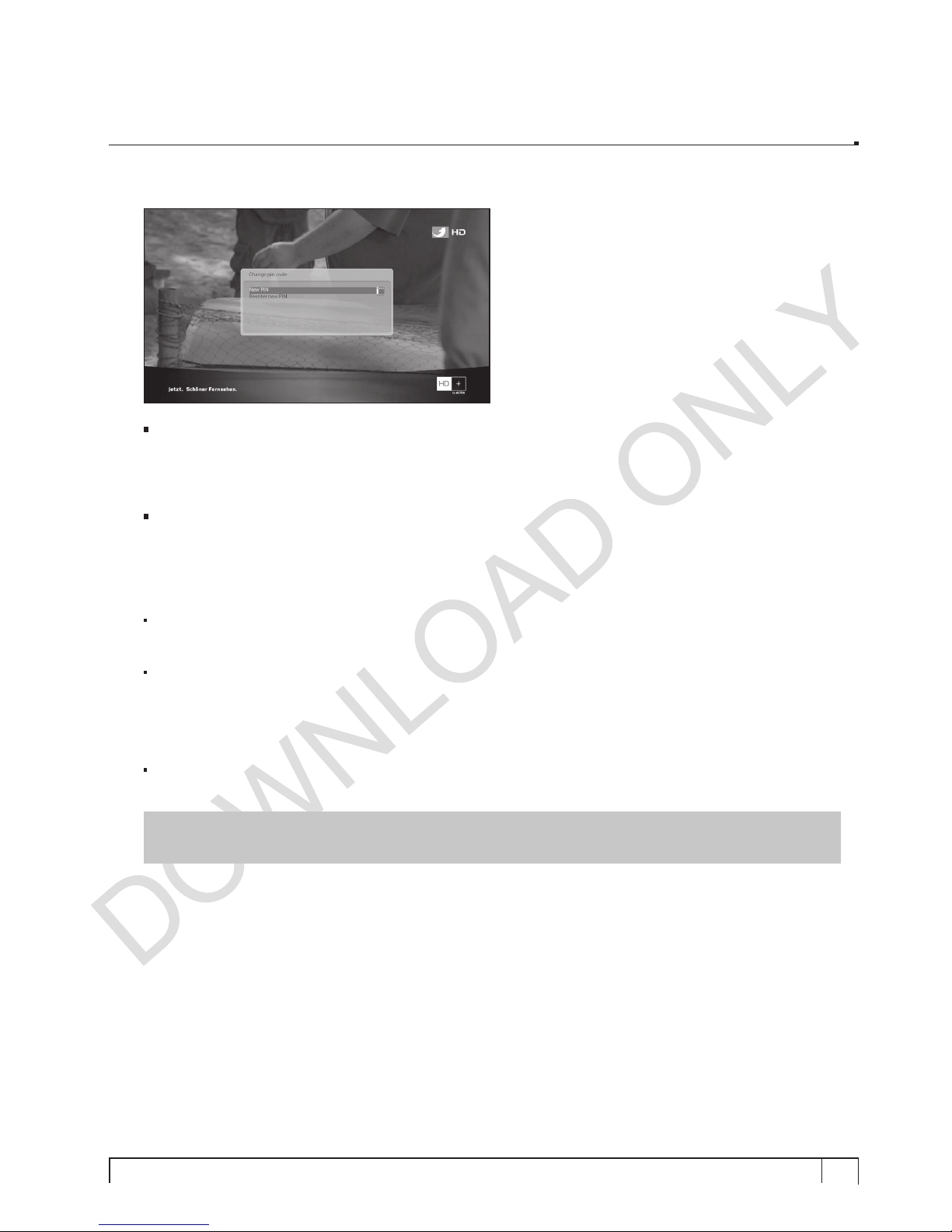

2-4. Parental Control

[

: MENU

> Setup > Parental Control]

If you want to prevent certain channels from being accessed by others, you can do so using this menu.

Go to Parental Control menu by pressing MENU > Setup > Parental Control.

Set the parental control option at

YES

using

LEFT/RIGHT

key. The menu will change as below.

Page 63

Vu User Manual

Protect setup

If you set this option at

YES

, you will be asked to

enter PIN code when you enter this

Parental

setup

menu.

Change setup pin

If you want to change the existing PIN code for Parental setup, you can do so using this menu.

You need to enter a new PIN code twice.

Protect services

You need to set this option at

YES

, if you want to lock certain channels with PIN code.

Parental control type

This option will be activated only when you set

Protect services

YES

. Here there are two options:

White list

: This option is used to block all channels except those channels in the parental control list.

Black list

: This option is used to block only those channels included in the parental control list.

Change service pin

Here you can define a PIN code required to change services to be included in the parental control list.

NOTE:

PIN code here is used for Change service and thus you are recommended to use a PIN code

different from that used for

Protect services.

Page 64

Vu :

Your Smart Linux TV Player

Vu User Manual

Edit service list Here you can add services that you want to lock with PIN code. Services will be arranged in the alphabetical order and you can select an alphabet to enter into the list where you can find the channel that you want to lock.

Here, T is selected and TV5 is locked in the list as an example.

Next time when you or anyone else want to tune into this service, the menu asking for PIN code will appear instantly as below.

NOTE :

It is very important not to lose this PIN code.

2-5. Factory Reset

[

: MENU

> Setup > Factory Reset]

If you want to erase all installed service list as well as all configurations, run the

Factory Reset

process.

Select

YES

in the below menu to run the factory reset.

Upon the completion of factory reset process, your Vu+ will reboot automatically and start the

First Time

Installation

process.

NOTE :

If you do this factory reset, all of your configuration data including bouquets, service lists,

satellite parameters, and so on will be erased.

Page 65

Vu User Manual

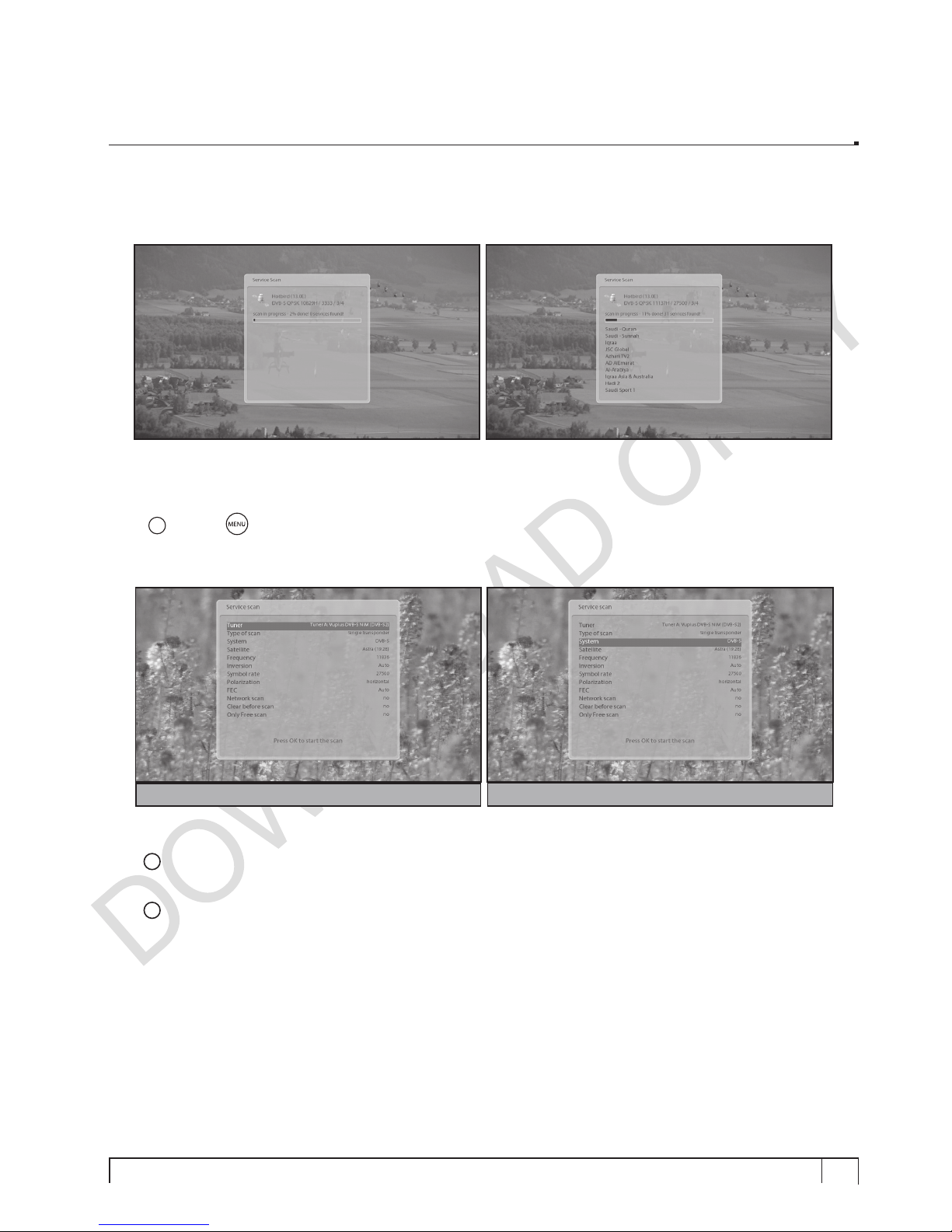

2-6. Checking H/W & S/W Information

[

: MENU

> Information]

If you want to check the H/W or S/W system of your Vu+, this is the menu that you need to use. Also, here you can check very detailed information of a specific service.

A. Service Information

[

: MENU

> Information > Service]

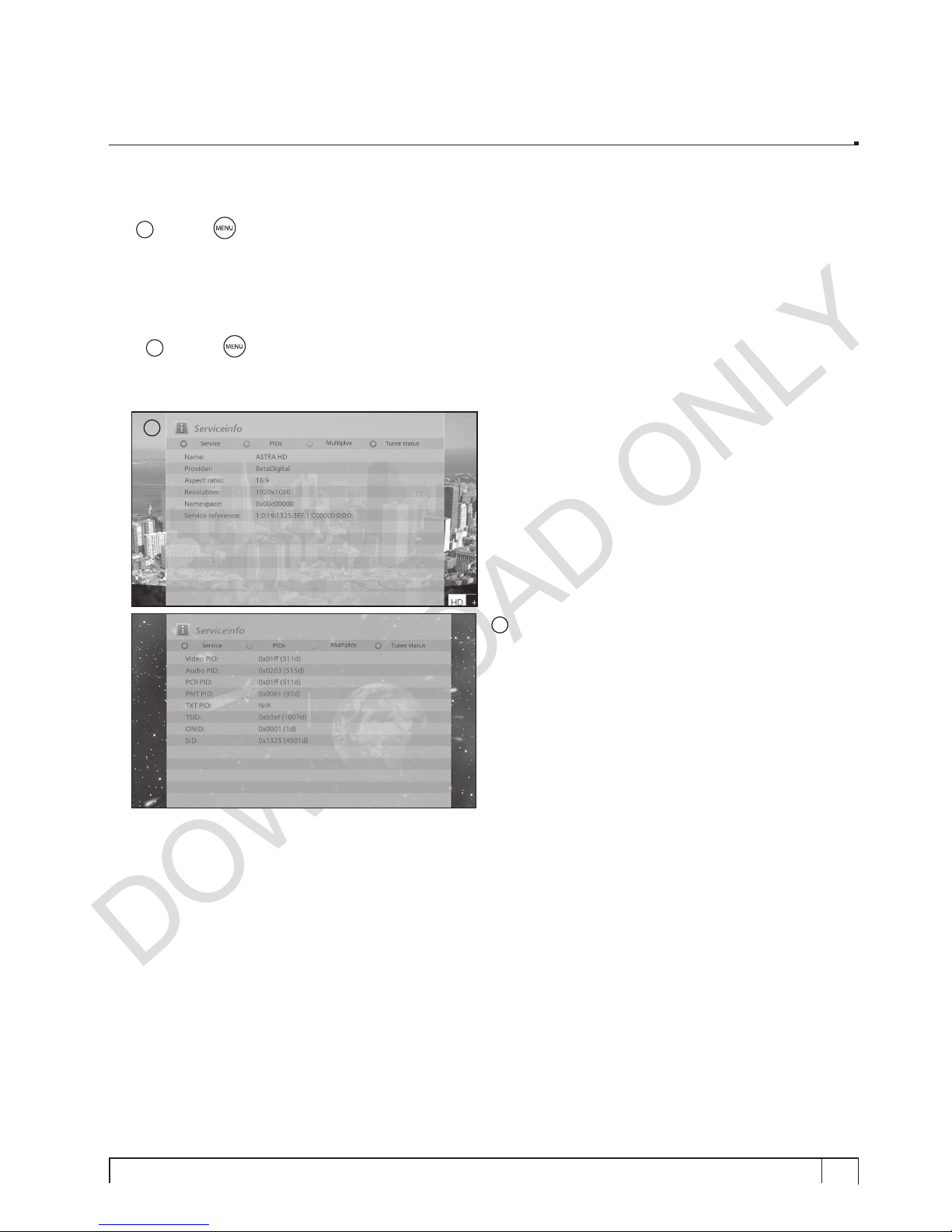

In this menu, you can see all the parameter data of the current channel. The service information is well arranged in four sections as below:

1 Service info

PIDs

Page 66

Vu :

Your Smart Linux TV Player

Vu User Manual

Transponder

Tuner Status

B. System Information

[

: MENU

> Information > About]

This menu is for you to check the current system of your Vu+. You can see the following information:

S/W version

Detected NIMs

Detected HDD

Page 67

Vu User Manual

2-7. Wi-Fi Dongle Installation

Vu+ provides USB Wi-Fi dongle for convenient network connection. Please read the following guide carefully in order for successful setup.

1. Insert the dongle into the UBS port of Vu+.

2. Turn on the power of Vu+.

NOTE

- If the set is already turned on, you can try the following sequence as well. Go to Menu >Standby / Restart > Restart GUI (or Restart).

- “Restart GUI” is displayed on the menu only on Expert mode. Go to Menu > Setup > System > Customize > Setup Mode. Set the Setup Mode as in “Expert” by using Left/Right button.

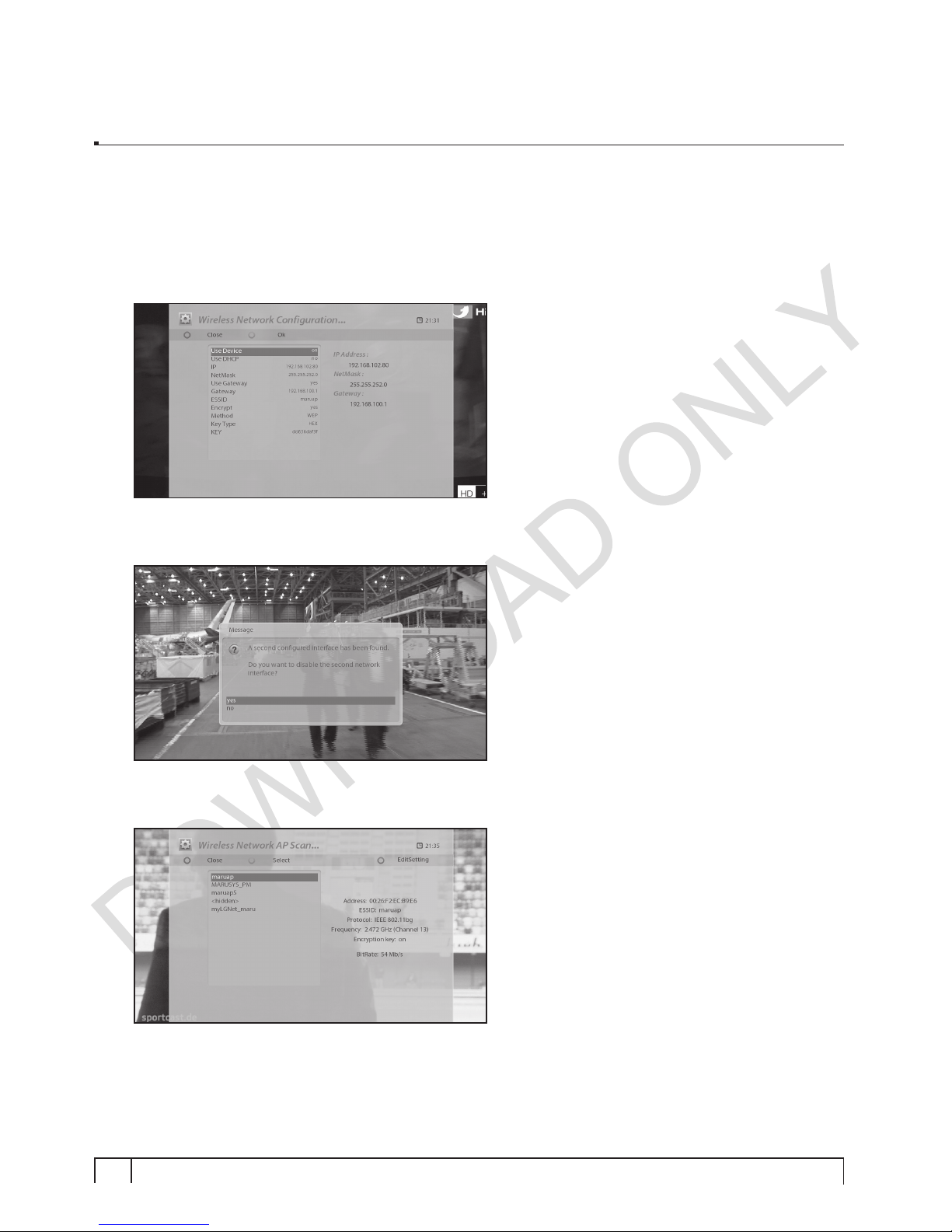

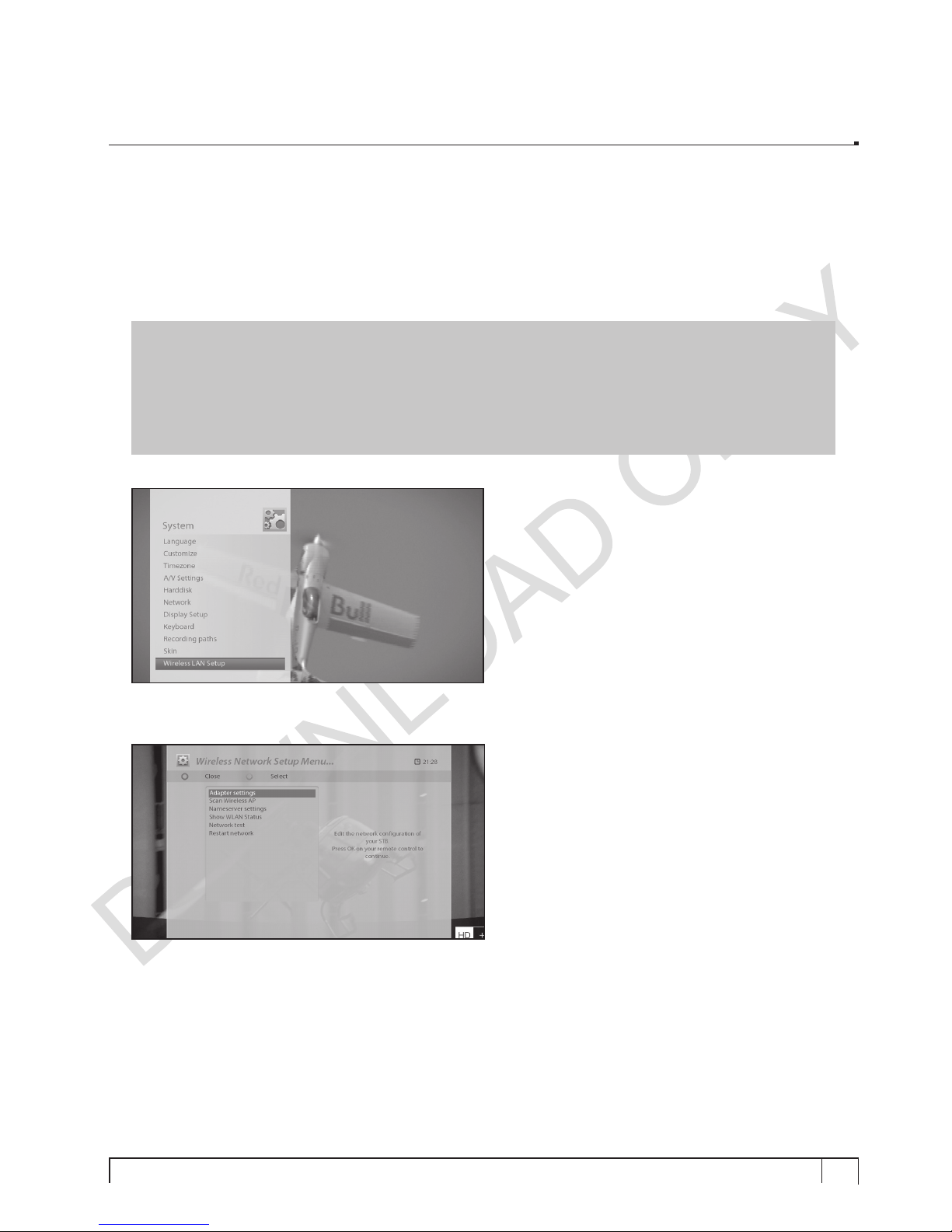

3. Go to Menu > Setup > System > Wireless LAN Setup. Press OK.

4. The connected USB Wi-Fi device will be listed. Select the device by pressing “Green” button.

5. Select “Adapter Settings” for wireless configuration.

6. Configure each setting by using Left/Right button and save the changed settings by using Green button.

(a) Use Device: Activate/Deactivate Wireless LAN module. (b) Use DHCP: If select “NO”, “IP, NETMASK, GATEWAY need to be configured manually. (c) ESSID: Select AP (d) Input Hidden ESSID: If the AP to select is set as “hidden mode”, select “Input hidden ESSID” in “ESSID”, and enter ESSID of AP directly.

Page 68

Vu :

Your Smart Linux TV Player

Vu User Manual

7. Encrypt: If the chosen AP requires wireless security configuration, select “Yes”. (a) Configuration

• Wireless security method – WEP, WPA, WPA2, WPA-WPA2.

• Key Type – ASCII, HEX

• Network Key

8. If the ethernet is activated, decide whether to deactivate it or not. In order to avoid conflicts between network devices, deactivation is recommended.

9. Select “Scan Wireless AP” to check accessible AP. (a) Place the highlight bar on the AP to connect, and press “Blue” button to move to “Adapter Setting” menu.

10. You can change the settings of name server in “Nameserver settings”. (a) It is possible to add up to 4 name servers by using “Add”(Green) button.

(b) And it is also possible to delete name server by using “Delete” (Yellow) button.

Page 69

Vu User Manual

NOTE :

If DHCP is used, namesevers are automatically configured.

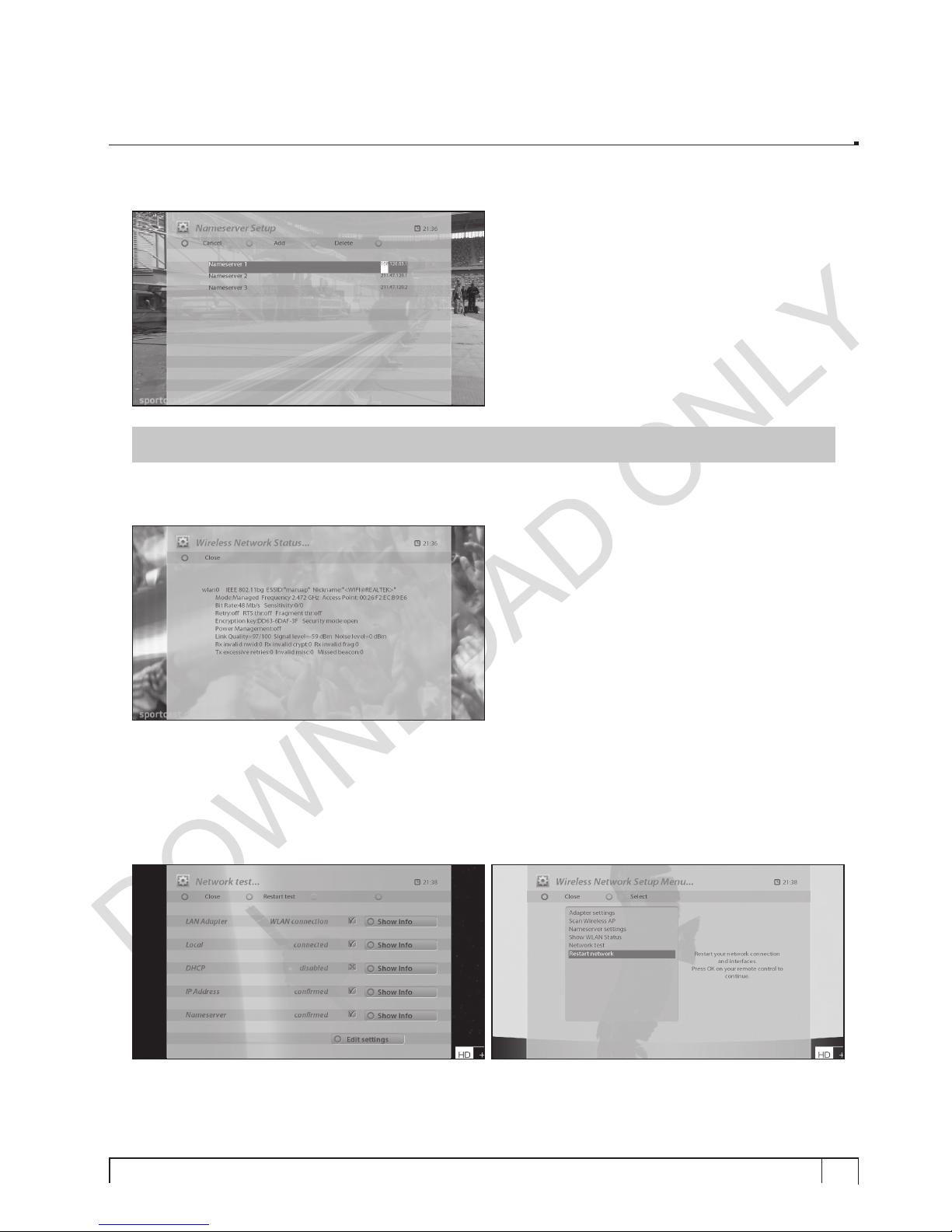

11. “Show WLAN Status” displays the status of the wireless network that is currently connected. (a) If wireless network is not connected, this menu is not to be displayed.

12. Test the network status in “Network test” (a) Start the test by using “Green” button.

(b) After the five test items are finished, you can check further information (“Show Info”) on each test item by press “OK”. (c) If the test result is not satisfactory, try reconfiguring the wireless. (d) network setting by selecting “Edit settings” menu.

13. If necessary, it is possible to restart the wireless network connection by “Restart network” menu.

Page 70

Vu :

Your Smart Linux TV Player

Vu User Manual

2-8. Inserting Tuner

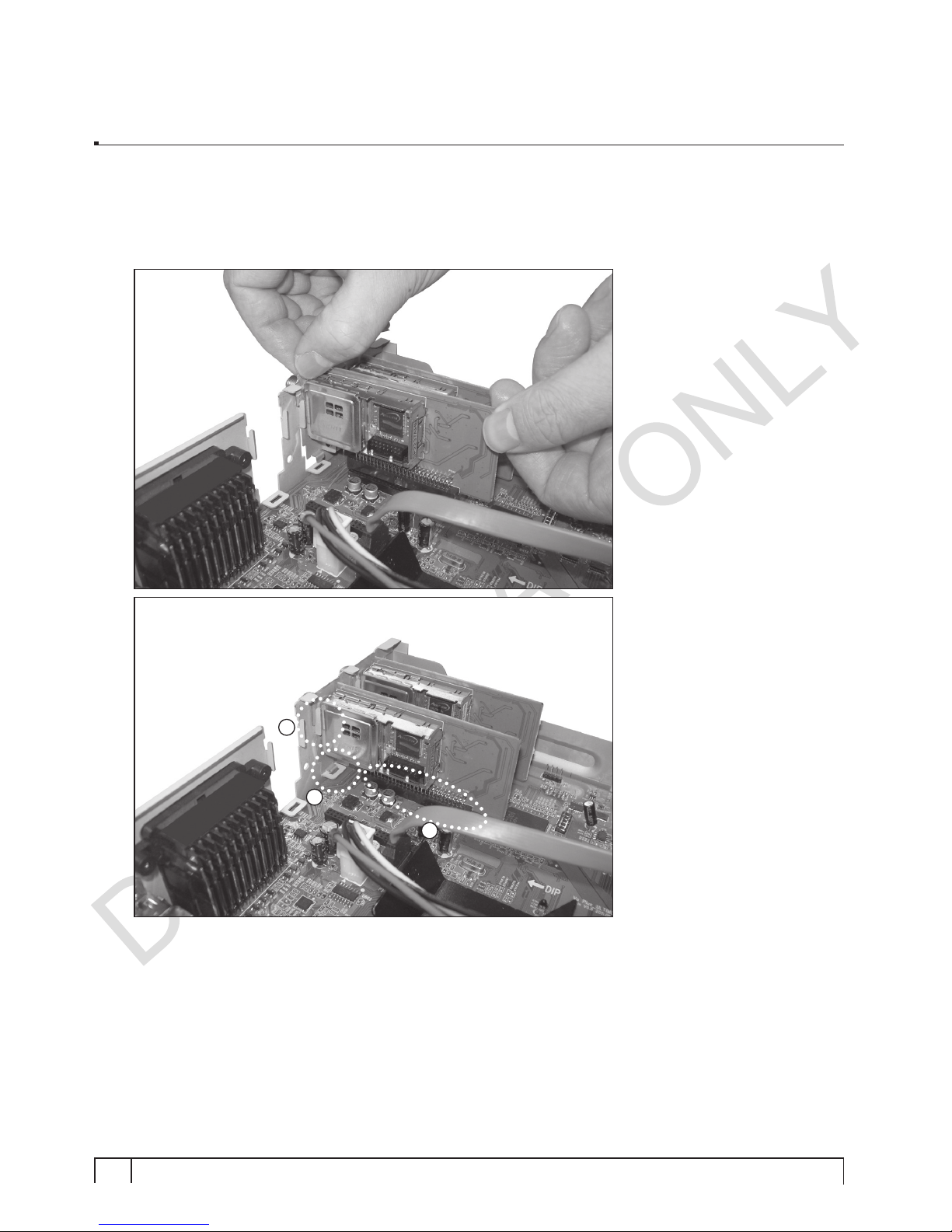

Vu+ Ultimo adopts triple pluggable tuner system. You can additionally purchase DVB-S2 and DVB-C/T Tuner.

When you intall a new tuner, please make sure that three points described in A, B and C be correctly mounted.

Page 71

Vu User Manual

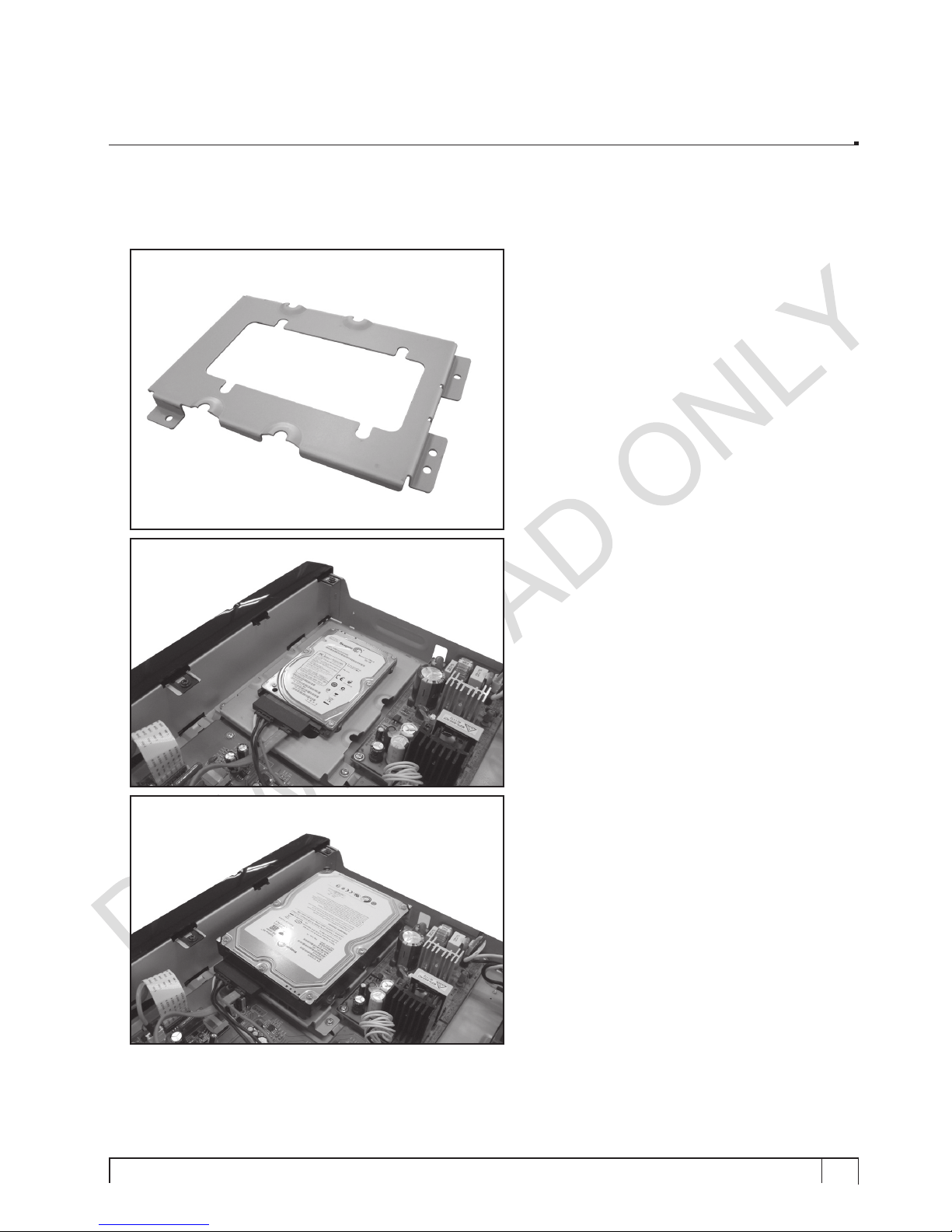

2-9. HDD Mounting

Vu+ HDD bracket is designed to mount 2.5” and 3” HDD.

You can mount 2.5”HDD or 3”HDD using this bracket.

When 2.5” HDD is mounted.

When 3” HDD is mounted.

Page 72

Vu :

Your Smart Linux TV Player

Vu User Manual

2-10. Remote Control Unit (RCU) Set-up

Vu+ RCU is a universal RCU that can be used for TV and STB at the same time.

A. User Guide of Vu+ Universal RCU

Pre-note

<< >> means long press

< > means normal press

4 digit code can be found in the TV brand code list of the user manual.

The new RCU of Vu+ is a universal type and you can control your Vu+ STB and TV at the same time. This universal RCU is a modeless design. While offering the basic control functions of your TV (TV Power, Volume +/-, Mute, AV), you can control STB without having to select mode between TV and STB every time. Compared to those universal RCU of mode selection types, the modeless universal RCU of Vu+ is clearly a smarter choice by eliminating unneeded control functions.

1. TV setting

Set-up Sequence: <<1 + 3>>, <4digit brand-code>, <<Mute or Power>>

1. Press number 1and 3 for three seconds until LED is on.

2. Find your TV brand-code from the TV code list and insert 4 digit code.

- If you press “0000”, Full Automatic Scan will start. This will take a while.

3. Keep Mute button (or Power) pressed until your TV is muted (or turned off).

4. If your TV is muted (or turned off), stop pressing Mute button.

5. Now, your RCU is in test mode and press Volume + /- to check if your TV responds.

6. If the volume buttons are operational, Press <OK + STOP ( )> to escape from the set-up mode.

2. AV setting

AV button is for the selection of TV video source. AV button may be automatically set up depending on TV models. In case it is not automatically configured, please follow the instructions below.

Set-up Sequence <<1 + 9>>, <<AV>>

1. Press 1 and 9 for three seconds until LED is turned on.

2. Keep AV button pressed until your TV responds and displays the video input source.

3. If AV button is working, check if AV button is properly working several times.

4. Press <OK + STOP ( )> to escape from the set-up mode.

3. RCU Buttons for TV

* Buttons for TV only: TV Power. AV

* Buttons switchable between TV and STB: Volume +/ - and Mute

- These buttons are for STB only before the RCU set-up is done.

- It is switchable only after the configuration is done.

* All the other buttons are for STB only

4. Mode Switch of Volume + / - and Mute

For the sake of easy volume control, please set the STB volume at 50% of the maximum level and set this level as the default volume level from STB. Then, you just have to control your TV volume only without having to adjust STB volume at the same time.

Set-up Sequence: <<1 + 6>>, <9>, <9>, <3>, <TV Power or STB Power>

Page 73

Vu User Manual

1. Press 1and 6 for three seconds until LED is on.

2. Press <9>, <9>, <3>.

3. If you want to control of TV volume, press TV Power button. If you want to control STB volume, press STB Power button.

5. Reset of TV Set-up

In case you want to reset the configured TV set-up of your RCU,

Press Sequence:

<<1 + 6>>, <9>, <9>, <6>

1. Press 1and 6 for three seconds until LED is on.

2. Press <9>, <9>, <6>.

3. This will reverse the RCU into no configuration state.

6. System Code Change.

You can change the system code of your Vu+ universal RCU according to the Vu+ model that you want to control. The default system code is Mode 2.

Mode 1 : SOLO / DUO Mode 2 : UNO / Ultimo

(*Note : The keyboard of Ultimo remote cannot be used for SOLO,DUO & UNO.)

Mode 3 & 4 : reserved for future models.

Press <<2 + 7>>, <HELP>, <0001 or 0002 or 0003 or 0004>

1. Press 2 and 7 for three seconds until LED is on.

2. Press HELP

3. Press <0001 or 0002 or 0003 or 0004>

DISCLAIMER

Vu+ universal remote controller (RCU) is developed with Philips Electronics. The database used in the Vu+

RCU supports more than 90% of the TV brands available on market. This means that your TV may not be compatible with this universal RCU in some rare cases. In this case, Vu+ RCU can be used only for Vu+ set top box.

Page 74

Vu :

Your Smart Linux TV Player

Vu User Manual

B.Function Key Table

Number Key description STB mode description TV mode description

1 STB Power STB Power Toggle 2 TV Power - TV Power toggle* 3 STB TELETEXT 4 STB SUBTITLE 5 AV - TV AV* 6 MUTE STB Mute TV Mute* 7 Digit 1 STB Digit 1 8 Digit 2 STB Digit 2 -

9 Digit 3 STB Digit 3 10 Digit 4 STB Digit 4 11 Digit 5 STB Digit 5 12 Digit 6 STB Digit 6 13 Digit 7 STB Digit 7 14 Digit 8 STB Digit 8 15 Digit 9 STB Digit 9 16 STB Delete previous character 17 Digit 0 STB Digit 0 18 STB Delete next character 19 Red STB Red 20 Green STB Green 21 Yellow STB Yellow 22 Blue STB Blue 23 Up STB Cursor Up 24 Left STB Cursor Left 25 OK STB OK 26 Right STB Cursor Right 27 Down STB Cursor Down 28 VOL+ STB Volume up TV Volume Up* 29 EXIT STB EXIT 30 CH+ STB Channel Up 31 VOL- STB Volume down TV Volume Down* 32 EPG STB EPG 33 CH- STB Channel Down 34 MENU STB MENU 35 STB ARCHIV 36 AUDIO STB AUDIO 37 HELP STB HELP 38 Fast Rewind STB Fast Rewind 39 Play STB Play 40 Pause STB Pause 41 Fast Forward STB Fast Forward 42 TV STB Go to TV channel list 43 Record STB Record 44 Stop STB Stop -

Page 75

Vu User Manual

* Shall only be available when the user configure the related feature (TV-setup and/or Volume Punch through)

C.TV Code List Brand ID for Device TV:

A.R. Systems

0012

Abex

0014

ABS

0016

Accent

0019

Acer

0028

Acoustic Solutions

0032

Action

0033

Acura

0036

ADA

0038

ADC

0040

Addison

0043

Admiral

0046

Advent

0054

Adventura

0055

Adyson

0058

AEG

0059

Agashi

0063

AGB

0064

Aiko

0069

Aim

0070

Aiwa

0072

Akai

0074

Akashi

0075

Akiba

0078

Akira

0079

Akito

0082

Akura

0083

Alaron

0085

Alba

0086

Albatron

0087

Alcyon

0093

Alienware

0099

Allorgan

0105

Allstar

0108

America Action

0123

Amoi

0132

Amplivision

0138

Ampro

0139

Amstrad

0140

Anam

0146

Anam National

0147

Andersson

0148

Anglo

0151

Anitech

0154

Ansonic

0156

AOC

0165

Apex Digital

0170

Apollo

0171

Apple

0172

Arc En Ciel

0178

Arcam

0179

Ardem

0184

Aristona

0192

ART

0199

Arthur Martin

0200

ASA

0202

Asberg

0205

Astar

0218

Astra

0221

Asuka

0227

ATD

0229

Atlantic

0233

Atori

0237

Auchan

0240

Audiosonic

0264

Audioton

0266

Audiovox

0268

Audioworld

0269

Ausind

0276

Autovox

0280

Aventura

0287

Awa

0296

Axxon

0303

Page 76

Vu :

Your Smart Linux TV Player

Vu User Manual

Baird

0311

Bang & Olufsen

0314

Barco

0319

Basic Line

0325

Bastide

0327

Baur

0331

Baysonic

0333

Bazin

0335

Beaumark

0340

Beijing

0345

Beko

0346

Belcor

0348

Bell & Howell

0350

Belson

0355

Belstar

0357

BenQ

0359

Beon

0361

Berthen

0363

Best

0364

Bestar

0368

Bestar-Daewoo

0369

Binatone

0378

Black Diamond

0384

Black Star

0386

Blackway

0388

Blaupunkt

0390

Blue Sky

0395

Blue Star

0396

Boca

0399

Bondstec

0403

Boots

0405

BPL

0413

Bradford

0414

Brandt

0416

Brillian

0422

Brinkmann

0423

Brionvega

0424

Britannia

0425

Brockwood

0430

Broksonic

0432

Bruns

0435

BskyB

0436

BSR

0437

BTC

0439

Bush

0445

Byd:sign

0448

C-Tech

0449

Caihong

0462

Caishi

0465

Candle

0480

Capsonic

0486

Carad

0488

Carena

0489

Carnivale

0491

Carrefour

0492

Carver

0494

Cascade

0496

Casio

0499

Cathay

0501

CCE

0504

Celebrity

0509

Celera

0510

Celestial

0511

Centrex

0516

Centrum

0519

Centurion

0520

Century

0521

CGE

0523

Changcheng

0526

Changfei

0527

Changfeng

0528

Changhai

0529

Changhong

0530

Chun Yun

0545

Chunfeng

0546

Chung Hsin

0547

Chunsun

0549

Cimline

0552

Cinex

0563

Citizen

0567

City

0569

Clarion

0575

Clarivox

0576

Clatronic

0581

Clayton

0582

CMS

0590

CMS Hightec

0591

Coby

0597

Commercial Solutions

0615

Concerto

0625

Concorde

0626

Condor

0627

Conia

0628

Page 77

Vu User Manual

Conrowa

0634

Contec

0635

Continental Edison

0637

Cosmel

0647

Craig

0650

Crosley

0655

Crown

0658

CS Electronics

0663

CTC

0664

CTX

0665

Curtis

0666

Curtis Mathes

0667

CXC

0670

CyberPower

0674

Cybertron

0675

Cytron

0680

D-Vision

0684

Daewoo

0692

Dainichi

0694

Dansai

0699

Dantax

0702

Datsura

0703

Dawa

0707

Daytron

0710

De Graaf

0716

DEC

0717

Decca

0718

Deitron

0722

Dell

0725

Denon

0731

Denver

0733

Desmet

0738

Diamant

0746

Diamond

0747

Diamond Vision

0748

Dick Smith Electronics

0750

Digatron

0751

Digihome

0758

Digiline

0759

Digital Life

0772

Digitex

0780

Digitor

0781

DirecTV

0794

Dixi

0807

0810

Domeos

0817

Dongda

0820

Donghai

0821

Drean

0832

DSE

0833

DTS

0837

Dual

0838

Dumont

0840

Durabrand

0842

Dux

0843

DVX

0847

Dwin

0848

DX Antenna

0849

Dynatron

0855

Easy Living

0860

Ecco

0864

ECE

0865

Elbe

0880

Elcit

0883

Electroband

0888

Electrograph

0889

Electrohome

0890

Elektra

0896

Elfunk

0899

ELG

0900

Elin

0902

Elite

0903

Elman

0907

Elta

0910

Emerson

0917

Emperor

0921

Emprex

0922

Envision

0933

Enzer

0934

Epson

0937

Erres

0942

ESA

0943

ESC

0945

Etron

0949

Eurofeel

0954

EuroLine

0955

Euroman

0956

Europa

0957

Europhon

0959

Evesham

0972

Evolution

0973

Excello

0975

Expert

0976

Exquisit

0978

Page 78

Vu :

Your Smart Linux TV Player

Vu User Manual

Feilang

0990

Feilu

0991

Feiyue

0993

Fenner

0994

Ferguson

0996

Fidelity

0998

Filsai

1000

Finlandia

1003

Finlux

1004

Firstline

1008

Fisher

1009

Flint

1014

FNR

1016

Formenti

1023

Formenti-Phoenix

1024

Fortress

1027

Fraba

1030

Friac

1040

Frontech

1042

Fujitsu

1052

Fujitsu General

1053

Fujitsu Siemens

1054

Funai

1056

Furichi

1058

Futronic

1061

Futuretech

1064

Galaxi

1068

Galaxis

1069

Gateway

1076

GBC

1078

1081

Geant Casino

1082

GEC

1083

Geloso

1087

General Technic

1095

Genesis

1096

Genexxa

1097

Giant

1113

Gibralter

1114

Go Video

1126

Goldfunk

1135

GoldHand

1136

Goldline

1138

GoldStar

1140

Goodmans

1142

Gorenje

1144

1147

GPM

1149

GPX

1150

Gradiente

1151

Graetz

1152

Granada

1154

Grandin

1156

Gronic

1160

Grundig

1162

Grunkel

1164

Grunpy

1165

Haaz

1172

Haier

1175

Haihong

1176

Halifax

1179

Hallmark

1180

Hampton

1183

Hankook

1188

Hannspree

1189

Hanseatic

1190

Hantarex

1192

Hantor

1193

Harley Davidson

1197

Harman/Kardon

1198

Harvard

1202

Harwa

1203

Harwood

1204

Hauppauge

1206

Havermy

1208

HCM

1210

Helios

1219

Hello Kitty

1221

Hema

1222

Hemmermann

1223

Hewlett Packard

1229

Hifivox

1233

Higashi

1234

Highline

1236

Hikona

1237

Hinari

1243

Hisawa

1247

Hisense

1249

Hitachi

1251

Hitachi Fujian

1252

Hitec

1253

Hitsu

1257

Hoeher

1262

Page 79

Vu User Manual

Hongmei

1272

Hornyphon

1277

Hoshai

1278

Howard Computers

1281

1283

Huafa

1287

Huanghaimei

1288

Huanghe

1289

Huanglong

1290

Huangshan

1291

Huanyu

1292

Huari

1294

Humax

1298

Hush

1304

Hygashi

1308

Hyper

1309

Hypson

1312

Hyundai

1315

Iberia

1320

iBUYPOWER

1322

ICE

1324

ICeS

1325

iLo

1341

Imperial

1346

Indesit

1349

Indiana

1350

Infinity

1352

InFocus

1353

Ingelen

1354

Ingersol

1355

Initial

1356

Inno Hit

1358

Innova

1359

Innovation

1360

Inotech

1364

Insignia

1368

Inteq

1373

Interbuy

1376

Interfunk

1377

Internal

1379

International

1380

Intervision

1386

Irradio

1396

IRT

1397

Isukai

1402

ITC

1404

ITS

1405

ITT

1406

ITT Nokia

1407

ITV

1408

Janeil

1414

JBL

1420

JCB

1421

Jean

1424

JEC

1426

Jensen

1429

Jiahua

1435

Jinfeng

1438

Jinhai

1439

Jinxing

1442

JMB

1445

JNC

1446

Jocel

1448

Jubilee

1460

JVC

1464

Kaisui

1471

Kamp

1475

Kangchong

1476

Kanghua

1477

Kapsch

1483

Karcher

1484

Kathrein

1486

Kawa

1487

Kawasho

1489

KDS

1494

KEC

1496

Ken Brown

1499

Kendo

1500

Kennedy

1504

Kennex

1505

Kenwood

1507

Khind

1511

KIC

1512

Kingsley

1520

Kiota

1522

Kioto

1523

Kiton

1525

KLH

1529

KLL

1531

Kloss

1532

Kneissel

1535

Kolin

1541

Kolster

1543

Konig

1547

Page 80

Vu :

Your Smart Linux TV Player

Vu User Manual

Konka

1548

Korpel

1552

Korting

1554

Kosmos

1557

Koyoda

1561

KTV

1572

Kunlun

1578

Kuro

1579

Kyoshu

1583

Kyoto

1585

L&S Electronic

1588

LaSAT

1597

Lavis

1602

Lecson

1606

Lenco

1615

Lenoir

1617

Lesa

1622

Lexsor

1626

Leyco

1627

1628

Liesenk & Tter

1630

Liesenkotter

1631

Lifetec

1633

Linksys

1640

Lloyd's

1648

Local India TV

1653

Local Malaysia TV

1656

Lodos

1659

Loewe

1660

Logik

1661

Logix

1663

Luma

1674

Lumatron

1676

Lux May

1680

Luxman

1682

Luxor

1683

LXI

1686

M Electronic

1688

Madison

1698

MAG

1701

Magnadyne

1702

Magnafon

1703

Magnasonic

1704

Magnavox

1706

Magnin

1708

Magnum

1709

Majestic

1713

Mandor

1717

Manesth

1718

Manhattan

1719

Marantz

1724

Marelli

1729

Mark

1731

Mascom

1738

Mastro

1743

Masuda

1744

Matsui

1750

Matsushita

1751

Maxdorf

1756

Maxent

1757

Maxim

1759

McMichael

1768

Meck

1775

Media Center PC

1777

Mediator

1784

Medion

1787

Medison

1788

Megapower

1791

Megatron

1795

MEI

1796

Melvox

1799

Memorex

1800

Memphis

1802

Mercury

1804

Mermaid

1806

Metronic

1809

Metz

1810

MGA

1811

Micromaxx

1822

Microsoft

1826

Microstar

1827

MicroTEK

1829

Midland

1831

Mikomi

1833

Minato

1835

Mind

1837

Minerva

1838

Minoka

1840

Mintek

1845

Minutz

1847

Mitsubishi

1855

Mivar

1857

Monivision

1872

Morgan's

1875

Page 81

Vu User Manual

Motion

1877

Motorola

1878

MTC

1889

MTEC

1890

MTlogic

1892

Mudan

1896

Multistandard

1904

Multitec

1906

Multitech

1907

Murphy

1911

Musikland

1915

Myryad

1922

NAD

1926

Naiko

1930

Nakimura

1933

Naonis

1936

NAT

1941

National

1942

NEC

1950

Neckermann

1951

NEI

1952

Nesco

1960

Netsat

1966

NetTV

1967

Network

1968

Neufunk

1970

New Tech

1979

New World

1980

Newave

1981

Nicamagic

1994

Nikkai

1998

Nikkei

1999

Nikko

2000

Nintaus

2006

Niveus Media

2012

Noblex

2013

Nobliko

2014

Nogamatic

2016

Nokia

2017

Norcent

2020

Nordic

2021

Nordmende

2022

Normerel

2024

Northgate

2027

Norwood Micro

2029

Novatronic

2035

NTC

2045

Nu-Tec

2048

NuVision

2053

Oceanic

2061

Okano

2065

Olevia

2067

Omni

2074

Onida

2081

Onimax

2082

Onwa

2087

Opera

2090

Oppo

2092

Optimus

2095

Optoma

2097

Optonica

2099

Orbit

2103

Orion

2111

Orline

2113

Ormond

2114

Orsowe

2116

Osaki

2118

Osio

2121

Oso

2122

Osume

2123

Otic

2125

Otto Versand

2126

Pacific

2135

Packard Bell

2138

Pael

2140

Palladium

2145

Palsonic

2147

Panama

2149

Panasonic

2153

Panavision

2154

Panda

2155

Pathe Cinema

2168

Pathe Marconi

2169

Pausa

2171

Peng Sheng

2181

Penney

2182

Perdio

2185

Perfekt

2186

Petters

2189

Philco

2192

Philharmonic

2194

Philips

2195

Phocus

2198

Phoenix

2199

Page 82

Vu :

Your Smart Linux TV Player

Vu User Manual

Phonola

2201

Phonotrend

2202

Pilot

2207

Pioneer

2212

Pionier

2213

Plantron

2219

Playsonic

2224

Polaroid

2230

Poppy

2236

Portland

2238

Powerpoint

2241

Precision

2244

Premier

2248

President

2250

Prima

2253

Princeton

2258

Prinston

2259

Prinz

2260

Prism

2261

Profex

2269

Profilo

2272

Profitronic

2273

Proline

2274

Promax

2275

Proscan

2279

Prosco

2280

Prosonic

2282

Protech

2284

Proton

2288

Protron

2289

Proview

2290

ProVision

2291

Pulsar

2296

Pye

2302

Pymi

2304

Qingdao

2308

Quasar

2320

Quelle

2322

Questa

2324

R-Line

2327

Radialva

2329

Radiola

2330

Radiomarelli

2331

Radionette

2332

RadioShack

2333

Radiotone

2334

Rank

2345

Rank Arena

2346

RBM

2350

RCA

2351

Realistic

2354

Recco

2358

Recor

2359

Rectiligne

2362

Rediffusion

2364

Redstar

2366

Reflex

2368

Relisys

2374

Remotec

2377

Reoc

2379

Revox

2383

Rex

2385

RFT

2386

Rhapsody

2387

Ricavision

2388

Rinex

2392

Roadstar

2398

Robotron

2401

Rolson

2410

Rowa

2416

Royal Lux

2420

Runco

2423

Saba

2429

Sagem

2434

Saisho

2437

Saivod

2439

Salora

2443

Sambers

2445

Sampo

2446

Samsung

2448

Samsux

2449

Sandra

2454

Sansui

2458

Sanyo

2462

Sanyuan

2464

SBR

2492

Sceptre

2498

Schaub Lorenz

2500

Schneider

2501

Scimitsu

2505

Scotch

2506

Scott

2508

Sears

2514

Seaway

2515

Page 83

Vu User Manual

Seelver

2520

SEG

2522

SEI

2524

Sei-Sinudyne

2525

Seleco

2528

Semivox

2529

Semp

2530

Sencora

2531

Sentra

2534

Serie Dorada

2538

Serino

2539

Shanghai

2547

Shaofeng

2549

Sharp

2550

Shencai

2553

Sheng Chia

2554

Shenyang

2555

Sherwood

2557

Shintoshi

2564

Shivaki

2567

Shogun

2568

Shorai

2569

Siam

2572

Siarem

2573

Siemens

2574

Siera

2576

Siesta

2577

Signature

2582

Silva

2591

Silva Schneider

2592

Silver

2594

SilverCrest

2595

Simpson

2598

Singer

2599

Sinotec

2600

Sinudyne

2601

Skantic

2605

SKY

2610

Skysonic

2627

Skyworth

2631

SLX

2638

Sogera

2649

Solavox

2654

Sole

2655

Sonawa

2663

Soniko

2669

Sonitron

2671

Sonneclair

2673

Sonoko

2675

Sonolor

2676

Sontec

2677

Sony

2679

Sound & Vision

2680

Soundesign

2684

Soundwave

2689

Sova

2690

Sowa

2691

Soyea

2692

Soyo

2693

Spectroniq

2701

Squareview

2703

SSS

2708

Stack 9

2710

Standard

2713

Starlite

2728

Stenway

2739

Stern

2741

Strato

2745

Strong

2748

Studio Experience

2750

Stylandia

2752

SunBrite

2759

Sunkai

2762

Sunny

2764

Sunstar

2768

Sunwood

2772

Superla

2782

Superscan

2786

Supersonic

2787

SuperTech

2789

Supervision

2791

Supra

2792

Supre-Macy

2794

Supreme

2795

Susumu

2797

Sutron

2798

SVA

2800

Svasa

2801

Swisstec

2806

Sydney

2808

Sylvania

2809

Symphonic

2810

Synco

2811

Syntax

2814

Page 84

Vu :

Your Smart Linux TV Player

Vu User Manual

Sysline

2815

Systemax

2817

Sytong

2820

Tacico

2823

Tactus

2825

Tagar Systems

2831

Taishan

2835

Talent

2838

Tandberg

2842

Tandy

2843

Tashiko

2850

Tatung

2852

TCL

2856

TCM

2857

Teac

2860

Tec

2861

Tech Line

2863

Techica

2865

Technema

2866

Technica

2868

Technics

2869

Technika

2870

TechniSat

2873

Technisson

2874

Technol Ace

2875

Technosonic

2878

Techview

2883

Techwood

2884

Tecnimagen

2885

Teco

2886

Tedelex

2889

Tek

2892

Teknika

2895

Teleavia

2901

Telecor

2910

Telefunken

2914

Telefusion

2915

Telegazi

2917

Telemeister

2924

Telesonic

2930

Telestar

2931

Teletech

2934

Teleton

2935

Televideon

2938

Teleview

2939

Televiso

2941

Temco

2946

Tennessee

2952

Tensai

2954

Tenson

2955

Tevion

2962

Texet

2963

Thomas

2971

Thomson

2972

Thorn

2974

TMK

2994

TML

2995

TNCi

2996

Tobo

2999

Tokai

3001

Tokaido

3002

Tokyo

3004

Tomashi

3006

Topline

3016

Toshiba

3021

Totevision

3024

Touch

3025

Towada

3028

Toyoda

3030

Trakton

3036

Trans Continens

3037

TRANS-continents

3039

Transonic

3041

Transtec

3042

Triad

3049

Trident

3054

Tristar

3057

Triumph

3058

TVS

3081

TVTEXT 95

3082

Uher

3089

Ultra

3093

Ultravox

3095

Unic Line

3100

United

3106

Universal

3113

Universum

3115

Univox

3116

US Logic

3124

Vector Research

3137

Venturer

3143

VEOS

3144

Vestel

3148

Vexa

3149

Page 85

Vu User Manual

Vibrant

3154

Victor

3155

Videocon

3163

Videologic

3165

Videologique

3166

Videosat

3170

VideoSystem

3172

Videotechnic

3173

Videoton

3174

Vidikron

3178

Vidtech

3179

Viewsonic

3186

Viking

3188

Viore

3192

Visiola

3197

Vision

3198

Vistar

3207

Vizio

3211

Voodoo

3215

Vortec

3217

Voxson

3220

Vue

3225

Waltham

3230

Wards

3231

Watson

3233

Watt Radio

3234

Waycon

3237

Wega

3238

Wegavox

3239

Welltech

3244

Weltblick

3245

Weltstar

3247

Westinghouse

3249

Weston

3251

Wharfedale

3255

White Westinghouse

3258

Wilson

3260

Windsor

3265

Windstar

3266

Windy Sam

3267

Wintel

3271

Wyse

3288

Xenius

3297

Xiahua

3299

Xiangyu

3302

Xingfu

3305

Xinghai

3306

Xinrisong

3308

XLogic

3310

Xoro

3315

Xrypton

3317

Xuelian

3320

Yamaha

3326

Yamishi

3328

Yokan

3335

Yoko

3336

Yorx

3340

Yuhang

3345

Zanussi

3349

Zenith

3356

ZhuHai

3364

Zonda

3369

ZT Group

3370

Arena

3375

G-Hanz

3397

I-Inc

3462

TruTech

3467

Aftron

3470

Dynex

3476

Element

3477

Hanns.G

3478

RevolutionHD

3503

BGH

3507

GVA

3510

Princess

3514

Acme

3521

Agazi

3522

Alkos

3523

Arcam Delta

3524

Ayomi

3525

Blacktron

3526

Dual-Tec

3528

Elbe-Sharp

3529

Electa

3530

ELECTRO TECH

3531

HiLine

3533

Interactive

3534

Kamosonic

3535

LG/Goldstar

3536

Liesenk

3537

Life

3538

Loewe Opta

3540

Nordvision

3543

ONCEAS

3544

Page 86

Vu :

Your Smart Linux TV Player

Vu User Manual

Quandra Vision

3546

Radio Shack

3547

RTF

3548

Tesmet

3550

Aomni

3555

Chimei

3563

Digital Lifestyles

3567

YU-MA-TU

3603

Bork

3615

iDEAL

3641

JTV

3645

Melectronic

3654

Onn

3663

Tesla

3680

Kenstar

3756

Vistron

3773

Pensonic

3778

Union

3781

DigiMax

3808

GFM

3820

Mitsai

3851

Nortek

3862

Camper

3911

Nexus Electronics

3948

PARK

3951

BARON

3959

Morgans

3970

Ziggo

4007

Cameron

4032

Gaba

4059

Nimbro

4065

Quadro

4071

Shinelco

4074

4078

Catha

4094

Chuangjia

4096

Duongjie

4101

Fagor Life

4102

Fenmenti

4103

Great Wall

4105

Huijiaban

4108

4110

Kangwei

4115

Layco

4117

Multisystem

4121

Okana

4122

Oulin

4123

Prandoni Prince

4125

Profekt

4126

Radio

4128

Shanshui

4133

Songdian

4136

Srypton

4138

Teachimagen

4140

Tiankeban

4142

Transfec

4143

Datron

4201

ShengCai

4217

Ministry Of Sound

4247

Inspira

4296

O.K.Line

4301

Onei

4302

Polyvision

4304

Walker

4311

Moree

4565

Nikai

4566

Novex

4567

Page 87

Vu User Manual

GNU GENERAL PUBLIC LICENSE

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software-

-to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

V. Copyright - GNU GPL

Page 88

Vu :

Your Smart Linux TV Player

Vu User Manual

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when

started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

Page 89

Vu User Manual

c) Accompany it with the information you received as to the offer to distribute corresponding source code.

(This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

Page 90

Vu :

Your Smart Linux TV Player

Vu User Manual

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS

Page 91

Vu User Manual

Main menu

1st level 2nd level 3nd level 4nd level 5nd level

Media player Media Player

Timer Timer List

Information

Service Service info

About About

Plugins Plugin browser

Setup

Service Searching

Tuner Configuration Tuner A,B,C

Default Service lists

Automatic Scan Service scan Window

Manual Scan Service scan Window

Language

Language Selection

Window

Customize Customize Window

Timezone Timezone Window

Harddisk

Harddisk setup Harddisk setup

Initialization Initialization

Filesystem Check Filesystem Check

A/V Settings A/V Settings Window

Display Setup Display Setup Window

Network

Network Configuration

Window

Keyboard Keyboard Setup Window

Skin

Common Interface

Parental control Parental control setup

Factory reset

Standby /

Restart

Sleep Timer

Standby

Restart

Deep Standby

VI. Menu Structure

Page 92

Vu :

Your Smart Linux TV Player

Vu User Manual

VII. Troubleshooting

Before you contact your local service center, please read the following tips carefully.

NOTE :

if the antenna is covered with snow or the RF signal is weakened by heavy rain, the quality of audio and video may become temporarily poor. If you experience poor audio and video quality due to bad weather conditions, please check if your satellite antenna is oriented in the original direction. And see if it is covered by snow. Also, check if your LNB is not damaged.

1. No video on TV

•

Check first if the product is powered on and in operation mode.

•

Check if the video cable is properly connected between TV and Vu+.

•

Check if the satellite cable is properly connected to Vu+.

•

Check if the selected channel is currently on air.

•

Check if the selected channel is encrypted and if you have a corresponding access smartcard.

2. Problem with audio quality

•

Check if your audio cable is connected correctly.

•

Check the volume level of your TV and Vu+.

•

Check if Vu+ or TV is on mute.

•

Check the audio option if it is correctly selected for the program that you are currently watching.

3. Remote control problem

•

Check if the batteries are correctly mounted.

•

If your remote control has been used for long, change the batteries.

•

Point the remote control directly toward Vu+.

•

Make sure that nothing blocks the front panel display.

4. Channel search problem

•

Make sure if tuner configurations are all correctly made.

•

Check if the antenna cable(s) are properly connected.

5. Encrypted channel viewing problem

•

Check if you have the appropriate Smartcard and/or CAM.

•

Take the Smartcard and CAM out and re-insert them to re-initialize.

•

Check if your system correctly detects the smartcard and CAM.

6. Recording problem

•

Check if the HDD has a sufficient space for recording.

•

Check if there is a conflict between recording timer.

7. Noise

•

Vu+ has an integrated FAN. This may create a noise but is inevitable to make sure the safety of

the product.

•

Also, when HDD is running, you may hear a noise.

Page 93

Vu User Manual

VIII. Glossary

8PSK

8-PSK is usually the highest order PSK constellation deployed. With more than 8 phases, the error-rate becomes too high and there are better, though more complex, modulations available such as quadrature amplitude modulation (QAM). Although any number of phases may be used, the fact that the constellation must usually deal with binary data means that the number of symbols is usually a power of 2 — this allows an equal number of bits-per-symbol.

CAM

Conditional Access Module is an electronic device, usually incorporating a slot for a smart card, which equips an Integrated Digital Television or set-top box with the appropriate hardware facility to view conditional access content that has been encrypted using a conditional access system. They are normally used with direct broadcast satellite (DBS) services.

Composite Video

Composite video is the format of an analog television (picture only) signal before it is combined with a sound signal and modulated onto an RF carrier. Composite video is often designated by the CVBS acronym, meaning "Color, Video, Blank and Sync". In German (with PAL being a German invention by Telefunken's Walter Bruch) the abbreviation FBAS (Farbe-Bild-Austastung-Synchron) means the same. It is usually in standard formats such as NTSC, PAL, and SECAM. It is a composite of three source signals called Y, U and V (together referred to as YUV) with sync pulses. Y represents the brightness or luminance of the picture and includes synchronizing pulses, so that by itself it could be displayed as a monochrome picture. U and V represent hue and saturation or chrominance; between them they carry the color information. They are first modulated on two orthogonal phases of a color carrier signal to form a signal called the chrominance. Y and UV are then combined. Since Y is a baseband signal and UV has been mixed with a carrier, this addition is equivalent to frequency-division multiplexing.

Conditional Access

System

Several companies provide competing Conditional Access Systems; Irdeto Access, Nagravision, Viaccess, Verimatrix and NDS are among the most commonly used CAS systems.

DiSEqC

Stands for Digital Satellite Equipment Control. It is a special communication protocol for use between a satellite receiver and a device such as a multi-dish switch or a small dish antenna rotor. DiSEqC was developed by European satellite provider Eutelsat, which now acts as the standards agency for the protocol.

Dolby Digital

Dolby Digital is the common version containing up to six discrete channels of sound. The most elaborate mode in common usage involves five channels for

normal-range speakers (20 Hz – 20,000 Hz) (right front, center, left front, right rear and left rear) and one channel (20 Hz – 120 Hz allotted audio) for the subwoofer

driven low-frequency effects. Mono and stereo modes are also supported. Dolby Digitalsupports audio sample-rates up to 48 kHz. * Dolby Digital * D (an abbreviation for Dolby Digital, often combined with channel count; for instance, D 2.0, D 5.1)

Page 94

Vu :

Your Smart Linux TV Player

Vu User Manual

EPG

Electronic Program Guide is a digital guide to scheduled broadcast television or radio programs, typically displayed on-screen with functions allowing a viewer to navigate, select, and discover content by time, title, channel, genre, etc. by use of their remote control, a keyboard, or other input devices such as a phone keypad. Content can also be scheduled for future recording by a personal video recorder (PVR). The on-screen information may be delivered by a dedicated channel or assembled by the receiving equipment from information sent by each program channel.

eSATA

A variant of SATA meant for external connectivity with the following characteristics:

* Minimum transmit potential: Range is 500–600 mV. * Minimum receive potential: Range is 240–600 mV. * Identical protocol and logical signaling (link/transport-

layer and above), allowing native SATA devices to be deployed in external enclosures with minimal modification.

FEC

Stands for Forward Error Correction. This is a system of error control for data transmission, whereby the sender adds redundant data to its messages, also known as an error-correction code. This allows the receiver to detect and correct errors (within some bound) without the need to ask the sender for additional data. The advantages of forward error correction are that a back-channel is not required and retransmission of data can often be avoided (at the cost of higher bandwidth requirements, on average).

HDMI

Stands for High-Definition Multimedia Interface. It is a compact audio/video interface for transmitting uncompressed digital data. HDMI connects digital audio/ video sources—such as set-top boxes, Blu-ray Disc players, personal computers (PCs), video game consoles (such as the PlayStation 3 and some models of Xbox

360), and AV receivers—to compatible digital audio devices, computer monitors, and digital televisions. As an uncompressed connection, HDMI is independent of the various digital television standards used by individual devices, such as ATSC and DVB, as these are encapsulations of compressed MPEG video streams (which can be decoded and output as an uncompressed video stream on HDMI).

LNB

Stands for Low-Noise Block converter. This is the (receiving, or downlink) antenna of what is commonly called the parabolic satellite dish commonly used for satellite TV reception. The LNB is usually fixed on or in the satellite dish. The purpose of the LNB is to take a wide block (or band) of relatively high frequencies, amplify and convert them to similar signals carried at a much lower frequency (called intermediate frequency or IF). These lower frequencies travel through cables with much less attenuation of the signal, so there is much more signal left on the satellite receiver end of the cable. It is also much easier and cheaper to design electronic circuits to operate at these lower frequencies, rather than the very high frequencies of satellite transmission.

PID

Stands for Packet Identifier. This is a set of numbers identifying stream packets contained within a single data stream

Polarization

The orientation of the electrical and magnetic fields of a signal. Satellites use mainly vertical and horizontal polarization.

Page 95

Vu User Manual

S/PDIF

Stands for Sony/Philips Digital Interconnect Format. A common use for the S/PDIF interface is to carry compressed digital audio as defined by the standard IEC

61937. This mode is used to connect the output of a DVD player to a home theater receiver that supports Dolby Digital or DTS surround sound. Another common use is to carry uncompressed digital audio from a CD player to a receiver. This specification also allows for the coupling of personal computer digital sound (if equipped) via optical or coax to Dolby Digital or DTS capable receivers.

SCART

A French-originated standard and associated 21-pin connector for connecting audio-visual (AV) equipment together. SCART is one of the most common method of connecting audio-visual equipment together. However, transferring analogue standard-definition content, SCART is becoming obsolete with the introduction of new digital standards such as HDMI, which can also carry high-definition content and multichannel audio.

Smartcard

A pocket-sized card with embedded Integrated Circuits which can process data. It can receive input which is processed and delivered as an output. The card may embed a hologram to avoid counterfeiting. It is used for accessing encrypted TV channels or services.

Teletext

A television information retrieval service developed in the United Kingdom in the early 1970s. It offers a range of text-based information, typically including national, international and sporting news, weather and TV schedules. Subtitle (or closed captioning) information is also transmitted in the teletext signal, typically on page 888 or 777.

Xcrypt One of the Conditional Access Systems by Xcrypt.

YPbPr

A color space used in video electronics, in particular in reference to component video cables. YPbPr is the analog version of the YCBCR color space; the two are numerically equivalent, but YPBPR is designed for use in analog systems whereas YCBCR is intended for digital video.YPbPr is commonly called "component video", but this is a misnomer, as there are many other types of component video (mostly RGB with sync either on green or one or two separate signals).

YPbPr is converted from the RGB video signal, which is split into three components, Y, PB, and PR.

* Y carries luma (brightness) and sync information. * PB carries the difference between blue and luma (B - Y). * PR carries the difference between red and luma (R - Y). Sending a green signal would be redundant, as it can be derived using the blue, red and luma information.
