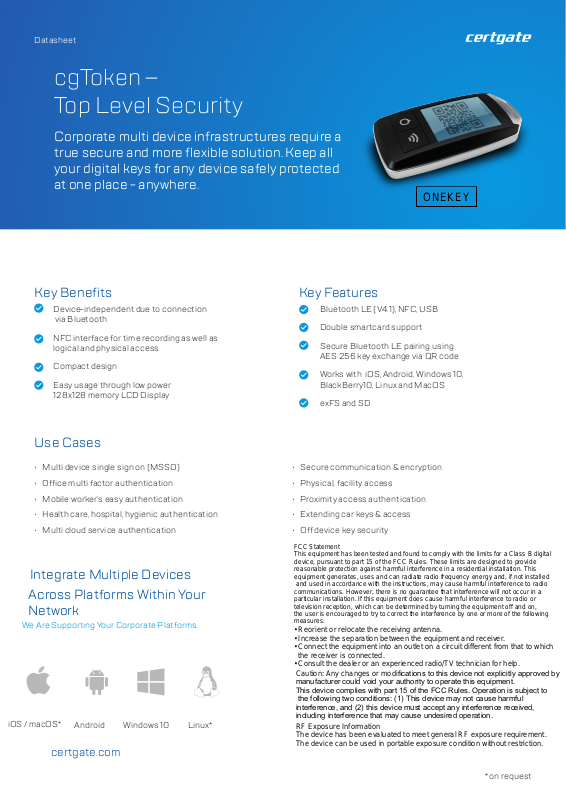

Page 1
Datasheet
cgToken –
Top Level Security
Corporate multi device infrastructures require a
true secure and more flexible solution. Keep all
your digital keys for any device safely protected
at one place - anywhere.
ONEKEY
Key Benefits
Device-independent due to connection
via Bluetooth
NFC interface for time recording as well as
logical and physical access
Compact design
Easy usage through low power
128x128 memory LCD Display
Use Cases
• Multi device single sign on (MSSO)
• Office multi factor authentication
• Mobile worker’s easy authentication
• Health care, hospital, hygienic authentication
• Multi cloud service authentication
Integrate Multiple Devices
Across Platforms Within Your
Network
We Are Supporting Your Corporate Platforms.
iOS / macOS*
Android
certgate.com
Windows 10 Linux*
Key Features
Bluetooth LE (V4.1), NFC, USB
Double smartcard support
Secure Bluetooth LE pairing using
AES 256 key exchange via QR code
Works with iOS, Android, Windows 10,
BlackBerry10, Linux and MacOS
exFS and SD
• Secure communication & encryption
• Physical, facility access
• Proximity access authentication
• Extending car keys & access
• Off device key security
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
* on request
Page 2
Datasheet cgToken
Key Technical Data
• Communication interfaces:
Bluetooth LE™ (V4.1), NFC, USB
• Zero footprint desktop USB integration via CCID protocol
(Windows™, Linux, MacOS™)
– Easy usage through low power 128x128 memory
LCD Display
– QR-Code pairing and configuration
– Status- & power charge indicator
– Bluetooth™ connection status
• Easy two button interface
– On/Off for power management
– Pairing for secure,
encrypted Bluetooth LE™ connection
• Double SmartCard support:
– Contact interface (ISO7816) for ID-000 cards
38 MM 15 MM
Shipment
Minimum quantity:
1 piece, including
Bulk Orders:
on request
72 MM
• Micro USB interface
• Secure Bluetooth LE™ pairing using AES 256 key
• On board flash memory 8Mb
• Windows™ compatible exFAT file system for on board flash
• ID-000 card
• USBcable
• Power supply through rechargeable battery
• Solid alloy framed, synthetic enclosure with key ring bail
(„mini SIM cards“)
– NFC antenna for NFC enabled dual interface
ID-000 mini SIM card via C4 und C8 ISO7816
Our NFC function is just to receive, without any launch
function, just to change the data of the smart card, we
set the program to make NFC only receive function
–
Supported chip card protocol: T=1, T=0 /
voltage: 1.8V/3V
– SD/MMC interface (SPI Mode)
Supports virtual any ID-000 card, JCOP,
–
TCOS and others
– Charging built-in LiPo rechargable battery
– Secure Firmware update
exchange via QR code
and SD/MMC Interface
cgToken Also Works WithDiscovering Synergies
certgate products working seamlessly together.
Whether sending secure emails, encrypting and
protecting your valuable data or you want to globally
distribute and manage your certificates. Combine
our products and discover the symbiosis of security,
flexibility and comfort
certgate GmbH
Merianstrasse 26
90409 Nuremberg
Germany
© 2017 certgate. All rights reserved. Reproduction only permitted with the approval of certgate. All brands listed are the brands of the respective owners.
Errors, changes, and availability of the listed products, services, characteristics, and possible applications reserved. Products and services will be provided by certgate.
certgate makes no guarantee for the information of third parties regarding characteristics, services and availability. certgate reserves the right to make changes
to products and services as a result of product development, even without prior notification. None of the statements and depictions represents legal
advice or may be interpreted in such a manner. In case of deviations from the contract documents and general terms and conditions of certgate and their affiliated
companies and subsidiaries in conjunction with this document, the contract documents and general terms and conditions always have precedent over this
document.
cgNetwork cgPhonecgCard
Phone: + 49 (0) 911 93 523-0
E-Mail: [email protected]
Web: www.certgate.com
version 201705006EN
