Table of Contents
Product Layout...................................................................................................................................2
Technical Specifications..................................................................................................................2
General Safety Precautions...........................................................................................................2
Additional Safe Work Tips........................................................................................................3
Assembly...............................................................................................................................................4
Grinding Disk Maintenance............................................................................................................5
Grinding Disk Assembly.............................................................................................................5
Clamping Screw Setup...............................................................................................................6
Grinding.................................................................................................................................................6
Grinding Depth Gauge................................................................................................................7
Dimensions............................................................................................................................................7
Parts List................................................................................................................................................8
1

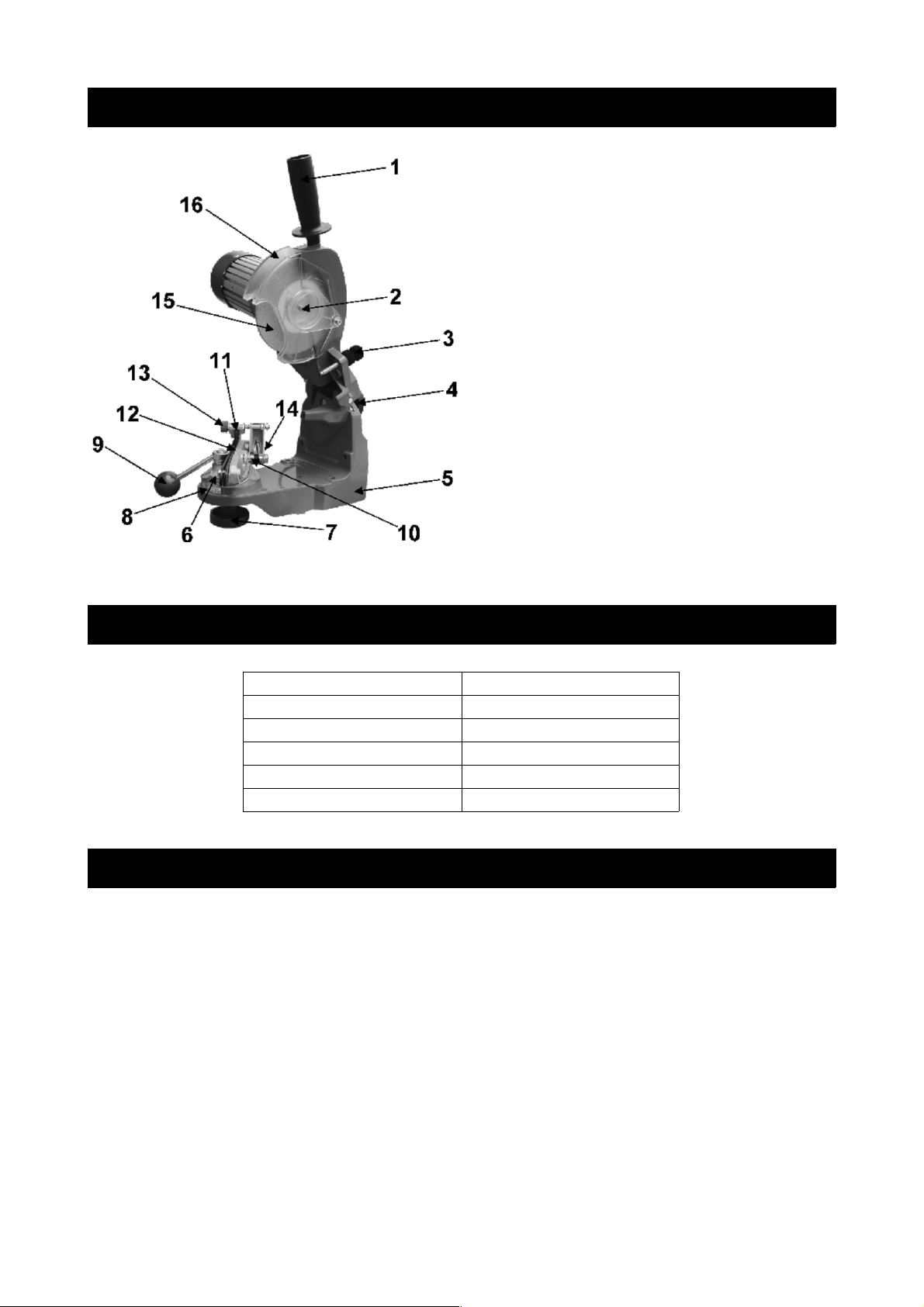

Product Layout
1. Handle
2. Grinding Disk Lateral Guard
3. Depth of Grind Set Screw
4. Cutting Edge Angle Wheel
5. Base
6. Screw Clamp Cradle
7. Cutting Angle Wheel
8. Scale
9. Clamping Lever
10. Mean Distance Set Screw
11. Guide Flap Valve
12. Screw Clamp
13. Guide Position Set Screw
14. Setting Screw
15. Grinding Disk
16. Grinding Disk Protective Enclosure
Technical Specifications
Supply Voltage: 230V / 50Hz
Motor Input Speed: 230W
Maximum Speed: 3000rpm
Protection : IP20
Noise Level: LWA 85dB (A)
Weight: Approx 4.5kg
General Safety Precautions
Read the instruction manual carefully before the first use of the machine. If you have any doubt regarding
the connection and operation of the unit, contact the Kogan.com customer support team.
Protect the unit from moisture, rain and dust!
• To ensure the highest degree of safety, please follow these instructions:
• Use the unit only for the scope of work for which it has been designed.
• When using the chainsaw sharpener outdoors, you should always use a weather resistant extension
cable to connect it, with a minimum diameter of 1.5mm2 with a splash-proof plug and socket.
• The noise level in the working area will be above 85dB(A), so ear protection must be worn!
• For your own safety, always use a dust mask and safety goggles.
• Always unplug the unit before performing any work on it (cleaning, grinding disk replacement
etc...)
• Take care to have the saw-chain secured properly to stop it from slipping out.
• Please ensure that you clean dust and debris from the grinder after every use. You should also
check the unit for any damage.
2
• Do not use any caustic substances to clean the sharpener.
• Do not use the unit or work on it within the proximity of flammable liquids or vapours.
• Protect the power cable from any damage, including acids or oils.
• Observe any and all national safety regulations regarding the installation, operation and
maintenance of this product.
• Upon completion of your sharpening jobs, unplug the chainsaw sharpener from the mains power.
• Working gloves will protect your fingers and skin from cutting injuries during use. Be sure to keep
your hands away from the grinding disk when it is moving.
• Store the unit in a location that is inaccessible to children.
• Always hold the unit with both hands when working, and be sure you are standing with secure
footing on a stable surface.
Additional Safe Work Tips
• Keep your workplace tidy.
A messy workplace may cause an accident.
• Always make allowances for environmental effects and factors.
Do not expose the unit to rain, or use in a wet or moist location. Ensure there is sufficient lighting
and there are no flammable liquids or gases in the area.
• Prevent children from access.
Do not let other people touch the unit or the power cable. Prevent unauthorised people from
gaining access to the working area.
• Store the unit in a safe location.
When not in use, the unit should be kept in a dry, elevated locked location, out of reach of children.
• Use the correct machine.
Do not use the unit for any purpose other than what it is intended for. Only use the unit as
described in the user manual.
• Wear proper clothing!
Do not wear any wide or loose garments or jewellery that may get caught in moving parts. For
working outdoors, rubber gloves and non-skid shoes are recommended. If you hair is long, tie it up
or wear a hairnet. Use protective goggles.
• Wear a breathing mask when engaged in a dust-producing job.
• Do not use the cable for any purpose other than what it is intended for.
Do not use the cable for carrying or hanging the machine. Do not use the cable itself to pull the
plug out of the socket. Protect the cable from excessive temperatures, oil or sharp edges.
• Avoid any abnormal posture.
Mind your safe footing and balance at all times.
• Take due care of the unit.
Abide by the maintenance and grinding disk replacement regulations.
Check the power cable regularly and when it is found to be damaged, have it replaced by an
electrician. Check extension cables regularly and replace them if damaged.
Keep the handle dry, free of dirt, oil and grease.
• Unplug the machine when not in use, prior to maintenance or when replacing a grinding disk.
• Remove any spanners from the unit.
Before switching on, check to see that any wrenches or adjustment tools have been removed.
• Be attentive and mind what you are doing.
Never use the machine while you are distracted, after consuming alcohol or taking medication, or
under any other circumstances that may impact your ability to concentrate.
• Check the machine prior to use for any possible damage.
• Before using the unit, you should check any protective devices and any parts showing any slight
damage to see that the function intended is still available.
Check to see that moving parts are moving freely, do not drag and are not damaged. Any parts
should be installed properly to comply with the conditions of the machines safe operation.
Parts should only be repaired in a professional workshop. Do not use the unit with a defective
ON/OFF switch.
3

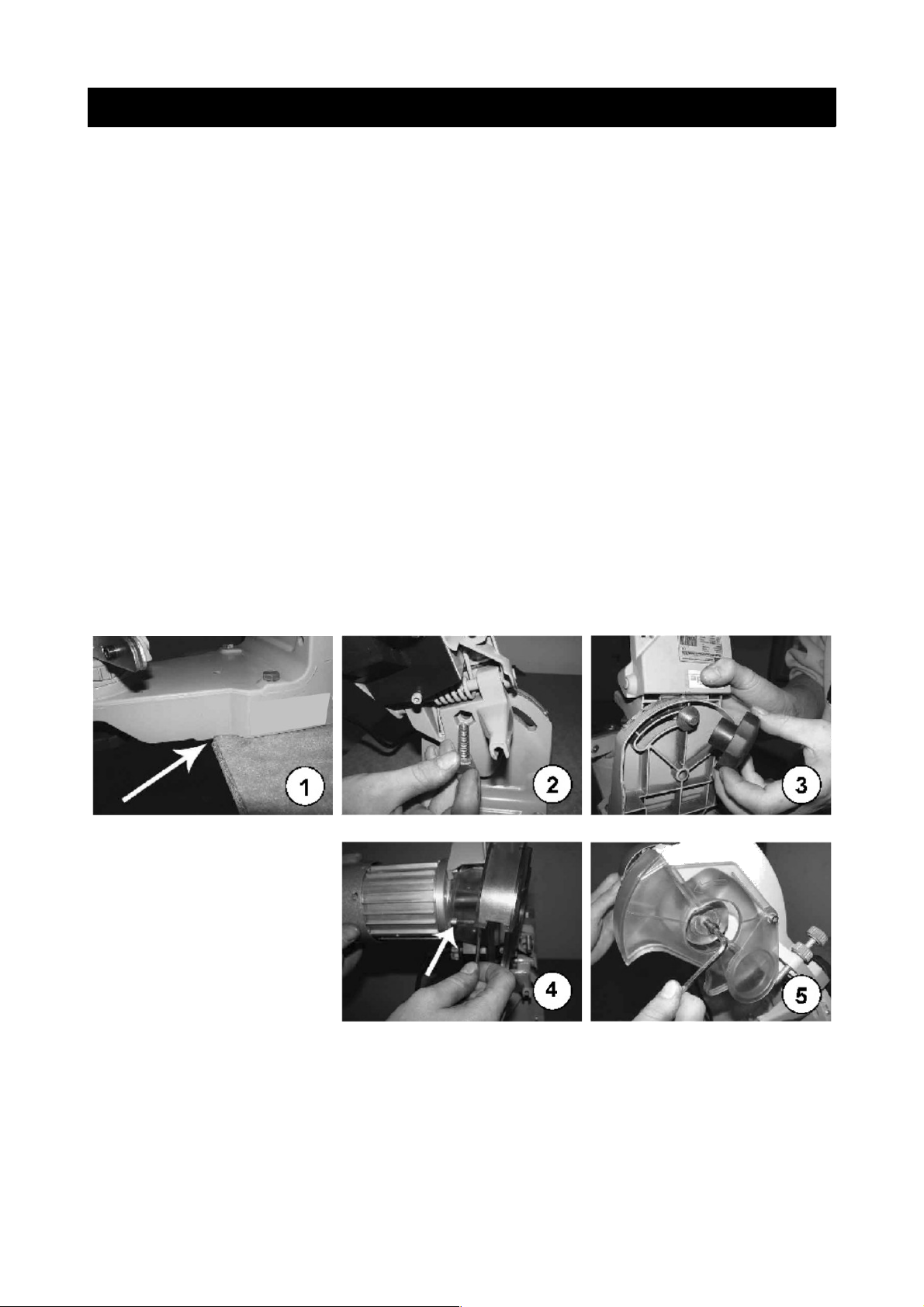

Assembly
The chainsaw sharpener is delivered partially assembled. One part consists of the base, on which
the chain guide is located. The other part is the bearing arm with the motor and hand-grip.
The assembly MUST be performed with the machine unplugged!
• The unit design allows either for a desk installation or a wall mounting. When installing it
on a desk, push the unit up against the edge of the desk to the stop (see Fig. 1), then
screw it to the desk using the holes in the base.
• When mounting the unit onto a wall, use the respective holes in the vertical part of the
base (here, a distance from the wall should be kept, or spacers should be used so that
access to the rear set screws is maintained).
• After the desk top installation, fit the arm in the base by inserting the pilot pin and
securing it with a hexagonal screw (see Fig. 2).
• Now, it is possible to fit a washer on the rear side screw and screw the setting wheel on
(see Fig. 3).
• Screw the supporting arm control holder on the screw in the grinding disk body.
• Fit the grinding disk enclosure on using the supplied screws and suitable wrench (See
Fig. 4).
TIP: When mounting unit on the wall, take care to mount the unit at the approximate height of
120 ~ 130cm from the floor to avoid working at eye height. Be sure to keep children away when
using this unit.
To install the grinding disks, it is necessary to unscrew the auxiliary flange (see Fig. 5).
4

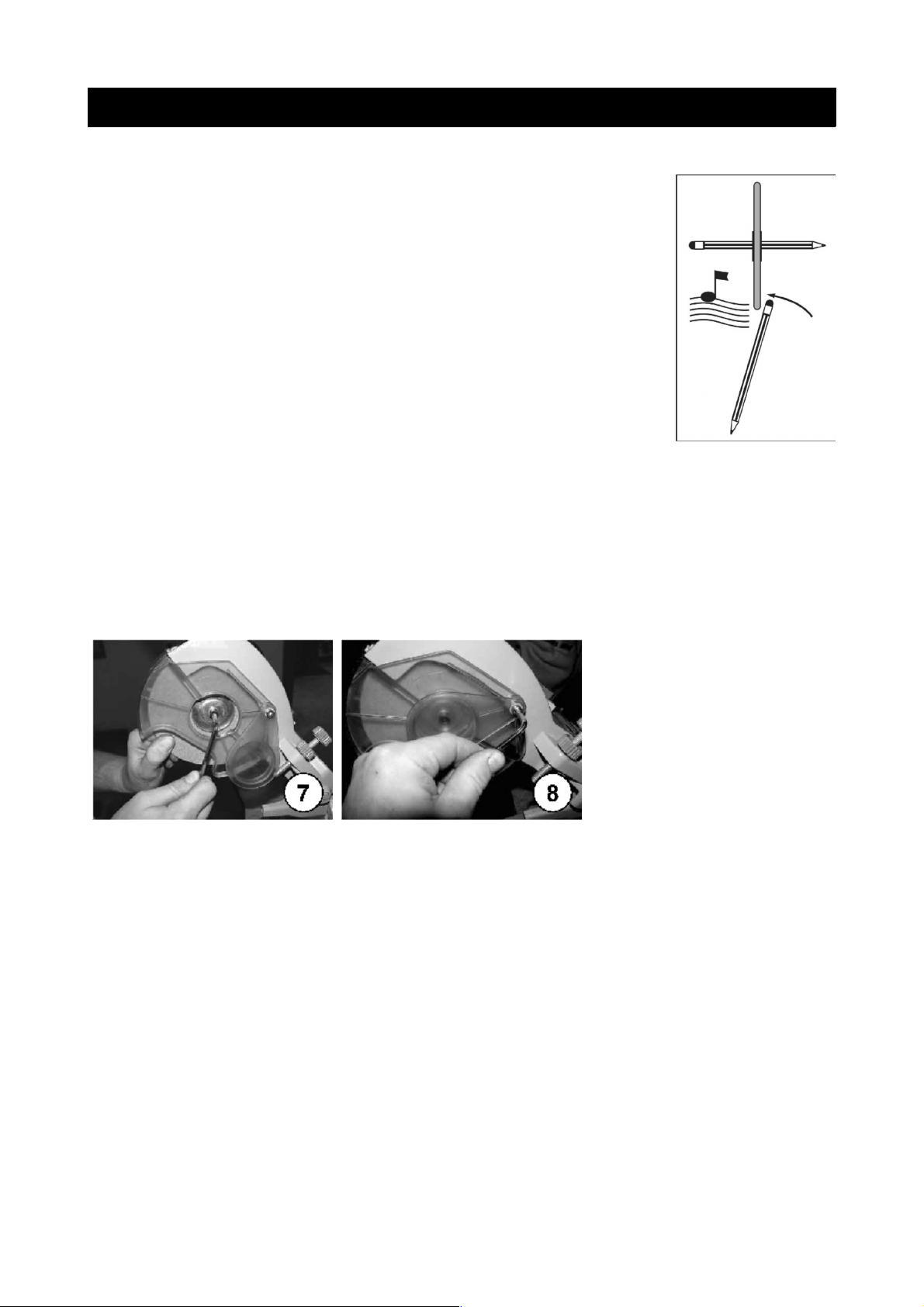

Grinding Disk Maintenance
To avoid injuries and accidents, only grinding disks free of defects should be used.
Check the disk you are about to fit for any damages prior to assembly.
This can be done by a simple sound test: Hold the disk so that a pencil can
be put into the hole of the disk and the disk can swing freely (see image).
• Now tap the edge of the disk with another pencil carefully.
The disk should make a clear, high pitched sound!
• If the sound is dull, then the disk is defective and should not be used.
A dull sound indicates damage by cracks.
• Do not fit the disk onto the hub by force.
• The central bore diameter should never be changed.
• Use only disks supplied by Kogan.com.
• The grinding disks should not be used if they have a diameter
smaller than 100mm. Disks that have been grinded below this
diameter should be replaced.
• Any adjusting works to the disk should not be done unless the unit
is switched off AND unplugged from the power supply.
Grinding Disk Assembly
After you have removed the
ancillary flange, you can insert
the grinding disk into the body
from below. See that the
ancillary flange and the disk
are against each other
(see Fig. 7).
Do not over-tighten the
screws, as this can damage the
disk.
The grinding disk on the hug torque is 7Nm. Where practical, use a torque spanner. Now the
lateral guard can be fitted (see Fig. 8).
Check for the correct installation of the disk: there should be no wobbling. To check, a trial run
should be performed. Stand next to the machine and ensure that there is nobody else in the
working area.
If the grinding disk is wobbling or shows otherwise incorrect movement, promptly switch the
unit off and unplug it from the power supply before working on the grinding disk.
The unit also has a zero voltage circuit breaker, which will be disabled in the event of a power
outage, avoiding the danger of having the unit start up automatically upon the power supply
being restored.
5

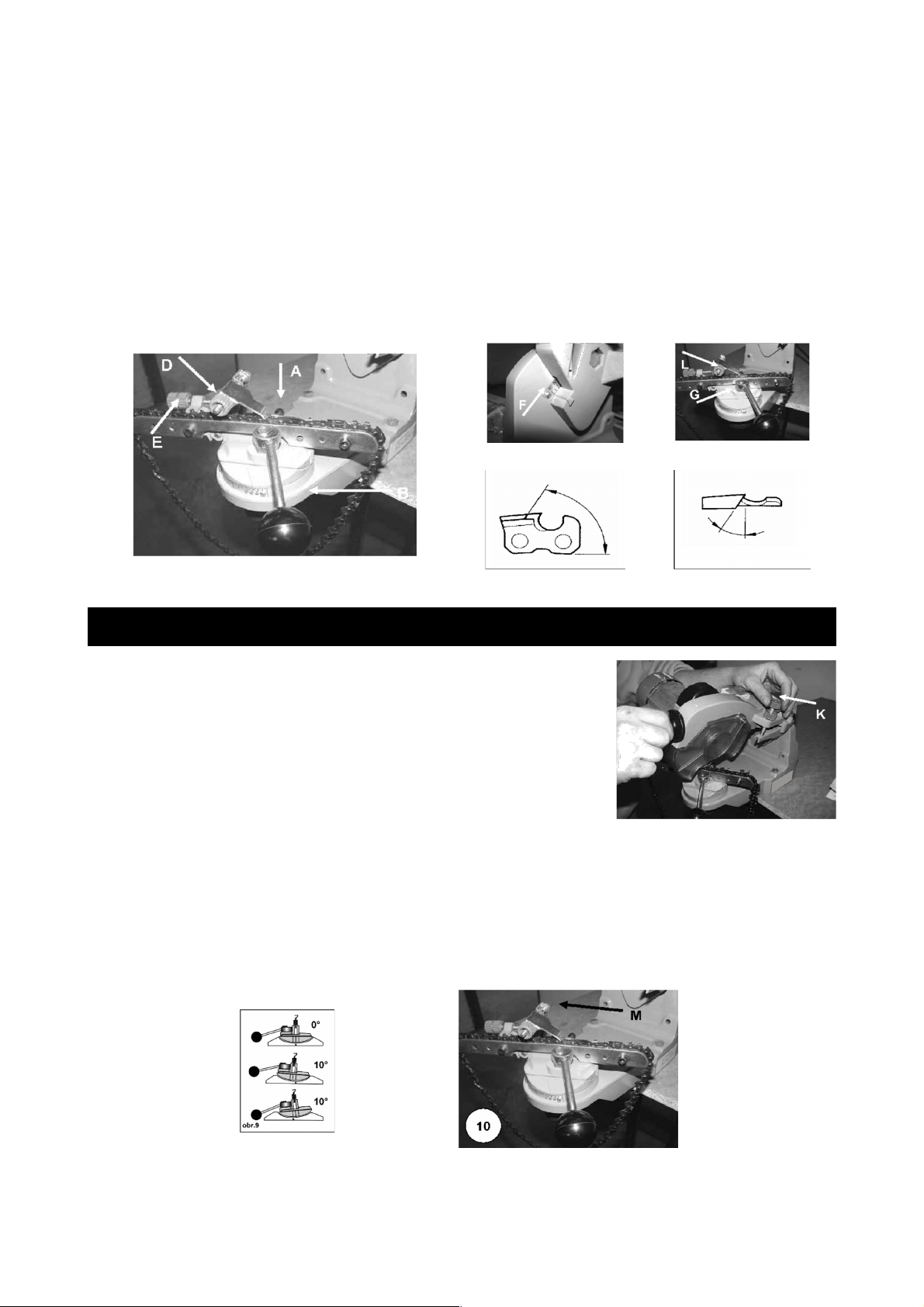

Clamping Screw Setup
Before you start grinding, the chain should be placed between both of the attachment guides.
The tooth to be sharpened should be placed against the stop. Watch out for the sharpening angle to
correspond to the guides section. The type of chain to be sharpened should be determined using the
sharpening block provided or by viewing the table on page 7.
There you can also find out about cutting thicknesses, angles and dimensions.
Set the guides to the chain width using the set screw (A) so that it is firmly fixed in the clamping screw by
the clamping lever control (B).
Set the feed by set screw (E).
On severely worn chains, the lateral position of the chain guide should be secured with a set screw (D).
Set the top plate angle by means of the set screw, which can also be checked on the scale (F). The vice
angle should be set up by the set screw (G).
Top Plate Angle Vice Angle
Grinding
Now with the clamping screw adjusted and the vice angle set (Note: RH
and LH teeth need to be differentiated), set the top plate angle, then lead
the grinding disk down to the tooth using the handle. Ensure your hands
are clear of the grinding disk. The grind depth may be set by the set screw
(K).
With the clamping lever loosened (B), the set screw is being screwed or
unscrewed (E) until the grinding disk to sharpen will touch the tooth.
During the grinding procedure, pull the chain to the guide (L) carefully.
Note: wear gloves when performing this job!
Some types of saw-chains require that the clamping screw be tilted by 5° – 10° (cf: Table: space Tilt Angle).
Note the notches (Fig. 9).
To start sharpening the chain, turn the grinder on and gently lower the handle until it comes into contact
with the chain. Mark the first tooth you are sharpening with a chalk line or texta mark, then grind the teeth
all in one direction, then turn the clamping screw (mind the angle), then grind the teeth in the opposite
direction.
With worn chains, the lateral guide position (Fig. 10 Position M) should be set for the grinding disk to not
touch the guide. Avoid allowing the grinding disk to touch any part of the chain other than the section
being sharpened, as the chain may easily be damaged.
6

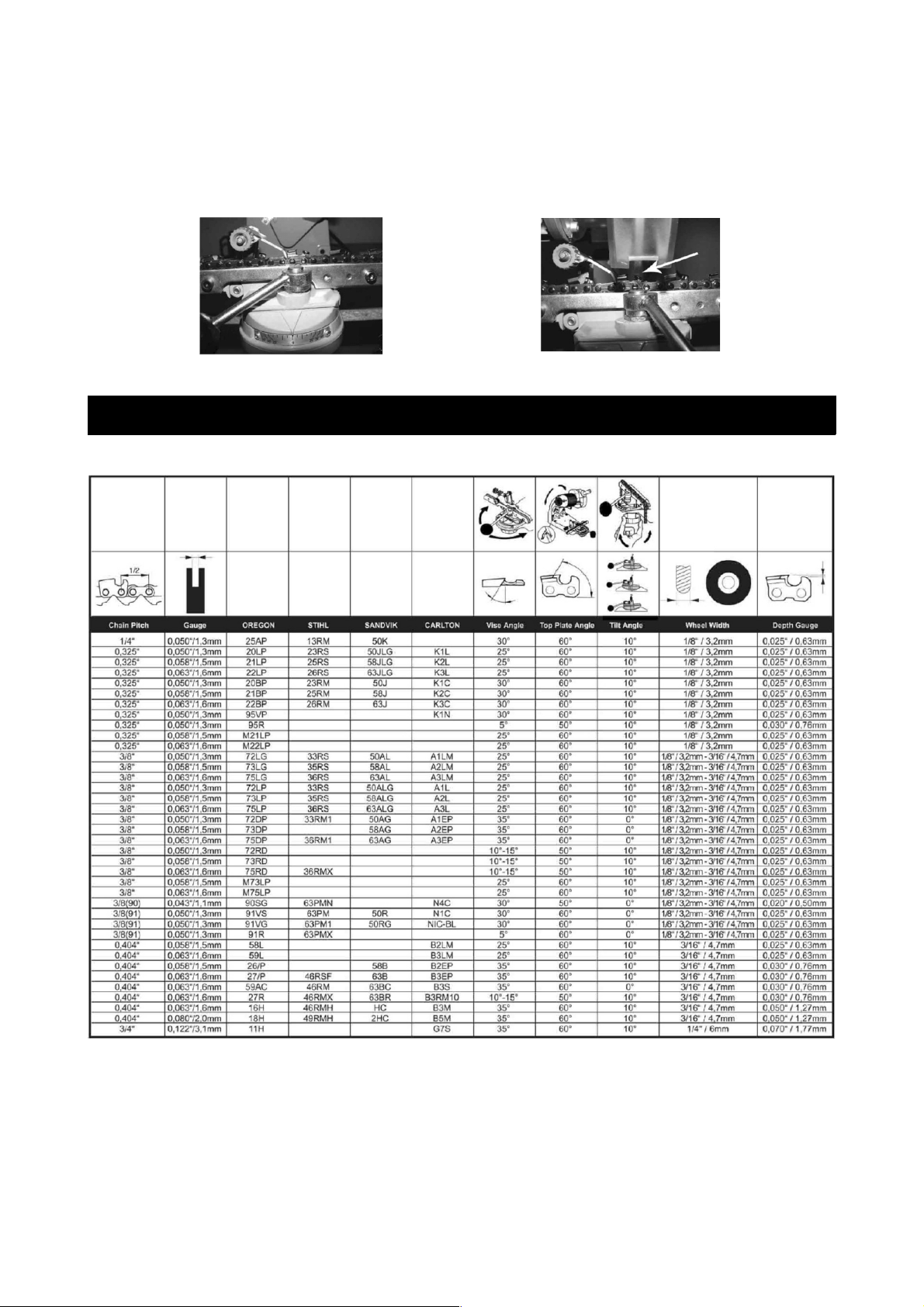

Grinding Depth Gauge
Determine the correct height of the depth gauge using the table below. When grinding, the
depth gauge, the vice angle (G) should always be 0.
Set the supporting strut and holder at 90°.
The grind depth may be set using set screw K.
Dimensions
7

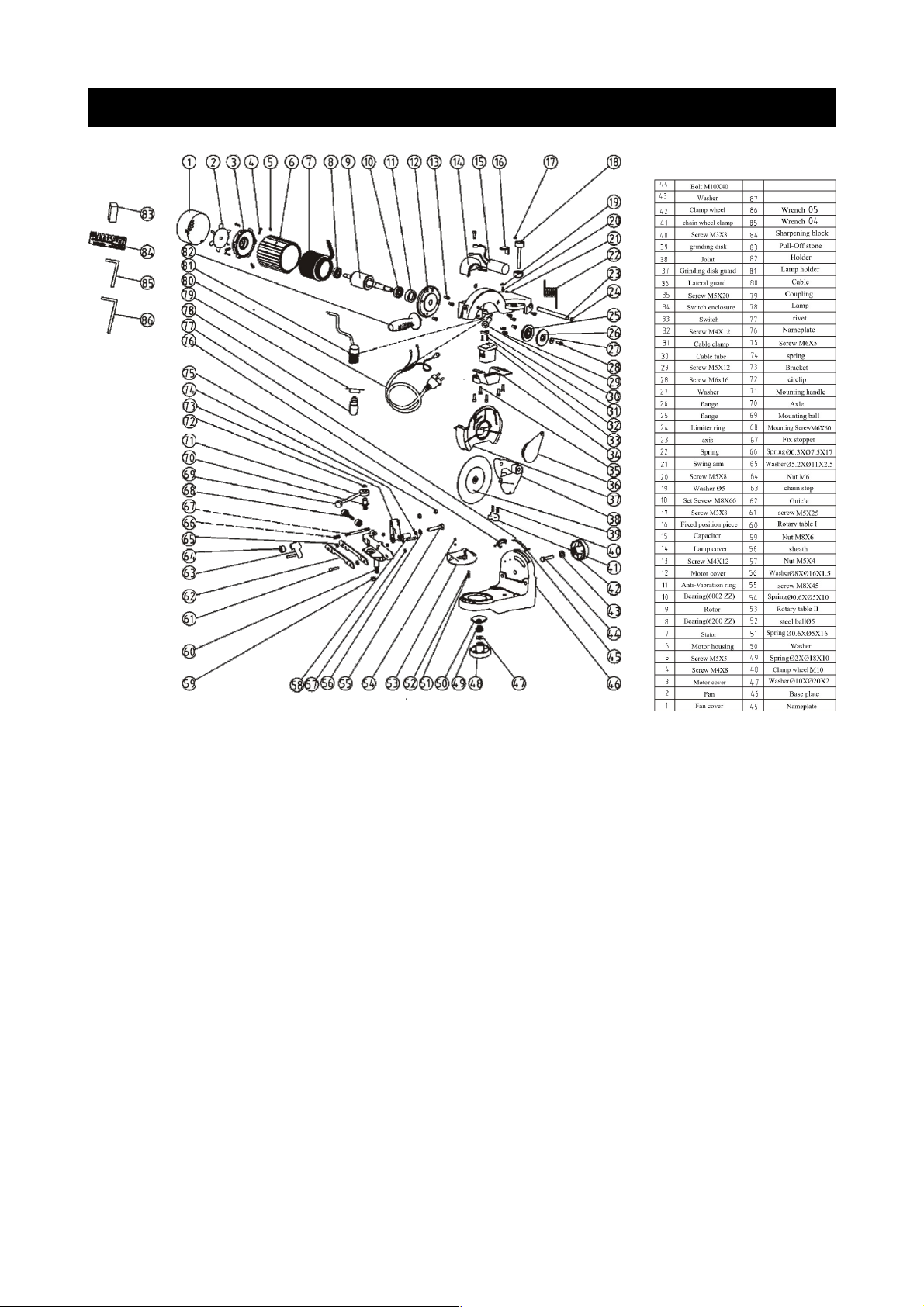

Parts List
If you have any further questions regarding the use of this product, please contact the
Kogan.com customer support team.
