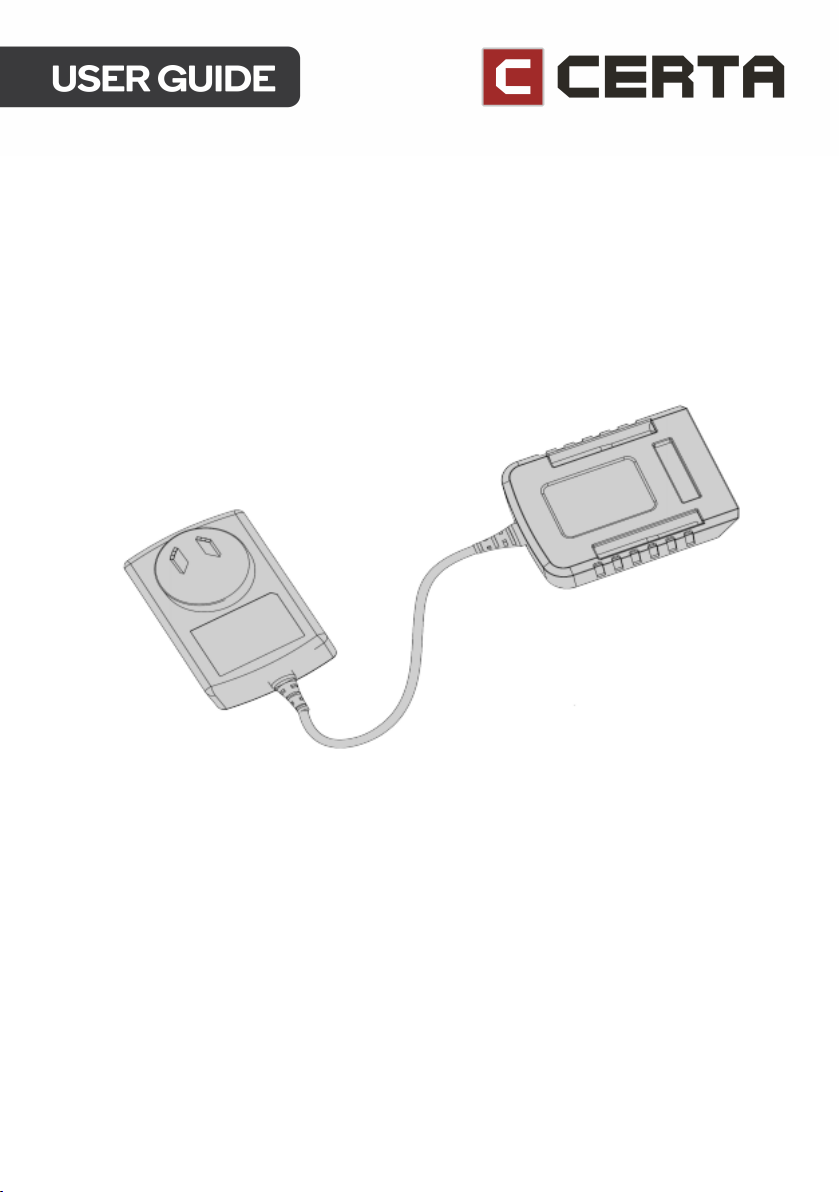

Certa CTMWR40CHAA User Manual

40V BATTERY POWERED 37CM
HAND PROPELLED LAWN MOWER

REPLACEMENT CHARGER

CTMWR40CHAA

Type

SAFETY & WARNINGS

Warnings used in this manual

WARNING

Denotes impending danger. Non observance of this warning may result in death or
extremely severe injuries.

CAUTION

Denotes a potentially dangerous situation. Non-observance of this warning may result in
injury or damage to property.

Note

Denotes application tips and important information.

Symbol on the power tool

Before switching on, read the operating manual.

Device is suitable for use indoors only. Do not expose the device to rain.
Store electric power tool and batteries in dry rooms.

Disposal information.

Protection class II (completely insulated)

Spare fuse

WARNING: Read all safety warnings and all instructions. Failure to

follow the warnings and instructions may result in electric shock, fire
and/or serious injuries. Save all warnings and instructions for future
reference.

Before using the battery charger, read and follow:

• These operating instructions,

• The currently valid site rules and the regulations for the prevention of accidents.

This charger is not intended for use by children and persons with physical, sensory or mental
limitations or a lack of experience or knowledge.

This charger can be used by children aged 8 or older and by persons who have physical,
sensory or mental limitations or a lack of experience or knowledge if they have been
supervised or instructed in the safe operation of the charger and understand the associated
dangers. Otherwise, there is a danger of operating errors and injuries.

Supervise children. This will ensure that children do not play with the charger.

Cleaning and user maintenance of the battery charger shall not be made by children
without supervision.

Safety instructions for the battery charger

• Keep the battery charger away from rain or moisture. Penetration of water in the
battery charger increases the risk of an electric shock.

• Keep the battery charger clean. Contamination can lead to danger of an electric
shock.

• Before each use, check the battery charger, cable and plug. If damage is detected,
do not use the battery charger. Never open the battery charger yourself. Have
repairs performed only by a qualified technician and only using original spare parts.
Damaged battery chargers, cables and plugs increase the risk of an electric shock.

• Do not place any objects on the battery charger and do not place the battery
charger on soft surfaces to avoid the risk of fire.

• Always check that the mains voltage matches the voltage indicated on the rating
plate of the battery charger.

• Never use the charger if cable, plug or the unit itself has been damaged by
external influences. Contact kogan.com.

• Never open the battery charger. If the battery charger is defective, contact
kogan.com.

Safety instructions for Li-ion batteries

• Do not open the battery. There is a risk of a short-circuit.

• Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water

and humidity. There is a risk of explosion.

• In case of damage and improper use of the battery, vapours may be emitted.
Ventilate the area and seek medical help in the case of inhalation. The vapours
can irritate the respiratory system.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush the affected area with water. If liquid contacts
eyes, seek medical help in addition. Liquid ejected from the battery may cause
irritation or burns.

• Use only original batteries with the voltage indicated on the rating plate of your
electric power tool. If other batteries are used, e.g. imitations, reconditioned
batteries or third-party products, there is a risk of injuries as well as damage caused
by exploding batteries.

• The battery voltage must match the battery charging voltage of the battery
charger to avoid the risk of fire and explosion.

• Recharge only with the charger specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk of fire when used with
another battery pack.

• Pointed objects, such as nails or screw-drivers or external forces may damage the
battery. This may cause an internal short-circuit and the battery to burn, smoke,
explode or overheat.

When the battery is inserted

Red

The battery is charging.

Green

Charging process has finished.

When the battery is not inserted

Green

The charger is ready, but the battery is not inserted.

LED indicator

OVERVIEW

LED status

1. Battery slot

2. Contacts

3. Charger plug

4. LED (charge status)

Note:

OPERATION

CAUTION:

• Never charge batteries at temperatures below 0°C or above 50°C.

• Do not charge batteries in an environment which has high air humidity

or at a high ambient temperature.

• Do not cover batteries and/or the battery charger during the charging
process.

• Use only original batteries in the supplied battery charger.

Charging process

The battery and charger will heat up slightly during the charging process. This is
perfectly normal.

• Plug the charger into the power outlet. The LED will illuminate solid green.

• Insert battery into the charger.

• The LED will illuminate red and the battery will be charged.

• When the battery is fully charged, the LED will illuminate green.

• To remove, press the release button (1) and pull out the battery (2).

Note:

• Pull out the mains plug from the power outlet.

Information to ensure a long battery service life

The battery and charger will heat up during the charging process. This is perfectly normal.
The best charging practice is to fully discharge the battery prior to charging. Let the
charging process run until its completion.

If the batteries are not used for a prolonged period, store batteries fully charged and in a
cool location (10°C-25°C).

Reduced operating times after recharging indicates that the battery is worn out.
The battery must then be replaced.

WARNING: Before performing any work, pull out the mains plug from

the power outlet. Do not use water or liquid detergents for cleaning.

Cleaning

• Remove dirt and dust from the housing with a paint brush or dry cloth.

Storage

• Store the charger in a dry and frost-free place (-10°C-55°C).

• Store the battery and the charger separately.

Repairs

• Repairs should only be carried out by kogan.com or an authorised service agent.

Disposal

This marking indicates that this appliance should not be disposed with other
house-hold wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.

Input voltage

V~

100-240

Main frequency

Hz

50-60

Input current A 0.6

Output power W 21

Charging voltage

V=

42

Charging current A 0.5

Charging time

(depending on charge state)

Operating temperature

°C

0-50

Weight (without battery)

kg

0.2

Protection class

II

min 270

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
