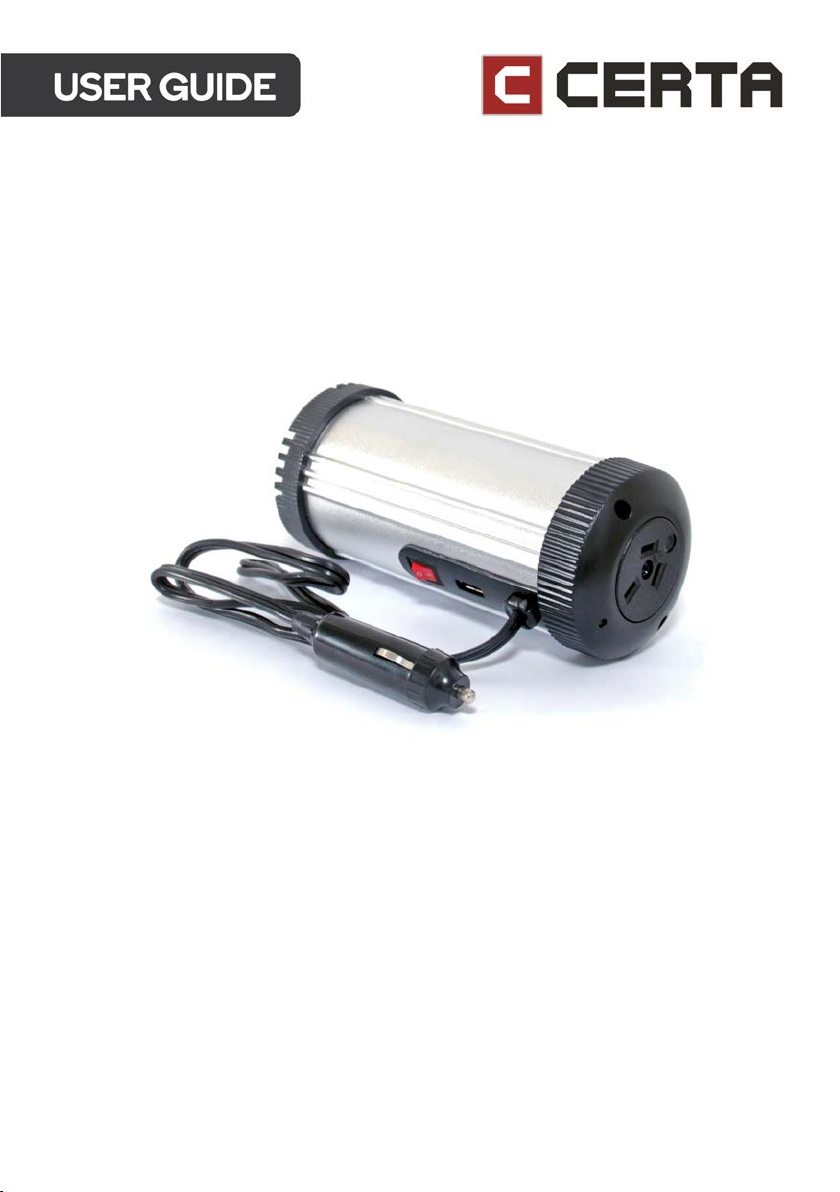

Certa CTCSWAVINVA User Manual

150W MODIFIED SINE
WAVE CAN INVERTER

CTCSWAVINVA

This marking indicates that this appliance should not be disposed with other
house-hold wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources.

SAFETY & WARNINGS

Before first use, read all safety warnings and instructions in this user guide. Retain this user
guide for future reference.

• Use the inverter in a dry, dust-free location. Ensure proper ventilation by not covering or
blocking ventilation openings.

• Confirm the input voltage of the inverter is matched to the output of vehicle’s 12V
socket and confirm the rated power of the appliance is within the range of power
inverter.

• Avoid using this device when the engine is off, otherwise, it may damage the car
battery.

• Avoid installing the inverter in compartments that contain batteries or flammable
materials or atmospheres as the components of the inverter can produce arcs or
sparks.

• If this product shows any signs of damage, cease use immediately and contact
help.Kogan.com for support.

• Do not operate the inverter near water, with wet hands or in areas with high humidity.

• This product does not contain user serviceable parts, do not attempt to open, modify or

disassemble this product in anyway.

• Do not operate the inverter near combustible gas, explosives or fire.

• Do not connect appliances that may feed power back into the inverter.

• To avoid electric shock, do not place metal objects into the inverter.

• Do not touch the metal of the socket while inserting the plug into the socket.

• Do not allow children to play with this product.

Disposal

OVERVIEW

AC socket

Power switch

USB port

12V plug

INSTALLATION

1. Ensure the inverter power switch is in the OFF position.

2. Plug the inverter into the vehicle’s 12V socket.

3. Place the inverter in the cup holder of the car.

4. Check the electrical requirements of the devices by examining the compliance

Note:

If the self-protection system is activated, disconnect the inverter from the vehicle. Wait
approximately 30 seconds before reconnecting it.

plate or sticker. If unsure, contact the manufacturer for guidance. It's important to
note that the inverter must be able to produce the required amount of continuous
power. For example, if the appliance needs 650 watts, a 1000W inverter would be
necessary.

5. Turn on the vehicle, the inverter and the connected devices.

6. Disconnect the devices and the inverter when they are no longer in use.

Input voltage

DC 12V

Output voltage

AC 230V

Continuous power

150W

Peak power

300W

Output frequency

50Hz+/- 3Hz

Output waveform

Modified sine wave

Output efficiency

>85%

12V input, No load current

<0.45A

Low voltage protection

DC 10.2 – 10.8V

Over voltage protection

DC 15-16V

Operation temperature

5°C--35°C

USB output

DC 5V,2.1A

SPECIFICATIONS

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For th e mo st up -to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
