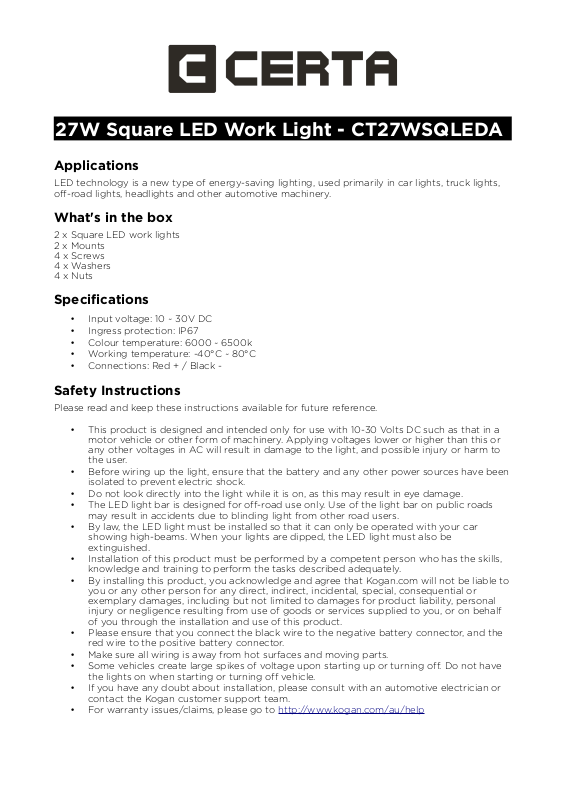

27W Square LED Work Light - CT27WSQLEDA
Applications
LED technology is a new type of energy-saving lighting, used primarily in car lights, truck lights,
off-road lights, headlights and other automotive machinery.
What's in the box
2 x Square LED work lights
2 x Mounts
4 x Screws
4 x Washers
4 x Nuts
Specifications
• Input voltage: 10 ~ 30V DC
• Ingress protection: IP67
• Colour temperature: 6000 ~ 6500k
• Working temperature: -40°C ~ 80°C
• Connections: Red + / Black -
Safety Instructions
Please read and keep these instructions available for future reference.
• This product is designed and intended only for use with 10-30 Volts DC such as that in a
motor vehicle or other form of machinery. Applying voltages lower or higher than this or
any other voltages in AC will result in damage to the light, and possible injury or harm to
the user.
• Before wiring up the light, ensure that the battery and any other power sources have been
isolated to prevent electric shock.
• Do not look directly into the light while it is on, as this may result in eye damage.
• The LED light bar is designed for off-road use only. Use of the light bar on public roads
may result in accidents due to blinding light from other road users.
• By law, the LED light must be installed so that it can only be operated with your car
showing high-beams. When your lights are dipped, the LED light must also be
extinguished.
• Installation of this product must be performed by a competent person who has the skills,
knowledge and training to perform the tasks described adequately.
• By installing this product, you acknowledge and agree that Kogan.com will not be liable to
you or any other person for any direct, indirect, incidental, special, consequential or
exemplary damages, including but not limited to damages for product liability, personal
injury or negligence resulting from use of goods or services supplied to you, or on behalf
of you through the installation and use of this product.
• Please ensure that you connect the black wire to the negative battery connector, and the
red wire to the positive battery connector.
• Make sure all wiring is away from hot surfaces and moving parts.
• Some vehicles create large spikes of voltage upon starting up or turning off. Do not have
the lights on when starting or turning off vehicle.
• If you have any doubt about installation, please consult with an automotive electrician or
contact the Kogan customer support team.
• For warranty issues/claims, please go to http://www.kogan.com/au/help
Page 2

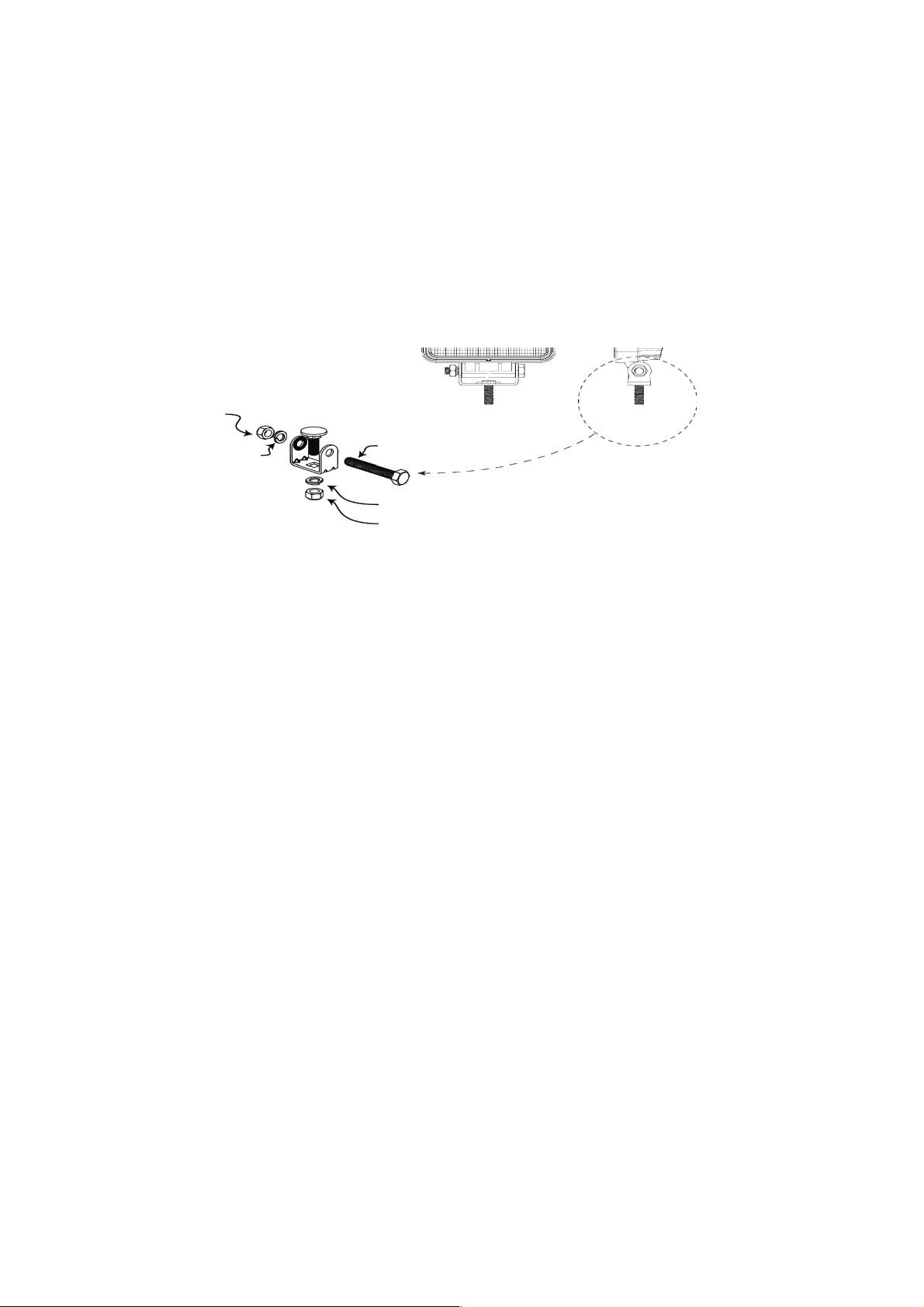

Mounting the Square LED lights
• (Images supplied are just a guide. Slight design changes may occur, however the mounting
functionality will remain the same.)
1. Install the side mount on the lamps, then fasten the bolts.
2. Drill a M8 bolt hole in the appropriate location on the mounting plate where you would like
to fix the base and attach the mounting plate.
3. Push the bolt through the hole and through the mounting plate. Tighten with a washer and
nut.
M8 Nut
M8 Spring Washer
M8 Nut
M8 Spring Washer
M8 Hex Bolt
