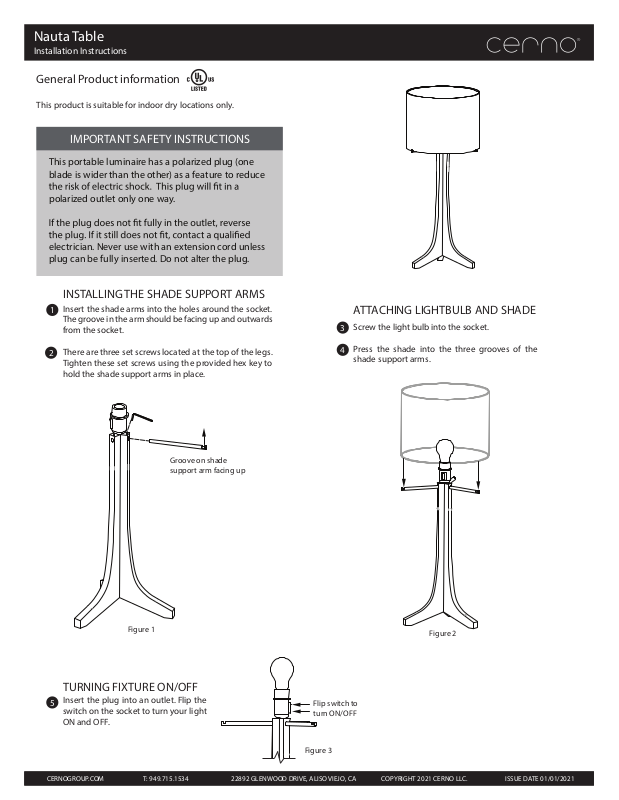

Nauta Table
Installation Instructions
General Product information
This product is suitable for indoor dry locations only.
IMPORTANT SAFETY INSTRUCTIONS
This portable luminaire has a polarized plug (one
blade is wider than the other) as a feature to reduce
polarized outlet only one way.
electrician. Never use with an extension cord unless
plug can be fully inserted. Do not alter the plug.
INSTALLING THE SHADE SUPPORT ARMS
Insert the shade arms into the holes around the socket.
1
The groove in the arm should be facing up and outwards
from the socket.
ATTACHING LIGHTBULB AND SHADE
Screw the light bulb into the socket.
3
There are three set screws located at the top of the legs.
2
Tighten these set screws using the provided hex key to
hold the shade support arms in place.
Groove on shade
support arm facing up
Figure 1
Press the shade into the three grooves of the
4
shade support arms.
Figure 2
TURNING FIXTURE ON/OFF
Insert the plug into an outlet. Flip the
5
switch on the socket to turn your light
ON and OFF.
CERNOGROUP.COM T_949.715.1534 1751 MCGAW AVE, IRVINE, CA 92614 COPYRIGHT 2018 CERNO LLC. ISSUE DATE 10/30/2018
CERNOGROUP.COM T: 949.715.1534 22892 GLENWOOD DRIVE, ALISO VIEJO, CA COPYRIGHT 2021 CERNO LLC. ISSUE DATE 01/01/2021
Flip switch to
turn ON/OFF
Figure 3
