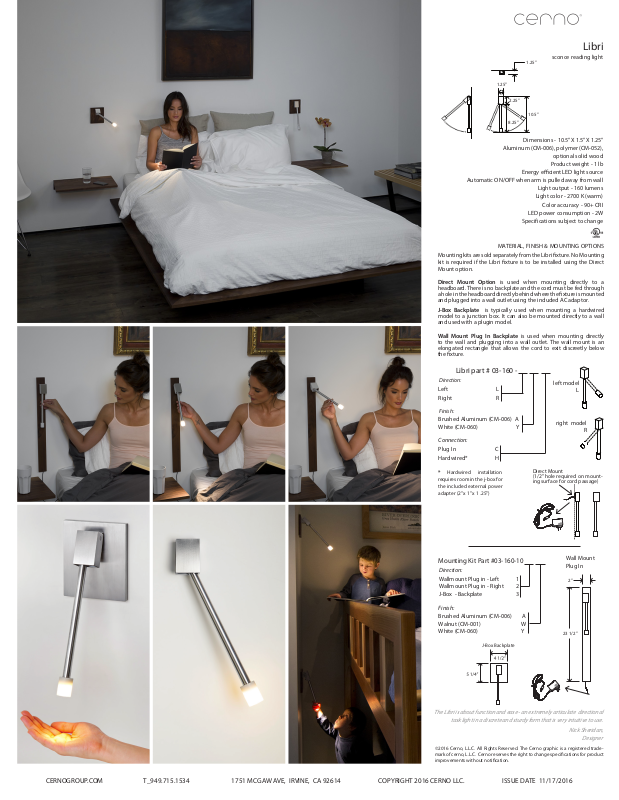

Page 1

sconce reading light

Libri

1.25”

2.25”

10.5”

8.25”

Dimensions - 10.5” X 1.5” X 1.25”

Aluminum (CM-006), polymer (CM-052),

Energy ecient LED light source

Automatic ON/OFF when arm is pulled away from wall

Specifications subject to change

optional solid wood

Product weight - 1 lb

Light output - 160 lumens

Light color - 2700 K (warm)

Color accuracy - 90+ CRI

LED power consumption - 2W

Mounting kits are sold separately from the Libri xture. No Mounting kit is required if the Libri xture is to be installed using the Direct Mount option.

Direct Mount Option is used when mounting directly to a headboard. There is no backplate and the cord must be fed through a hole in the headboard directly behind where the xture is mounted and plugged into a wall outlet using the included AC adaptor.

J-Box Backplate is typically used when mounting a hardwired model to a junction box. It can also be mounted directly to a wall and used with a plugin model.

Wall Mount Plug In Backplate is used when mounting directly to the wall and plugging into a wall outlet. The wall mount is an elongated rectangle that allows the cord to exit discreetly below the xture.

Libri part # 03-160 -

MATERIAL, FINISH & MOUNTING OPTIONS

Direction:

Left L

Right R

Finish:

Brushed Aluminum (CM-006) A White (CM-060) Y

Connection:

Plug In C

Hardwired* H

* Hardwired installation requires room in the j-box for the included external power adapter (2” x 1” x 1 .25”)

left model L

right model

Direct Mount (1/2” hole required on mounting surface for cord passage)

Mounting Kit Part #03-160-10

Direction:

Wallmount Plug in - Left 1 Wallmount Plug in - Right 2 J-Box - Backplate 3

Finish:

Brushed Aluminum (CM-006) A Walnut (CM-001) W White (CM-060) Y

J-Box Backplate

23 1/2”

The Libri is about function and ease - an extremely articulate directional

task light in a discrete and sturdy form that is very intuitive to use.

Wall Mount Plug In

2”

Nick Sheridan,

Designer
