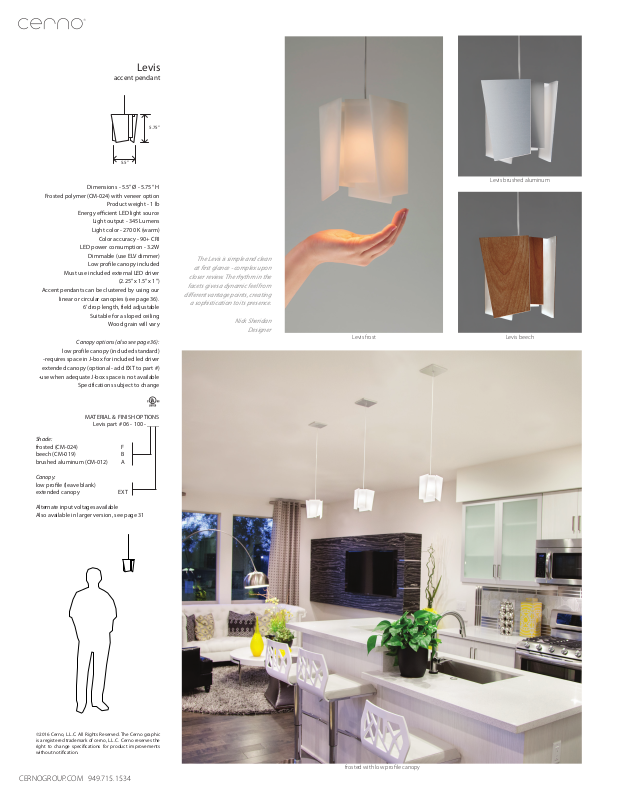

Page 1

Levis

accent pendant

5.75”

5.5”

Frosted polymer (CM-024) with veneer option

Accent pendants can be clustered by using our

-requires space in J-box for included led driver extended canopy (optional - add EXT to part #)

-use when adequate J-box space is not available

Shade:

frosted (CM-024) F beech (CM-019) B brushed aluminum (CM-012) A

Canopy:

low prole (leave blank) extended canopy EXT

Alternate input voltages available Also available in larger version, see page 31

Dimensions - 5.5” Ø - 5.75 “ H

Product weight - 1 lb

Energy ecient LED light source

Light output - 345 Lumens

Light color - 2700 K (warm)

Color accuracy - 90+ CRI

LED power consumption - 3.2W

Dimmable (use ELV dimmer)

Low prole canopy included

Must use included external LED driver

linear or circular canopies (see page 36).

6’ drop length, field adjustable

Canopy options (also see page 36):

low profile canopy (included standard)

Specifications subject to change

MATERIAL & FINISH OPTIONS

Levis part # 06 - 100 - ____

(2.25” x 1.5” x 1”)

Suitable for a sloped ceiling

Wood grain will vary

The Levis is simple and clean

at rst glance - complex upon

closer review. The rhythm in the

facets gives a dynamic feel from

dierent vantage points, creating

a sophistication to its presence.

Nick Sheridan

Designer

Levis brushed aluminum

Levis beechLevis frost

CERNOGROUP.COM 949.715.1534

frosted with low prole canopy

Page 2

Levis

accent pendant

Package Count: 1 Package Size: 8” x 8” x 8” Package Weight: 2 lbs

Assembly Requirements: Hardwire installation; Use of a professional electrician recommended

round canopy

12” Round Canopy for 3 accent pendants

Dimensions 12”Ø - 1.25” H

MATERIAL & FINISH OPTIONS

Round Canopy part # 60 -120 - R __

Finish:

brushed aluminum A

black anodized B

white W

12”

1.25”

linear canopy

Linear Canopy

for linear pendants or 2 accent pendants

Dimensions 20.5” x 4.125” - 1.5” H

MATERIAL & FINISH OPTIONS

Linear Canopy part # 60-130 - __ __

Finish:

brushed aluminum A

black anodized B

white W

Holes:

2 holes 2

3 holes 3

4.125”

20.5”

low prole canopy

Low Prole Canopy

for accent pendant

Dimensions 4.5” x 4.5” - 0.375” H

Requires space in j box for led driver

Low Prole Canopy part # 60-100-A

Extended Canopy for pendants

Dimensions - 4.5” x 4.5” - 1.625” H

Provides space for LED driver when adequate j box space is not available

Extended Canopy part # 60-101-A

CERNO CANOPY OPTIONS

cluster
