Cerevo CDP-WF01, LiveShell Quick Setup Manual

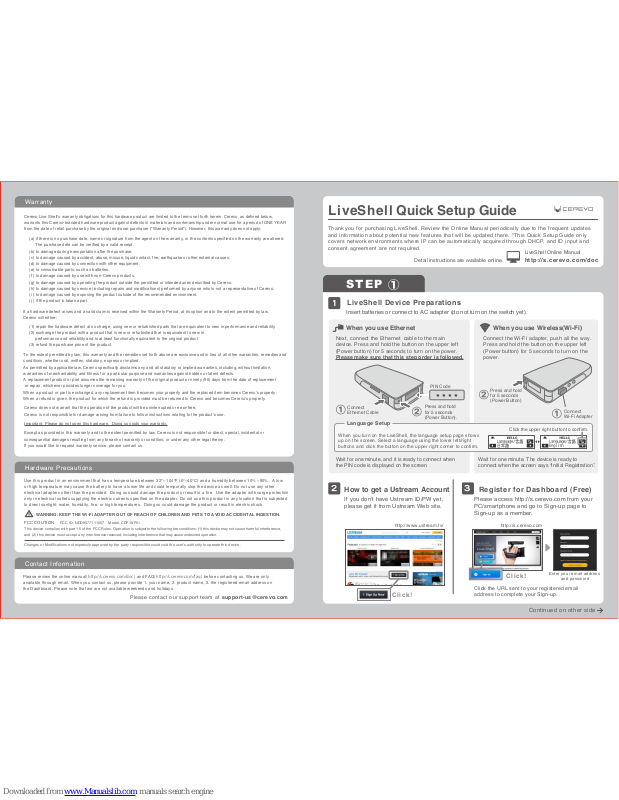

LiveShell Quick Setup Guide

Thank you for purchasing LiveShell. Review the Online Manual periodically due to the frequent updates
and information about potential new features that will be updated there. *This Quick Setup Guide only
covers network environments where IP can be automatically acquired through DHCP, and ID input and
consent agreement are not required.

Detail instructions are available online.

LiveShell Online Manual

http://s.cerevo.com/doc

Register for Dashboard (Free)

STEP

①

Continued on other side

Please access http://s.cerevo.com from your
PC/smartphone and go to Sign-up page to
Sign-up as a member.

http://s.cerevo.com

Enter your email address

and password

Click the URL sent to your registered email
address to complete your Sign-up.

LiveShell Device Preparations

Insert batteries or connect to AC adapter (do not turn on the switch yet).

Wait for one minute. The device is ready to
connect when the screen says “Initial Registration”.

Connect
Wi-Fi Adapter

①

②

Press and hold
for 5 seconds
(Power Button)

When you use Wireless(Wi-Fi)When you use Ethernet

Connect the Wi-Fi adapter, push all the way.
Press and hold the button on the upper left
(Power button) for 5 seconds to turn on the
power.

Next, connect the Ethernet cable to the main
device. Press and hold the button on the upper left
(Power button) for 5 seconds to turn on the power.

Please make sure that this step order is followed.

Wait for one minute, and it is ready to connect when
the PIN code is displayed on the screen

Connect
Ethernet Cable

①

②

Press and hold
for 5 seconds
(Power Button).

PIN Code

****

How to get a Ustream Account

If you don't have Ustream ID/PW yet,
please get it from Ustream Web site.

Click!

http://www.ustream.tv/

Language Setup

When you turn on the LiveShell, the language setup page shows
up on the screen. Select a language using the lower left/right
buttons and click the button on the upper right corner to confirm.

Click the upper right button to confirm.

１

２ ３

Warranty

Hardware Precautions

Contact Information

Cerevo Live Shell's warranty obligations for this hardware product are limited to the terms set forth herein. Cerevo, as defined below,

warrants this Cerevo-branded hardware product against defects in materials and workmanship under normal use for a period of ONE YEAR

from the date of retail purchase by the original end-user purchaser (“Warranty Period”). However, this warranty does not apply:

If you would like to request warranty service, please contact us.

Except as provided in this warranty and to the extent permitted by law, Cerevo is not responsible for direct, special, incidental or

consequential damages resulting from any breach of warranty or condition, or under any other legal theory.

Cerevo does not warrant that the operation of the product will be uninterrupted or error-free.

Cerevo is not responsible for damage arising from failure to follow instructions relating to the product’s use.

Use this product in an environment that has a temperature between 32º~ 104ºF (0°~40°C) and a humidity between 10% ~90%. A low

or high temperature may cause the battery to have a lower life and could temporally stop the device as well. Do not use any other

electrical adapters other than the provided. Doing so could damage the product or result in a fire. Use the adapter with surge protection

only in electrical outlets supplying the electric currents specified on the adapter. Do not use this product in any location that is subjected

to direct sunlight, water, humidity, fire, or high temperatures. Doing so could damage the product or result in electric shock.

FCC ID: NDD9577111007 Model: CDP-WF01

FCC COUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any inter ference received, including interference that may cause undesired operation.

Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operate this device.

To the extent permitted by law, this warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and

conditions, whether oral, written, statutory, express or implied.

As permitted by applicable law, Cerevo specifically disclaims any and all statutory or implied warranties, including, without limitation,

warranties of merchantability and fitness for a particular purpose and warranties against hidden or latent defects.

A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement

or repair, whichever provides longer coverage for you.

When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Cerevo’s property.

When a refund is given, the product for which the refund is provided must be returned to Cerevo and becomes Cerevo’s property.

(1) repair the hardware defect at no charge, using new or refurbished parts that are equivalent to new in performance and reliability

(2) exchange the product with a product that is new or refurbished that is equivalent to new in

performance and reliability and is at least functionally equivalent to the original product

(3) refund the purchase price of the product.

If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law,

Cerevo will either:

(a) if there is no purchase date, name or signature from the agent on the warranty, or the contents specified on the warranty are altered.

The purchase date can be verified by a valid receipt.

(b) to damage during transportation after the purchase.

(c) to damage caused by accident, abuse, misuse, liquid contact, fire, earthquake or other external causes.

(d) to damage caused by connection with other equipment.

(e) to consumable parts, such as batteries.

(f ) to damage caused by use with non-Cerevo products.

(g) to damage caused by operating the product outside the permitted or intended uses described by Cerevo.

(h) to damage caused by service (including repairs and modifications) performed by anyone who is not a representative of Cerevo.

(i) to damage caused by exposing the product outside of the recommended environment.

(j) if the product is taken apart.

Important: Please do not open this hardware. Doing so voids your warranty.

Please contact our support team at [e-mail]

Please review the online manual(http://s.cerevo.com/doc) and FAQ(http://s.cerevo.com/faq) before contacting us. We are only

available through email. When you contact us, please provide 1. your name, 2. product name, 3. the registered email address on

the Dashboard. Please note that we are not available weekends and holidays.

Click!

WARNING: KEEP THE Wi-Fi ADAPTER OUT OF REACH OF CHILDREN AND PETS TO AVOID ACCIDENTAL INGESTION.

The setup is complete when the screen change
to the Dashboard main panel in below. Please
visit the Online Manual for further information
about the Dashboard main panel functions.

When you use Ethernet

When you use

Wireless (Wi-Fi

)

４. Transferring Network Setting

Connect the “MIC IN” port on the LiveShell to the
headphone jack on your PC/Smartphone using the
provided blue cable, and click Play button ‘ ’. If
the Play button does not show up on your browser of
PC/Smartphone, select “ Download and Play”.

If this does not work, adjust the volume on your PC/Smartphone, or check
and see if you are running another application using audio output. Installing
Google Chrome (a free web browser) sometimes helps resolve this issue.

MIC IN

１. Setup Ustream Account

Please enter your Ustream username

and password.

Select a broadcast channel and a type

of network.

２.

３.

３.

Setup Network

Next, please enter the Wireless network

name(ESSID) and password.

* Please be sure to use the correct case (upper or lower)
and symbols (hyphens/underscores, etc).

１. Setup Ustream Account

Please enter your Ustream username

and password.

Enter PIN Code

Lastly, please enter the PIN code that was

displayed on the screen of the LiveShell.

Setup Complete

* When an error message is displayed on the screen
and it does not direct to the next page, please review
the online manual.

PIN Code

* * * *

Select a broadcast channel
and network connection type

Select a broadcast channel and a type

of network.

２.

Select a broadcast channel
and network connection type

Detail instructions are available online.

LiveShell Online Manual

http://s.cerevo.com/doc

LiveShell Online Manual

http://s.cerevo.com/doc

* This Quick Setup Guide only covers network environments where IP can be automatically
acquired through DHCP, and ID input and consent agreement are not required.

Check on

Select a Channel

Select a Channel

Check on

STEP

②

Blue cable
