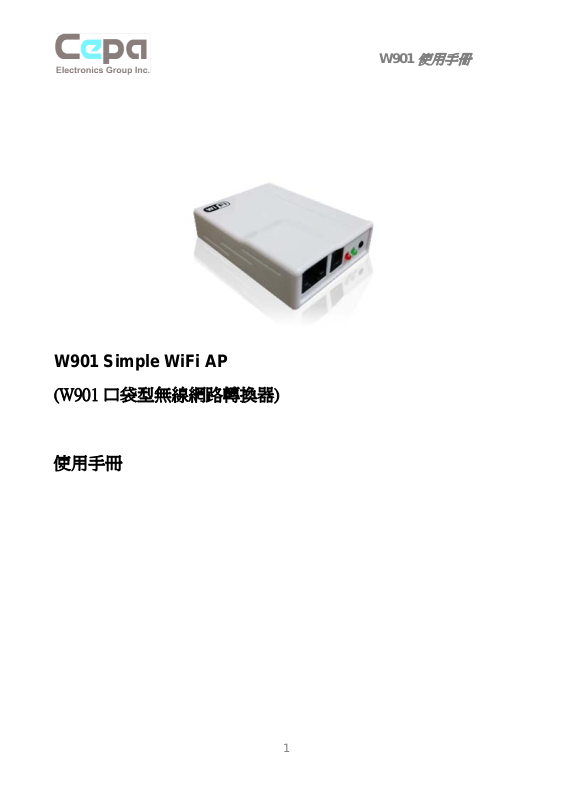

Page 1
W901
使用手冊
W901 Simple WiFi AP
(W901 口袋型無線網路轉換器)
使用手冊
1
Page 2
W901
使用手冊
Copyright© 2010 Cepa Electronics Group Inc.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of Cepa Electronic Group
Inc., (“CepaGroup”).
Product warranty or service will not be extended if: (1) the product is repaired,
modified or altered, unless such repair, modification of alteration is authorized in
writing by CepaGroup; or (2) the serial number of the product is defaced or missing.
CEPAGROUP PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL
CEPAGROUP, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF
BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE
LIKE), EVEN IF CEPAGROUP HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS
MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO
CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY CEPAGROUP. CEPAGROUP ASSUMES
NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
First Edition
Dec. 2010
2
Page 3
W901
使用手冊
目錄
1.
W901 產品簡介 ...................................................................................................... 4
2.
W901 快速啟用導覽 .............................................................................................. 5
1)
外觀介面示意圖 ................................................................................................ 5
2)
W901 接線示意圖 .............................................................................................. 5
3)
W901 快速啟用操作範例 ( 以Windows XP為例) ............................................. 6
3.
變更W901 網路名稱(SSID) 及密碼 ....................................................................... 8
4.
固定式IP網路環境之設定 ................................................................................... 10
5.
撥接網路連線環境之設定 ................................................................................... 14
6.附錄 ....................................................................................................................... 16
1)
連線至區域網路(LAN)環境時之注意事項 .................................................... 16
2)
直接連線至數據機時之注意事項 .................................................................. 17
3)
智慧型手機 (以iPhone為例) 的連線設定 ....................................................... 18
3
Page 4
W901
使用手冊
1. W901 產品簡介
不用再被繁複的無線設定困擾了，無論你的有線網路是 LAN/ ADSL/ Cable/ 撥接網路，
有了 W901 口袋型無線 AP 您就可以立刻輕鬆將有線環境轉換成無線 WiFi 環境，讓您的
手機、電腦、 遊戲機等無線裝置立刻無線上網。
W901 符合 IEEE802.11, WEP (Wired Equivalent Privacy) 和 IEEE802.3 網路協定。體積小攜
帶方便，適合出差旅行使用，為 WiFi 行動裝置如: Smart phone、 Netbook、 Notebook、PC、
Ebook、iPad、iPhone 等，提供隨時隨地的高速上網環境。隨身配備一台口袋型 W901 讓您
無論在家或是出門在外，隨時將身邊的有線網路輕鬆變成無線網路，享受無線上網或撥
打 VOIP 電話的好處，免於擾人的複雜設定以及節省行李的空間。
W901 受密碼保護確保資料的安全性、低耗電量適合長時間使用、設定簡單只要輸入無
線連線密碼後自動連線；體積超小方便攜帶，非常適合每一位商務人士使用。
4
Page 5
2. W901 快速啟用導覽
外觀介面示意圖
1)
W901
使用手冊
2
3
4
5
○1 網路線接口
○2 電源接口
○3 電源指示燈
○4 工作狀態指示燈
○5 Reset 鍵
2)
W901 接線示意圖
連接至 RJ45網路接口
5
