Page 1
UserManual
DigitalAM/FMTuner
CE-F308R
Page 2
NAMESANDTHEIRFUNCTIONS
Hi-endDIGITALAM/FMSTEREOTUNER
POWER
TUNING+TUNING-
ST/MONOAM/FM
1
9
765
3
8
4
P.CALL
10+
CH+CH-
0
2
MEMORY
ANTENNAINPUT
FMANTNNA
75(ohms)
FMGNDGND
75(ohms)
AM
AMLOOP
MODELN.O
Hi-endDigitalam/fmstereotuner
~200V-240V50Hz/60Hz.10W
SENTOCORPORATION
SERIALN.0
1.Powerswitch
Pressthisswitchtoturnonandoffunit'spower.
2.Powerindicator
Thisindicatorlightswhenunitspoweristurnon.
3.Tuningup/downselectkey
Pressthistoincreaseanddecreasethetuning
frequency.
4.AM/FMbandselectkey
PressthistoselectbetweenAM/FMband.
5.CH-selectkey
6.Stereo/monoselectkey
7.CH+selectkey
LCH
RCH
AUDIOOUT
GROUND
BELL
OFFON
RISKOFCHOCELECTRIC
SHOCKDONOTOPEN
8.Memory
Pressthisbuttonandpressthedesiredmemory
locationinstoringthedesiredstationtomemory.
9.Channelbuttonkeys(0-10)
10.Frequencyinputplayingkey
11.FMantennainputterminal
12.AMantennainputterminal
13.Audiooutput
Audiosignalofthetuner.
14.Bellswitch
15.GROUND
16.AC220VPowercord
POWERSUPPLY
ACLINE
220V
~
!
50/60Hz
CONNECTINGTOTHESTEREOAMPLIFIER
Connecttheoutputterminaloftheunittothestereoamplifier'sTUNERterminalbyanRCAplug
cord.
AM/FMANTENNACONNECTION
ConnectthewireoftheaccessoryAMloopantennaterminaland75antennatotheFMANT
terminal.
Note:Alwayskeepthepowercordawayfromtheantenna.
W
BASICOPERATION
1.DepressthePOWERswitchtoturnontheunit'spower.
2.SelectthedesiredbroadcastbandusingtheBANDselectorbuttoneitheronthefront
panelorremotecontrol.
3.Totuneautomatically,presstheUPandDOWNkeyanditwillautomaticallysearchfor
astrongsignalthenstop,tosearchforanotherstationrepeatthisprocedure.
PRESETTINGSTATIONSTOMEMORY
Bystoringdesiredbroadcaststationsinadvance,youcaneasilyrecallabroadcaststationby
designatingthecorrespondingpresetmemorychannel.
1.Followthebasicoperatingproceduretotuned-intothedesiredbroadcast
stationtobepresettothememory.
2.PresstheMEMORYbutton,thenpressthedesiredmemorylocationandthe
numberselectedwillappearonthescreen.
3.Byrepeatingtheaboveprocedure,youcanpresetacombinedtotalof60
stations.
-1-
Page 3

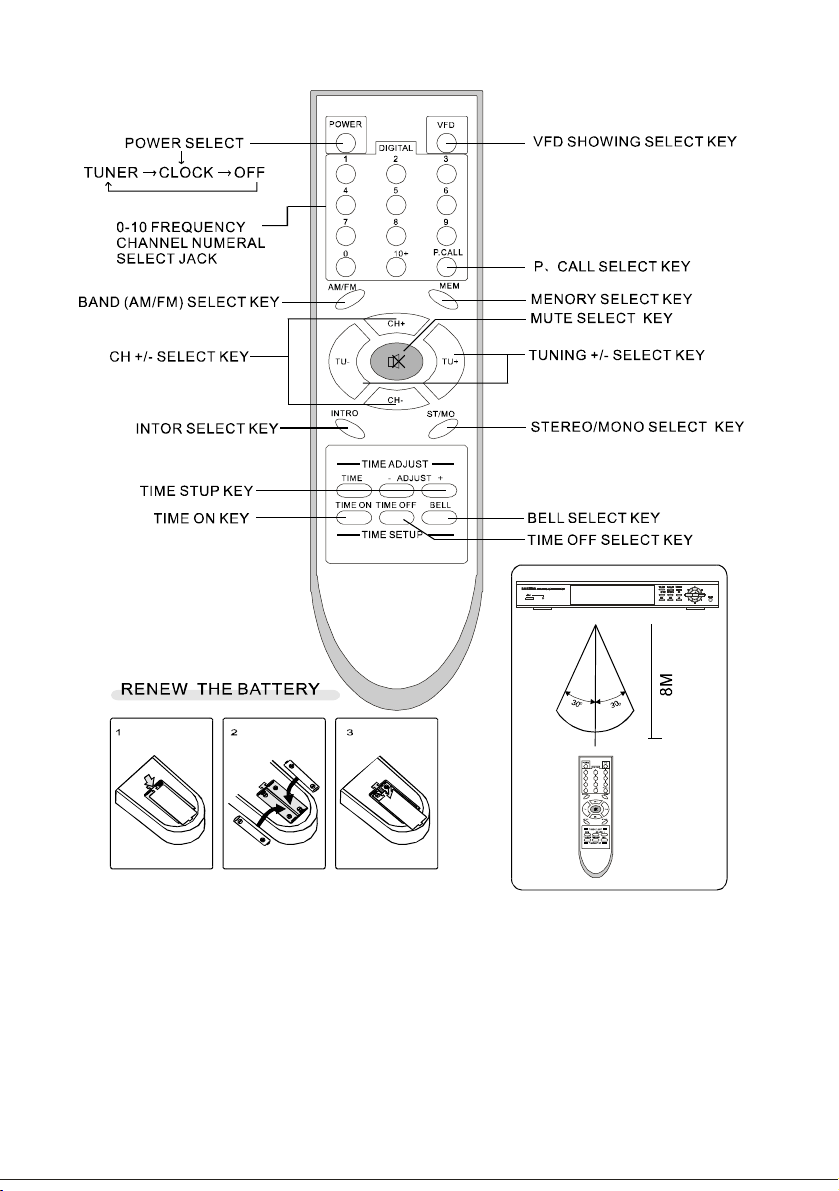

NAMESANDREMOTEFUNCTIONS
AMSECTION:
Frequencyrange............522-1620KHzSTEPS9KHz
Sensitivity.....................16dB³
S/N................................40dB³
Distortion.....................0.3%£
FrequencyResponse.....80Hz-4KHz
OTHERS
Audiooutput...............500mVrms
Outputimpedance......1KW
Inputvoltage..............AC220V60Hz
Powerconsumption....6Watts
Memory.....................60Station
-2-
FMSECTION:
Frequencyrange...........87.5-108MHzSTEPS50KHz
Sensitivity.....................20dB³
S/N................................40dB³
Distortion.....................0.2%£
FrequencyResponse.....20Hz-20KHz
AntennaImpedance......75W
Page 4
CAUTION:Donotopentheequipmentcoverarbitrarily,
soasnottoelectricshock.Pleasecontacttheprofessionals
tomaintainifnecessary.
CEOPAcorporation
www.ceopa.com
