Century 211, 212 User Manual

CENTURY®

L E G E N D A R Y L E A D E R S H I P

OWNER'S MANUAL

211 / 212

INSTALLATION, OPERATION, MAINTENANCE & PARTS

NOTE: MANUAL including SPECIFICATIONS, subject to change without notice

All ratings specified are based on structural factors only,

A Division of Miller Industries Towing Equipment Inc.

Ooltewah, Tennessee 37363 FORM NO. 0500659

Phone [phone] • FAX [phone] PRICE $25.00

not vehicle capacities or capabilities.

CENTURY®

8503 Hilltop Drive

11 / 97

LIMITED WARRANTY

MILLER INDUSTRIES TOWING EQUIPMENT INC., hereinafter referred to as MILLER, warrants to the
original purchaser that each new MILLER wrecker or other MILLER products will be free from defects
in material and workmanship for a period of twelve (12) months from date placed in service, but in no
event shall such warranty period exceed twenty-four (24) months from date of manufacture by
MILLER. The purchaser must promptly notify MILLER in writing of any failure in material or
workmanship. In no event shall MILLER accept such notification later than twenty-four (24) months
from date of delivery or twelve (12) months from date placed in service, whichever is earlier.

MILLER's obligation under this warranty, statutory or otherwise, is limited to the repair or replacement
at the MILLER factory, or at a point designated by MILLER, of such part or parts as shall appear upon
inspection by MILLER to be defective in material or workmanship. New or remanufactured parts will be
used for any replacement at MILLER's option. This warranty is not transferable. This warranty does not
obligate MILLER to bear the cost of labor or transportation charges in connection with the repair or
replacement of any parts found to be defective, nor shall it apply to a product upon which repairs or
alterations have been made unless authorized by MILLER.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, MILLER MAKES NO OTHER
WARRANTY, EXPRESS OR IMPLIED, AND HEREBY DISCLAIMS ALL OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. MILLER shall in no event be liable for claimed downtime,
claimed loss of profits or goodwill, or any other special, incidental, indirect, or consequential damages
concerning or relating to any product or parts, whether based on negligence, strict liability, breach of
contract, breach of warranty, misrepresentation or any other legal theory, regardless of whether the
loss resulted from any general or particular requirement which MILLER knew or had reason to know
about at the time of sale.

MILLER MAKES NO WARRANTY, EXPRESS OR IMPLIED, AS TO THE FINISHED PRODUCTS
MANUFACTURED OR SUPPLIED BY ANOTHER MANUFACTURER AND SUPPLIED BY MILLER
TO PURCHASER, including, but not limited to, any vehicle to which a MILLER product may be affixed
or any accessories or wire rope, and MILLER EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AS TO SUCH EQUIPMENT
OR PRODUCTS. This language shall in no way affect or diminish the rights of the purchaser to rely on
such warranties as are extended by such manufacturers or suppliers. MILLER shall, to the extent
permitted under applicable law, pass on to the purchaser such manufacturer's or seller's warranty.

MILLER, whose policy is one of continuous improvement, reserves the right to improve its products
through changes in design or materials as it may deem desirable without being obligated to incorporate
such changes in products previously sold. This warranty is not intended to cover or include the
following items, which are set forth by way of example and not limitation:

A. Normal deterioration of trim, paint, lettering, and appearance items due to wear or exposure to

weather, road conditions, road treatments, etc.

B. Any damage or defect due to accident, misuse, abuse, improper or unauthorized repairs, failure

to provide reasonable and necessary maintenance, or uses for which the equipment was not

designed or intended.
C. Alterations or modifications that affect performance, operation or reliability.
D. Normal maintenance parts including, but not limited to, wear pads, bushings, wire rope, mud

flaps, fenderettes, light bulbs, hydraulic oil, filters, and tow sling belts.

IT IS EXPRESSLY UNDERSTOOD THAT MILLER MAKES NO IMPLIED WARRANTY THAT
MILLER PRODUCTS SHALL BE FIT FOR THE PURPOSE OF LIFTING OR MOVING PEOPLE OR
FOR ANY OTHER IMPROPER USE.

Miller Industries Towing Equipment Inc.

8503 Hilltop Drive

Ooltewah, Tennessee 37363

Telephone [phone]

SERIAL NUMBER

Section VI - PARTS

This Section is provided by the manufacturer for the purpose of ordering
any component part of the CENTURY 211 or 212 WRECKER that may be
required when part replacement is necessary . Be certain to use only original
equipment replacement parts for warranty purposes as well as for keeping
your CENTURY 211 or 212 WRECKER in its original state and optimum
operating capacities.

When ordering replacement or spare parts be sure to provide the following
information to the manufacturer’s Parts Department.

1. Manual Number & Date of Publication

2. Manual Page Number

3. Page Title

4. Reference Number of Part Desired

5. Part Number

6. Part Description

7. Quantity of Part Desired

Providing this information will help ensure that the correct parts will be
delivered to you in an expedient manner without delay. Should additional
information be required for repair or replacement of certain components,
contact your Wrecker Manufacturer Authorized Representative.

The Manufacturer reserves the right, without notice or obligation, to improve
or modify their products, which may change the specifications, models
and feature availability.

VI-1

Section VI - PARTS (cont'd)

BODY ASSEMBLY - 86" WIDE

VI-2

Section VI - PARTS (cont'd)

BODY ASSEMBLY - 86" WIDE

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0802629 BODY WELDMENT, 60 C.A.
2 1 0801258 TOOLBOX, 32"
3 1 0302855 LATCH, TOOL COMPARTMENT, PLAIN
4 16 0400567 RIVET, 1/8" X 1/4" POP
5 2 0704516 GUARD, CONTROL STATION
6 4 0400370 CLIP, 1/4" "U" TINNERMAN
7 4 0400066 SCREW, 1/4"-20 X 3/4" HEX HD CAP GR5 ZP
8 4 0400452 LOCKWASHER, 1/4" HELICAL

9 2 0302173 MUD FLAP
10 2 0705092 BAR, MUD FLAP
11 1 0708809 MUD FLAP MOUNTING ANGLE, RIGHT
12 1 0708810 MUD FLAP MOUNTING ANGLE, LEFT
13 2 0802712 STORAGE BRACKET WELDMENT
14 2 0707510 STORAGE BRACKET
15 8 0400062 SCREW, 1/4"-20 X 3/4" THRD CUTTING
16 12 0400122 SCREW, 3/8"-16 X 1-1/4" HEX HD CAP GR5 ZP
17 12 0400392 NUT, 3/8"-16 HEX NYLOK
18 8 0400480 WASHER, 3/8" FLAT
19 1 0708931 ACCESS COVER
20 2 0301742 SEALED MARKER LIGHT, AMBER
21 4 0301740 GROMMET MOUNTING KIT W/ PLUG
22 2 0301741 SEALED MARKER LIGHT, RED
23 2 0301390 STOP & TURN LIGHT BODY
24 4 0304124 STOP & TURN BEZEL
25 8 0304123 SCREW FOR BEZEL
26 2 0302201 BACKUP LIGHT
27 4 0400233 SCREW, 5/16"-18 X 1/2" HEX HD CAP GR5 ZP

VI-3

Section VI - PARTS (cont'd)

BODY ASSEMBLY - 80" WIDE

VI-4

Section VI - PARTS (cont'd)

BODY ASSEMBLY - 80" WIDE

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0802637 BODY WELDMENT, 60 C.A. NARROW

2 2 0704516 GUARD, CONTROL STATION

3 4 0400370 CLIP, 1/4" "U" TINNERMAN

4 4 0400066 SCREW, 1/4"-20 X 3/4" HEX HD CAP GR5 ZP

5 4 0400452 LOCKWASHER, 1/4" HELICAL

6 2 0302173 MUD FLAP

7 2 0705092 BAR, MUD FLAP

8 1 0708809 MUD FLAP MOUNTING ANGLE, RIGHT

9 1 0708810 MUD FLAP MOUNTING ANGLE, LEFT
10 2 0802712 STORAGE BRACKET WELDMENT
11 2 0707510 STORAGE BRACKET
12 8 0400062 SCREW, 1/4"-20 X 3/4" THRD CUTTING
13 12 0400122 SCREW, 3/8"-16 X 1-1/4" HEX HD CAP GR5 ZP
14 12 0400062 NUT, 3/8"-16 HEX NYLOK
15 8 0400480 WASHER, 3/8" FLAT
16 1 0708931 ACCESS COVER
17 2 0301742 SEALED MARKER LIGHT, AMBER
18 4 0301740 GROMMET MOUNTING KIT W/ PLUG
19 2 0301741 SEALED MARKER LIGHT, RED
20 2 0301390 STOP & TURN LIGHT BODY
21 4 0304124 STOP & TURN BEZEL
22 8 0304123 SCREW FOR BEZEL
23 2 0302201 BACKUP LIGHT
24 4 0400233 SCREW, 5/16"-18 X 1/2" HEX HD CAP GR5 ZP

VI-5

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 211

(Continued on Page VI-8)

VI-6

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 211

(Continued on Page VI-9)

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0802537 MAIN BOOM WELDMENT

2 1 0802510 OUTER BOOM WELDMENT-UNDERLIFT

3 2 03000B-28 TRUNION PIVOT WELDMENT

4 8 0400249 SCREW, 5/8"-11 X 1-1/4" SKT HD CAP

5 8 0400508 WASHER, 5/8" HELICAL LOCK

6 1 0708519 PLATE, COVER-BOOM UPPER

7 1 0708407 SHAFT, LOWER-TILT CYLINDER

8 1 0708408 SHAFT, UPPER-TILT CYLINDER

9 1 0708409 SHAFT, PIVOT BOOM
10 1 0802480 INNER BOOM WELDMENT
11 1 0702131 SHAFT, INNER TUBE CYLINDER
12 1 0301914 BEARING, INNER BOOM
13 1 0301825 CYLINDER, EXTEND
14 1 0301398 BALL, 1-3/16" DIA STEEL
15 1 0301197 SPRING, CROSSBAR COMPRESSION
16 1 0702546 SPACER, DETENT BALL
17 1 0301533 STRAP, 15" TIE DOWN
18 1 0801074 CROSSBAR, INNER
19 1 0802597 PIVOT PIN WELDMENT
20 1 0302919 CYLINDER, UNDERLIFT FOLD
21 1 0301850 SLIDE PAD, NYLATRON
22 1 0800003 SWIVEL, BOOM END
23 1 0300108 SNAP RING, 2-1/2" DIA EXTERNAL
24 1 0700032 SHAFT RETAINER
25 2 0400070 SCREW, 1/4"-20 X 1" HEX HD CAP GR5 ZP
26 2 0400060 SCREW, 1/4"-20 X 1/2" HEX HD CAP GR5
27 1 0700056 SHAFT, SHEAVE
28 1 0300022 SHEAVE, 6"

VI-7

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 211

(Continued from Page VI-6)

VI-8

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 211

(Continued from Page VI-7)

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

29 1 0800735 GUIDE, CABLE
30 1 0301531 "U" BOLT (FROM 3/8" CABLE CLAMP)
31 2 0400393 NUT, 3/8"-16 HEX JAM
32 4 0400392 NUT, 3/8"-16 HEX NYLOK
33 2 0700166 WASHER, SPACER
34 12 0300113 GREASE FITTING, ALEMITE
35 1 0703345 SHAFT, EXTEND CYLINDER
36 4 AWS-3022-A SNAP RING
37 2 0701956 SCREW, OUTER CROSS TUBE RET.
38 2 0703640 WASHER, THRUST
39 4 0400452 LOCKWASHER, 1/4" ZP
40 2 0400139 SCREW, 3/8"-16 X 1-1/2" HEX SKT SET
41 3 0400451 WASHER, 1/4" FLAT ZP
42 1 0400078 SCREW, 1/4"-20 X 2" HEX HD CAP GR5 ZP
43 6 0400480 WASHER, 3/8" FLAT ZP
44 1 0400120 SCREW, 1/4"-20 X 1/2" ALLEN HD SET
45 1 0302936 WINCH ASSEMBLY, RAMSEY (LESS MOTOR)
46 7 0400122 SCREW, 3/8"-16 X 1-1/4" HEX HD CAP GR5 ZP
47 7 0400482 LOCKWASHER, 3/8" HELICAL
48 2 0708406 PAD, GUIDE
49 6 0708410 SHIM, GUIDE PAD
50 2 0706668 SHIM, WINCH MOUNTING
51 2 IT-27B BOOM ELEVATION CYLINDER
52 4 BK-518 PIN, BOOM CYLINDER
53 4 BK-519 HAIR PIN, BOOM CYLINDER PIN
54 2 0708518 SPACER BLOCK
55 1 0400150 SCREW, 3/8"-16 X 2-1/2" HEX HD CAP GR5 ZP
56 1 0303018 SLIDE PAD, NYLATRON

VI-9

Section VI - PARTS (cont'd)

CONTROL & CROSSROD ASSEMBLY - 211

VI-10

Section VI - PARTS (cont'd)

CONTROL & CROSSROD ASSEMBLY - 211

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 4 0400527 CLEVIS PIN, 5/16" DIA COTTERLESS SS

2 4 0400541 COTTER PIN, 1/16" X 3/4"

3 4 0704529 CROSSROD - WRECKER (86" WIDE BODY)

4 4 0708898 CROSSROD - WRECKER (80" WIDE BODY)

5 1 0703501 ANGLE, CROSSROD BEARING

6 21 0300122 GROMMET, SPLIT PLASTIC

7 8 0400539 COTTER, PIN, 3/16" X 1-1/2"

8 2 0300835 KNOB, WRECKER BOOM "UP/DN" (BLACK)

9 2 0300834 KNOB, CABLE "IN/OUT" (RED)
10 2 0302917 KNOB, W/L "IN/OUT" (GREY)
11 2 0302856 KNOB, W/L "TILT" (GREY)
12 6 0400063 SCREW, 1/4"-20 X 1-1/2" LG HEX HD CAP
13 6 0400452 LOCKWASHER, 1/4" EXT TOOTH
14 6 0400370 CLIP, 1/4" TINNERMAN
15 12 0400393 NUT, 3/8"-16 JAM
16 -- 0701099 EXTENSION, CONTROL ROD LONG
17 2 0704517 CHANNEL, CROSSROD BEARING
18 4 0400543 COTTER PIN, 1/8" X 3/4"
19 8 0704527 LEVER, CONTROL
20 4 0800604 ARM, CROSS CONTROL
21 12 0400390 NUT, 3/8"-16 JAM ESLOCK
22 -- 0800612 CONTROL ROD, SHORT
23 -- 0800955 CONTROL ROD, MEDIUM
24 -- 0800613 CONTROL ROD, LONG

VI-11

Section VI - PARTS (cont'd)

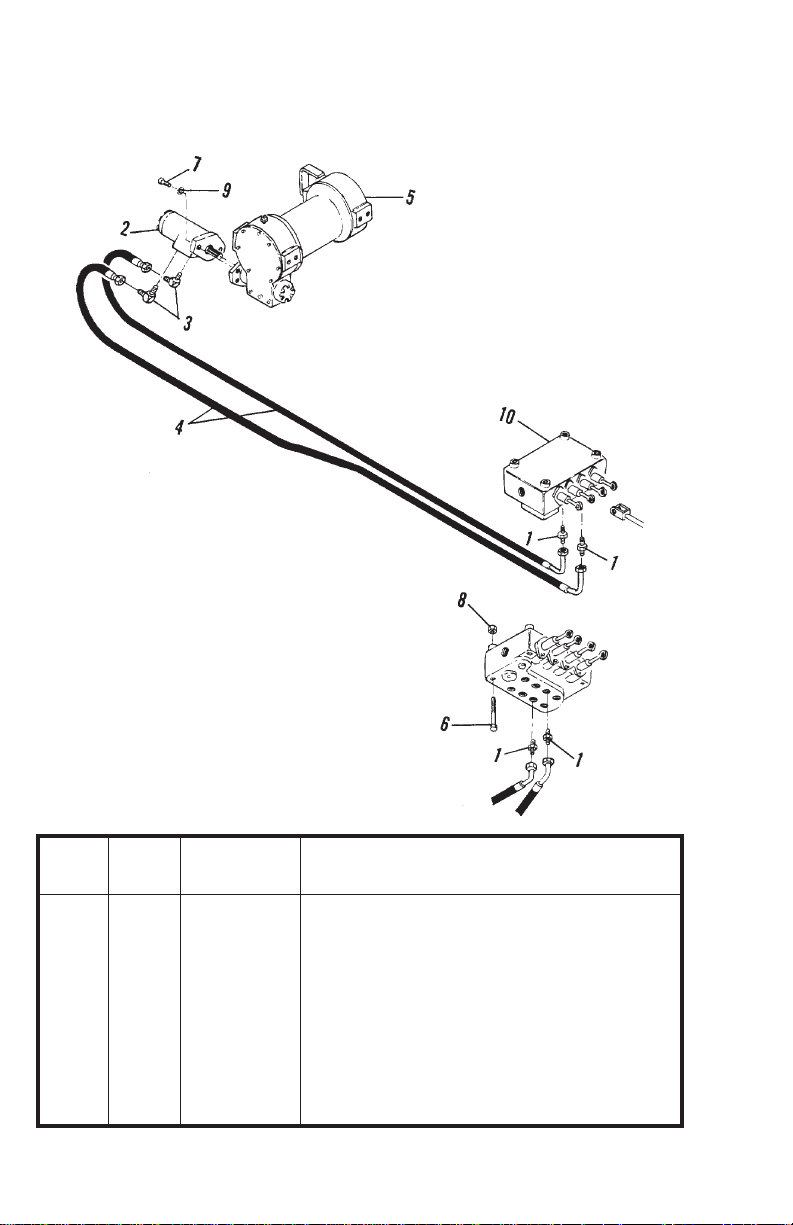

WINCH HYDRAULICS - 211

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 0300044 CONNECTOR, 1/2" SAE "O" RING X 1/2" X JIC
2 1 0300090 MOTOR, CHAR-LYNN HYDRAULIC
3 2 0300229 ELBOW, 8MJ-8MP90
4 2 0301893 HOSE, WINCH MOTOR
5 REF. 0302936 WINCH ASSEMBLY, RAMSEY
6 3 0400140 SCREW, 3/8"-16 X 4" HEX HD CAP GR5 ZP
7 2 0400196 SCREW, 1/2"-13 X 1-1/4" SKT HD CAP
8 3 0400392 NUT, 3/8"-16 NYLOK HEX ZP
9 2 0400491 LOCKWASHER, 1/2" HELICAL ZP

10 1 0302960 VALVE, 4 SPOOL

VI-12

Section VI - PARTS (cont'd)

BOOM ELEVATION HYDRAULICS - 211

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 0300044 O-RING CONNECTOR

2 1 0300206 BRANCH TEE

3 1 0301425 CONNECTOR, MALE

4 4 0301620 O-RING ELBOW, 90°

5 1 0301855 MALE TEE

6 1 0302476 HOLDING VALVE

7 1 0302573 TEE, 6MJ-6MJ-6FJX

8 2 0302909 HOSE ASSEMBLY, 36"

9 4 0302926 HOSE ASSEMBLY, 29"
10 2 0400078 SCREW, 1/4"-20 X 2" HEX HD CAP GR5 ZP
11 2 0400367 NUT, 1/4"-20 HEX NYLOK
12 4 0400451 WASHER, 1/4" FLAT
13 1 0302960 VALVE, 4 SPOOL CONTROL
14 REF. IT-27B BOOM ELEVATION CYLINDER
15 3 0400140 SCREW, 3/8"-16 X 4" HEX HD CAP GR5 ZP
16 3 0400392 NUT, 3/8"-16 HEX NYLOK

VI-13

Section VI - PARTS (cont'd)

UNDERLIFT HYDRAULICS - 21 1

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 3 0300044 O-RING CONNECTOR
2 1 0300052 O-RING ELBOW, 90°
3 4 0301522 O-RING CONNECTOR
4 3 031696 ELBOW, 90°
5 REF. 0301825 EXTEND CYLINDER
6 2 0301921 HOSE ASSEMBLY, 128"
7 REF. 0302919 FOLD CYLINDER
8 2 0302922 HOSE ASSEMBLY, 170"

9 REF. 0302960 VALVE, 4 SPOOL CONTROL
10 3 0400140 SCREW, 3/8"-16 X 4" HEX HD CAP GR5 ZP
11 3 0400392 NUT, 3/8"-16 HEX NYLOK

VI-14

Section VI - PARTS (cont'd)

PUMP & RESERVOIR HYDRAULICS - 211

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0300052 O-RING ELBOW, 90°
2 2 0300055 BARB, 3/4" HOSE X 3/4" NPT
3 1 0300056 BARB, 1" NPT
4 33" 0300057 HOSE, 3/4" RETURN
5 9 FT. 0300058 HOSE, 1" SUCTION
6 4 0300071 CLAMP, 1" HOSE
7 1 0300136 RETURN LINE FILTER
8 1 0300165 HOSE ASSEMBL Y, FJX

9 1 0300188 CLAMP, 1" INSULATED HOSE
10 1 0300692 ELBOW, 1" 90° STREET
11 1 0301375 O-RING ELBOW, 90°
12 1 0301767 HOSE BARB, 1" HOSE X JIC
13 1 0302757 CONNECTOR, HYDRAULIC 8MJ-16MB
14 1 0302761 CONNECTOR, HYDRAULIC 16MJ-16MB45
15 1 0305006 FILLER CAP ASSEMBLY
16 6 0400045 SCREW, #10-32 X 1/2" RD HD PH THRD CUT
17 1 0302690 VALVE, 4 SPOOL CONTROL

VI-15

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 212

(Continued on Page VI-18)

VI-16

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 212

(Continued on Page VI-19)

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0802552 MAIN BOOM WELDMENT

2 1 0802510 OUTER BOOM WELDMENT-UNDERLIFT

3 2 3000B-28 TRUNION PIVOT WELDMENT

4 8 0400249 SCREW, 5/8"-11 X 1-1/4" SKT HD CAP

5 8 0400508 WASHER, 5/8" HELICAL LOCK

6 1 0708519 PLATE, COVER-BOOM UPPER

7 1 0708407 SHAFT, LOWER-TILT CYLINDER

8 1 0708408 SHAFT, UPPER-TILT CYLINDER

9 1 0708409 SHAFT, PIVOT BOOM
10 1 0802480 INNER BOOM WELDMENT
11 1 0702131 SHAFT, INNER TUBE CYLINDER
12 1 0301914 BEARING, INNER BOOM
13 1 0301825 CYLINDER, EXTEND
14 1 0301398 BALL, 1-3/16" DIA STEEL
15 1 0301197 SPRING, CROSSBAR COMPRESSION
16 1 0702546 SPACER, DETENT BALL
17 2 0301533 STRAP, 15" TIE DOWN
18 1 0801074 CROSSBAR, INNER
19 1 0802597 PIVOT PIN WELDMENT
20 1 0302919 CYLINDER, UNDERLIFT FOLD
21 1 0301850 SLIDE PAD, NYLATRON
22 2 0800003 SWIVEL, BOOM END
23 3 0300108 SNAP RING, 2-1/2" DIA EXTERNAL
24 2 0700032 SHAFT RETAINER
25 2 0400070 SCREW, 1/4"-20 X 1" HEX HD CAP GR5 ZP
26 3 0400060 SCREW, 1/4"-20 X 1/2" HEX HD CAP GR5
27 2 0700056 SHAFT, SHEAVE
28 2 0300022 SHEAVE, 6"
29 2 0800735 GUIDE, CABLE

VI-17

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 212

(Continued from Page VI-16)

VI-18

Section VI - PARTS (cont'd)

BOOM & UNDERLIFT ASSEMBLY - 212

(Continued from Page VI-17)

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

30 2 0301531 "U" BOLT (FROM 3/8" CABLE CLAMP)
31 2 0400393 NUT, 3/8"-16 HEX JAM
32 6 0400392 NUT, 3/8"-16 HEX NYLOK
33 4 0700166 WASHER, SPACER
34 13 0300113 GREASE FITTING, ALEMITE
35 1 0703345 SHAFT, EXTEND CYLINDER
36 4 AWS-3022-A SNAP RING
37 2 0701956 SCREW, OUTER CROSS TUBE RET.
38 2 0703640 WASHER, THRUST
39 4 0400452 LOCKWASHER, 1/4" ZP
40 2 0400139 SCREW, 3/8"-16 X 1-1/2" HEX SKT SET
41 3 0400451 WASHER, 1/4" FLAT ZP
42 1 0400078 SCREW, 1/4"-20 X 2" HEX HD CAP GR5 ZP
43 12 0400480 WASHER, 3/8" FLAT ZP
44 1 0400120 SCREW, 1/4"-20 X 1/2" ALLEN HD SET
45 1 0302937 WINCH ASSEMBLY, RAMSEY (LESS MOTOR)
46 1 0302936 WINCH ASSEMBLY, RAMSEY (LESS MOTOR)
47 14 0400122 SCREW, 3/8"-16 X 1-1/4" HEX HD CAP GR5 ZP
48 14 0400482 LOCKWASHER, 3/8" HELICAL
49 2 0708406 PAD, GUIDE
50 6 0708410 SHIM, GUIDE PAD
51 4 0706668 SHIM, WINCH MOUNTING
52 2 IT-27B BOOM ELEVATION CYLINDER
53 4 BK-518 PIN, BOOM CYLINDER
54 4 BK-519 HAIR PIN, BOOM CYLINDER PIN
55 4 0708518 SPACER BLOCK
56 2 0400150 SCREW, 3/8"-16 X 2-1/2" HEX HD CAP GR5 ZP
57 1 0303018 SLIDE PAD, NYLATRON

VI-19

Section VI - PARTS (cont'd)

CONTROL & CROSSROD ASSEMBLY - 212

VI-20

Section VI - PARTS (cont'd)

CONTROL & CROSSROD ASSEMBLY - 212

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 5 0400527 CLEVIS PIN, 5/16" DIA COTTERLESS SS

2 5 0400541 COTTER PIN, 1/16" X 3/4"

3 1 0703528 CROSSROD - W/L

4 3 0704529 CROSSROD - WRECKER

5 1 0704530 CROSSROD - TILT

6 1 0703501 ANGLE, CROSSROD BEARING

7 21 0300122 GROMMET, SPLIT PLASTIC

8 10 0400539 COTTER, PIN, 3/16" X 1-1/2"

9 2 0300835 KNOB, WRECKER BOOM "UP/DN" (BLACK)
10 4 0300834 KNOB, CABLE "IN/OUT" (RED)
11 2 0302917 KNOB, W/L "IN/OUT" (GREY)
12 2 0302856 KNOB, W/L "TILT" (GREY)
13 6 0400063 SCREW, 1/4"-20 X 1-1/2" LG HEX HD CAP
14 6 0400452 LOCKWASHER, 1/4" EXT TOOTH
15 6 0400370 CLIP, 1/4" TINNERMAN
16 15 0400393 NUT, 3/8"-16 JAM
17 -- 0701099 EXTENSION, CONTROL ROD LONG
18 2 0704517 CHANNEL, CROSSROD BEARING
19 5 0400543 COTTER PIN, 1/8" X 3/4"
20 10 0704527 LEVER, CONTROL
21 5 0800604 ARM, CROSS CONTROL
22 15 0400390 NUT, 3/8"-16 JAM ESLOCK
23 -- 0800612 CONTROL ROD, SHORT
24 -- 0800955 CONTROL ROD, MEDIUM
25 -- 0800613 CONTROL ROD, LONG

VI-21

Section VI - PARTS (cont'd)

WINCH HYDRAULICS - 212

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 4 0300044 CONNECTOR, 1/2" SAE "O" RING X 1/2" X JIC
2 2 0300090 MOTOR, CHAR-LYNN HYDRAULIC
3 4 0300229 ELBOW, 8MJ-8MP90
4 4 0301893 HOSE, WINCH MOTOR
5 REF. 0302936 WINCH ASSEMBLY, RAMSEY
6 REF. 0302937 WINCH ASSEMBLY, RAMSEY
7 3 0400140 SCREW, 3/8"-16 X 4" HEX HD CAP GR5 ZP
8 4 0400196 SCREW, 1/2"-13 X 1-1/4" SKT HD CAP

9 3 0400392 NUT, 3/8"-16 NYLOK HEX ZP
10 4 0400491 LOCKWASHER, 1/2" HELICAL ZP
11 1 0300010 VALVE, 3 SPOOL
12 4 0301696 ELBOW, 90°

VI-22

Section VI - PARTS (cont'd)

BOOM ELEVATION HYDRAULICS - 212

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 0300044 O-RING CONNECTOR
2 1 0300206 BRANCH TEE
3 1 0301425 CONNECTOR, MALE
4 4 0301620 O-RING ELBOW, 90°
5 1 0301855 MALE TEE
6 1 0302476 HOLDING VALVE
7 1 0302573 TEE, 6MJ-6MJ-6FJX
8 2 0302909 HOSE ASSEMBLY, 36"

9 4 0302926 HOSE ASSEMBLY, 29"
10 2 0400078 SCREW, 1/4"-20 X 2" HEX HD CAP GR5 ZP
11 2 0400367 NUT, 1/4"-20 HEX NYLOK
12 4 0400451 WASHER, 1/4" FLAT
13 1 0300010 VALVE, 3 SPOOL CONTROL
14 REF. IT-27B BOOM ELEVATION CYLINDER
15 3 0400140 SCREW, 3/8"-16 X 4" HEX HD CAP GR5 ZP
16 3 0400392 NUT, 3/8"-16 HEX NYLOK
17 1 0301696 ELBOW, 90°

VI-23

Section VI - PARTS (cont'd)

UNDERLIFT HYDRAULICS - 212

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 REF. 0300010 VALVE, 4 SPOOL CONTROL
2 REF. 0302919 FOLD CYLINDER
3 REF. 0301825 EXTEND CYLINDER
4 4 0300044 O-RING CONNECTOR
5 4 0301696 ELBOW, 90°
6 4 0301522 O-RING CONNECTOR
7 2 0301921 HOSE ASSEMBLY, 128"
8 2 0302922 HOSE ASSEMBLY, 170"
9 3 0400140 SCREW, 3/8"-16 X 4" HEX HD CAP GR5 ZP

10 3 0400392 NUT, 3/8"-16 HEX NYLOK

VI-24

Section VI - PARTS (cont'd)

PUMP & RESERVOIR HYDRAULICS - 212

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 0300010 VALVE, 3 SPOOL CONTROL

2 1 0301375 O-RING ELBOW, 90°

3 2 0300052 O-RING ELBOW, 90°

4 4 0300071 CLAMP, 1" HOSE

5 30" 0300057 HOSE, 3/4" RETURN

6 9FT. 0300058 HOSE, 1" SUCTION

7 1 0302761 CONNECTOR, HYDRAULIC 16MJ-16MB45

8 1 0301767 HOSE BARB, 1" HOSE X JIC

9 1 0302757 CONNECTOR, HYDRAULIC 8MJ-16MB
10 1 0300188 CLAMP, 1" INSULATED HOSE
11 2 0300055 BARB, 3/4" HOSE X 3/4" NPT
12 1 0300056 BARB, 1" NPT
13 1 0300692 ELBOW, 1" 90° STREET
14 1 0305006 FILLER CAP ASSEMBLY
15 6 0400045 SCREW, #10-32 X 1/2" RD HD PH THRD CUT
16 1 0301471 HOSE ASSEMBLY
17 1 0301790 HOSE ASSEMBLY
18 1 0301388 ELBOW, 90° 1/2" SAE X 1/2"JIC
19 1 0301780 O-RING CONNECTOR
20 1 0301547 O-RING ELBOW, 90°
21 1 0300165 HOSE ASSEMBLY , FJX
22 1 0300136 RETURN LINE FILTER

VI-25

Section VI - PARTS (cont'd)

OUTER CROSSTUBE &

PIVOT L-ARM ASSEMBLY

VI-26

Section VI - PARTS (cont'd)

OUTER CROSSTUBE &

PIVOT L-ARM ASSEMBLY

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0802676 OUTER CROSSTUBE, R.H.

2 1 0802675 OUTER CROSSTUBE, L.H.

3 1 0802680 END PLATE WELDMENT, R.H.

4 1 0802679 END PLATE WELDMENT, L.H.

5 2 0802187 SHAFT, PIVOT

6 6 0300113 GREASE FITTING

7 2 0302640 PLUG, DRY-OUT HOLE

8 2 0400223 SCREW, 3/8"-16 X 3/4" SKT HD

9 2 0708914 PIN, DETENT
10 2 0302642 SPRING, PIVOT LOCK
11 2 0800590 TEE HANDLE
12 2 0302648 "T" HANDLE
13 2 0707505 PIN, PLUNGER
14 2 0302641 SPRING, PLUNGER PIN
15 2 0400560 PIN, ROLL 5/32" X 1"
16 2 0301956 STRAP, 9" RUBBER
17 2 0400367 NUT, 1/4"-20 HEX NYLOK
18 2 0400451 WASHER, 1/4" FLAT
19 2 0400218 SCREW, 1/2"-20 X 1-1/4" HEX HD CAP
20 2 0400412 NUT, 1/2"-20 HEX JAM
21 1 0802642 TIRE RESTRAINT, LEFT
22 1 0802643 TIRE RESTRAINT, RIGHT
23 2 0902382 1" NYLON, POLY-COAT STRAP (OPT.)
24 2 0301399 STRAP, TIE DOWN W/ RATCHET (OPT.)
25 2 0800583 PIVOT, TIE DOWN (OPT.)
26 2 0400161 BOLT, 3/8"-16 X 2-3/4" CARRIAGE (OPT.)
27 2 0400480 WASHER, 3/8" FLAT (OPT.)
28 2 0400390 NUT, 3/8"-16 ESLOK JAM (OPT.)

VI-27

Section VI - PARTS (cont'd)

WINCH ASSEMBLY - HY -246

VI-28

Section VI - PARTS (cont'd)

WINCH ASSEMBLY - HY -246

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 316083 BEARING CAP

2 1 316084 BEARING CAP

3 1 324161 JAW CLUTCH

4 1 328134 COVER

5 1 332007 DRUM "Y"

6 1 334163 GEAR R.H. 46:1

7 1 338003 HOUSING - CLUTCH

8 1 338273 HOUSING - GEAR

9 1 342018 KEY
10 1 342024 KEY
11 1 342027 KEY
12 1 344008 LEVER - SHIFTER
13 1 356902 SHAFT - SHIFTER
14 1 357480 SHAFT - DRUM "Y"
15 1 368002 WORM R.H. 46:1

16 1 370001 YOKE
17 1 400001 BALL - POPPET
18 2 402002 BEARING - BALL
19 4 412003 BUSHING
20 1 412045 BUSHING
21 10 414038 CAPSCREW 1/4-20 NC X 3/4 LG HX HD GR5
22 8 414045 CAPSCREW 1/4-20 NC X 7/8 LG HX HD GR5
23 4 414282 CAPSCREW 3/8-16NC X 3/4 LG HX HD GR5
24 1 416040 SET SCREW 1/4-20NC X 1-1/4 SKT HD LESS
25 1 416059 SET SCREW 3/8-16NC X 3/8 SKT HD LESS
26 1 416084 SET SCREW 1/4-20NC X 1/2 LG SQ HD
27 1 416109 SET SCREW 5/16-18NC X 1/2 LG SQ HD
28 4 418177 LOCK WASHER 3/8" MED SECT CP
29 2 438014 DRAG BRAKE
30 2 442184 GASKET
31 1 442205 GASKET
32 2 450006 KEY - BARTH
33 4 450016 KEY - BARTH
34 2 456006 FITTING - LUBE
35 1 456008 FITTING - RELIEF
36 1 468002 REDUCER
37 2 468011 PIPE PLUG
38 1 472013 PLASTIC PLUG
39 1 486009 OIL SEAL
40 1 486017 OIL SEAL
41 1 494001 SPRING - POPPET
42 2 494002 SPRING
43 1 518014 THRUST WASHER
44 2 518015 THRUST WASHER

1 334164 GEAR L.H. 46:1

1 368009 WORM L.H. 46:1

VI-29

Section VI - PARTS (cont'd)

WINCH CLUTCH CONTROL

2 ASSEMBLIES REQ'D FOR DUAL WINCH WRECKER

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0300845 SPRING, COMPRESSION
2 1 0301532 "T" HANDLE
3 1 0301588 ADJUSTING YOKE
4 1 0400116 SCREW, 5/16"-18 X 1/2" LG SQ HD SET
5 1 0400126 SCREW, 3/8"-16 X 1" LG HEX HD CAP
6 1 0400150 SCREW, 3/8"-16 X 2-1/2" LG HEX HD CAP
7 1 0400393 NUT, 3/8" - 16 JAM
8 4 0400492 WASHER, 1/2" FLAT

9 1 0400537 CLEVIS PIN, 1/2" DIA X 1-1/2" LG
10 1 0400546 COTTER PIN, 1/8" X 1-1/4" LG
11 2 0400560 ROLL PIN, 5/32" X 1" LG
12 1 0702408 MOUNTING CHANNEL
13 1 0802613 CONTROL ROD, SINGLE WINCH
14 1 0802614 CONTROL ROD, DUAL WINCH
15 1 0800779 BELL CRANK WELDMENT

VI-30

Section VI - PARTS (cont'd)

HYDRAULIC CYLINDERS

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 IT-27B BOOM ELEVATION CYLINDER (COMPLETE)
2 1 IT-97 SEAL KIT, BOOM ELEVATION CYLINDER

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0301825 UNDERLIFT EXTEND CYLINDER (COMPLETE)
2 1 0304086 SEAL KIT, UNDERLIFT EXTEND CYLINDER

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0302919 UNDERLIFT FOLD CYLINDER (COMPLETE)
2 1 0300830 SEAL KIT, UNDERLIFT FOLD CYLINDER

VI-31

Section VI - PARTS (cont'd)

CROSSTUBE CABLE ADAPTER ASSEMBL Y

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 0400220 SCREW, 1/2"-13 X 5-1/2" HEX HD CAP GR5 ZP

2 1 0400277 SHOULDER BOLT, 5/8"-11 X 3/4" X 1-1/2" SKT HD

3 1 0400294 SCREW, 3/4"-10 X 6-1/2" HEX HD CAP GR5 ZP

4 1 0400421 NUT, 5/8"-11 HEX NYLOK

5 1 0802547 ADAPTER, WINCH CABLE

6 1 AWS-4013-A SHEAVE, 5"

7 3 0400510 WASHER, 3/4" FLAT ZP

8 1 0400506 WASHER, 5/8" FLAT ZP

9 1 0400508 LOCKWASHER, 5/8" HELICAL ZP

VI-32

Section VI - PARTS (cont'd)

LIGHT KIT

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

-- 2 0301390 LIGHT, STOP AND TURN (COMPLETE)
1 2 0304125 LENS & BULB ASSEMBLY
2 2 0304126 GROMMET & PLUG KIT
3 2 0304124 CHROME BEZEL
4 2 0304123 BEZEL MOUNTING SCREW

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 2 032201 LIGHT, BACK-UP (COMPLETE)

VI-33

Section VI - PARTS (cont'd)

LIGHT KIT

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 4 0301741 LIGHT, SEALED MARKER, RED

2 2 0301742 LIGHT, SEALED MARKER, AMBER

3 6 0301740 MARKER LIGHT GROMMET

REF. NO. PART

NO. REQ'D NUMBER DESCRIPTION

1 1 0300273 LICENSE PLATE ILLUMINATOR (COMPLETE)

2 1 0300512 BULB, LICENSE PLATE ILLUMINATOR

VI-34

NOTES

CENTURY®

Miller Industries Towing Equipment Inc.

8503 Hilltop Drive • Ooltewah, Tennessee 37363 • [phone]

www.millerind.com
