El-Cm Classic
Technical instructions
HEATING TECHNIQUE
Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 61 1
for installation, handling and maintenance
of electric block-boiler for heating systems with thermoregulatory microprocessor
CONTENT
Content
1. Description of symbols and instructions for safe work
2. Device data
2.1. Typology
2.2.1 Statement on compliance
2.2.2 Regular application
2.3 Instructions for mounting
2.4 Instructions for work
2.5 Anti-frost protection and inhibitors
2.6 Norms, regulations and standards
2.7 Tools, materials and auxiliary measures
2.8 Minimum distances and Inflammability of construction materials
2.9 Product description
2.10 Waste disposal
2.11 Scope of delivery
2.12 Factory data plate

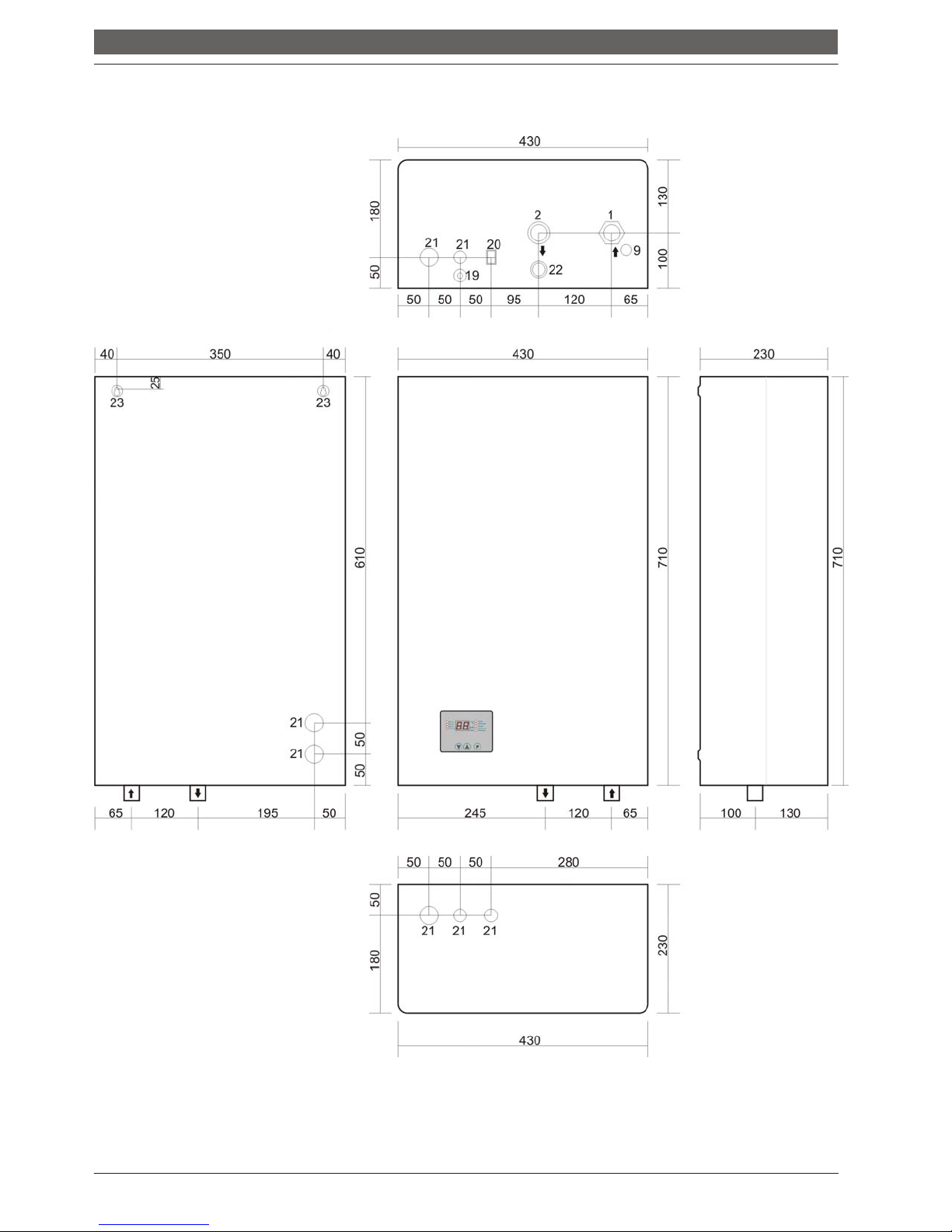

2.13 Dimensions and technical data
3. Transportation
4. Device installing
4.1 Warnings before mounting
4.2 Distances

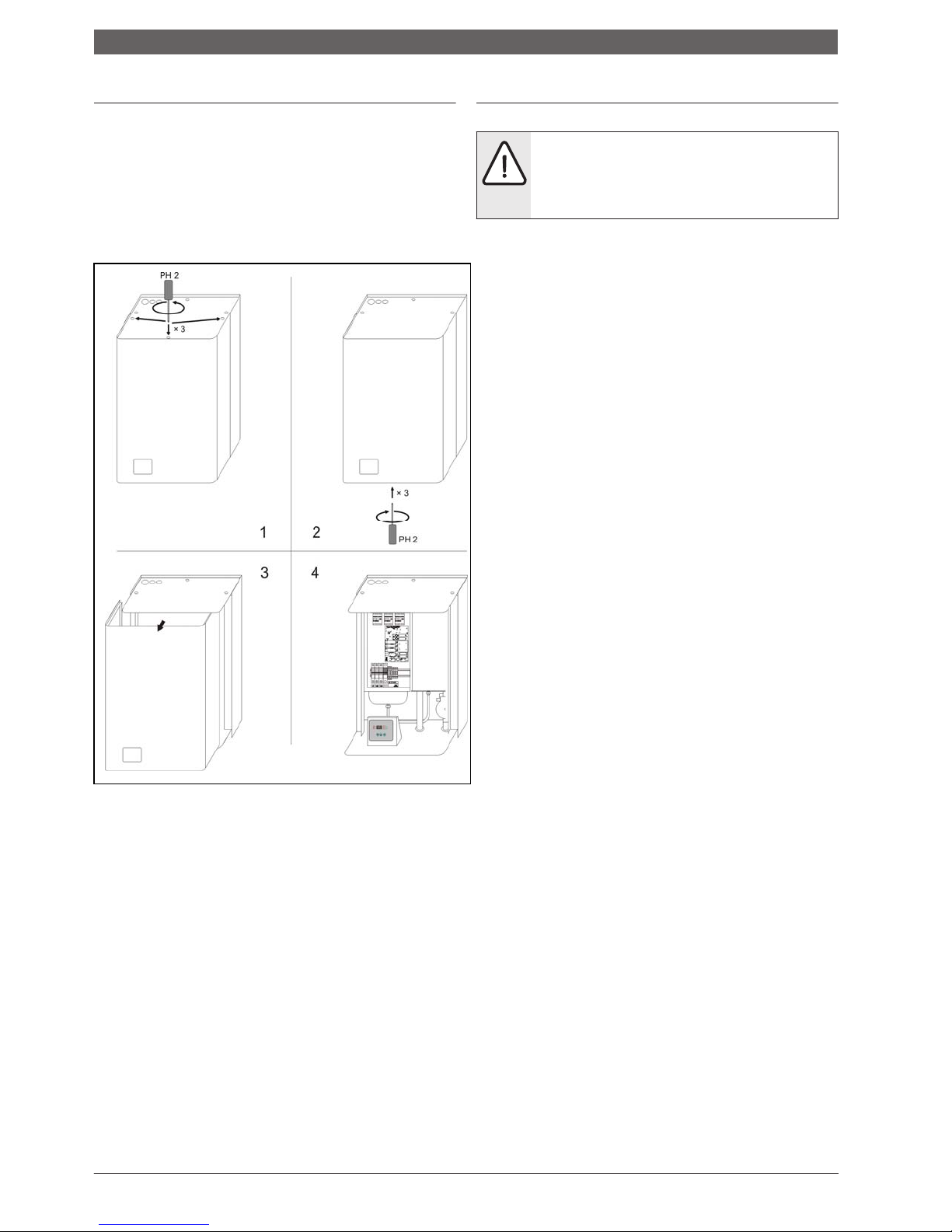

4.3 De-mounting of front casing
4.4 Boiler mounting
4.5 Hydraulic connections testing
4.6 Installation filling with water and waterproof testing
4.6.1 Filling the boiler with water and testing sealing
4.6.2 Heating pump air emission and de-blocking
4.6.3 Boiler and installation air emission
5. Electrical connection

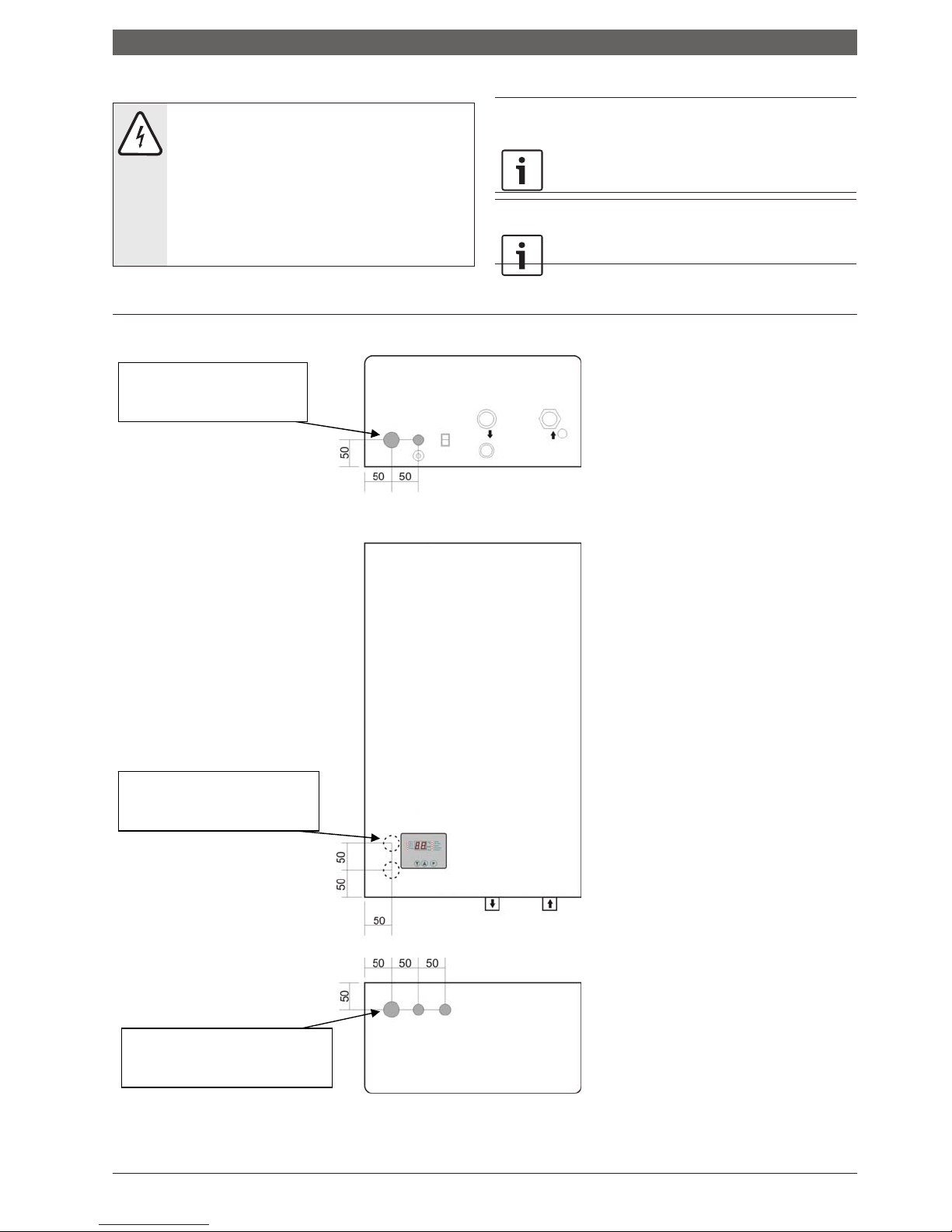

5.1 Positions of introducer for the introduction of the power cable

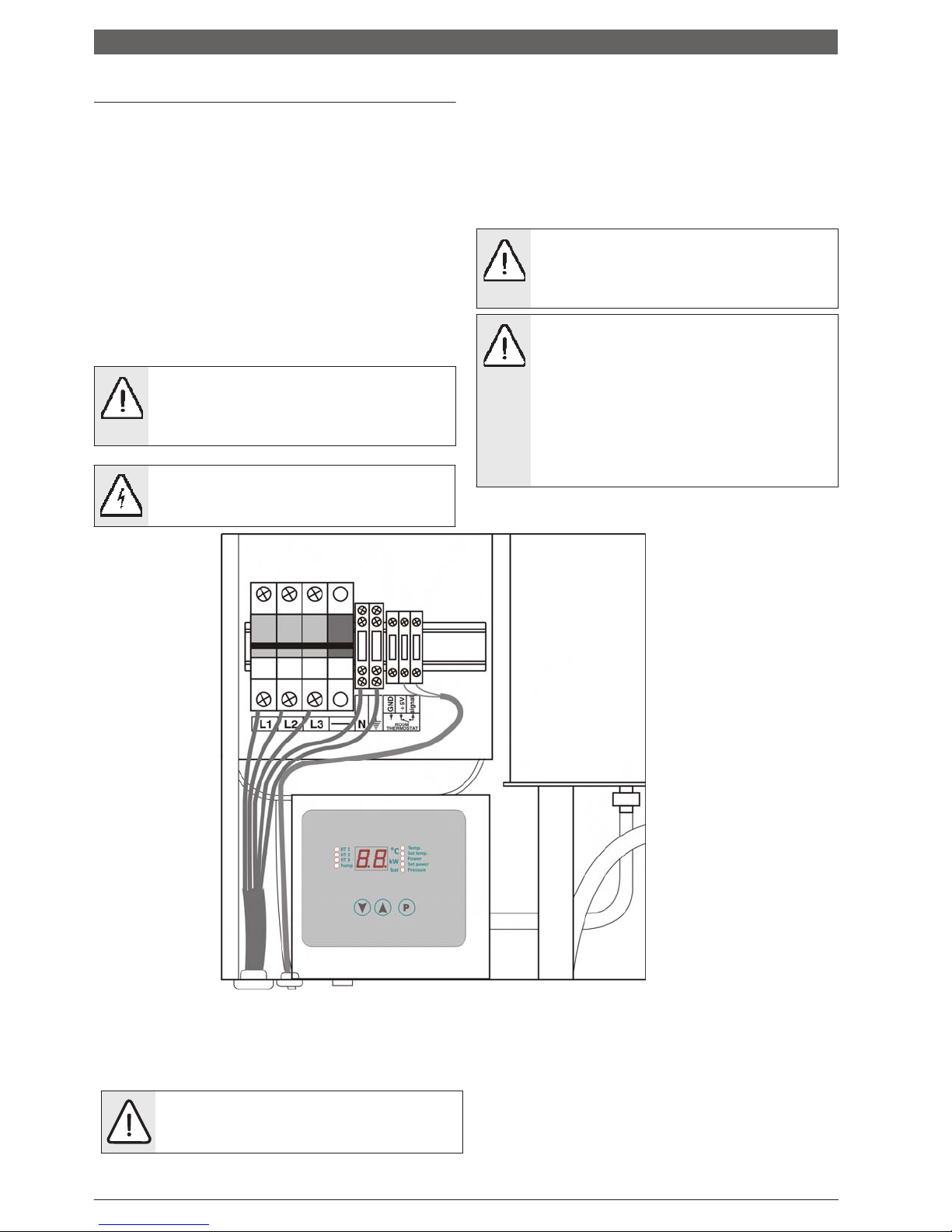

5.2 Connecting power (voltage) cable

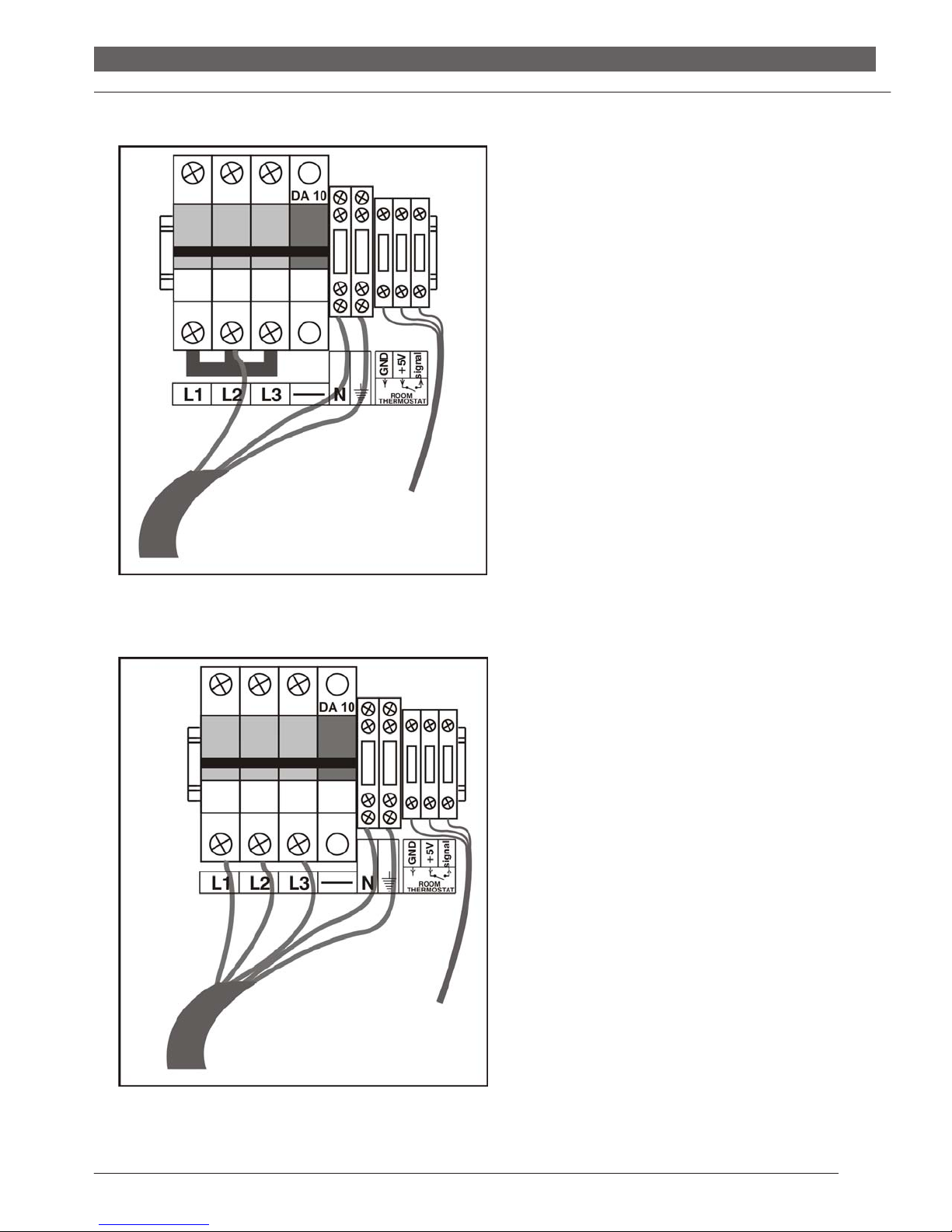

5.3 Scheme for connecting power (voltage) cable

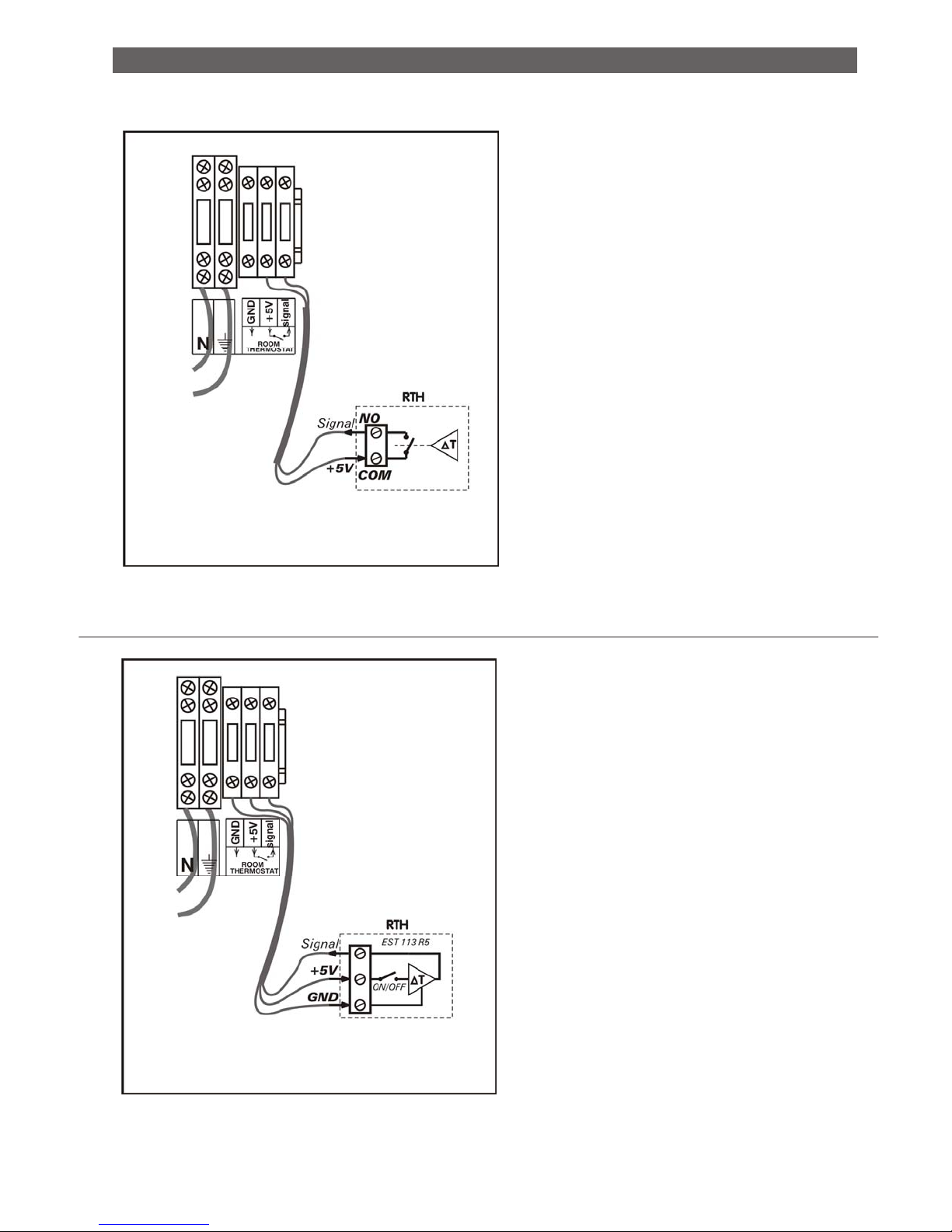

5.4 Connect boiler's external control (room thermostat)

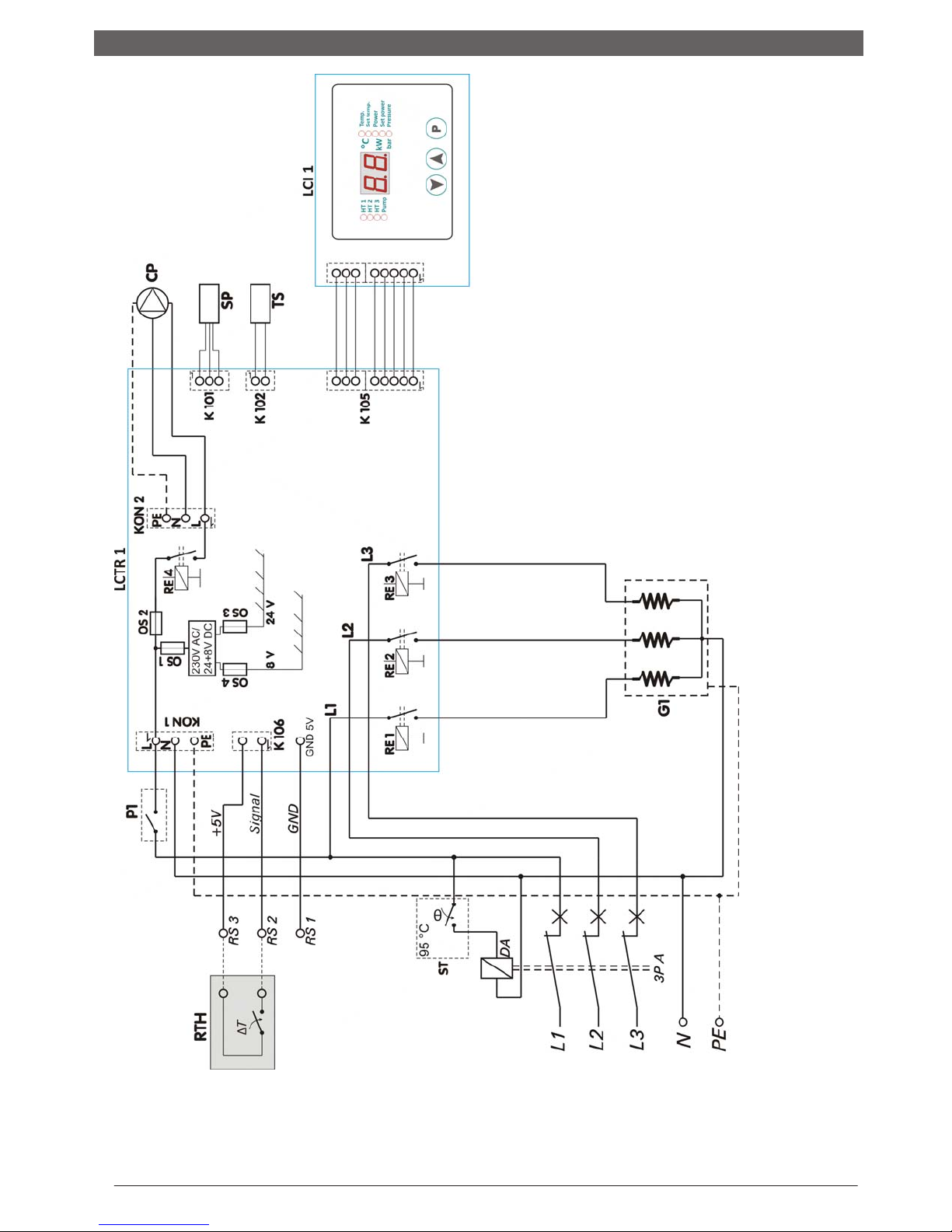

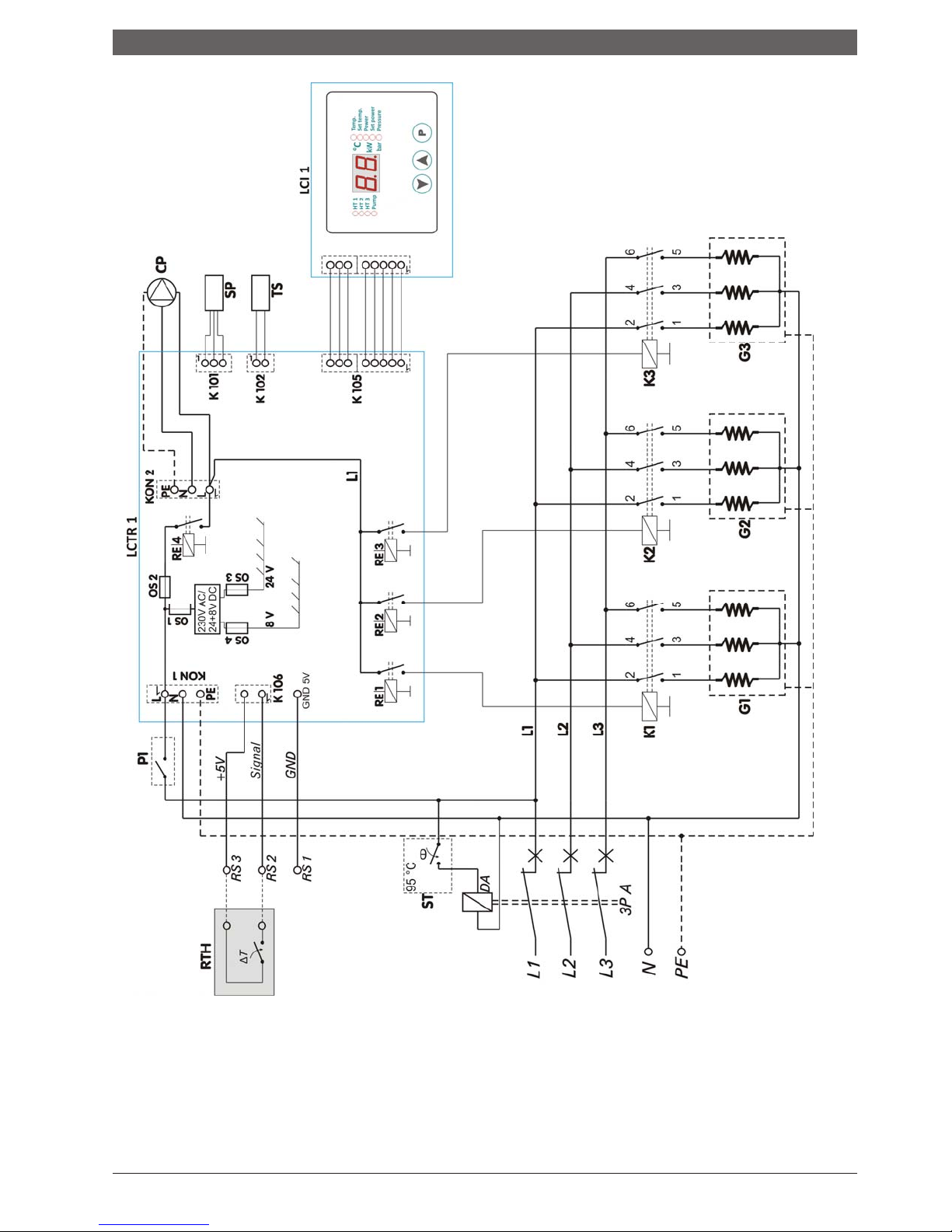

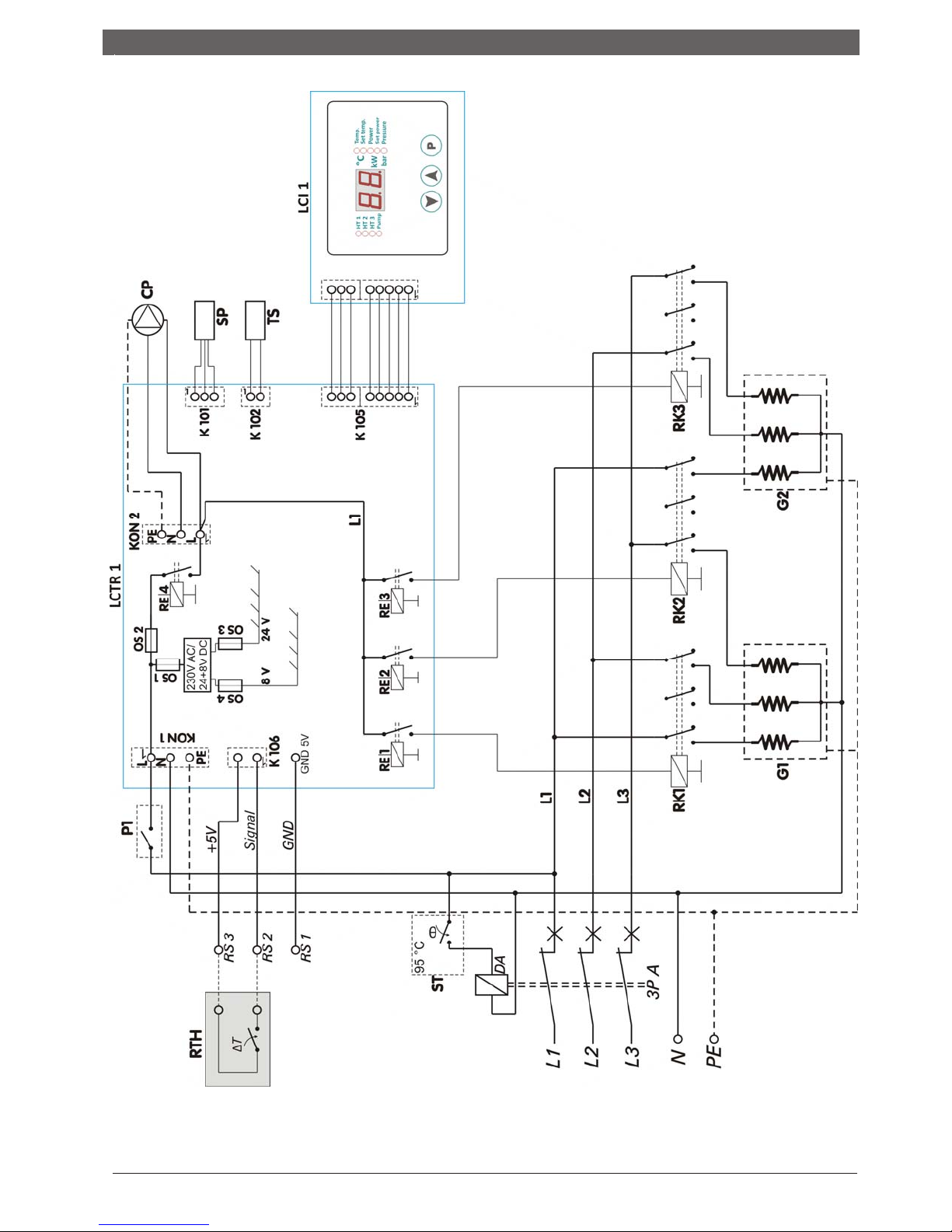

5.5 Electrical schemes
6. Commissioning
6.1 Before commissioning
6.2 First start
6.3 Start-up log
7. Handling heating installation
7.1 Instruction for work
7.2 Modifying elements
7.2.1 Device functions
7.2.2 Basic settings
7.3 Regulation of heating
7.3.1 Boiler temperature adjustment
7.3.2 Boiler power adjustment

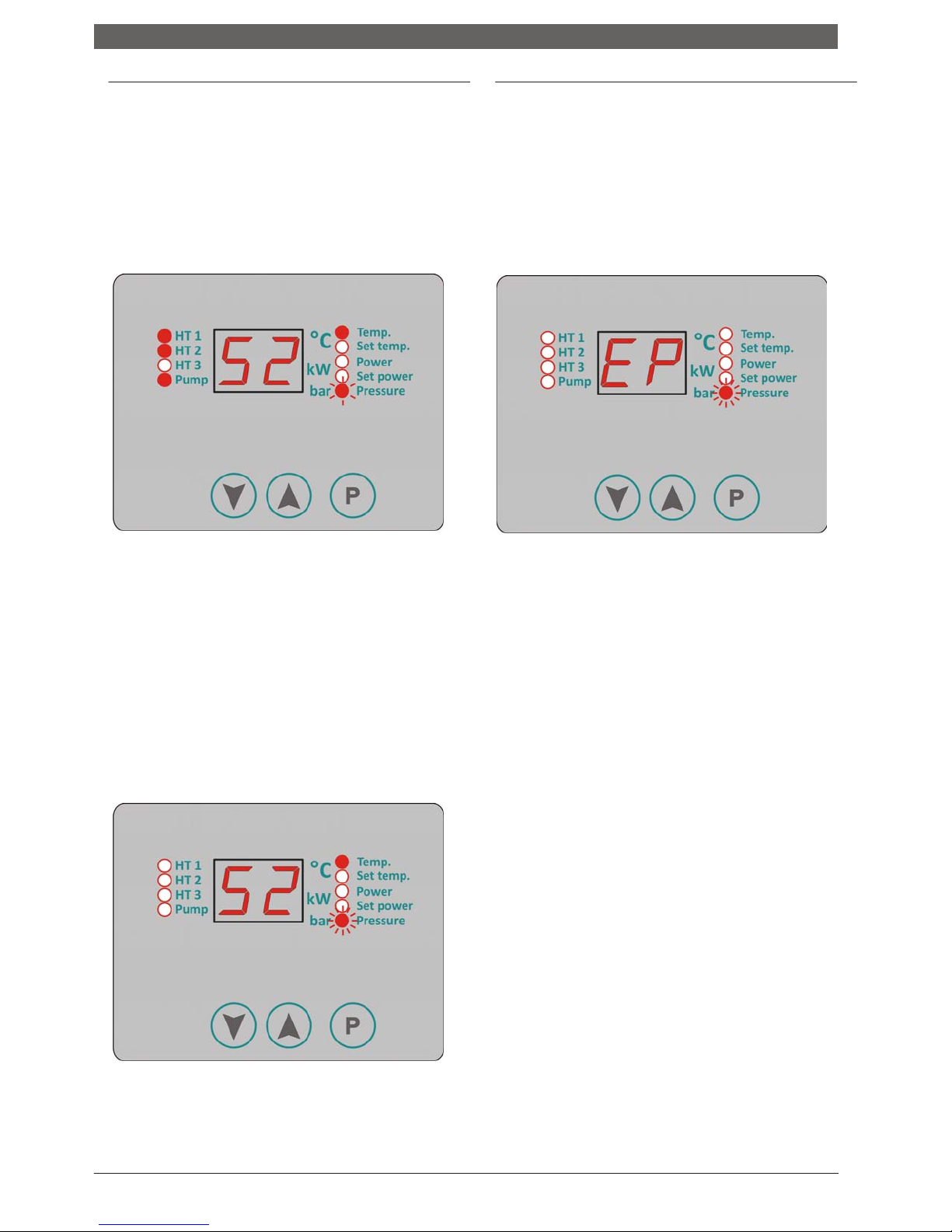

7.3.3 Warnings for pressure

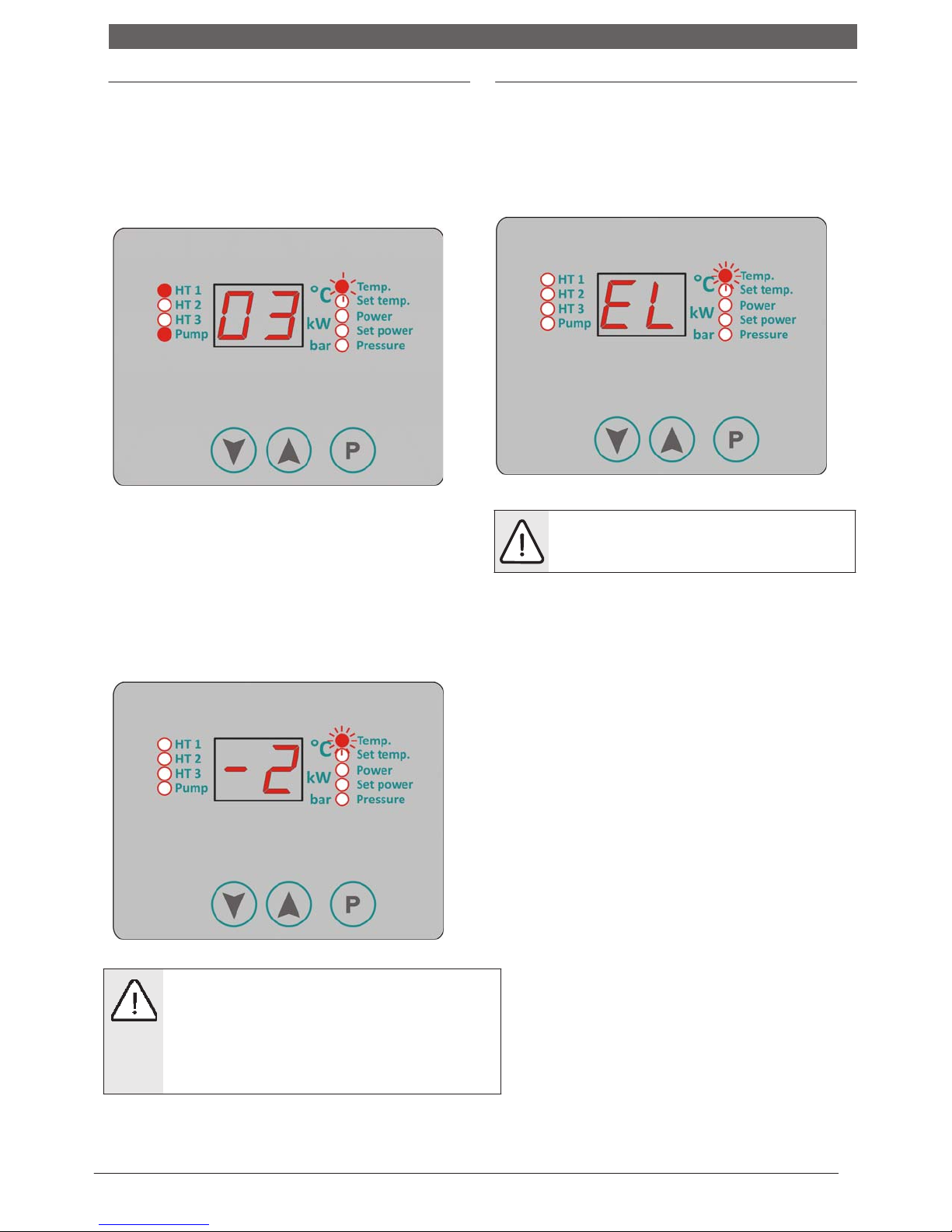

7.3.4 Warnings for low temperature
7.3.5 Warnings for high temperature

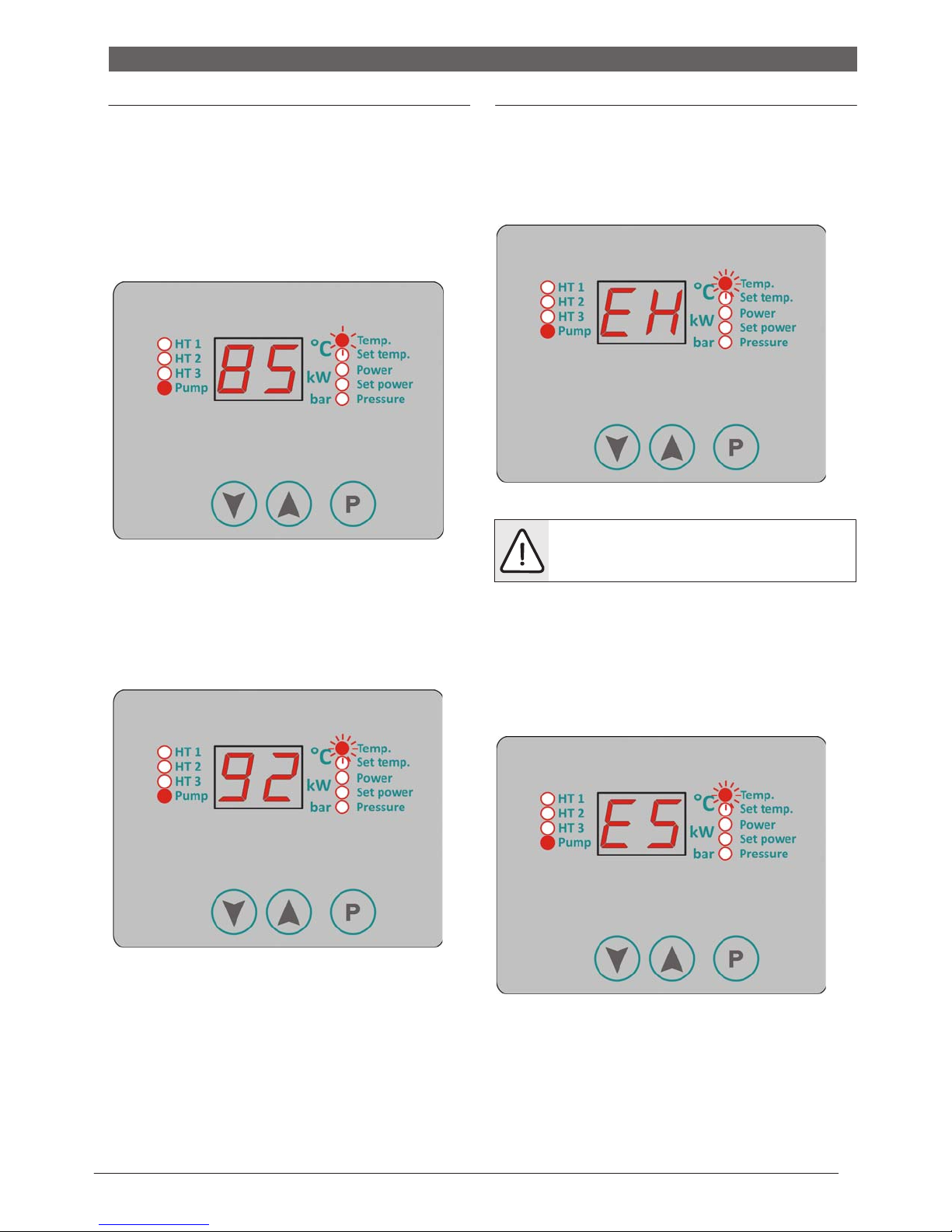

7.3.6 Warning symbols and codes
7.3.7 Room temperature thermostat
7.3.8 Interruption of heating
7.4 Putting the boiler out of drive
8. Cleaning and maintenance
8.2 Check the working pressure; add the water and air-vent installations
9. Environment protection / Waste disposal
10. Troubles and troubleshooting
11. Instructions for design
8.1 Boiler heating
8.3 Add the water and vent installation
8.4 Inspection and maintenance log
1.
Description of symbols and instructions for safe work
1.1
Description of symbols
Warnings
Warnings in text are marked by gray
triangle, background warnings
framed
Electric shock danger is marked by
lightning symbol in warning triangle
are
The signal words at the beginning of the warning mean the way
and level of consequences if protective measures are not
applied.
• NOTE means that smaller material damages may
• CAUTION means that smaller to middle injuries may
• WARNING means that heavy injuries may occur.
•
Important information
Further symbols
Table
occur.
occur.
DANGER means that heavy injuries may occur.
Important information, meaning no danger for people and
things, are marked by the symbol displayed in the following
text.
These are limited by lines, above and
below the text.
Symbol Meaning
•
–
Action step
Directives to other places in document or to other
documents.
Enumeration/Entry from the list
Enumeration/Entry from the list (2.)
1
Description of symbols and instructions for safe work
1.2
Instructions for safe work
General safety instructions
Non-compliance with safety instructions may cause
heavy injuries – or lethal outcomes and material
damages and environment pollution.
Electrical installation should be examined by an expert
prior to the device assembly.
All electric works should be performed by authorised
person in accordance with corresponding regulations.
Commissioning and maintenance and repairs should
be done by authorised service only.
Technical acceptance of installations should be
performed in accordance with corresponding
regulations.
Danger because of disrespecting security rules in
alert situations, for example fire.
Never expose your-self to life danger. Own security always
has priority.
Damage occurred because of wrong handling
Wrong handling may lead to injuries of persons and/or
installation damage.
Make sure that device is available only to professionals.
Installation and commissioning, and maintenance
and repair, must be done only by service
authorised for electrical works.
Installation and commissioning
Placement of device can be done only by authorised
service.
Do not store or dispose inflammable materials or
Boiler can be turned on only if installation is with corresponding
pressure level and working pressure regular. Do not close
security valves in order to avoid damage caused by too high
pressure. During warming water can leak on security valve of
the hot water circuit and hot water pipes.
Install this device only in the room where freezing is not
possible to occur!
liquids in the vicinity of this device!
Keep safe distance in accordance with valid regulations!
Description of symbols and instructions for safe work
Life threat of electric power shock
Secure electric power connecting is
done by authorised service! Comply
with connecting scheme.
Prior to any work: turn off electric power
supply. Secure against accidental turn on!
Do not mount this device in
moist rooms!
Control examination /
Recommendation for user: conclude
agreement on maintenance with authorised
service to perform annual maintenance and
controlling examinations!
User is responsible for safety and
environmental acceptance of the
installation.
Comply with safety work instruction as
given in the chapter Cleaning and
Maintenance.
Maintenance
Authentic spare parts
There shall not be undertaken any
responsibility for damage occurred due to
spare parts not delivered by the
manufacturer!
Use only original spare parts!
Material damages due to freezing
When there is damage due to freezing drain
water from the boiler, tank and pipelines for
heating. Danger of freezing does not exist only
when entire installation is dry.
Instructions for service
Inform users about mode of work of device and
instruct them in maintenance.
Inform users not to perform any
modifications or repair on their own!
Warn users that children cannot stay near
heating installations!
Fill in and submit Commissioning
log and Handover log attached in this
document.
Deliver technical documentation to the user!
Waste disposal
Dispose packaging materials in ecologically
Acceptable manner!
Secure device in ecologically
acceptable manner and in authorised
place!
Cleaning
Clean outside of device with wet cloth
2.
Device data
These instructions contain important information about
safe and professional assembly, commissioning and
maintenance of the boiler.
These instructions are for installers who have knowledge
for work with heating installations due to their
professionalism and experience.
2.1
These instructions are related to the following kind of device
El-Cm El-Cm Classic
Typology
2.2.1 Statement on compliances
We hereby state that devices are tested in accordance
with the following directives: 2006/95/EC (low voltage
directive, LVD) and 2004/108/EC (electro-magnetic
compatibility directive, EMC).
2.2.2 Regular application
The boiler can be used only for heating the water for heating
system and for indirect use of hot water. To ensure correct use it
is mandatory to comply with instructions for handling, data on
the factory plate and technical data.
2.3
Instructions for mounting
When mounting heating installations keep with the following
instructions:
• Valid regulations in construction industry
• Regulations and norms on safety-technical
equipment of heating installations
• Changes on the place of mounting according
To valid regulations
2.5
Use only original spare parts of the manufacturer or
spare parts approved by the manufacturer. There
shall not be any responsibility for damages caused by
spare parts which have not been delivered by the
manufacturer.
6-27k
W
Device data
2.4
Instructions for work
When working with heating installation follow next
instructions:

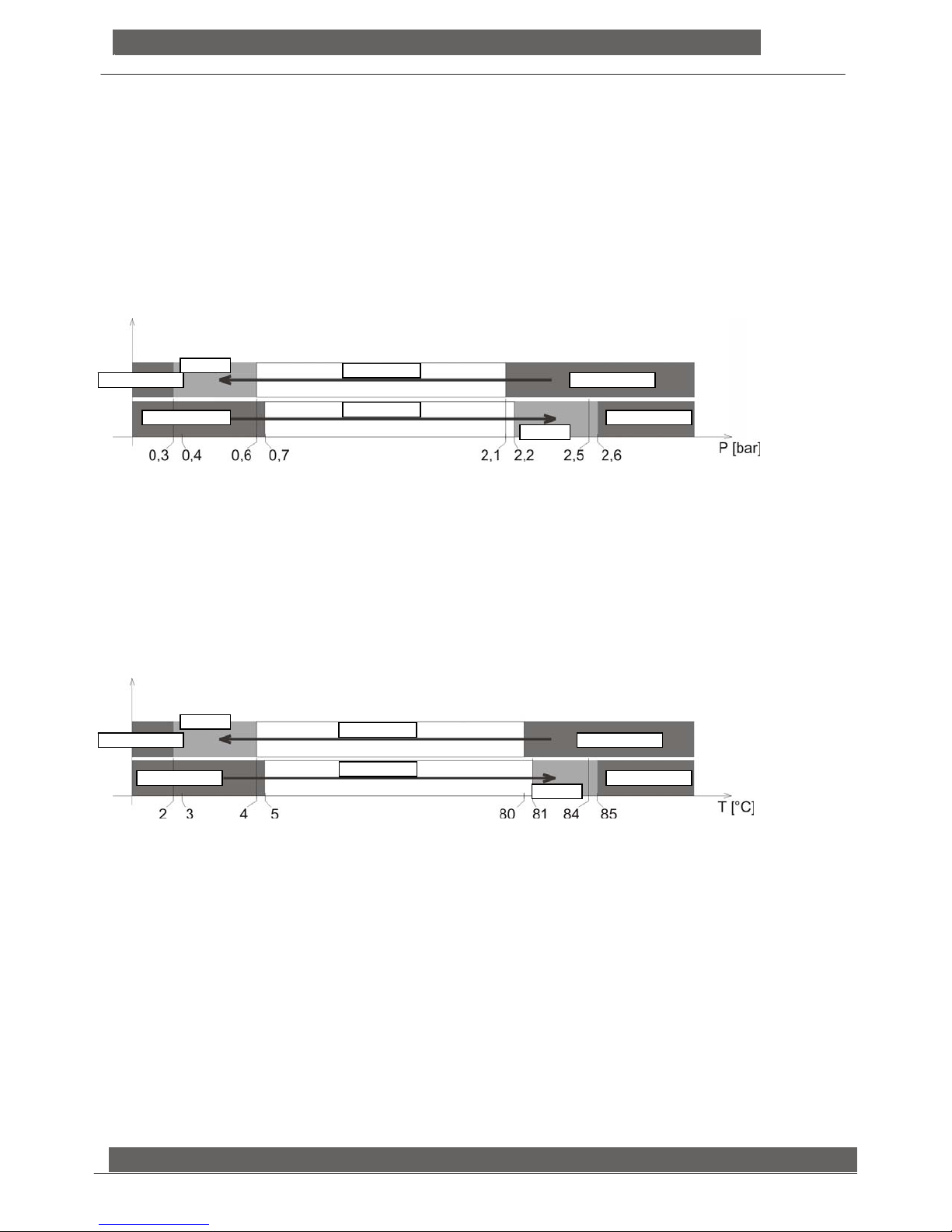

Boiler should work in working range up to max temperature
of 80°C and min pressure of 0.7 bars to
bars, which should be controlled on regular basis.
max pressure of 2.6
:
Boiler should be handled only by adults who are familiar with
instructions and work of the boiler.
Do not close safety valve!
Inflammatory objects must not be put on the boiler
surface or close to it (within safety distance).
Boiler surface clean only with non-inflammatory
products.
Inflammatory substances do not keep in the room for
boiler installation (e.g. petroleum, oil, etc.)
During the work no one lid must be open.
Keep safe distance
in accordance with regulations!
Inhibitors and anti-frost products
It is not allowed to use protective products against frost
neither inhibitors. Id it is not possible to avoid anti-frost
protection then should use anti-frost products allowed for
heating installations.
Anti-frost products
Reduce lifetime of the boiler and its
parts;
Reduce heat transmission
:
Device data
2.6 Norms, regulations and standards
This product is in compliance with the following regulations:
• EN
50110-1:2003 – Handling and work with
electrical installations
• EN
55014:2001 – Electrical-magnetic compatibility –
conditions for consumers’ devices for households, electric
devices and similar devices
• EN 60
• EN 60
• EN
• EN
335-1+ed.2:2003 Electric devices for
households
households
(EMC) –
– Law on determination of fluctuation of voltage and frequency
of low power distributive network
335-1+ed.2 zm.A1:2005 Electric devices for
61000-3-2 ed.3:2006 Electrical-magnetic compatibility
emission limits for harmonic power
61000-3-3:1997 Electrical-magnetic compatibility (EMC)
2.7 Tools, materials and auxiliary measures
Standard tools for heating installations, water supply and
electric-installations are needed for mounting and
maintenance of the boiler
.

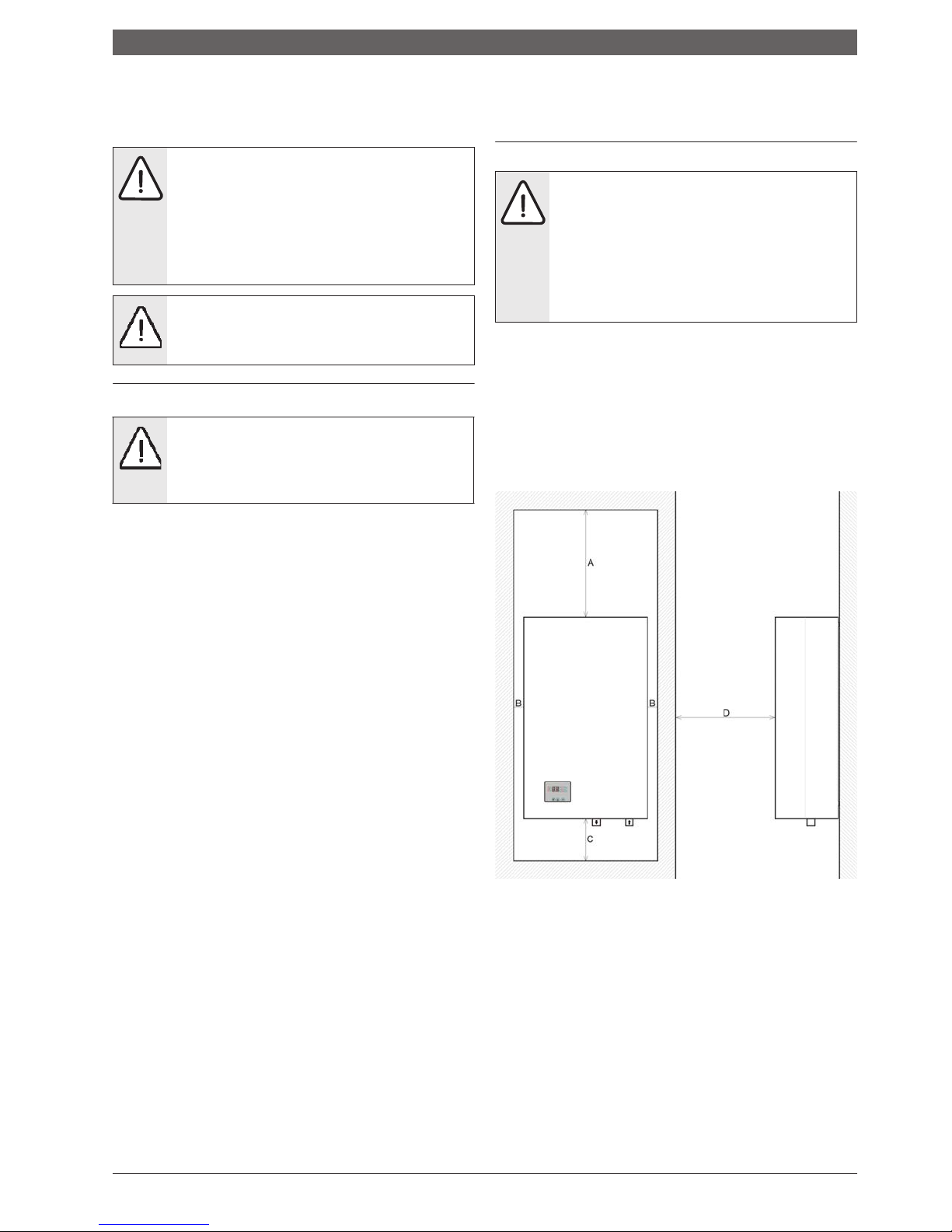

2.8
Depending on valid regulations, other minimum
distances could be applied, different than mentioned
below:
A Non-inflammable
A
A
Minimum distances and burnable
construction materials
Comply with regulations of electrical installations and
minimum distances which are in force in the subject
country
Minimum distance for heavy inflammable and selfextinguishing materials is 200 mm
Inflammability of components
1:
Non-inflammable
2:
With smaller
quantity of
added
elements
(organic
components)
Asbestos, stone, wall tiles, baked
clay, plaster (with no organic
additives)
Plaster cardboards plates, base
felt, glass fibres, plates of
ACUMIN, ISOMIN, RAIOT,
LOGNOS, VELOX, AND
HERACLITUS
B
Inflammable
Device data
2.9

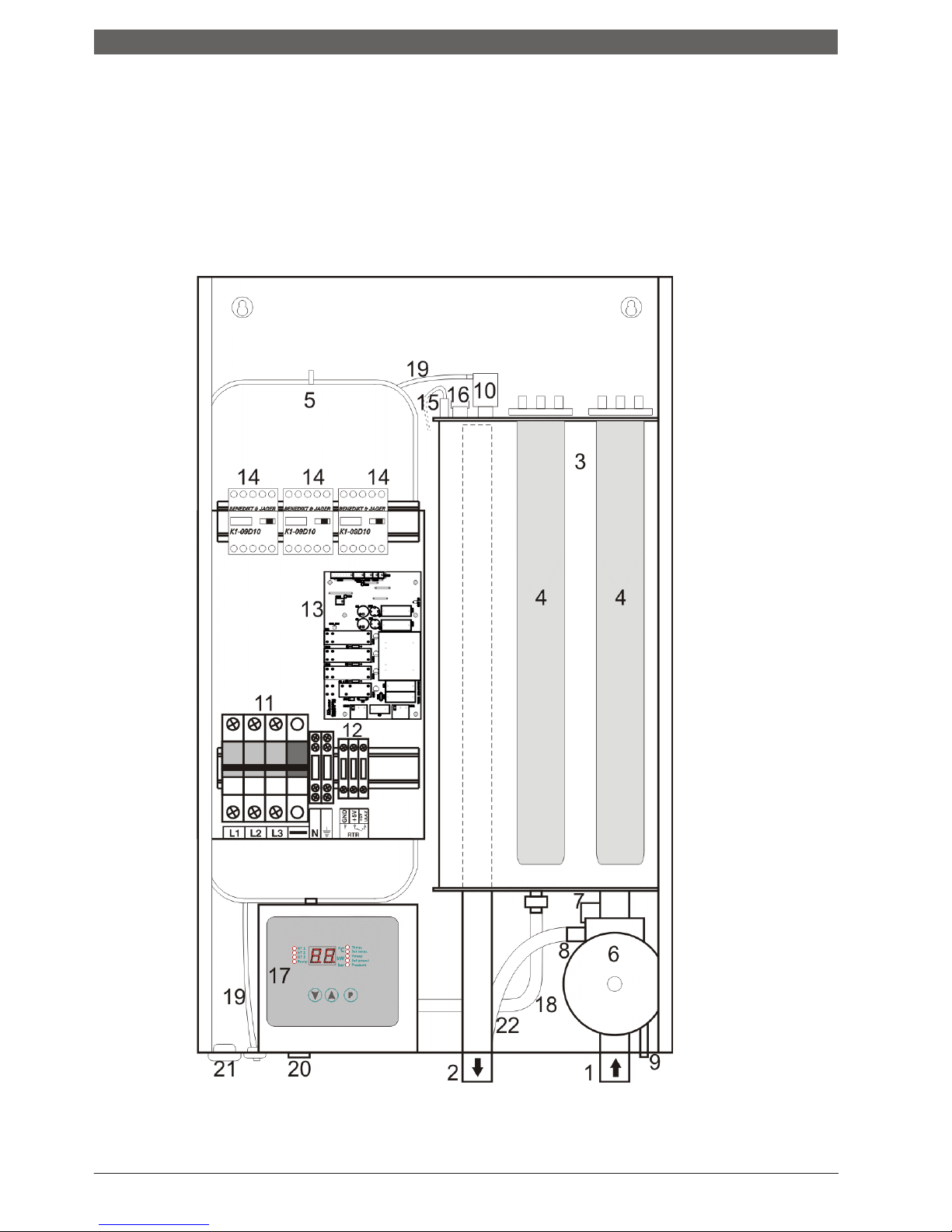

Basic components of boiler
• Boiler body
• Device frame and casing
•
• Pum
• Expansion dish (
• Processor board and boiler electronics
• Water pressure sensor
• Safety valve
Boiler can be installed as integral part of the central
heating system, floor heating, hybrid, or accumulation
systems.
Boiler is compounded of weld housing of steel tin with thermal
insulation. The boiler is fixed on the wall by supplied mounting set.
Installed heating insulation in boiler jacket reduces loss of the heat,
and also protects against noise.
Safety elements (vent valve, managing surface fuse and
temperature safety limitation) are mounted at the top of boiler.
Depending on the type of the boiler, different elements of heating
are used. Heating elements’ performance can be adjusted according
to grades. Different performance grades sets can be obtained
through control panel. Number and division of performance grades
are visible from technical data (See chapter 2.13.2).
Product description
Control unit
p
per capacity)
:
B
1:
Hardly
inflammable
B
2:
Normally
inflammable
B
3:
Inflammable
Table
2: Ign
according to
Beech,
felt, HOB
UMAKART plates
Pine,
itable materials and composition of elements
DIN 4102
veneered wood
Asphalt,
mater
plates,
polyurethane,
polye
materials
oak, veneered wood,
REX, VERSALIT
larch and spruce,
cardboard, cel
ials, tar-paper, plywood
cork plates,
polystyrene,
thylene, floor fibre
and
lulose
Device data
1 UL
2 IZ
3
4
5
6
Circulating pump
7
8
9
Drain faucet
10
11
Return boiler’s line
Start boiler’s line
Boiler’s exchanger
Electric heaters
Expansion dish
Vent valve (on pump)
Safety valve (on pump
Automatic air vent
Automatic fuses with voltage trigger
)
Figure 1: Open device view
12 Terminal for room thermostat
13 Microprocessor plate
14 Electric heaters contacts
15 Temperature sensor
16 Safety thermostat (
17 Control panel with display
18 Flexible hose of expansion dish
19
Drainage hose of air vent
20 Power switch
21 Electric cable access sleeve
22 Drainage hose of safety valve
STB)
(ON/OFF)
2.10 Waste disposal
Dispose packaging materials in ecologically sound manner!
Components that should be changed dispose in ecologically
sound manner.
2.11 Delivery scope
When delivery the boiler
Check if packaging is damaged during delivery.
Check if delivery is complete.
Part
stick to the following:
Pieces
Device data
Boiler El-Cm Classic
Assembly Set
Instructions for handling
2.12 Factory plate
Factory data plate is placed on the external side of the
boiler and contains the following technical data
• Boiler type
• Batch / Catalogue number
•
Power
• Input power
• Maximum temperature
•
Working pressure
• Water volume
•
Mass
• Electric power supply
• Protection
grade
• Manufacturer
:
1
1
1
Device data
2.13 Dimensions and technical data
2.13.1 Dimensions and technical data for boiler El-Cm El-Cm Classic
Figure 2: Dimensions and connections
2.13.2 Technical data
Power
Usability level
Number of power grades
Division of power grades
Network voltage
Protection level
Needed fuses
Unit
KW
% 99
V AC 3
A
CVM-6
6 9
3 3
3×2 3×3
IP40
16 20 25 32 40 50
CVM-9
99
Device data
CVM-12
12 18 24 27
99 99 99 99
3×4 3×6 3×8 3×9
CVM-18
3 3 3 3
CVM-24 CVM-27
N ~
400/230V 50Hz
Min diameter of input cable
Safety valve
Max allowed
working pressure
Min allowed
working pressure
Max boiler
temperature
Water volume in
boiler
Expansion dish
volume
Connection of start
line
Connection of return
line
Device mass
(
without water
Dimen
Microprocessor Unit
3
Table
)
sions
: Technical data of
El-Cm El-Cm Classic Device
mm² 5×
Bar
Bar
°C
Bar
l
l
g 23
K
mm
2.5
5×2.5 5×4 5×4 5×6 5×6
3
2, 6
0, 4
80
12, 5
8
DN20 (3/4”)
DN20 (3/4”)
24 24 25 25 25
7 710×430×230 (
EK_CPU_LCTR1
Height × Width
×
Depth
)
Transportation
3.
N
OTE: T
ransport damages
Pay attention on instructions for
transportation on packaging!
Use adequate transportation means, i.e. carts for
bags with tighten strip. The product should be
horizontal position
Avoid shocks or collisions!
Transportation
during transportation.
Packed boiler put on carts for bags if needed secure it with
strip and drive it to its mounting place.
Remove packaging
Remove packaging materials and dispose it in
ecologically acceptable manner.
in
4.
Installation of device
CAUTION:
occurred because of irregular installation
Never install boiler without expansion dish (AG) and
safety valve
Boiler must not be installed in protective zone of
important area or at the place of bath.
Human or material damages
.
4.2 Distances
!
4.1
Prior to installing take care of the following
• All electrical connectors, protective measures and fusses
• Electric connector should be done according to the
• After corresponding installation of device execute
• Before opening device and all works turn off electric
• Non-professional and non-authorised attempts to
connect device under voltage can produce material
damage of device and hazardous electrical shocks.
N
OTE:
Material damage due to freezing
Boiler must be installed only in room safe of freezing.
Be careful prior to assembly
NOTE:
Material damage occurred due to
incompliance with further instructions
Respect instructions for boiler and all
installed components
:
should be done by professional person respecting all valid
norms, regulations and local laws.
connecting plans.
grounding of the plant.
supply.
!
!
• Comply with regulations on electric installations
• Place boiler on the wall in such manner to leave free space as
illustrated in the Figure 3.
S
l
i
k
S
l
A =
Figure3
Installation
DANGER:
materials and liquids
Do not dispose burnable materials and liquids
close to the boiler
Let know the user the valid regulations for
minimum distances from burnable materials
(Section 2.8, p.7)
Fire threat due to burnable
!
.
and minimum distances in force in subject
countries.
500mm / B = 50mm / C = 200mm / D =
:
Minimum distance during inst a lla tion
500
mm
Instal
lation
4.3 Demounting front boiler casing
Boiler casing can be removed for simple handling and
installation.
Unscrew 3 bolts at top lid
Unscrew 3 bolts at bottom lid.
With slow pulling toward you demount front casing of the
boiler.
4.4 Mounting boiler
NOTE:
irregular installation on the wall
Material damage occurred by
It is necessary to use proper material for fixing.
!
This chapter describes boiler mounting on the wall.
Draw position of drilling holes for mounting set respecting
minimum distances
Drill holes upon dimensions given in Figure 2.
Put into drilled holes plastic dowel enclosed in device
packaging (or adequate dowel for unusual kind of wall)
Then screw bolts into delivered dowels (or other) in such way
that are left out from the wall min 5 mm-max 10mm.
Carefully hang device on the wall
Make sure that boiler is placed vertically.
Fixed boiler on the wall by mounting set and screw
(Figure 3)
.
Figure
4: Opening the boiler (
Demounting front casing
)
4.5
Heating duct lines connect as follows
4.6
4.6.1 Filling the boiler with heating water and sealing
NOTE: Material damages caused by
permeable connections
Attachment duct lines install without connecting
on boiler connections!
Connect return line on connection IN.
Connect start line on connection OUT
Filling the installations and watertight testing
Before system filling the boiler must be connected on
electric installations and turned on, over ON/OFF
switcher at bottom side of the boiler, to STAND BY
regime to follow up with pressure value in installations
on display. Using buttons ▼ and ▲ adjust thermoregulation to pressure measuring mode (LED diode
shines near the mark bar)
test
Waterproof should be tested prior to put on the boiler.
DANGER
can occur with overpressure when testing
watertight
High pressure can damage regulatory
and safety devices and reservoir
valves
: Injuries and/or material damages
!
After filling with water set the boiler on pressure
that is equal to the opening pressure of safety
valve.
Comply with maximum pressure of installed
components
After testing sealing, open again closing
Make sure that all pressures, regulatory and
safety parts work correctly
!
:
.
.
Hydraulic attachments execution
DANGER:
water
It is demanding to respect state norms and
regulations on avoiding mix drinking water (with
water from heating installations)
Comply with EN 1717
Health threat due to mix of drinking
!
Installing
NOTE
: Installation damage due to bad quality of
water
! Heating installation can be damaged by
corrosion or scale depending on water
characteristics
Comply with filling requests for water according to
VDI 2035 or project documentation and catalogue
Check pre-pressure of expansion dish
Open faucet for filling and exhausting
Fill the boiler slowly; watch pressure on display (Figure
Figure

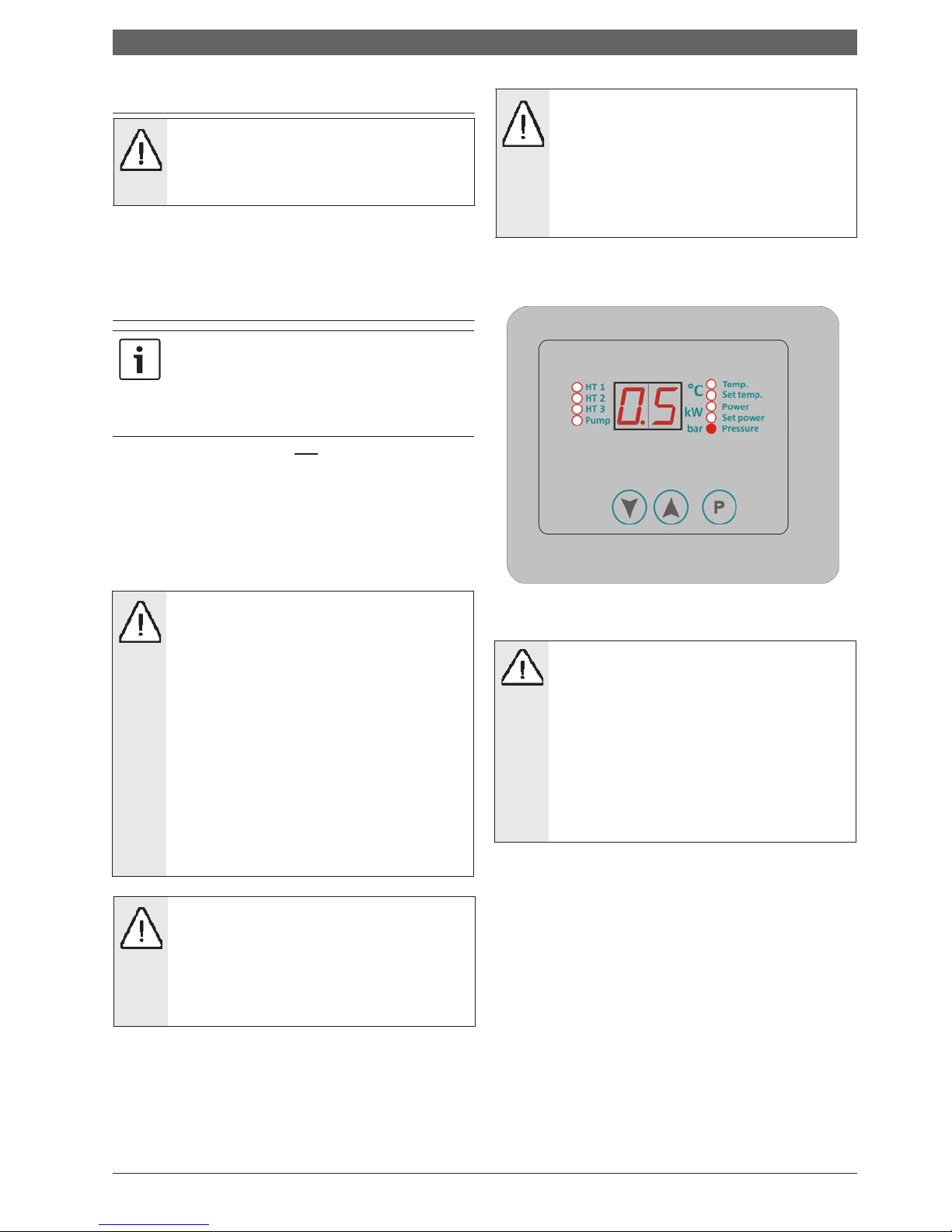

5 Display with marked pressure
NOTE
: Material damage due to temperature
When working pressure is reached close the faucet.
tension!
If you fill the boiler in hot condition, temperature
tension can cause cracks due to tensions. Boiler
will start to leak.
Use vent valve to air vent the boiler (Figure 5 and Figure 6).
Air-vent the installation through valve on radiator
When lower working pressure by air vent, water must be re-
filled.
Test watertight according to local regulations
After watertight testing, open all elements that were
closed doe to filling
Check if all safety elements work correctly
When the boiler is tested and no leaking was spotted - adjust
correct working pressure
Fill the boiler only in cold condition (temperature of
40°C).
empty duct can be max
Fill the boiler only through quick valve on pipe
installation (return line) of the boiler
.
5):
Installation
Remove hose from the filling/exhausting faucet
Enter working pressure values and water quality into
instructions for handling
During the first filling of repeated filling or when
change the water:
Comply with requests for filling water

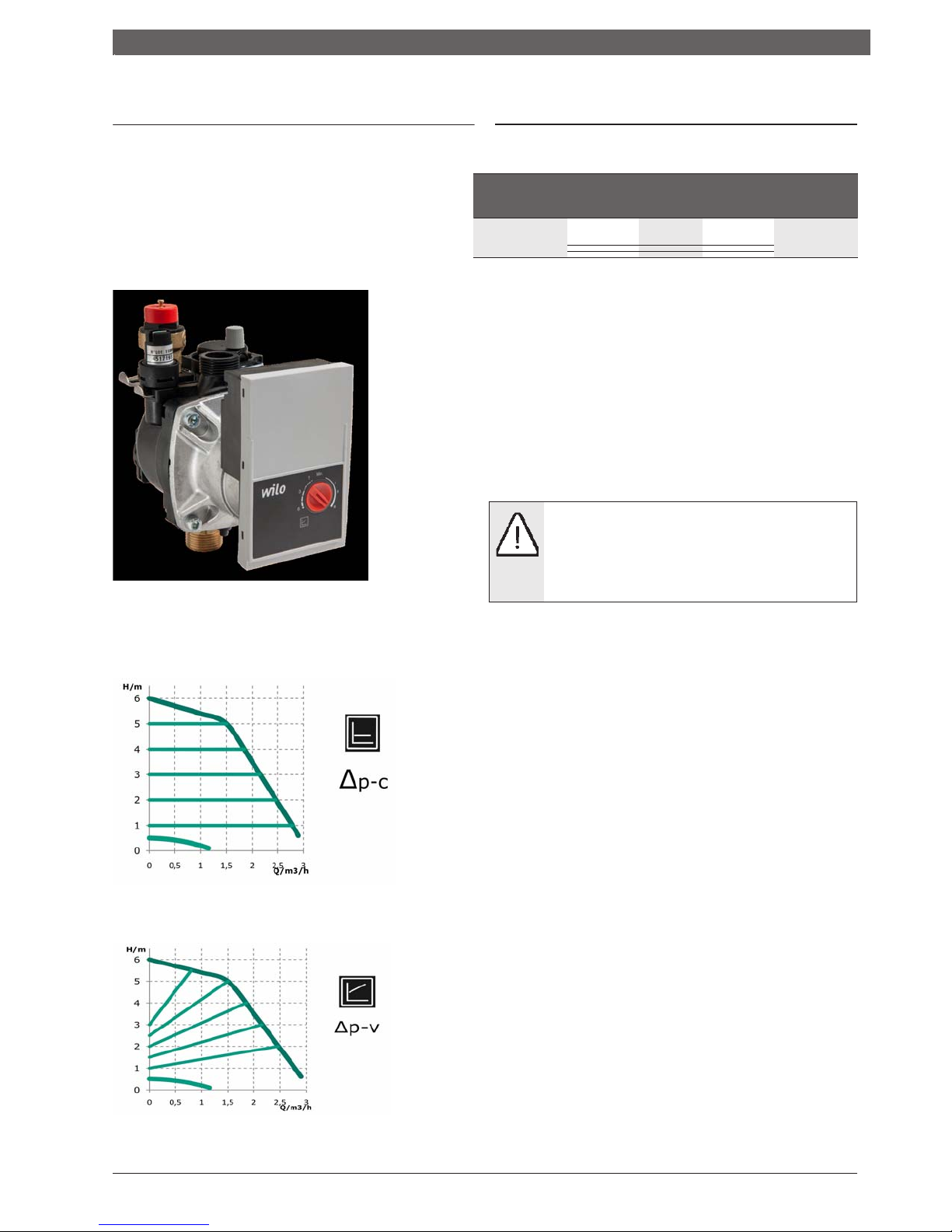

4.6.2 Heating pump air emission and de-blocking
Pump that exists in this device has automatic air vent so it is
not necessary to perform any action about this.
When heating pump is blocked do the following
Carefully try to release axis using screwdriver
:
4.6.3 Boiler and installation air emission
Carefully, using
valve and air vent the boiler. This valve is automatic
so, if respect the rule of slow filling of installation
and boiler, additional manual air-vent will not be
needed.
screw on air vent cup release the
5.
Electric connecting
DANGER:
Electric works must be done only by
qualified person
Turn off voltage supply before opening
device and secure it against accidental turn
on.
Comply with assembly regulations
5.1
Positions of introducer for the introduction of the power cable
I below set of cable
introducers
Life threat from electric shock
.
Electric connecting
!
When connecting
take care on connections scheme and
connecting plans. Respect mandatory
diameters of cables and fusses power outside
the boiler.
boiler on electric installation
This device is manufactured for connection to
three-phase
50Hz
)
power supply (3N
~
400/230V
II rear set of cble
introducers
III top set of cable
introducers
Figure
6
Illustration of the position of cable introducers on the boiler
Electric connecting
This device is equipped with three (3) sets of
introducers for power cable
I set introducers (
main set) is on lower side (below) of
.
device. They are on lower plate of device in the back left
corner (See Figure 6). It is intended for connecting device
when power cable comes from the lower side of the boiler.
II set introducers is placed on the rear of
device and is used when cables on the
wall are prepared for the boiler. They
provide power cable from the wall to get
directly into the boiler. When front lid is
removed, it is visible in lower left side two
openings of dimensions of
28 mm
, placed
one above the other. This mode of connecting
secures just aesthetic function because cables are
not visible (See Figure 6).
III set introducers are placed on the top of boiler in rear
left corner (See Figure 6) they are intended for
connecting device when power cable comes from the
upper side of device.
Electric connecting
5.2 Connecting power (voltage) cable
- Commencing should be performed according to the
mounting scheme as given in the Figure7
In the boiler, instead of classical row immobilizer are placed
three pole automatic fuses to introduce the power cable. This
set of automatic fuses has remote power trigger
superstructure, enabling safety set having short-lasting
electric power protection and ability to react on overheating
(signal from safety thermostat activates power trigger) and
simultaneously turn off supply of all three phases into device.
-
Phase conductors are connected to three-pole fusses (L1, L2,
L3
)
WARNING
It is demanding to tight well screws in
automatic fusses to achieve better joint
between cable and clamp.
! When connecting phase conductors;
.
DANGER!
and clamp, then uncontrolled warning of fusses can
occur and its termination at the end.
If there is no good joint between cable
and
- Neutral (zero) duct line is connected to corresponding row
immobilizer (N) which is placed on the right hand side of
the fuses set with voltage trigger. Row immobilizer of zero
duct line is of blue colour.
- Grounding duct line should be connected in the row immobilizer clearly
labeled with grounding symbol. Row immobilizer of the duct line for
grounding is of green-yellow colour.
NOTE:
manufacturer within safety set of this device
and
Remote voltage trigger is connected by
no cable
should be connected with it
NOTE:
row immobilizers (5V IN) and it interrupts voltage of
5V DC that comes from boiler table microprocessor.
Room thermostat is connected on additional
- It is recommended to use room thermostats
with independent power supply like batteries
- This boiler is not predicted to work without
room thermostat or external control unit
-
When connect power cable into the boiler through any of
Three selected introducing sets carefully pull the cable
To three-pole fuses avoiding to damage
Cable sets within device.
NOTE!
This device connecting
Figure
7: Scheme for connecting power cable
- When connect power cable and room thermostat, it is
Only qualified person may execute
necessary, prior to closing device, or prior
to mount front casing, to lift fusses set together with
Remote power triggers in order to secure power
supply into boiler.
Electric connecting
5.3
Scheme of power cable connecting
Figure 8:
mono-phase
Power supply – ONLY FOR POWER OF
6kW AND 9kW
Scheme of boiler connecting to
Figure 9:
Scheme of boiler connecting on
three-phase power supply
5.4
Connect external control of boiler (room thermostat)
Electric connecting
Figure 10:
Scheme of digital programmed room thermostat connecting with battery supply
WARNING: Use room thermostat with no-voltage contacts
Figure 11:
Scheme of room thermostat EST 113 R5 connecting
Electric connecting
5.5
Legen
3P
D
ST
RT
RS 1,
P
C
RK1, RK2, RK3
K
G
G
G
Electric schemes of connection
All quoted cross-sections of cables are minimal.
Cross-sections that should be placed depend on
length of the line and placing mode.
Cable cross-sections should be dimensioned
according to local regulations.
d
A
A
H
RS 2, RS 3
1
P
1, K2, K3
1
2
3
Three-pole automatic fuse
Remote power trigger
Safety thermostat (Kli
Room thermostat
Connecting clamps of room
thermostat
WARNING: voltage 5V D
Main switcher ON/OFF
Circulation pump
Relay contact
Contact (for 24kW and 27kW)
Heater
-3×1500W for boiler of 9 kW
-3×2000W for boiler of 6, 12, 18kW
-3×2667W for boiler of 24kW
-3×3000W for boiler 27kW
Heater
-3×1500W for boiler of 9 kW
-3×2000W for boiler of 12, 18kW
-3×2667W for boiler of 24kW
-3×3000W for boiler of 27kW
Heater
-3×2000W for boiler of 18kW
-3×2667W for boiler of 24kW
-3×3000W for boiler of 27kW
(for 9,12 and 18kW)
xon)
C
Table 4: Legend of connecting schemes
El-Cm El-Cm Classic
Legen
LCTR 1
OS
1
OS
2
OS
3
OS
4
KON
KON
K 101
SP
K
102
T
S
K 105
K 106
RE 1
RE 2
RE 3
d
1
2
Microprocessor thermal regulator
Electric fuse 230V T500mA
Electric fuse 230V T2
Electric fuse 24V T500mA
Electric fuse 8V T500mA
Supply connector (
Circulation pump connection
Pressure sensor connection
Pressure sensor
Temperature sensor connection
Temperature sensor
Interface connection (LCI1)
Room thermostat connection (RTH)
–
Heater relay
–
Contact K1 turn on relay
(for boiler of all other power)
–
Heater relay (for boiler of 6 kW)
–
Contact K2 turn on relay
(for boilers of all other power)
–
Heater relay for boiler of
–
Contact K3 turn on relay
(for boilers of all other power)
(for
boiler of 6kW)
A
230V AC)
6kW
Electric connecting
Figure 12: Boiler electric scheme El-Cm El-Cm Classic with nom ina l power of 6 kW
Electric connecting
Figure 13: Boiler electri c scheme El-Cm El-Cm Cla ssic with nominal power of 9kW and 12kW
Electric connecting
Figure 14: Boiler electri c scheme El-Cm El-Cm Cla ssic with nominal power of 18kW, 24kW and27kW
Commissioning
6.
Commissioning
When complete below described works fill in the
(
Commissioning log
6.1
Before commissioning
NOTE: Material damage occurred due
to unprofessional operating
Start-up without sufficient quantity of water
destroys device!
Turn on the boiler and use it only if there is sufficient
quantity of water.
Chapter 6.3).
!
.
Before turn on, test if the following elements and joints are
connecter correctly and work correctly
• Watertight of heating installation
• All pipes connected into
ducts
• All electric connectors
Boiler must work with minimum pressure of 0.7 bars
:
6.3
Start-up log
1. Boiler type
2. Serial number
3. Set thermostat regulation
4.
Fill and air-vent heating installation and check
sealing of all connectors
Establish working pressure
5.
Check expansion dish pressure
6. Test safety devices
7.
Set electric connection according to local
regulations
8. Test function
9.
Users informed, technical documentation
submitted
10.
Certificate of professional turn on device
Start-up works
6.2 First turn on
NOTE:
Material damage due to incorrect
handling
Instruct client/user how to handle device
Prior to turn on check if heating installation is filled with
water and air-vent
Turn on main switcher (
Heating system and device parameters will appear on
display
Device is adjusted by default on min temperature of
10°C
and power of 0 k
Only the pressure value in installation on display will be
the one which you adjusted during filling the installation
with water
Page Measuring values
16
16
16
__________ bar
__________ _bar
16
Service seal / Signature / Date
below device
W
)
Notes
Table 5: Start-up log
Heating installation handling
7.
Heating installation handling
7.1 Working Instruction
Safety Instructions
Only adults familiar with instructions and working mode
may operate the boiler
Make sure there are no children in the boiler area.
Do not dispose or store inflammable materials within safe
distance of 400 mm round the boiler
Inflammable materials must not be placed on the boiler
User must comply with instructions for operating the boiler.
User may only turn on the boiler (except the first start-up), adjust
temperature on the regulating device and turn off the boiler. All
other operations must be performed by authorised service.
Authorised person who performed installation is obliged
to inform the user about handling and correct and safe
work of boiler.
In the event of alert situation, explosion, fire, gas or steam
leaking, the boiler must not work.
Be aware of inflammable characteristics of components
(
Instructions on installations and maintenance
.
)
7.2
Heating installation handling
Modifying elements
7.2.2

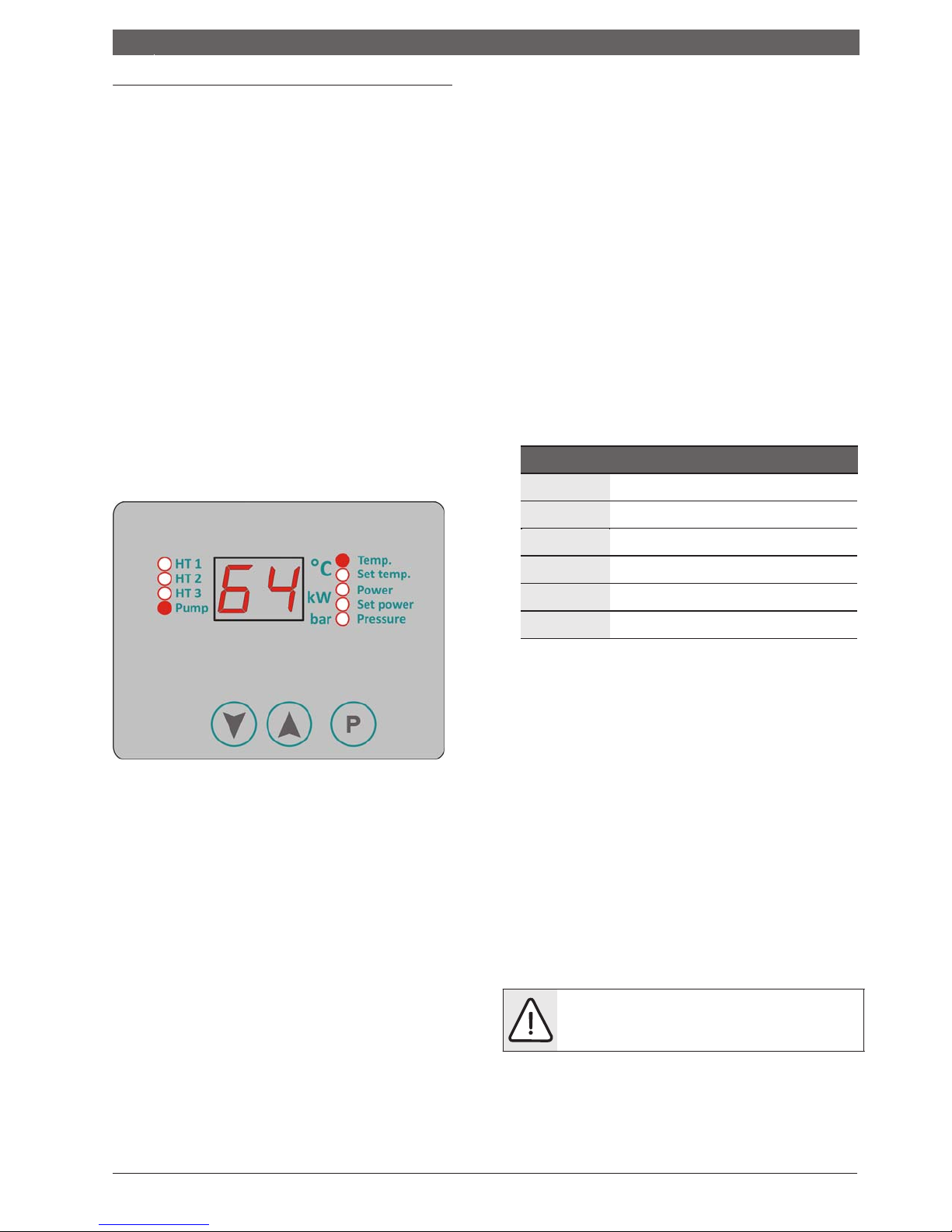

Basic adjustments
Display permanently shows present temperature;
7.2.1 Device functions
We will give here brief information of the most important
characteristics of the boiler
- Electric boiler El-Cm El-Cm Classic contains all
elements of the boiler sub-station or small boiler
room.
- This model contains many advanced functions that make
- Temperature and hydraulic pressure sensors follow up with
- Communication between user / installer (servicer) and device is
done through user interface where is possible to see important
device parameters.
- Adjustment is performed through three buttons placed in lower part
of control panel.
easier work with this device and provide longer life and
safer handling.
changes in heating process sending information to
microprocessor which manage the boiler on that base.
El-Cm El-Cm Classic:
to see other parameters press button ▼ and ▲.
To select other parameters that wish to adjust use
button
P

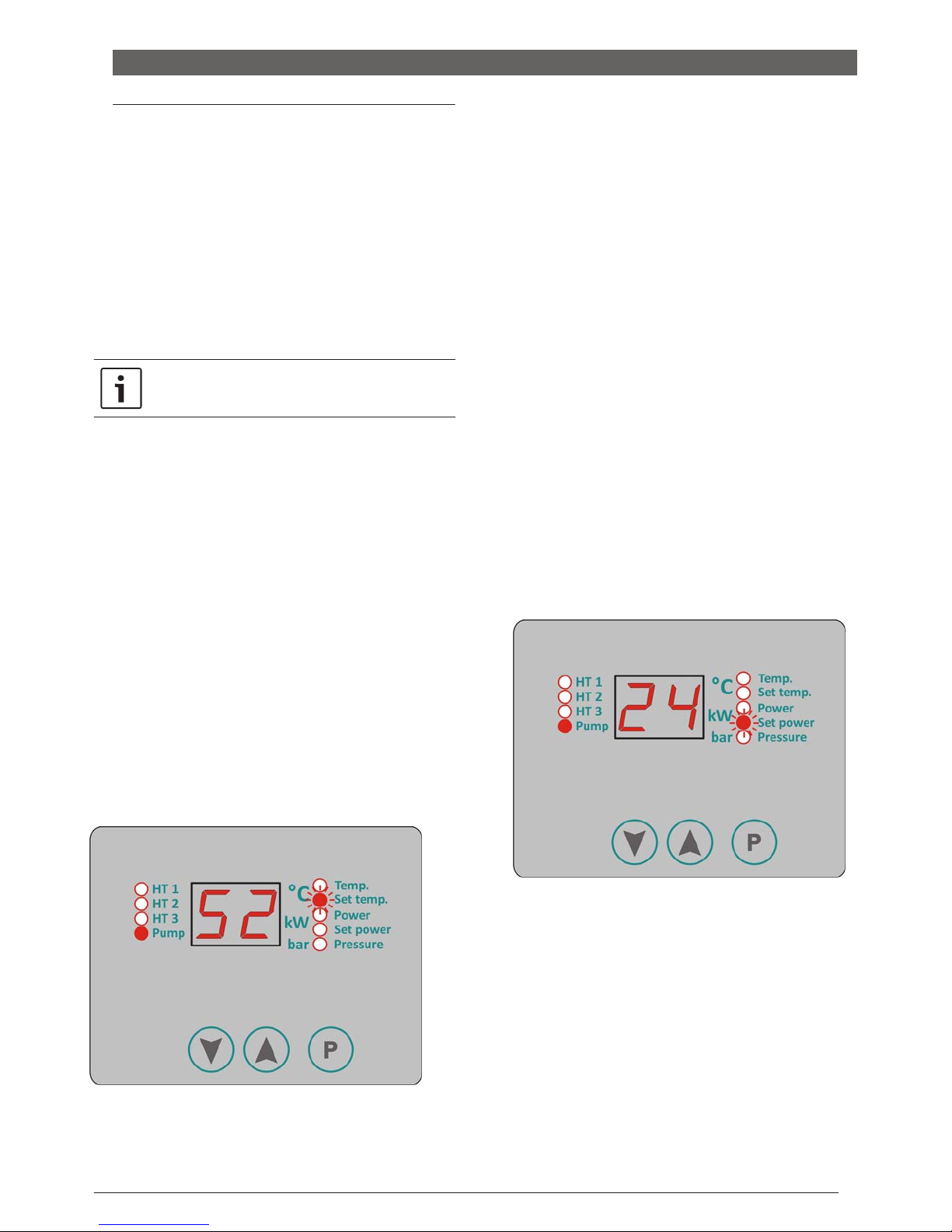

Given temperature can be set in the range between
10
.
°C ÷ 80 °C, using steps of 1 °C
Given power can be set in three grades depending
on device nominal power (see table). Turn on/turn off
the heater is dome periodically with time span of ~3sec
in order to avoid shocks to electric net.
Table
Boiler power Steps (kW
6 k
W
9k
W
12k
W
18k
W
24k
W
6: Power and adjusting steps
)
2+2+2
3+3+3
4+4+4
6+6+6
8+8+8
27k
- For normal work of this device it is necessary to set
working pressure in range between 0.7-2.1 bar
(recommendation is 1.0 bar) during filling and maintenance.
- When working pressure is lower than 0.7 bar LED
Figure 15: Control panel view
-HT 1: Indicates work of heater no. 1
-HT 2: Indicates work of heater no. 2
-HT 3: Indicates work of heater no. 3
-Pump: Indicates work of circulating pump
-Temp: Present temperature display [°C]
-Set temp: Set temperature display [°C]
-Power: Present engaged power [kW]
-Set power: Set engaged power
-Pressure: Present pressure [bar]
-▼ Button to reduce parameters value
[kW]
diode will signal warning (see chapter 7.3.3
pressure warnings), and if working pressure
continues to decrease and fall below 0.4 bar the
boiler will turn off indicating mistakes on display.
- When working pressure is higher than 2.1 bar LED diode
will signal warning (see chapter 7.3.3 pressure warnings),
and if it increases over 2.6 bar the boiler will turn off.
And search down through Menu
-▲
Button to increase parameters value
And search up through Menu
- P: Button to select parameter
W
9+9+9
WARNING!: If working pressure continues to
grow up to 3 bar mechanical safety valve will start
to leak heating water out of the boiler.
7.3 Regulation of heating
- Circulating pump and electrical heaters turn on by command
of room thermostat.
-
When boiler reaches set temperature of water in the system,
heaters turn off (with intervals of 3 sec to eliminate shock to
electric power net), and pump continues to work until room
thermometer turns off. Heaters will again turn on when water
temperature fails 2°C below set temperature – if room
thermostat requires so. Microprocessor thermo-regulator
measures time of work for each heater, changes heaters (if
there is inactive heater available) after 30 min of continual work.
Such working mode provides equal load of all heaters and
relays, and their life-time is significantly longer.
If relay of pump does not turn on for any reason,
heaters will not too.
-
When room temperature is reached, microprocessor turns off
heaters and pump, but after 2 min after heaters turn off – during
that time LED diode indicating work of pump will flash meaning
that countdown 2 minutes is in progress after which time the
pump will turn off.
7.3.1 Boiler set temperature adjusting
-
Using buttons
-
LED diode starts to flash behind the sign: Set temp. Press
button
P
▼ or ▲
select mod to display set temperature
–Set temp. LED diode starts to flash meaning it is
possible to increase/decrease given temperature of the
boiler using button
increase/decrease given temperature of the boiler for
Working temperature range is 10
Confirmation of change must be done by pressing button
change is not confirmed, 15 sec after pressing any button
P),
(except
temperature and exits adjusting mode.
When change is confirmed pressing button
the new value of temperature for 15 sec, and then returns
back to basic representation, or the present temperature will
appear on display.
controller continues to work on old value of set
▼ or ▲. Each touch to the button will
°C
÷ 80 °C.
1 °C
P
, display keeps
.
P.
If
Regulation of heating
7.3.2 Boiler given power adjusting
-
Using button
Set power LED diode starts to flash.
power LED diode starts to flash
to increase/decrease given power of the boiler using
button
given power of the boiler for 1 step of power (see
Confirmation of change must be done by pressing button P. If
change is not confirmed, 15 sec after pressing any button (except
P),
controller continues to work on old value of set power and
exits adjusting mode.
When change is confirmed pressing button
the new value of power for 15 sec, and then returns back to
basic representation, or the present temperature will appear
on display.
.
Figure 17: Given boiler power adjustment
▼ or ▲
▼ or ▲. Each touch to the button will increase/decrease
select mode for adjusting given power –
Now press button P – Set
meaning that it is possible
table 6).
P
, display keeps
Figure 16: Given boiler temperature adjusting
Heating installation handling
7.3.3 Warnings about pressure
If the pressure in the system decreases to
bar, the boiler works normally, but diode indicating
pressure measurements starts to flash slowly (Figure 18).
It is necessary to re-fill installations up to P≤0.7 bar in
order to a stop automatic flashing.
If pressure increases up to P≤2.2 bar, boiler work
normally but pressure measurements indicator starts to
flash slowly (Figure 18). It is necessary to reduce the
pressure to P≤2.1 bar in order to stop automatic flashing.
P≤0.6
Pressure measurements are done by digital sensor
integrated in circular pump. If the sensor is stopped or in
circuit break, then all heaters and pump will turn off
(delayed for 2 min), and pressure measurements indicator
starts to flash quickly. Display still has present temperature
of the boiler (Figure 19).
When select pressure using button
value the display will show the code for mistake: EP (Error
Pressure), as illustrated in the Figure 20.
▼ or ▲
, instead its
Figure 18: Warning- pressure close to disabled value
If the pressure in system decreases on
P≤0.3 bar,
the boiler turns off all heaters and pump (delayed for 2
min), and pressure measuring indicator starts to flash
quickly (Figure 19). It is necessary to re-fill installation up
to P≤0.7 bar in order to stop automatic flashing indicating
this mistake and to continue normal work of the boiler.
If the pressure in system increases on
P≤2.6 bar,
the boiler turns off all heaters and pump (delayed for 2
min), and pressure measuring indicator starts to flash
quickly. Display still shows present temperature of the
boiler (Figure 19). It is necessary to reduce pressure to
P≤2.1 bar in order to stop automatic flashing indicating
warning and to continue normal work of the boiler
according to the set values of parameters.
Figure 20: Circuit break or pressure sensor break
In this case it is necessary to put off power supply and call
authorised service to establish and remove the cause of
the problem.
Figure 19: Mistake – Exceeding enabled pressure value
Heating installation handling
7.3.4 Low temperature warning
If temperature of the system decreases to
the boiler continues to work normally, but measuring
temperature indicator starts to flash slowly (Figure 21). It
is necessary to increase temperature to T≤5°C in order to
stop automatic flashing of warning indicator.
T≤4°C,
Present temperature displayed on the screen is possible
for values T≤-9°C. Temperature below -9°C is not possible
to be displayed on the screen so the code EL will appear
on display meaning the temperature is below -9°C, or
temperature sensor is in circuit break (Figure 23).
Figure21: Warning- Tempe ratu r e near re st rict ed low
temperature
If temperature of the system decreases to
all heaters and pump will turn off (delays for 2 min), and
temperature measuring indicator will flash quickly (Figure
22). With this temperature value there is danger of
freezing and boiler damage, so the work of this device will
be blocked. To continue with boiler work it is necessary to
increase temperature up to T≤5°C.
T≤2°C,
Figure 23: Temperature below -9 °
WARNING
: Material damage due to freezing
C or sensor circuit break
!
Figure 22: Blocked work of the boiler foe to danger of
freezing
Warning for freezing!
If heating system is out of function the
freezing can occur;
It is mandatory to secure the system
Empty the entire installation
Heating installation handling
7.3.5 Warning with high temperature
If temperature of the system increases to
the pump works continually (due to taking heating energy
through pipe routing network), but measuring temperature
indicator starts to flash slowly (Figure 24). It is necessary
to decrease temperature to T≤84°C in order to stop
automatic flashing of warning indicator and continue with
normal work of boiler.
.
T≥85°C,
If temperature increases to T≥100 °C, display of its value is
not possible to see on the screen so in this will appear
code EH meaning that temperature is T≥100 °
26).
Measuring temperature indicator will continue to flash
quickly.
C (Figure
Figure24: Warning – Temperature close to restricted high
temperature value
If temperature of the system increases to
the pump works continually (due to taking heating energy
through pipe routing network), but measuring temperature
indicator starts to flash quickly (Figure 25). It is necessary
to decrease temperature to T≤88°C in order to stop
automatic flashing of this mistake warning indicator.
T≥89°C,
Figure26: Temperature above 99 °
WARNING:
Material damage due to overheating
C
In this case it is necessary to turn off this device out of
electric power supply and call authorised service to
establish and remove the cause of problem.
If temperature sensor brake occurs, the code ES will
appear on the screen meaning that temperature sensor is
in break (Figure 27). Temperature measuring indicator will
continue to flash quickly.
!
Figure 25: Blocked work of the heaters due to danger of
thermic overload, pump work continually
Figure 27: Temperature sensor in discontinuity
Signal and code of warning and mistakes
7.3.6 Signal and code of warning and mistakes
☼ Pressure - slow flashing - Warning: Pressure near lower limit (0,4bar ≤ P ≤ 0,6bar)
☼ Pressure - quick flashing - Mistake: Exceeding lower limit (0,3bar ≤ P)
Graphic display of the area of blockade of the boiler work conditioned by the pressure (1.pressure increases→ 2.pressure
decreases←)
Or upper limit (2,2bar ≤ P ≤ 2,6bar) of allowed pressure
Measure: Bring the system to the necessary pressure value
Or upper limit (P ≥ 2,6bar) of allowed pressure
Measure: Bring the system to the necessary pressure value
WORK BLOCKADE
WARNING
WORK BLOCKADE
NORMAL WORK
NORMAL WORK
WORK BLOCKADE
WORK BLOCKADE
WARNING
☼
Temperature – slow flashing - Warning: lower limit exceeding (T≤4 °C) or upper limit
(T≥85 °
C) of temperature of the heating system
Measure: Check if valves are open, the functionality of circulation pump
And relay/contactor;
☼ Temperature – quick flashing - Mistake: lower limit exceeding (T≤2 °
(T≥89 °
C) of temperature of the heating system
C
) or upper limit
Measure: Turn off electric power supply for the boiler. Call service.
Graphic display of the area of blockade of the boiler work conditioned by temperature (1.temp. increases→ 2.temp. decreases←)
WARNING
WORK BLOCKADE
WORK BLOCKADE
NORMAL WORK
NORMAL WORK
WORK BLOCKADE
WORK BLOCKADE
WARNING
Mistake signals on display
EP - Mistake: Pressure sensor in break or circuit break – all turned off
Measure: Turn off power supply. Call service.
EL - Mistake: Very low boiler temperature or temperature sensor circuit break – all turned off
Measure: Turn off power supply. Call service.
EH - Mistake: Very high temperature (T≥100 °
Measure: Turn off power supply. Call service.
C)
not able to display – all turned off
ES - Mistake: Boiler temperature sensor breaker – all turned off
Measure: Turn off power supply. Call service.
Heating installation handling
7.3.7 Room temperature regulator
This device is not produced for work without room
temperature regulator. It must be installed in reference room.
Managing temperature of all rooms is done by this remote
control. Radiators in reference room should not be equipped
by thermo-static valves or these must always be open. All
radiators in other rooms must be equipped by thermostat
valves. Connecting room-regulator is described in chapter 5.4.
When mounting room-regulator in reference room you must
comply with manufacturer instructions.
7.3.8 Heating discontinuity
With short-time discontinuity of heating working regime the boiler
temperature must be decreased using thermo-regulator of the boiler.
To prevent heating installations freezing temperature of the boiler
must not be set below
heating working regime of the boiler must be cut off the
power
(
chapter 7.4
5°C. With longer discontinuity of
)
7.4
Boiler out of power
If heating installation is not in drive, it could freeze with low temperatures.
Protect heating installations against freezing
If there is danger of freezing and boiler is not in drive,
Discharge entire installation
Main power breaker on lower plate put in position 0 (put off)
When put off for longer period, the heating pump can be blocked.
To remove blockade should act as with air vent procedure.
(
chapter 4.6.2
)
Cleaning and maintenance
8
and maintenance
Cleaning and maintenance
DANGER
Life threat of electric power shock!
By qualified person
WARNING:
unprofessional maintenance!
Insufficient or unprofessional maintenance of boiler
Can lead to damage or destruction and to loss of
Warranty rights
Use only spare parts delivered by the manufacturer or
those approved by manufacturer. There will be no
responsibility for damage occurred due to spare parts not
delivered by the manufacturer.
Control examination log is provided on page 30.
Perform works in accordance with log on control
All deficiencies remove immediately
:
Electric power work must be done only
Before opening device: turn heating
installation off electric power supply using
safety switcher and disconnect it from power
supply net through corresponding fuse.
Secure heating installation against accidental
turn on
Comply with instructions for installation
material damage due to
Secure regular, entire and professional
maintenance of heating installation
Electric parts and work units protect against water
and humidity
8.1 Boiler cleaning
Clean this device externally with wet cloth
-
.
Check working pressure; re-fill
8.2
water and air-vent installation
DANGER:
drinking water
It is demanding to respect state regulations to
avoid mix of drinking water (with water from
heating installations)
Comply with EN 1717
Set working pressure of at least 1 bar depending on
height of installations
Health threat due to mix of
!
Volume of new filled water is reduced during first days after filling due to
heating. This produces air pillows making obstructions to heating system.
Testing working pressure
Working pressure of new heating installation should control on
daily basis at the beginning of its work. If needed, re-fill water
and air vent the system.
later check working pressure once per month. If
needed, re-fill water and air vent the system
Check working pressure. If it decreases below 1 bar
re-fill water
Re-fill the water
Air vent the heating installation
Check working pressure again
Cleaning and maintenance
8.3
Re-fill the water and air-vent the
WARNING:
tension. Filling heating installations in warm
condition can produce cracks due to tension
Fill heating installation only in cold
condition (temperature of starting duct
lines of max 40
installation
Material damage due to heat
°C
)
WARNING:
frequent re-filling!
Material damage due to
Due to frequent water re-filling installations can be
damaged by corrosion and carbonate layers
depending on water characteristics
Test sealing and watertight of heating
installations and expansion dish on
functionality
Connect hose on water faucet
Fill the hose with water and connect to connector for
filling/draining
Tighten the hose and open the water faucet for
filling/draining
Slowly fill the heating installation while following up
with pressure (manometer)
During filling procedure air vents the system
When reach working pressure close the drainage faucet
When working pressure is decreased by air vent re-fill
the water
Remove the hose from filling/drainage faucet
Cleaning maintenance
8.4
Inspection and maintenance log
Perform maintenance on annual basis or
when
inspection indicates installation
condition requesting maintenance.
Record on commissioning, inspection and maintenance
serves as addendum for photocopy.
Executed works should be authorised by signature and date.
Inspection and maintenance works when needed
1.
Check condition of installations
2.
Visual and functional control
4.
Making working pressure
• Check pre-pressure of expansion dish
• Working pressure set on
• Heating installation air vent
• Check safety heating valve
5.
Clean water filter
6.
Check if there is any damage on electric duct
lines
7.
Check if electric control connections and used
elements are fitted; tighten it if needed
Page
Date: ______ Date: ______
Date: ______
8.
Check thermo-regulator on boiler
9.
Check function of safety parts
10. Check remote control function
11. Check insulation of the rod heater
12. Check function of grounding device
13.
Check insolation of electric switchboard
14. Check heating pump function
15.
Make final control of inspection works and
document results of measuring and inspecting
16.
Certification of professionally conducted inspection
Table 7
: Inspection and maintenance log
Seal/Signature
Seal/Signature
Seal/Signature
Environment protection/Waste disposal
9
Environment protection /
One of the basic concepts of business is environment
protection. Quality of products, thriftiness and environment
protection are equally valuable goals for us.
It is critical to strictly comply with law and regulations on
environment protection. In order to protect environment and
respecting economy concepts we use only the best
technique and materials.
Waste disposal
Packaging
Regarding packaging, we respect system of recycling which is
specific in certain states and which secure optimal recycling
All materials applied for packaging do not harm environment and
It is possible to recycle it.
Old devices
Old devices contain valuable materials that can recycle.
Structures are easily demountable and plastic materials are
labeled. In such manner structures can be sorted and deliver for
recycling.
Troubles and troubleshooting
10 Troubles and troubleshooting
Trouble
Troubleshooting on regulations and hydraulics
must be done by an authorised firm.
For repairs use only original spare parts.
:
Description:
Cause
:
Measure
:
Boiler does not react
after turn on of main
switcher
Display does not
react, other
components do not
work
Boiler does not heat or
insufficiently
heat/heating pump
works
Boiler heats but it
is very noisy
Boiler turns on quickly
All on display are
within recommended
values but boiler does
not make hot water
Higher level of noise
during work
Reaches temperature
too quickly and turns
on
Great oscillations
of working
pressure
Table 8: Troubles and troubleshoo ti ng
Too fast and too big
changes of working
pressure
- Boiler is out of power supply
- Fuses on bottom plate are
off
-
Vanishing of managing phase
-
Damage of main fuse ON/ O
- Lack of 1 or 2 phases
- Small power of boiler
-
Some relay damaged
- Some heater damaged
- Air in the system
- Small water flow
- Possible carbonate layer on
heater
-
Valves below the boiler off
- Pump fuse stop to work
- Pump jammed
- Pump inaccurate
- One valve off
- Expansion dish pressure
inadequate
- Inaccurate dish
FF
- Provide power supply
-
Turn on fuses
- Check if fuses have three
phases on output
-
Change damaged part
- Check all three phases
- Check set power of boiler
- Change damaged part
- Change damaged part
- Check if the system is air
vented and vent it
- Check valves below boiler and
open it
- Clean filter below boiler
- Take out heaters and clean it
(this is not included in claims
during warranty period)
- Open valves
- Change inaccurate part
Start pump rotor
-
-
Change inaccurate part
-
Open the valve
- Check pressure in expansion dish
and if needed set dish pressure
adequately
- Change inaccurate part
Instruction for design
11. Instruction for design
11.1
Pump Wilo Yonos Para
MSL 12/6 RKA
This device has built in circulation pump produced by
German manufacturer Wilo in compliance with ErP
Directive with following main characteristics:
- Energy Efficiency Index (EEI) ≤ 0.20
- Max. Delivery Head = 6m
- Max. Volume Flow = 2,5m³/h
Figure 28: Circulation pump Wilo Yo nos Para
Work regime of the pump ΔP – Const
Recommended for systems of floor heating and
old installations with large diameter pipes
Characteristics of the pump WILO Yonos PARA
P1
W
I A
MSL12/6 RKA
800÷
n
l / m
4300
3÷45 0,03÷0,44 Integrated
11.2 Systems on which the El-Cm Classic
Plus Boiler can be connected
All systems for heating the space designed for 80/60
temperature regime (or lower)
-
Closed heating systems
- Systems with boiler on solid fuel
boilers over exchanger
providing that there is no need for water temperature higher
than
WARNING!
system it is mandatory to take care that both
pumps in the system push water in the same
direction to prevent flow crash. Increased
hydraulic tensions are possible including
cracking of some components.
It can be used as heating device for water in accumulating
It can also be used in certain technological processes
60°
C.
When connecting boiler to such
Motor
protection
Work regime of the pump ΔP – Variable
Recommended for radiator systems
With thermostat regulation valves
HEATING TECHNIQUE
www.centrometal.hr
e-mail: servis@centrometal.hr
Centrometal d.o.o. Glavna 12, 40306 Macinec, Croatia
central tel: +385 40 372 600, fax: +385 40 372 611
service tel: +385 40 372 622, fax: +385 40 372 621
Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant
adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
Loading...
