INSTRUCTIONS FOR USE
Equipment installation instructions
To set up the equipment you will need the following: Timor Bed, handset, transformer, headboard,
foot board and mattress. All of the above are supplied by Centrobed Ltd.
It will require to lift and assemble the sections of the Timor Bed.
This equipment may be assembled on delivery if this has been arranged.
A mains power surge protector must be used on this bed.
This is a very special piece of equipment and it is advised that only experienced
personnel are used to assemble or disassemble this bed.
The Timor cannot have many parts removed for storage and
transfer.

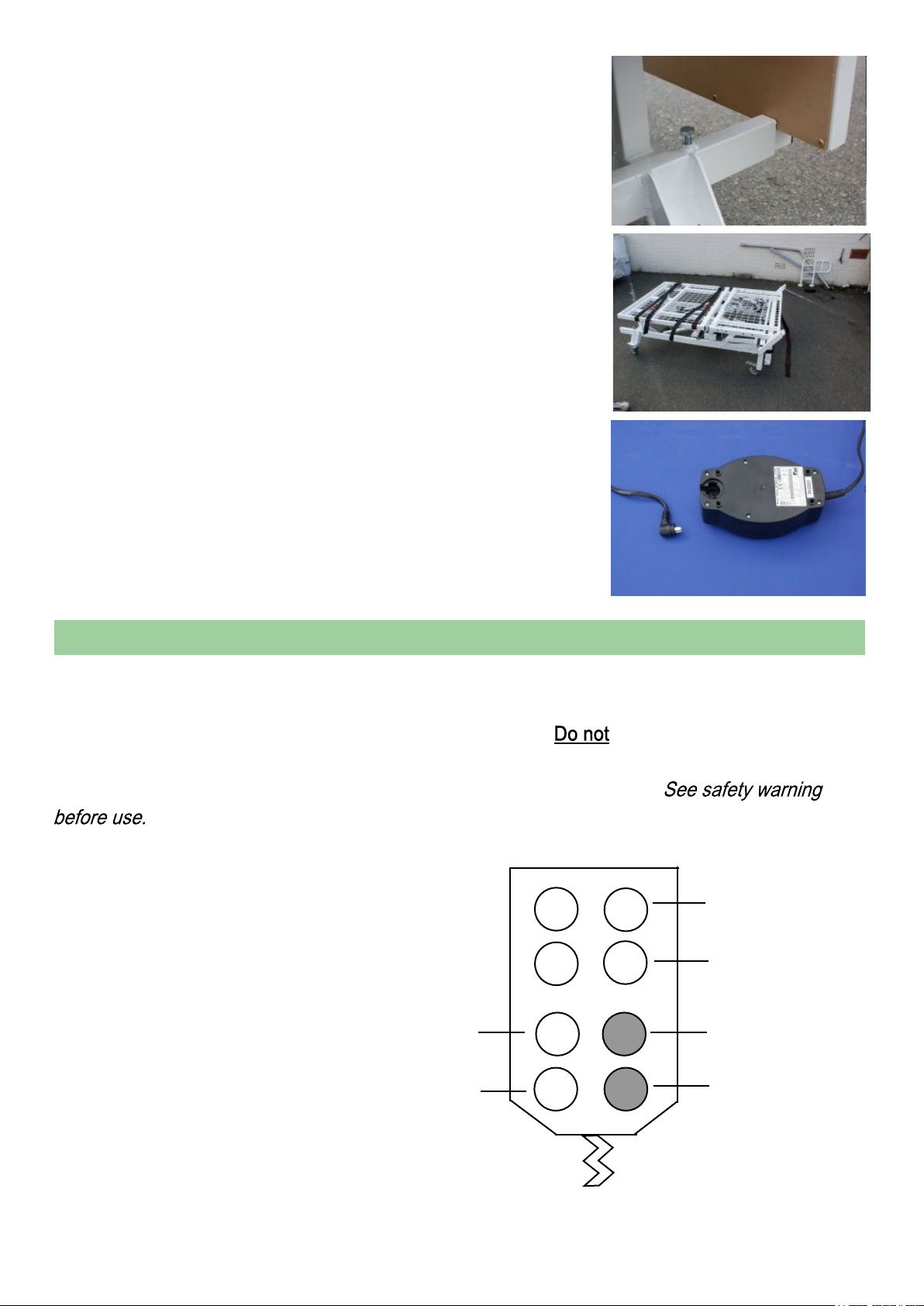

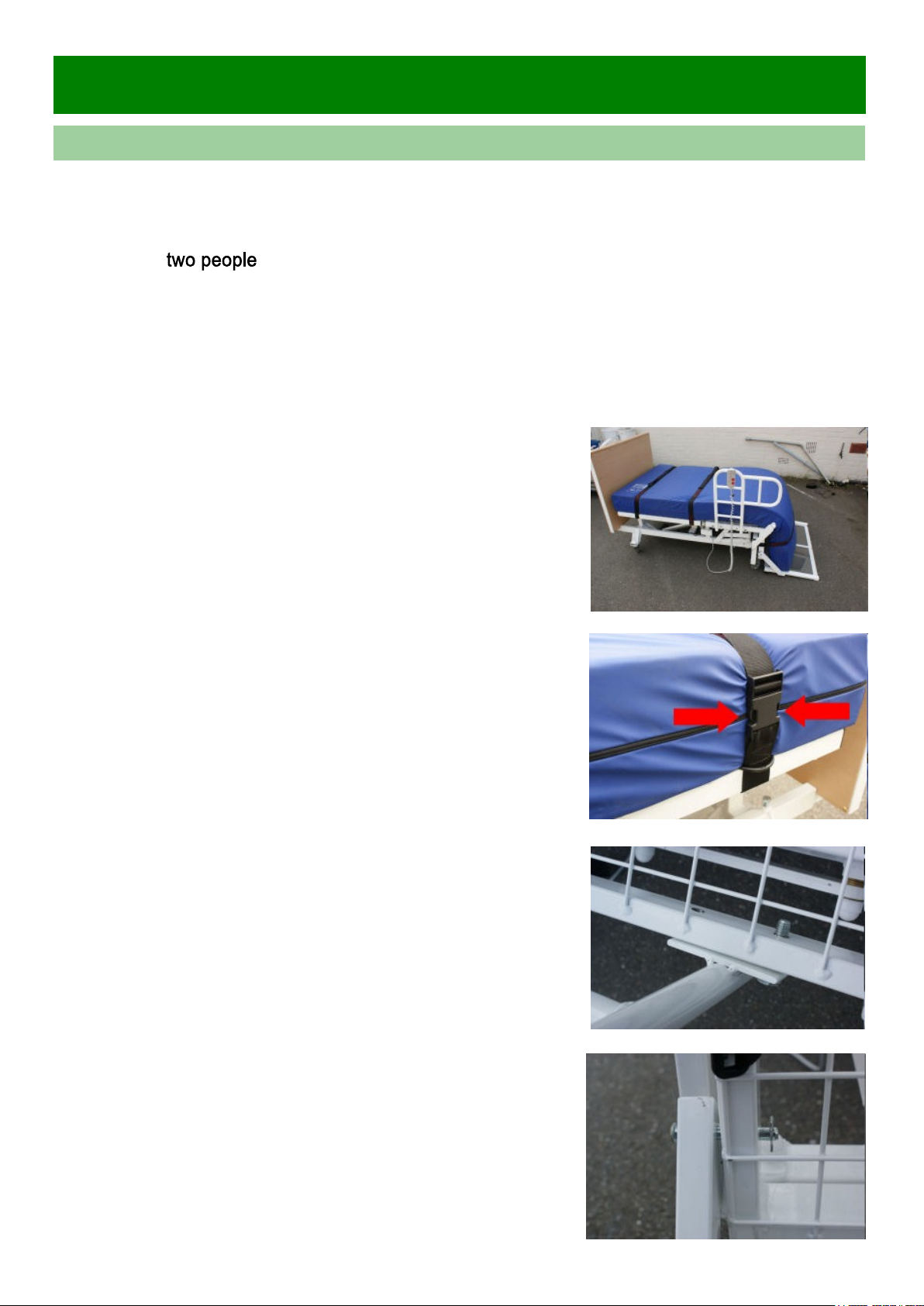

Remove the 3 straps, then remove the Mattress.
Undo the nuts and bolts [17mm] which hold on the hand rail.
Remove the R Clips and pins which hold on the foot board on.
Page 3
Loosen the bolts which hold on the head board.
Re-clip the straps, for storage.
Remove the lead from the bottom of the transformer.
Using your Timor bed and handset instructions
Caution should be taken by anybody using the bed. Take reasonable care for your own health and
safety and that of others who may be affected by what you do. Care must be taken to ensure that
the bed does not come into contact with any items around it. put items under the bed as
they may be crushed or damage the bed when it is moved. The handset is a low voltage device,
which uses 24V DC, has 8 buttons for controlling the sections of the bed.
1. Back rest raise up
2. Back rest lower
3. Leg section lower
1
3
LEG DOWN
4. Leg section raise up
2
4
LEG UP
5. Back rest and lower leg section
raise up together
6. Back rest raise up and leg
BACK REST
AND
LEG UP
5
7
STANDING ACTION
section lower together
7. When bed is in chair position
button 7 will operate standing
BACK REST
AND
LEG DOWN
6
8
SITTING ACTION
position
8. When bed is in standing position
button 8 will operate lowering to
sitting position
Page 4
* Button 7 for standing will not operate unless leg section is completely down.
* The back rest buttons 1 and 2 can be operated independently anytime for user comfort.

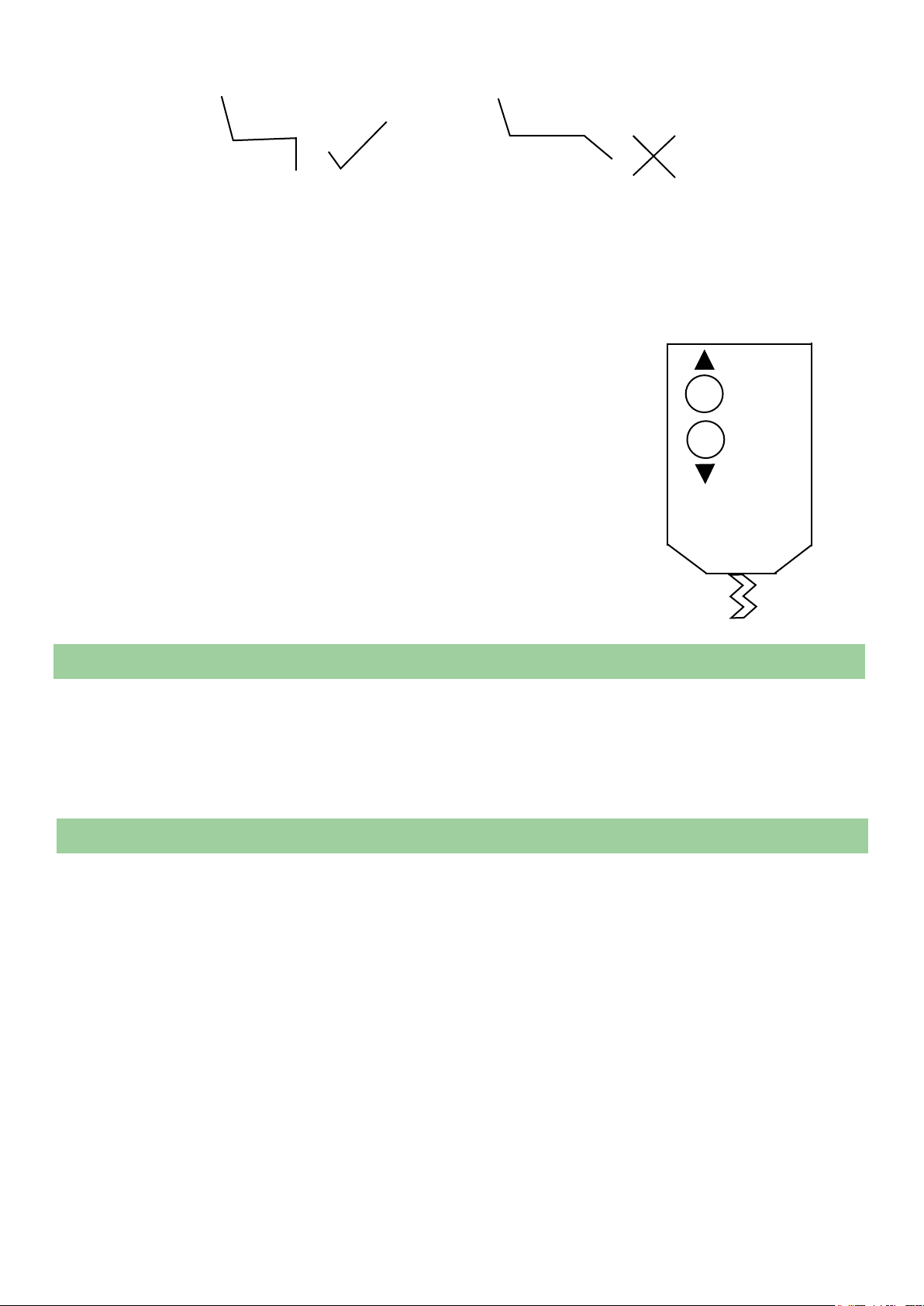

For Nursing Timors a second handset is available to operate Hi-Lo action. This is a two button
Handset:
1. For hi 2. For lowering
The Nursing action [Hi-Low] will only operate when the Timor
1
2
s in full bed position.
The back rest can still be operated independently for patient
comfort.
The Timor must be completely lowered before the sitting and
standing actions can be operated.
Application
The Timor Bed is a fully featured care bed, offering a range of functions. It is suitable for people
who experience problems transferring in and out of bed, or getting into a sitting or standing position.
The Timor is also a great asset to carers adding extra support when standing or transferring in or
out of bed.
Variants
Type R is the Timor Riser, type N is the Timor Nursing.
Standard widths 36" or 915 mm
42" or 1097 mm
48" or 1220 mm
Start heights from 14" or 355 mm
16" or 406 mm
19" or 483 mm
These beds can also be tailored for size, height, seat length and backrest length.
Various mattress types are also available.
Page 5
Cleaning
The Timor Bed can be used in a variety of different environments; this must be taken into
consideration when deciding on the cleaning regime. Cleaning should start with a damp cloth to
remove any large deposits of dirt, and then everything should be disinfected with an anti-bacterial
gel or alcohol based cleaner. This bed is intended to be recycled [cleaned, serviced and reused].
Serving
The Timor Bed should be serviced annually and a PAT electrical safety test should be done during
that service.
Repairs
Repairs to this equipment should only be carried out by, or under the supervision of, a suitable
trained engineer. Please contact the provider of the equipment [your Occupational Therapist /
District Nurse] to arrange for any repairs.
Safety Warning
When using the Timor Bed please ensure you are aware of the risk to people, animals and especially
children etc when lowering the device. .
Please do not store anything under beds.
Parts available at Centrobed
594C Back Rest Motor for Rising
594 Back Rest Motor
593 Knee Motor
696B Handset
665 Control Box
Page 6
Technical information
Specification
Country of Origin . . . . . . . England
Name of Equipment . . . . . . . Timor
Description of Equipment . . . . . . Bed Chair
Weight of Equipment . . . . . . 110 kg
Voltage . . . . . . . . 230 V [AC]
Power Supply Frequency . . . . . . 50 Hz
Power Consumption . . . . . . 1A Peak
Power Consumption Standby . . . . . 20mA
Class . . . . . . . . II
Type . . . . . . . . BF
Electrical Safety Standard . . . . . . BS EN 60601-1
EMC Standard . . . . . . . BS EN 60601-1-2
Duty Cycle . . . . . . . . 100%
Duty Cycle [per motor] . . . . . . 10%
[i] Approximate weight is +/- 20% dependent on size
Other important information
Class II means this equipment is double insulated.
Type BF is the level of patient protection this equipment gives.
This is ordinary equipment intended for indoor use only.
Do not use this equipment near explosive gases, anaesthetics etc.
Clean the frame with warm soapy water and allow to dry before use. To disinfect
clean with alcohol based cleaner or anti-bacterial gel [see cleaning].
Centrobed Ltd or trained personnel should service this equipment once a year.
Transport and storage
This equipment must be stored between 10°C to 50°C, 0% to 90% humidity and 800 hPa to 1060
hPa atmospheric pressure. This equipment should only be used between 5°C and 40°C, 0% to 90%
humidity and 800 hPa to 1060 hPa atmospheric pressure.
Interference
Interference should not occur between this and other equipment, such as televisions, radios and
other electronic equipment. If you have any interference involving your Timor Bed, try relocating
the Timor Bed and / or the other equipment; also try to connect them on different mains circuits.
Always use a main power surge protector.
Recycling
Electronics should be recycled when you wish to dispose of your bed. Otherwise return to Centrobed
for environmental recycling.
