Page 1

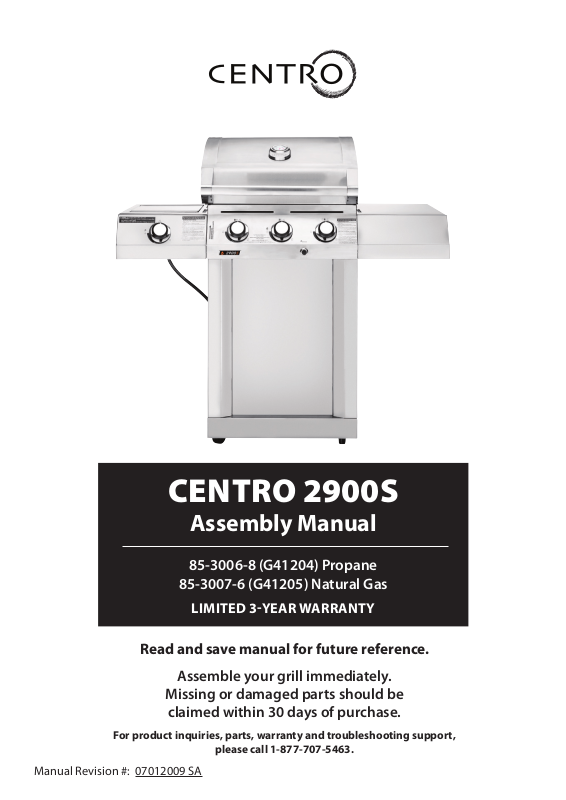

CENTRO 2900S

Assembly Manual

85-3006-8 (G41204) Propane

85-3007-6 (G41205) Natural Gas

LIMITED 3YEAR WARRANTY

Read and save manual for future reference.

Assemble your grill immediately.

Missing or damaged parts should be

claimed within 30 days of purchase.

For product inquiries, parts, warranty and troubleshooting support,

Manual Revision #: 07012009 SA

please call 1-877-707-5463.

Page 2

HARDWARE PACK

HEAVY ARTICLE NEEDS 2 TO LIFT

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.centrobbqs.com.

CAUTION

Sharp edges. Wear gloves when assembling your grill.

CAUTION

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at all times.

WARNING

Failure to follow all of the Manufacturer’s instructions could result in hazardous  res, explosions, property damage, or serious personal injury or even death.

DANGER

1. If you smell Gas: a. Shut o gas to the appliance b. Extinguish any open  ame c. Open lid d. If odor continues, keep away from the appliance and immediately call your gas supplier or your  re department

2. Do not store or use gasoline or other

 ammable vapours and liquids in the vicinity of this or any other appliance.

3. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any other appliance.

4. Requires two people to complete the

assembly process.

5. Beware of sharp edges.

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Before assembling the barbecue, read these instructions carefully.

Assemble the barbecue on a  at, clean surface. Grill is heavy. You should have at least two people assemble the barbecue together.

Notes: Do not fully tighten all the nuts during this initial stage.

Caution: Sheet metal can cause injury. Wear gloves when installing the grill.

No. Description Part Number Quantity

1 ¼"-20UNCX13 Screw 20120-13013-250 6

2 ¼"-20UNCX38 Screw 20120-13038-250 4

3 ¼"-20UNCX16 Screw 20120-13016-250 4

4 ø7 Lock Washer 41400-07000-250 14

5 ø7 Washer 40300-07000-250 14

6 NO.10-24UNCx10 Screw 20124-10010-250 20

7 ø 5 Lock Washer 41400-05000-250 24

8 ø 5 Washer 40300-05000-250 24

9 ST4.2x10 Tapping Screw 22500-42010-137 2

10 Wrench G413-0032-9082 1

11 NO.10-24UNCx13 Screw 20124-10013-250 4

12 Control Knob G412-4500-9000 1

13 Wing Nut 33301-04000-032 1

1 2 3

¼” - 20UNCX13 Screw

X 6

¼” - 20UNCX38 Screw

X 4

4 5 6

ø7 Lock Washer

X 14

8 9

ø5 Lock Washer

X 24

11 12

ø7 Washer

X 14

ø5 Washer

X 24

¼” - 20UNCX16 Screw

X 4

NO. 10-24UNC10 Screw

X 20

ST4.2x10 Tapping Screw

X 2

Follow all leak check procedures carefully prior to operation of barbecue, even if grill was dealer assembled. Do not try to light this barbecue without reading the Lighting Instructions section of this manual.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-877-707-5463

Wrench

X 1

Wing Nut

X 1

NO. 10-24UNCx13 Screw

X 4

Knob

Page 3

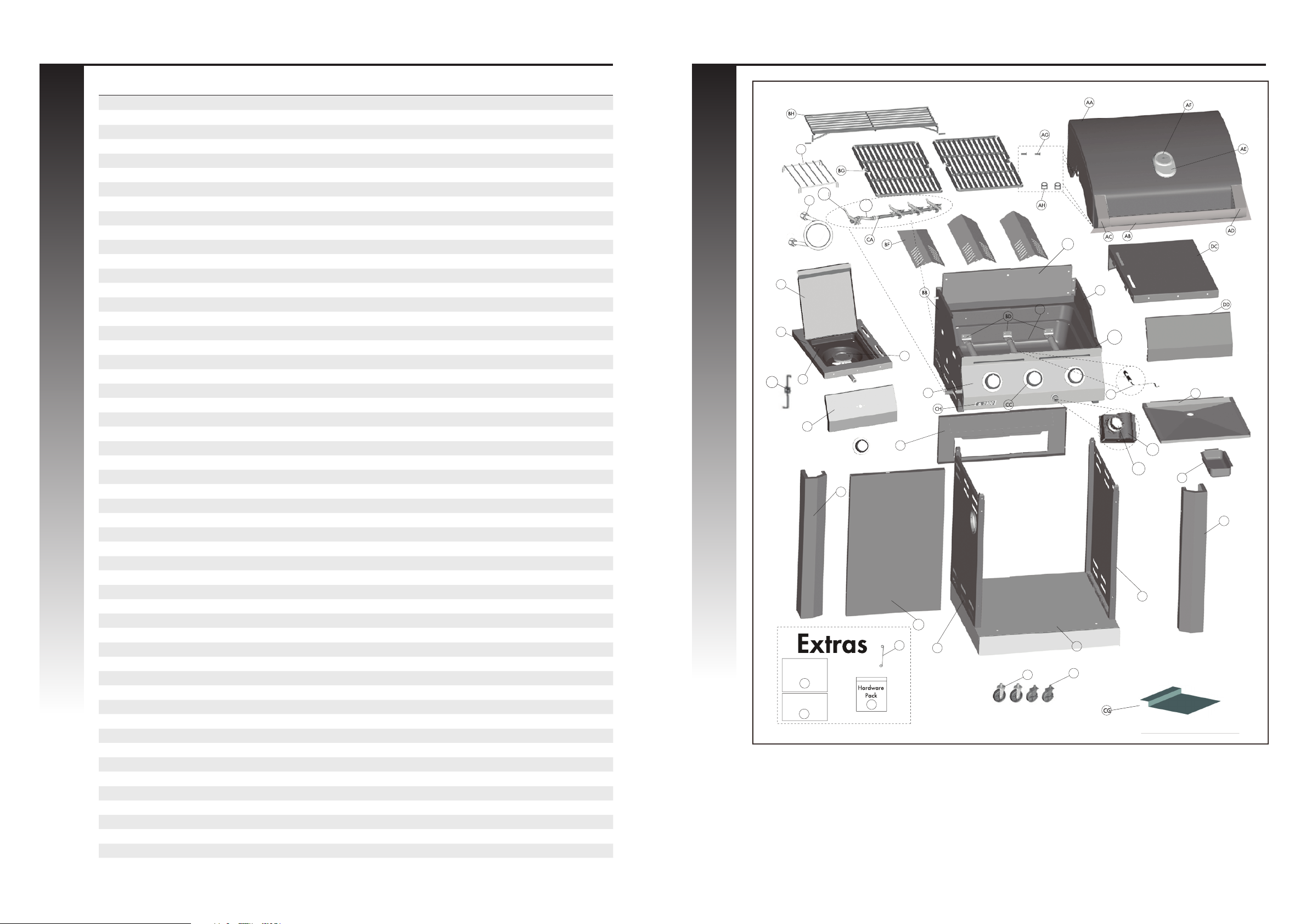

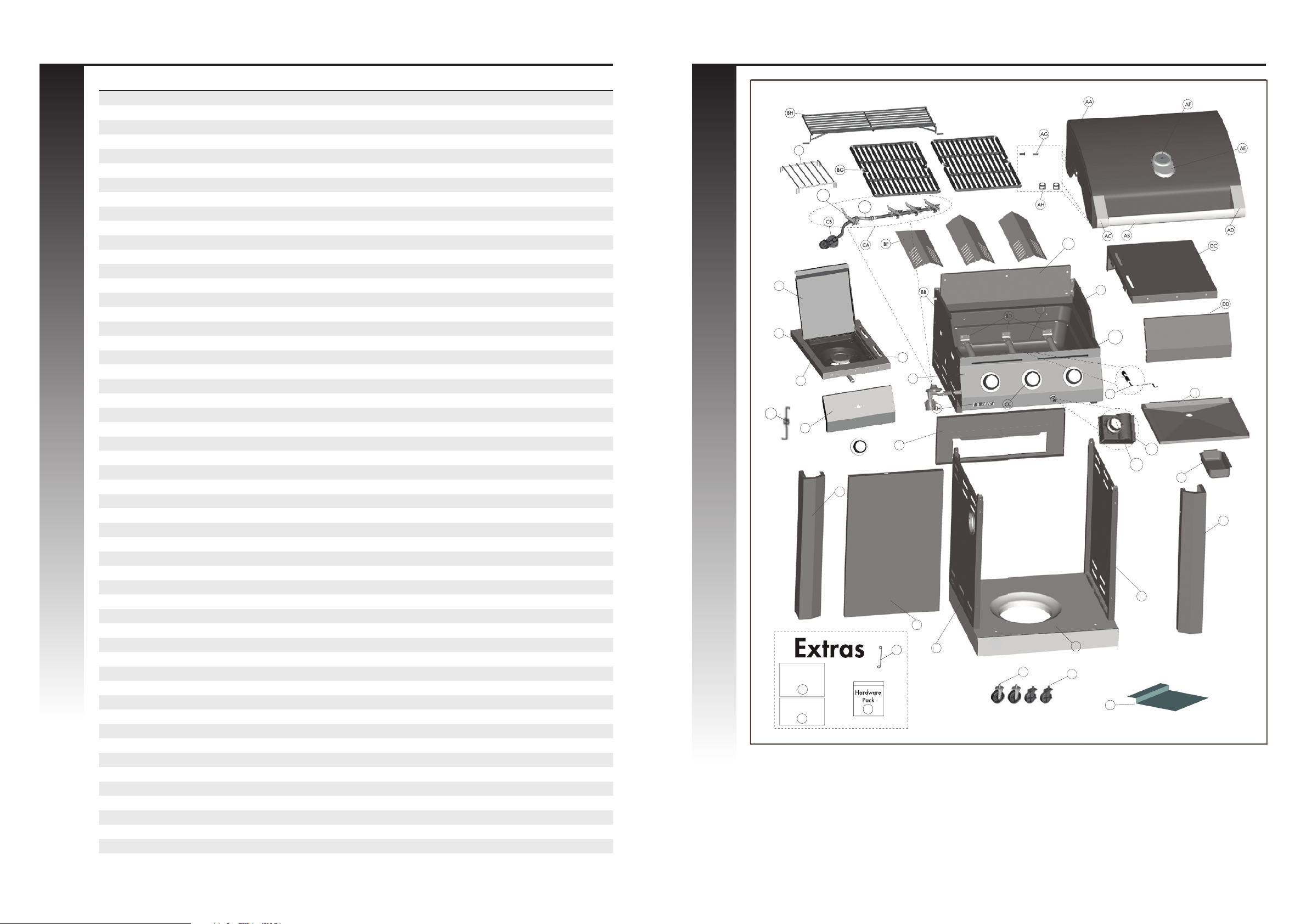

PARTS LIST (PROPANE) FOR 85-3006-8 (G41204) EXPLODED DIAGRAM (PROPANE) FOR 85-3006-8 (G41204)

CD2

BA2

BA1

Item No. Quantity Description Part No.

AA 1 Top Lid G412-1400-01

AB 1 Lid Handle G412-0004-01

AC 1 Lid Handle End Cap-Left G617-0004-01

AD 1 Lid handle End Cap-Right G617-0005-01

AE 1 Logo Plate G412-0001-01

AF 1 Thermometer G412-0003-01

AG 2 Screw for Top Lid G501-0005-01

AH 2 Lid Bumper G508-0063-01

BA1 1 Burner Box Weldment G412-0200-01

BA2 1 Rear Panel, Burner Box G416-0013-01

BB 1 Upper Side Panel- Left G412-1600-01

BC 1 Upper Side Panel- Right G412-1500-01

BD 3 Main Burner G413-5000-01

BE 2 Carryover Assembly G413-0004-01

BF 3 Flame Tamer G413-0036-01

BG 2 Cooking Grate G412-0028-01

BH 1 Warming Rack G413-0002-01

BI 1 Upper Back Panel G412-0026-01

BJ 1 Match Holder G608-0019-01

CA 1 Manifold Assembly G412-4300-01

CB 1 Regulator- 22” G606-0008-01

CC 3 Control Knobs G412-4500-01

CD1 1 Electronic Igniter Assembly G501-0072-02

CD2 1 Electronic Ignition Button G501-0072-01

CE 1 Electrode Set, Main Burner G412-0009-01

CF 1 Control Panel G412-0005-01

CG 1 Heat Shield G412-0017-01

CH 1 Series Logo G412-0027-01

CI 1 Grease Tray G412-1000-01

CJ 1 Grease Cup G416-0015-01

CK 1 Side Burner Lid G501-00N1-01

CL 1 Side Burner Drip Pan G617-0035-01

CM1 1 Side Burner Valve G512-0034-01

CM2 1 Side Burner Metal Hose G608-0039-01

CN 1 Side Burner G433-1400-01

CO 1 Side Burner Electrode Set G433-0047-01

CP 1 Side Burner Cooking Grate G501-0077-01

DA 1 Side Burner Shelf Table- Left G501-K100-01

DB 1 Side Burner Shelf Fascia- Left G412-0031-01

DC 1 Side Shelf Table- Right G501-J100-01

DD 1 Side Shelf Fascia-Right G412-0019-01

DE 1 Cart Side Panel-Left G412-1200-01

DF 1 Cart Side Panel, Right G412-1300-01

DG 2 Pillars G412-0025-01

DH 1 Front Panel G412-0018-01

DI 1 Bottom Shelf G412-0700-02

DJ 2 Wheel with Lock G401-0061-01

DK 2 Wheel G607-0048-01

E1 1 Hardware Pack G412-B004-01

E2 1 Assembly Manual G412-M004-01

E3 1 Safety & Care Manual G412-M004-02

Safety & Care

Assembly

Manual

CM1

CM2

BA2

BA1

CD1

CD2

Heat shield

Heat shie

2 3

Page 4

PARTS LIST (NATURAL GAS) FOR 85-3007-6 (G41205) EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3007-6 (G41205)

Item No. Quantity Description Part No.

AA 1 Top Lid G412-1400-01

AB 1 Lid Handle G412-0004-01

AC 1 Lid Handle End Cap-Left G617-0004-01

AD 1 Lid handle End Cap-Right G617-0005-01

AE 1 Logo Plate G412-0001-01

AF 1 Thermometer G412-0003-01

AG 2 Screw for Top Lid G501-0005-01

AH 2 Lid Bumper G508-0063-01

CM1

CM2

BA1 1 Burner Box Weldment G412-0200-01

BA2 1 Rear Panel, Burner Box G416-0013-01

BB 1 Upper Side Panel- Left G412-1600-01

BC 1 Upper Side Panel- Right G412-1500-01

BD 3 Main Burner G413-5000-01

BE 2 Carryover Assembly G413-0004-01

BF 3 Flame Tamer G413-0036-01

BG 2 Cooking Grate G412-0028-01

BH 1 Warming Rack G413-0002-01

BI 1 Upper Back Panel G412-0026-01

BJ 1 Match Holder G608-0019-01

CA 1 Manifold Assembly G412-4400-01

CB 1 Natural Gas Hose G501-0099-01

CC 3 Control Knobs G412-4500-01

CD1 1 Electronic Igniter Assembly G501-0072-02

CD2 1 Electronic Ignition Button G501-0072-01

CE 1 Electrode Set, Main Burner G412-0009-01

CF 1 Control Panel G412-0005-01

CG 1 Heat Shield G412-0017-01

CH 1 Series Logo G412-0027-01

CI 1 Grease Tray G412-1000-01

CJ 1 Grease Cup G416-0015-01

CK 1 Side Burner Lid G501-00N1-01

CL 1 Side Burner Drip Pan G617-0035-01

CM1 1 Side Burner Valve G512-0037-01

CM2 1 Side Burner Metal Hose G608-0039-01

CN 1 Side Burner Assembly G433-1400-01

CO 1 Side Burner Electrode Set G433-0047-01

CP 1 Side Burner Cooking Grate G501-0077-01

DA 1 Side Burner Shelf Table- Left G501-K100-01

DB 1 Side Burner Shelf Fascia- Left G412-0031-01

DC 1 Side Shelf Table- Right G501-J100-01

DD 1 Side Shelf Fascia-Right G412-0019-01

DE 1 Cart Side Panel-Left G412-1200-01

DF 1 Cart Side Panel, Right G412-1300-01

DG 2 Pillars G412-0025-01

DH 1 Front Panel G412-0018-01

DI 1 Bottom Shelf G412-0800-02

DJ 2 Wheel with Lock G401-0061-01

DK 2 Wheel G607-0048-01

E1 1 Hardware Pack G412-B001-01

E2 1 Assembly Manual G412-M004-01

E3 1 Safety & Care Manual G412-M004-02

Assembly

Manual

Safety & Care

Manual

BA2

BA1

CD1

CD2

Heat shield

4 5

Page 5

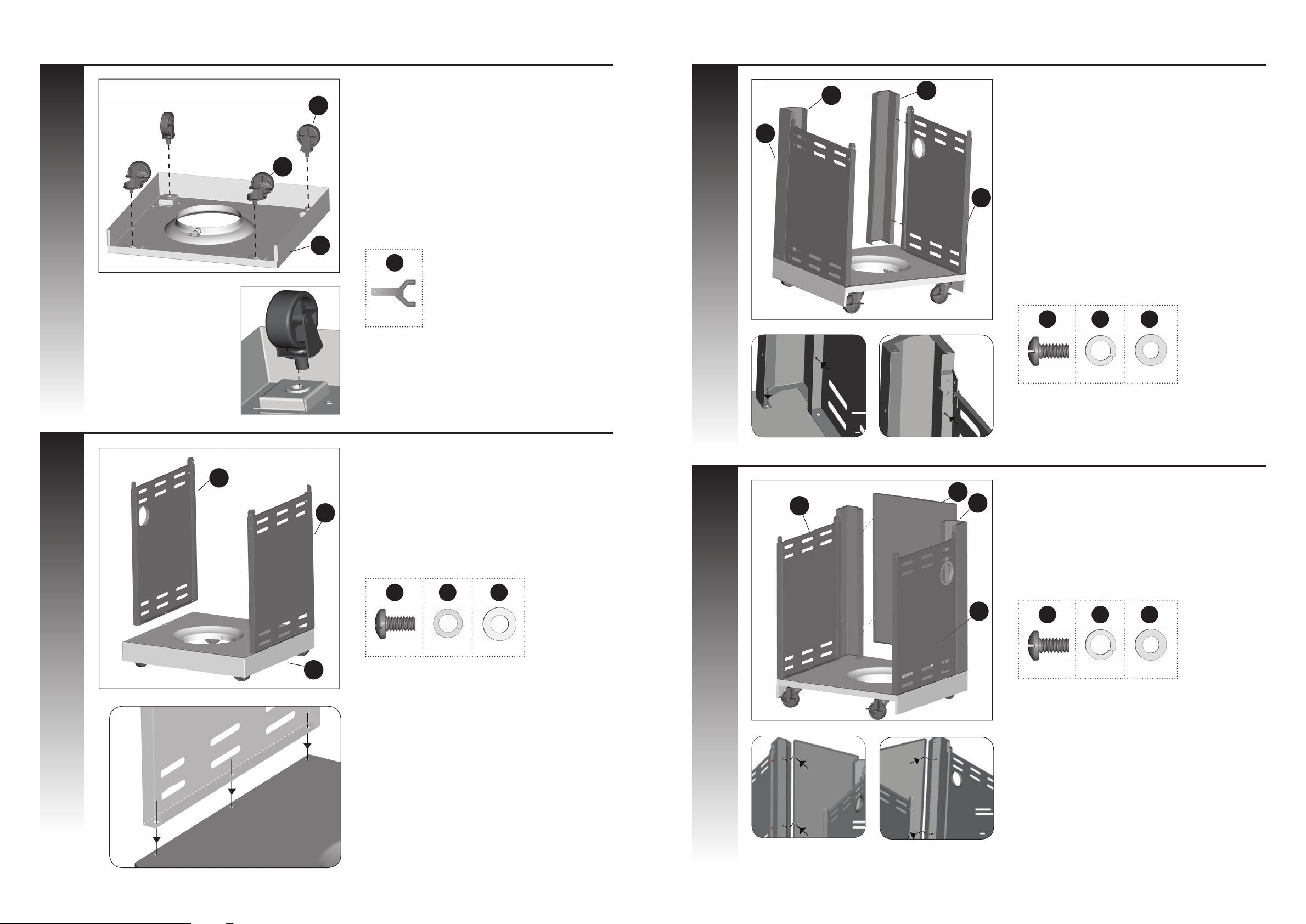

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

Separate the 2 di erent types of wheels, 2

Back view

locking wheels (DJ) and 2 regular wheels (DK).

Attach the locking wheels (DJ) to the back of the bottom shelf (DI) and the regular wheels (DK) to the front of the bottom shelf (DI).

To secure the 4 wheels, hand tighten  rst. Then, tighten further using the wrench provided in the hardware pack.

YOU WILL NEED:

X 1

Back view

Assemble the left and right pillars (DG), to the cart side panels, as shown in  gure A and B.

YOU WILL NEED:

X 6

X 6 X 6

Front view

Close up

Ensure that the wheels are  rmly locked in the “ON” position before continuing.

Assemble the left side panel (DE) and the right side panel (DF) to the bottom shelf (DI).

YOU WILL NEED:

X 6 X 6 X 6

Back view

Attach the front panel (DH) onto the pillars (DG).

YOU WILL NEED:

X 4 X 4 X 4

Close up

6 7

Page 6

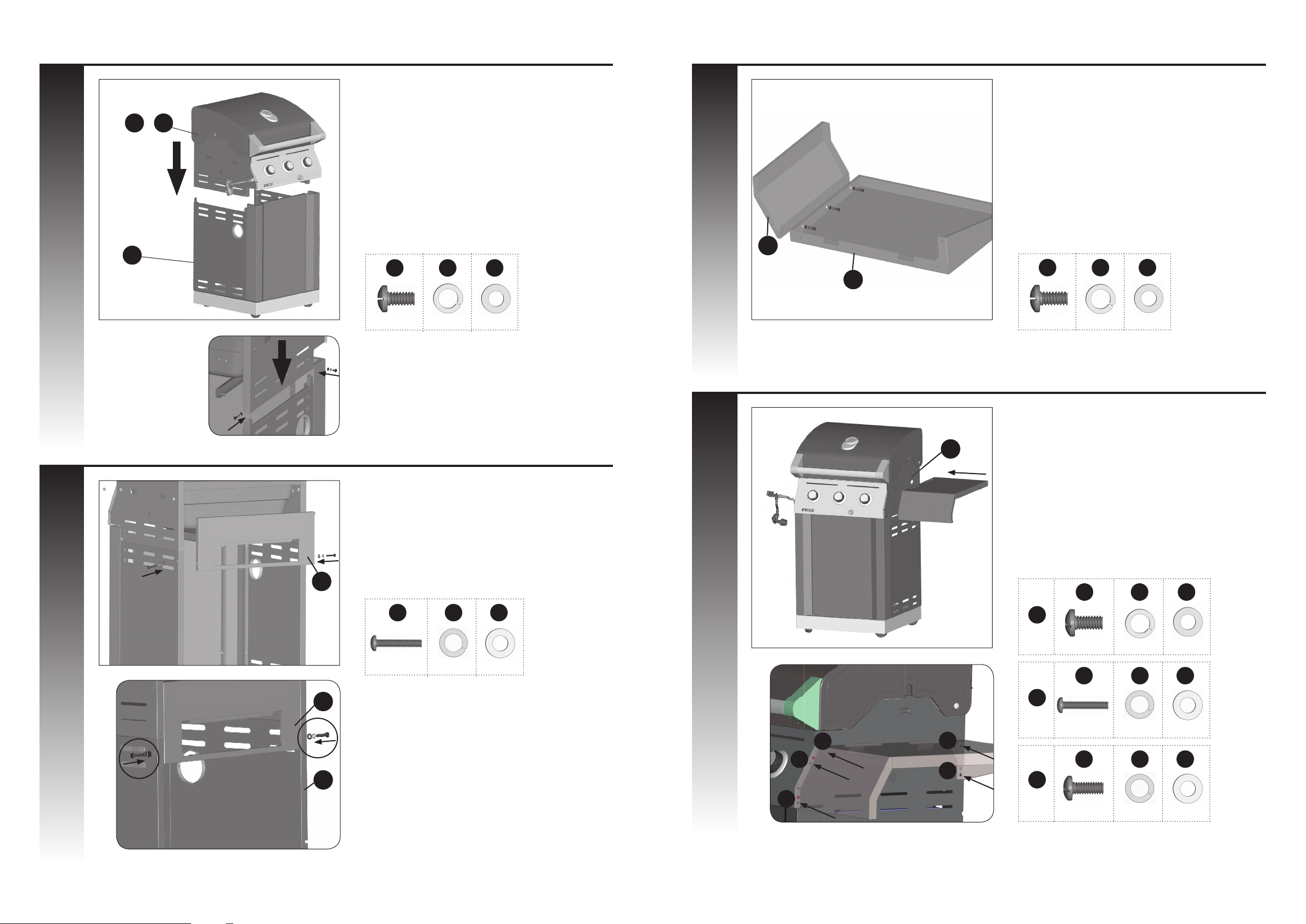

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

THIS STEP REQUIRES 3 OR MORE PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY

+ B

HEAVY.

Position the top lid and burner box assembly (A and B) onto the cart assembly (C) as shown. in  gure A. Use the hardware to connect both parts, on the left and right sides, at the two points indicated in  gure B.

YOU WILL NEED:

X 4 X 4 X 4

Front

Back

Attach the right side shelf fascia(DD) to the right side shelf (DC).

YOU WILL NEED:

X 3 X 3 X 3

Attach the upper back panel (BI) to both the left and right side panels (DE and DF).

Only install hardware in the bottom portion of the back panel, as shown in  gure B.

YOU WILL NEED:

X 2 X 2 X 2

TIP: To position the side shelf, insert the two

hooks on the side right shelf assembly into

the two openings located on the upper right side panel (BC).

Assemble the right side shelf assembly to the cart assembly, as shown in  gure B.

YOU WILL NEED:

X 2 X 2 X 2

X 1X 1X 1

8 9

Page 7

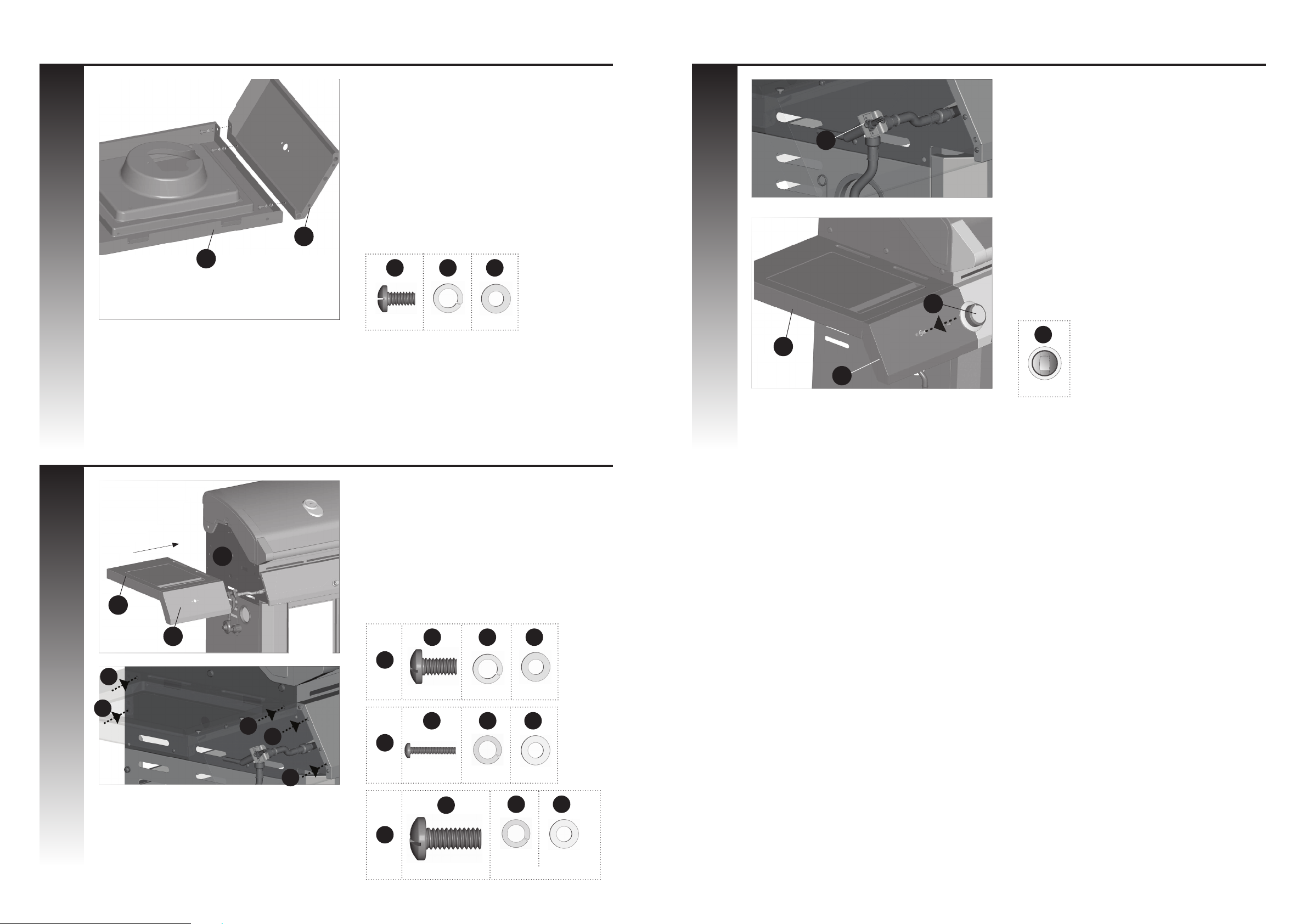

ASSEMBLY INSTRUCTIONS

Front

Attach the left side burner shelf fascia (DB) to the left side burner shelf table (DA).

YOU WILL NEED:

6 7 8

X 3 X 3 X 3

Remove the hardware that is pre-assembled to the side burner valve bracket(CM), as shown in  gure B. Insert the side burner valve stem through the rear of the left side shelf fascia(DB). Assemble the side burner valve to the side shelf fascia, using the hardware removed.

Assemble the side burner control knob (#12) to the side burner valve (CM).

Hardware may be included with the hardware pack.

YOU WILL NEED:

X 1

TIP: To position the left side burner shelf, insert

the two hooks on the side shelf assembly into the two openings located on the upper left side panel (BB).

Assemble the left side shelf assembly to the cart assembly, as shown in  gure B.

YOU WILL NEED:

X 2 X 2 X 2

7 8

X 1X 1X 1

X 2

10 11

X 2 X 2

Page 8

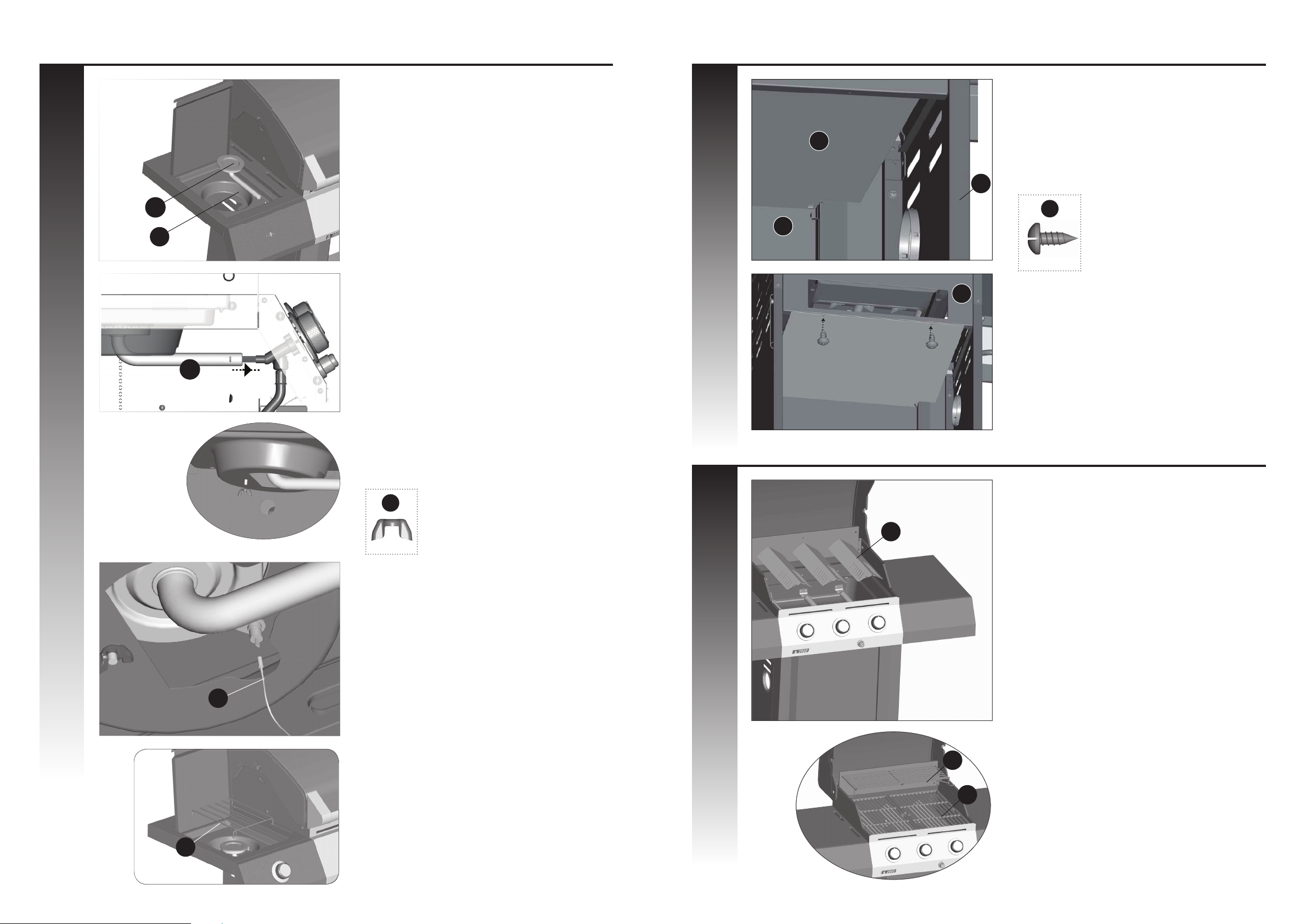

ASSEMBLY INSTRUCTIONS

Underside view

a. Position the side burner (CN) through the

opening in the left side burner drip pan (CL).

b. Make sure that the burner (CN) engages the

side burner valve (CM) as shown in  gure B.

c. Using the wing nut provided, assemble the side

burner (CN) to the side burner drip pan (CL), as shown in  gure C.

Back view

Place the heat shield (CG) into the groove which is located at the back side of the front panel as shown in  gure A. Next, attach the heat shield (CG) to the upper back panel (BI) by using the self tapping screw (x2), as shown in  gure B.

YOU WILL NEED:

X 2

YOU WILL NEED:

X 1

d. Attach the end of the side burner electrode

wire (CO) to the underside of the side burner electrode, as shown in  gure D.

Ensure that the wire is pushed in  rmly.

e. Place the side burner cooking grate (CP) into

postion on the side burner shelf, as shown in  gure E.

First place the  ame tamers (BF) and then the cooking grates (BG) into the burner box.

Place the warming rack (BH) onto the burner box.

12 13

Page 9

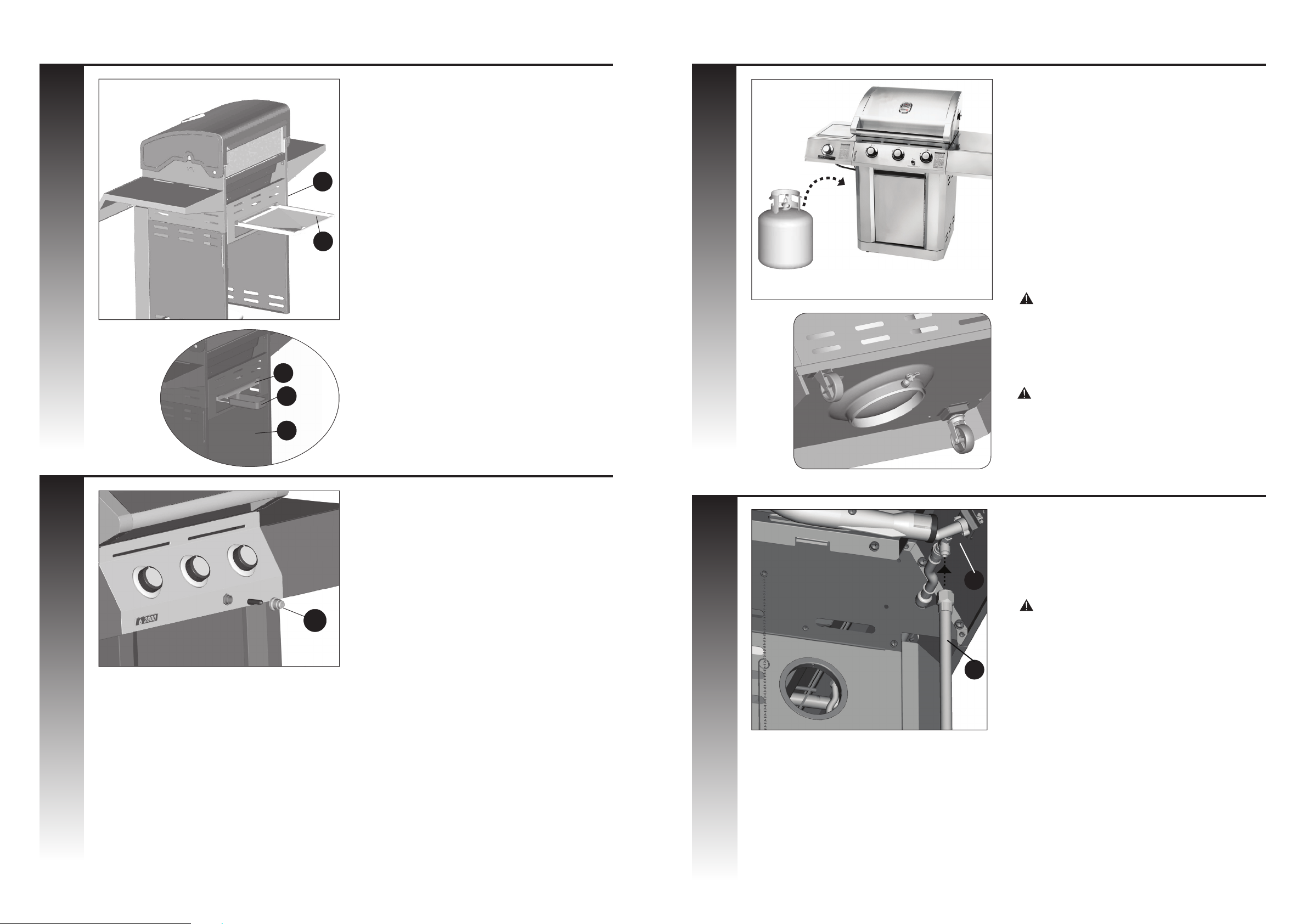

ASSEMBLY INSTRUCTIONS

Back view

a. Insert the grease tray (CI) into the opening in

the upper back panel (BI), making sure to engage tracks located under burner box.

b. Place the grease cup (CJ) onto the tracks, lo-

cated opn the underside of the grease tray (CI).

FOR PROPANE MODEL ONLY.

For natural gas model, follow step 18.

a. Position the 20 lb propane tank onto the

bottom shelf (DI), and secure using the bolt (already attached) located on the underside of the bottom shelf, as shown in  gure B.

b. Attach the Regulator coupling nut to the LP

cylinder valve.

ATTENTION: For your families safety, do

not attempt to light this BBQ until you have reviewed pages 4-7 of the CENTRO Safe Use and Care Manual. All Safety and Leak test MUST BE PERFORMED BY THE END USER, prior to lighting this BBQ.

WARNING

Do not store extra propane tanks within BBQ cart.

CD2

Unscrew the electronic ignitor button (CD2) and insert one AA battery into the electronic igniter battery compartment, with the positive end facing outward.

* Battery not included.

FOR NATURAL GAS MODEL ONLY.

Attach the natural gas hose (CB) to the side burner valve (CC) as shown.

ATTENTION: In order to complete installation of your Natural Gas BBQ a 1/2” or 3/8” adapter may be required to connect your BBQ’s Natural Gas hose to your home gas supply. Contact your Natural Gas supplier to purchase the necessary part.

14 15
