CENTRO 4900IR

Assembly Manual

85-3014-8 (G51208) Propane

85-3015-6 (G51211) Natural Gas

LIMITED 5YEAR WARRANTY

Assemble your grill immediately.

Missing or damaged parts should be

claimed within 30 days of purchase.

please call 1-877-707-5463.

Page 2

HARDWARE PACK

HEAVY ARTICLE NEEDS 2 TO LIFT

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.centrobbqs.com.

CAUTION

Sharp edges. Wear gloves when assembling your grill.

CAUTION

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at all times.

WARNING

Failure to follow all of the Manufacturer’s instructions could result in hazardous  res, explosions, property damage, or serious personal injury or even death.

Follow all leak check procedures carefully prior to operation of barbecue, even if grill was dealer assembled. Do not try to light this barbecue without reading the Lighting Instructions section of this manual.

DANGER

1. If you smell Gas: a. Shut o gas to the appliance b. Extinguish any open  ame c. Open lid d. If odor continues, keep away from the appliance and immediately call your gas supplier or your  re department

2. Do not store or use gasoline or other

 ammable vapours and liquids in the vicinity of this or any other appliance.

3. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any other appliance.

4. Requires two people to complete the

assembly process.

5. Beware of sharp edges.

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (Long and short)

• ¼” Slotted screwdriver (Long and short)

• Adjustable wrench

• Pliers

• Rubber Mallot

Before assembling the barbecue, read these instructions carefully.

Assemble the barbecue on a  at, clean surface. Grill is heavy.

Notes: Do not fully tighten all the nuts during this initial stage.

Caution: Sheet metal can cause injury. Wear gloves when installing the grill.

¼” - 20UNCX13 Screw

X 8

No. Description Part Number Quantity

1 ¼"-20UNCX13 Screw 20120-13013-250 8

2 ¼"-20UNCX38 Screw 20120-13038-250 4

3 ¼"-20UNCX16 Screw 20120-13016-250 8

4 ø7 Lock Washer 41400-07000-250 20

5 ø7 Washer 40300-07000-250 20

6 NO.10-24UNCx10 Screw 20124-10010-250 28

7 ø 5 Lock Washer 41400-05000-250 28

8 ø 5 Washer 40300-05000-250 28

9 ST4.2x10 Tapping Screw 22500-42010-137 9

10 Wrench G413-0032-9082 1

11 NO.8-32UNCx10 Screw 20332-08010-250 4

12 Control Knob G412-4500-9000 1

13 NO. 10 Nut 30244-10000-250 4

14 ST4.2x20 Tapping Screw 22500-42018-250 1

2 3

¼” - 20UNCX38 Screw

X 4

4 5 6

ø7 Lock Washer

X 20

8 9

ø5 Lock Washer

X 28

11 12

Wrench

X 1

ø7 Washer

X 20

ø5 Washer

X 28

NO. 8-32UNCx10 Screw

X 4

¼” - 20UNCX16 Screw

X 8

NO. 10-24UNC10 Screw

X 28

ST4.2x10 Tapping Screw

X 9

Knob

X 1

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-877-707-5463

NO. 10 Nut

X 4

ST4.2x20 Tapping Screw

X 1

Page 3

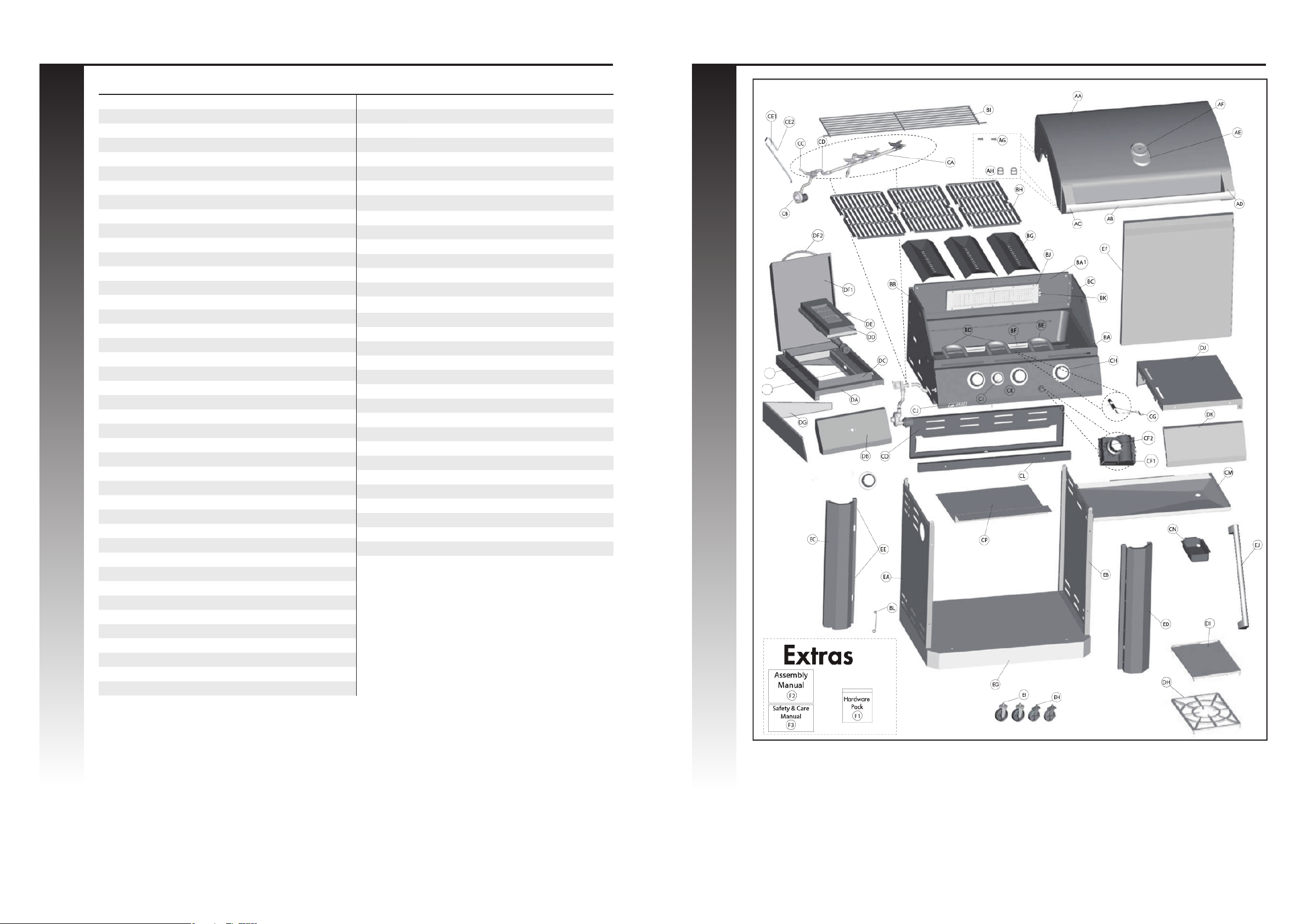

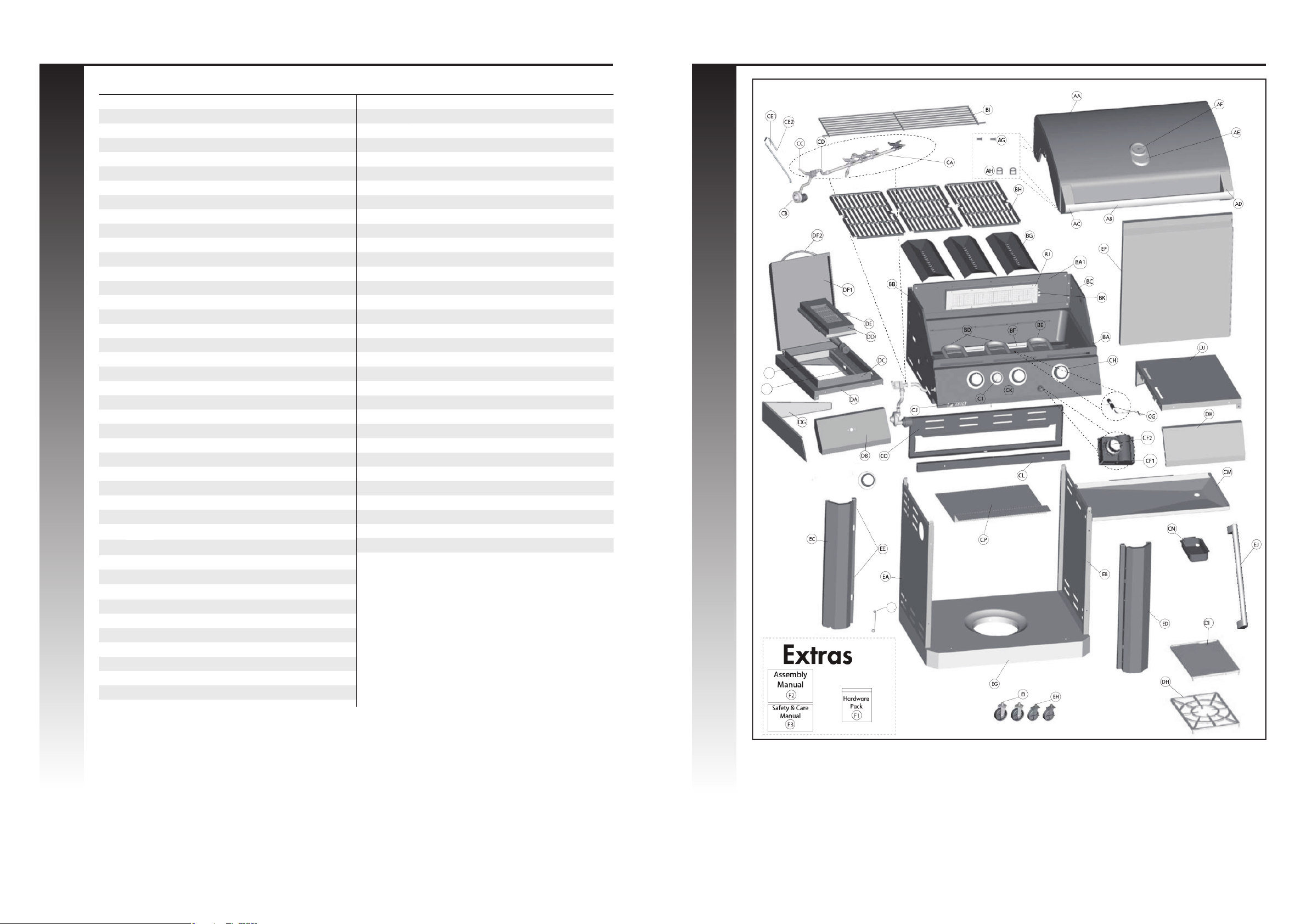

PARTS LIST (PROPANE) FOR 85-3014-8 (G51208) EXPLODED DIAGRAM (PROPANE) FOR 85-3014-8 (G51208)

Item Qty. Description Part No.

AA 1 Top Lid G512-2900-01

AB 1 Lid Handle G512-0001-01

AC 1 Lid Handle End Cap-Left G617-0004-01

AD 1 Lid Handle End Cap-Right G617-0005-01

AE 1 Logo Plate G412-0001-01

AF 1 Thermometer G412-0003-01

AG 2 Screw for Top Lid G501-0005-01

AH 2 Lid Bumper G508-0063-01

BA 1 Burner Box Assembly G512-0200-01

BA1 1 Rotisserie Burner Brace G512-0015-01

BB 1 Upper Side Panel- Left G617-0500-01

BC 1 Upper Side Panel- Right G617-0600-01

BD 2 Main Burner-A G607-0700-A1

BE 1 Main Burner-B G502-1800-A1

BF 1 Carryover Assembly G502-0012-01

BG 3 Flame Tamer G617-0019-01

BH 3 Cooking Grate, Burner Box G512-0028-02

BI 1 Warming Rack G512-0004-01

BJ 1 Rotisserie Burner G617-2900-01

BK1 1 Electrode Set, Rotisserie Burner G411-0002-01

BK2 1 Ground Wire, Rotisserie Burner G411-0004-01

BK3 1 Wind Shield, Rotisserie G617-0036-01

BL 1 Match Holder G608-0019-01

CA 1 Manifold Assembly with Coupling G512-5400-01

CB 1 Regulator G433-0034-01

CC 1 Valve, Sideburner G512-0040-01

CD 1 Metal Hose, Sideburner G608-0039-01

CE1 1 Rotisseries Flexible Hose G411-0013-01

CE2

CF1 1 Electronic Igniter Assembly G508-0075-01

CF2 1 Electronic Ignition Button G501-0072-01

CG1 1 Electrode Set, Main Burner G617-0017-01

CG2 1 Ground Wire, Main Burners G411-0004-01

CH 3 Control Knob Assy G412-4500-01

CI 1 Rotisserie Knob Assy G617-4200-01

CJ 1 Series Logo G512-0033-01

CK 1 Control Panel G512-0017-03

CL 1 Front Brace G512-0044-01

CM 1 Grease Tray G512-1000-01

CN 1 Grease Cup G416-0015-01

Rotisseries LP Ori ce G411-0013-02

Item Qty. Description Part No.

CO 1 Upper Back Panel G512-0045-01

CP 1 Heat Shield G512-0026-01

DA 1 Side Shelf Table- Left G512-3900-01

DB 1 Side Shelf Fascia- Left G617-0034-01

DC1 1 Sear Zone Wind Shield G617-0066-01

DC2 1 Sear Zone Support Frame G617-0058-01

DD 1 Side Zone Burner G617-5200-01

DE 1 Electrode Set, Sear Zone G610-0009-01

DF1 1 Lid Sear Zone G512-0030-01

DF2 1 Lid Handle Sear Zone G607-0040-01

DG 1 Side Shelf Wind Shield G512-0046-01

DH 1 Cooking Grate Sear Zone G617-0060-01

DI 1 Cooking Griddle Sear Zone G617-0061-01

DJ 1 Side Shelf Table-Right G512-3800-01

DK 1 Side Shelf Fascia-Right G617-0026-01

EA 1 Cart side panel-Left G617-0700-01

EB 1 Cart Side Panel, Right G617-0800-01

EC 1 Pillar, Left G512-1600-01

ED 1 Pillar, Right G512-1700-01

EE 2 Magnet Assembly G501-0016-01

EF 1 Door Assembly G512-5300-01

EG 1 Bottom Shelf G512-0900-01

EH 2 Wheel withLock G401-0061-01

EI 2 Wheel G606-0027-01

EJ 1 Towel Bar G511-0050-02

F1 1 Hardware Pack G512-B008-01

F2 1 Instruction Manual G512-M008-01

F3 1 Safety & Care Manual

G412-M004-02

DC2

DC1

2 3

Page 4

PARTS LIST (NATURAL GAS) FOR 85-3015-6 (G51211) EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3015-6 (G51211)

Item Qty. Description Part No.

AA 1 Top Lid G512-2900-01

AB 1 Lid Handle G512-0001-01

AC 1 Lid Handle End Cap-Left G617-0004-01

AD 1 Lid Handle End Cap-Right G617-0005-01

AE 1 Logo Plate G412-0001-01

AF 1 Thermometer G412-0003-01

AG 2 Screw for Top Lid G501-0005-01

AH 2 Lid Bumper G508-0063-01

BA 1 Burner Box Assembly G512-0200-01

BA1 1 Rotisserie Burner Brace G512-0015-01

BB 1 Upper Side Panel- Left

BC 1 Upper Side Panel- Right

BD 2 Main Burner-A

BE 1 Main Burner-B

BF 1 Carryover assembly G502-0012-01

BG 3 Flame Tamer G617-0019-01

BH 3 Cooking Grates G512-0028-02

BI 1 Warming Rack G512-0004-01

BJ 1 Rotisserie Burner G617-2900-01

BK1 1 Electrode Set, Rotisserie Burner G411-0002-01

BK2 1 Ground Wire, Rotisserie Burner G411-0004-01

BK3 1 Wind Shield, Rotisserie G617-0036-01

BL 1 Match Holder G608-0019-01

CA 1 Manifold Assembly with Coupling G512-5700-01

CB 1 Natural Gas Hose G501-0099-01

CC 1 Valve, Sideburner G512-0041-01

CD 1 Metal Hose, Sideburner G608-0039-01

CE1 1 Rotisserie Flexible Hose G601-0072-01

CE2 1 Rotisserie LP Ori ce G601-0072-02

CF1 1 Electronic Igniter Assembly G508-0075-01

CF2 1 Electronic Ignition Button G501-0072-01

CG1 1 Electrode Set, Main Burner G617-0017-01

CG2 1 Ground Wire, Main Burners

CH 3 Control Knob Assy G412-4500-01

CI 1 Rotisserie Knob Assy G617-4200-01

CJ 1 Series Logo G512-0033-01

CK 1 Control Panel G512-0017-03

CL 1 Front Brace G512-0044-01

CM 1 Grease Tray G512-1000-01

CN 1 Grease Cup G416-0015-01

G617-0500-01

G617-0600-01

G607-0700-A1

G502-1800-A1

G411-0004-01

Item Qty. Description Part No.

CO 1 Upper Back Panel G512-0045-01

CO 1 Heat Shield G512-0026-01

DA 1 Side Shelf Table- Left G512-3900-01

DB 1 Side Shelf Fascia- Left G617-0034-01

DC1 1 Sear Zone Wind Shield G617-0066-01

DC2 1 Sear Zone Support Frame G617-0058-01

DD 1 Sear Zone Burner G617-5200-01

DE 1 Electrode Set, Sear Zone G610-0009-01

DF1 1 Lid Sear Zone G512-0030-01

DF2 1 Lid Handle Sear Zone G607-0040-01

DG 1 Side Shelf Wind Shield G512-0046-01

DH 1 Cooking Grate Sear Zone G617-0060-01

DI 1 Cooking Griddle Sear Zone G617-0061-01

DJ 1 Side Shelf Table-Right G512-3800-01

DK 1 Side Shelf Fascia-Right G617-0026-01

EA 1 Cart Side Panel-Left G617-0700-01

EB 1 Cart Side Panel, Right G617-0800-01

EC 1 Pillar, Left G512-1600-01

ED 1 Pillar, Right G512-1700-01

EE 2 Magnet Assembly G501-0016-01

EF 1 Door Assembly G512-5300-01

EG 1 Bottom Shelf G512-2500-01

EH 2 Wheel with Lock G401-0061-01

EI 2 Wheel G606-0027-01

EJ 1 Towel Bar G511-0050-02

F1 1 Hardware Pack G512-B008-01

F2 1 Instruction Manual G512-M008-01

F3 1 Safe & Care Manual

G412-M004-02

DC2

DC1

4 5

Page 5

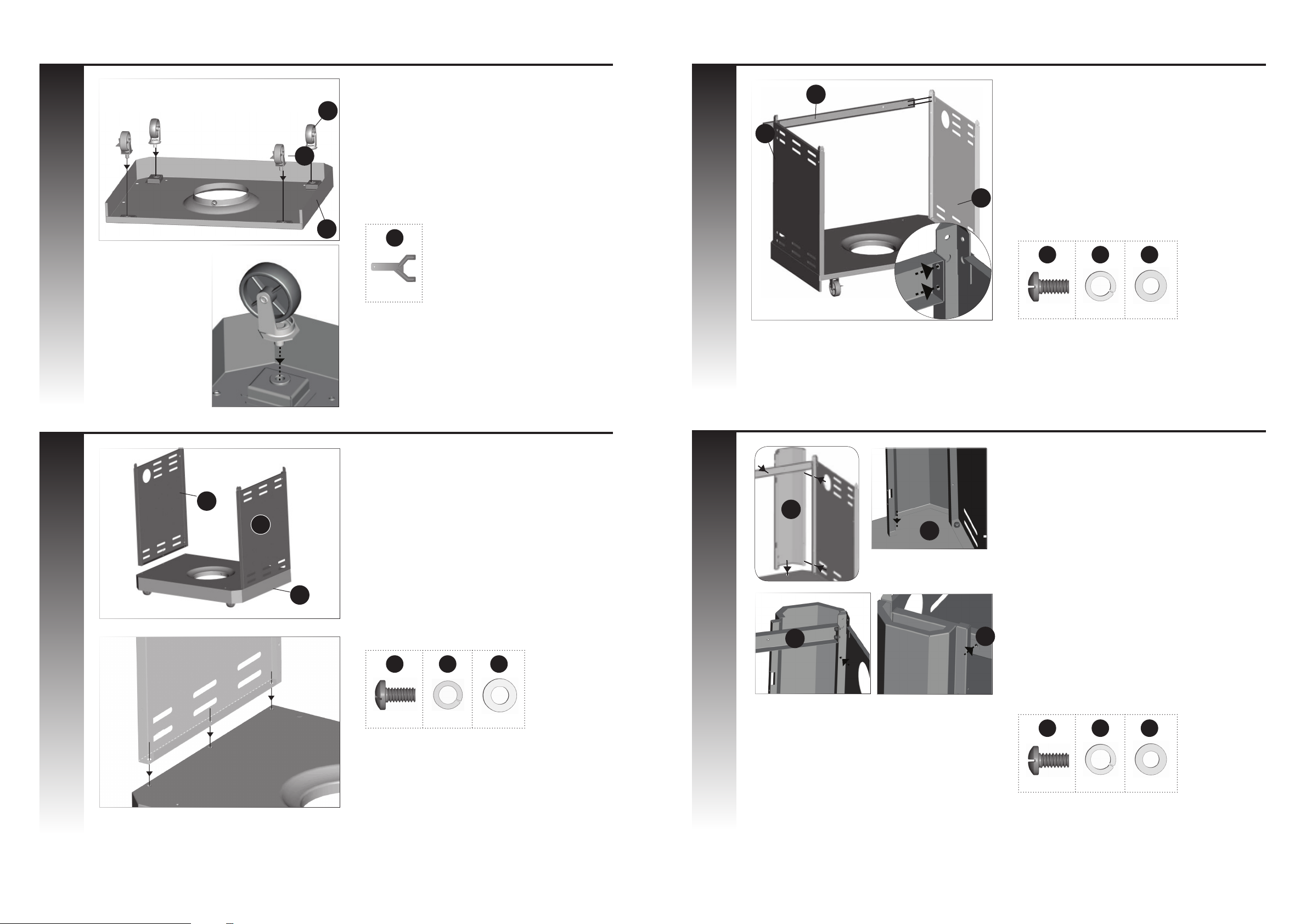

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

Seperate the 2 di erent types of wheels, 2 locking wheels (EH) and 2 regular wheels (EI).

Attach the locking wheels (EH) to the back of the bottom shelf (EG) and the regular wheels (EI) to the front of the bottom shelf (EG).

To secure the 4 wheels, hand tighten  rst. Then, tighten further using the wrench provided in the hardware pack.

X 1

Back view

Attach the front brace (CL) to the Left and right cart side panels (EA and EB)

TIP: One person should align the left side, while

the second person assembles the right side.

YOU WILL NEED:

6 7 8

X 4 X 4 X 4

876

Front view

Close up

Ensure that the wheels are  rmly locked in the “ON” position before continuing.

Assemble the left side panel (EA) and the right side panel (EB) to the bottom shelf (EG).

YOU WILL NEED:

1 4 5

X 6 X 6 X 6

876

Assemble the left and right pillars (EC and ED), to the cart side panels, as shown in  gure A and B.

Next, assemble the left and right pillars to the front brace (CL) and the bottom shelf (EG), as shown in  gure C and D.

TIP: One person should align the left side, while

the second person assembles the right side.

YOU WILL NEED:

6 7 8

876

Close up

X 8 X 8 X 8

6 7

Page 6

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

A + B

THIS STEP REQUIRES 3 OR MORE PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY.

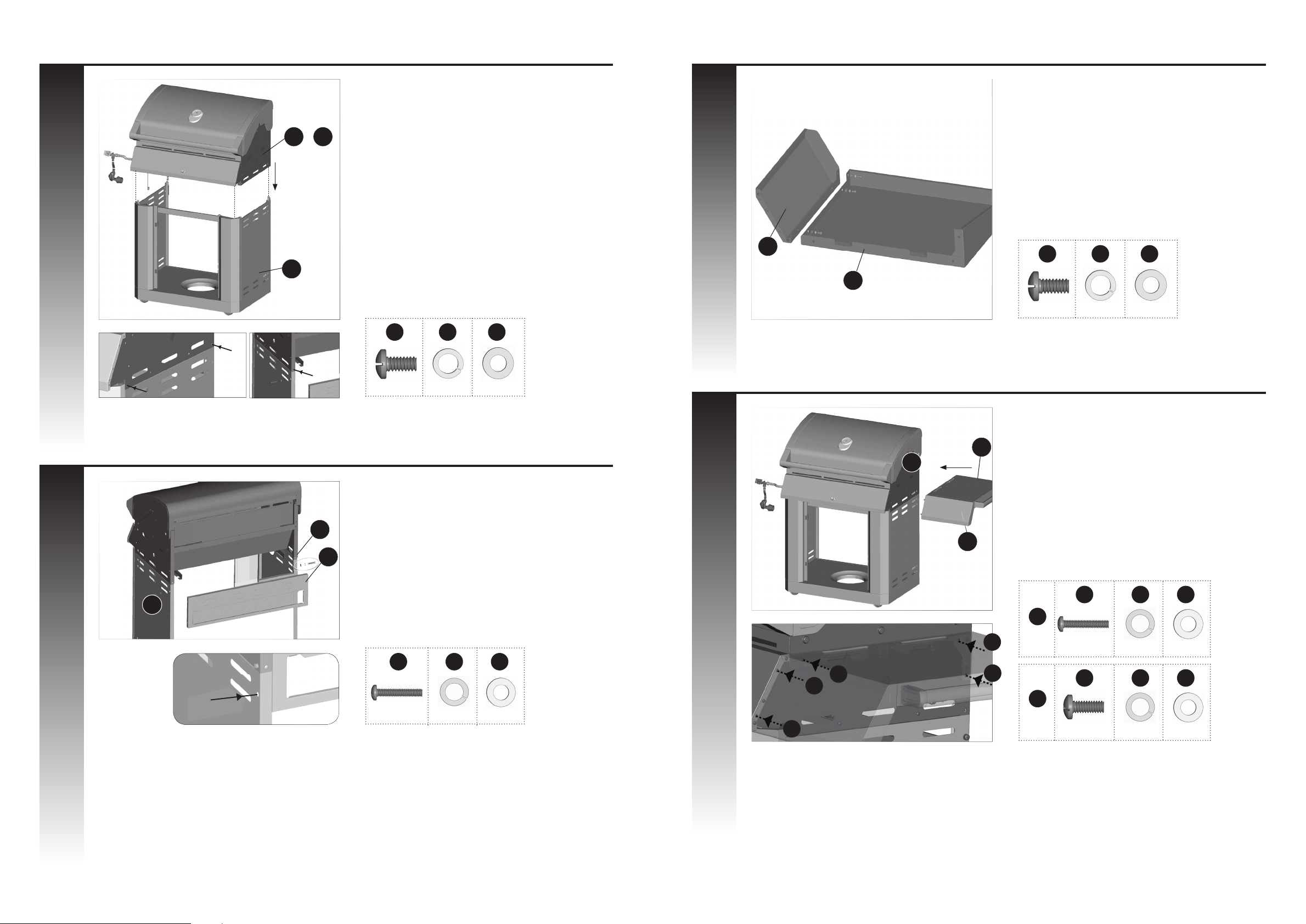

a. Position the top lid and burner box assembly

(A and B) onto cart assembly (C) as shown.

b. Use the hardware to connect both parts, on

the left and right sides, at the three points indicated in  gure B and C.

YOU WILL NEED:

X 6

Attach the right side shelf fascia (DK) to the right side shelf table (DJ), as shown.

YOU WILL NEED:

X 3

Back view

Attach the upper back panel (CO) to both the left and right side panels (EA and EB).

Only install hardware in the bottom portion of the back panel (CO), as shown in  gure B.

YOU WILL NEED:

2 4 5

X 2 X 2 X 2

TIP: To position the right side shelf, insert the two

hooks on the side shelf assembly into the two

openings located on the right upper side panel (BC).

Assemble the right side shelf assembly to the cart assembly, as shown in  gure B.

YOU WILL NEED:

X 4 X 4 X 4

X 1X 1X 1

8 9

Page 7

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

DC1

Front

a. Attach the left shelf fascia (DB) to the left side shelf

table (DA).

YOU WILL NEED:

6 7 8

X 3 X 3 X 3

b. Assemble the Side shelf wind shield (DG) to the

left side shelf table (DA), and the left side shelf fascia (DB), as shown in Figure B and C.

YOU WILL NEED:

876

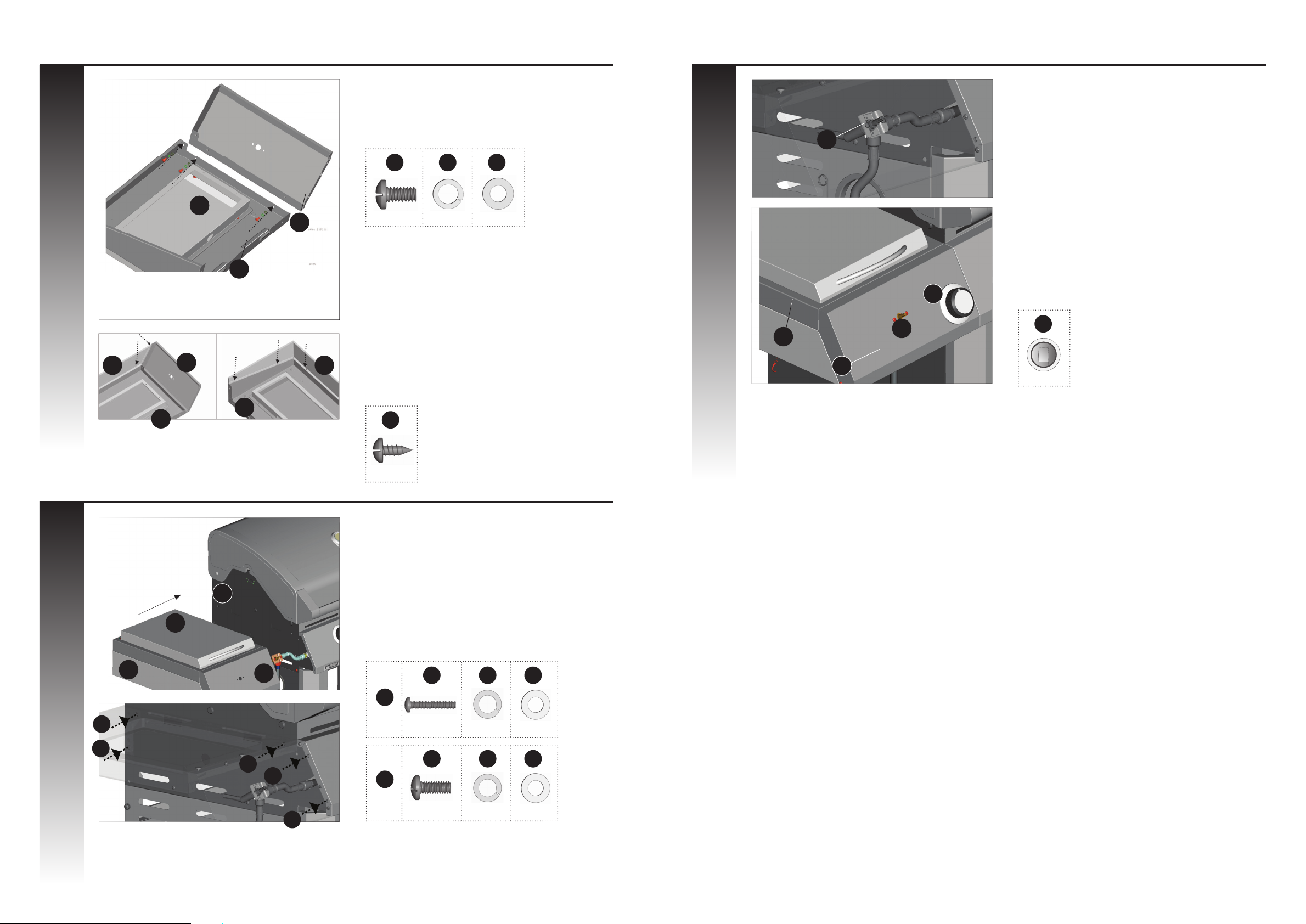

Remove the hardware that is pre-assembled to the side burner valve bracket(CC), as shown in  gure A. Insert the side burner valve stem through the rear of the left side shelf fascia(DB). Assemble the side burner valve (cc) to the side shelf fascia (DB), using the hardware removed.

Assemble the side burner control knob (#12) to the side burner valve (CC).

Hardware may be included with the hardware pack.

YOU WILL NEED:

X 1

X 5

TIP: To position the left side shelf assembly, insert

the two hooks on the side shelf assembly into the two openings located on the upper left side panel (BB).

DF1

Assemble the left side shelf assembly to the cart assembly, as shown in  gure B.

YOU WILL NEED:

X 1X 1X 1

10 11

X 4 X 4 X 4

Page 8

ASSEMBLY INSTRUCTIONS

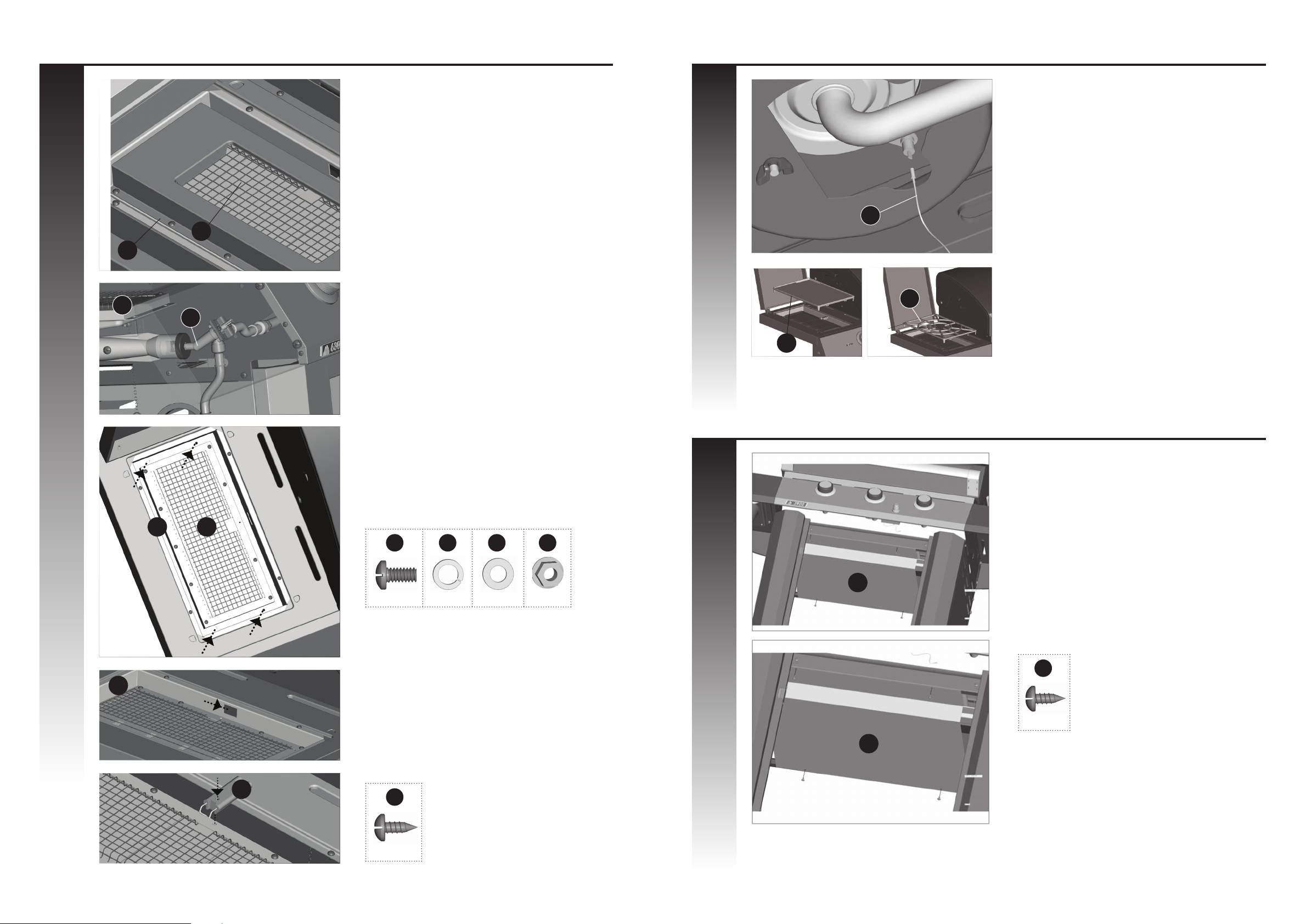

a. Position the Sear Zone burner (DD) through

the opening in the left side shelf (DA).

b. Make sure that the Sear Zone burner (DD) en-

gages the Sear Zone burner valve (CC), gas jet, as shown in  gure B.

e. Attach the end of the side burner electrode

wire (DE) to the underside of the side burner electrode, as shown in  gure E.

Ensure that the wire is pushed in  rmly.

f. Position either the Sear Zone cooking griddle

(DI) or the cooking grate (DH) in position on the Sear Zone side burner side shelf. Store the extra accessory within the BBQ chart.

c. Assemble the Sear Zone burner (DD) to the

Sear Zone support frame (DC1), at the 4 points indicated in  gure C.

DDDC1

YOU WILL NEED:

X 4

7 8 13

X 4 X 4 X 4

876

Place the heat shield (CP) into the groove which is located at the back side of the front brace (CL) as shown in  gure A. Next, attach the heat shield (CP) to the upper back panel (CO) by using the self tapping screws (X 4), as shown in  gure B.

YOU WILL NEED:

d. Feed the Sear Zone electrode wire (DE) from

underneath the Sear Zone burner (DD), through the small opening on the right side of the Sear Zone support frame (DC1). Align and assemble the electrode using the self tapping screw provided, as shown in  gure D.

X 4

YOU WILL NEED:

X 1

12 13

Page 9

ASSEMBLY INSTRUCTIONS

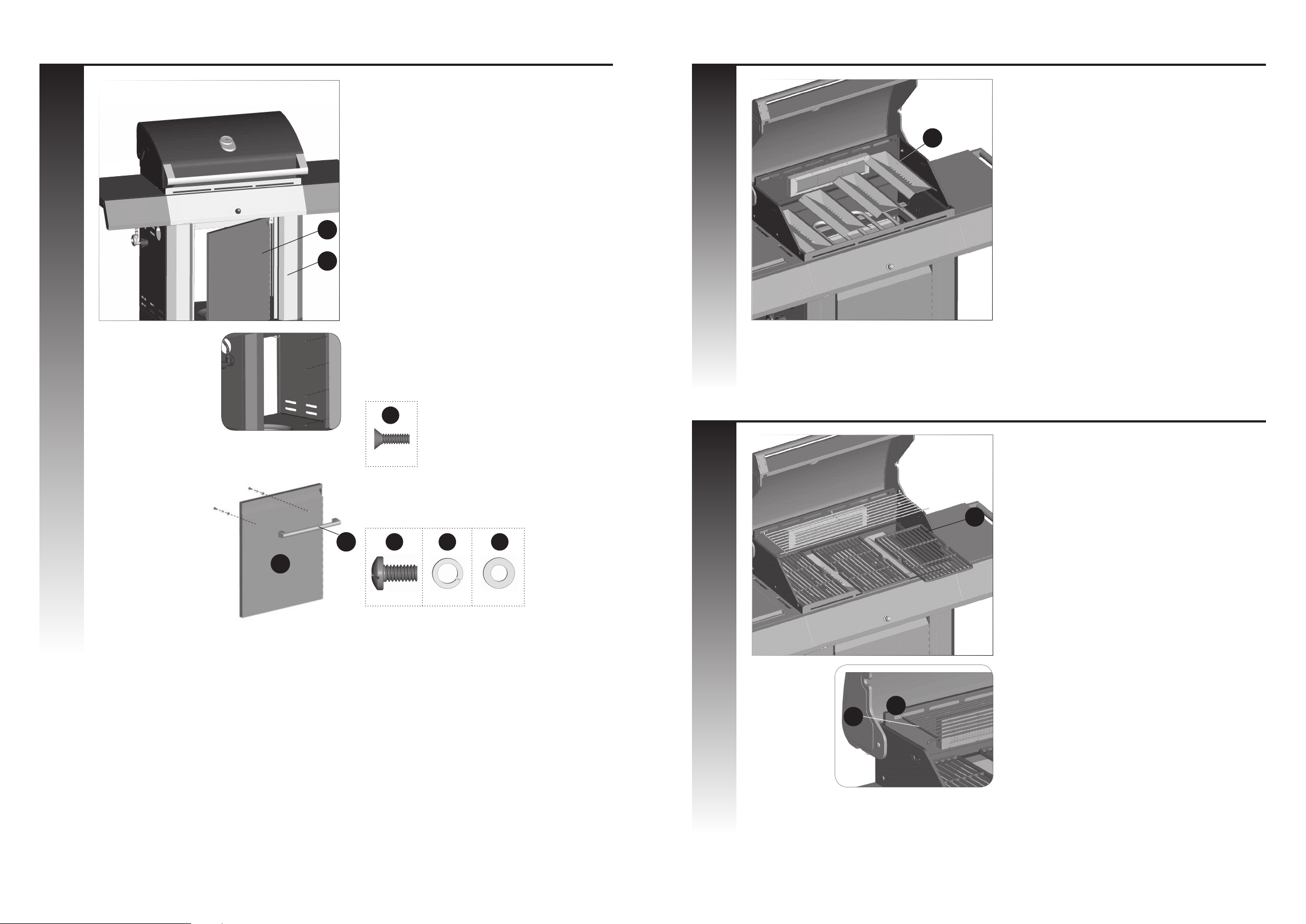

TIP: Before attempting to assemble the door (EF)

to the right pillar (ED), locate the two clasps on the door hinge. Next, locate the two small openings on the right side pillar (ED).

a. Hold the door (EF) perpendicular to the BBQ

Cart. Align the two clasps on the door hinge (EF), with the two holes on the right side pillar (ED). Once aligned, push the two clasps into the openings, and immediately push down to lock clasps in place.

b. Assemble the door (EF) to the right pillar (ED),

as shown in  gure B, using the screws provided.

YOU WILL NEED:

Place the  ame tamers (BG) into the burner box.

Model may not be exactly as shown.

X 4

b. Assemble the towel bar (EJ) onto door (EF).

YOU WILL NEED:

1 4 5

X 2 X 2 X 2

876

BA1

a. Place the cooking grates (BH) into the burner

box, as shown in  gure A.

b. Insert the three small positioning rods of the

warming rack (BI) into the rotisserie burner brace (BA1).

14 15

Page 10

ASSEMBLY INSTRUCTIONS

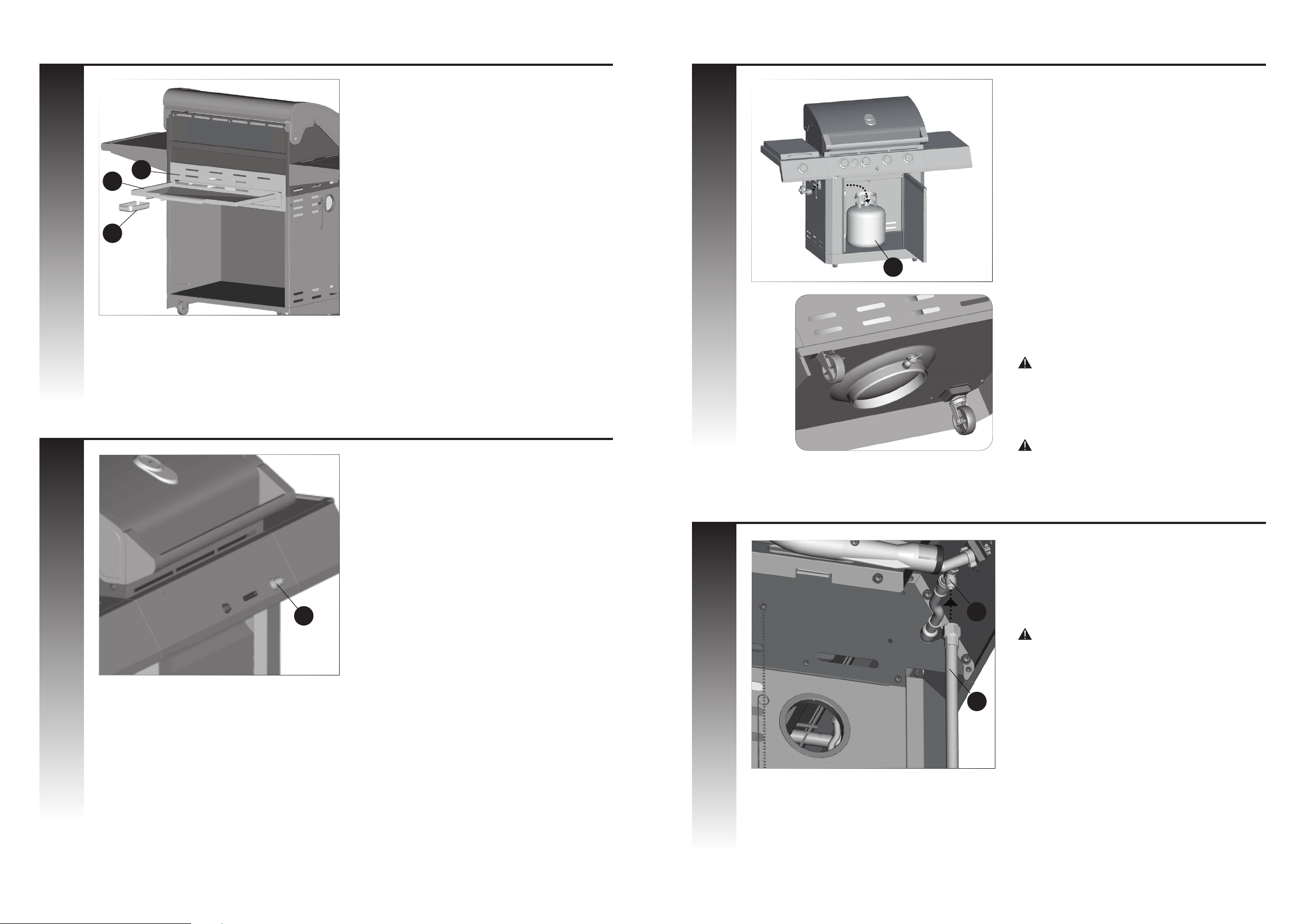

a. Insert the grease tray (CM) into the opening

in the upper back panel (CO), making sure to engage tracks located under burner box.

b. Place the grease cup (CN) onto the tracks, lo-

cated on the underside of the grease tray (CM).

Unscrew the electronic ignitor button (CF2) and insert one AA battery into the electronic igniter battery compartment, with the positive end facing outward.

FOR PROPANE MODEL ONLY.

For natural gas model, follow step 20.

a. Position the 20 lb propane tank onto the

bottom shelf (EG), and secure using the bolt (already attached) located on the underside of the bottom shelf, as shown in  gure B.

b. Attach the regulator coupling nut to the LP

cylinder valve.

ATTENTION: For your families safety, do not attempt to light this BBQ until you have reviewed pages 4-7 of the CENTRO Safety & Care Manual. All Safety and Leak test MUST BE PERFORMED BY THE END USER, prior to lighting this BBQ.

WARNING Do not store extra propane tanks within BBQ cart.

CF2

* Battery not included.

FOR NATURAL GAS MODEL ONLY.

Attach the natural gas hose (CB) to the side burner valve (CC) as shown.

ATTENTION: In order to complete installation of your Natural Gas BBQ a 1/2” or 3/8” adapter may be required to connect your BBQ’s Natural Gas hose to your home gas supply. Contact your Natural Gas supplier to purchase the necessary part.

16 17
