CENTRO 3900

Assembly Manual

85-1626-4 (G51206) Propane

85-1651-2 (G51209) Natural Gas

LIMITED 5YEAR WARRANTY

Assemble your grill immediately.

Missing or damaged parts should be

claimed within 30 days of purchase.

please call 1-877-707-5463.

Page 2

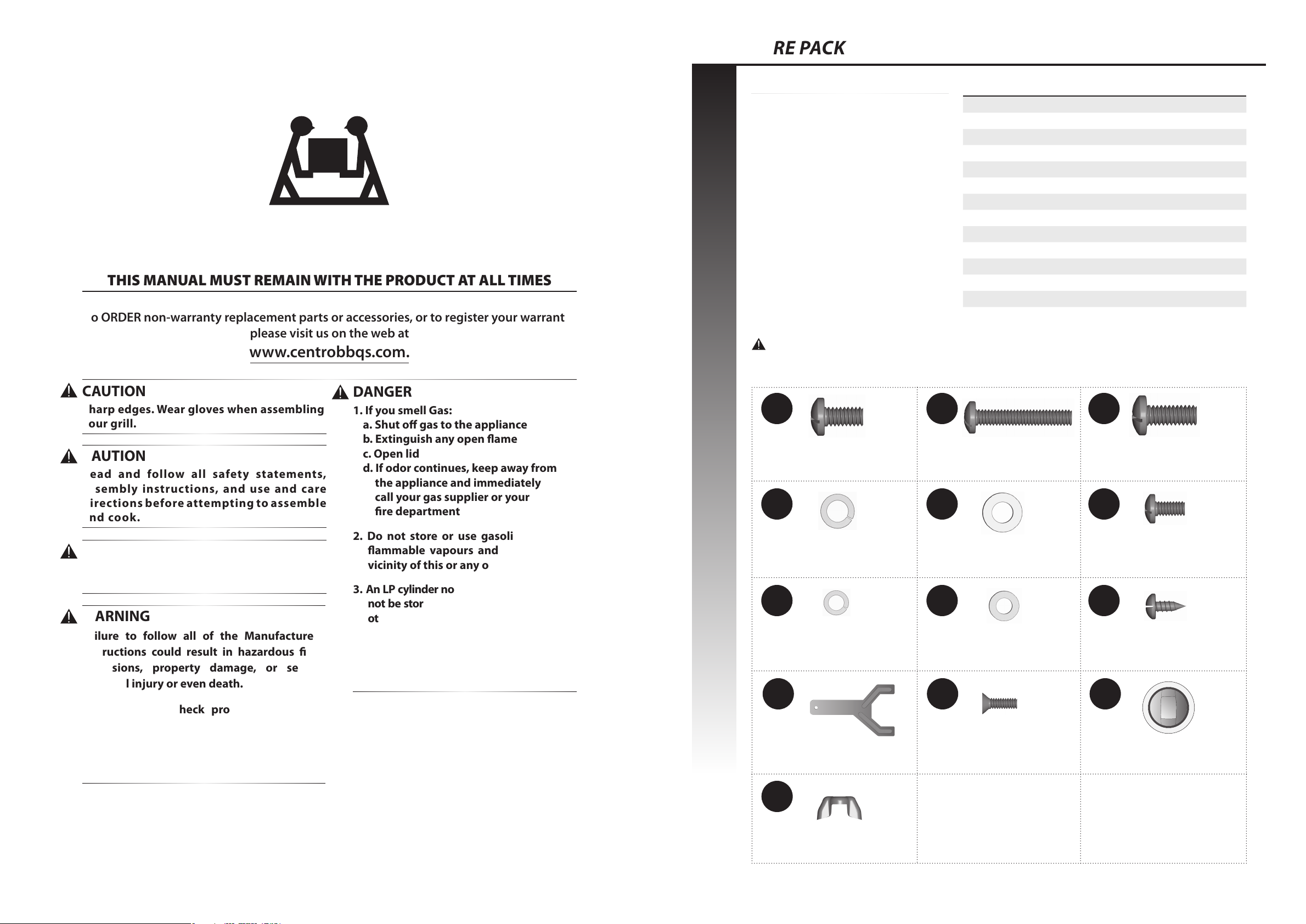

HARDWARE PACK

HEAVY ARTICLE NEEDS 2 TO LIFT

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.centrobbqs.com.

CAUTION

Sharp edges. Wear gloves when assembling your grill.

CAUTION

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at all times.

WARNING

Failure to follow all of the Manufacturer’s instructions could result in hazardous  res, explosions, property damage, or serious personal injury or even death.

Follow all leak check procedures carefully prior to operation of barbecue, even if grill was dealer assembled. Do not try to light this barbecue without reading the Lighting Instructions section of this manual.

DANGER

1. If you smell Gas: a. Shut o gas to the appliance b. Extinguish any open  ame c. Open lid d. If odor continues, keep away from the appliance and immediately call your gas supplier or your  re department

2. Do not store or use gasoline or other

 ammable vapours and liquids in the vicinity of this or any other appliance.

3. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any other appliance.

4. Requires two people to complete the

assembly process.

5. Beware of sharp edges.

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (Long and short)

• ¼” Slotted screwdriver (Long and short)

• Adjustable wrench

• Pliers

• Rubber Mallot

Before assembling the barbecue, read these instructions carefully.

Assemble the barbecue on a  at, clean surface. Grill is heavy.

Notes: Do not fully tighten all the nuts during this initial stage.

Caution: Sheet metal can cause injury. Wear gloves when installing the grill.

No. Description Part Number Quantity

1 ¼"-20UNCX13 Screw 20120-13013-250 8

2 ¼"-20UNCX38 Screw 20120-13038-250 4

3 ¼"-20UNCX16 Screw 20120-13016-250 8

4 ø7 Lock Washer 41400-07000-250 20

5 ø7 Washer 40300-07000-250 20

6 NO.10-24UNCx10 Screw 20124-10010-250 24

7 ø 5 Lock Washer 41400-05000-250 24

8 ø 5 Washer 40300-05000-250 24

9 ST4.2x10 Tapping Screw 22500-42010-137 4

10 Wrench G413-0032-9082 1

11 NO.8-32UNCx10 Screw 20332-08010-250 4

12 Control Knob G412-4500-9000 1

13 Wing Nut 33301-04000-032 1

1 2 3

¼” - 20UNCX13 Screw

X 8

¼” - 20UNCX38 Screw

X 4

4 5 6

ø7 Lock Washer

X 20

ø7 Washer

X 20

7 8 9

ø5 Lock Washer

X 24

Wrench

X 1

11 12

NO. 8-32UNCx10 Screw

ø5 Washer

X 24

X 4

¼” - 20UNCX16 Screw

X 8

NO. 10-24UNC10 Screw

X 24

ST4.2x10 Tapping Screw

X 4

Knob

X 1

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-877-707-5463

Wing Nut

X 1

Page 3

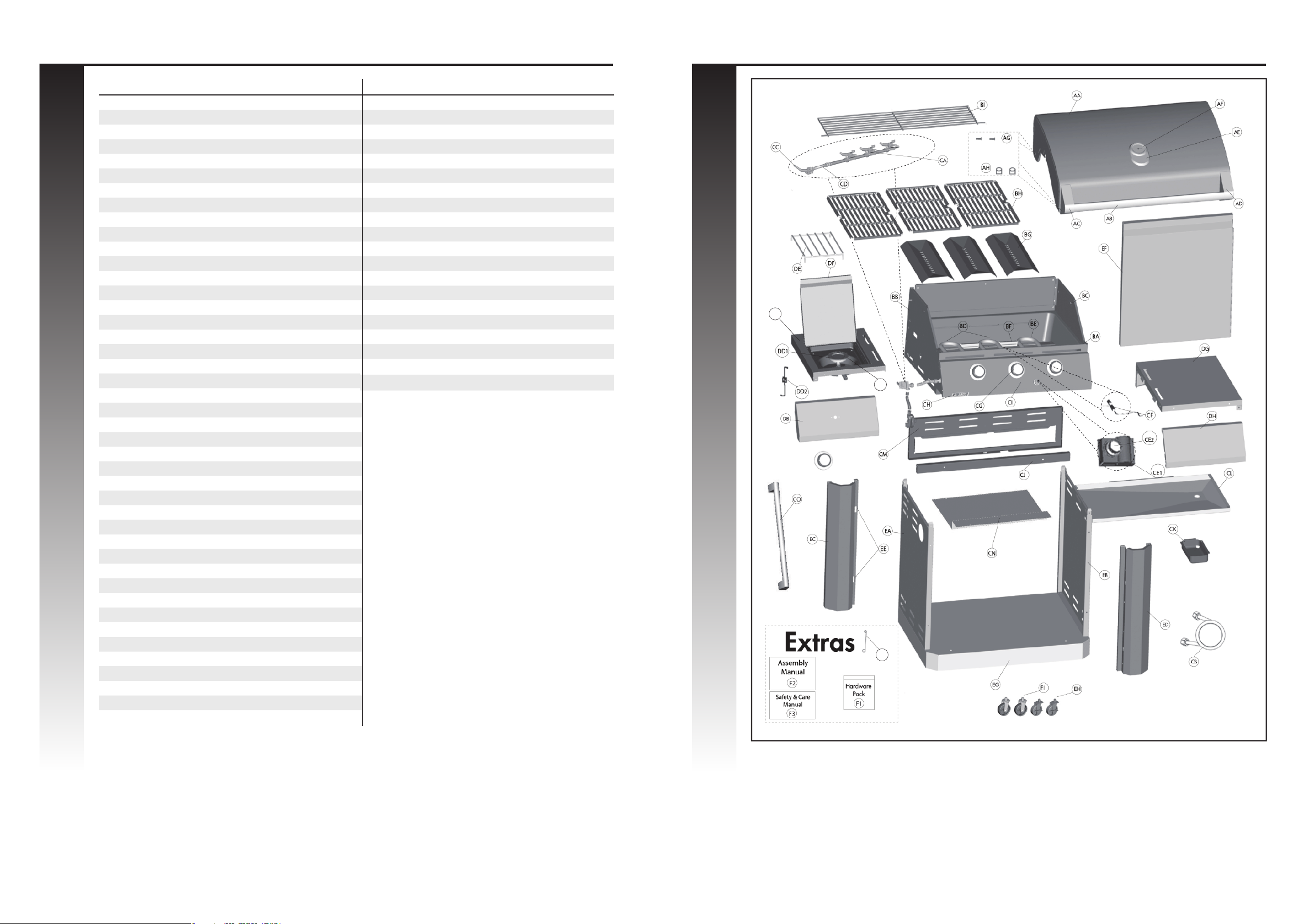

PARTS LIST (PROPANE) FOR 85-1626-4 (G51206) EXPLODED DIAGRAM (PROPANE) FOR 85-1626-4 (G51206)

Item Qty. Description Part No.

AA 1 Top Lid G512-2800-01

AB 1 Lid Handle G512-0001-01

AC 1 Lid Handle End Cap-Left G617-0004-01

AD 1 Lid Handle End Cap-Right G617-0005-01

AE 1 Logo Plate G412-0001-01

AF 1 Thermometer G412-0003-01

AG 2 Screw for Top Lid G501-0005-01

AH 2 Lid Bumper G508-0063-01

BA 1 Burner Box Assembly G512-0200-01

BB 1 Upper Side Panel- Left G512-0300-01

BC 1 Upper Side Panel- Right G512-0400-01

BD 2 Main Burner-A G607-0700-A1

BE 1 Main Burner-B G502-1800-A1

BF 1 Carryover Assembly G502-0012-01

BG 3 Flame Tamer G617-0019-01

BH 3 Cooking Grate, Burner Box G512-0028-02

BI 1 Warming Rack G512-0004-01

BJ 1 Match Holder G608-0019-01

CA 1 Manifold Assembly G512-4300-01

CB 1 Regulator G433-0034-01

CC 1 Valve, Sideburner G512-0034-01

CD 1 Metal Hose, Sideburner G608-0039-01

CE1 1 Electronic Ignition Assembly G501-0072-02

CE2 1 Electronic Ignition Button G501-0072-01

CF1 1 Electrode Set, Main Burner G617-0017-01

CF2 1 Ground Wire, Main Burner G411-0004-01

CG 3 Control Knobs G412-4500-01

CH 1 Series Logo G512-0031-01

CI 1 Control Panel G512-0003-02

CJ 1 Front Brace G512-0043-01

CK 1 Grease Cup G416-0015-01

CL 1 Grease Tray G512-1000-01

CM 1 Upper Back Panel G512-0036-01

CN 1 Heat Shield G512-0026-01

CO 1 Tower Bar G511-0050-02

Item Qty. Description Part No.

DE 1 Cooking Grate, Sideburner G501-0077-01

DF 1 Lid- Sideburner G501-0070-01

DG 1 Side Shelf Table- Right G512-0500-01

DH 1 Side Shelf Fascia-Right G512-0005-01

EA 1 Cart Side Panel-Left G512-0700-01

EB 1 Cart Side Panel, Right G512-0800-01

EC 1 Pillar, Left G512-1100-01

ED 1 Pillar, Right G512-1200-01

EE 2 Magnet Assembly G501-0016-01

EF 1 Door Assembly G512-5200-01

EG 1 Bottom Shelf G512-0900-01

EH 2 Wheel with Lock G401-0061-01

EI 2 Wheel G606-0027-01

F1 1 Hardware Pack G512-B006-01

F2 1 Assembly Manual G512-M006-01

F3 1 Safety & Care Manual G412-M004-02

F4 1 Tank Screw G505-0047-01

DA 1 Side Shelf Table- Left G512-0600-01

DB 1 Side Shelf Fascia- Left G512-0006-01

DC 1 Side Burner Drip Pan G617-0035-01

DD1 1 Side Burner G433-1400-01

DD2 1 Electrode Set, Sideburner G433-0047-01

2 3

Page 4

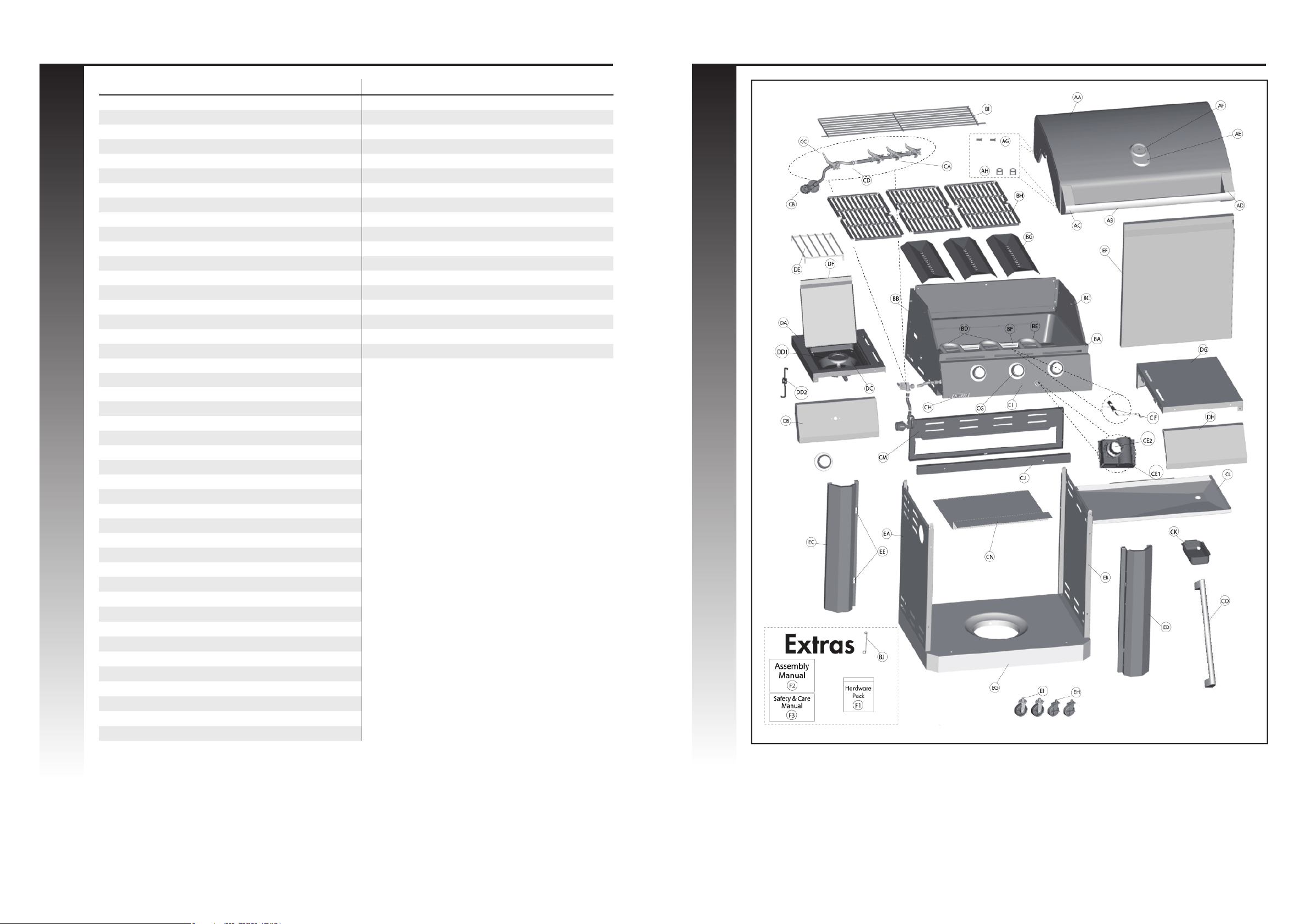

PARTS LIST (NATURAL GAS) FOR 85-1651-2 (G51209) EXPLODED DIAGRAM (NATURAL GAS) FOR 85-1651-2 (G51209)

Item Qty. Description Part No.

AA 1 Top Lid G512-2800-01

AB 1 Lid Handle G512-0001-01

AC 1 Lid Handle End Cap-Left G617-0004-01

AD 1 Lid Handle End Cap-Right G617-0005-01

AE 1 Logo Plate G412-0001-01

AF 1 Thermometer G412-0003-01

AG 2 Screw for Top Lid G501-0005-01

AH 2 Lid Bumper G508-0063-01

BA 1 Burner Box Assembly G512-0200-01

BB 1 Upper Side Panel- Left G512-0300-01

BC 1 Upper Side Panel- Right G512-0400-01

BD 2 Main Burner-A G607-0700-A1

BE 1 Main Burner-B G502-1800-A1

BF 1 Carryover Assembly G502-0012-01

BG 3 Flame Tamer G617-0019-01

BH 3 Cooking Grates G512-0028-02

BI 1 Warming Rack G512-0004-01

BJ 1 Match Holder G608-0019-01

CA 1 Manifold Assembly G512-5900-01

CB 1 Natural Gas Hose G501-0099-01

CC 1 Valve, Sideburner G512-0037-01

CD 1 Metal Hose, Sideburner G608-0039-01

CE1 1 Electronic Igniter Assembly G501-0072-02

CE2 1 Electronic Ignition Button G501-0072-01

CF1 1 Electrode Set, Main Burner G617-0017-01

CF2 1 Ground Wire, Main Burner G411-0004-01

CG 3 Control Knob Assembly G412-4500-01

CH 1 Series Logo

CI 1 Control Panel G512-0003-02

CJ 1 Front Brace G512-0043-01

CK 1 Grease Cup G416-0015-01

CL 1 Grease Tray G512-1000-01

CM 1 Upper Back Panel G512-0036-01

CN 1 Heat Shield G512-0026-01

CO 1 Towel Bar G511-0050-02

G512-0031-01

Item Qty. Description Part No.

DD2 1 Electrode Set, Sideburner G433-0047-01

DE 1 Cooking Grate, Sideburner G501-0077-01

DF 1 Lid F/ Sideburner G501-0070-01

DG 1 Side Shelf Table- Right G512-0500-01

DH 1 Side Shelf Fascia-Right G512-0005-01

EA 1 Cart Side Panel-Left G512-0700-01

EB 1 Cart Side Panel, Right G512-0800-01

EC 1 Pillar, Left G512-1100-01

ED 1 Pillar, Right G512-1200-01

EE 2 Magnet Assembly G501-0016-01

EF 1 Door Assembly G512-5200-01

EG 1 Bottom Shelf G512-2500-01

EH 2 Wheel with Lock G401-0061-01

EI 2 Wheel G606-0027-01

F1 1

F2 1

F3 1

F4 1 Tank Screw G505-0047-01

Hardware Pack

Assembly Manual

Safety & Care Manual

G512-B001-01

G512-M006-01

G412-M004-02

DA 1 Side Shelf Table- Left G512-0600-01

DB 1 Side Shelf Fascia- Left G512-0006-01

DC 1 Side Burner Drip Pan G617-0035-01

DD1 1 Side Burner G433-1400-01

4 5

Page 5

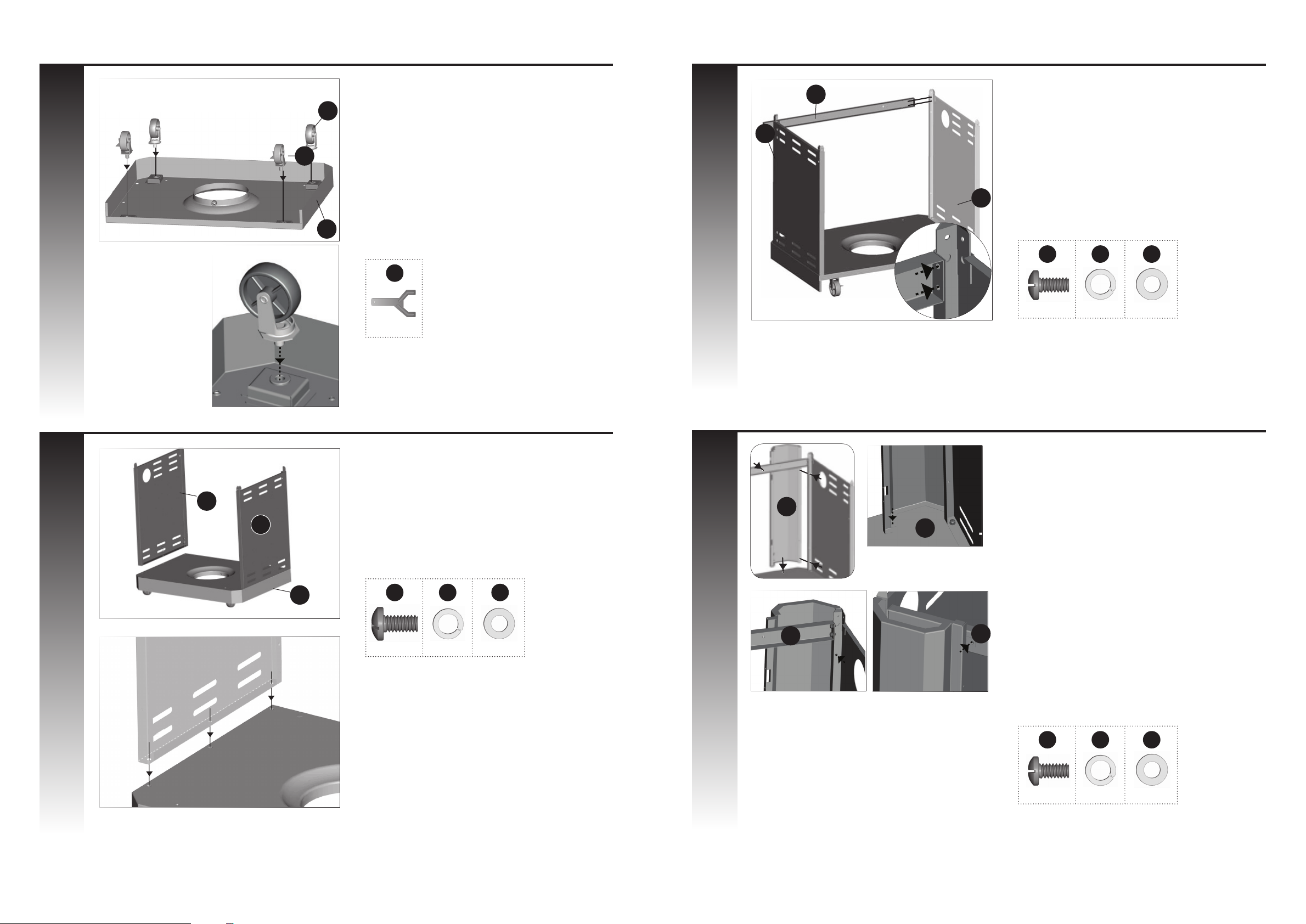

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

Separate the 2 di erent types of wheels, 2 locking wheels (EH) and 2 regular wheels (EI).

Attach the locking wheels (EH) to the back of the bottom shelf (EG) and the regular wheels (EI) to the front of the bottom shelf (EG).

To secure the 4 wheels, hand tighten  rst. Then, tighten further using the wrench provided in the hardware pack.

YOU WILL NEED:

X 1

Back view

Attach the front brace (CJ) to the left and right cart side panels (EA and EB)

TIP: One person should align the left side, while

the second person assembles the right side.

YOU WILL NEED:

X 4 X 4 X 4

Front view

Close up

Ensure that the wheels are  rmly locked in the “ON” position before continuing.

Assemble the left side panel (EA) and the right side panel (EB) to the bottom shelf (EG).

YOU WILL NEED:

X 6

X 6 X 6

Assemble the left and right pillars (EC and ED), to the cart side panels, as shown in  gure A and B.

Next, assemble the left and right pillars to the front brace (CJ) and the bottom shelf (EG), as shown in  gure C and D.

TIP: One person should align the left side, while

the second person assembles the right side.

YOU WILL NEED:

Close up

6 7

6 7 8

X 8 X 8 X 8

876

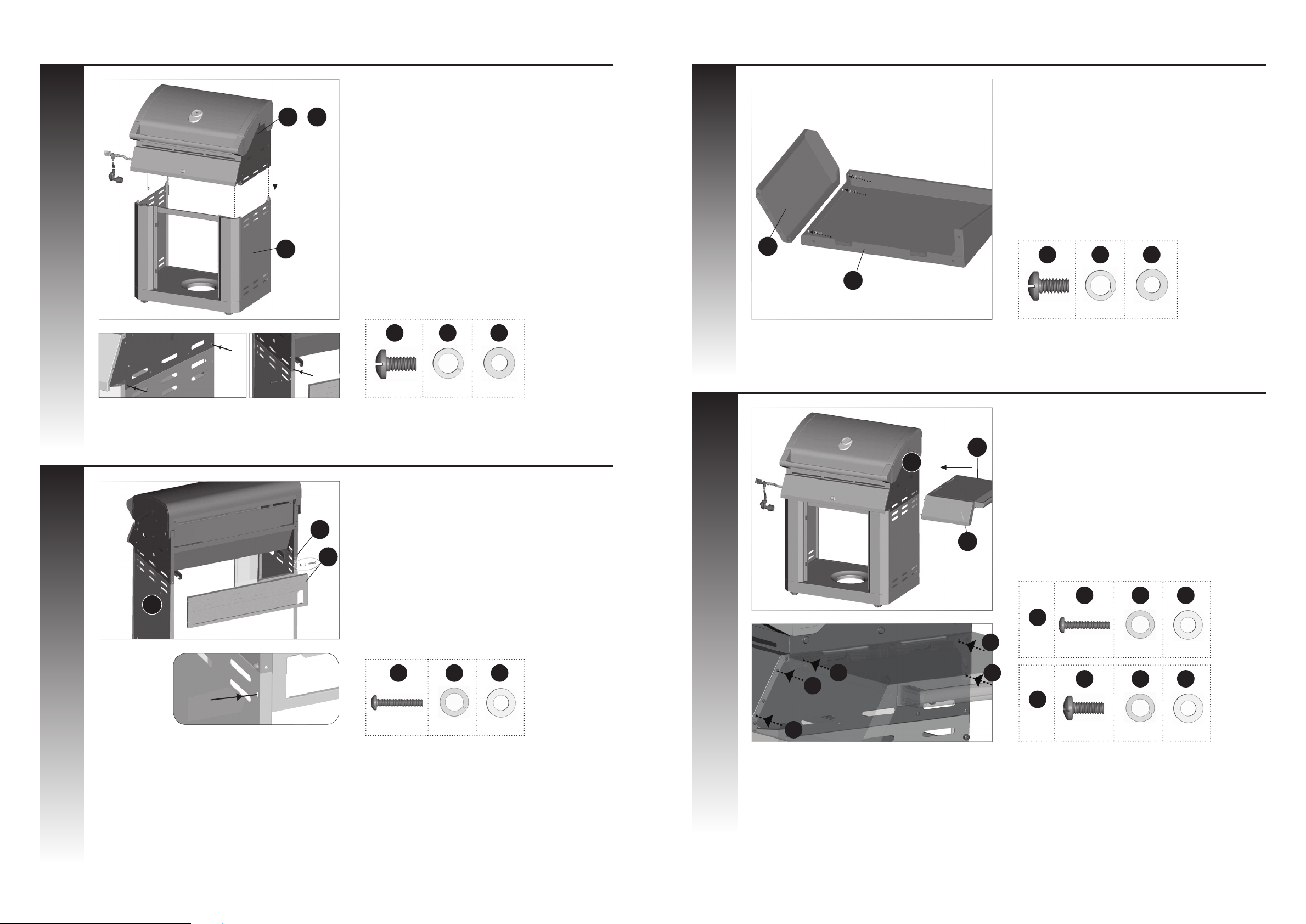

Page 6

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

B C

A + B

THIS STEP REQUIRES 3 OR MORE PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY.

a. Position the top lid and burner box assembly

(A and B) onto cart assembly (C) as shown.

b. Use the hardware to connect both parts, on

the left and right sides, at the three points indicated in Figure B and C.

YOU WILL NEED:

6 7 8

X 6

876

X 6

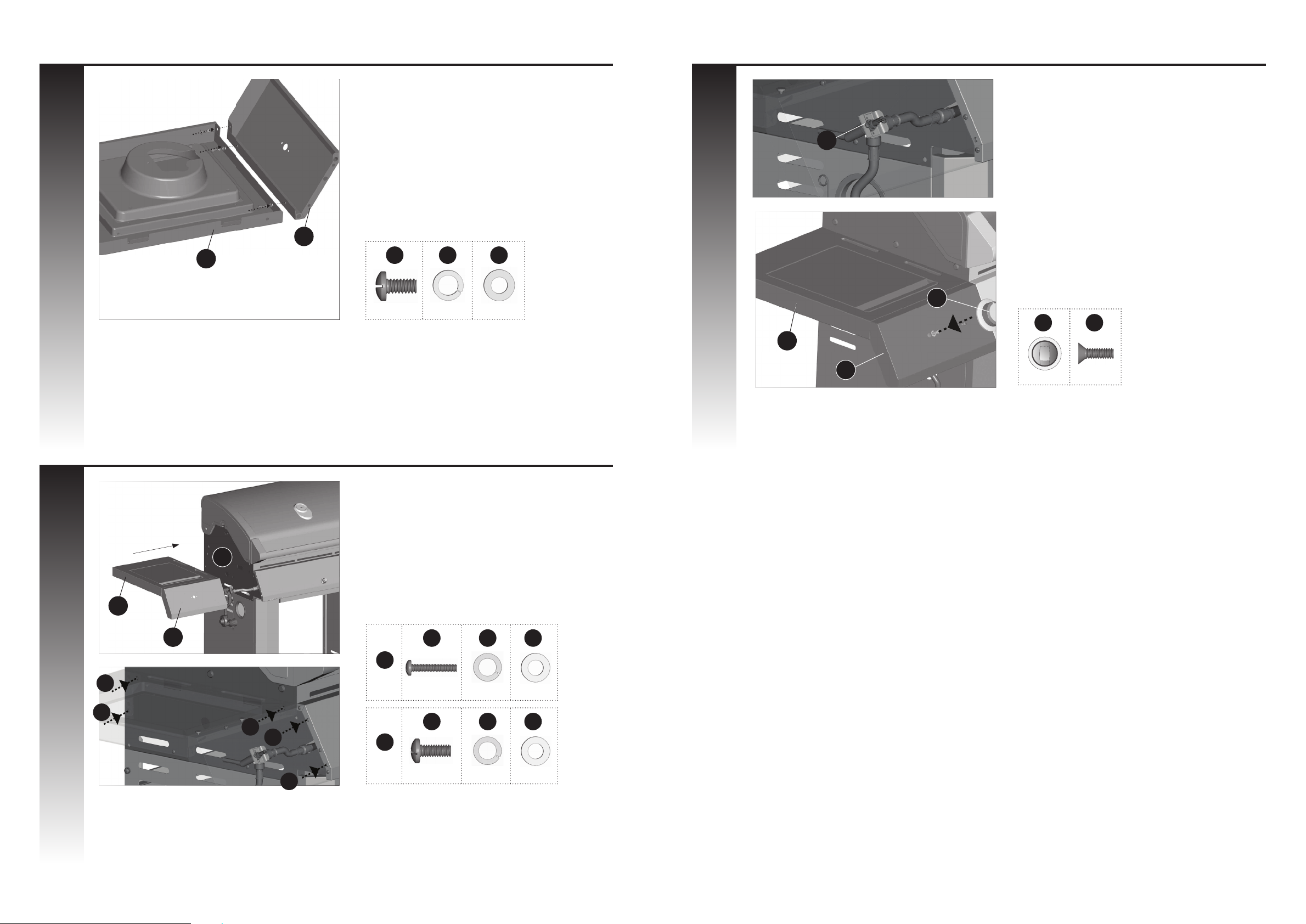

Attach the right side shelf fascia (DH) to the right side shelf table (DG), as shown.

YOU WILL NEED:

6 7 8

X 3 X 3 X 3

876

Back view

Attach the upper back panel (CM) to both the left and right side panels (EA and EB).

Only install hardware in the bottom portion of the back panel, as shown in  gure B.

DO NOT TIGHTEN SCREWS UNTIL SIDE SHELF HAS BEEN INSTALLED

YOU WILL NEED:

2 4 5

X 2

TIP: To position the right side shelf, insert the two

hooks on the side shelf assembly into the two

openings located on the right upper side panel (BC).

Assemble the right side shelf assembly to the car t assembly, as shown in  gure B.

DO NOT TIGHTEN SCREWS UNTIL THE SIDE SHELF HAS BEEN INSTALLED.

YOU WILL NEED:

X 4 X 4 X 4

X 1X 1X 1

8 9

Page 7

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

Front

Attach the left shelf fascia (DB) to the left side shelf table (DA).

YOU WILL NEED:

6 7 8

X 3 X 3 X 3

876

Remove the hardware that is pre-assembled to the side burner valve bracket (CC), as shown in  gure A. Insert the side burner valve stem through the rear of the left side shelf fascia (DB). Assemble the side burner valve to the side shelf fascia, using the hardware removed.

Assemble the side burner control knob (#12) to the side burner valve (CC).

Hardware may be included with the hardware pack.

YOU WILL NEED:

X 1

X 2

TIP: To position the left side shelf, insert the two

hooks on the side shelf assembly into the two openings located on the upper left side panel (BB).

Assemble the right side shelf assembly to the cart assembly, as shown in  gure B.

YOU WILL NEED:

X 4 X 4 X 4

X 1X 1X 1

10 11

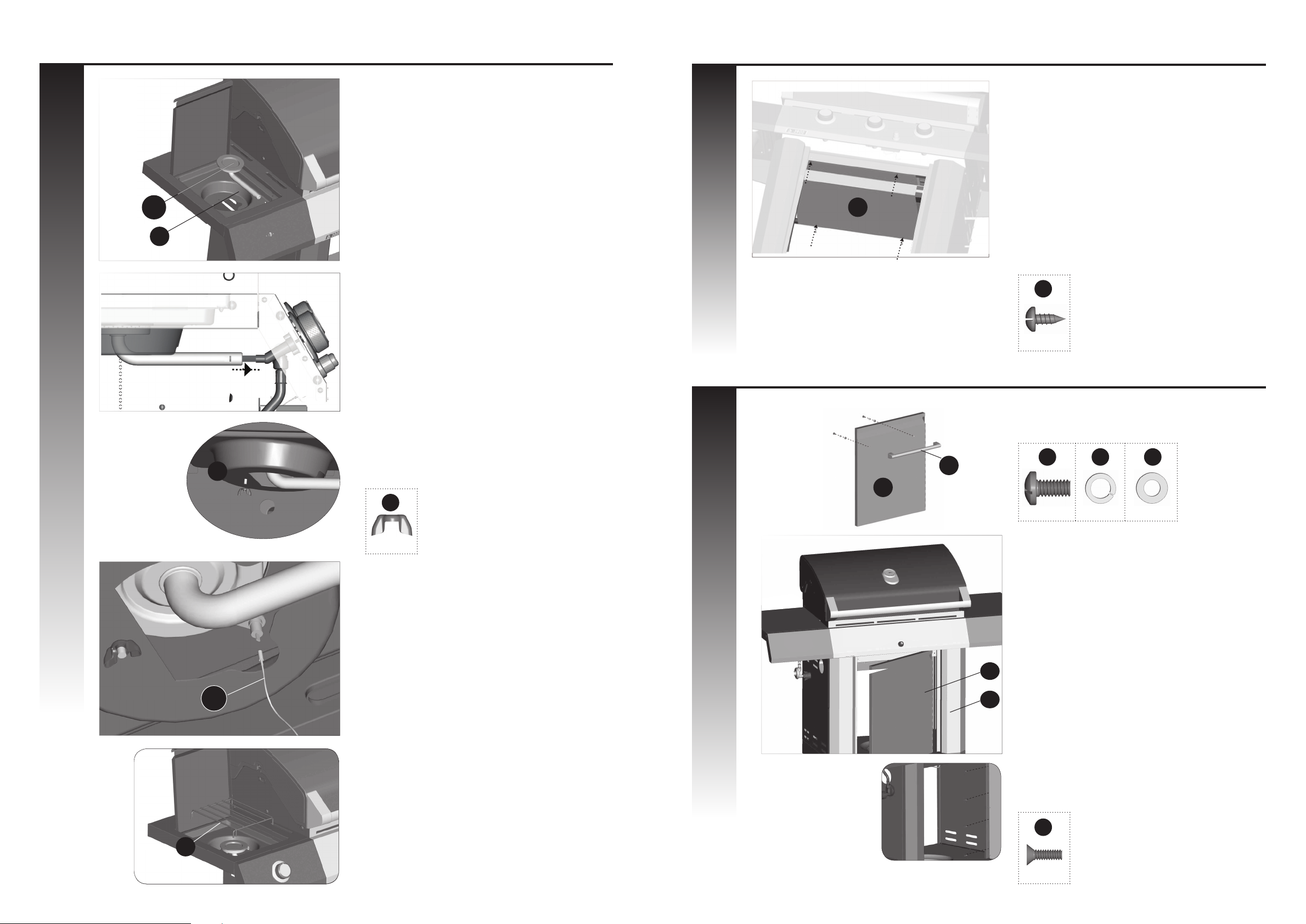

Page 8

ASSEMBLY INSTRUCTIONS

DD1

Underside view

a. Position the side burner (DD1) through the

opening in the left side burner drip pan (DC).

b. Make sure that the side burner (DD1) engages

the side burner valve (CC) as shown in  gure B.

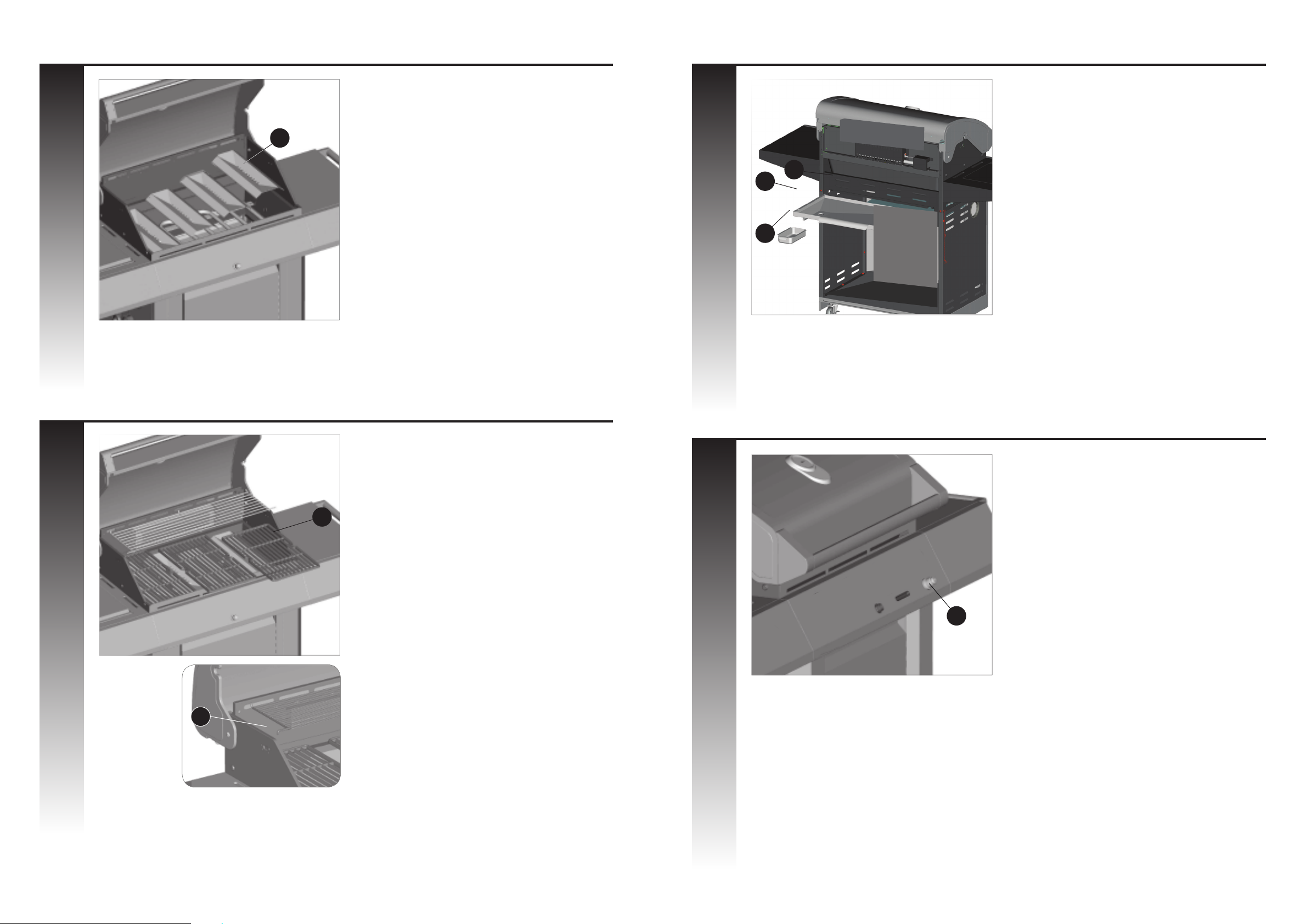

Place the heat shield (CN) into the groove which is located at the back side of the front panel as shown in  gure A. Next, attach the heat shield (CN) to the upper back panel (CM) by using the self tapping screws (x 4), as shown in  gure B.

THE HEAT SHIELD RESTS BELOW THE FRONT BRACE AND BACK PANEL.

YOU WILL NEED:

X 4

c. Assemble the towel bar (CO) onto door (EF).

DD2

c. Using the wing nut provided, assemble the

side burner to the side burner drip pan (DC), as shown in  gure C.

YOU WILL NEED:

X 1

d. Attach the end of the side burner electrode

wire (DD2) to the underside of the side burner electrode, as shown in  gure D.

Ensure that the wire is pushed in  rmly.

YOU WILL NEED:

1 4 5

X 2 X 2 X 2

TIP: Before attempting to assemble the door (EF)

to the right pillar (ED), locate the two clasps on the door Hinge. Next, locate the two small openings on the right side pillar.

a. Hold the door perpendicular to the BBQ Cart.

Align the two clasps on the door hinge (EF), with the two holes on the right side pillar (ED). Once aligned push the two clasps into the openings, and immediately push down to lock clasps in place.

876

e. Place the side burner cooking grate(DE) into

postion on the side burner shelf, as shown in  gure E.

12 13

b. Assemble the door (EF) to the right pillar (ED),

as shown in  gure B, using the screws provided.

YOU WILL NEED:

X 4

Page 9

ASSEMBLY INSTRUCTIONS

Model may not be exactly as shown.

Place the  ame tamers (BG) into the burner box.

a. Insert the grease tray (CL) into the opening

in the upper back panel (CM), making sure to engage tracks located under burner box.

b. Place the grease cup (CK) onto the tracks, lo-

cated on the underside of the grease tray (CL).

a. Place the cooking grates (BH) into the burner

box, as shown in  gure A.

b. Insert the three small positioning rods of the

warming rack (BI) into the rear panel of the burner box.

Unscrew the electronic ignitor button (CE2) and insert one AA battery into the electronic igniter battery compartment, with the positive end facing outward.

* Battery not included.

CE2

14 15

Page 10

ASSEMBLY INSTRUCTIONS

FOR PROPANE MODEL ONLY.

For natural gas model, follow step 20.

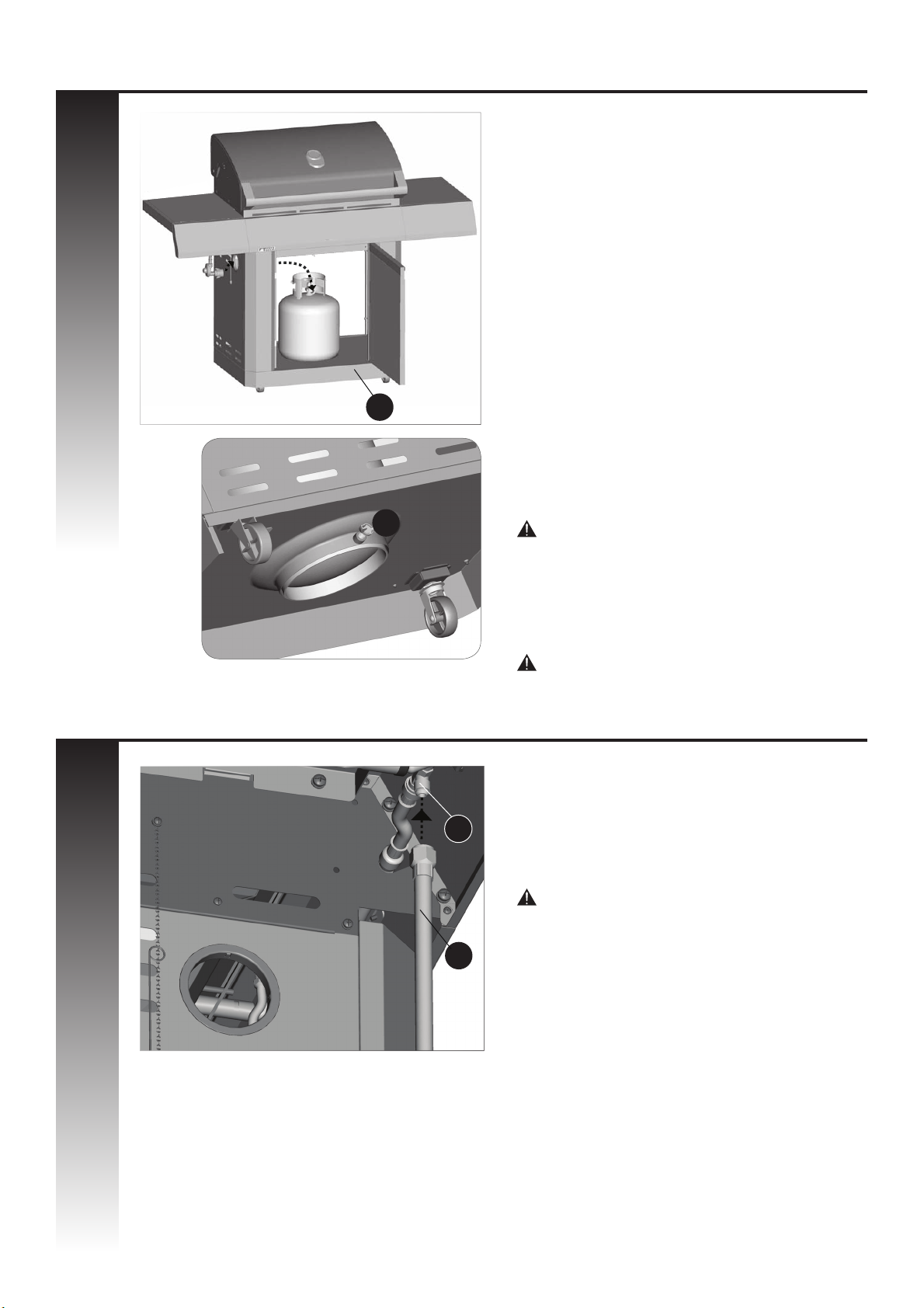

a. Position the 20 lb propane tank onto the

bottom shelf (EG), and secure using the bolt (already attached) located on the underside of the bottom shelf, as shown in  gure B.

b. Attach the regulator coupling nut to the LP

cylinder valve.

ATTENTION: For your families safety, do

not attempt to light this BBQ until you have reviewed pages 4-7 of the CENTRO Safety & Care Manual. All Safety and Leak test MUST BE PERFORMED BY THE END USER, prior to lighting this BBQ.

WARNING

Do not store extra propane tanks within BBQ cart.

FOR NATURAL GAS MODEL ONLY.

Attach the natural gas hose (CB) to the side burner valve (CC) as shown.

ATTENTION: In order to complete installation of your Natural Gas BBQ a 1/2” or 3/8” adapter may be required to connect your BBQ’s Natural Gas hose to your home gas supply. Contact your Natural Gas supplier to purchase the necessary part.
