Page 1
iPod CD Radio
Music System
Owner’s Manual
1315238
IMPORTANT: Please read all instructions carefully before use and
keep for future reference
Page 2
2
Introduction
Thank you for choosing this iPod CD Radio Music System.
Not only does it play CDs and receive radio stations, but you can also
listen to your favourite tracks on your iPod while charging it.
It’s really easy to use; you can save your favourite radio stations to
memory and program your CD tracks in an order to suit you. You can
also fully operate your iPod from the remote control.
IMPORTANT: Use of any electrical equipment should be undertaken
with care. Please read the safety section on pages 15 and 16 before
using your Centrios Micro Sytem. This appliance is for household
use only.
An audio system that allows docking of an iPod and which fully
supports the iPod menu system.
“Made for iPod” means that an electronic accessory has been
designed to connect specifically to iPod and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc.,
registered in the US and other countries.
.
Page 3
3

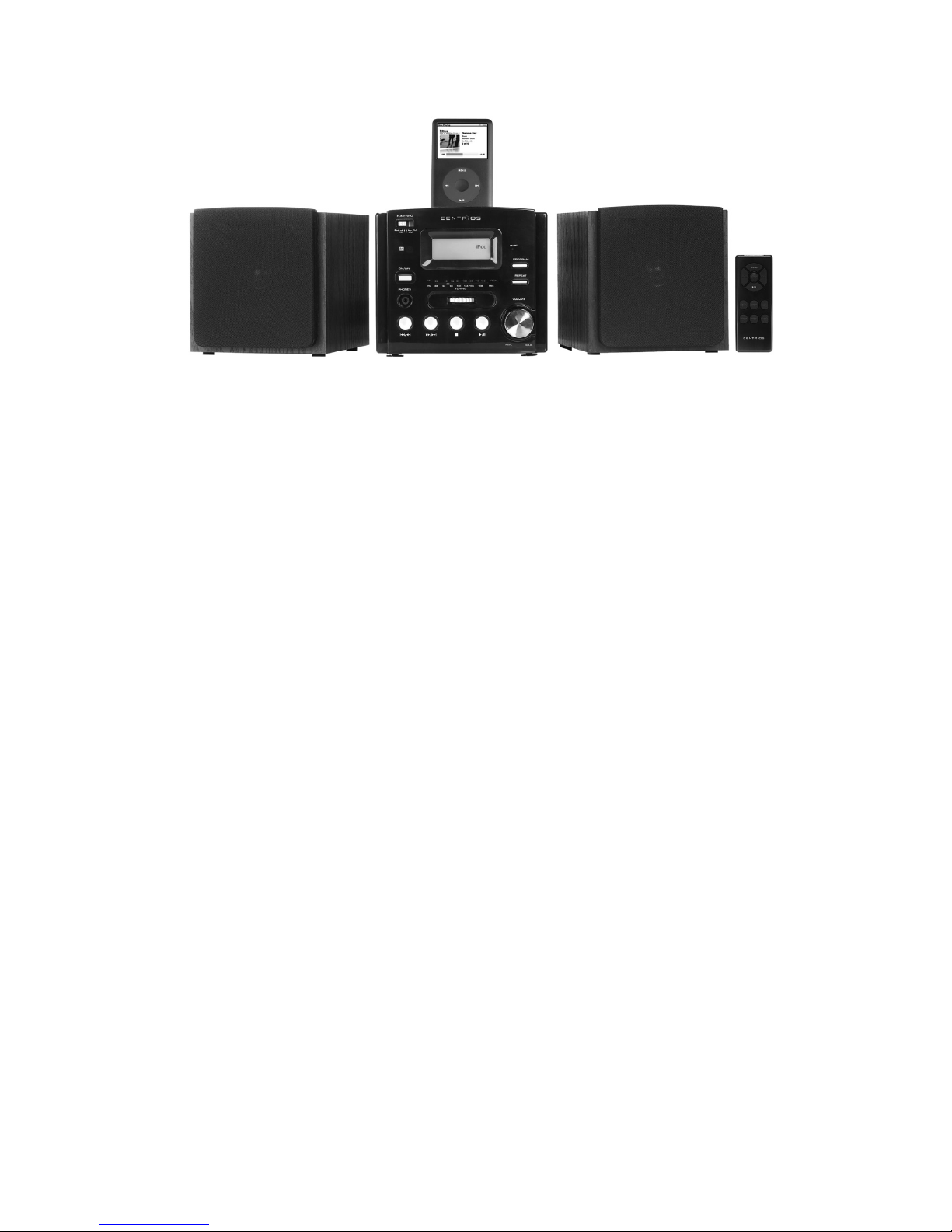

What’s in the box
1 x Centrios Micro System
2 x External speakers
1 x Remote control
8 x iPod dock adapters (not shown)
(CD and iPod not included)
Contents
1. Getting started
2. Using the radio
3. Using the iPod dock
4. Using the CD
5. Troubleshooting
6. Specifications
7. Safety
Page 4
4
Your Centrios Micro System
Front View
1. CD Door
2. iPod Dock
3. Function Button
4. Remote Control Sensor
5. ON/OFF Button
6. Dial Pointer Window
7. Earphone Socket
8. SKIP |<< Button
9. SKIP |>> Button
10. Stop Button
11. PLAY/PAUSE Button
12. Volume Button
13. LCD Display
14. FM Stereo Indicator
15. Program Button
16. Repeat Button
17. Tuning Control
Rear View
18. FM Antenna
19. Speaker Terminals
20. Main Power Input
1 2
3
4
5
6
7
8 9 10 11 12
13
14
15
16
17
18
19
20
Page 5
5
Your Centrios Micro System
Remote Control
1. Menu Button
2. SKIP |<< Button
3. Play/Pause Button
4. Down Button
5. Repeat Button
6. Enter Button
7. SKIP >>| Button
8. Stop Button
9. Up Button
10. Random Button
11. Prog Button
1
6
7
8
9
10
11
2
3
4
5
Page 6
6
1. Getting Started
The remote control battery

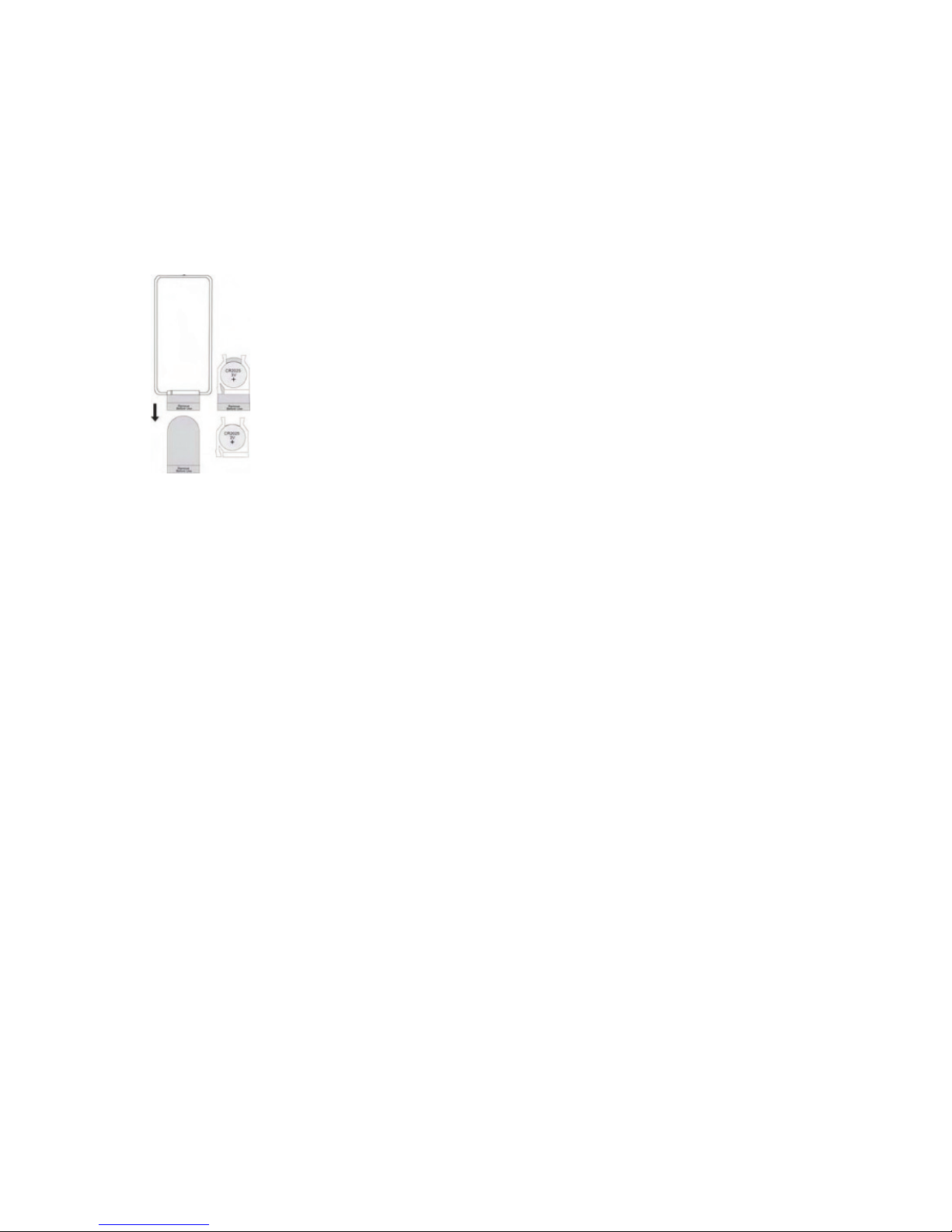

To preserve the battery life prior to first use, there is a small plastic tab
inserted between the battery and the terminal inside the remote control.
Please remove this tab before using the remote control. To remove the
tab, pull it in the direction of the arrow in the illustration below.
If the operation of the remote control becomes
intermittent or unsatisfactory, replace the original
battery with a new 3-volt lithium battery.
Don’t Forget: When replacing the battery, always
ensure the same size and type is used. Make sure that
the battery polarity is observed. Inserting the battery
incorrectly could result in battery leakage or damage
to the unit.
Connecting to power
Before switching on make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. For your own
safety read the following instructions carefully before attempting to
connect this unit to the main power supply.
AC operation
This unit is designed to operate on AC 120V 60Hz power supply only.
Connecting it to other power sources may damage the unit.
Page 7
7
2. Using the radio
Basic operation
1. Press the ON/OFF button on the main unit to power on the unit.
2. Slide the FUNCTION button on the unit to select Radio mode
(AM or FM)
3. Tune to the station you want by turning the TUNING knob.
4. To turn off the unit, press the ON/OF button.
Antenna
Don’t Forget: For optimum FM reception there is a built-in FM antenna
wire on the back of the unit. Move the wire around to get the best
reception. This unit is also has a built-in directional ferrite antenna. If AM
reception is poor, you may have to move the unit slightly until you find a
better position that gives you a better reception.
Page 8
8
3. Using the iPod dock
Inserting and removing the iPod
1. Press the ON/OFF button.
2. Slide the FUNCTION button to select iPod mode.
3. Carefully insert your iPod into the iPod dock.
Don’t Forget: Use the correct iPod dock adapter for your model, taking
care not to damage the connecting pins. Always ensure care is taken
when inserting or removing your iPod from the connector.
Using the iPod menu system
1. Select iPod mode using the FUNCTION button.
2. Carefully insert your iPod unit into the dock.
3. Press the MENU button once on the remote control to enter the iPod
menu system.
4. Press “UP”, and “DOWN” on the remote control to navigate the
various features of the iPod menu system as you would when using the
iPod control buttons.
5. Press the ENTER button on the remote control to confirm
your selection.
Playback and charging your iPod
1. Select iPod mode using the FUNCTION button.
2. Insert your iPod into the dock and press the PLAY/PAUSE button to
start playback.
3. Press the PLAY/PAUSE button to pause playback. Press this button
again to resume playback.
4. When your iPod is docked in the unit, the internal battery will
be charged.
Page 9
9
4. Using the CD
Handling CDs

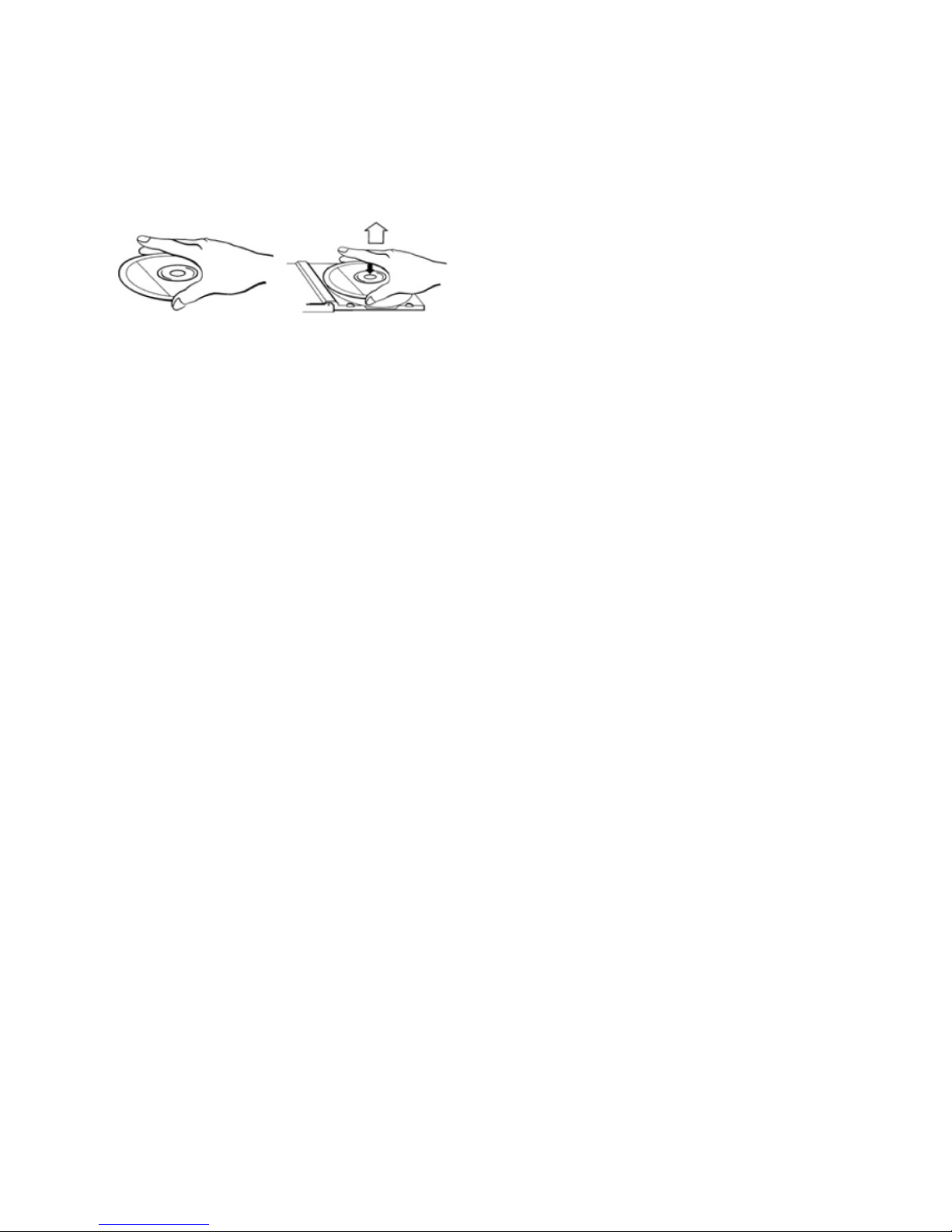

To remove a disc from its storage case, press down on the centre of the
case and lift the disc out, holding it carefully by the edges.
Fingerprints and dust should be
carefully wiped off the disc’s
recorded surface with a soft cloth
before use.
Don’t Forget: Never use chemicals such as record sprays, antistatic
sprays, benzene, or thinners to clean compact discs. These chemicals
can damage the disc’s surface.
Loading and unloading CDs
1. Press the ON/OFF Button to turn on the unit.
2. Slide the FUNCTION button to select CD mode.
3. Open the disc compartment by pressing the door release catch
marked “OPEN/CLOSE” on the CD door.
4. When the disc compartment has opened, remove a disc from its
case and place it carefully onto the tray with the label side facing
outwards.
Don’t Forget: Do not put anything except a compact disc into the
compartment. Other objects may damage the unit.
5. Press down on the CD door until it latches into the closed position.
6. When the compartment is fully closed, the disc will be read
automatically. The total number of tracks on the CD will appear on
the LCD display.
Don’t Forget: Keep the disc compartment closed when not in use to
prevent dirt and dust from entering the mechanism. Never place more
than one disc into the disc compartment at any time.
Playing CDs
1. Select CD mode with the Function button.
2. Press the PLAY/PAUSE button once to begin playback of the CD
from the first track.
Page 10
10
3. Press the PLAY/PAUSE button once to pause playback of the CD;
the track numberwill flash in the display.
4. To resume playback, press the PLAY/PAUSE button again.
5. To stop playback, press the STOP button.
Selecting a different CD track
1. Press the SKIP buttons to skip forwards or backwards through the
tracks on the CD.
2. Press and hold the SKIP buttons to fast forward or back through the
current track.
3. When the desired part of the track is reached, release the button
and playback will resume.
Play Mode
1. To repeat the current track, press the REPEAT button once.
“REPEAT 1” will show on the display.
2. To repeat the entire disc, press the REPEAT button twice. “REPEAT
ALL” will show in the display.
3. To cancel repeat play, press the STOP button or press the REPEAT
button until the repeat indicator disappears.
Random CD playback
1. Press the RANDOM button on the remote control, “RANDOM” will
show in the display, and the tracks will be played in a random order.
2. To cancel random play, press the STOP button or press the
RANDOM button until the random indicator disappears
Earphone Socket
Connect earphones to the socket marked “PHONES” on the front of the
unit. The sound output to the speakers will be muted while you listen
with earphones connected.
Page 11
11
Programmed CD playback
Up to 20 tracks can be programmed to the internal memory in any
order. You may also store the same track more than once.
1. In stop mode, press the PROG button. “O1” will show in the display.
2. Select the desired track by pressing the Skip |<< or >>| buttons.
3. When the desired track is chosen, press the PROG button to store
the track.
4. “O2” will show in the display. Repeat steps 2 and 3 to select and
store up to 20 tracks.
5. To listen to stored tracks, press the PLAY/PAUSE button. Use the
Skip |<< >>| buttons to skip forwards or backwards through the
tracks.
6. To clear the memory, press the STOP button twice.
Page 12
12
6. Troubleshooting
RadioTroubleshooting
Problem Possible cause Solution
Noise or sound distorted Station not tuned properly Fine tune Am or FM
on AM or FM for AM or FM broadcast station
FM: the FM antenna wire Extend FM wire antenna
is not extended
AM: The built-in ferrite bar Reposition the unit until
antenna is not positioned the best reception is
correctly obtained
FM stereo indicator Mono is selected Press ST/MO button
doesn’t light up
You have tuned in to a Retune to another FM station
mono station
The signal is to weak Retune to another FM station
No sound in AM Unit not in radio mode Slide the FUNCTION button
FM Mode to select Radio mode
Volume is at the Adjust volume level
minimum position
CD Player Troubleshooting
Problem Possible cause Solution
CD Player will not play Unit not in CD mode Select CD Mode
CD is not installed correctly Load a CD and check it is
the correct way around
CD skips while playing Disc is dirty or scratched Wipe the disc with a cloth
or use another disc
Page 13
13
6. Specifications
Model Number 1315238
Power Supply AC: 120V ~ 60 Hz
Power Consumption 15W
Radio frequency coverage FM: 88 - 108 MHz
AM: 530 - 1710 KHz
Speaker system 4 Ohm
Power output Watts 2W x 2
Dimensions Unit: 170(W) x 240(D) x 145(H)
Speaker: 145 (W) x 196 (D) x 140(H)
Important: Due to continual revision and improvements to our product’s
design, specifications are subject to change without notice.
Page 14
14
7. Safety
Sound Levels
Your hearing is important to you and to us so please take care when
operating this equipment. It is strongly recommended that you follow
the guidelines in order to prevent possible damage to, or loss of
hearing. Over time your hearing will adapt to continuous load sounds
and will give the impression that the volume has in fact been reduced.
What seems normal to you may in fact be harmful. To guard against
this, set the initial volume of the equipment to a low level.
Follow the steps below to ensure that the product can be enjoyed at a
comfortable listening level:
1. Slowly increase the level until you can hear comfortably and clearly
and without distortion.
2. Damage to your hearing is accumulative and irreversible. Any
“ringing” or discomfort in the ears indicates that the volume is
too loud.
3. Once you have established a comfortable listening level, do not
increase the volume level.
General Safety
Do read these operating instructions before you attempt to use
the equipment.
Do ensure that all electrical connections (including the mains plug,
extension leads and interconnections between pieces of equipment)
are properly made in accordance with the manufacturer’s instructions.
Switch off and remove the main plug when making or changing
any connections.
Do not continue to operate the equipment if you are ever in doubt
about it working normally, or if it is damaged in any way. Switch it off
withdraw the mains plug and consult your dealer.
Do not remove any fixed covers, this may expose you to dangerous voltages.
Do not obstruct the ventilation vents on the equipment, for example
with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the product.
Do not allow electrical equipment to be exposed to rain or moisture.
Page 15
15
THE SOURCE WARRANTY
The Source warrants that this product will be free from defects
in materials and workmanship for a period of one (1) year
from the date of purchase. Within this period, simply take the
product and your proof of purchase to any The Source store
or dealer and the product will be repaired without charge for
parts and labour. The Source reserves the right to charge
for transportation. Any product which has been subject to
misuse or accidental damage is excluded from this warranty.
This warranty is only applicable to a product purchased
through The Source company owned stores and dealers and
to a product that is presented for repair in a country where The
Source offers the product for sale. While this warranty does not
confer any legal rights other than those set out above, you may
have additional statutory rights which will vary under the laws of
the various countries, states, province and other governmental
entities in which The Source operates. This warranty is subject
to all statutory rights you may have in the country of purchase.
Limited Warranty
© 2009 The Source.
All Rights Reserved.
Imported by:
The Source,
Barrie, Ontario, Canada, L4M 4W5
Manufactured in China
For product support please contact
www.thesource.ca
The FCC Wants You To Know
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the
receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit
different from that to which the receiver is connected;
4) consult the dealer or an experienced radio/TV technician for additional
suggestions.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment. Where shielded interface cables have been provided with the product or specied additional components or accessories
elsewhere dened to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.
Canadian DOC statement
DOC Class B Compliance - This Class B digital apparatus complies with Canadian ICES-003.
Loading...
