Page 1
Air Palm Nailer
Item 68027
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
Copyright© 2010 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
Manual Revised 11d
Page 2
Page 2 For technical questions, please call 1-800-444-3353. SKU 68027
Save This Manual
Keep this manual for the safety warnings and
precautions, assembly, operating, inspection,
maintenance and cleaning procedures. Write the
product’s serial number in the back of the manual near
the assembly diagram (or month and year of purchase
if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
Safety Alert Symbol
and Signal Words
In this manual, on the labeling, and all other
information provided with this product:
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
DANGER indicates a hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices
not related to personal injury.
CAUTION, without the safety alert symbol, is used
to address practices not related to personal injury.
Symbol Denitions
Symbol Property or statement
PSI
Pounds per square inch of pressure
CFM
Cubic Feet per Minute ow
SCFM
Cubic Feet per Minute ow
at standard conditions
NPT
National pipe thread, tapered
Chart continued in next column.
Symbol Property or statement
BPM
Blows per minute
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Warning marking concerning
Risk of Puncture Injury. Wear
heavy-duty work gloves.
Read the manual before
set-up and/or use.
WARNING marking concerning Risk of
Hearing Loss. Wear hearing protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSHapproved dust mask/respirator.
WARNING marking concerning
Risk of Explosion.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY
TO PERSONS
WARNING – When using tools, basic precautions
should always be followed, including the following:
General
To reduce the risks of electric shock,
re, and injury to persons, read all the
instructions before using the tool.
Work area
a. Keep the work area clean and well lighted.
Cluttered benches and dark areas increase the
risks of electric shock, re, and injury to persons.
b. Do not operate the tool in explosive atmospheres,
such as in the presence of ammable liquids,
gases, or dust. The tool is able to create sparks
resulting in the ignition of the dust or fumes.
c. Keep bystanders, children, and visitors away
while operating the tool. Distractions are able
to result in the loss of control of the tool.
Page 3
Page 3For technical questions, please call 1-800-444-3353.SKU 68027
Personal safety
a. Stay alert. Watch what you are doing and
use common sense when operating the tool.
Do not use the tool while tired or under the
inuence of drugs, alcohol, or medication.
A moment of inattention while operating the
tool increases the risk of injury to persons.
b. Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep hair, clothing, and
gloves away from moving parts. Loose clothes,
jewelry, or long hair increases the risk of injury to
persons as a result of being caught in moving parts.
c. Do not overreach. Keep proper footing
and balance at all times. Proper footing
and balance enables better control of
the tool in unexpected situations.
d. Use safety equipment. A dust mask,
non-skid safety shoes and a hard hat
must be used for the applicable
conditions. Wear heavy-duty work
gloves during use.
e. Always wear eye protection.
Wear ANSI-approved safety goggles
with side shields.
f.
Always wear hearing protection when
using the tool. Prolonged exposure to
high intensity noise is able to cause
hearing loss.
g. Do not attach the hose or tool to your body.
Attach the hose to the structure to reduce the
risk of loss of balance if the hose shifts.
Tool use and care
a. Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against the body
is unstable and can lead to loss of control.
b. Do not force the tool. Use the correct tool for the
application. The correct tool will do the job better
and safer at the rate for which the tool is designed.
c. Disconnect the tool from the air source
before making adjustments, doing tool
maintenance, clearing jams, touching the
safety nosepiece, leaving work area, loading,
or unloading the tool. Such precautionary
measures reduce the risk of injury to persons.
d. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the hands of untrained users.
e. Maintain the tool with care.
A properly maintained tool reduces the risk
of binding and is easier to control.
f. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that affects the tool’s operation. If damaged,
have the tool serviced before using. Many accidents
are caused by poorly maintained tools.
There is a risk of bursting if the tool is damaged.
g. Use only accessories that are identied by the
manufacturer for the specic tool model. Use of
an accessory not intended for use with the specic
tool model, increases the risk of injury to persons.
h. Use only those fasteners listed in the
Specications chart of this manual.
Fasteners not identied for use with this tool by
the tool manufacturer run the risk of injury to
persons or tool damage when used in this tool.
Service
a. Tool service must be performed only
by qualied repair personnel.
b. When servicing a tool, use only identical
replacement parts. Use only authorized parts.
c. Use only the lubricants supplied with the
tool or specied by the manufacturer.
Air source
a. Never connect to an air source that is
capable of exceeding 200 PSI.
Over pressurizing the tool may cause
bursting, abnormal operation, breakage
of the tool or serious injury to persons.
Use only clean, dry, regulated compressed air at the
rated pressure or within the rated pressure range as
marked on the tool. Always verify prior to using the
tool that the air source has been adjusted to the rated
air pressure or within the rated air-pressure range.
b. Never use oxygen, carbon dioxide, combustible
gases or any bottled gas as an air source
for the tool. Such gases are capable of
explosion and serious injury to persons.
SAVE THESE
INSTRUCTIONS.
Palm Nailer Specic Instructions
1. Operators and others in work area MUST
wear ANSI-approved safety goggles with
side shields during use. The employer is
responsible to enforce the use of eye protection
by the operator and others in the work area.
Page 4
Page 4 For technical questions, please call 1-800-444-3353. SKU 68027
2. Do not point the tool toward yourself or
anyone whether it contains nails or not.
3. Respect the tool as a working implement.
4. No horseplay. This tool is not a toy and
can be dangerous if misused.
5. Disconnect the tool from the air supply when:
a. Unattended.
b. Performing any maintenance or repair.
c. Moving the tool to a new location.
6. Do not make any modications to this tool.
7. Refer to the tool maintenance instructions for detailed
information on the proper maintenance of the tool.
8. Fire fasteners into an appropriate work surface
only. Do not attempt to re fasteners into surfaces
too hard to penetrate. Do not drive fasteners on
top of other fasteners, or at too steep of an angle.
Fasteners can ricochet causing personal injury.
9. Do not re fasteners too close to the edge of
a workpiece. They may split the workpiece
and y free, causing personal injury.
10. Keep clear of the workpiece near the area being
fastened. Fasteners may bend sideways during
ring, causing them to exit the workpiece at an
unexpected point, causing personal injury.
11. Transport Tool safely. Always disconnect air
supply when moving the tool. Carry the tool by
the handle and avoid contact with the trigger.
12. Hold tool away from head and body. During
operation the Tool may kick back causing injury.
13. Do not re fasteners into a workpiece that has people,
utility lines, or other objects behind or inside it.
14. Keep balance while using this tool. Keep
area below clear if working in an elevated
location, and secure air hose to prevent falls
from bystanders accidentally pulling on it.
15. Obey the manual for the air compressor
used to power this tool.
16. Install an in-line shutoff valve to allow
immediate control over the air supply in an
emergency, even if a hose is ruptured.
17. Do not engrave or stamp anything into
the housing to avoid weakening it.
18. WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities, contains chemicals
known [to the State of California] to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement
or other masonry products
• Arsenic and chromium from
chemically treated lumber
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to lter out microscopic particles.
(California Health & Safety Code § 25249.5, et seq.)
19. The warnings and precautions discussed in this
manual cannot cover all possible conditions and
situations that may occur. It must be understood
by the operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the operator.
Vibration Precautions
This tool vibrates during use. Repeated or long-term
exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and
shoulders. To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should rst be examined by a
doctor and then have regular medical check-ups to
ensure medical problems are not being caused or
worsened from use. Pregnant women or people
who have impaired blood circulation to the hand,
past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this
tool. If you feel any symptoms related to vibration
(such as tingling, numbness, and white or blue
ngers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and ngers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when there
is a choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain tool as
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.
Page 5
Page 5For technical questions, please call 1-800-444-3353.SKU 68027

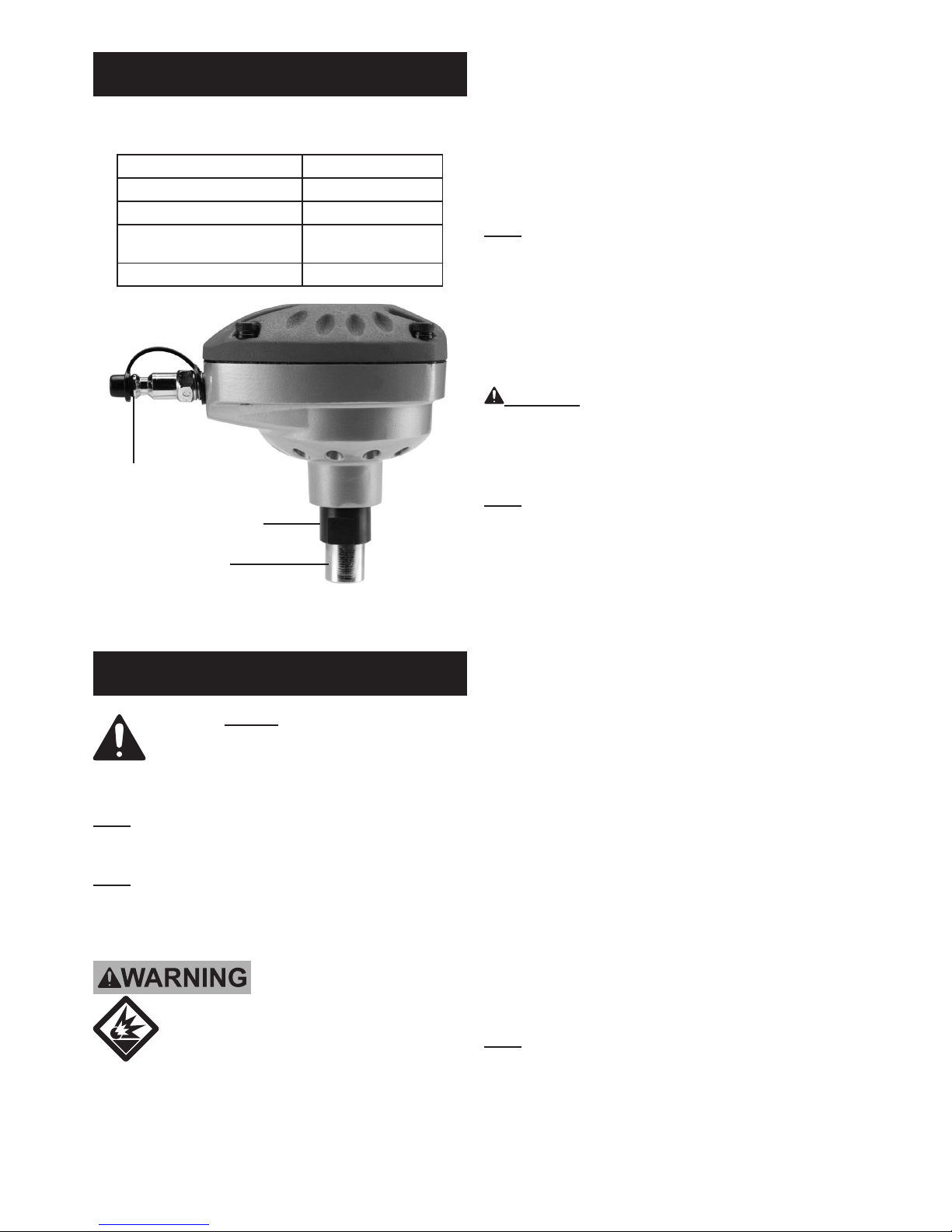

Functional Description
Specications
Operating Air Pressure 70-90 PSI
Air Inlet 1/4” -18 NPT
Average Air Consumption .2 CFM @ 90 PSI
Blows per Minute 2000 BPM
Gauge 5d-70d
Air Inlet (17)
Nail Guide
(with magnet) (20)
Depth Sleeve (21)
Figure A: Components and Controls
Initial Tool Setup/Assembly
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Note: For additional information regarding the
parts listed in the following pages, refer to the

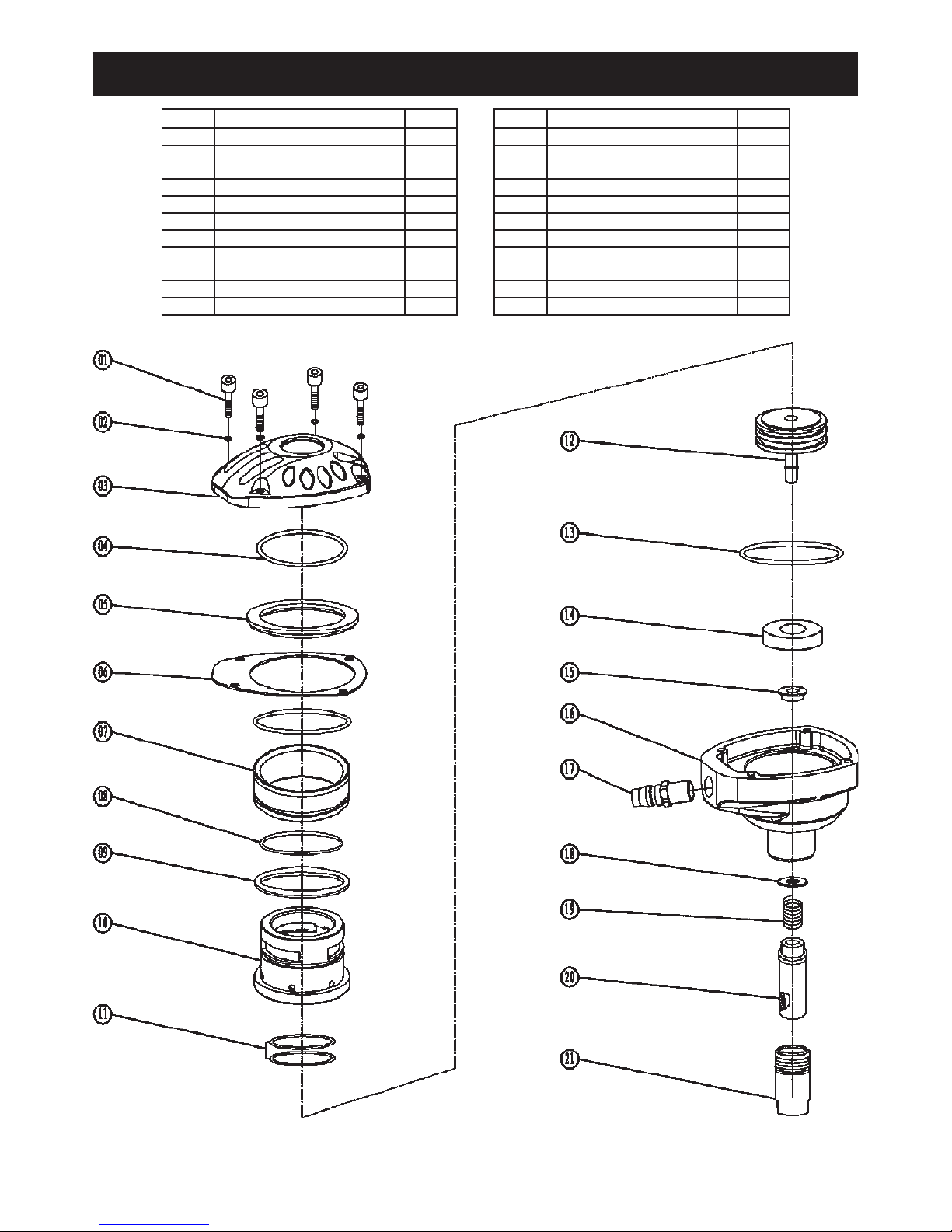

Assembly Diagram near the end of this manual.
Note: This air tool is shipped with a protective plug
covering the air inlet. Remove this plug before set up.
Air Supply
TO PREVENT EXPLOSION:
Use only clean, dry, regulated, compressed
air to power this tool. Do not use oxygen,
carbon dioxide, combustible gases, or any
other bottled gas as a power source for this tool.
1. Connect a regulator valve, an in-line shut off valve
and 1/4” NPT air hose (all sold separately) to the
Quick Coupler. Use thread tape on all threaded
connections. The air hose must be long enough
to reach the work area with enough extra length
to allow free movement while working. An in-line
shutoff ball valve is an important safety device
because it controls the air supply even if the air
hose is ruptured. The shutoff valve should be
a ball valve because it can be closed quickly.
See Figure B on page 6 and Figure C on
page 7 for Air Tool Setup procedures.
Note: If an automatic oiler system is not used,
add a few drops of Pneumatic Tool Oil into the
airline connection before operation. Add a few
more drops after each hour of continual use.
2. Attach air hose to compressor’s air outlet. Connect
air hose to air inlet. Other components, such
as coupler plug and quick coupler, will make
operation more efcient, but are not required.
WARNING! TO PREVENT SERIOUS INJURY
FROM ACCIDENTAL OPERATION: Do not install a
quick coupler on the tool. A coupler contains an air
valve that will allow the air tool to retain pressure and
operate accidentally after the air supply is disconnected.
Note: Air ow, and therefore tool performance, can
be hindered by undersized air supply components.
3. The air hose must be long enough to reach
work area with enough extra length to
allow free movement while working.
4. Close the in-line safety valve between
the compressor and the tool.
5. Turn on the air compressor according to
the manufacturer’s directions and allow it
to build up pressure until it cycles off.
6. Adjust the air compressor’s output regulator so
that the air output is enough to properly power
the tool, but the output will not exceed the tool’s
maximum air pressure at any time. Adjust
the pressure gradually, while checking the air
output gauge to set the right pressure range.
7. The air pressure setting must not exceed job site
regulations/restrictions. The air pressure setting
must not exceed 90 PSI when being used with work
pieces that have a thickness of less than 1-3/4”.
8. Inspect the air connections for
leaks. Repair any leaks found.
9. If tool will not be used at this time, turn off and
detach air supply and safely discharge residual
air pressure to prevent accidental operation.
Note: Residual air pressure should not be present
after the tool is disconnected from the air supply.
However, it is a good safety measure to attempt to
discharge the tool in a safe fashion after disconnecting
to ensure that the tool is disconnected and unpowered.
Page 6
Page 6 For technical questions, please call 1-800-444-3353. SKU 68027

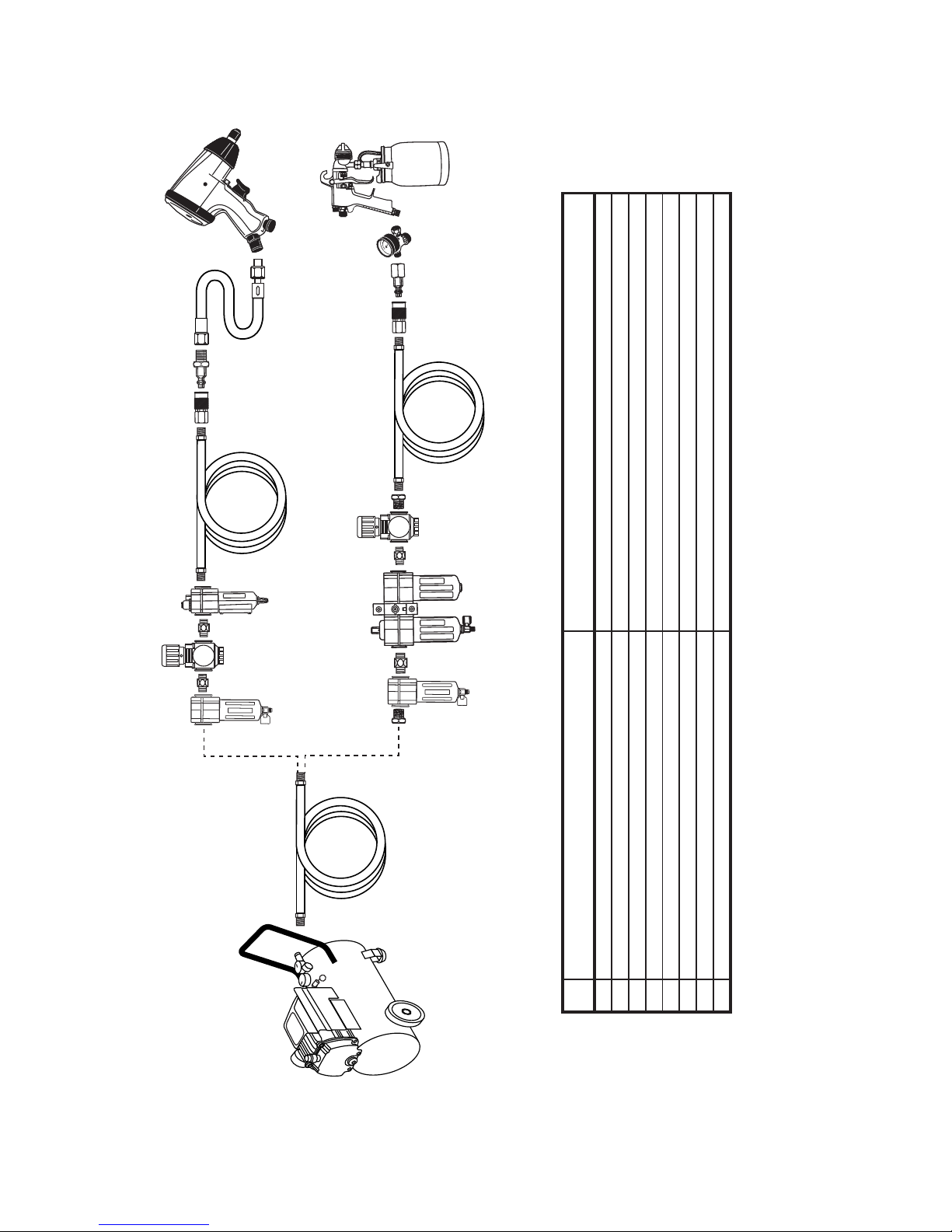

Figure B: Portable Air Supply Setup
G
A
E
E H
F
B
Non-lubricated
Tools
Lubricated
Tools
A
B
C
C
D
A
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or work piece
C Regulator Adjusts air pressure to tool
D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
H Air Adjusting Valve (optional) For ne tuning airow at tool
Page 7
Page 7For technical questions, please call 1-800-444-3353.SKU 68027

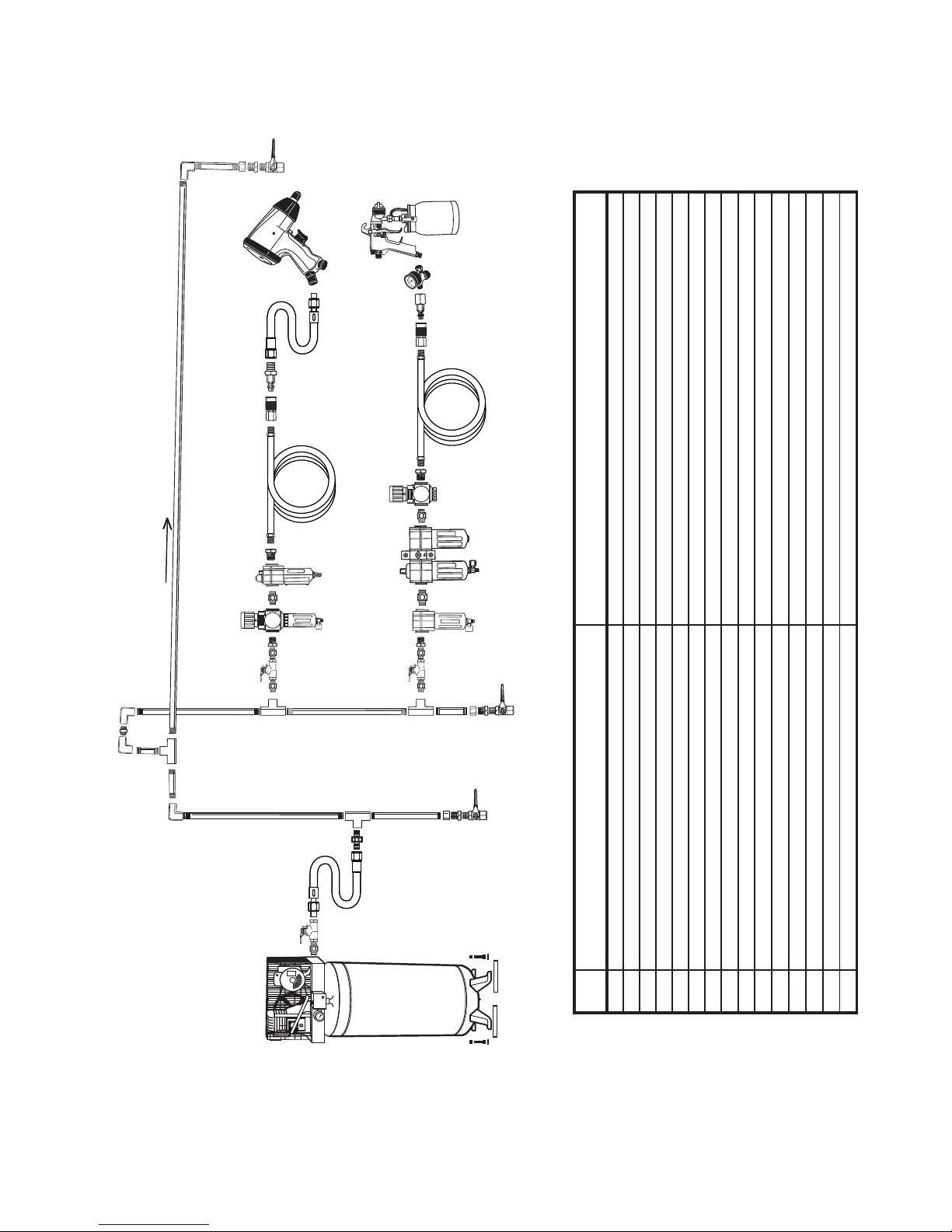

Figure C: Stationary Air Supply Setup
N
L
L O
M
C
C
Non-lubricated
Tools
Lubricated
Tools
H
I
I
J
J
K
H
F
G
E
Slope
F
F
B B
A A
C
D
Description Function
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
E Main Air Line - 3/4” minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2” minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or work piece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
O Air Adjusting Valve (optional) For ne tuning airow at tool
Page 8
Page 8 For technical questions, please call 1-800-444-3353. SKU 68027
Operating Instructions
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Inspect the tool before use, looking for
damaged, loose, and missing parts.
If any problems are found, do not
use the tool until repaired.
Work Piece and Work
Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the air hose along a safe route to reach
the work area without creating a tripping hazard
or exposing the air hose to possible damage.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be hazardous objects
(such as utility lines or foreign objects) nearby
that will present a hazard while working.
General Operating Instructions
1. Attach the air supply hose (sold separately)
to the tool. If an automatic oiler is not used,
add a few drops of Pneumatic Tool Oil to the
airline connection before use. Add a few drops
more after each hour of continual use.
2. To adjust the driving (countersink) depth, turn the
Depth Sleeve (21), see Figure A on page 5.
CAUTION! Do not loosen the Depth Sleeve
too much or the tool may come apart.
3. Grip the base of the tool in one hand.
Note that there is a hand strap and thumb strap
on the Leather Cover (22) to help hold the tool.
4. When ready to work, hold a nail by the shaft,
and place the at head into the Nail Guide (20).
The nail will be held in place by the magnet.
5. Place the pointed end of the nail on the workpiece.
Keep your free hand away from the tool and the nail.
6. Press the tool straight down. This will trigger the
tool and cause it to hammer the nail. Continue
pressing down until the nail is driven all the way in.
7. If the tool requires more force to accomplish the task,
verify that the tool receives sufcient, unobstructed
airow (CFM) and increase the pressure (PSI) output
of the regulator up to the maximum air pressure
rating of this tool.
CAUTION! TO PREVENT TOOL AND ACCESSORY
FAILURE, RESULTING IN INJURY: Do not exceed
the tool’s maximum air pressure rating.
If the tool still does not have sufcient force
at maximum pressure and sufcient airow,
then a larger tool may be required.
8. When the nail is hammered all the way down,
the tool will stop operating. To stop the tool, release
the downward pressure on the Nail Guide.
9. After use, to prevent accidents:
a. Detach the air supply.
b. Attempt to re the Tool against a piece of
scrap wood to ensure that it is disconnected.
c. Clean external surfaces with clean, dry cloth.
d. Store indoors out of children’s reach.
REV 11d
Page 9
Page 9For technical questions, please call 1-800-444-3353.SKU 68027
User-Maintenance Instructions
Procedures not specically explained
in this manual must be performed
only by a qualied technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL
OPERATION, BEFORE ANY MAINTENANCE OR
REPAIRS ARE DONE:
• Wear ANSI-approved safety goggles
with side shields. Other people in the
work area must also wear ANSI-approved
impact safety goggles with side shields.
• Release the pressure on the Nail Guide.
• Detach the air supply.
• Attempt to re the Tool against a piece of scrap
wood to ensure that it is disconnected.
• Remove any object from the
Nail Guide before service.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise, vibration, or leaking air is detected,
have the problem corrected before further use.
TO PREVENT EXPLOSION: Lubricate only
with specied lubricants. Lubricate the air
inlet using only pneumatic tool oil.
Lubricate the internal mechanism using
only white lithium grease. Other lubricants may
damage the mechanism and may be highly
ammable, causing an explosion.
Note: These procedures are in addition to the
regular checks and maintenance explained as part
of the regular operation of the air-operated tool.
Daily - Air Supply Maintenance:
Every day, perform maintenance on the air supply
according to the component manufacturers’
instructions. The lubricator’s oil level needs to be
maintained and the moisture lter must be regularly
drained. Performing routine maintenance on
the air supply will allow the tool to operate more
safely and will also reduce wear on the tool.
Page 10
Page 10 For technical questions, please call 1-800-444-3353. SKU 68027
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not
operate.
1. Low or no air pressure.
2. Corroded Piston Assembly
(12).
3. Damaged seals or O-rings.
1. Check that compressor is working properly. Check air
regulator. Check air lines for leaking or blockage.
2. Spray light weight penetrating oil into the
Air Inlet (17). If tool still won’t operate,
take to a qualied service technician for repair.
3. Take tool to a qualied service technician for repair.
Insufcient
fastener depth.
1. Not enough air pressure.
2. Incorrect lubrication or
not enough lubrication.
3. Mechanism contaminated.
1. Check for loose connections and make sure that air
supply is providing enough air pressure (PSI) to the
tool’s air inlet. Do not exceed maximum air pressure.
2. Lubricate using air tool oil and grease
according to directions.
3. Have qualied technician clean and lubricate
mechanism. Install in-line lter in air supply
as stated in Initial Set Up: Air Supply.
Fasteners drive
too deeply.
Too much air pressure. Reduce air supply pressure (PSI).
Tool cycles
without ring nail.
Insufcient air ow. Check for loose connections and make sure that air supply
is providing enough air ow (CFM) and pressure (PSI) to the
tool’s air inlet. Do not exceed maximum air pressure.
Severe air
leakage.
(Slight air leakage
is normal,
especially on
older tools.)
1. Cross-threaded housing
components.
2. Loose housing.
3. Damaged valve or housing.
4. Dirty, worn or damaged valve.
1. Check for incorrect alignment and uneven gaps.
If cross-threaded, disassemble and
replace damaged parts before use.
2. Tighten housing assembly. If housing cannot tighten
properly, internal parts may be misaligned.
3. Replace damaged components.
4. Clean or replace valve assembly.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Page 11
Page 11For technical questions, please call 1-800-444-3353.SKU 68027
Part Description Qty
1 Hex Bolt M5 x 20 4
2 Washer 5 4
3 Cylinder Cap 1
4 O-Ring M53.5 x 2.6 1
5 End Cap Rubber Gasket 1
6 Cylinder Cap Seal 1
7 Slide Sleeve 1
8 O-Ring M46 x 2 2
9 Sealing Ring 1
10 Cylinder Sleeve Assembly 1
11 O-Ring M43 x .65 2
Part Description Qty
12 Piston Assembly 1
13 O-Ring M61.4 x 2.6 1
14 Bumper 1
15 Axis Sleeve 1
16 Housing 1
17 Air Inlet 1
18 Washer 1
19 Position Sleeve Spring 1
20 Nail Guide (with magnet) 1
21 Depth Sleeve 1
22 Leather Cover (not shown) 1
Parts List & Assembly Diagram
Page 12
Page 12 For technical questions, please call 1-800-444-3353. SKU 68027
Limited 1-Year Warranty
