TRUCK CAB AIR BLOW-GUN KIT,
65041
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual and the receipt in a safe
and dry place for future reference.
Specic Safety Instructions
WARNING: 1.
To prevent injury:
The brass components of this product a.
contain lead, a chemical known to the State
of California to cause birth defects (or other
reproductive harm). (California Health
& Safety Code § 25249.5 et seq.)
Use compressed air only.b.
Wear ANSI-approved safety goggles during c.
installation and use.
Do not exceed 90 PSI air pressure. d.
NOTE: The warnings and precautions
discussed in this manual cannot cover all
possible conditions and situations that may
occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product,
but must be supplied by the operator.
Keep the work area clean and well lighted. .2.
Page 2
Keep bystanders, children, and visitors 3.
away while operating the tool.
Make sure both the truck engine and auxil-3.
iary generator is shut down.
Obey the manual for the truck cab air com-4.
pressor used to power this tool.
Stay alert. Use common sense. Do not 5.
use the tool while tired or under the inuence of drugs, alcohol, or medication.
Tool use and care
Do not use the Air Blow Gun if the Trigger 1.
Lever does not turn the tool on or off. Repair
before further use.
Disconnect the Air Blow Gun from the air 2.
source before adjusting, or storing the tool.
Air source
1. Never connect to an air source
that is capable of exceeding
200 psi. Over pressurizing the
tool may cause bursting,
abnormal operation, breakage
of the tool or serious injury to persons. Use
only clean, dry, regulated compressed air at
the rated pressure or within the rated pressure range as marked on the tool. Always
verify prior to using the tool that the air
source has been adjusted to the rated air
pressure or within the rated air-pressure
range.
Never use oxygen, carbon dioxide, com-2.
bustible gases or any bottled gas as an
air source for the tool.
Service
Follow manufacturer’s directions for locating 4.
the truck cab air line. Usually it is located
behind the drivers seat.
Cut the truck cab air line and install the T-5.
Fitting (2) as follows:
Remove the nuts on the two ends of the T- a.
Fitting body.
Slide the Compression Sleeves out of the b.
T-Fitting body. Slide an end of the truck cab
air line through a nut and Compression
Sleeve and into openings on the T-Fitting
body.
Thread the nuts onto the T-Fitting body and c.
tighten snugly. This will compress the Compression Sleeves and seal the air line.
The procedure is the same as laid out in d.
steps (a) through (d) for attaching the Truck
Cab Air Blow Gun line.
CAUTION: Make sure all air line ttings are not
leaking when the generator(s) are operating.
They may be connected to other needed accessories.
General Operating Instructions
CAUTION! Do Not exceed maximum air pres-1.
sure rating of 90 PSI.
WARNING: Never direct the Air Blow Gun at 2.
your skin, or any person or animal.
Attach Air Gun (4) by threading onto air line.3.
Thread on the Precision Tip for blowing out small 4.
areas or cracks, or the Booster Tip for wide areas.
Tool service must be performed only by 1.
qualied repair personnel using only identical replacement parts.
Assembly
NOTE: If you do not feel qualied to safety install 1.
this Air Blow Gun, have it installed by a qualied
technician.
NOTE: Tools Needed: Two small adjustable 2.
wrenches, small metal saw.
Point the Air Gun and squeeze the Trigger Lever.5.
When nished, Release the Trigger Lever to stop 6.
the air ow.
Leave the Air Blow Gun hooked up and coiled 7.
under the drivers seat of the truck cab when not
in use.
Cleaning, Maintenance
Periodically wipe down entire length of Air Line and
inspect for leaks. If any are found, replace Air Line; DO
NOT repair.
SKU 65041 For technical questions, please call 1-800-444-3353. Page 2
Page 3
PARTS LIST
Part Discription Q’ty
1 Trigger Lever 1
2 T-Fitting 1
3 Air Line 1
4 Air Gun 1
5 Precision Tip 1
6 Booster Tip 1

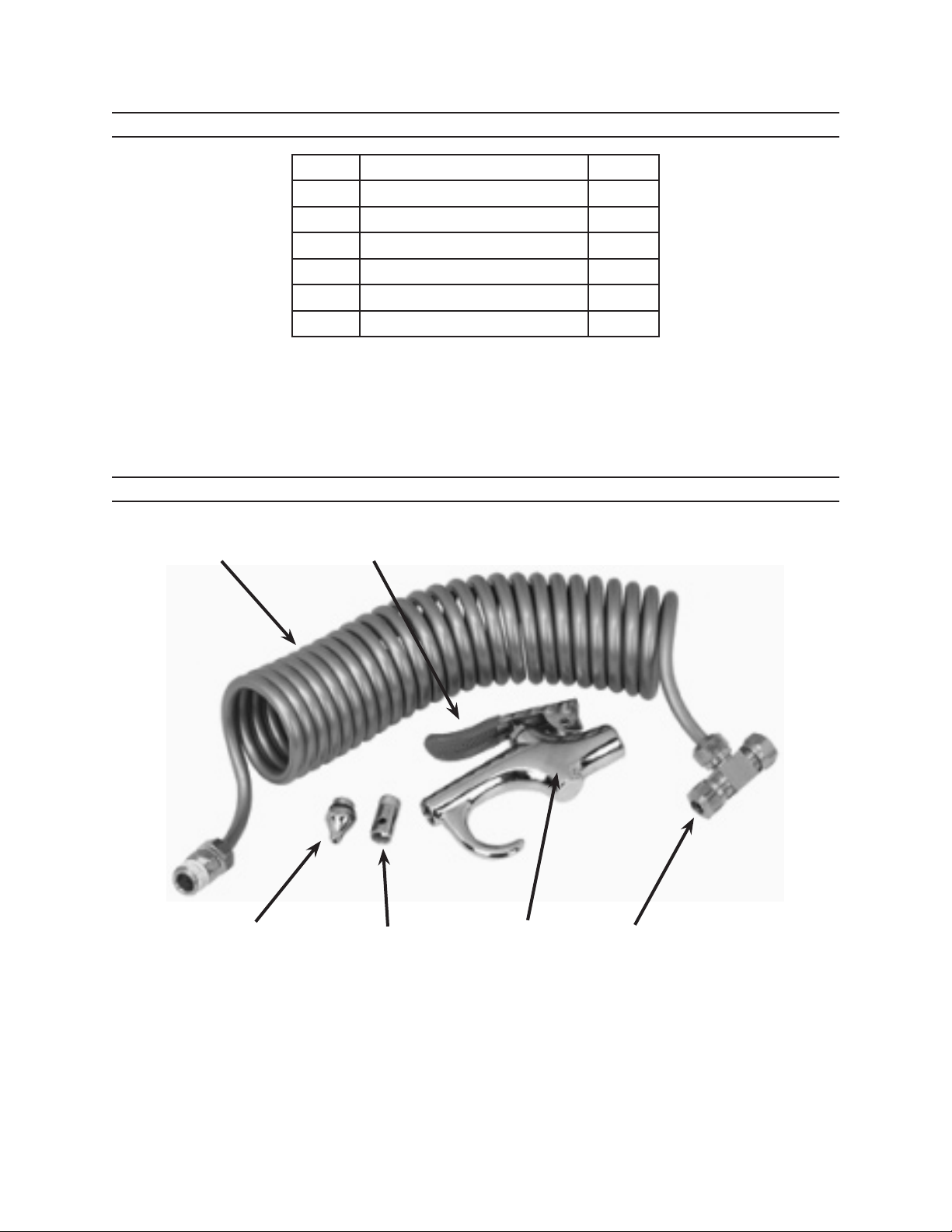

ASSEMBLY PHOTO
Air Line (3) Trigger Lever (1)
Precision Tip (5) Booster Tip (6) Air Gun (4) T-Fitting (2)
SKU 65041 For technical questions, please call 1-800-444-3353. Page 3
Page 4
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from
the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities,
criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of our product. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection veries the defect, we will either repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
SKU 65041 For technical questions, please call 1-800-444-3353. Page 4
