Central Network Solution C140T User Manual

Netween Router User Manual

Table of Contents

Components

Product Feature

Installation Precautions

Product & Explainations

1. Front of the Netween

2. Back of the Netween

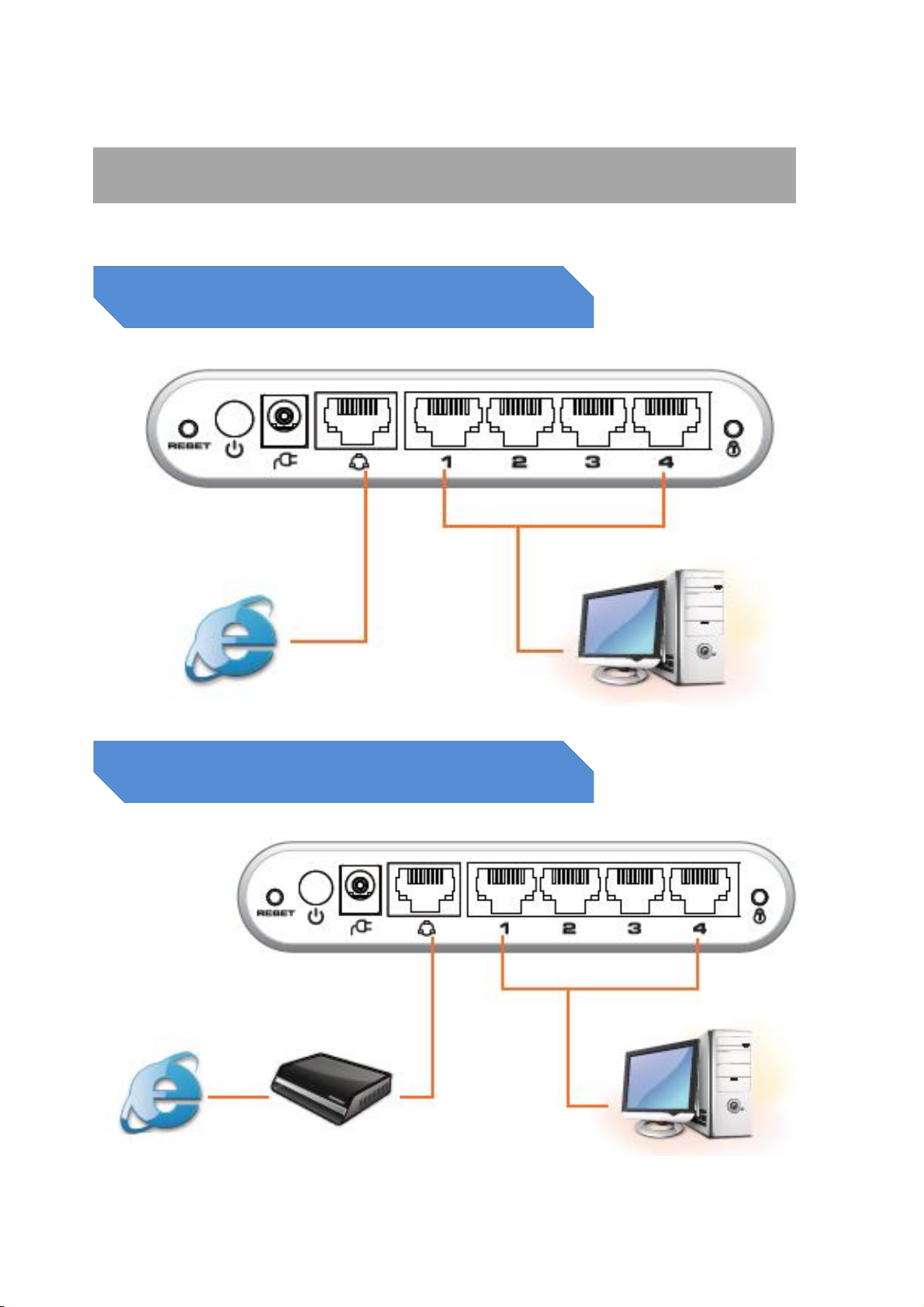

Netween Default Connection

1. General Internet Network

2. Environment using a Modem

Netween Default Set

3
3

4

5

6

7

7

1. Internet Connection Settings

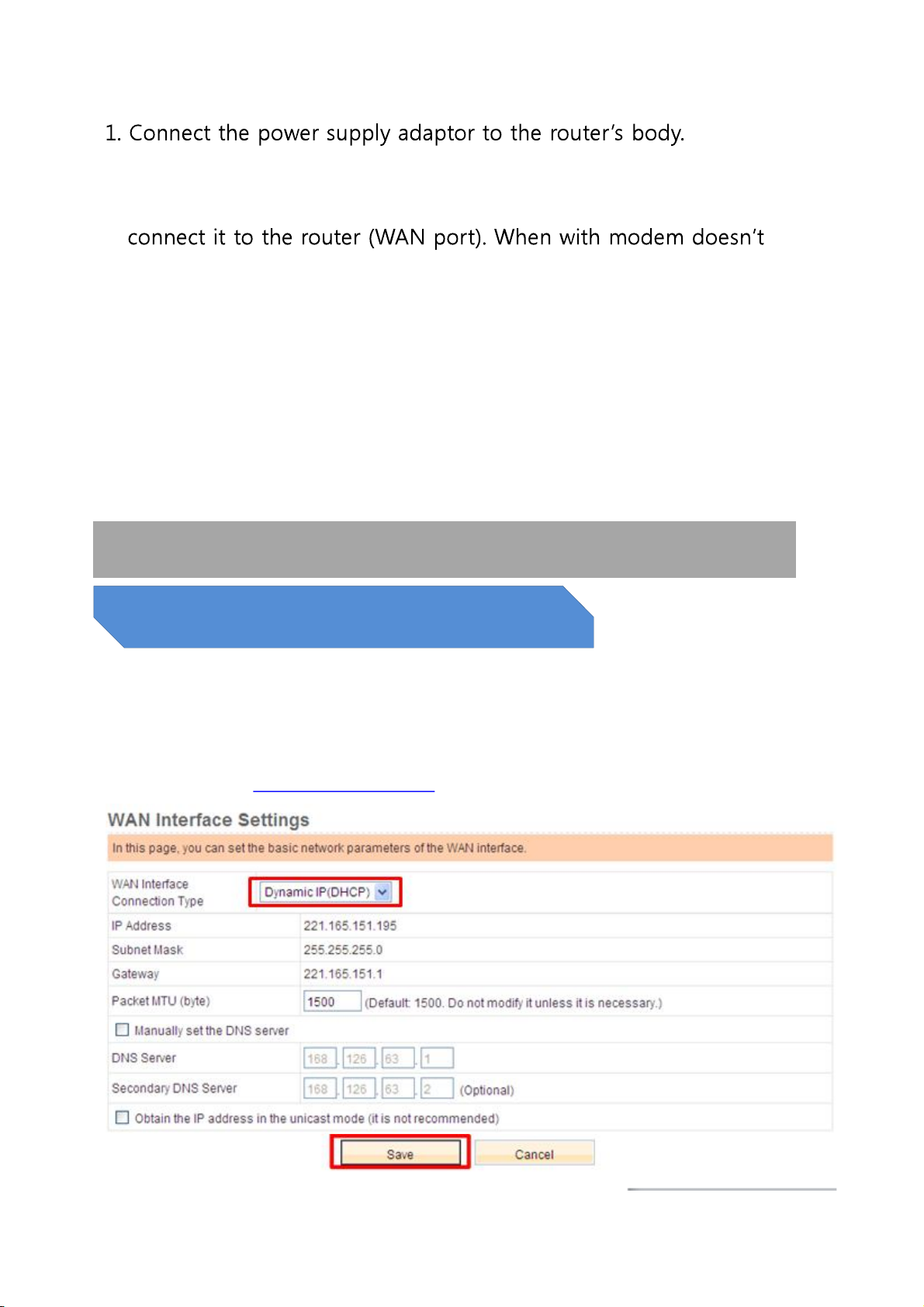

1) Auto IP set

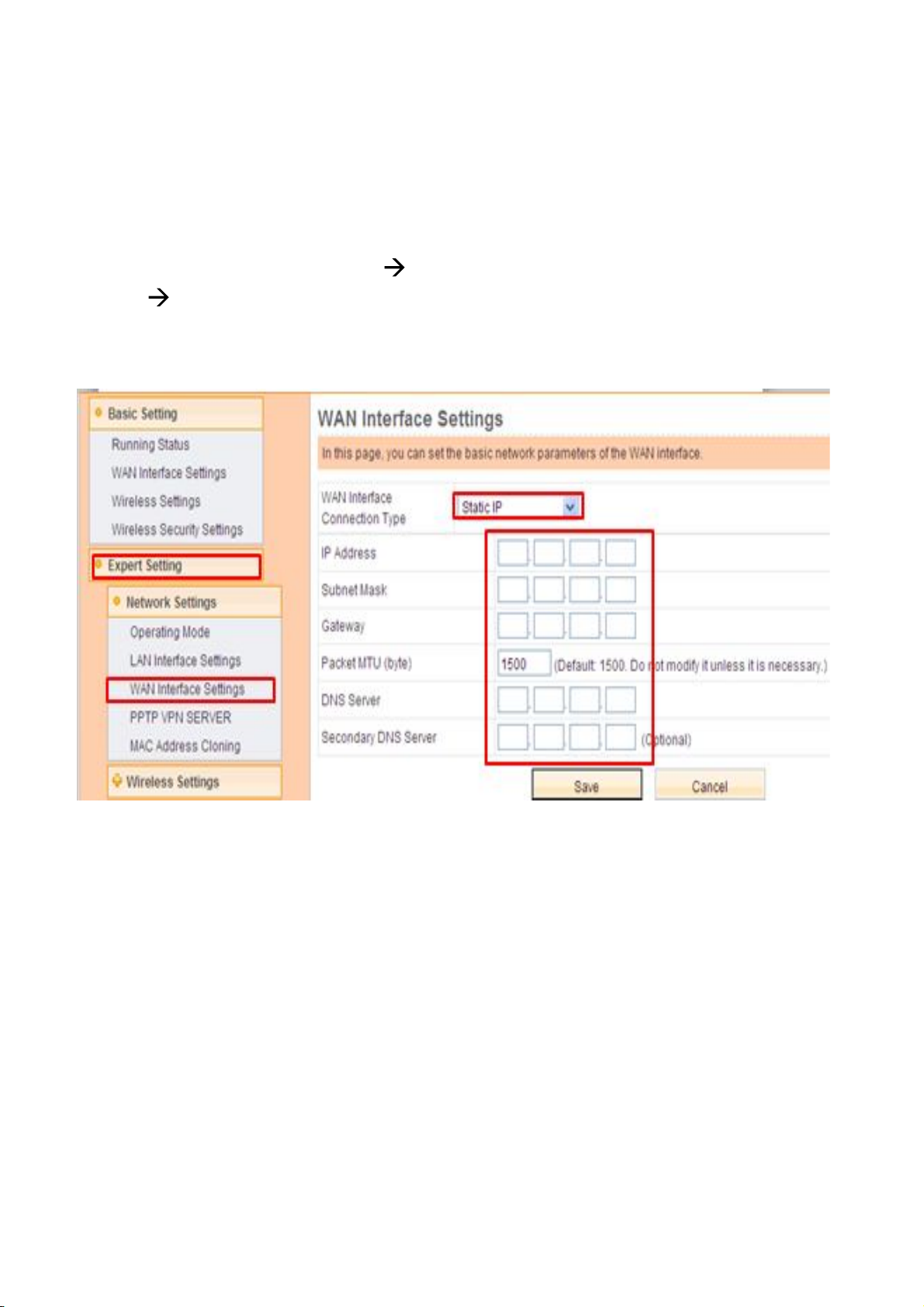

2) Static IP set

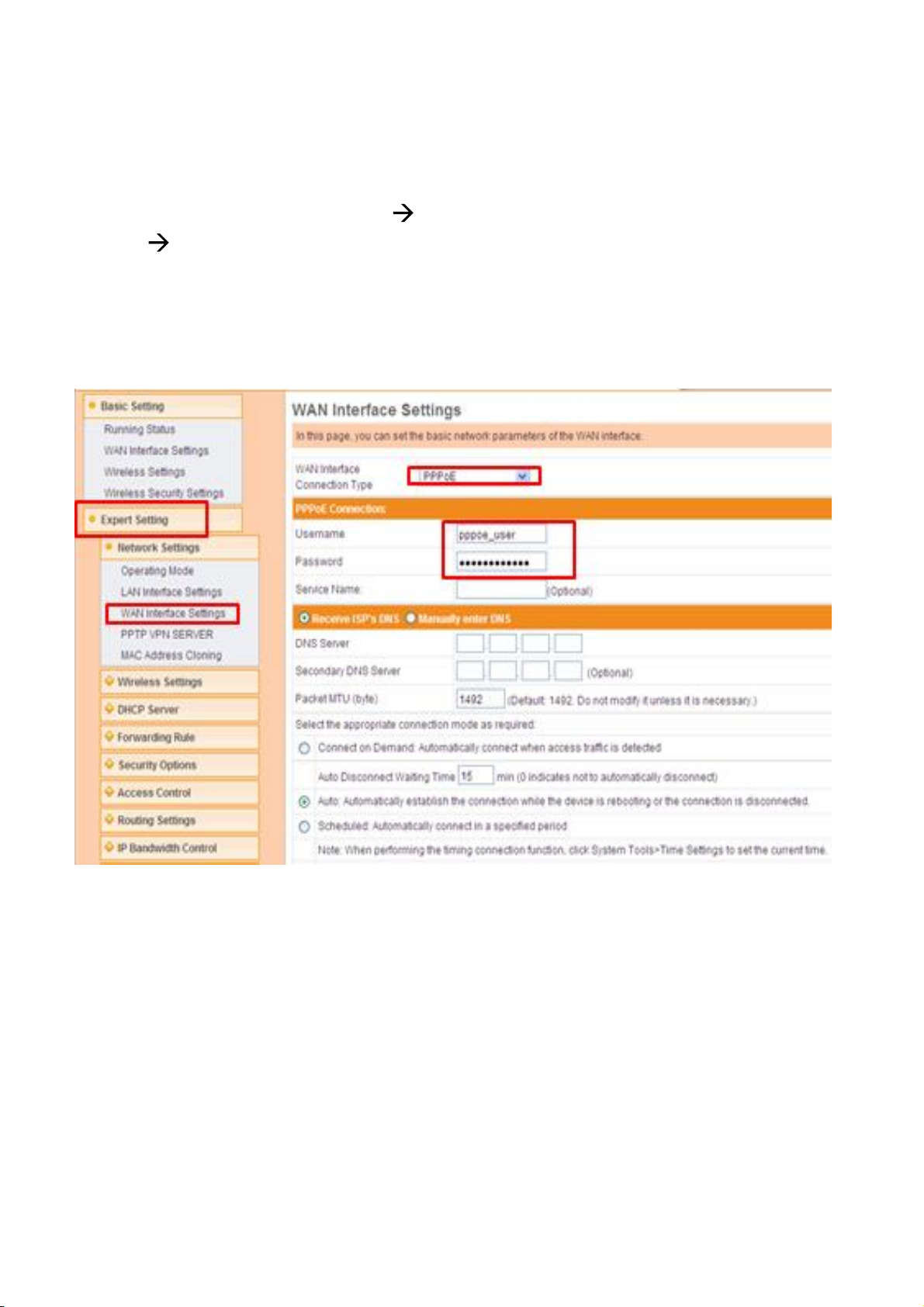

3) PPPoE set

2. Wireless Default Setting and security setting

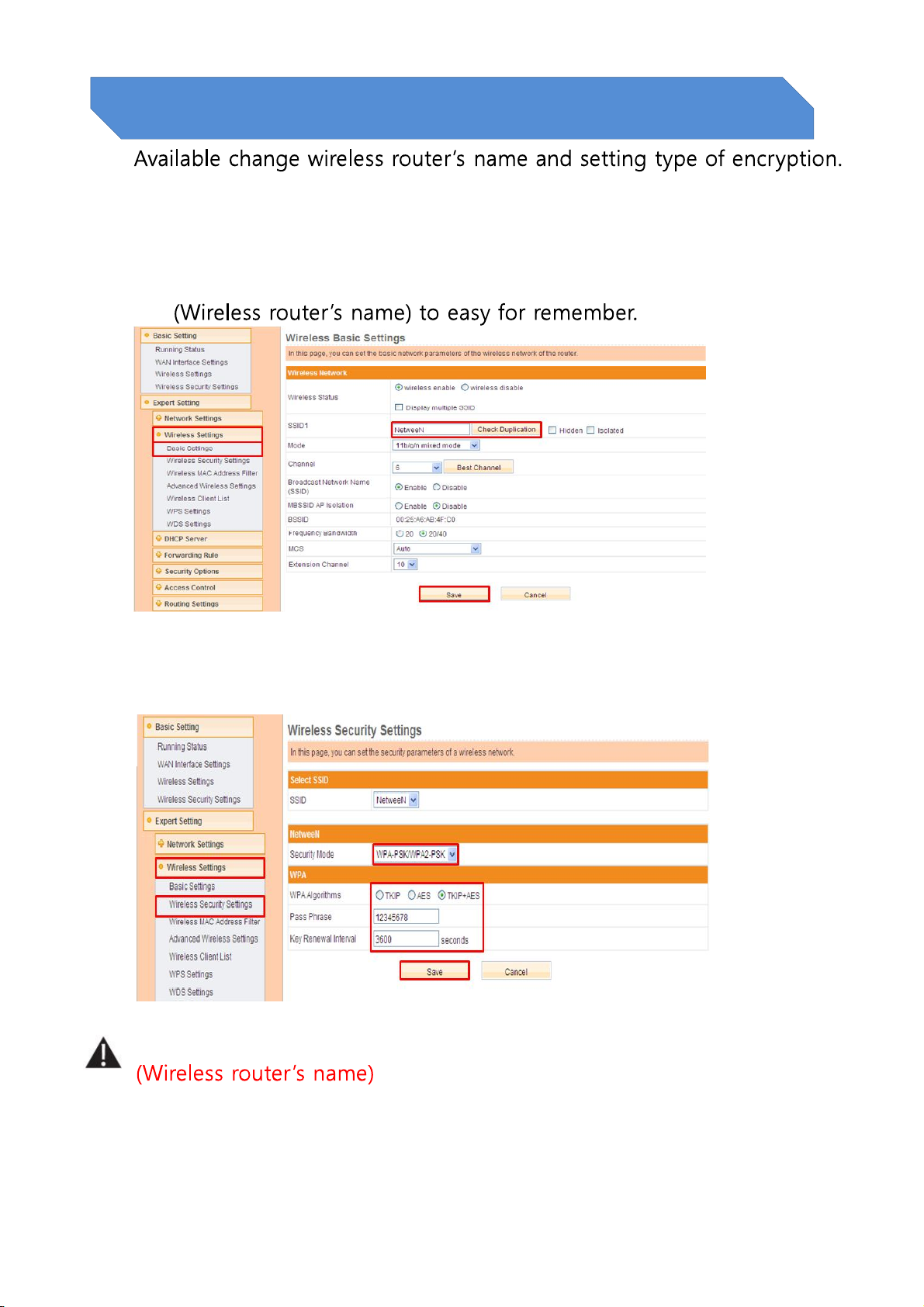

1) How to setting wireless security

2) How to setting wireless check

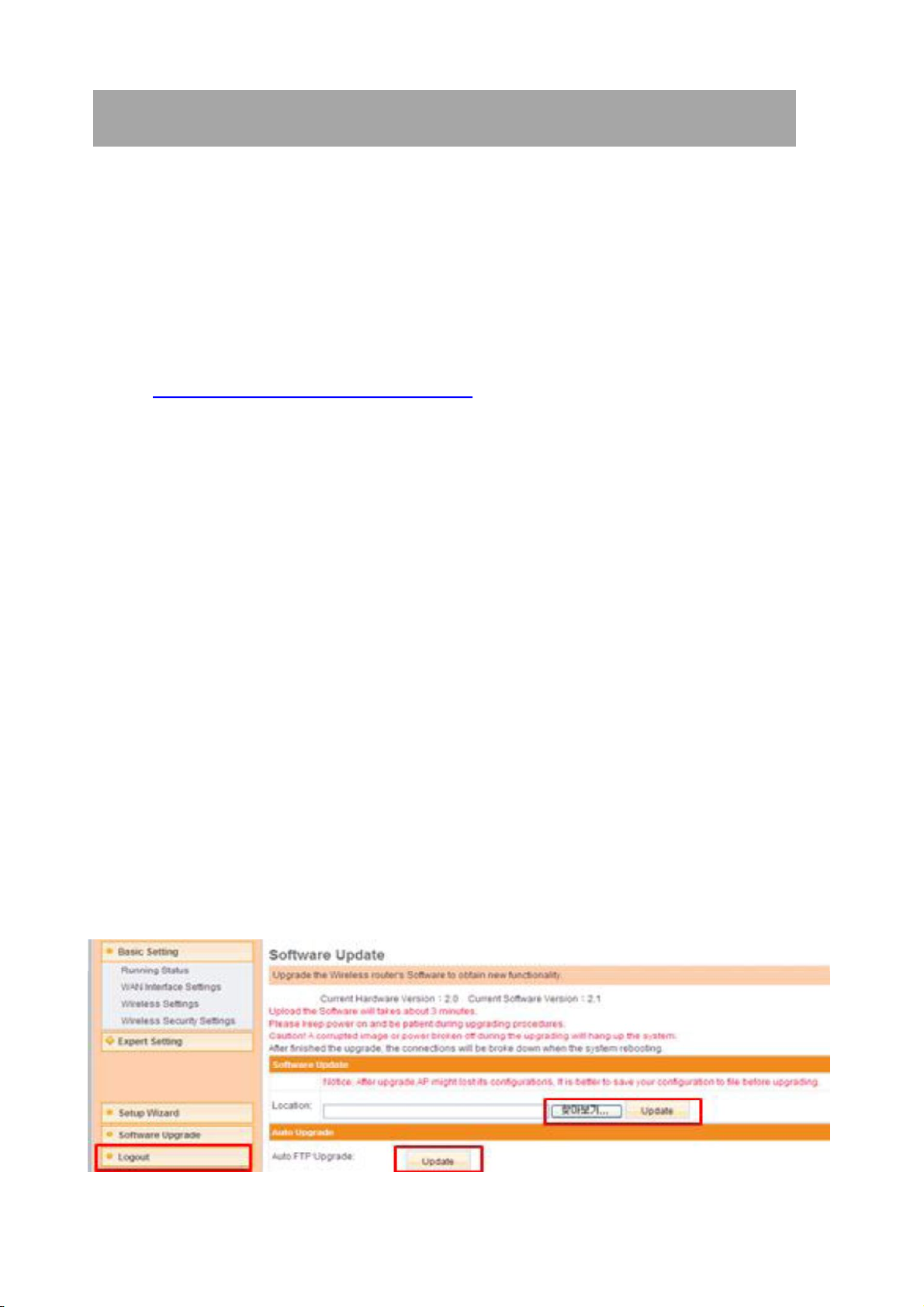

Firmware Upgrade

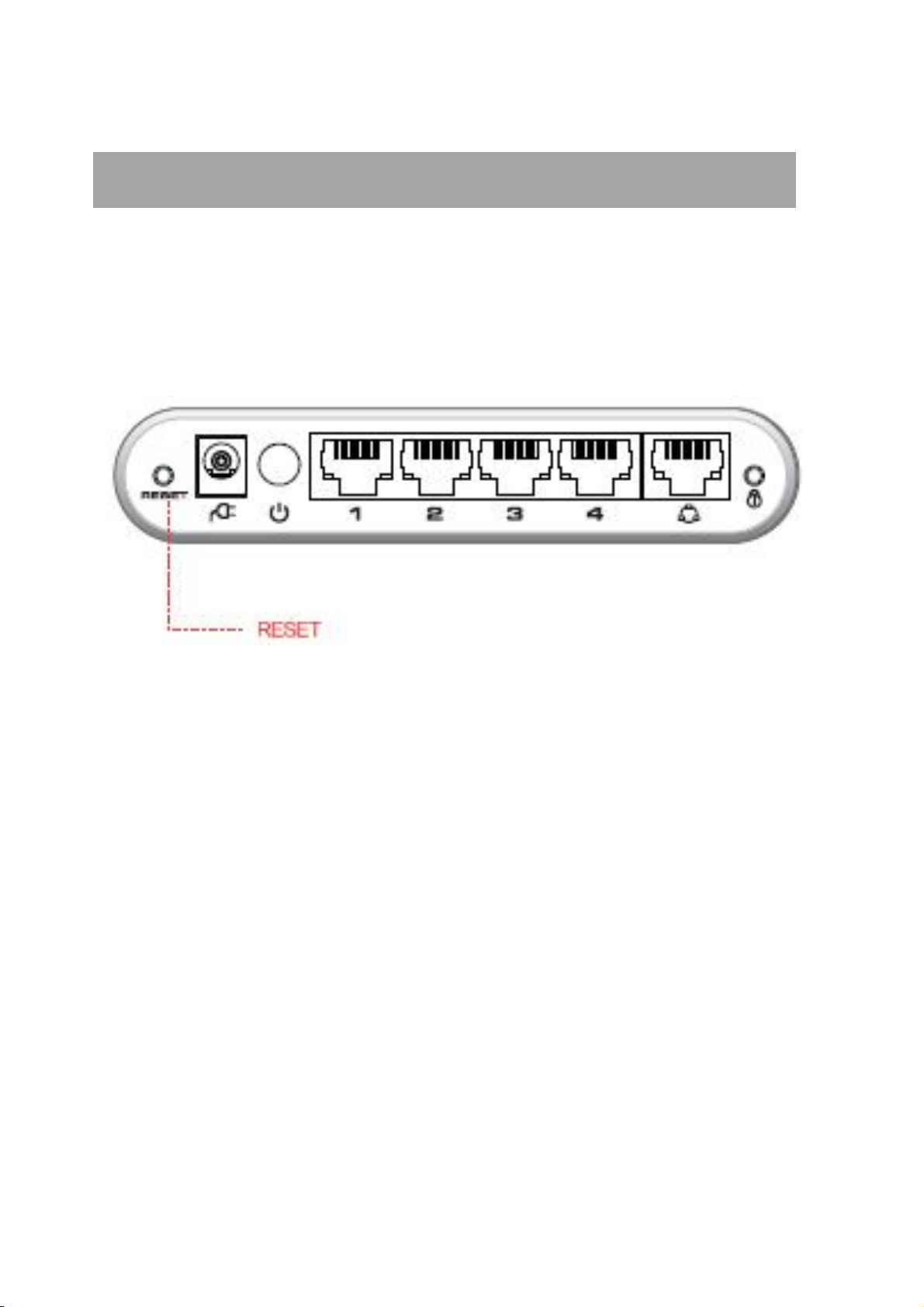

Load Default Setting

8
8
9

10

11

11

11

12

13

2

Netween Router

Components

Netween Router 1M LAN cable User Manual

Power Adapter

Netween Router

Specification

Wireless Interface
CPU
WAN Interface
LAN Interface
Status LED
DRAM
FLASH
Power

Operating Temp.
Tx Power
Rx Sensitivity

Antenna

Product Features

IEEE802.11b/g/n (Draft 2.0)
384Mhz MIPS 34bit
1 x 10/100Base-Tx, Auto MDI/MDIX
4 x 10/100Base-Tx, Auto MDI/MDIX
Power, WLAN, WAN, LAN x 4, WPS
16Mbytes
4Mbytes
Input : 100~240VAC, 50~60Hz
Output : 5VDC, 2A

14dBm

-65dBm @130Mbps

-68dBm @54Mbps

-84dBm @11Mbps
3 dBi x 2 antenna

2dBm

C140T

Wireless

-. 802.11n(draft 2.0), 802.11b/g

-. 1T1R

-. Up to 300Mbps

-. Multiple SSID

-. SSID broadcast

-. Auto transmission speed

-. WDS Wireless bridge

-. Wi-Fi Multi Media

-. Auto Channel Select

-. WPS

-. OFDM, DSSS, MIMO

-. 2.4 Ghz

Security

-. 64/128/WEP

-. WPA/WPA2, WPA-PSK/
WPA2-PSK(TKIP/AES)

-. Hidden SSID

-. Access Control List

-. Packet Filtering

-. Web Contents/URL filter

-. Parent Control

Network Protocol

-. PPPoE

-. DHCP

-. MAC cloning

-. Port forwarding

-. QoS for MAC and IP

-. IGMP Proxy

-. DDNS

-. UPnP

-. VPN Server

-. DMZ, Special DMZ

-. NAT

Others

-. Login(ID/PW)

-. Auto-Firmware upgrade

-. Remote Web management

-. System log

-. WOL

3

Installation Precautions

Read the notes below before installing

The power adapter must be a standard adapter
that is supplied with Netween adapter products.

Must seek professional help when product is damaged, please
avoid further deteriorating or opening the case of the product.

Be careful not to drop or apply strong collision to the product.

Please avoid setting in places with direct sunlight, dust,
excessive vibration or unstable places before and after you
install the product.

If the exterior adapter devices of the Netween are cleaned with
alcohol, benzene, acetone, etc. or any flammable liquids, this
alteration to the surface will cause chemical changes. In case of
contact with other material please wipe the area with a dry cloth.

The power being supplied must be stable. In the case of the
power supply develops sparks or noises, a power control device
must be installed.

Never touch the power supply area when the power cord is
connected due to risks of electric shocks. When installing or
moving the product, power switch must be turned off and all the
connected cables must be unplugged.

Pay attention not to overload wiring connections when connected
the power source.

The information contained in this manuscript can be changed without

agreement or separate notice of individual users.

regulations, some environmental constrains of the product
performance and feature limitations may be encountered.
We will not take responsibility of any line disability issues during

usage of this product.

4

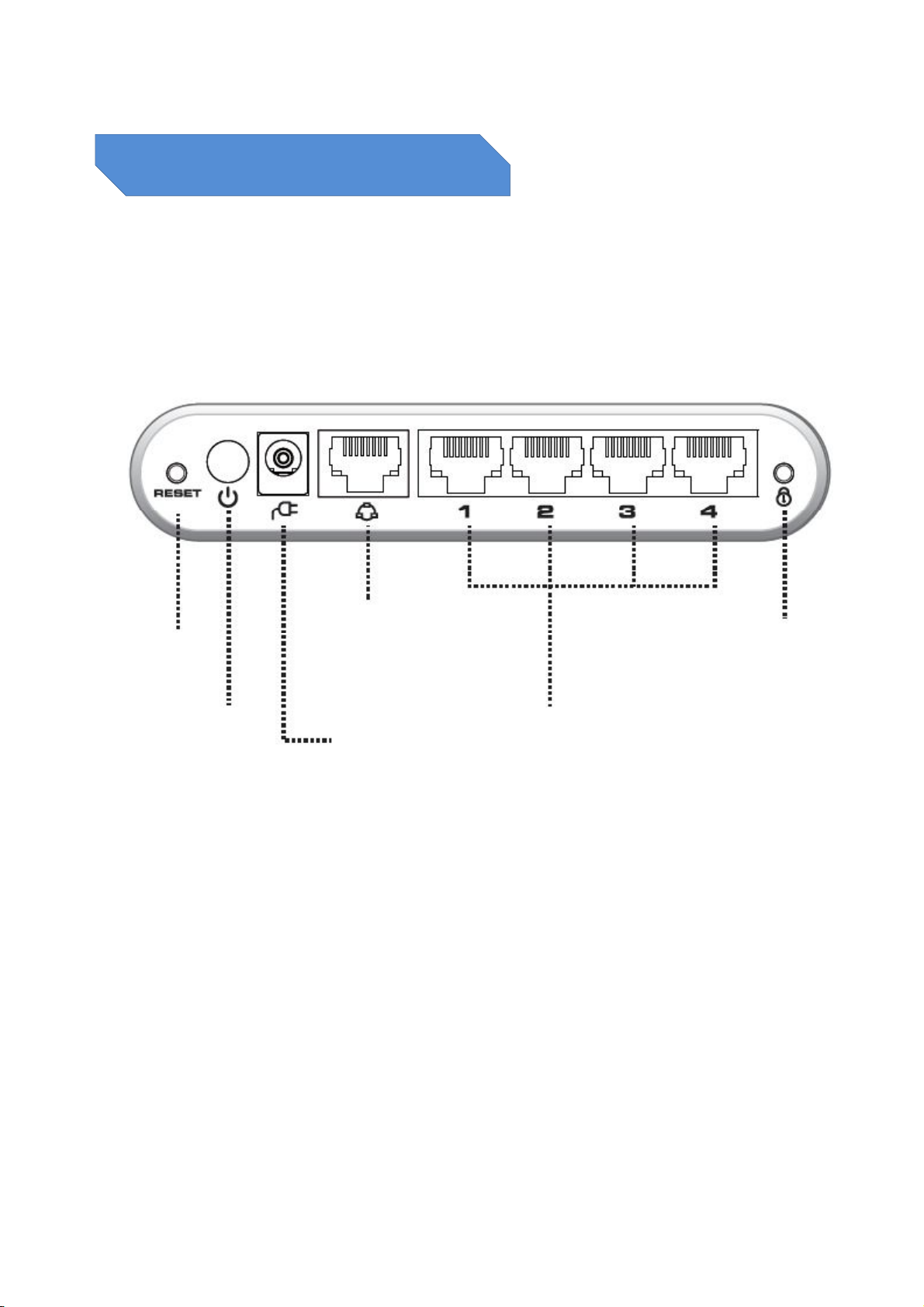

Product & Explaination

Front of the Netween

Power / ON

Shows the power supply is normal

WLAN / Flicker

Shows wireless is in operating conditions

WPS / only flickers when activated

WPS supported devices and confirmation
process is in progress

WAN / Flicker

Shows external internet cable is connected
and data communication is in progress

LAN /Flicker

PC and cable is connected and shows data
communication is in progress

* WPS (Wifi Protected Setup)
A feature to set up easily without complex security
settings between adaptor and WPS function supported
terminals.

5
