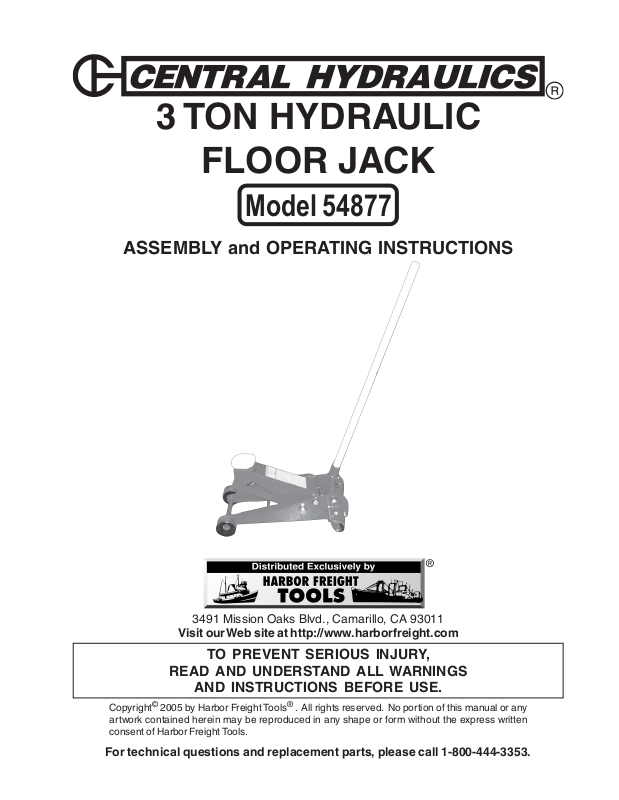

Central Hydraulics 54877 User Manual
3 TON HYDRAULIC
®
FLOOR JACK
Model 54877
ASSEMBLY and OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Copyright© 2005 by Harbor Freight Tools® . All rights reserved. No portion of this manual or any
artwork contained herein may be reproduced in any shape or form without the express written
consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353.
SPECIFICATIONS
Capacity
Height Range
Saddle Size
Saddle Swivel
Overall Dimensions
Front Wheel Diameter
Rear Wheel Diameter
Weight
Material Plate Steel
6000 lbs
4-1/2”H to 19-3/8” H
4-1/4” Square
360 degrees
24”L x 14-3/8”W x 4-1/2”H
2”W X 3-1/2” DIA.
1”W X 2-5/16” DIA.
81.9 Ibs.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on page
10 and 11 are included. If any parts are missing or broken, please call Harbor Freight
Tools at the number shown on the cover of this manual as soon as possible.
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and
assembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY PRECAUTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed in the following
pages may result in electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
SKU 54877 For technical questions, please call 1-800-444-3353. Page 2
GENERAL SAFETY RULES
1. Keep your work area clean and well lit. Cluttered work areas invite accidents.
2. Do not operate tools and equipment in explosive atmospheres, such as in
the presence of flammable liquids, gases, or dust. Power tools and equipment create sparks which may ignite flammables.
3. Keep bystanders, children, and visitors away while operating tools and
equipment. Distractions can cause you to lose control. Protect others in the
work area. Provide barriers or shields as needed.
4. Stay alert. Watch what you are doing, and use common sense when
operating a power tool. Do not use tools and equipment while tired or
under the influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in serious personal injury.
5. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
6. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the tool in unexpected situations.
7. Use safety equipment. Always wear ANSI approved safety impact goggles,
safety shoes/boots, and heavy duty work gloves when using this product.
8. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
9. Store idle tools and equipment out of reach of children and other untrained
persons. Tools and equipment are dangerous in the hands of untrained users.
10. Maintain tools with care. Do not use a damaged tool. Tag damaged tools “Do
not use” untilrepaired.
11. If damaged, have the tool serviced before using. Check for loose screws,
misalignment or binding of moving parts, loose mounting, cracked or broken
parts, low hydraulic oil level, and any other condition that may affect its safe
operation. Many accidents are caused by poorly maintained tools.
12. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
SKU 54877 For technical questions, please call 1-800-444-3353. Page 3
13. When servicing a tool, use only identical replacement parts. Follow
instructions in the
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of injury.
“Inspection, Maintenance, And Cleaning”
section of this
SPECIFIC SAFETY RULES
1. WARNING! Do not exceed the maximum lift capacity (3 Tons / 6,000
pounds) for this Floor Jack. Overloading the Jack could cause serious
personal injury and/or property damage.
2. The Floor Jack is designed for intermittent use only. Do not use the Jack
to support a vehicle over extended periods of time. The duration of the lifting job
should be kept as short as possible.
3. Maintain labels and nameplates on the Floor Jack. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
4. Prior to using the Bottle Jack, make sure to read and understand all
warnings, safety precautions, and instructions as outlined in the
manufacturer’s instruction manual for the vehicle (or object) you will lift.
5. When lifting only one wheel, make sure to support the load immediately
with one jack stand (not included) placed under the side of the vehicle being
lifted. Align the saddle of the jack stand directly under the vehicle’s
recommended lifting point.
6. When lifting the entire front end or rear end of a vehicle, make sure to
support the load immediately with two jack stands. Align the saddles of the jack
stands directly under the vehicle’s
sure the jack stands are adjusted at the same height.
7. Make sure the Floor Jack is used only on a dry, oil/grease free, flat, level,
ground surface capable of supporting the weight of the vehicle being
lifted and any additional tools and equipment.
8. Do not work under the vehicle without properly supporting the vehicle with
jack stands. Make sure the load and jack stands are stable before getting
under a vehicle.
frame or recommended lifting points. Also make
seam or a
