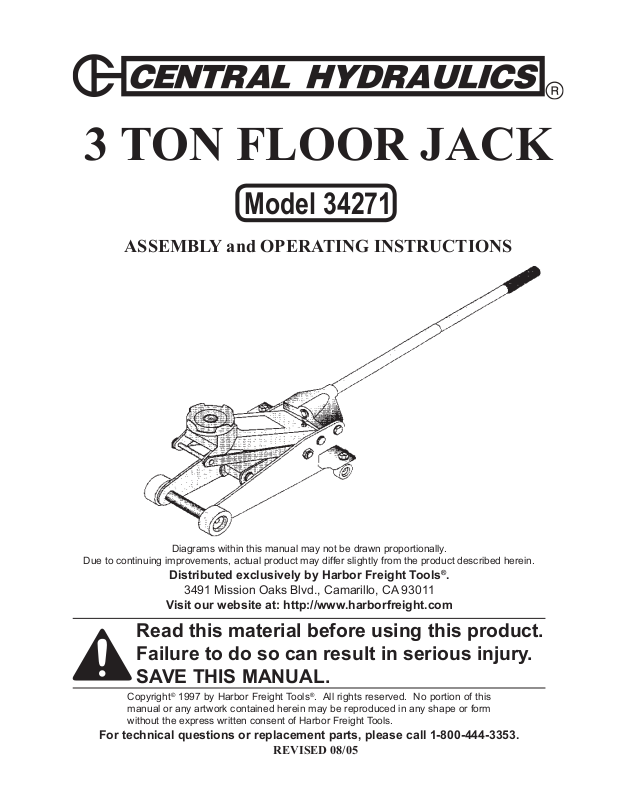

Central Hydraulics 34271 User Manual

3 TON FLOOR JACK

Model 34271

ASSEMBLY and OPERATING INSTRUCTIONS

Diagrams within this manual may not be drawn proportionally.

Due to continuing improvements, actual product may differ slightly from the product described herein.

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Copyright© 1997 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

REVISED 08/05

SPECIFICATIONS

Capacity
Saddle Lifts
Saddle Diameter
Saddle Swivel
Overall Dimensions
Front Wheel Diameter
Rear Wheel Diameter
Weight

SAVE THIS MANUAL

You will need the manual for the safety warnings and cautions, assembly instructions, operating pro­cedures, maintenance procedures, trouble shooting, parts list, and diagram. Keep your invoice with
this manual. Write the invoice number on the inside of the front cover. Keep both this manual
and your invoice in a safe, dry place for future reference.

SAFETY WARNING & CAUTIONS

WARNING: When using the tool, basic safety precautions should always be followed to reduce the
risk of personal injury and damage to equipment.

READ ALL INSTRUCTIONS BEFORE USING THIS TOOL!

6000 lbs
5-3/4” to 20-1/2”
5-3/4”
360 degrees
26”L x 13-1/2”W x 5-3/4”H

3.695” x 2” Wide

2.335” X 1.20” Wide
93 Ibs.

1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries.

2. OBSERVE WORK AREA CONDITIONS. Do not use tools in damp, wet, or poorly lit locations.
Don’t expose to rain. Keep work area well lit.

3. KEEP CHILDREN AWAY. Children must never be allowed in the work area. Do not let them
handle machines, tools, or equipment.

4. STORE IDLE EQUIPMENT PROPERLY. When not in use, tools must be locked up in a dry loca­tion to inhibit rust. Always lock up tools and keep out of reach of children.

5. DO NOT FORCE THE TOOL. It will do the job better and more safely at the rate for which it
was intended. Do not use inappropriate attachments in an attempt to exceed the tool’s capacities.

6. USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small tool or attachment to
do the work of a larger industrial tool. Do not use a tool for a purpose for which it was not intended.

7. DRESS PROPERLY. Do not wear loose clothing or jewelry as they can be caught in moving parts.
Non-skid footwear is recommended. Wear restrictive hair covering to contain long hair.

8. USE EYE PROTECTION. Always wear ANSI approved impact safety goggles when working
with tools and equipment.

9. NOT TO BE USED FOR AIRCRAFT PURPOSES.

10. DO NOT OVERREACH. Keep proper footing and balance at all times. Do not reach over or
across the product.

Page# 2 — SKU: 34271

REV 03/04

11. MAINTAIN TOOLS WITH CARE. Keep tools clean for better and safer performance. Fol­low instructions for lubricating the Jack. The handles must be kept clean, dry and free from oil and
grease at all times.

12. STAY ALERT. Watch what you are doing, use common sense. Do not operate any tool when you
are tired.

13. CHECK DAMAGED PARTS. Before using any tool, any part that appears damaged should be
carefully checked to determine that it will operate properly and perform its intended function. Check

for alignment and binding of moving parts, any broken parts or mounting xtures; and any other

condition that may affect proper operation. Any part that is damaged should be properly repaired or

replaced by a qualied technician.

14. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical replace­ment parts. Use of any other parts will void the warranty. Only use accessories intended for use with
this tool. Approved accessories are available from Harbor Freight Tools.

15. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. Read

warning labels on prescriptions to determine if your judgment or reexes are impaired while taking

drugs. If there is any doubt, do not operate the tool.

16. MAKE SURE ALL EQUIPMENT IS RATED TO THE APPROPRIATE CAPACITY. Never
exceed the 6000 lbs. maximum lift capacity.

UNPACKING

Remove your 3 TON FLOOR JACK from the packaging materials.

When unpacking, check to make sure the following parts
are included. All sizes listed below are approximate. If any
parts are missing or broken, please call Harbor Freight Tools
at the number on the cover of this manual.

Item #

N/A
36
37

Always use good quality hydraulic jack oil when adding or replacing the oil in your Floor Jack. Do

not mix different types of oils together. When lling the Floor Jack with oil, do not permit dirt or any

other substance to enter the hydraulic system.

Description

Jack
Lower Handle
Upper Handle

GENERAL

The Floor Jack is HEAVY.

Use caution when lifting

CAUTION

out of box.

Page# 3 — SKU: 34271

REV 03/04
