ATV LIFT
- 1500 LB. CAPACITY
2792
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2002 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight
Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual
product may differ slightly from the product described herein. Tools required for assembly and service may not
be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10c
SPECIFICATIONS
Maximum Capacity 1500 lb. (dead weight, evenly distributed)
Lift Range 4-1/2” x 16”
Ram Travel 5-1/4”
Overall Dimensions 4-1/2” x 15” W x 32” L
Pad Dimensions 2-3/4” W x 13-1/4” L x 1/4” Thick
Casters 1-1/4” W x 2-1/2” Dia. (360 degree swivel)
Weight 73.5 lb.
Features: 4 different work heights, foot activated pump and release valve.
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your
invoice with this manual. Write the invoice number on the inside of the front cover.
Keep the manual and invoice in a safe and dry place for future reference.
SAFETY WARNINGS AND
PRECAUTIONS
WARNING: When using this product, ba-
sic safety precautions should always
be followed to reduce the risk of
personal injury and damage to equip-
ment.
Read all instructions before use!
Keep work area clean1. . Cluttered
areas invite injuries.
Observe work area conditions2. . Do
not use ATV Lift in damp or wet loca-
tions. Don’t expose to rain. Keep
work area well lighted.
Keep children away3. . Children must
never be allowed in the work area.
Do not let them play with the ATV Lift.
Store idle equipment4. . When not in
use, ATV Lift must be stored in a dry
location to inhibit rust. Always lock
up ATV Lift in a secure location, out
of reach of children.
Use the right tool for the job5. . Do
not attempt to force a small product
or attachment to do the work of a
larger industrial product. There are
certain applications for which this
product was designed. It will do the
job better and more safely at the rate
for which it was intended. Do not
modify this product and do not use
this product for a purpose for which it
was not intended.
Dress properly6. . Do not wear loose
clothing or jewelry as they can be
caught in moving parts. Protective,
electrically non-conductive clothes
and non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.
Use eye protection7. . Always wear
ANSI approved impact safety goggles.
Do not overreach8. . Keep proper
footing and balance at all times. Do
not reach over or across running
machines.
Maintain tools with care9. . Keep
ATV Lift clean for better and safer
performance. Follow instructions for
SKU 2792 For technical questions, please call 1-800-444-3353. Page 2
lubricating and changing accessories.
Inspect the ATV Lift periodically, and
if damaged, have it repaired by an
authorized technician. The handle
and pedals must be kept clean, dry,
and free from oil and grease at all
times.
Stay alert10. . Watch what you are do-
ing, use common sense. Do not oper-
ate the ATV Lift when you are tired.
Check for damaged parts11. . Before
using any product, any part that ap-
pears damaged should be carefully
checked to determine that it will oper-
ate properly and perform its intended
function. Check for alignment and
binding of moving parts; any broken
parts or mounting xtures; and any
other condition that may affect proper
operation. Any part that is damaged
should be properly repaired or re-
placed by a qualied technician. Do
not use this product if the Stop Bar
(9) doesn’t work properly.
Replacement parts and acces-12.
sories. When servicing, use only
identical replacement parts. Use of
any other parts will void the warranty.
Only use accessories intended for
use with this tool. Approved accesso-
ries are available from Harbor Freight
Tools.
Do not operate ATV Lift if under 13.
the inuence of alcohol or drugs.
Read warning labels on prescrip-
tions to determine if your judgment
or reexes are impaired while taking
drugs. If there is any doubt, do not
operate the ATV Lift
Maintenance14. . For your safety, main-
tenance should be performed regu-
larly by a qualied technician.
SKU 2792 For technical questions, please call 1-800-444-3353. Page 3
Additional Safety Warnings and
Precautions
Only operate the Lift on a at, dry, 1.
level surface, capable of supporting
the Lift and the load.
Do not attempt to lift equipment 2.
greater than the 1500 lb. maximum
capacity.
Always use good quality hydraulic oil 3.
in the Jack. Do not mix various oils,
and when lling the Jack, make sure
no dirt or debris enters the hydraulic
system.
Once an ATV or motorcycle is el-4.
evated on the Lift, do not move the lift
around. The wheels on the Lift are
designed to move the Lift without a
load.
Always engage the 5. Stop Bar (9)
when lifting a vehicle. See FIGURE 2
on page 5.
Lower the ATV or motorcycle slowly, 6.
in a controlled fashion. Never allow
the ATV or motorcycle to drop quickly.
Never allow anyone to ride this Lift 7.
when it is being raised, lowered, or
while holding an ATV or motorcycle.
Keep hands away from the 8. Lift Arms
(4 and 5) when raising or lowering
the Lift. Keep onlookers and children
a safe distance from the Lift during
operation.
Use tie-down straps (not included) to 9.
secure the load.
This is a temporary lifting device only. 10.
It is not designed to support loads for
extended periods of time.
Before each use, check for hydrau-11.
lic oil leaks; do not operate the Lift if
leaks are present.
Rev 04c, 10c
Do not drop a load onto the Lift, may 12.
create for a brief instant, an excess
load, which may result in damage to
the product and/or personal injury.
Do not use for aircraft purposes.13.
The warnings, cautions, and in-14.
structions discussed in this in-
struction manual cannot cover all
possible conditions and situations
that may occur. It must be under-
stood by the operator that com-
mon sense and caution are factors
which cannot be built into this
product, but must be supplied by
the operator.
UNPACKING
ASSEMBLY
See the Assembly Drawing on page 9.
Mounting Lifting Frame
Position the 1. Stop Bar (9) and Lifting Frame (11) as shown in the
Assembly Drawing, so that the holes
on the arms of both the Stop Bar (9)
and Lifting Frame (11) line up with
the holes on the welded tabs on the
Rear Lift Arms (5). Place Bolts (7)
through the tabs, Lifting Frame (11),
Bushings (30), and Stop Bar (9).
Note: The Bushings t around the
Bolts and inside the Stop Bar.
-See the inset in the parts diagram
on page 9.
When unpacking, make sure the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon
as possible.

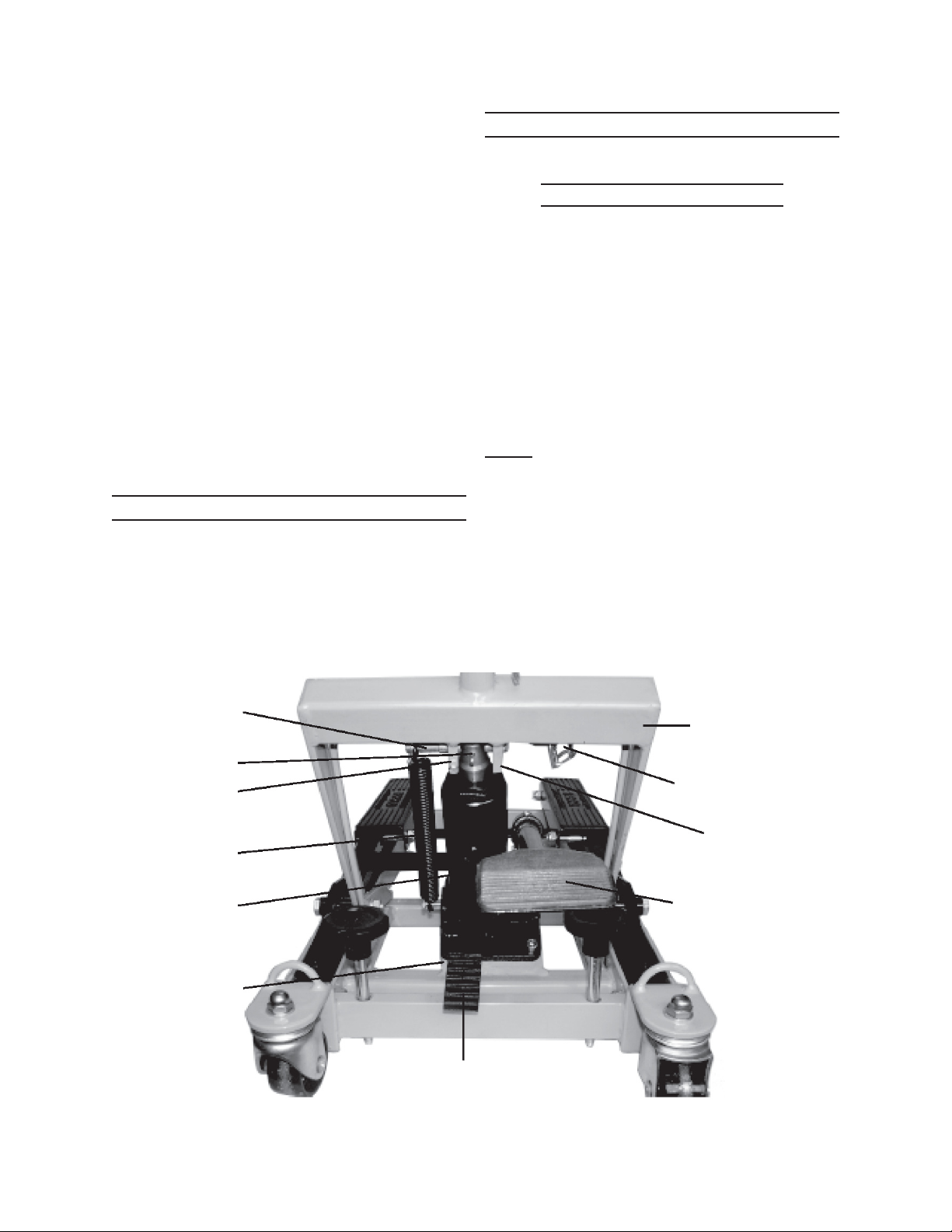

Pin (37)
Ram
Bolt (36)
Spring (21)
Jack (16)
Jack Mounting Plate
Secure the Bolts with 2. Washers (8)
and Nuts (10).
FIGURE 1
Lifting
Frame (11)
Chain
Bracket
Foot Pedal (17)
Release Pedal (18)
Rev 04c, 10c
SKU 2792 For technical questions, please call 1-800-444-3353. Page 4
