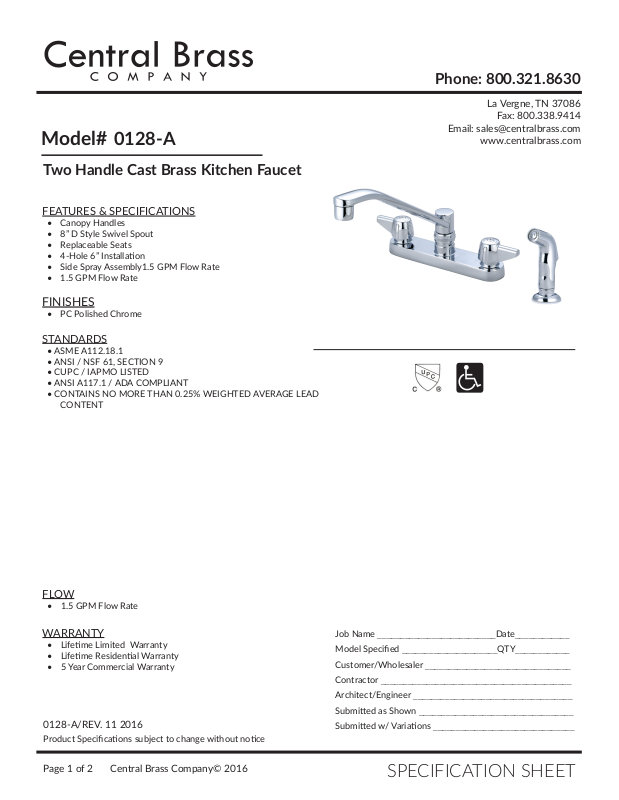

Page 1
Model# 0128-A
Two Handle Cast Brass Kitchen Faucet
FEATURES & SPECIFICATIONS
• Canopy Handles
• 8” D Style Swivel Spout
• Replaceable Seats
• 4-Hole 6” Installaon
• Side Spray Assembly1.5 GPM Flow Rate
• 1.5 GPM Flow Rate
FINISHES
• PC Polished Chrome
STANDARDS
• ASME A112.18.1
• ANSI / NSF 61, SECTION 9
• CUPC / IAPMO LISTED
• ANSI A117.1 / ADA COMPLIANT
• CONTAINS NO MORE THAN 0.25% WEIGHTED AVERAGE LEAD
CONTENT
Phone: 800.321.8630
La Vergne, TN 37086
Fax: 800.338.9414
Email: [email protected]
www.centralbrass.com
FLOW
• 1.5 GPM Flow Rate
WARRANTY
• Lifeme Limited Warranty
• Lifeme Residenal Warranty
• 5 Year Commercial Warranty
0128-A/REV. 11 2016
Product Specicaons subject to change without noce
Page 1 of 2 Central Brass Company© 2016
Job Name __________________________Date____________
Model Specied _____________________QTY____________
Customer/Wholesaler ________________________________
Contractor __________________________________________
Architect/Engineer ___________________________________
Submied as Shown __________________________________
Submied w/ Variaons _______________________________
SPECIFICATION SHEET
Page 2
Model# 0128-A
OPEN
OPEN
Two Handle Cast Brass Kitchen Faucet
Phone: 800.321.8630
La Vergne, TN 37086
Fax: 800.338.9414
Email: [email protected]
www.centralbrass.com
CLOSE
CLOSE
62.3mm
62.3mm
[2 7/16"]
[1 1/8"]
29mm MAX
29mm MAX
44.9mm
44.9mm
[1 3/4"]
[1 3/4"]
[2 7/16"]
[1 1/8"]
OPEN
OPEN
152.4mm
152.4mm
[6"]
[6"]
199.5mm
199.5mm
[7 7/8"]
[7 7/8"]
OPEN
OPEN
CLOSE
CLOSE
Ø29mm
Ø29mm
[1 1/8"]
[1 1/8"]
CLOSE
CLOSE
58.6mm
[2 5/16"]
58.6mm
[2 5/16"]
HOLE
HOLE
(4 PLACES)
(4 PLACES)
50.9mm
50.9mm
[2"]
[2"]
[5 3/16"]
132.2mm
[5 3/16"]
132.2mm
[6 1/4"]
159.4mm
[6 1/4"]
159.4mm
128.1mm
128.1mm
Air
Air
Gap
Gap
Vertical
Vertical
Distance
Distance
[5 1/16"]
[5 1/16"]
208.6mm
208.6mm
[8 3/16"]
[8 3/16"]
47.1mm
47.1mm
[1 7/8"]
[1 7/8"]
1/2-14 NPSM
1/2-14 NPSM
0128-A/REV. 11 2016
Product Specicaons subject to change without noce
Page 2 of 2 Central Brass Company© 2016
SPECIFICATION SHEET
