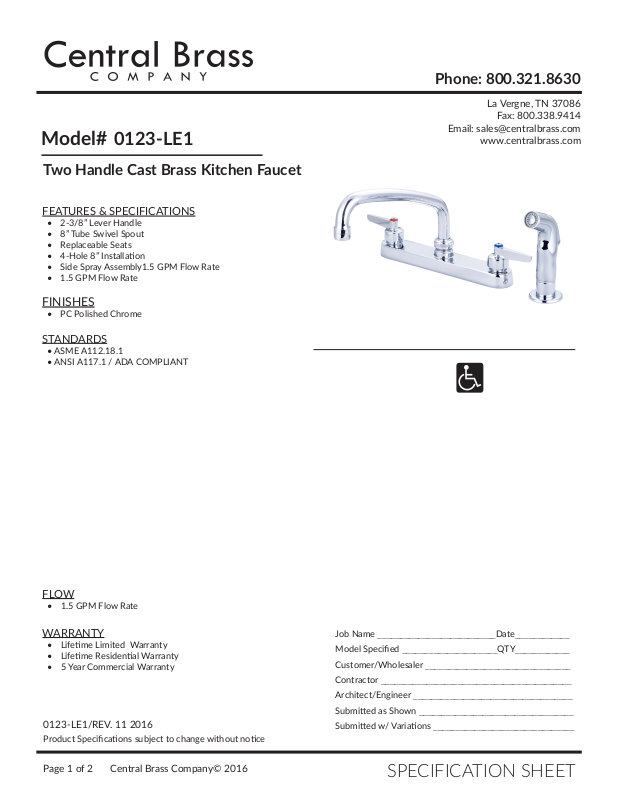

Central Brass CTB1583 Specifications

Model# 0123-LE1

Two Handle Cast Brass Kitchen Faucet

FEATURES & SPECIFICATIONS

• 2-3/8” Lever Handle

• 8” Tube Swivel Spout

• Replaceable Seats

• 4-Hole 8” Installaon

• Side Spray Assembly1.5 GPM Flow Rate

• 1.5 GPM Flow Rate

FINISHES

• PC Polished Chrome

STANDARDS

• ASME A112.18.1

• ANSI A117.1 / ADA COMPLIANT

Phone: [phone]

La Vergne, TN 37086

Fax: [phone]

Email: [email protected]

www.centralbrass.com

FLOW

• 1.5 GPM Flow Rate

WARRANTY

• Lifeme Limited Warranty

• Lifeme Residenal Warranty

• 5 Year Commercial Warranty

0123-LE1/REV. 11 2016

Product Specicaons subject to change without noce

Page 1 of 2 Central Brass Company© 2016

Job Name __________________________Date____________

Model Specied _____________________QTY____________

Customer/Wholesaler ________________________________

Contractor __________________________________________

Architect/Engineer ___________________________________

Submied as Shown __________________________________

Submied w/ Variaons _______________________________

SPECIFICATION SHEET

Model# 0123-LE1

CLOS

Two Handle Cast Brass Kitchen Faucet

Phone: [phone]

La Vergne, TN 37086

Fax: [phone]

Email: [email protected]

www.centralbrass.com

CLOSE

64.2mm

29mm MAX

E

OPEN

OPEN

60mm

60mm

[2 3/8"]

[2 3/8"]

[2 1/2"]

64.2mm

[2 1/2"]

[1 1/8"]

[1 1/8"]

29mm MAX

203.2mm

203.2mm

[8"]

[8"]

252.6mm

252.6mm

[9 15/16"]

[9 15/16"]

OPEN

OPEN

Ø29mm

Ø29mm

[Ø1 1/8"]

[Ø1 1/8"]

CLOSE

CLOSE

50.9mm

50.9mm

[2 3/8"]

60.5mm

[2 3/8"]

60.5mm

HOLE

HOLE

(4 PLACES)

(4 PLACES)

[2"]

[2"]

[5 3/16"]

132.2mm

[5 3/16"]

132.2mm

[6 1/8"]

155.4mm

[6 1/8"]

155.4mm

91mm

91mm

Air

Air

Gap

Gap

Vertical

Vertical

Distance

Distance

1/2-14 NPSM

1/2-14 NPSM

200mm

200mm

[7 7/8"]

[7 7/8"]

48.6mm

48.6mm

[1 15/16"]

[1 15/16"]

[3 9/16"]

[3 9/16"]

0123-LE1/REV. 11 2016

Product Specicaons subject to change without noce

Page 2 of 2 Central Brass Company© 2016

SPECIFICATION SHEET
