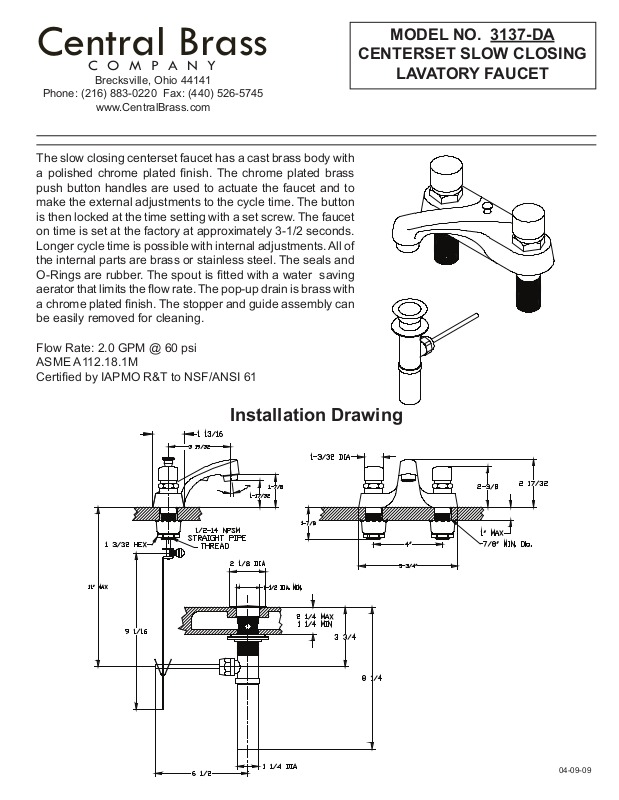

Page 1
MODEL NO. 3137-DA
Central Brass
C O M P A N Y
CENTERSET SLOW CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The slow closing centerset faucet has a cast brass body with
a polished chrome plated nish. The chrome plated brass
push button handles are used to actuate the faucet and to
make the external adjustments to the cycle time. The button
is then locked at the time setting with a set screw. The faucet
on time is set at the factory at approximately 3-1/2 seconds.
Longer cycle time is possible with internal adjustments. All of
the internal parts are brass or stainless steel. The seals and
O-Rings are rubber. The spout is tted with a water saving
aerator that limits the ow rate. The pop-up drain is brass with
a chrome plated nish. The stopper and guide assembly can
be easily removed for cleaning.
Flow Rate: 2.0 GPM @ 60 psi
ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
LAVATORY FAUCET

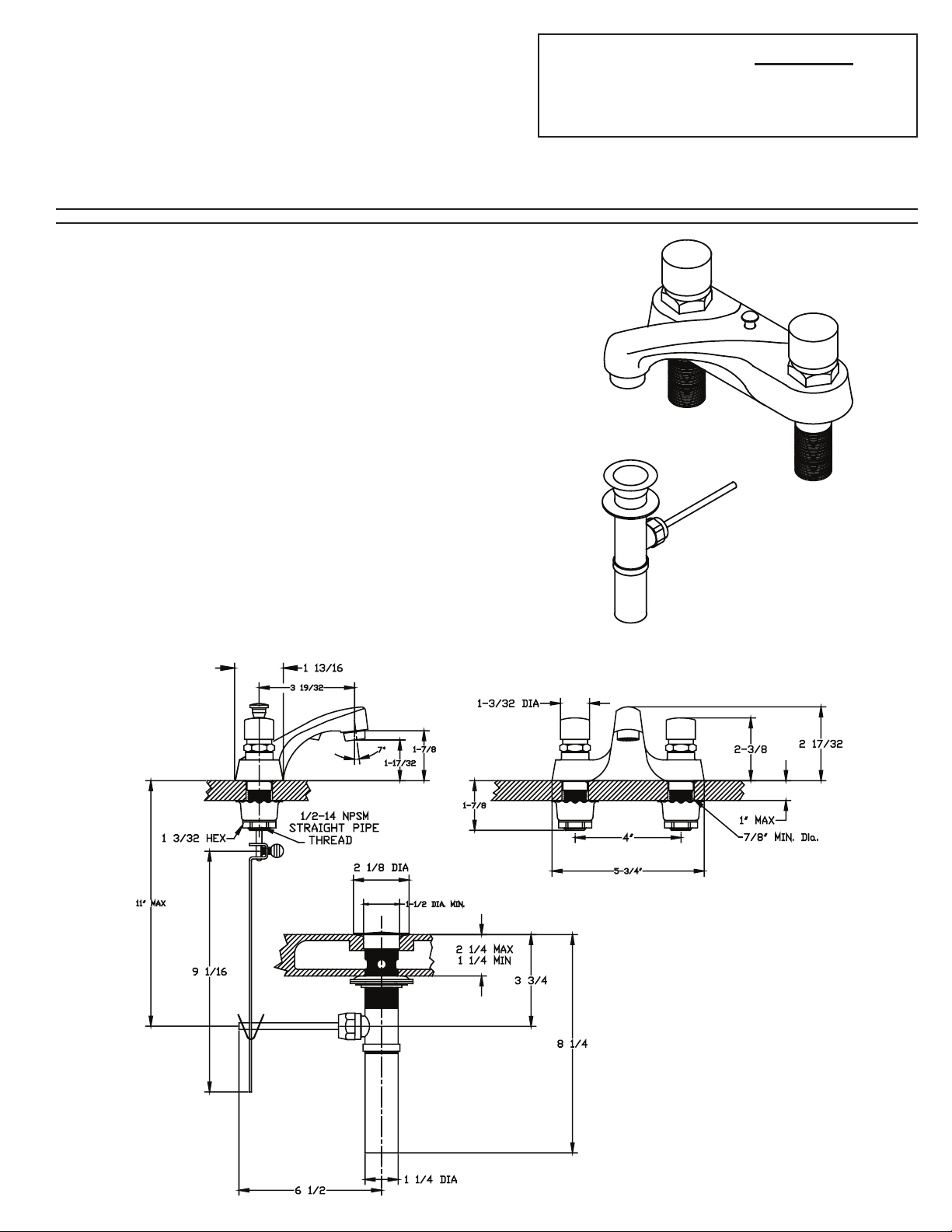

Installation Drawing
04-09-09
Page 2
MODEL NO. 3137-DA
Central Brass
C O M P A N Y
CENTERSET SLOW CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
21
20
19
18
17
16
15
14
13
12
11
10
LAVATORY FAUCET
22
23
25
9
8
7
6
5
24
4
27
3
2
1
28
26
29 3130
38
37
36
35
34
33
32
04-09-09
Page 3
MODEL NO. 3137-DA
Central Brass
C O M P A N Y
CENTERSET SLOW CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
# Part # Description
1 4015-BAR Brass Coupling Nut
2 7133-AL Aluminum Locknut
3 264-F Steel Washer
4 2143-3137 Brass Faucet Body
5 170-K Stainless Steel Screw

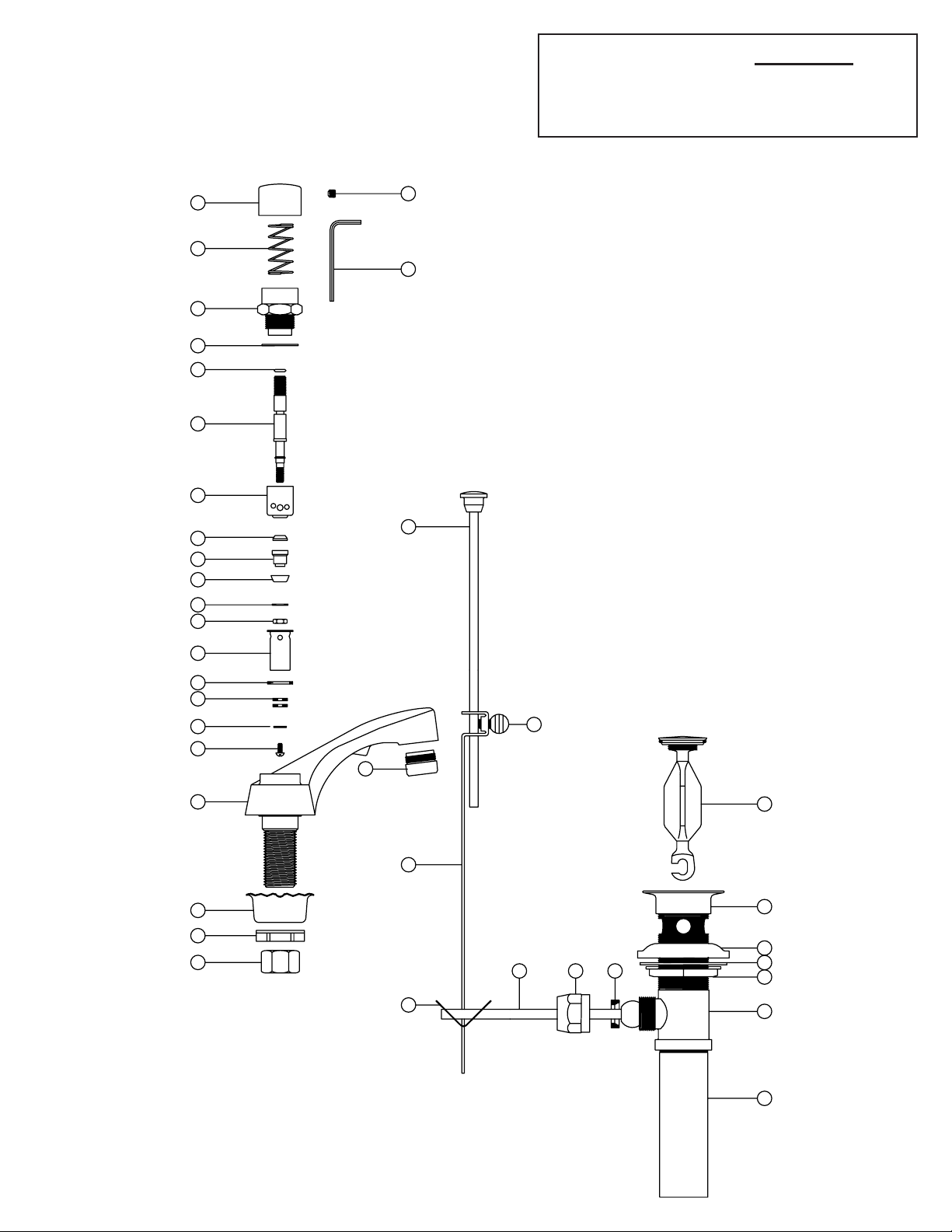

Parts Breakdown
The parts listed in the parts breakdown above may not
be offered separately as replacement parts. Please
review the Replacement Parts page for the authorized
replacement parts that are available for this item.
6 170-H Brass Washer
7 170-J Felt Washer
8 170-P Gasket
9 PF-170-E Brass Dashpot
10 PF-170-N Brass Nut
11 279-L Brass Washer
12 170-CW Cup Washer
13 PF-170-D Brass Holder
14 170-F Seat Washer
15 353-S Celcon Sleeve
16 PF-170-C Brass Stem
17 1038-CRN O-Ring
18 1028-Y Nylon Gasket
19 PF-170-B Brass Bonnet
20 170-L Stainless Steel Spring
21 PF-170-AC Push Button - Indexed “C”
21 PF-170-AH Push Button - Indexed “H”
22 103-HS Stainless Steel Set Screw
23 170-WA Steel Hex Wrench
24 30-L Male Aerator
25 SU-195-BT9 Brass Pull Rod
26 113-PTS Steel Screw
27 PF-195 Steel Bracket
28 195-CT Stainless Steel Clip
29 SU-195-SAT Chrome Plated Brass Lever Rod
30 192-NBB Brass Nut
31 409-PT Celcon Packing
32 707-T Brass Tailpiece - 17 Gauge
33 2148-T1109 Brass Pop-Up Tee Body
34 2058-ST1109 Zinc Locknut
35 51-D1109 Steel Washer
36 994-1109 Rubber Washer
37 2056-SPT1109 Brass Flange
38 G-2115-TP Stopper & Guide
LAVATORY FAUCET
04-09-09
