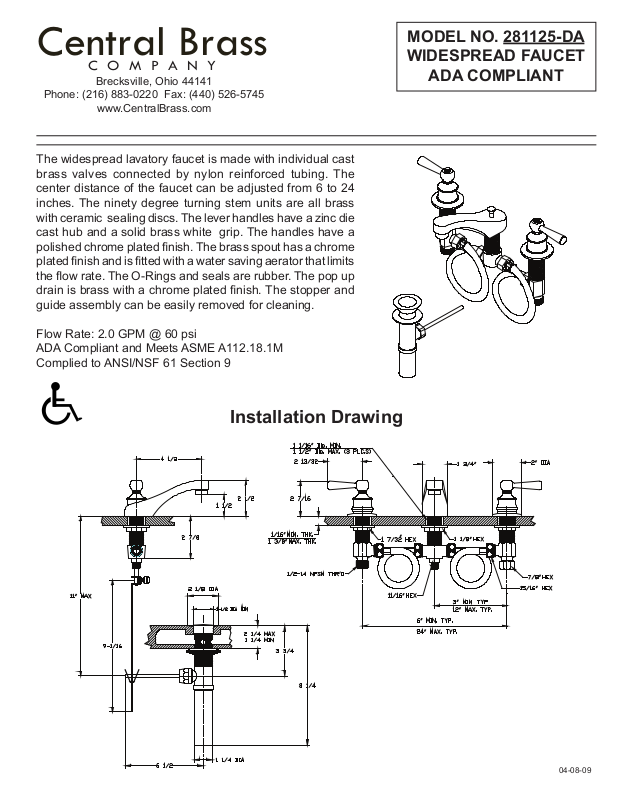

Page 1
MODEL NO. 281125-DA
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The widespread lavatory faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The
center distance of the faucet can be adjusted from 6 to 24
inches. The ninety degree turning stem units are all brass
with ceramic sealing discs. The lever handles have a zinc die
cast hub and a solid brass white grip. The handles have a
polished chrome plated nish. The brass spout has a chrome
plated nish and is tted with a water saving aerator that limits
the ow rate. The O-Rings and seals are rubber. The pop up
drain is brass with a chrome plated nish. The stopper and
guide assembly can be easily removed for cleaning.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Complied to ANSI/NSF 61 Section 9
ADA COMPLIANT
Installation Drawing
04-08-09
Page 2
MODEL NO. 281125-DA
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
ADA COMPLIANT
04-08-09
Page 3
MODEL NO. 281125-DA
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

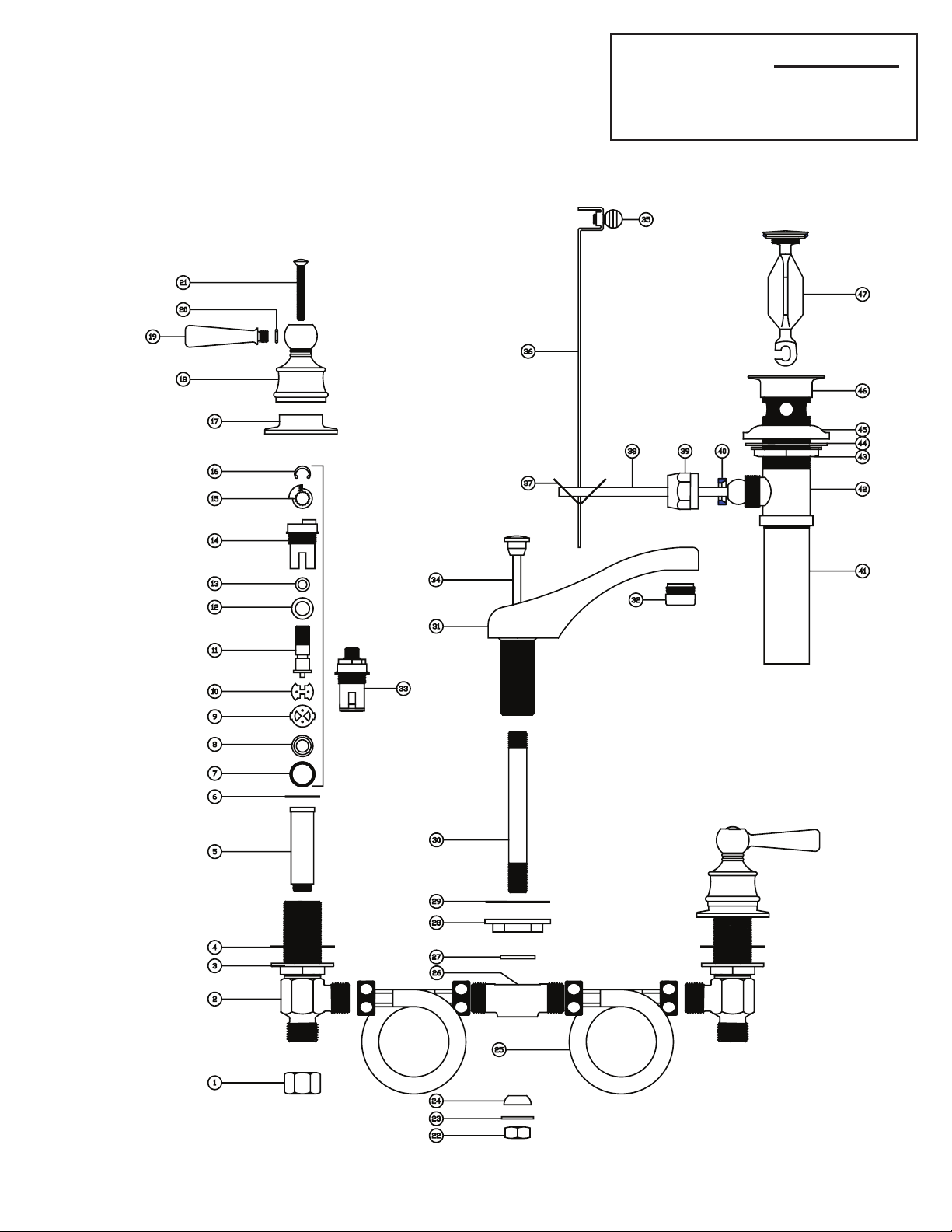

Parts Breakdown
# Part # Description
1 4015-BAR Brass Coupling Nut
2 2970-S Brass Corner Valve Body
3 53-AS Locknut
4 491-U Fiber Gasket
5 PF-350-E Brass Seat
6 1028-Y Nylon Gasket
7 184-A Celcon Retainer
8 183-A Rubber Seal
9 182 Ceramic Disc - Lower
10 181 Ceramic Disc - Upper
11 352-S Brass Stem
12 180 Celcon Washer
13 1038-E14 O-Ring
14 352-B Brass Bonnet
15 352-SS Brass Stop
16 352-CR Crescent Ring
17 524-B Escutcheon
18 512-HUB-02 Handle Hub
19 SU-512-G-15 White Handle With O-Ring
20 1038-HDL O-Ring
21 107-F15/8 Brass Phillips Head Screw
22 168-B Brass Hex Nut
23 28-A Brass Washer
24 954-AN Slip Joint Washer
ADA COMPLIANT
# Part # Description
25 312-10N Flexible Hose Connector
26 2003 Brass Center Tee
27 427-WS Rubber Gasket
28 53-CZ Locknut
29 52-S Steel Washer
30 PF-725-GH Brass Spout Tube
31 2090-CP Cast Brass Spout
32 30-L Male Aerator
33 SU-352-L Left Thread Stem Assembly
33 SU-352-R Right Thread Stem Assembly
34 SU-195-BT Brass Pull Rod
35 113-PTS Steel Screw
36 PF-195 Steel Bracket
37 195-CT Stainless Steel Clip
38 SU-195-SAT Chrome Plated Brass Lever Rod
39 192-NBB Brass Nut
40 409-PT Celcon Packing
41 707-T Brass Tailpiece - 17 Gauge
42 2148-T1109 Brass Pop-Up Tee Body
43 2058-ST1109 Zinc Locknut
44 51-D1109 Steel Washer
45 994-1109 Rubber Washer
46 2056-SPT1109 Brass Flange
47 G-2115-TP Stopper & Guide
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
04-08-09
