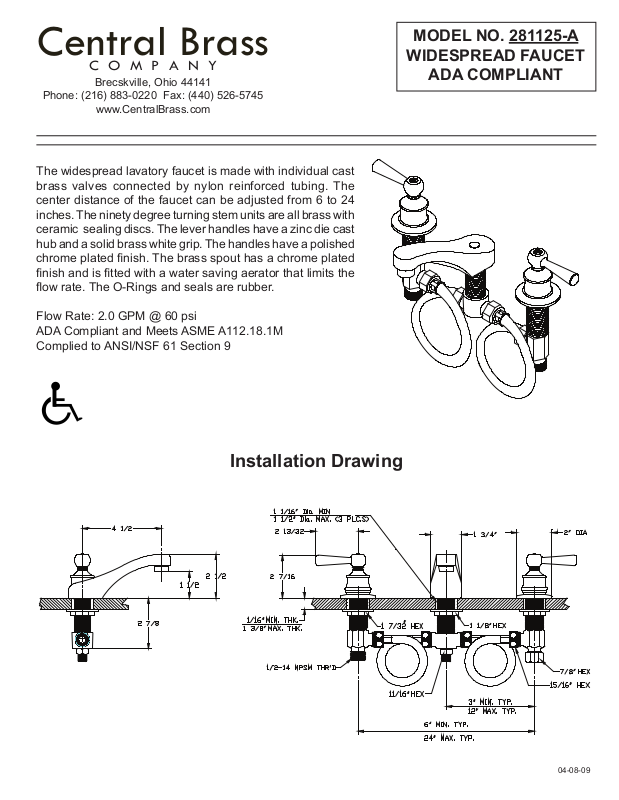

Page 1
MODEL NO. 281125-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The widespread lavatory faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The
center distance of the faucet can be adjusted from 6 to 24
inches. The ninety degree turning stem units are all brass with
ceramic sealing discs. The lever handles have a zinc die cast
hub and a solid brass white grip. The handles have a polished
chrome plated nish. The brass spout has a chrome plated
nish and is tted with a water saving aerator that limits the
ow rate. The O-Rings and seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Complied to ANSI/NSF 61 Section 9
ADA COMPLIANT
Installation Drawing
04-08-09
Page 2
MODEL NO. 281125-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
ADA COMPLIANT
04-08-09
Page 3
MODEL NO. 281125-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Parts Breakdown
# Part # Description
1 4015-BAR Brass Coupling Nut
2 2970-S Brass Corner Valve Body
3 53-AS Locknut
4 491-U Fiber Gasket
5 PF-350-E Brass Seat
6 1028-Y Nylon Gasket
7 184-A Celcon Retainer
8 183-A Rubber Seal
9 182 Ceramic Disc - Lower
10 181 Ceramic Disc - Upper
11 352-S Brass Stem
12 180 Celcon Washer
13 1038-E14 O-Ring
14 352-B Brass Bonnet
15 352-SS Brass Stop
16 352-CR Crescent Ring
17 524-B Escutcheon
18 512-HUB-02 Handle Hub
19 SU-512-G-15 White Handle With O-Ring
20 1038-HDL O-Ring
21 107-F15/8 Brass Phillips Head Screw
22 168-B Brass Hex Nut
23 28-A Brass Washer
24 954-AN Slip Joint Washer
25 312-10N Flexible Hose Connector
26 2003 Brass Center Tee
27 427-WS Rubber Gasket
28 53-CZ Locknut
29 52-S Steel Washer
30 PF-725-GH Brass Spout Tube
31 2090-CP Cast Brass Spout
32 70-WA Brass Button
33 30-L Male Aerator
34 SU-352-L Left Thread Stem Assembly
34 SU-352-R Right Thread Stem Assembly
ADA COMPLIANT
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
04-08-09
