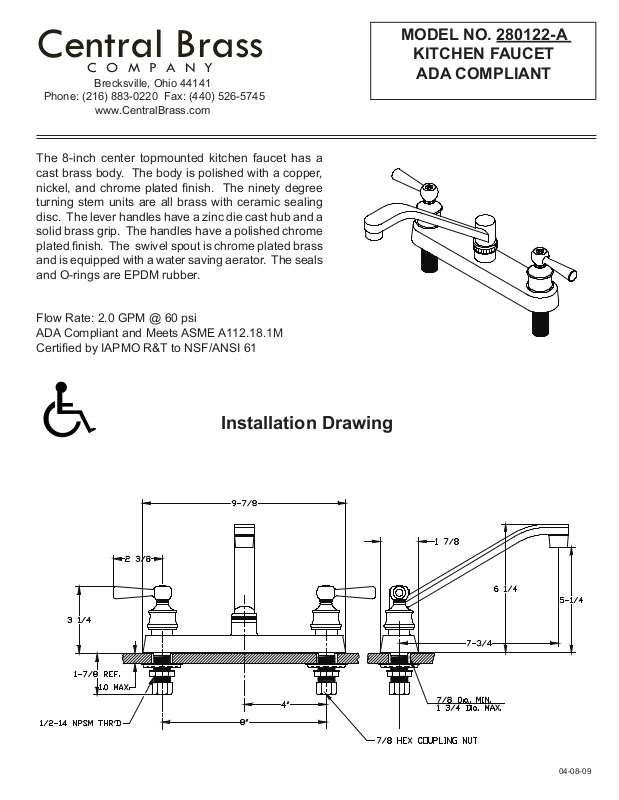

Page 1
MODEL NO. 280122-A
Central Brass
C O M P A N Y
KITCHEN FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The 8-inch center topmounted kitchen faucet has a
cast brass body. The body is polished with a copper,
nickel, and chrome plated nish. The ninety degree
turning stem units are all brass with ceramic sealing
disc. The lever handles have a zinc die cast hub and a
solid brass grip. The handles have a polished chrome
plated nish. The swivel spout is chrome plated brass
and is equipped with a water saving aerator. The seals
and O-rings are EPDM rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
ADA COMPLIANT
Installation Drawing
04-08-09
Page 2
MODEL NO. 280122-A
Central Brass
C O M P A N Y
KITCHEN FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
ADA COMPLIANT
Parts Breakdown
# Part # Description
1 4015-BAR Brass Nut
2 7133-AL Aluminum Locknut
3 54 Steel Washer
4 2103-B Brass Body
5 1028-Y Nylon Gasket
6 184-A Celcon Retainer
7 183-A Rubber Seal
8 182 Lower Ceramic Disc
9 181 Upper Ceramic Disc
10 352-S Brass Stem
11 180 Celcon Washer
12 1038-E14 Rubber O-Ring
13 352-B Brass Bonnet
14 352-SS Brass Stop
15 352-CR Brass C-ring
16 512-HUB-02 Zinc Hub
17 SU-512-G-15 White Handle With O-Ring
18 1038-HDL Rubber O-Ring
19 107-F15/8 Brass Screw
20 1038-KN Rubber O-Rings
21 166-F Stainless Steel Snap Ring
22 PF-782-D Brass Spout Nut
23 PF-365-CA Brass Spout
24 30-M Female Aerator
25 SU-352-L/R Hot/Cold Cartridge
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
04-08-09
