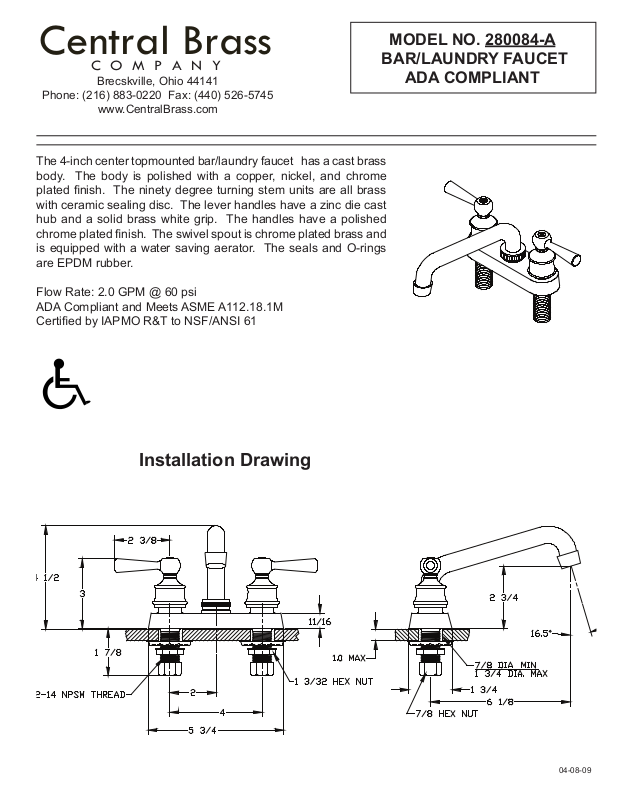

Page 1
Central Brass
C O M P A N Y
MODEL NO. 280084-A
BAR/LAUNDRY FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The 4-inch center topmounted bar/laundry faucet has a cast brass
body. The body is polished with a copper, nickel, and chrome
plated nish. The ninety degree turning stem units are all brass
with ceramic sealing disc. The lever handles have a zinc die cast
hub and a solid brass white grip. The handles have a polished
chrome plated nish. The swivel spout is chrome plated brass and
is equipped with a water saving aerator. The seals and O-rings
are EPDM rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
ADA COMPLIANT

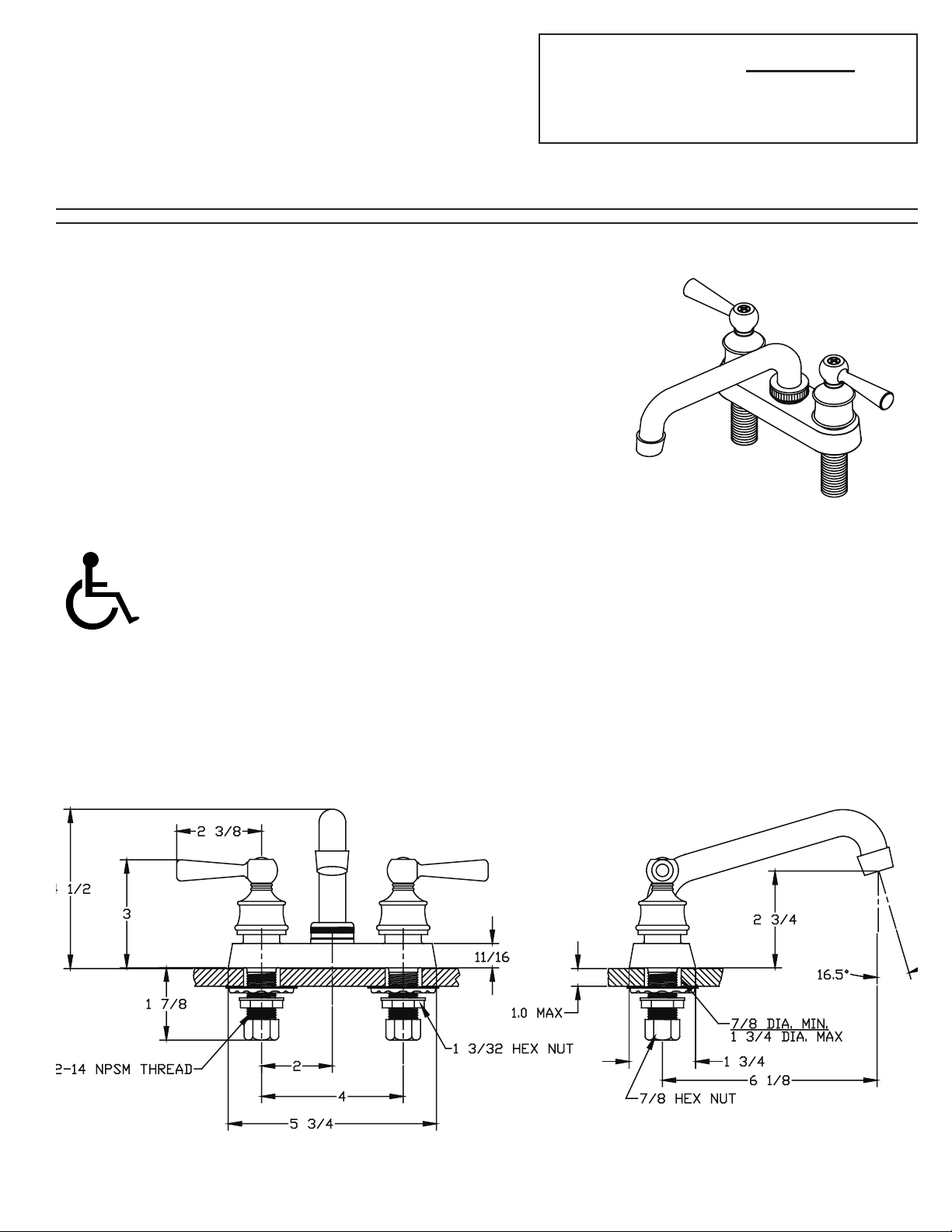

Installation Drawing
04-08-09
Page 2
Central Brass
C O M P A N Y
MODEL NO. 280084-A
BAR/LAUNDRY FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
ADA COMPLIANT

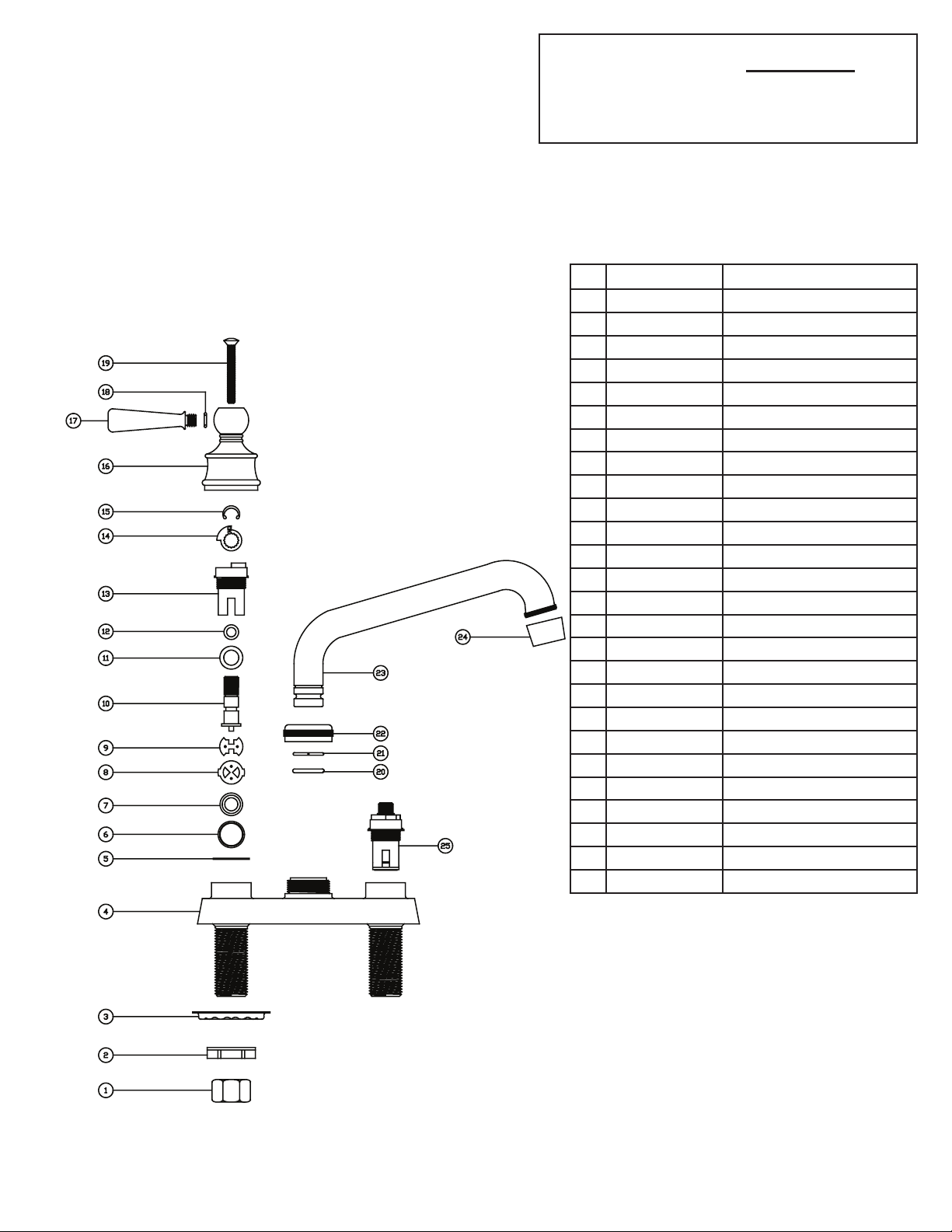

Parts Breakdown
# Part # Description
1 4015-BAR Brass Coupling Nut
2 7133-AL Aluminum Locknut
3 54 Steel Crowfoot Washer
4 2103-B Brass Faucet Body
5 1028-Y Nylon Gasket
6 184-A Celcon Retainer
7 183-A Rubber Seal
8 182 Lower Ceramic Disc
9 181 Upper Ceramic Disc
10 352-S Brass Stem
11 180 Celcon Washer
12 1038-E14 Rubber O-Ring
13 352-B Brass Bonnet
14 352-SS Brass Stop Washer
15 352-CR Brass C-Ring
16 512-HUB-02 Zinc Hub
17 SU-512-G-15 White Handle With O-Ring
18 1038-HDL Rubber O-Ring
19 107-F15/8 Brass Phillips Head Screw
20 1038-KN Rubber O-Ring
21 166-F Stainless Steel Snap Ring
22 PF-782-D Brass Spout Nut
23 PF-2924 Brass Spout
24 30-M Female Aerator
25 SU-352-L Left Ceramic Stem
25 SU-352-R Right Ceramic Stem
