MODEL NO. 201137-DA
MANUFACTURING COMPANY
2950 East 55
Phone: (216) 883-0220 Fax: (216) 883-0875
th
St. Cleveland, Ohio 44127
www.CentralBrass.com
CENTERSET LAVATOR Y FITTING
The lavatory centerset is designed with a solid cast brass
body with shanks located on four inch centers for supply
connections and mounting. The stems are all brass with a
double O-Ring seal and acrilonitrile seat washer.The lever
handles have a zinc die cast hub and a solid brass white grip.
The handles have a polished chrome plated finish. The faucet
body is polished and copper , nickel, and chrome plated. The
faucet is fitted with a water saving aerator that limits the flow
rate. The O-Rings and seals are rubber. The pop-up drain is
brass with a chrome plated finish.
Flow Rate: 2.2 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certified
ADA COMPLIANT
R
Certified to
ANSI/NSF 61/Section 9

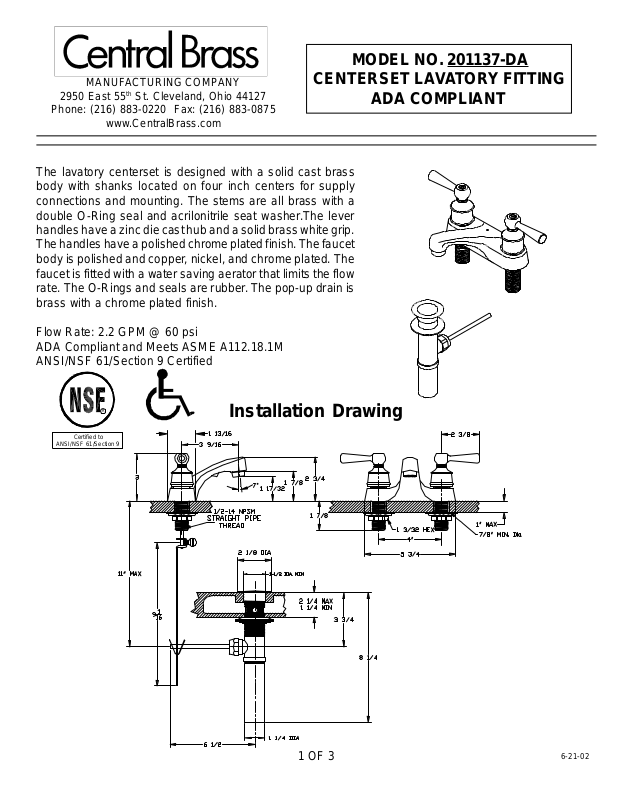

Installation Drawing
1 OF 3
6-21-02
Page 2
MODEL NO. 201137-DA
MANUFACTURING COMPANY
2950 East 55
Phone: (216) 883-0220 Fax: (216) 883-0875
th
St. Cleveland, Ohio 44127
www.CentralBrass.com
CENTERSET LAVA T ORY FITTING
ADA COMPLIANT
2 OF 3
6-21-02
Page 3
MODEL NO. 201137-DA
MANUFACTURING COMPANY
th
2950 East 55
St. Cleveland, Ohio 44127
Phone: (216) 883-0220 Fax: (216) 883-0875
www.CentralBrass.com
Parts Breakdown
# Part# Description
1 4015-BAR Brass Coupling Nut
2 7133-AL Aluminum Locknut
3 54 Steel Crowfoot Washer
4 2143-1137 Brass Faucet Body
5 263-BC Bronze Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
10 1038-453 O-Ring
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 512-HUB-02 Handle Hub
13 SU-512-G-15 White Handle With O-Ring
14 1038-HDL O-Ring
15 107-F15/8 Brass Phillips Head Screw
16 30-L Male Aera tor
17 SU-453-FL Left Thread Stem Assembly
17 SU-454-FR Right Thread Stem Assembly
18 SU-195-BT Brass Pull Rod
19 113-PTS Steel Screw
20 PF-195 Steel Bracket
21 195-CT Stainless Steel Clip
22 SU-195-SAT Chrome Plated Brass Lever Rod
23 192-NBB Brass Nut
24 409-PT Celcon Packing
25 707-T Brass Tailpiece – 17 Gauge
26 2148-T1109 Brass Pop-Up Tee Body
27 2058-ST1109 Zinc Locknut
28 51-D1109 Steel Washer
29 994-1109 Rubber Washer
30 2056-SPT1109 Brass Flange
31 SU-2113-TT Stopper & Guide
CENTERSET LAVA T ORY FITTING
ADA COMPLIANT
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
3 OF 3
6-21-02
